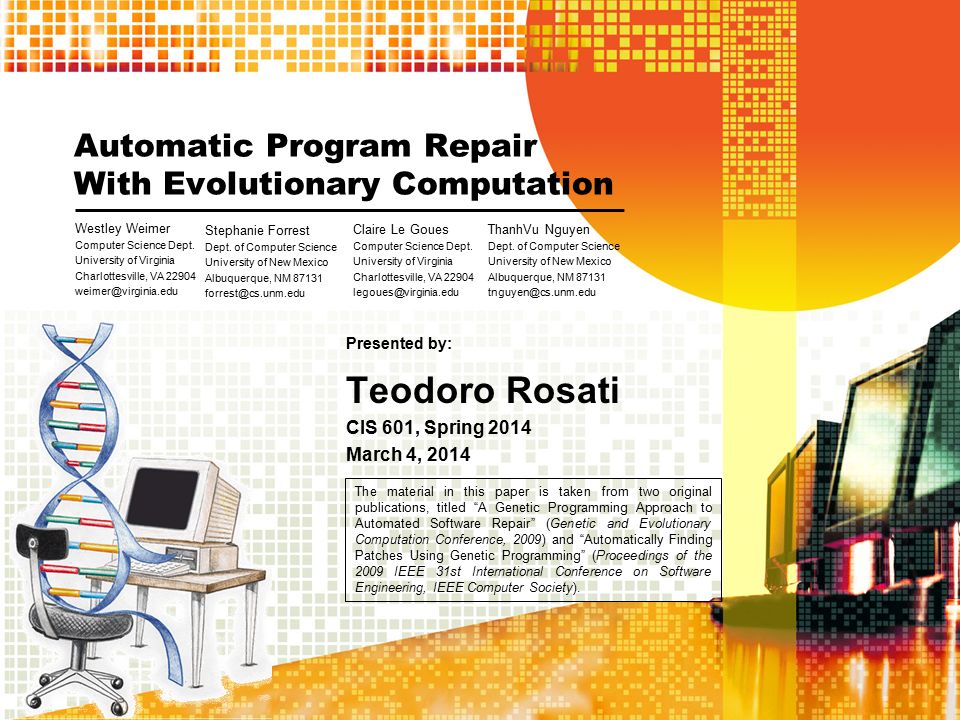

1. Automatic Program Repair With Evolutionary Computation Westley Weimer Computer Science Dept. University of Virginia Charlottesville, VA 22904 weimer@virginia.edu Stephanie Forrest Dept. of Computer Science University of New Mexico Albuquerque, NM 87131 forrest@cs.unm.edu Claire Le Goues Computer Science Dept. University of Virginia Charlottesville, VA 22904 legoues@virginia.edu ThanhVu Nguyen Dept. of Computer Science University of New Mexico Albuquerque, NM 87131 tnguyen@cs.unm.edu Presented by: Teodoro Rosati CIS 601, Spring 2014 March 4, 2014 The material in this paper is taken from two original publications, titled “A Genetic Programming Approach to Automated Software Repair” (Genetic and Evolutionary Computation Conference, 2009) and “Automatically Finding Patches Using Genetic Programming” (Proceedings of the 2009 IEEE 31st International Conference on Software Engineering, IEEE Computer Society).

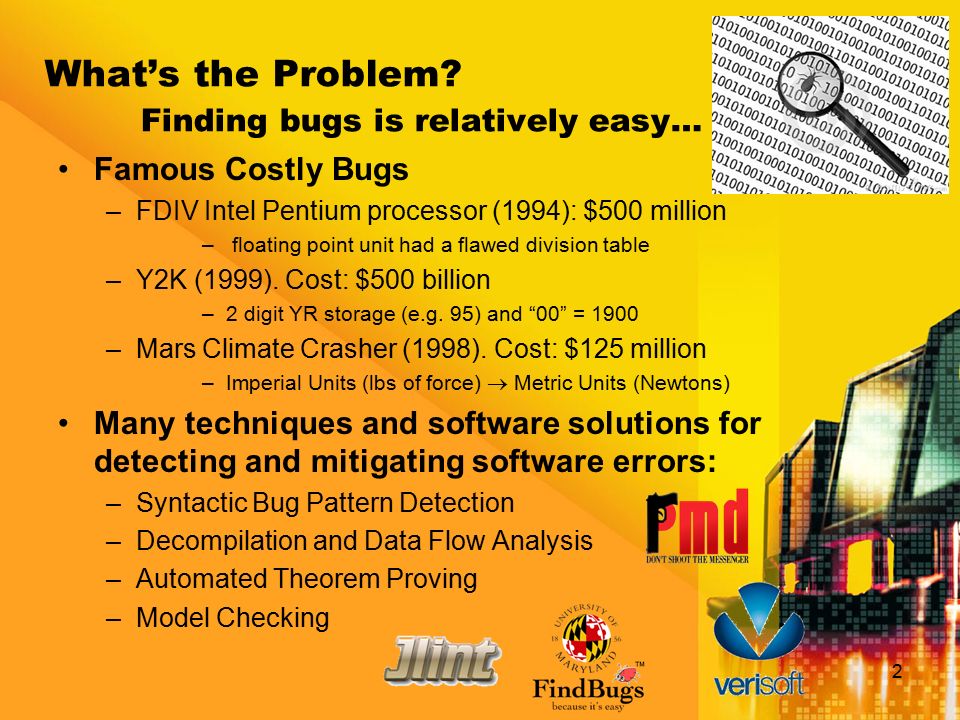

2. What’s the Problem? Finding bugs is relatively easy… Famous Costly Bugs –FDIV Intel Pentium processor (1994): $500 million – floating point unit had a flawed division table –Y2K (1999). Cost: $500 billion –2 digit YR storage (e.g. 95) and “00” = 1900 –Mars Climate Crasher (1998). Cost: $125 million –Imperial Units (lbs of force)  Metric Units (Newtons) Many techniques and software solutions for detecting and mitigating software errors: –Syntactic Bug Pattern Detection –Decompilation and Data Flow Analysis –Automated Theorem Proving –Model Checking 2

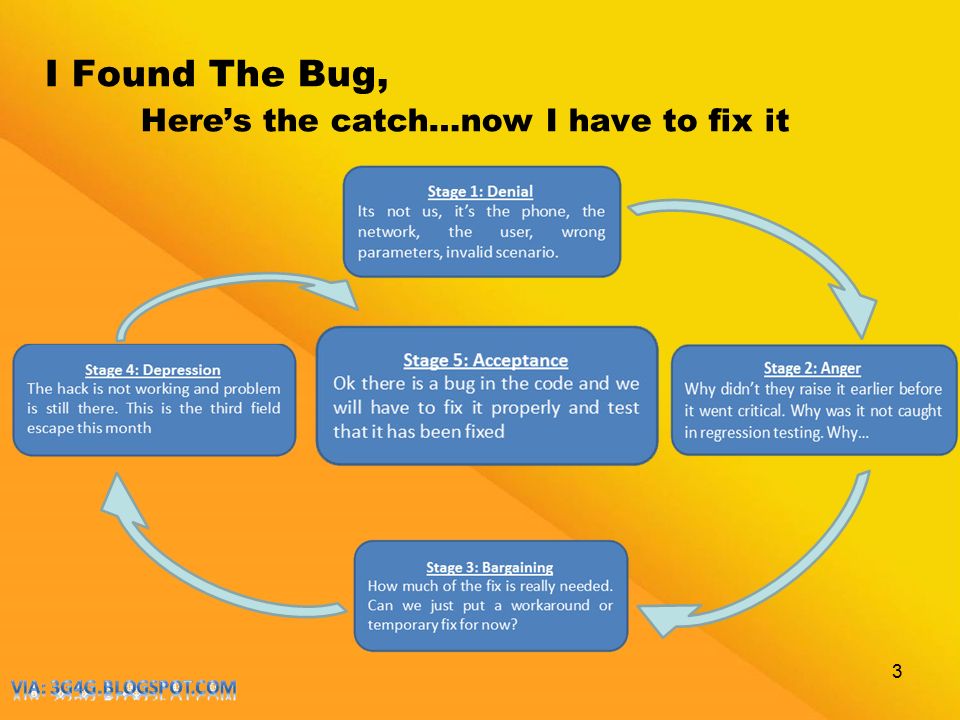

3. I Found The Bug, Here’s the catch…now I have to fix it 3

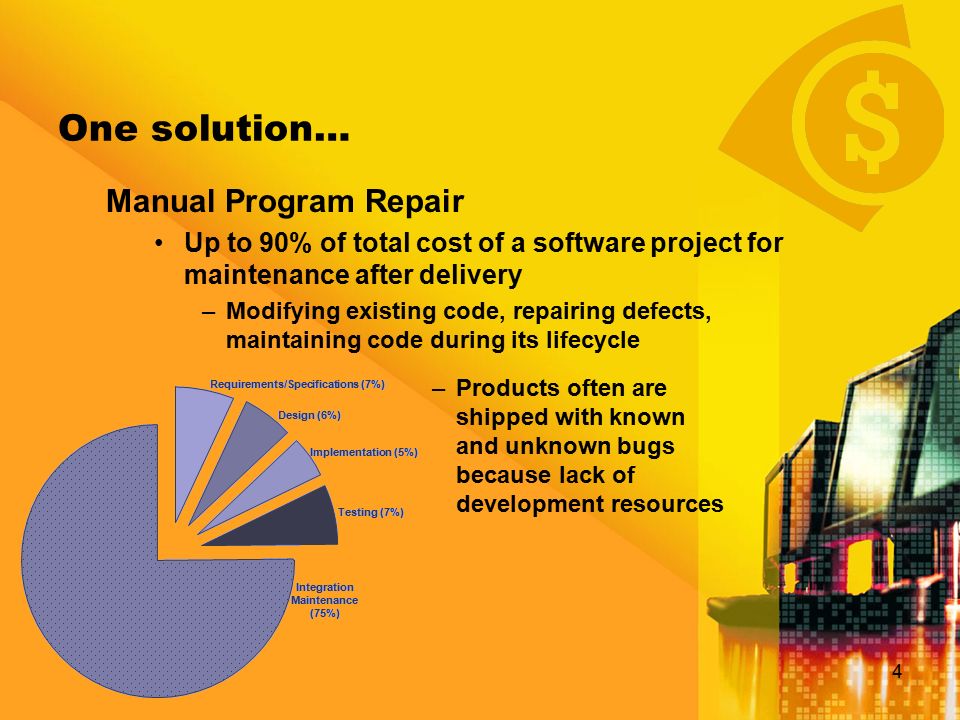

4. One solution… Manual Program Repair Up to 90% of total cost of a software project for maintenance after delivery –Modifying existing code, repairing defects, maintaining code during its lifecycle 4 –Products often are shipped with known and unknown bugs because lack of development resources

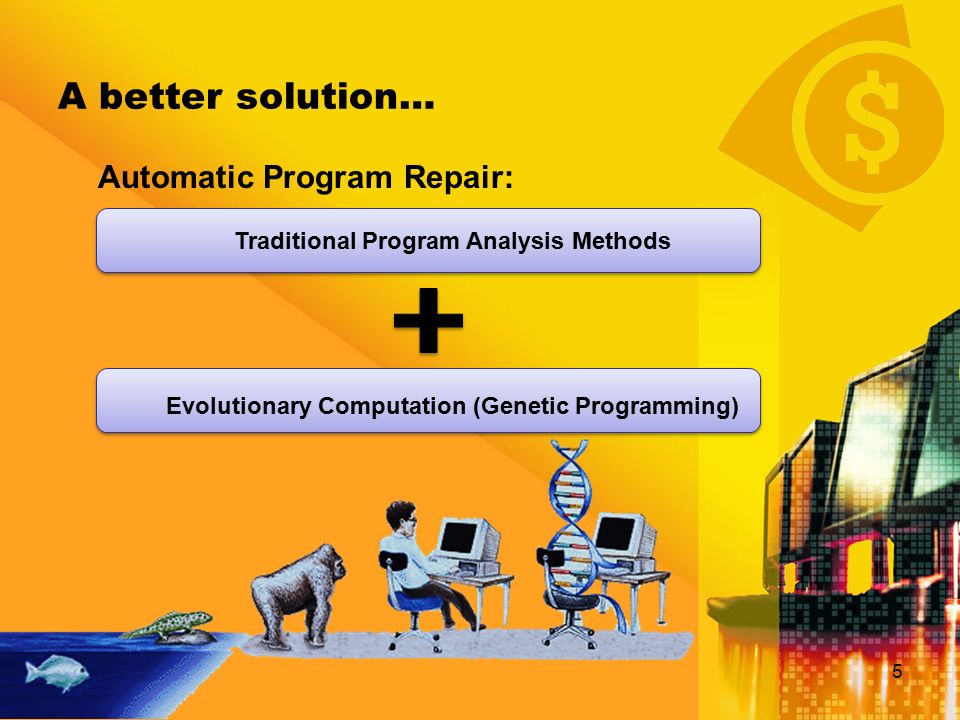

5. A better solution… Automatic Program Repair: 5 Traditional Program Analysis Methods Evolutionary Computation (Genetic Programming)

6. Experimental Design 6 Genetic Programming Evolves computer programs tailored to a task Meaning a program is modified using similar pathways to genetic evolution (mutation/crossover) GP techniques have been applied to unannotated off-the-shelf legacy C programs Individual variants V with the highest fitness are selected for continued evolution

7. 7 Evolutionary Computation Genetic Programming Inspired by biological natural selection –Endler’s guppy experiment: Diverse source population –Guppies variously colored Natural selection on population –Habitat variation, coarse vs. fine gravel –Predator presence, sight based –Evolution of drug resistant bacteria Source = normal + resistant bacteria Antibiotics promote resistant bacteria

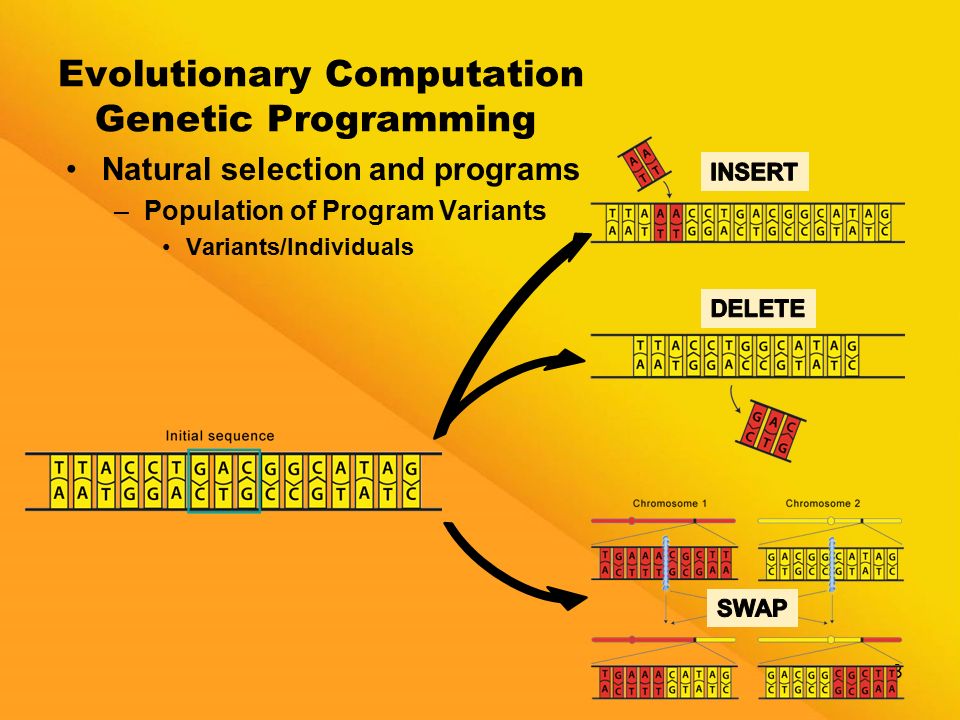

8. 8 Evolutionary Computation Genetic Programming Natural selection and programs –Population of Program Variants Variants/Individuals

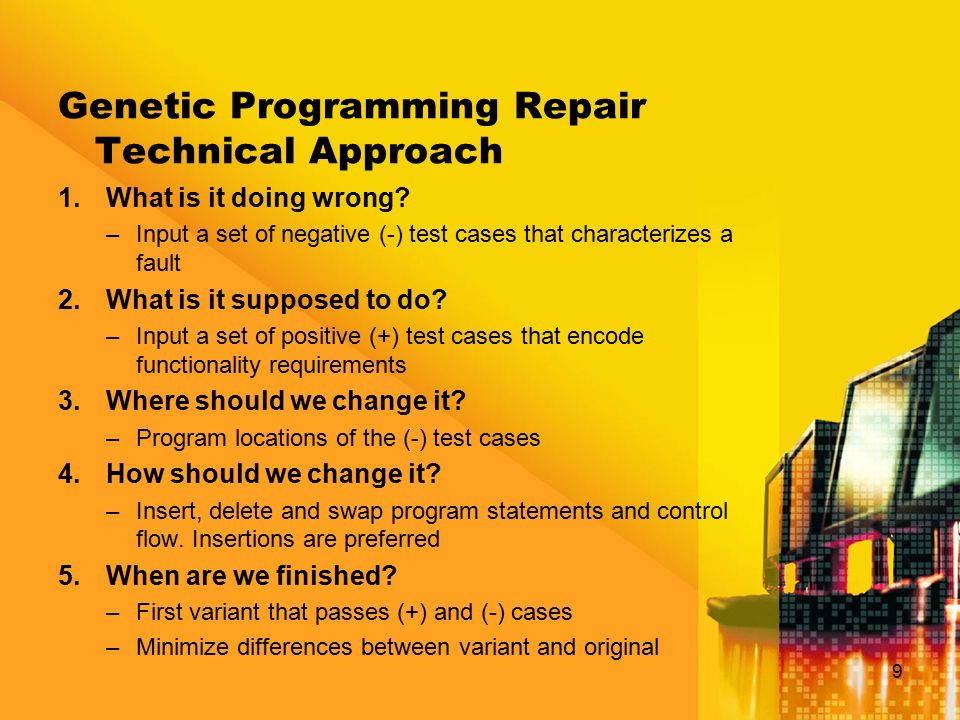

9. Genetic Programming Repair Technical Approach 1.What is it doing wrong? –Input a set of negative (-) test cases that characterizes a fault 2.What is it supposed to do? –Input a set of positive (+) test cases that encode functionality requirements 3.Where should we change it? –Program locations of the (-) test cases 4.How should we change it? –Insert, delete and swap program statements and control flow. Insertions are preferred 5.When are we finished? –First variant that passes (+) and (-) cases –Minimize differences between variant and original 9

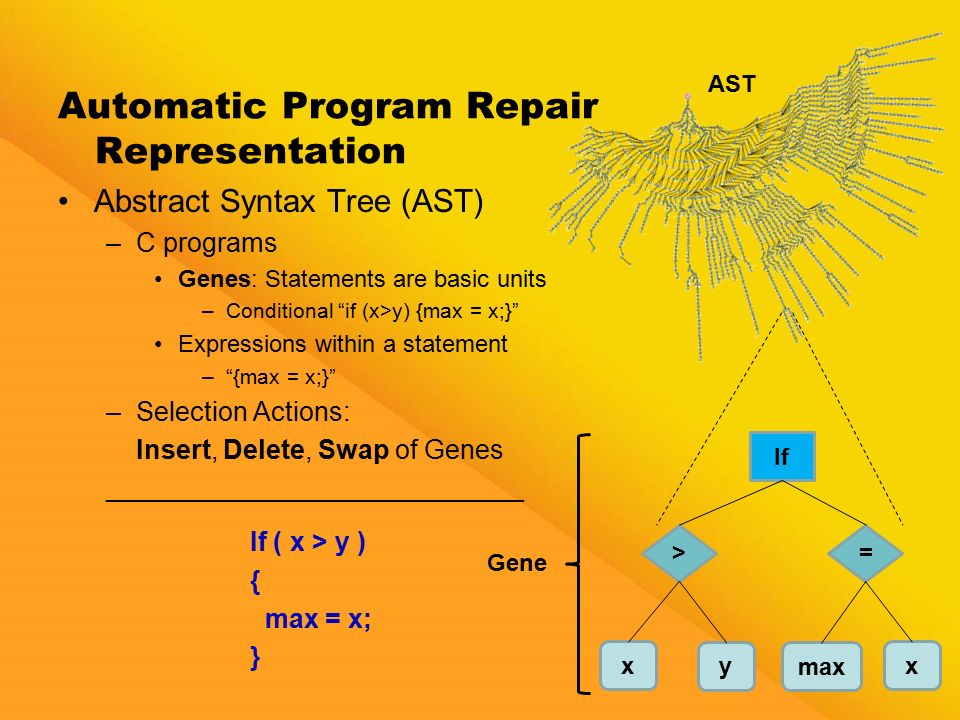

10. 10 Automatic Program Repair Representation Abstract Syntax Tree (AST) –C programs Genes: Statements are basic units –Conditional “if (x>y) {max = x;}” Expressions within a statement –“{max = x;}” –Selection Actions: Insert, Delete, Swap of Genes ____________________________ If ( x > y ) { max = x; } If x y > max x = Gene AST

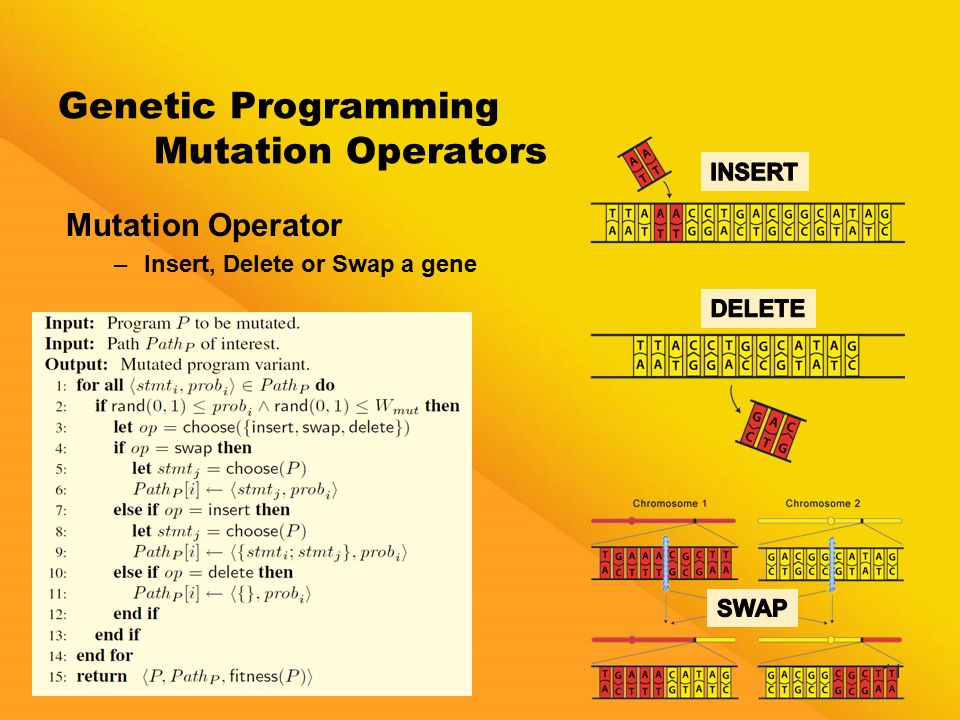

11. Genetic Programming Mutation Operators Mutation Operator –Insert, Delete or Swap a gene 11

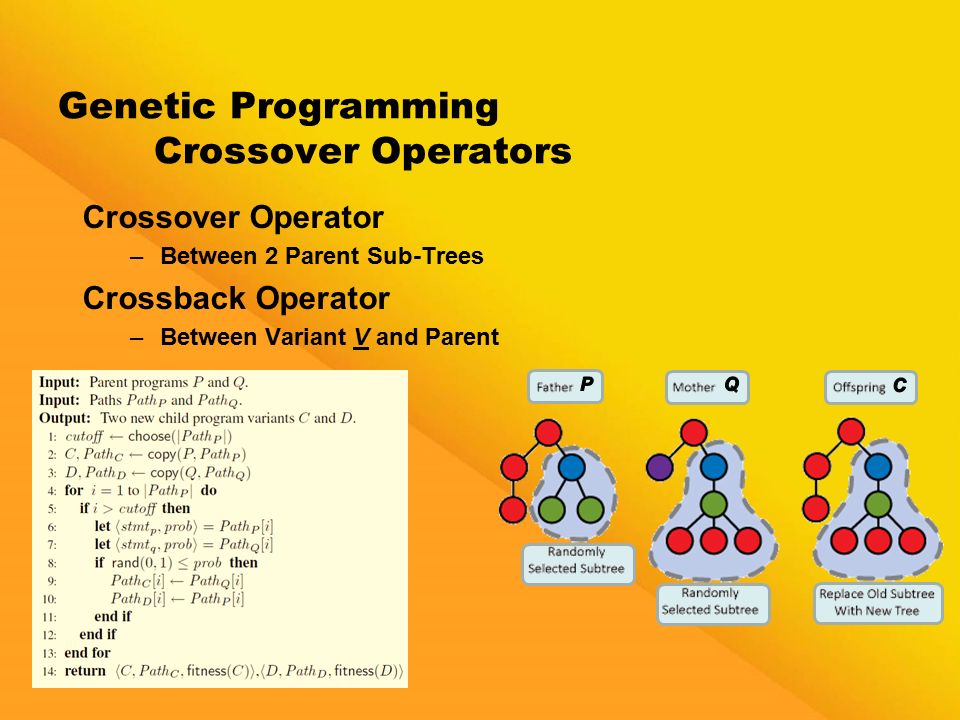

12. Genetic Programming Crossover Operators Crossover Operator –Between 2 Parent Sub-Trees Crossback Operator –Between Variant V and Parent

13. Measuring Fitness 13 Variants are compiled Testcase evaluated in virtual machine/sandbox Fitness measured using formula: fitness(P) = W PosT   { t  PosT  P passes t }  + W NegT   { t  NegT  P passes t }  Note: W PosT = weight of each successful positive test W NegT = weight of each successful negative test

14. For example… 14 December 31, 2008 –A bug was reported in Microsoft Zune media players Zune would freeze when the value of the input days is the last day of a leap year (e.g. 10,593)  INFINITE LOOP!

15. 1. What is it doing wrong?  Negative Test Cases Negative Test Case –input days set to 10,593 (last day of leap year) –program executes lines 1 – 16 –then repeats lines 3, 4, 8 and 11 infinitely

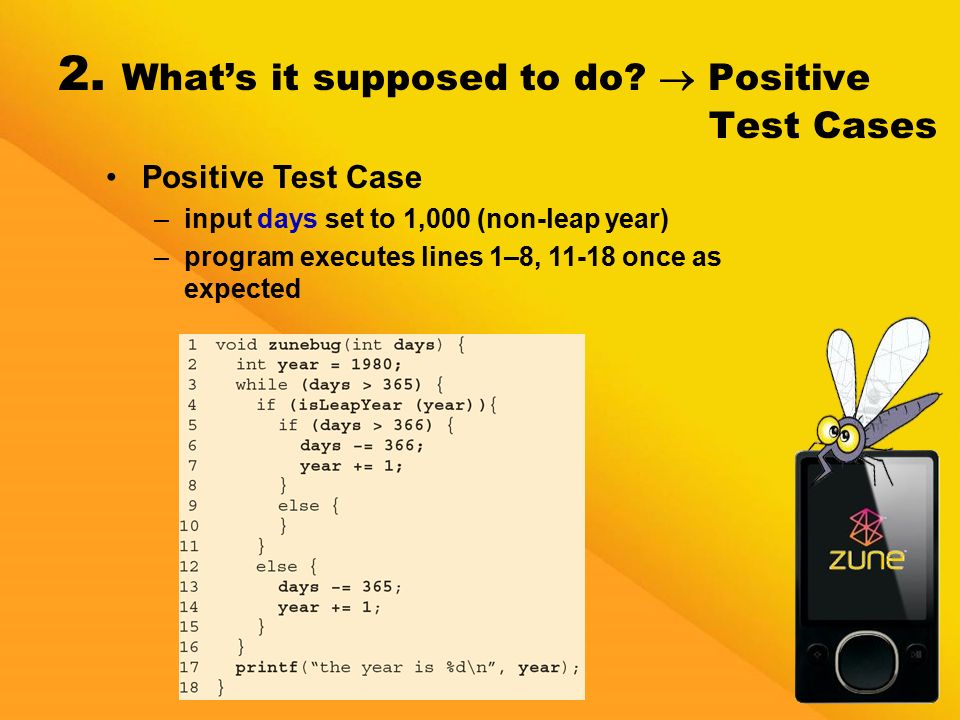

16. 2. What’s it supposed to do?  Positive Test Cases Positive Test Case –input days set to 1,000 (non-leap year) –program executes lines 1–8, 11-18 once as expected

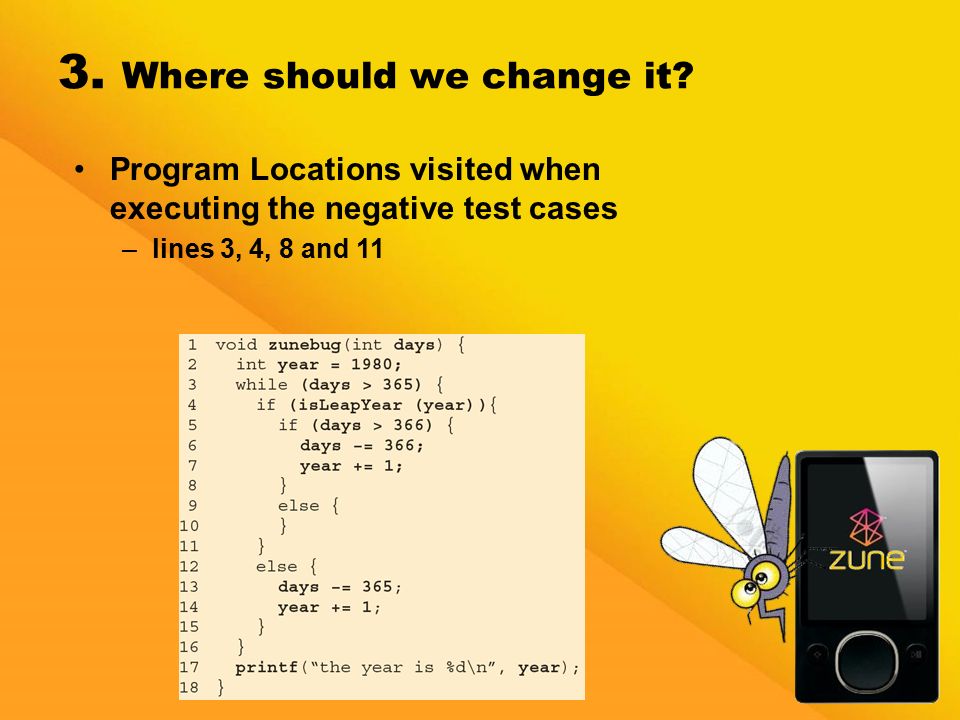

17. 3. Where should we change it? Program Locations visited when executing the negative test cases –lines 3, 4, 8 and 11

18. 4. How should we change it?  INSERT Insert an entire statement or gene –stmt j is added to stmt i stmt j

19. 4. How should we change it?  DELETE Delete an entire statement or gene –stmt i is transformed into an empty block statement stmt i

20. 4. How should we change it?  SWAP Swap an entire statement or gene –Second statement stmt j is chosen uniformly at random from anywhere in the program to replace stmt i stmt i stmt j

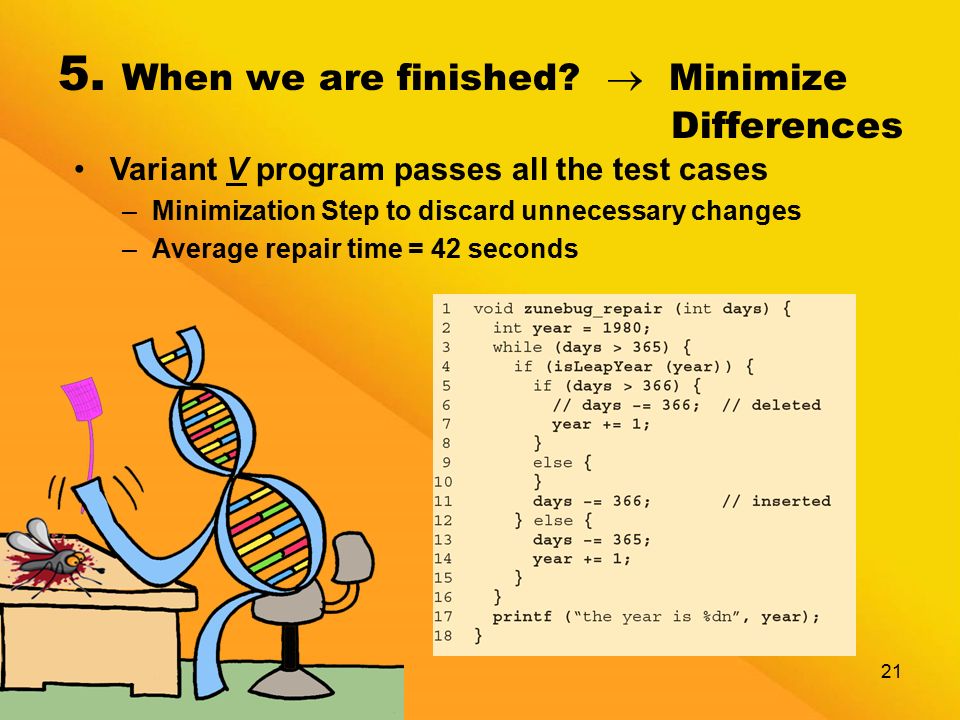

21. 5. When we are finished?  Minimize Differences 21 Variant V program passes all the test cases –Minimization Step to discard unnecessary changes –Average repair time = 42 seconds

22. Performance of the Zunebug Repair… 22 Evolution of the Zunebug repair 1 GP trial –The darker curve plots the average fitness of the population –The lighter curve plots the fitness of the individual V primary repair

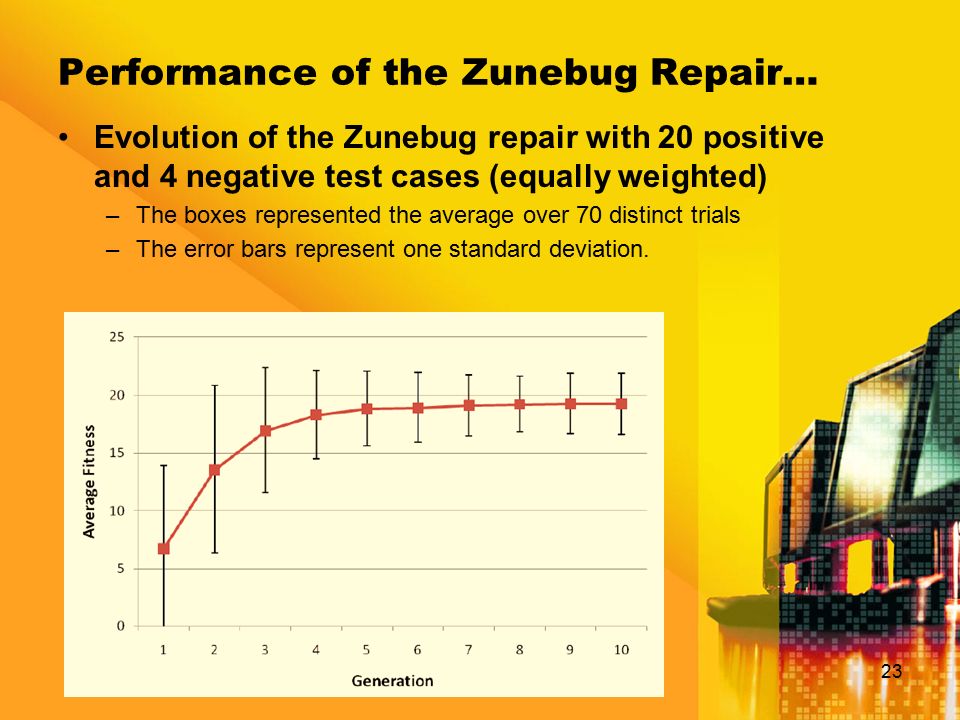

23. Performance of the Zunebug Repair… 23 Evolution of the Zunebug repair with 20 positive and 4 negative test cases (equally weighted) –The boxes represented the average over 70 distinct trials –The error bars represent one standard deviation.

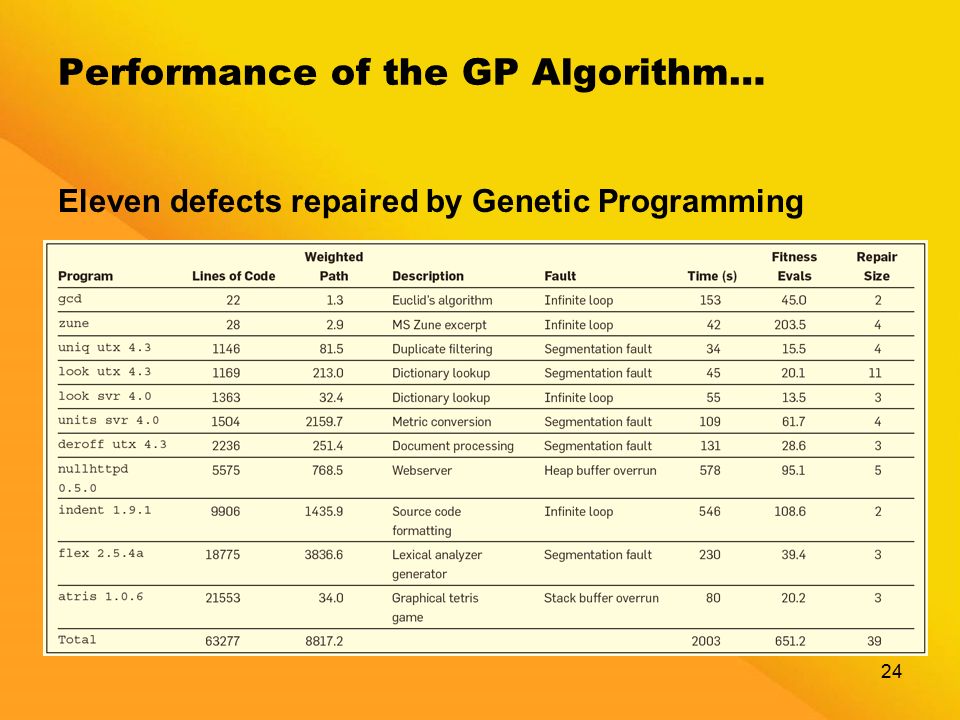

24. Performance of the GP Algorithm… 24 Eleven defects repaired by Genetic Programming

25. Performance of the GP Algorithm… 25 GP search time scales with weighted path size. –18 programs successfully repaired by GP (ave. of 100 runs) –x-axis log 10 of the weighted path length –y-axis log 10 of the total number of fitness evaluations

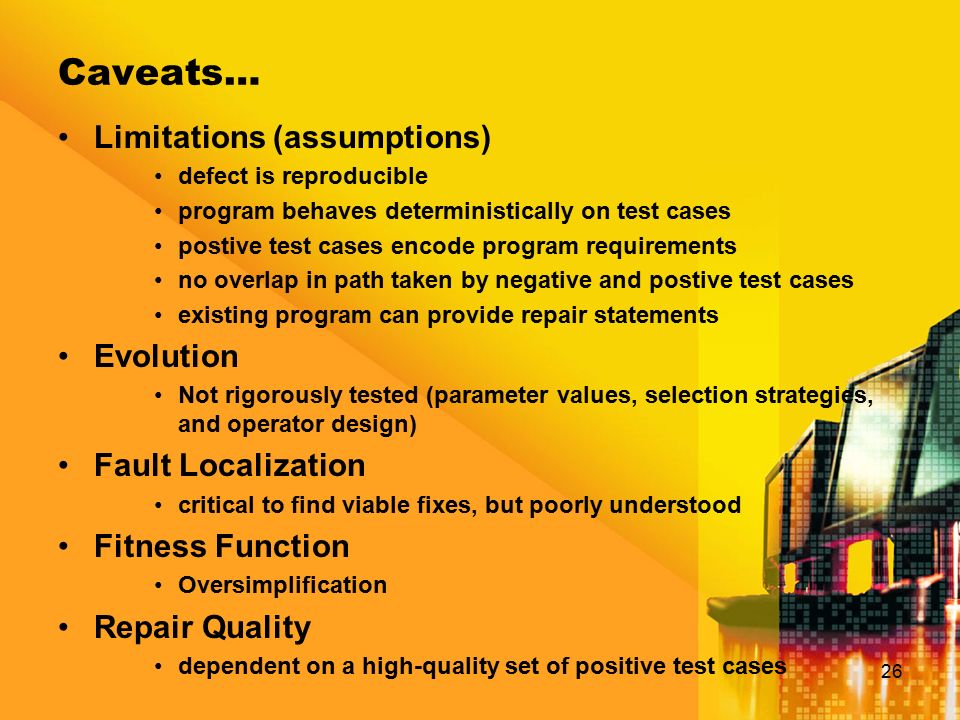

26. Caveats… 26 Limitations (assumptions) defect is reproducible program behaves deterministically on test cases postive test cases encode program requirements no overlap in path taken by negative and postive test cases existing program can provide repair statements Evolution Not rigorously tested (parameter values, selection strategies, and operator design) Fault Localization critical to find viable fixes, but poorly understood Fitness Function Oversimplification Repair Quality dependent on a high-quality set of positive test cases

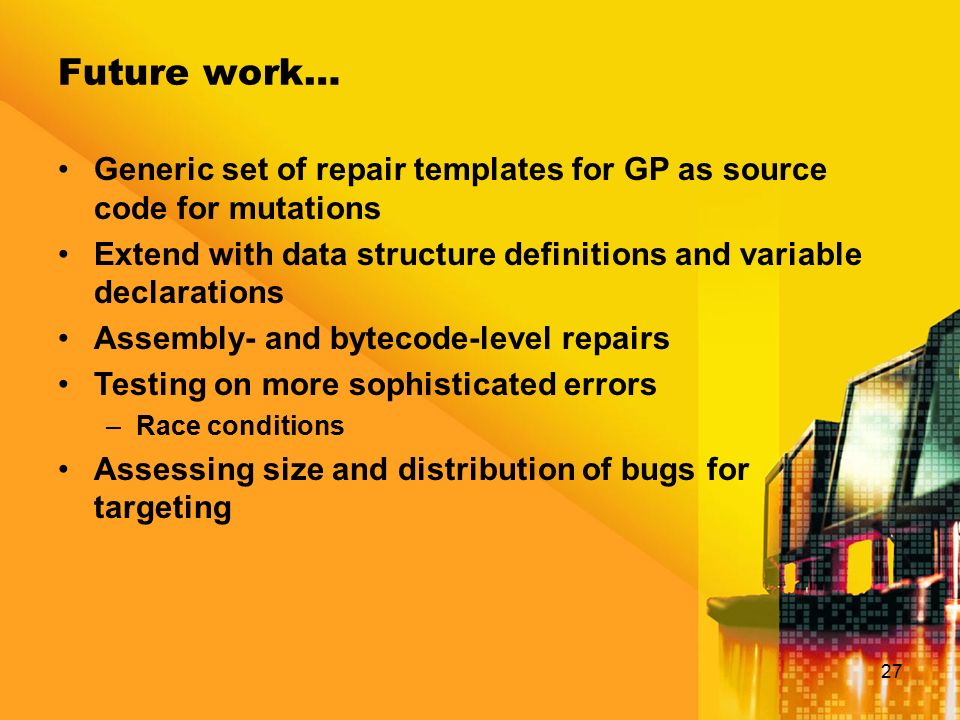

27. Future work… 27 Generic set of repair templates for GP as source code for mutations Extend with data structure definitions and variable declarations Assembly- and bytecode-level repairs Testing on more sophisticated errors –Race conditions Assessing size and distribution of bugs for targeting
