1. OCULAR PHARMACOLOGY

4. Definitions
1) Bioavailability-% of unchanged drug delivered to site of potential action regardless of route of administration
2) Compartment-body space in which drug is homogeneously distributed
3) Rate constants-
Ka- absorption rate constant (fraction of drug entering compartment per
unit time)
Ke- elimination rate constant (fraction of drug eliminated from
compartment per unit time)
4) Order of kinetics-
First order-rate of absorption and elimination are proportional to drug
concentration
Zero order-rates are independent of concentration, related to a functional
capacity of body (true for most eyedrops)
5) Tissue binding-renders drug unavailable for elimination and prolongs its retention in a compartment

5. Relevant anatomic characteristics of the eye
Cornea-functions as a trilaminar permeability barrier (does not allowanisocoria drugs to cross by simple diffusion)
a) Properties of different corneal layers
Epithelium- hydrophobic
Stroma- hydrophilic
Endothelium- hydrophobic
b) Epithelium is main barrier to hydrophilic molecules
c) Nonionized molecules penetrate epithelium/endothelium well,
ionizedmolecules penetrate stroma well
d) For maximal corneal drug penetration a molecule must have optimum ratio of hydro- and lipo- philicity

7. Relevant anatomic continue……
2) Sclera-due to intraocular pressure there is typically a constant outward flow
across the sclera, therefore even sub-Tenon’s injections penetrate the globe slowly
3) Blood ocular barrier-present due to tight junctions of nonpigmented ciliary epithelium, retinal pigment epithelium, and retinal capillary endothelial cells

8. Vehicles of drug administration
Eyedrops-major route of ocular drug administration
a) Drops are advantageous because they avoid systemic toxicity by have the problem of a short duration of availability in the tear film and need to pass through a barrier with limited permeability
b) Characteristics of the cul-de-sac as a drug compartment

10. Factors affecting availability of topical meds
1. Surfactants-increase solubility of hydrophilic drugs by altering
permeability of epithelial membranes
2. Drug concentration-concentrated solutions are used to maximize the
amount of drug entering the eye during the limited availability provided by a drop

11. Factors affecting availability of topical meds
3. Viscosity-high viscosity solutions increase drug contact time on the cornea
4. pH-determines degree of ionization of a drug (remember:
nonionized portion will be more lipid soluble, while
ionized portion will be more stable in the tears and better
penetrate stroma)
- since the pH of tears is slightly alkaline(7.4) many ocular
drugs are weak bases (alkaloids) existing in both
their charged and uncharged forms at that pH
- if the pH of the solution is made more basic then more
uncharged forms of the molecule are present, increasing
lipid solubility and epithelial penetration

12. Some Characteristics of Ocular Routes of Drug Administration
ROUTE: Topical
ABSORPTION PATTERN: Prompt, depending on formulation
SPECIAL UTILITY: Convenient, economical, relatively safe
LIMITATIONS AND PRECAUTIONS: corneal and conjunctival
toxicity, nasal mucosal toxicity, systemic side effects from nasolacrimal absorption

13. Some Characteristics of Ocular Routes of Drug Administration

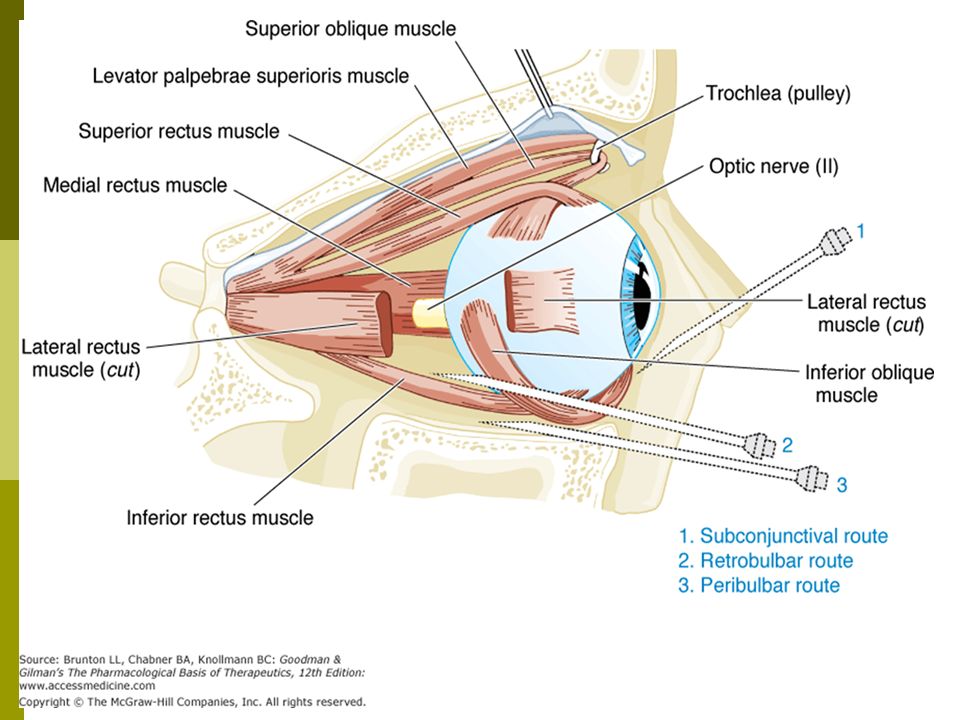

ROUTE: Subconjunctival, sub-Tenon's, and retrobulbar injections
ABSORPTION PATTERN: Prompt or sustained, depending on formulation
SPECIAL UTILITY: Anterior segment infections, posterior uveitis, cystoid macular edema
LIMITATIONS AND PRECAUTIONS: Local toxicity, tissue injury, globe perforation, optic nerve trauma, central retinal artery and/or vein occlusion, direct retinal drug toxicity with inadvertent globe perforation, ocular muscle trauma, prolonged drug effect

14. Some Characteristics of Ocular Routes of Drug Administration
ROUTE: Intraocular (intracameral) injections
ABSORPTION PATTERN: Prompt
SPECIAL UTILITY: Anterior segment surgery, infections
LIMITATIONS AND PRECAUTIONS: Corneal toxicity, intraocular toxicity, relatively short duration of action

16. Some Characteristics of Ocular Routes of Drug Administration
ROUTE: Intravitreal injection or device
ABSORPTION PATTERN: Absorption circumvented, immediate local effect, potential sustained effect
SPECIAL UTILITY: Endophthalmitis, retinitis
LIMITATIONS AND PRECAUTIONS: Retinal toxicity

17. Absorption.
After topical instillation of a drug, the rate and extent of absorption are determined by :
1-the time the drug remains in the cul-de-sac and precorneal tear film
2-elimination by nasolacrimal drainage
3-drug binding to tear proteins
4- drug metabolism by tear and tissue proteins
5-diffusion across the cornea and conjunctiva

20. Distribution
Melanin binding of certain drugs is an important factor in some ocular compartments. For example, the mydriatic effect of a adrenergic receptor agonists is slower in onset in human volunteers with darkly pigmented irides compared to those with lightly pigmented irides.

21. Distribution continue……………..
Another clinically important consideration for drug-melanin binding involves the retinal pigment epithelium. In the retinal pigment epithelium, accumulation of chloroquine causes a toxic retinal lesion known as a "bull's-eye" maculopathy, which is associated with a decrease in visual acuity

22. Ointments
Ointments usually contain mineral oil and a petrolatum base and are helpful in delivering antibiotics, cycloplegic drugs, or miotic agents

23. Ointments a) Advantages 1. Increase drug contact time b) Disadvantages
1. May act as a barrier to vision and penetration of other drops
2. Slow release of some meds from ointment may result in
subtherapeutic levels of drug

24. 3) Gel-made of high viscosity acrylics (ex
3) Gel-made of high viscosity acrylics (ex. Ocuserts)- slowly releases drug at a
steady state level at overall lower conc. and less systemic side-effects
4) Liposomes-synthetic lipid microspheres into which drugs may be incorporated for sustained release

25. 5) collagen shields-also provide prolonged drug contact time (rate of drug release may not be constant)
6) Subconjunctival/retrobulbar injection-allows drug to bypass conj/corneal epithelial barriers, can allow meds to reach therapeutic levels behind the lens/iris diaphragm

26. 7) Intraocular injection
8) Systemic administration
Ability of blood borne agents to reach the globe depends on:
a) lipid solubility
b) plasma protein binding (only unbound form is bioavailable)
c) molecular weight

27. MISCELLANEOUS Packs Sustain-release devices Irrigations
Hypertonic agents
Chelating agent

28. Metabolism.
Enzymatic biotransformation of ocular drugs may be significant since a variety of enzymes,including esterases, oxidoreductases , lysosomal enzymes, peptidases , glucuronide and sulfate transferases , glutathione-conjugating enzymes,catechol-O-methyl-transferase, monoamine oxidase, and 11b-hydroxysteroid dehydrogenase are found in the eye.

29. Metabolism continue……..
The esterases have been of particular interest because of the development of prodrugs for enhanced corneal permeability; for example, dipivefrin hydrochloride is a prodrug for epinephrine, and latanoprost is a prodrug for prostaglandin F2a; both drugs are used for glaucoma management.
Topically applied ocular drugs are eliminated by the liver and kidney after systemic absorption, but enzymatic transformation of systemically administered drugs also is important in ophthalmology.

30. Toxicology.
All ophthalmic medications are potentially absorbed into the systemic circulation , so undesirable systemic side effects may occur.
Most ophthalmic drugs are delivered locally to the eye, and the potential local toxic effects are due :
hypersensitivity reactions
direct toxic effects on the cornea, conjunctiva, periocular skin, and nasal mucosa.

31. Local toxicity of topically applied ocular drugs
Some drugs are more prone to produce hypersensitivity reactions such as neomycin.
Unfortunately some eyes, and some individuals, have a genetic predisposition to allergic reactions, particularly those subjects who suffer from atopy or allergy affecting other systems.

32. Continue……
Others may have known but atypical and undesirable reactions to topical drops, such as marked elevation of intraocular pressure (IOP) associated with topical corticosteroids.

33. systemic toxicity of topically applied ocular drugs
The systemic toxicity of topical ocular drugs can be significant, and topical betablockers have been associated with marked respiratory and cardiac depression and exacerbation of respiratory conditions such as asthma.

35. Presevatives
Eyedrops and contact lens solutions commonly contain preservatives such as benzalkonium chloride, chlorobutanol, chelating agents, and thimerosal for their antimicrobial effectiveness. In particular, benzalkonium chloride may cause a punctate keratopathy or toxic ulcerative keratopathy Thimerosal currently is used rarely due to a high incidence of hypersensitivity reactions.

36. APPLICATIONS OF DRUGS IN OPHTHALMOLOGY
THERAPEUTIC
DIAGNOSTIC
Some drugs have both effects therapeutic and diagnostic( e.g. atropine homatropine physostigmine and pilocarpine)

37. Chemotherapy of Microbial Diseases in the Eye
Appropriate selection of antibiotic and route of administration is dependent on the patient's symptoms, the clinical examination, and the culture/sensitivity results.

38. Topical Antibacterial Agents Commercially Available for Ophthalmic Use
Chloramphenicol, 0.5% solution, Conjunctivitis, keratitis
Ciprofloxacin hydrochloride (CILOXAN). 1% ointment 3% solution, Conjunctivitis, keratitis

39. Topical Antibacterial Agents
Gentamicin sulfate (GARAMYCIN) 0.3% solution Conjunctivitis, blepharitis, keratitis
Erythromycin 0.3%& 5% ointment Blepharitis, Conjunctivitis

40. Topical Antibacterial Agents
Sulfacetamide sodium, 10, 15, 30% solution Conjunctivitis, keratitis
Polymyxin B 10% ointment ,Various solutions , Conjunctivitis, blepharitis, keratitis

41. Antiviral Agents for Ophthalmic Use
Trifluridine Topical (1% solution) Herpes simplex keratitis   Herpes simplex conjunctivitis
idoxuridine-IDU-topical 0.1%, ointment 0.5%
Acyclovir Oral, intravenous 400- and 800-mg Herpes zoster ophthalmicus   Herpes simplex iridocyclitis
Valacyclovir Oral Herpes simplex keratitis , Herpes zoster ophthalmicus

42. Antiviral Agents continue………….
Famciclovir Oral  Herpes simplex keratitis
Foscarnet IV , Intravitreal
 Herpes zoster ophthalmicus Cytomegalovirus retinitis
 Ganciclovir IV, oral Cytomegalovirus retinitis
  Formivirsen Intravitreal  injection  Intravitreal implant Cytomegalovirus retinitis

43. Antifungal Agents for Ophthalmic Use
Polyenes
Amphotericin B % (typically 0.15%) topical solution , mg subconjunctival , 5-ug intravitreal & intravenous injection Yeast and fungal endophthalmitis
Natamycin 5% topical suspension ,Yeast and fungal blepharitis, conjunctivitis, keratitis

44. Antifungal Agents for Ophthalmic Use
Imidazoles
Fluconazole oral,,
Itraconazole oral
Ketoconazole oral
Miconazole 1% topical solution Yeast and fungal keratitis subconjunctival (5-10 mg)
intravitreal (10 ug) injection Yeast and fungal endophthalmit

47. Methods of Administration
Table Drugs used in open-angle glaucoma.
Mechanism
Methods of Administration
Cholinomimetics
Pilocarpine, carbachol, physostigmine, echothiophate, demecarium
Ciliary muscle contraction, opening of trabecular meshwork; increased outflow
Topical drops or gel; plastic film slow-release insert
Alpha agonists
Unselective
Increased outflow
Topical drops
Epinephrine, dipivefrin
Alpha2-selective
Decreased aqueous secretion
Apraclonidine
Topical, postlaser only
Brimonidine
Topical
Beta-blockers
Timolol, betaxolol, carteolol, levobunolol, metipranolol
Decreased aqueous secretion from the ciliary epithelium

48. Methods of Administration
Table Drugs used in open-angle glaucoma.
Mechanism
Methods of Administration
Cholinomimetics
Pilocarpine, carbachol, physostigmine, echothiophate, demecarium
Ciliary muscle contraction, opening of trabecular meshwork; increased outflow
Topical drops or gel; plastic film slow-release insert
Alpha agonists
Unselective
Increased outflow
Topical drops
Epinephrine, dipivefrin
Alpha2-selective
Decreased aqueous secretion
Apraclonidine
Topical, postlaser only
Brimonidine
Topical
Beta-blockers
Timolol, betaxolol, carteolol, levobunolol, metipranolol
Decreased aqueous secretion from the ciliary epithelium
Diuretics
Dorzolamide, brinzolamide
Decreased aqueous secretion due to lack of HCO3-
Acetazolamide, dichlorphenamide, methazolamide
Oral
Prostaglandins
Latanoprost, bimatoprost, travoprost, unoprostone
Copyright © 2007 by The McGraw-Hill Companies, Inc. All rights reserved.
(+/-) Show / Hide Bibliography
Send Feedback Customer Service
Title Updates User Responsibilities Training Center What's New
Teton Server (4.5.0) - ©2006 Teton Data Systems Send Us Your Comments

49. Glaucoma
young patients usually are intolerant of miotic therapy secondary to visual blurring from induced myopia
direct miotic agents are preferred over cholinesterase inhibitors in "phakic" patients (i.e., those patients who have their own crystalline lens) because the latter drugs can promote cataract formation

50. Glaucoma continue…..
in patients who have an increased risk of retinal detachment, miotics should be used with caution because they have been implicated in promoting retinal tears in susceptible individuals (such tears are thought to be due to altered forces at the vitreous base produced by ciliary body contraction induced by the drug)

51. Uveitis
Inflammation of the uvea, or uveitis, has both infectious and non-infectious causes, and medical treatment of the underlying cause (if known), in addition to the use of topical therapy, is essential.

52. Uveitis Cyclopentolate (CYCYLOGYL, others), tropicamide (MYDRIACYL)
Atropine, scopolamine and homatropine frequently are used to prevent posterior synechia formation between the lens and iris margin and to relieve ciliary muscle spasm that is responsible for much of the pain associated with anterior uveitis.

53. Uveitis
If posterior synechiae already have formed, an adrenergic agonist may be used to break the synechiae by enhancing pupillary dilation.
A solution containing scopolamine 0.3% in combination with 10% phenylephrine
Topical steroids usually are adequate to decrease inflammation, but sometimes they must be supplemented with systemic steroids.

54. Use of Autonomic Agents in the Eye
Cholinergic agonists
Acetylcholine (MIOCHOL-E) 1% solution Intraocular use for miosis in surgery (OCULAR SIDE EFFECTS): is Corneal edema
Carbachol Intraocular use for miosis in surgery, glaucoma
(O.S.E.) Corneal edema, miosis, induced myopia, decreased vision, brow ache, retinal detachment

55. Anticholinesterase agents
Physostigmine (ESERINE) Glaucoma, accommodative esotropia, louse and mite infestation of lashes
(O.S.E.) Retinal detachment, miosis, cataract, pupillary block glaucoma iris cysts, brow ache, punctal stenosis of the nasolacrimal system
Echothiophate Glaucoma, accommodative esotropia (O.S.E.) Same as for physostigmine

56. Muscarinic antagonists
Atropine Cycloplegic retinoscopy, dilated funduscopic exam, (O.S.E.) Photosensitivity, blurred vision
Scopolamine , Homatropine , Cyclopentolate , Tropicamide effect and side effect Same as for atropine

58. Sympathomimetic agents
Dipivefrin , Epinephrine , Brimonidine Glaucoma (O.S.E.)Photosensitivity, hypersensitivity
Phenylephrine Mydriasis
Apraclonidine Glaucoma, pre- & postlaser prophylaxis of intraocular pressure spike

59. Sympathomimetic agents
Cocaine Topical anesthesia, evaluate anisocoria
Hydroxyamphetamine Evaluate anisocoria
Naphazoline , Tetrahydrozoline Decongestant (O.S.E.) Same as for dipivefrin

60. THE EYE

61. Use of Immunomodulatory Drugs for Ophthalmic Therapy
Glucocorticoids. Glucocorticoids have an important role in managing ocular inflammatory diseases
Therapeutic Uses. antiinflammatory effects, topical corticosteroids are used in managing significant ocular allergy
Toxicity of Steroids. open-angle glaucoma cataract
c) ptosis
d) mydriasis
e) delayed wound healing
f) enhanced microbial proliferation
g) punctate keratopathy

62. Nonsteroidal Antiinflammatory Agents. General Considerations
Ketorolac is given for seasonal allergic conjunctivitis. An ophthalmic preparation is available for ocular inflammatory conditions
Diclofenac is used for postoperative inflammation.
Both ketorolac and diclofenac have been found to be effective in treating cystoid macular edema occurring after cataract surgery.

63. Diclofenac (Nonselective COX Inhibitors)
A 0.1% ophthalmic preparation is recommended for prevention of postoperative ophthalmic inflammation and can be used after intraocular lens implantation and strabismus surgery.
A topical gel containing 3% diclofenac is effective for solar keratoses.

64. Bromfenac Ophtalmic
Bromfenac is a non-steroidal anti-inflammatory drug (NSAID). Bromfenac ophthalmic (for the eyes) is used to treat swelling and pain caused by cataract surgery.
Side effect:
hives;difficult breathing;swelling of your
face, lips, tongue, or throat.

65. Nepafenac Nepafenac is a nonsteroidal anti-inflammatory drug (NSAID).
It reduces pain and inflammation in the eyes.

66. Nepafenac
Nepafenac ophthalmic suspension is used to reduce pain and swelling after cataract surgery.
Nepafenac is a prodrug,after use penetrates the cornea and is converted by ocular tissue hydrolases to amfenac,

70. Antihistamines and Mast-Cell Stabilizers
Pheniramine and antazoline, both H1-receptor antagonists, are formulated in combination with naphazoline, a vasoconstrictor, for relief of allergic conjunctivitis.
Cromolyn sodium (CROLOM), which prevents the release of histamine and other autacoids from mast cells , has found limited use in treating conjunctivitis that is thought to be allergen-mediated, such as vernal conjunctivitis.
Lodoxamidetromethamine and pemirolast , mast-cell stabilizers, also are available for ophthalmic use.
