1. CS 471 - Lecture 8 File Systems Ch. 10,11 George Mason University Fall 2009

2. 10.2GMU – CS 571 File-System Interface  File Concept  File Operations  Access Methods  Directory Structure  Access control

3. 10.3GMU – CS 571 Files  A file is a named collection of related information that is recorded on secondary storage  Several information storage media (magnetic/optical disks)  The operating system provides a uniform logical view of information storage

4. 10.4GMU – CS 571 Files  Files are mapped onto physical storage devices. represent programs (both source and object forms) and data. have a certain structure that may be considered as sequence of bits, bytes, lines, records… meaning defined by file’s creator have attributes that are recorded by the O.S. (name, size, type, location, protection info, time info, etc.) logically contiguous  Information about files are kept in the directory structure, which is also maintained on the secondary storage.

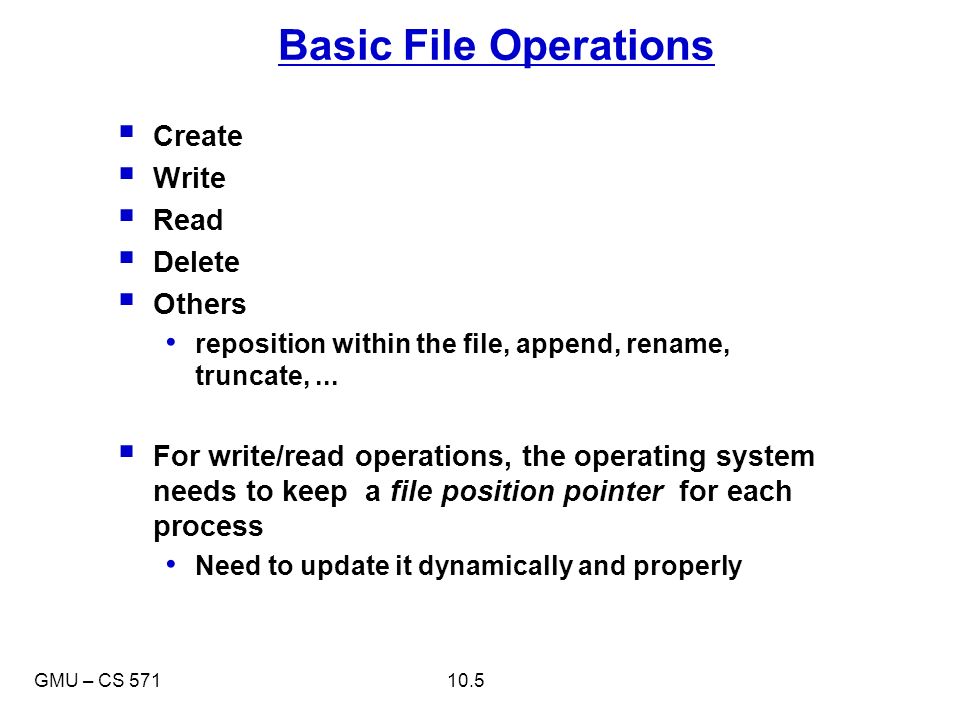

5. 10.5GMU – CS 571 Basic File Operations  Create  Write  Read  Delete  Others reposition within the file, append, rename, truncate,...  For write/read operations, the operating system needs to keep a file position pointer for each process Need to update it dynamically and properly

6. 10.6GMU – CS 571 File Operations  To avoid searching the directory entries repeatedly, many systems require that an open() system call be issued before that file is first used actively.  Operating System keeps a system-wide open-file table containing information about all open files per-process open-file tables containing information about all open files of each process  The open operation takes a file name and searches the directory, copying the directory entry into the open-file table. It returns a pointer to the entry in the open file table.

7. 10.7GMU – CS 571 File Operations  The per-process open table contains info about Position pointer (current location within file) Access rights Accounting Pointer to the system-wide open-file table entry  The system-wide open table includes info about File location on the disk File size File open count (the number of processes using this file)  A process that completes its operations on a given file will issue a close() system call.

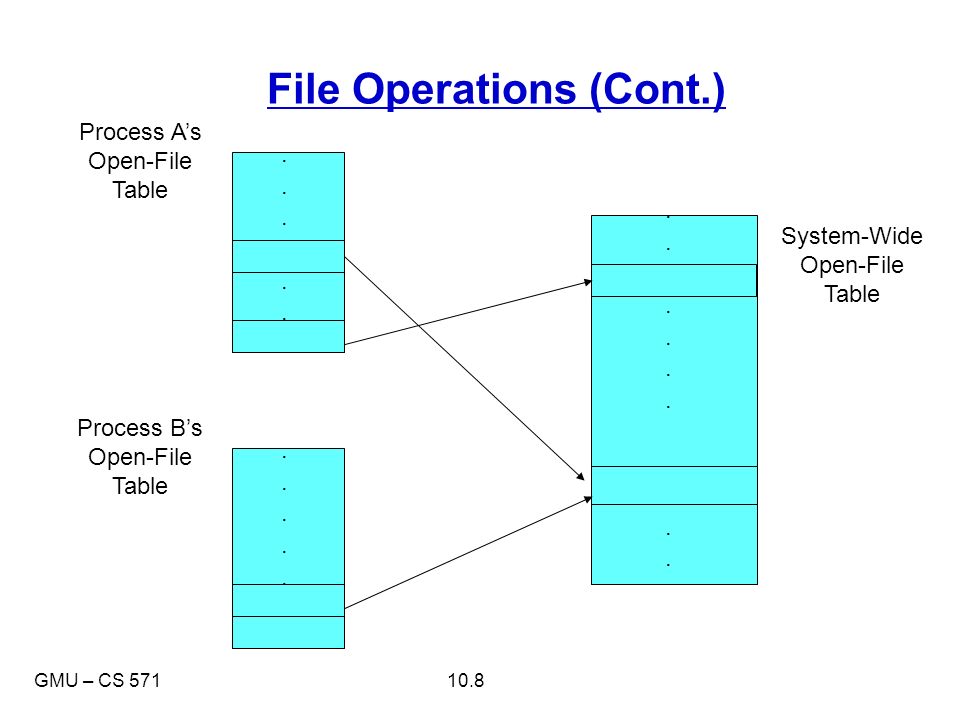

8. 10.8GMU – CS 571 File Operations (Cont.) Process A’s Open-File Table.......... Process B’s Open-File Table.............................. System-Wide Open-File Table

9. 10.9GMU – CS 571 An Example Program Using File System Calls (1/3) /* File copy program. Error checking and reporting is minimal. */ /* “myfilecopy oldfile newfile” will copy the contents of “oldfile” to “newfile” */ /* The program will read blocks of 4K from the “oldfile” to a buffer, and store them to “newfile” sequentially */ #include /* include necessary header files */ #include int main(int argc, char *argv[]); /* ANSI prototype */ #define BUF_SIZE 4096 /* use a buffer size of 4096 bytes */ #define OUTPUT_MODE 0700 /* protection bits for output file */

10. 10.10GMU – CS 571 An Example Program Using File System Calls (2/3) int main(int argc, char *argv[]) { int in_fd, out_fd, rd_count, wt_count; char buffer[BUF_SIZE]; if (argc != 3) exit(1); /* error if argc is not 3 */ /* Open the input file and create the output file */ in_fd = open(argv[1], O_RDONLY); /* open the source file */ if (in_fd < 0) exit(2); /* if it cannot be opened, exit */ out_fd = creat(argv[2], OUTPUT_MODE); /* create the destination file */ if (out_fd < 0) exit(3); /* if it cannot be created, exit */

11. 10.11GMU – CS 571 An Example Program Using File System Calls (3/3) /* Copy loop */ while (TRUE) { rd_count = read(in_fd, buffer, BUF_SIZE); /* read a block of data */ if (rd_count <= 0) break; /* if end of file or error, exit loop */ wt_count = write(out _fd, buffer, rd_count); /* write data */ if (wt_count <= 0) exit(4); /* wt_count <= 0 is an error */ } /* Close the files */ close(in_fd); close(out_fd); if (rd_count == 0) /* no error on last read */ exit(0); else exit(5); /* error on last read */ }

12. 10.12GMU – CS 571 File Types  Most operating systems associate a type with a file  File type can be used to operate on files in reasonable ways ex: Windows – file type (i.e. suffix) used to determine what program to open a file with ex: Unix – info stored in file (‘magic number’) can be used for differentiation – suffix not always used

13. 10.13GMU – CS 571 File Types – Name, Extension

14. 10.14GMU – CS 571 File Structure  None - sequence of words, bytes  Simple record structure Lines Fixed length Variable length  Complex Structures Formatted document Relocatable load file  Can simulate last two methods with first method by inserting appropriate control characters  Who decides: Operating system Program

15. 10.15GMU – CS 571 Internal File Structure  Disk systems have a well-defined block size determined by the size of a sector.  All disk I/O is performed in units of one block (physical record). Each block is one or more sectors A sector can hold 32 – 4096 bytes  Files are made of logical records.  Often, a number of logical records will be packed into physical records.  Operating System will perform translation from logical records to physical records.  Internal fragmentation

16. 10.16GMU – CS 571 File Access Methods  Sequential Access Information is processed in order, one record after the other (tape model) Example: editors and compilers read next write next reset (rewind)

17. 10.17GMU – CS 571 File Access Methods  Direct Access The file is made up fixed-length logical records that allow programs to read and write records rapidly in any order read n write n or alternatively: position to n read next write next n = relative block number  request to read block N translated into physical address B*N + start (for block size B)  ex: database  Other access methods often built on top of direct access

18. 10.18GMU – CS 571 Directory Structure  The directory acts as a symbol table that translates file names into their directory entries.  Operations on a directory Search for a file Create a file Delete a file List a directory Rename a file …

19. 10.19GMU – CS 571 Organize the Directory (Logically) to Obtain  Efficiency – locating a file quickly  Naming – convenient to users Two users can have same name for different files The same file can have several different names  Grouping – logical grouping of files by properties, (e.g., all Java programs, all games, …)

20. 10.20GMU – CS 571 Single-Level Directory  A single directory for all users Naming problem Grouping problem

21. 10.21GMU – CS 571 Two-Level Directory  Separate directory for each user Path name Can have the same file name for different user Efficient searching No grouping capability

22. 10.22GMU – CS 571 Tree Directory Structure  Tree-structured directories extend the structure to a tree of arbitrary height User-imposed structure Relative paths vs. absolute paths Directory deletion policy Concept of a ‘current directory’

23. 10.23GMU – CS 571 Acyclic-Graph Directories  Allows shared subdirectories and files.  A shared file will “exist” in multiple directories at once.

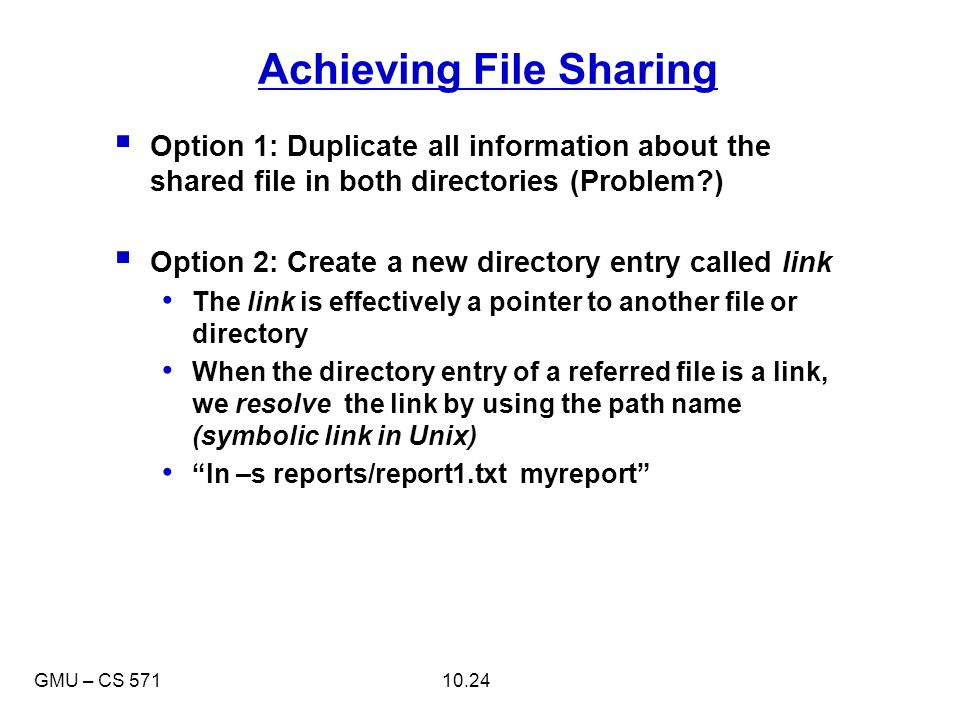

24. 10.24GMU – CS 571 Achieving File Sharing  Option 1: Duplicate all information about the shared file in both directories (Problem?)  Option 2: Create a new directory entry called link The link is effectively a pointer to another file or directory When the directory entry of a referred file is a link, we resolve the link by using the path name (symbolic link in Unix) “ln –s reports/report1.txt myreport”

25. 10.25GMU – CS 571 Achieving File Sharing (Cont.)  Option 3: Each entry in a directory can point to a little data structure (File Control Block [FCB], or “i-node”) that keeps information about the file The directory entries corresponding to a shared file will all point to the same file control block Non-symbolic or “hard” links in Unix “ln reports/report1.txt myreport” FCB of the file “reports” Directory report1.txt “root“ Directory myreport

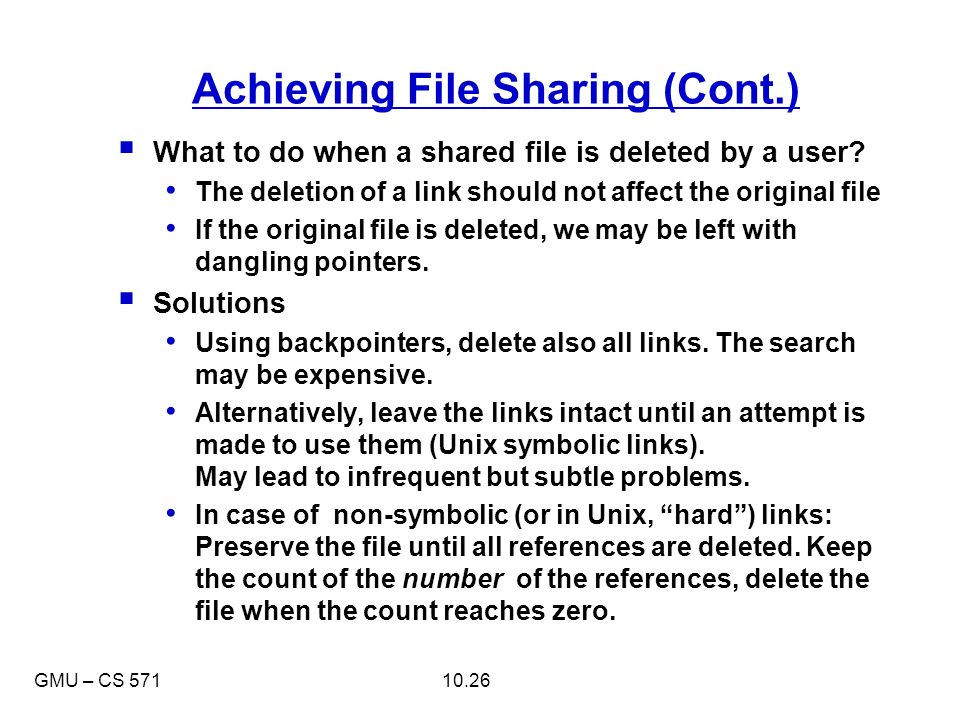

26. 10.26GMU – CS 571 Achieving File Sharing (Cont.)  What to do when a shared file is deleted by a user? The deletion of a link should not affect the original file If the original file is deleted, we may be left with dangling pointers.  Solutions Using backpointers, delete also all links. The search may be expensive. Alternatively, leave the links intact until an attempt is made to use them (Unix symbolic links). May lead to infrequent but subtle problems. In case of non-symbolic (or in Unix, “hard”) links: Preserve the file until all references are deleted. Keep the count of the number of the references, delete the file when the count reaches zero.

27. 10.27GMU – CS 571 File Protection  File owner/creator should be able to control: what can be done by whom  Types of access Read Write Execute Append Delete List

28. 10.28GMU – CS 571 Access Lists and Groups  Mode of access: read, write, execute  Three classes of users RWX a) owner access 7  1 1 1 RWX b) group access 6  1 1 0 RWX c) public access1  0 0 1  Ask manager to create a group (unique name), say G, and add some users to the group.  For a particular file (say game) or subdirectory, define an appropriate access.

29. 10.29GMU – CS 571 Windows XP Access-control List Management

30. 10.30GMU – CS 571 A Sample UNIX Directory Listing

31. 10.31GMU – CS 571 File System Implementation  File System Structure  File System Implementation  Allocation Methods  File System Performance

32. 10.32GMU – CS 571 File System Structure  An operating system may allow multiple file systems.  Once the user interface is determined, the file system must be implemented to map the logical file system to the physical secondary-storage devices.  File control block – storage structure that keeps information about a given file (Unix “i-nodes”). Ownership, size, permissions, access date info, location of data blocks

33. 11.33 Silberschatz, Galvin and Gagne ©2005 Operating System Concepts – 7 th Edition, Jan 1, 2005 Schematic View of Virtual File System

34. 10.34GMU – CS 571 Layered File System  File system is organized into layers  Logical File System Layer manages the file-system structure (through directories and FCBs).  File-Organization Module performs mapping between logical blocks and physical blocks. It also includes free- space manager and block allocation manager.  Basic File System Layer issues generic commands to the appropriate device driver (I/O Control Layer) to read and write physical blocks on the disk

35. 10.35GMU – CS 571 Storage Structure  A disk is a physical memory storage device that can be used for: a single file system (in its entirety) multiple file systems in part for file systems, in part for other purposes (e.g. for swap space or unformatted (raw) disk space)  These parts are known as partitions, slices or minidisks.

36. 10.36GMU – CS 571 Storage Structure (Cont.)  Each partition can be either “raw” (containing no file system), or “cooked” (with a file system)  Raw disk contains a large sequential array of logical blocks, without any file-system data can be used as swap space can be used for special (e.g. database) applications

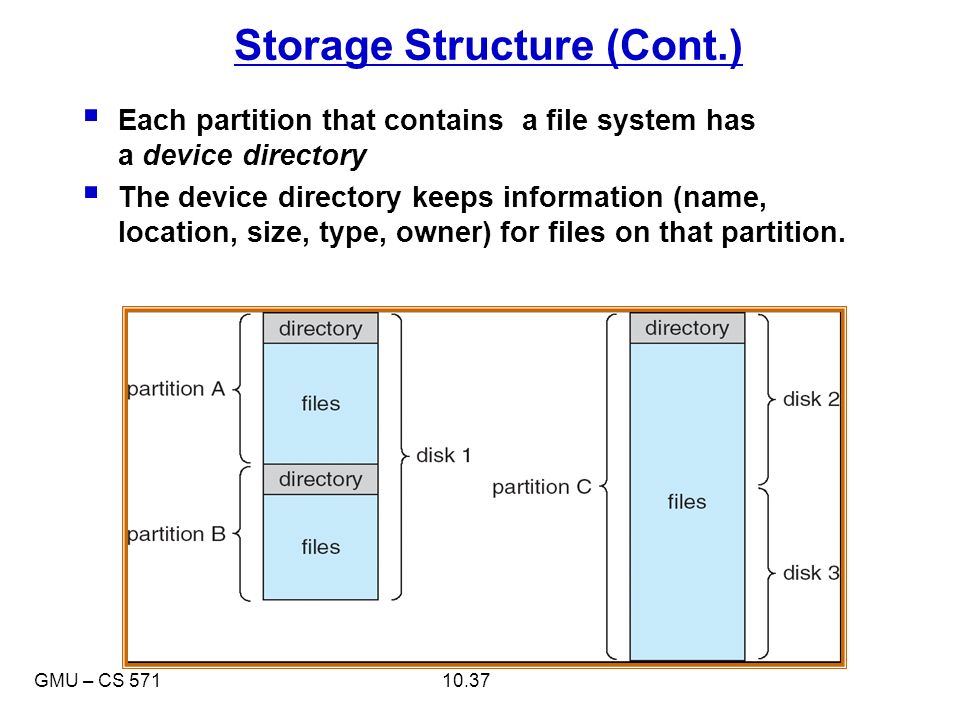

37. 10.37GMU – CS 571 Storage Structure (Cont.)  Each partition that contains a file system has a device directory  The device directory keeps information (name, location, size, type, owner) for files on that partition.

38. 10.38GMU – CS 571 Accessing Disk Sub-system  Disks allow direct access to stored data  Disk access time has two components Random access time (positioning) that includes seek time and rotational latency (5-10 ms) Transfer time (10 MB/s)  Compare to the memory access time of 10-100 nanoseconds

39. 10.39GMU – CS 571 Accessing Disk Sub-system  When a process needs I/O, it issues a system call to the OS input or output from what disk address to what memory address how many sectors  At any point in time, the disk may have several pending requests that must be scheduled: FCFS SSTF (shortest seek time first) SCAN …

40. 10.40GMU – CS 571 Implementation of “Open” and “Read”  Figure (a) refers to opening a file.  Figure (b) refers to reading a file.

41. 10.41GMU – CS 571 Allocation Methods  The allocation method refers to how disk blocks are allocated for files: Contiguous allocation Linked allocation Indexed allocation

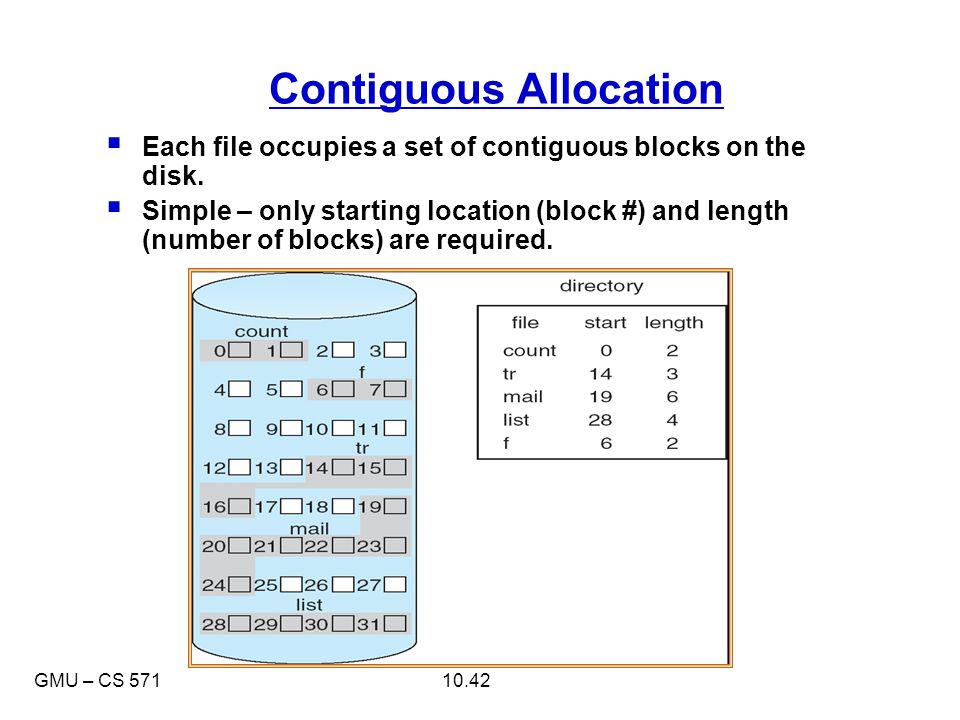

42. 10.42GMU – CS 571 Contiguous Allocation  Each file occupies a set of contiguous blocks on the disk.  Simple – only starting location (block #) and length (number of blocks) are required.

43. 10.43GMU – CS 571 Contiguous Allocation  Efficient access to multiple blocks of a file  Both sequential and direct access can be supported.  A major problem is determining how much space is needed for a new file.  How to let files grow?  Finding space for a new file: First-fit and best-fit …  These algorithms suffer from external fragmentation: free space is broken into multiple chunks.

44. 10.44GMU – CS 571 Extent-Based Systems  Many newer file systems (I.e. Veritas File System) use a modified contiguous allocation scheme  Extent-based file systems allocate disk blocks in extents  An extent is a contiguous block of disks Extents are allocated for file allocation A file consists of one or more extents.

45. 10.45GMU – CS 571 Linked Allocation  Each file is a linked list of disk blocks: blocks may be scattered anywhere on the disk. pointer block =

46. 10.46GMU – CS 571 Linked Allocation  Each file is a linked list of disk blocks: blocks may be scattered anywhere on the disk.  Each block contains a pointer to the next block.  Each directory entry has a pointer to the first and last disk blocks of the file.

47. 10.47GMU – CS 571 Linked Allocation  External fragmentation is eliminated.  The size of a file does not need to be declared at the time of creation.  However, it can be used effectively only for sequential access files. Inefficient for direct- access files.  Another disadvantage is the space required for the pointers.  One solution is to collect blocks into multiples (clusters) and to allocate the clusters rather than blocks.  Another problem of linked allocation is reliability: what will happen if a pointer is lost or damaged?

48. 10.48GMU – CS 571 File-Allocation Table (FAT)  A variation of the linked allocation method  A section of the disk at the beginning of each partition is used as the File Allocation Table.  The table entries give the block number of the next block in the file.  The scheme can result in a significant number of disk head seeks, unless the FAT is cached.

49. 10.49GMU – CS 571 Indexed Allocation  Indexed allocation supports direct access, without suffering from external fragmentation or size-declaration problems.  However, wasted space may be a problem.  How large the index block should be? To reduce the wasted space, we want to keep the index block small If the index block is too small, it will not be able to hold pointers for a large file. Linked scheme Multilevel scheme Combined scheme index table

50. 10.50GMU – CS 571 Indexed Allocation – Mapping (Cont.)  outer-index index table file

51. 10.51GMU – CS 571 Combined Scheme (Unix)  Keep the first N pointers of the index block in the file’s i-node (FCB).  The first 12 of these pointers point to direct blocks  The next three pointers point to indirect blocks

52. 10.52GMU – CS 571 File System Performance  Disk access is the bottleneck for the file system performance  Caching Most disk controllers have an on-board cache that can store entire tracks at a time Subsequent requests can be served through the on-board cache  Most systems maintain a separate section of main memory for a disk cache (block cache, or buffer cache), where blocks are kept under the assumption that they will be re-used in near future

53. 10.53GMU – CS 571 Caching  A page cache caches pages rather than disk blocks using virtual memory techniques  Memory-mapped I/O uses a page cache  Routine I/O through the file system uses the buffer (disk) cache

54. 10.54 Memory-mapped I/O  Memory-mapped I/O uses the same address bus to address both memory and I/O devices, and the CPU instructions used to access the memory are also used for accessing devices.address bus  Port-mapped I/O uses a special class of CPU instructions specifically for performing I/O.  A device's direct memory access (DMA) is a memory-to-device communication method, that bypasses the CPU.direct memory access GMU – CS 571

55. 10.55GMU – CS 571 Unified Buffer Cache  A unified buffer cache uses the same page cache to cache both memory-mapped pages and ordinary file system I/O

56. 10.56GMU – CS 571 File System Performance (Cont.)  LRU is a reasonable block replacement policy  BUT: if a critical block (such as File Control Block, or i-node) is read into the cache and modified, but not re-written to the disk, a crash will leave the file system in an inconsistent state.  Critical blocks must be written immediately.  Avoiding inconsistency Write through-cache: write every modified block to disk as soon as it has been written  UNIX solution The system call sync forces all the modified blocks out onto the disk immediately. A program, usually called update, is invoked in the background to call sync every 30 seconds.

57. 10.57GMU – CS 571 File System Performance  Block-read-ahead: When reading block k to the cache in memory, read also block k+1  Reduce disk arm motion through Putting blocks that are likely to be accessed in sequence close to each other Disk scheduling algorithms that serve pending disk access requests in an order that reduces the delay

58. 10.58GMU – CS 571 Distributed File Sharing  Sharing of files on multi-user systems is desirable  On distributed systems, files may be shared across a network Manually via programs like FTP Automatically, seamlessly using distributed file systems Semi automatically via the world wide web  Network File System (NFS) is a common distributed file-sharing method

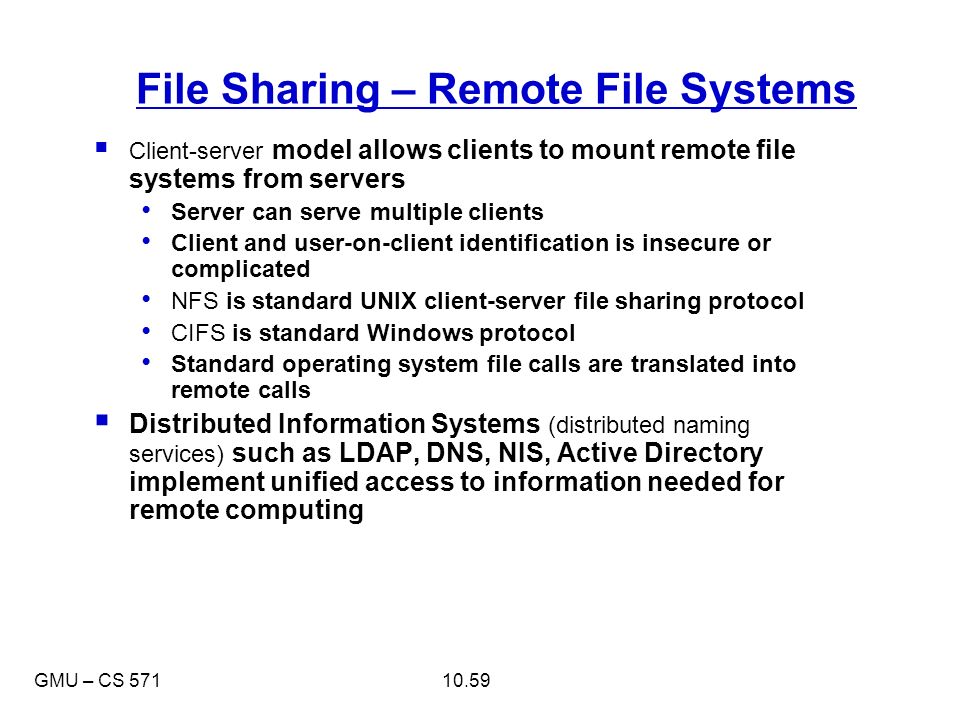

59. 10.59GMU – CS 571 File Sharing – Remote File Systems  Client-server model allows clients to mount remote file systems from servers Server can serve multiple clients Client and user-on-client identification is insecure or complicated NFS is standard UNIX client-server file sharing protocol CIFS is standard Windows protocol Standard operating system file calls are translated into remote calls  Distributed Information Systems (distributed naming services) such as LDAP, DNS, NIS, Active Directory implement unified access to information needed for remote computing

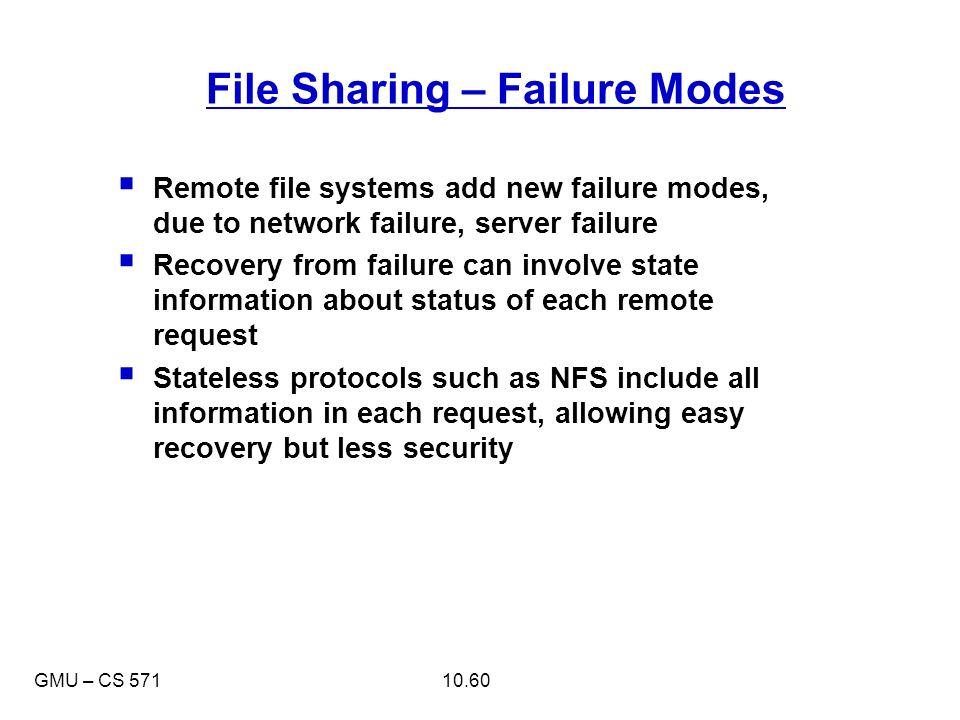

60. 10.60GMU – CS 571 File Sharing – Failure Modes  Remote file systems add new failure modes, due to network failure, server failure  Recovery from failure can involve state information about status of each remote request  Stateless protocols such as NFS include all information in each request, allowing easy recovery but less security

61. 10.61GMU – CS 571 File Sharing – Consistency Semantics  Consistency semantics specify how multiple users are to access a shared file simultaneously Similar to process synchronization algorithms  Tend to be less complex due to disk I/O and network latency (for remote file systems) Andrew File System (AFS) implemented complex remote file sharing semantics Unix file system (UFS) implements:  Writes to an open file visible immediately to other users of the same open file  Sharing file pointer to allow multiple users to read and write concurrently AFS has session semantics  Writes only visible to sessions starting after the file is closed

62. 11.62 Silberschatz, Galvin and Gagne ©2005 Operating System Concepts – 7 th Edition, Jan 1, 2005 The Sun Network File System (NFS) An implementation and a specification of a software system for accessing remote files across LANs (or WANs) The implementation is part of the Solaris and SunOS operating systems running on Sun workstations using an unreliable datagram protocol (UDP/IP protocol and Ethernet)

63. 11.63 Silberschatz, Galvin and Gagne ©2005 Operating System Concepts – 7 th Edition, Jan 1, 2005 NFS (Cont.) Interconnected workstations viewed as a set of independent machines with independent file systems, which allows sharing among these file systems in a transparent manner A remote directory is mounted over a local file system directory  The mounted directory looks like an integral subtree of the local file system, replacing the subtree descending from the local directory Specification of the remote directory for the mount operation is nontransparent; the host name of the remote directory has to be provided  Files in the remote directory can then be accessed in a transparent manner Subject to access-rights accreditation, potentially any file system (or directory within a file system), can be mounted remotely on top of any local directory

64. 11.64 Silberschatz, Galvin and Gagne ©2005 Operating System Concepts – 7 th Edition, Jan 1, 2005 NFS (Cont.) NFS is designed to operate in a heterogeneous environment of different machines, operating systems, and network architectures; the NFS specifications independent of these media This independence is achieved through the use of RPC primitives built on top of an External Data Representation (XDR) protocol used between two implementation-independent interfaces The NFS specification distinguishes between the services provided by a mount mechanism and the actual remote-file-access services

65. 11.65 Silberschatz, Galvin and Gagne ©2005 Operating System Concepts – 7 th Edition, Jan 1, 2005 Three Independent File Systems

66. 11.66 Silberschatz, Galvin and Gagne ©2005 Operating System Concepts – 7 th Edition, Jan 1, 2005 Mounting in NFS Mounts - S1:/usr/shared Over U:/usr/local/ Cascading mounts - S2:/usr/dir2 Over U:/usr/local/dir1

67. 11.67 Silberschatz, Galvin and Gagne ©2005 Operating System Concepts – 7 th Edition, Jan 1, 2005 NFS Mount Protocol Establishes initial logical connection between server and client Mount operation includes name of remote directory to be mounted and name of server machine storing it Mount request is mapped to corresponding RPC and forwarded to mount server running on server machine Export list – specifies local file systems that server exports for mounting, along with names of machines that are permitted to mount them Following a mount request that conforms to its export list, the server returns a file handle—a key for further accesses File handle – a file-system identifier, and an inode number to identify the mounted directory within the exported file system The mount operation changes only the user’s view and does not affect the server side

68. 11.68 Silberschatz, Galvin and Gagne ©2005 Operating System Concepts – 7 th Edition, Jan 1, 2005 NFS Protocol Provides a set of remote procedure calls for remote file operations. The procedures support the following operations: searching for a file within a directory reading a set of directory entries manipulating links and directories accessing file attributes reading and writing files NFS servers are stateless; each request has to provide a full set of arguments (NFS V4 is just coming available – very different, stateful) Modified data must be committed to the server’s disk before results are returned to the client (lose advantages of caching) The NFS protocol does not provide concurrency-control mechanisms

69. 11.69 Silberschatz, Galvin and Gagne ©2005 Operating System Concepts – 7 th Edition, Jan 1, 2005 Three Major Layers of NFS Architecture UNIX file-system interface (based on the open, read, write, and close calls, and file descriptors) Virtual File System (VFS) layer – distinguishes local files from remote ones, and local files are further distinguished according to their file-system types The VFS activates file-system-specific operations to handle local requests according to their file-system types Calls the NFS protocol procedures for remote requests NFS service layer – bottom layer of the architecture Implements the NFS protocol

70. 11.70 Silberschatz, Galvin and Gagne ©2005 Operating System Concepts – 7 th Edition, Jan 1, 2005 Schematic View of NFS Architecture

71. 11.71 Silberschatz, Galvin and Gagne ©2005 Operating System Concepts – 7 th Edition, Jan 1, 2005 NFS Path-Name Translation Performed by breaking the path into component names and performing a separate NFS lookup call for every pair of component name and directory vnode To make lookup faster, a directory name lookup cache on the client’s side holds the vnodes for remote directory names

72. 11.72 Silberschatz, Galvin and Gagne ©2005 Operating System Concepts – 7 th Edition, Jan 1, 2005 NFS Remote Operations Nearly one-to-one correspondence between regular UNIX system calls and the NFS protocol RPCs (except opening and closing files) NFS adheres to the remote-service paradigm, but employs buffering and caching techniques for the sake of performance File-blocks cache – when a file is opened, the kernel checks with the remote server whether to fetch or revalidate the cached attributes Cached file blocks are used only if the corresponding cached attributes are up to date File-attribute cache – the attribute cache is updated whenever new attributes arrive from the server Clients do not free delayed-write blocks until the server confirms that the data have been written to disk
