1. Overview of Windows CE.NET

2. Overview Overview of Windows CE.NET Core Operating System Architecture Advanced Features of Windows CE.NET Networking and Communications Real-Time Communication Multimedia Support and Architecture Security Features and Architecture Internationalization

3.  Overview of Windows CE.NET Windows CE.NET: Design Goals What is New in Windows CE.NET? Basic Configurations Target Hardware Support

4. Windows CE.NET: Design Goals Modular and compact operating system Wireless and wired connectivity Robust real-time capabilities Rich multimedia and multilingual support Strong development tool support

5. What Is New in Windows CE.NET? Internet Explorer 5.5 for CE Wireless support Multimedia Customizable UI Security Services Real-time collaboration and communication Better multi-language support ClearType

6. Basic Configurations PDA or mobile handheld device Variants with our without applications, such as WordPad Cell phone/smart phone 160x220 nominal display resolution Web Pad Touch-screen user interface and 640x480 or larger display Internet appliance Browser-based with a fixed (CRT or LCD) display and a keyboard. Media appliance Playback or store music, video, and other electronic media Digital imaging device Camera, projector, and printer

7. Basic Configurations (continued) Set-top box Connects to a TV for display of Internet / media content Residential gateway Connects to the Internet and shares that connection with a wired or wireless home network Industrial automation device Human Machine Interface (HMI) or Programmable Logic Controller (PLC) variants Retail Point-of-Sale device Self-service kiosks, electronic payment terminals, POS terminals Windows thin client Minimal remote access terminal with constrained shell and RDP

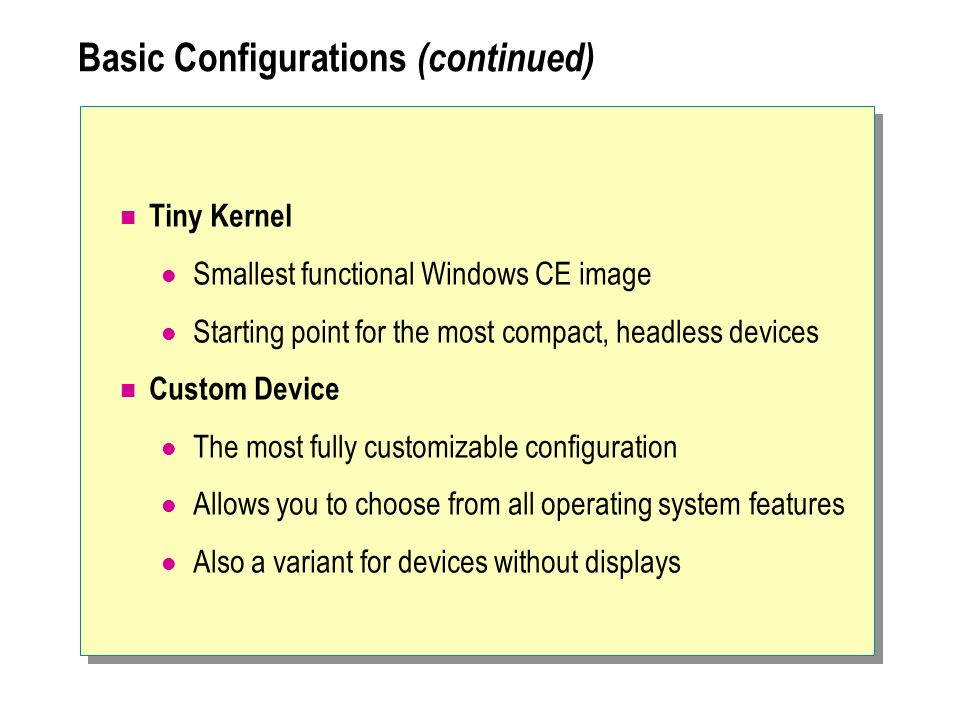

8. Basic Configurations (continued) Tiny Kernel Smallest functional Windows CE image Starting point for the most compact, headless devices Custom Device The most fully customizable configuration Allows you to choose from all operating system features Also a variant for devices without displays

9. Target Hardware Support Processor FamilyCPUSDBBSP Name ARMIntel SA1110Intel SA111x Assabet SDB SA11X0BD ARM920ARM Integrator AP SDB ARMINTEGRATOR ARM1020 Intel XscaleIntel Lubbock SDBTBD MIPSNEC Vr4122NEC DDB-Vr4122 Eagle SDB EAGLE NEC Vr5432NEC DDB-Vrc5476 Boston SDB DDB5476 SHxSH4-7750Hitachi SH4 Aspen SDB ASPEN SH3-7729Hitachi SH3 Keywest SDB KEYWEST x86P5/P4/PIII/PII/ CelK6x/Athlon CEPC NS GeodeNational Geode Reference Platform GEODE

10.  Core Operating System Architecture Hardware OAL Device Drivers GWES Kernel Filesys Applications Programming Interfaces (Win32, COM, MFC, ATL) Communications interfaces (Winsock, RAS, TAPI) Networking and Communications System Device Manager

11. The OEM Adaptation Layer Layer between the Kernel and the hardware Set of functions related to system startup, interrupt handling, power management, profiling, timer, and clock Included in BSPs for supported SDBs Coded by OEMs to adapt windows CE to their own custom platforms Linked with code provided by Microsoft to build the Kernel

12. The Kernel Module Portable across supported processors Kernel is portable as most of the operating system is written in C NK.EXE, COREDLL.DLL NK.EXE contains Kernel code and Coredll.dll is the operating system core DLL module Saving system resources CE loader is designed to save system resources by loading application pages as and when needed and by keeping only one physical copy of a DLL Demand paging Loads virtual memory pages into physical memory when needed Multiple execute in place regions Allows applications to execute code directly from read-only memory

13. Device Driver System Device driver Links an operating system and a device Built-in Drivers vs. Installable Drivers Built-in drivers are installed by the platform manufacturer Installable drivers are third-party peripheral devices that end users can connect to a Windows CE-based platform Native Drivers vs. Stream Drivers All of the device drivers managed by GWES are native device drivers Device manager loads stream interface drivers when the system boots, if those drivers are listed in the registry Monolithic Drivers vs. Layered Drivers Monolithic drivers implement interface directly in terms of actions on the device they control Layered drivers separate the implementation into two layers

14. The GWES Module Graphics, Windowing, and Event Subsystem Graphic output: display and printer User input: keyboard, stylus, and mouse Window management: message routing Graphic Device Interface (GDI) Is the drawing subsystem of GWES Controls how text and graphics are displayed Uses a device context to store drawing attributes for a specified device

15. The Filesys Module Implements the object store File systems Registry Property Database Substitutes for a hard drive on an embedded drive Resides in ROM, RAM, or both Can have a maximum size of 256 MB

16. The Filesys Module (continued) Storage manager Is responsible for all external storage items, including all the file systems and block drivers Installable file systems Can provide access to a floppy diskette, a hard drive, a flash file system on a PC Card, or to other external storage devices File-shadowing mechanism Allows a file to be stored both in RAM and ROM. Differences from other Windows file systems No letters assigned to file systems No concept of current directory No support for overlapped I/O All files stored in RAM are automatically compressed

17. The Filesys Module (continued) Registry Provides a common repository for system settings, application data, and user preferences Resides in RAM, if not present in RAM, the registry can be reloaded from persistent storage or rebuilt from ROM Registry functions specific to Windows CE Property Database Provides a lightweight database management system Accessible using a new set of Win32 API functions specific to Windows CE Data stored in a flat model Accessible to ActiveX Data Objects for Windows CE (ADOCE) Supports multiple volumes on installable file systems

18. Real Time Operating System Bounded interrupt response latency Timer precision configurable (1 millisecond default) System timer tick independent of thread quantum Nested interrupt support Priority inheritance Protected virtual memory Synchronization objects

19. Power Management Features Power management features respond to system calls for turning the system off or for idling Device level power states, DO-D4 D0 – Full on: Full power with full functionality D1 – Low On: Slightly reduced functionality, lower power and/or performance D2 – Standby: Partial power with automatic wake D3 – Sleep: Partial power with device initiated wake D4 – Off: Power off The only device power state that all devices must support is D0, full on

20. Advanced Features of Windows CE.NET Networking and Communications Real-Time Communication Multimedia Security Internationalization

21.  Networking and Communications Networking and Communications Architecture Wireless Platform Support Component Object Model Additional Networking Features Networking Scenarios

22. Networking and Communications Architecture Winsock Protocol Stacks (TCP/IP, IrDA) NDIS (LAN, WAN, TR, IrDA) Network Drivers TAPI IP Helper SNMPWNetWinInet Applications Network Interface Serial Serial Port Ir Port FIR H/W COMMSMQ RAS PPP Unimodem WebServer

23. Wireless Platform Support 802.11 zero configuration and 802.1x Enables roaming with minimal configuration and logon using user/password and certificate Bluetooth Supports dial up networking, WLAN access and object exchange NDIS 5.1 Wireless enhancements, battery status MediaSense Connect/disconnect, roaming in range/out of range notifications

24. Component Object Model COM is a platform-independent object-oriented system OEMs can choose from the different levels of run-time support Minimal COM (MCOM) provides baseline API set COM provides a mid-range implementation of COM and OLE automation COM Storage (COM_STG) combines the midrange COM implementation with structured storage functionality DCOM provides full-featured distributed COM implementation Marshalling support

25. Additional Networking Features Dynamic Host Configuration Protocol (DHCP) Internet Connection Sharing (ICS) Virtual Private Networking (VPN) Windows Sockets 2 (Winsock) Message Queuing (MSMQ) Object Exchange (OBEX) Infrared Data Association IrDA IEEE 1394 (Firewire) MediaSense Media Access Control (MAC) Bridging

26. Networking Scenarios Personal Area Networking (home, office) Scenarios: PDA, Internet Appliance, Networking Printer Features: Bluetooth, IrDA, UPnP Local Area Networking (office, factory) Scenarios: Thin Client, Enterprise Web Pad, Industrial Automation Features: Ethernet, DCOM Wireless LAN (office, coffee shop) Scenarios: Cell Phone, PDA, Web Pad Features: Ethernet, Zero Configuration 802.11/802.1x Wide Area Networking (WAN) (home, hotel) Scenarios: PDA, Internet Appliance, Web Pad, Residential Gateway Features: TAPI, RAS, PPP, Unimodem, VPN, PPTP

27.  Real-Time Communication RTC Support RTC Architecture RTC Scenarios

28. RTC Support Real time Audio Communication (VoIP) SIP (Session Initiation Protocol) based Between IP devices – peer to peer or through server Across gateways to PSTN phones Instant Messaging Presence Contacts Watchers

29. RTC Architecture TCP/IP NDIS Serial Driver PPP Hardware FTP HTTP RTP RTC API User App Instant Messenger SIPPINT

30. RTC Scenarios Connectivity combinations CE device-to-CE or XP device CE device-to-PSTN phone CE device-controlled PSTN Phone-to-CE or XP device Application requirements Instant Messaging over a Network CE-to-CE or CE-to-XP, no SIP server needed Monitor a Contact's Presence or Control Presence Information CE device on a network with an SIP server

31.  Multimedia Support and Architecture Multimedia Support Multimedia Architecture Multimedia Scenarios

32. Multimedia Support DirectDraw Direct3D DirectDVD DirectMusic 7 DirectShow 6.1 DirectSound® 6.1 Legacy Video Playback MIDI Playback MP3 Playback MPEG-1 Video Playback Digital Rights Management (DRM)

33. Multimedia Architecture

34. Multimedia Scenarios Stream or play live or recorded audio and video media from local or remote locations on mobile or fixed devices Possible applications Digital media appliances Web Pads and Internet portals Set-top boxes Telecommunications equipment Industrial control and medical applications Education and training

35.  Security Features and Architecture Which Security Features Are Supported? SSPI Security Architecture Security Scenarios

36. Which Security Features Are Supported? Trusted environment Certified applications CryptoAPI Protected registry Password control Protected store LDAP Security Model Secure Sockets Layer PPTP PC/SC Secure file system DCOM security 802.11 security

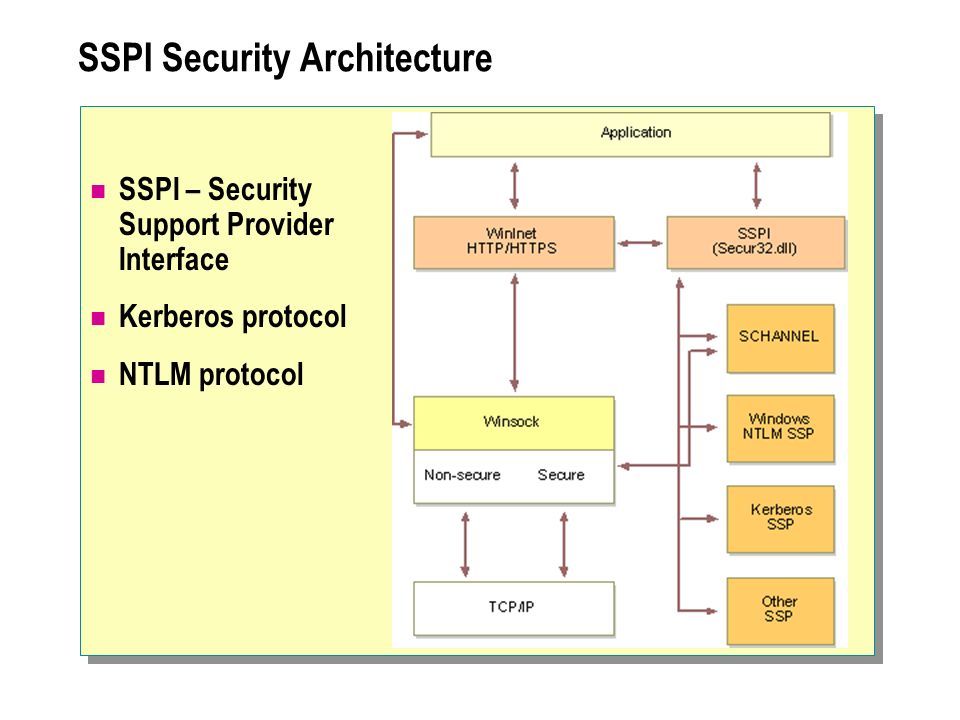

37. SSPI Security Architecture SSPI – Security Support Provider Interface Kerberos protocol NTLM protocol

38. Security Scenarios Control access to the device Protect against unauthorized applications Secure data storage and file systems Secure network and internet connections

39. Internationalization Platform localization options: Localization vs. Internationalization Changing the language of your operating system Adding locales Selecting codepages

40. Internationalization (continued) Creating International Applications: Building for a different Locale Shared source files Understanding Unicode and NLS

41. Internationalization (continued) Common practice for developing international software: Use a few target locales for initial development and testing Resource Localization: Strict or Non-strict Translation Tips Avoid using vague words, colloquialisms, jargon, acronyms, and abbreviations Use good grammar Avoid dynamic concatenation of different strings Avoid hard-coding file names in a binary file Avoid including text in images and icons International Conventions Locales might have different conventions for expressing information Locales might have different keyboard conventions

42. Review Overview of Windows CE.NET Core Operating System Architecture Advanced Features of Windows CE.NET Networking and Communications Real-Time Communication Multimedia Support and Architecture Security Features and Architecture Internationalization
