Anaesthesia For Valvular Heart Diseases
Made by: Dr. Meenal Aggarwal Moderator: Dr. Aparna
2
Introduction
4
Valvular ds: An increased burden on L or R ventricle
Could be: Pressure overload (Stenotic lesions) Volume overload (Regurgitant lesions) Initially tolerated d/t compensatory mechanisms Eventually cardiac muscle dysfunction CHF ; even sudden death
5
Preoperative Assessment
Aim: to know Severity of Disease Degree of impaired myocardial contractility Presence of assoc. organ system diseases O/H: Symptoms: Dyspnea, orthopnea, easy fatiguability (Impaired myocardial contractility) Anxiety, diaphoresis, resting tachycardia (Compensatory increase in sympathetic activity) Angina (d/t assoc CAD, or inc. myocardial O2 demand)
6
Drug therapy: Beta Blockers Digitalis ACE inhibitors Vasodilators Diuretics Ionotropes Antiarrhythmic drugs Control HR (AS & MS: Allows diastolic filling) Control BP and so dec. afterload (AR, MR) Control of CHF
7
O/E: Signs: Inspection: Raised JVP Auscultation: Basilar chest rales, S3, Murmurs Murmurs: D/t turbulent flow across the defective valve Note: character, location, intensity, direction of radiation Systolic murmurs: AS, PS or MR,TR Diastolic murmurs: MS, TS or AR, PR Dysrhythmias: AF (esp Mitral valve ds.) i.e. with enlarged Lt atria
8
Lab Investigations: CXR: Size & shape of heart & great vessels Pulmonary markings Enlarged LA (Elevated Lt main bronchus, calcified valve) ECG: Lt or Rt axis deviation (Lt or Rt ventricle hypertrophy) P mitrale (Broad notched P wave in Mitral valve ds.) Dysrhythmias Conduction abnormalities Evidence or active ischemia or previous MI
9
Echo with doppler: Evaluating significance of murmurs Detection of antomical defects (Hypertrophy, chamber size, valve area) Functional defects (Transvalvular pressure gradient, magnitude of valvular regurgitation) Cardiac Catheterisation: Solves discrepancies b/w clinical and echo findings Presence & severity of stenosis or regurgitation Intracardiac shunting CAD
10
Transvalvular pressure gradient (TVPG) (Severe MS when > 10mmHg, Severe AS when > 50 mm Hg)
Pulmonary artery pressures (Pulmn HT) Assessment of Prosthetic Valve function: Dysfunction (Change in intensity/ quality of clicks, new or change in characteristics of murmurs) Tranthoracic Echo: To assess ring stability and leaflet motion Transesophageal Echo: Better resolution MRI: For prosthetic valve regurg, paravalvular leak Cardiac Catheterisation: For TVPG, Effective valve area
11
Complications of prosthetic valves:
Risk of thromboembolism (Anticoagulation) Subclinical intravascular hemolysis Risk of endocarditis (AB) Management of anti coagulation: Can be continued in minor surgery with min blood loss For major surgery (Stop warfarin 3-5 days preop, UF heparin or LMWH started & continued upto day/ day before of surgery, restarted post op) Avoid elective surgery with in 1 month after an acute thromboembolic episode
12
In pregnancy (TE prophylaxis to continue, S/C LMWH given + low dose aspirin)
Prophylaxis of Bacterial endocarditis: Infection likely from frequent exposure to bacteremia Weigh Risk to benefit ratio (AB resistance) Prophylaxis given to following pts: Prosthetic material for cardiac valve repair Previous IE CHD: Unrepaired CHD, Completely repaired with prosthetic material (during 1st 6 months after procedure), Repaired defects with residual defect) Cardiac transplant pt who develop valvulopathy
13
AB prophylaxis not required for GU or GIT procedure
Required for skin incision/ Biopsy or Resp tract invasive procedure For dental procedures (manipulation of gingiva, Mucosa)
14
MITRAL STENOSIS: Most common cause RHD Primarily affects females
Diffuse thickening of mitral leaflets & subvalvular apparatus, Calcification Gradual progression (over yrs) Other causes: Carcinoid syndrome, LA myxoma, Severe mitral annular calcification, RA, thrombus formation, SLE, congenital
15
Pathophysiology of Mitral Stenosis
Decreased mitral valve orifice Mechanical obstruction to LV diastolic filling Dec LV volume Inc LA volume & pressure Dec S.V. Inc Pulmn Venous Pressure RV Hypertrophy & failure Overt Pulmn Edema Pathophysiology of Mitral Stenosis
16
Diagnosis: Clinical signs: opening snap (in early diastole), rumbling diastolic heart murmur Venous thrombosis (stasis, decreased activity) CXR: -LA enlargement (straightening of left heart border, elevation of left main stem bronchus, double density of LA) -Mitral calcification -Evidence of pulmn congestion ECG: Broad notched P wave (P mitrale), AF
17
Echo: (Anatomical details: Leaflet thickening, calcification, changes in mobility, chamber dimension, thrombus) Severity assessed by: - Mitral valve area, TVPG Also for Pulmn HT, Ventricular function
18
Treatment: Mild MS: Diuretics In AF: Beta blockers, Ca #, Digitalis (H.R. control) Anticoagulants (Warfarin to get INR of 2.5 to 3) Surgical correction: Percutaneous valvotomy Valve reconstruction Valve replacement, surgical commisurotomy
19
Management of Anaesthesia:
Avoid tachycardia (prevents filling) Avoid decrease in SVR (use vasopressors which avoid Tachycardia) Do no permit volume overload (can ppt CHF) Prevent hypercarbia & hypoxemia, lung hyperinflation (Worsen Pulmn HT) If RVF : Requires ionotropic support & pulmonary vasodilators Premedication: decrease anxiety (watch for resp depression), Continue drugs for HR control, Treat diuretic induced hypoK+
20
Anticoagulant therapy (acc to minor or major procedure), coagulation tests for regional anaesthesia
Induction: I/V agents (except ketamine), MR (which doesn’t Inc HR or Dec BP d/t histamine release) Maintenance: Min effect on HR, SVR & PVR, contractility (N2O+ opioid+ Low conc Volatile agents) Reversal achieved slowly (to avoid tachycardia d/t glyco/atropine) Prevent light plane of anaesthesia (symp stimulation) Pulmonary vasodilator may be required Careful fluid replacement intraop (risk of Pulmn edema)
21
Monitoring: In asymptomatic (routine)
Symptomatic/ major surgery (Intraarterial pressure monitoring, Pulmonary artery pressure, LA pressure: at higher risk of rupture of pulmn A so done carefully and less frquently, TEE) Post operative management: Prevent fluid overload Manage pain (to prevent tachycardia, hypoventilation so hypoxia), neuraxial opioids May require mechanical ventilation (thoracic surgery)
22

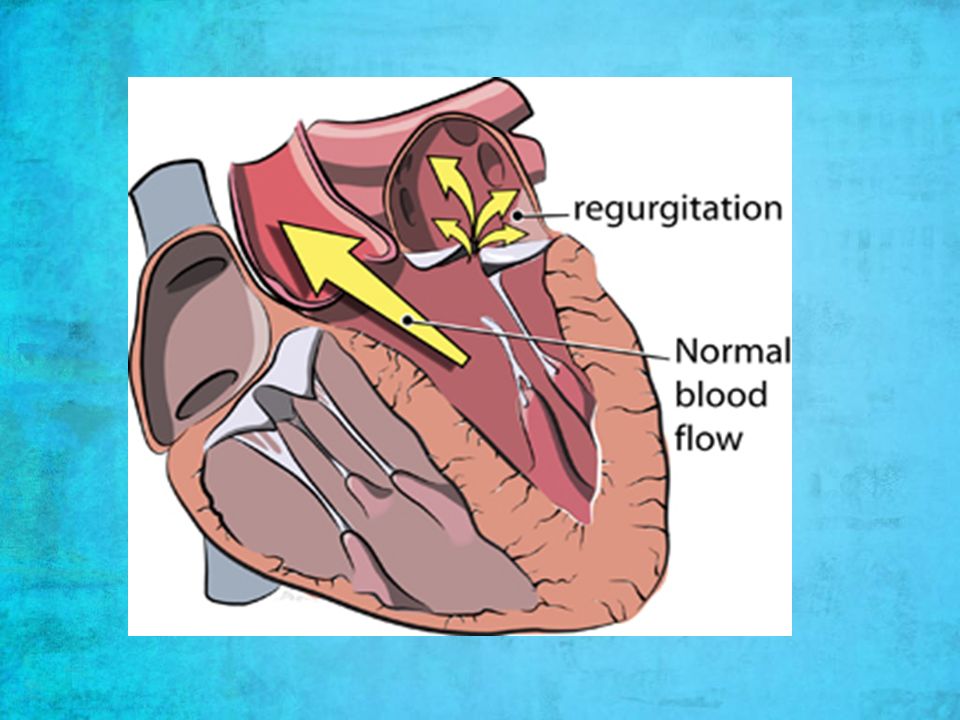

MITRAL REGURGITATION:
In RHD, usually assoc with MS Other causes: Papillary muscle dysfxn, mitral annular dilatation, rupture of chordae tendinae, endocarditis, MVP, Congenital Pathophysiology: Regurgitation into LA LA volume overload Dec LV stroke volume LA enlargement & AF Pulmn congestion
24
Regurgitant fraction depends on:
Size of valve orifice Heart rate Pressure gradient across MV (SVR) When MR develops gradually: LV becomes more compliant When acute MR: No compensation, sudden sever Dec in S.V. l/t cardiogenic shock, with pulmn congestion When MR+ MS : both volume and pressure overload Diagnosis: O/E: holosystolic apical murmur, radiation to axilla CXR: Cardiomegaly (LA & LV hypertrophy)
25
Diagnosis cont… ECG: Lt axis deviation Echo: Confirms MR, Anatomy (LA size, LV wall thickness, cavity dimension), S.V., LA appendage for thrombus Doppler: Severity assessment (Calculation of regurgitant volume and fraction), area of regurgitant jet Pulmn A. Occ. Pressure: Shows a ‘V’ wave in the waveform signifies regurgitation Cardiac catheterisation: If surgery planned or severity doubtful Coronary angiography: In elderly patients
26
Treatment: Surgical: Mitral valve repair (preferred as apparatus preserved) Mitral valve replacement Survival increased by surgery of performed before LVEF < 60%, or before End systolic LV dimension >= 45mm Patients who do not improve with surgery: * LVEF < 30% * LV end systolic dimension > 55mm Medical : Vasodilators (Acute MR) Beta #, ACE inhibitors Biventricular pacing
27
Management of Anaesthesia:
Prevent events which Dec C.O. Maintain N to slightly higher H.R. Vasodilators to dec afterload Ionotropes to improve LV contraction Induction: I/V agent used MR (pancuronium beneficial- raises HR) Maintainence: Inhalational agents (Dec rise in BP & SVR caused by surgical stimulation) iso, des, sevo
28
Opioids (when severely compromised myocardial function)
Mechanical ventilation (allow venous return) Maintain I/V volume Monitoring: Asymptomatic / minor surgery (no invasive monitoring) Severe MR (Pulmn A. Catherisation V wave)
29

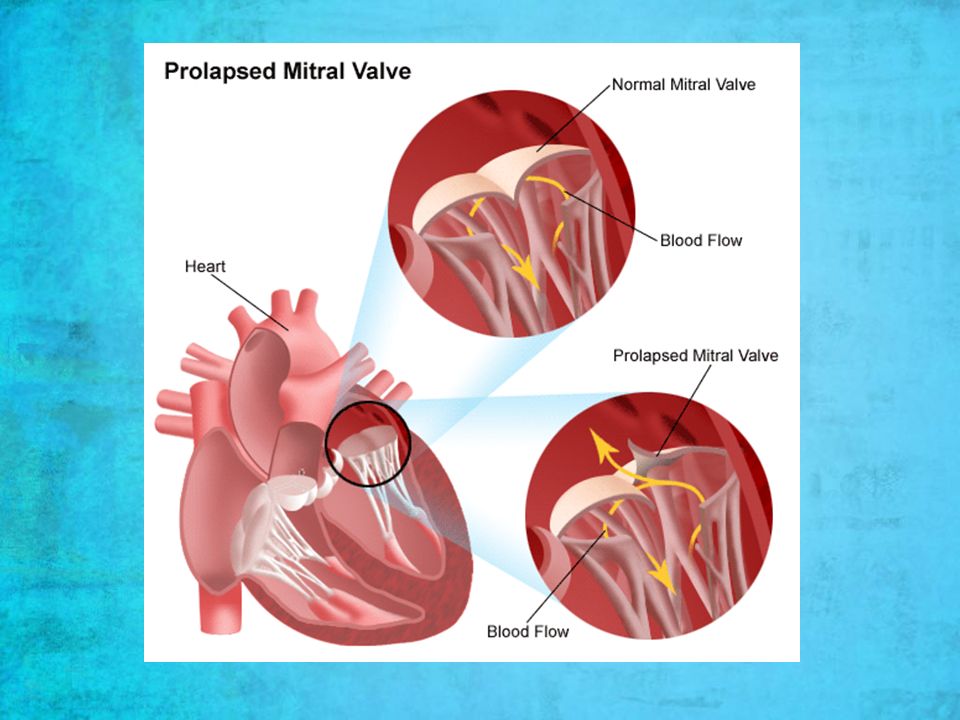

MITRAL VALVE PROLAPSE:
Prolapsed one/ both mitral leaflets into LA during systole M.C. form of valvular ds. (young women) With or Without MR Causes: Marfan’s, RHD, Myocarditis, thyrotoxicosis, SLE Diagnosis: Usually benign, but can l/t IE, cerebral embolisation, Severe MR, Severe dysrrhythmias, sudden death C/F: Palpitation, anxiety, orthostatic symptoms, dysnea, fatigue, atypical chest pain
31
Echo: valve prolapse of 2mm or more above mitral annulus
With/ without leaflet thickening (elderly/connective ts. ds) Functional form (mild bowing) Management of Anaesthesia: Influenced by degree of MR Basis: Larger LV will have lesser prolapse Inc sympathetic activity Dec SVR Upright posture hypovolemia Increase MR
32
Inc LV vol will Dec MVP (HTN/ Vasoconst, drug induced myocardial depression, volume resuscitation)
Preoperative Evaluation: Differentiate functional MVP from significant MR Usually< 45 y, female Beta blocker for arrhythmias (continued) If H/O Transient neurological event with sinus rhythm, no atrial thrombi (pt usually on aspirin mg/d) Pt with AF &/or with atrial thrombi or previous stroke (usually on warfarin) ECG changes (PVC’s, QT prolongation) no implication
33
Pt may have systolic clicks, murmur even without symptoms (no need of cardio consultation)
In older men (MVP can present with CHF) pt on diuretics, ACE inh Anaesthesia technique: When LV function normal, tolerates both GA & regional Induction: I/V agent (assess need to avoid dec in SVR) Etomidate (min Myocardial depression) Ketamine not to be used (Enhances LV emptying so inc MR) Maintenance: Minimize sympathetic nervous system activity d/t surgical stimuli
34
Volatile anaesthetics with N2O +/- Opioids
Low dose: 0.5 MAC (iso, des, sevo) in significant MR Any MR (keep in mind vagolytic/ histamine induced effects) Unexpected ventricular arrhythmias can occur intra op (Beta blocker or lignocaine) Proper fluid balance Vasopressors may be required Avoid controlled hypertension technique (increases MVP) Monitoring: Routine Significant MR/ LV dysfunction (Pulmn A. catheter)
35

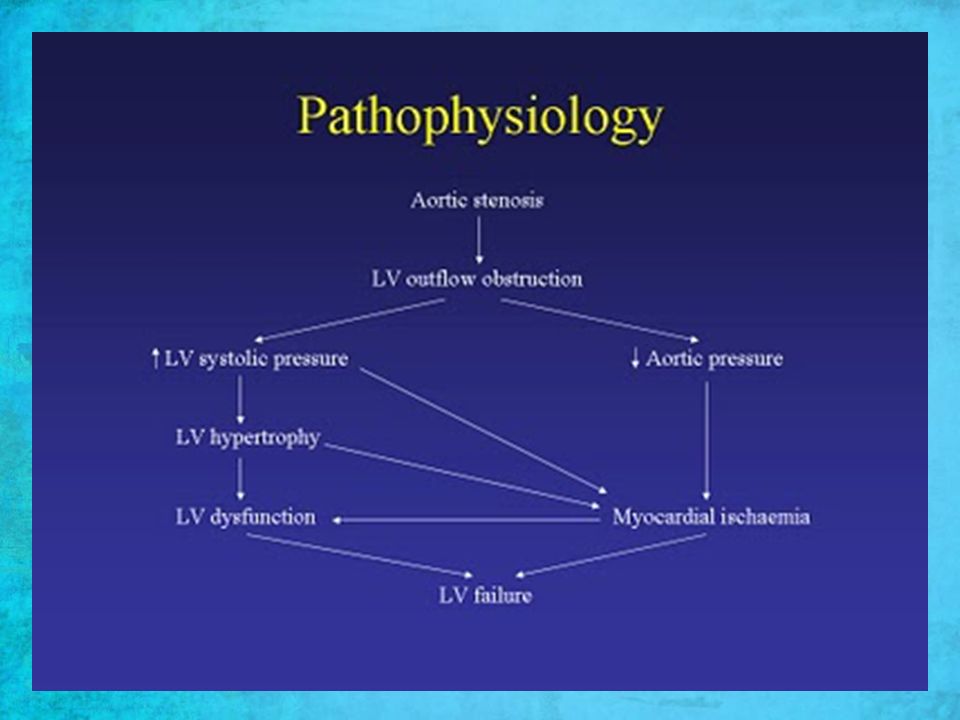

AORTIC STENOSIS: Degeneration & calcification of leaflets (ageing), then stenosis Causes : Elderly, Bicuspid Aortic Valve N valve area: cm2 Almost always assoc with some AR
37
Angina may occur despite absence of CAD (Inc myocardial demand, dec supply)
Syncope (fall in SVR can’t be compensated by inc C.O.) Diagnosis: C/F: angina, syncope, dyspnea on exertion O/E: Systolic murmur best heard in aortic area (be careful as mostly patients undiagnosed) CXR: Prominent ascending aorta ECG: LV hypertrophy Echo with doppler: Bileaflet aortic valve, thickening/ calcification of aortic valve, decreased mobility, LV hypertrophy
38
Echo cont… Valve area, TVPG Cardiac Catheterisation Coronary Angiography Exercise stress testing for Asymptomatic patients Treatment: Asymptomatic: Continue medical therapy (delay Surgery untill s/s appear) Aortic Valve replacement Coronary revascularisation (if co-existant CAD) Percutaneous aortic balloon valvuloplasty
39
Management of Anaesthesia:
Maintain N sinus rhythm Avoid bradycardia/ tachycardia Avoid hypotension (if occurs aggressive Tt required) Optimise I/V fluid volume CPR is generally ineffective in AS (Not enough CO generated) Induction: GA preferred (regional causes Hypotension) I/V agents used (ones which do not dec SVR) If LV function compromised opioid induction
40
Maintenance: Avoid drugs which suppress S.A.node (if occurs give atropine/ glyco/ ephedrine) If persistent tachycardia use esmolol In supravent. tachycardias cardioversion to be done Chanced of VT present (Lidocaine & defib) If LV dyfxn (avoid drugs depressing myocardial contractility) NM blocker with min hemodynamic effects I/V fluid vol to be maintained Monitoring: ECG, Intraarterial cath, P.A. cath, TEE
41

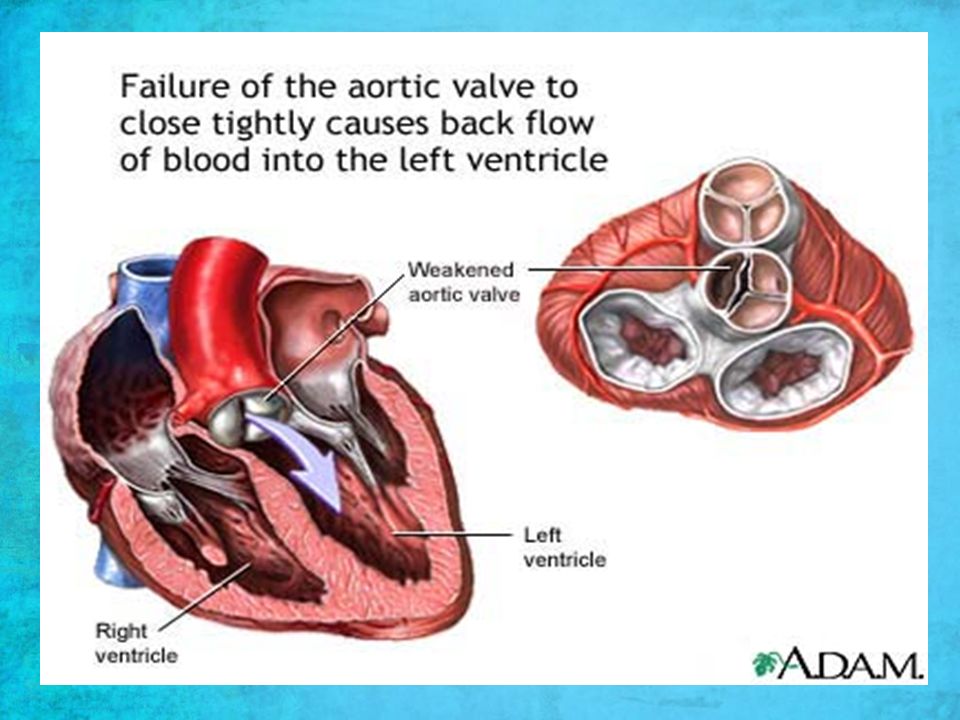

AORTIC REGURGITATION:
Causes: IE, RF, Bicuspid aortic valve, ds of root of aorta
43
Magnitude of regurgitation depends on:
Time available for regurgitation (H.R. dependent) Pressure gradient across the valve (SVR dependent) Diagnosis: C/F: Dysnea, orthopnea, fatigue, coronary ischemia O/E: Diastolic murmur (Lt sternal border), bounding pulses, wide pulse pressure, Austin Flint murmur (low pitched diastolic murmur) CXR & ECG: LV enlargement & hypertrophy Echo: LVEF & ESV, Severity of regurgitation (on doppler) Cardiac cath & MRI
44
Treatment: Surgical: Replacement (even in asymptomatic) Immediate surgery in acute AR (as l/t sudden heart failure) Ross procedure (Pulmonic valve autograft) Valve reconstruction Medical: Vasodilators (Nitroprusside) Ionotropes (Dobutamine) Long term Nifedipine/ Hydralazine
45
Management of Anaesthesia:
Avoid bradycardia (HR above 80/min), use atropine Avoid inc in SVR Minimize myocardial depression If LV failure (vasodilators and ionotropes) GA chosen Induction: I/V agent which doesn’t inc SVR or dec HR Maintenance: N2O + volatile agent &/or opioid Iso, Des, Sevo good (inc HR, dec SVR, min myo depression) If severe LV dysfunction high dose opioid (caution: bradycardia) NM blocker: Pancuronium useful, modest tachycardia
46
Monitoring: Minor surgery with asymptomatic ds. (routine) Severe AR: Pulmonary A catheter TEE Useful for guiding I/V volume replacement, detecting myocardial depression, measuring response to vasodilators
47
TRICUSPID REGURGITATION:
Usually functional (d/t RV enlargement or Pulmn HT) IE, Carcinoid, RHD, Ebstein anomaly Mild TR in highly trained athletes Pathophysiology: Regurgitation through TV RA vol Overload (but minimal rise in RA pressure) O/E: Raised JVP, Hepatomegaly, ascites, edema Tt: Tt the cause (improve lung fxn, relieve LV failure, dec PHT) Surgery (rarely for TR alone), Tricuspid annuloplasty/ valvuloplasty/ replacement
48
Management of Anaesthesia:
Keep CVP to high Normal IPPV may decrease venous return Avoid hypoxemia & hypercarbia (to prevent inc Pulmn A. pressure) N2O: weak Pulmn A. vasoconst (may inc TR) Intra op measurement of RA pressure to guide fluid therapy Very high LA pressure can l/t R L shunt (patent foramen ovale)
49
PULMONARY REGURGITATION:
TRICUSPID STENOSIS: M.C.cause: RHD (coexiztant TR, Mitral n aortic valve ds) Inc RA pressure & pressure gradient b/w RA & RV PULMONARY REGURGITATION: Secondary to Pulmn HT Rarely symptomatic PULMONARY STENOSIS: Usually congenital (detected and treated in early childhood) C/F: Syncope, angina, RV Failure Tt: surgical valvotomy
50
Thank You
