1. Chapter 4: Compression (Part 2)
Image Compression

2. The Scientist and Engineer's Guide to Digital Signal Processing
Acknowledgement
Some figures and pictures are taken from:
The Scientist and Engineer's Guide to Digital Signal Processing
by Steven W. Smith

3. Lossy compression Motivations:
Uncompressed images, video and audio data are huge, e.g., in HDTV, bit rate easily exceeds 1Gbps.
Lossless methods (Huffman, Arithmetic, LZW) are inadequate for images and video because the spatial and/or temporal redundancy of pixel values are not exploited.
Special characteristics of human perception (e.g., more sensitive to low spatial frequencies) should be taken advantage of to achieve a higher compression ratio. 24

4. Spatial sensitivity a higher spatial frequency
requires a larger contrast

5. Vector quantization (VQ)
A general lossy compression technique
Scalar quantization: 3,200,134 ~ 3M
VQ: a generalization of scalar quantization: subjects to be quantized are vectors.
VQ can be viewed as a form of pattern recognition where an input pattern (a vector) is approximated by one of a predetermined set of standard patterns.
“Doesn’t quantization
mean round the figure?
So how can people get
slim with it?” Benny.

6. Vector quantization (Def’n)
A vector quantizer Q of dimension k and size N is a mapping from a vector in a k-dimensional Euclidean space into a finite set C containing N output or reproduction points, called code vectors.
C: the codebook (with N vectors).
Vector Q C k N

7. Vector quantization (Def’n)
The rate of Q is r = (log2N)/k = number of bits per vector component used to represent the input vector.
Two issues:
how to match a vector to a code vector (pattern recognition),
how to set the codebook.

8. Searching the codebook
Given a vector, we need to search the codebook (finding an index) for a code vector that gives the minimum distortion.
Squared error distortion:
vector to be coded
code vector
the ith component of vector x

9. Codebook training Get a large sample of data (the training set).
Pick an initial set of code vectors.
Partition the training set into cells.
Use the cells to tune the codebook.
Repeat. Q
cell
find the
centroid
training set

10. Codebook training Step 1 Given a training set, X, with M vectors
Let d = the mean square distortion measure
Let the iteration index be j and set j=1
Select an initial codebook C0
Set initial distortion d0 = infinity
Pick a convergence threshold E

11. Codebook training Step 2
Optimally encode all vector x within X using Cj-1
Assign x to cell Pi,j-1 if x is quantized as yi,j-1 where yi,j-1 is the i-th codevector in Cj-1
Compute dj = sum of all vector distortions
If (dj-1 – dj ) / dj < E then quit with codebook = Cj-1; otherwise go to step 3.

12. Codebook training Step 3
Update the codevectors as yi,j = the average of all the vectors assigned to cell Pi,j-1 (i.e., the centroid).
j++; go to Step 2.

13. Codebook training (illustration)
vector 1
[25,10,24] 2
[30,30,30] 3
[11,91,11] 4
[28,28,29] 5
[20,81,11] 6
[15,42,52] 7
[24,11,24] 8
[28,29,28] 9
[25,12,25] 10
[10,89,12]
code
set
code vector 00
[25,33,40] 01
[13,53,61] 10
[20,88,30] 11
[21,10,24]
codebook
training vectors

14. Codebook training (illustration)
vector 1
[25,10,24] 2
[30,30,30] 3
[11,91,11] 4
[28,28,29] 5
[20,81,11] 6
[15,42,52] 7
[24,11,24] 8
[28,29,28] 9
[25,12,25] 10
[10,89,12]
code
set
code vector 00
[25,33,40] 01
[13,53,61] 10
[20,88,30] 11
[21,10,24]
codebook
d([25,10,24],[25,33,40]) = 785
d([25,10,24],[13,53,61]) = 3362
d([25,10,24],[20,88,30]) = 6145
d([25,10,24],[21,10,24]) = 16
training vectors

15. Codebook training (illustration)
vector 1
[25,10,24] 2
[30,30,30] 3
[11,91,11] 4
[28,28,29] 5
[20,81,11] 6
[15,42,52] 7
[24,11,24] 8
[28,29,28] 9
[25,12,25] 10
[10,89,12]
code
set
code vector 00
[25,33,40] 01
[13,53,61] 10
[20,88,30] 11 1
[21,10,24]
codebook
d([25,10,24],[25,33,40]) = 785
d([25,10,24],[13,53,61]) = 3362
d([25,10,24],[20,88,30]) = 6145
d([25,10,24],[21,10,24]) = 16
training vectors

16. Codebook training (illustration)
vector 1
[25,10,24] 2
[30,30,30] 3
[11,91,11] 4
[28,28,29] 5
[20,81,11] 6
[15,42,52] 7
[24,11,24] 8
[28,29,28] 9
[25,12,25] 10
[10,89,12]
code
set
code vector 00
2,4,8
[25,33,40] 01 6
[13,53,61] 10
3,5,10
[20,88,30] 11
1,7,9
[21,10,24]
codebook
training vectors

17. Codebook training (illustration)
vector 1
[25,10,24] 2
[30,30,30] 3
[11,91,11] 4
[28,28,29] 5
[20,81,11] 6
[15,42,52] 7
[24,11,24] 8
[28,29,28] 9
[25,12,25] 10
[10,89,12]
code
set
code vector 00
2,4,8
[25,33,40] 01 6
[13,53,61] 10
3,5,10
[20,88,30] 11
1,7,9
[21,10,24]
codebook
[30,30,30]+[28,28,29]+[28,29,28]
= [28,29,29] 3
training vectors

18. Codebook training (illustration)
vector 1
[25,10,24] 2
[30,30,30] 3
[11,91,11] 4
[28,28,29] 5
[20,81,11] 6
[15,42,52] 7
[24,11,24] 8
[28,29,28] 9
[25,12,25] 10
[10,89,12]
code
set
code vector 00
2,4,8
[28,29,29] 01 6
[15,42,52] 10
3,5,10
[13,87,11] 11
1,7,9
[24,11,24]
codebook
training vectors

19. Codebook training (illustration)
vector
code vector
code 1
[25,10,24]
[24,11,24] 11 2
[30,30,30]
[28,29,29] 00 3
[11,91,11]
[13,87,11] 10 4
[28,28,29] 5
[20,81,11] 6
[15,42,52] 01 7 8
[28,29,28] 9
[25,12,25]
[10,89,12]

20. VQ and image compression
A simple way of applying VQ to image compression is to decompose an image into a number of (say) 22 blocks. Each block then derives a 4-element vector.
Instead of encoding the pixel values of a block, one trains a code book and encodes a block by an index into the code book.
To train a code book, a number of images of similar nature are used
e.g., facial images are used to train a code book for compressing facial images

21. [154,154,154,147]
[175,182,168,154]
[189,168,168,168]
[217,175,196,175]
[175,154,175,168]
[203,175,168,168] …

22. Image & video compression
JPEG: spatial redundancy removal in intra-frame coding.
H.261 and MPEG: both spatial and temporal redundancy removal in intra-frame and inter-frame coding.

23. Sub-sampling techniques
Sub-sample to compress. Interpolation techniques are used upon reconstruction of the original data.
Sub-sampling results in information loss. However, the loss is acceptable by the virtue of the physiological characteristics of human eyes.
Chromatic sub-sampling: Human eye is more sensitive to changes in brightness than to color changes. Very often, RGB values are transformed to Y’CBCR values. The chroma components are then sub-sampled to reduce the data requirement. 15

24. Chromatic sub-sampling
4:2:2 sub-sample color signals horizontally by a factor of 2 (CCIR 601 standard).
4:1:1 sub-sample horizontally by a factor of 4.
4:2:0 sub-sample in both dimensions by a factor of 2.
4:2:0 is often used in JPEG and MPEG. 16

25. Chromatic sub-sampling (notation)
luma horizontal
sampling reference
chroma horizontal
sampling
either same as
the 2nd digit; or
0, indicating that
CB and CR are
vertically
sub-sampled at a
factor of 2.
4:2:2

26. Example: a frame with pixel dimensions of 720  480:

27. JPEG compression JPEG stands for “Joint Photographic Experts Group”.
JPEG is commonly used to refer to a standard for compressing and encoding continuous-tone still images.
adjustable compression/quality
4 modes of operations:
Sequential (line-by-line) (baseline implementation)
Progressive (blur-to-clear)
Lossless (pixel-for-pixel)
Hierarchical (multiple resolutions)

28. JPEG (steps) 1. Preparation 2. Processing
Uncom-
pressed
Compressed
preparation
processing
quantization
entropy
encoding
1. Preparation
includes analog-to-digital conversion. Image can be separated in Y’CBCR components to facilitate sub-sampling on the chrominance components. The image is segmented into 88 blocks.
2. Processing
sophisticated algorithms, such as transformation from time to frequency domain using DCT. 25

29. 1/4
1/2
1/2
1/2
1/4

30. JPEG (steps) 3. Quantization
map real-number values from the previous step to integers. This process results in loss of precision, but achieves data compression.
It specifies the granularity of the mapping, allowing control of the precision carried in the compressed data.
Different levels of quantization are applied to the luminance and chrominance components, exploiting the sensitivity of human perception.

31. JPEG (steps) 4. Entropy encoding
It compresses a sequential data stream without loss. Steps of zigzag scan to linearize the data. Predictive encoding and RLE are used to encode the DC and AC components. Finally, Huffman scheme to encode the data.
Arithmetic coding instead of Huffman is possible, but not required.

32. JPEG (schematic diagram)CB
Y’CBCR CR 26

33. Image preparation
Each image consists of a number of components (e.g., RGB, Y’CBCR).
Divide each component into 8  8 blocks.
Each block is a “data unit” subject to DCT transformation.
The values in a block are shifted from unsigned integers with range [0, 2p-1] to signed integers with range [-2p-1, 2p-1-1].
e.g., in 8-bit mode, the range [0,255] is shifted to [-128,127].
Baseline mode: 8-bit pixel depth; 12-bit is possible but not all applications implement this mode.

35. DCT (Discrete Cosine Transform)
An 8  8 image block is a 2D function f(x,y) (0  x, y  7) in spatial domain.
231
224
217
203
189
196
210
182
175
154
140
168
161
126
119
112
105 84 98 63 7 6 5 y 4 3 2 1 x 1 2 3 4 5 6 7 28

36. DCT (Discrete Cosine Transform)
We define 64 basis functions for frequency variables u, v (0  u, v  7) in a 2-dimensional space:
e.g., 28

37. DCT (Discrete Cosine Transform)
These are wave functions of successively increasing frequencies. (Imagine them as undulating surfaces of increasingly frequent ups and downs.)
Given a 2D function (imagine it as a 2D surface), one can decompose it into a linear combination of these wave functions.
So, DCT is a frequency (uv coordinates) representation of a spatial (xy coordinates) function. 28

38. A 1-D example

39. u0v0
u2v2
u5v1
u1v0
u6v3
u0v1
Some 2-D
Basis
Functions y
u1v1 x

40. y x
Some 2-D
basis
functions with
quantized values

41. DCT
The 64 (8  8) DCT basis functions (top view) are: 29

42. DCT coefficients - example -
An 8  8 block
DCT coefficients
after transformation
in x,y co-ordinates
in u,v co-ordinates 30

44. DCT
From the original spatial function f(x,y), extract the frequency components by multiplying f(x,y) with these basis functions. 31

45. DCT
The result is a function F(u,v) in frequency domain, 64 (8  8) coefficients representing the 64 frequency components of the original image function.
Of the 64 coefficients, F(0,0) is due to the basis function of u,v = 0, a flat wave function. F(0,0) is also known as the DC-coefficient.
The other coefficients are called the AC-coefficients. 31

46. DCT
The DC component determines the fundamental gray (color) intensity of the 8  8 pixels. The AC components add the intensity variation to the pixel values to give the original image function.
Typical image consists of large regions of single intensity and color. DCT thus concentrates most of the signal in the lower spatial frequencies. Many of the high-frequency coefficients are of very low values. Entropy encoding applied to the DCT would normally achieve high data reduction. 32

47. IDCT
The inverse of DCT (IDCT) takes the 64 DCT coefficients and reconstructs a 64-point output image by summing the basis signals.
The result is a summation of all the frequency components, yielding a reconstruction of the original image. (Imagine adding up the respective undulating surfaces to yield the original surfaces.) 33

49. for the “eye” block

50. DCT A 1-D example to illustrate the decomposition and reconstruction.8 16 24 32 40 48 56 64
100
-52 -5 -2
0.4 15 57 63
DCT
truncate
IDCT 34

51. Quantization
The 64 DCT coefficients are real numbers (i.e., not integers). These coefficients are quantized to throw away bits, and that is the main source of lossiness. 35

52. Quantization Uniform quantization Quantization tables
DCT coefficients can be divided by a constant N and the result is rounded.
Equal treatment to all DCT coefficients.
Quantization tables
Each of the 64 coefficients can be adjusted separately. Specific frequencies can be given more importance than others according to the characteristics of the original image. 35

53. Quantization Quantization tables
In JPEG, each F(u,v) is divided by a different quantizer step size Q(u,v) given in a quantization table: 36

54. Quantization
The eye is most sensitive to low frequencies (upper left corner), less sensitive to high frequencies (lower right corner).
JPEG standard defines 2 default quantization tables, one for luma (above), one for chroma.
Quality factor:
How would scaling the quantization numbers affect the image, say if I double them all?
In most implementations, quality factor is the scaling factor for the default quantization table. 37

55. Zig-Zag scan
This step linearizes the 8  8 block of DCT coefficients. It maps an 8  8 block to a 64-byte stream.
RLE and Entropy encoding methods are then applied on the byte stream.
Why zig-zag? It is to group the coefficients from low to high frequencies, so that
zeros in high frequencies are grouped together. Consecutive zeros would be effectively compressed using RLE.
high frequencies can be truncated easily. 38

56. Zig-Zag scan

57. Entropy encoding DC component encoded using predictive encoding
DC coefficient determines the average color (or intensity) of the 8  8 block.
Between adjacent blocks, the variation is fairly small.
Encode the difference between the current DC coefficient and the one of the previous block.
AC components encoded with RLE
The 63-number stream has lots of zeros in it.
Encode as (skip,value) pairs, where skip is the number of zeros and value is the next non-zero component. 39

58. Entropy encoding
convert the DCT coefficients after quantization into a compact binary sequence in 2 steps:
forming an intermediate symbol sequence
converting the sequence into binary using Huffman table
intermediate symbol sequence
each AC coefficient is represented by a pair of symbols:
Symbol-1 (Runlength, Size)
Symbol-2 (Amplitude)

59. AC encoding
Runlength is the # of consecutive 0-valued AC coefficients preceding a nonzero AC coefficient. Runlength is in the range 0 to 15.
Size is the # of bits used to encode the magnitude of Amplitude. Amplitude can use up to 10 bits.
Amplitude is the amplitude of the nonzero AC coefficient in the range of [-1024,+1023]  10 bits.

60. AC encoding
e.g., given the sequence: ..., 0, 0, 0, 0, 0, 0, 476, …  (6,9)(476) // 2 symbols
If Runlength > 15, then Symbol-1 (15,0) = 16 0’s
e.g., what is the sequence represented by: (15,0) (15,0) (7,4) (12)?
(0,0) = End-of-Block symbol: all remaining coefficients are 0’s.

61. DC encoding
Categorize DC values into Size (number of bits needed to represent, symbol-1) and the Amplitude (symbol-2).
If DC is 4, 3 bits are needed. Encode Size as a Huffman symbol, then the actual 3 bits.
Since DC are differentially encoded, its range is [-2048,2047]. 40

63. JPEG example
Nelson suggested the following program to generate the quantization table: for (i=0;i<n;i++) for (j=0; j<n; j++) Q[i][j]= 1 + [(1+i+j)  quality];
The JPEG standard proposes Huffman encoding tables. One example (partial):
cr = 64*8/96 = 5.22
nb = 98/64 = 1.53

64. Compression measures Compression Ratio (CR):
CR = Original data size / Compressed data size
higher CR  lower picture quality.
Wallace suggested a measure
Nb = # of bits per pixel in the compressed image.
An observation:
bits/pixel: moderate to good quality;
bits/pixel: good to very good quality;
bits/pixel: excellent quality;
bits/pixel: usually indistinguishable from the original.

65. Compression and picture quality
Original
DC only
0.19 bpp
DC AC
0.96 bpp
DC AC
0.43 bpp

66. Lossless mode of JPEG compression
A special case of JPEG where there is no loss in the encoding process.
In this mode, image processing and quantization use a predictive technique instead of transformation encoding.
Neighboring pixels are taken as predictors, and the difference between the predicted and the actual values are encoded using Huffman methods. 43

67. Lossless JPEG Entropy Predictor Encoder Table Specification Source
Data
Predictor
Entropy
Encoder
Comp.
Table
Specification

68. Lossless JPEG
Normally, pixel values do not vary by much except at intensity (color) edges. The differences have small values in most regions of the image. Effective entropy compression is possible. 44

69. Lossless JPEG
For each pixel, the predictor uses a linear combination of previously encoded neighbors. The typical predictor functions used are:
A user can pick a predictor function 44

70. Lossless JPEG
2D predictors (4-7) usually do better than 1D predictors. (P0 is “no prediction”)
Typical compression ratio achieved is about 2:1. 45

71. Sequential encoding
In sequential encoding, the whole image is encoded and decoded in a single run. It allows decoding with immediate presentation, but in top-to-bottom sequence. 46

72. Progressive encoding
Progressive mode encodes and reconstructs the image with a very rough representation, and refines it during successive steps. Also known as layered coding.
Typically, most of the image features are recognized after 5-10% of the data has been decompressed 47

73. Successive refinement
2 ways to successive refinement:
Spectral selection. Send DC component for entropy encoding, then first few ACs, then some more ACs, etc.
Successive approximation. Send all DCT coefficients in each run, but single bits within a coefficient are processed in different runs. The most-significant bits encoded first, followed by the less-significant bits.

75. Successive refinement
Original
7 MSBs of DC
0.15 bpp
+5MSB of AC
0.3 bpp
+7 MSB of AC
0.8 bpp

76. Hierarchical mode
down-sample by factors of 2 in both directions, e.g., reduce 640480 to 320240 to 160120, etc.
Repeat the following process recursively until the full resolution image is compressed.
Initially, encode the smallest image. Then at each level:
decode and up-sample the smaller image.
encode the difference between the up-sampled and the original images. 50

77. Hierarchical mode original 640x480 File: down sample 180x120 360x 240
JPEG
JPEG
diff.
JPEG
diff.
uncomp.
uncompress
up sample
sum
up sample
File:

78. Hierarchical mode
Since the original image is encoded at different resolutions,
it requires more storage for multiple resolutions.
Advantage: the picture is immediately available at different resolutions. Scaling is cheap when display system works only with a lower resolution. 50

79. Wavelet coding used in JPEG 2000
consider a one-dimensional array of values:
101, 102, 103, 104, 105, 106, 107, 108
we can represent these values by averages of sums and differences:
pair-wise sums:
( )/2; ( )/2; ( )/2; ( )/2
pair-wise diffs:
( )/2; ( )/2; ( )/2; ( )/2
put these sums and differences into a sequence:
101 ½, 103 ½, 105 ½, 107 ½, -1/2, -1/2, -1/2, -1/2
problem with DCT-based transform: blocking artifacts at low bit rate
At a CR of 25:1, JPEG performs better than DWT; for higher CR, JPEG degrades rapidly.

80. Wavelet transform
Note that the original values can be reconstructed by the sums and differences.
101 ½
103 ½
105 ½
107 ½
-1/2
-1/2
-1/2
-1/2
101
102
103
104
105
106
107
108
addition
subtraction

81. Wavelet transform
Note that if we replace the four –1/2’s by 0’s, the recovered sequence is not too far off from the original:
Hence, quantization and RLE could be applied to effectively reduce the size of the sequence.
101 ½
103 ½
105 ½
107 ½
101 ½
101 ½
103 ½
103 ½
105 ½
105 ½
107 ½
107 ½

82. Wavelet transform recursively apply the idea to the averages …
101, 102, 103, 104, 105, 106, 107, 108
101 ½, 103 ½, 105 ½, 107 ½, -1/2, -1/2, -1/2, -1/2
102 ½, 106 ½, -1, -1, -1/2, -1/2, -1/2, -1/2
104 ½, -2, -1, -1, -1/2, -1/2, -1/2, -1/2

83. Wavelet transform recursively apply the idea to the averages …
101, 102, 103, 104, 105, 106, 107, 108
101 ½, 103 ½, 105 ½, 107 ½, -1/2, -1/2, -1/2, -1/2
102 ½, 106 ½, -1, -1, -1/2, -1/2, -1/2, -1/2
104 ½, -2, -1, -1, -1/2, -1/2, -1/2, -1/2
2nd level details:
average values of
first half and second
half

84. Wavelet transform recursively apply the idea to the averages …
101, 102, 103, 104, 105, 106, 107, 108
101 ½, 103 ½, 105 ½, 107 ½, -1/2, -1/2, -1/2, -1/2
102 ½, 106 ½, -1, -1, -1/2, -1/2, -1/2, -1/2
104 ½, -2, -1, -1, -1/2, -1/2, -1/2, -1/2
3rd level details:
average values of
first pair, second pair,
third pair, and final
pair

85. Wavelet transform recursively apply the idea to the averages …
101, 102, 103, 104, 105, 106, 107, 108
101 ½, 103 ½, 105 ½, 107 ½, -1/2, -1/2, -1/2, -1/2
102 ½, 106 ½, -1, -1, -1/2, -1/2, -1/2, -1/2
104 ½, -2, -1, -1, -1/2, -1/2, -1/2, -1/2
full details: all values

86. apply
wavelet
transform
to each
row of
pixels

87. averages
diff’s

88. apply
wavelet
transform
to each
column of
pixels

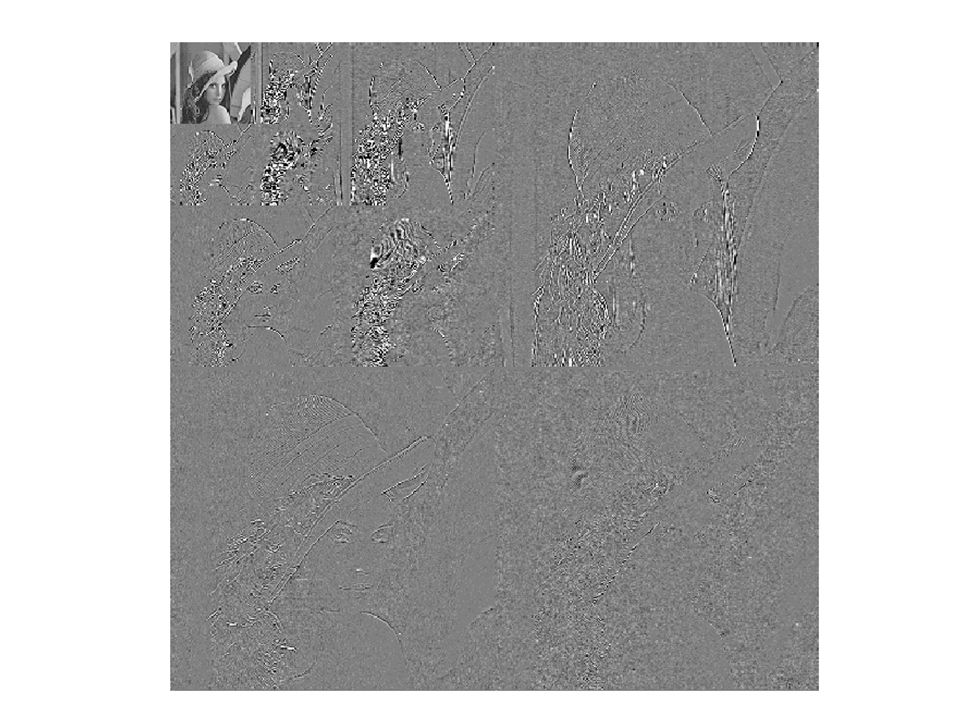

91. more
important
data
less
important
data

92. JPEG vs. JPEG 2000 author: Christopher M. Brislawn JPEG at 0.27 bpp
original
JPEG 2000 at 0.27 bpp
author: Christopher M. Brislawn

93. JPEG vs. JPEG 2000
JPEG at 1 bpp
original
JPEG 2000 at 1 bpp

94. JPEG vs. JPEG 2000
JPEG at 0.5 bpp
original
JPEG 2000 at 0.5 bpp
