Presentation on theme: "Copyright (c) 2004 Microsoft Corporation, All Rights Reserved Dynamic Languages and the CLI: IronPython Jim Hugunin Microsoft CLR Team."— Presentation transcript:

1 Copyright (c) 2004 Microsoft Corporation, All Rights Reserved Dynamic Languages and the CLI: IronPython Jim Hugunin Microsoft CLR Team

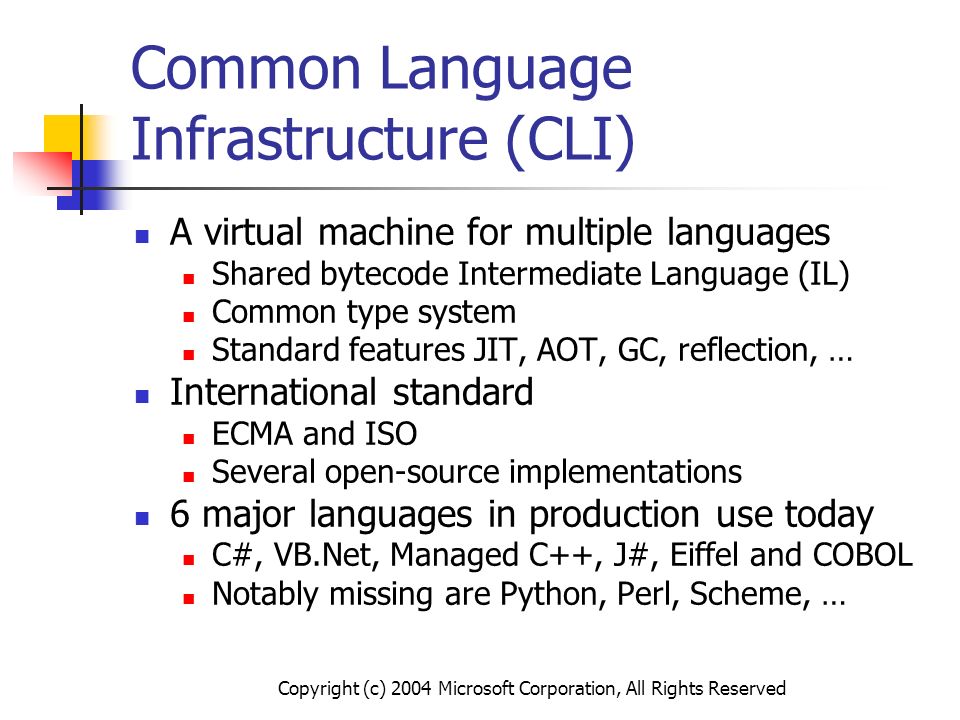

2 Copyright (c) 2004 Microsoft Corporation, All Rights Reserved Common Language Infrastructure (CLI) A virtual machine for multiple languages Shared bytecode Intermediate Language (IL) Common type system Standard features JIT, AOT, GC, reflection, … International standard ECMA and ISO Several open-source implementations 6 major languages in production use today C#, VB.Net, Managed C++, J#, Eiffel and COBOL Notably missing are Python, Perl, Scheme, …

3 Copyright (c) 2004 Microsoft Corporation, All Rights Reserved Missing Dynamic Languages “The CLI is, by design, not friendly to dynamic languages. Prototypes were built, but ran way too slowly.” – InfoWorld, Aug. 2003 "The speed of the current system is so low as to render the current implementation useless for anything beyond demonstration purposes.“ – ActiveState’s report on Python for.NET How could Microsoft have screwed up so badly that the CLR is far worse than the JVM for dynamic languages? Jython shows that dynamic languages can run well on the JVM

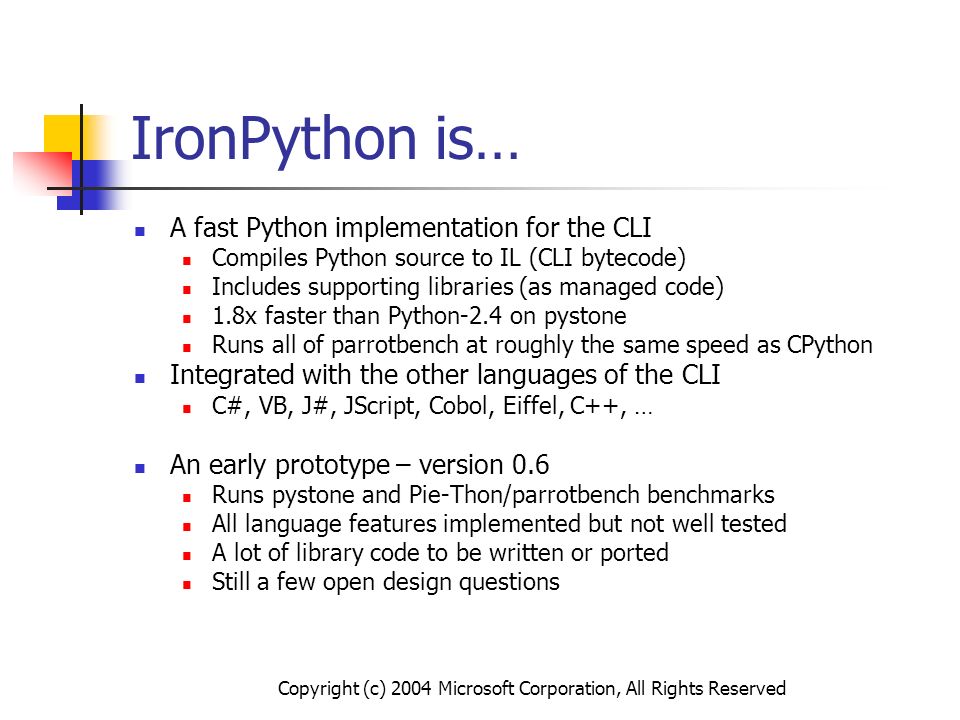

4 Copyright (c) 2004 Microsoft Corporation, All Rights Reserved IronPython is… A fast Python implementation for the CLI Compiles Python source to IL (CLI bytecode) Includes supporting libraries (as managed code) 1.8x faster than Python-2.4 on pystone Runs all of parrotbench at roughly the same speed as CPython Integrated with the other languages of the CLI C#, VB, J#, JScript, Cobol, Eiffel, C++, … An early prototype – version 0.6 Runs pystone and Pie-Thon/parrotbench benchmarks All language features implemented but not well tested A lot of library code to be written or ported Still a few open design questions

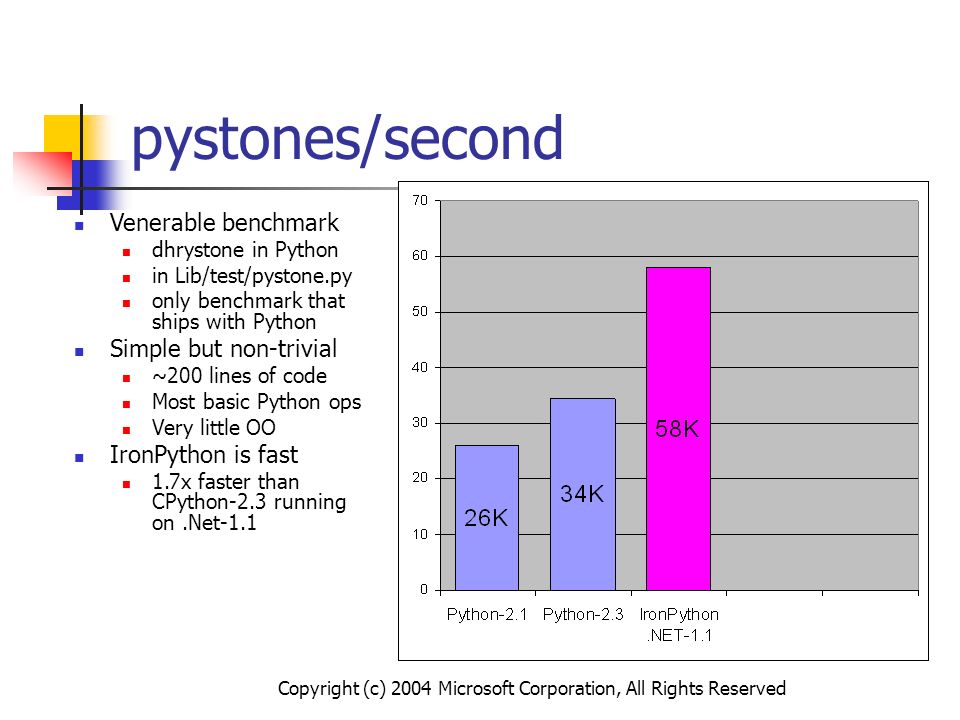

5 Copyright (c) 2004 Microsoft Corporation, All Rights Reserved pystones/second Venerable benchmark dhrystone in Python in Lib/test/pystone.py only benchmark that ships with Python Simple but non-trivial ~200 lines of code Most basic Python ops Very little OO IronPython is fast 1.7x faster than CPython-2.3 running on.Net-1.1

6 Copyright (c) 2004 Microsoft Corporation, All Rights Reserved pystones/second Venerable benchmark dhrystone in Python in Lib/test/pystone.py only benchmark that ships with Python Simple but non-trivial ~200 lines of code Most basic Python ops Very little OO IronPython-0.6 is fast 1.7x faster than CPython-2.3 running on.Net-1.1 1.8x faster than CPython-2.4 running on.Net-2.0beta1

7 Copyright (c) 2004 Microsoft Corporation, All Rights Reserved Parrotbench Benchmark “The benchmark here is intended to make Dan Sugalski's life difficult: there are some standard benchmark thingies (simple random algorithms using basic data types) but also a lot of play with odd corners of the language definition, and Python's extremely dynamic object model: funky descriptors, mutable classes, that sort of thing.” – Guido van Rossum This is a great benchmark for alternative implementations of Python It only runs correctly if the implementation can handle the range of dynamic features that make Python what it is

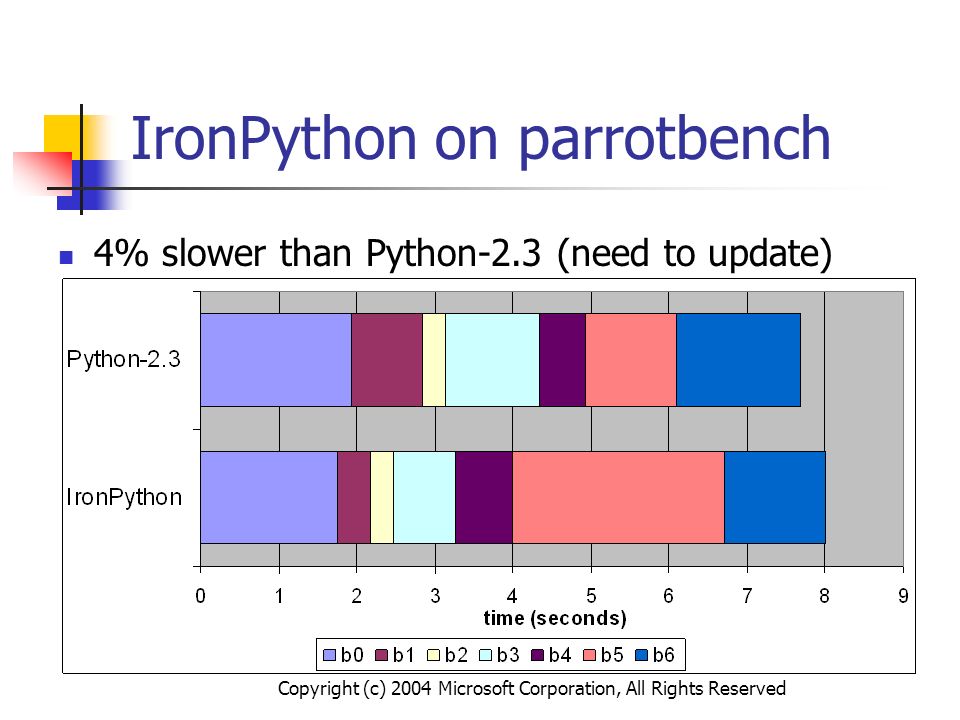

8 Copyright (c) 2004 Microsoft Corporation, All Rights Reserved IronPython on parrotbench 4% slower than Python-2.3 (need to update)

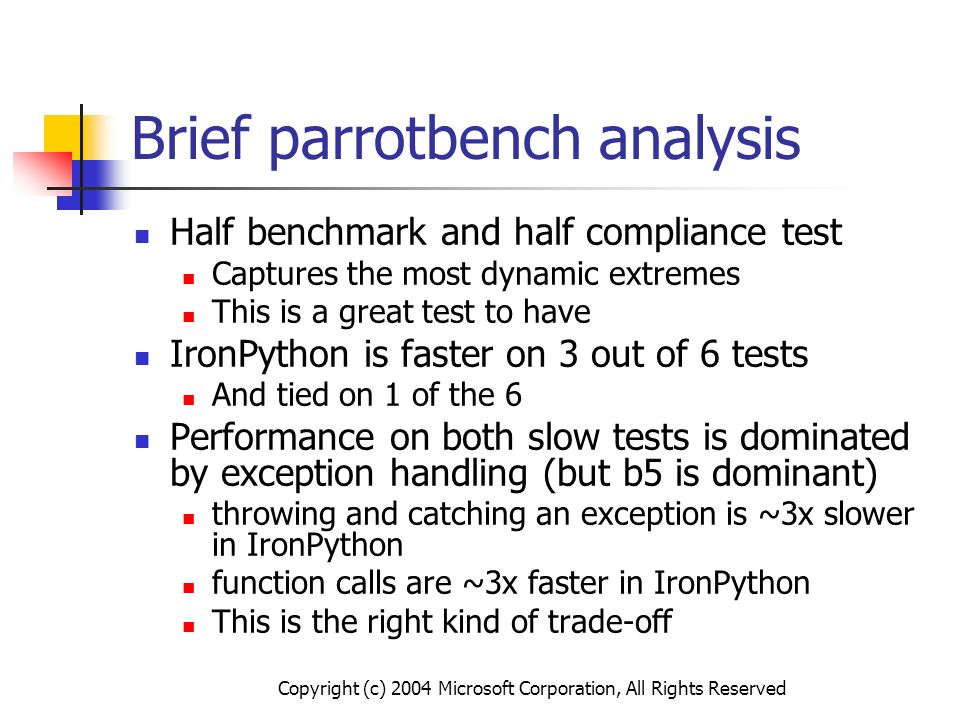

9 Copyright (c) 2004 Microsoft Corporation, All Rights Reserved Brief parrotbench analysis Half benchmark and half compliance test Captures the most dynamic extremes This is a great test to have IronPython is faster on 3 out of 6 tests And tied on 1 of the 6 Performance on both slow tests is dominated by exception handling (but b5 is dominant) throwing and catching an exception is ~3x slower in IronPython function calls are ~3x faster in IronPython This is the right kind of trade-off

10 Copyright (c) 2004 Microsoft Corporation, All Rights Reserved Maybe the CLI can be great for dynamic languages “IronPython:.NET *is* a good platform for dynamic languages” – GameDev.Net, March 2004 “Before IronPython, the common wisdom was that it was difficult to make dynamic languages perform well on the CLR.” – Edd Dumbill, July 2004 “There was a meme floating around, a few years ago, that the CLR is inherently unfriendly to dynamic languages. As one of the transmitters of that meme, I'm delighted to be proved wrong.” – Jon Udell, InfoWorld, July 2004 And many, many more of these new comments What makes the difference?

11 Copyright (c) 2004 Microsoft Corporation, All Rights Reserved IronPython Architecture Same architecture as CPython scanner, parser, bytecode generator, support library Difference is in bytecode and support library Bytecode is IL for the CLR – will produce native code Support lib is written in C# instead of C Compilation can be static or dynamic Produces.exe/.dll or dynamically load and run IronPython is now written completely in C# I built 3 prototypes in Python to throw away After I understood the design I moved to C# Python Source File or Code Snippet Python Scanner Tokens Python Parser AST IL Generator IL CLR IronPython. Objects refs

12 Copyright (c) 2004 Microsoft Corporation, All Rights Reserved Compiling Factorial – to IL 0 LOAD_FAST 0 (n)IL_0000: ldarg.0 3 LOAD_CONST 1 (1)IL_0001: ldsfld object __main__::c$0$PST04000002 6 COMPARE_OP 2 (==)IL_0006: call object IronPython…Ops::Equal(object,object) 9 JUMP_IF_FALSE 8 (to 20)IL_000b: call bool IronPython...Ops::IsTrue(object) IL_0010: brfalse IL_0020 12 POP_TOP 13 LOAD_CONST 1 (1)IL_0015: ldsfld object __main__::c$0$PST04000002 16 RETURN_VALUEIL_001a: ret def factorial(n): if n == 1: return 1 return n * factorial(n-1)

13 Copyright (c) 2004 Microsoft Corporation, All Rights Reserved Compiling Factorial – to x86 0 LOAD_FAST 0 (n)0000001b mov edx,dword ptr ds:[01B054E4h] 00000021 mov ecx,esi 3 LOAD_CONST 1 (1) 6 COMPARE_OP 2 (==)00000023 call dword ptr ds:[036E3184h] 9 JUMP_IF_FALSE 8 (to 20)00000029 mov edi,eax 0000002b mov ecx,edi 0000002d call dword ptr ds:[036E3084h] 00000033 mov edi,eax 00000035 test edi,edi 00000037 je 00000043 12 POP_TOP 13 LOAD_CONST 1 (1)00000039 mov eax,dword ptr ds:[01B054E4h] 16 RETURN_VALUE

14 Copyright (c) 2004 Microsoft Corporation, All Rights Reserved Compiling Factorial – to C# def factorial(n): if n == 1: return 1 return n * factorial(n-1) public static object factorial_f1(object n) { if (Ops.IsTrue(Ops.Equal(n, Main.c_1))) return Main.c_1; return Ops.Multiply(n, Ops.Call(Main.factorial, Ops.Subtract(n, Main.c_1))); }

15 Copyright (c) 2004 Microsoft Corporation, All Rights Reserved Compiling Factorial – to C# v2 def factorial(n): if n == 1: return 1 return n * factorial(n-1) public static object factorial_f1(object n) { if (Ops.EqualIsTrue(n, 1)) return Main.c_1; return Ops.Multiply(n, Ops.Call(Main.factorial, Ops.Subtract(n, Main.c_1))); }

16 Copyright (c) 2004 Microsoft Corporation, All Rights Reserved Ops.EqualIsTrue This adds a new fastpath “opcode” public static bool EqualIsTrue(object x, int y) { if (x is int) return ((int)x) == y; return IsTrue(Equal(x, y)); }

17 Copyright (c) 2004 Microsoft Corporation, All Rights Reserved Compiling Factorial – x86 v2 0 LOAD_FAST 0 (n)0000001b mov ecx,esi 0000001d mov edx,1 3 LOAD_CONST 1 (1) 6 COMPARE_OP 2 (==)00000023 call dword ptr ds:[036E3184h] 9 JUMP_IF_FALSE 8 (to 20)00000028 mov edi,eax 0000002a test edi,edi 0000002c je 00000038 12 POP_TOP 13 LOAD_CONST 1 (1)00000039 mov eax,dword ptr ds:[01B054E4h] 16 RETURN_VALUE

18 Copyright (c) 2004 Microsoft Corporation, All Rights Reserved Does this affect performance? Start with a micro-benchmark def t2(): for i in L: if i == 1000000: break if i == 1000000: break

19 Copyright (c) 2004 Microsoft Corporation, All Rights Reserved Does this affect performance? Millions of if tests per second

20 Copyright (c) 2004 Microsoft Corporation, All Rights Reserved Does this affect performance? >3x benefit on microbench But what impact on real code? Need to judge cost-benefit tradeoffs What is the right general version? Just int or int and long or something else? Need to do all 6 comparison ops Dual benefit that it reduces code size and increases perf in common case However, this reduces perf if the comparison is not with an int because a new boxed value will need to be created on the fly FYI – This particular optimization is not in IronPytho- 0.6 because it seemed too special purpose

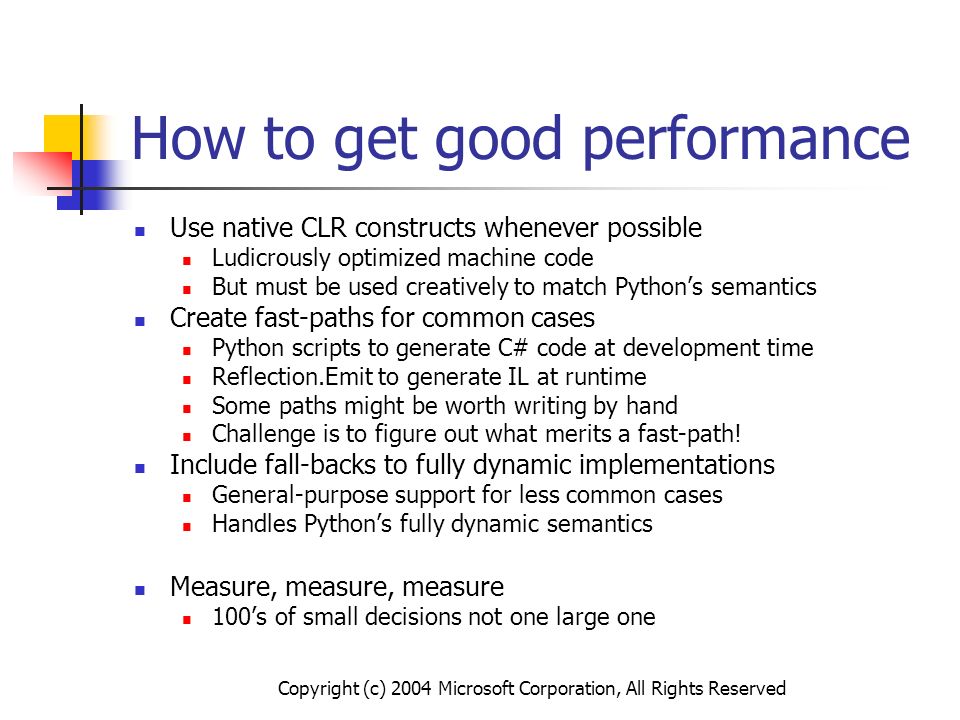

21 Copyright (c) 2004 Microsoft Corporation, All Rights Reserved How to get good performance Use native CLR constructs whenever possible Ludicrously optimized machine code But must be used creatively to match Python’s semantics Create fast-paths for common cases Python scripts to generate C# code at development time Reflection.Emit to generate IL at runtime Some paths might be worth writing by hand Challenge is to figure out what merits a fast-path! Include fall-backs to fully dynamic implementations General-purpose support for less common cases Handles Python’s fully dynamic semantics Measure, measure, measure 100’s of small decisions not one large one

22 Copyright (c) 2004 Microsoft Corporation, All Rights Reserved Ease of language experimentation C# is a lot more fun to write than C/C++ And Visual Studio 2005 makes this really nice IL is a lot more fun to write than x86/PowerPC/… And Reflection.Emit library makes this really simple Performance can be extremely competitive Can leverage huge effort on core CLR Ease of development plays a significant role here Some very nice tools CLR Debugger – source debugger for any lang + machine code peverify – checks for safe IL and generates clear easy to understand errors for buggy compiler generated IL ildasm/ilasm – nice command-line and GUI IL tools Lutz Roeder’s Reflector – a very nice way to inspect assemblies Visual Studio 2005

23 Copyright (c) 2004 Microsoft Corporation, All Rights Reserved Integration is more important than performance Demo

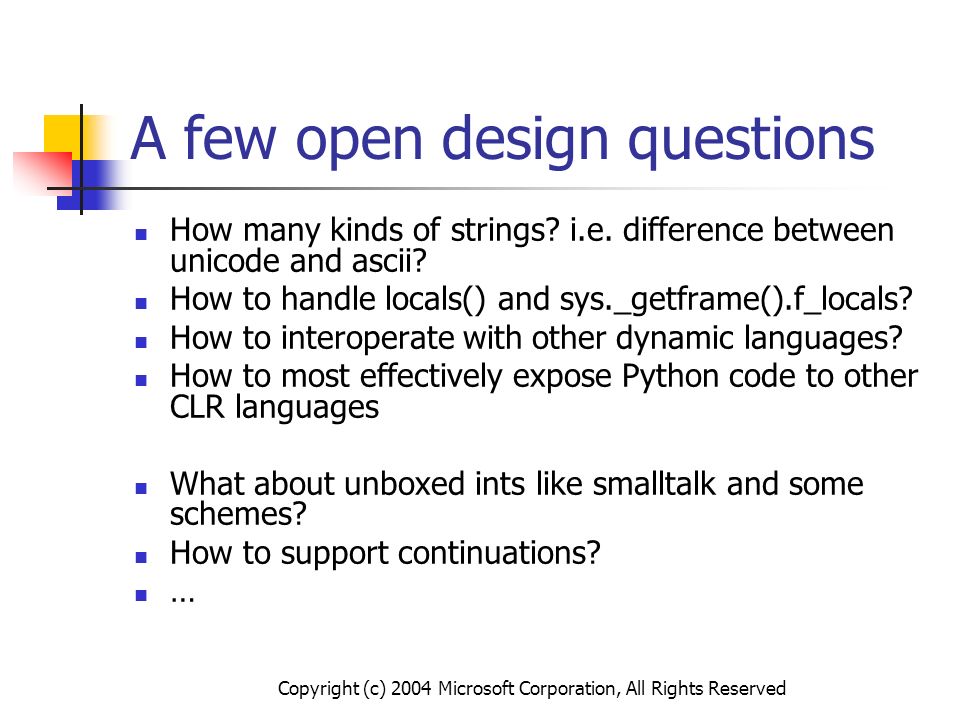

24 Copyright (c) 2004 Microsoft Corporation, All Rights Reserved A few open design questions How many kinds of strings? i.e. difference between unicode and ascii? How to handle locals() and sys._getframe().f_locals? How to interoperate with other dynamic languages? How to most effectively expose Python code to other CLR languages What about unboxed ints like smalltalk and some schemes? How to support continuations? …

25 Copyright (c) 2004 Microsoft Corporation, All Rights Reserved Conclusions The CLI is a great platform for language development Ease of development is key C# is a lot more fun to write than C/C++ And Visual Studio 2005 makes this really nice IL is a lot more fun to write than x86/PowerPC/… And Reflection.Emit library makes this really simple Performance can be extremely competitive Ease of development plays a significant role here Best effort to date for language interoperability 6 major languages in production today Easy interoperability among these Tools and libraries are powerful and fun Why not leverage hundreds of man-years of VM development?
