The Sensitivity of Aerosol Sulfate to Changes in Nitrogen Oxides and Volatile Organic Compounds Ariel F. Stein Department of Meteorology The Pennsylvania State University
2

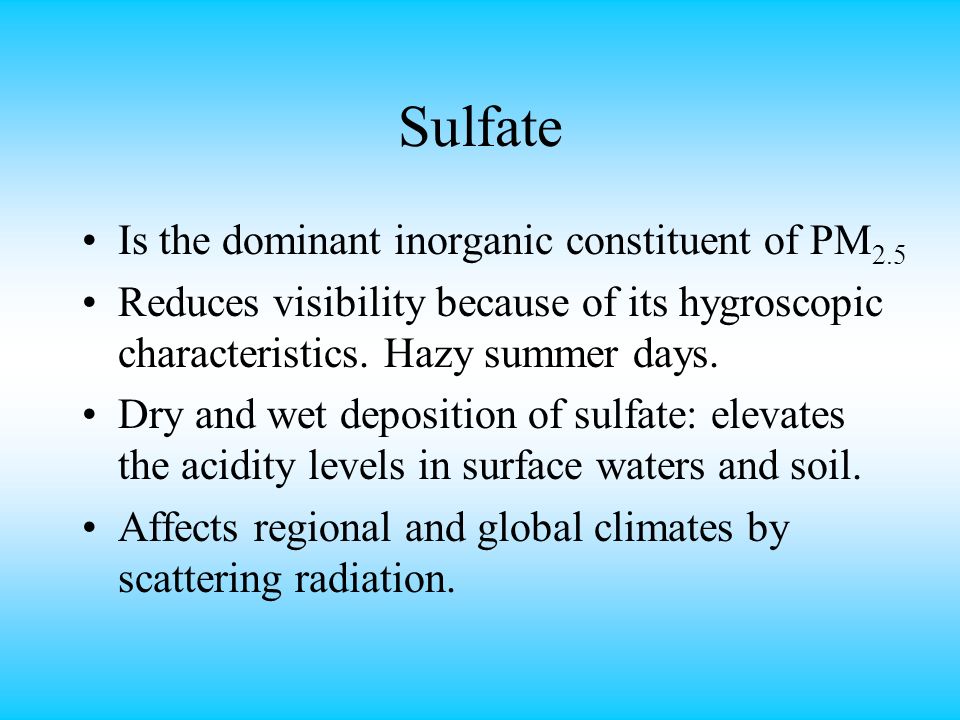

Sulfate Is the dominant inorganic constituent of PM 2.5 Reduces visibility because of its hygroscopic characteristics. Hazy summer days. Dry and wet deposition of sulfate: elevates the acidity levels in surface waters and soil. Affects regional and global climates by scattering radiation.
3
HOx cycle
4

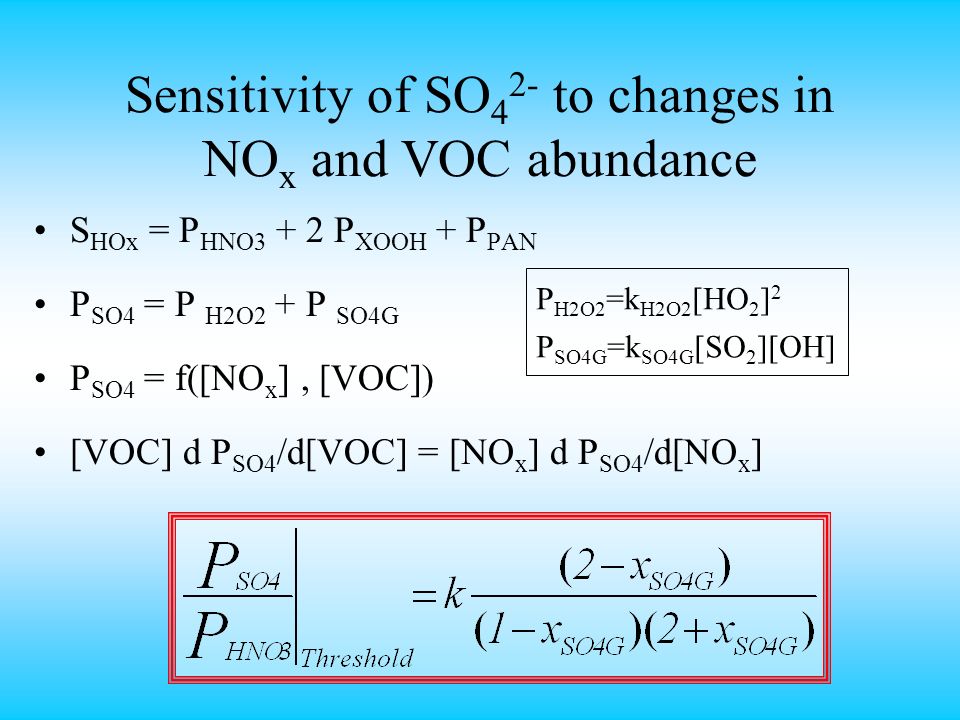

S HOx = P HNO3 + 2 P XOOH + P PAN P SO4 = P H2O2 + P SO4G P SO4 = f([NO x ], [VOC]) [VOC] d P SO4 /d[VOC] = [NO x ] d P SO4 /d[NO x ] Sensitivity of SO 4 2- to changes in NO x and VOC abundance P H2O2 =k H2O2 [HO 2 ] 2 P SO4G =k SO4G [SO 2 ][OH]
5

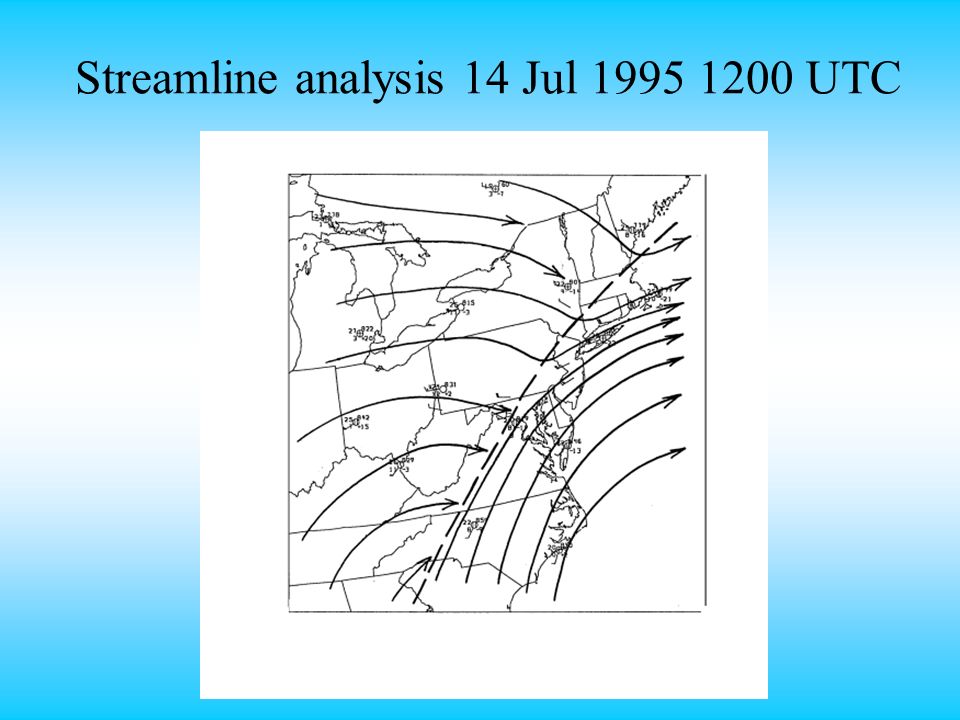

Streamline analysis 14 Jul 1995 1200 UTC
6

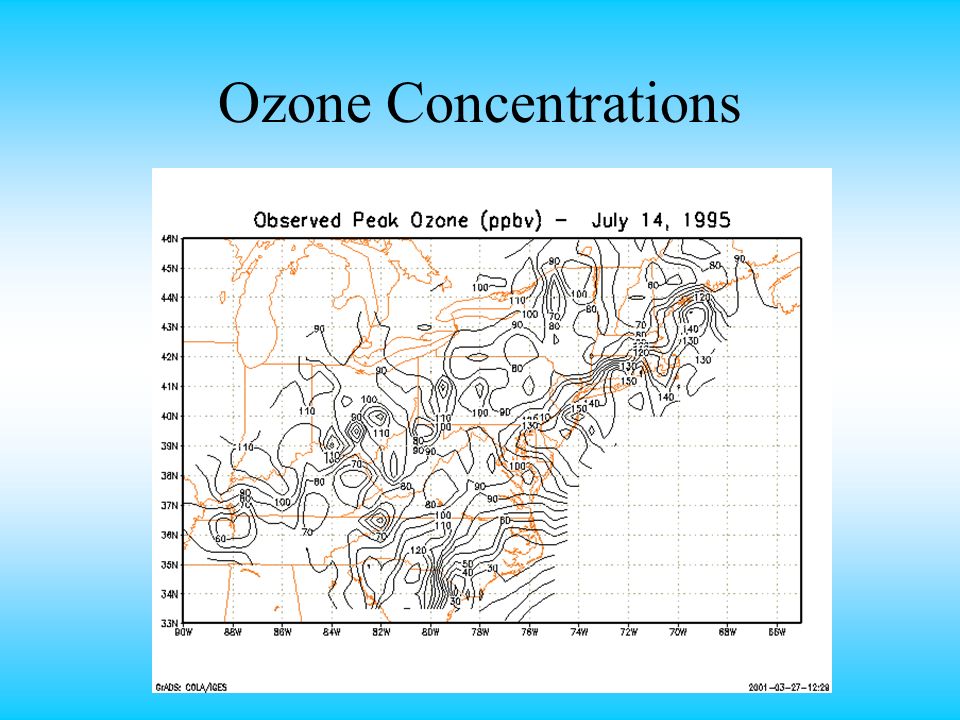

Ozone Concentrations
7
MODELS-3 description Community Multiscale Air Quality (CMAQ) model. 3-D Eulerian chemical transport model. Meteorology: Mesoscale Model 5 (MM5) Emissions: MODELS-3 Emissions Processing and Projection System (MEPPS). Chemical mechanism: RADM2 Aerosol model: Regional Particulate Model (RPM) Horizontal resolution: 36 km Vertical layers: 15 Domain: Northeastern USA.
9

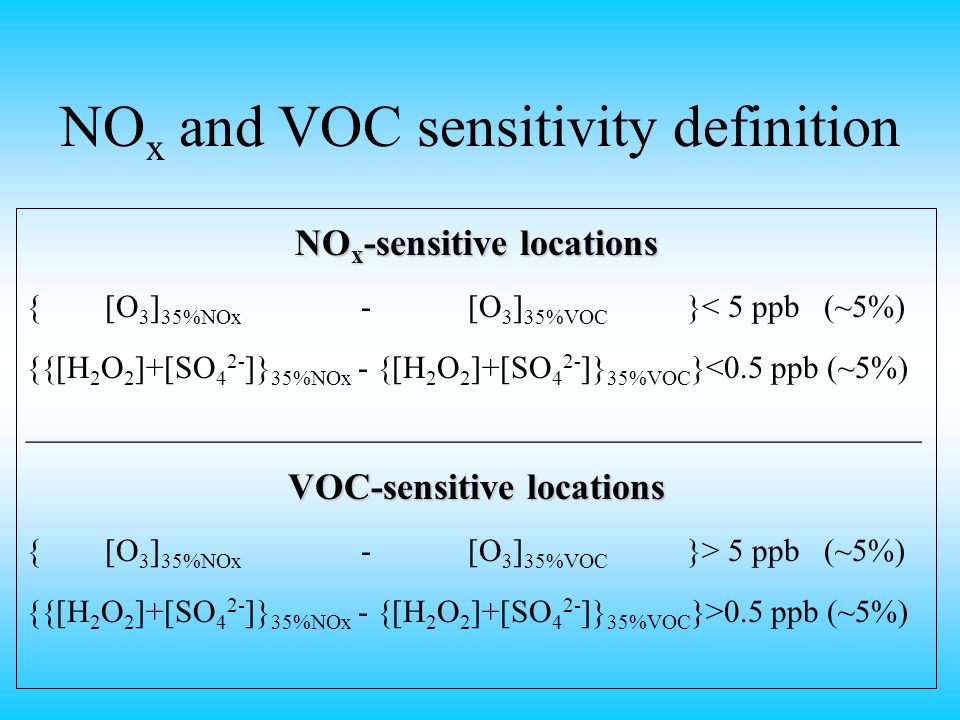

NO x and VOC sensitivity definition NO x -sensitive locations { [O 3 ] 35%NOx - [O 3 ] 35%VOC }< 5 ppb (~5%) {{[H 2 O 2 ]+[SO 4 2- ]} 35%NOx - {[H 2 O 2 ]+[SO 4 2- ]} 35%VOC }<0.5 ppb (~5%) ________________________________________________________ VOC-sensitive locations { [O 3 ] 35%NOx - [O 3 ] 35%VOC }> 5 ppb (~5%) {{[H 2 O 2 ]+[SO 4 2- ]} 35%NOx - {[H 2 O 2 ]+[SO 4 2- ]} 35%VOC }>0.5 ppb (~5%)
10

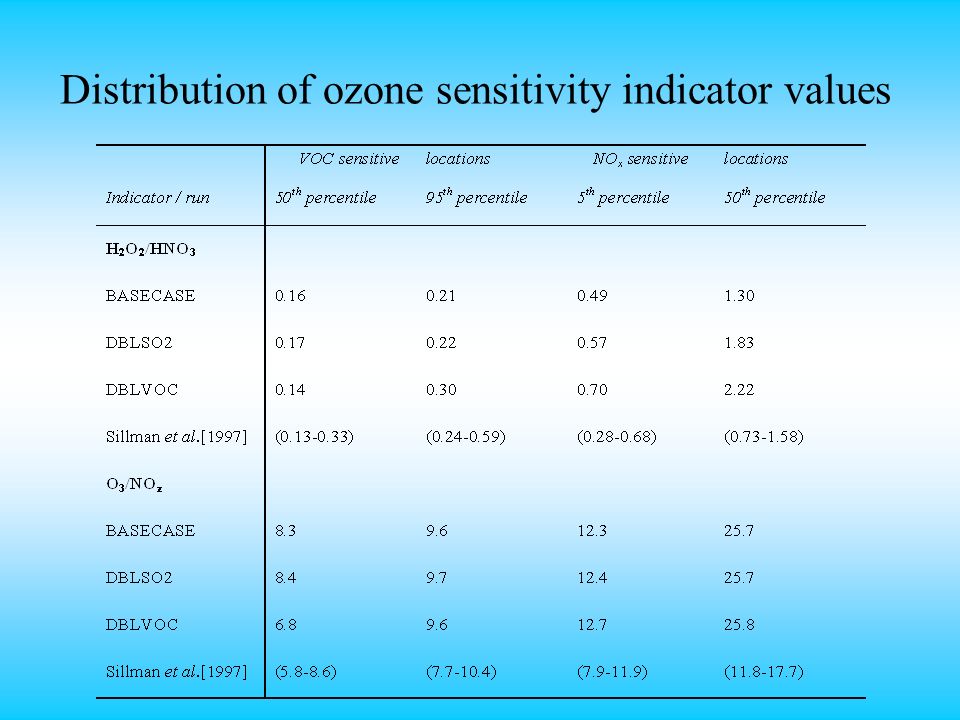

Distribution of ozone sensitivity indicator values
11
Potential sulfate reduction as a function of the non-dimensional indicator.
12
Distribution of {[H 2 O 2 ]+[SO 4 2- ]}/{[HNO 3 ]+[NO 3 - ]} ratios for NO x - and VOC- sensitive regimes
13
Geographical distribution of the VOC-sensitive locations for July 14 at 20:00 UTC. Shaded regions correspond to indicator values lower than 1.
14
Conclusions The species ratios consistently assume different values under NOx_sensitive and VOC_sensitive conditions. Indicator values > 2 ==> NO x sensitivity. Indicator values VOC sensitivity. The value of the indicator at the transition point between NO x _ and VOC_sensitive sulfate remains constant throughout the different runs.
