1. Antidiabetic Drugs

2. Criteria for Diagnosis of DM DM Screening
Symptoms of diabetes + casual plasma glucose level less than or equal to 200 mg/dL OR
Fasting plasma glucose higher than or equal to 126 mg/dL
2-hour postload glucose level higher than or equal to 200 mg/dL during an oral glucose tolerance test
Impaired glucose tolerance (IGT)
FPG <110 mg/dL: normal fasting glucose
FPG ≥110 mg/dL but <126 mg/dL: impaired fasting glucose (IFG)
FPG ≥126 mg/dL: provisional diagnosis of diabetes mellitus

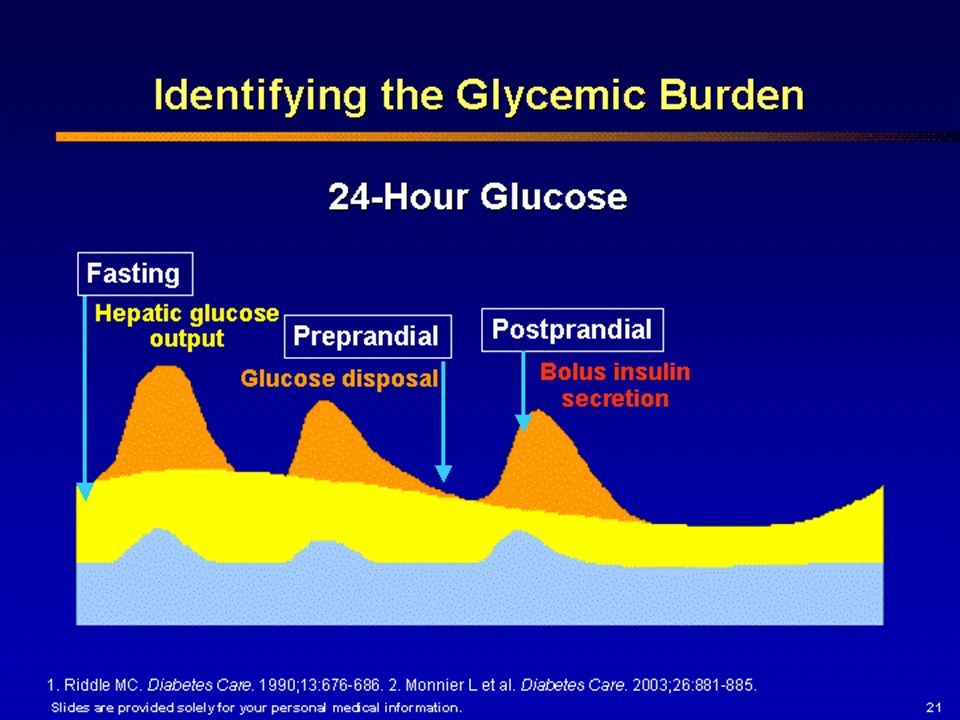

4. Optimal Levels of Blood Sugars
Preprandial-110 mg/dl
Postprandial-180 mg/dl

5. Diabetes Mellitus Facts
Of the 16 million Americans – 5 million are probably unaware they
2,000 per day are diagnosed with DM
Causes 200,000 deaths annually
6th leading cause of death
Leading cause of blindness
Causes >50% of nontraumatic lower-limb amputations
Leading cause of end stage renal disease

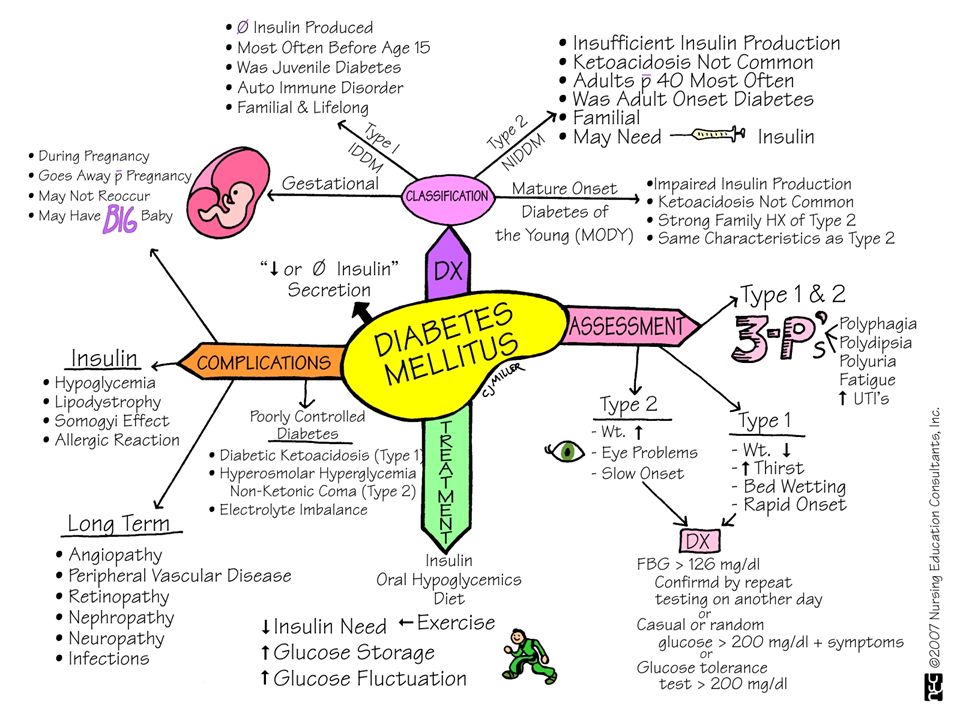

6. Diabetes Mellitus
Two types
Type 1
Type 2

7. Type 1 Diabetes Mellitus
Lack of insulin production OR
Production of defective insulin
Affected patients need exogenous insulin
Complications

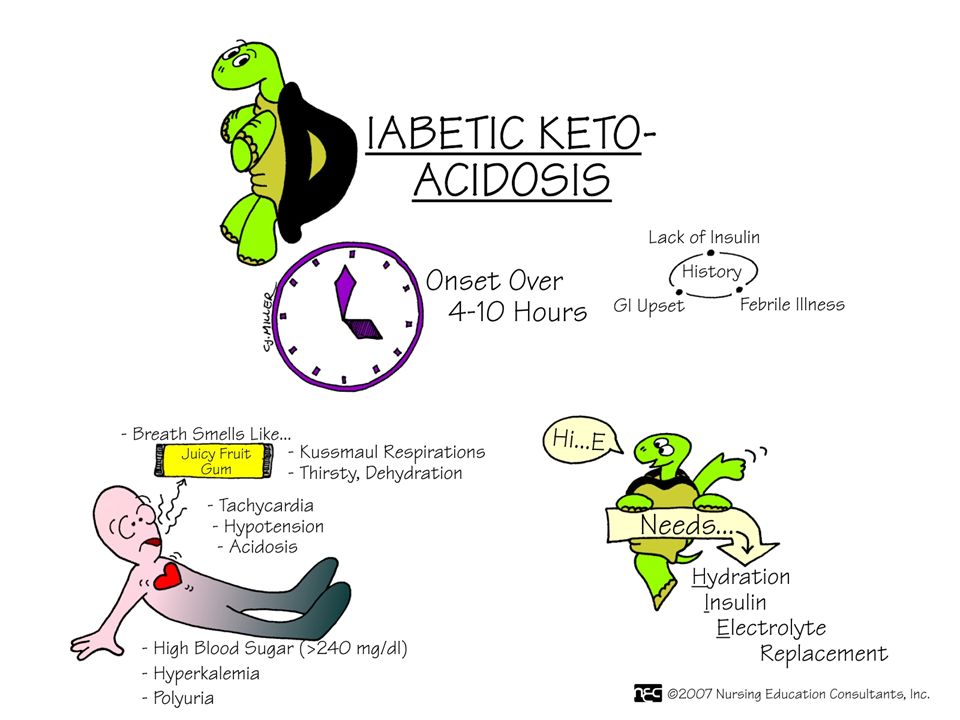

Diabetic ketoacidosis (DKA)
Hyperosmolar nonketotic syndrome
Oral antidiabetic drugs not effective

8. Diabetes Mellitus Symptoms Polyuria Polydipsia Polyphagia Glycosuria
Unexplained weight loss
Fatigue
Hyperglycemia

9. Type 2 Diabetes Mellitus
Most common type
Caused by insulin deficiency and insulin resistance
Many tissues are resistant to insulin
Reduced number insulin receptors
Insulin receptors less responsive

12. Type 2 Diabetes Mellitus
Several comorbid conditions
metabolic syndrome OR insulin-resistance syndrome OR syndrome X
Obesity
Coronary artery disease
Dyslipidemia
Hypertension
Microalbuminemia (protein in the urine)
Enhanced conditions for embolic events (blood clots)
Insulin Resistance

13. Treatment DIfferences
Type 1
Exogenous insulin
Dietary control
Type 2
Lifestyle changes
Weight reduction

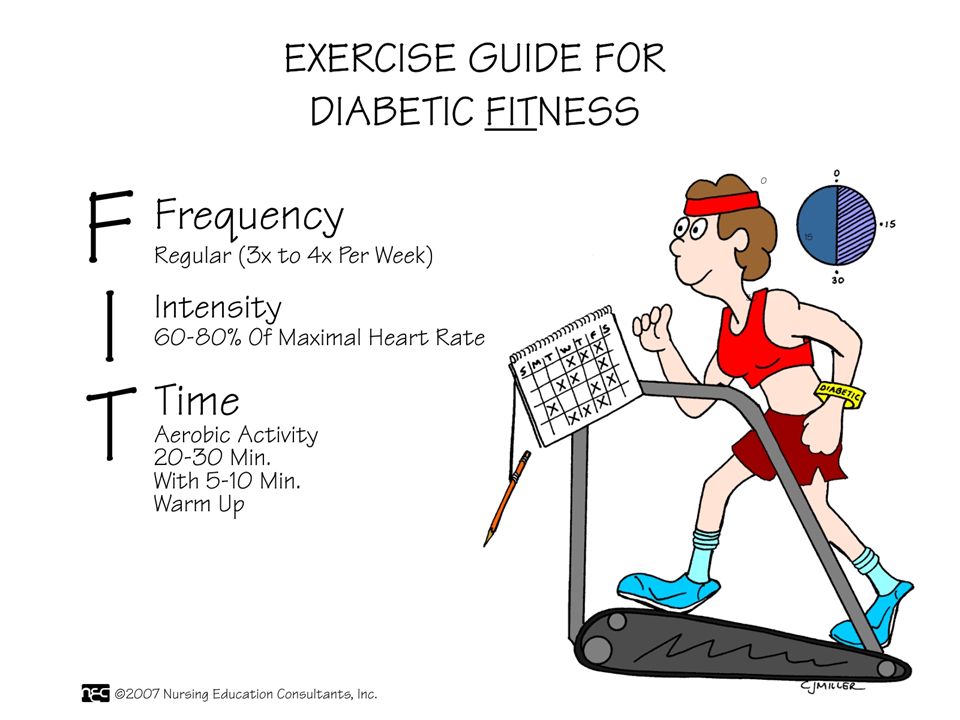

Exercise
May require oral hypoglycemic therapy or exogenous insulin
Insulin when oral hypoglycemic medications can no longer provide glycemic control

14. Gestational Diabetes Hyperglycemia that develops during pregnancy
Insulin must be given to prevent birth defects
4% of all pregnancies
Must be reclassified if it persists 6 weeks post-delivery
Usually subsides after delivery
30% of patients may develop Type 2 DM within 10 to 15 years

15. Hyperglycemia Blood Glucose >110 Insulin Decreased Increased
Resistance
Decreased
Insulin
Increased
Free Fatty
Acid
Cardiovascular system
Fatty acids can be bound or attached to other molecules, such as in triglycerides or phospholipids. When they are not attached to other molecules, they are known as "free" fatty acids.
The uncombined fatty acids or free fatty acids may come from the breakdown of a triglyceride into its components (fatty acids and glycerol). However as fats are insoluble in water they must be bound to appropriate regions in the plasma protein albumin for transport around the body. The levels of "free fatty acid" in the blood are limited by the number of albumin binding sites available.
Free fatty acids are an important source of fuel for many tissues since they can yield relatively large quantities of ATP. Many cell types can use either glucose or fatty acids for this purpose. In particular, heart and skeletal muscle prefer fatty acids. The brain cannot use fatty acids as a source of fuel; it relies on glucose, or on ketone bodies. Ketone bodies are produced in the liver by fatty acid metabolism during starvation, or during periods of low carbohydrate intake.
Oxidative stress is caused by an imbalance between the production of reactive oxygen and a biological system's ability to readily detoxify the reactive intermediates or easily repair the resulting damage. All forms of life maintain a reducing environment within their cells. This reducing environment is preserved by enzymes that maintain the reduced state through a constant input of metabolic energy. Disturbances in this normal redox state can cause toxic effects through the production of peroxides and free radicals that damage all components of the cell, including proteins, lipids, and DNA.
Oxidative
Stress

16. Oxidative Stress Nitric Oxide Nitric oxide Tissue factor Plasminogen
Activator
Prostaccyclin
Nitric Oxide
Angiotensin ll
Endothelin-1
Activation of
activator protein -l
Angiotensin ll
Vasoconstriction
Inflammation
Thrombosis
hypertension
Release of chemokines
Release of cytokines
Expression of cellular
adhesion molecules
Vascular smooth
muscle cell growth
Hyper coagulation
Platelet Activation
Decreased Fibrinolysis

17. Major Long-Term Complications of DM (Both Types)
Macrovascular (atherosclerotic plaque)
Coronary arteries
Cerebral arteries
Renal arteries
Peripheral vessels
Microvascular (capillary damage)
Retinopathy
Neuropathy
Nephropathy

18. Macrovascular (atherosclerotic plaque)MI
DVT PE
Stroke
AAA
Retinopathy

19. Diabetic Retinopathy

20. Hemorrhage from DM Retinopathy

21. Increased Glucose Decreased Insulin Hyperglycemia Metabolic
Stress Response
Stress hormones
and peptides
Increased Glucose
Decreased Insulin

22. Increased Glucose Decreased Insulin
Increase in:
Ketones
Free Fatty Acids
Lactate
Immune
Dysfunction
Reactive 02
Species
Cellular Injury
Acidosis
Inflammation
Thrombosis
Tissue Damage
Global Infarction
Altered Tissue Healing
Ischemia
Infection
Dissemination
Increase
Transcription
Factors
Leads to
Secondary
Mediators

23. Complications Associated with Diabetes Mellitus
Cardiovascular disease, including hypertension
Peripheral vascular disease
Delayed healing
Visual defects, including blindness
Renal disease
Infection
Neuropathies
Impotence

24. FIGURE 36-1 Complications of diabetes mellitus.
Mosby items and derived items © 2007, 2004 by Mosby, Inc., an affiliate of Elsevier Inc.

26. Types of Antidiabetic Drugs
Insulins
Oral hypoglycemic drugs
Both aim to produce normal blood glucose states

27. Insulins Substitute for & same effects as endogenous insulin
Restores the diabetic patient’s ability to:
Metabolize carbohydrates, fats, and proteins
Store glucose in the liver
Convert glycogen to fat stores
Some derived from porcine sources
Most now human-derived, using recombinant DNA technologies
Goal: tight glucose control
To reduce the incidence of long-term complications

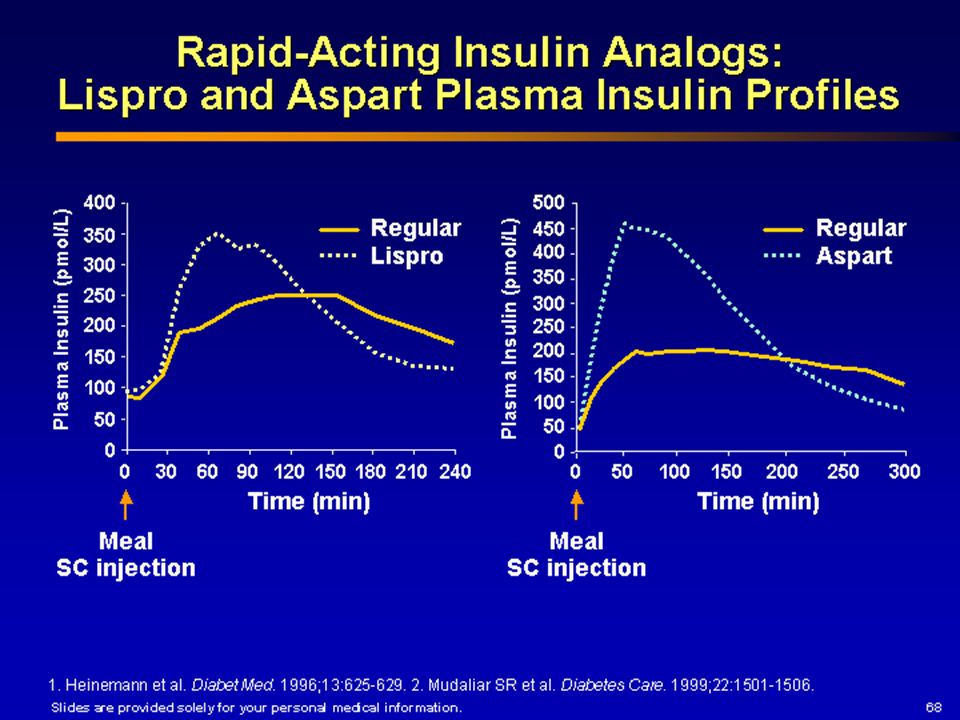

28. Human-Based Insulins Rapid-Acting
Most rapid onset of action
Shorter duration
May be given SC or via continuous SC infusion pump (but not IV)
Insulin
Onset (mins)
Peak (hrs)
Duration (hrs)
aspart (Novolog)
2-33
1-3
3-5
lispro (Humalog)
30mins – 2.5
3-6.5
glulisine (Apidra)
30mins – 1.5
1.-25

30. Human-Based Insulins Short-Acting
regular insulin (Humulin R, Novolin R)
Onset 30 – 60 minutes
The only insulin product that can be given by IV bolus, IV infusion, or even IM
Insulin
Onset (mins)
Peak (hrs)
Duration (hrs)
Humulin R
30 mins to 4 hrs
2.5-5
5-10
Novolin R 30 8

31. Sliding-Scale Insulin Dosing
SC rapid or short-acting doses adjusted according to blood glucose test results
Typically used in hospitalized diabetic patients
Or in patients on TPN / enteral tube feedings or receiving steroids
Subcutaneous insulin is ordered in an amount that increases as the blood glucose increases

32. Human-Based Insulins Intermediate-Acting
isophane insulin suspension (also called NPH) (Humulin N, Novolin N)
isophane insulin suspension & insulin injection
(Humulin 50/50 , Humulin 70/30, Novolin 70-30)
Lispro protamine suspension (Humalog 75/25, Novolog Mix 70/30)
insulin zinc suspension (Lente, Novolin L)
Cloudy appearance
Slower in onset and more prolonged duration
than endogenous insulin

33. Human-Based Insulins Intermediate-Acting
Onset (hrs)
Peak (hrs)
Duration (hrs)
Isophane (NPH):
Humulin N
1-4
4-12
16-28
Novolin N
1-5 24
Isophane & Insulin:
Humulin 50/50
0.5
4-8
Humulin 70/30
Novolin70/30
2-12

34. Human-Based Insulins Intermediate-Acting
Onset (hrs)
Peak (hrs)
Duration (hrs)
lispro protamine & lispro:
Humalog Mix 75/25
12-24
Novolog Mix 70/30
2.4 24
Insulin Zinc Suspension:
Lente Iletin II
1-1.5
8-12
Novolin L
1-4
7-15
20-28

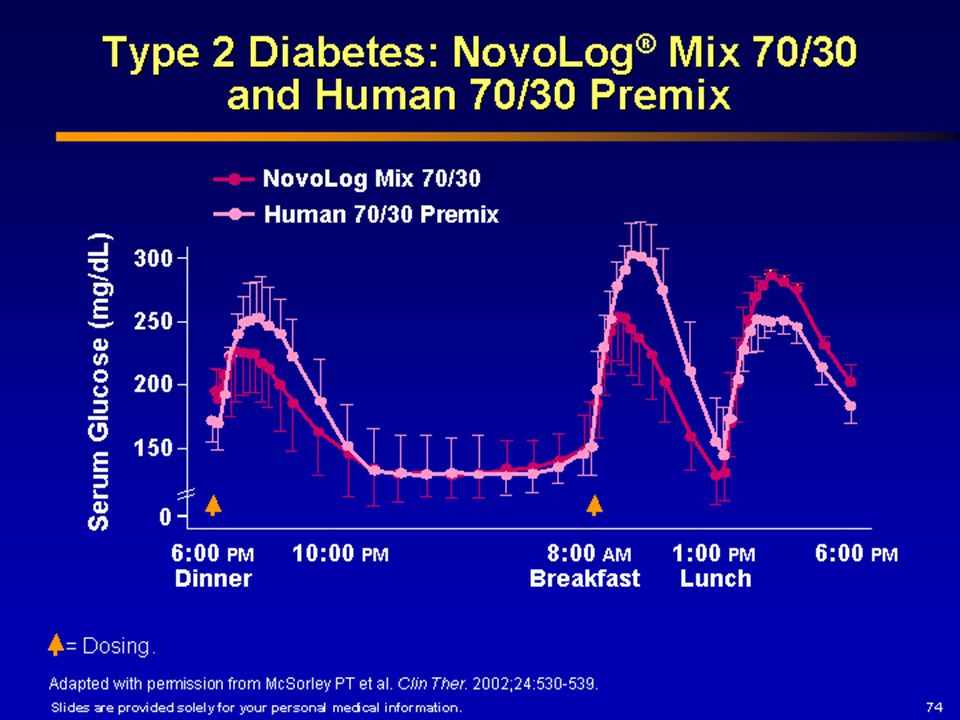

36. Human-Based Insulins Combination Insulin Products
NPH 70% and regular insulin 30% (Humulin 70/30, Novolin 70/30)
NPH 50% and regular insulin 50% (Humulin 50/50)
insulin lispro protamine suspension 75% and insulin lispro 25% (Humalog Mix 75/25)

39. Human-Based Insulins Long-Acting
Onset
Peak
Duration
glargine (Lantus 1
No peak activity
24 (when administered at hs)
detemir (Levemir)
6-8
6-28

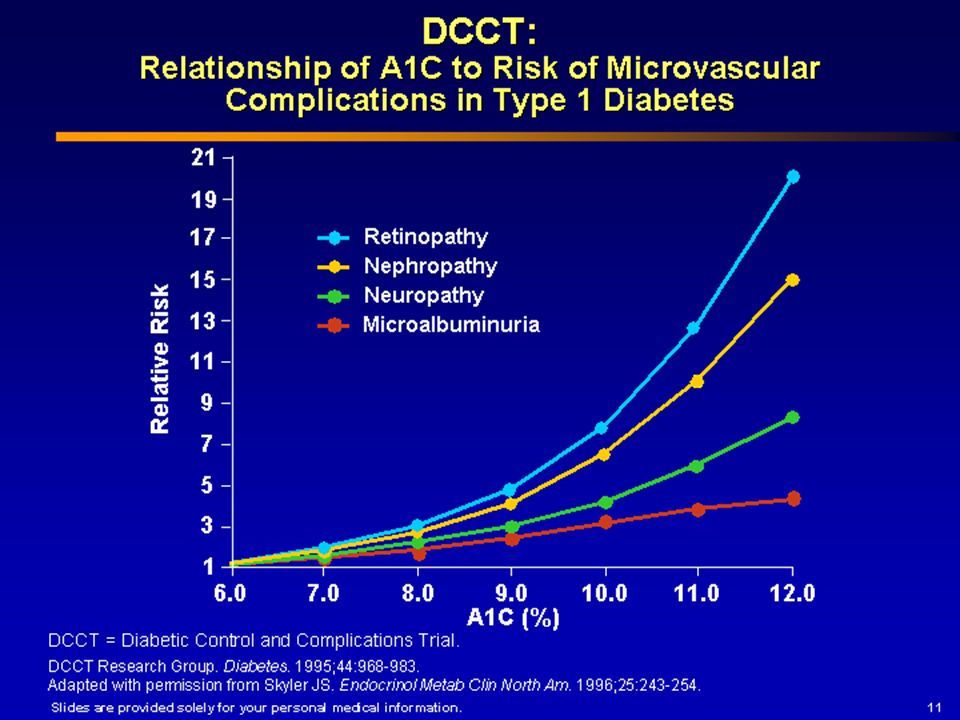

40. HbA1c
It is a test that allows healthcare providers to see how diabetics have managed their blood glucose level over the last 2-3 months….

42. Insulin Storage: Neither be allowed to freeze or heated above 98oF
Store in refrigerator until opened
Once opened, store at room temp: 68o to 75oF
Once opened, discard after 30 days
Avoid excess agitation – gently roll in the palms of hands (not shaken) to warm and resuspend insulin

43. Insulin Injection Sites

44. Insulin Injection Sites Lipodystrophies
Atrophy or hypertrophy
Dermatologic conditions
Hypertrophy more common
Fat pads become anesthetized
Results in prolonged & erratic insulin absorption
Loss of diabetic control

45. Insulin Pumps External Internal

46. Oral Antidiabetic Drugs
Used for type 2 diabetes
Treatment for type 2 diabetes includes lifestyle modifications
Diet, exercise, smoking cessation, weight loss
Oral antidiabetic drugs may not be effective unless the patient also makes behavioral or lifestyle changes

47. DM Monitoring Glycosylated Hemoglobin Assays
HbA1c
Good indicator of the average blood glucose levels.
Shows the average blood glucose level during the previous 120 days
Used to assess long term glycemic control
Performed at diagnosis and at specific intervals to evaluate the treatment plan
Altered by pregnancy, increased triglycerides & bilirubin
Twice annually for patients with good control
Quarterly for patients whose therapy has changed

48. Oral Antidiabetic Drugs Sulfonylureas
First generation:
chlorpropamide (Diabinese),
tolazamide (Tolinase)
tolbutamide (Orinase)
Second generation:
glimepiride (Amaryl)
glipizide (Glucotrol)
glyburide (DiaBeta, Micronase)

49. Oral Antidiabetic Drugs: Sulfonylureas
Stimulate insulin secretion from the beta cells of the pancreas, thus increasing insulin levels
Beta cell function must be present
Improve sensitivity to insulin in tissues
Result: lower blood glucose levels
First-generation drugs not used as frequently now

50. Oral Antidiabetic Drugs: Sulfonylureas --Adverse Effects

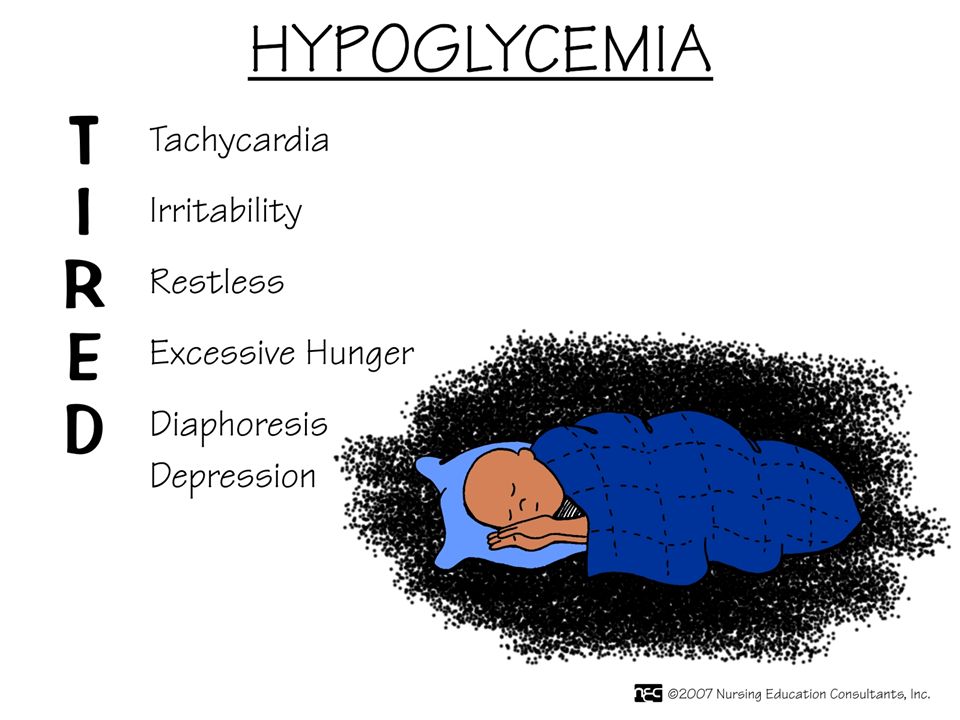

Hypoglycemia
hematologic effects
nausea
epigastric fullness
heartburn
many others

51. Oral Antidiabetic Drugs: Sulfonylureas -- Interactions
Hypoglycemic effect increases when taken with alcohol, anabolic steroids, many other drugs
Adrenergics (beta blockers) may mask many of the symptoms of hypoglycemia
Hyperglycemia: corticosteroids, phenothiazines, diuretics, oral contraceptives, thyroid replacement hormones, phenytoin, diazoxide and lithium.
Allergic cross-sensitivity may occur with loop diuretics and sulfonamide antibiotics
May interact with alcohol/OTC medication containing alcohol) - causing a disulfiram (Antabuse) -type reaction (facial flushing, pounding headache, feeling of breathlessness, and nausea)

52. Oral Antidiabetic Drugs: Meglitinides
repaglinide (Prandin)
nateglinide (Starlix)
Action similar to sulfonylureas
Increase insulin secretion from the pancreas

53. Oral Antidiabetic Drugs: Meglitinides -- Adverse Effects
Headache
hypoglycemic effects
Dizziness
weight gain
joint pain
upper respiratory infection or flu-like symptoms

54. Oral Antidiabetic Drugs: Biguanides
metformin (Glucophage)
Decrease production of glucose
Increase uptake of glucose by tissues
Does not increase insulin secretion from the pancreas (does not cause hypoglycemia)

55. Oral Antidiabetic Drugs: Biguanides – Adverse Effects
Metformin
Primarily affects GI tract: abdominal bloating, nausea, cramping, diarrhea, feeling of fullness
May also cause metallic taste, reduced vitamin B12 levels
Lactic acidosis is rare but lethal if it occurs
Does not cause hypoglycemia

56. Oral Antidiabetic Drugs: Thiazolidinediones
pioglitazone (Actos),
rosiglitazone (Avandia)
Also known as “glitazones”
Decrease insulin resistance
“Insulin sensitizing drugs”
Increase glucose uptake and use in skeletal muscle
Inhibit glucose and triglyceride production in the liver

57. Oral Antidiabetic Drugs: Thiazolidinediones -- Adverse Effects
Moderate weight gain
Edema
Mild anemia
Hepatic toxicity—monitor liver function tests

58. Oral Antidiabetic Drugs: Alpha-glucosidase inhibitors
acarbose (Precose)
miglitol (Glyset)
Reversibly inhibit the enzyme alpha-glucosidase in the small intestine
Result: delayed absorption of glucose
Must be taken with meals to prevent excessive postprandial blood glucose elevations (with the “first bite” of a meal)

59. Oral Antidiabetic Drugs: α-glucosidase inhibitorsAdverse Effects
Flatulence
diarrhea
abdominal pain
Do not cause hypoglycemia, hyperinsulinemia, or weight gain

60. Oral Antidiabetic Drugs: Indications
Used alone or in combination with other drugs and/or diet and lifestyle changes to lower the blood glucose levels in patients with type 2 diabetes

61. Other Antidiabetic Drugs
Amylin Mimetic: pramlintide (Symlin)
Mimics the natural hormone amylin
Slows gastric emptying
Suppressed glucagon secretion, reducing hepatic glucose output
Centrally modulates appetite and satiety
Used when other drugs have not achieved adequate glucose control

62. Other Antidiabetic Drugs
Incretin Mimetic: exenatide (Byetta)
Mimics the incretin hormones
Enhances glucose-driven insulin secretion from β cells of the pancreas
Only used for Type 2 diabetes
Injection pen device
Inhaled Insulin: Exubera

63. FIGURE 36-2 Mechanisms of action of antidiabetic agents.
Mosby items and derived items © 2007, 2004 by Mosby, Inc., an affiliate of Elsevier Inc.

64. Hypoglycemia Adverse Effect of Insulin
Early
Confusion, irritability, tremor, sweating
Later
Hypothermia, seizures
Coma and death will occur if not treated
Abnormally low blood glucose level (<50 mg/dL)
Mild cases can be treated with diet—higher intake of protein and lower intake of carbs—to prevent a rebound postprandial hypoglycemia

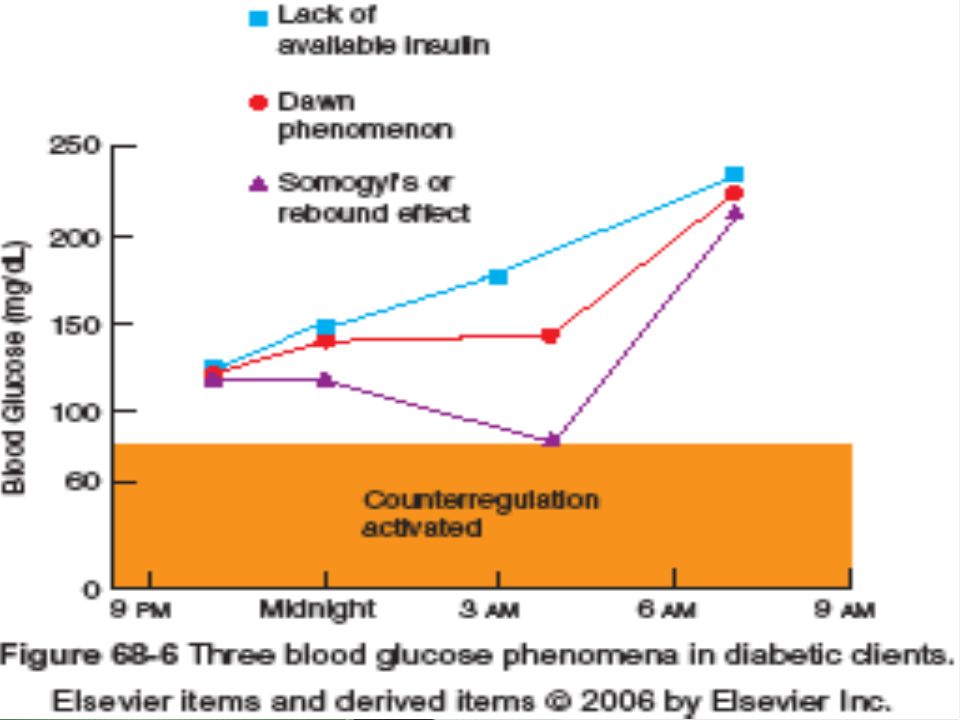

67. Somogyi Phenomenon Adverse Effect of Insulin
Rapid decrease in blood sugar – during the night
Stimulates the release of hormones that elevate blood glucose
Epinephrine, cortisol, and glucagon
Results in elevated early morning blood glucose
Insulin administration may cause a rapid rebound hypoglycemia

70. Glucose-Elevating Drugs
Oral forms of concentrated glucose
Buccal tablets, semisolid gel
50% dextrose in water (D50W)
Glucagon
diazoxide

71. Diabetes Mellitus Diabetic Ketoacidosis
State of hyperglycemia with ketosis
Usually results from infection, environment, or emotional stressor
As a result of Lack of Insulin, Breakdown:
Fat – free fatty acids in liver – ketone bodies – ketones in urine
Protein – to form new glucose / increased BUN
Glycogen to glucose (decrease use of glucose because of decreased insulin)
Osmotic diuresis
Dehydration / Electrolyte Imbalance
Hyperosmolality Hemoconcentration
Acidosis
Death

72. Diabetes Mellitus Diabetic Ketoacidosis
Sudden onset
Factors: infection, stressors, inadequate insulin
Kussmaul respiration / fruity odor to breath, nausea, abdominal pain
Dehydration, electrolyte imbalance, polyuria, polydipsia, weight loss, dry skin, sunken eyes, soft eyeballs, lethargy, coma
Glucose >300 mg/dL
pH < / Bicarbonate < 15 mEq/L
Na – low / K+ </> / Cr >1.5 mg/dL
Blood & Urine Ketones - Positive

73. Diabetes Mellitus Diabetic Ketoacidosis
Treatment
Insulin Bolus (0.1U/kg IV) & Infusion (0.1 U/kg/hr)
Regular Insulin
only insulin that can be given by intravenous infusion
Restore fluid volume
Potassium Runs
K+ depleted severely with insulin therapy
Insure urine output >30mL/hr
Correct acidosis
Bicarbonate is used rarely
arterial pH < 7.0 or bicarbonate level < 5 mEq/L

75. Diabetes Mellitus Hyperglycemic-hyperosmolar nonketotic syndrome (HHNS)
State of hyperglycemia without ketosis
Little breakdown of fat (little or no ketone bodies)
Breakdown
Glycogen– formation of new glucose – hyperglycemia
Very high levels of glucose >800mg dL
Osmotic diuresis – extracellular dehydration
Renal insufficiency – hyperosmolality – intracellular dehydration
Hypokalemia – shock – tissue hypoxia - Coma

76. Diabetes Mellitus Hyperglycemic-hyperosmolar nonketotic syndrome (HHNS)
Gradual onset
Factors: infection, other stressors, poor fluid intake
Altered CNS function – neurologic symptoms
Dehydration / electrolyte loss
Glucose > 800 mg/dL
pH >7.4 / Bicarbonate >20 mEq/L
Na & K+ normal or low
Bun & Cr – elevated
Blood & Urine Ketones - negative

77. Diabetes Mellitus Hyperglycemic-hyperosmolar nonketotic syndrome (HHNS
Treatment
Rehydrate with NS (if severe) or ½ NS
Use CVP or PCWP / UO / blood pressure monitoring
IV insulin 10U/hr
Reduce hyperglycemia by 10% /hr
Replace Potassium (will not be as severe as DKA)

78. Antidiabetic Drugs: Nursing Implications
Before giving any drugs that alter glucose levels, obtain and document:
A thorough history
Vital signs
Blood glucose level, HbA1c level
Potential complications and drug interactions

79. Antidiabetic Drugs: Nursing Implications
Before giving any drugs that alter glucose levels:
Assess the patient’s ability to consume food
Assess blood glucose level
Assess for nausea or vomiting
Hypoglycemia may be a problem if antidiabetic drugs are given and the patient does not eat
If a patient is NPO for a test or procedure, consult physician to clarify orders for antidiabetic drug therapy

80. Antidiabetic Drugs: Nursing Implications
Keep in mind that overall concerns for any diabetic patient increase when the patient:
Is under stress
Has an infection
Has an illness or trauma
Is pregnant or lactating

81. Antidiabetic Drugs: Patient Education
Thorough patient education is essential regarding:
Disease process
Other Risk Factors:
Smoking
HTN
CAD
Self-Care:
Medication
Psychological adjustment
Nutrition
Activity and Exercise
Blood-glucose testing
Self-administration of insulin or oral drugs
Potential complications
How to recognize and treat hypoglycemia and hyperglycemia

82. FIGURE 36-3 Diabetes health care plan.
Mosby items and derived items © 2007, 2004 by Mosby, Inc., an affiliate of Elsevier Inc.

83. Nursing Implications Insulin
When insulin is ordered, ensure:
Correct route
Correct type of insulin
Timing of the dose
Correct dosage
Insulin order and prepared dosages are second- checked with another nurse
Check blood glucose level before giving insulin
Roll vials between hands them to mix suspensions – no shaking!
Ensure correct storage of insulin vials
ONLY insulin syringes, calibrated in units, to administer insulin
Ensure correct timing of insulin dose with meals

84. Nursing Implications Insulin
When drawing up two types of insulin in one syringe:
Always withdraw the regular or rapid-acting insulin first
Provide thorough patient education regarding self- administration of insulin injections, including timing of doses, monitoring blood glucoses, and injection site rotations

85. Nursing ImplicationsOral antidiabetic drugs
Always check blood glucose levels before giving
Usually given 30 minutes before meals
Administer the medication at exact time – with meal or when food is in sight*
Alpha-glucosidase inhibitors are given with the first bite of each main meal
Metformin is taken with meals to reduce GI effects
Nursing ImplicationsOral antidiabetic drugs

86. Nursing Implications Insulin & hypoglycemic medications
Assess for signs of hypoglycemia
If hypoglycemia occurs:
Give glucagon or
Have the patient eat glucose tablets or gel, corn syrup, honey, fruit juice, or nondiet soft drink or
Have the patient eat a small snack such as crackers or half a sandwich
Monitor blood glucose levels

88. Nursing Implications Monitor for therapeutic response
Decrease in blood glucose levels to the level prescribed by physician
Measure hemoglobin A1c to monitor long-term compliance to diet and drug therapy
Watch for hypoglycemia and hyperglycemia

90. Review Neuropathies are: low blood sugar.
2. degenerations in the central nervous
system.
3. degeneration of peripheral nerves.
4. a numbness and tingling of the extremities

91. Review
A dose of long acting insulin has been ordered for bedtime for a diabetic patient. The nurse expects to give which type of insulin?
A: Regular
B: Lente
C: NPH
D: Glargine (Lantus)

92. DM - Review Diabetic ketoacidosis is:
1. an abnormality in the metabolism of fats.
2. an accumulation of ketones associated with poor control of diabetes mellitus.
3. an abnormal increase in hydrogen ion concentration.
4. abnormal deposits of fat caused by repeated injection of insulin at the same site.

93. DM - Review The biguanide oral antidiabetic metformin
(Glucophage) has the expected side effect of:
1. hepatotoxicity.
2. blood dyscrasias.
3. hypotension.
4. abdominal cramping and flatulence.

94. Review
A dose of long acting insulin has been ordered for bedtime for a diabetic patient. The nurse expects to give which type of insulin?
A: Regular
B: Lente
C: NPH
D: Glargine (Lantus)

95. Review
The order reads 10 units of U-100 Regular insulin. U-100 means there is/are:
1. 10 units of insulin in 1 mL of solution.
2. 1 mL solution/unit of insulin.
units of Regular insulin in 1 mL of solution
4. 10 units of insulin in each bottle.
