1. Click on one of the following icons to go to that resource.
Chapter Resources
Click on one of the following icons to go to that resource.
glencoe.com
Image Bank
Foldables
Video Clips and Animations
Chapter Summary
Chapter Review Questions
Standardized Test Practice

2. glencoe.com

3. Image Bank
Click on individual thumbnail images to view larger versions.

4. Image Bank
Transfer Images
To transfer images to your own power point follow the following steps:
Open the “Resource” file from the CD-ROM disc – view the file in the “normal view” or “slide sorter view” mode - go to slide #2 – from there you can click through the images and follow these instructions. Click once on the image.
Copy the image
Go to your own power point document
Paste the image.

5. Different Types of Landforms
Image Bank
Different Types of Landforms

6. Image Bank
Grasslands

7. Image Bank
Landform Region Map

8. Image Bank
Mt. Everest

9. Image Bank
Folded Rock Layers

10. Image Bank
Upwarped
Mountain

11. Image Bank
Fault-block
Mountian

12. Image Bank
Volcanic Mountain

13. Image Bank
Latitude

14. Image Bank
Longitude

15. Location of the City of Milwaukee
Image Bank
Location of the City of Milwaukee

16. Image Bank
Time Zones

17. Image Bank
Time Zones

18. Image Bank
Mercator Projection

19. Image Bank
Robinson Projection

20. Image Bank
Conic Projection

21. Image Bank
Topographic map

22. Image Bank
Block Diagram

23. Image Bank
Earth

24. Image Bank
Question Image

25. Image Bank
Question Image

26. Foldables
Views of Earth
Make the following Foldable to help identify what you already know, what you want to know, and what you learned about the views of the Earth.

27. Foldables
Fold a vertical sheet of paper in half from side to side. Make the front edge about 1.25 cm shorter than the back edge.

28. Turn lengthwise and fold into thirds.
Foldables
Turn lengthwise and fold into thirds.

29. Unfold and cut only the top layer along both folds to make three tabs.
Foldables
Unfold and cut only the top layer along both folds to make three tabs.

30. Foldables
Label each tab.

31. Foldables
Identify Questions
Before you read the chapter, write what you already know about the views of Earth under the left tab of your Foldable, and write questions about what you’d like to know under the center tab. After you read the chapter, list what you learned under the right tab.

32. Video Clips
Click image to view movie.

33. Video Clips

34. Reviewing Main Ideas 1
Landforms
The three main types of landforms are plains, plateaus, and mountains.
Plains are large, flat areas. Plateaus are relatively flat, raised areas of land made up of nearly horizontal rocks that have been uplifted. Mountains rise high above the surrounding land.

35. Reviewing Main Ideas 2
Viewpoints
Latitude and longitude form an imaginary grid system that enables points on Earth to be located exactly.
Latitude is the distance in degrees north or south of the equator. Longitude is the distance in degrees east or west of the prime meridian.

36. Reviewing Main Ideas 2
Viewpoints
Earth is divided into 24 time zones. Each time zone represents a 1-h difference. The International Date Line separates different calendar days.

37. Reviewing Main Ideas 3
Maps
Mercator, Robinson, and conic projections are made by transferring points and lines on a globe’s surface onto paper.
Topographic maps show the elevation of Earth’s surface. Geologic maps show the types of rocks that make up Earth’s surface.
Remote sensing is a way of collecting information from a distance. Satellites are important remote-sensing devices.

38. Chapter Review
Question 1
What type of mountains form when blocks of Earth’s crust are pushed up?
A. fault-block
B. folded
C. upwarped
D. volcanic
PS 2.2f

39. Chapter Review
Answer
The answer is C. The Adirondack Mountains in New York are upwarped mountains.

40. Question 2 Which of the following is not a major U.S. landform?
Chapter Review
Question 2
Which of the following is not a major U.S. landform?
A. coastal plain
B. grassland
C. mountain
D. plateau
PS 2.1

41. Chapter Review
Answer
The answer is B. A grassland is a type of biome, not a landform, and refers to the ecological community in a given area.

42. Chapter Review
Question 3
What is meant by longitude?
PS 1.1f

43. Chapter Review
Answer
Longitude lines are imaginary lines that run from the north pole to the south pole. The reference point for lines of longitude is the prime meridian, which is defined as 0º longitude. Longitude is given in degrees east or west of prime meridian.

44. Chapter Review
Question 4
The relationship between the distances on a map and those distances on Earth’s surface is called _______.
Answer
This relationship is the map scale and is often represented as a ratio.
PS 1.1f

45. Chapter Review
Question 5
Which method of remote sensing utilizes different wavelengths of light to take pictures of Earth’s surface while maintaining a near-polar orbit?
A. GPS
B. Landsat
C. Imsat
D. Lidar
PS 2.1

46. Chapter Review
Answer
The answer is B. Landsat is a program of Earth-monitoring satellites that detect light reflected off landforms.

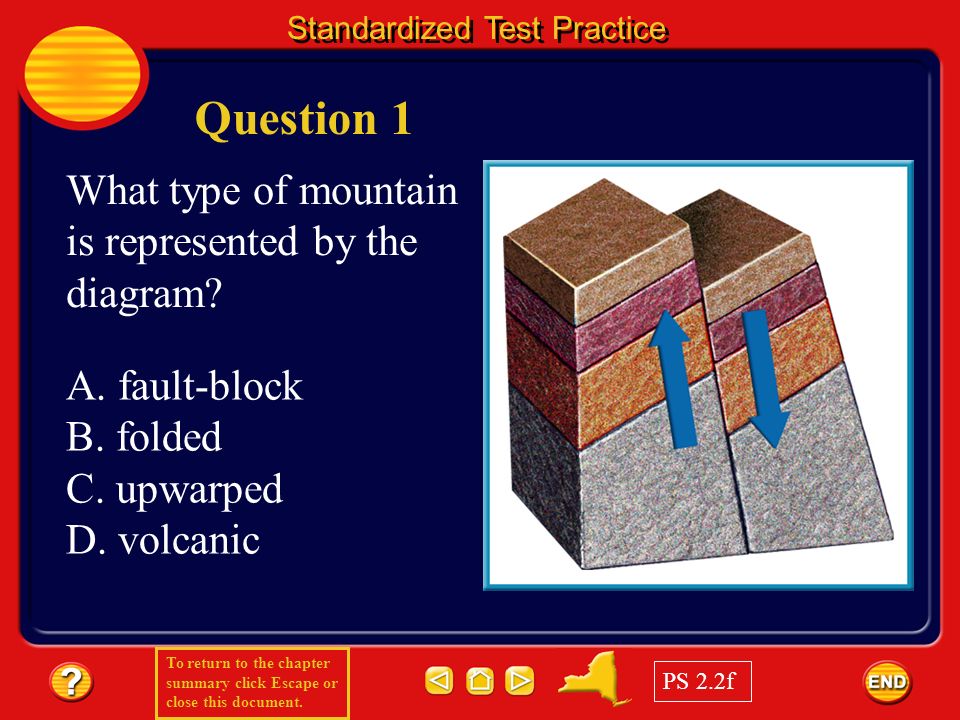

47. Question 1 What type of mountain is represented by the diagram?
Standardized Test Practice
Question 1
What type of mountain is represented by the diagram?
A. fault-block
B. folded
C. upwarped
D. volcanic
PS 2.2f

48. Standardized Test Practice
Answer
The answer is A. These mountains are created when blocks of rock move in opposite directions along a fracture, or fault.

49. Standardized Test Practice
Question 2
Which best identifies the location of Jacksonville, Florida?
A. 26º N, 80.5º W
B. 30º N, 81.5º W
C. 43º N, 81.5º W
D. 60º S, 81.5º E
PSB PS 1

50. Standardized Test Practice
Answer
The answer is B. Jacksonville is located in northern Florida. Latitudes are given with respect to the equator, so any location north of the equator will be referred to by degrees north latitude.

51. Standardized Test Practice
Question 3
What is the day and time in Tokyo, Japan when it is 8:00 A.M. on January 1st in New York, USA?
PS 1.1f

52. Question 3 A. 9:00 P.M. January 2nd B. 10:00 A.M. January 2nd
Standardized Test Practice
Question 3
A. 9:00 P.M. January 2nd
B. 10:00 A.M. January 2nd
PS 1.1f

53. Question 3 C. 10:00 P.M. December 31st D. 10:00 P.M. January 1st
Standardized Test Practice
Question 3
C. 10:00 P.M. December 31st
D. 10:00 P.M. January 1st
PS 1.1f

54. Standardized Test Practice
Answer
The answer is D. There are ten time zone changes between New York and Tokyo if you travel from east to west. When traveling west across the International Date Line, the calendar moves forward one day. If you traveled east from New York to Tokyo, you would change time zones fourteen times.

55. Question 4 Which best completes “A” on the concept map?
Standardized Test Practice
Question 4
Which best completes “A” on the concept map?
PS 2.1

56. Question 4 A. coastal B. contours C. lowlands D. plateaus
Standardized Test Practice
Question 4
A. coastal
B. contours
C. lowlands
D. plateaus
PS 2.1

57. Standardized Test Practice
Answer
The answer is D. The three major landforms are plains, plateaus and mountains. Lowlands are coastal plains.

58. Standardized Test Practice
Question 5
This table lists three distances on Earth and their representative distances on a map. What is the map scale?
Distance on Earth
Distance on map
Point A to Point B
4 km
1 cm
Point B to Point C
16 km
4 cm
Point C to Point D
40 km
10 cm
PSB PS 7

59. A. 1:4 B. 1:400 C. 1:400,000 D. 4:1 Distance on Earth Distance on map
Standardized Test Practice
Distance on Earth
Distance on map
Point A to Point B
4 km
1 cm
Point B to Point C
16 km
4 cm
Point C to Point D
40 km
10 cm
A. 1:4
B. 1:400
C. 1:400,000
D. 4:1
PSB PS 7

60. Standardized Test Practice
Answer
The answer is C. There are 100,000 cm per km. For every 1 cm on this map, 400,000 cm on Earth are represented.

61. Help
To advance to the next item or next page click on any of the following keys: mouse, space bar, enter, down or forward arrow.
Click on this icon to return to the table of contents
Click on this icon to return to the previous slide
Click on this icon to move to the next slide
Click on this icon to open the resources file.
Click on this icon to go to the end of the presentation.

62. End of Chapter Resources File
