1. © 2010 Pearson Education Inc.Goldstein/Schneider/Lay/Asmar, CALCULUS AND ITS APPLICATIONS, 12e– Slide 1 of 55 Chapter 4 The Exponential and Natural Logarithm Functions

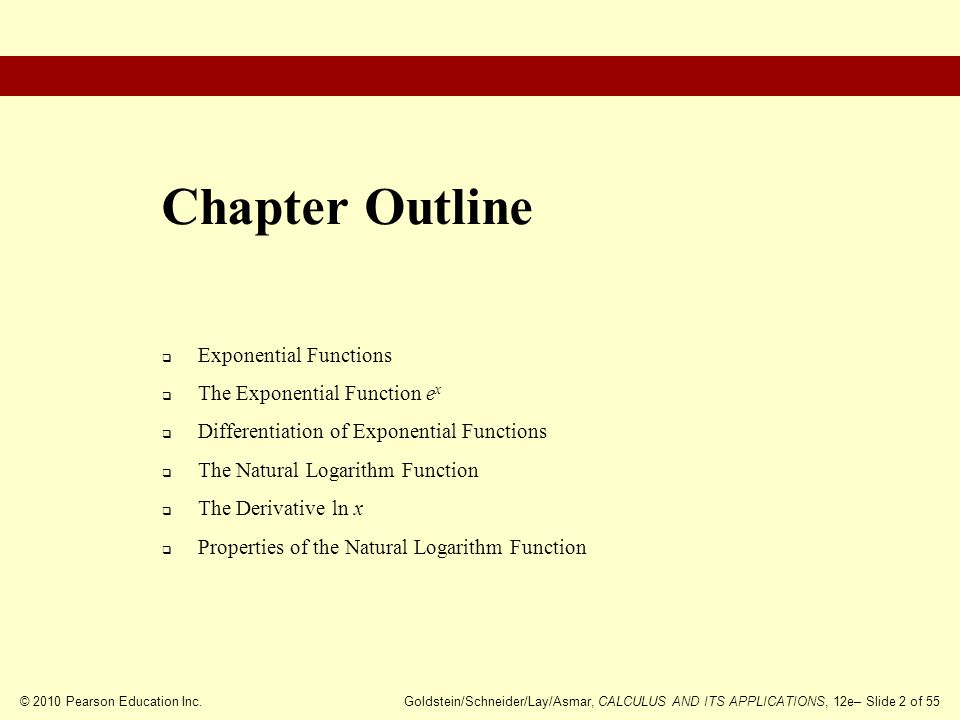

2. © 2010 Pearson Education Inc.Goldstein/Schneider/Lay/Asmar, CALCULUS AND ITS APPLICATIONS, 12e– Slide 2 of 55  Exponential Functions  The Exponential Function e x  Differentiation of Exponential Functions  The Natural Logarithm Function  The Derivative ln x  Properties of the Natural Logarithm Function Chapter Outline

3. © 2010 Pearson Education Inc.Goldstein/Schneider/Lay/Asmar, CALCULUS AND ITS APPLICATIONS, 12e– Slide 3 of 55 § 4.1 Exponential Functions

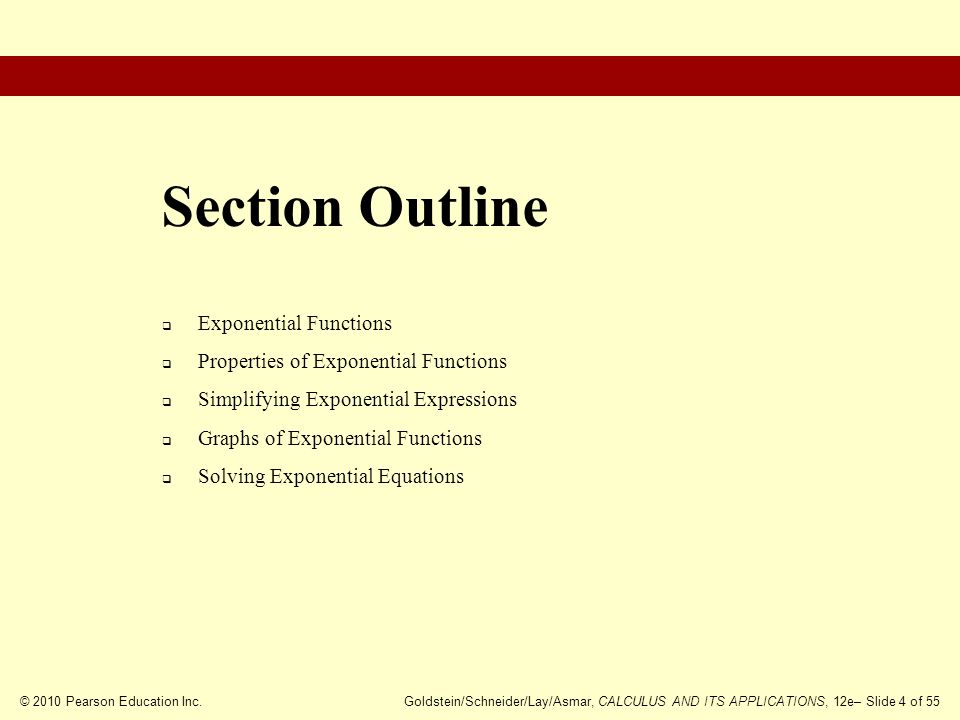

4. © 2010 Pearson Education Inc.Goldstein/Schneider/Lay/Asmar, CALCULUS AND ITS APPLICATIONS, 12e– Slide 4 of 55  Exponential Functions  Properties of Exponential Functions  Simplifying Exponential Expressions  Graphs of Exponential Functions  Solving Exponential Equations Section Outline

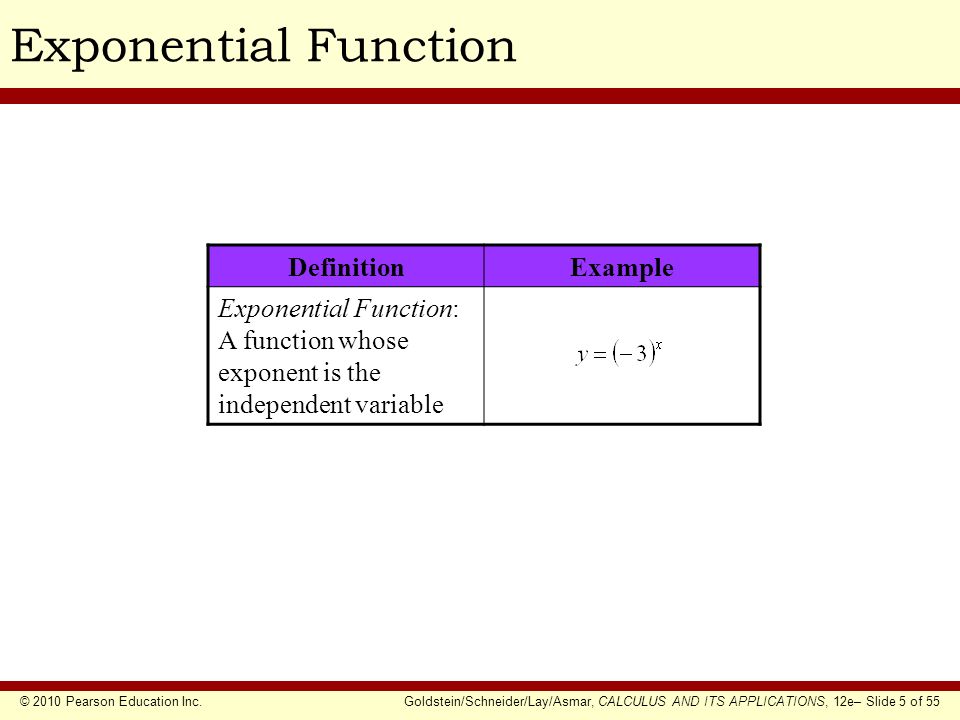

5. © 2010 Pearson Education Inc.Goldstein/Schneider/Lay/Asmar, CALCULUS AND ITS APPLICATIONS, 12e– Slide 5 of 55 Exponential Function DefinitionExample Exponential Function: A function whose exponent is the independent variable

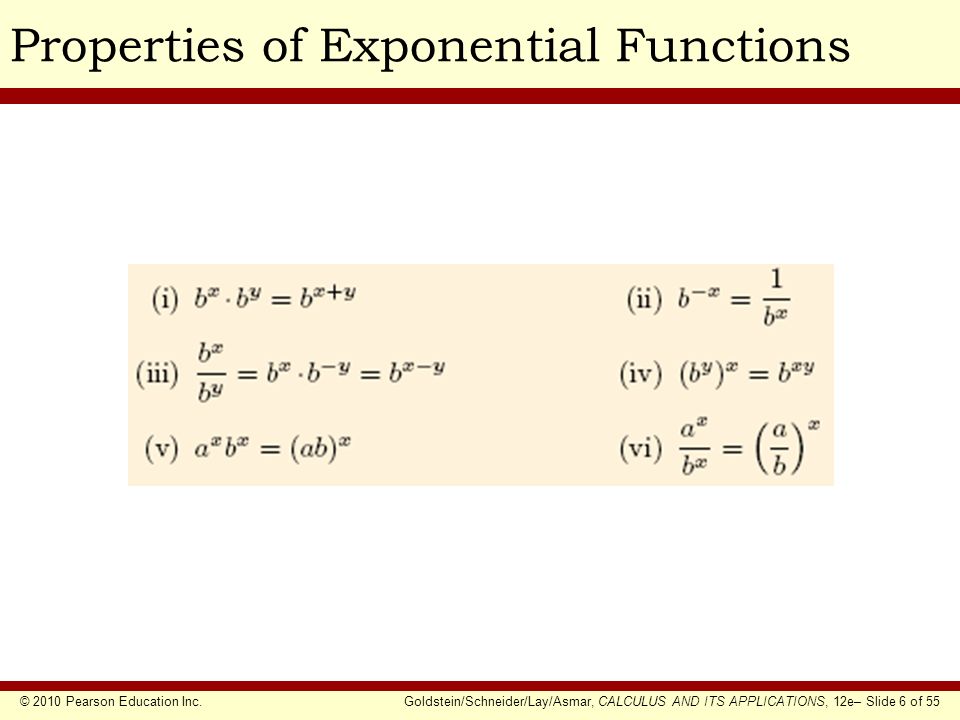

6. © 2010 Pearson Education Inc.Goldstein/Schneider/Lay/Asmar, CALCULUS AND ITS APPLICATIONS, 12e– Slide 6 of 55 Properties of Exponential Functions

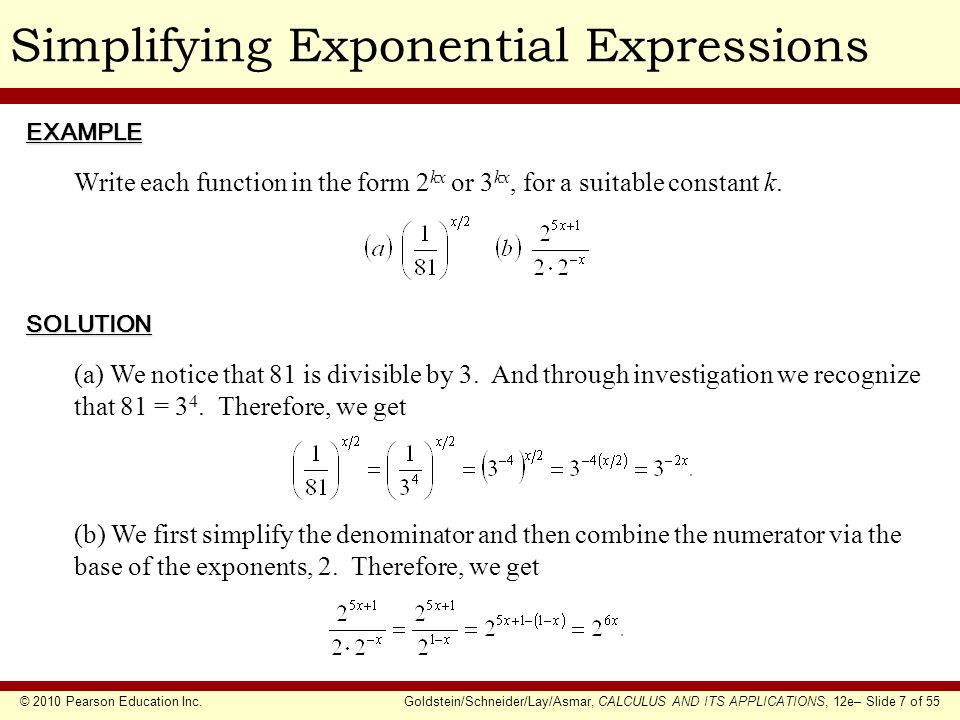

7. © 2010 Pearson Education Inc.Goldstein/Schneider/Lay/Asmar, CALCULUS AND ITS APPLICATIONS, 12e– Slide 7 of 55 Simplifying Exponential ExpressionsEXAMPLE SOLUTION Write each function in the form 2 kx or 3 kx, for a suitable constant k. (a) We notice that 81 is divisible by 3. And through investigation we recognize that 81 = 3 4. Therefore, we get (b) We first simplify the denominator and then combine the numerator via the base of the exponents, 2. Therefore, we get

8. © 2010 Pearson Education Inc.Goldstein/Schneider/Lay/Asmar, CALCULUS AND ITS APPLICATIONS, 12e– Slide 8 of 55 Graphs of Exponential Functions Notice that, no matter what b is (except 1), the graph of y = b x has a y-intercept of 1. Also, if 0 1, then the function is increasing.

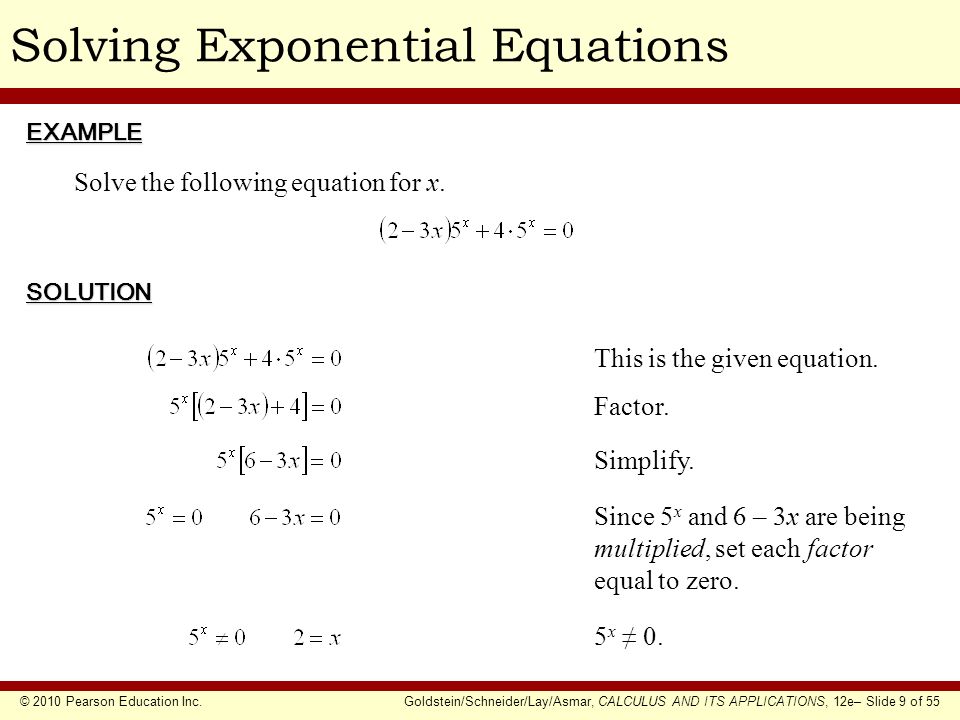

9. © 2010 Pearson Education Inc.Goldstein/Schneider/Lay/Asmar, CALCULUS AND ITS APPLICATIONS, 12e– Slide 9 of 55 Solving Exponential EquationsEXAMPLE SOLUTION Solve the following equation for x. This is the given equation. Factor. Simplify. Since 5 x and 6 – 3x are being multiplied, set each factor equal to zero. 5 x ≠ 0.

10. © 2010 Pearson Education Inc.Goldstein/Schneider/Lay/Asmar, CALCULUS AND ITS APPLICATIONS, 12e– Slide 10 of 55 § 4.2 The Exponential Function e x

11. © 2010 Pearson Education Inc.Goldstein/Schneider/Lay/Asmar, CALCULUS AND ITS APPLICATIONS, 12e– Slide 11 of 55  e  The Derivatives of 2 x, b x, and e x Section Outline

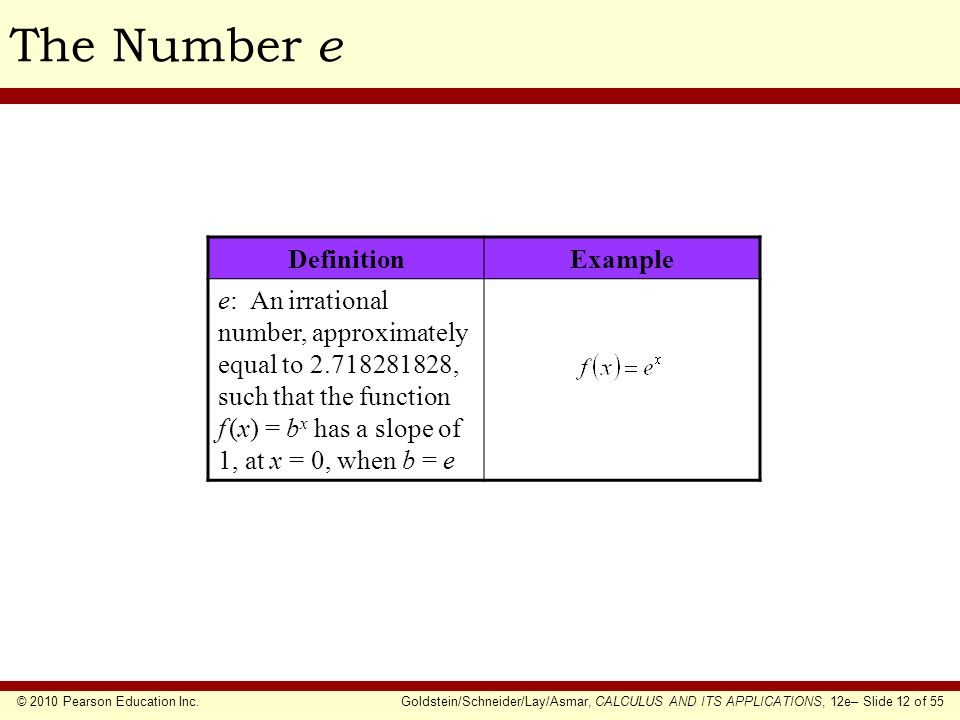

12. © 2010 Pearson Education Inc.Goldstein/Schneider/Lay/Asmar, CALCULUS AND ITS APPLICATIONS, 12e– Slide 12 of 55 The Number e DefinitionExample e: An irrational number, approximately equal to 2.718281828, such that the function f (x) = b x has a slope of 1, at x = 0, when b = e

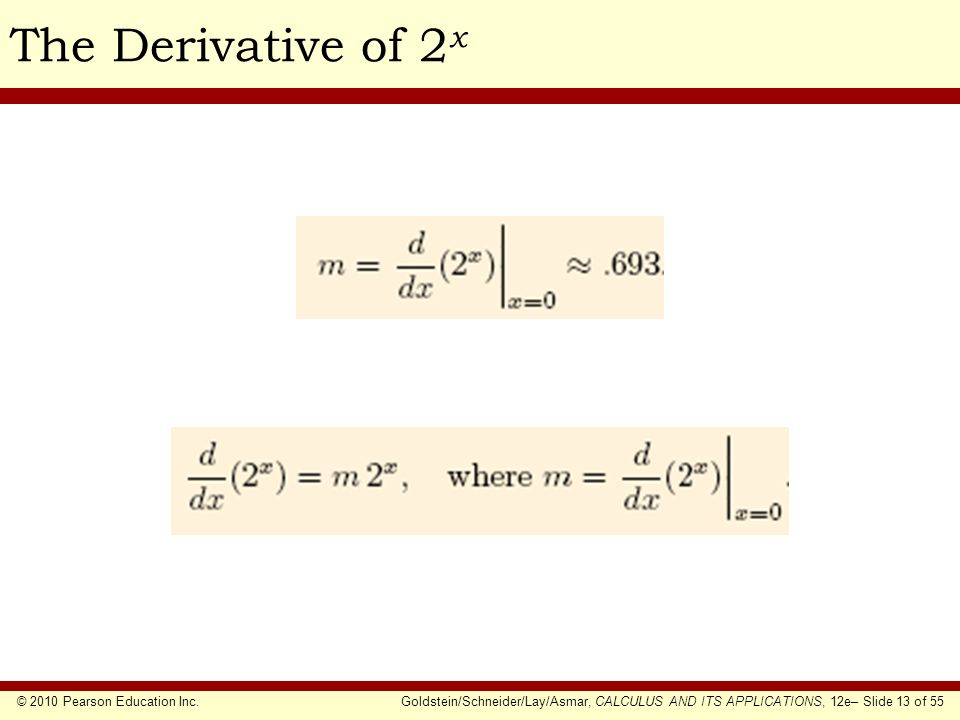

13. © 2010 Pearson Education Inc.Goldstein/Schneider/Lay/Asmar, CALCULUS AND ITS APPLICATIONS, 12e– Slide 13 of 55 The Derivative of 2 x

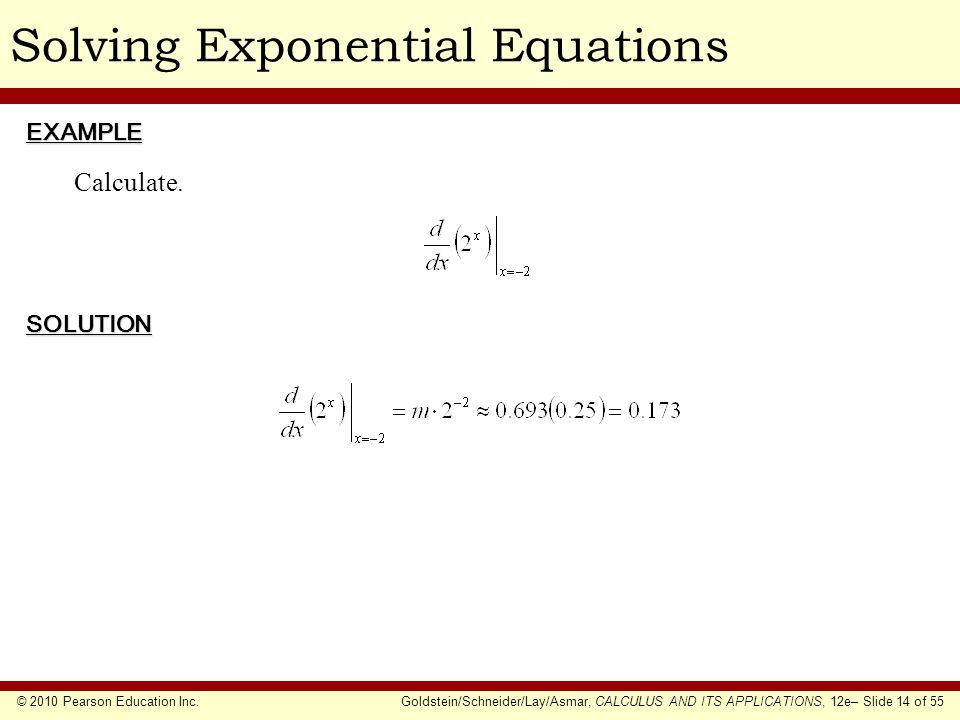

14. © 2010 Pearson Education Inc.Goldstein/Schneider/Lay/Asmar, CALCULUS AND ITS APPLICATIONS, 12e– Slide 14 of 55 Solving Exponential EquationsEXAMPLE SOLUTION Calculate.

15. © 2010 Pearson Education Inc.Goldstein/Schneider/Lay/Asmar, CALCULUS AND ITS APPLICATIONS, 12e– Slide 15 of 55 The Derivatives of b x and e x

16. © 2010 Pearson Education Inc.Goldstein/Schneider/Lay/Asmar, CALCULUS AND ITS APPLICATIONS, 12e– Slide 16 of 55 Solving Exponential EquationsEXAMPLE SOLUTION Find the equation of the tangent line to the curve at (0, 1). We must first find the derivative function and then find the value of the derivative at (0, 1). Then we can use the point-slope form of a line to find the desired tangent line equation. This is the given function. Differentiate. Use the quotient rule.

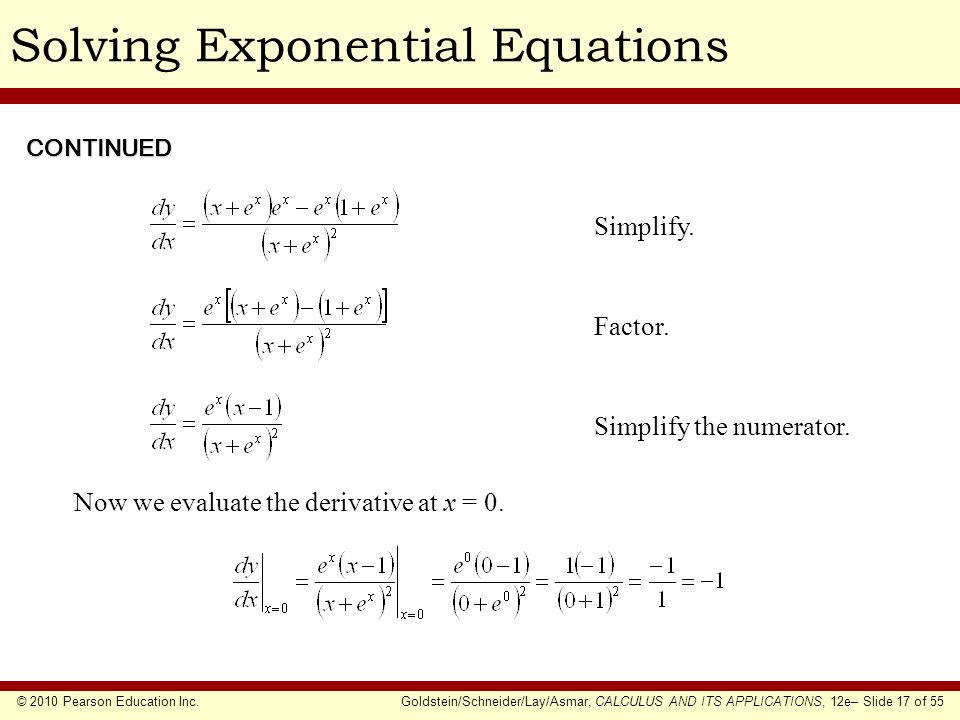

17. © 2010 Pearson Education Inc.Goldstein/Schneider/Lay/Asmar, CALCULUS AND ITS APPLICATIONS, 12e– Slide 17 of 55 Solving Exponential Equations Simplify. CONTINUED Factor. Simplify the numerator. Now we evaluate the derivative at x = 0.

18. © 2010 Pearson Education Inc.Goldstein/Schneider/Lay/Asmar, CALCULUS AND ITS APPLICATIONS, 12e– Slide 18 of 55 Solving Exponential EquationsCONTINUED Now we know a point on the tangent line, (0, 1), and the slope of that line, -1. We will now use the point-slope form of a line to determine the equation of the desired tangent line. This is the point-slope form of a line. (x 1, y 1 ) = (0, 1) and m = -1. Simplify.

19. © 2010 Pearson Education Inc.Goldstein/Schneider/Lay/Asmar, CALCULUS AND ITS APPLICATIONS, 12e– Slide 19 of 55 § 4.3 Differentiation of Exponential Functions

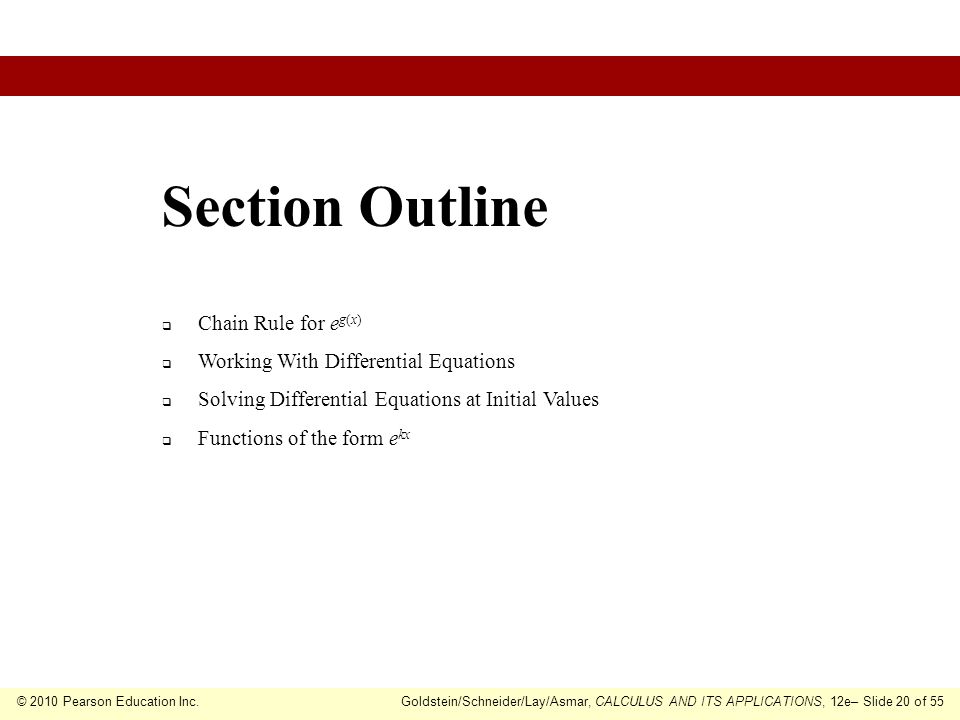

20. © 2010 Pearson Education Inc.Goldstein/Schneider/Lay/Asmar, CALCULUS AND ITS APPLICATIONS, 12e– Slide 20 of 55  Chain Rule for e g(x)  Working With Differential Equations  Solving Differential Equations at Initial Values  Functions of the form e kx Section Outline

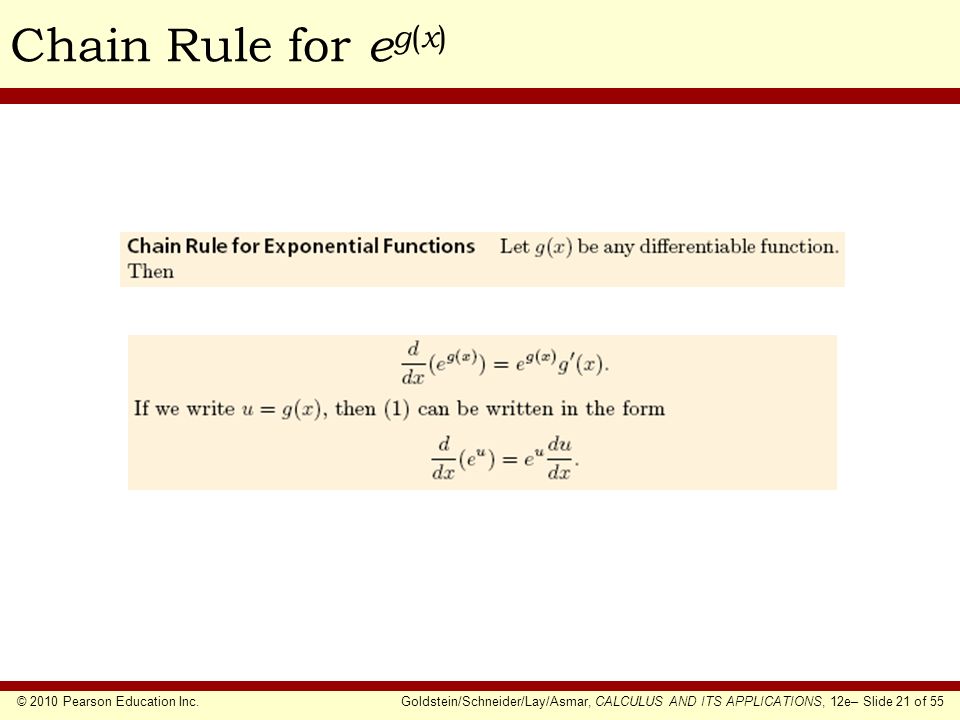

21. © 2010 Pearson Education Inc.Goldstein/Schneider/Lay/Asmar, CALCULUS AND ITS APPLICATIONS, 12e– Slide 21 of 55 Chain Rule for e g ( x )

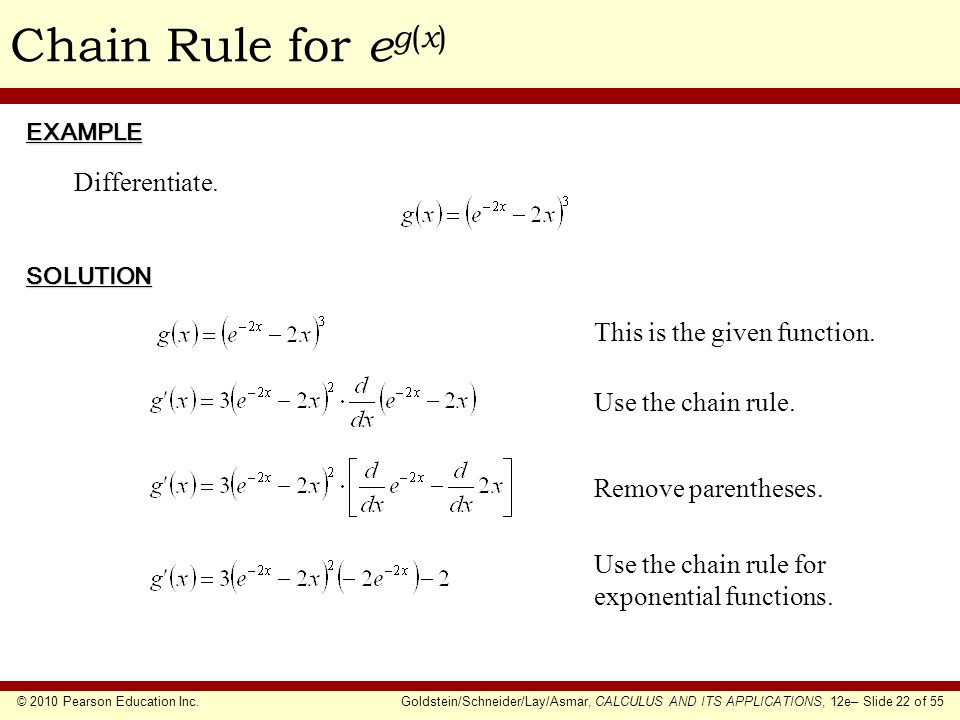

22. © 2010 Pearson Education Inc.Goldstein/Schneider/Lay/Asmar, CALCULUS AND ITS APPLICATIONS, 12e– Slide 22 of 55 Chain Rule for e g ( x )EXAMPLE SOLUTION Differentiate. This is the given function. Use the chain rule. Remove parentheses. Use the chain rule for exponential functions.

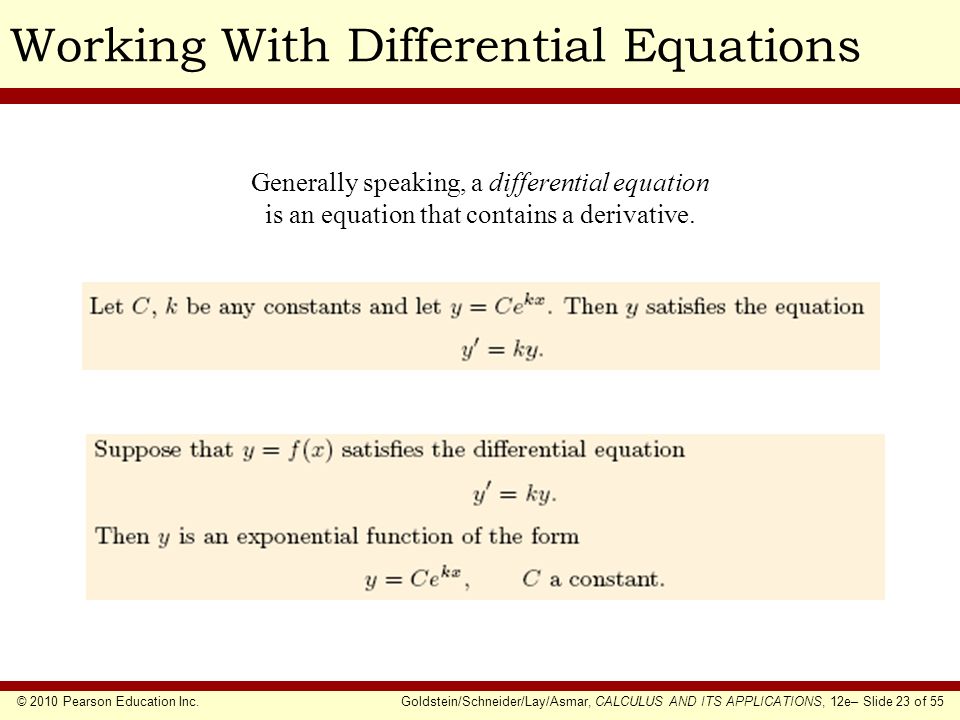

23. © 2010 Pearson Education Inc.Goldstein/Schneider/Lay/Asmar, CALCULUS AND ITS APPLICATIONS, 12e– Slide 23 of 55 Working With Differential Equations Generally speaking, a differential equation is an equation that contains a derivative.

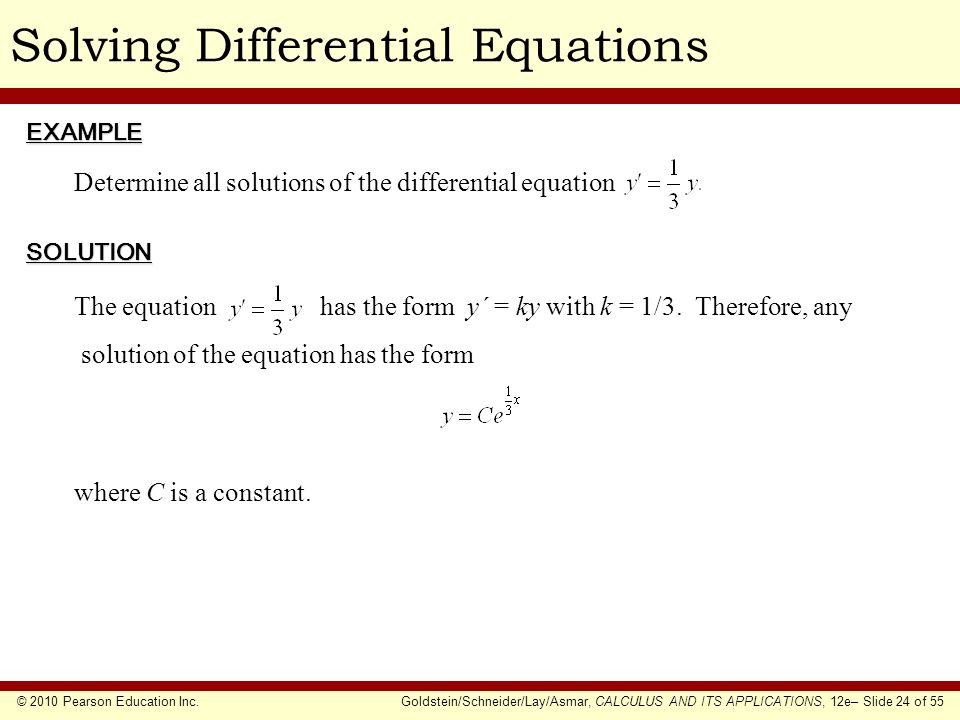

24. © 2010 Pearson Education Inc.Goldstein/Schneider/Lay/Asmar, CALCULUS AND ITS APPLICATIONS, 12e– Slide 24 of 55 Solving Differential EquationsEXAMPLE SOLUTION Determine all solutions of the differential equation The equation has the form y΄ = ky with k = 1/3. Therefore, any solution of the equation has the form where C is a constant.

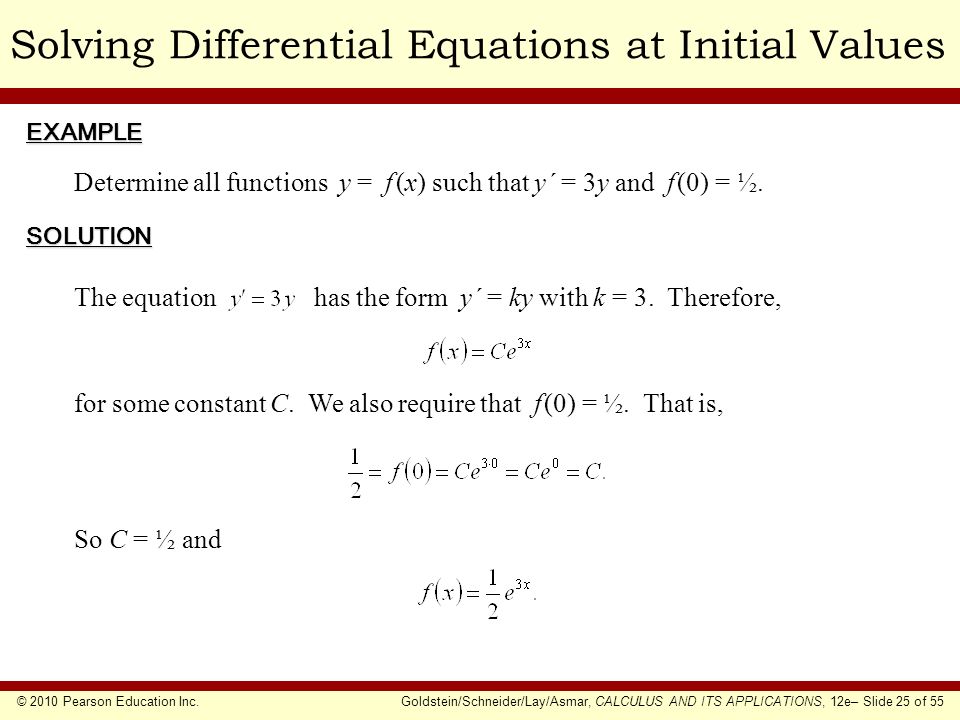

25. © 2010 Pearson Education Inc.Goldstein/Schneider/Lay/Asmar, CALCULUS AND ITS APPLICATIONS, 12e– Slide 25 of 55 Solving Differential Equations at Initial ValuesEXAMPLE SOLUTION Determine all functions y = f (x) such that y΄ = 3y and f (0) = ½. The equation has the form y΄ = ky with k = 3. Therefore, for some constant C. We also require that f (0) = ½. That is, So C = ½ and

26. © 2010 Pearson Education Inc.Goldstein/Schneider/Lay/Asmar, CALCULUS AND ITS APPLICATIONS, 12e– Slide 26 of 55 Functions of the form e kx

27. © 2010 Pearson Education Inc.Goldstein/Schneider/Lay/Asmar, CALCULUS AND ITS APPLICATIONS, 12e– Slide 27 of 55 § 4.4 The Natural Logarithm Function

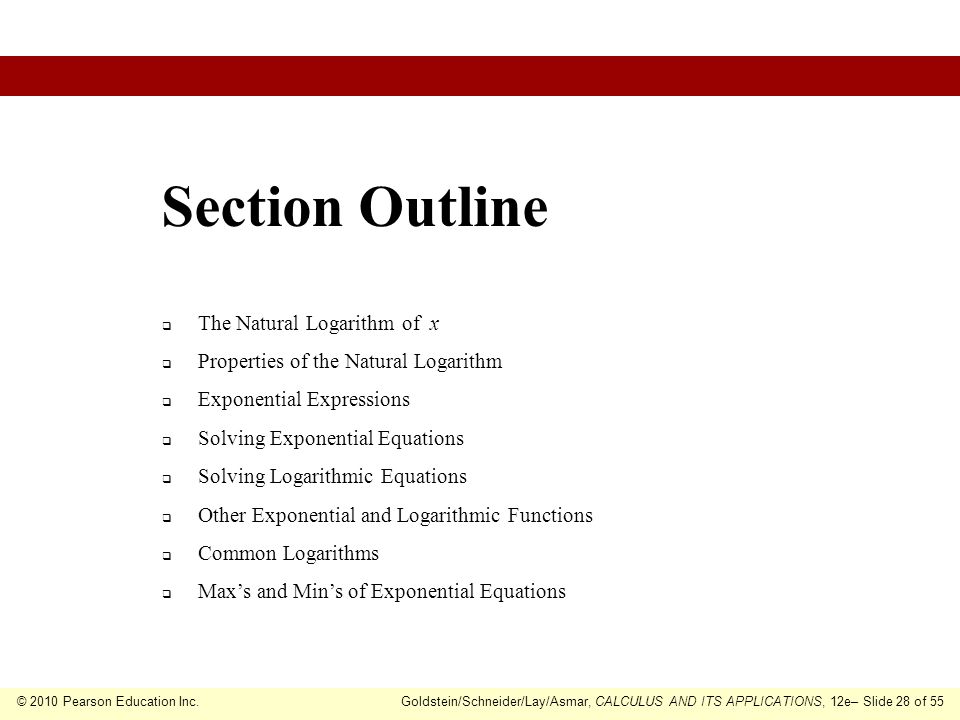

28. © 2010 Pearson Education Inc.Goldstein/Schneider/Lay/Asmar, CALCULUS AND ITS APPLICATIONS, 12e– Slide 28 of 55  The Natural Logarithm of x  Properties of the Natural Logarithm  Exponential Expressions  Solving Exponential Equations  Solving Logarithmic Equations  Other Exponential and Logarithmic Functions  Common Logarithms  Max’s and Min’s of Exponential Equations Section Outline

29. © 2010 Pearson Education Inc.Goldstein/Schneider/Lay/Asmar, CALCULUS AND ITS APPLICATIONS, 12e– Slide 29 of 55 The Natural Logarithm of x DefinitionExample Natural logarithm of x: Given the graph of y = e x, the reflection of that graph about the line y = x, denoted y = ln x

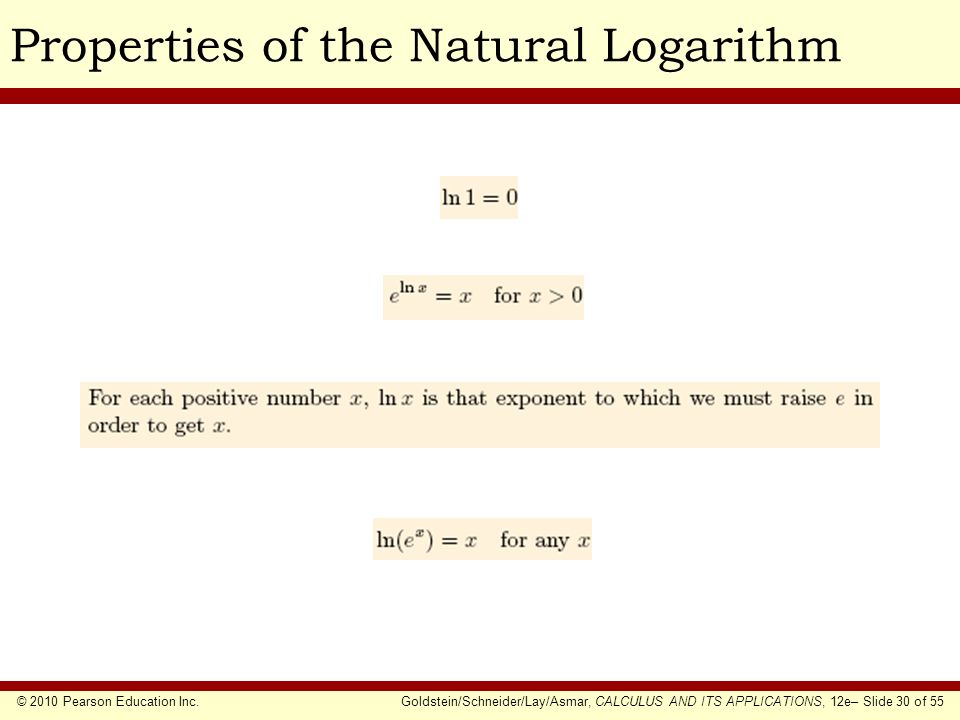

30. © 2010 Pearson Education Inc.Goldstein/Schneider/Lay/Asmar, CALCULUS AND ITS APPLICATIONS, 12e– Slide 30 of 55 Properties of the Natural Logarithm

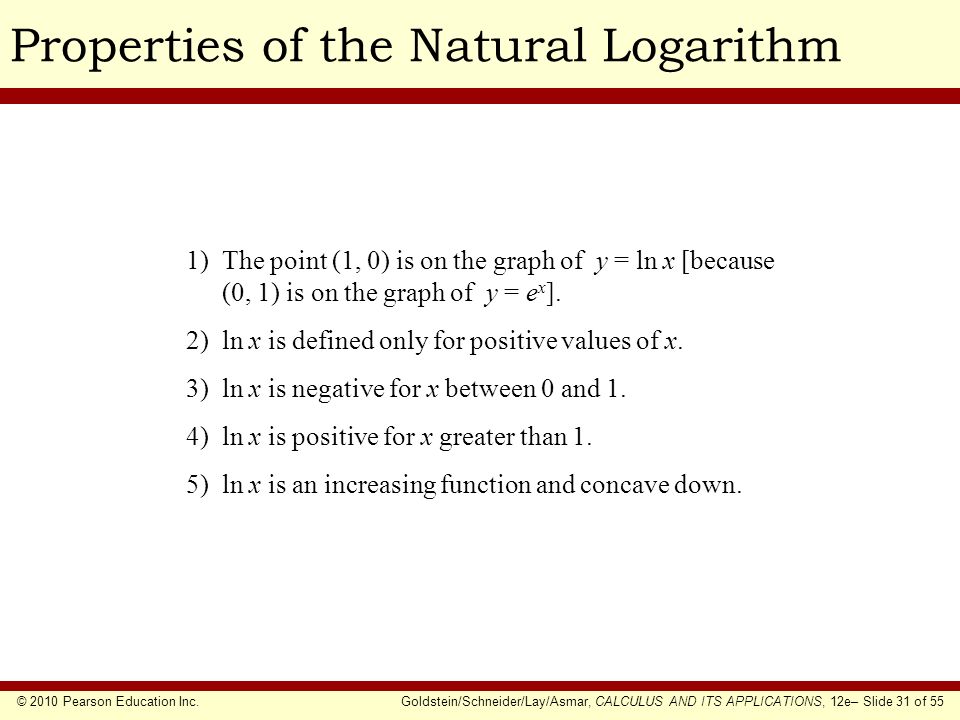

31. © 2010 Pearson Education Inc.Goldstein/Schneider/Lay/Asmar, CALCULUS AND ITS APPLICATIONS, 12e– Slide 31 of 55 Properties of the Natural Logarithm 1)The point (1, 0) is on the graph of y = ln x [because (0, 1) is on the graph of y = e x ]. 2)ln x is defined only for positive values of x. 3)ln x is negative for x between 0 and 1. 4)ln x is positive for x greater than 1. 5)ln x is an increasing function and concave down.

32. © 2010 Pearson Education Inc.Goldstein/Schneider/Lay/Asmar, CALCULUS AND ITS APPLICATIONS, 12e– Slide 32 of 55 Exponential ExpressionsEXAMPLE SOLUTION Simplify. Using properties of the exponential function, we have

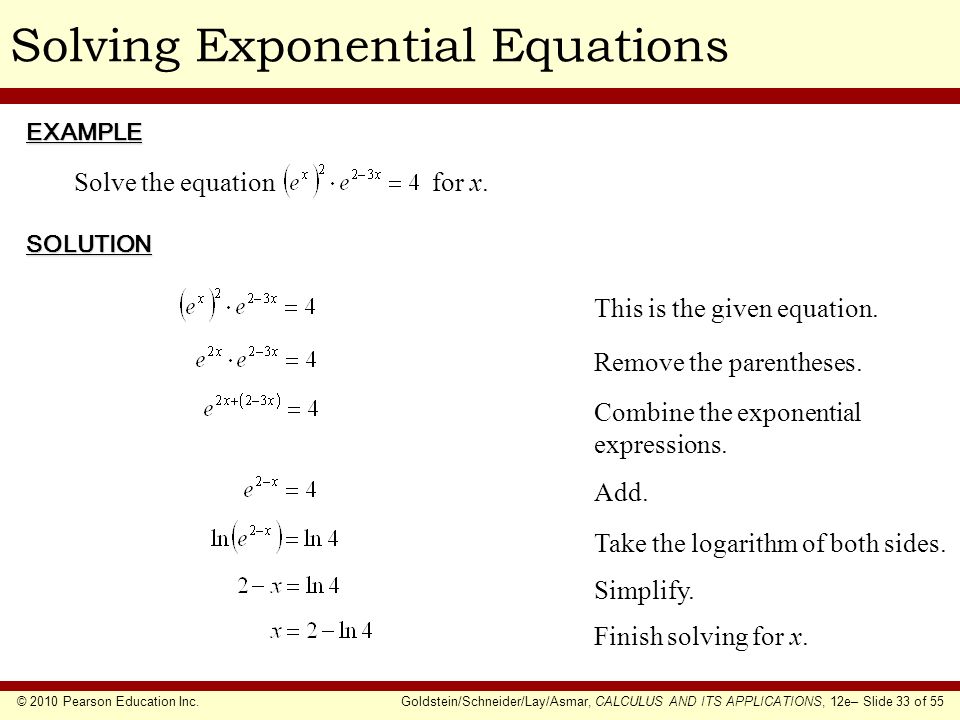

33. © 2010 Pearson Education Inc.Goldstein/Schneider/Lay/Asmar, CALCULUS AND ITS APPLICATIONS, 12e– Slide 33 of 55 Solving Exponential EquationsEXAMPLE SOLUTION Solve the equation for x. This is the given equation. Remove the parentheses. Combine the exponential expressions. Add. Take the logarithm of both sides. Simplify. Finish solving for x.

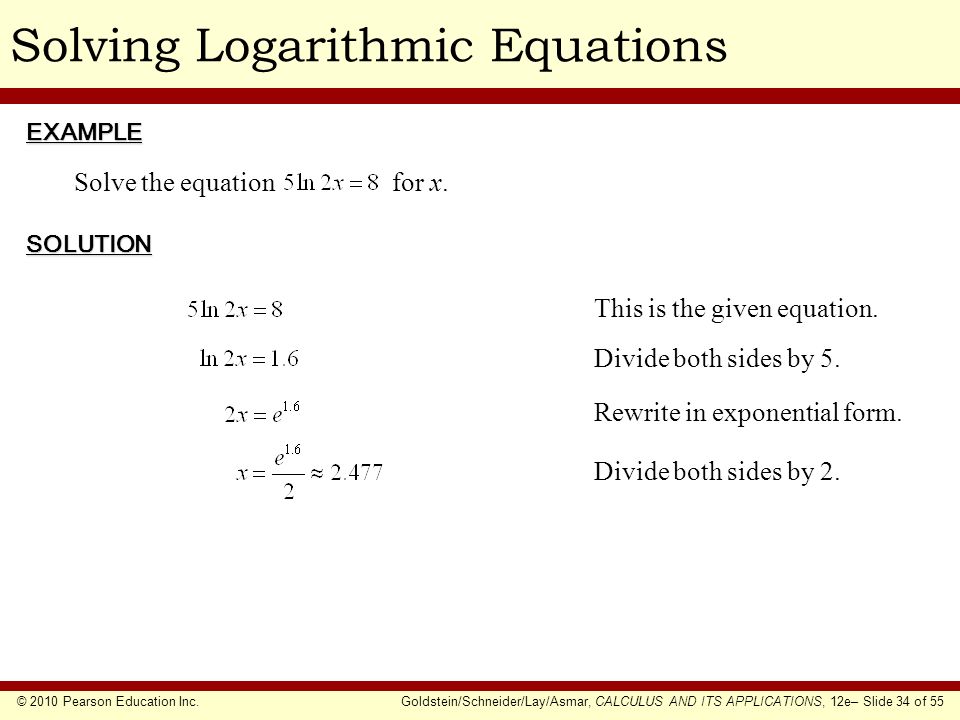

34. © 2010 Pearson Education Inc.Goldstein/Schneider/Lay/Asmar, CALCULUS AND ITS APPLICATIONS, 12e– Slide 34 of 55 Solving Logarithmic EquationsEXAMPLE SOLUTION Solve the equation for x. This is the given equation. Divide both sides by 5. Rewrite in exponential form. Divide both sides by 2.

35. © 2010 Pearson Education Inc.Goldstein/Schneider/Lay/Asmar, CALCULUS AND ITS APPLICATIONS, 12e– Slide 35 of 55 Other Exponential and Logarithmic Functions

36. © 2010 Pearson Education Inc.Goldstein/Schneider/Lay/Asmar, CALCULUS AND ITS APPLICATIONS, 12e– Slide 36 of 55 Common Logarithms DefinitionExample Common logarithm: Logarithms to the base 10

37. © 2010 Pearson Education Inc.Goldstein/Schneider/Lay/Asmar, CALCULUS AND ITS APPLICATIONS, 12e– Slide 37 of 55 Max’s & Min’s of Exponential EquationsEXAMPLE The graph of is shown in the figure below. Find the coordinates of the maximum and minimum points.

38. © 2010 Pearson Education Inc.Goldstein/Schneider/Lay/Asmar, CALCULUS AND ITS APPLICATIONS, 12e– Slide 38 of 55 Max’s & Min’s of Exponential Equations This is the given function. CONTINUED At the maximum and minimum points, the graph will have a slope of zero. Therefore, we must determine for what values of x the first derivative is zero. Differentiate using the product rule. Finish differentiating. Factor. Set the derivative equal to 0. Set each factor equal to 0. Simplify.

39. © 2010 Pearson Education Inc.Goldstein/Schneider/Lay/Asmar, CALCULUS AND ITS APPLICATIONS, 12e– Slide 39 of 55 Max’s & Min’s of Exponential EquationsCONTINUED Therefore, the slope of the function is 0 when x = 1 or x = -1. By looking at the graph, we can see that the relative maximum will occur when x = -1 and that the relative minimum will occur when x = 1. Now we need only determine the corresponding y-coordinates. Therefore, the relative maximum is at (-1, 0.472) and the relative minimum is at (1, -1).

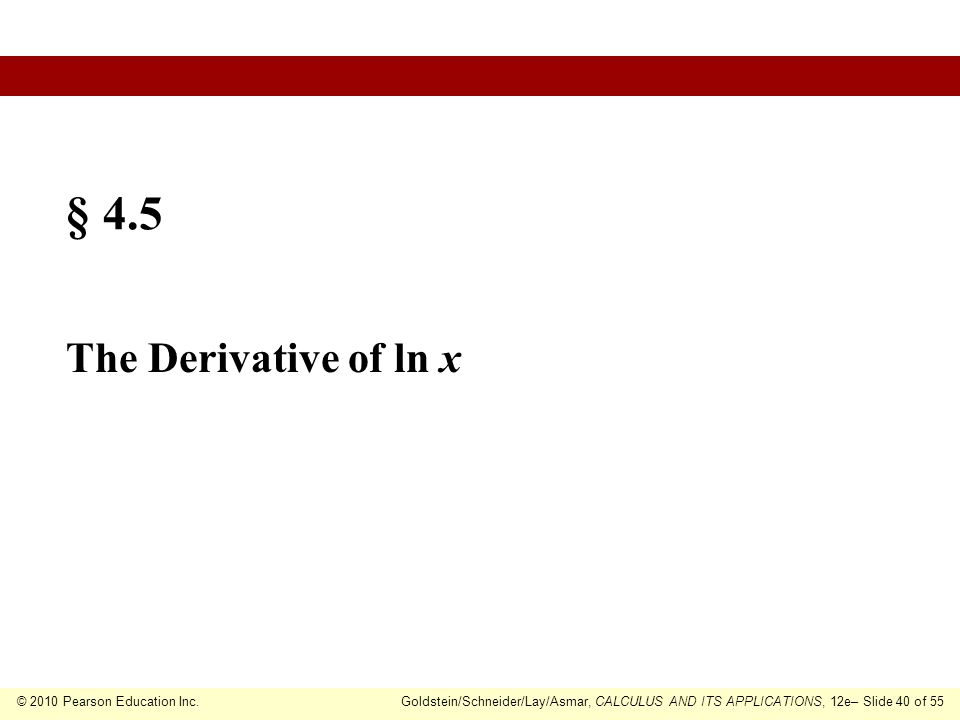

40. © 2010 Pearson Education Inc.Goldstein/Schneider/Lay/Asmar, CALCULUS AND ITS APPLICATIONS, 12e– Slide 40 of 55 § 4.5 The Derivative of ln x

41. © 2010 Pearson Education Inc.Goldstein/Schneider/Lay/Asmar, CALCULUS AND ITS APPLICATIONS, 12e– Slide 41 of 55  Derivatives for Natural Logarithms  Differentiating Logarithmic Expressions Section Outline

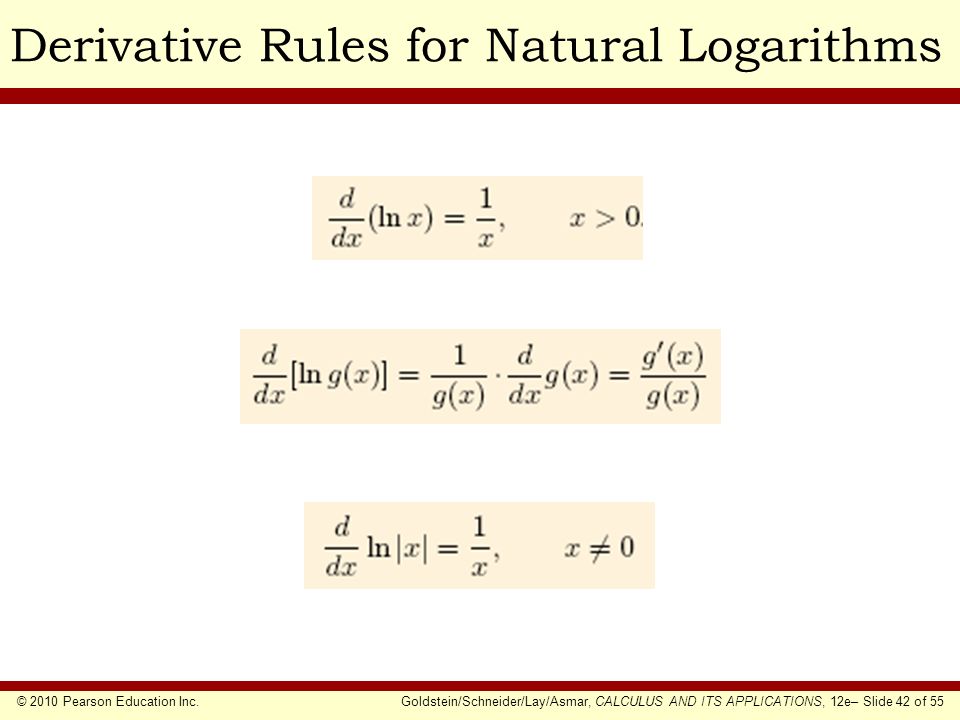

42. © 2010 Pearson Education Inc.Goldstein/Schneider/Lay/Asmar, CALCULUS AND ITS APPLICATIONS, 12e– Slide 42 of 55 Derivative Rules for Natural Logarithms

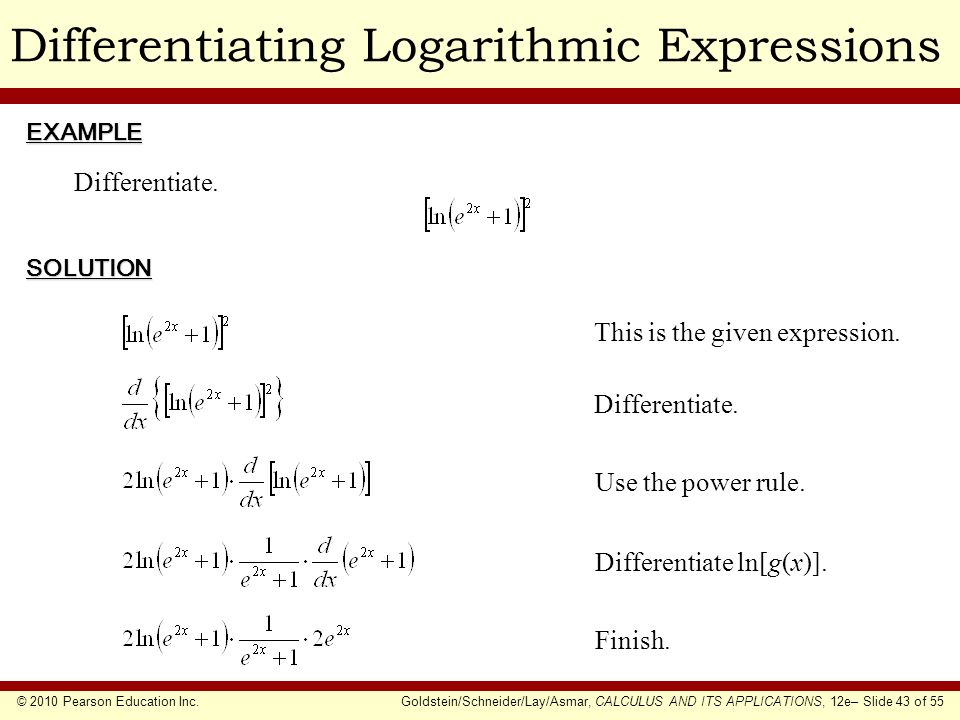

43. © 2010 Pearson Education Inc.Goldstein/Schneider/Lay/Asmar, CALCULUS AND ITS APPLICATIONS, 12e– Slide 43 of 55 Differentiating Logarithmic ExpressionsEXAMPLE SOLUTION Differentiate. This is the given expression. Differentiate. Use the power rule. Differentiate ln[g(x)]. Finish.

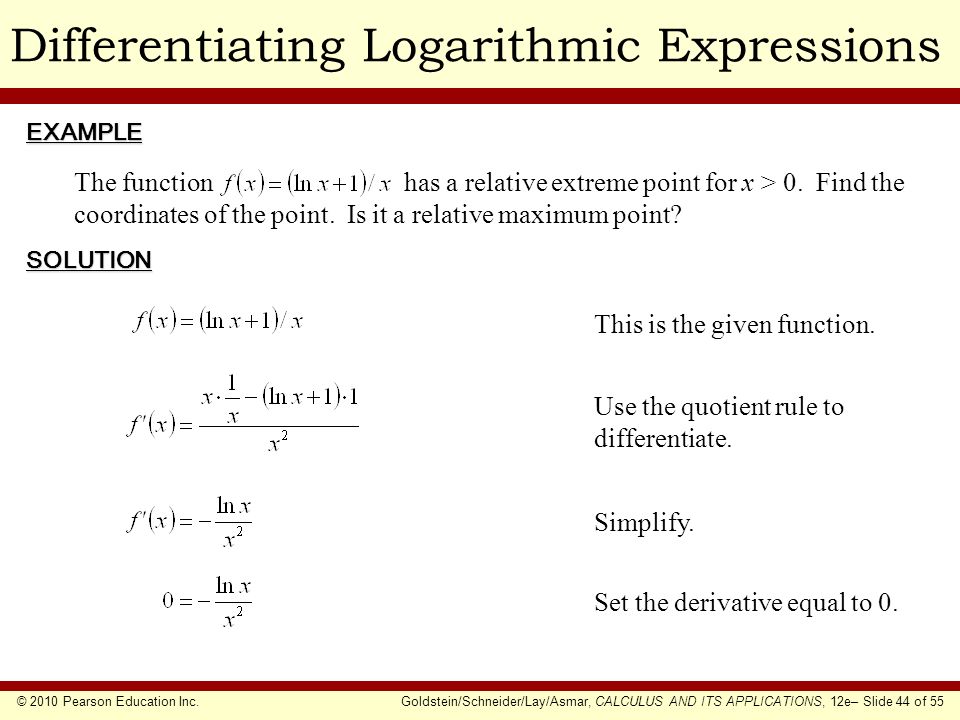

44. © 2010 Pearson Education Inc.Goldstein/Schneider/Lay/Asmar, CALCULUS AND ITS APPLICATIONS, 12e– Slide 44 of 55 Differentiating Logarithmic ExpressionsEXAMPLE SOLUTION The function has a relative extreme point for x > 0. Find the coordinates of the point. Is it a relative maximum point? This is the given function. Use the quotient rule to differentiate. Simplify. Set the derivative equal to 0.

45. © 2010 Pearson Education Inc.Goldstein/Schneider/Lay/Asmar, CALCULUS AND ITS APPLICATIONS, 12e– Slide 45 of 55 Differentiating Logarithmic Expressions Set the numerator equal to 0. CONTINUED The derivative will equal 0 when the numerator equals 0 and the denominator does not equal 0. Write in exponential form. To determine whether the function has a relative maximum at x = 1, let’s use the second derivative. This is the first derivative. Differentiate.

46. © 2010 Pearson Education Inc.Goldstein/Schneider/Lay/Asmar, CALCULUS AND ITS APPLICATIONS, 12e– Slide 46 of 55 Differentiating Logarithmic ExpressionsCONTINUED Simplify. Factor and cancel. Evaluate the second derivative at x = 1. Since the value of the second derivative is negative at x = 1, the function is concave down at x = 1. Therefore, the function does indeed have a relative maximum at x = 1. To find the y-coordinate of this point So, the relative maximum occurs at (1, 1).

47. © 2010 Pearson Education Inc.Goldstein/Schneider/Lay/Asmar, CALCULUS AND ITS APPLICATIONS, 12e– Slide 47 of 55 § 4.6 Properties of the Natural Logarithm Function

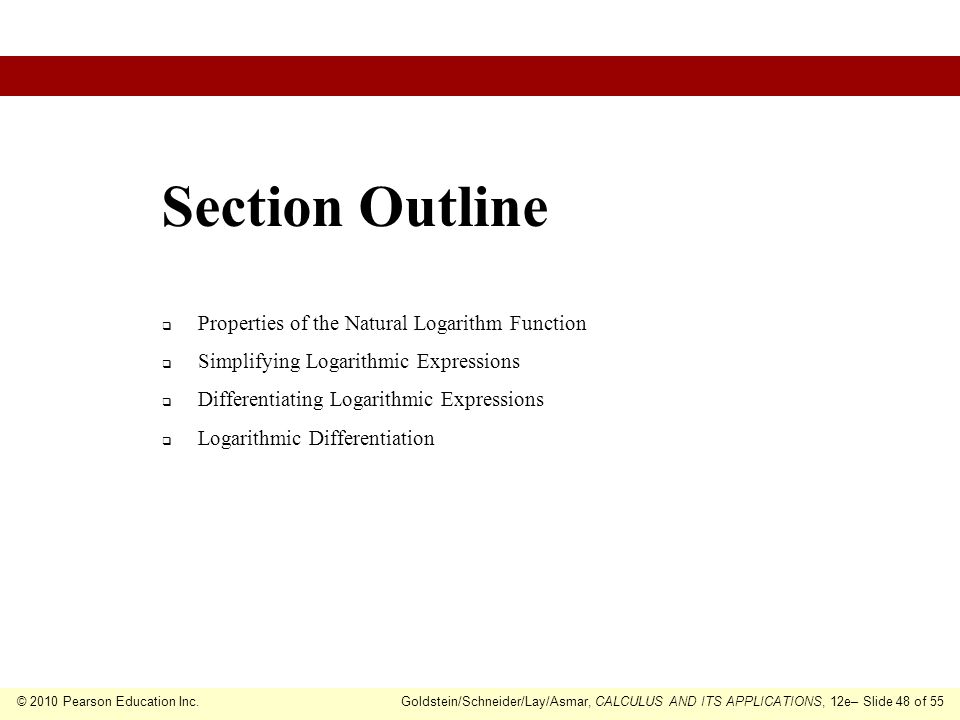

48. © 2010 Pearson Education Inc.Goldstein/Schneider/Lay/Asmar, CALCULUS AND ITS APPLICATIONS, 12e– Slide 48 of 55  Properties of the Natural Logarithm Function  Simplifying Logarithmic Expressions  Differentiating Logarithmic Expressions  Logarithmic Differentiation Section Outline

49. © 2010 Pearson Education Inc.Goldstein/Schneider/Lay/Asmar, CALCULUS AND ITS APPLICATIONS, 12e– Slide 49 of 55 Properties of the Natural Logarithm Function

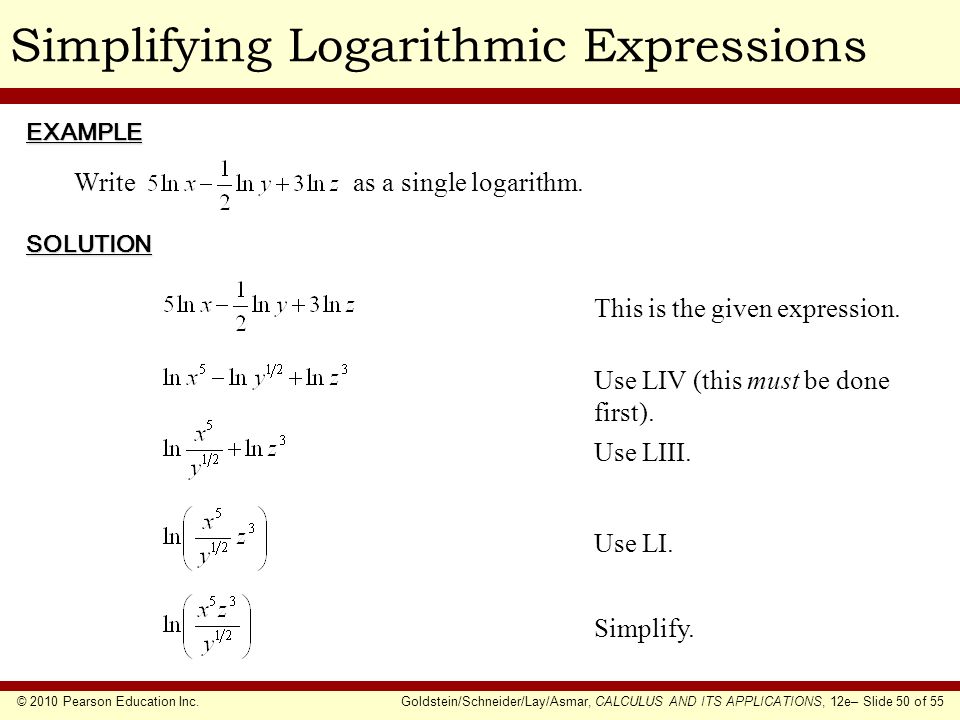

50. © 2010 Pearson Education Inc.Goldstein/Schneider/Lay/Asmar, CALCULUS AND ITS APPLICATIONS, 12e– Slide 50 of 55 Simplifying Logarithmic ExpressionsEXAMPLE SOLUTION Write as a single logarithm. This is the given expression. Use LIV (this must be done first). Use LIII. Use LI. Simplify.

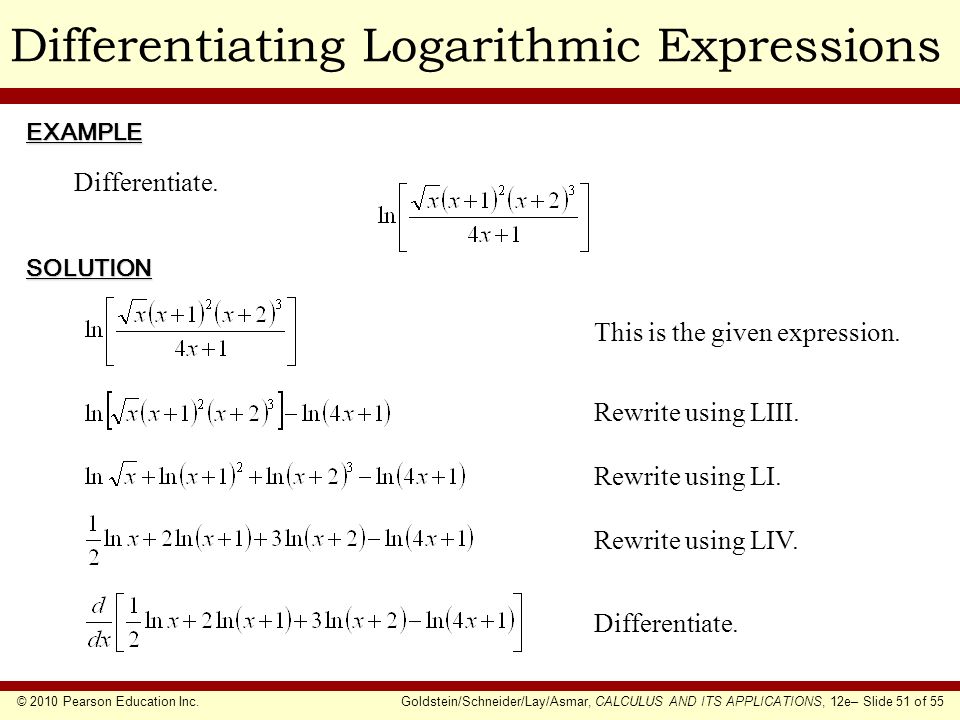

51. © 2010 Pearson Education Inc.Goldstein/Schneider/Lay/Asmar, CALCULUS AND ITS APPLICATIONS, 12e– Slide 51 of 55 Differentiating Logarithmic ExpressionsEXAMPLE SOLUTION Differentiate. This is the given expression. Rewrite using LIII. Rewrite using LI. Rewrite using LIV. Differentiate.

52. © 2010 Pearson Education Inc.Goldstein/Schneider/Lay/Asmar, CALCULUS AND ITS APPLICATIONS, 12e– Slide 52 of 55 Differentiating Logarithmic Expressions Distribute. CONTINUED Finish differentiating. Simplify.

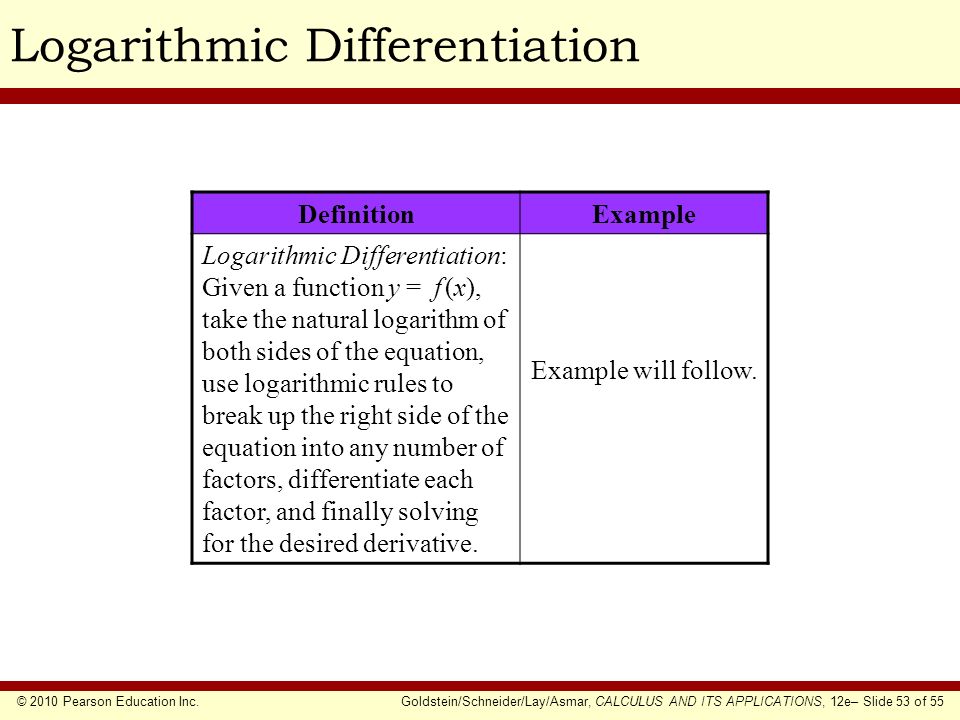

53. © 2010 Pearson Education Inc.Goldstein/Schneider/Lay/Asmar, CALCULUS AND ITS APPLICATIONS, 12e– Slide 53 of 55 Logarithmic Differentiation DefinitionExample Logarithmic Differentiation: Given a function y = f (x), take the natural logarithm of both sides of the equation, use logarithmic rules to break up the right side of the equation into any number of factors, differentiate each factor, and finally solving for the desired derivative. Example will follow.

54. © 2010 Pearson Education Inc.Goldstein/Schneider/Lay/Asmar, CALCULUS AND ITS APPLICATIONS, 12e– Slide 54 of 55 Logarithmic DifferentiationEXAMPLE SOLUTION Use logarithmic differentiation to differentiate the function. This is the given function. Take the natural logarithm of both sides of the equation. Use LIII. Use LI.

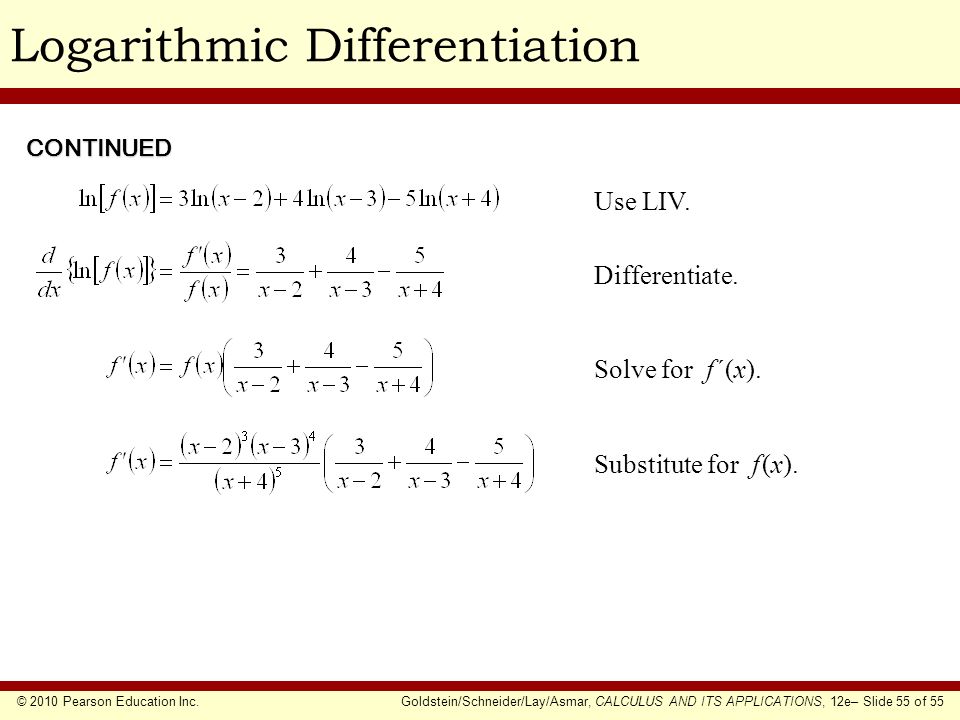

55. © 2010 Pearson Education Inc.Goldstein/Schneider/Lay/Asmar, CALCULUS AND ITS APPLICATIONS, 12e– Slide 55 of 55 Logarithmic Differentiation Use LIV. CONTINUED Differentiate. Solve for f ΄(x). Substitute for f (x).
