1. 1/39 SamSung Electronics – CTO – SAIT – Graphics&OS Group – Linux Tech Part Lim,GeunSik (geunsik.lim@samsung.com) 2008.11.10(Mon) Android Internals & Target Porting 2 nd Korea Android Seminar

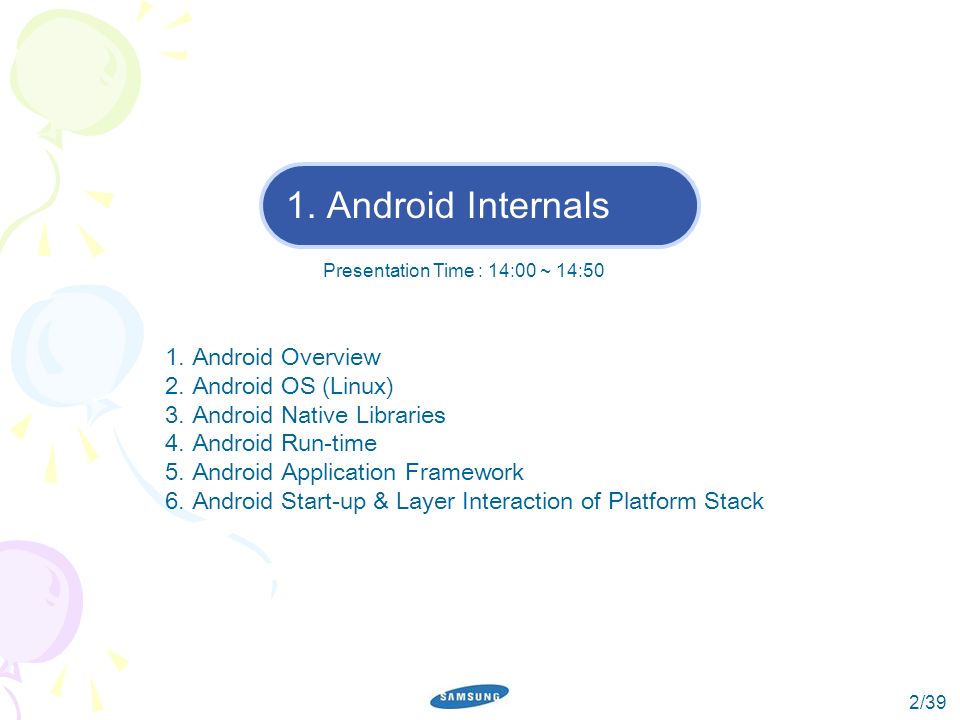

2. 1. Android Internals Presentation Time : 14:00 ~ 14:50 1. Android Overview 2. Android OS (Linux) 3. Android Native Libraries 4. Android Run-time 5. Android Application Framework 6. Android Start-up & Layer Interaction of Platform Stack 2/39

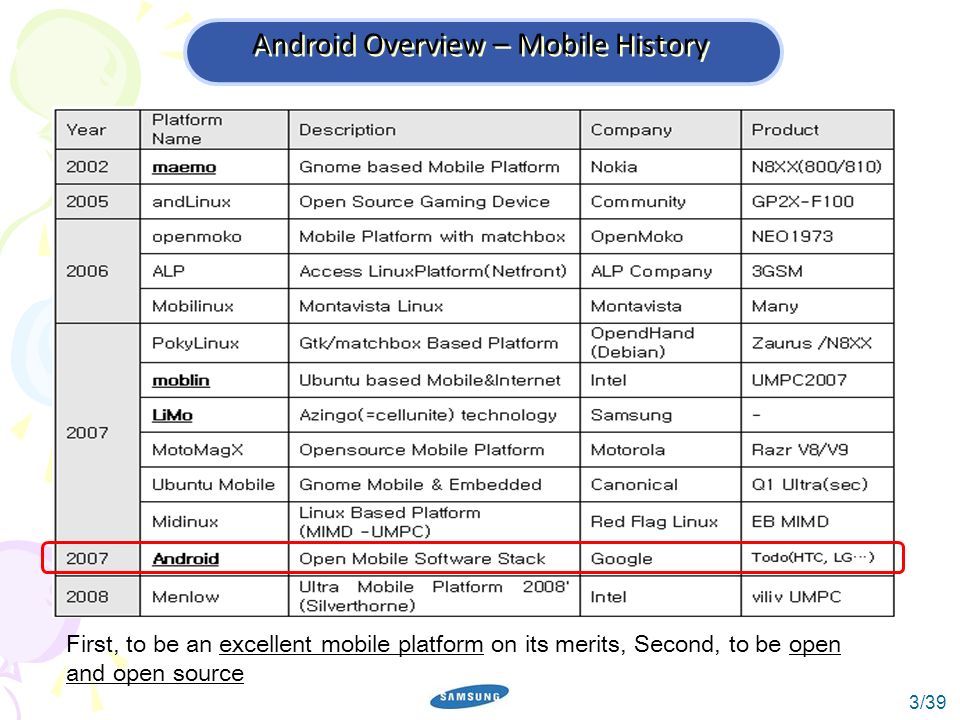

3. Android Overview – Mobile History First, to be an excellent mobile platform on its merits, Second, to be open and open source 3/39

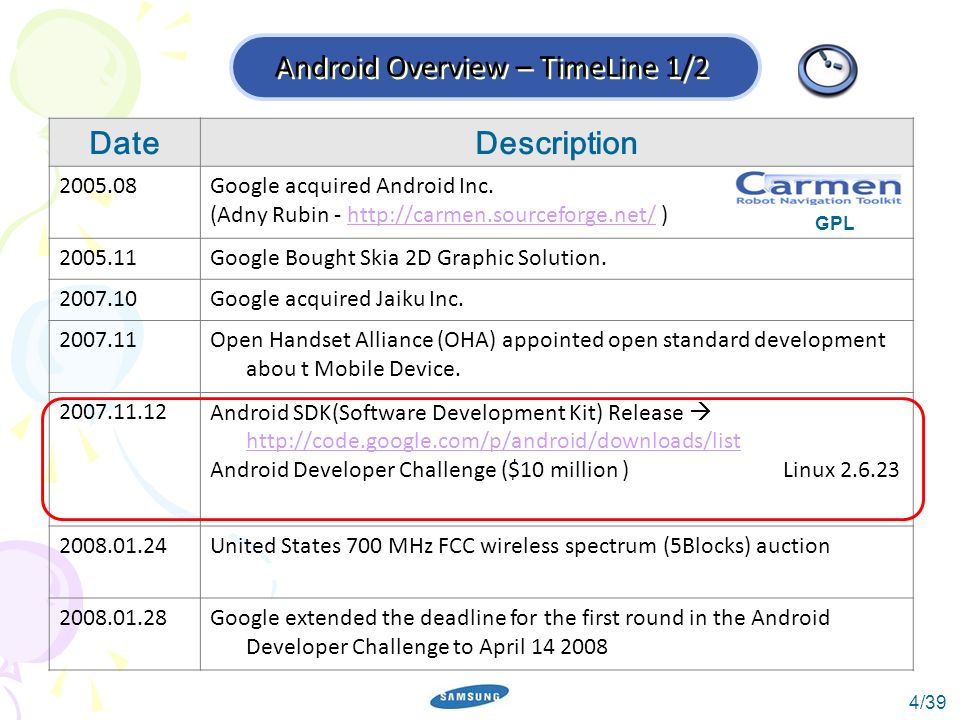

4. Android Overview – TimeLine 1/2 DateDescription 2005.08Google acquired Android Inc. (Adny Rubin - http://carmen.sourceforge.net/ )http://carmen.sourceforge.net/ 2005.11Google Bought Skia 2D Graphic Solution. 2007.10Google acquired Jaiku Inc. 2007.11Open Handset Alliance (OHA) appointed open standard development abou t Mobile Device. 2007.11.12Android SDK(Software Development Kit) Release  http://code.google.com/p/android/downloads/list http://code.google.com/p/android/downloads/list Android Developer Challenge ($10 million ) Linux 2.6.23 2008.01.24United States 700 MHz FCC wireless spectrum (5Blocks) auction 2008.01.28Google extended the deadline for the first round in the Android Developer Challenge to April 14 2008 GPL 4/39

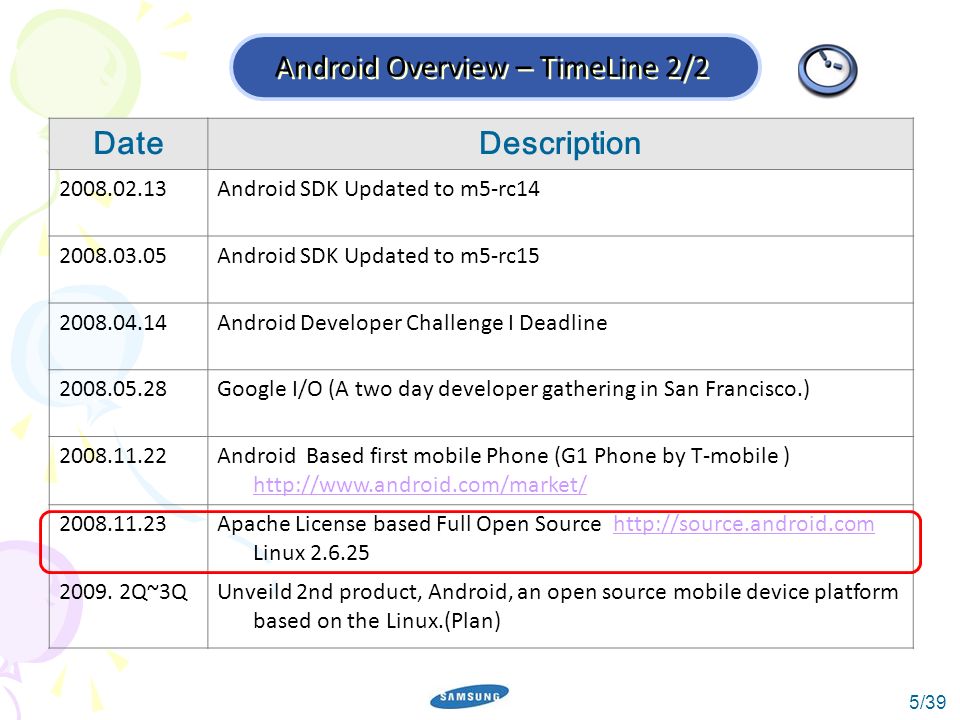

5. Android Overview – TimeLine 2/2 DateDescription 2008.02.13Android SDK Updated to m5-rc14 2008.03.05Android SDK Updated to m5-rc15 2008.04.14Android Developer Challenge I Deadline 2008.05.28Google I/O (A two day developer gathering in San Francisco.) 2008.11.22Android Based first mobile Phone (G1 Phone by T-mobile ) http://www.android.com/market/ http://www.android.com/market/ 2008.11.23Apache License based Full Open Source http://source.android.com Linux 2.6.25http://source.android.com 2009. 2Q~3QUnveild 2nd product, Android, an open source mobile device platform based on the Linux.(Plan) 5/39

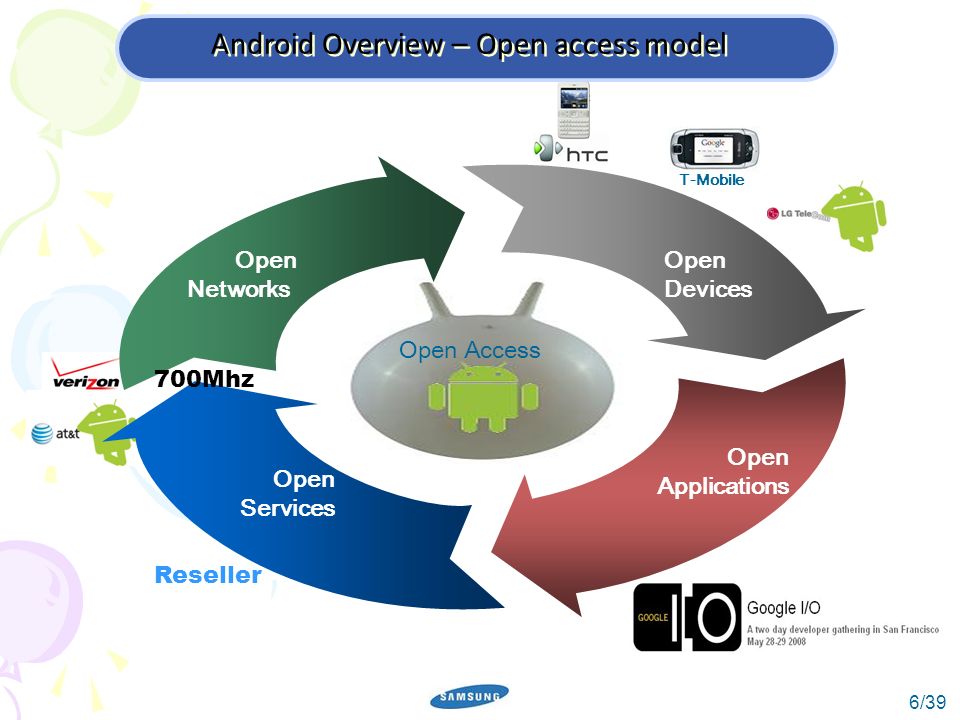

6. Open Devices Open Applications Open Services Open Networks 700Mhz Reseller T-Mobile Open Access Android Overview – Open access model 6/39

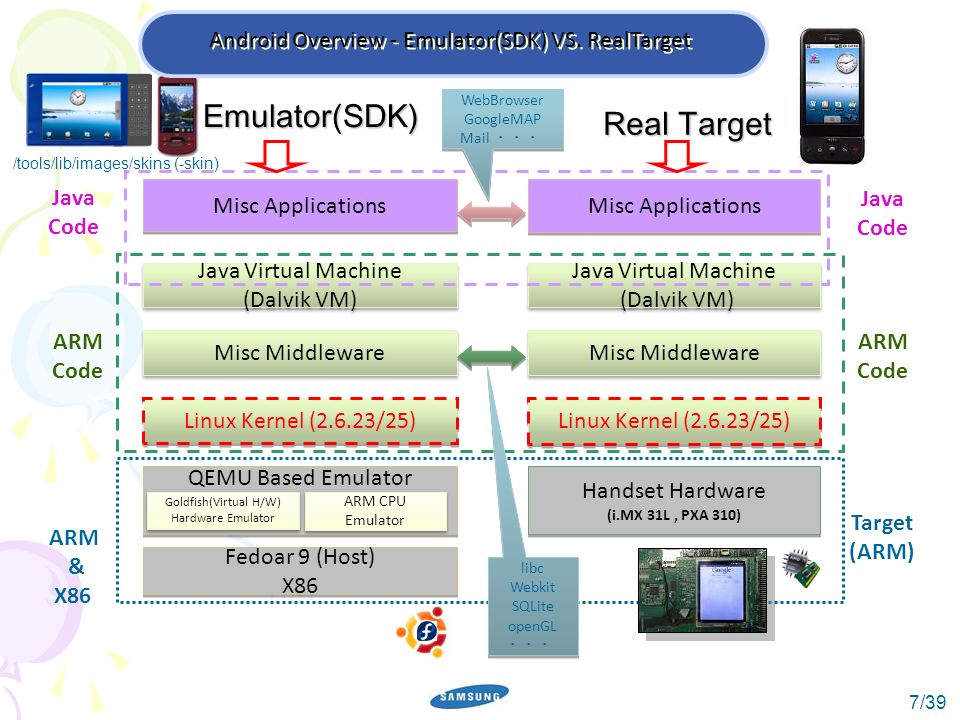

7. Linux Kernel (2.6.23/25) Misc Middleware Java Virtual Machine (Dalvik VM) Java Virtual Machine (Dalvik VM) Misc Applications QEMU Based Emulator Fedoar 9 (Host) X86 Fedoar 9 (Host) X86 ARM & X86 ARM Code Linux Kernel (2.6.23/25) Misc Middleware Java Virtual Machine (Dalvik VM) Java Virtual Machine (Dalvik VM) Misc Applications Handset Hardware (i.MX 31L, PXA 310) Handset Hardware (i.MX 31L, PXA 310) Real Target Target (ARM) ARM Code Java Code WebBrowser GoogleMAP Mail ・・・ WebBrowser GoogleMAP Mail ・・・ libc Webkit SQLite openGL ・・・ libc Webkit SQLite openGL ・・・ ARM CPU Emulator ARM CPU Emulator Goldfish(Virtual H/W) Hardware Emulator Goldfish(Virtual H/W) Hardware Emulator Android Overview - Emulator(SDK) VS. RealTarget Java Code Emulator(SDK) /tools/lib/images/skins (-skin) 7/39

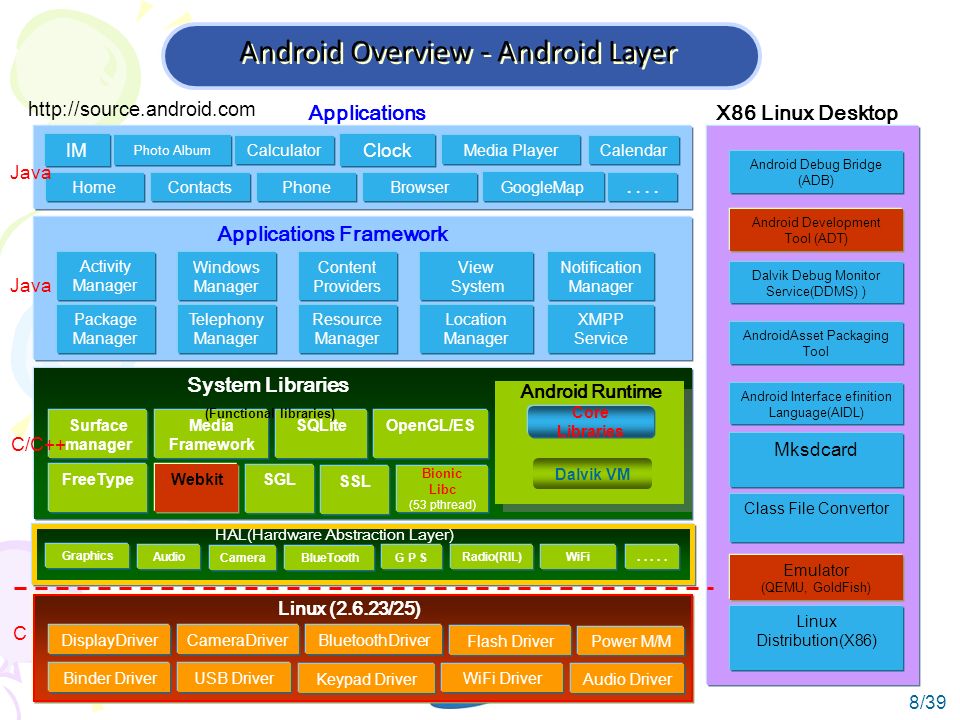

8. 8/18 Android Overview - Android Layer Android Debug Bridge (ADB) Android Development Tool (ADT) Dalvik Debug Monitor Service(DDMS) ) AndroidAsset Packaging Tool Mksdcard Android Interface efinition Language(AIDL) Class File Convertor Emulator (QEMU, GoldFish) Linux Distribution(X86) HomeContactsPhoneBrowser GoogleMap Applications Activity Manager Windows Manager Content Providers View System Notification Manager Package Manager Telephony Manager Resource Manager Location Manager XMPP Service Applications Framework System Libraries Surface manager Media Framework SQLiteOpenGL/ES FreeTypeWebkit SGL SSL Bionic Libc (53 pthread) Core Libraries Dalvik VM http://source.android.com.. DisplayDriver BluetoothDriver Flash Driver Binder DriverUSB Driver Keypad Driver CameraDriver WiFi Driver Audio Driver Power M/M C C/C++ Java Linux (2.6.23/25) HAL(Hardware Abstraction Layer) Graphics Android Runtime X86 Linux Desktop AudioRadio(RIL) G P S CameraBlueTooth WiFi..... IM Photo Album Calculator Clock Media Player Calendar (Functional libraries) 8/39

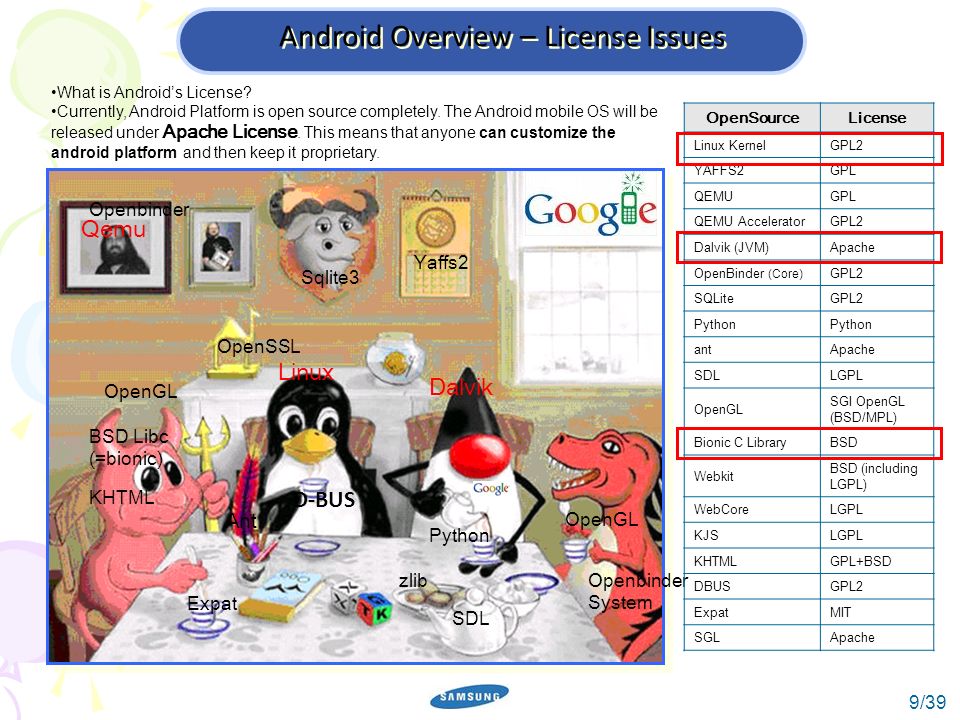

9. Linux Dalvik Qemu Openbinder Ant BSD Libc (=bionic) OpenGL SDL KHTML Expat Python Sqlite3 OpenSSL zlibOpenbinder System OpenSourceLicense Linux KernelGPL2 YAFFS2GPL QEMUGPL QEMU AcceleratorGPL2 Dalvik (JVM)Apache OpenBinder (Core) GPL2 SQLiteGPL2 Python antApache SDLLGPL OpenGL SGI OpenGL (BSD/MPL) Bionic C LibraryBSD Webkit BSD (including LGPL) WebCoreLGPL KJSLGPL KHTMLGPL+BSD DBUSGPL2 ExpatMIT SGLApache What is Android’s License? Currently, Android Platform is open source completely. The Android mobile OS will be released under Apache License. This means that anyone can customize the android platform and then keep it proprietary. Android Overview – License Issues Yaffs2 D-BUS 9/39

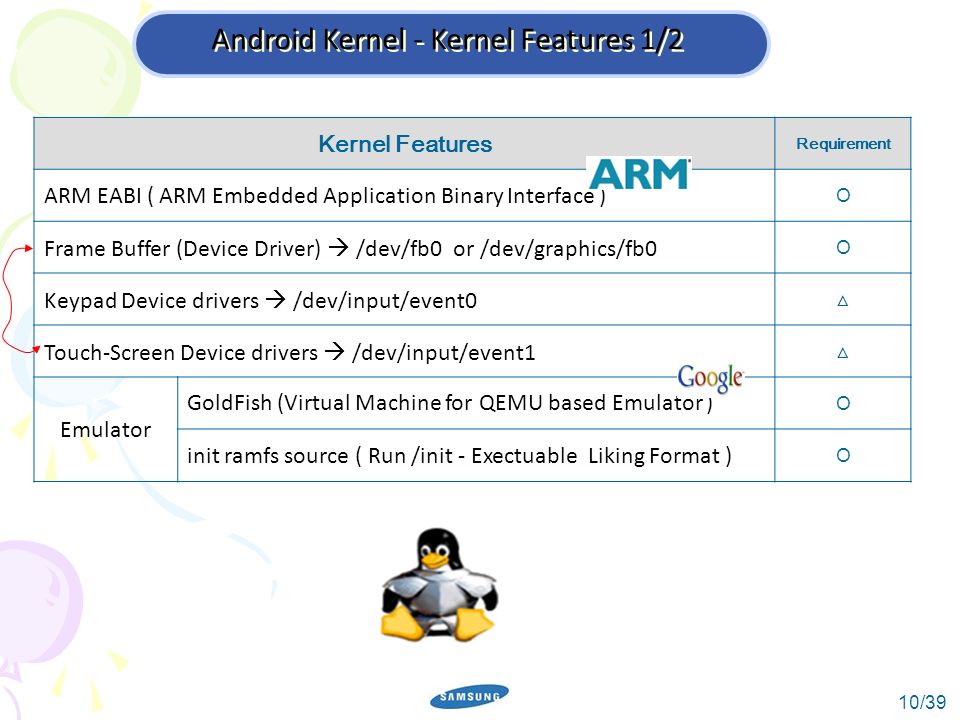

10. Kernel Features Requirement ARM EABI ( ARM Embedded Application Binary Interface ) O Frame Buffer (Device Driver)  /dev/fb0 or /dev/graphics/fb0 O Keypad Device drivers  /dev/input/event0 △ Touch-Screen Device drivers  /dev/input/event1 △ Emulator GoldFish (Virtual Machine for QEMU based Emulator ) O init ramfs source ( Run /init - Exectuable Liking Format ) O Android Kernel - Kernel Features 1/2 10/39

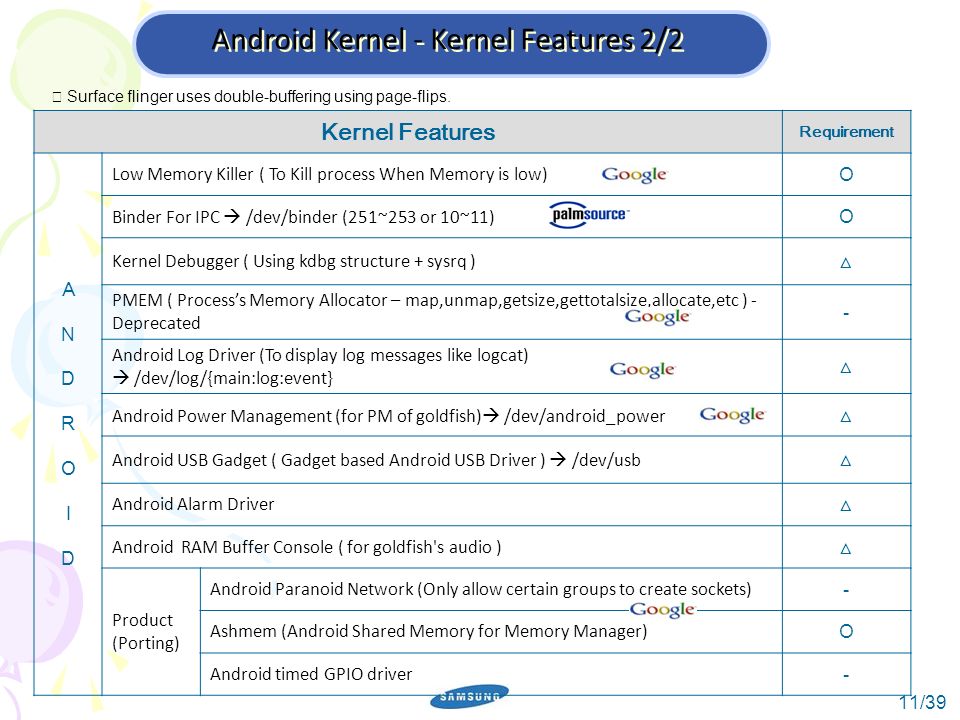

11. Kernel Features Requirement ANDROIDANDROID Low Memory Killer ( To Kill process When Memory is low) O Binder For IPC  /dev/binder (251~253 or 10~11) O Kernel Debugger ( Using kdbg structure + sysrq ) △ PMEM ( Process’s Memory Allocator – map,unmap,getsize,gettotalsize,allocate,etc ) - Deprecated - Android Log Driver (To display log messages like logcat)  /dev/log/{main:log:event} △ Android Power Management (for PM of goldfish)  /dev/android_power △ Android USB Gadget ( Gadget based Android USB Driver )  /dev/usb △ Android Alarm Driver △ Android RAM Buffer Console ( for goldfish's audio ) △ Product (Porting) Android Paranoid Network (Only allow certain groups to create sockets) - Ashmem (Android Shared Memory for Memory Manager) O Android timed GPIO driver - Android Kernel - Kernel Features 2/2 ☞ Surface flinger uses double-buffering using page-flips. 11/39

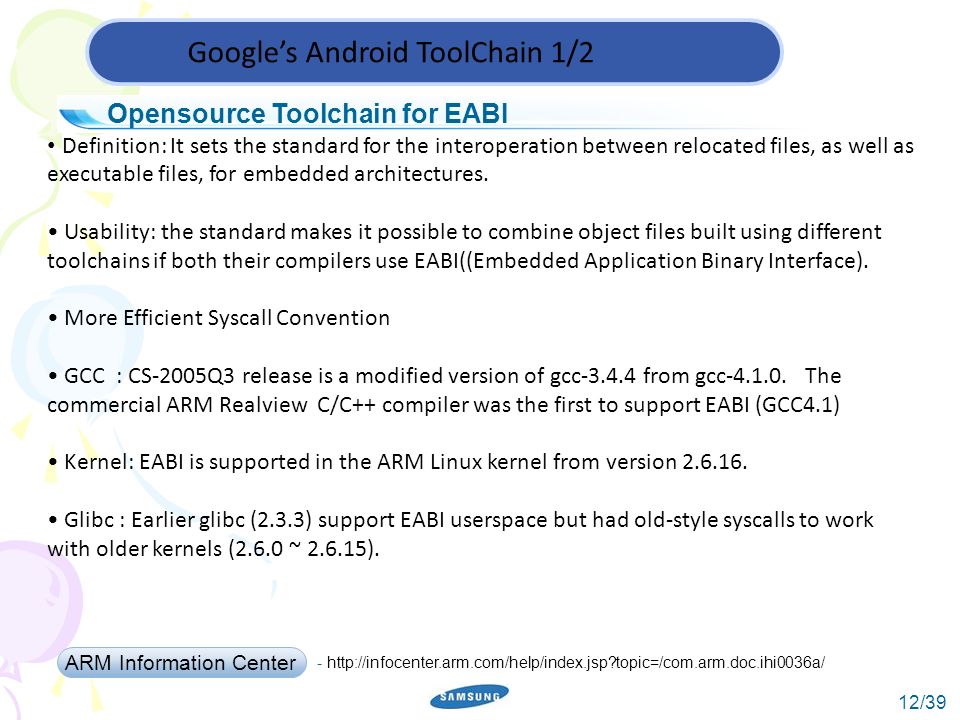

12. Google’s Android ToolChain 1/2 Opensource Toolchain for EABI Definition: It sets the standard for the interoperation between relocated files, as well as executable files, for embedded architectures. Usability: the standard makes it possible to combine object files built using different toolchains if both their compilers use EABI((Embedded Application Binary Interface). More Efficient Syscall Convention GCC : CS-2005Q3 release is a modified version of gcc-3.4.4 from gcc-4.1.0. The commercial ARM Realview C/C++ compiler was the first to support EABI (GCC4.1) Kernel: EABI is supported in the ARM Linux kernel from version 2.6.16. Glibc : Earlier glibc (2.3.3) support EABI userspace but had old-style syscalls to work with older kernels (2.6.0 ~ 2.6.15). 12/39 - http://infocenter.arm.com/help/index.jsp?topic=/com.arm.doc.ihi0036a/ ARM Information Center

13. Google’s Android ToolChain 2/2 GCC Version : 4.2.1 (GPL2) Download Sources: http://android.git.kernel.org/pub/android-toolchain-20081019.tar.bz2 (70M) Architecture: ARMV5te Target: arm-eabi ABI Convention: EABI, AAPCS Supported Language: C, C++ Floating Point : Soft Floting Point ( --with-float=soft --with-fpu=vfp ) Thread Model: Single (--enable-threads) Android Toolchain Information 13/39 Ref: GCC 4.2.2+  GPL3 Glibc 2.6.1+  GPL3/LGPL3 http://gplv3.fsf.org

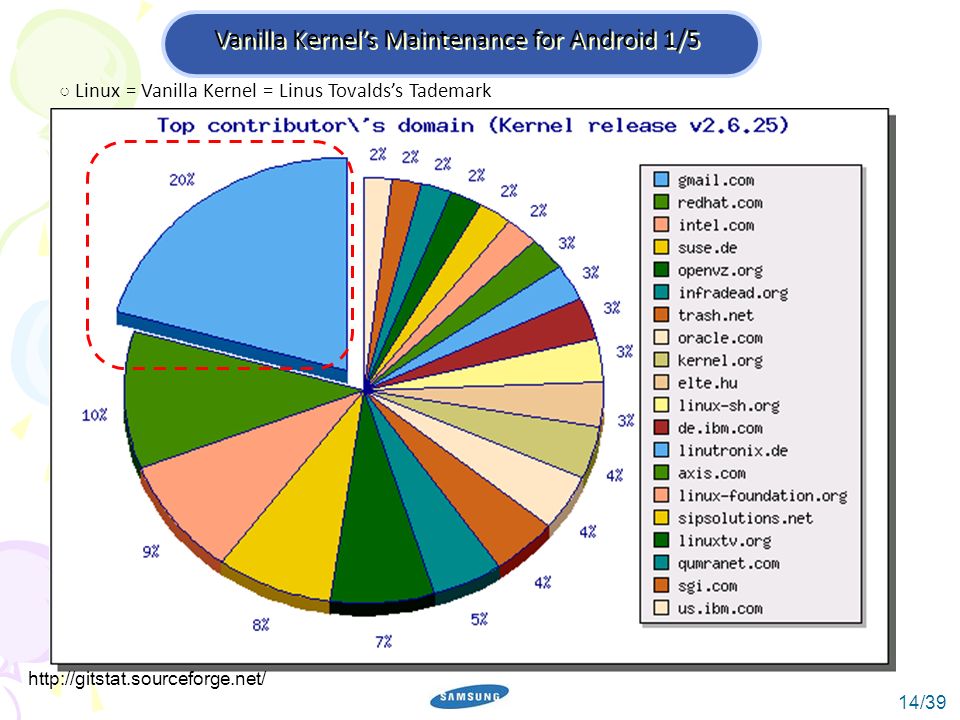

14. Vanilla Kernel’s Maintenance for Android 1/5 http://gitstat.sourceforge.net/ 14/39 ○ Linux = Vanilla Kernel = Linus Tovalds’s Tademark

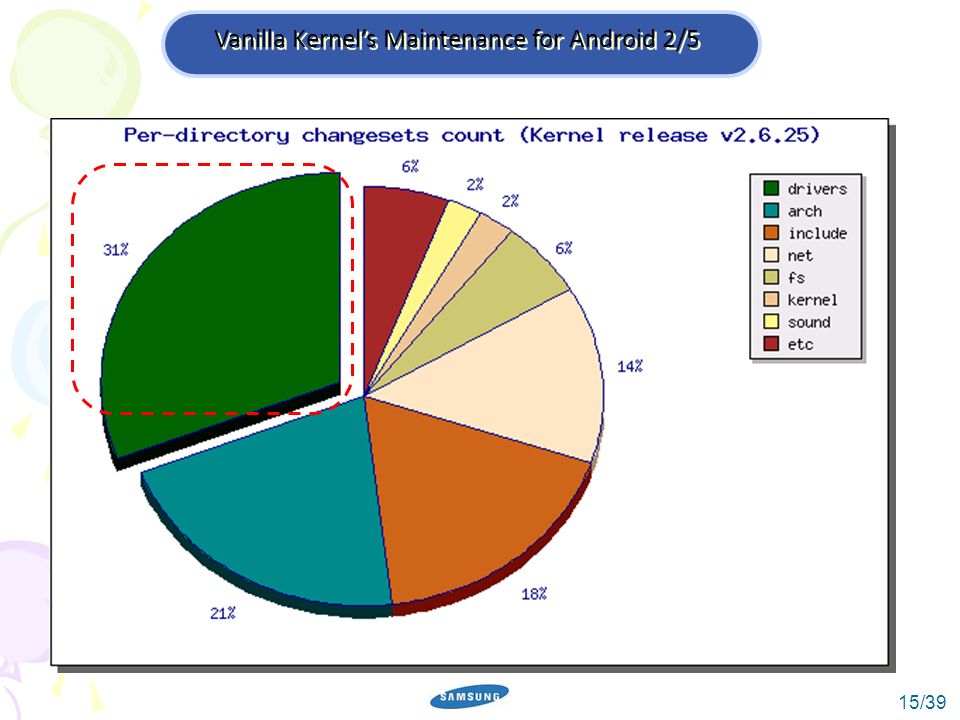

15. Vanilla Kernel’s Maintenance for Android 2/5 15/39

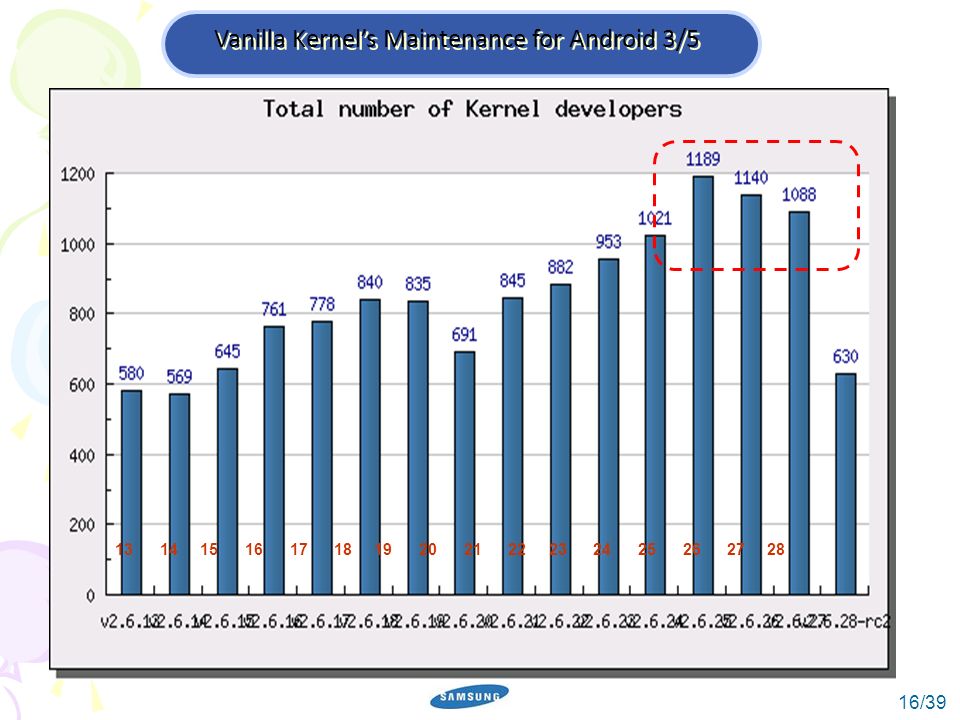

16. Vanilla Kernel’s Maintenance for Android 3/5 16/39 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28

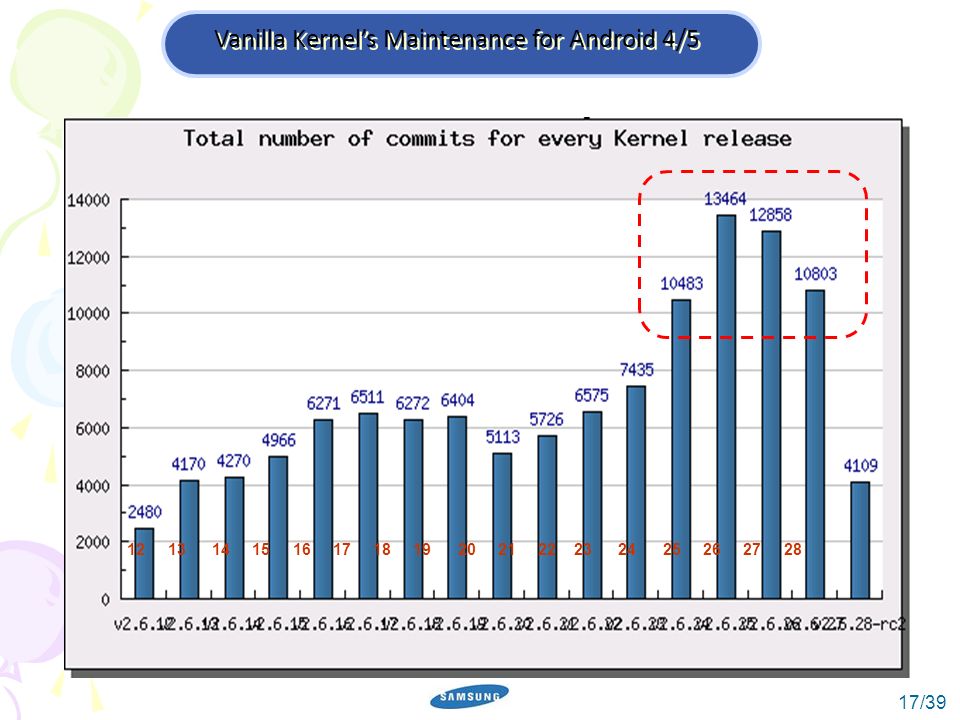

17. Vanilla Kernel’s Maintenance for Android 4/5 17/39 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28

18. Vanilla Kernel’s Maintenance for Android 5/5 18/39 Code Monitoring

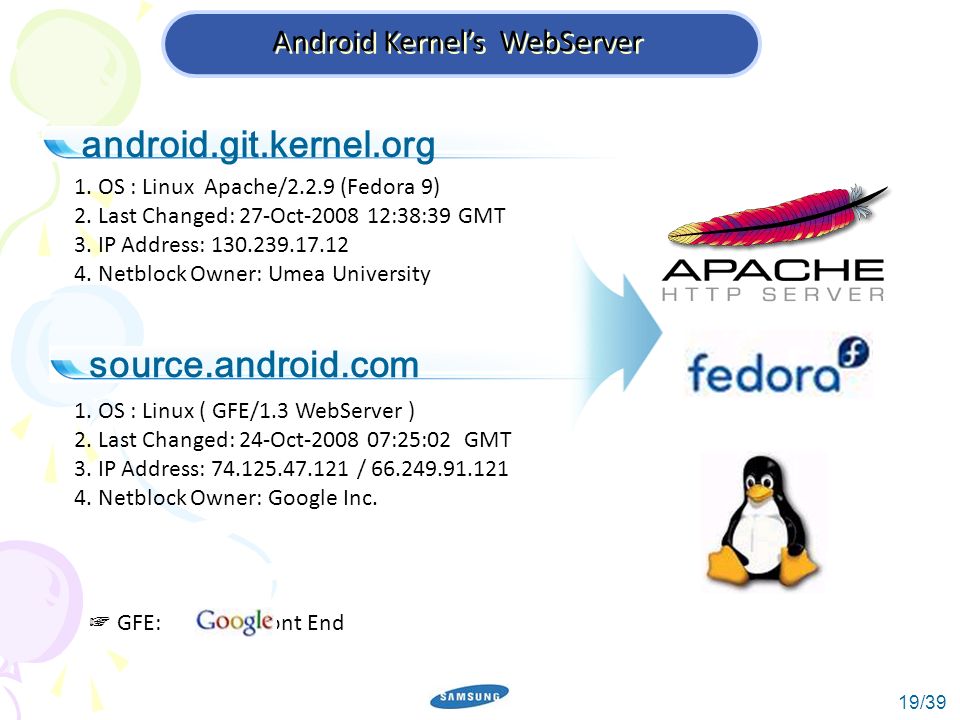

19. Android Kernel’s WebServer 1. OS : Linux Apache/2.2.9 (Fedora 9) 2. Last Changed: 27-Oct-2008 12:38:39 GMT 3. IP Address: 130.239.17.12 4. Netblock Owner: Umea University android.git.kernel.org source.android.com 1. OS : Linux ( GFE/1.3 WebServer ) 2. Last Changed: 24-Oct-2008 07:25:02 GMT 3. IP Address: 74.125.47.121 / 66.249.91.121 4. Netblock Owner: Google Inc. ☞ GFE: Front End 19/39

20. Coffee Break 20/39

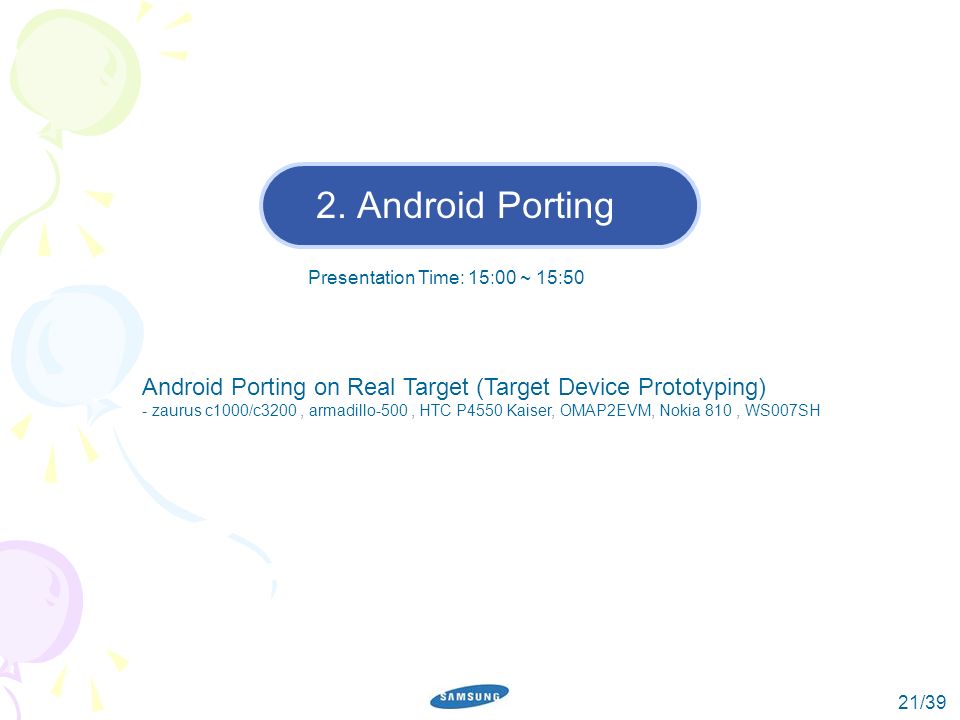

21. 2. Android Porting Presentation Time: 15:00 ~ 15:50 Android Porting on Real Target (Target Device Prototyping) - zaurus c1000/c3200, armadillo-500, HTC P4550 Kaiser, OMAP2EVM, Nokia 810, WS007SH 21/39

22. . 1. uncompress ramdisk.img $cd./android/tools/lib/images/ramdisk.img $ gzip -cd ramdisk.img > ramdisk $ cpio -iv -F ramdisk 2. open the emulator $./emulator & 3. enter into android shell and remount rootfs (Since rootfs is mounted as read only, you need to remount.) $./adb shell # mount -o remount,rw rootfs / # mkdir /tmp 4. push busybox in the tmp folder $./adb push busybox /tmp 5. open a android shell command window $./adb shell How to get android *.img file 6. change the busybox mode to 555 # chmod 555 /tmp/busybox 7. create the tarball for /system and /data: #./busybox tar cvf /tmp/system.tar /system #./busybox tar cvf /tmp/data.tar /data #./busybox tar cvf /tmp/dev.tar /dev 8. pull the tarball file from the google android emulator $./adb pull /tmp/system.tar. $./adb pull /tmp/data.tar. $./adb pull /tmp/dev.tar. 9. how to get boot log of the emulator. # mkdir /tmp # /system/bin/dumpstate # exit $./adb pull /tmp/state state.log $ more state.log Extract google's android file system image from android 1.0 SDK Release 1 $  Fedora Desktop Prompt #  Android Platform Prompt 22/39

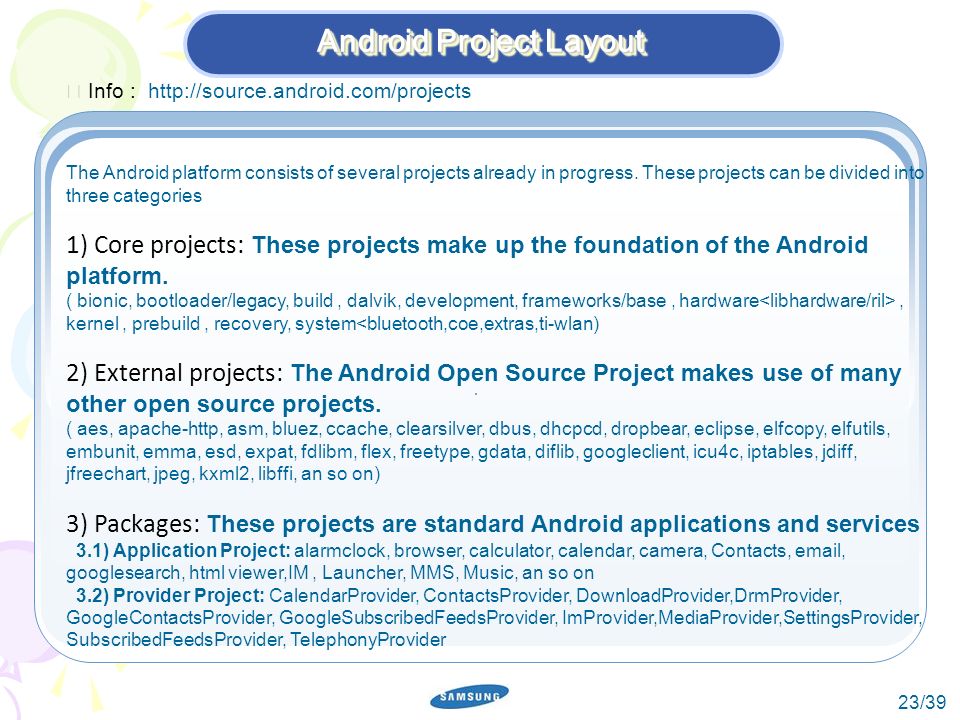

23. . Android Project Layout The Android platform consists of several projects already in progress. These projects can be divided into three categories 1) Core projects: These projects make up the foundation of the Android platform. ( bionic, bootloader/legacy, build, dalvik, development, frameworks/base, hardware, kernel, prebuild, recovery, system<bluetooth,coe,extras,ti-wlan) 2) External projects: The Android Open Source Project makes use of many other open source projects. ( aes, apache-http, asm, bluez, ccache, clearsilver, dbus, dhcpcd, dropbear, eclipse, elfcopy, elfutils, embunit, emma, esd, expat, fdlibm, flex, freetype, gdata, diflib, googleclient, icu4c, iptables, jdiff, jfreechart, jpeg, kxml2, libffi, an so on) 3) Packages: These projects are standard Android applications and services 3.1) Application Project: alarmclock, browser, calculator, calendar, camera, Contacts, email, googlesearch, html viewer,IM, Launcher, MMS, Music, an so on 3.2) Provider Project: CalendarProvider, ContactsProvider, DownloadProvider,DrmProvider, GoogleContactsProvider, GoogleSubscribedFeedsProvider, ImProvider,MediaProvider,SettingsProvider, SubscribedFeedsProvider, TelephonyProvider ☞ Info : http://source.android.com/projects 23/39

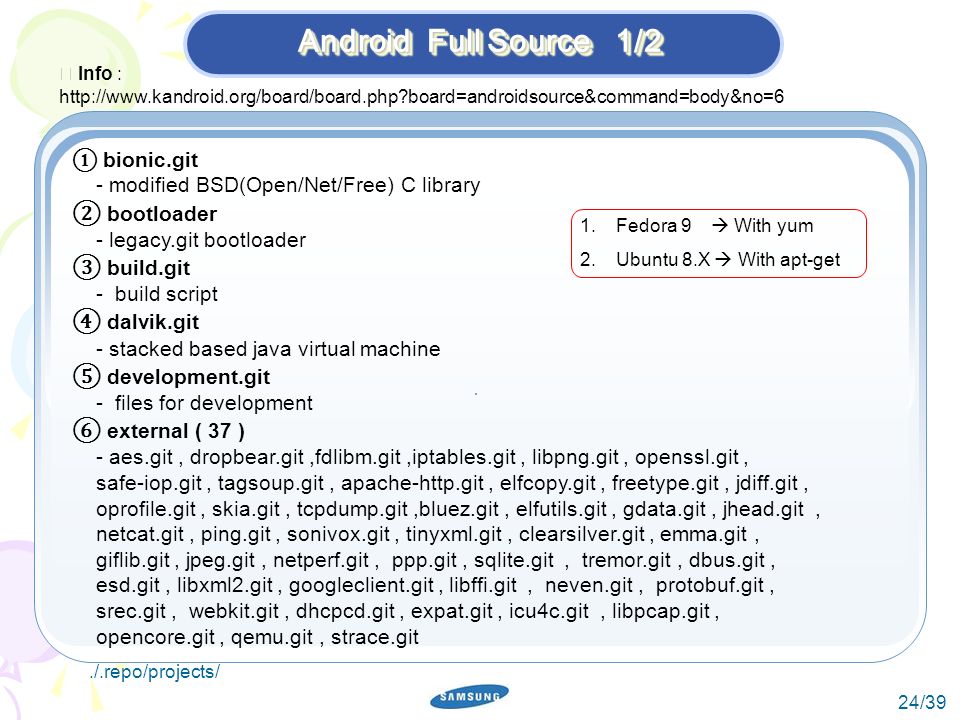

24. . Android Full Source 1/2 ① bionic.git - modified BSD(Open/Net/Free) C library ② bootloader - legacy.git bootloader ③ build.git - build script ④ dalvik.git - stacked based java virtual machine ⑤ development.git - files for development ⑥ external ( 37 ) - aes.git, dropbear.git,fdlibm.git,iptables.git, libpng.git, openssl.git, safe-iop.git, tagsoup.git, apache-http.git, elfcopy.git, freetype.git, jdiff.git, oprofile.git, skia.git, tcpdump.git,bluez.git, elfutils.git, gdata.git, jhead.git, netcat.git, ping.git, sonivox.git, tinyxml.git, clearsilver.git, emma.git, giflib.git, jpeg.git, netperf.git, ppp.git, sqlite.git, tremor.git, dbus.git, esd.git, libxml2.git, googleclient.git, libffi.git, neven.git, protobuf.git, srec.git, webkit.git, dhcpcd.git, expat.git, icu4c.git, libpcap.git, opencore.git, qemu.git, strace.git./.repo/projects/ 1.Fedora 9  With yum 2.Ubuntu 8.X  With apt-get ☞ Info : http://www.kandroid.org/board/board.php?board=androidsource&command=body&no=6 24/39

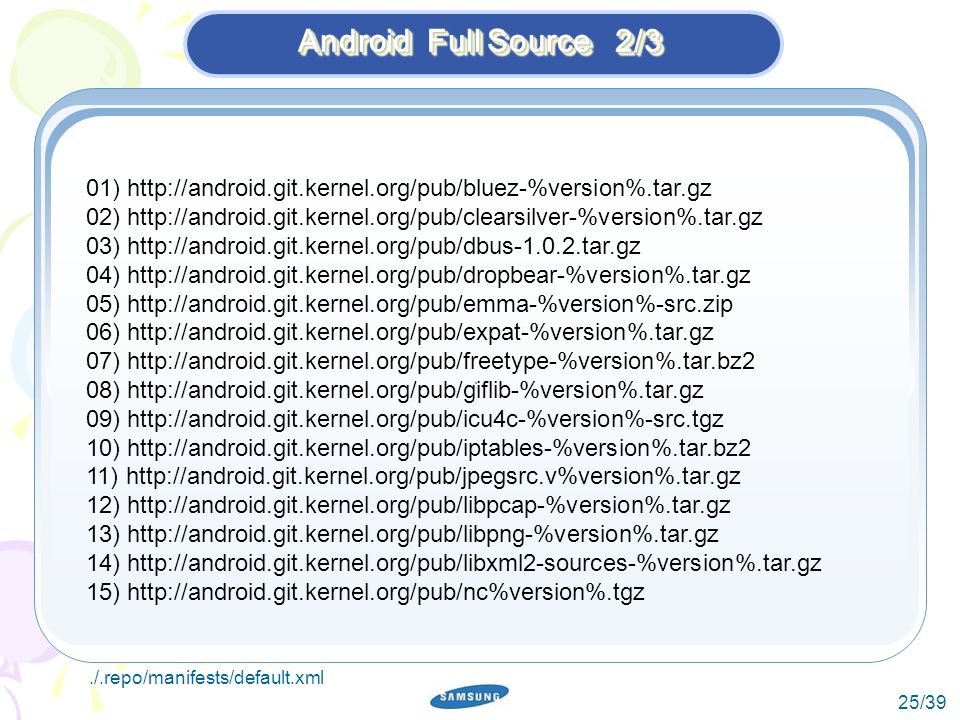

25. . Android Full Source 2/3 01) http://android.git.kernel.org/pub/bluez-%version%.tar.gz 02) http://android.git.kernel.org/pub/clearsilver-%version%.tar.gz 03) http://android.git.kernel.org/pub/dbus-1.0.2.tar.gz 04) http://android.git.kernel.org/pub/dropbear-%version%.tar.gz 05) http://android.git.kernel.org/pub/emma-%version%-src.zip 06) http://android.git.kernel.org/pub/expat-%version%.tar.gz 07) http://android.git.kernel.org/pub/freetype-%version%.tar.bz2 08) http://android.git.kernel.org/pub/giflib-%version%.tar.gz 09) http://android.git.kernel.org/pub/icu4c-%version%-src.tgz 10) http://android.git.kernel.org/pub/iptables-%version%.tar.bz2 11) http://android.git.kernel.org/pub/jpegsrc.v%version%.tar.gz 12) http://android.git.kernel.org/pub/libpcap-%version%.tar.gz 13) http://android.git.kernel.org/pub/libpng-%version%.tar.gz 14) http://android.git.kernel.org/pub/libxml2-sources-%version%.tar.gz 15) http://android.git.kernel.org/pub/nc%version%.tgz./.repo/manifests/default.xml 25/39

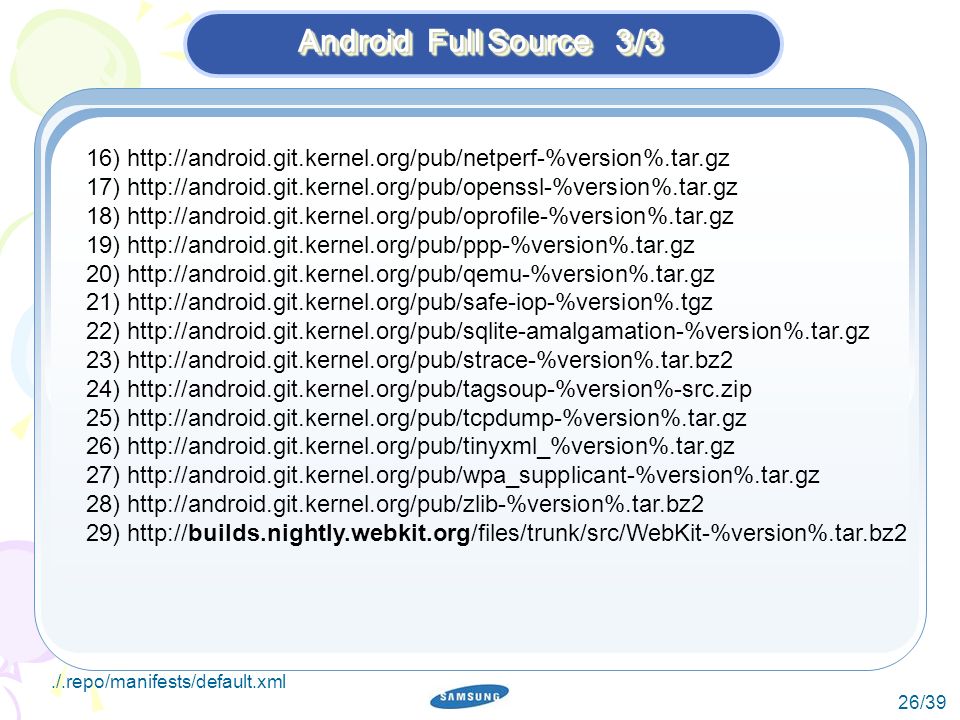

26. . Android Full Source 3/3 16) http://android.git.kernel.org/pub/netperf-%version%.tar.gz 17) http://android.git.kernel.org/pub/openssl-%version%.tar.gz 18) http://android.git.kernel.org/pub/oprofile-%version%.tar.gz 19) http://android.git.kernel.org/pub/ppp-%version%.tar.gz 20) http://android.git.kernel.org/pub/qemu-%version%.tar.gz 21) http://android.git.kernel.org/pub/safe-iop-%version%.tgz 22) http://android.git.kernel.org/pub/sqlite-amalgamation-%version%.tar.gz 23) http://android.git.kernel.org/pub/strace-%version%.tar.bz2 24) http://android.git.kernel.org/pub/tagsoup-%version%-src.zip 25) http://android.git.kernel.org/pub/tcpdump-%version%.tar.gz 26) http://android.git.kernel.org/pub/tinyxml_%version%.tar.gz 27) http://android.git.kernel.org/pub/wpa_supplicant-%version%.tar.gz 28) http://android.git.kernel.org/pub/zlib-%version%.tar.bz2 29) http://builds.nightly.webkit.org/files/trunk/src/WebKit-%version%.tar.bz2./.repo/manifests/default.xml 26/39

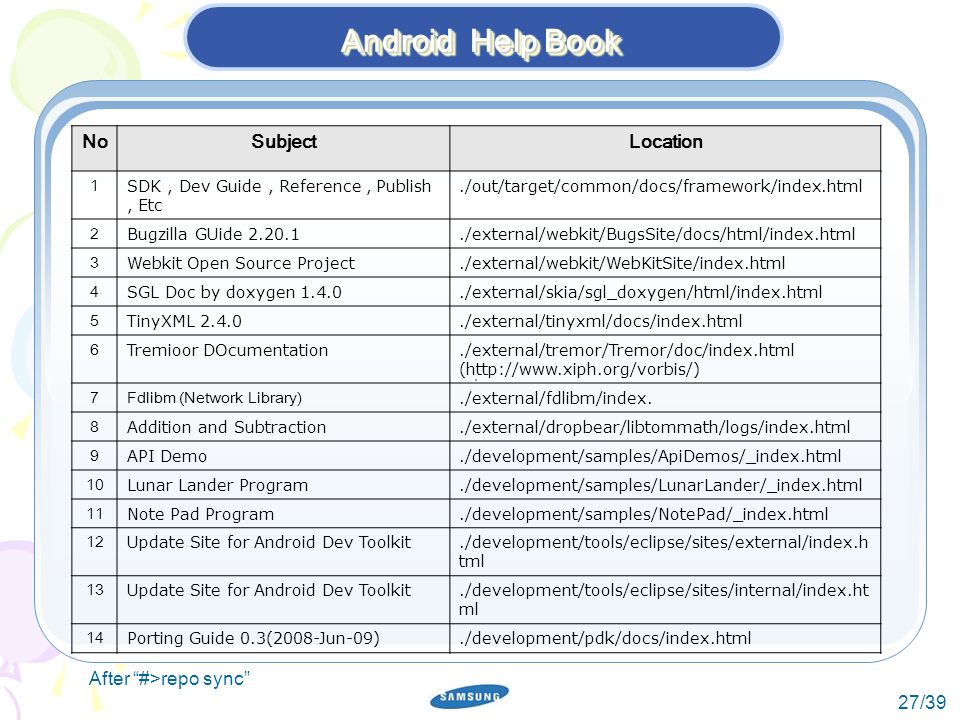

27. . Android Help Book After “#>repo sync” NoSubjectLocation 1 SDK, Dev Guide, Reference, Publish, Etc./out/target/common/docs/framework/index.html 2 Bugzilla GUide 2.20.1./external/webkit/BugsSite/docs/html/index.html 3 Webkit Open Source Project./external/webkit/WebKitSite/index.html 4 SGL Doc by doxygen 1.4.0./external/skia/sgl_doxygen/html/index.html 5 TinyXML 2.4.0./external/tinyxml/docs/index.html 6 Tremioor DOcumentation./external/tremor/Tremor/doc/index.html (http://www.xiph.org/vorbis/) 7Fdlibm (Network Library)./external/fdlibm/index. 8 Addition and Subtraction./external/dropbear/libtommath/logs/index.html 9 API Demo./development/samples/ApiDemos/_index.html 10 Lunar Lander Program./development/samples/LunarLander/_index.html 11 Note Pad Program./development/samples/NotePad/_index.html 12 Update Site for Android Dev Toolkit./development/tools/eclipse/sites/external/index.h tml 13 Update Site for Android Dev Toolkit./development/tools/eclipse/sites/internal/index.ht ml 14 Porting Guide 0.3(2008-Jun-09)./development/pdk/docs/index.html 27/39

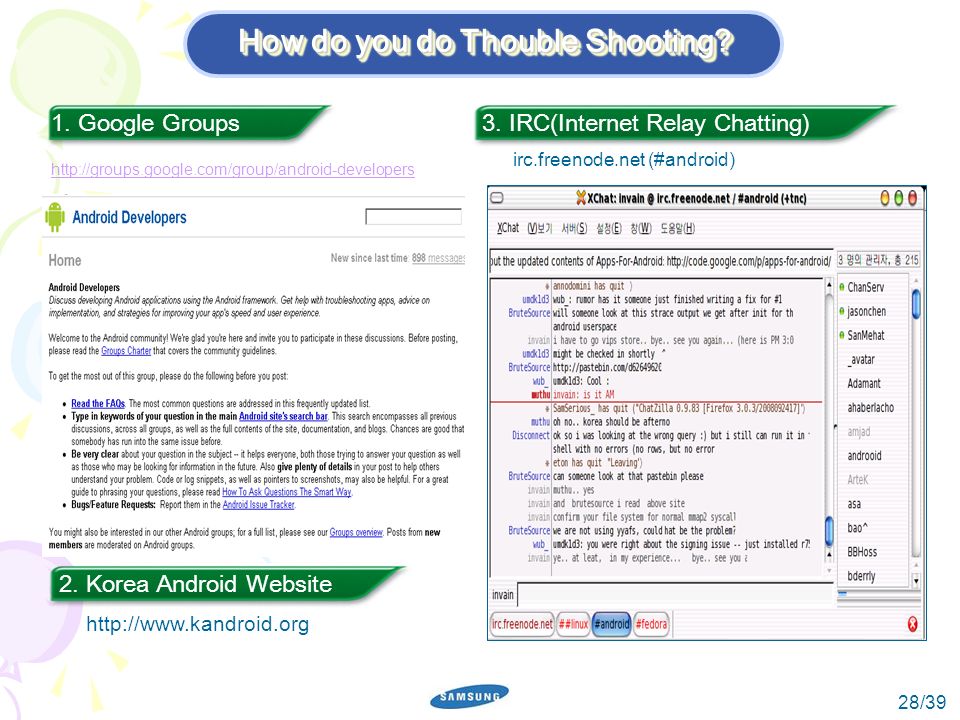

28. How do you do Thouble Shooting? How do you do Thouble Shooting? 3. IRC(Internet Relay Chatting) irc.freenode.net (#android) 1. Google Groups http://groups.google.com/group/android-developers 2. Korea Android Website http://www.kandroid.org 28/39

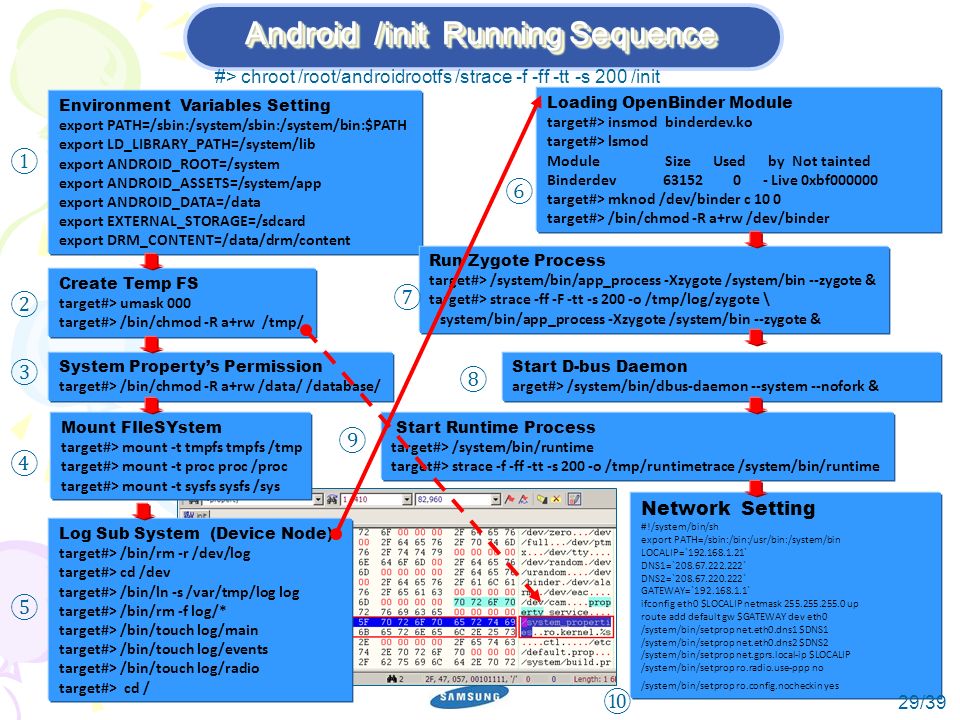

29. 29/18 Android /init Running Sequence Environment Variables Setting export PATH=/sbin:/system/sbin:/system/bin:$PATH export LD_LIBRARY_PATH=/system/lib export ANDROID_ROOT=/system export ANDROID_ASSETS=/system/app export ANDROID_DATA=/data export EXTERNAL_STORAGE=/sdcard export DRM_CONTENT=/data/drm/content Create Temp FS target#> umask 000 target#> /bin/chmod -R a+rw /tmp/ System Property’s Permission target#> /bin/chmod -R a+rw /data/ /database/ Mount FIleSYstem target#> mount -t tmpfs tmpfs /tmp target#> mount -t proc proc /proc target#> mount -t sysfs sysfs /sys Log Sub System (Device Node) target#> /bin/rm -r /dev/log target#> cd /dev target#> /bin/ln -s /var/tmp/log log target#> /bin/rm -f log/* target#> /bin/touch log/main target#> /bin/touch log/events target#> /bin/touch log/radio target#> cd / Loading OpenBinder Module target#> insmod binderdev.ko target#> lsmod Module Size Used by Not tainted Binderdev 63152 0 - Live 0xbf000000 target#> mknod /dev/binder c 10 0 target#> /bin/chmod -R a+rw /dev/binder Run Zygote Process target#> /system/bin/app_process -Xzygote /system/bin --zygote & target#> strace -ff -F -tt -s 200 -o /tmp/log/zygote \ /system/bin/app_process -Xzygote /system/bin --zygote & Start D-bus Daemon arget#> /system/bin/dbus-daemon --system --nofork & Start Runtime Process target#> /system/bin/runtime target#> strace -f -ff -tt -s 200 -o /tmp/runtimetrace /system/bin/runtime Network Setting #!/system/bin/sh export PATH=/sbin:/bin:/usr/bin:/system/bin LOCALIP=`192.168.1.21` DNS1=`208.67.222.222` DNS2=`208.67.220.222` GATEWAY=`192.168.1.1` ifconfig eth0 $LOCALIP netmask 255.255.255.0 up route add default gw $GATEWAY dev eth0 /system/bin/setprop net.eth0.dns1 $DNS1 /system/bin/setprop net.eth0.dns2 $DNS2 /system/bin/setprop net.gprs.local-ip $LOCALIP /system/bin/setprop ro.radio.use-ppp no /system/bin/setprop ro.config.nocheckin yes #> chroot /root/androidrootfs /strace -f -ff -tt -s 200 /init 29/39 ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩

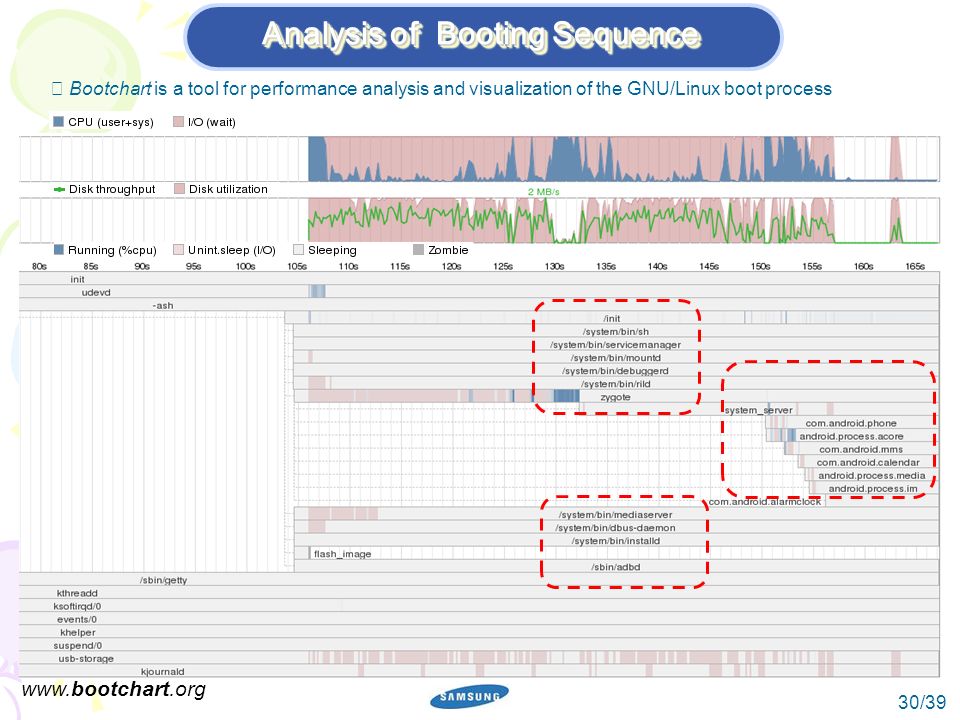

30. Analysis of Booting Sequence ☞ Bootchart is a tool for performance analysis and visualization of the GNU/Linux boot process www.bootchart.org 30/39

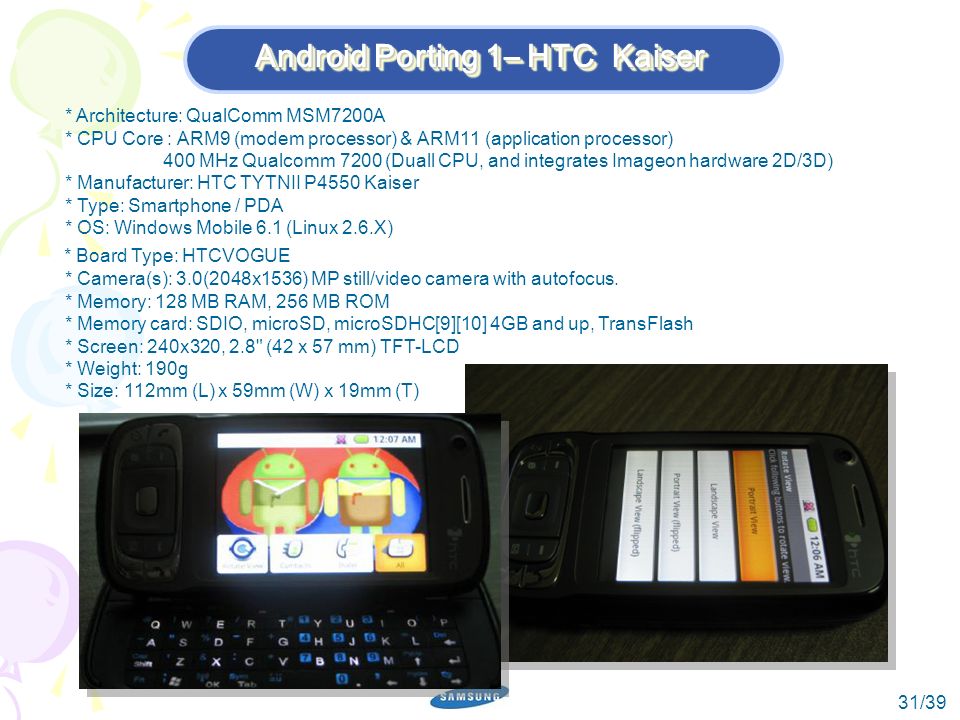

31. Android Porting 1– HTC Kaiser * Architecture: QualComm MSM7200A * CPU Core : ARM9 (modem processor) & ARM11 (application processor) 400 MHz Qualcomm 7200 (Duall CPU, and integrates Imageon hardware 2D/3D) * Manufacturer: HTC TYTNII P4550 Kaiser * Type: Smartphone / PDA * OS: Windows Mobile 6.1 (Linux 2.6.X) * Board Type: HTCVOGUE * Camera(s): 3.0(2048x1536) MP still/video camera with autofocus. * Memory: 128 MB RAM, 256 MB ROM * Memory card: SDIO, microSD, microSDHC[9][10] 4GB and up, TransFlash * Screen: 240x320, 2.8" (42 x 57 mm) TFT-LCD * Weight: 190g * Size: 112mm (L) x 59mm (W) x 19mm (T) 31/39

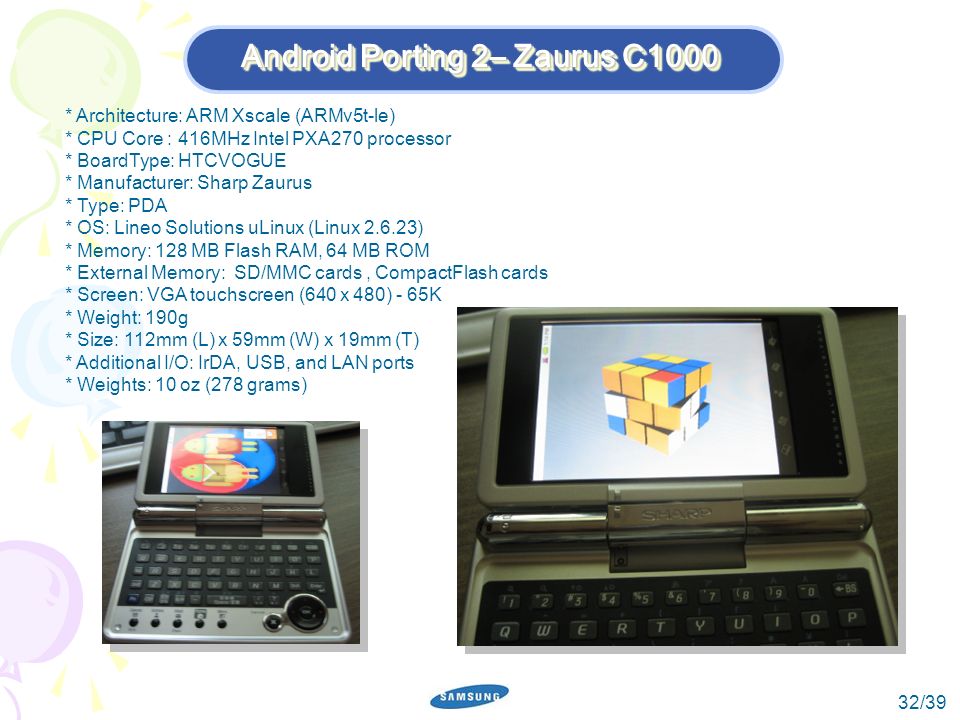

32. Android Porting 2– Zaurus C1000 * Architecture: ARM Xscale (ARMv5t-le) * CPU Core : 416MHz Intel PXA270 processor * BoardType: HTCVOGUE * Manufacturer: Sharp Zaurus * Type: PDA * OS: Lineo Solutions uLinux (Linux 2.6.23) * Memory: 128 MB Flash RAM, 64 MB ROM * External Memory: SD/MMC cards, CompactFlash cards * Screen: VGA touchscreen (640 x 480) - 65K * Weight: 190g * Size: 112mm (L) x 59mm (W) x 19mm (T) * Additional I/O: IrDA, USB, and LAN ports * Weights: 10 oz (278 grams) 32/39

33. Android Porting 3– Zaurus C3200 * Architecture: ARM Xscale (ARMv5t-le) * CPU Core : 416MHz Intel PXA270 processor * BoardType: HTCVOGUE * Manufacturer: Sharp Zaurus * Type: PDA / Personnel Mobile Tool * OS: Lineo Solutions uLinux (Linux 2.6.23) * Memory: 128 MB Flash RAM, 64 MB ROM * External Memory: SD/MMC cards, CompactFlash cards * HDD: 6Gb ( User Area : 5.9Gb ) * Screen: VGA touchscreen (640 x 480) - 65K * Weight: 298g * Size: 124mm (L) x 87mm (W) x 25mm (T) * Additional I/O: IrDA, USB, and LAN ports * Weights: 10 oz (278 grams) 33/39

34. Android Porting 4– Nokia N810 * Architecture: ARM V6 * CPU Core : ARM 1136JF-S ( by TI’s OMAP 2420) 400Mhz * Manufacturer: Nokia * Type: Internet Tablet OS: * OS: maemo (Linux 2.6 based OS2008) * Memory: DDR RAM 128MB, Flash 256MB * External Memory: miniSD, microSD * Internal Storage: 2Gb * Weights: 10 oz (278 grams) * Battery: Nokia Maps BP-4L * Screen: 4.13" WVGA display (800 x 480 pixels) with up to 65,000 colors * Size: 124mm (L) x 87mm (W) x 25mm (T) * Additional I/O: IrDA, USB, and LAN ports * WLAN standard: IEEE 802.11b/g * Bluetooth specification v. 2.0. +EDR 34/39

35. Android Porting 5– OMAP2EVM * Architecture: ARM V6 * CPU Core : ARM 1136JF-S (400Mhz) * Manufacturer: www.mistralsolutions.comwww.mistralsolutions.com * Model: OMAP 2530 TI’s OMAP 2430 Minior Version * Type: Target Board for development * OS: Linux 2.6.19, 2.6.21 * Memory: 64 MB Mobile DDR SDRAM, 128 MB NAND Flash * Board Dimensions: 4.25’’ x 7’’ * External Memory: 4-bit SD/MMC * Screen: Dual mode (640x480/320x240) LCD Display with Touch screen interface * Additional I/O: USB 2.0 OTG based on Philips ISP1504 transceiver, and LAN ports, Keypad * Components : Pre-programmed binaries for XLoader, uBoot, Linux Kernel and JFFS2 File system. 35/39

36. Android Porting 6– Armadillo/500 * Architecture: ARM V6 * CPU Core : ARM 1136JF-S (400Mhz, 128kb level two cache) * Manufacturer: Atmark Techno Company * Model: i.MX31L * Type: Target Board for development * OS: Linux 2.6.18 & 2.6.26 * Memory: 64 MB DDR SDRAM, 16MB Nor Flash, 256MB Nand Flash * External Memory: 4-bit SD/MMC * Screen: CRT Screen(VGA) interface * Additional I/O: USB, CF, SD/MMC, Audio in/out, Serial x2, 30Bit GPIO * Components : GNU cross development tools and Atmark Techno Development(ATDE) with Vmwar Player. * Weight : 120G 36/39

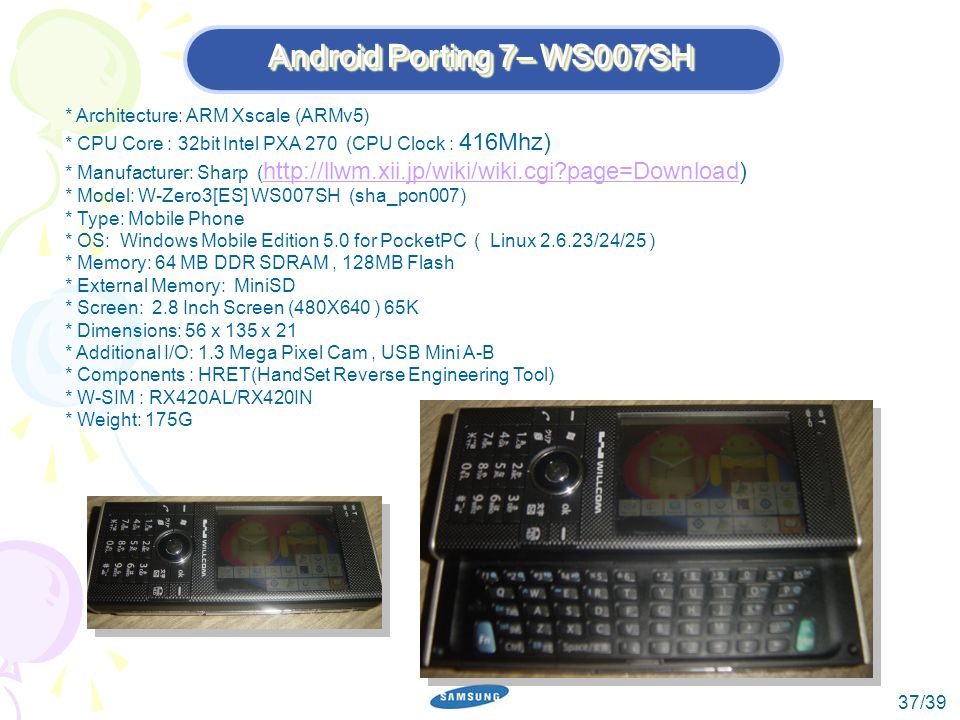

37. Android Porting 7– WS007SH * Architecture: ARM Xscale (ARMv5) * CPU Core : 32bit Intel PXA 270 (CPU Clock : 416Mhz) * Manufacturer: Sharp ( http://llwm.xii.jp/wiki/wiki.cgi?page=Download) http://llwm.xii.jp/wiki/wiki.cgi?page=Download * Model: W-Zero3[ES] WS007SH (sha_pon007) * Type: Mobile Phone * OS: Windows Mobile Edition 5.0 for PocketPC ( Linux 2.6.23/24/25 ) * Memory: 64 MB DDR SDRAM, 128MB Flash * External Memory: MiniSD * Screen: 2.8 Inch Screen (480X640 ) 65K * Dimensions: 56 x 135 x 21 * Additional I/O: 1.3 Mega Pixel Cam, USB Mini A-B * Components : HRET(HandSet Reverse Engineering Tool) * W-SIM : RX420AL/RX420IN * Weight: 175G 37/39

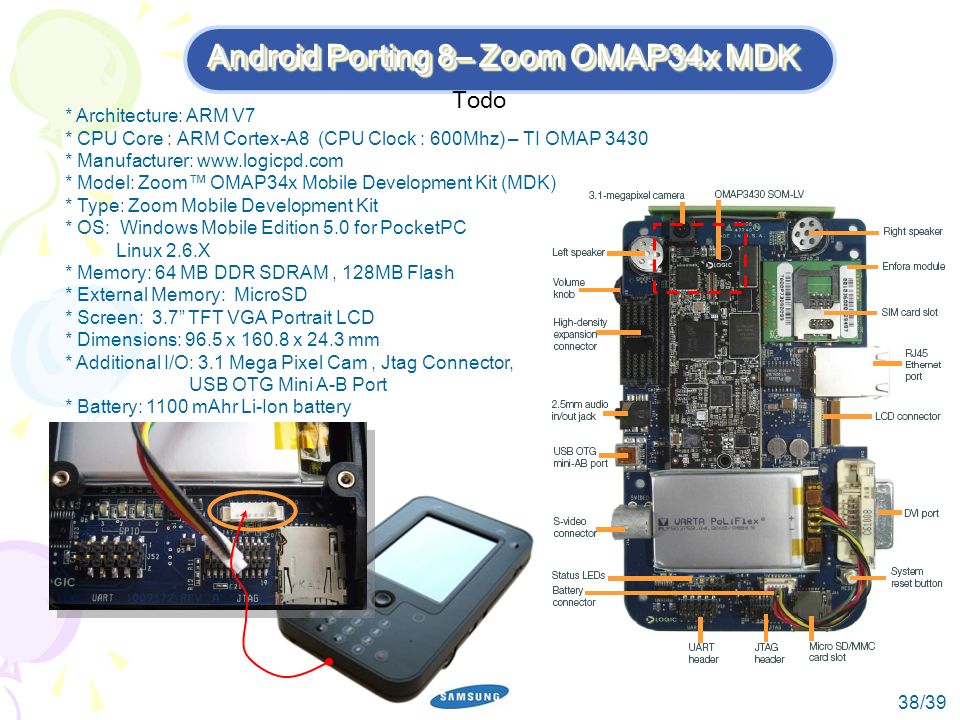

38. Android Porting 8– Zoom OMAP34x MDK * Architecture: ARM V7 * CPU Core : ARM Cortex-A8 (CPU Clock : 600Mhz) – TI OMAP 3430 * Manufacturer: www.logicpd.com * Model: Zoom™ OMAP34x Mobile Development Kit (MDK) * Type: Zoom Mobile Development Kit * OS: Windows Mobile Edition 5.0 for PocketPC Linux 2.6.X * Memory: 64 MB DDR SDRAM, 128MB Flash * External Memory: MicroSD * Screen: 3.7” TFT VGA Portrait LCD * Dimensions: 96.5 x 160.8 x 24.3 mm * Additional I/O: 3.1 Mega Pixel Cam, Jtag Connector, USB OTG Mini A-B Port * Battery: 1100 mAhr Li-Ion battery Todo 38/39

39. Android 1 st Phone T-MObile G1 ☞ Android DotPhone (Shopping Mall) -Price: 3,850.00RMB -Email: dotphone@sina.com -Mobile: 8610-13439626749 -Sellers: Android DotPhone -Website: http://auction1.taobao.com/auction/item_detail-0db2-190294b8479059423e8f07641cddc142.jhtml http://auction1.taobao.com/auction/item_detail-0db2-190294b8479059423e8f07641cddc142.jhtml ☞ Ebay (Shopping Mall) ☞ Howto Unlock - http://www.unlock-tmobileg1.com/EN/unlock-code-G1.php ($22.99) - http://g1unlockcodes.com/ ($23.99) - http://G1SIMUnlock.com ($29.99)http://www.unlock-tmobileg1.com/EN/unlock-code-G1.phphttp://g1unlockcodes.com/http://G1SIMUnlock.com - Use T-Mobile SIM Card of your friend http://www.kandroid.org/board/board.php?board=HTCDream&command=body&no=14 39/39 528Mhz Qualcomm 7201 processor (ARM1136EJ-S)

40. Thanks 40/39
