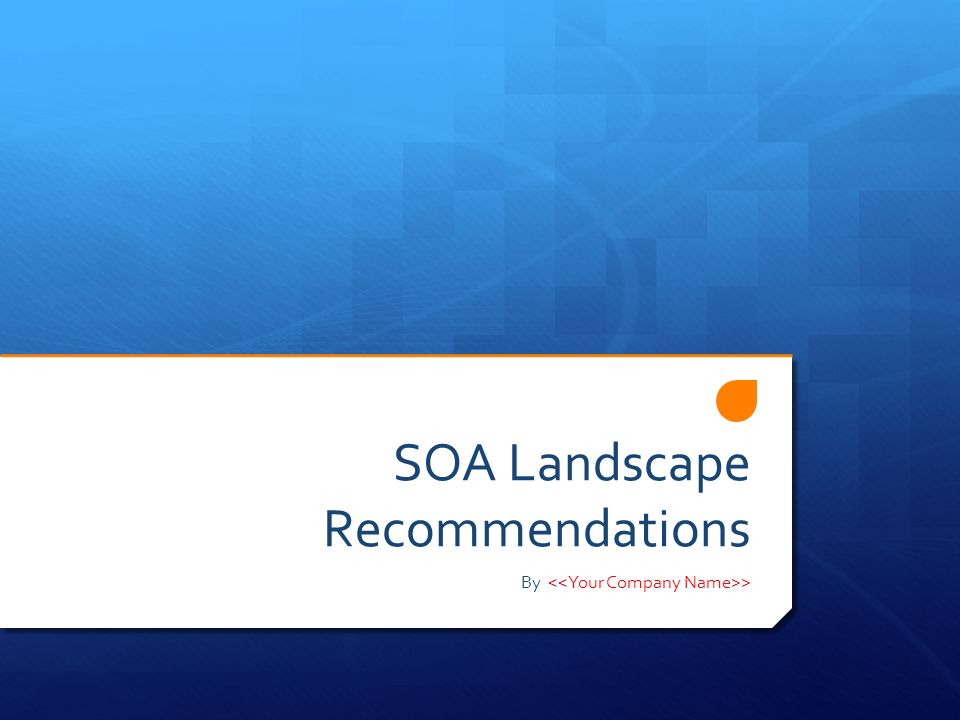

1. SOA Landscape Recommendations By >

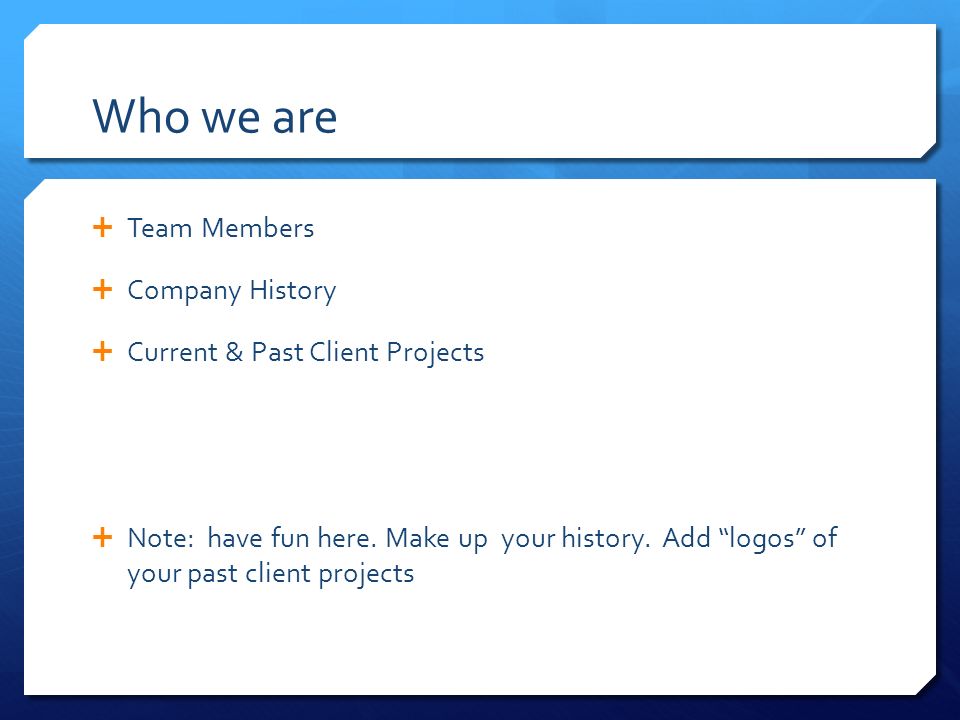

2. Who we are  Team Members  Company History  Current & Past Client Projects  Note: have fun here. Make up your history. Add “logos” of your past client projects

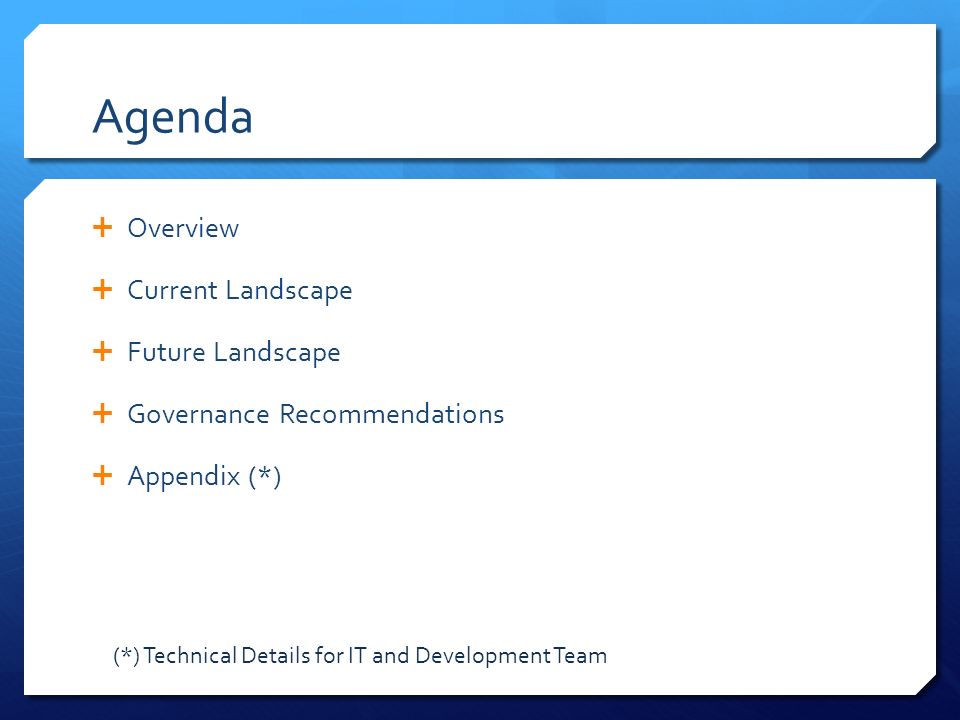

3. Agenda  Overview  Current Landscape  Future Landscape  Governance Recommendations  Appendix (*) (*) Technical Details for IT and Development Team

4. Overview

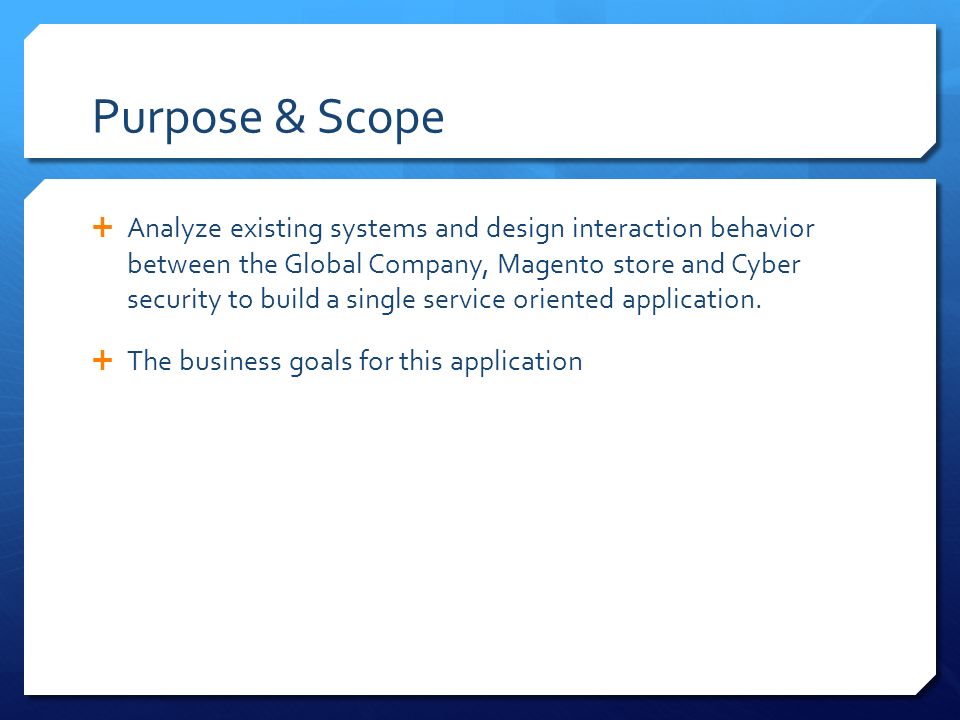

5. Purpose & Scope  Analyze existing systems and design interaction behavior between the Global Company, Magento store and Cyber security to build a single service oriented application.  The business goals for this application

6. Purpose & Scope - Business goals  Credit card authorization and payment should be automated by integrating with Cyber Security. However credits will continue to be manual.  Reuse the Magneto's storefront with Global company's UI. However the brand names have to be separate because Magento could possibly sell products by itself in future  Orders have to be fulfilled and shipped automatically. Provision to apply certain rules on orders and process them manually if required. For e.g. orders > $1000 should be processed manually.  Add UPS shipment service for automated shipping.  Integration with Twitter for sales announcements.  RAM, Disk storage and Environments can be increased/decreased automatically with integration with Cloudshare services.

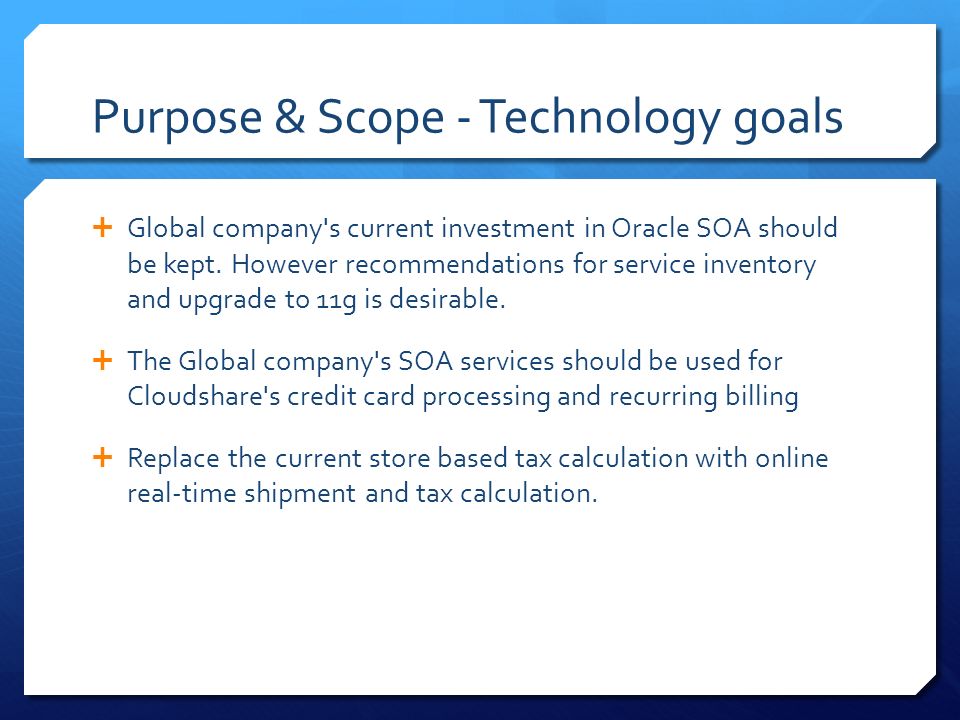

7. Purpose & Scope - Technology goals  Global company's current investment in Oracle SOA should be kept. However recommendations for service inventory and upgrade to 11g is desirable.  The Global company's SOA services should be used for Cloudshare's credit card processing and recurring billing  Replace the current store based tax calculation with online real-time shipment and tax calculation.

8. Overview of Business Units  Global Business model is online sales, a multi-level marketing as well as distributor of multiple consumer goods. Estimated annual revenue (sales): $8 000 000 000.00  Magento Magento is a feature-rich, professional open-source eCommerce solution that offers merchants complete flexibility and control over the look, content, and functionality of their online store. Magento’s intuitive administration interface contains powerful marketing, merchandising and content management tools to give merchants the power to create sites that are tailored to their unique business needs. Completely scalable and backed by an extensive support network, Magento offers companies the ultimate eCommerce solution. [http://www.magentocommerce.com/company/] Esitimated annual revenue (sales): $100 000 000.00  “CloudShare is a cloud computing company that provides unprecedented flexibility and ease of use for moving enterprise IT systems and applications—unchanged—into the cloud.” (http://www.cloudshare.com/about_cloudshare/about_cloudshare.aspx) CloudShare is a cloud computing provider which enables users to create, replicate and share fully functional IT environments in the Cloud (http://en.wikipedia.org/wiki/CloudShare)http://www.cloudshare.com/about_cloudshare/about_cloudshare.aspxhttp://en.wikipedia.org/wiki/CloudShare Estimated annual Revenue (Sales): $2 000 000 000.00  Note: describe what each business does and est. annual revenue (make numbers for revenue!)

9. Users Interviewed  Global Company:  Customer Sales Representative  Payment collection for all orders (credit card verification, etc).  Creation of new orders for corporate customers  Shopping for the best rates/services, getting the best possible quotes  Fulfill orders, and notify customer for completion of the order(s)

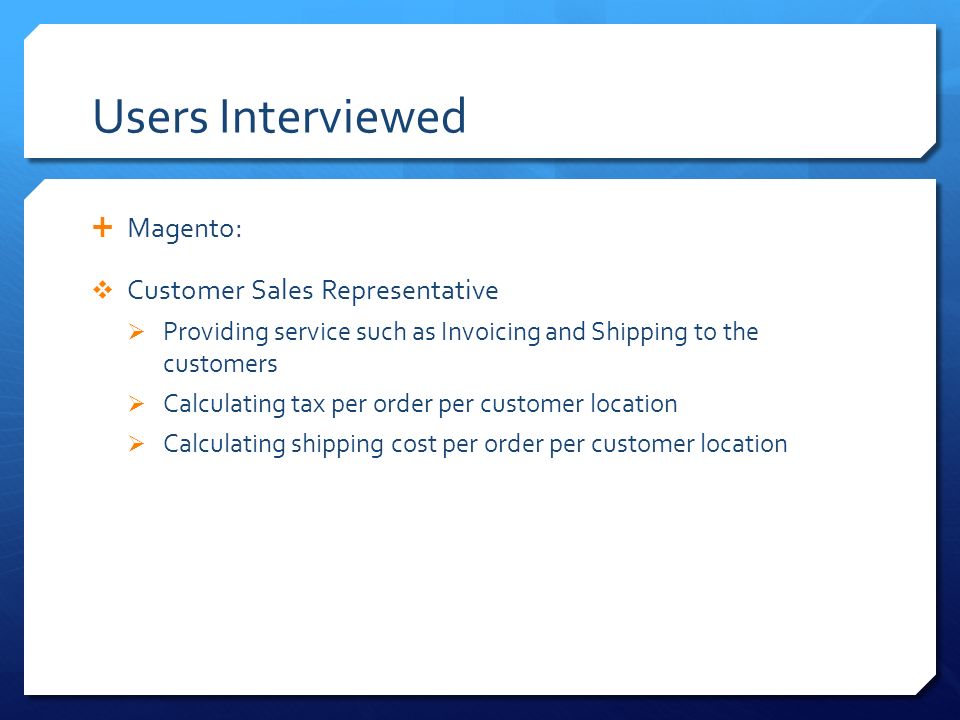

10. Users Interviewed  Magento:  Customer Sales Representative  Providing service such as Invoicing and Shipping to the customers  Calculating tax per order per customer location  Calculating shipping cost per order per customer location

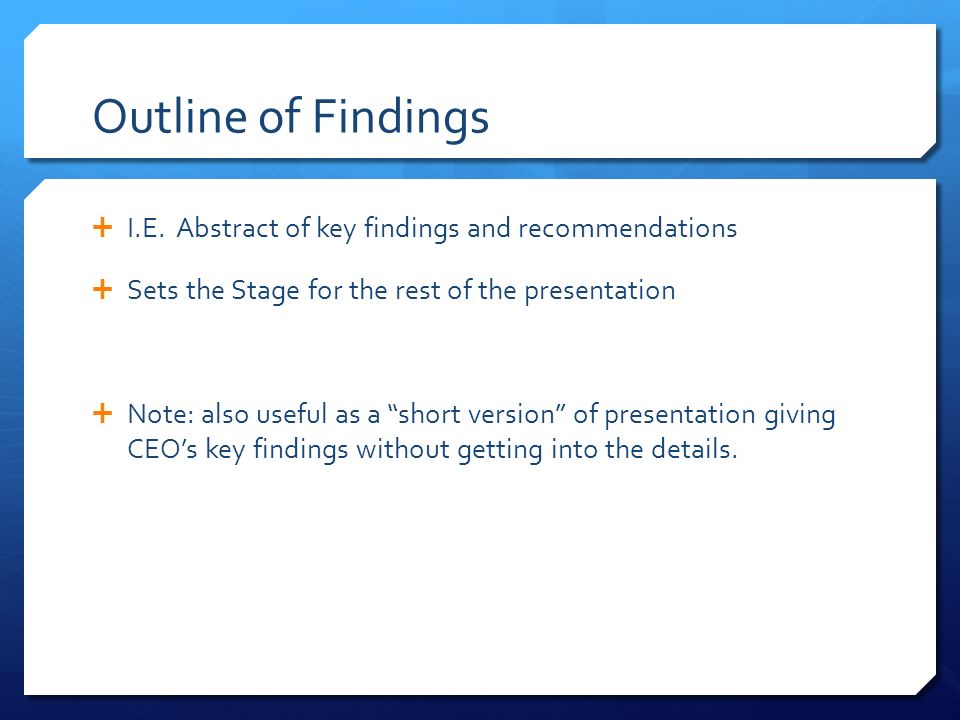

11. Outline of Findings  I.E. Abstract of key findings and recommendations  Sets the Stage for the rest of the presentation  Note: also useful as a “short version” of presentation giving CEO’s key findings without getting into the details.

12. Current Landscape

13. As-Is Business Processes  Diagrams (about a few slides each as needed):  Use Case Overview Diagram  Global & Magento Business Process Model  Order Fulfillment  Order Returns  Back Office Systems  CloudShare Business Process Model  New Subscription  Payment Processing  Use Case Scenarios  End-to-end sequence diagrams for key Use Cases

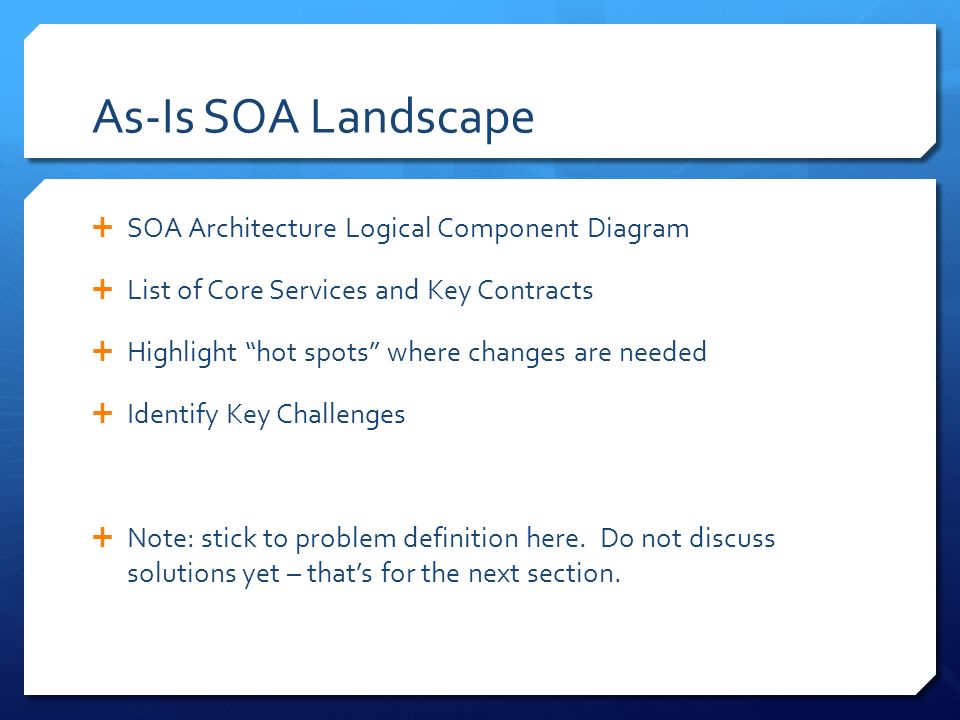

14. As-Is SOA Landscape  SOA Architecture Logical Component Diagram  List of Core Services and Key Contracts  Highlight “hot spots” where changes are needed  Identify Key Challenges  Note: stick to problem definition here. Do not discuss solutions yet – that’s for the next section.

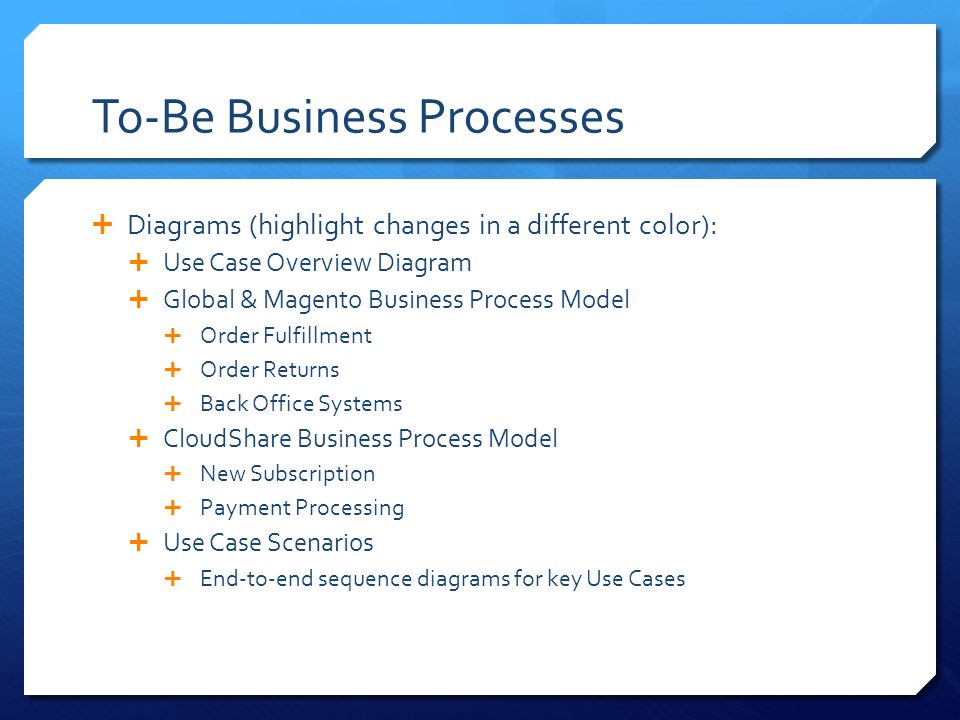

15. To-Be Business Processes  Diagrams (highlight changes in a different color):  Use Case Overview Diagram  Global & Magento Business Process Model  Order Fulfillment  Order Returns  Back Office Systems  CloudShare Business Process Model  New Subscription  Payment Processing  Use Case Scenarios  End-to-end sequence diagrams for key Use Cases

16. Future Landscape

17. To-Be SOA Landscape  SOA Architecture Logical Component Diagram  List of New Services and Contracts  Highlight Key Changes which addresses the Challenges identified in As-Is State  Include:  Integration of PCI Compliant Payment Service  Integration of new shipping service(s)  Other recommended services  Note: don’t put details here (put them in the appendix)

18. Governance Recommendations

19. Governance Notes:  Management Policy Changes  Policy Table  Recommended Service Granularity Approach (Ref: SOA Governance Patterns)  PCI Compliance Validation  SOA Architecture Maintenance  Web Service Versioning of Key Contracts (Ref: Service Life Cycle)  Change Management around Data Models  Infrastructure Upgrade Roadmap  Move to Hybrid Cloud?  Upgrade to SOA Suite 11g

20. Appendix

21. Appendix:  Include  Any Design Design Details (i.e. explain “why”)  Architecture Prototypes (that support recommendations)  Web Service Contracts (request/response examples) used in analysis leading to recommendations  UI Screenshots of recommended changes  Etc…
