IGCC: BHEL’S EXPERIENCE
2
BHEL – Activity Locations
Registered Office & Corporate HQ : New Delhi 15 Manufacturing plants 8 Service Centres 4 Power Sector Regional HQs 15 Regional Operations offices Corporate R & D Division : Hyderabad Over 100 Project construction sites in India & Abroad NEW DELHI VADODARA NAGPUR PATNA KOLKATA VARANASI GOINDWAL HARDWAR RUDRAPUR JAGDISHPUR JHANSI BHOPAL HYDERABAD BANGALORE RANIPET TIRUCHIRAPALLY CHENNAI CHANDIGARH BHEL supplied Power Plants in India Corp. P&D
3
Operating Business Areas
Power Industry Thermal Boilers, STG, Auxiliaries, ESP EPC Hydro Turbines, Generators Controls Gas Open Cycle, Combined Cycle Nuclear STG SG Captive Power Plants Boilers, STGs, Auxiliaries, C&I Systems, DG Power Transmission Switchgear, Transformers Insulators, Substations SCADA, HVDC Systems International Operations Transportation AC/DC Locos Diesel electrics Locos EMUs, Traction Electrics Other Products On-Shore Oil Rigs Compressors, NCES Desalination Plants Valves, Motors Serving core & Infrastructure sectors of the Economy
4
Engineering and Technology Focus
Products & systems are highly Technology intensive. R&D and Technology Development are of strategic importance Judicial mix of in-house developments with import of critical technologies to meet Indian market requirements R&D expenditure % of Turnover – Highest by any Indian Engineering Company Current major development - Coal Gasification for power and other applications and Ultra Super Critical PC plants
5
Security of Supply Coal has a very strong strategic role to play because of the amount available its wide distribution ease and low cost of transport history of price stability It provides fuel diversity security of supply possibility of stable price reduced dependence on single source
6
Characteristics of Indian Coals
Ash Content Percent Sulphur < 1 Percent Reactivity Moderately High Ash fusion temp. > 1500 deg C Ash Chemistry High in Silica & Alumina Highly Abrasive Medium Slagging
7
Technology options Coal Combustion Gasification/IGCC Pulverised coal
Fluidised bed Entrained flow pulverised coal Fluidised bed USC units ready Emission issues Low grade coals Fuel flexibility Emission control Mature up to 300MW Scale up/USC Emission reduction Demo/Commercial Plants Pilot/Demo Plants
8
New Technology Deployment Curve for Coal
Research Development Demonstration Deployment Mature Technology Advanced USCPC Plants 760°C 620°C+ CO2 Capture USCPC Plants 620°C+ 600°C IGCC Plants Anticipated Cost of Full-Scale Application Ox fuel <600°C 565°C Expected availability can Increase with time/learning SCPC Plants CO2 Storage Time Not All Technologies at the Same Level of Maturity.
9
What is coal gasification ?
It is a process in which coal, air or oxygen and steam react under conditions of certain temperature and pressure to produce a low or medium calorie fuel gas. Air or oxygen undergoes combustion reaction with part of the carbon in the coal and releases exothermic heat. The balance carbon undergoes gasification reaction with steam, hydrogen and carbon-dioxide, thereby utilizing the exothermic heat released in combustion reaction. Types of gasification process Moving bed gasification process Fluidized bed gasification process Entrained bed gasification process Choice of the process Fluidized bed gasification process for high ash Indian coals
10

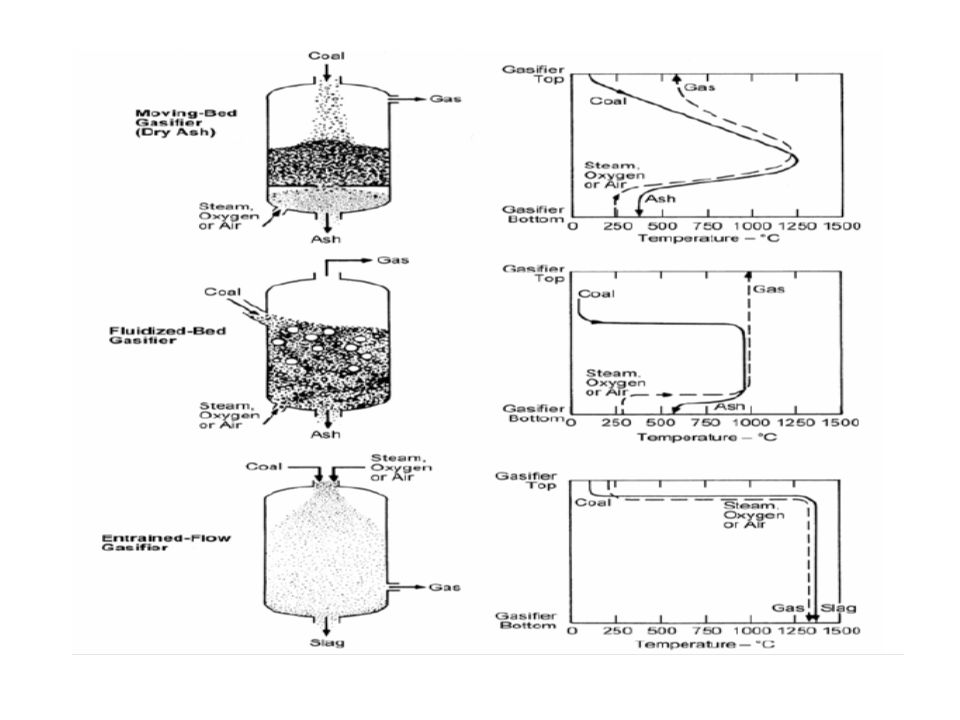

Coal Gasification Technologies
Entrained Flow Moving Bed Fluidised Bed Coal size <250 microns 5-30 mm Less than 6 mm Ash % <20 <25 No limitation Ash fusion C <1350 Effluent Waste water Tar, oils, phenol Effluent treatment Relatively less expensive Gasifier area 1.0 3.0 1.6 IGCC maturity Large plants working Demonstrated in 6.2 MW
12
ADVANTAGES OF PRESSURISED FLUIDISED BED GASIFIER
HIGHER UNIT CAPACITY PER UNIT AREA IN - BED SULFUR REMOVAL OPTION NO TAR OR OIL FORMATION AND EASY GAS CLEANING NO LIQUID EFFLUENT FORMATION ABILITY TO ACCEPT FINER COALS CAPABILITY TO ACCEPT WIDE VARIETY OF COALS BETTER RELIABILITY AND CONTROL OPERATES IN NON-SLAGGING MODE BEST SUITED FOR HIGH ASH INDIAN COALS LOWER CAPITAL AND OPERATING COST COMPARED TO ENTRAINED - BED GASIFIER
13
Fluidised Bed Gasification
Advantages Air used as reactant instead of Oxygen high cost/power consumption of oxygen plant avoided Low Temperature Operation Reliability issues due to high temperature operation eliminated In-situ removal of Sulfur, trace elements Dry granular ash Large Fluidised Bed Combustion systems in reliable operation Issues Low Calorific Value of Gas (1100 – 1250 Kcal/NM3) Comparatively high un burnt in ash
14
Fluidization engineering-Applications
Fluidized beds are used as a technical process which has the ability to promote high levels of contact between fluid (Liquid/gases) and solids. In addition, it has following advantageous characteristics: High surface area contact bet fluid and solid per unit bed volume High relative velocities between the fluid and the dispersed solid phase. High levels of intermixing of the particulate phase. Frequent particle-particle and particle-wall collisions Uniform temperature throughout the fluidised bed
15
WHAT IS IGCC? 3 BLOCKS IN COMBINED CYCLE POWER PLANT
GT POWER STACK ST POWER NG OIL GAS TURBINE STEAM TURBINE GAS EXHAUST STEAM H R S G Coal Gas COAL GASIFICATION GAS CLEAN-UP 2 BLOCKS IN COAL GASIFICATION PLANT
16
WHY IGCC ? Reduce adverse impact of fossil fuel combustion on environment Acid rain Suspended Particulate Matter in atmosphere Green House Effect Uses Low Grade fuels Environment Friendly Power Generation
17

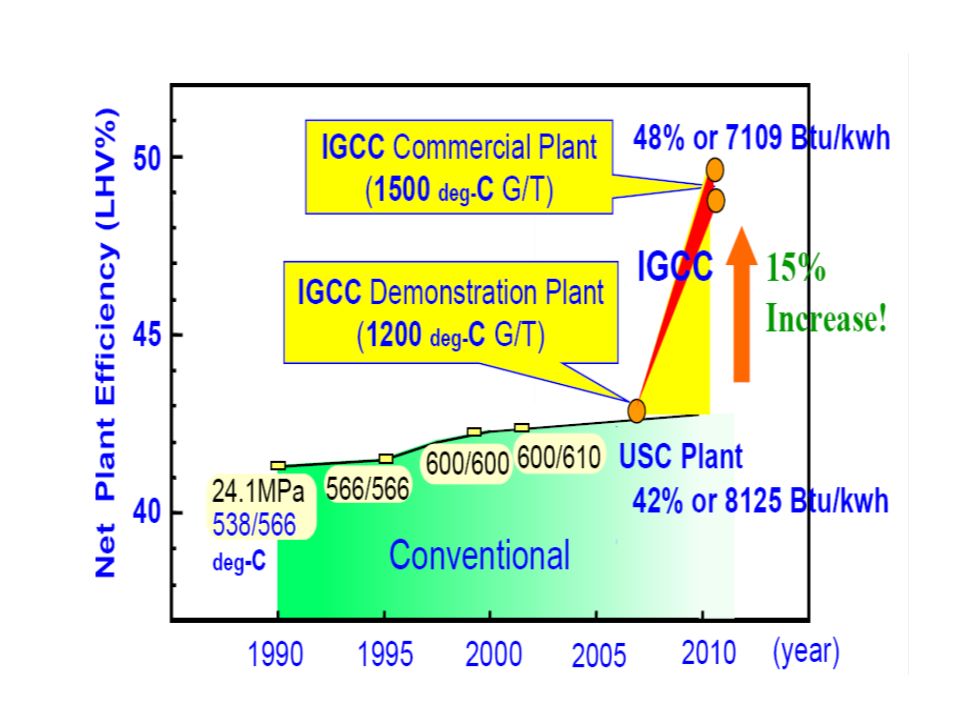

Low Emission, High Efficiency
IGCC Advantages Conventional IGCC Plant PC fired plant NOx ppm <25 ppm SOx ppm 245 ppm SPM 50 mg/Nm3 2 mg/Nm3 CO2 Emission High 10% Less Fuel consumption High 5-7% less Water consumption High 40% Less Low Emission, High Efficiency
18
Environmental Targets
Pollutant IGCC1 PC2 NGCC3 SO2 lb/MMBtu 0.085 lb/MMBtu < 0.6 gr S /100 scf NOx 15 ppmv 15% O2 lb/MMBtu 2.5 15% O2 PM lb/MMBtu 0.017 lb/MMBtu Negligible Hg > 90% capture lb/TBtu 1 Based on EPRI’s CoalFleet User Design Basis Specification for Coal-Based IGCC Power Plants 2 Based on BACT analysis, exceeding new NSPS requirements 3 Based on EPA pipeline natural gas specification and 40 CFR Part 60, Subpart KKKK 18
20
Power C O A L G S I F T N P Fuel gas Liquid fuels chemicals
21
Coal based IGCC plants
22
New Coal-Based IGCC Plants
S.No. Owner Capacity MW 1 Duke Energy, USA 630 2 GreenGen, China 250 3 ZeroGen, Australia 530
23
IGCC Technology status - world
24
IGCC - Technology for present and future
Higher Efficiency Environment friendly Power Option to switch to Natural Gas in future, when available and cost effective Easy adaptability to meet future environmental norms Ease of Capture of CO2 Coal gas from Gasifier can be used for conversion to oil, chemical and Hydrogen in addition to power generation
25
Gasification and IGCC developments in BHEL
Gasification characteristics of Indian Coal & IGCC Gasification and IGCC developments in BHEL Objectives: Efficient utilization of high ash Indian coals in utility of power generation employing advance IGCC technology Development of appropriate process technology and equipment for gasification and associated subsystems Development of simulation model and optimal system integration Development of process technology for gas clean-up 14/11/2011 Indo-Japan Workshop on Clean Coal Technology
26
IGCC Development - BHEL
PFBG Pilot Plant Studies(18TPD PEDU) 200 mm test facility PFBG Retrofit to 6.2 MW CCDP 182 MW IGCC Demonstration Plant Learning PFB Gasification Technology for Indian coals established. Design parameters met/exceeded 6.2 MW IGCC Pilot Plant (CCDP) with Moving Bed Gasifier Learning Gasifier & Wet gas Clean up Design & Operation System Integration
27
6.2 MW IGCC Plant at BHEL, Tiruchi
28
Parameters of 6.2MWe IGCC with
moving - bed gasifier Parameter Unit Design Actual Type of coal Singareni Singareni Ash content Percent 37 39 Coal capacity tpd 150 140 Kg/cm2(g) 10 10 Gas pressure Deg C 590 Gas temperature Gross Calorific Value Kcal/Nm3 1200 Specific gas yield Nm3/kg coal 2.0 Carbon conversion Percent 86 91 Objective: To gain experience on system integration and operation of gasifier in IGCC mode
29
Schematic of 6.2MWe IGCC with moving bed gasifier
30
Summary of operation Moving - bed gasifier
Parameters Longest continuous operation, hours 635 Cumulative operation, hours 5500 Total number of gasification runs 20 Total number of operations in IGCC mode 7 Carbon conversion efficiency, percent Cold gas efficiency, percent Power generation, MWe Gas turbine : Steam turbine : 3.8 1.5 Hot box-up and restart established in gasification mode
31
Different Views of APFBG Pilot Plant
32

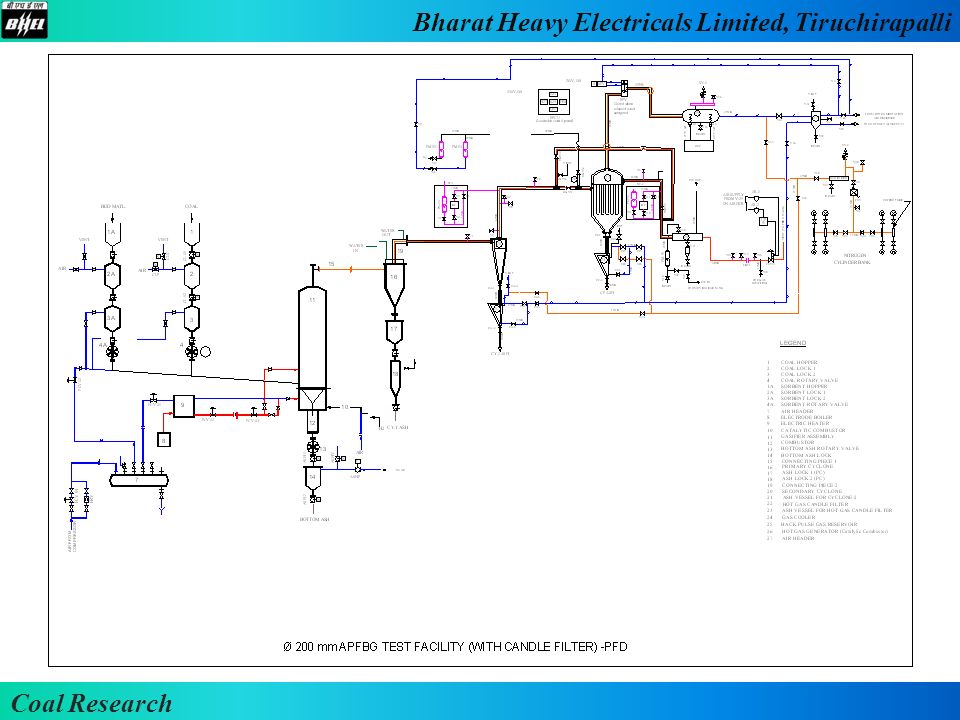

200mm APFBG PLANT Objective:
To create a research facility with maximum flexibility for carrying out fundamental development work Design Parameters: Coal throughput : 1.2 TPD Coal size range : - 4mm Gasifier inside dia. : 200mm Free Board dia : 200/250mm Pressure : 3 ata Temperature : 1050oC Velocity : 1.8m/s Additional facilities Candle filter for medium temperature gas cleaning PC based control and data acquisition system Bottom ash carbon burn up system- optional Inbed gas sampling facility Provision for Radio tracer studies Recycle of cyclone fines Bed pressure drop measurement
34
R&D Studies conducted on AFBG
Optimization of reactant ratios for different coals Effect of blast temperature Fines re-cycle using loop seal Performance of ceramic candle filters Tracer studies for estimation of particle residence time & solid flow pattern Estimation of trace contaminants in different streams Bed ignition using Hydrogen fired catalytic combustor Testing of different solid fuels Gasifier performance with oxygen enriched air and steam
35
Process evaluation and Demonstration Unit (PEDU) at R&D, Hyderabad
Coal throughput 18 T / DAY Gasifier diameter 450 mm Gasification media AIR / Steam mix Gasification temp º C Gasification pr. 11 kg / cm2 Gas calorific value Kcal / Nm3
36
18 TPD Pressurised Fluidized Bed Gasification Pilot Plant (PEDU)
37
PEDU Phased Developmental Studies Phase - I
PERFORMANCE TESTING AND PROCESS RELIABILITY Phase - II SYSTEM OPTIMISATION PERFORMANCE OPTIMISATION AND RELIABILITY OF GASIFICATION PROCESS UNDER ELEVATED SYSTEM PRESSURE Phase - III
38
PEDU - Summary of operations
Phase I Phase II Phase III Hot gas start up implemented Recycle of cyclone ash tested Improvement in gas calorific value upto 1020 kcal/ Nm3 Long duration operation: 204 hrs Cumulative operation: 500 hrs Development of distributor design Start up with charcoal Testing with coals of %ash Operating pressure : ata Operation Methodology Test duration: 48 hrs Cumulative operation: 1200 hrs Parametric studies Testing with coals of % ash Carbon conversion upto 90 % Specific gas yield: Nm3/ kg Gas calorific value: kcal/Nm3 Cumulative operation: 800 hrs Learnings Hot gas start up improves ignition and change over Recycling improved carbon conversion and gas yield Equipment performance at design pressure proved Process tested Start up to be modified Refractory lining changed Modification of start up and establishing operation methodology Bench marking of parameters to suit coal types
39
PEDU - Performance Summary
Parameter Unit Design Actual Type of coal Singareni Singareni Ash content Percent 37 Cold gas efficiency Percent 70 62 Gas pressure Kg/cm2(g) 10 9 Gas temperature Deg C 1050 High Calorific Value Kcal/Nm3 1150 Specific gas yield Nm3/kg coal 3.0 Carbon conversion Percent 90 Hot gas efficiency Percent 90 Total operation : 2500 hours Longest single run : 204 hours
40
PROCESS AND EQUIPMENT DEVELOPMENT UNIT (PEDU)
The pilot plant was designed with in-house expertise Established for assessment of performance of gasifier and subsystems Concurrent cold model studies for refinement in the performance of gasifier and subsystems Resulted in the development of air-steam distributor, fines recycle system, operation methodology, process control philosophy Capability for design and fabrication of process equipment and scale up to commercial size plant established Optimum operating parameters and reliable gasifier performance established
41
Panoramic view of the CCDP at BHEL, Tiruchy
42
Schematic of 6.2 MWe IGCC plant with PFBG
43
Parameters of 6.2MWe IGCC with pressurised fluidized- bed gasifier
Unit Design Actual Type of coal Singareni Singareni Ash content Percent 42 32 Coal capacity tpd 168 132 Kg/cm2(g) 12.5 11.5 Gas pressure Deg C 1000 975 Gas temperature Kcal/Nm3 1050 1170 High Calorific Value Specific gas yield Nm3/kg coal 2.57 2.50 Carbon conversion ( *without recycle of cyclone fines ) Percent 85 85* Objective: To demonstrate the PFBG technology and its integration with IGCC
44
Gasifier Operation Continuous operation of the demo plant is carried out to confirm the reliability & performance of the gasifier. Gasifier was operated for more than 4100 hrs or 200days. Gas produced from gasifier is given to HPBP furnaces. More than tons of gas supplied to HPBP. Gained experience in continuous operation & the performance of gasifier is as per expectations. Plant has logged about 10,000 hours of operation so far.
45
Gasifier Operation-Operating parameters
The Gasifier was operated at variable load condition to meet the demand and to check the reliability Gas Flow rate : kg/hr Gasifier pressure: 3-7 kg/Sq. cm Temperature: deg C Calorific Value of Syngas: Kcal/Nm3
46
Fly Ash Recycle Studies
BHEL has experience of fly ash recycle with non mechanical valves in CFBC boiler To improve carbon conversion, the system was adopted in Gasifier System incorporated in CCDP . Unburnt carbon was reduced from about % to 12 % Cold Model Studies in Corporate R&D Tests in 200 mm rig after incorporating Loop seal Cold Model
47
Fly Ash Recycle System with loop seal
CFBC Facility CCDP Gasifier
48
Effect of Recycle on Fly Ash Un-burnt Carbon
50
PICTORIAL VIEW OF HPTGA FACILITY
51

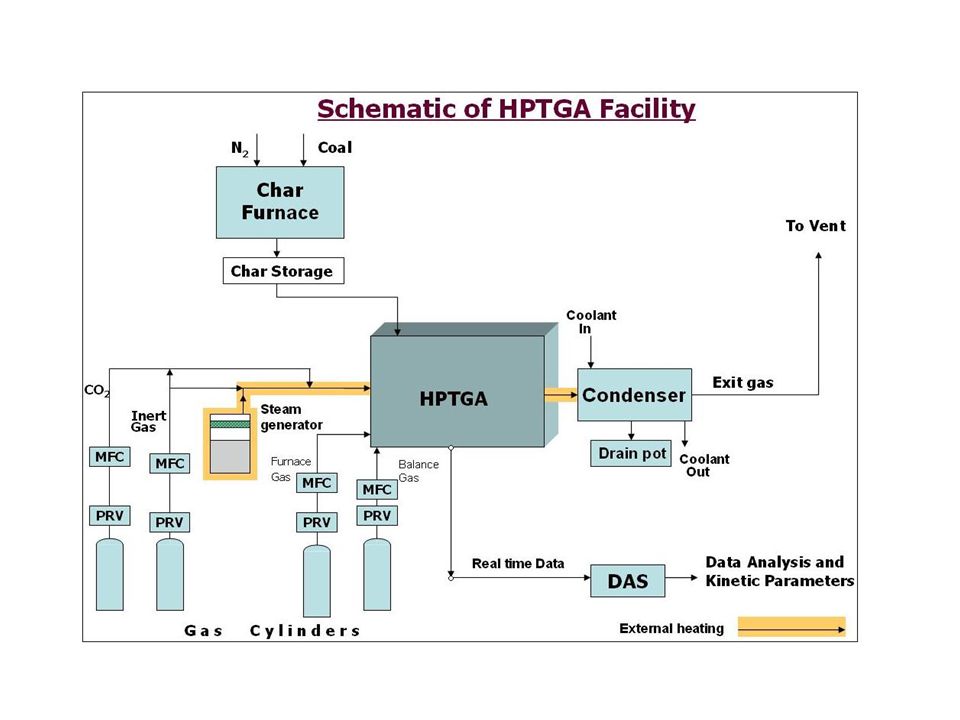

PARAMETERS OF KINETIC EXPERIMENTS
Gasification Reactions Parameters 1 2 3 Total system pressure Bar 1.5 10 30 Sample temperature oC 900 1000 1050 Reactants Steam Carbon dioxide Hydrogen Reactant concentration (Nitrogen diluent) Mole % 15 40 100
52
DEVELOPMENT OF GASIFICATION RATE EQUATION
Empirical nth order kinetics
53

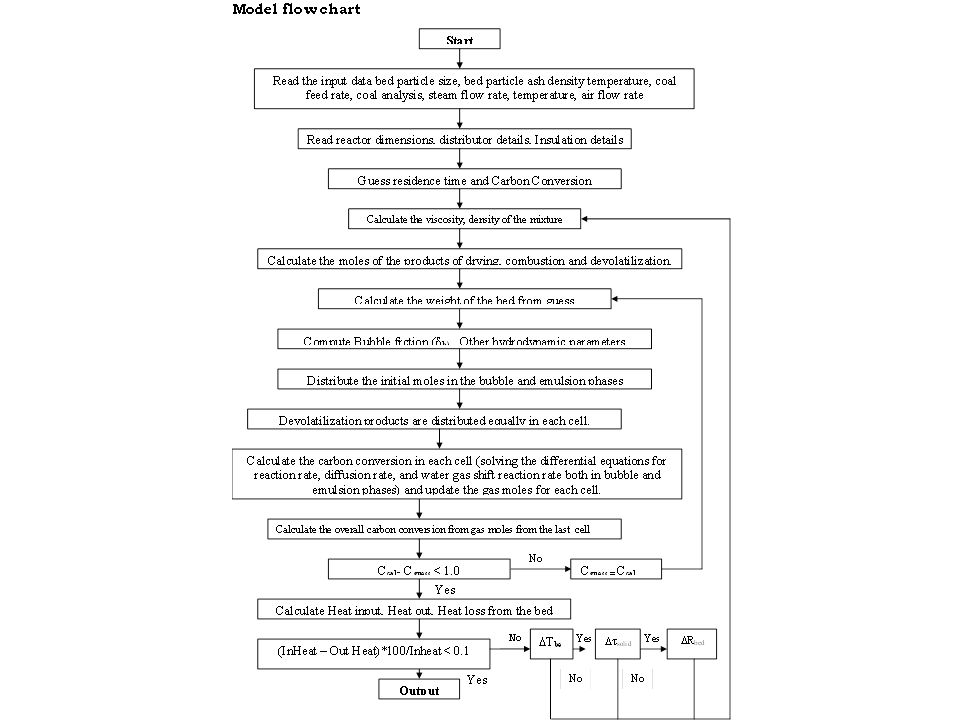

PFBG PHENOMENOLOGICAL MODEL
It is an one dimensional steady state model It incorporates fluid bed hydrodynamics. Two phase theory of fluidisation has been assumed Reaction kinetic models for three gasification reactions are considered Combustion reactions and coal devolatilisation rections are assumed to be instantaneous The model provides specific gas yield and gas composition as well as heat and mass balance for each stream as well as each component
54
TWO – PHASE MODEL REPRESENTATION
Mass Exchange H Ub Umf Product gas
55
PHENOMENA IN THE REACTION ZONE
Product gas
57
Indo-Japan Workshop on Clean Coal Technology
Gasification characteristics of Indian Coal & IGCC COMPARISON OF GAS COMPOSITION (CCDP PLANT) 14/11/2011 Indo-Japan Workshop on Clean Coal Technology
58
Indo-Japan Workshop on Clean Coal Technology
Gasification characteristics of Indian Coal & IGCC COMPARISON OF GAS COMPOSITION (APFBG PLANT) 14/11/2011 Indo-Japan Workshop on Clean Coal Technology
59
125 MW IGCC Demonstration Plant Initiative by Principal Scientific Advisor to GOI
The PSA’s office set up R&D Committee under the chairmanship of the Scientific Secretary to oversee the development of IGCC and setting up the first ~100 MW demonstration plant in India Members from the PSA’s office, NTPC, DST, CSIR, DAE & BHEL The Committee noted that IGCC with Pressurised Fluidised Bed Gasification(PFBG) is ideally suited for Indian coals There is not much international experience with PFBG Experience in BHEL’s three R&D plants and new experiments as required shall form the basis to validate the design of ~ 100 MW plant
60
Performance parameters selected by R&D Committee
Carbon Conversion Efficiency 85 % Cold Gas efficiency 71 % Gross Efficiency 39% Gas Calorific Value Kcal/NM3 Broad Operating range with good availability factor, long term operating experience A working group was constituted to validate the 100 MW design of BHEL The group was headed by DAE with representatives from NTPC and BHEL
61
Gasification & IGCC Development
in BHEL A national level committee chaired by Scientific Secretary to the PSA to GOI and members from NCL, IICT, BARC, NTPC, BHEL reviewed the status and set performance targets for installating commercial scale IGCC The committee participated in the tests in the facilities, analysed the data and concluded that the targeted performance have been met the feasibility of scaling up the pilot plant is established The committee recommended that a commercial scale IGCC plant be installed The committee also suggested that the tests in the pilot plant continue to improve performance further
62
Tests at Corporate R&D Working group participated in the following tests in the 200 mm facility at BHEL’s Corporate R&D X-Ray Radiography studies Radio Tracer Study Gasification Tests with various mean particle size fluidisation velocity steam to coal ratio air to coal ratio bed temperature
63
Working Group Activities
Completed Working Group Activities X-ray radiography studies in cold model ( 100 mm dia) fluidizer at BARC to study the bubble hydrodynamics. ANN model for data analysis. Solid tracer studies in 200 mm PFBG for residence time distribution. Gasification experiments for Dadri coal in 200 mm PFBG. Basic phenomenological model of PFBG. Basic scale up criteria evolved. Interim report submitted to R&D Committee.
64
Conclusions & Recommendations of R&D Committee
Results of the experiments at the 6.2 MWe IGCC at BHEL are close to the values set by the R&D Committee. Technical Feasibility of upgrading 6.2 MW CCDP/BHEL to ~100 MW established The DPR may be prepared by ED/BHEL, Tiruchy Complex and ED/Energy Technologies/NTPC within three months (Jan 06) Notwithstanding the DPR preparation work, all further experimental work, required to be done on the 6.2 MWe IGCC for addressing the remaining technical issues, should be continued by the Working Group specifically, chairman/ R&D Committee opined that Loop Seal method to be tried in CCDP to reduce un burnt carbon in fly ash
65
Scale up of Gasifier Parameters Unit APFBG PEDU CCDP 125 MW NTPC
182 MW APGENCO Gasifier Internal dia m 0.20 0.45 1.10 3.20 3.65 Coal Throughput tons / day 1.2 18 168 1860 2259 Gasification temperature o C 1000 1025 Gasification Pressure Kg/cm2(a) 2.00 10.0 30 28 Scale-up ( Successive plants) Diameter Ratio 1 : 1 1 : 2.25 1 : 3.3 1 : 2.91 1 : 1.14 1 : 15 1 : 9.33 1 : 11.1 1 : 1.21 Pressure 1 : 5 1 : 1.3 1 : 2.31 1 : 0.9
66
APPROACH FOR GASIFIER SCALE-UP DESIGN
Pilot Plants 1.2 – 4 ata 200 – 450 mm Dia CCDP (6.2 MW) 8 – 10 ata 1.1 m Dia Design of 28 ata 3.65 m dia 182 MW IGCC 30 ata testing Simulation model for size Scale up Design of 30 ata 3.20 m dia 125 MW IGCC * Phenomenological model of PFBG Validation with pilot plant & CCDP data using reactivity, hydrodynamics at corresponding pressure & temp. Validated simulation model updation with 30 ata reactivity data and hydrodynamics, corrected for pressure & temp. Gasification reactivity data 1.2, 10, 30 ata Using HP TGA * Gasifier Design was reviewed by Team of experts from IIT-Chennai, NIT-Trichy & Prof Bo leckner, Chalmers University, Sweden
67
GASIFIER SCALE-UP DESIGN
Cont.. Back up experience and data from BHEL’s gasifier pilot plants and CCDP cold Model support studies. Both geometrical and pressure scale adopted in designing the gasifier for 182 MW IGCC from 6.2 MW CCDP. Modeling techniques used for scale up adopting all parameters at the corresponding pressure and temperatures Simulation modeling is widely applied for scale up of fluidized bed reactors from pilot plant data (HTW gasifier scaled up from 1.5 – 10 ata, 10 – 25 ata higher capacity gasifier and subsequently to gasifier for 440 MW IGCC) Power block is well proven and is backed up by GE (vendor) System integration made using the operational experience of CCDP which has most of the integration features of 182 MW IGCC. Steady state integration checked through simulation using ASPEN plus software.
68
Scale up of Gasifier for IGCC – BHEL’s approach
Geometrical - 1:1.14 Capacity : 1.21 Pressure :0.9 182MW IGCC Scale up: Geometrical - 1: 2.91 Capacity : 11.1 Pressure :3 125MW IGCC APGENCO Vijayawada Scale up: Geometrical - 1: 3.3 Capacity : 9.33 Pressure :1.2 NTPC Auraiya 6.2MW CCDP Scale up: Geometrical - 1: 2.25 Capacity : 15 Pressure :5 * VETTED BY A DESIGN REVIEW TEAM (Prof. Bo Leckner, Sweden; 3 members from IIT,Chennai; 1 member from NIT, Trichy) Tiruchy 18 TPD (PEDU) Dia m Press 2.0 ata Corp. R&D, Hyderabad 1.2 TPD (APFBG) Corp R&D Hyderabad
69
External Support IIT M - Chennai
CFD Modeling and investigation of gasification to optimize methodology for scaling up CFD Study of Gasifier along with fly Ash Recycle loop Analysis of Heat Recovery System Finite Element Analysis of the System – for stress levels Chalmers University - Sweden Design Review of Large scale Gasification System by Prof. BoLeckner
70
SHORT TERM / MID TERM PLANS FOR IGCC GROUP
Medium temperature gas clean up for IGCC Performance evaluation for Dynamic Classifier Hydrogen production from coal gas Reactivity studies for different candidate coals Development if Integrated Gasification Fuel Cell System for power generation Participation in 182 MW IGCC testing and data analysis Basic engineering of 450 MW IGCC power plant
71
Bench Scale Test Facility
MEDIUM TEMPERATURE MULTI-CONTAMINANT GAS CLEANUP FOR COAL GAS AND IGCC APPLICATIONS Phase 1 OBJECTIVE Develop a Medium Temperature Gas Cleanup System for IGCC for removal of Ammonia, Alkalis and Sulphur Work to be carried out at an existing Test facility available at IICT Using expertise of IICT in the area of Sorbent development. Sorbent developed to be coated on a Ceramic Honeycomb made by CTI, Bangalore with coating methodology to be developed by CPRI Bangalore STATUS MoU s’ signed with IICT Hyderabad and CPRI Bangalore Bench-scale as well as Lab-Scale setups ready for experimentation at IICT Preliminary identification of Sorbents for all the three contaminants (Ammonia, Sulphur and Alkalis ) through literature carried out and a report made Experiments for Ammonia Cleanup being carried out in the Lab-scale Sorbents tested for Ammonia sorption are :- Zinc Oxide on Activated Carbon and Alumina, Nickel Oxide on Titania at 500OC and 1 to 5 Kg/cm2 System Pressure The first phase of the project has been completed. Lab Scale Test Setup Bench Scale Test Facility
72
CORE STRENGTH OF IGCC GROUP
Pilot scale process development of fluidized bed gasification and combustion of coal, lignite and other low grade fuels Modeling and simulation of fluidized bed gassifier for design and performance prediction Scale-up methodology for commercial size PFBG plants Reactivity studies and derivation of kinetic parameters for gasification and other reactions Development of Hot Gas Clean-up Systems including circulating granular bed filter, candle filter for IGCC and related applications Software development capabilities for real time Data Acquisition System, process and performance evaluations Expertise in handling gasification and combustion related analytical instruments
73
PRODUCTS AND SYSTEMS DEVELOPED / COMMERCIALESED IN BHEL
Process and engineering document for coal gasification and combustion for setting up pilot plant test facility for ESKOM, South Africa Detailed technical report for 125/182 MW IGCC for NTPC/APGENCO
74
Coal Research Center Objective
Characterization of Coals, Biomass for predicting combustion, slagging, blending, emission and gasification Creating coal sample bank Outlay crores Status All equipment ordered; 14 received; commissioning to begin in Sep 10 Drop Tube Furnace to be developed in house with support from experts Building nearing completion Specialist Engineers undergoing training Lateral Induction being expedited Other Activities Identify expertise within the country and outside for networking, collaborative / joint working, short/long term availability (sabbatical) Identify additional equipment required and initiate action Membership in EPRI “Coal Fleet for tomorrow” program
75
To sum up In India, coal will be the dominating fuel feed stock for IGCC BHEL has hands - on experience in design, engineering, fabrication, erection and testing of both moving - bed and pressurised - fluidized-bed gasifier ( PFBG ) systems and their integration to IGCC
76
COAL RESEARCH FACILITY
77
View of the Gasifiers at BHEL, Tiruchy
78
Coal Research Facilities at Moula-Ali, Hyderabad
79
PFBC & HGCS Facilities
80
18 TPD PFBG Pilot Plant
81
PEDU
82
6 TPD Coal PFBC Test Facility
83
Overall View of AFBC Test Rig
84
Sorbent Reactivity Test Apparatus
85
Different Views of APFBG Pilot Plant
86
200 mm Dia Fluidizer Perspex Model
87
880 mm Dia Fluidizer
