2. Inside the Earth

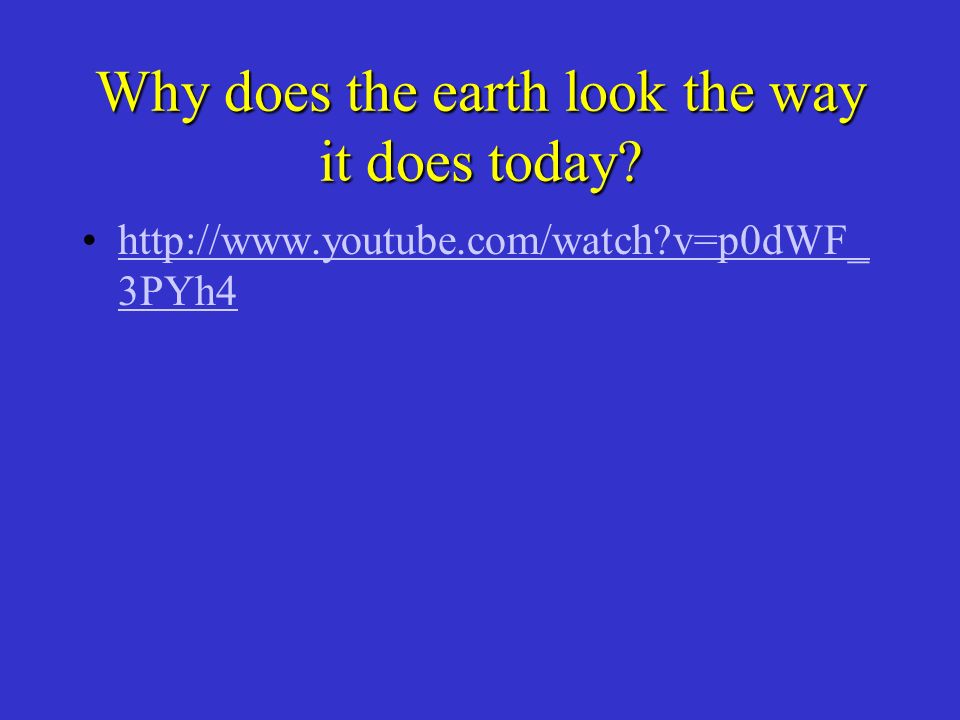

3. Why does the earth look the way it does today? http://www.youtube.com/watch?v=p0dWF_ 3PYh4http://www.youtube.com/watch?v=p0dWF_ 3PYh4

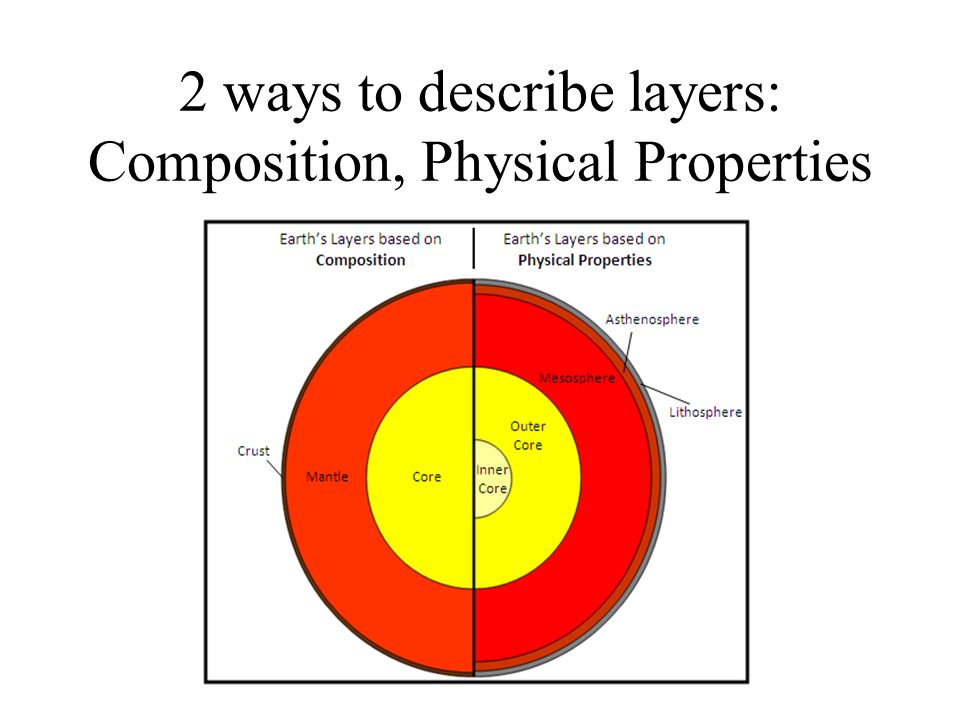

4. 2 ways to describe layers: Composition, Physical Properties

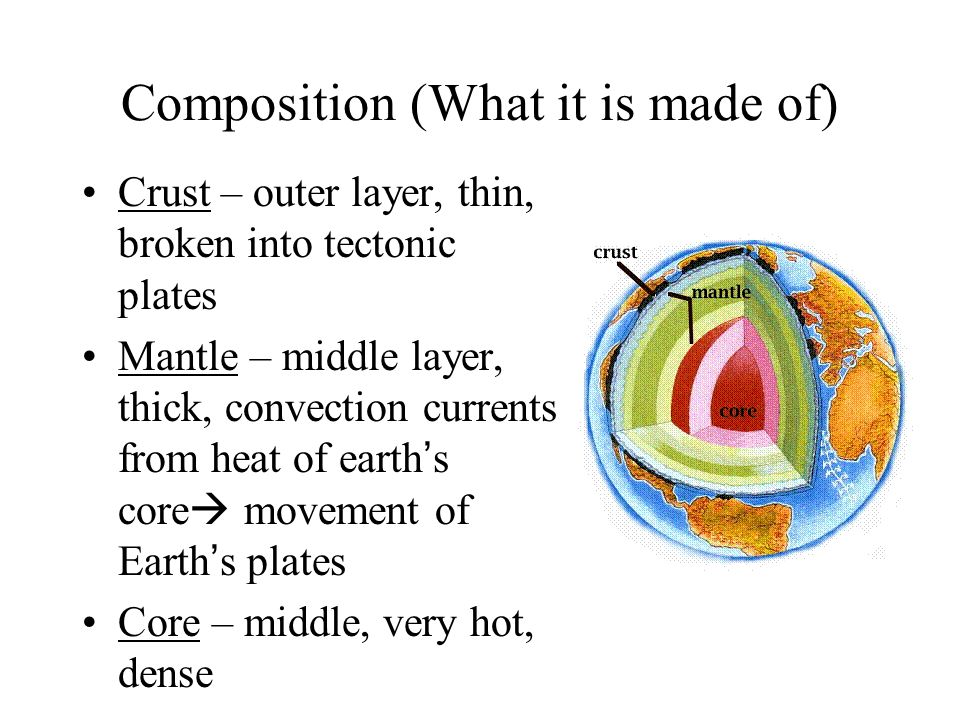

5. Composition (What it is made of) Crust – outer layer, thin, broken into tectonic plates Mantle – middle layer, thick, convection currents from heat of earth’s core  movement of Earth’s plates Core – middle, very hot, dense

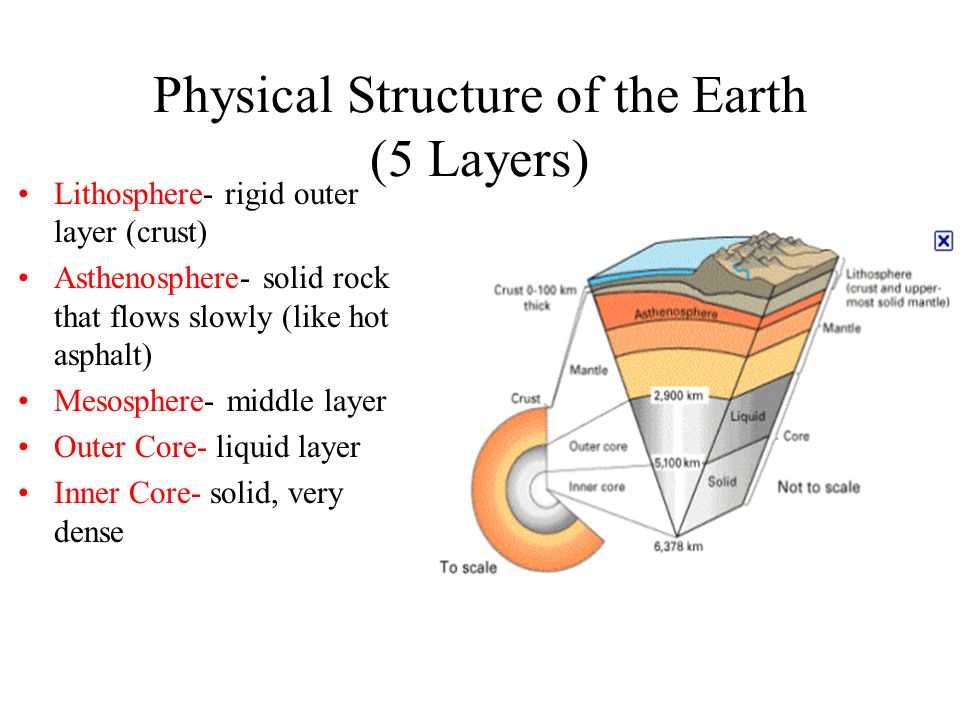

6. Physical Structure of the Earth (5 Layers) Lithosphere- rigid outer layer (crust) Asthenosphere- solid rock that flows slowly (like hot asphalt) Mesosphere- middle layer Outer Core- liquid layer Inner Core- solid, very dense

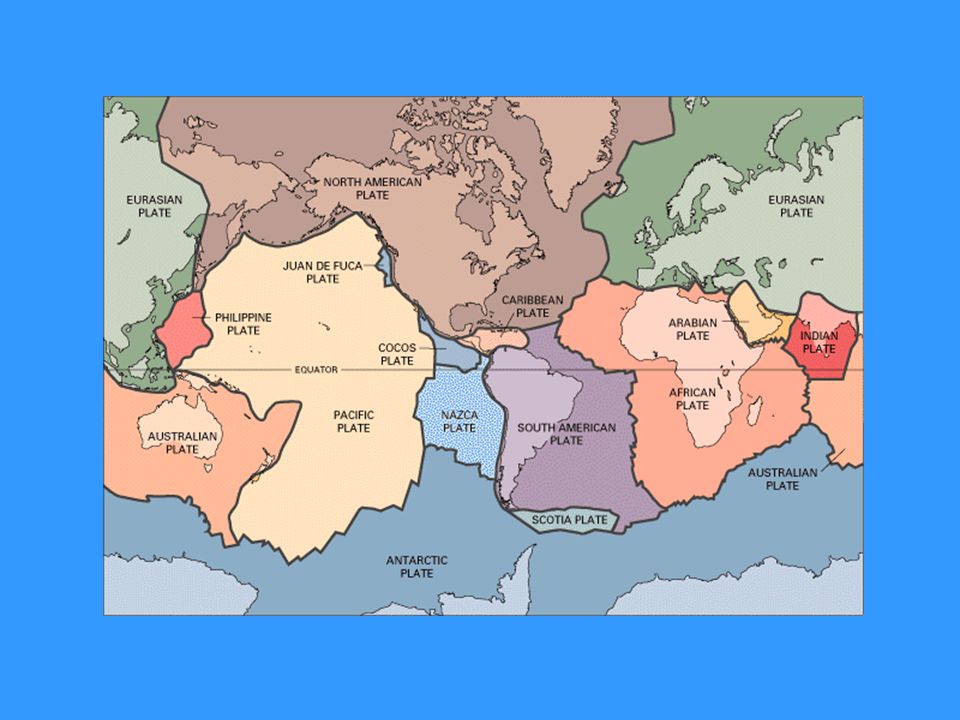

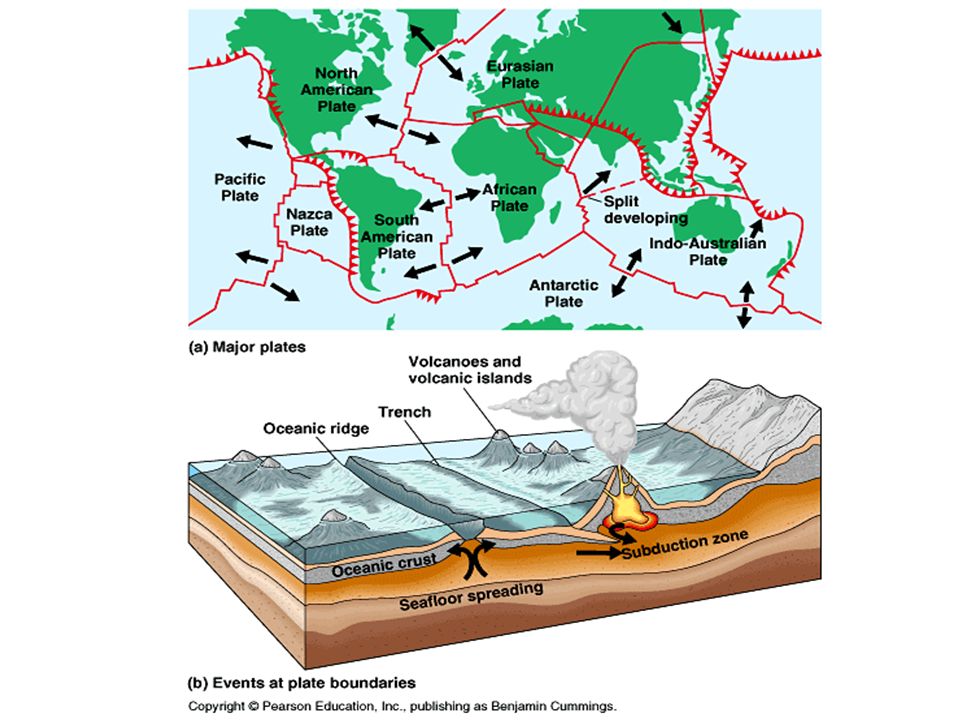

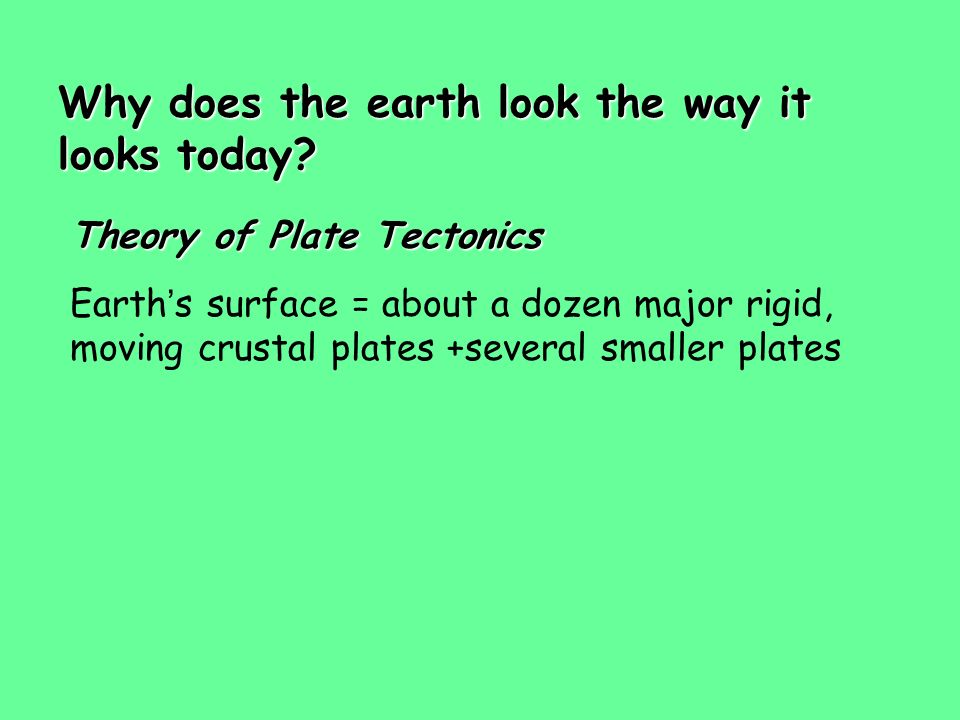

8. Why does the earth look the way it looks today? Theory of Plate Tectonics Earth’s surface = about a dozen major rigid, moving crustal plates +several smaller plates

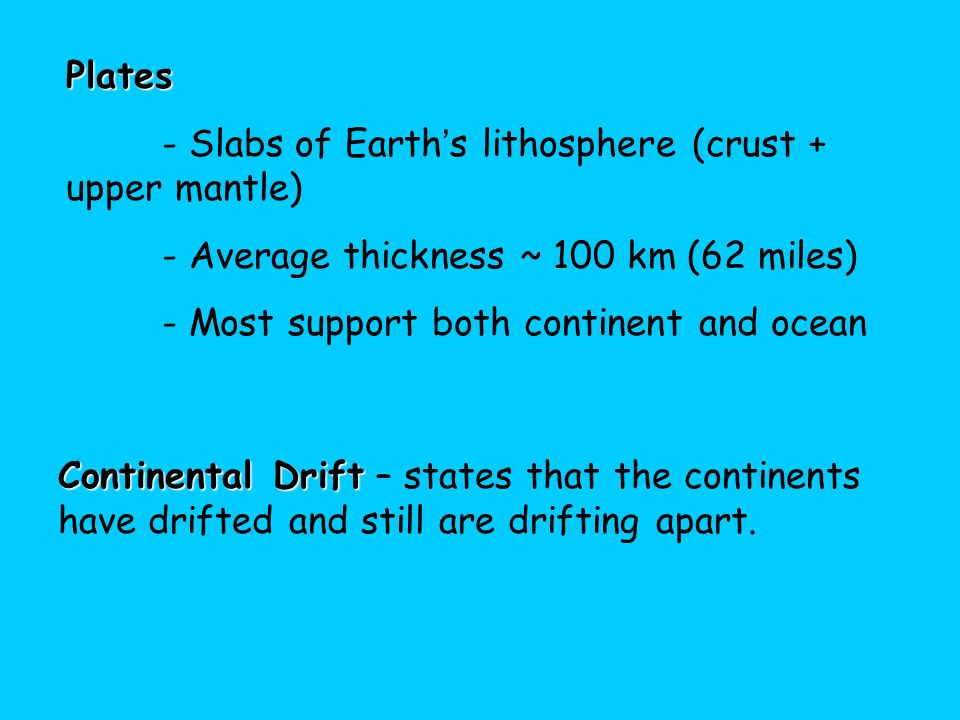

10. Plates - Slabs of Earth’s lithosphere (crust + upper mantle) - Average thickness ~ 100 km (62 miles) - Most support both continent and ocean Continental Drift – states that the continents have drifted and still are drifting apart.

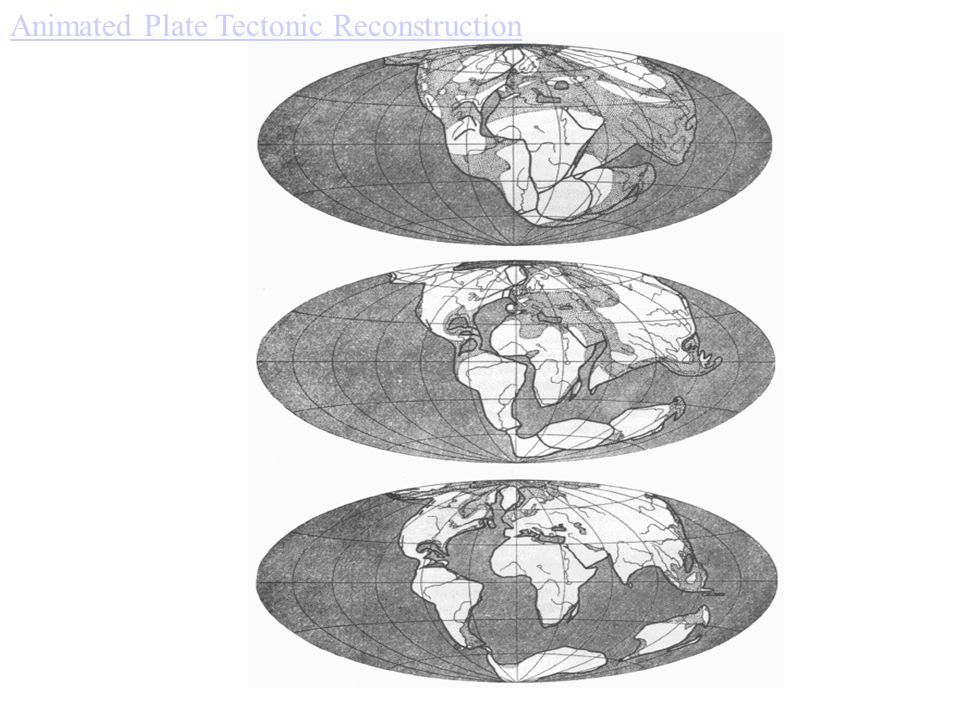

11. Animated Plate Tectonic Reconstruction

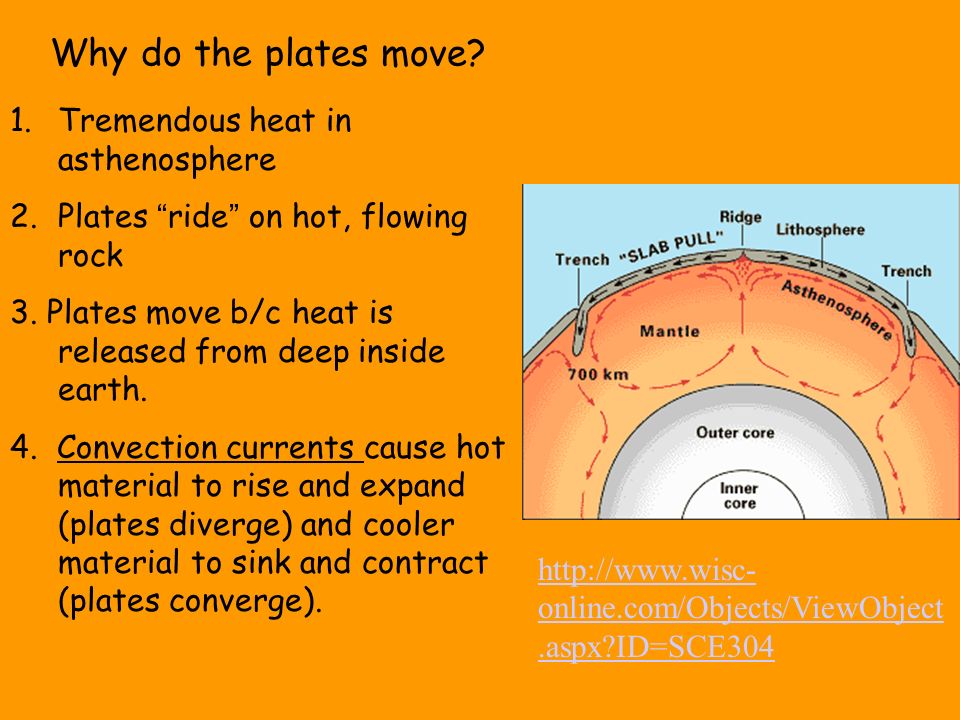

12. Why do the plates move? 1.Tremendous heat in asthenosphere 2.Plates “ride” on hot, flowing rock 3. Plates move b/c heat is released from deep inside earth. 4. Convection currents cause hot material to rise and expand (plates diverge) and cooler material to sink and contract (plates converge). http://www.wisc- online.com/Objects/ViewObject.aspx?ID=SCE304

14. Alfred Wegener Wegener – proposed that in the distant past, the Earth’s continents were all joined as a single landmass.

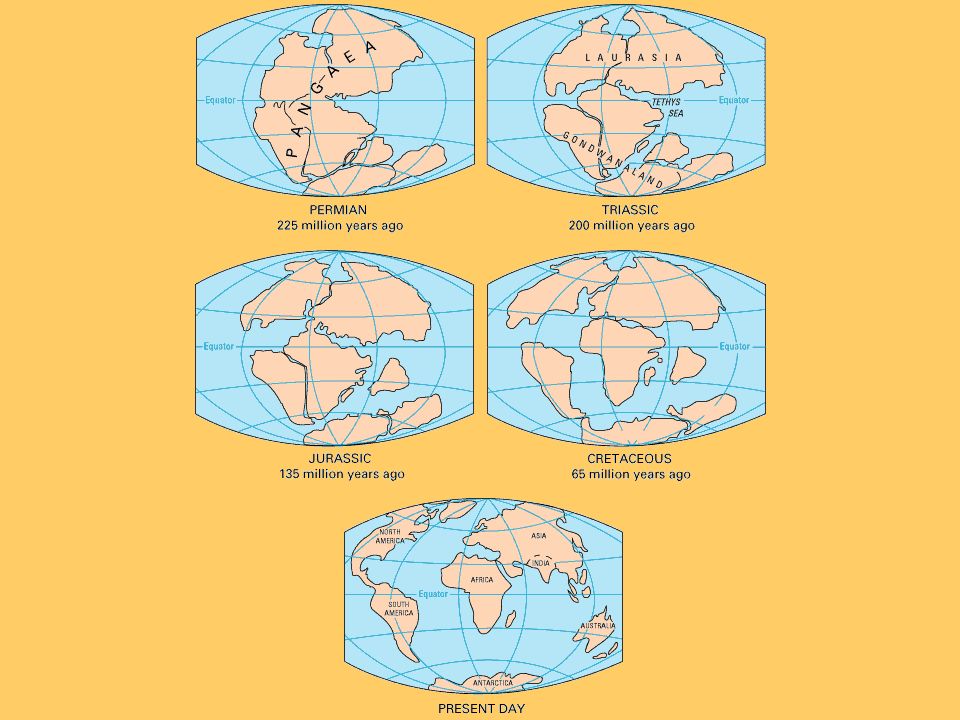

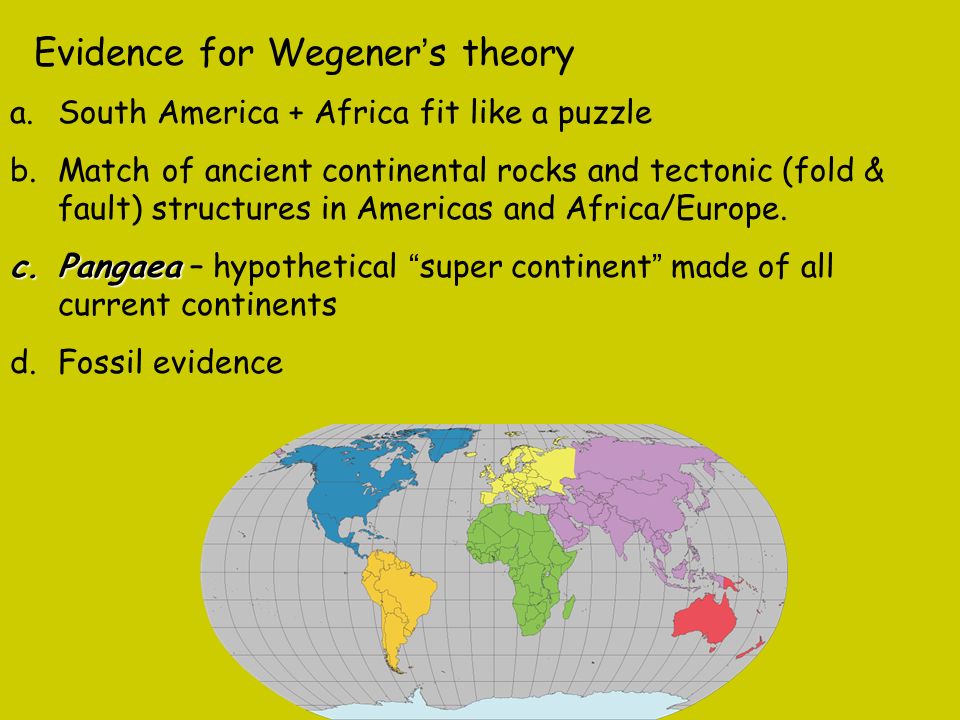

15. Evidence for Wegener’s theory a.South America + Africa fit like a puzzle b.Match of ancient continental rocks and tectonic (fold & fault) structures in Americas and Africa/Europe. c.Pangaea c.Pangaea – hypothetical “super continent” made of all current continents d.Fossil evidence

16. Fossil Evidence

17. What do you think of this theory and the evidence behind it? Turn and talk with the people at your table to discuss the strengths and weaknesses of Wegener’s ideas

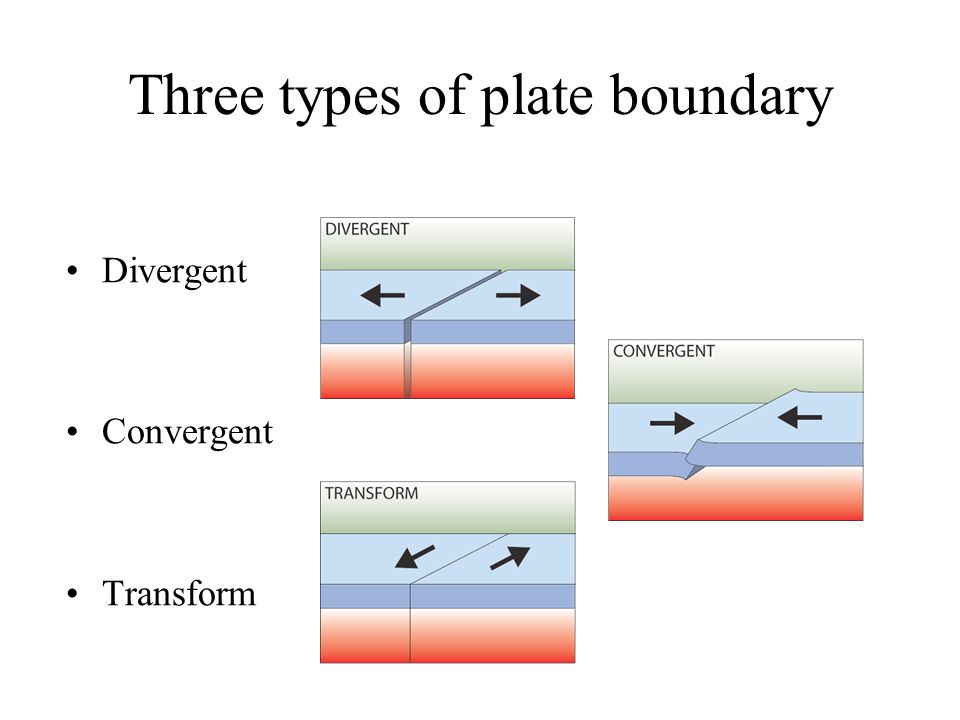

19. Divergent Convergent Transform Three types of plate boundary

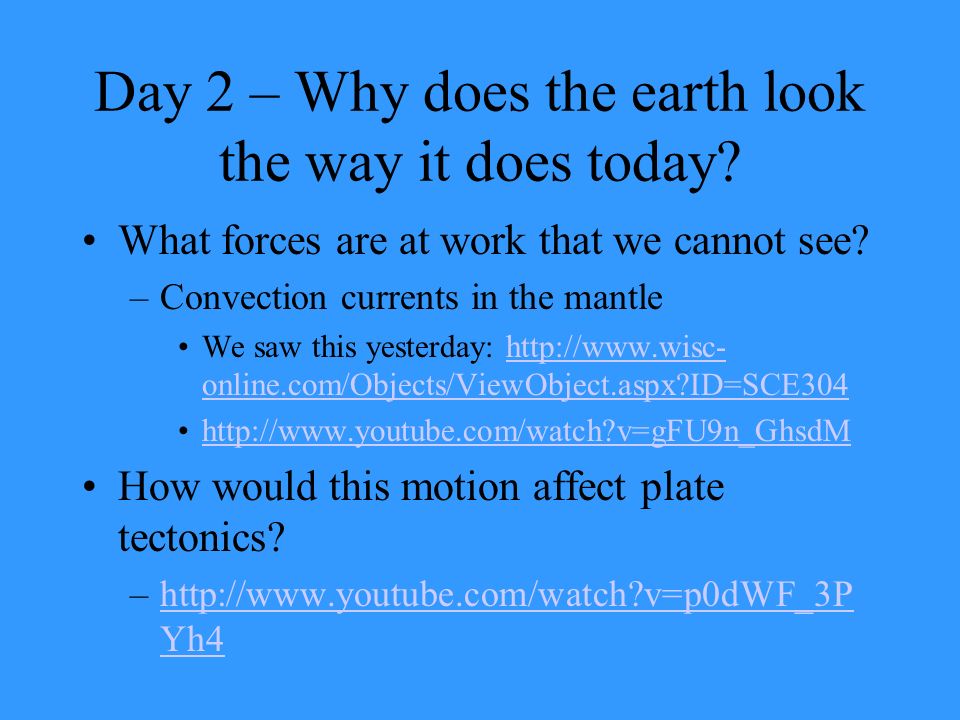

20. Day 2 – Why does the earth look the way it does today? What forces are at work that we cannot see? –Convection currents in the mantle We saw this yesterday: http://www.wisc- online.com/Objects/ViewObject.aspx?ID=SCE304http://www.wisc- online.com/Objects/ViewObject.aspx?ID=SCE304 http://www.youtube.com/watch?v=gFU9n_GhsdM How would this motion affect plate tectonics? –http://www.youtube.com/watch?v=p0dWF_3P Yh4http://www.youtube.com/watch?v=p0dWF_3P Yh4

21. Divergent Convergent Transform Three types of plate boundary

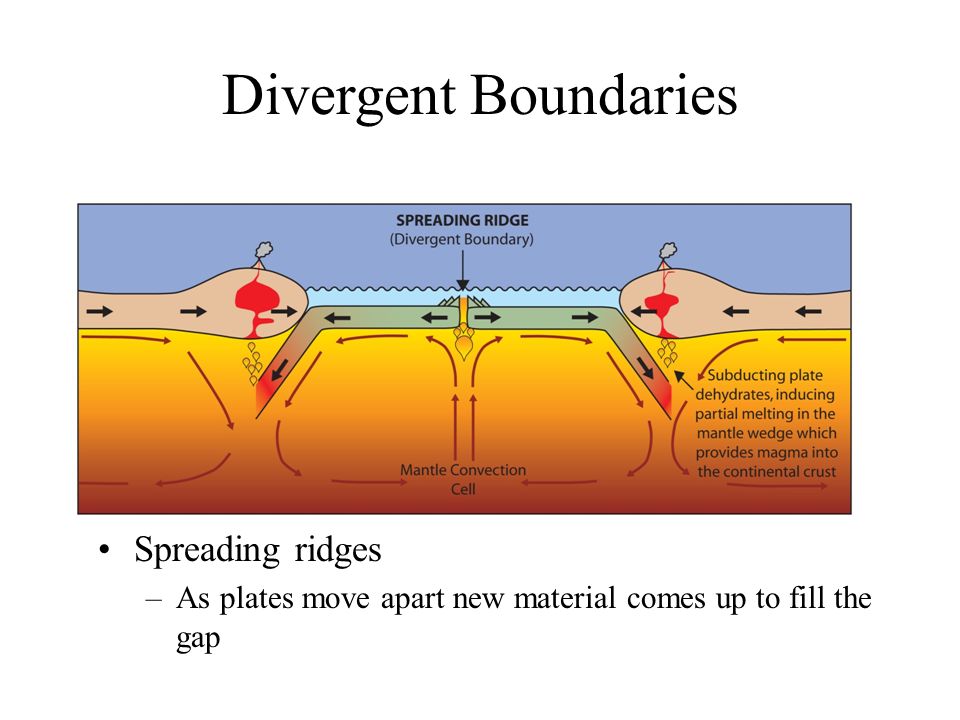

22. Spreading ridges –As plates move apart new material comes up to fill the gap Divergent Boundaries

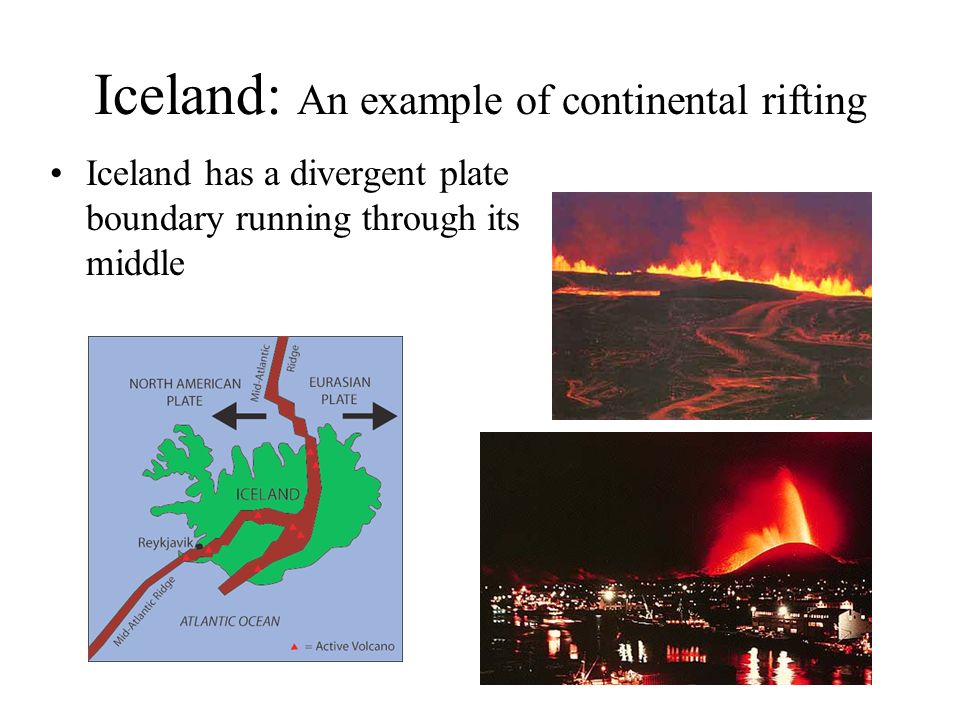

23. Iceland has a divergent plate boundary running through its middle Iceland: An example of continental rifting

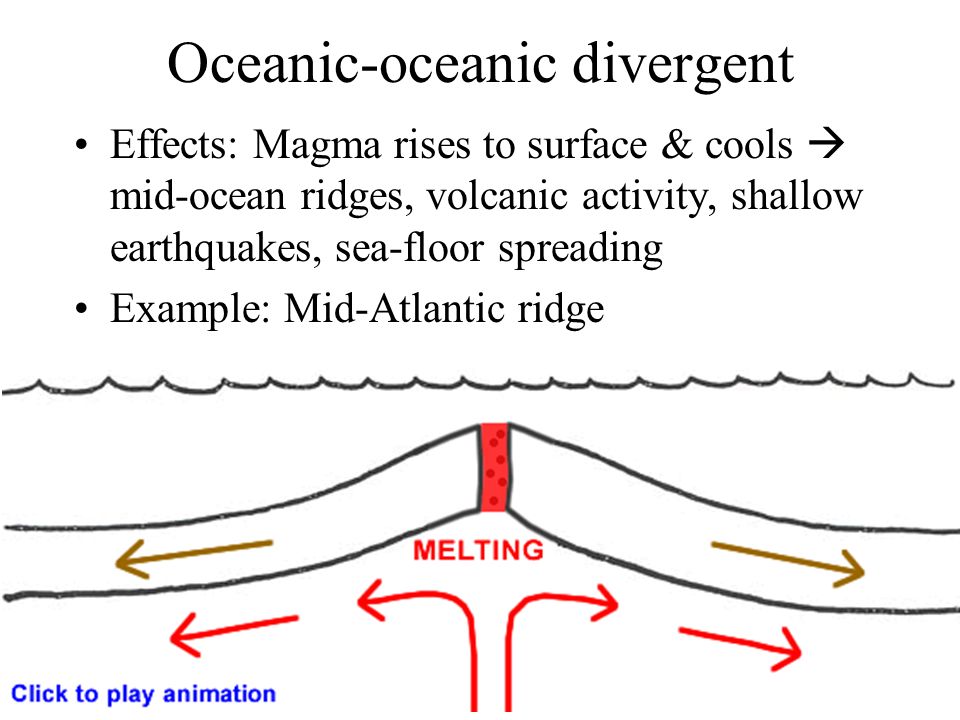

24. Oceanic-oceanic divergent Effects: Magma rises to surface & cools  mid-ocean ridges, volcanic activity, shallow earthquakes, sea-floor spreading Example: Mid-Atlantic ridge

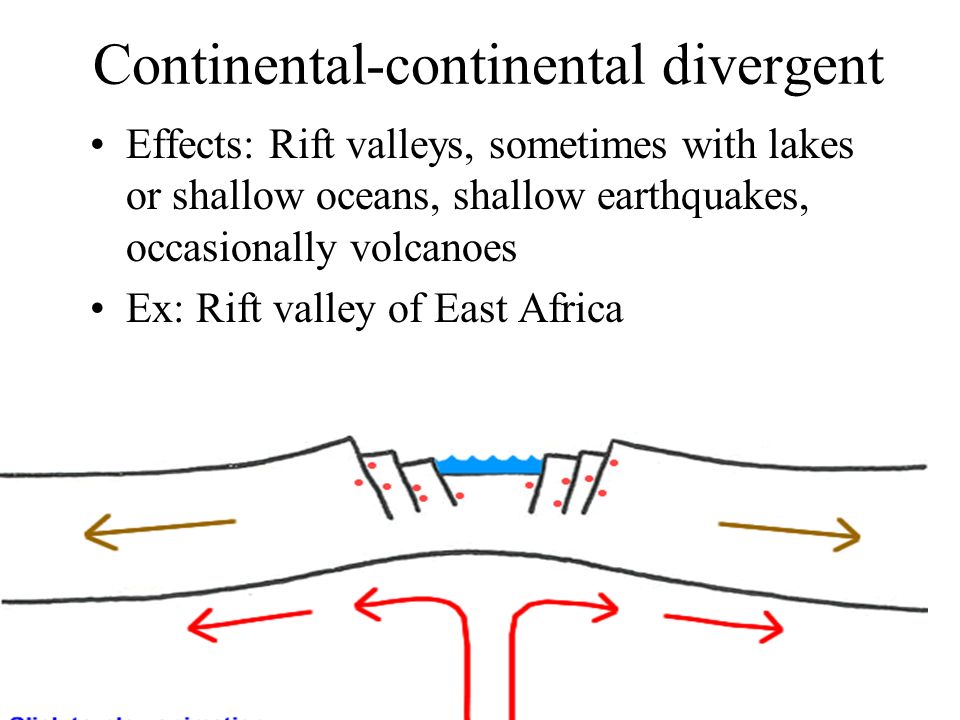

25. Continental-continental divergent Effects: Rift valleys, sometimes with lakes or shallow oceans, shallow earthquakes, occasionally volcanoes Ex: Rift valley of East Africa

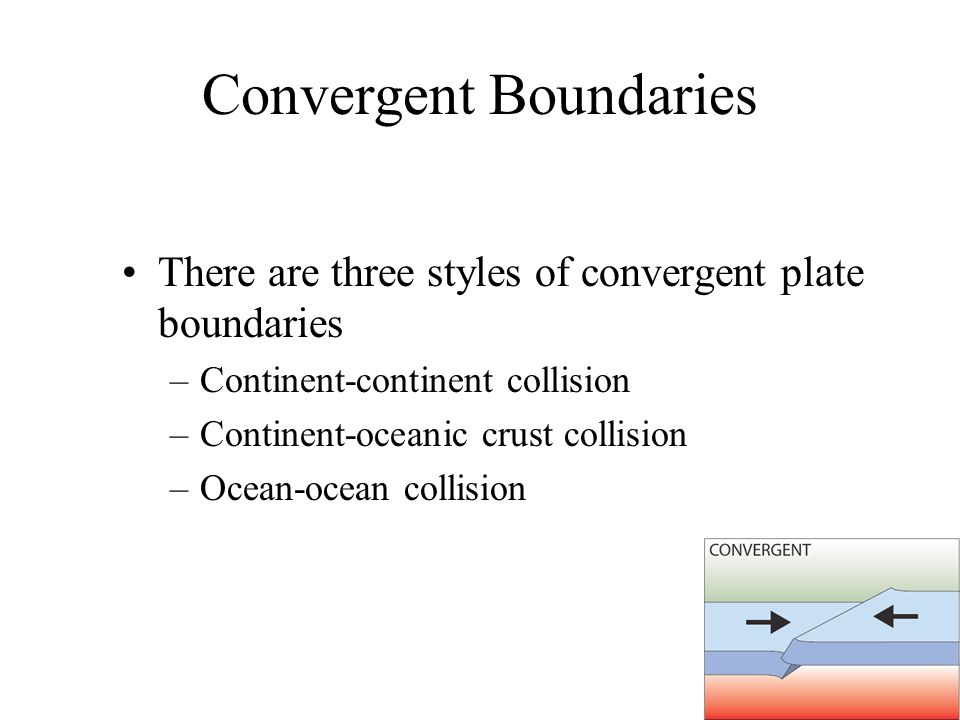

26. There are three styles of convergent plate boundaries –Continent-continent collision –Continent-oceanic crust collision –Ocean-ocean collision Convergent Boundaries

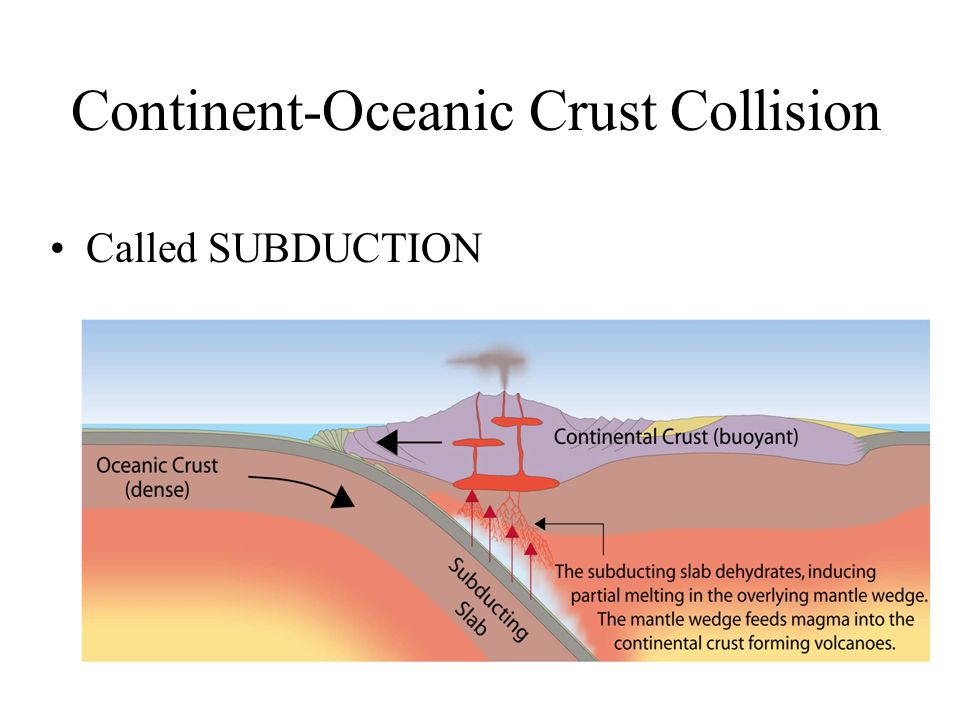

27. Called SUBDUCTION Continent-Oceanic Crust Collision

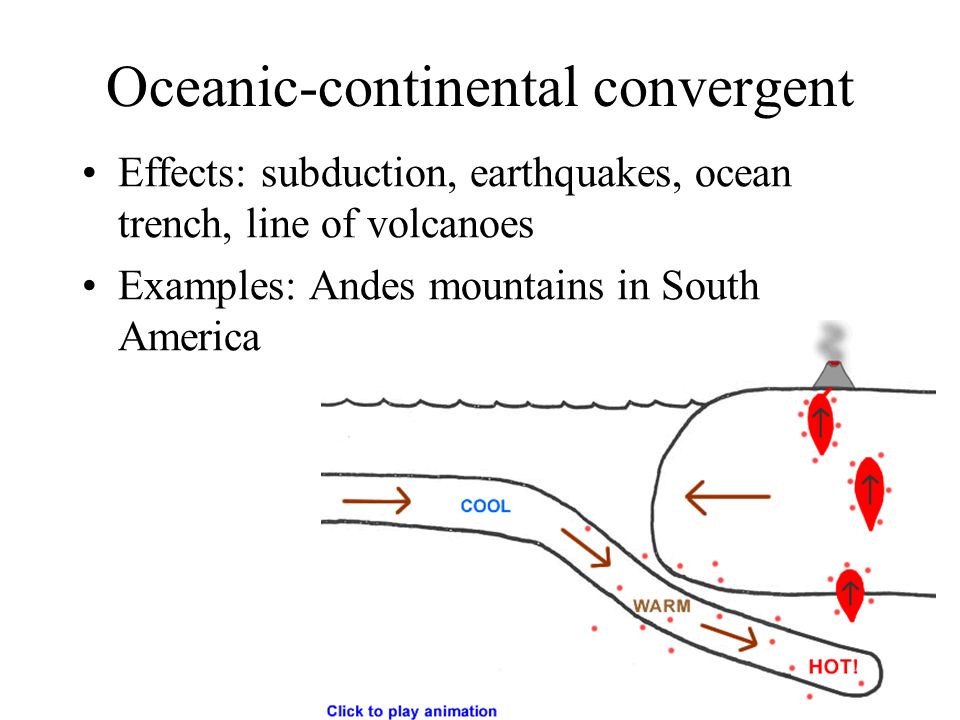

28. Oceanic-continental convergent Effects: subduction, earthquakes, ocean trench, line of volcanoes Examples: Andes mountains in South America

29. When two oceanic plates collide, one runs over the other which causes it to sink into the mantle forming a subduction zone. The bottom plate bends down to form a trench. The world’s deepest parts of the ocean are found along trenches. –E.g. The Mariana Trench is 11 km deep! Ocean-Ocean Plate Collision

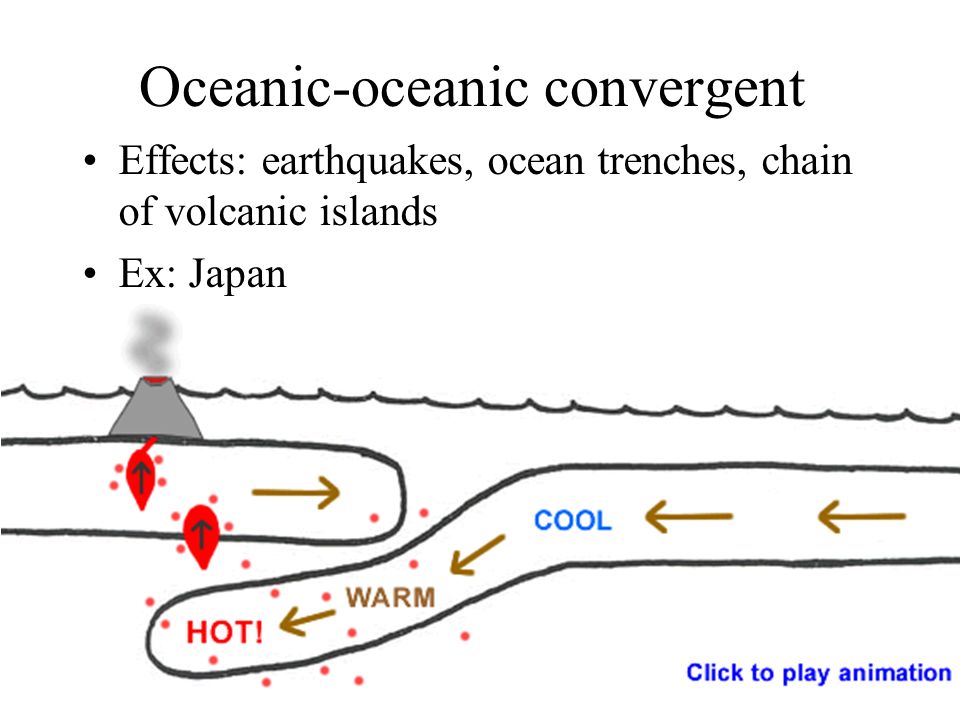

30. Oceanic-oceanic convergent Effects: earthquakes, ocean trenches, chain of volcanic islands Ex: Japan

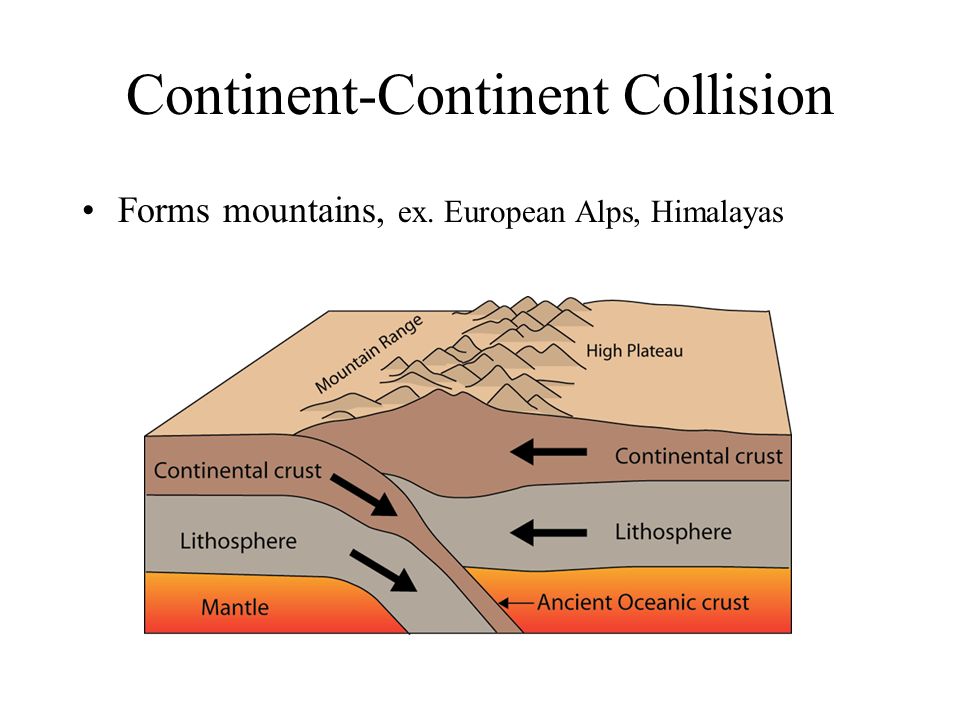

31. Forms mountains, ex. European Alps, Himalayas Continent-Continent Collision

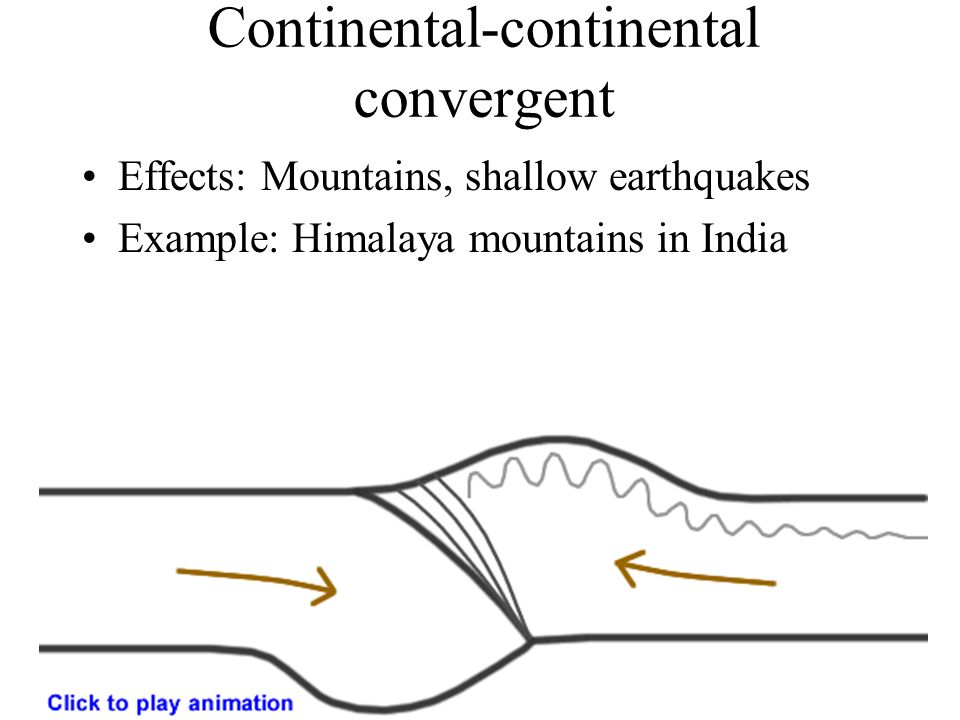

32. Continental-continental convergent Effects: Mountains, shallow earthquakes Example: Himalaya mountains in India

33. Himalayas

34. Where plates slide past each other Transform Boundaries Above: View of the San Andreas transform fault

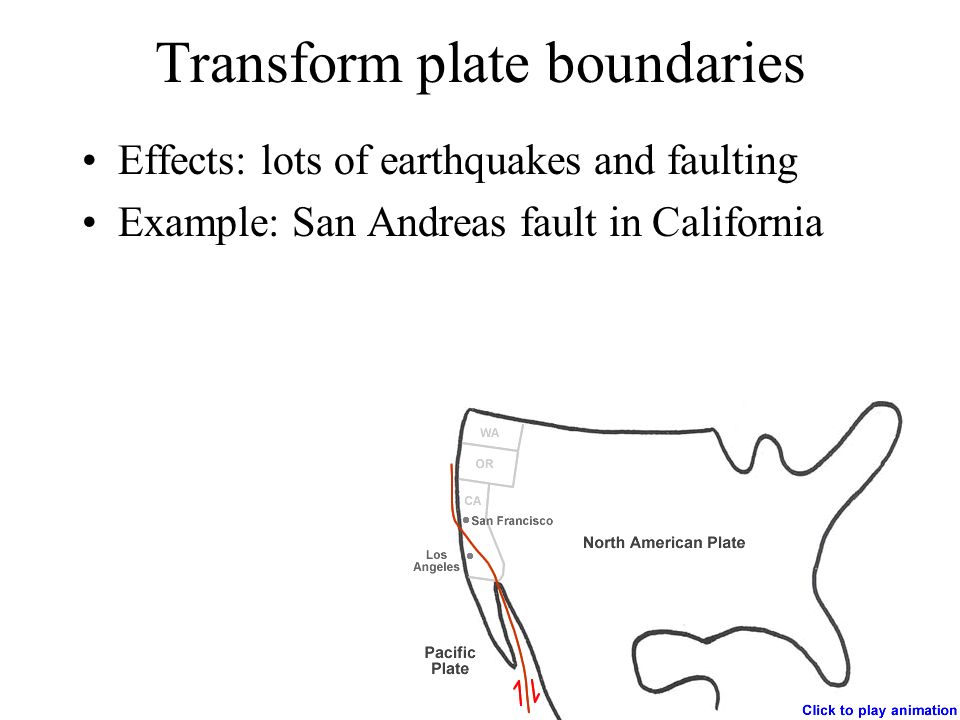

35. Transform plate boundaries Effects: lots of earthquakes and faulting Example: San Andreas fault in California

37. Earth on the Move Earth Structure & Plate Tectonics Notes

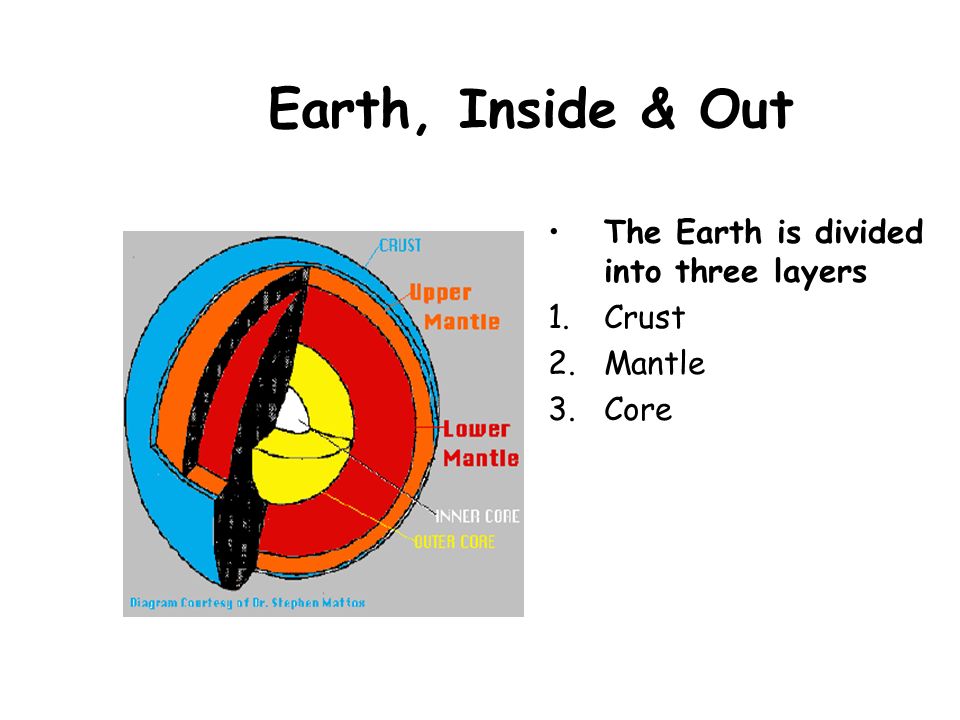

38. Earth, Inside & Out The Earth is divided into three layers 1.Crust 2.Mantle 3.Core

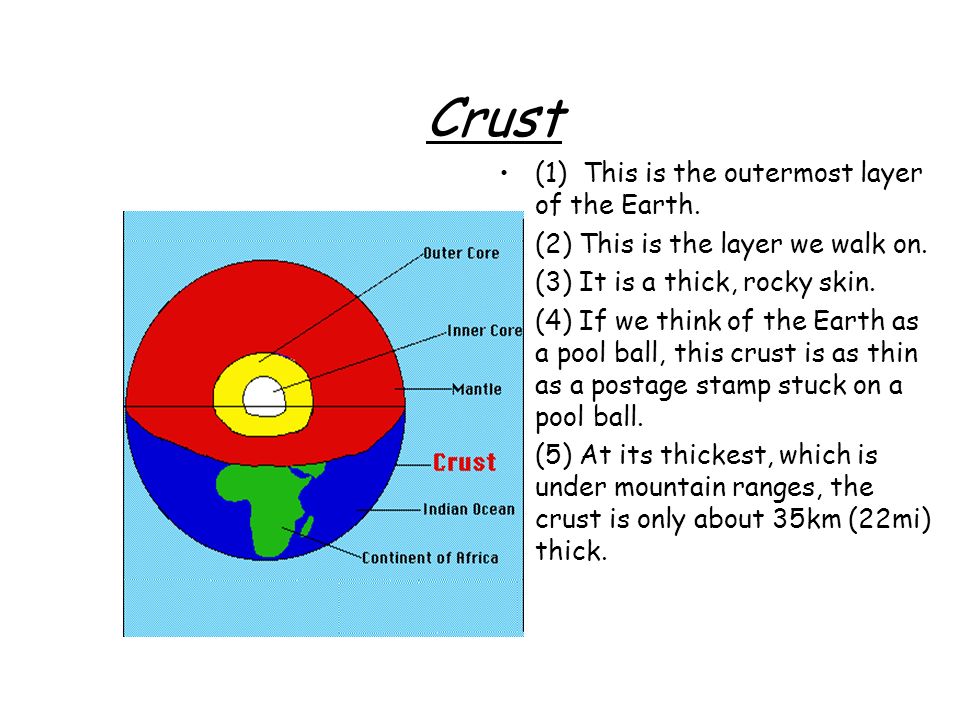

39. Crust (1) This is the outermost layer of the Earth. (2) This is the layer we walk on. (3) It is a thick, rocky skin. (4) If we think of the Earth as a pool ball, this crust is as thin as a postage stamp stuck on a pool ball. (5) At its thickest, which is under mountain ranges, the crust is only about 35km (22mi) thick.

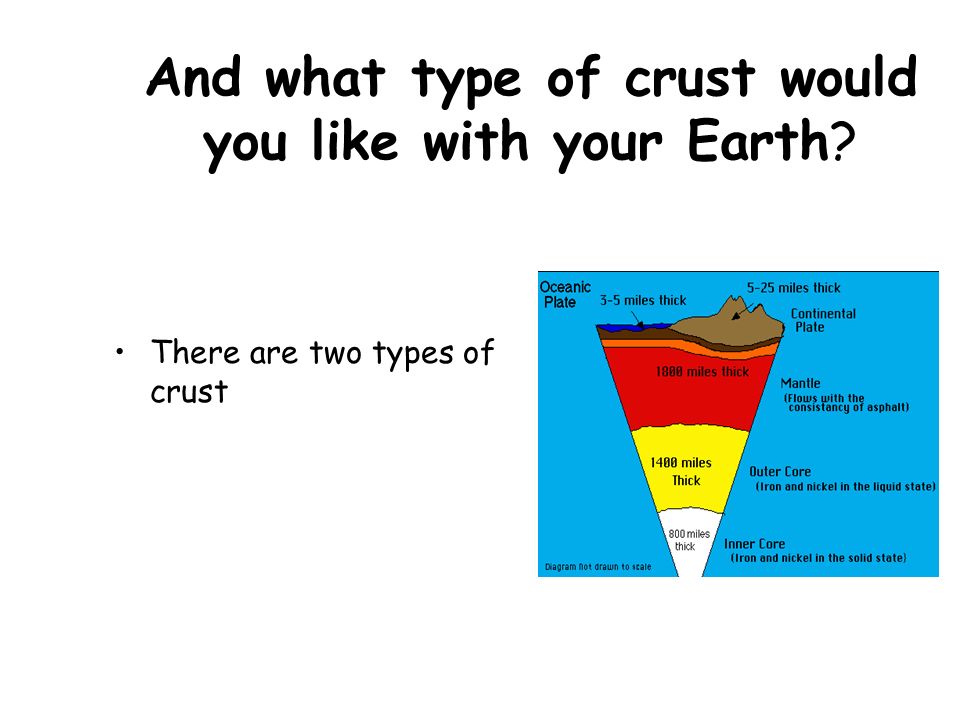

40. And what type of crust would you like with your Earth? There are two types of crust

41. Continental Crust: 1. Makes up the continents 2. Contains light colored rocks such as granite. 3. Floats high on the mantle

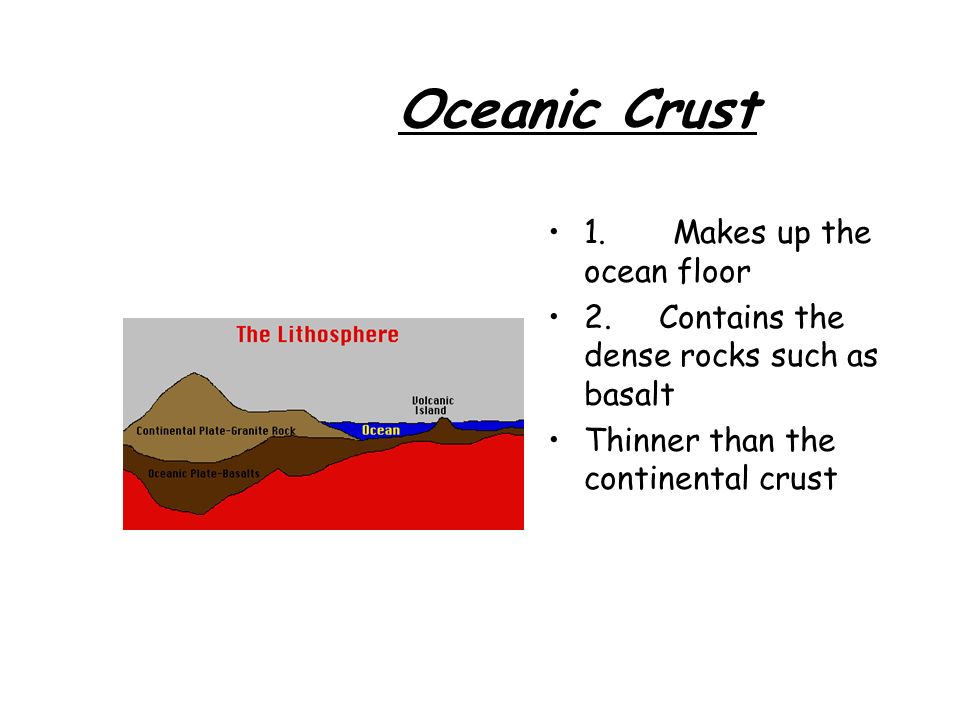

42. Oceanic Crust 1. Makes up the ocean floor 2. Contains the dense rocks such as basalt Thinner than the continental crust

43. Mantle (1) Hotter and denser than the crust because the deeper you go inside the earth, the temperature & pressure increases. (2) Made of solid rock. The Mantle is made of two zones

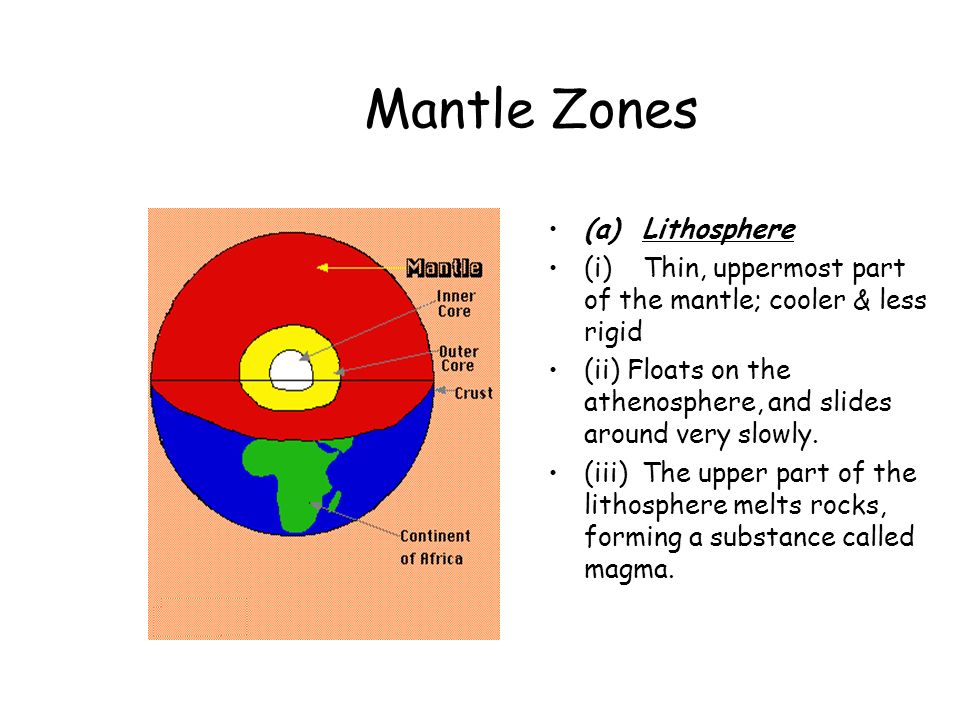

44. Mantle Zones (a) Lithosphere (i) Thin, uppermost part of the mantle; cooler & less rigid (ii) Floats on the athenosphere, and slides around very slowly. (iii) The upper part of the lithosphere melts rocks, forming a substance called magma.

45. Magma 1. Magma (melted rock) moves like hot oatmeal. Uneven heating causes material in the mantle to constantly and slowly rise & fall in convection currents. Convection Current: process by which hot fluid rises to the surface, and then sinks again, like soup being heated in a saucepan

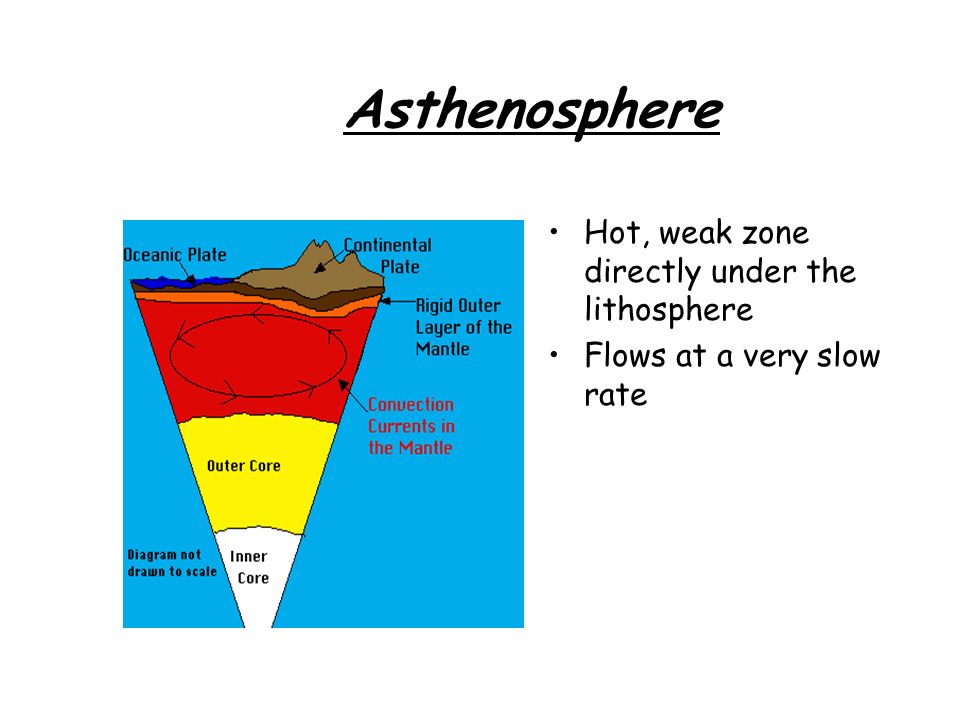

46. Asthenosphere Hot, weak zone directly under the lithosphere Flows at a very slow rate

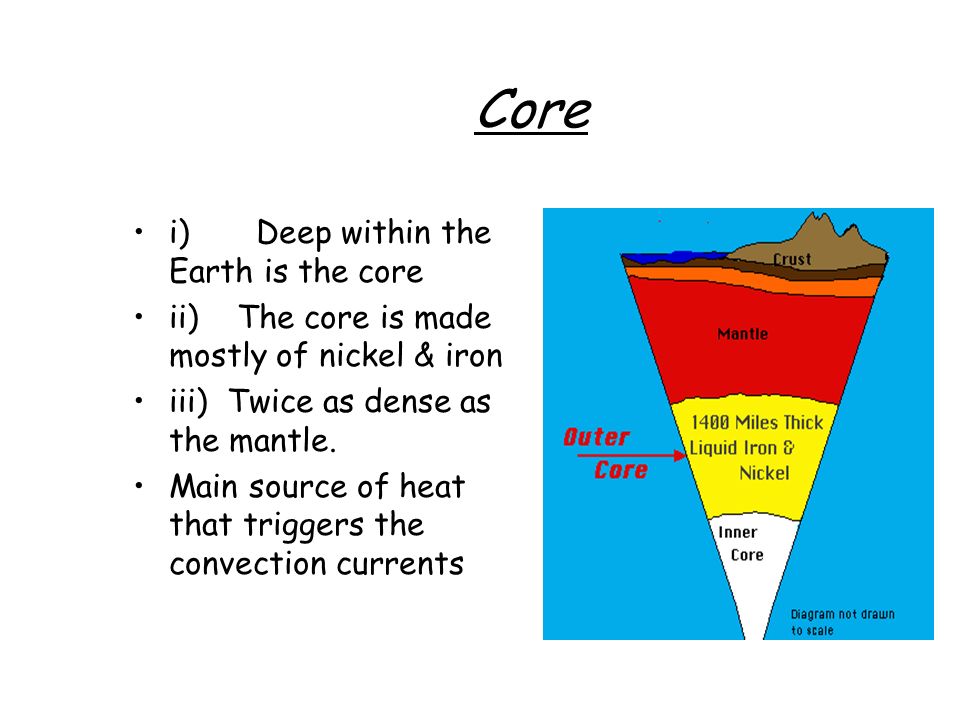

47. Core i) Deep within the Earth is the core ii) The core is made mostly of nickel & iron iii) Twice as dense as the mantle. Main source of heat that triggers the convection currents

48. The core is made of two layers (1) Outer core: molten & is responsible for the Earth’s magnetic field. Inner core: solid
