1. Structure-based Evidence for Function (TIGRfam, Pfam and PDB)

2. TIGRfams are protein families categorized by functional role

3. Concept: HMMs HMM: A Hidden Markov Model is a probabilistic model developed from observed sequences of proteins of a known function. The profile HMM is used to score the alignment of the amino acid sequence entered to other proteins base on amino acid identity and position A concrete example of an HMM: http://en.wikipedia.org/wiki/Hidden_Markov_model Consider two friends, Alice and Bob, who live far apart from each other and who talk together daily over the telephone about what they did that day. Bob is only interested in three activities: walking in the park, shopping, and cleaning his apartment. The choice of what to do is determined exclusively by the weather on a given day. Alice has no definite information about the weather where Bob lives, but she knows general trends. Based on what Bob tells her he did each day, Alice tries to guess what the weather must have been like. Alice believes that the weather operates as a discrete Markov chain (system in various states that can change randomly). There are two states, "Rainy" and "Sunny", but she cannot observe them directly, that is, they are hidden from her. On each day, there is a certain chance that Bob will perform one of the following activities, depending on the weather: "walk", "shop", or "clean". Since Bob tells Alice about his activities, those are the observations. The entire system is that of a hidden Markov model (HMM). Alice knows the general weather trends in the area, and what Bob likes to do on average. In other words, the parameters of the HMM are known.

4.  Follow this link from the lab notebook TIGRfams: Haft et al. (2001) Nucleic Acids Research 29: 41-43.

5.  Change Database to “TIGRFAMS”  Change Scope to GLOBAL  Change E-value cutoff to “0.01”  Enter protein sequence in FASTA format in the box  Click on “Start HMM search”  Then wait… Search TIGRFAM database “Click”

6.  Enter the TIGRfam number (format -- TIGRXXXXX) from 'Model' column into imgACT lab notebook in box for significant TIGRfam hit  Enter TIGRfam name from ‘Description’ column into notebook  NOTE: If full name is cut off in ‘Description’ column, go to http://cmr.jcvi.org/cgi-bin/CMR/shared/MakeFrontPages.cgi?page=text_search&crumbs=searches http://cmr.jcvi.org/cgi-bin/CMR/shared/MakeFrontPages.cgi?page=text_search&crumbs=searches  Enter Score and E-value into Notebook as well Score and E-value RESULTS: Only hits with positive Score & E-value  10 -3 should be recorded “Click”

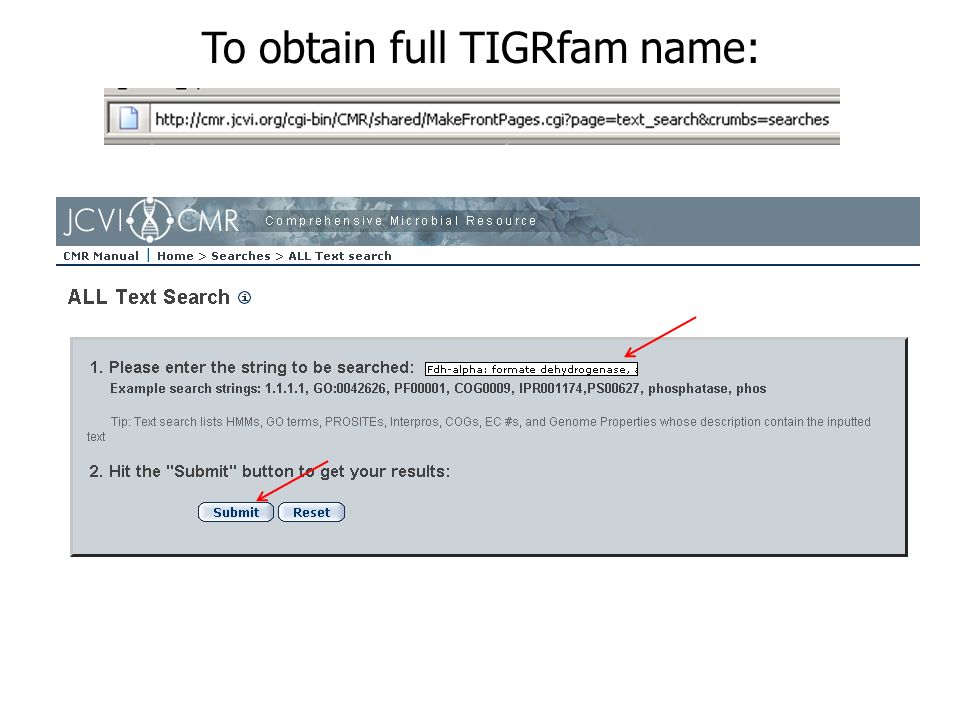

7. To obtain full TIGRfam name:

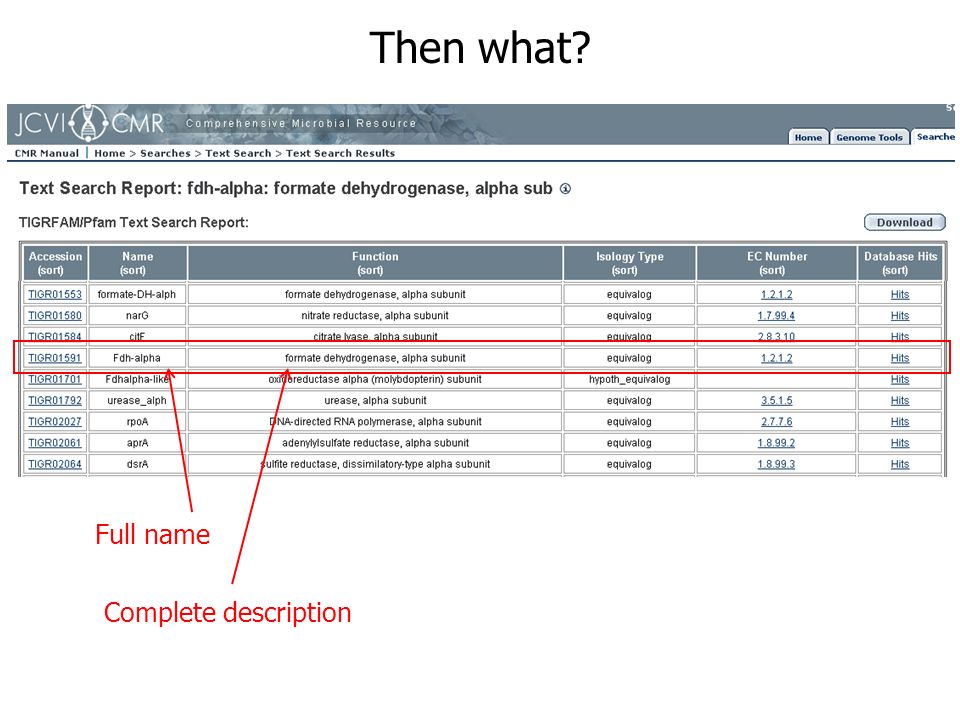

8. Then what? Full name Complete description

9. TIGRfam Results in imgACT Notebook

10. Terms to Know for Pfam Domain: A structural unit which can be found in multiple protein contexts. e.g., zinc finger, leucine zipper Family: A collection of related proteins containing the same domain. e.g., immunoglobulins, CD4, MHC, TCR, etc. Clan: A collection of multiple protein families. The relationship may be defined by similarity of sequence, structure, or profile-HMM. e.g., ATPase functioning in ETC vs. ATPase functioning in DNA replication.

11. Click on the link provided in your notebook.

12. You know the Drill! Enter your FASTA format amino acid sequence Change E-value to 0.001 “Click”

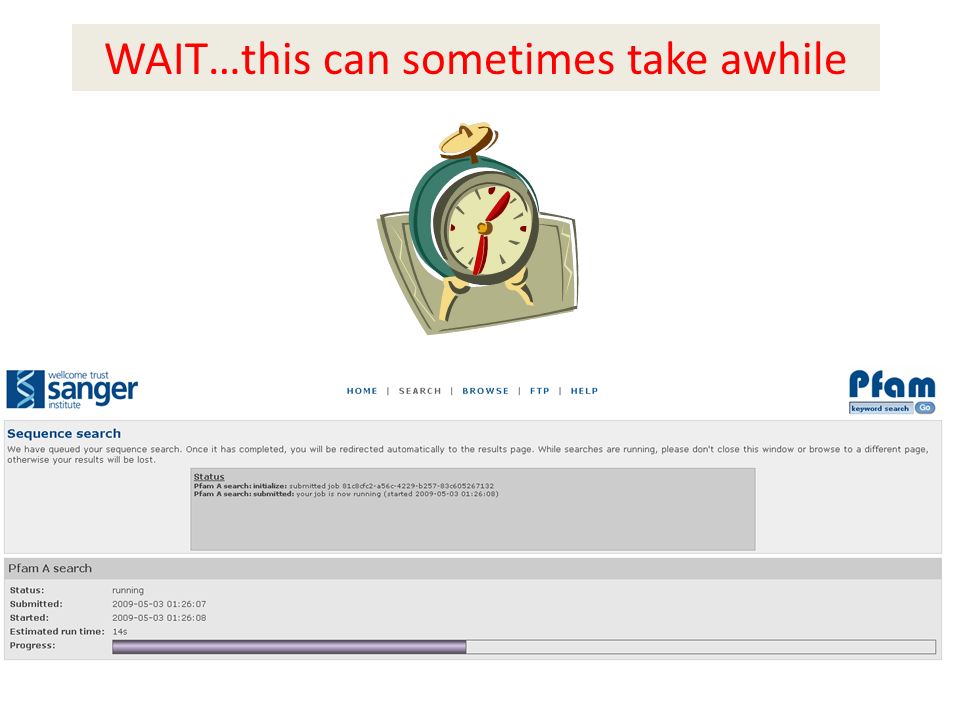

13. WAIT…this can sometimes take awhile

14. RESULTS! Notice there may be two types of results based on your designated E-value: Significant and insignificant matches. Only investigate significant matches. NOTE: Insignificant matches may have valid E-value... but this Pfam result is considered insignificant because the length of the alignment is very short & Pfam has detected and flagged this. If you do not have any significant matches, make a note of this in your notebook by creating a COMMENTS section, entering “No significant hits”. Be sure your search criteria was accurate (e.g., E-value of 0.001) Graphic view of domain organization

15. Investigate SIGNIFICANT matches Click on [Show] to view the “pairwise alignment” for the Pfam match Copy/paste this pair-wise alignment into designated box in your notebook.

16. Top row (#HMM): all capital letters indicate conserved residues in the HMM consensus sequence. Middle row (#MATCH): identical or functionally conserved (similar) amino acids Bottom row (#SEQ): query sequence aligned to HMM representing the domain/family How do I interpret the alignment? Legend for #MATCH Upper case = identical match (conserved and high frequency) Lower case = identical match (conserved but low frequency) + symbol = functionally similar (i.e. aspartic vs. glutamic acid) Space = no match What is an HMM consensus sequence?

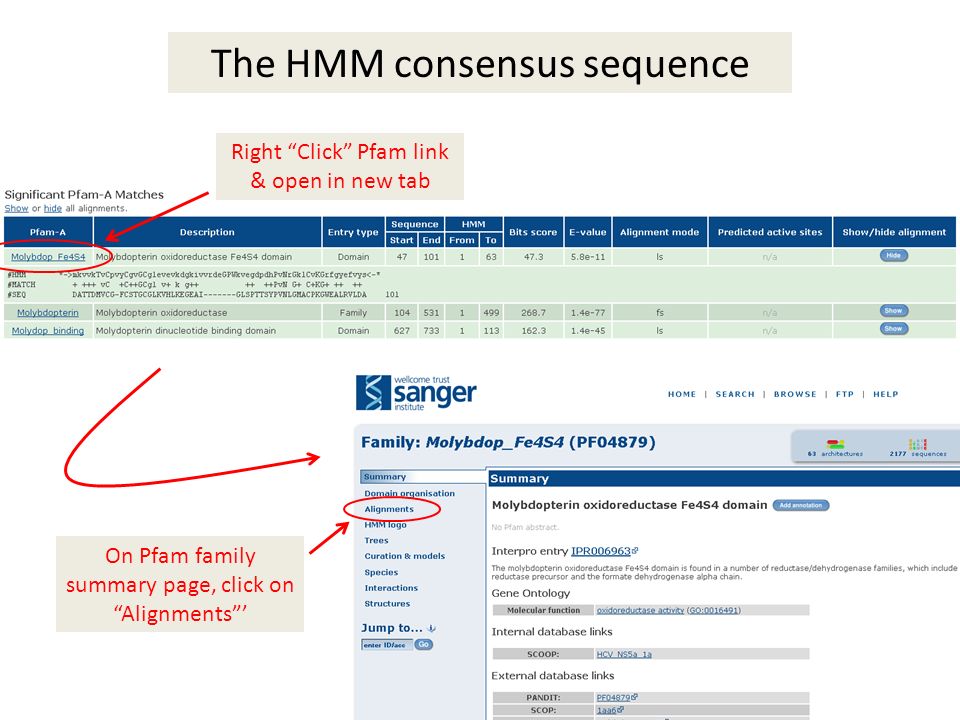

17. The HMM consensus sequence Right “Click” Pfam link & open in new tab On Pfam family summary page, click on “Alignments”’

18. The HMM consensus sequence Full: Total number of sequences in database that have been categorized into this Pfam family Seed: Number of sequences within multiple sequence alignment representing architectural variations within a single Pfam family What does this mean?

19. Architecture Diversity Domain organization within context of full protein

20. Leave default settings and press the [View] button The HMM consensus sequence

21. Click on [Start Jalview] button to view the multiple sequence alignment The HMM consensus sequence A new window will pop up as shown:

22. TOO MANY COLORS! How do we read this?!? The HMM consensus sequence Another new window will pop up as shown:

23. Let’s make the view more manageable by simplifying the colors... The HMM consensus sequence Select “Percentage Identity” from menu. NOTE: Take the time to browse other color schemes to learn more about your protein.

24. Pay special attention to BOTTOM graph: Consensus sequence for protein family This view reveals the amount of conservation in your amino acid sequence. Dark = highest frequency Light = lower frequency Letters show which amino acids occur most frequently at that position. This consensus sequence is used to construct the HMM The HMM consensus sequence

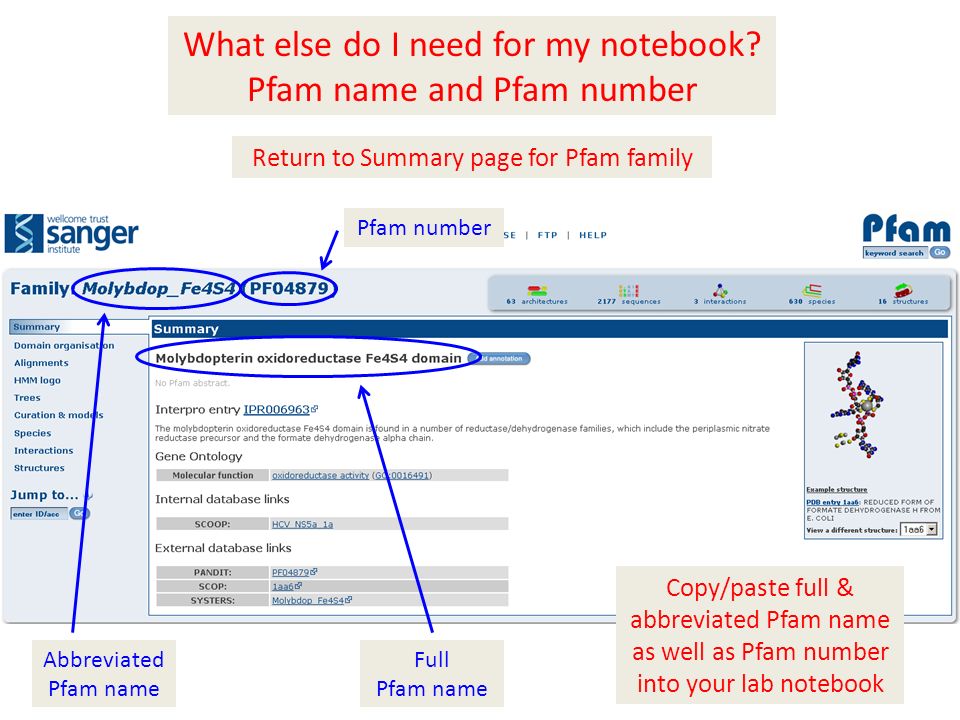

25. Return to Summary page for Pfam family What else do I need for my notebook? Pfam name and Pfam number Pfam number Abbreviated Pfam name Full Pfam name Copy/paste full & abbreviated Pfam name as well as Pfam number into your lab notebook

26. Note: Pay Attention to possible 3D Image You may see a 3D image when you view your summary. If you see this image, then this is your first clue that you should expect to have significant hits in the PDB search (next section of this module). If you don’t see an image, then this suggests no structure has yet been solved for proteins containing the domain identified by Pfam.

27. What else do I need for my notebook? HMM Logo On Summary page, click on “HMM logo”

28. SAVE this image in.png format and insert into your notebook. What else do I need for my notebook? HMM Logo

29. How do we interpret the HMM Logo? HMM Logo: -- Highly conserved amino acids are represented by wide letters -- Amino acids with a high frequency of occurrence in the alignment used to generate the HMM consensus sequence are represented by tall letters

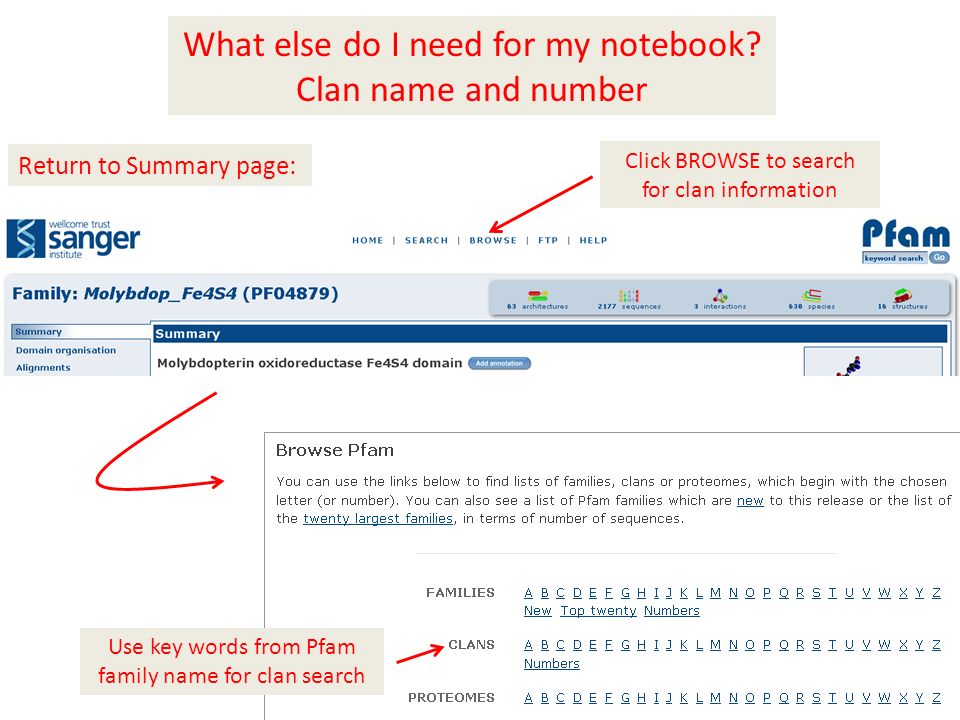

30. Return to Summary page: What else do I need for my notebook? Clan name and number Click BROWSE to search for clan information Use key words from Pfam family name for clan search

31. Investigate possible clans based on key word search from Pfam family description. To learn more about the clan, click on hyperlink for more clan information. What else do I need for my notebook? Clan name and number

32. Abbreviated Clan name Clan number Tells you which Pfam families belong to this clan. If the Pfam family to which your protein belongs is not in this list, then your protein is NOT a member of this clan. What else do I need for my notebook? Clan name and number Full Clan name NOTE: Not all Pfam families belong to a clan. If no clan is found, enter “None found” in your lab notebook.

33. What else do I need for my notebook? Key functional residues You have THREE key tools to assist you in identifying the KEY FUNCTIONAL RESIDUES of your protein. Tool #1: Pairwise Alignment Tool #2: HMM Logo Tool #3: Jalview consensus

34. Capital letter in #MATCH line Capital letter in #MATCH line Tall, wide letter in HMM logo Tall, wide letter in HMM logo Tall bar in graphical depiction of consensus sequence Tall bar in graphical depiction of consensus sequence How do we identify key functional residues?

35. Formula:AA(start+HMM#-1) Example: C(47+8-1)= C54 How do we report key functional residues in the notebook? HMM#

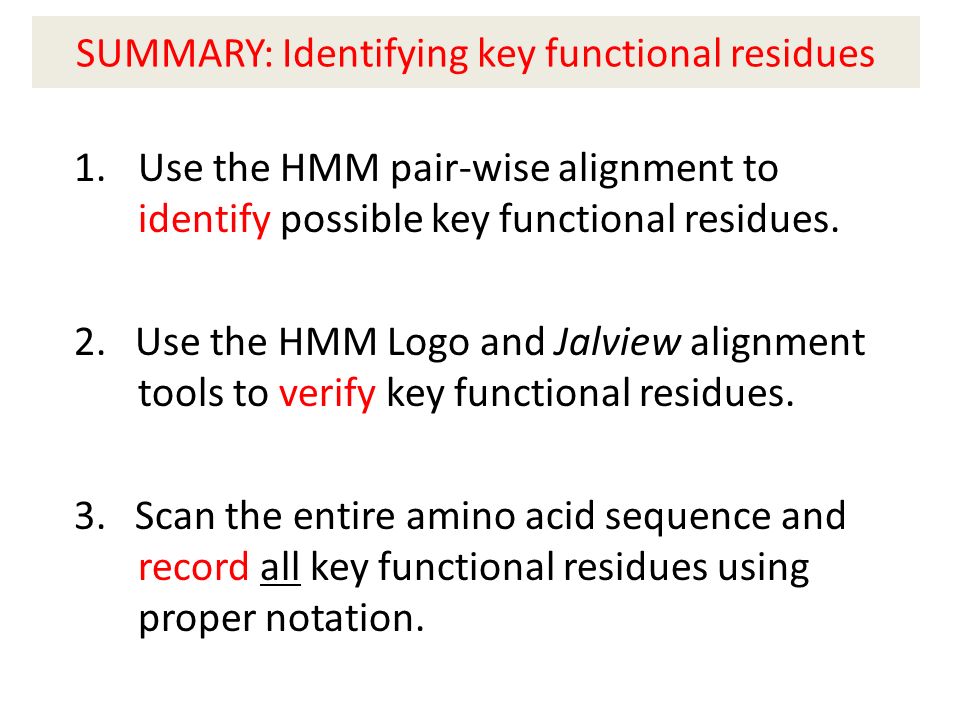

36. 1.Use the HMM pair-wise alignment to identify possible key functional residues. 2. Use the HMM Logo and Jalview alignment tools to verify key functional residues. 3. Scan the entire amino acid sequence and record all key functional residues using proper notation. SUMMARY: Identifying key functional residues

37. Recording results in your Lab Notebook Scroll down

38. Recording results in your Lab Notebook

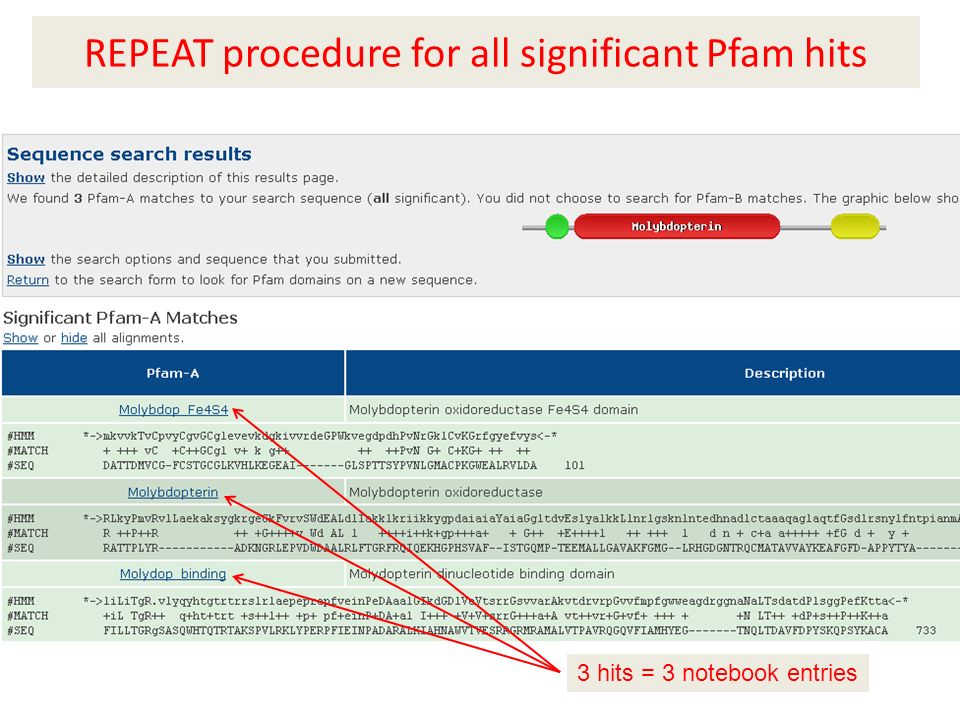

39. REPEAT procedure for all significant Pfam hits 3 hits = 3 notebook entries

40. PDB Protein Data Bank o Worldwide depository for three-dimensional structures of large biological molecules, including proteins and nucleic acids o Contains information about structure such as... Berman et al. (2003) Nature Structural Biology 10: 980. sequence details atomic coordinates crystallization conditions 3-D structure neighbors derived geometric data structure factors 3-D images

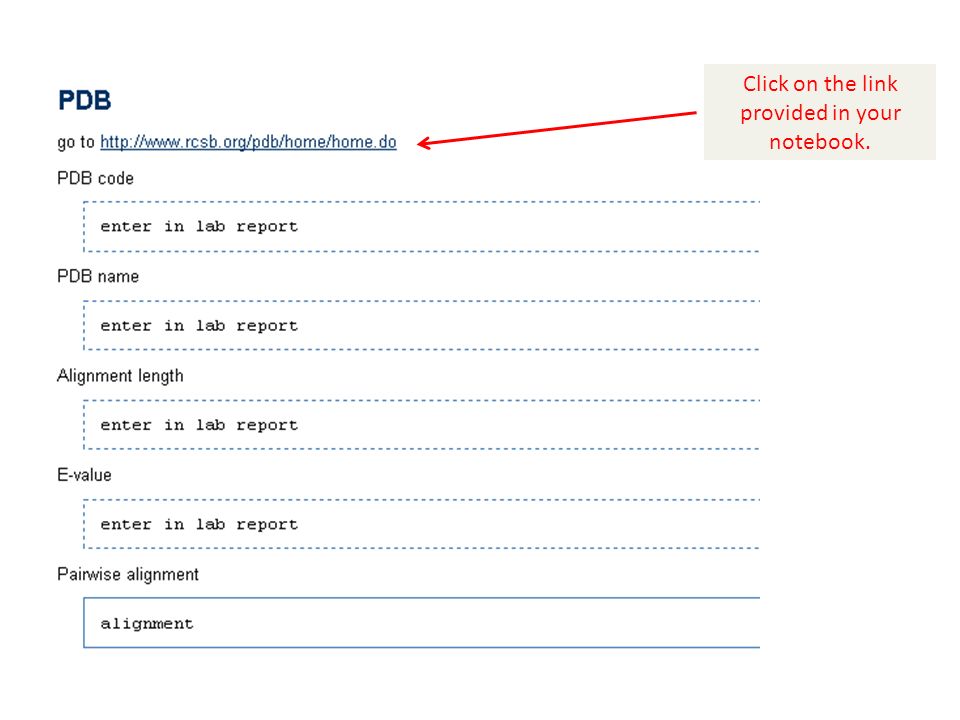

41. Click on the link provided in your notebook.

42. Select “Advanced Search”

43. Select “Sequence (Blast/Fasta)” option Copy/paste your FASTA format protein sequence into query box Click when ready to initiate search Change E-value cut off to 0.001

44. Scroll down Results of PDB Search Search hits listed by ascending E-value

45. Alignment and statistics Assess quality of the alignment: Is the E-value less than 10 -3 ? Is a significant proportion of the protein aligned? (Hint: compare alignment length to total length) PDB NAME PDB CODE Thumbnail of 3D structure. Click on it to get a high-resolution image for notebook. Evaluating PDB Results If so, good hit. Citation

46. NOTE: Revise or add headings and boxes as needed Recording results in your Lab Notebook Scroll down Add to your notebook

47. You cannot simply copy/paste the entire alignment with correct formatting into your lab notebook…. DELETE THIS SECTION. X
