1. ATOMS & THE PERIODIC TABLE

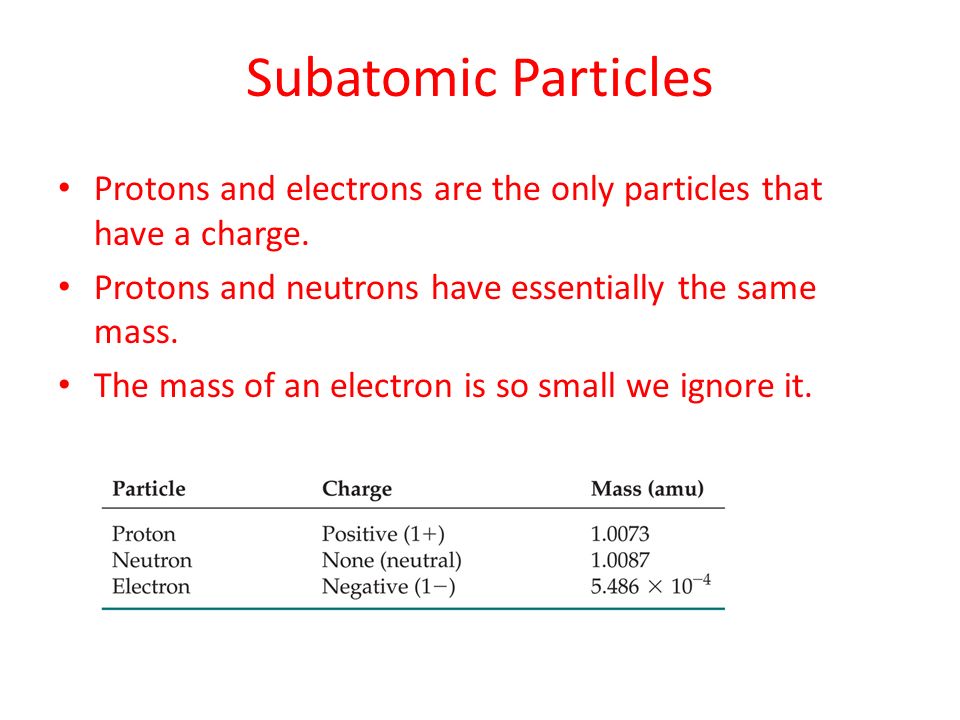

2. Subatomic Particles Protons and electrons are the only particles that have a charge. Protons and neutrons have essentially the same mass. The mass of an electron is so small we ignore it.

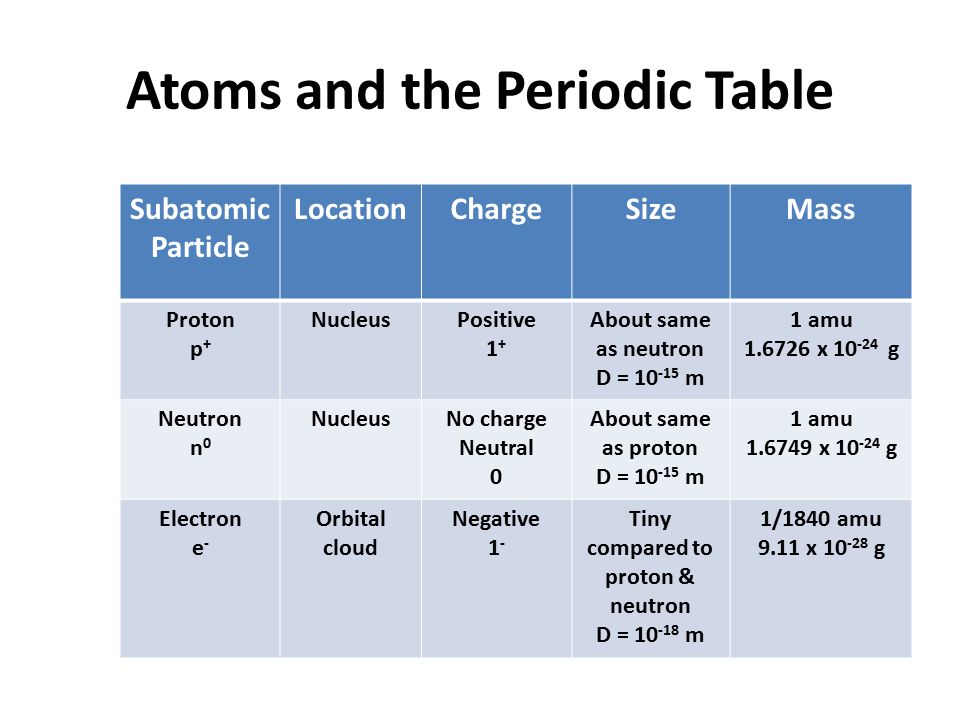

3. Atoms and the Periodic Table Subatomic Particle LocationChargeSizeMass Proton p + NucleusPositive 1 + About same as neutron D = 10 -15 m 1 amu 1.6726 x 10 -24 g Neutron n 0 NucleusNo charge Neutral 0 About same as proton D = 10 -15 m 1 amu 1.6749 x 10 -24 g Electron e - Orbital cloud Negative 1 - Tiny compared to proton & neutron D = 10 -18 m 1/1840 amu 9.11 x 10 -28 g

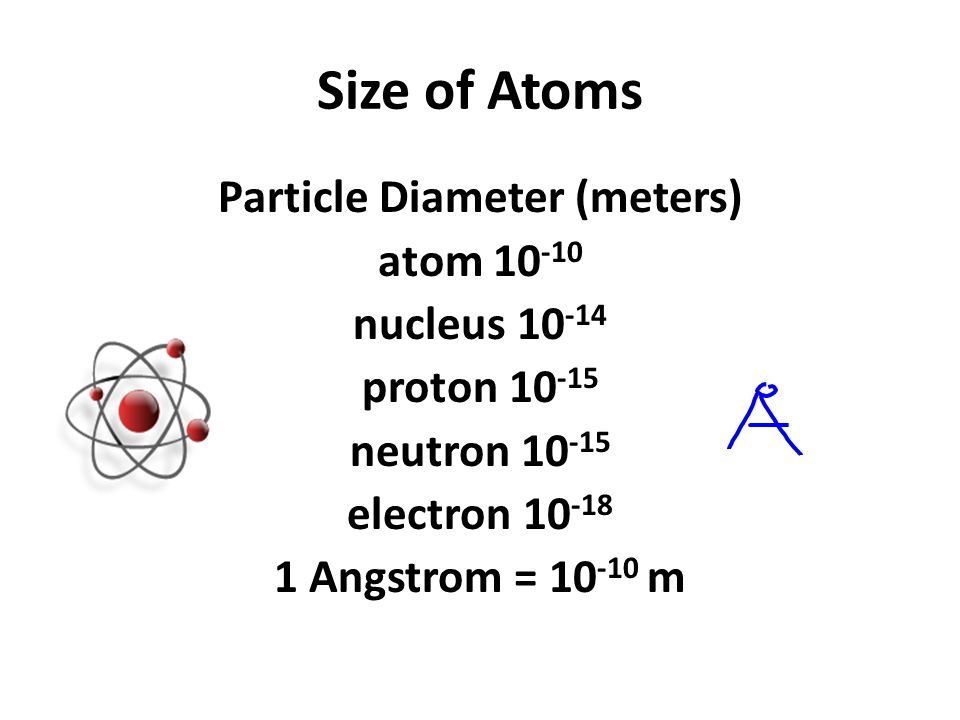

4. Size of Atoms Particle Diameter (meters) atom 10 -10 nucleus 10 -14 proton 10 -15 neutron 10 -15 electron 10 -18 1 Angstrom = 10 -10 m

5. History of the Atomic Model Democritus – 400 BC atoms make up all substances John Dalton – 1766-1844 atom is a solid hard sphere Joseph John Thomson – 1856-1940 discovered the electron in 1897 plum pudding model of atom positive sphere with negative e - embedded

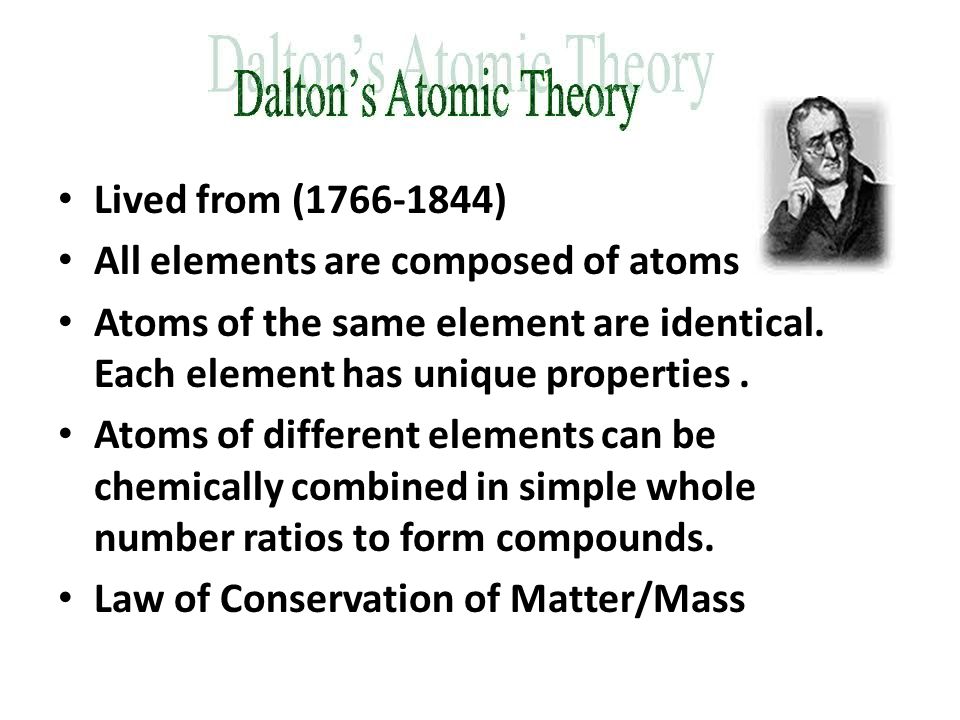

6. Lived from (1766-1844) All elements are composed of atoms Atoms of the same element are identical. Each element has unique properties. Atoms of different elements can be chemically combined in simple whole number ratios to form compounds. Law of Conservation of Matter/Mass

7. The Electron Streams of negatively charged particles were found from cathode tubes. J. J. Thompson is credited with their discovery (1897).

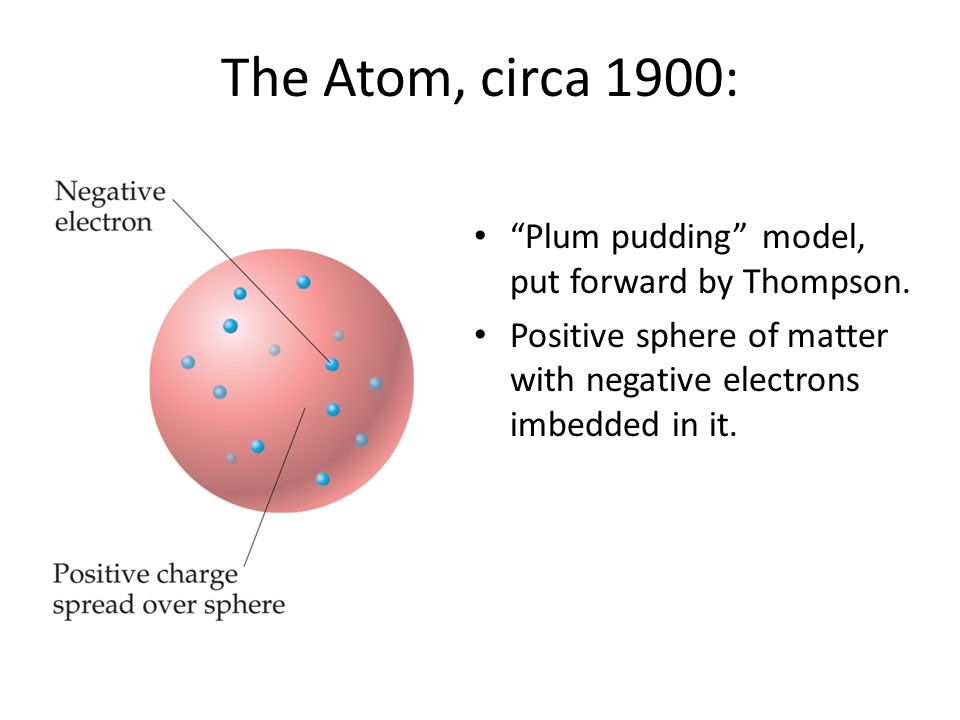

8. The Atom, circa 1900: “Plum pudding” model, put forward by Thompson. Positive sphere of matter with negative electrons imbedded in it.

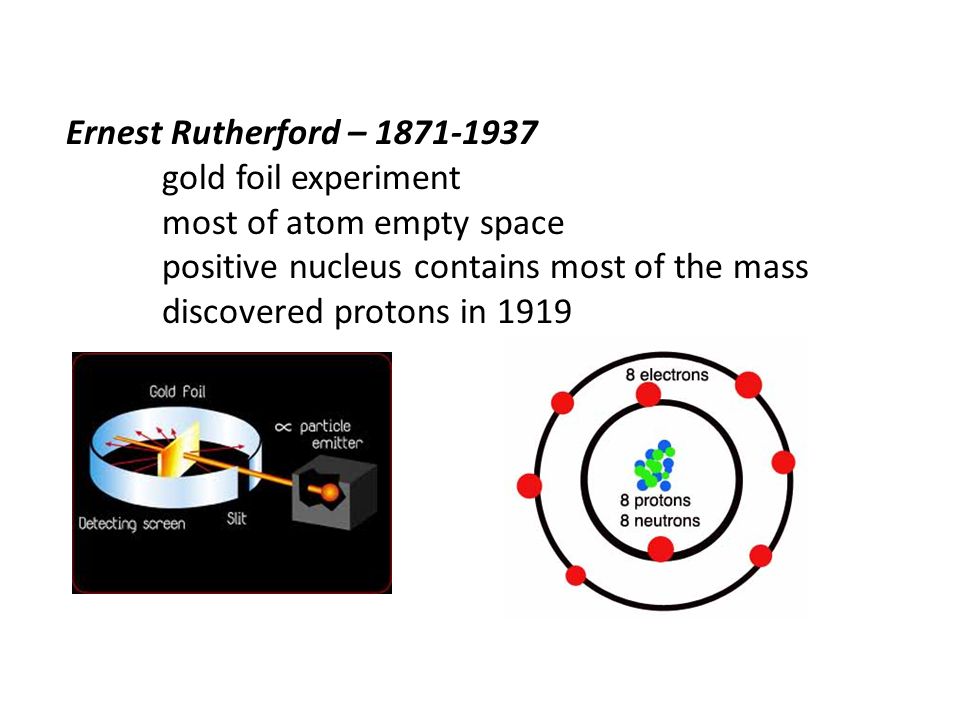

9. Ernest Rutherford – 1871-1937 gold foil experiment most of atom empty space positive nucleus contains most of the mass discovered protons in 1919

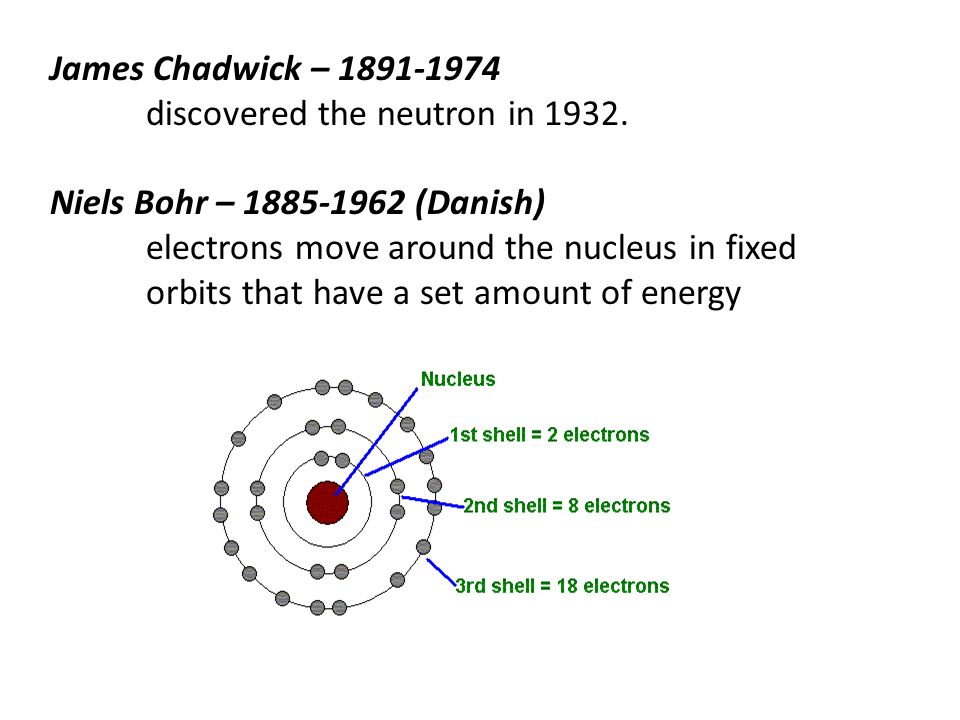

10. James Chadwick – 1891-1974 discovered the neutron in 1932. Niels Bohr – 1885-1962 (Danish) electrons move around the nucleus in fixed orbits that have a set amount of energy

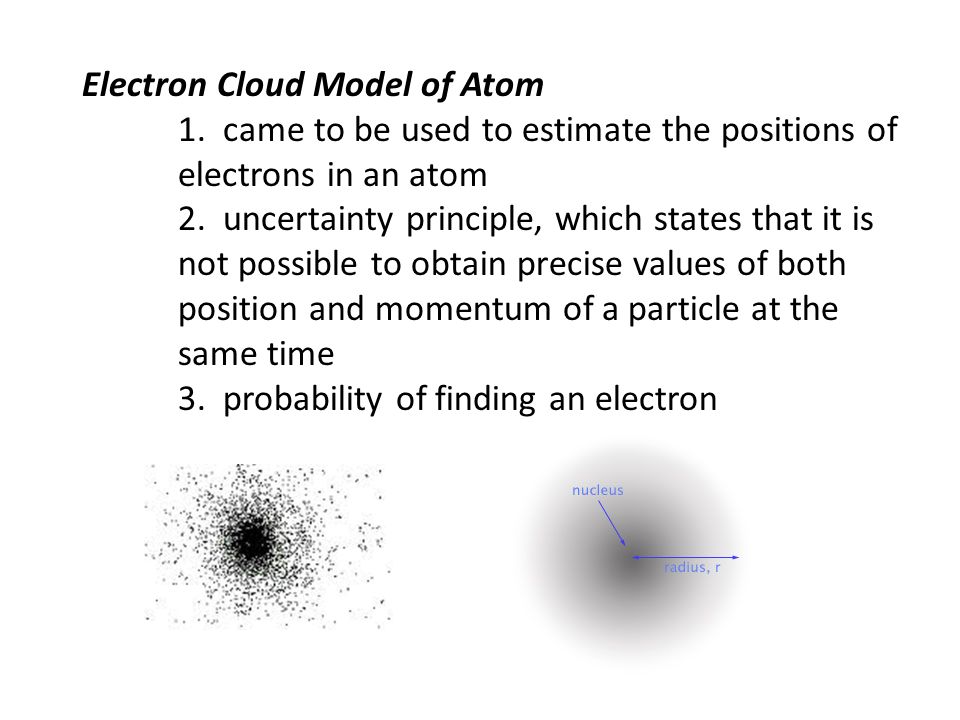

11. Electron Cloud Model of Atom 1. came to be used to estimate the positions of electrons in an atom 2. uncertainty principle, which states that it is not possible to obtain precise values of both position and momentum of a particle at the same time 3. probability of finding an electron

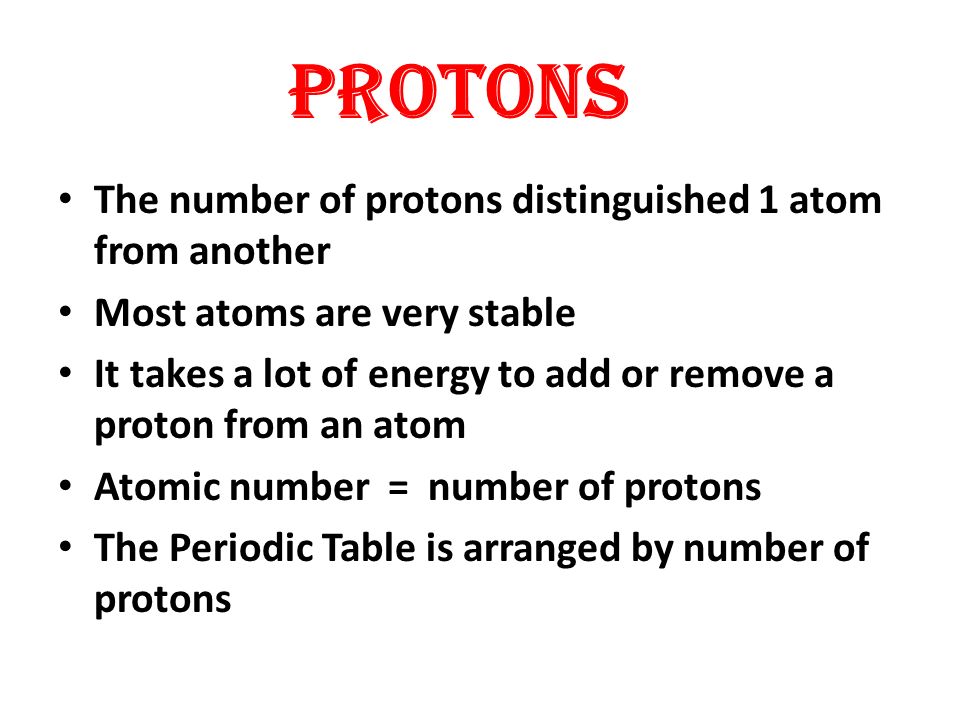

12. Protons The number of protons distinguished 1 atom from another Most atoms are very stable It takes a lot of energy to add or remove a proton from an atom Atomic number = number of protons The Periodic Table is arranged by number of protons

13. Symbols of Elements Elements are symbolized by one or two letters.

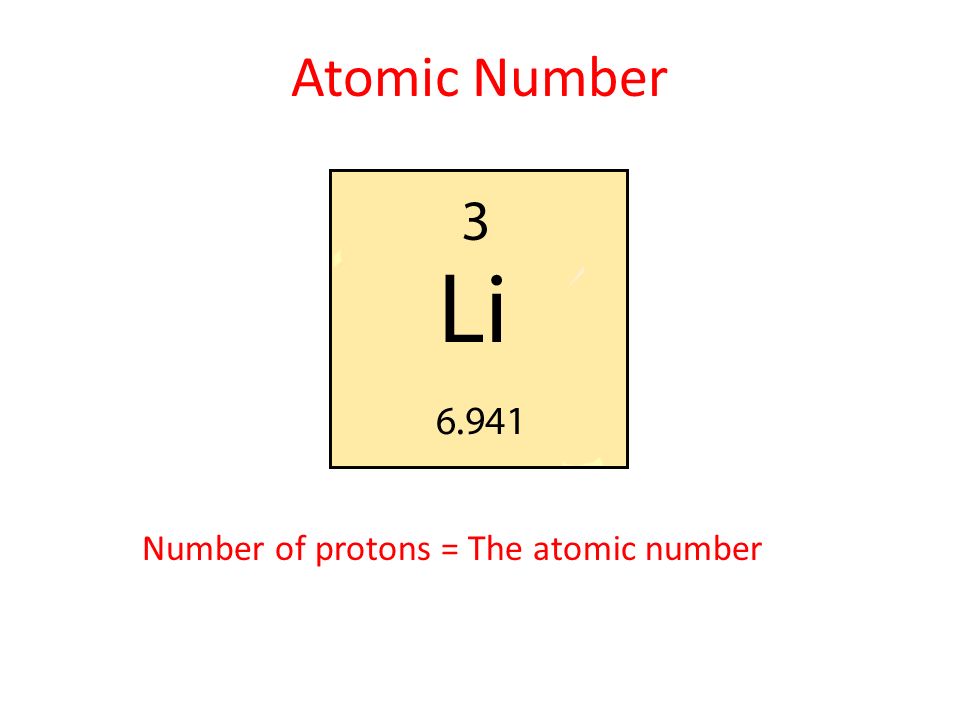

14. Atomic Number Number of protons = The atomic number

15. Atomic Mass The mass of an atom in atomic mass units (amu) is the total number of protons and neutrons in the atom.

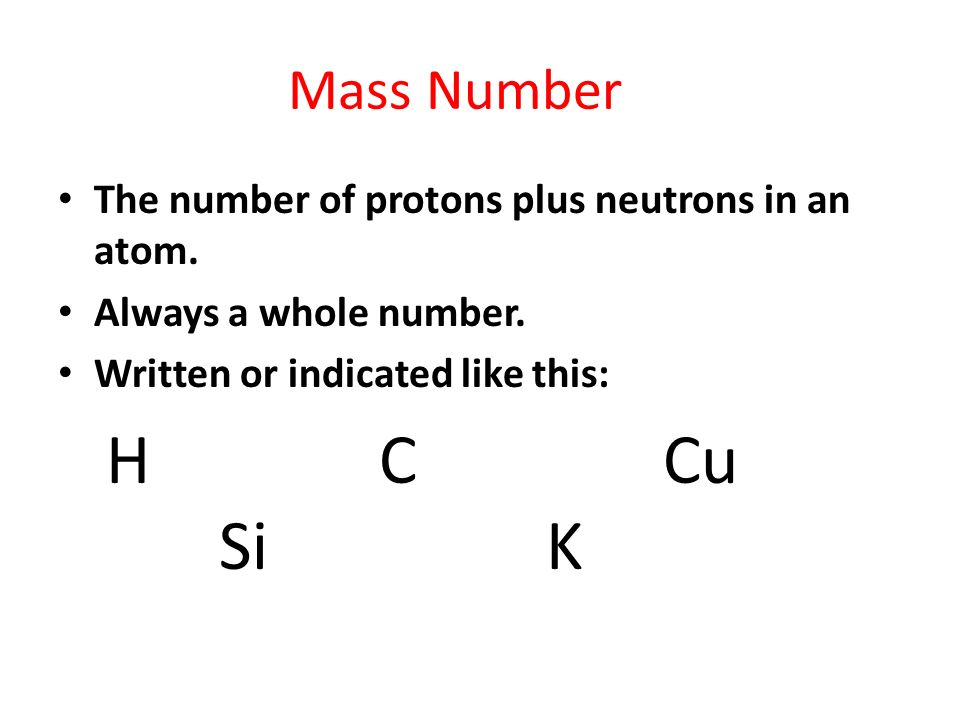

16. Mass Number The number of protons plus neutrons in an atom. Always a whole number. Written or indicated like this: H C Cu Si K

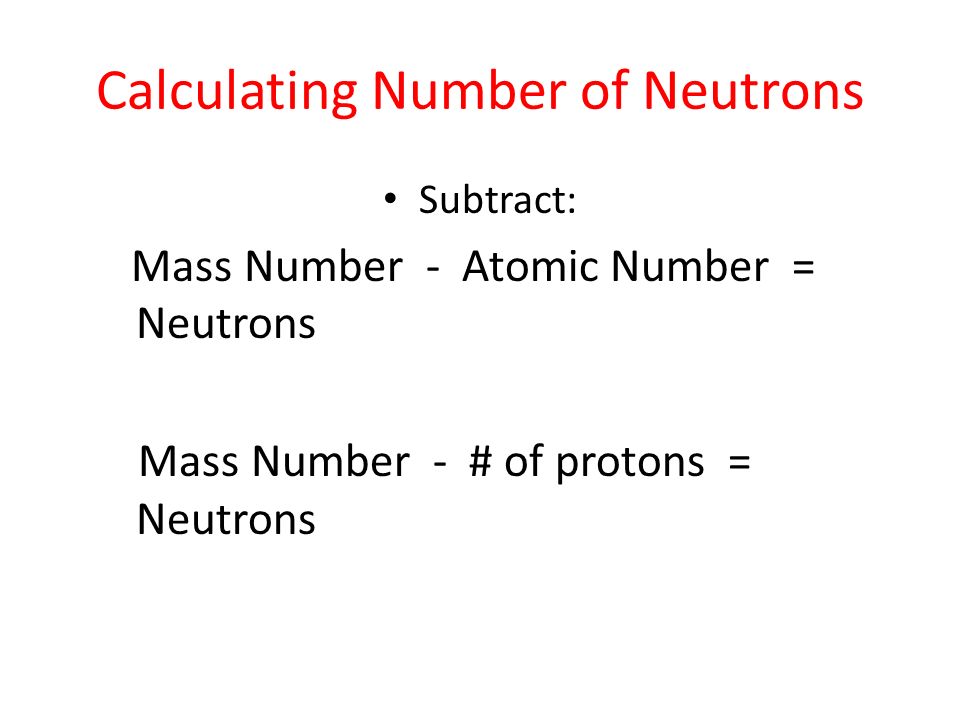

17. Calculating Number of Neutrons Subtract: Mass Number - Atomic Number = Neutrons Mass Number - # of protons = Neutrons

18. Notes on Finding Numbers of Protons, Neutrons, Electrons

19. Isotopes Atoms of the same element with different numbers of neutrons

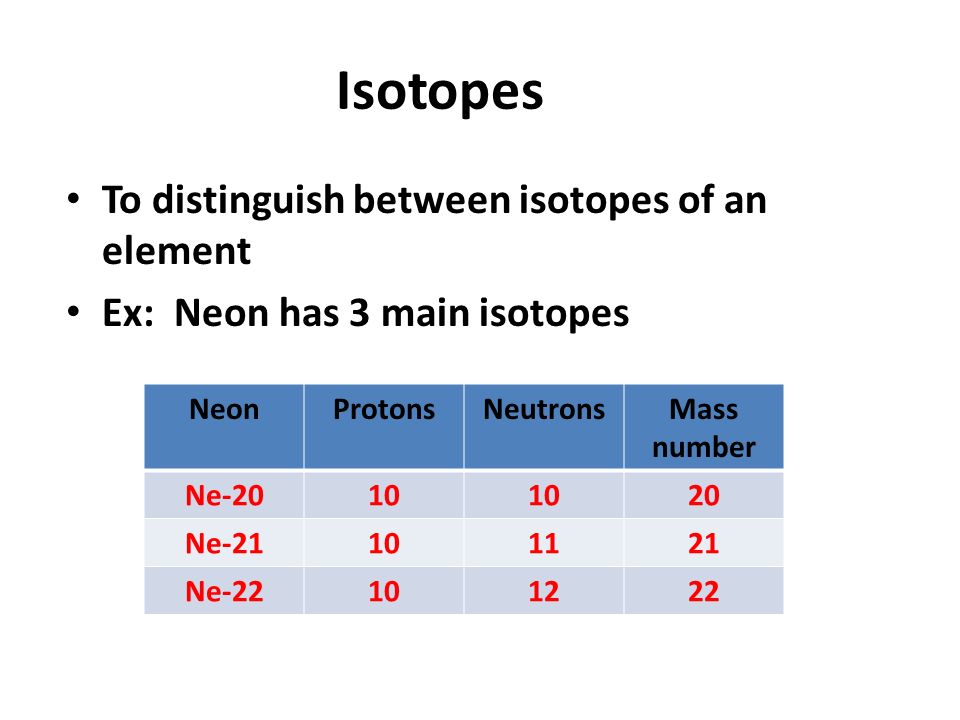

20. Isotopes To distinguish between isotopes of an element Ex: Neon has 3 main isotopes NeonProtonsNeutronsMass number Ne-2010 20 Ne-21101121 Ne-22101222

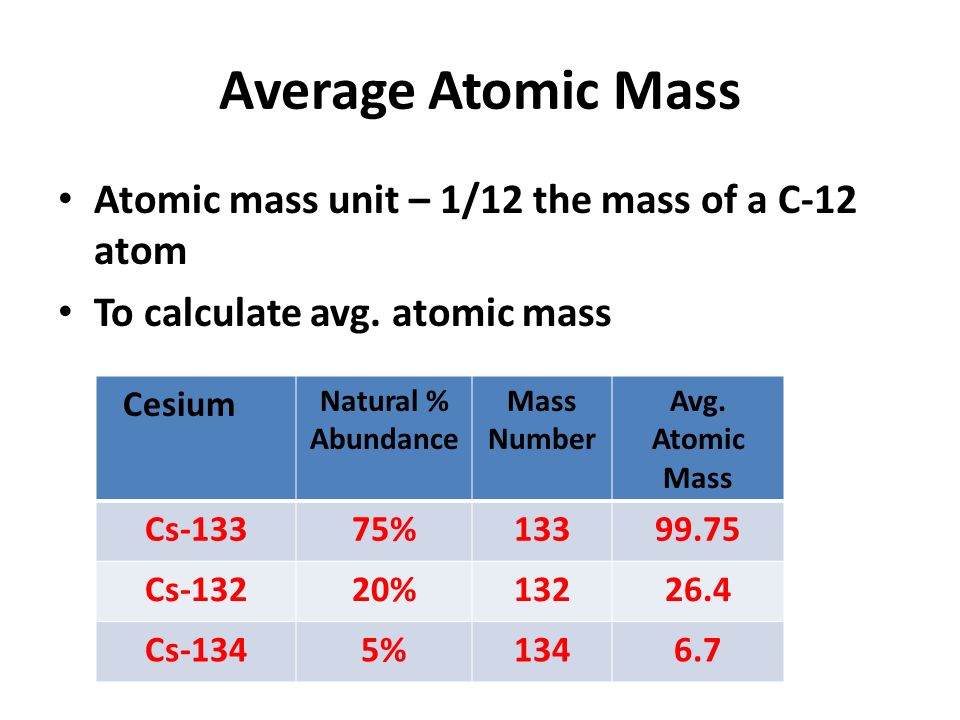

21. Average Atomic Mass Atomic mass unit – 1/12 the mass of a C-12 atom To calculate avg. atomic mass Cesium Natural % Abundance Mass Number Avg. Atomic Mass Cs-13375%13399.75 Cs-13220%13226.4 Cs-1345%1346.7

22. Example – Avg. Atomic Mass

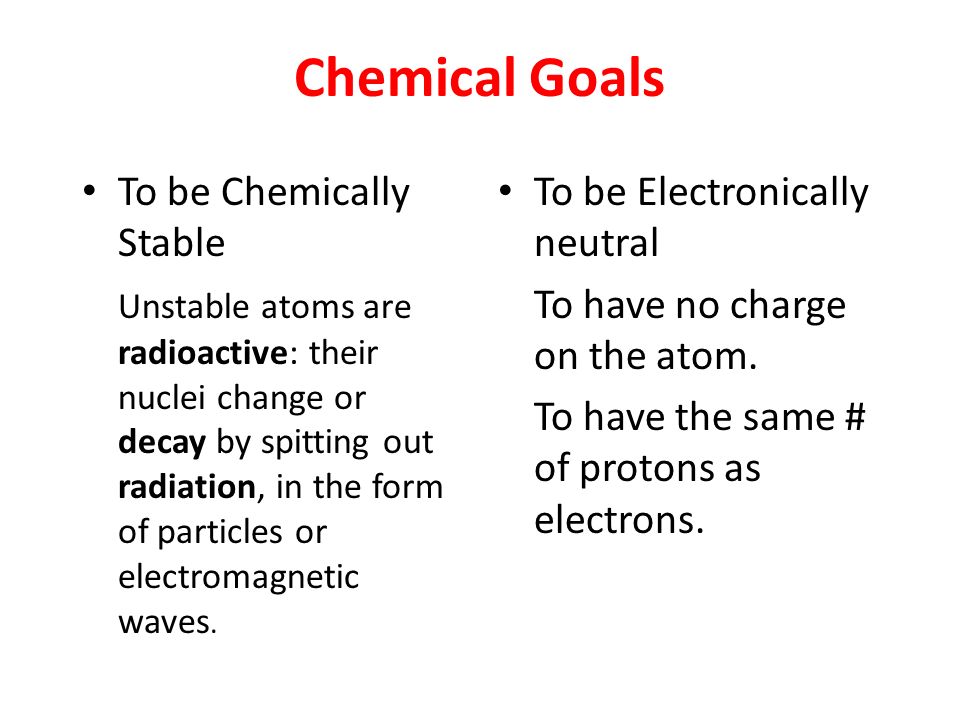

23. Chemical Goals To be Chemically Stable Unstable atoms are radioactive: their nuclei change or decay by spitting out radiation, in the form of particles or electromagnetic waves. To be Electronically neutral To have no charge on the atom. To have the same # of protons as electrons.

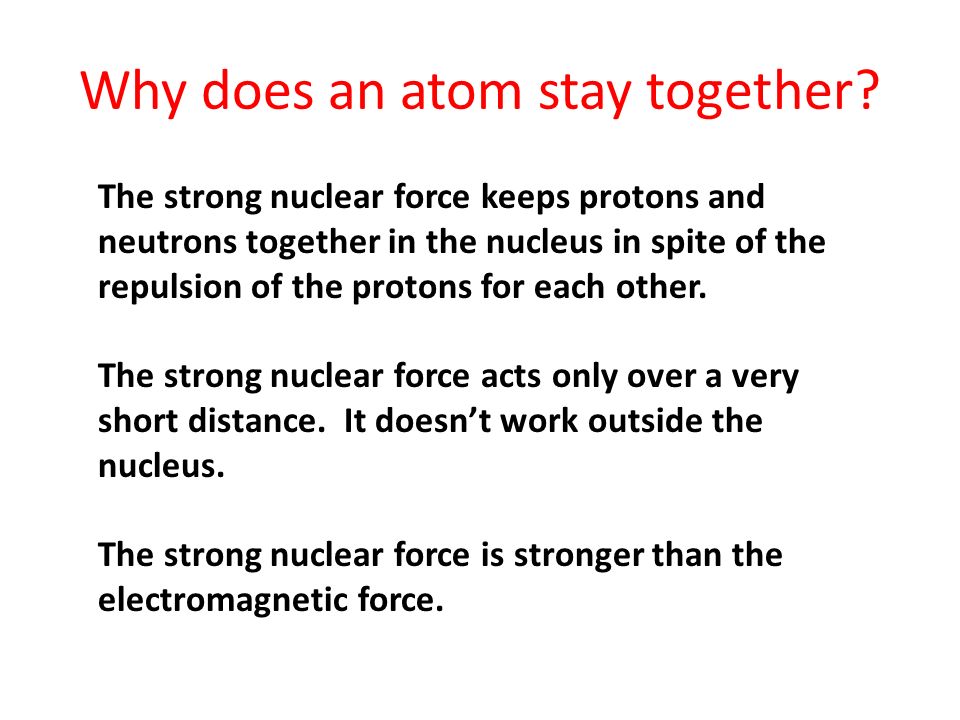

24. Why does an atom stay together? The strong nuclear force keeps protons and neutrons together in the nucleus in spite of the repulsion of the protons for each other. The strong nuclear force acts only over a very short distance. It doesn’t work outside the nucleus. The strong nuclear force is stronger than the electromagnetic force.

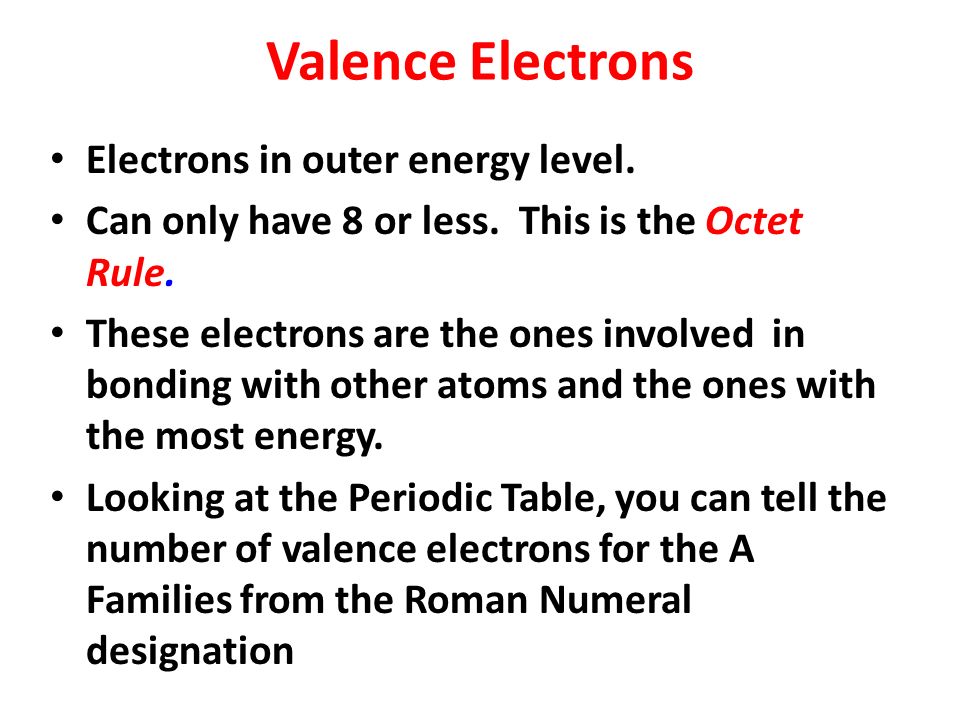

25. Valence Electrons Electrons in outer energy level. Can only have 8 or less. This is the Octet Rule. These electrons are the ones involved in bonding with other atoms and the ones with the most energy. Looking at the Periodic Table, you can tell the number of valence electrons for the A Families from the Roman Numeral designation

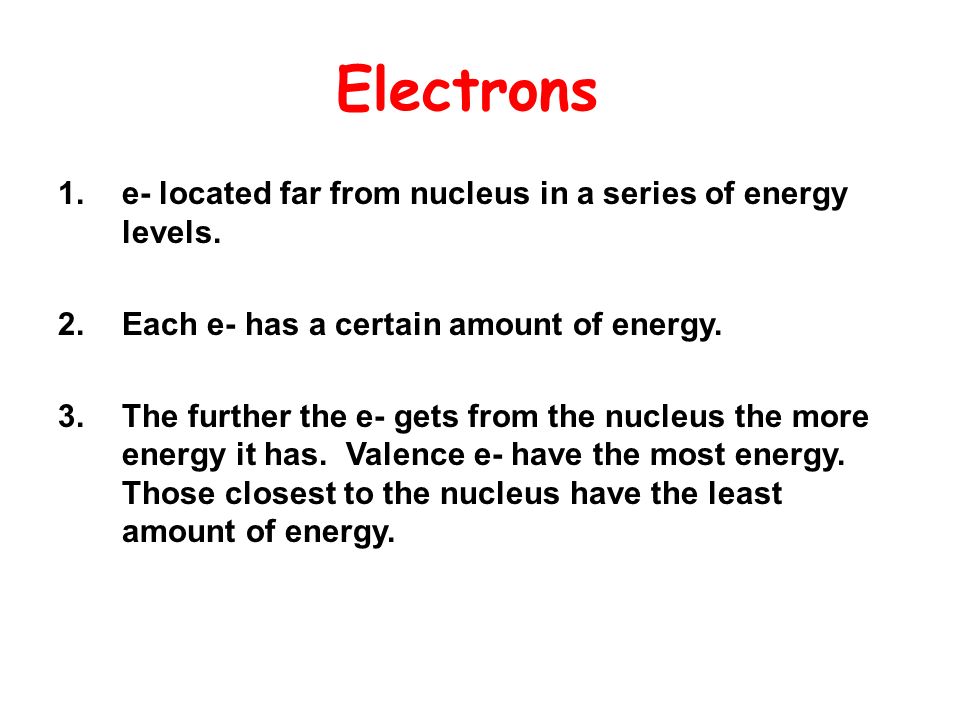

26. Electrons 1.e- located far from nucleus in a series of energy levels. 2.Each e- has a certain amount of energy. 3.The further the e- gets from the nucleus the more energy it has. Valence e- have the most energy. Those closest to the nucleus have the least amount of energy.

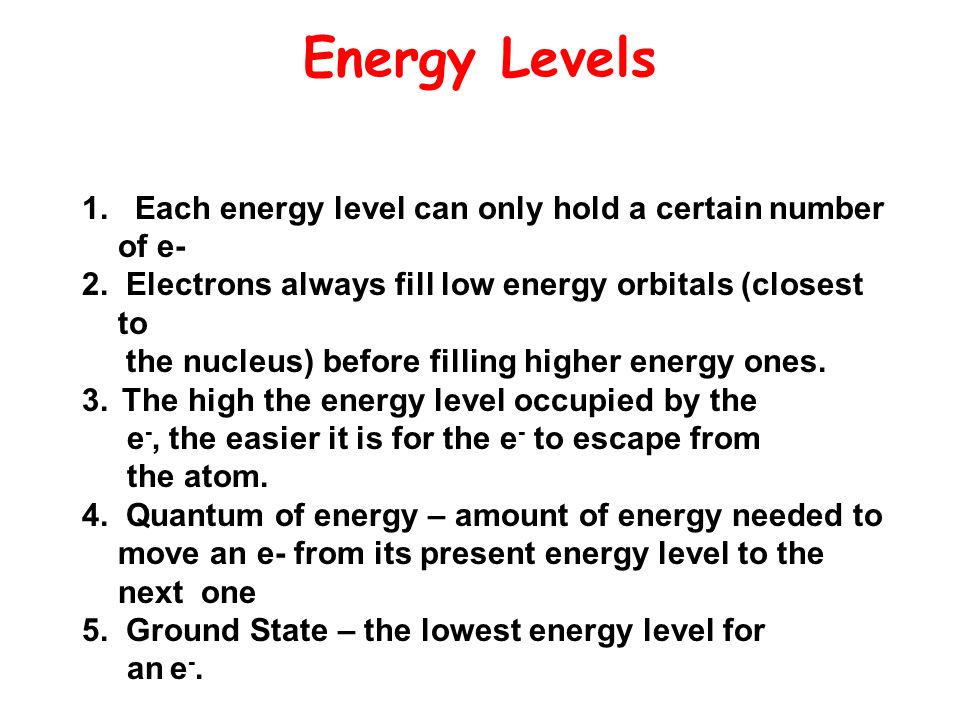

27. Energy Levels 1. Each energy level can only hold a certain number of e- 2. Electrons always fill low energy orbitals (closest to the nucleus) before filling higher energy ones. 3. The high the energy level occupied by the e -, the easier it is for the e - to escape from the atom. 4. Quantum of energy – amount of energy needed to move an e- from its present energy level to the next one 5. Ground State – the lowest energy level for an e -.

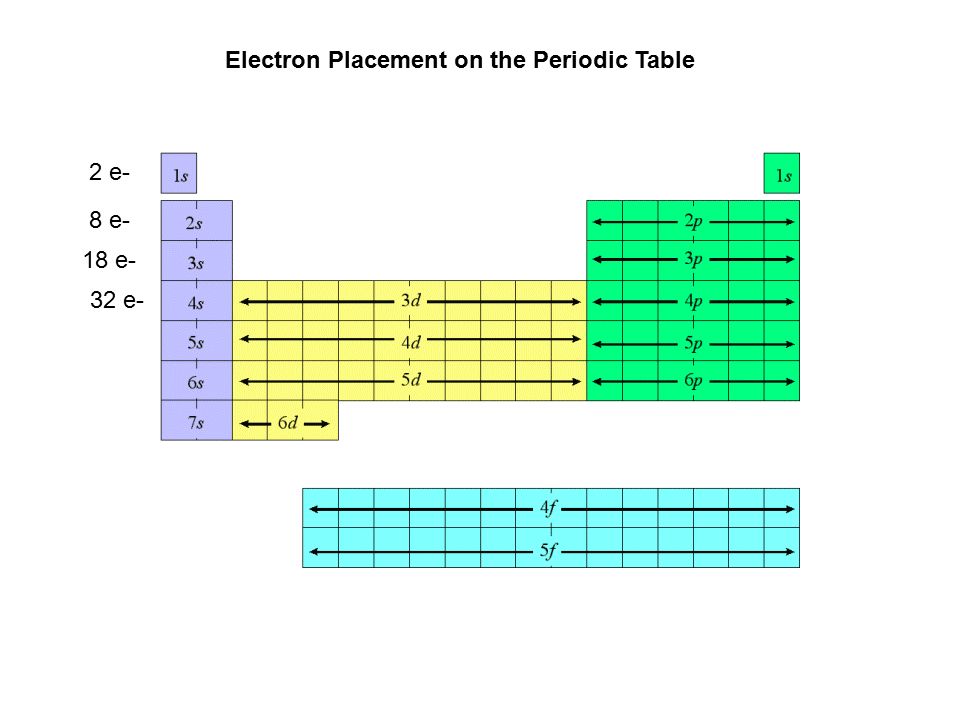

29. Electron Placement on the Periodic Table 2 e- 8 e- 18 e- 32 e-

30. Type of Sublevel Number of orbitals in Sublevel Number of electrons in orbital s12 p36 d510 f714

31. Principal Energy Level (n) Number of Sublevels Type of Sublevel (Atomic Orbitals) Number of Electrons 2n 2 11s2 22s, ps-2, p-6 = 8 33s, p, ds-2, p-6, d-10 = 18 44s, p, d, fs-2, p-6, d-10, f-14 = 32 Electron Configuration Chart

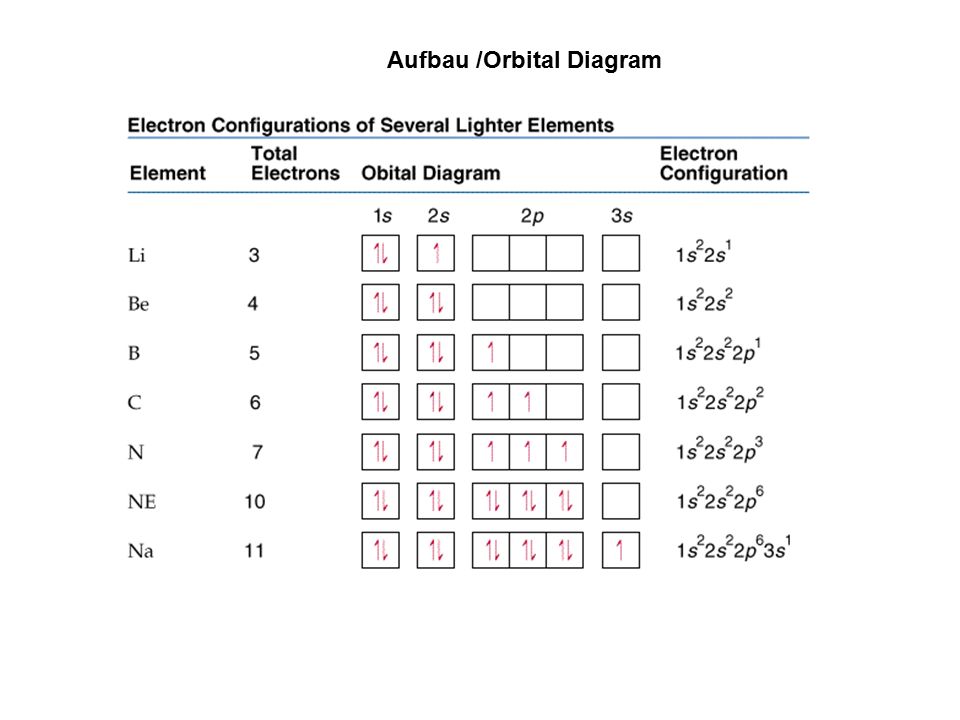

32. Aufbau /Orbital Diagram

33. EX: Electron Configuration for Potassium 19 electrons EX: Electron Configuration for Arsenic 33 electrons EX: Electron Configuration for Silver 47 electrons

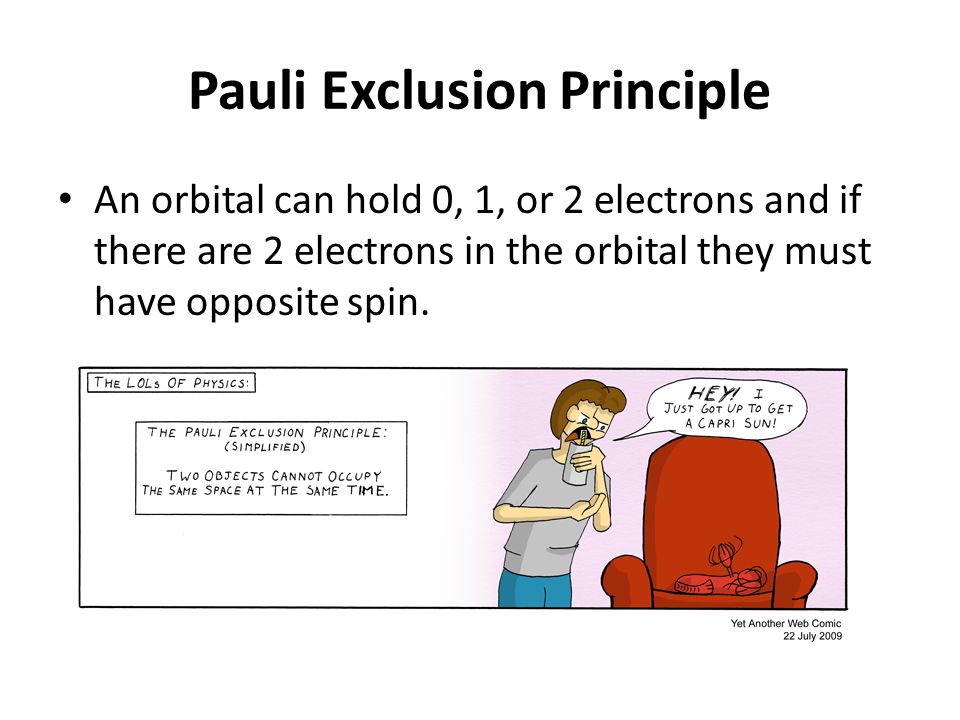

34. Pauli Exclusion Principle An orbital can hold 0, 1, or 2 electrons and if there are 2 electrons in the orbital they must have opposite spin.

35. Aufbau Principle Rules for Orbital Filling Lower-energy orbitals fill first. An orbital can hold only 2 e - with opposite spins. The most stable arrangement for e - is one with the maximum number of unpaired e -. This minimized e - to e - repulsion and stabilizes the atom. – Hund’s Rule

36. Hund’s Rule When filling up sublevels other than s, electrons are placed in individual orbitals before they are paired up.

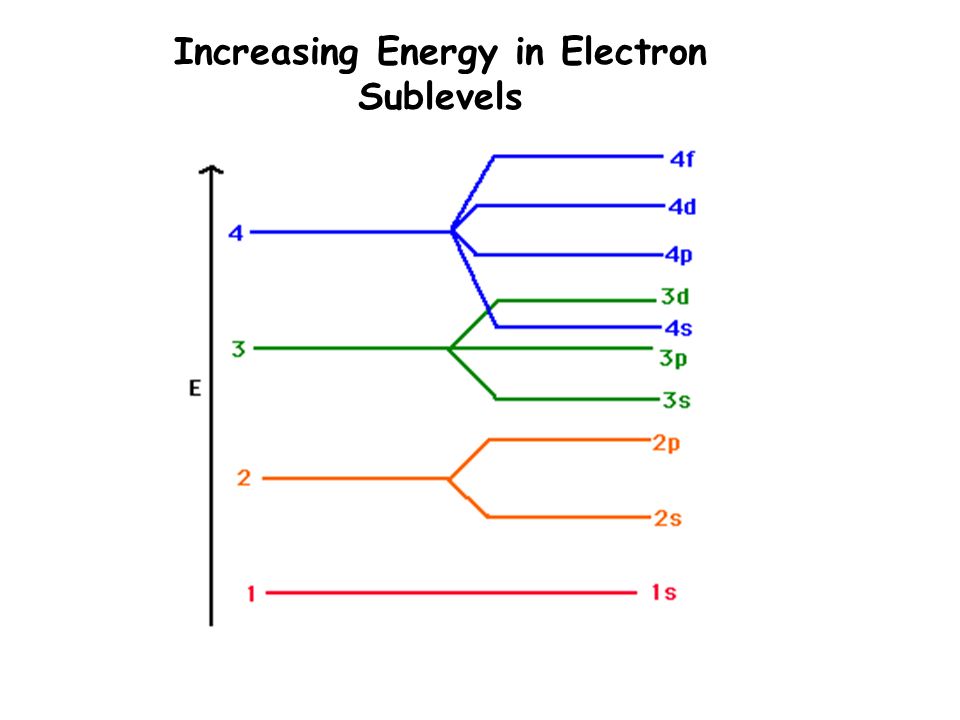

37. Increasing Energy in Electron Sublevels

38. THE DIAGONAL RULE MUST GO IN THIS ORDER: 1s, 2s, 2p, 3s, 3p, 4s, 3d, 4p, 5s, 4d, 5p, 6s, 4f, 5d, 6p, 7s, 5f, 6d and 7p. These orbitals will account for all the elements now known. This diagonal rule can help account for the octet rule, too.

39. The Energy Flow The order of increasing energy of the orbitals is then read off by following these arrows, starting at the top of the first line and then proceeding on to the second, third, fourth lines, and so on. This diagram predicts the following order of increasing energy for atomic orbitals. 1s < 2s < 2p < 3s < 3p <4s < 3d <4p < 5s < 4d < 5p < 6s < 4f < 5d < 6p < 7s < 5f < 6d < 7p < 8s...

40. Bohr Model of Atoms only represents energy levels, not orbitals Lithium

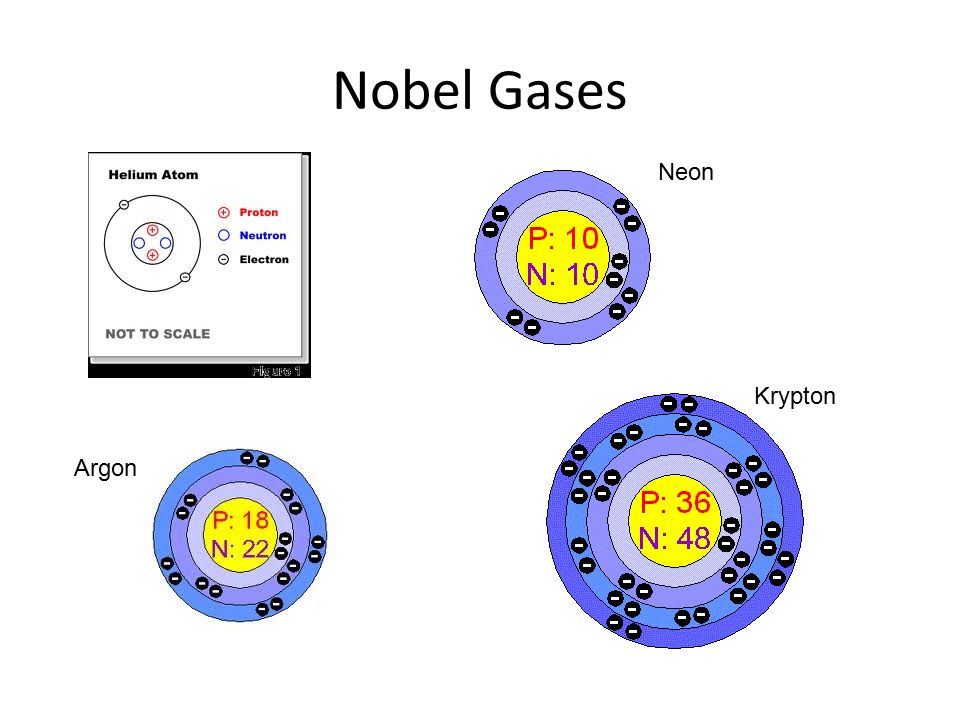

41. Nobel Gases Neon Argon Krypton

42. Drawing Atoms The Bohr Model e-e- 3 p+ 11 p+

44. Lewis Structures Electron Dot Diagrams Describes e - arrangement in atoms Describes bond arrangement in molecules. Uses dots to represent valence e- around an atom EX: Li Ne O Si

45. Dimitri Mendeleev In the late 1860's, Mendeleev began working on his great achievement: the periodic table of the elements. By arranging all of the 63 elements then known by their atomic weights, he managed to organize them into groups possessing similar properties. Where a gap existed in the table, he predicted a new element would one day be found and deduced its properties. And he was right. Three of those elements were found during his lifetime: gallium, scandium, and germanium.

46. Mendeleev’s Periodic Table

47. Moseley’s Periodic Table In 1913 Henry Moseley came up with this Periodic Table. The elements are arranged by increasing atomic number.

48. A group (also known as a family) is a vertical column in the periodic table of the chemical elements. There are 18 groups in the standard periodic table. Elements in a group have similar configurations of the outermost electron of their atoms – same number of valence e - This gives the groups of elements similar physical and chemical characteristics.

49. With each group across a period, the elements have one more proton and electron and become less metallic. Rows of elements are called periods. The period number of an element signifies the highest unexcited energy level for an electron in that element.

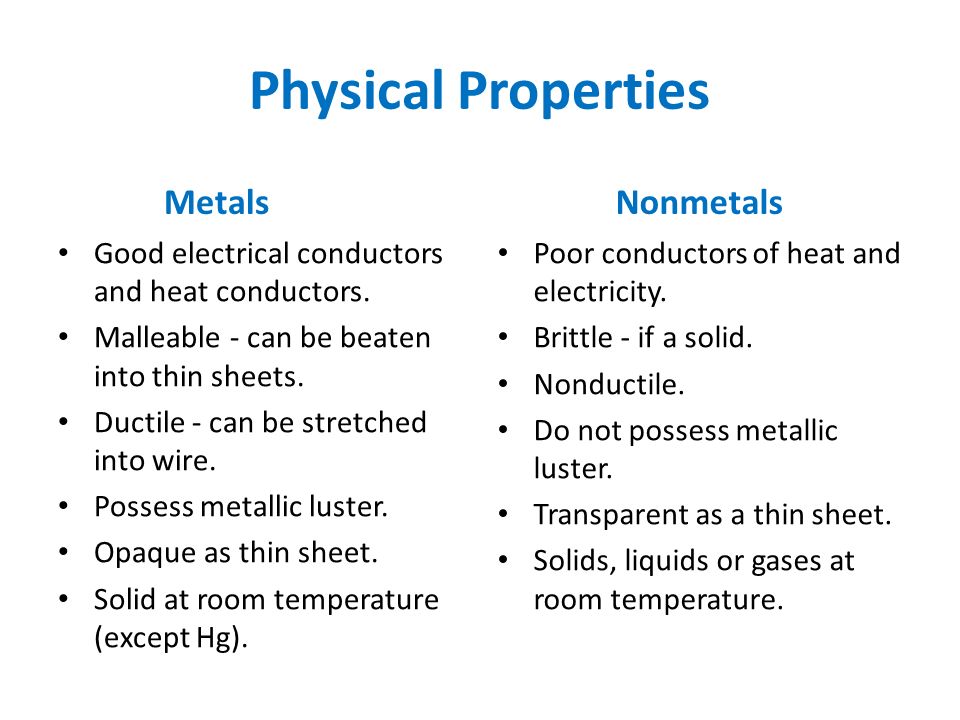

50. Physical Properties Metals Good electrical conductors and heat conductors. Malleable - can be beaten into thin sheets. Ductile - can be stretched into wire. Possess metallic luster. Opaque as thin sheet. Solid at room temperature (except Hg). Nonmetals Poor conductors of heat and electricity. Brittle - if a solid. Nonductile. Do not possess metallic luster. Transparent as a thin sheet. Solids, liquids or gases at room temperature.

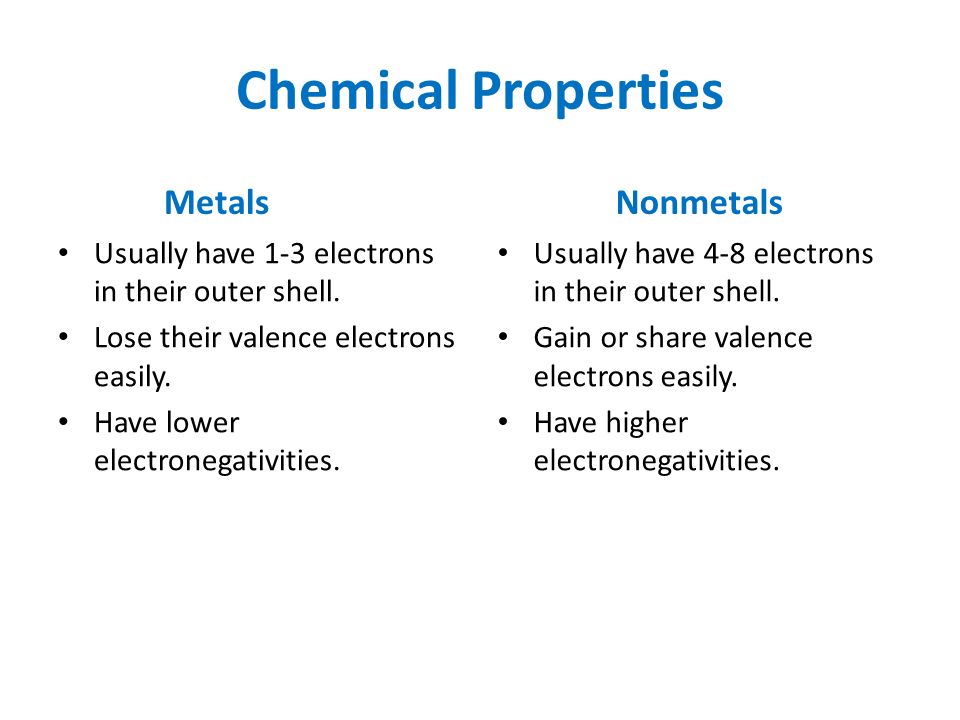

51. Chemical Properties Metals Usually have 1-3 electrons in their outer shell. Lose their valence electrons easily. Have lower electronegativities. Nonmetals Usually have 4-8 electrons in their outer shell. Gain or share valence electrons easily. Have higher electronegativities.

52. Metalloids Electronegativities and ionization energies between those of metals and nonmetals Possess some characteristics of metals/some of nonmetals Reactivity depends on properties of other elements in reaction Often make good semiconductors Boron, Silicon, Germanium, Arsenic, Antimony, Tellurium, Polonium

53. Ionic Bonding Between Metals & Nonmetals Metals Make Ionic Compounds Lose Electrons Have positive oxidation numbers Are first in a formula Ex: Na 2 S When naming, write the name just as it is Ex: Sodium sulfide Nonmetals Make Ionic Compounds Gain Electrons Have negative oxidation number Are second in the formula Ex: MgO When naming, drop the ending of the name and add IDE Ex: Magnesium oxide

54. More Ionic Bonding Strong attractions or forces between atoms in these compounds High melting and boiling points, good conductors Have a lattice structure

55. Sodium chloride Lattice

56. Covalent Bonding Covalent Molecules Between 2 or more nonmetals Share electrons Still try to obey the Octet Rule Weak bonds between molecules but strong bonds between atoms Low melting and boiling points, usually non conductors Simple molecules or giant structures can form

57. More Covalent Bonding Diamond and graphite are held together by this type of bond (allotropes) Ex: H 2 O, H 2 O 2, CH 4, CO 2 Ex: Diatomics – H 2, N 2, O 2, F 2, Cl 2, Br 2, I 2

58. Water Molecule

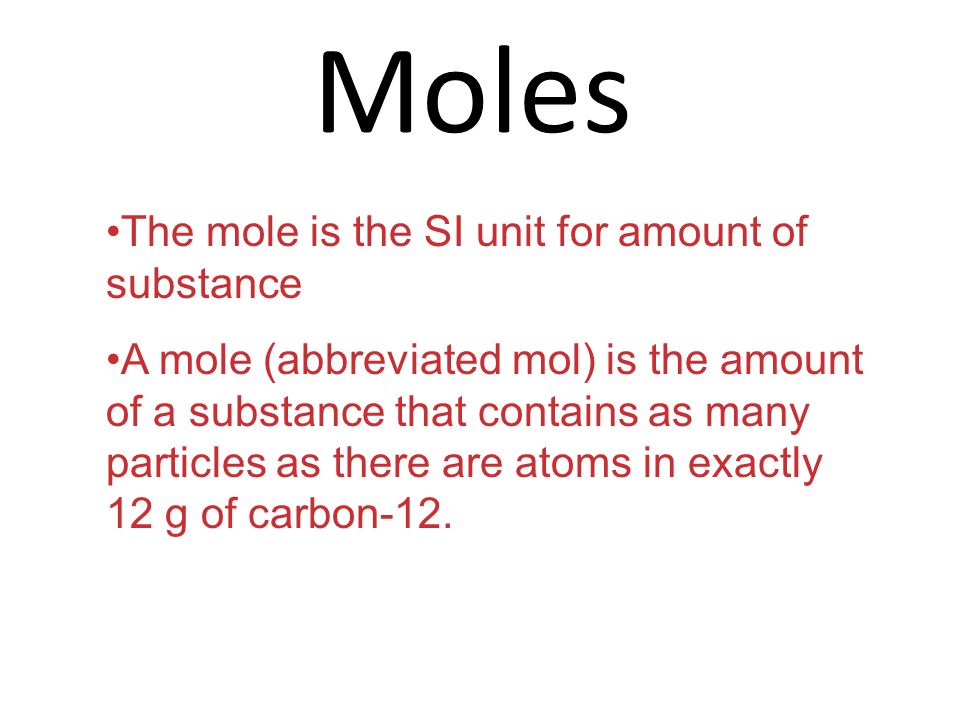

60. Moles The mole is the SI unit for amount of substance A mole (abbreviated mol) is the amount of a substance that contains as many particles as there are atoms in exactly 12 g of carbon-12.

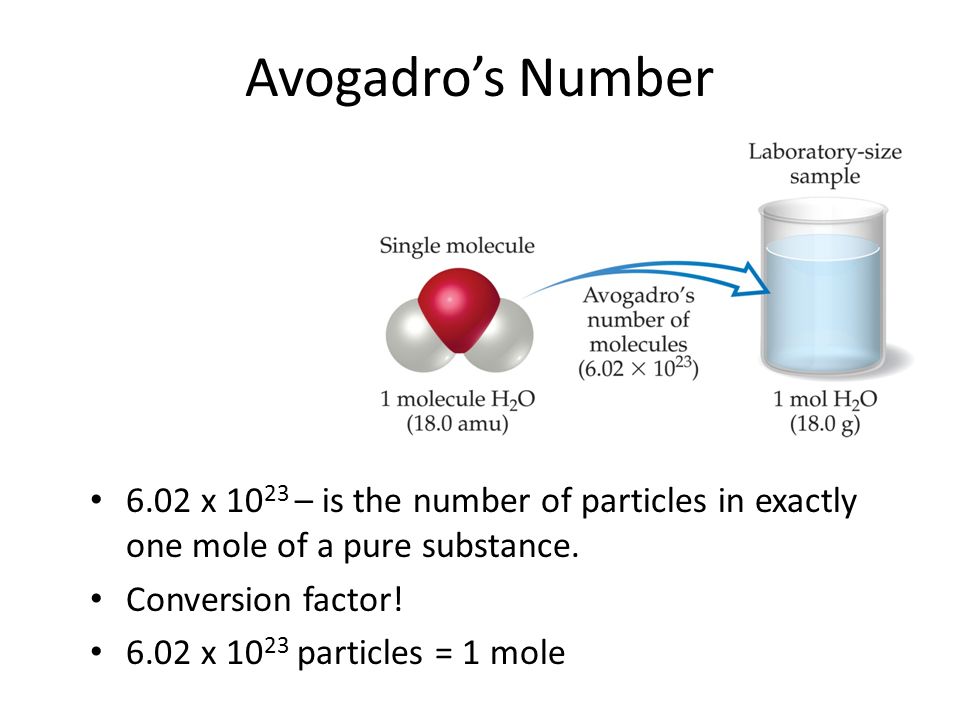

61. Avogadro’s Number 6.02 x 10 23 – is the number of particles in exactly one mole of a pure substance. Conversion factor! 6.02 x 10 23 particles = 1 mole

62. If I have 3.45 moles of hydrogen, how many particles do I have? 6.02 x 10 23 = 1 Mole
