1. Local Internet Registries. Training Course. http://www.ripe.net 1 Welcome to the Local Internet Registry Course RIPE Network Co-ordination Centre NEW version for RPSL launch to be ready for 3rd April!!!

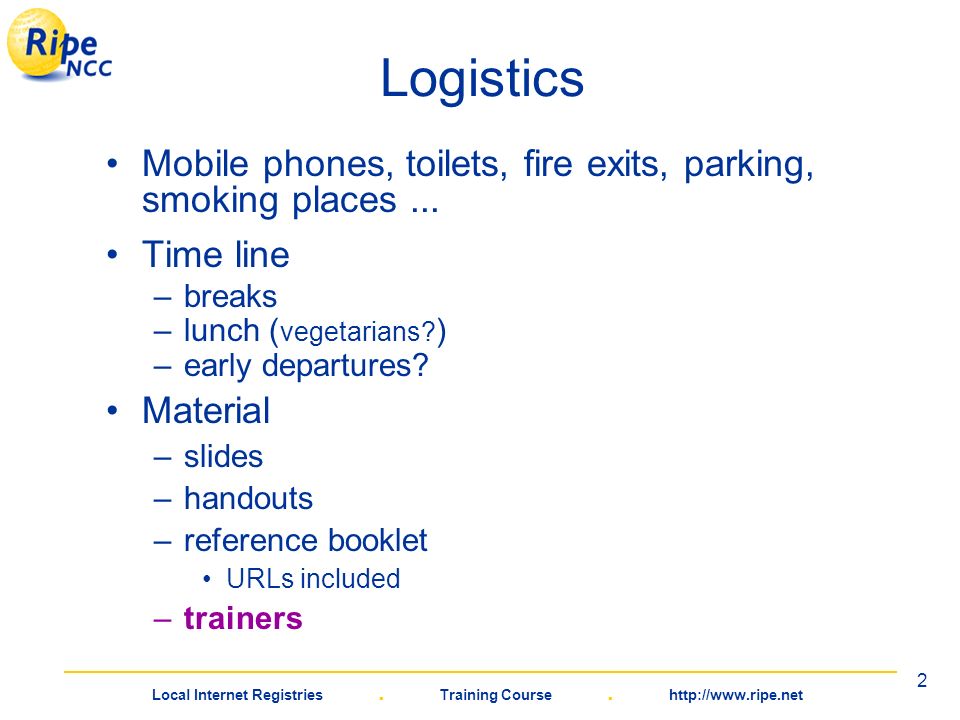

2. Local Internet Registries. Training Course. http://www.ripe.net 2 Logistics Mobile phones, toilets, fire exits, parking, smoking places... Time line –breaks –lunch ( vegetarians? ) –early departures? Material –slides –handouts –reference booklet URLs included –trainers

3. Local Internet Registries. Training Course. http://www.ripe.net 3 Method and Notations Flow of the content –material divided into sections –life-cycle of the registry –from general to more specific issues –from simple to more complex examples Notation in slides:  details follow in the rest of the current section * advanced issue; to be clarified later on  find enclosed in handouts Questions –exchange of experience –useful feedback for improvement

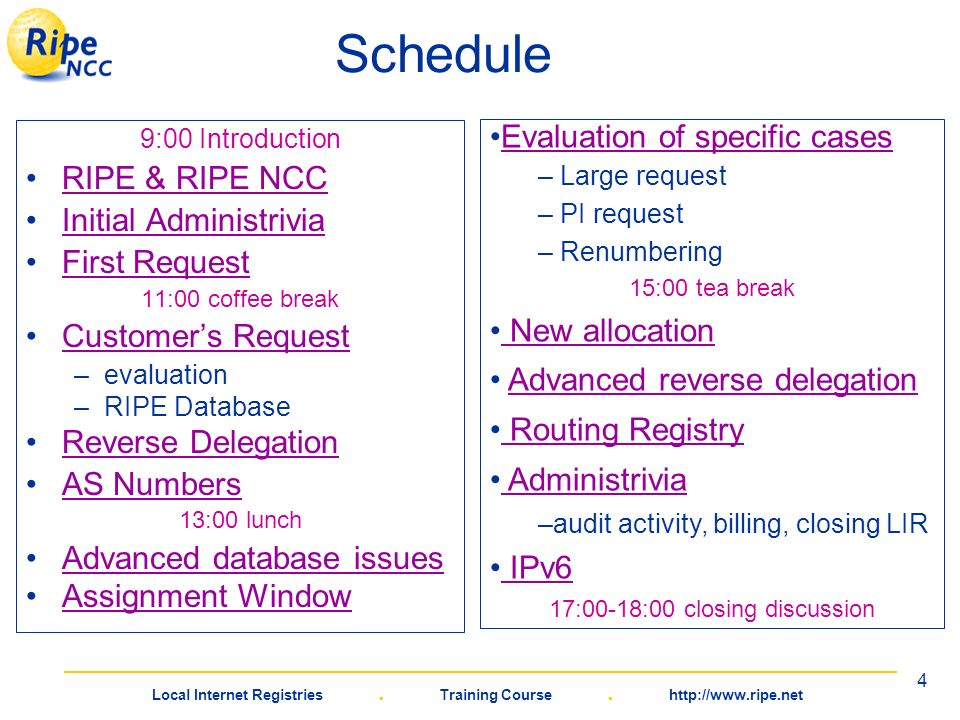

4. Local Internet Registries. Training Course. http://www.ripe.net 4 Schedule 9:00 Introduction RIPE & RIPE NCC Initial Administrivia First Request 11:00 coffee break Customer’s Request –evaluation –RIPE Database Reverse Delegation AS Numbers 13:00 lunch Advanced database issues Assignment WindowAssignment Window Evaluation of specific cases – Large request – PI request – Renumbering 15:00 tea break New allocation Advanced reverse delegation Routing Registry Administrivia –audit activity, billing, closing LIR IPv6 17:00-18:00 closing discussion

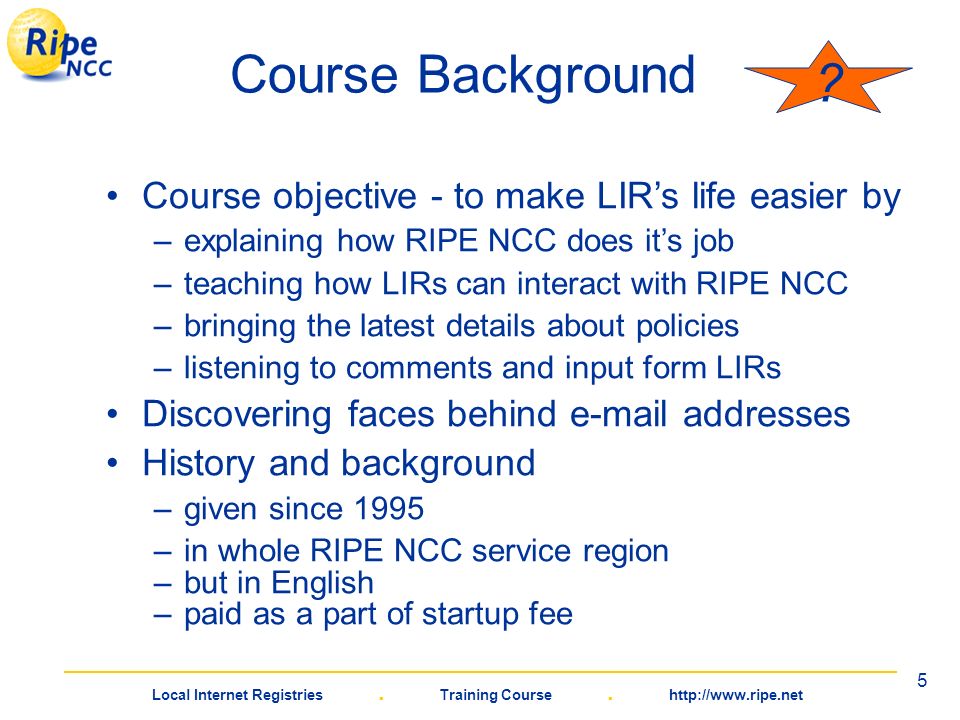

5. Local Internet Registries. Training Course. http://www.ripe.net 5 Course Background ? Course objective - to make LIR’s life easier by –explaining how RIPE NCC does it’s job –teaching how LIRs can interact with RIPE NCC –bringing the latest details about policies –listening to comments and input form LIRs Discovering faces behind e-mail addresses History and background –given since 1995 –in whole RIPE NCC service region –but in English –paid as a part of startup fee

6. Local Internet Registries. Training Course. http://www.ripe.net 6 RIPE and RIPE NCC

7. Local Internet Registries. Training Course. http://www.ripe.net 7 Introduction to RIPE

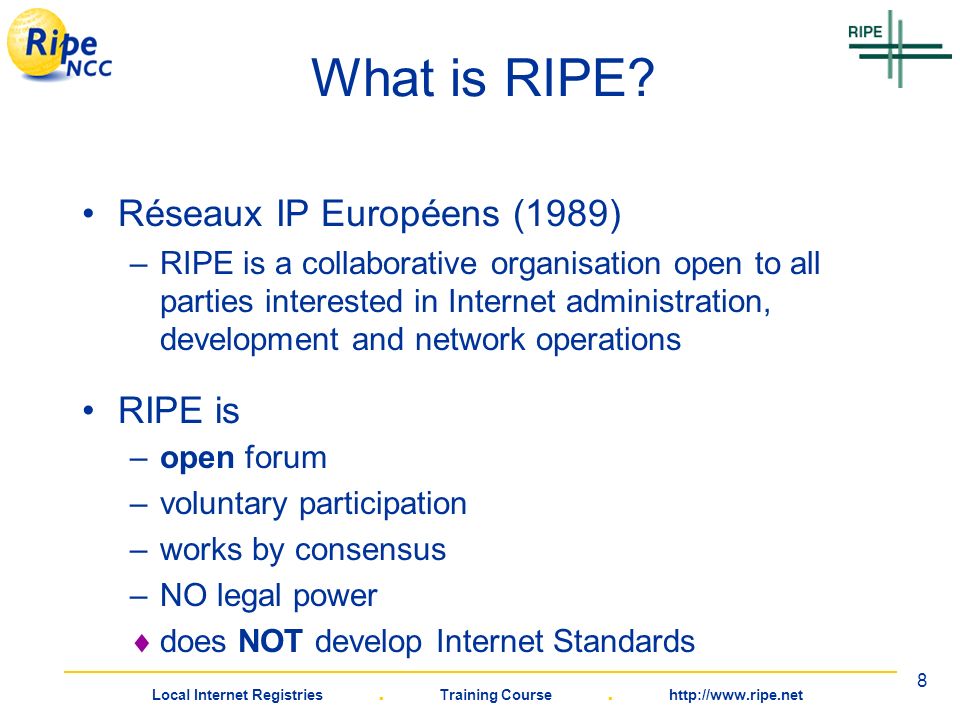

8. Local Internet Registries. Training Course. http://www.ripe.net 8 What is RIPE? Réseaux IP Européens (1989) –RIPE is a collaborative organisation open to all parties interested in Internet administration, development and network operations RIPE is –open forum –voluntary participation –works by consensus –NO legal power  does NOT develop Internet Standards

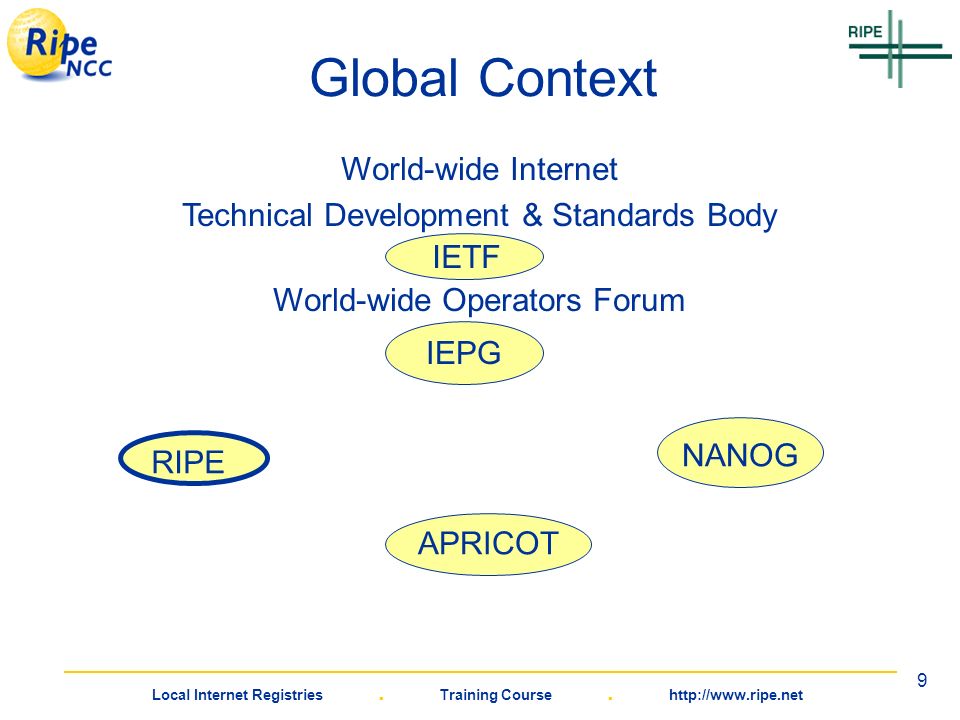

9. Local Internet Registries. Training Course. http://www.ripe.net 9 Global Context World-wide Internet Technical Development & Standards Body World-wide Operators Forum IETF IEPG RIPE APRICOT NANOG

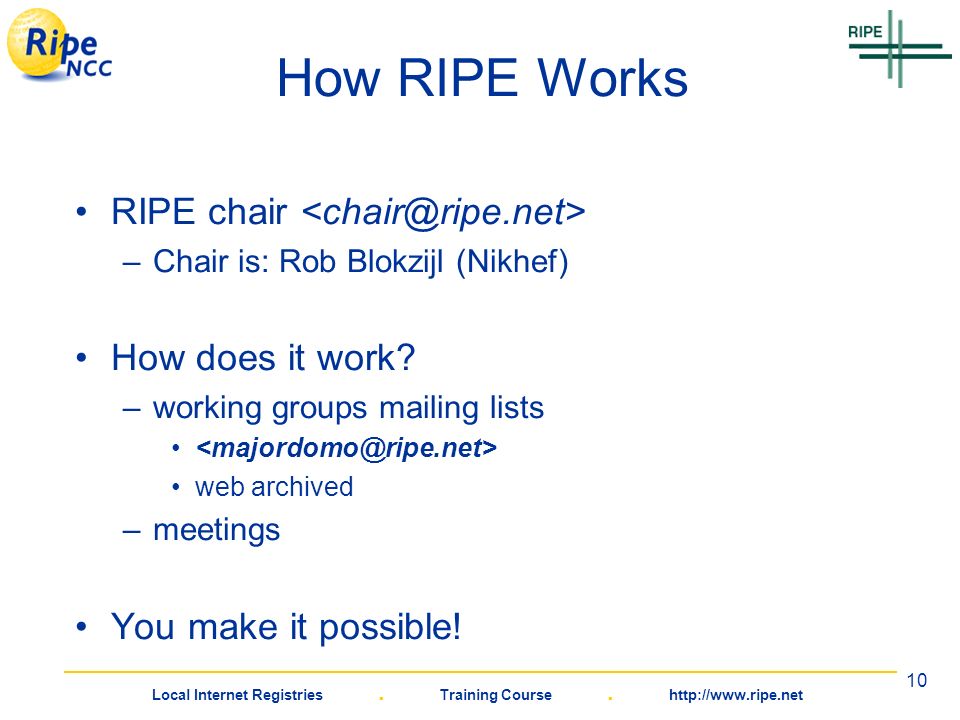

10. Local Internet Registries. Training Course. http://www.ripe.net 10 How RIPE Works RIPE chair –Chair is: Rob Blokzijl (Nikhef) How does it work? –working groups mailing lists web archived –meetings You make it possible!

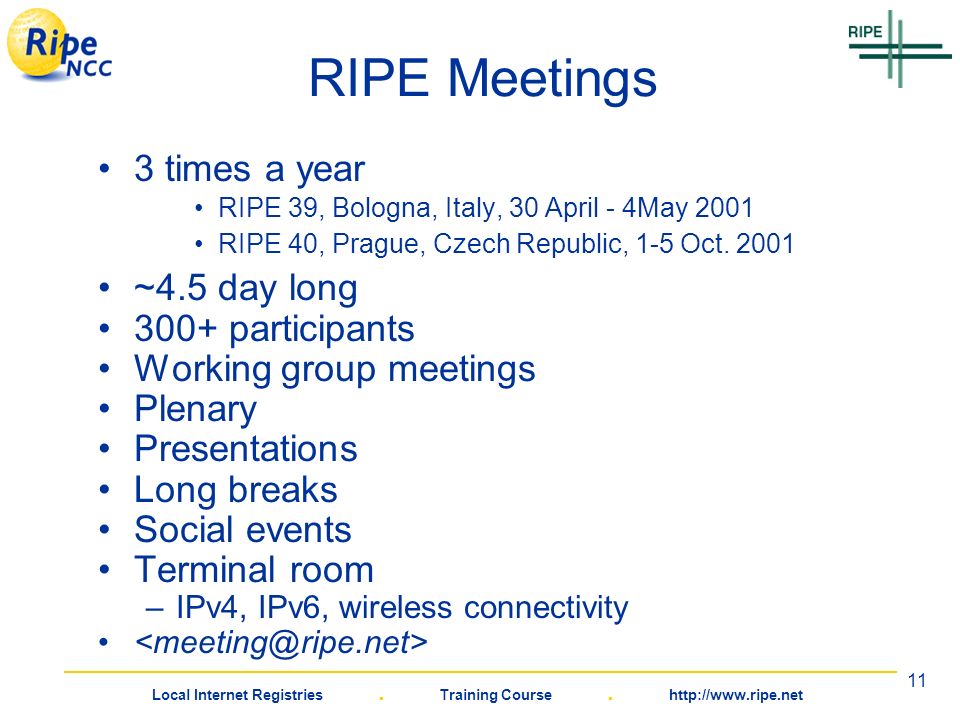

11. Local Internet Registries. Training Course. http://www.ripe.net 11 RIPE Meetings 3 times a year RIPE 39, Bologna, Italy, 30 April - 4May 2001 RIPE 40, Prague, Czech Republic, 1-5 Oct. 2001 ~4.5 day long 300+ participants Working group meetings Plenary Presentations Long breaks Social events Terminal room –IPv4, IPv6, wireless connectivity

12. Local Internet Registries. Training Course. http://www.ripe.net 12 Introduction to RIPE NCC

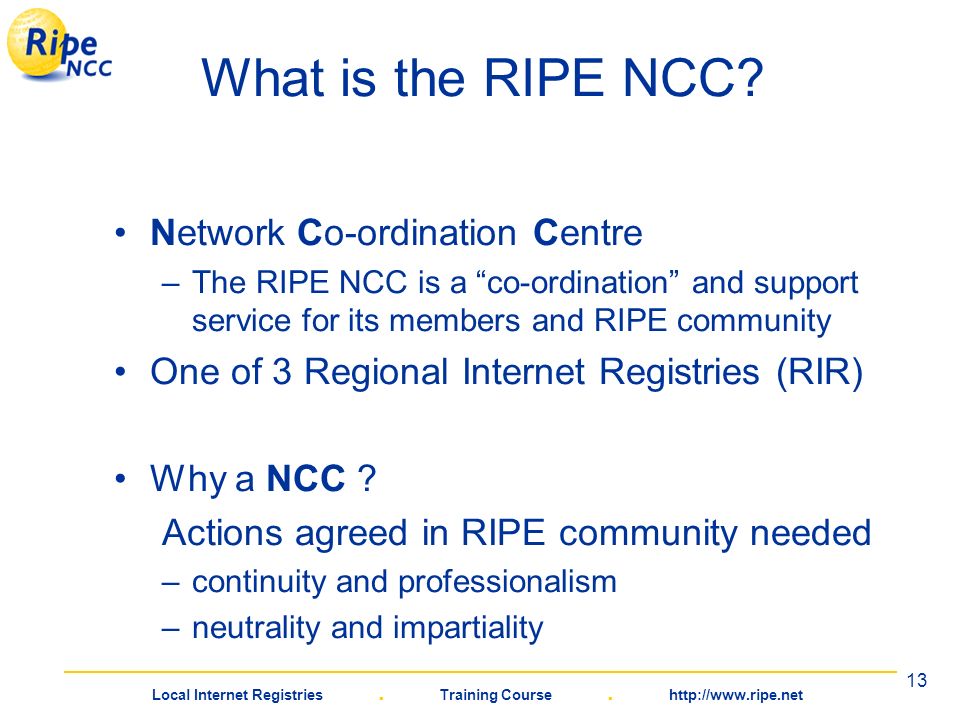

13. Local Internet Registries. Training Course. http://www.ripe.net 13 What is the RIPE NCC? Network Co-ordination Centre –The RIPE NCC is a “co-ordination” and support service for its members and RIPE community One of 3 Regional Internet Registries (RIR) Why a NCC ? Actions agreed in RIPE community needed –continuity and professionalism –neutrality and impartiality

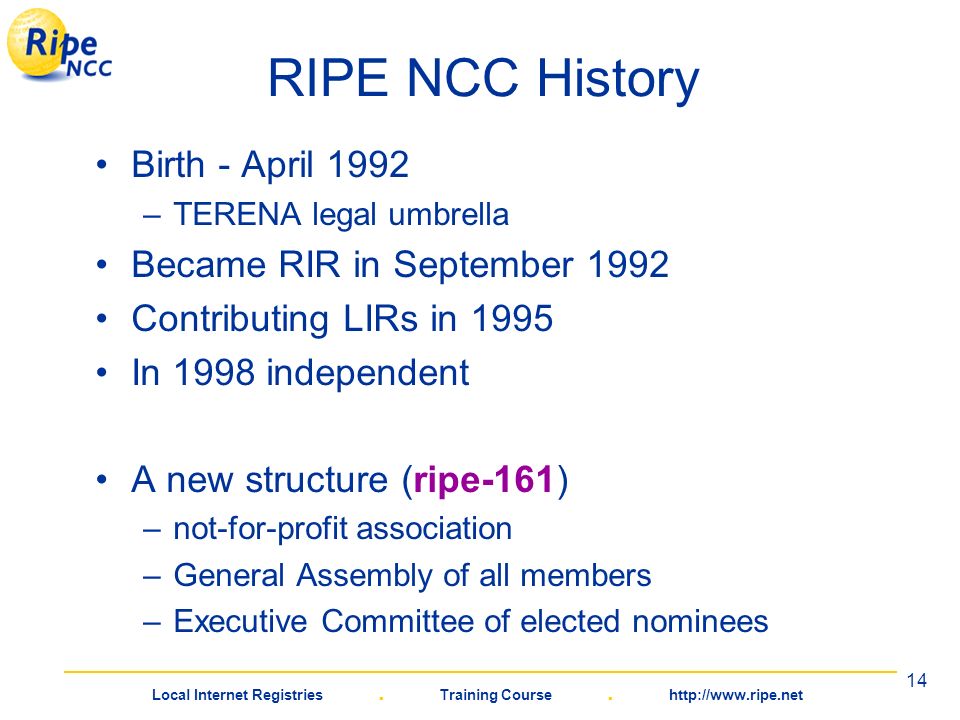

14. Local Internet Registries. Training Course. http://www.ripe.net 14 RIPE NCC History Birth - April 1992 –TERENA legal umbrella Became RIR in September 1992 Contributing LIRs in 1995 In 1998 independent A new structure (ripe-161) –not-for-profit association –General Assembly of all members –Executive Committee of elected nominees

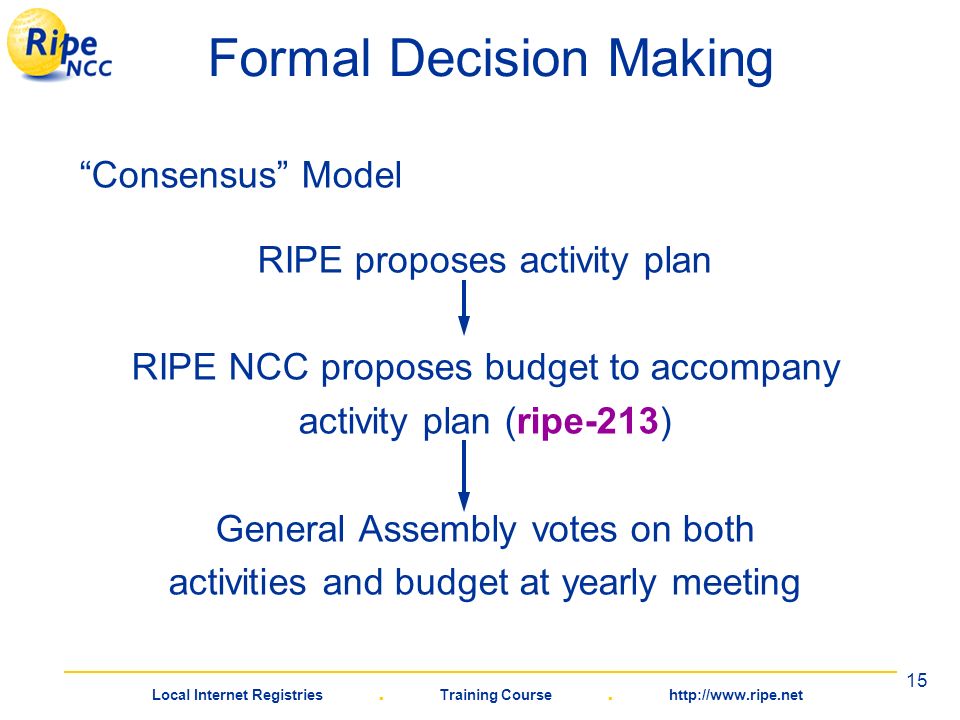

15. Local Internet Registries. Training Course. http://www.ripe.net 15 Formal Decision Making “Consensus” Model RIPE proposes activity plan RIPE NCC proposes budget to accompany activity plan (ripe-213) General Assembly votes on both activities and budget at yearly meeting

16. Local Internet Registries. Training Course. http://www.ripe.net 16 Vital Statistics Statistics 1992 –3 staff members –No Local IR’s –182,528 hosts in European Internet –7,955 objects in RIPE database (June ‘92) Statistics Now –67 staff (22 nationalities)  2,595+ participating Local IR’s  12,088,135+ countable hosts in the RIPE NCC region  3,792,085+ objects in the database

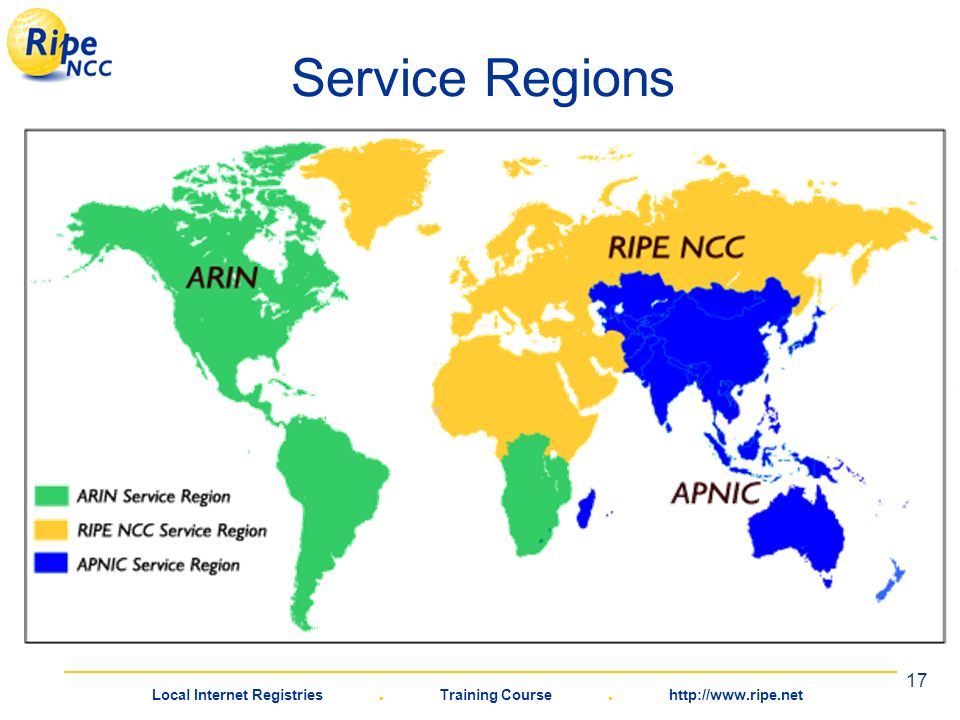

17. Local Internet Registries. Training Course. http://www.ripe.net 17 Service Regions

18. Local Internet Registries. Training Course. http://www.ripe.net 18 RIPE NCC Services Member Services Registration Services –IPv4 addresses –IPv6 addresses –AS numbers –LIR Training Courses Reverse domain delegation –NOT registering domain names Test Traffic Measurements  Public Services –RIPE whois database maintenance  Routing Registry Maintenance Co-ordination –RIPE support –liaison with: LIRs / RIRs / ICANN - ASO/etc Information dissemination Maintenance of tools

19. Local Internet Registries. Training Course. http://www.ripe.net 19 Summary: RIPE & RIPE NCC Two separate organisations, closely interdependent RIPE –open forum for discussing policies RIPE NCC –legitimate, not-for-profit association –formal membership –neutral and impartial

20. Local Internet Registries. Training Course. http://www.ripe.net 20 Questions?

21. Local Internet Registries. Training Course. http://www.ripe.net 21 RIPE Database Description How to query the Database How to create contact information objects

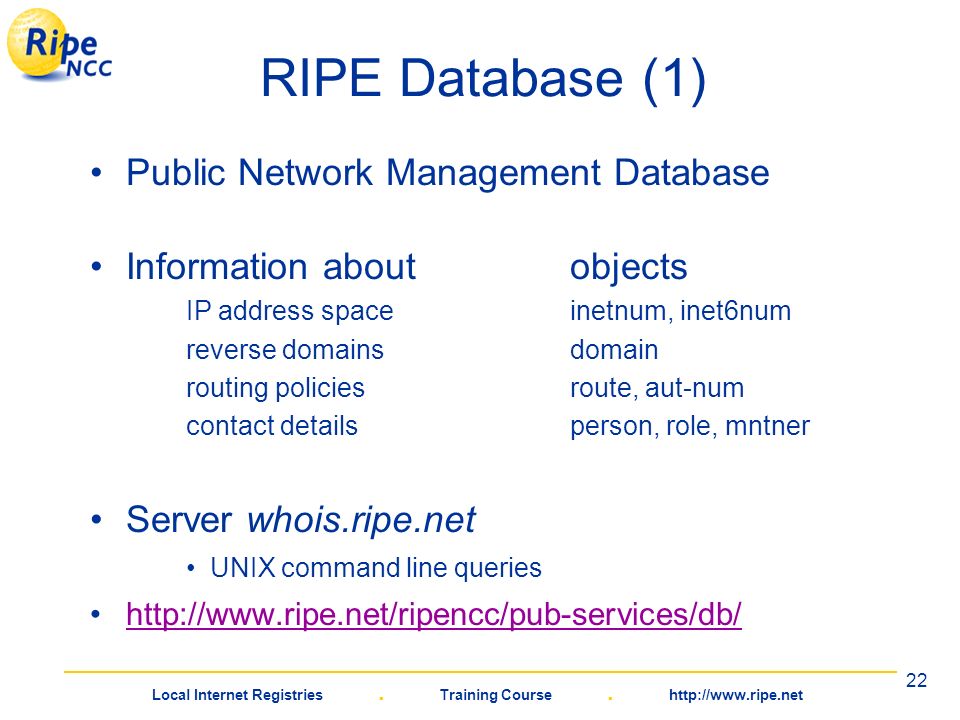

22. Local Internet Registries. Training Course. http://www.ripe.net 22 RIPE Database (1) Public Network Management Database Information about objects IP address space inetnum, inet6num reverse domainsdomain routing policies route, aut-num contact detailsperson, role, mntner Server whois.ripe.net UNIX command line queries http://www.ripe.net/ripencc/pub-services/db/

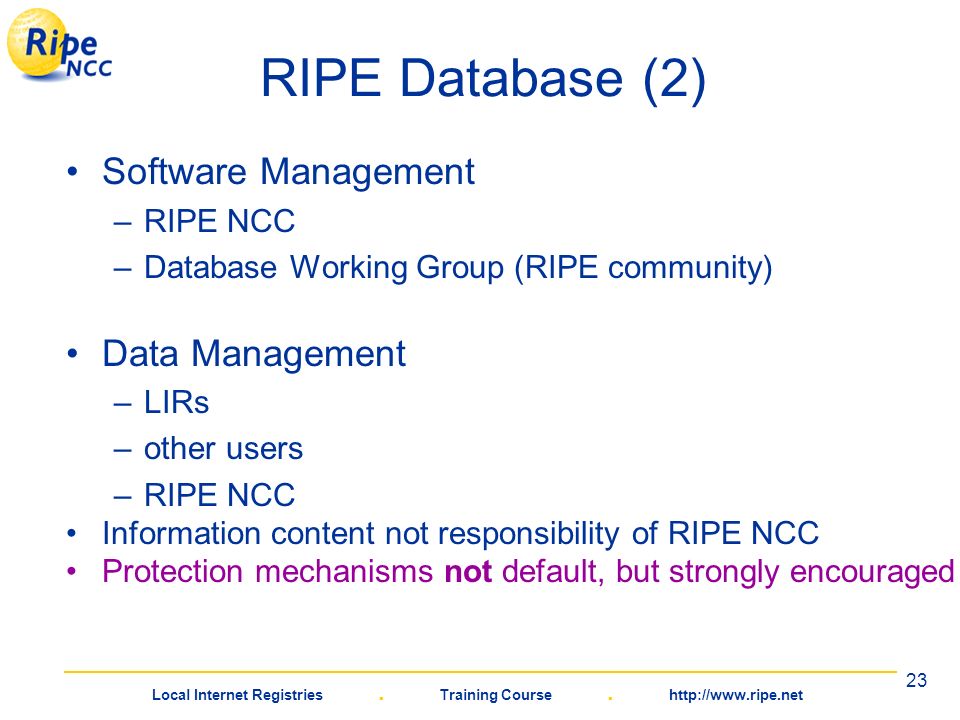

23. Local Internet Registries. Training Course. http://www.ripe.net 23 RIPE Database (2) Software Management –RIPE NCC –Database Working Group (RIPE community) Data Management –LIRs –other users –RIPE NCC Information content not responsibility of RIPE NCC Protection mechanisms not default, but strongly encouraged

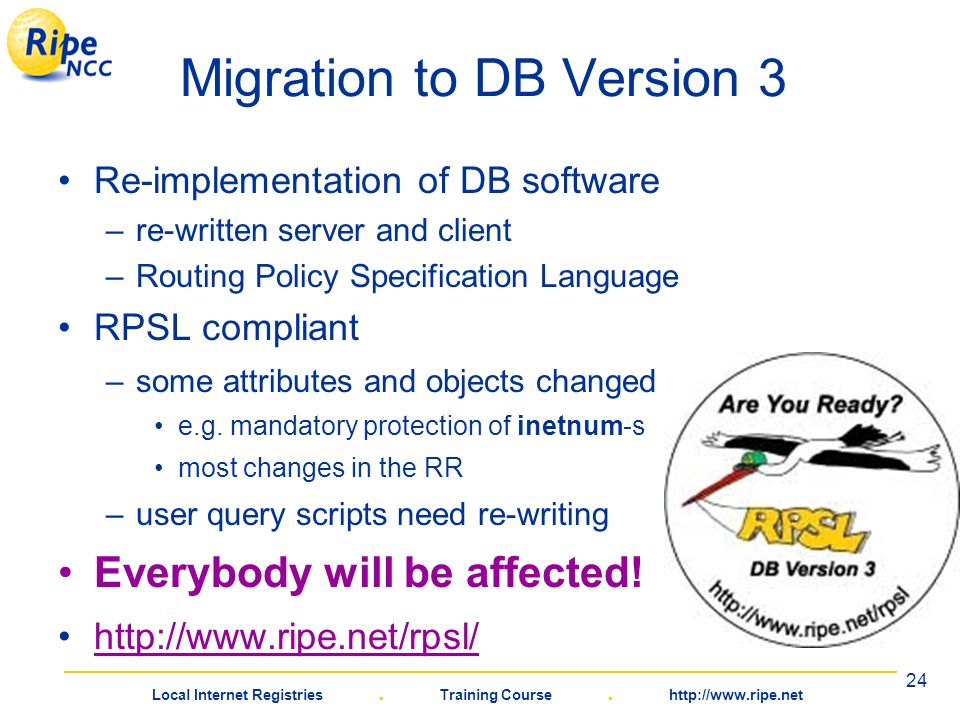

24. Local Internet Registries. Training Course. http://www.ripe.net 24 Migration to DB Version 3 Re-implementation of DB software –re-written server and client –Routing Policy Specification Language RPSL compliant –some attributes and objects changed e.g. mandatory protection of inetnum-s most changes in the RR –user query scripts need re-writing Everybody will be affected! http://www.ripe.net/rpsl/

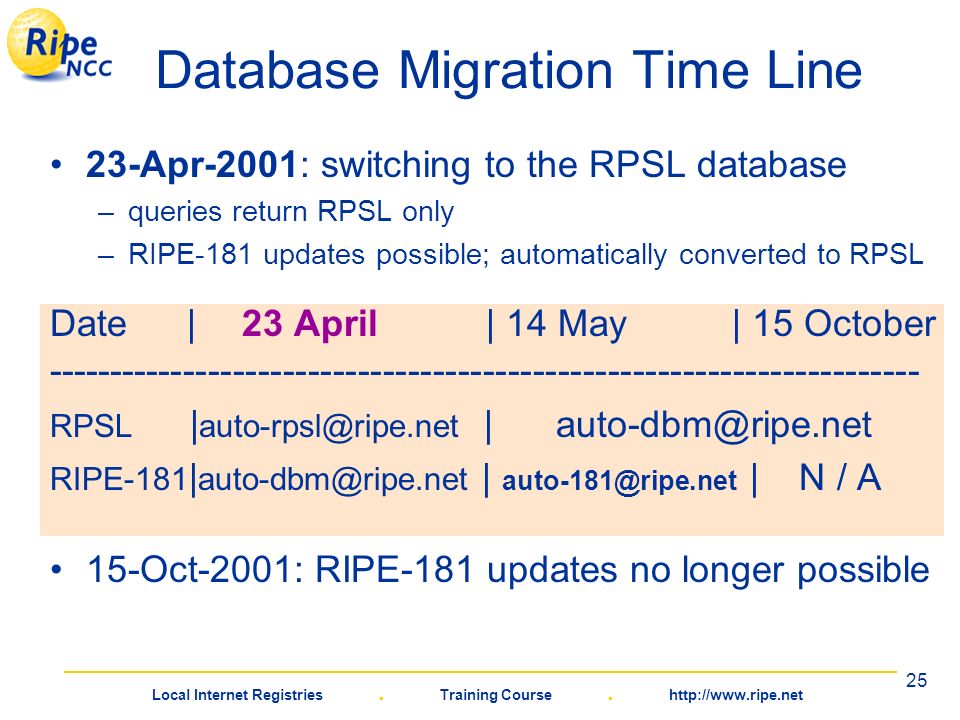

25. Local Internet Registries. Training Course. http://www.ripe.net 25 Database Migration Time Line 23-Apr-2001: switching to the RPSL database –queries return RPSL only –RIPE-181 updates possible; automatically converted to RPSL Date |23 April | 14 May | 15 October ---------------------------------------------------------------------- RPSL | auto-rpsl@ripe.net | auto-dbm@ripe.net RIPE-181 | auto-dbm@ripe.net | auto-181@ripe.net | N / A 15-Oct-2001: RIPE-181 updates no longer possible

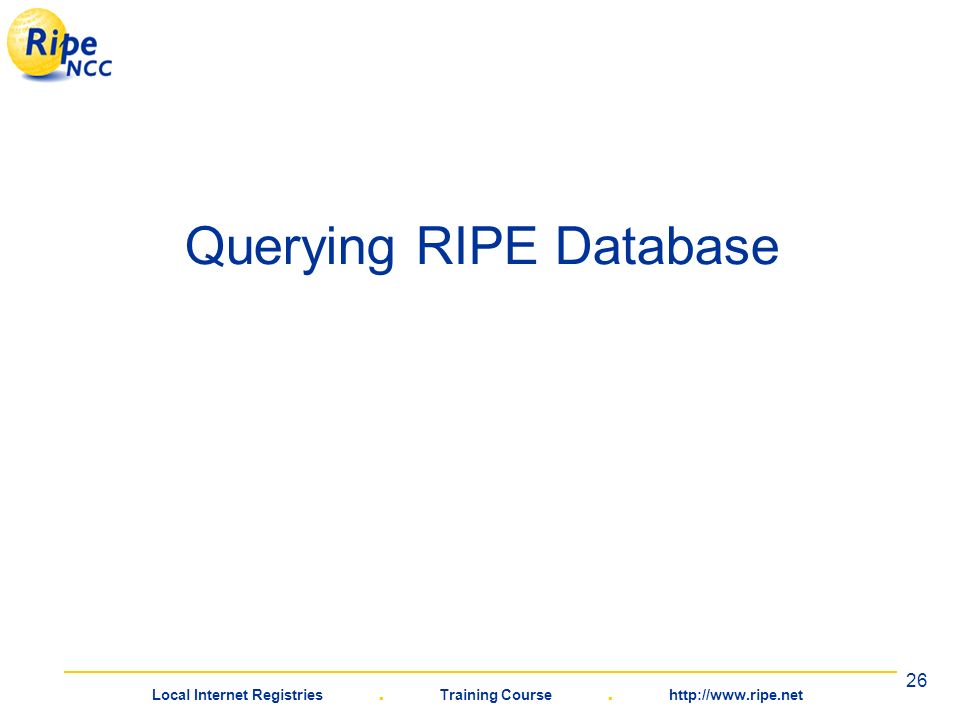

26. Local Internet Registries. Training Course. http://www.ripe.net 26 Querying RIPE Database

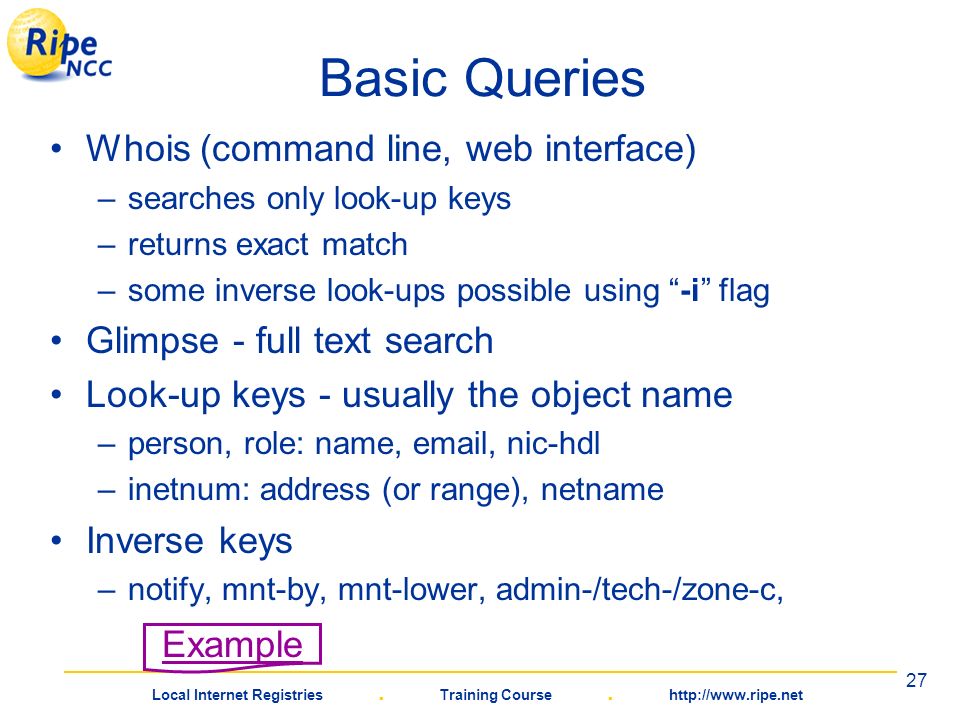

27. Local Internet Registries. Training Course. http://www.ripe.net 27 Basic Queries Whois (command line, web interface) –searches only look-up keys –returns exact match –some inverse look-ups possible using “-i” flag Glimpse - full text search Look-up keys - usually the object name –person, role: name, email, nic-hdl –inetnum: address (or range), netname Inverse keys –notify, mnt-by, mnt-lower, admin-/tech-/zone-c, Example

28. Local Internet Registries. Training Course. http://www.ripe.net 28 Creating Database Objects

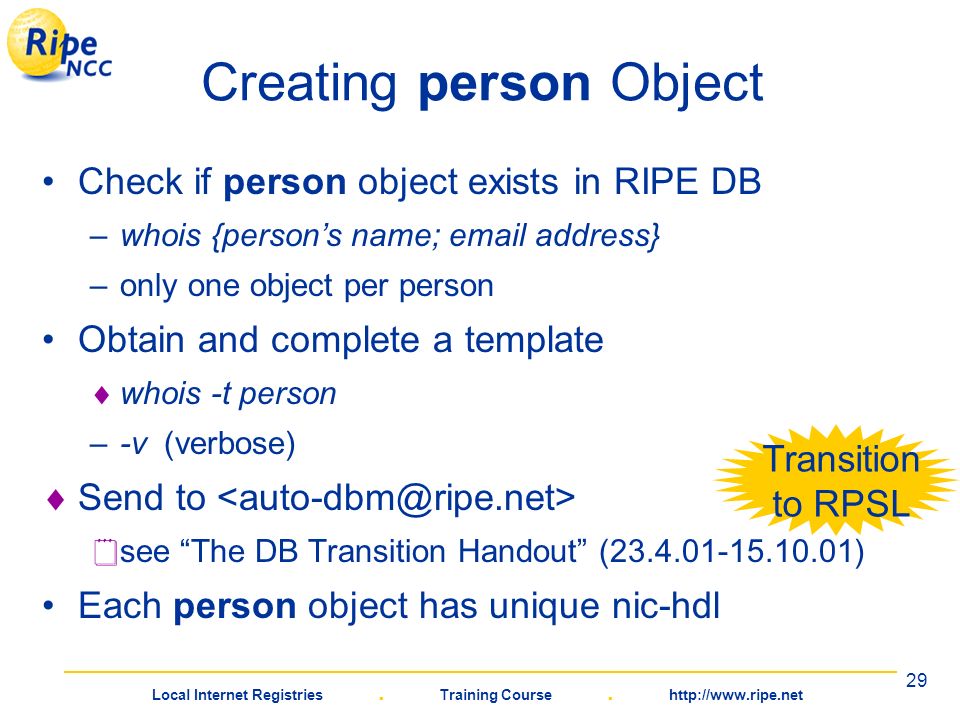

29. Local Internet Registries. Training Course. http://www.ripe.net 29 Creating person Object Check if person object exists in RIPE DB –whois {person’s name; email address} –only one object per person Obtain and complete a template  whois -t person –-v (verbose)  Send to  see “The DB Transition Handout” (23.4.01-15.10.01) Each person object has unique nic-hdl Transition to RPSL

30. Local Internet Registries. Training Course. http://www.ripe.net 30 whois -t person person: [mandatory] [single] [lookup key] address: [mandatory] [multiple] [ ] phone: [mandatory] [multiple] [ ] fax-no: [optional] [multiple] [ ] e-mail: [optional] [multiple] [lookup key] nic-hdl: [mandatory] [single] [primary/look-up key] remarks: [optional] [multiple] [ ] notify: [optional] [multiple] [inverse key] mnt-by: [optional] [multiple] [inverse key] changed: [mandatory] [multiple] [ ] source: [mandatory] [single] [ ]

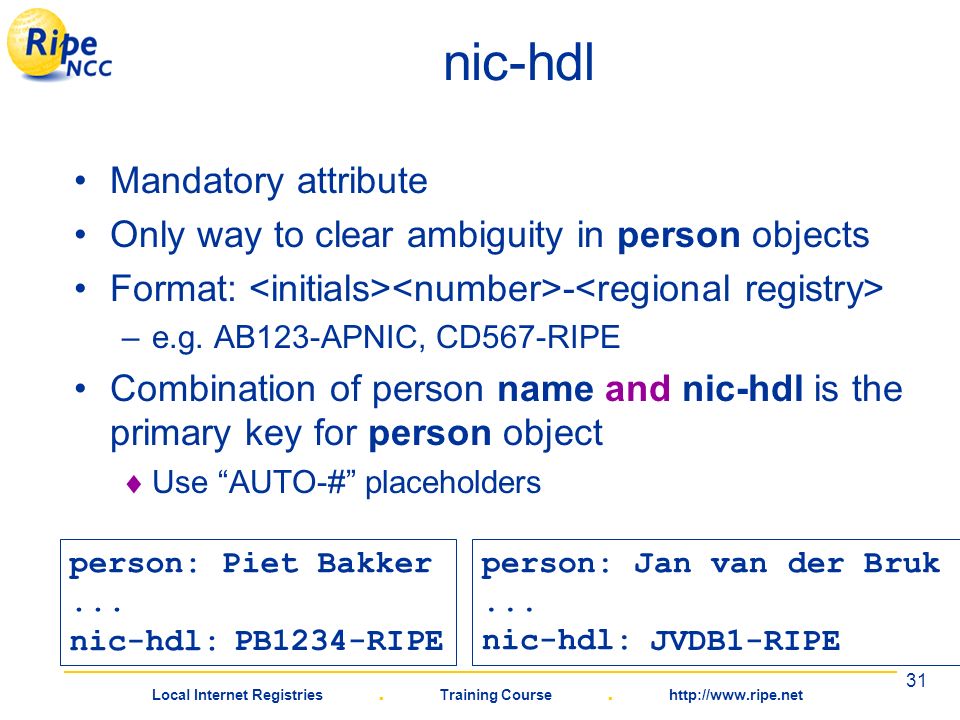

31. Local Internet Registries. Training Course. http://www.ripe.net 31 person: Jan van der Bruk... nic-hdl: AUTO-#initials AUTO-2JVDB nic-hdl person: Piet Bakker... nic-hdl: AUTO-1 PB1234-RIPE Mandatory attribute Only way to clear ambiguity in person objects Format: - –e.g. AB123-APNIC, CD567-RIPE Combination of person name and nic-hdl is the primary key for person object  Use “AUTO-#” placeholders JVDB1-RIPE

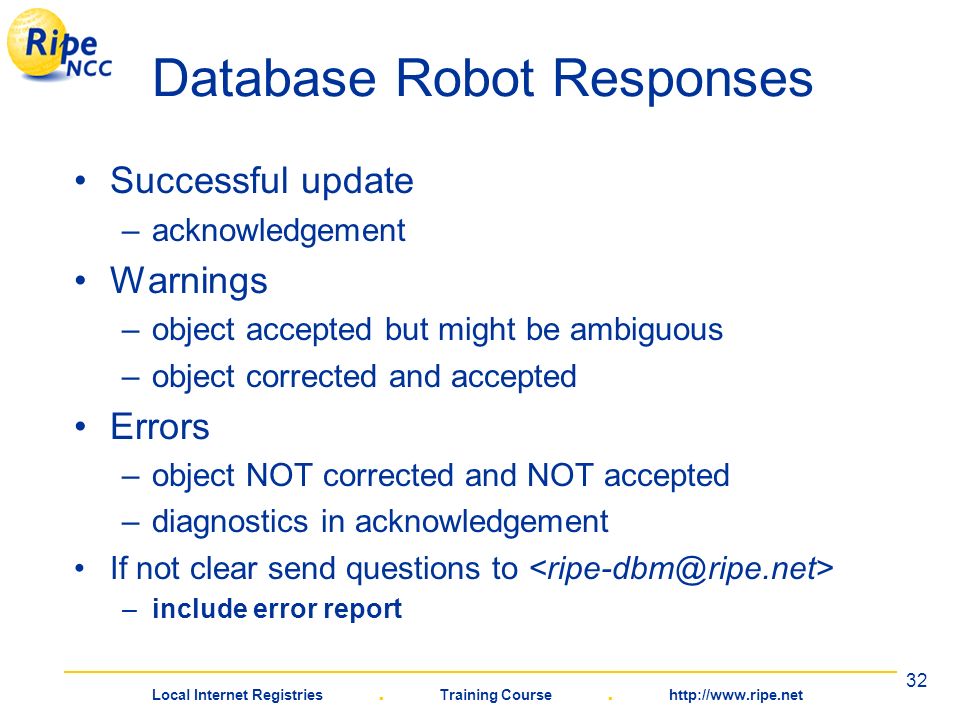

32. Local Internet Registries. Training Course. http://www.ripe.net 32 Database Robot Responses Successful update –acknowledgement Warnings –object accepted but might be ambiguous –object corrected and accepted Errors –object NOT corrected and NOT accepted –diagnostics in acknowledgement If not clear send questions to –include error report

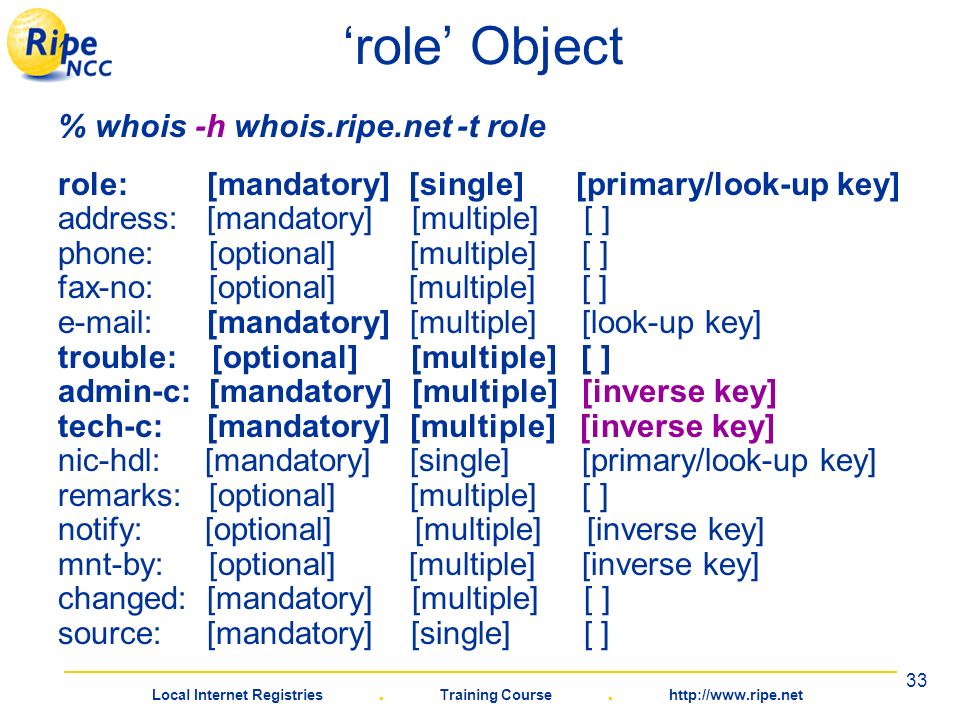

33. Local Internet Registries. Training Course. http://www.ripe.net 33 ‘role’ Object % whois -h whois.ripe.net -t role role: [mandatory] [single] [primary/look-up key] address: [mandatory] [multiple] [ ] phone: [optional] [multiple] [ ] fax-no: [optional] [multiple] [ ] e-mail: [mandatory] [multiple] [look-up key] trouble: [optional] [multiple] [ ] admin-c: [mandatory] [multiple] [inverse key] tech-c: [mandatory] [multiple] [inverse key] nic-hdl: [mandatory] [single] [primary/look-up key] remarks: [optional] [multiple] [ ] notify: [optional] [multiple] [inverse key] mnt-by: [optional] [multiple] [inverse key] changed: [mandatory] [multiple] [ ] source: [mandatory] [single] [ ]

34. Local Internet Registries. Training Course. http://www.ripe.net 34 Role Object for Contact Persons role: BlueLight Contact Role description:Hostmaster for Blue Light BV admin-c: JAJA1-RIPE tech-c: AB321-RIPE tech-c: WF2121-RIPE email: hostmaster@bluelight.nl trouble: 24/7 phone number: +31-60-123-4567 nic-hdl:BL112-RIPE notify: hm-dbm-msgs@ripe.net notify: auto-hm@bluelight.nl mntner:BLUELIGHT-MNT changed:hostmaster@bluelight.nl 20000202 source: RIPE

35. Local Internet Registries. Training Course. http://www.ripe.net 35 Questions?

36. Local Internet Registries. Training Course. http://www.ripe.net 36 Setting up a Local Internet Registry Becoming LIR Terminology First Request

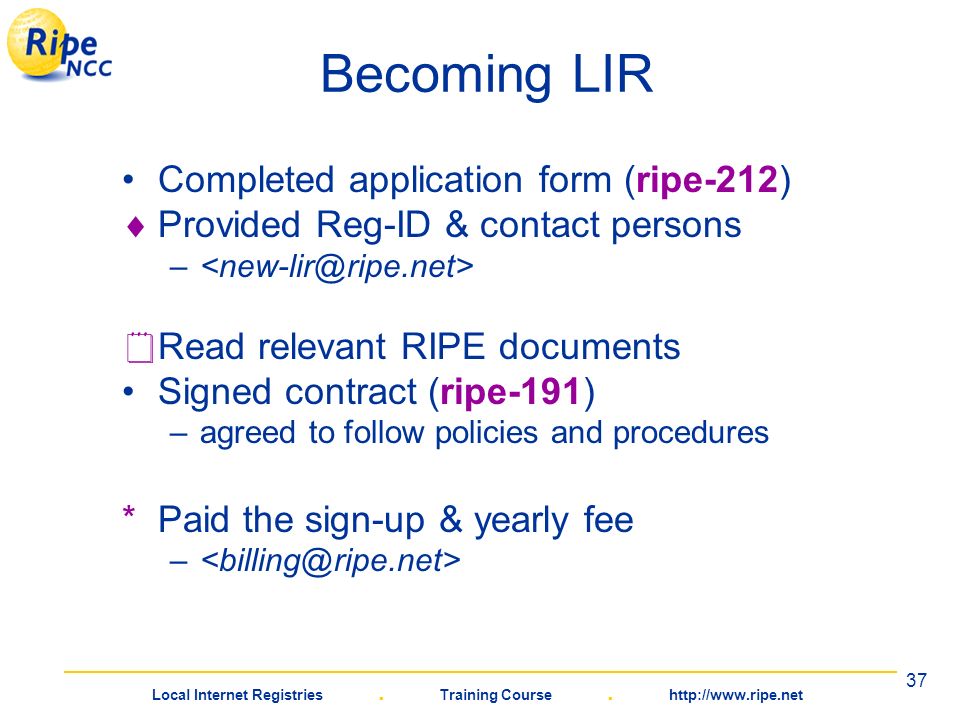

37. Local Internet Registries. Training Course. http://www.ripe.net 37 Becoming LIR Completed application form (ripe-212)  Provided Reg-ID & contact persons –  Read relevant RIPE documents Signed contract (ripe-191) –agreed to follow policies and procedures *Paid the sign-up & yearly fee –

38. Local Internet Registries. Training Course. http://www.ripe.net 38 Terminology Allocation –address space given to registries which is held by them to assign to customers Assignment –address space given to end-users for use in operational networks assignment /20 allocation = 4096 addresses assignment

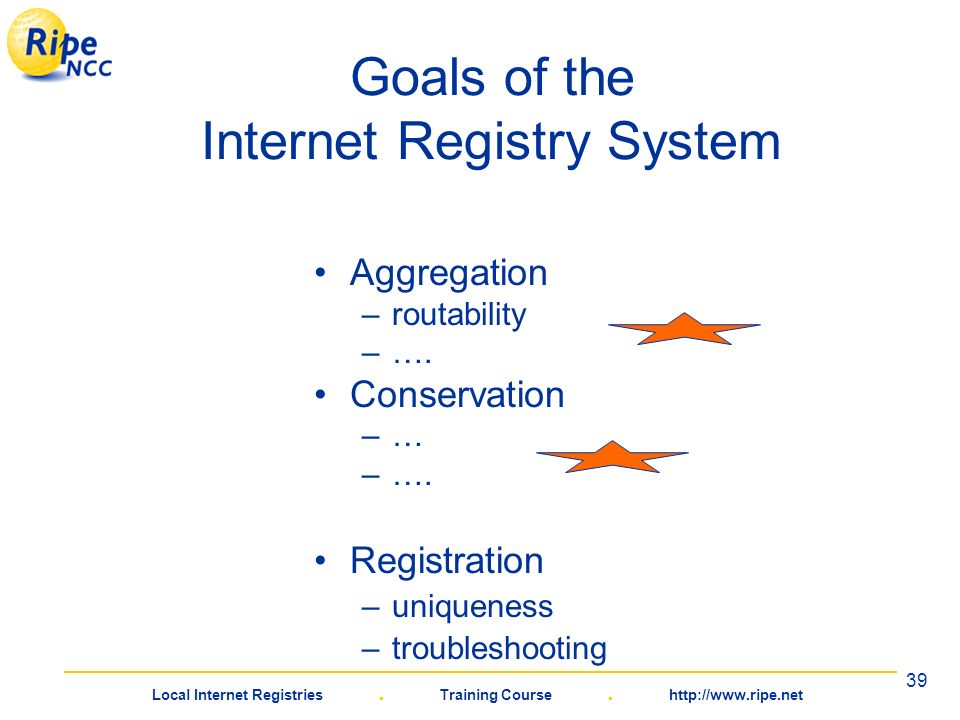

39. Local Internet Registries. Training Course. http://www.ripe.net 39 Goals of the Internet Registry System Aggregation –routability –…. Conservation –… –…. Registration –uniqueness –troubleshooting

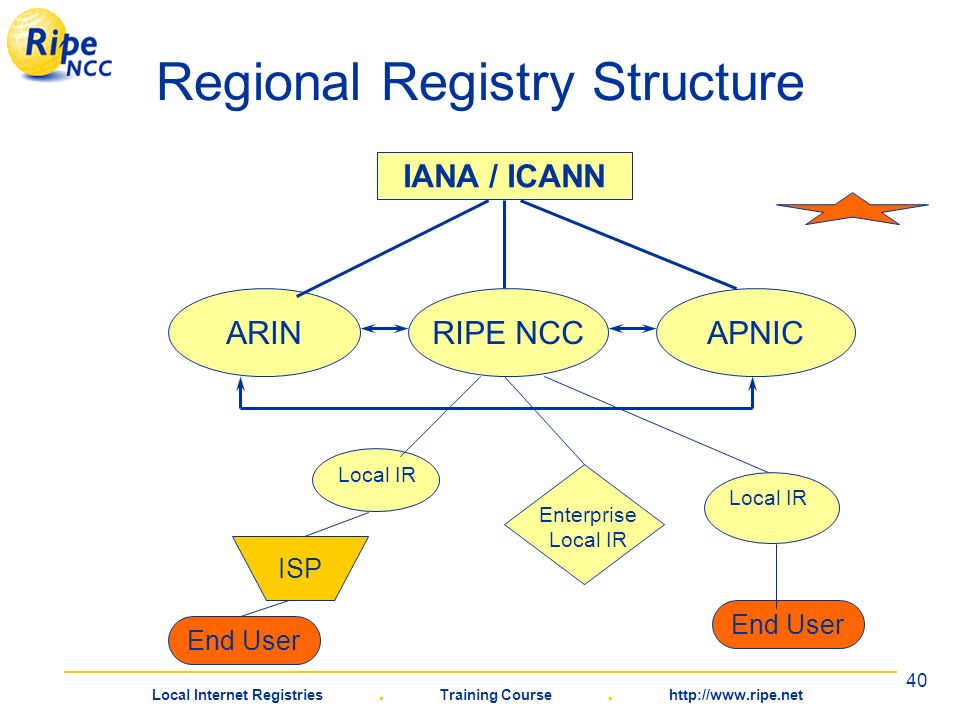

40. Local Internet Registries. Training Course. http://www.ripe.net 40 Regional Registry Structure IANA / ICANN RIPE NCCARINAPNIC Enterprise Local IR ISP End User

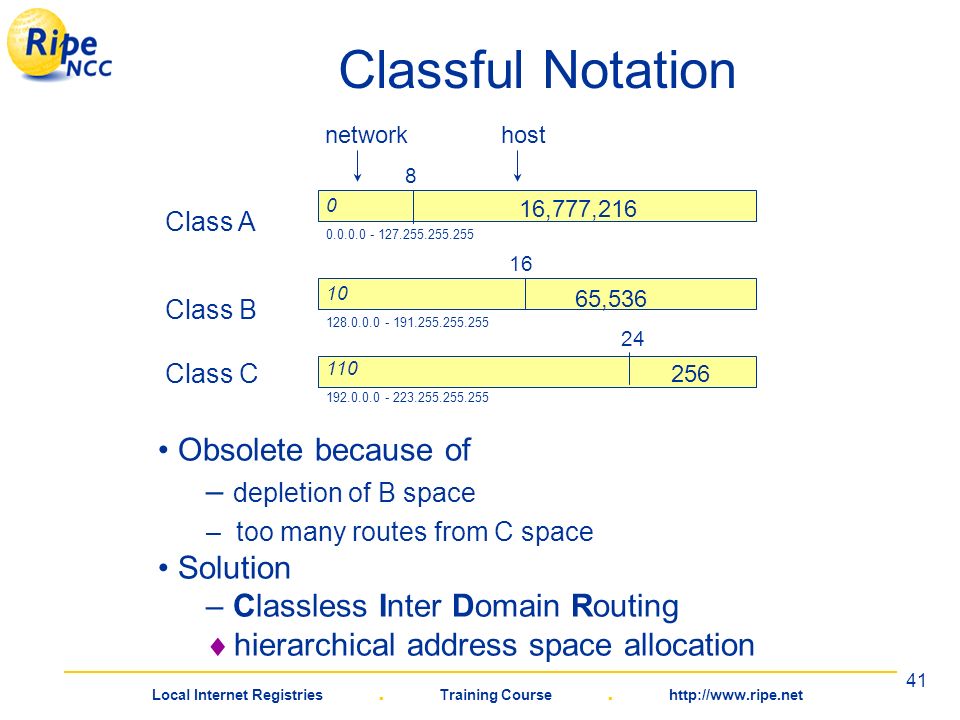

41. Local Internet Registries. Training Course. http://www.ripe.net 41 Classful Notation 16,777,216 65,536 networkhost 8 16 Class A Class B Class C 0.0.0.0 - 127.255.255.255 128.0.0.0 - 191.255.255.255 256 24 192.0.0.0 - 223.255.255.255 110 10 0 Obsolete because of – depletion of B space – too many routes from C space Solution – Classless Inter Domain Routing  hierarchical address space allocation

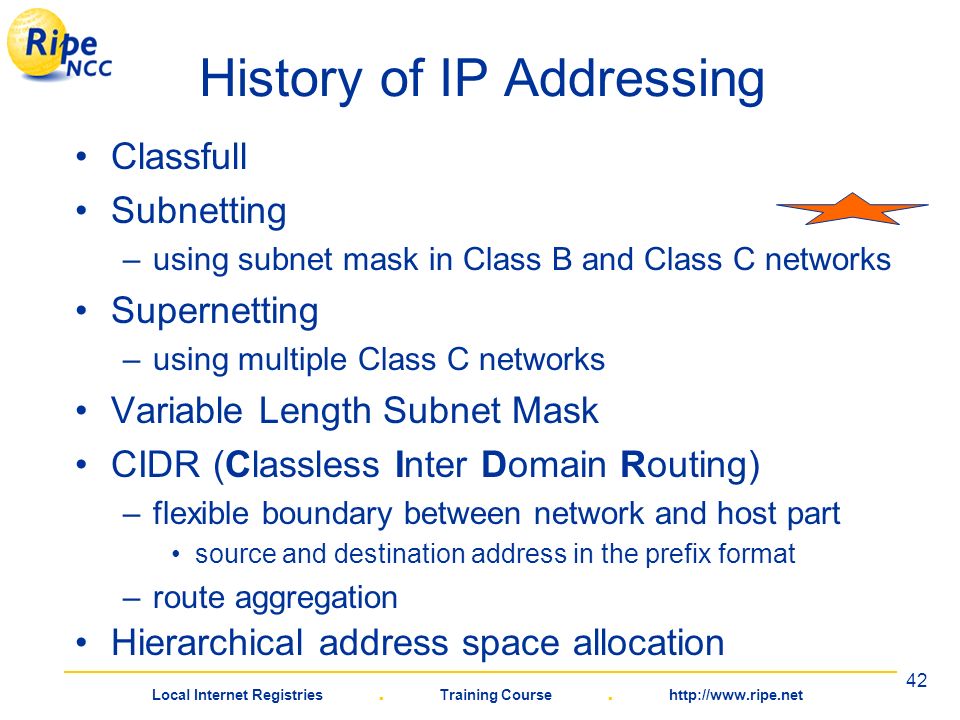

42. Local Internet Registries. Training Course. http://www.ripe.net 42 History of IP Addressing Classfull Subnetting –using subnet mask in Class B and Class C networks Supernetting –using multiple Class C networks Variable Length Subnet Mask CIDR (Classless Inter Domain Routing) –flexible boundary between network and host part source and destination address in the prefix format –route aggregation Hierarchical address space allocation

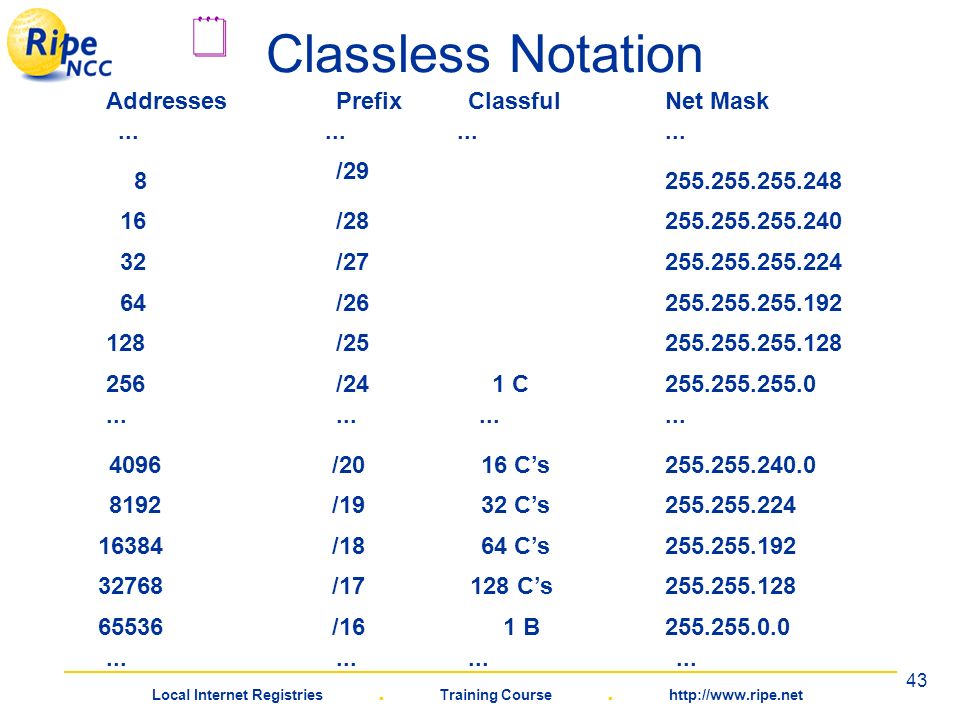

43. Local Internet Registries. Training Course. http://www.ripe.net 43 Classless Notation AddressesPrefixClassfulNet Mask... 8 /29 255.255.255.248 16/28255.255.255.240 32/27255.255.255.224 64/26255.255.255.192 128/25255.255.255.128 256/241 C255.255.255.0... 4096/2016 C’s255.255.240.0 8192/1932 C’s255.255.224 16384 32768 65536 /18 /17 /16 64 C’s 128 C’s 1 B 255.255.192 255.255.128 255.255.0.0... 

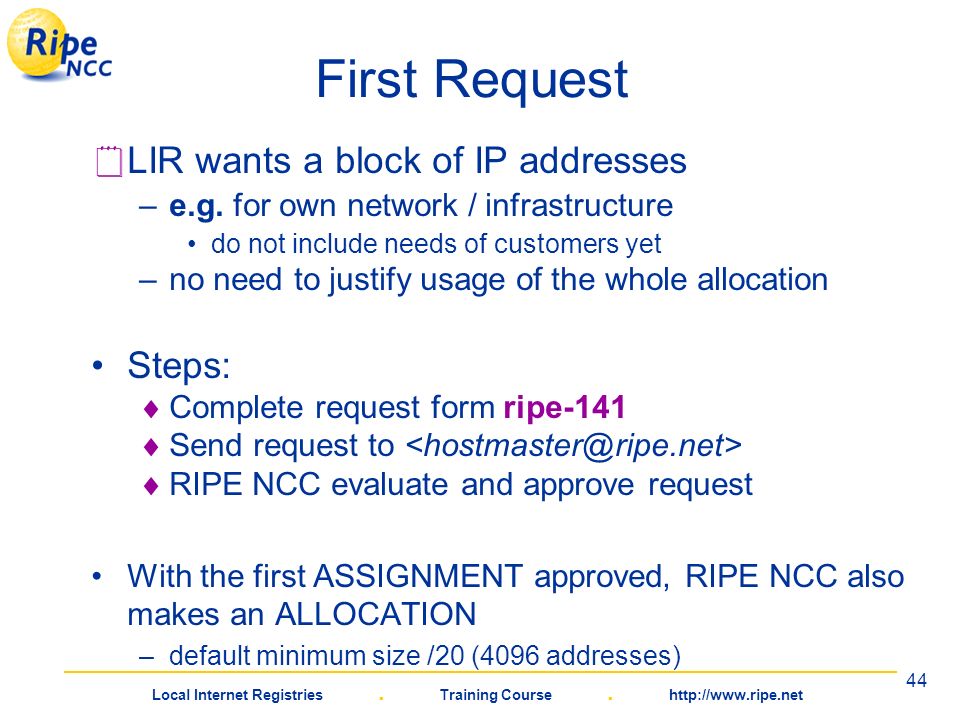

44. Local Internet Registries. Training Course. http://www.ripe.net 44 First Request  LIR wants a block of IP addresses –e.g. for own network / infrastructure do not include needs of customers yet –no need to justify usage of the whole allocation Steps:  Complete request form ripe-141  Send request to  RIPE NCC evaluate and approve request With the first ASSIGNMENT approved, RIPE NCC also makes an ALLOCATION –default minimum size /20 (4096 addresses)

45. Local Internet Registries. Training Course. http://www.ripe.net 45 First Request Approved  RIPE NCC hostmaster enters allocation and assignment objects into the RIPE database only at the first requestallocationassignment -/24 & /25 & /26 (448) instead of /23 (512) -at the beginning of the block (can be modified later) -with RIPE-NCC-NONE-MNT (or LIR mntner) Whole allocated range can be announced immediately AW=0 –Every request has to be sent for approval to RIPE NCC New in RPSL!

46. Local Internet Registries. Training Course. http://www.ripe.net 46 Requesting the Address Space Assignment Process Completing the request form Communication with the hostmaster Answers from the HM robot Creating DB objects

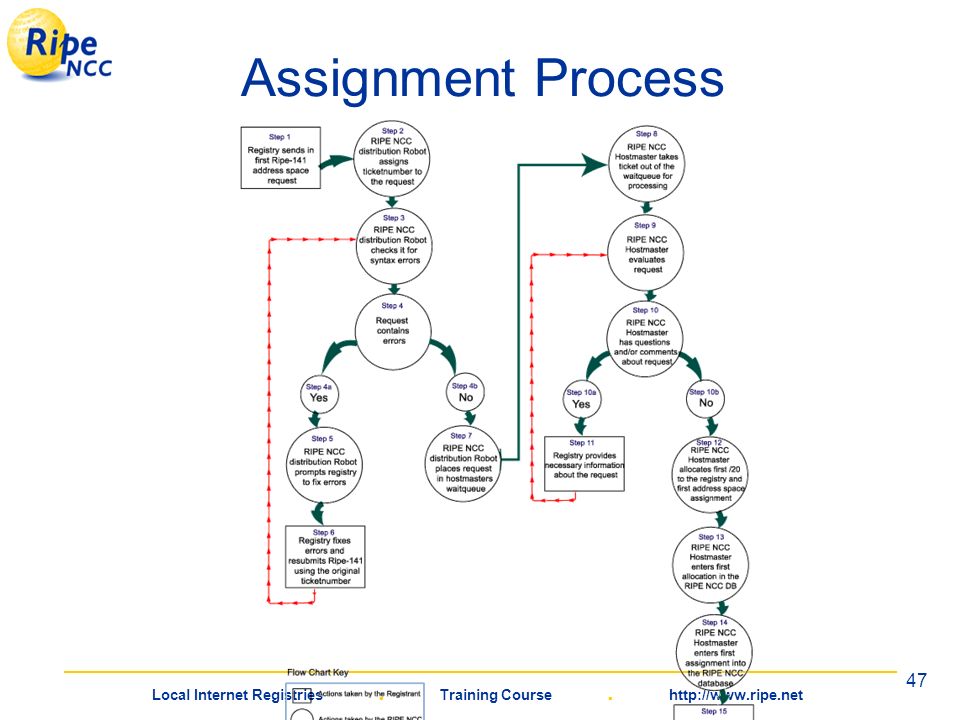

47. Local Internet Registries. Training Course. http://www.ripe.net 47 Assignment Process

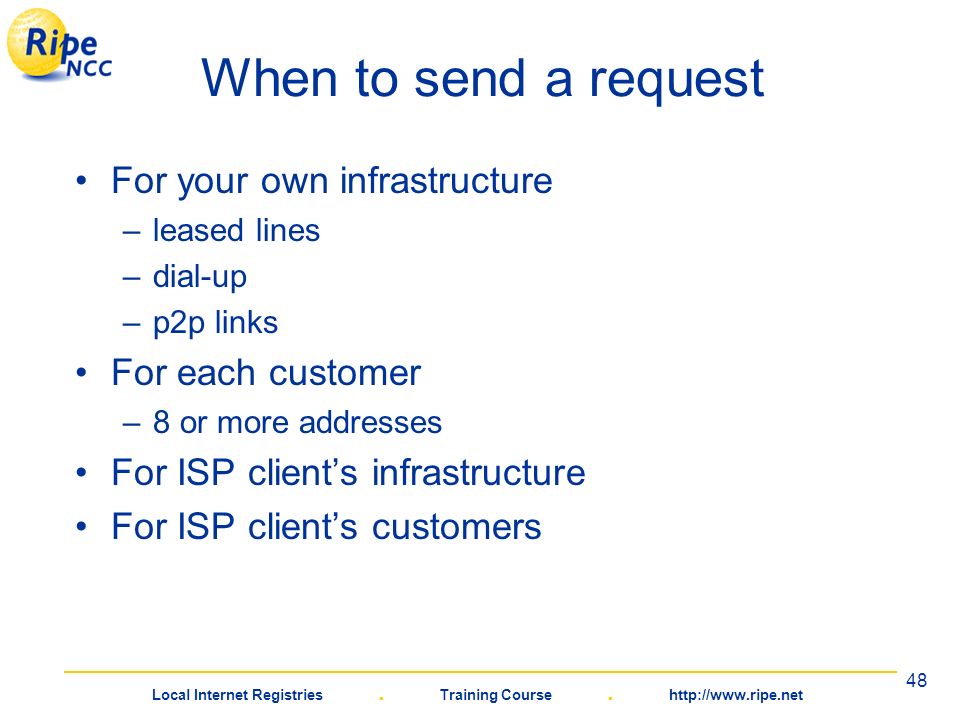

48. Local Internet Registries. Training Course. http://www.ripe.net 48 When to send a request For your own infrastructure –leased lines –dial-up –p2p links For each customer –8 or more addresses For ISP client’s infrastructure For ISP client’s customers

49. Local Internet Registries. Training Course. http://www.ripe.net 49 Request Form ripe-141 I. General Information Overview of Organisation Contact Information Current Address Space Usage II. The Request Request Overview Addressing Plan III. Database Information IV. Optional Information

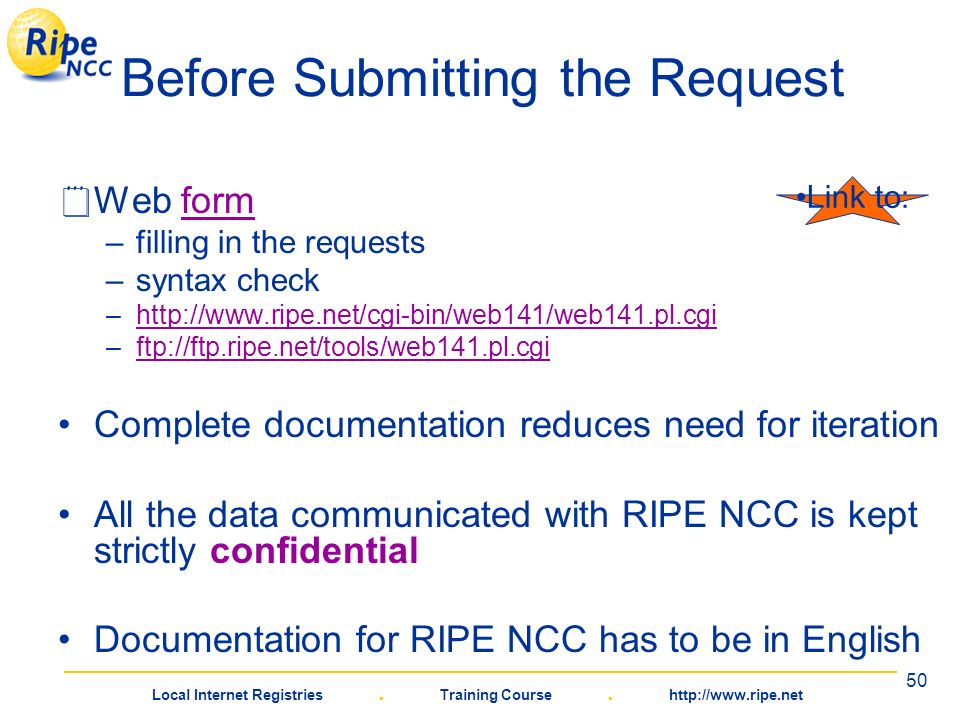

50. Local Internet Registries. Training Course. http://www.ripe.net 50 Before Submitting the Request  Web formform –filling in the requests –syntax check –http://www.ripe.net/cgi-bin/web141/web141.pl.cgihttp://www.ripe.net/cgi-bin/web141/web141.pl.cgi –ftp://ftp.ripe.net/tools/web141.pl.cgiftp://ftp.ripe.net/tools/web141.pl.cgi Complete documentation reduces need for iteration All the data communicated with RIPE NCC is kept strictly confidential Documentation for RIPE NCC has to be in English Link to:

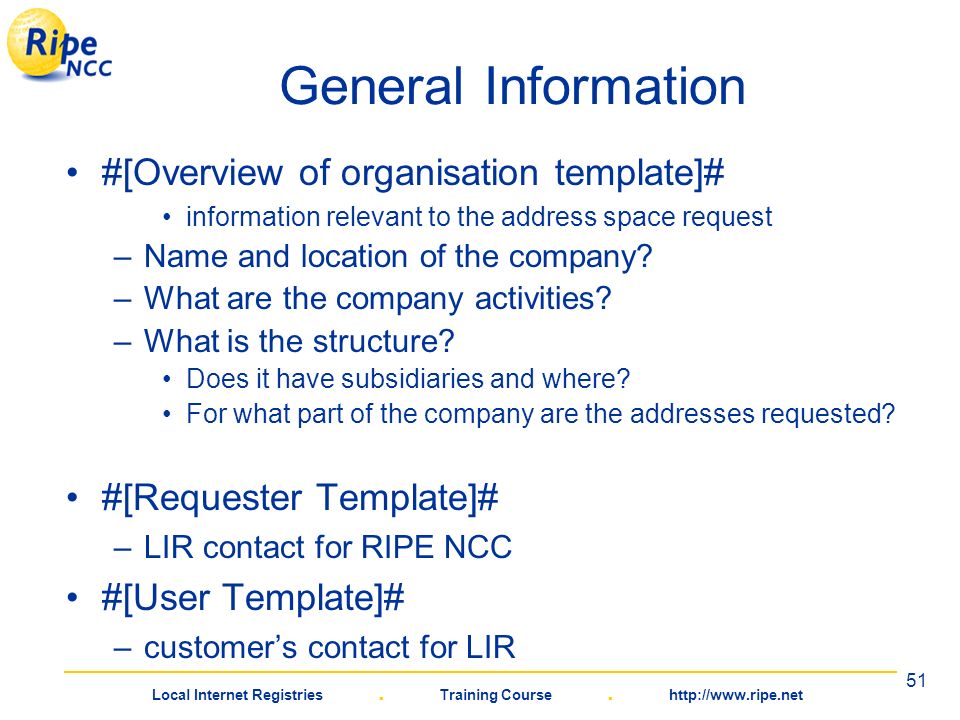

51. Local Internet Registries. Training Course. http://www.ripe.net 51 General Information #[Overview of organisation template]# information relevant to the address space request –Name and location of the company? –What are the company activities? –What is the structure? Does it have subsidiaries and where? For what part of the company are the addresses requested? #[Requester Template]# –LIR contact for RIPE NCC #[User Template]# –customer’s contact for LIR

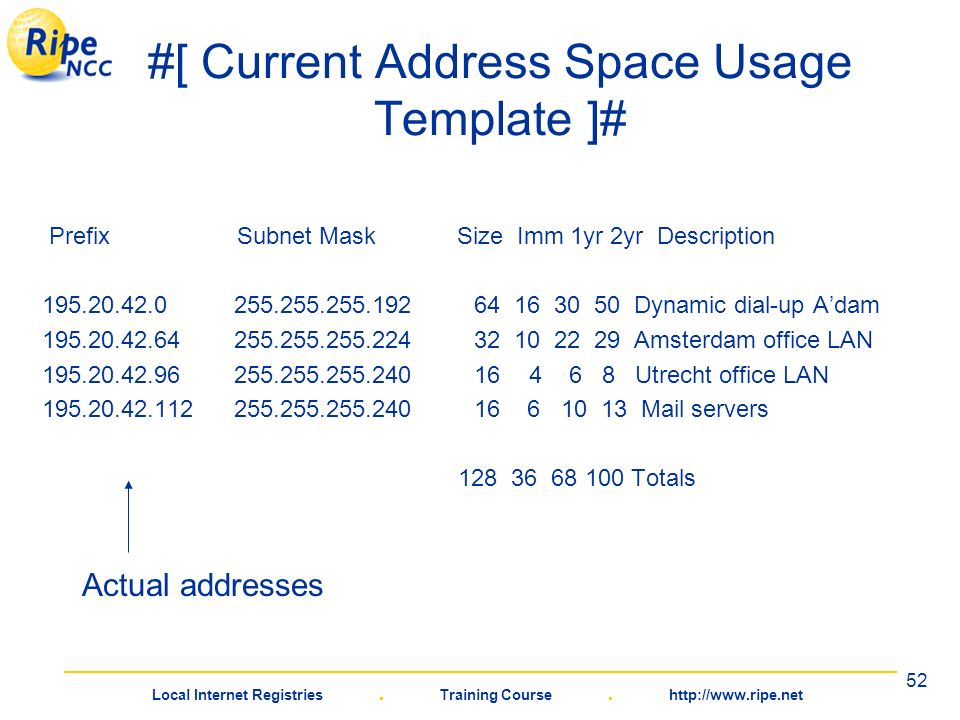

52. Local Internet Registries. Training Course. http://www.ripe.net 52 #[ Current Address Space Usage Template ]# Prefix Subnet Mask Size Imm 1yr 2yr Description 195.20.42.0 255.255.255.192 64 16 30 50 Dynamic dial-up A’dam 195.20.42.64 255.255.255.224 32 10 22 29 Amsterdam office LAN 195.20.42.96 255.255.255.240 16 4 6 8 Utrecht office LAN 195.20.42.112 255.255.255.240 16 6 10 13 Mail servers 128 36 68 100 Totals Actual addresses

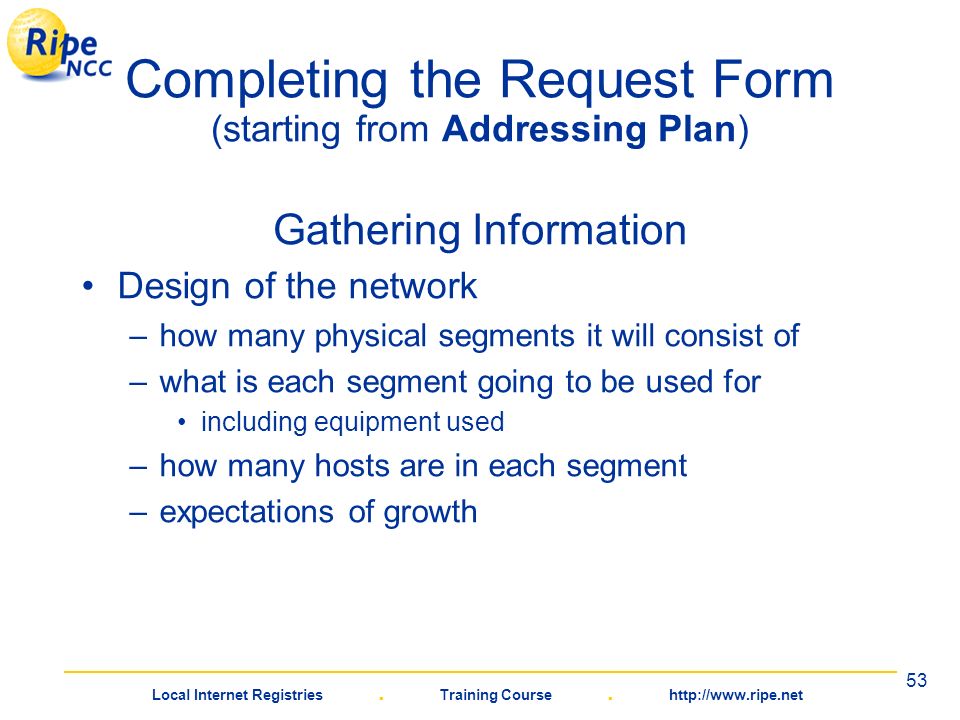

53. Local Internet Registries. Training Course. http://www.ripe.net 53 Completing the Request Form (starting from Addressing Plan) Gathering Information Design of the network –how many physical segments it will consist of –what is each segment going to be used for including equipment used –how many hosts are in each segment –expectations of growth

54. Local Internet Registries. Training Course. http://www.ripe.net 54 dynamic dial-up Amsterdam web/mail/ftp servers Amsterdam customers’ servers Amsterdam training room LAN Amsterdam Amsterdam office LAN (*1) dynamic dial-up Utrecht web/mail/ftp servers Utrecht Inet cafe Utrecht training room LAN Utrecht 128 32 16 64 128 32 16 448 255.255.255.128 255.255.255.224 255.255.255.240 255.255.255.192 255.255.255.128 255.255.255.224 255.255.255.240 0.0.0.0 0.0.0.128 0.0.0.160 0.0.0.176 0.0.0.192 0.0.1.0 0.0.1.128 0.0.1.160 0.0.1.176 100 10 8 14 24 0 14 0 170 297 342Totals (*1) Office LAN = workstations, router, 2 printers and 1 fileserver Relative Subnet Mask Size Imm 1yr 2yr Description Prefix #[ Addressing Plan Template ]# 100 12 10 14 35 100 12 14 0 100 16 13 14 50 100 25 14 10 Cumulative, total numbers Real needsConcrete plans

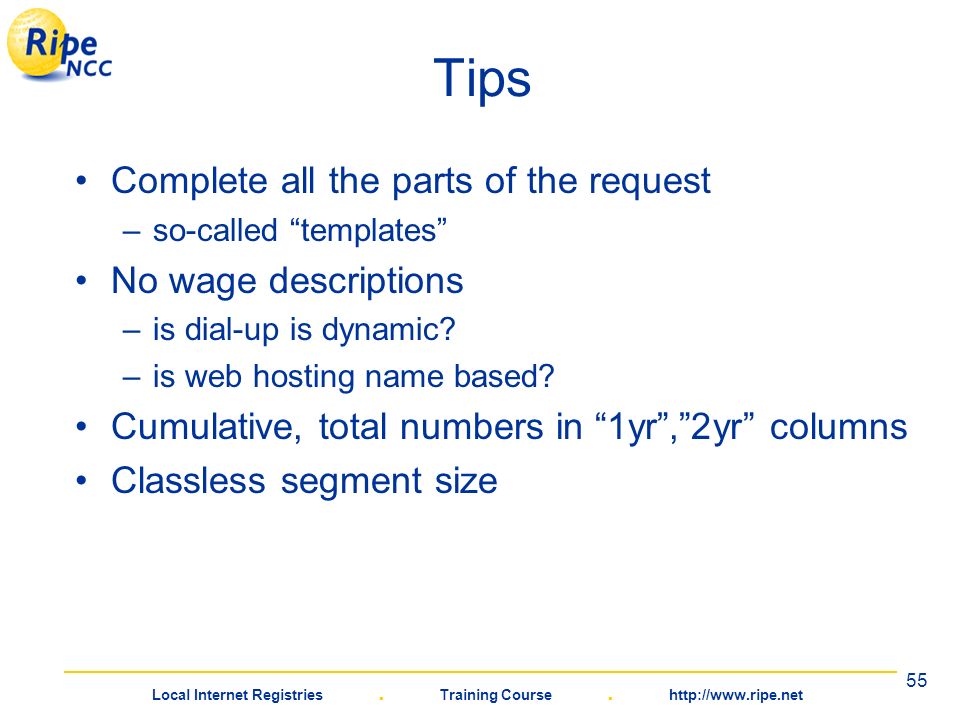

55. Local Internet Registries. Training Course. http://www.ripe.net 55 Tips Complete all the parts of the request –so-called “templates” No wage descriptions –is dial-up is dynamic? –is web hosting name based? Cumulative, total numbers in “1yr”,”2yr” columns Classless segment size

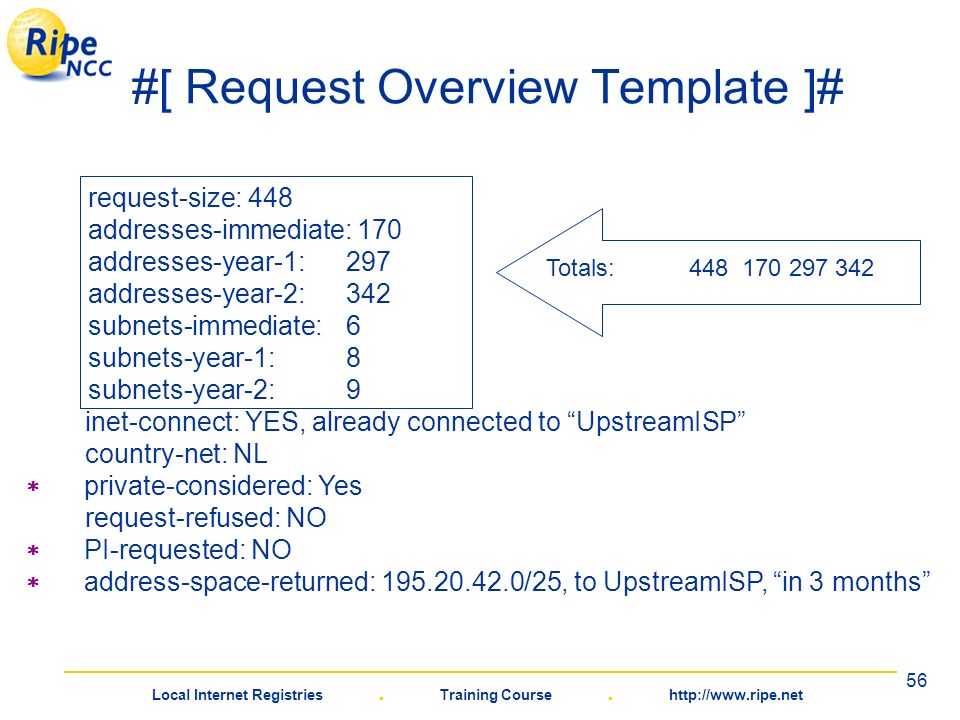

56. Local Internet Registries. Training Course. http://www.ripe.net 56 #[ Request Overview Template ]# request-size: 448 addresses-immediate: 170 addresses-year-1: 297 addresses-year-2: 342 subnets-immediate: 6 subnets-year-1: 8 subnets-year-2: 9 Totals: 448 170 297 342 inet-connect: YES, already connected to “UpstreamISP” country-net: NL  private-considered: Yes request-refused: NO  PI-requested: NO  address-space-returned: 195.20.42.0/25, to UpstreamISP, “in 3 months”

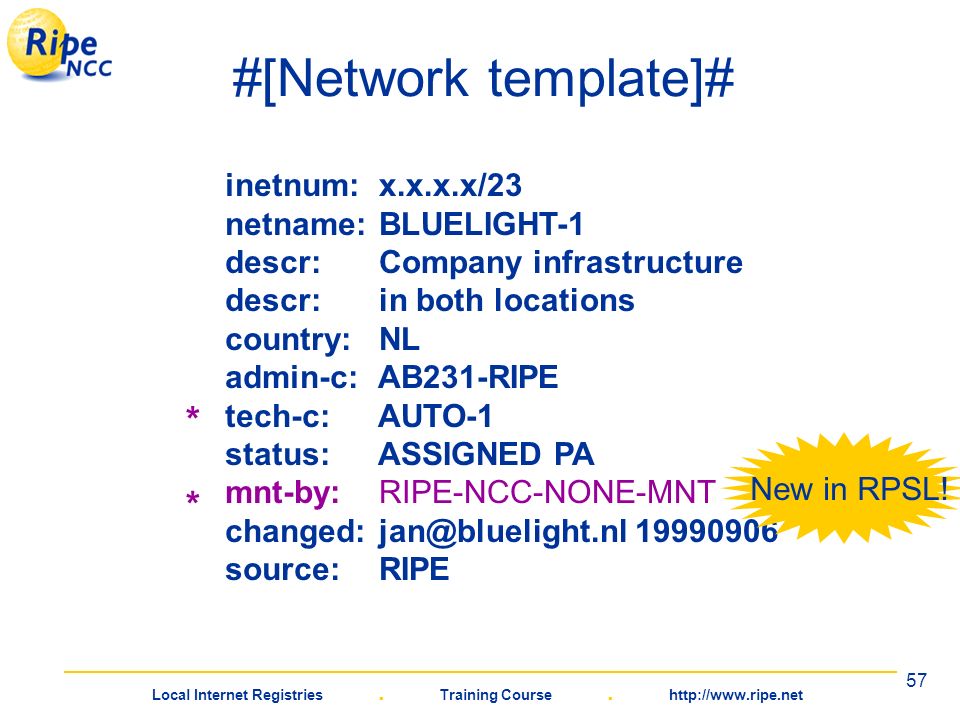

57. Local Internet Registries. Training Course. http://www.ripe.net 57 #[Network template]# inetnum: netname: descr: country: admin-c: tech-c: status: mnt-by: changed: source: x.x.x.x/23 BLUELIGHT-1 Company infrastructure in both locations NL AB231-RIPE AUTO-1 ASSIGNED PA RIPE-NCC-NONE-MNT jan@bluelight.nl 19990906 RIPE * * New in RPSL!

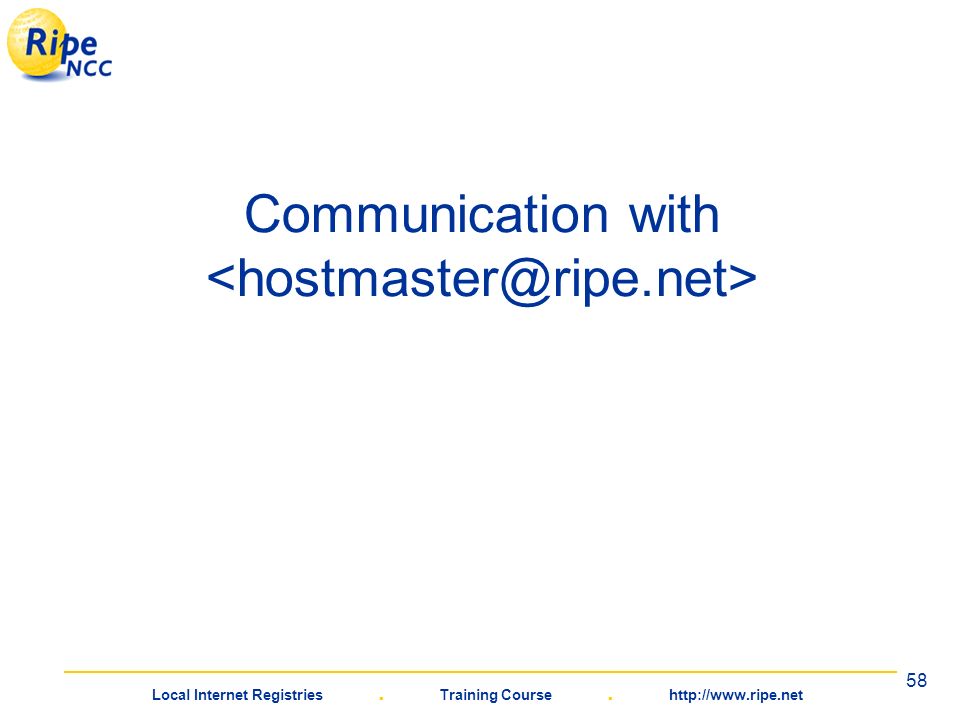

58. Local Internet Registries. Training Course. http://www.ripe.net 58 Communication with

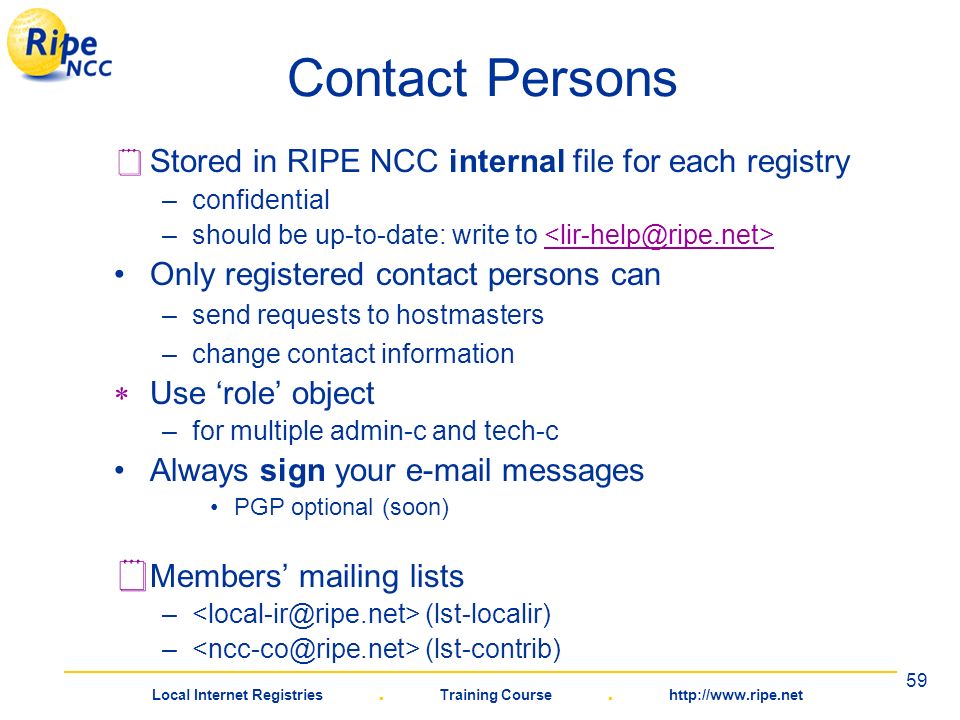

59. Local Internet Registries. Training Course. http://www.ripe.net 59 Contact Persons  Stored in RIPE NCC internal file for each registry –confidential –should be up-to-date: write to Only registered contact persons can –send requests to hostmasters –change contact information  Use ‘role’ object –for multiple admin-c and tech-c Always sign your e-mail messages PGP optional (soon)  Members’ mailing lists – (lst-localir) – (lst-contrib)

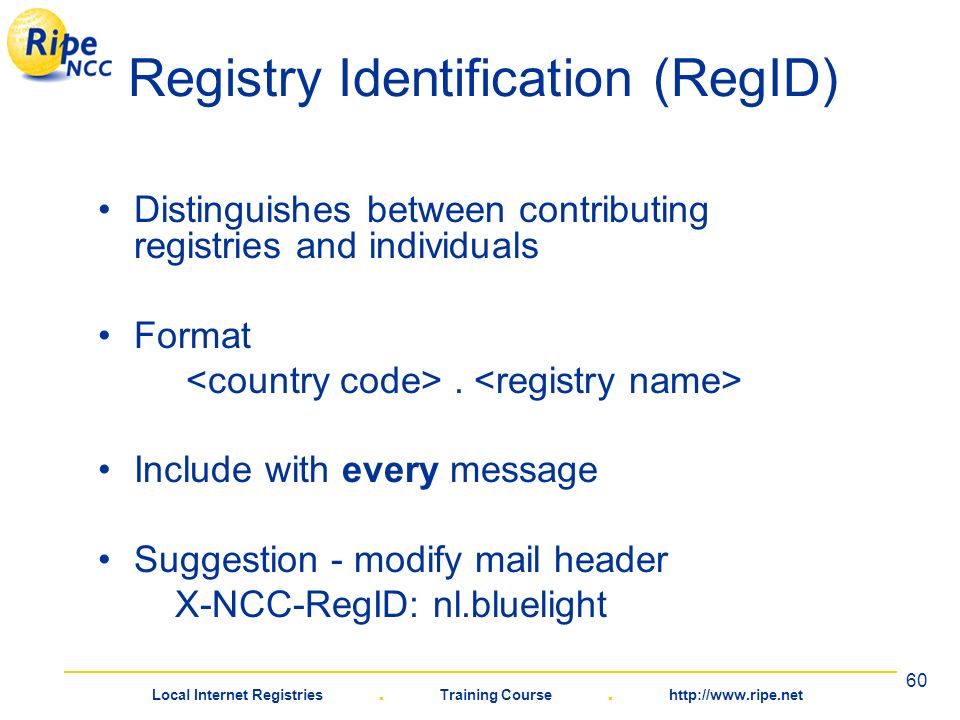

60. Local Internet Registries. Training Course. http://www.ripe.net 60 Registry Identification (RegID) Distinguishes between contributing registries and individuals Format. Include with every message Suggestion - modify mail header X-NCC-RegID: nl.bluelight

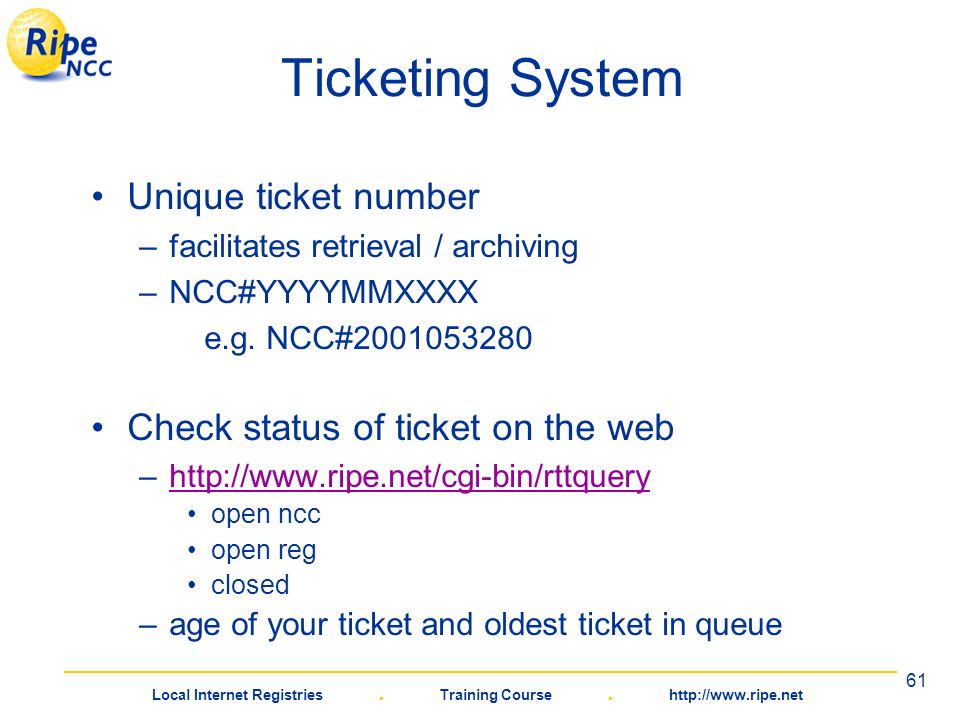

61. Local Internet Registries. Training Course. http://www.ripe.net 61 Ticketing System Unique ticket number –facilitates retrieval / archiving –NCC#YYYYMMXXXX e.g. NCC#2001053280 Check status of ticket on the web –http://www.ripe.net/cgi-bin/rttqueryhttp://www.ripe.net/cgi-bin/rttquery open ncc open reg closed –age of your ticket and oldest ticket in queue

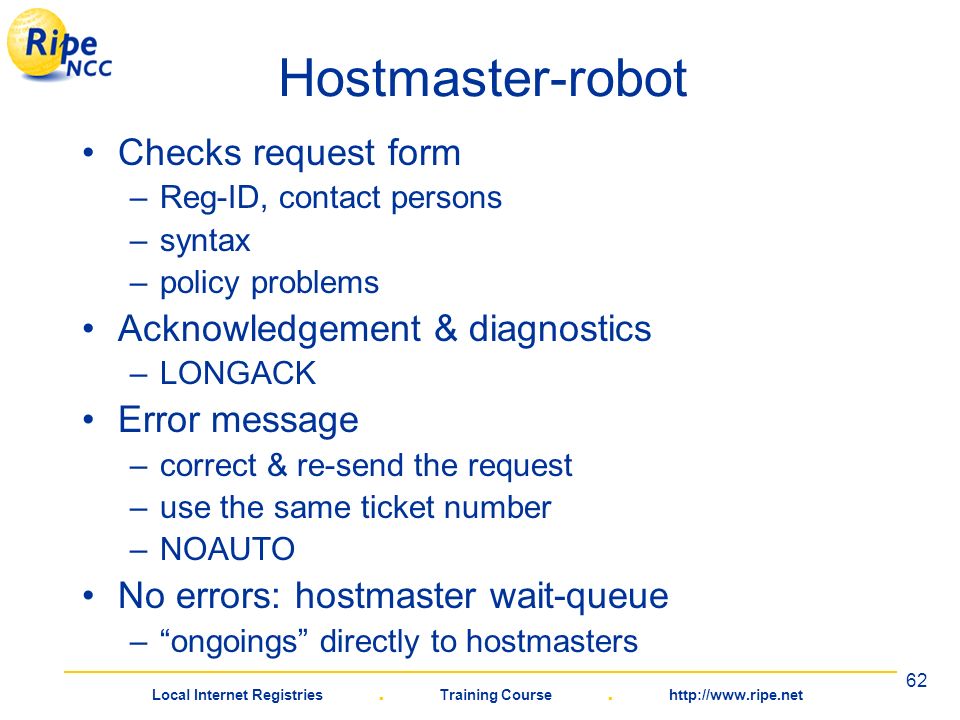

62. Local Internet Registries. Training Course. http://www.ripe.net 62 Hostmaster-robot Checks request form –Reg-ID, contact persons –syntax –policy problems Acknowledgement & diagnostics –LONGACK Error message –correct & re-send the request –use the same ticket number –NOAUTO No errors: hostmaster wait-queue –“ongoings” directly to hostmasters

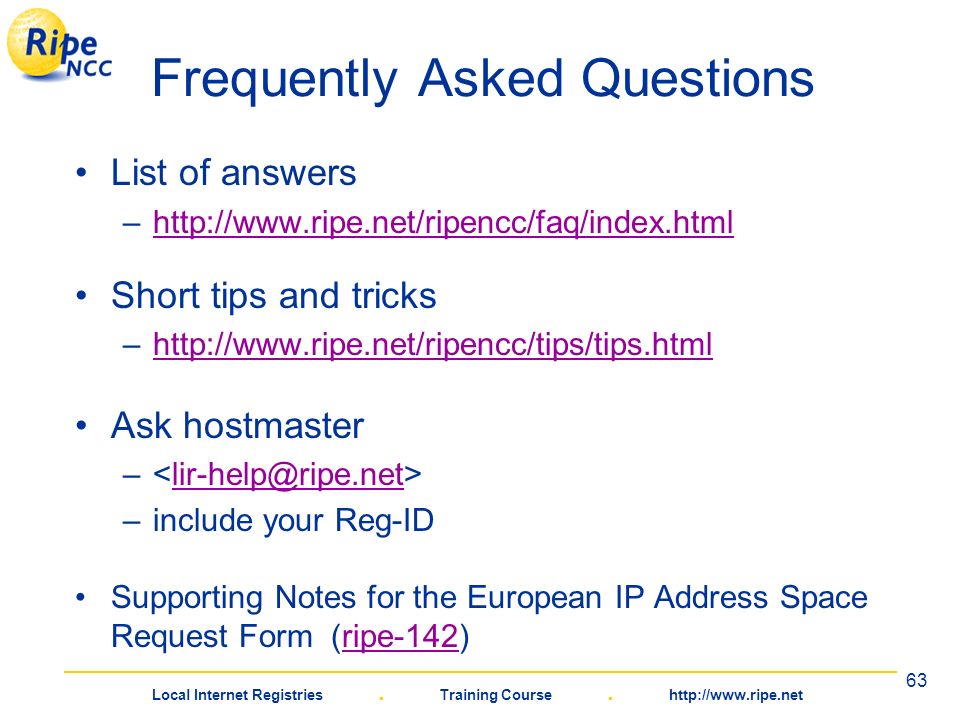

63. Local Internet Registries. Training Course. http://www.ripe.net 63 Frequently Asked Questions List of answers –http://www.ripe.net/ripencc/faq/index.htmlhttp://www.ripe.net/ripencc/faq/index.html Short tips and tricks –http://www.ripe.net/ripencc/tips/tips.htmlhttp://www.ripe.net/ripencc/tips/tips.html Ask hostmaster – lir-help@ripe.net –include your Reg-ID Supporting Notes for the European IP Address Space Request Form (ripe-142)ripe-142

64. Local Internet Registries. Training Course. http://www.ripe.net 64 Questions?

65. Local Internet Registries. Training Course. http://www.ripe.net 65 Evaluation

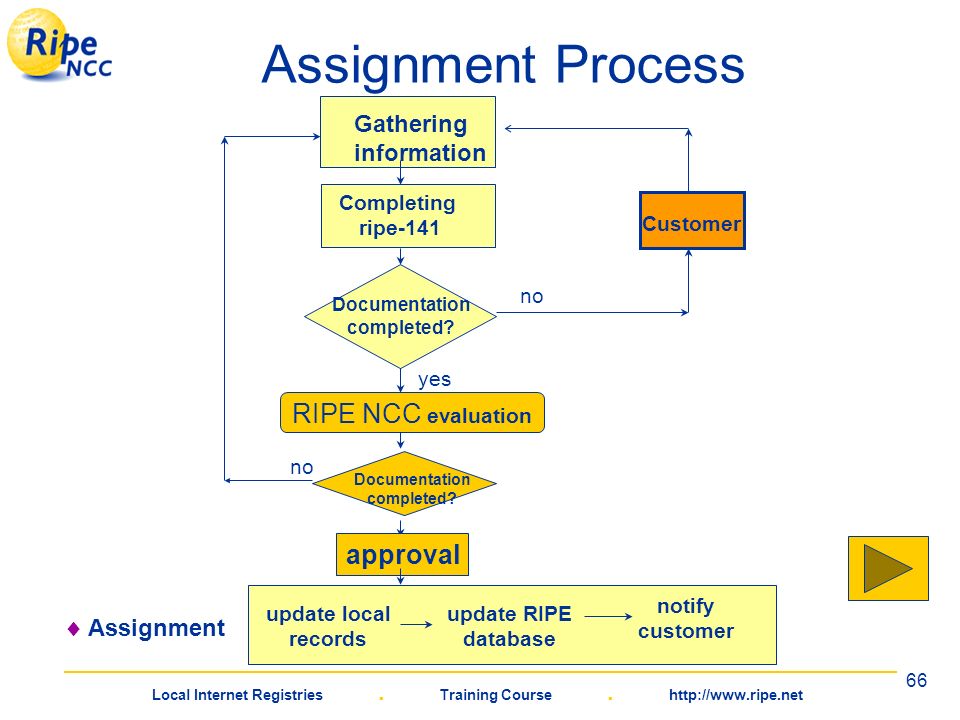

66. Local Internet Registries. Training Course. http://www.ripe.net 66 RIPE NCC evaluation Assignment Process Documentation completed? Completing ripe-141 update local records update RIPE database notify customer no yes  Assignment Gathering information Documentation completed? no approval Customer

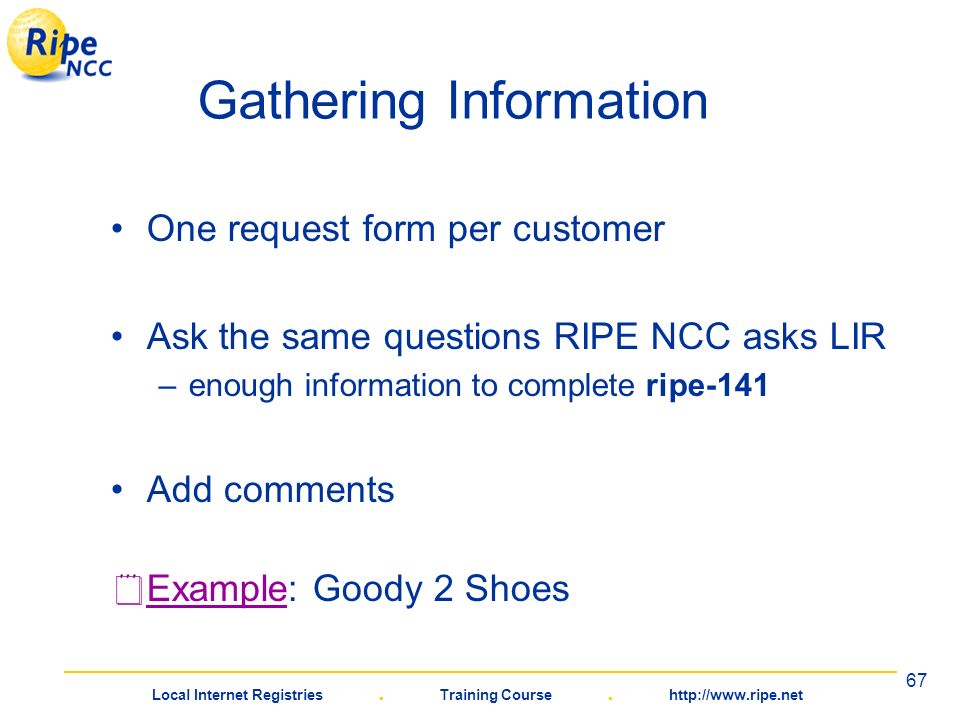

67. Local Internet Registries. Training Course. http://www.ripe.net 67 Gathering Information One request form per customer Ask the same questions RIPE NCC asks LIR –enough information to complete ripe-141 Add comments  Example: Goody 2 Shoes Example

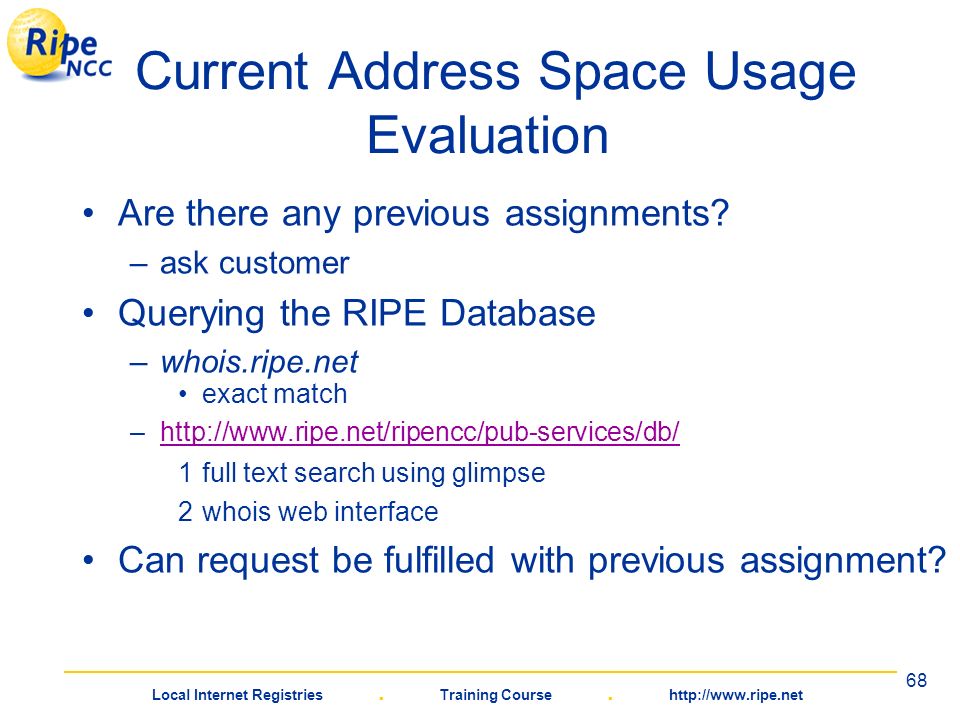

68. Local Internet Registries. Training Course. http://www.ripe.net 68 Current Address Space Usage Evaluation Are there any previous assignments? –ask customer Querying the RIPE Database –whois.ripe.net exact match –http://www.ripe.net/ripencc/pub-services/db/http://www.ripe.net/ripencc/pub-services/db/ 1full text search using glimpse 2whois web interface Can request be fulfilled with previous assignment?

69. Local Internet Registries. Training Course. http://www.ripe.net 69 Evaluation -- Addressing Plan Do totals in “Addressing Plan” match numbers in “Request Overview”? Are all subnets classless? –are the subnet masks real? Utilisation and efficiency guidelines: 25% immediately, 50% in one year Can address space be conserved by using –different subnet sizes? –avoiding padding between subnets?

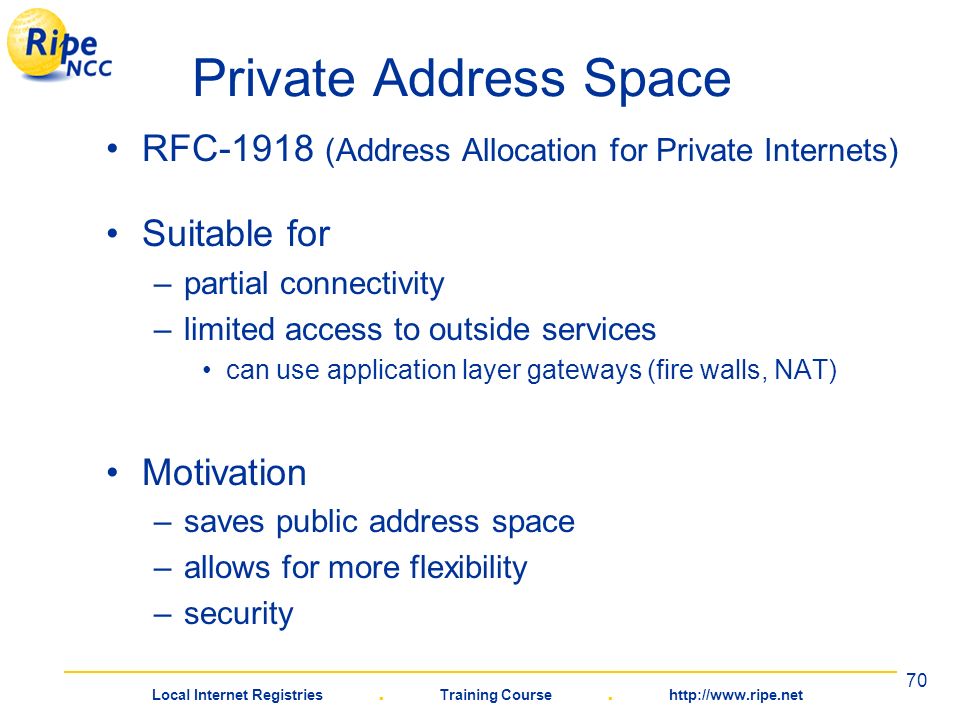

70. Local Internet Registries. Training Course. http://www.ripe.net 70 Private Address Space RFC-1918 (Address Allocation for Private Internets) Suitable for –partial connectivity –limited access to outside services can use application layer gateways (fire walls, NAT) Motivation –saves public address space –allows for more flexibility –security

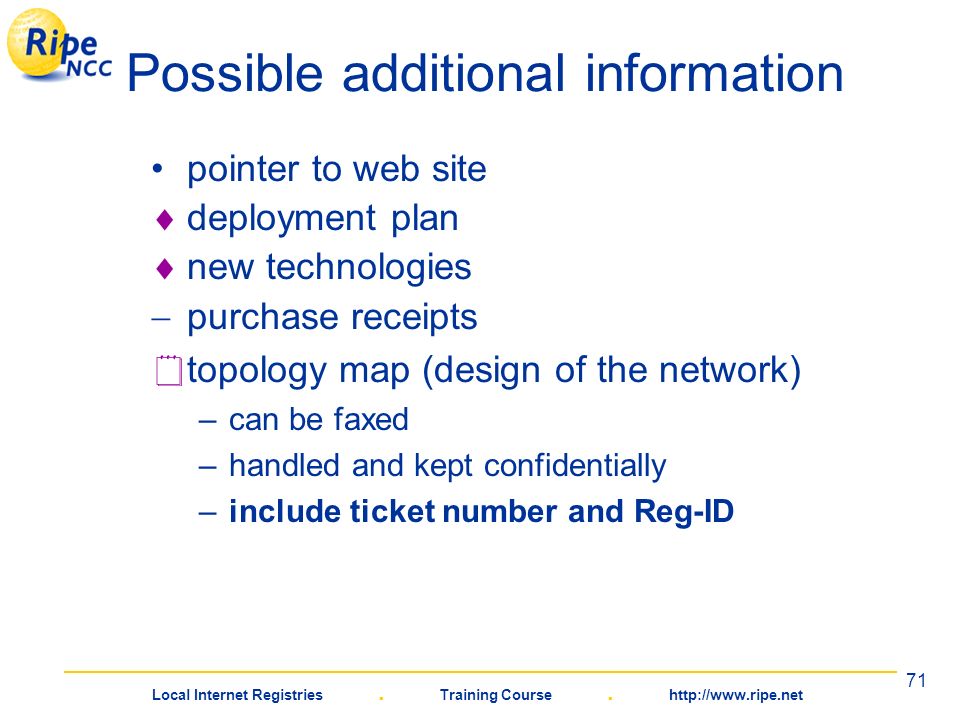

71. Local Internet Registries. Training Course. http://www.ripe.net 71 Possible additional information pointer to web site  deployment plan  new technologies  purchase receipts  topology map (design of the network) –can be faxed –handled and kept confidentially –include ticket number and Reg-ID

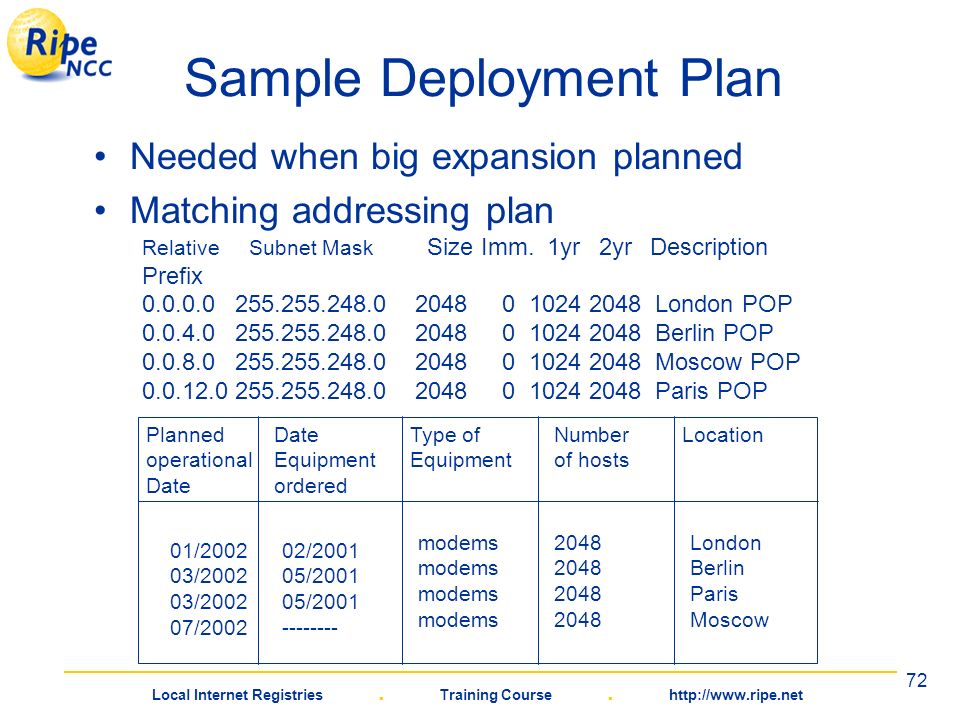

72. Local Internet Registries. Training Course. http://www.ripe.net 72 Sample Deployment Plan Needed when big expansion planned Matching addressing plan Relative Subnet Mask Size Imm. 1yr 2yr Description Prefix 0.0.0.0 255.255.248.0 2048 0 1024 2048 London POP 0.0.4.0 255.255.248.0 2048 0 1024 2048 Berlin POP 0.0.8.0 255.255.248.0 2048 0 1024 2048 Moscow POP 0.0.12.0 255.255.248.0 2048 0 1024 2048 Paris POP Planned operational Date Equipment ordered Type of Equipment Number of hosts Location 01/2002 03/2002 07/2002 02/2001 05/2001 -------- modems 2048 London Berlin Paris Moscow

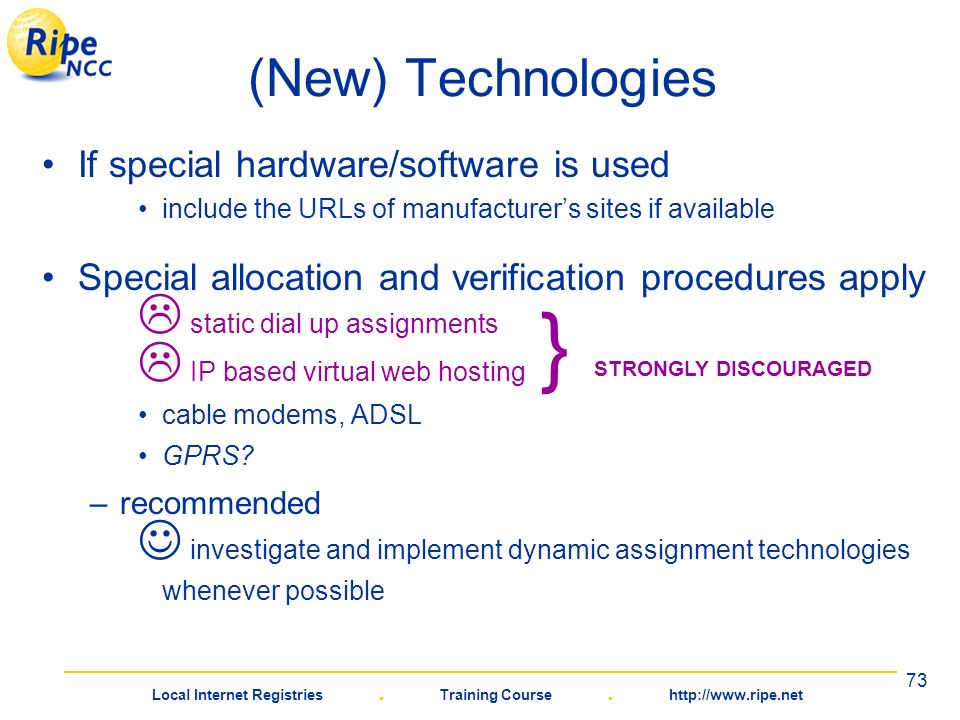

73. Local Internet Registries. Training Course. http://www.ripe.net 73 (New) Technologies If special hardware/software is used include the URLs of manufacturer’s sites if available Special allocation and verification procedures apply  static dial up assignments  IP based virtual web hosting cable modems, ADSL GPRS? –recommended investigate and implement dynamic assignment technologies whenever possible } STRONGLY DISCOURAGED

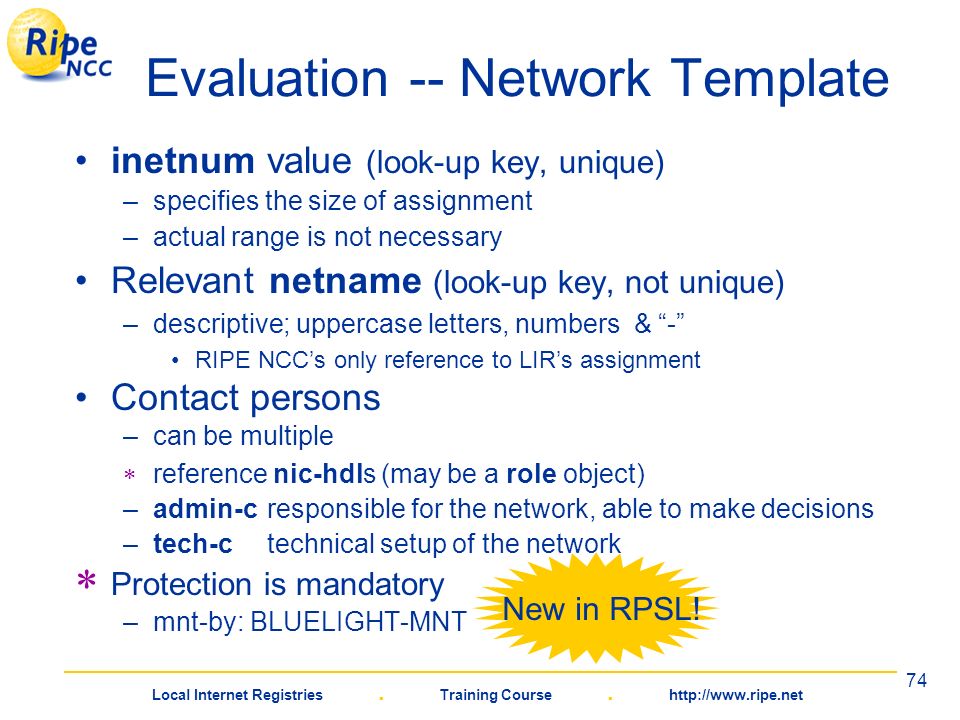

74. Local Internet Registries. Training Course. http://www.ripe.net 74 Evaluation -- Network Template inetnum value (look-up key, unique) –specifies the size of assignment –actual range is not necessary Relevant netname (look-up key, not unique) –descriptive; uppercase letters, numbers & “-” RIPE NCC’s only reference to LIR’s assignment Contact persons –can be multiple  reference nic-hdls (may be a role object) –admin-c responsible for the network, able to make decisions –tech-ctechnical setup of the network  Protection is mandatory –mnt-by: BLUELIGHT-MNT New in RPSL!

75. Local Internet Registries. Training Course. http://www.ripe.net 75 Wait for the approval from prior to assignment and registration Decide on the range of addresses within your address space –classless assignment on bit boundary Update local records for later reference –archive original documents with assignment Assignment for customer’s network Assignment for LIR’s network Internal Administration

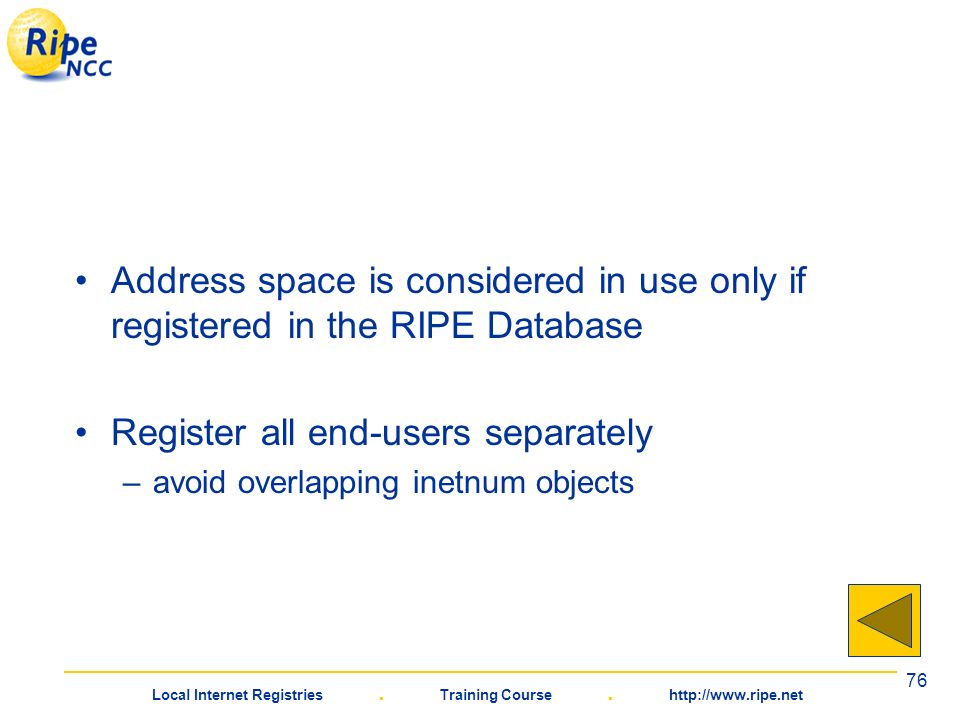

76. Local Internet Registries. Training Course. http://www.ripe.net 76 Address space is considered in use only if registered in the RIPE Database Register all end-users separately –avoid overlapping inetnum objects

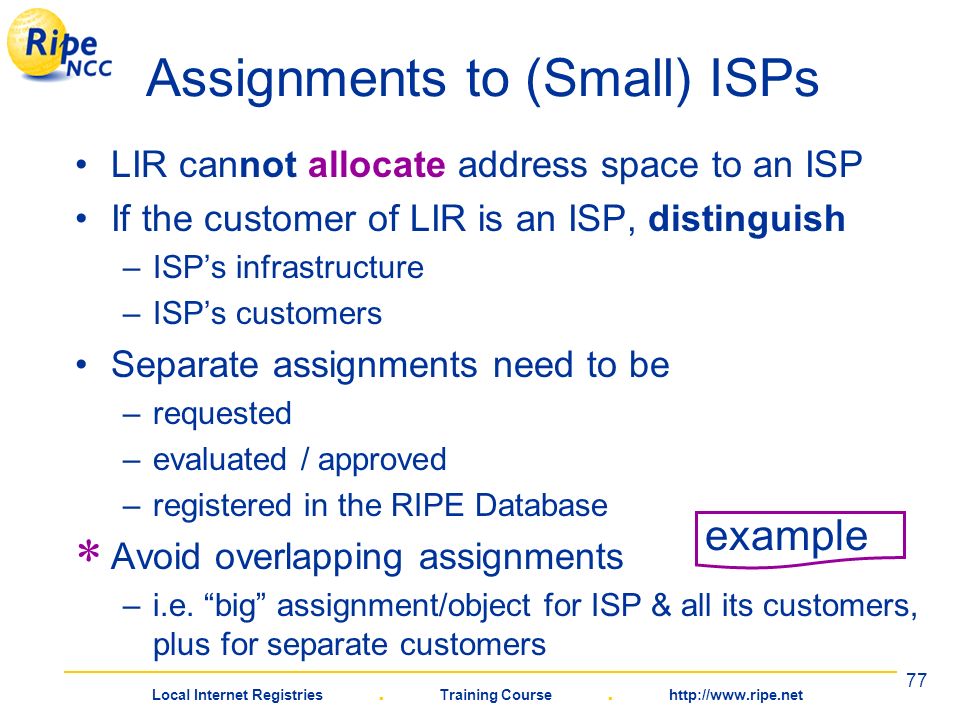

77. Local Internet Registries. Training Course. http://www.ripe.net 77 Assignments to (Small) ISPs LIR cannot allocate address space to an ISP If the customer of LIR is an ISP, distinguish –ISP’s infrastructure –ISP’s customers Separate assignments need to be –requested –evaluated / approved –registered in the RIPE Database  Avoid overlapping assignments –i.e. “big” assignment/object for ISP & all its customers, plus for separate customers example

78. Local Internet Registries. Training Course. http://www.ripe.net 78 Registering Address Space in RIPE Database

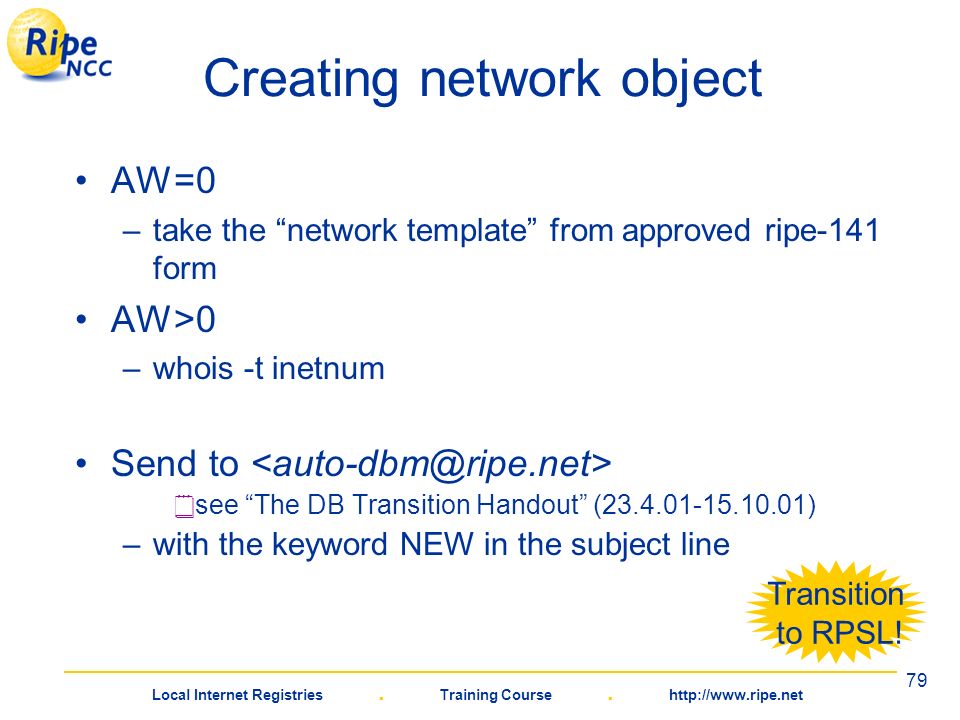

79. Local Internet Registries. Training Course. http://www.ripe.net 79 Creating network object AW=0 –take the “network template” from approved ripe-141 form AW>0 –whois -t inetnum Send to  see “The DB Transition Handout” (23.4.01-15.10.01) –with the keyword NEW in the subject line Transition to RPSL!

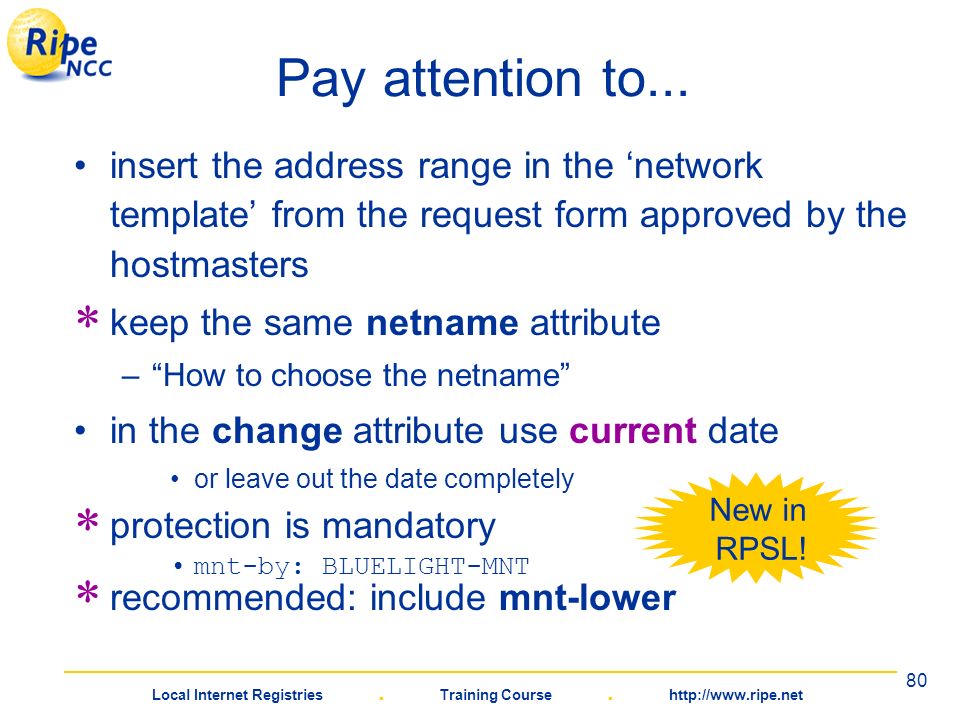

80. Local Internet Registries. Training Course. http://www.ripe.net 80 Pay attention to... insert the address range in the ‘network template’ from the request form approved by the hostmasters  keep the same netname attribute –“How to choose the netname” in the change attribute use current date or leave out the date completely  protection is mandatory mnt-by: BLUELIGHT-MNT  recommended: include mnt-lower New in RPSL!

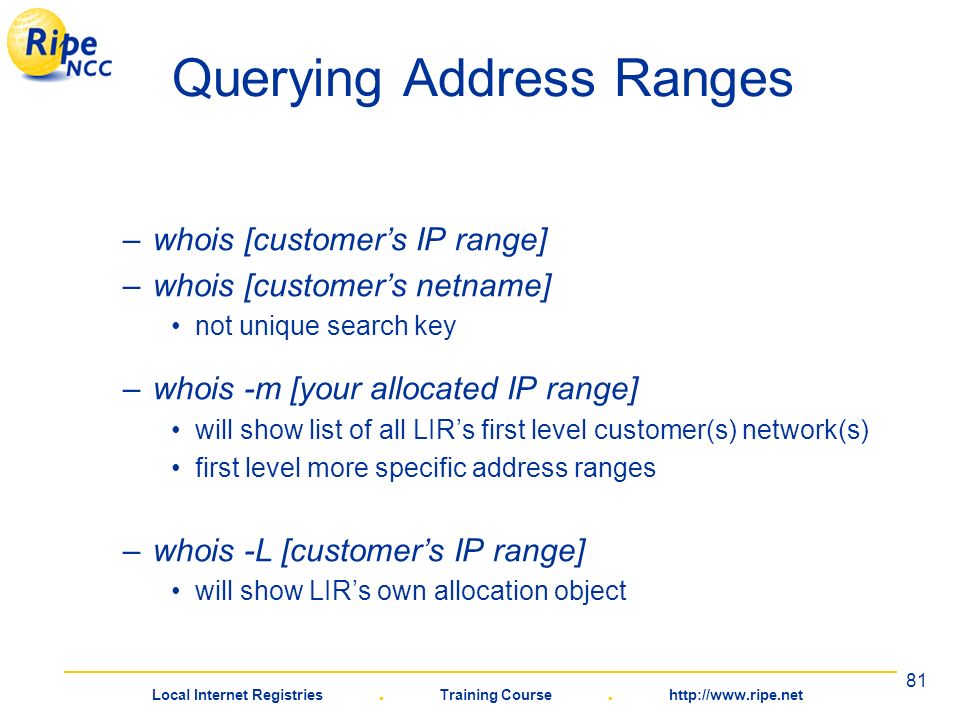

81. Local Internet Registries. Training Course. http://www.ripe.net 81 Querying Address Ranges –whois [customer’s IP range] –whois [customer’s netname] not unique search key –whois -m [your allocated IP range] will show list of all LIR’s first level customer(s) network(s) first level more specific address ranges –whois -L [customer’s IP range] will show LIR’s own allocation object

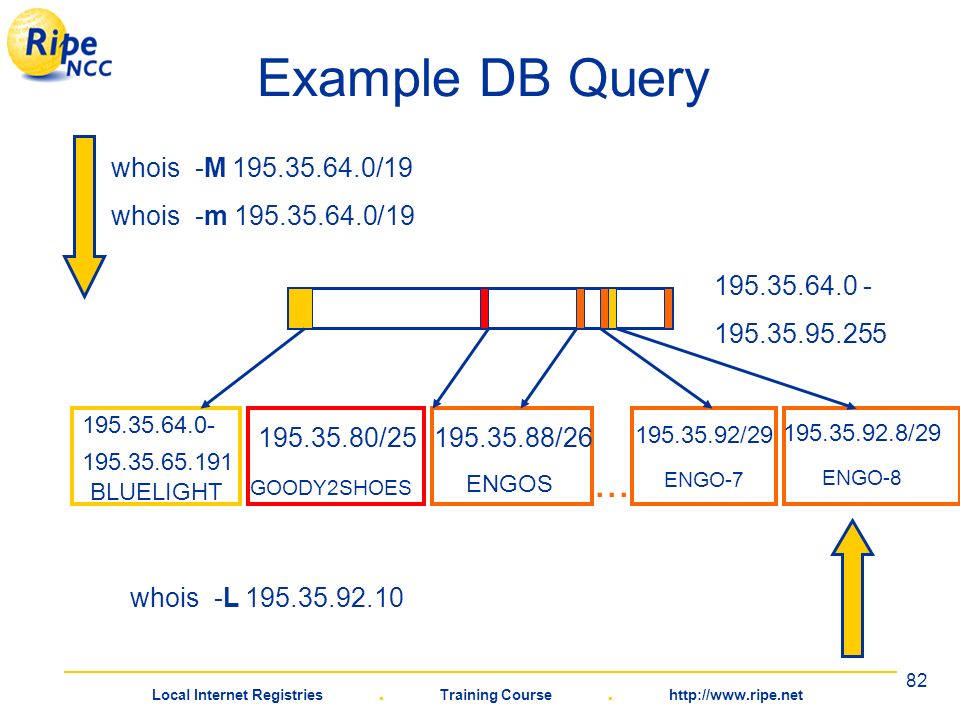

82. Local Internet Registries. Training Course. http://www.ripe.net 82 Example DB Query 195.35.64.0- 195.35.65.191 195.35.88/26 195.35.64.0 - 195.35.95.255 195.35.80/25 BLUELIGHT GOODY2SHOES whois -M 195.35.64.0/19 whois -m 195.35.64.0/19 whois -L 195.35.92.10 ENGOS... 195.35.92/29 ENGO-7 195.35.92.8/29 ENGO-8

83. Local Internet Registries. Training Course. http://www.ripe.net 83 Questions?

84. Local Internet Registries. Training Course. http://www.ripe.net 84 Assignment Window Policies and Procedures

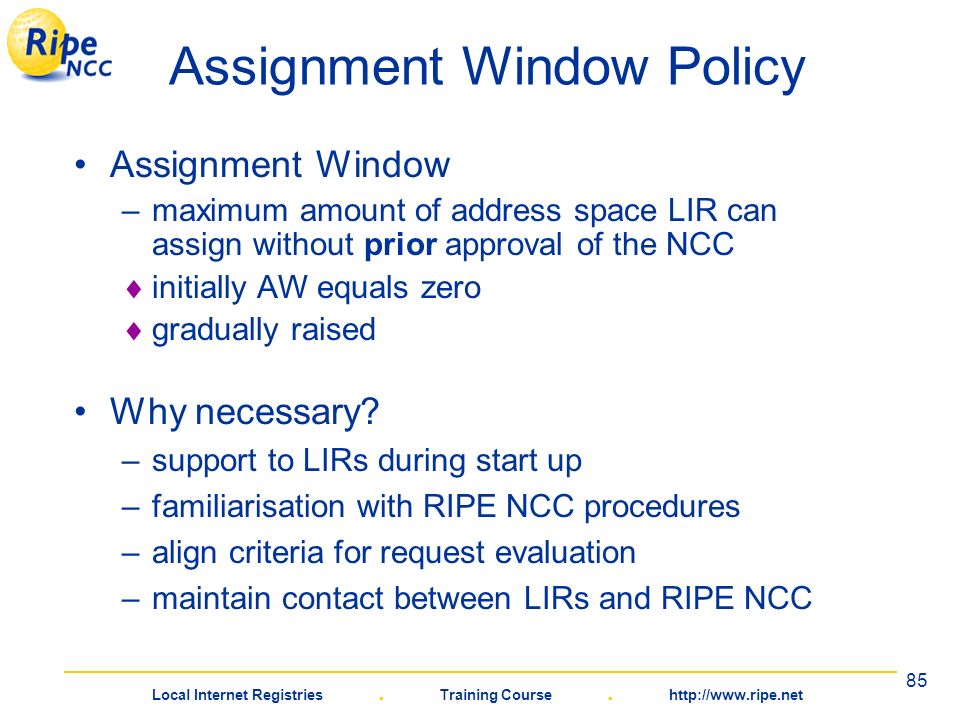

85. Local Internet Registries. Training Course. http://www.ripe.net 85 Assignment Window Policy Assignment Window –maximum amount of address space LIR can assign without prior approval of the NCC  initially AW equals zero  gradually raised Why necessary? –support to LIRs during start up –familiarisation with RIPE NCC procedures –align criteria for request evaluation –maintain contact between LIRs and RIPE NCC

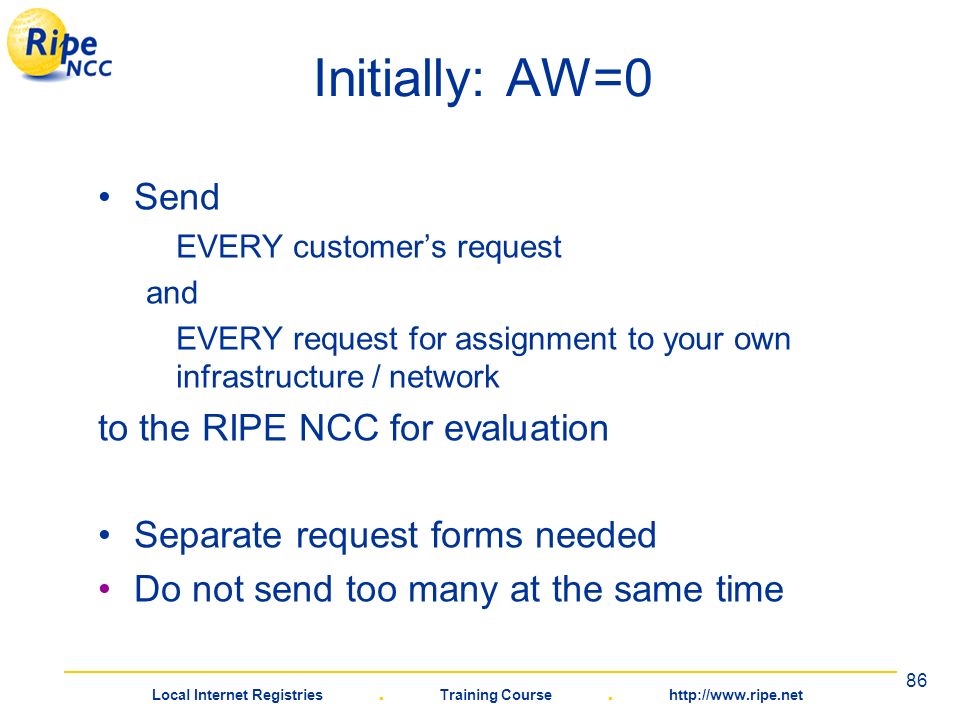

86. Local Internet Registries. Training Course. http://www.ripe.net 86 Initially: AW=0 Send EVERY customer’s request and EVERY request for assignment to your own infrastructure / network to the RIPE NCC for evaluation Separate request forms needed Do not send too many at the same time

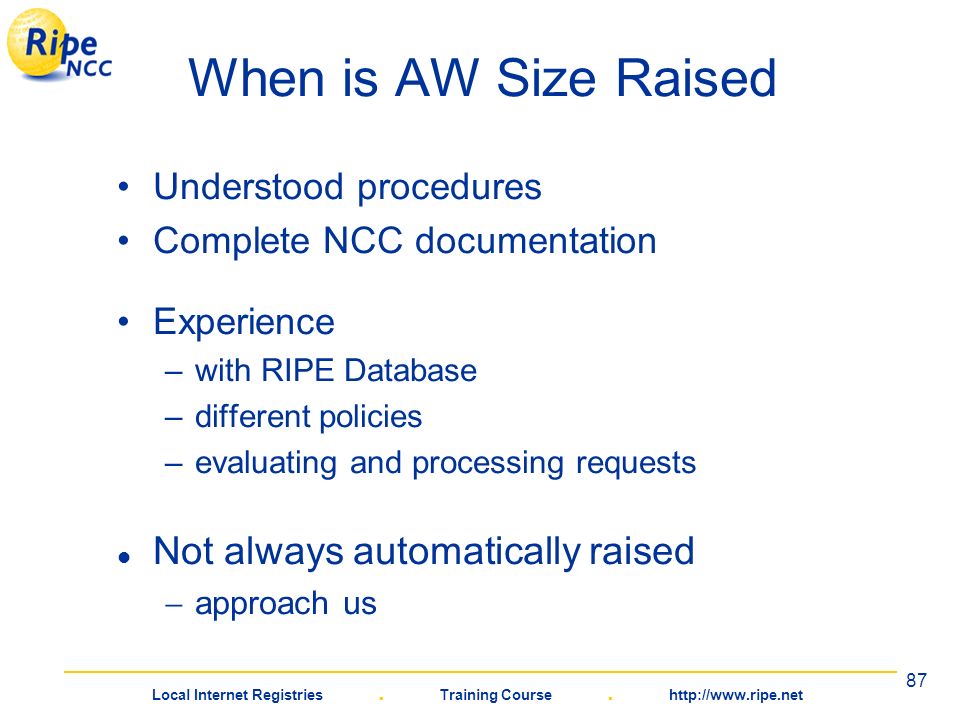

87. Local Internet Registries. Training Course. http://www.ripe.net 87 When is AW Size Raised Understood procedures Complete NCC documentation Experience –with RIPE Database –different policies –evaluating and processing requests Not always automatically raised  approach us

88. Local Internet Registries. Training Course. http://www.ripe.net 88 When is AW Size Lowered New staff need training  After negative auditing report  To enforce payment  To find out the AW size –asm-window line –write to

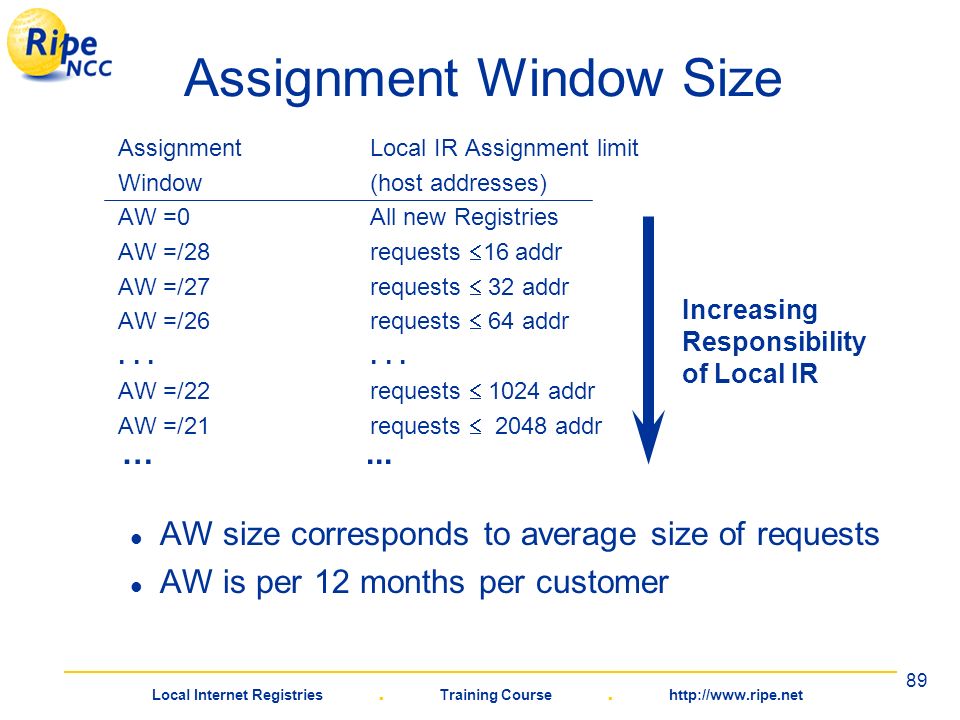

89. Local Internet Registries. Training Course. http://www.ripe.net 89 Assignment Window Size AssignmentLocal IR Assignment limit Window(host addresses) AW =0All new Registries AW =/28requests  16 addr AW =/27requests  32 addr AW =/26requests  64 addr... AW =/22requests  1024 addr AW =/21requests  2048 addr …... AW size corresponds to average size of requests AW is per 12 months per customer Increasing Responsibility of Local IR

90. Local Internet Registries. Training Course. http://www.ripe.net 90 Assignment Process Between Local IR’s and their customers Documentation completed? ask for more Documentation LIR Evaluate request no yes Gathering information Approach RIPE NCC Evaluation request > AW? need 2nd opinion? yes no Finish the assignment no ye s

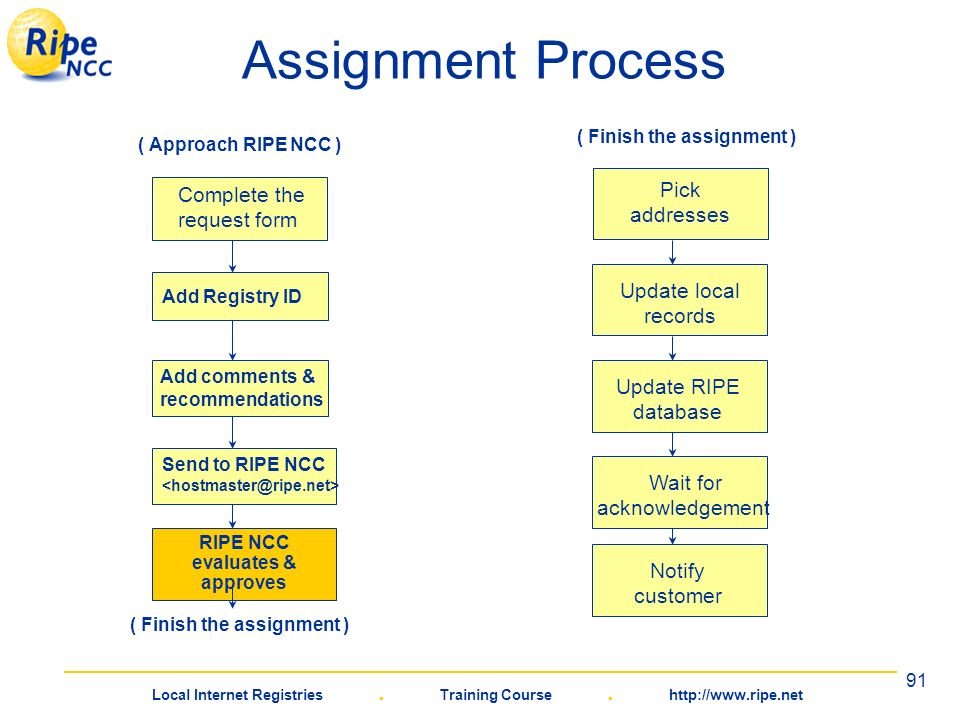

91. Local Internet Registries. Training Course. http://www.ripe.net 91 Update RIPE database Assignment Process Add Registry ID Add comments & recommendations Send to RIPE NCC Complete the request form Update local records Notify customer Pick addresses Wait for acknowledgement RIPE NCC evaluates & approves ( Finish the assignment ) ( Approach RIPE NCC ) ( Finish the assignment )

92. Local Internet Registries. Training Course. http://www.ripe.net 92 Questions?

93. Local Internet Registries. Training Course. http://www.ripe.net 93 Reverse Delegation Procedures

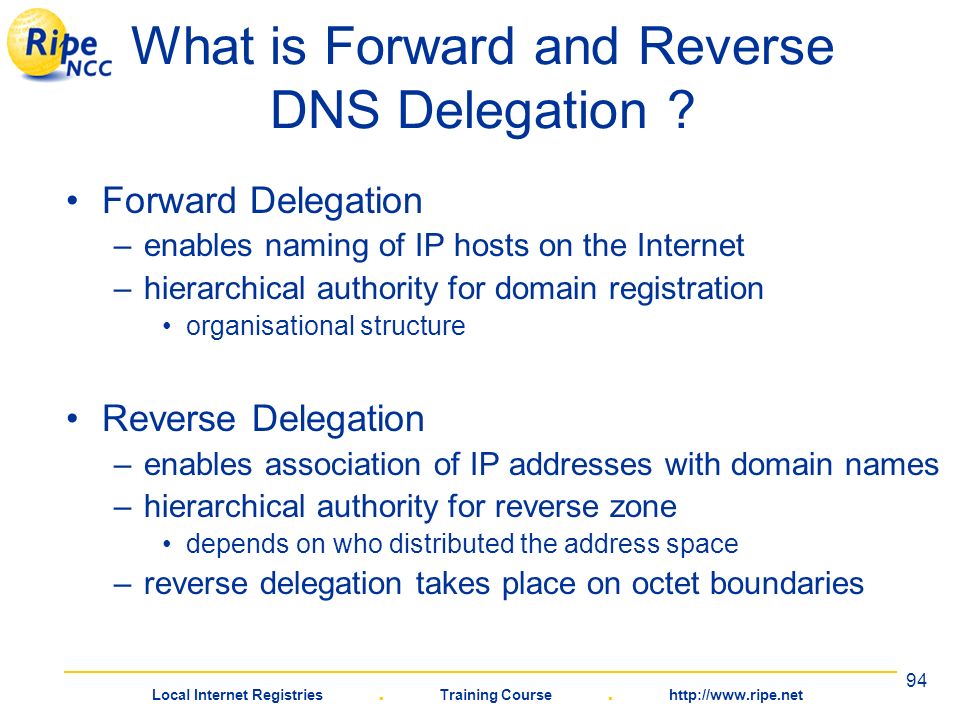

94. Local Internet Registries. Training Course. http://www.ripe.net 94 What is Forward and Reverse DNS Delegation ? Forward Delegation –enables naming of IP hosts on the Internet –hierarchical authority for domain registration organisational structure Reverse Delegation –enables association of IP addresses with domain names –hierarchical authority for reverse zone depends on who distributed the address space –reverse delegation takes place on octet boundaries

95. Local Internet Registries. Training Course. http://www.ripe.net 95 IN-ADDR.ARPA Domain. (ROOT) edu arpa com net nl in-addr 193 195 194 35 65 130 = 130.65.35.195.in-addr.arpa bluelight www 195.35.65.130 Forward mapping Reverse mapping (A 195.35.65.130) (PTR www.amsterdam.bluelight.nl) 213212 62 217 amsterdam

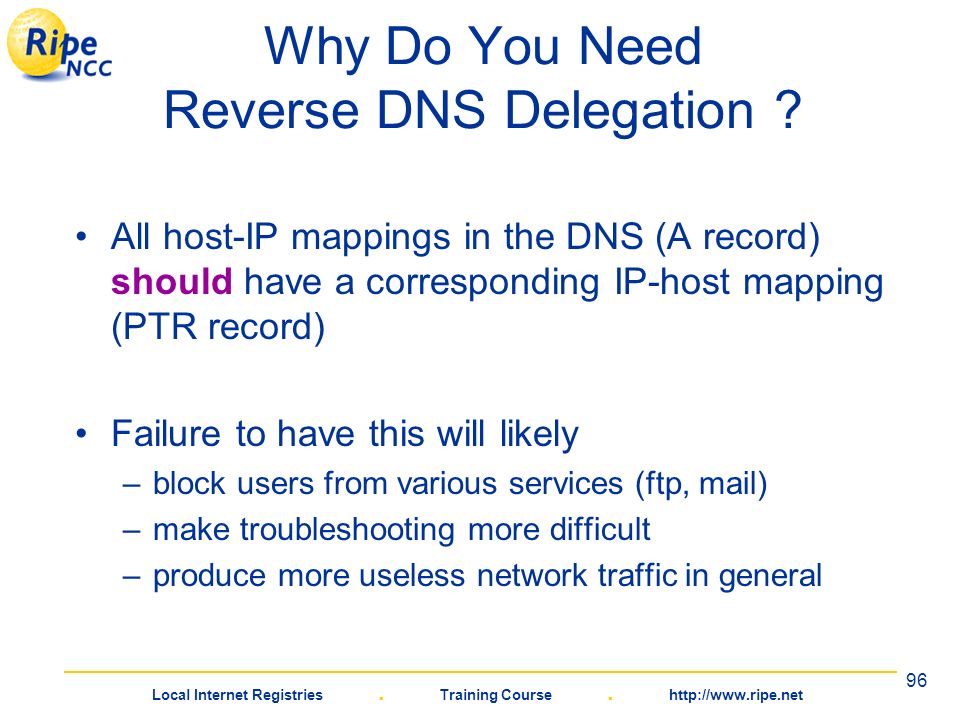

96. Local Internet Registries. Training Course. http://www.ripe.net 96 Why Do You Need Reverse DNS Delegation ? All host-IP mappings in the DNS (A record) should have a corresponding IP-host mapping (PTR record) Failure to have this will likely –block users from various services (ftp, mail) –make troubleshooting more difficult –produce more useless network traffic in general

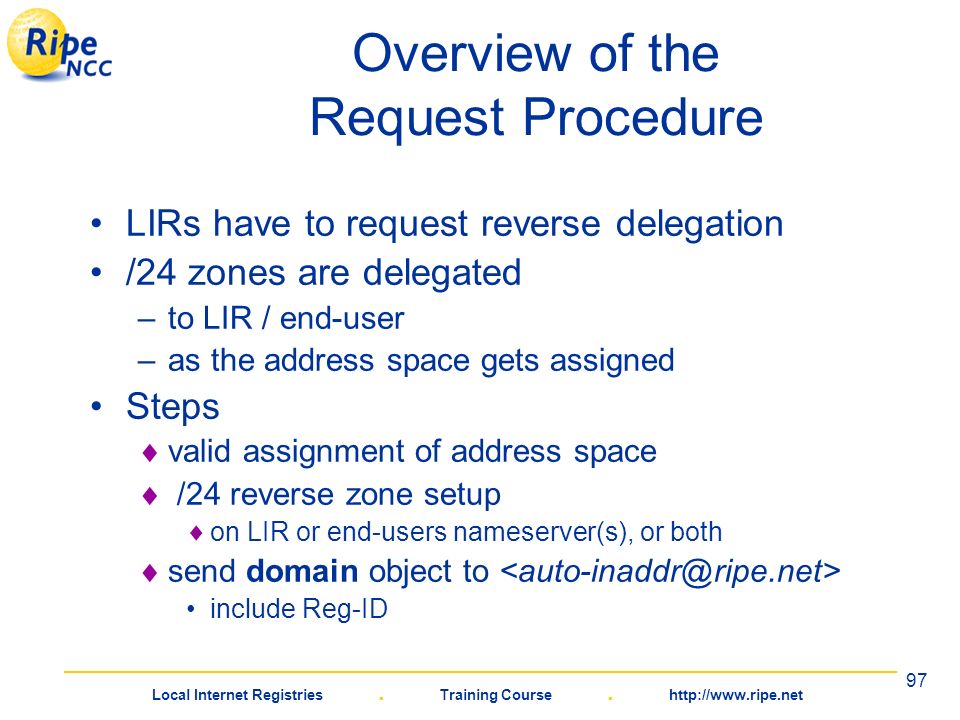

97. Local Internet Registries. Training Course. http://www.ripe.net 97 Overview of the Request Procedure LIRs have to request reverse delegation /24 zones are delegated –to LIR / end-user –as the address space gets assigned Steps  valid assignment of address space  /24 reverse zone setup  on LIR or end-users nameserver(s), or both  send domain object to include Reg-ID

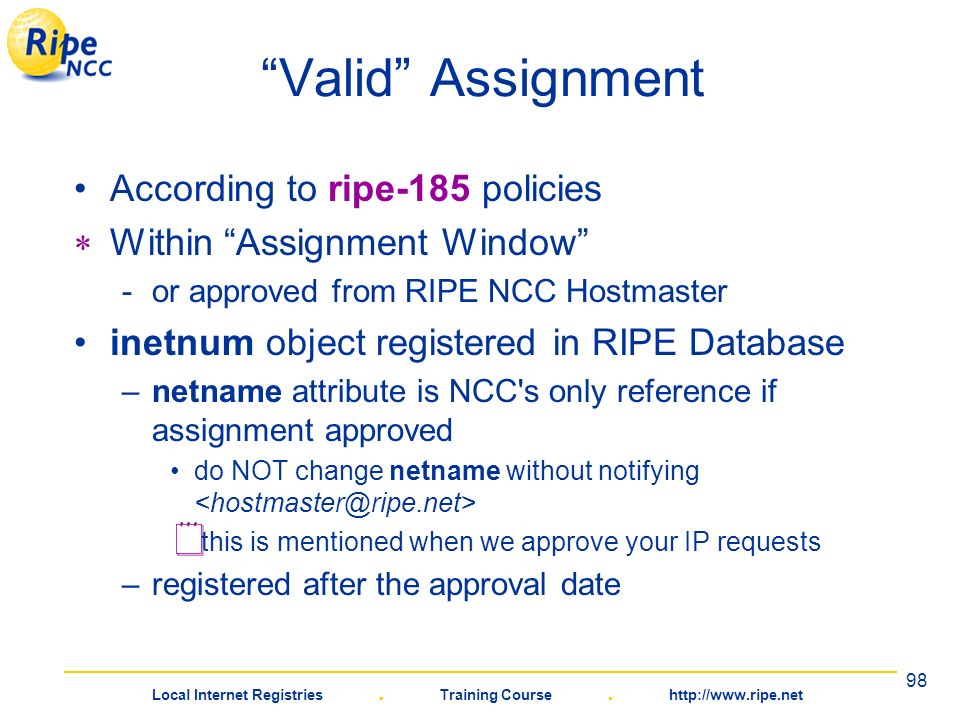

98. Local Internet Registries. Training Course. http://www.ripe.net 98 “Valid” Assignment According to ripe-185 policies  Within “Assignment Window” -or approved from RIPE NCC Hostmaster inetnum object registered in RIPE Database –netname attribute is NCC's only reference if assignment approved do NOT change netname without notifying  this is mentioned when we approve your IP requests –registered after the approval date

99. Local Internet Registries. Training Course. http://www.ripe.net 99 /24 Reverse Zone Setup Recommendations At least two nameservers required –one nameserver setup as primary –at least one other as secondary SOA values reasonably RFC1912 compliant Nameservers not on same physical subnet –preferably with another provider Serial numbers YYYYMMDDnn format

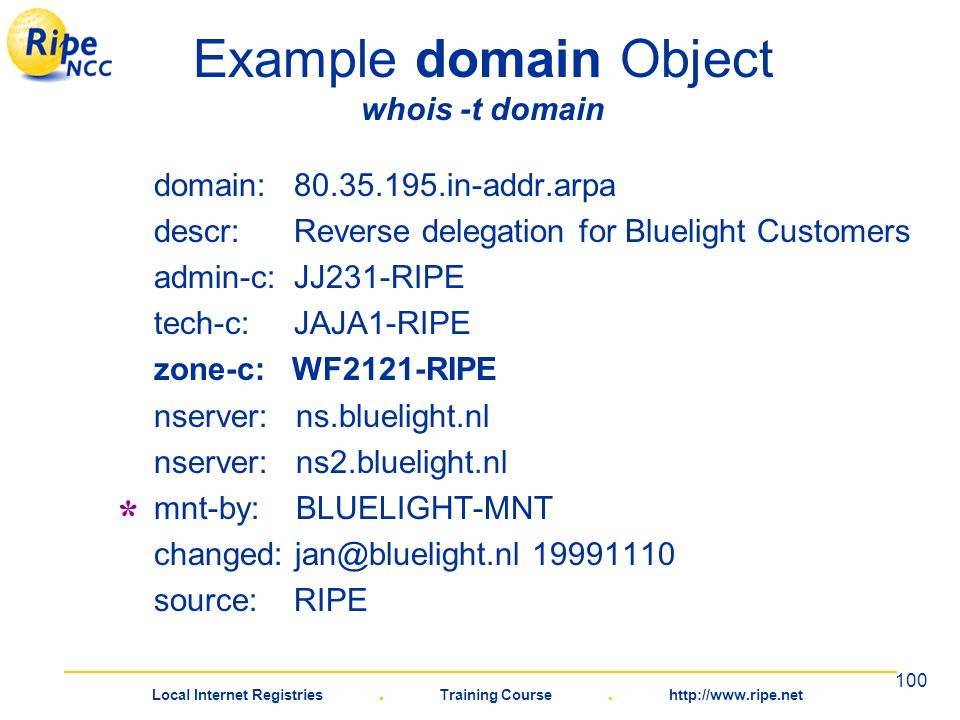

100. Local Internet Registries. Training Course. http://www.ripe.net 100 Example domain Object whois -t domain domain: 80.35.195.in-addr.arpa descr: Reverse delegation for Bluelight Customers admin-c: JJ231-RIPE tech-c: JAJA1-RIPE zone-c: WF2121-RIPE nserver: ns.bluelight.nl nserver: ns2.bluelight.nl mnt-by: BLUELIGHT-MNT changed: jan@bluelight.nl 19991110 source: RIPE *

101. Local Internet Registries. Training Course. http://www.ripe.net 101 Request the Delegation Send domain template to –an automatic mailbox Tool will –check assignment validity –check if zone is correctly setup –(try to) enter object to RIPE DB

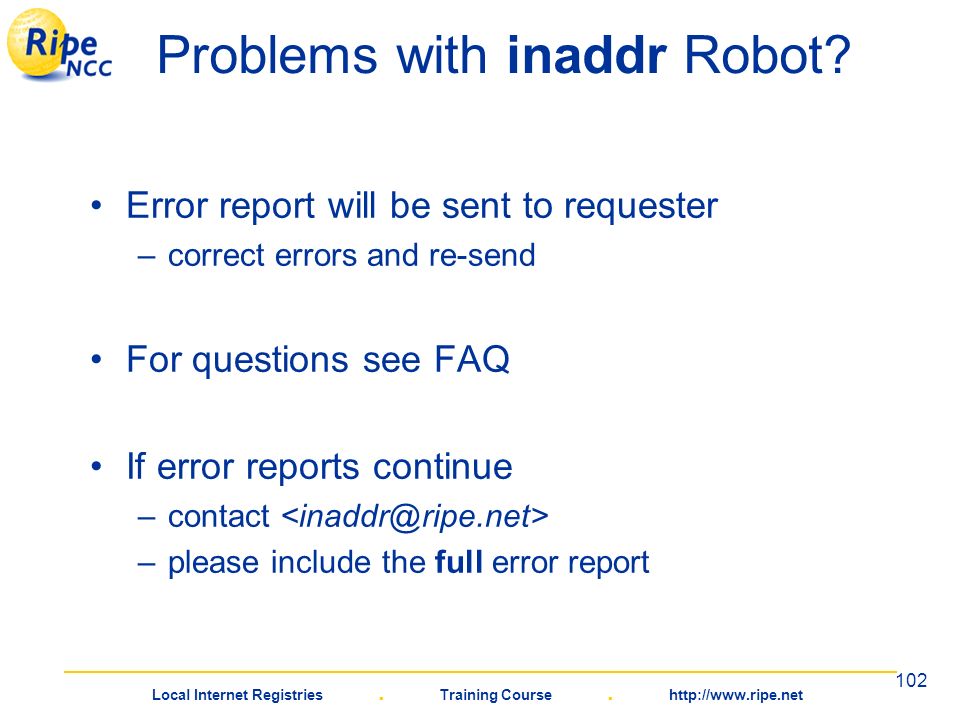

102. Local Internet Registries. Training Course. http://www.ripe.net 102 Problems with inaddr Robot? Error report will be sent to requester –correct errors and re-send For questions see FAQ If error reports continue –contact –please include the full error report

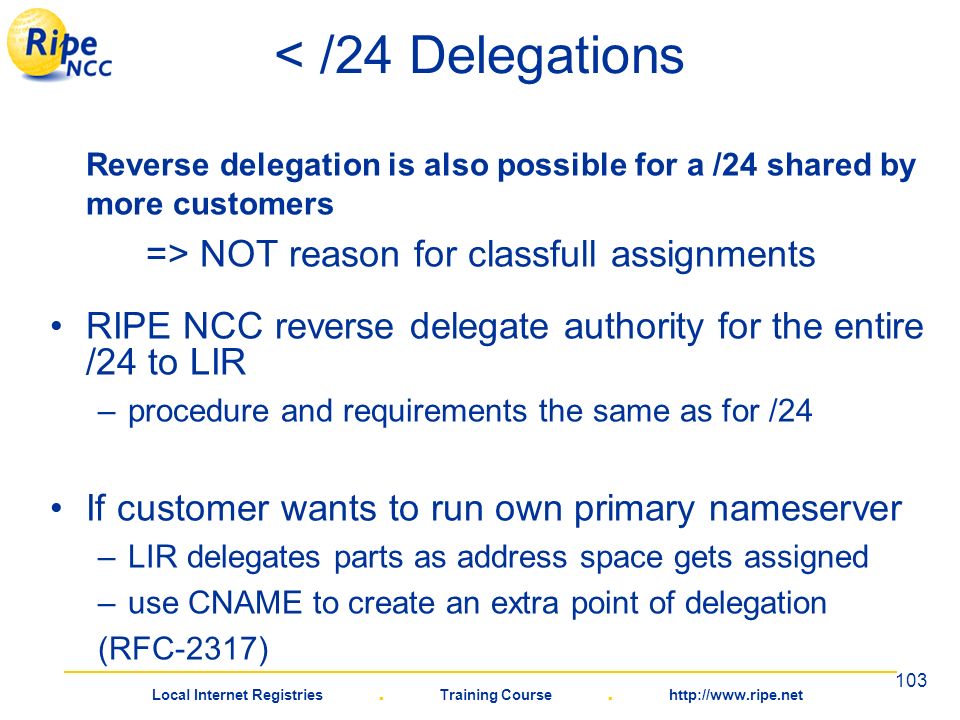

103. Local Internet Registries. Training Course. http://www.ripe.net 103 < /24 Delegations Reverse delegation is also possible for a /24 shared by more customers => NOT reason for classfull assignments RIPE NCC reverse delegate authority for the entire /24 to LIR –procedure and requirements the same as for /24 If customer wants to run own primary nameserver –LIR delegates parts as address space gets assigned –use CNAME to create an extra point of delegation (RFC-2317)

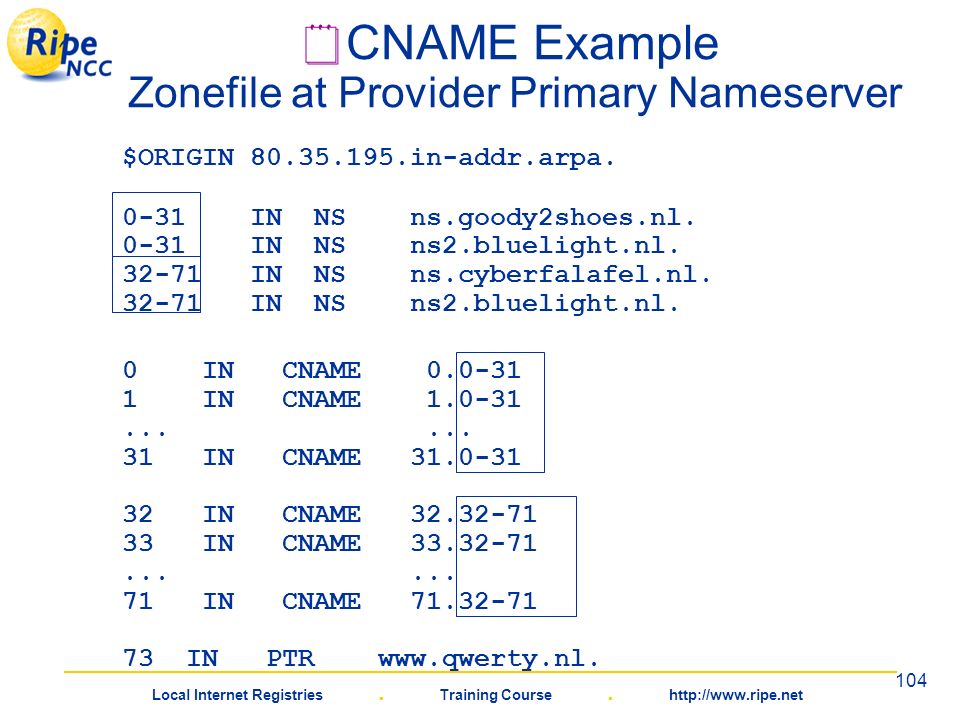

104. Local Internet Registries. Training Course. http://www.ripe.net 104 $ORIGIN 80.35.195.in-addr.arpa. 0-31 IN NS ns.goody2shoes.nl. 0-31 IN NS ns2.bluelight.nl. 32-71 IN NS ns.cyberfalafel.nl. 32-71 IN NS ns2.bluelight.nl. 0 IN CNAME 0.0-31 1 IN CNAME 1.0-31... 31 IN CNAME 31.0-31 32 IN CNAME 32.32-71 33 IN CNAME 33.32-71... 71 IN CNAME 71.32-71 73 IN PTR www.qwerty.nl.  CNAME Example Zonefile at Provider Primary Nameserver

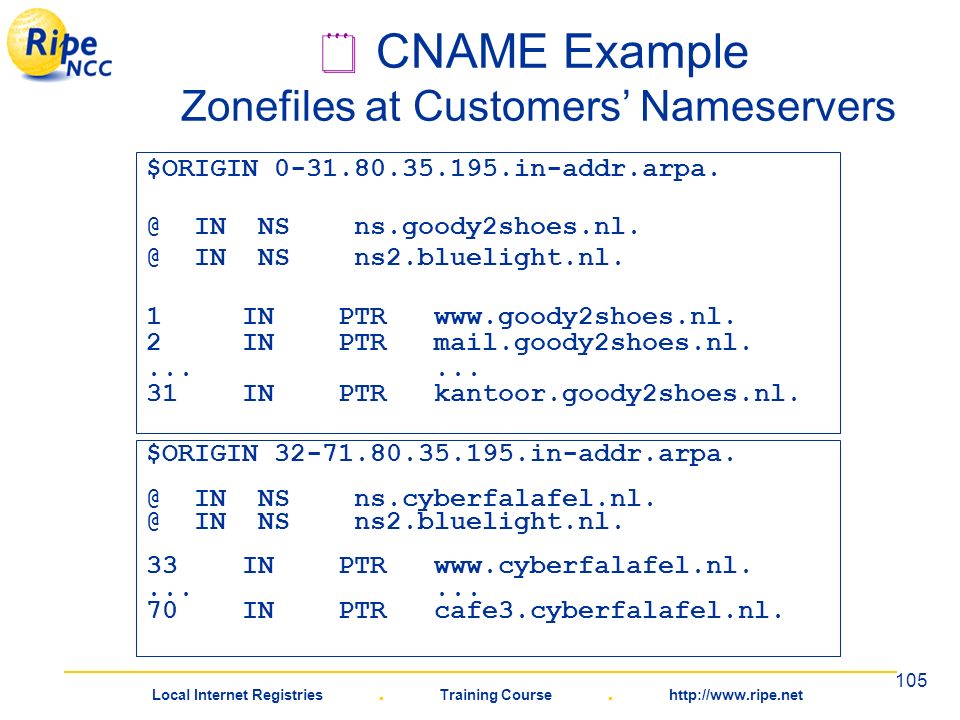

105. Local Internet Registries. Training Course. http://www.ripe.net 105  CNAME Example Zonefiles at Customers’ Nameservers $ORIGIN 0-31.80.35.195.in-addr.arpa. @ IN NS ns.goody2shoes.nl. @ IN NS ns2.bluelight.nl. 1INPTRwww.goody2shoes.nl. 2INPTRmail.goody2shoes.nl.... 31INPTRkantoor.goody2shoes.nl. $ORIGIN 32-71.80.35.195.in-addr.arpa. @ IN NS ns.cyberfalafel.nl. @ IN NS ns2.bluelight.nl. 33INPTRwww.cyberfalafel.nl.... 70 INPTRcafe3.cyberfalafel.nl.

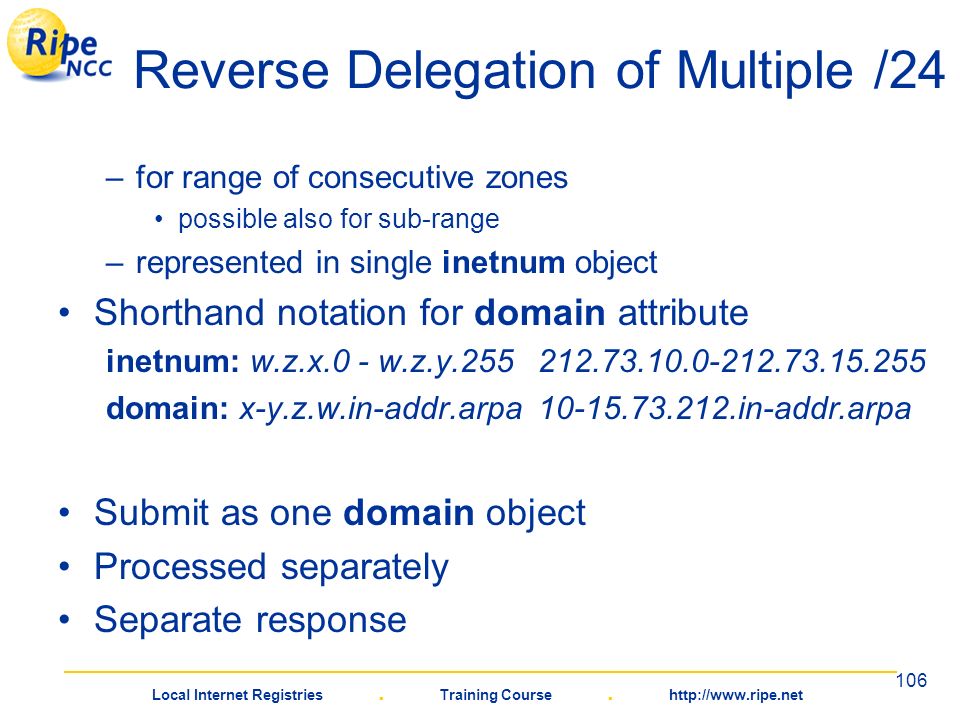

106. Local Internet Registries. Training Course. http://www.ripe.net 106 Reverse Delegation of Multiple /24 –for range of consecutive zones possible also for sub-range –represented in single inetnum object Shorthand notation for domain attribute inetnum: w.z.x.0 - w.z.y.255212.73.10.0-212.73.15.255 domain: x-y.z.w.in-addr.arpa10-15.73.212.in-addr.arpa Submit as one domain object Processed separately Separate response

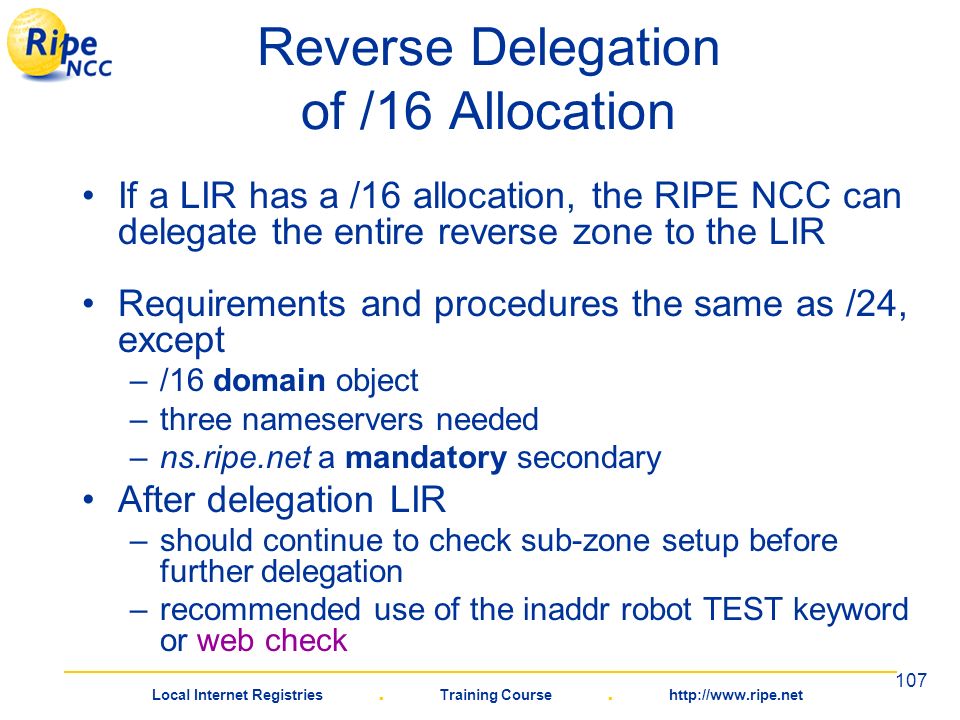

107. Local Internet Registries. Training Course. http://www.ripe.net 107 Reverse Delegation of /16 Allocation If a LIR has a /16 allocation, the RIPE NCC can delegate the entire reverse zone to the LIR Requirements and procedures the same as /24, except –/16 domain object –three nameservers needed –ns.ripe.net a mandatory secondary After delegation LIR –should continue to check sub-zone setup before further delegation –recommended use of the inaddr robot TEST keyword or web check

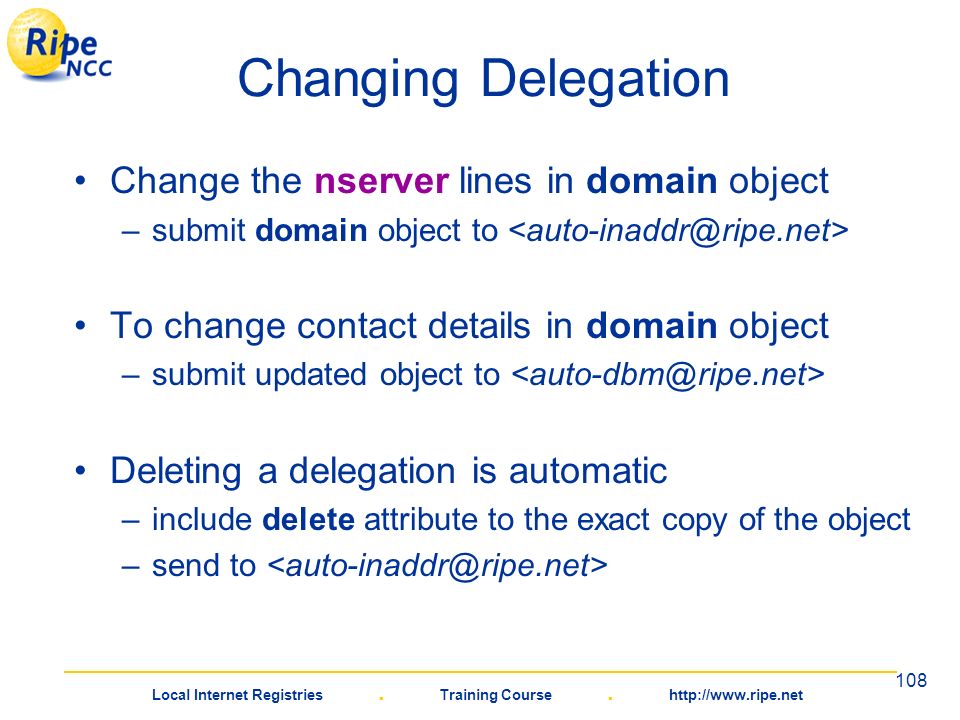

108. Local Internet Registries. Training Course. http://www.ripe.net 108 Changing Delegation Change the nserver lines in domain object –submit domain object to To change contact details in domain object –submit updated object to Deleting a delegation is automatic –include delete attribute to the exact copy of the object –send to

109. Local Internet Registries. Training Course. http://www.ripe.net 109 Questions?

110. Local Internet Registries. Training Course. http://www.ripe.net 110 Autonomous System Numbers

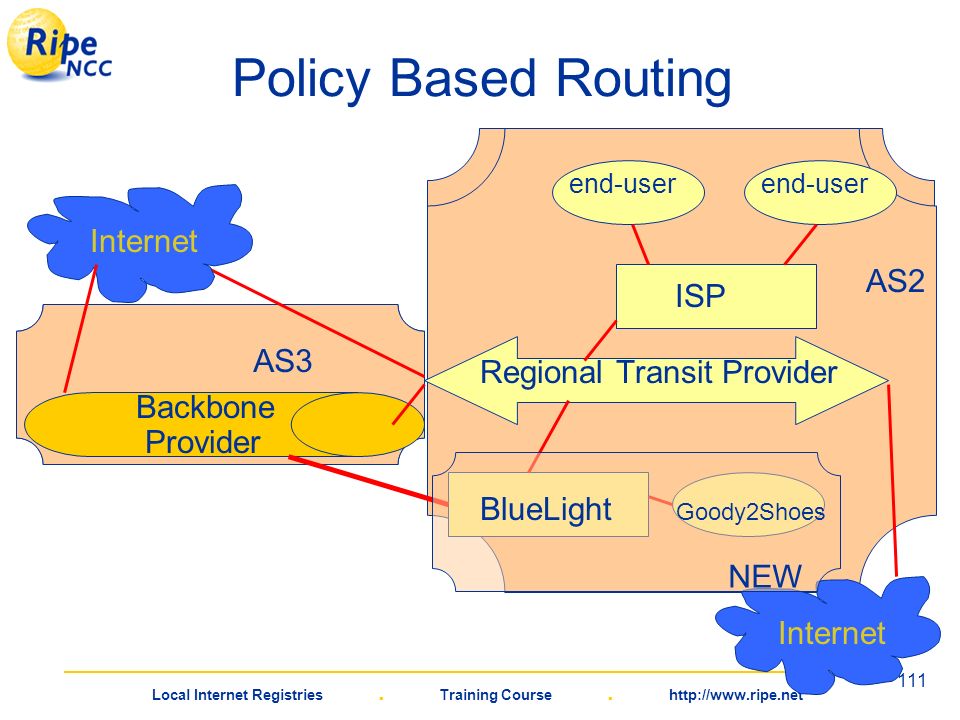

111. Local Internet Registries. Training Course. http://www.ripe.net 111 AS3 AS2 AS3 Policy Based Routing Internet NEW end-user end-user ISP Regional Transit Provider Backbone Provider BlueLight Goody2Shoes

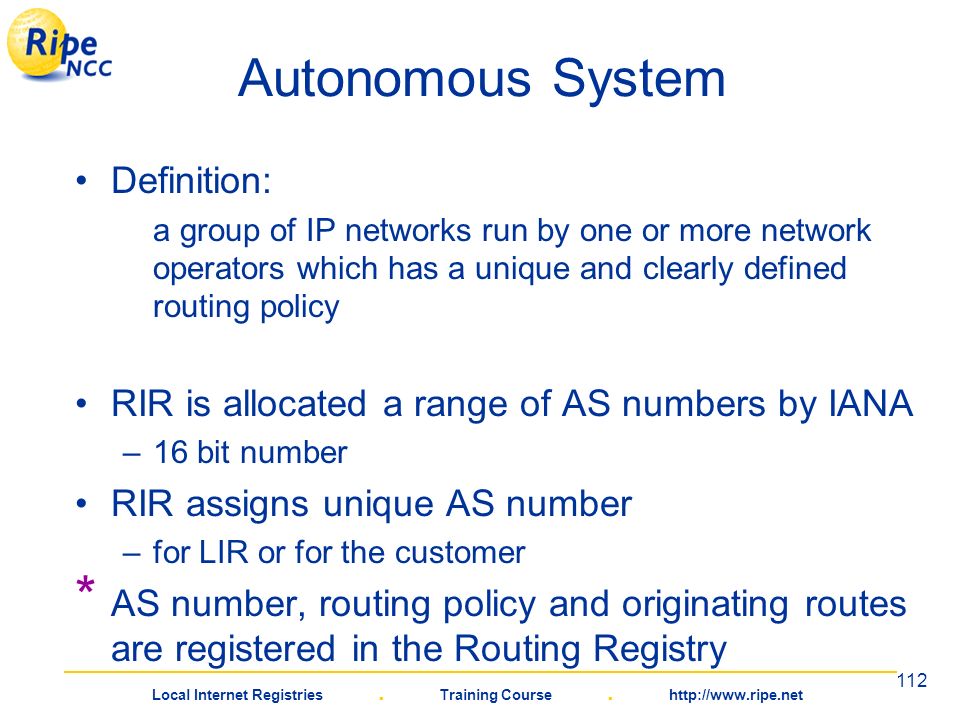

112. Local Internet Registries. Training Course. http://www.ripe.net 112 Autonomous System Definition: a group of IP networks run by one or more network operators which has a unique and clearly defined routing policy RIR is allocated a range of AS numbers by IANA –16 bit number RIR assigns unique AS number –for LIR or for the customer * AS number, routing policy and originating routes are registered in the Routing Registry

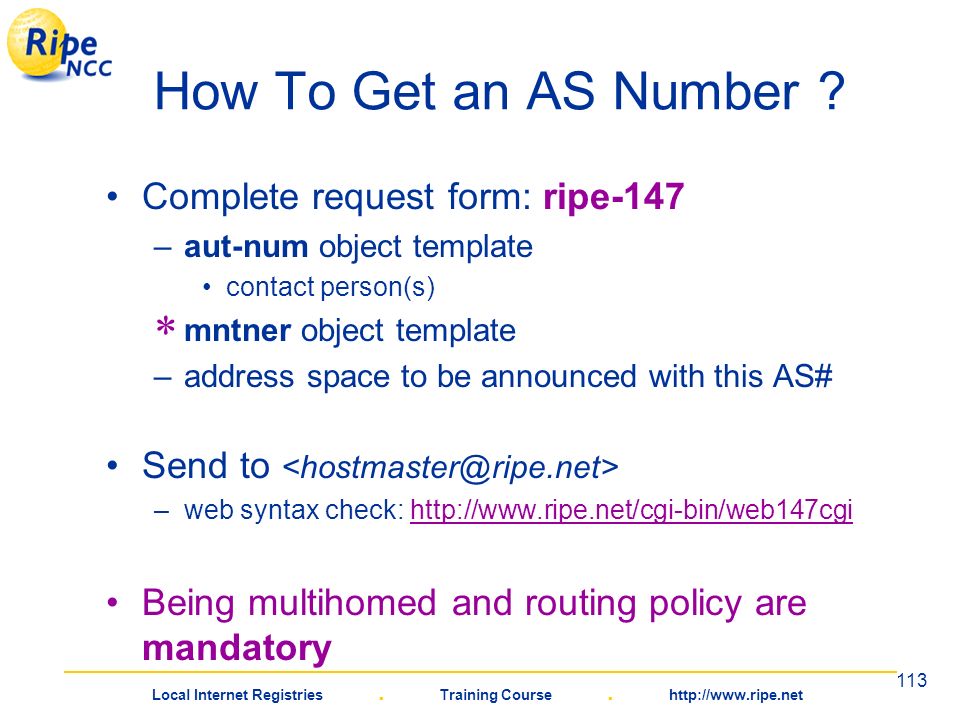

113. Local Internet Registries. Training Course. http://www.ripe.net 113 How To Get an AS Number ? Complete request form: ripe-147 –aut-num object template contact person(s)  mntner object template –address space to be announced with this AS# Send to –web syntax check: http://www.ripe.net/cgi-bin/web147cgihttp://www.ripe.net/cgi-bin/web147cgi Being multihomed and routing policy are mandatory

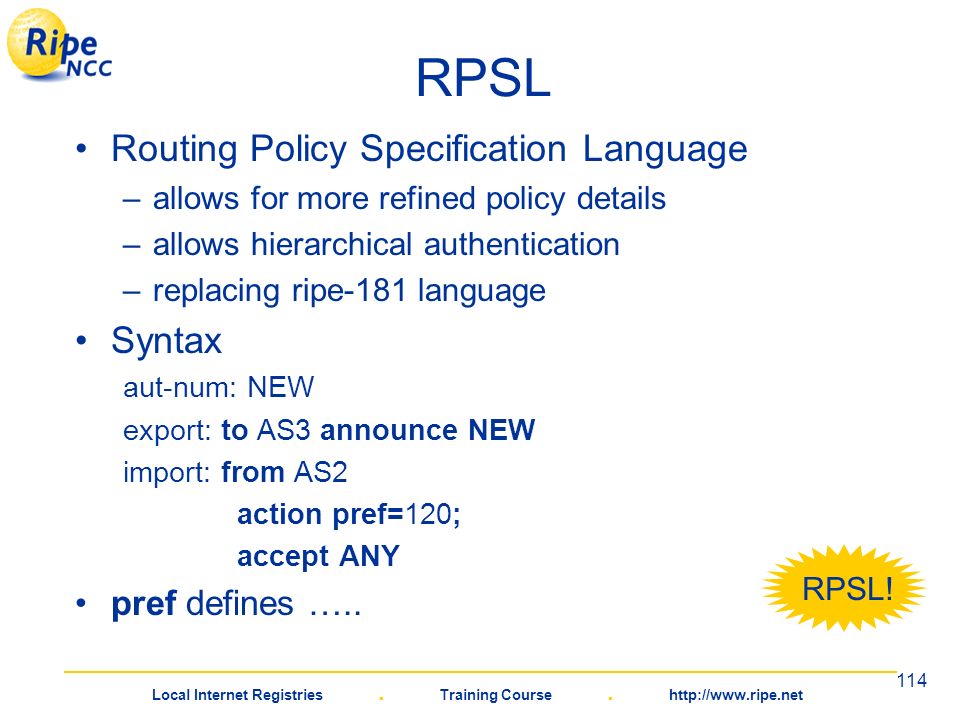

114. Local Internet Registries. Training Course. http://www.ripe.net 114 RPSL Routing Policy Specification Language –allows for more refined policy details –allows hierarchical authentication –replacing ripe-181 language Syntax aut-num: NEW export: to AS3 announce NEW import: from AS2 action pref=120; accept ANY pref defines ….. RPSL!

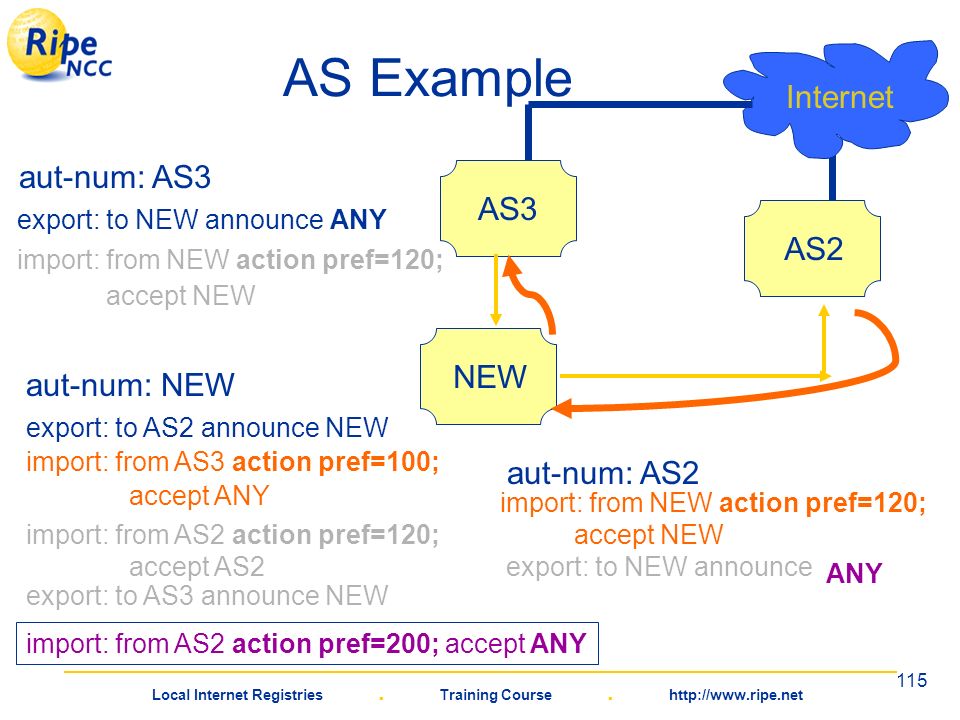

115. Local Internet Registries. Training Course. http://www.ripe.net 115 AS2 aut-num: AS2 import: from AS2 action pref=120; accept AS2 export: to NEW announce AS2 AS Example NEW aut-num: NEW export: to AS2 announce NEW Internet aut-num: AS3 AS3 export: to NEW announce ANY import: from NEW action pref=120; accept NEW import: from AS3 action pref=100; accept ANY import: from NEW action pref=120; accept NEW export: to AS3 announce NEW ANY import: from AS2 action pref=200; accept ANY

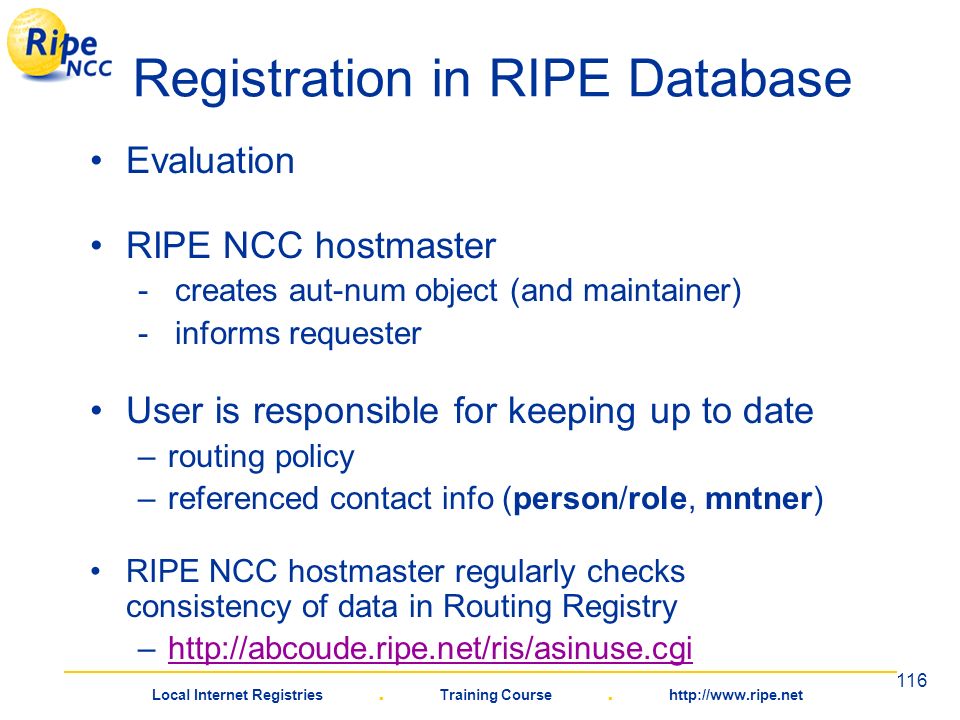

116. Local Internet Registries. Training Course. http://www.ripe.net 116 Registration in RIPE Database Evaluation RIPE NCC hostmaster - creates aut-num object (and maintainer) - informs requester User is responsible for keeping up to date –routing policy –referenced contact info (person/role, mntner) RIPE NCC hostmaster regularly checks consistency of data in Routing Registry –http://abcoude.ripe.net/ris/asinuse.cgihttp://abcoude.ripe.net/ris/asinuse.cgi

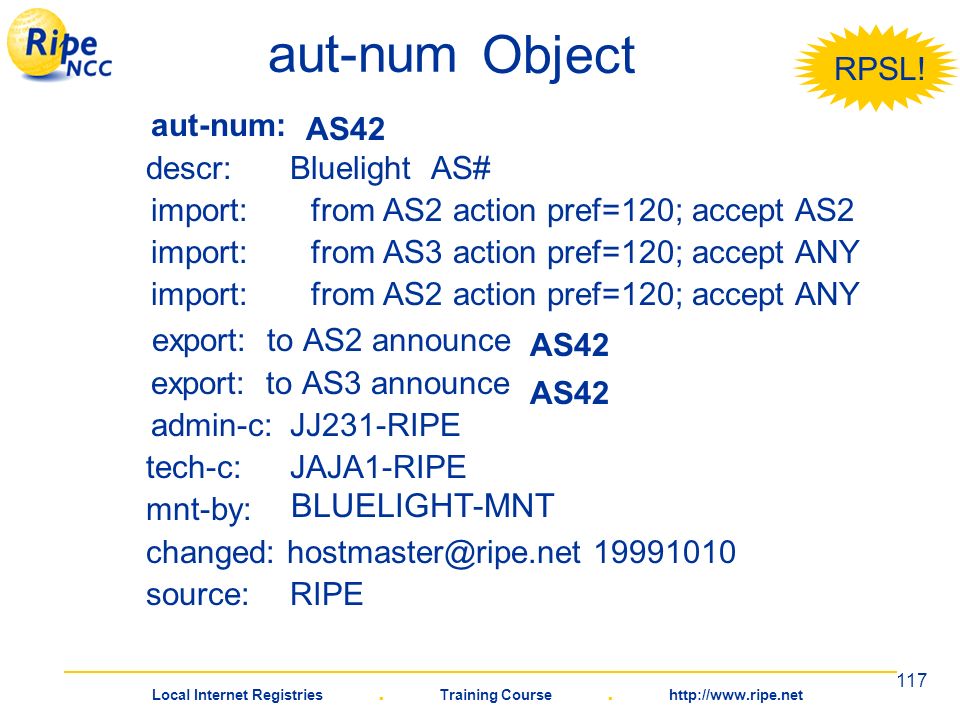

117. Local Internet Registries. Training Course. http://www.ripe.net 117 aut-num: NEW descr: Bluelight AS# import: from AS2 action pref=120; accept AS2 import: from AS3 action pref=120; accept ANY import: from AS2 action pref=120; accept ANY export: to AS2 announce NEW export: to AS3 announce NEW admin-c: JJ231-RIPE tech-c: JAJA1-RIPE mnt-by: NEW-MNT changed: hostmaster@ripe.net 19991010 source: RIPE aut-num Template AS42 BLUELIGHT-MNT Object RPSL!

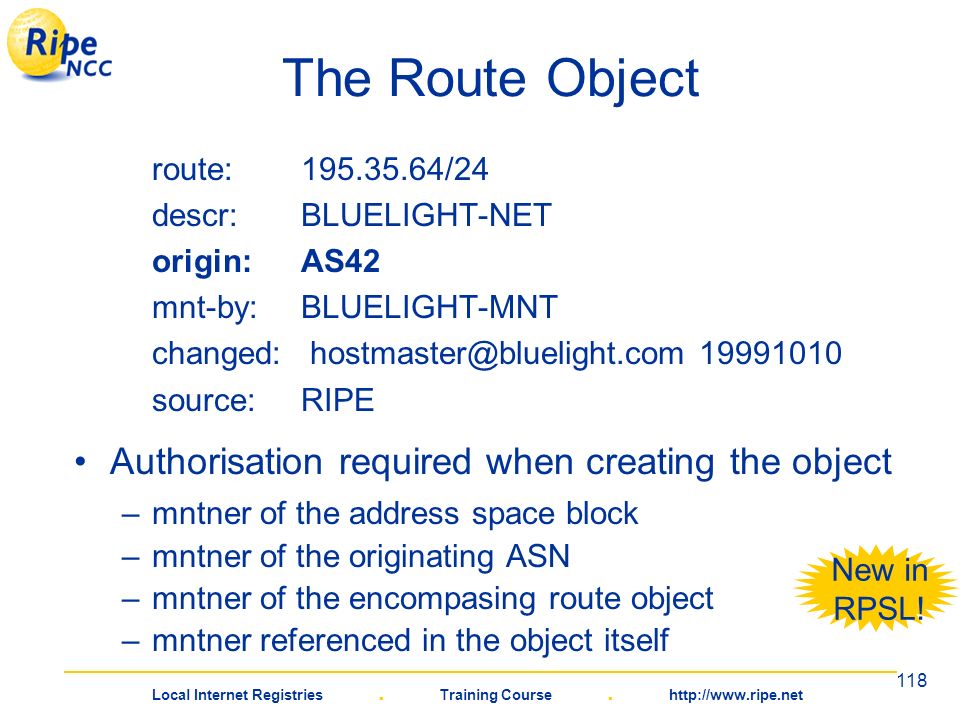

118. Local Internet Registries. Training Course. http://www.ripe.net 118 The Route Object route: 195.35.64/24 descr: BLUELIGHT-NET origin: AS42 mnt-by: BLUELIGHT-MNT changed: hostmaster@bluelight.com 19991010 source: RIPE Authorisation required when creating the object –mntner of the address space block –mntner of the originating ASN –mntner of the encompasing route object –mntner referenced in the object itself New in RPSL!

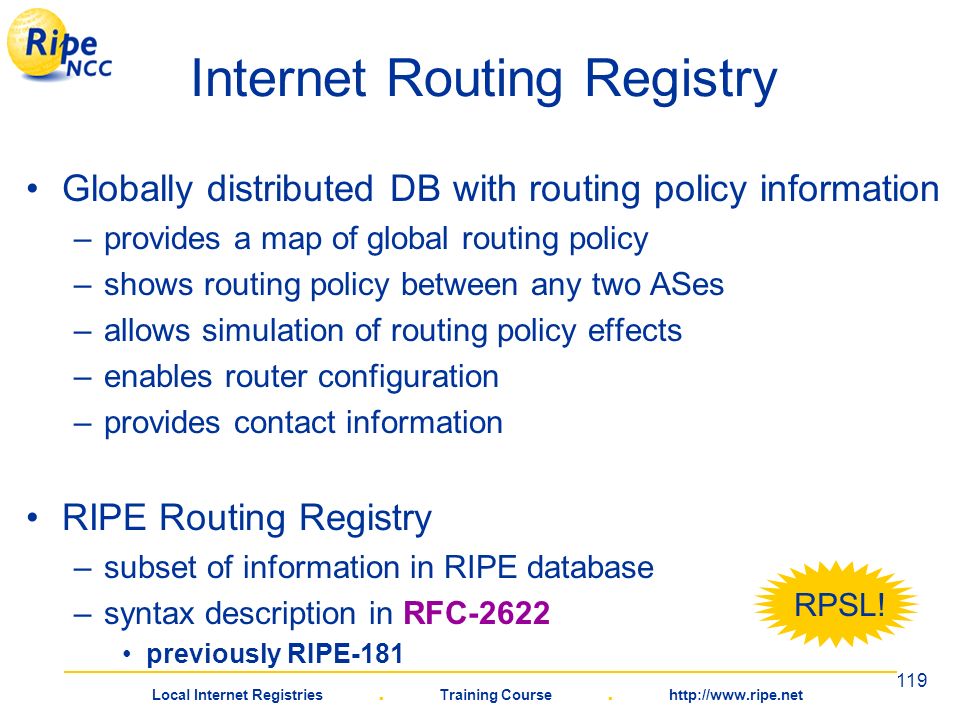

119. Local Internet Registries. Training Course. http://www.ripe.net 119 Internet Routing Registry Globally distributed DB with routing policy information –provides a map of global routing policy –shows routing policy between any two ASes –allows simulation of routing policy effects –enables router configuration –provides contact information RIPE Routing Registry –subset of information in RIPE database –syntax description in RFC-2622 previously RIPE-181 RPSL!

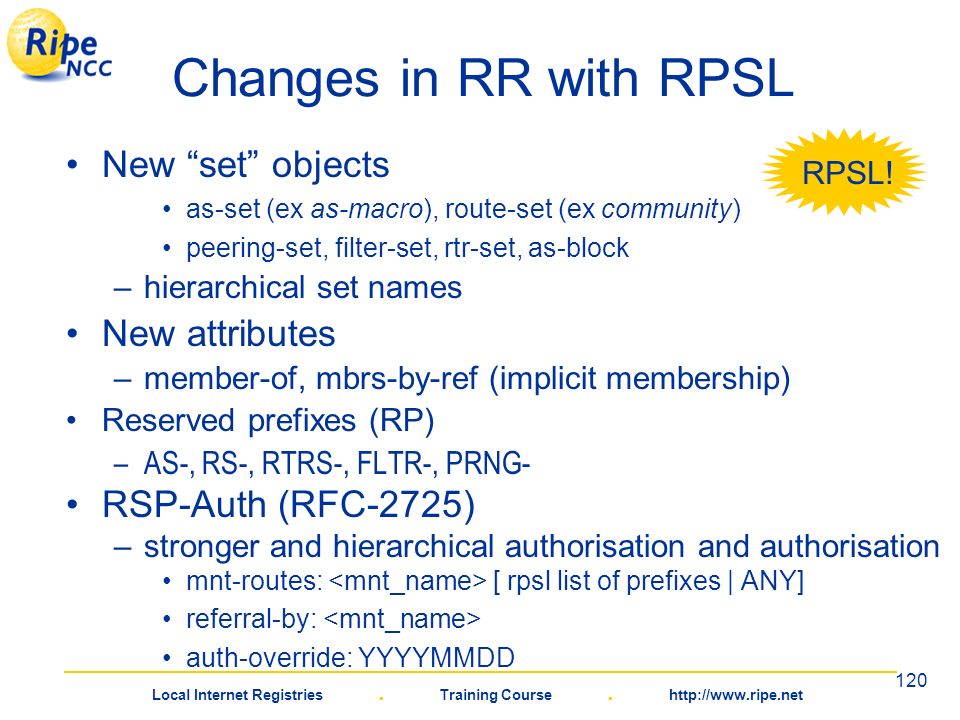

120. Local Internet Registries. Training Course. http://www.ripe.net 120 Changes in RR with RPSL New “set” objects as-set (ex as-macro), route-set (ex community) peering-set, filter-set, rtr-set, as-block –hierarchical set names New attributes –member-of, mbrs-by-ref (implicit membership) Reserved prefixes (RP) –AS-, RS-, RTRS-, FLTR-, PRNG- RSP-Auth (RFC-2725) –stronger and hierarchical authorisation and authorisation mnt-routes: [ rpsl list of prefixes | ANY] referral-by: auth-override: YYYYMMDD RPSL!

121. Local Internet Registries. Training Course. http://www.ripe.net 121 Questions?

122. Local Internet Registries. Training Course. http://www.ripe.net 122 Advanced Database Issues DB administration – using role object – updating – deleting Protection Test Database

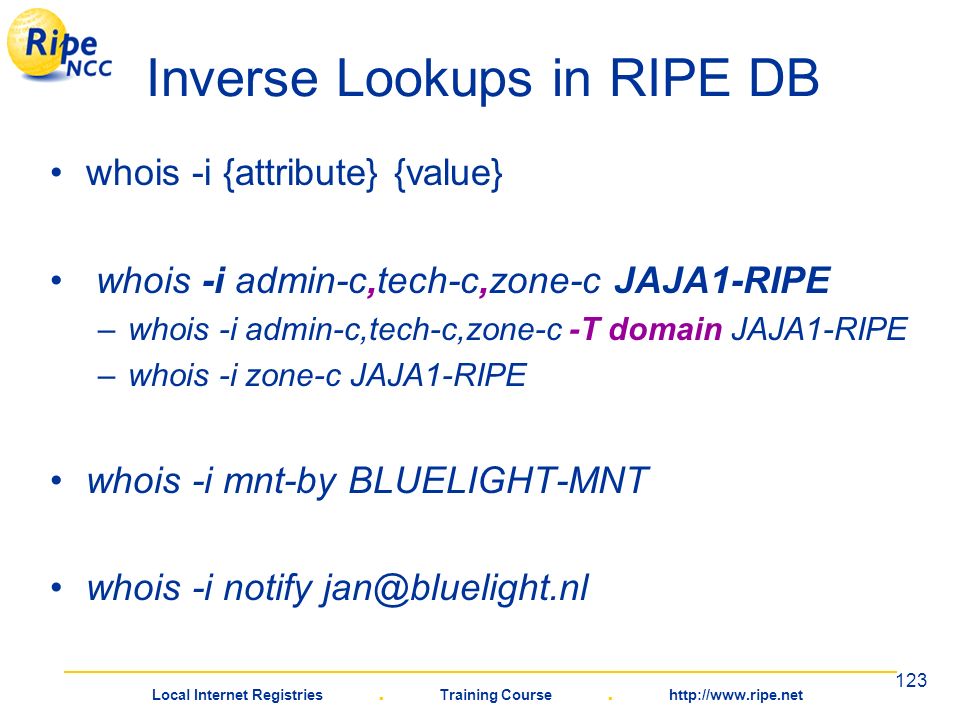

123. Local Internet Registries. Training Course. http://www.ripe.net 123 Inverse Lookups in RIPE DB whois -i {attribute} {value} whois -i admin-c,tech-c,zone-c JAJA1-RIPE –whois -i admin-c,tech-c,zone-c -T domain JAJA1-RIPE –whois -i zone-c JAJA1-RIPE whois -i mnt-by BLUELIGHT-MNT whois -i notify jan@bluelight.nl

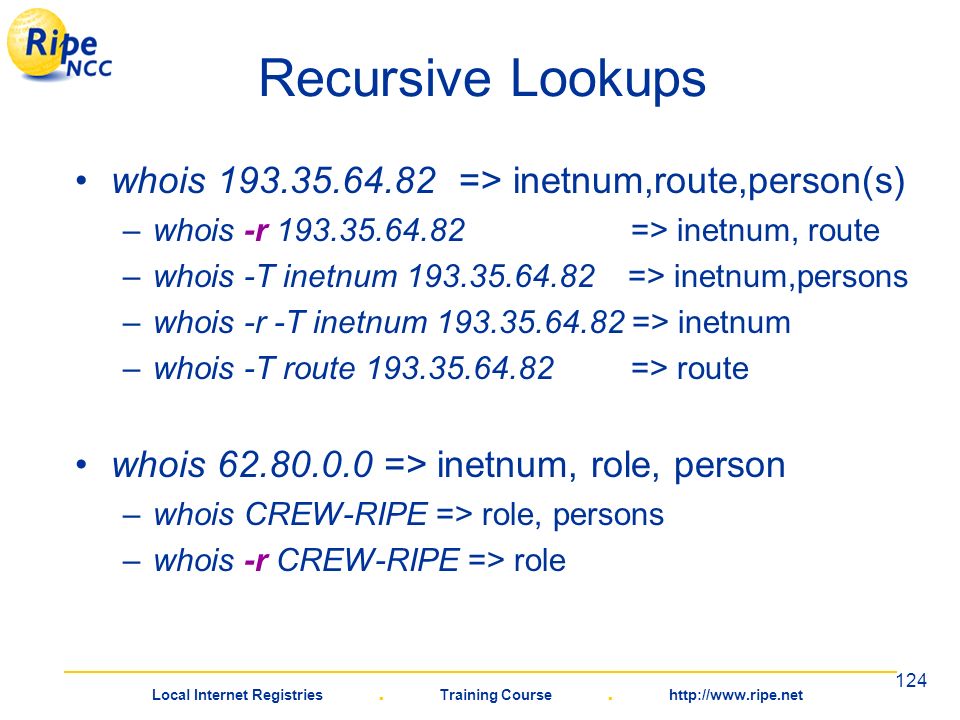

124. Local Internet Registries. Training Course. http://www.ripe.net 124 Recursive Lookups whois 193.35.64.82=> inetnum,route,person(s) –whois -r 193.35.64.82 => inetnum, route –whois -T inetnum 193.35.64.82 => inetnum,persons –whois -r -T inetnum 193.35.64.82 => inetnum –whois -T route 193.35.64.82 => route whois 62.80.0.0 => inetnum, role, person –whois CREW-RIPE => role, persons –whois -r CREW-RIPE => role

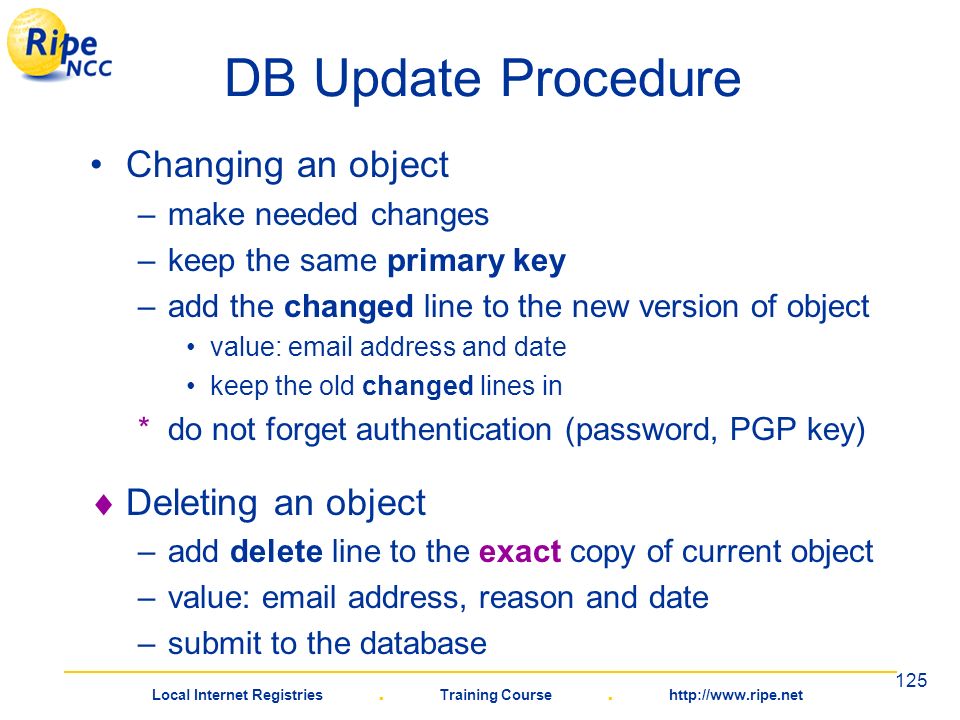

125. Local Internet Registries. Training Course. http://www.ripe.net 125 DB Update Procedure Changing an object –make needed changes –keep the same primary key –add the changed line to the new version of object value: email address and date keep the old changed lines in *do not forget authentication (password, PGP key)  Deleting an object –add delete line to the exact copy of current object –value: email address, reason and date –submit to the database

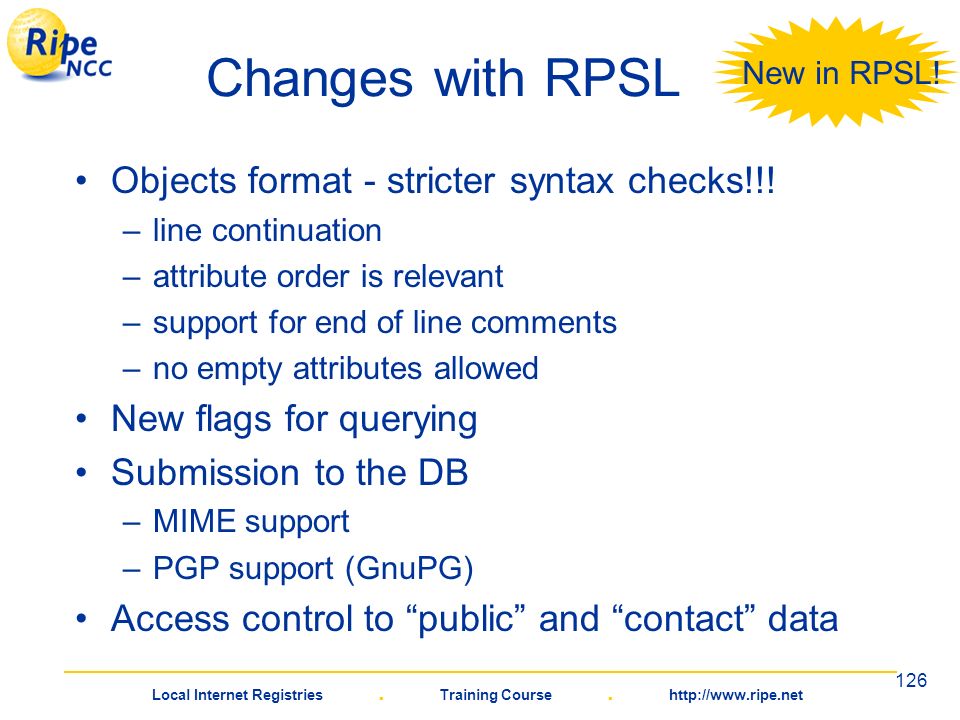

126. Local Internet Registries. Training Course. http://www.ripe.net 126 Changes with RPSL Objects format - stricter syntax checks!!! –line continuation –attribute order is relevant –support for end of line comments –no empty attributes allowed New flags for querying Submission to the DB –MIME support –PGP support (GnuPG) Access control to “public” and “contact” data New in RPSL!

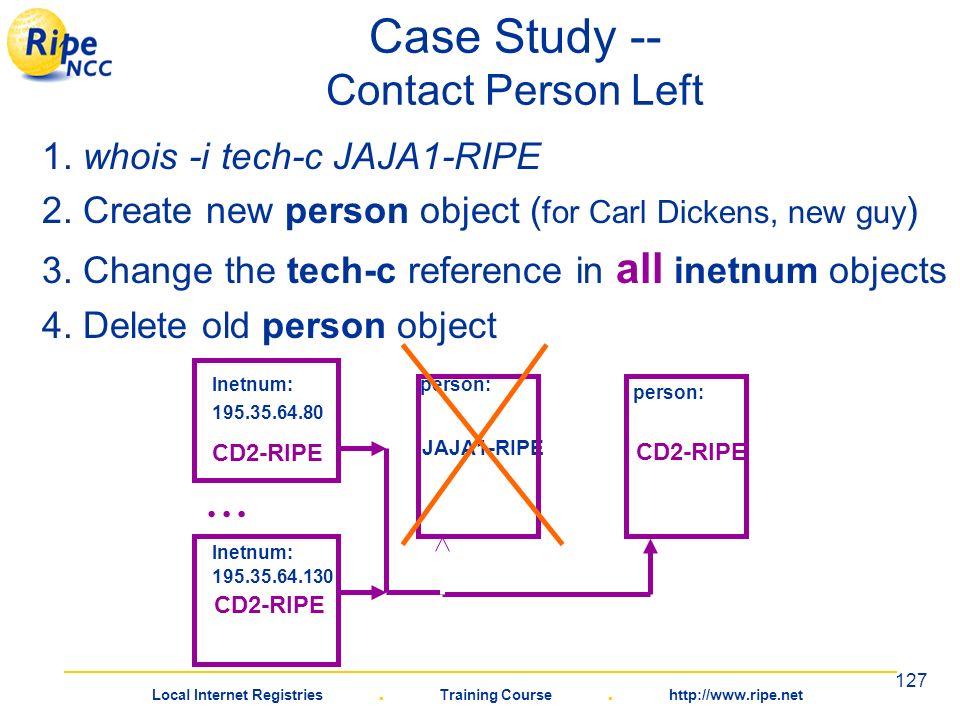

127. Local Internet Registries. Training Course. http://www.ripe.net 127 Inetnum: person: 195.35.64.80 JAJA1-RIPE Case Study -- Contact Person Left 1. whois -i tech-c JAJA1-RIPE 2. Create new person object ( for Carl Dickens, new guy ) 3. Change the tech-c reference in all inetnum objects 4. Delete old person object Inetnum: 195.35.64.130 JAJA1-RIPE... CD2-RIPE person:

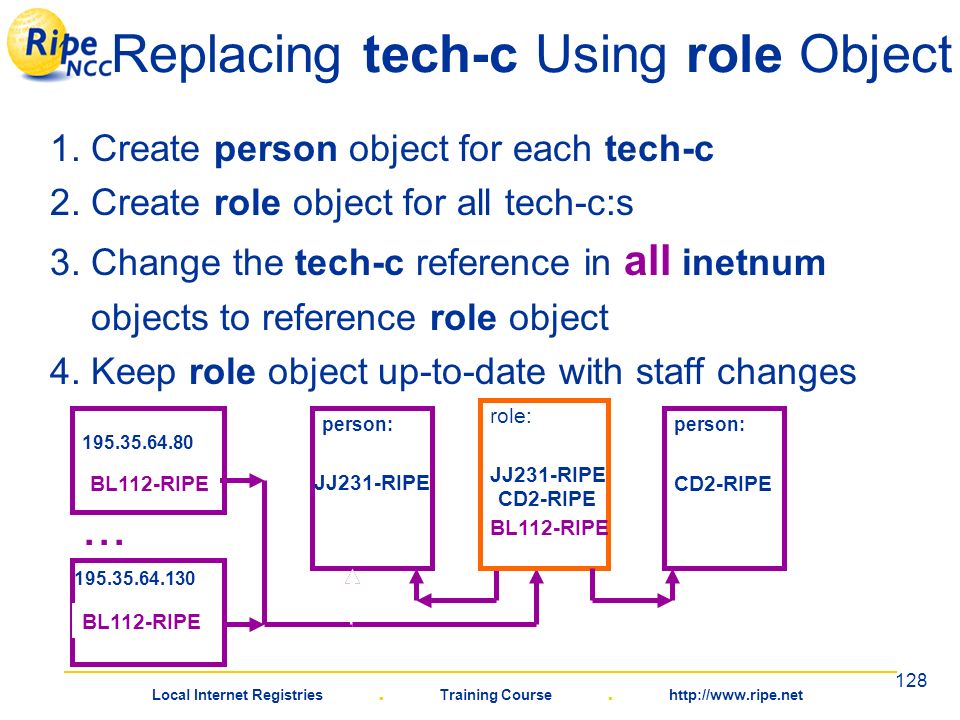

128. Local Internet Registries. Training Course. http://www.ripe.net 128 195.35.64.130 JJ231-RIPE 195.35.64.80 JJ231-RIPE Replacing tech-c Using role Object 1. Create person object for each tech-c 2. Create role object for all tech-c:s 3. Change the tech-c reference in all inetnum objects to reference role object 4. Keep role object up-to-date with staff changes JJ231-RIPE BL112-RIPE... BL112-RIPE CD2-RIPE JJ231-RIPE role: person: CD2-RIPE person:

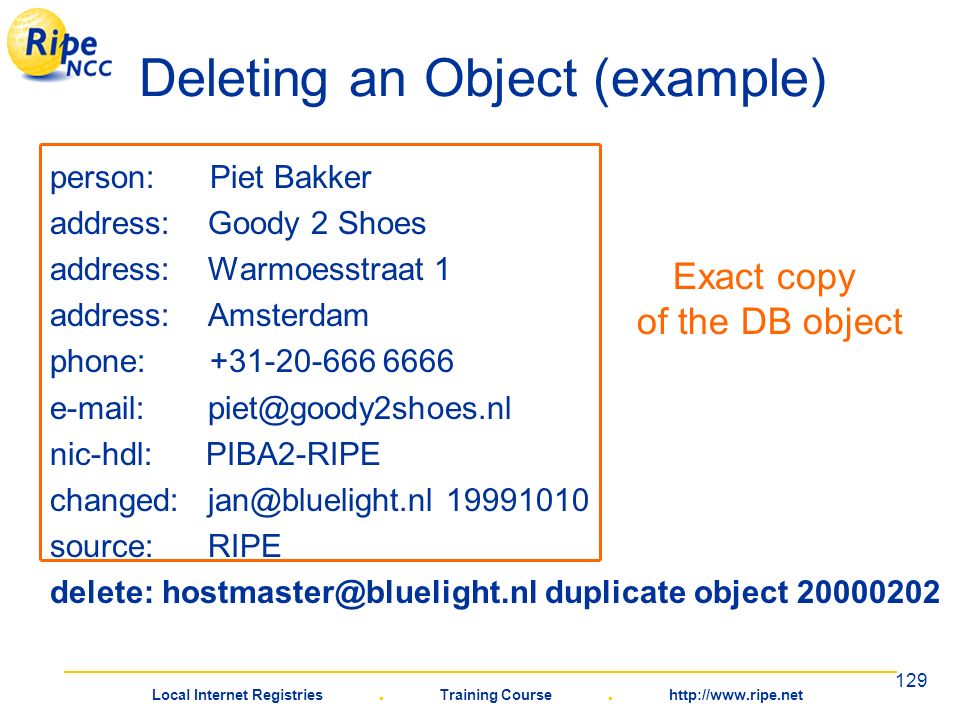

129. Local Internet Registries. Training Course. http://www.ripe.net 129 Deleting an Object (example) person: Piet Bakker address: Goody 2 Shoes address: Warmoesstraat 1 address: Amsterdam phone: +31-20-666 6666 e-mail: piet@goody2shoes.nl nic-hdl: PIBA2-RIPE changed: jan@bluelight.nl 19991010 source: RIPE delete: hostmaster@bluelight.nl duplicate object 20000202 Exact copy of the DB object

130. Local Internet Registries. Training Course. http://www.ripe.net 130 Protecting DB Objects

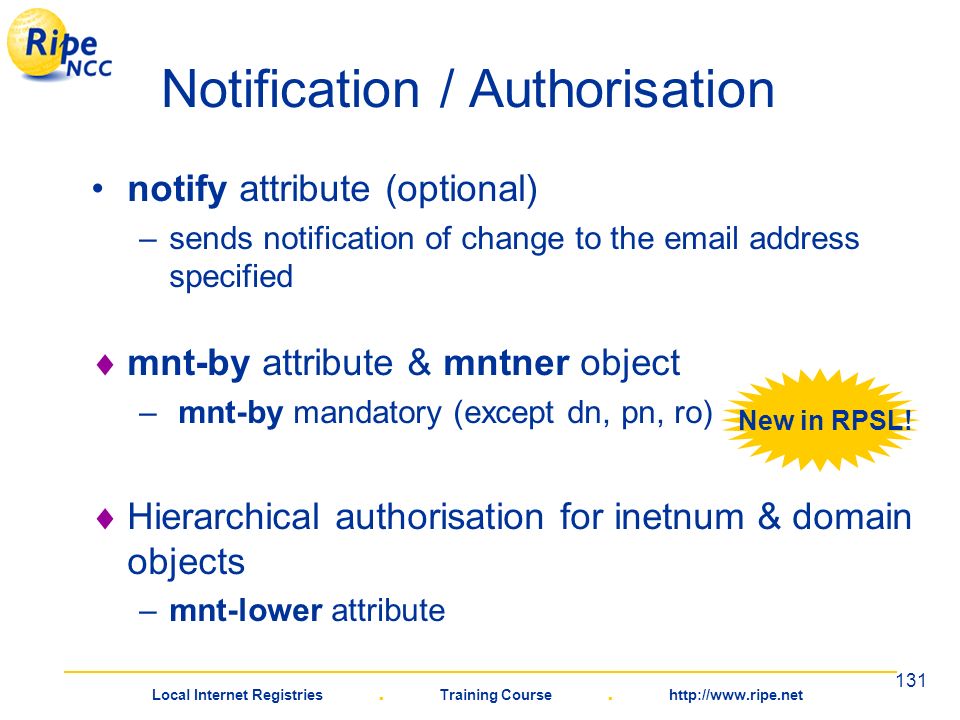

131. Local Internet Registries. Training Course. http://www.ripe.net 131 Notification / Authorisation notify attribute (optional) –sends notification of change to the email address specified  mnt-by attribute & mntner object – mnt-by mandatory (except dn, pn, ro)  Hierarchical authorisation for inetnum & domain objects –mnt-lower attribute New in RPSL!

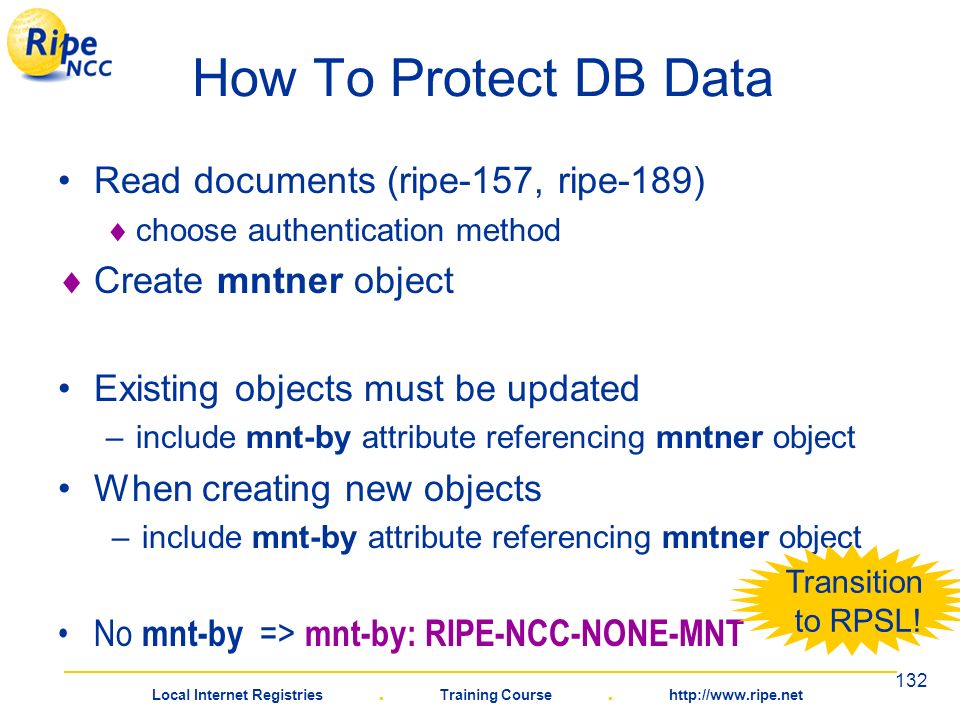

132. Local Internet Registries. Training Course. http://www.ripe.net 132 How To Protect DB Data Read documents (ripe-157, ripe-189)  choose authentication method  Create mntner object Existing objects must be updated –include mnt-by attribute referencing mntner object When creating new objects –include mnt-by attribute referencing mntner object No mnt-by => mnt-by: RIPE-NCC-NONE-MNT Transition to RPSL!

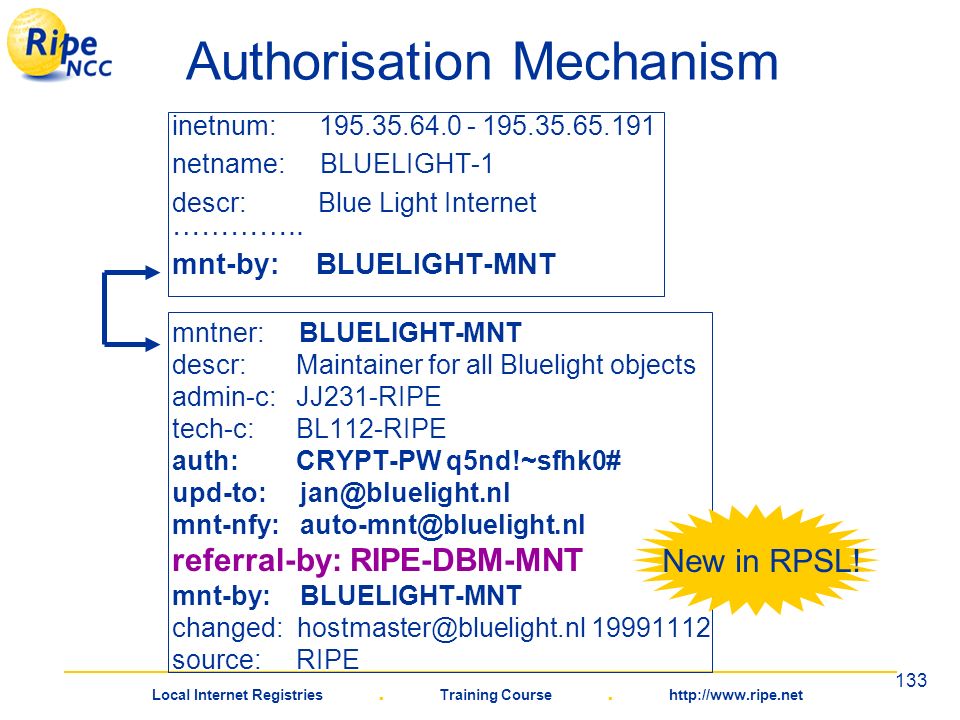

133. Local Internet Registries. Training Course. http://www.ripe.net 133 Authorisation Mechanism inetnum: 195.35.64.0 - 195.35.65.191 netname: BLUELIGHT-1 descr: Blue Light Internet ………….. mnt-by:BLUELIGHT-MNT mntner: BLUELIGHT-MNT descr: Maintainer for all Bluelight objects admin-c: JJ231-RIPE tech-c: BL112-RIPE auth: CRYPT-PW q5nd!~sfhk0# upd-to: jan@bluelight.nl mnt-nfy: auto-mnt@bluelight.nl referral-by: RIPE-DBM-MNT mnt-by: BLUELIGHT-MNT changed: hostmaster@bluelight.nl 19991112 source: RIPE New in RPSL!

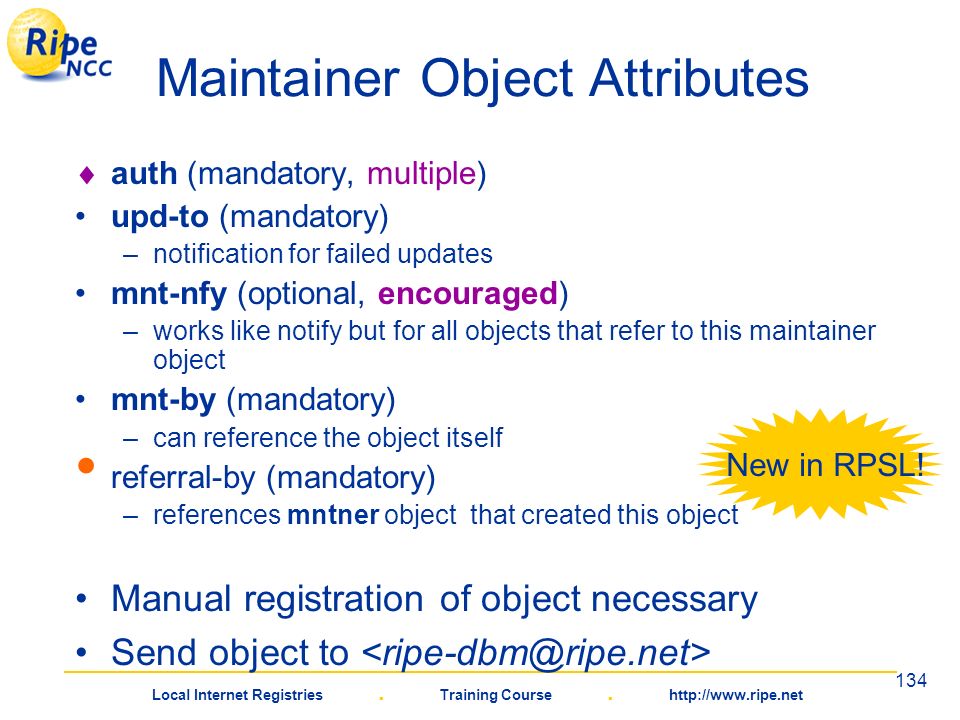

134. Local Internet Registries. Training Course. http://www.ripe.net 134 Maintainer Object Attributes  auth (mandatory, multiple) upd-to (mandatory) –notification for failed updates mnt-nfy (optional, encouraged) –works like notify but for all objects that refer to this maintainer object mnt-by (mandatory) –can reference the object itself referral-by (mandatory) –references mntner object that created this object Manual registration of object necessary Send object to New in RPSL!

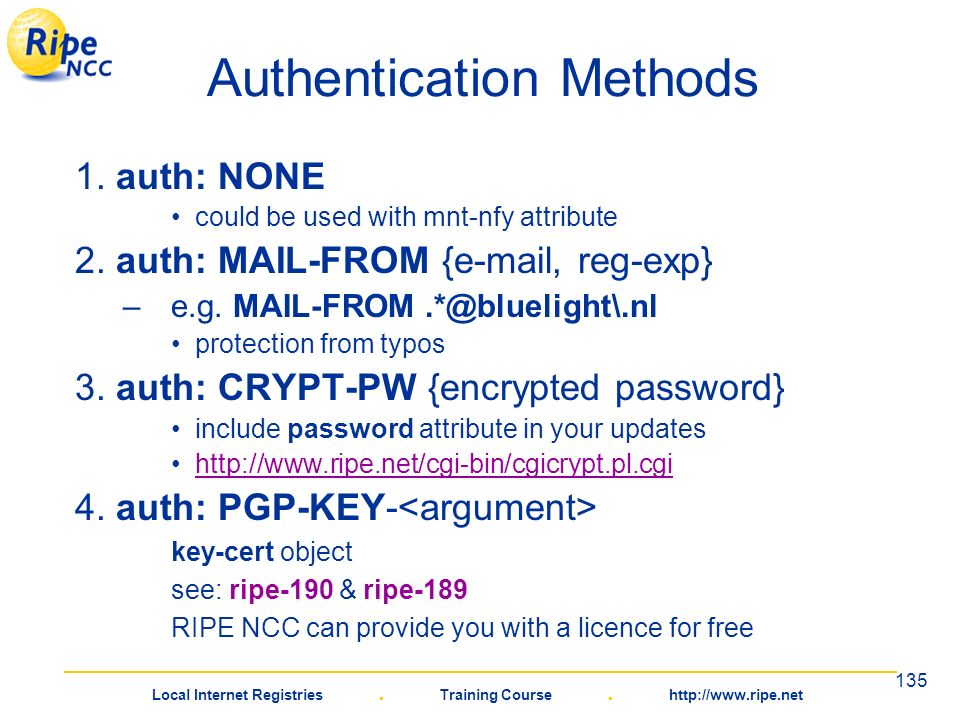

135. Local Internet Registries. Training Course. http://www.ripe.net 135 Authentication Methods 1. auth: NONE could be used with mnt-nfy attribute 2. auth: MAIL-FROM {e-mail, reg-exp} –e.g. MAIL-FROM.*@bluelight\.nl protection from typos 3. auth: CRYPT-PW {encrypted password} include password attribute in your updates http://www.ripe.net/cgi-bin/cgicrypt.pl.cgi 4. auth: PGP-KEY- key-cert object see: ripe-190 & ripe-189 RIPE NCC can provide you with a licence for free

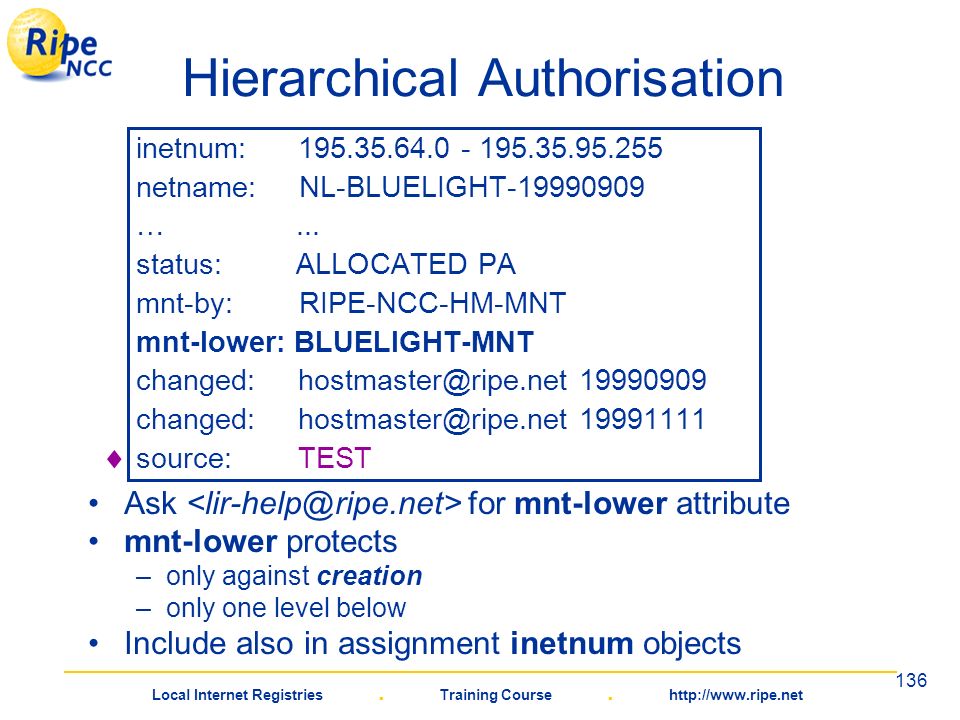

136. Local Internet Registries. Training Course. http://www.ripe.net 136 Hierarchical Authorisation inetnum: 195.35.64.0 - 195.35.95.255 netname: NL-BLUELIGHT-19990909 …... status: ALLOCATED PA mnt-by: RIPE-NCC-HM-MNT mnt-lower: BLUELIGHT-MNT changed: hostmaster@ripe.net 19990909 changed: hostmaster@ripe.net 19991111 source: TEST Ask for mnt-lower attribute mnt-lower protects –only against creation –only one level below Include also in assignment inetnum objects 

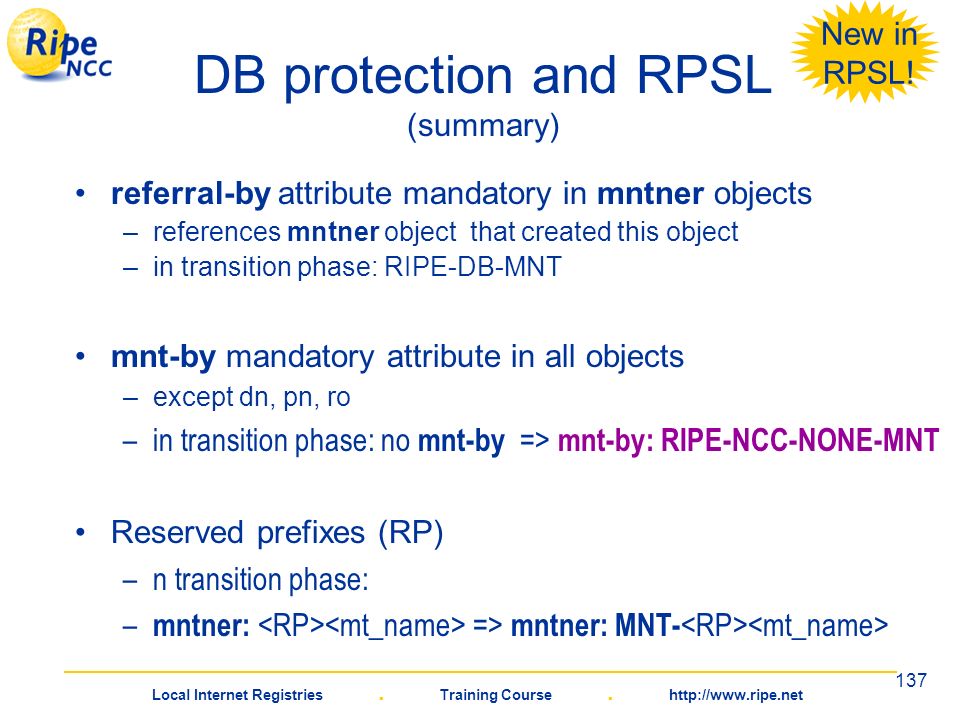

137. Local Internet Registries. Training Course. http://www.ripe.net 137 DB protection and RPSL (summary) referral-by attribute mandatory in mntner objects –references mntner object that created this object –in transition phase: RIPE-DB-MNT mnt-by mandatory attribute in all objects –except dn, pn, ro –in transition phase: no mnt-by => mnt-by: RIPE-NCC-NONE-MNT Reserved prefixes (RP) –n transition phase: – mntner: => mntner: MNT- New in RPSL!

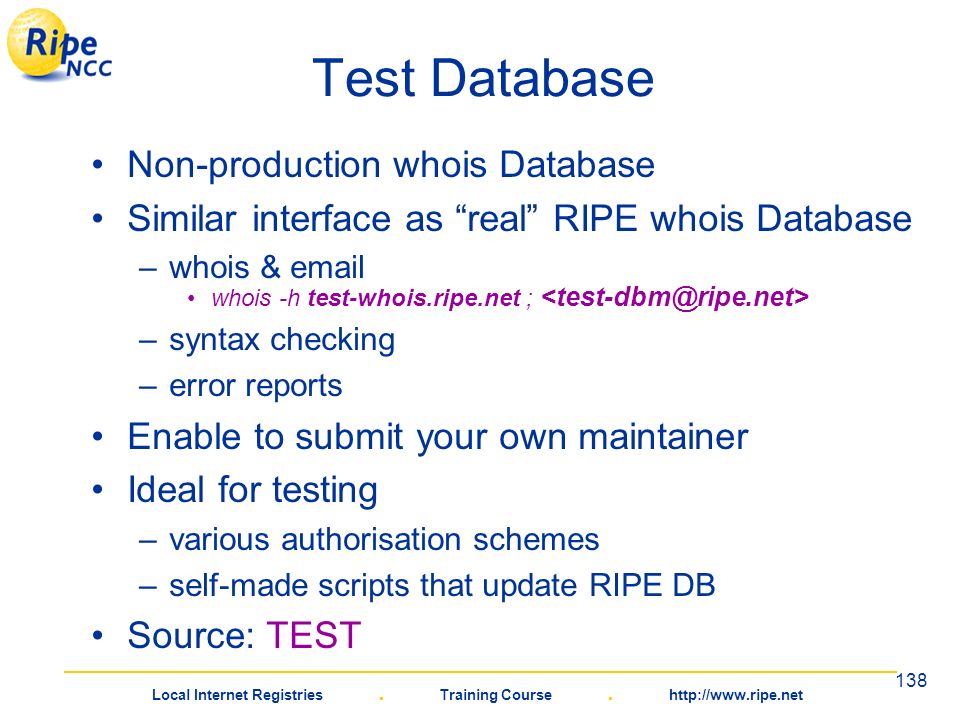

138. Local Internet Registries. Training Course. http://www.ripe.net 138 Test Database Non-production whois Database Similar interface as “real” RIPE whois Database –whois & email whois -h test-whois.ripe.net ; –syntax checking –error reports Enable to submit your own maintainer Ideal for testing –various authorisation schemes –self-made scripts that update RIPE DB Source: TEST

139. Local Internet Registries. Training Course. http://www.ripe.net 139 Questions?

140. Local Internet Registries. Training Course. http://www.ripe.net 140 Evaluation of Specific Assignment Cases ‘Large’ Request PI request Renumbering

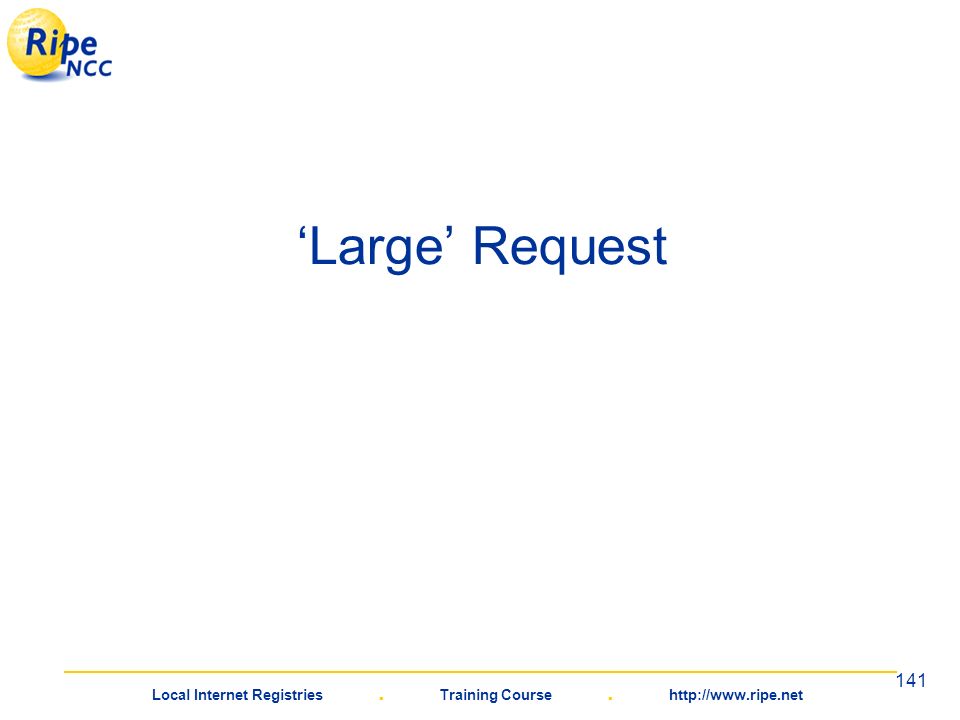

141. Local Internet Registries. Training Course. http://www.ripe.net 141 ‘Large’ Request

142. Local Internet Registries. Training Course. http://www.ripe.net 142 PI Request

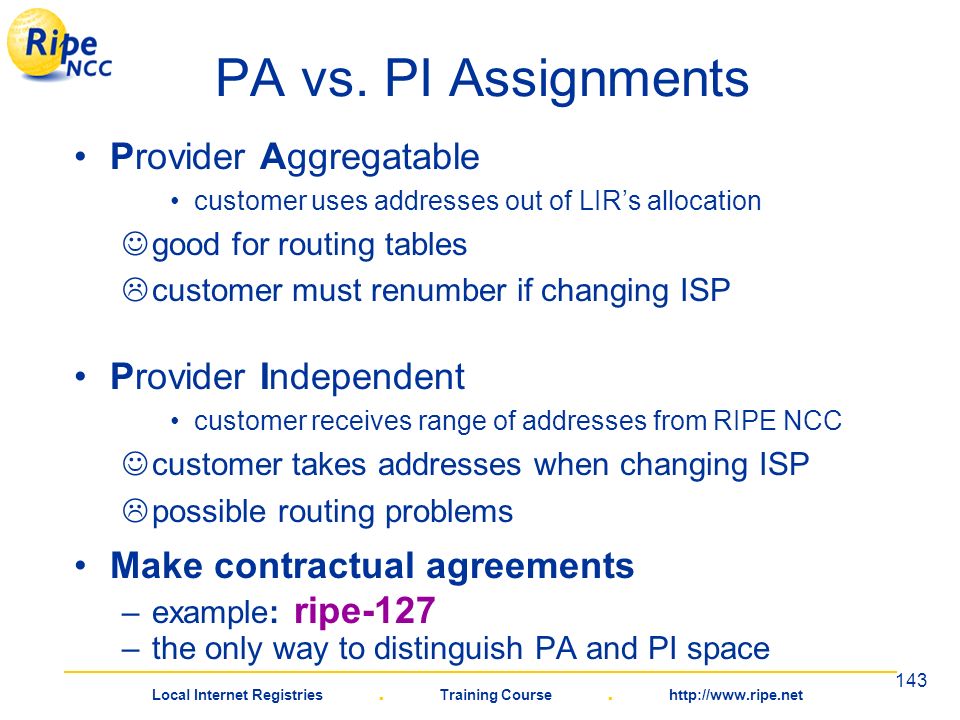

143. Local Internet Registries. Training Course. http://www.ripe.net 143 PA vs. PI Assignments Provider Aggregatable customer uses addresses out of LIR’s allocation good for routing tables  customer must renumber if changing ISP Provider Independent customer receives range of addresses from RIPE NCC customer takes addresses when changing ISP  possible routing problems Make contractual agreements –example: ripe-127 –the only way to distinguish PA and PI space

144. Local Internet Registries. Training Course. http://www.ripe.net 144 Requesting PI Space LIR sends request on behalf of PI customer Complete ripe-141 as usual Differences: #[Request Overview Template]# PI-requested: YES #[Network Template]# status: ASSIGNED PI Explain why the customer wants PI –aware of the consequences?

145. Local Internet Registries. Training Course. http://www.ripe.net 145 Evaluation of PI Request Conservative estimates –will NOT get more addresses (then needed) to prevent routing problems Classless Assignment is only valid as long as original criteria remain valid (ripe-185) After approval –RIPE NCC assigns a block from own range –RIPE NCC puts assignment in database  with RIPE-NCC-HM-PI-MNT

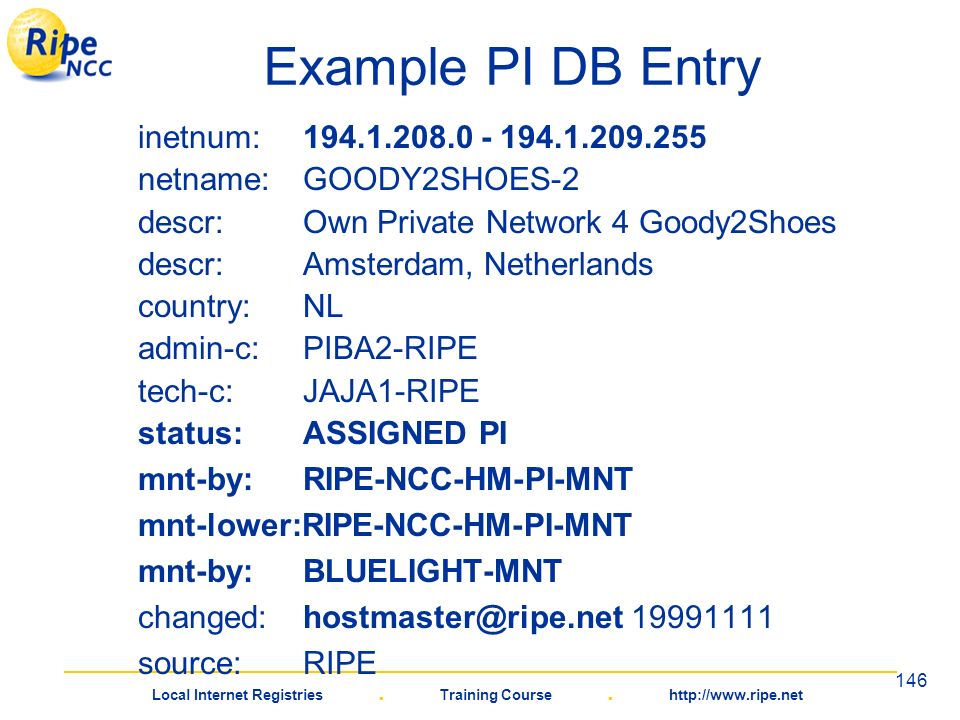

146. Local Internet Registries. Training Course. http://www.ripe.net 146 Example PI DB Entry inetnum: 194.1.208.0 - 194.1.209.255 netname: GOODY2SHOES-2 descr: Own Private Network 4 Goody2Shoes descr: Amsterdam, Netherlands country: NL admin-c: PIBA2-RIPE tech-c: JAJA1-RIPE status: ASSIGNED PI mnt-by: RIPE-NCC-HM-PI-MNT mnt-lower:RIPE-NCC-HM-PI-MNT mnt-by: BLUELIGHT-MNT changed: hostmaster@ripe.net 19991111 source: RIPE

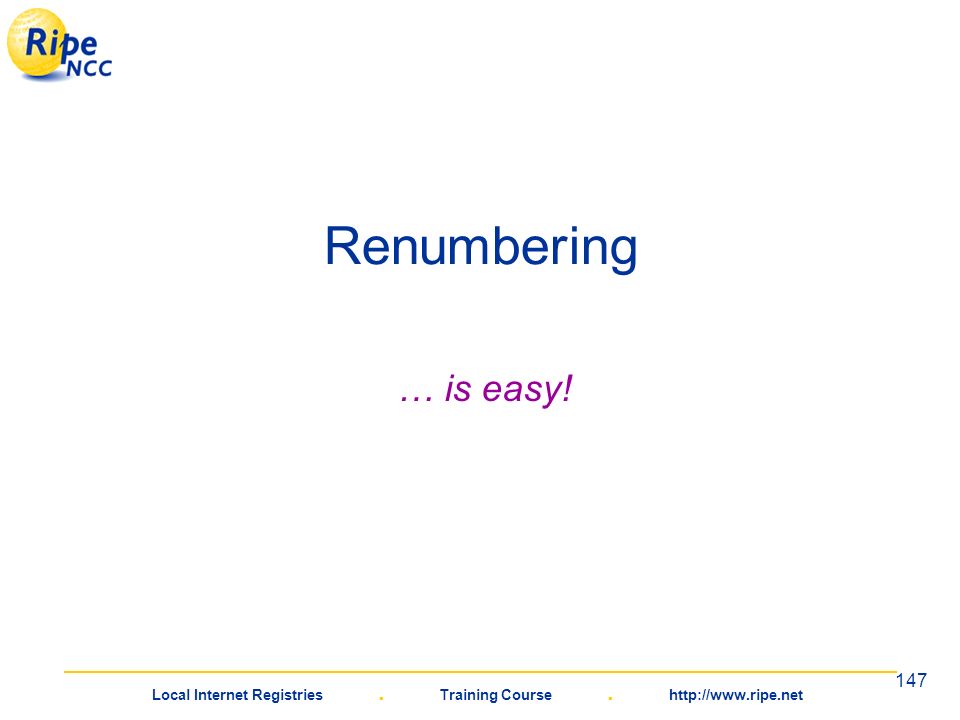

147. Local Internet Registries. Training Course. http://www.ripe.net 147 Renumbering … is easy!

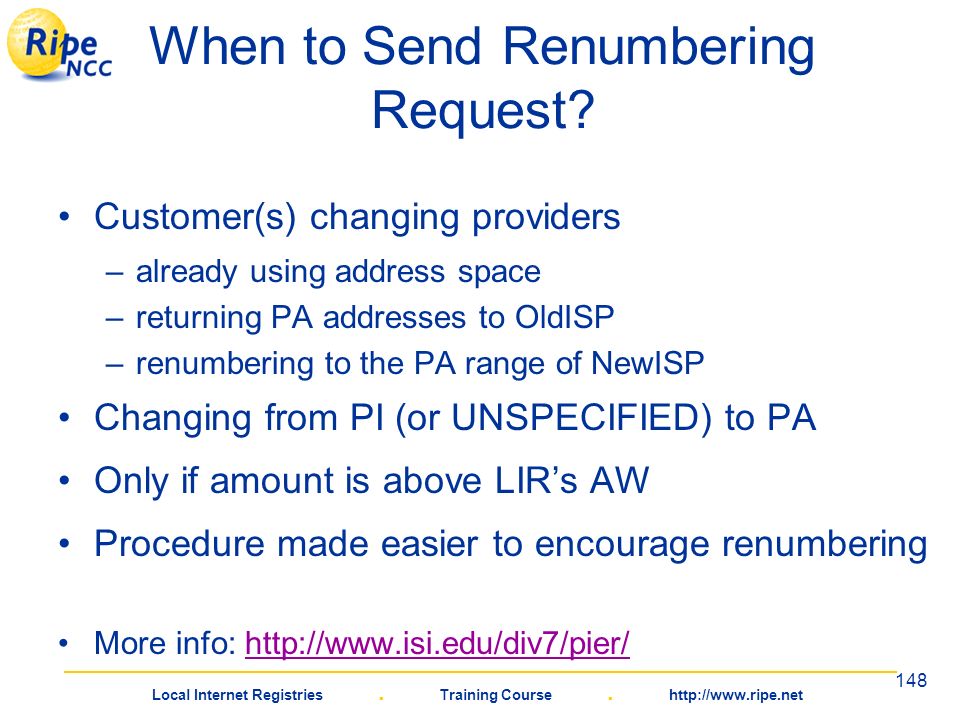

148. Local Internet Registries. Training Course. http://www.ripe.net 148 When to Send Renumbering Request? Customer(s) changing providers –already using address space –returning PA addresses to OldISP –renumbering to the PA range of NewISP Changing from PI (or UNSPECIFIED) to PA Only if amount is above LIR’s AW Procedure made easier to encourage renumbering More info: http://www.isi.edu/div7/pier/http://www.isi.edu/div7/pier/

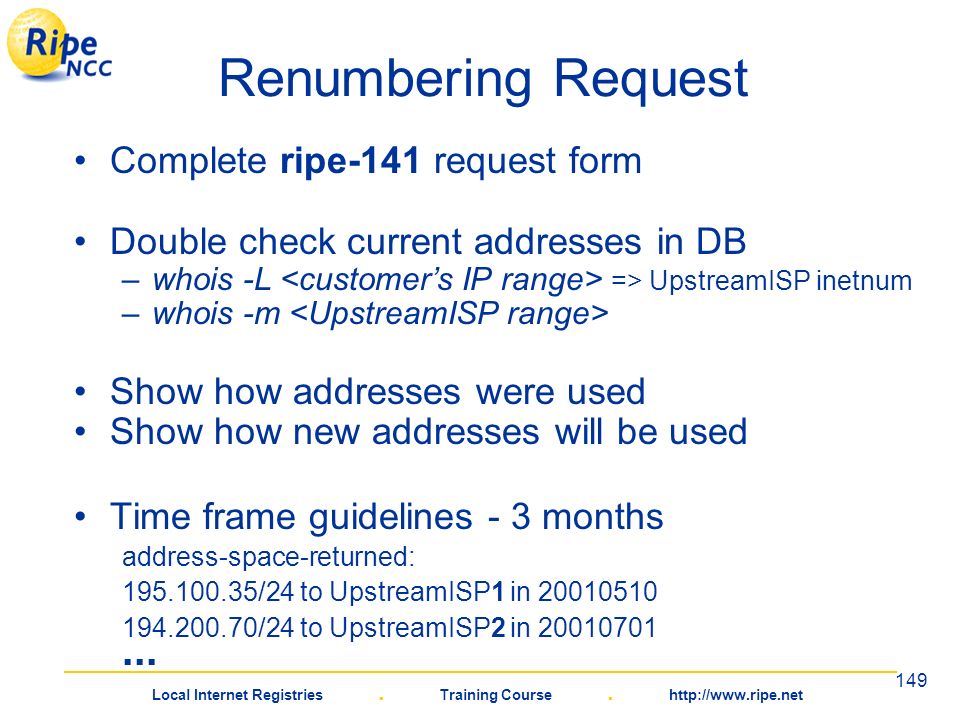

149. Local Internet Registries. Training Course. http://www.ripe.net 149 Renumbering Request Complete ripe-141 request form Double check current addresses in DB –whois -L => UpstreamISP inetnum –whois -m Show how addresses were used Show how new addresses will be used Time frame guidelines - 3 months address-space-returned: 195.100.35/24 to UpstreamISP1 in 20010510 194.200.70/24 to UpstreamISP2 in 20010701...

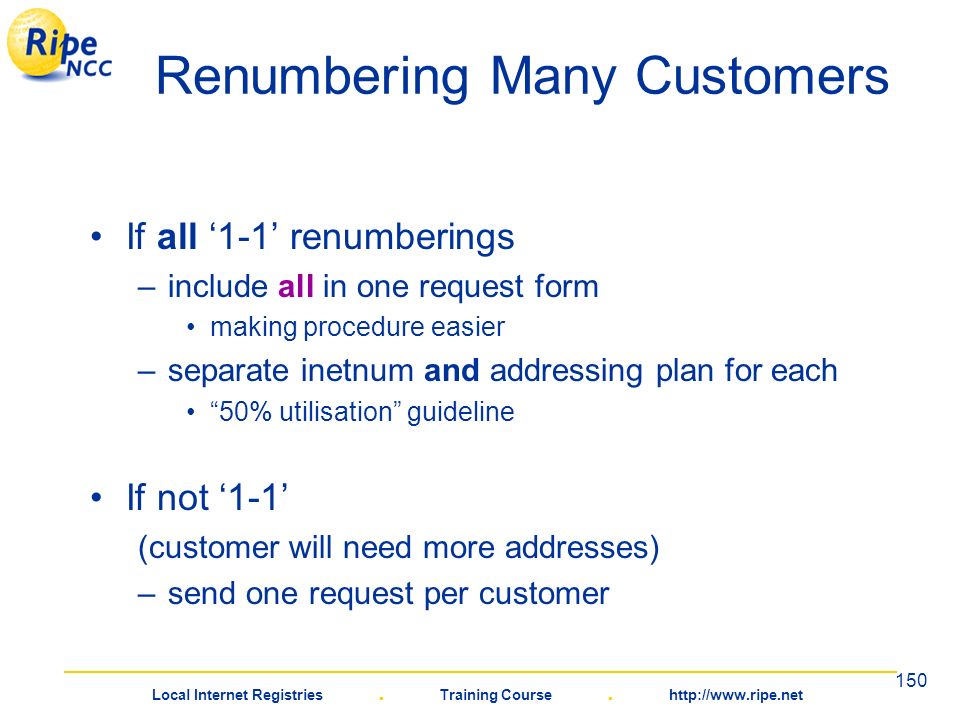

150. Local Internet Registries. Training Course. http://www.ripe.net 150 Renumbering Many Customers If all ‘1-1’ renumberings –include all in one request form making procedure easier –separate inetnum and addressing plan for each “50% utilisation” guideline If not ‘1-1’ (customer will need more addresses) –send one request per customer

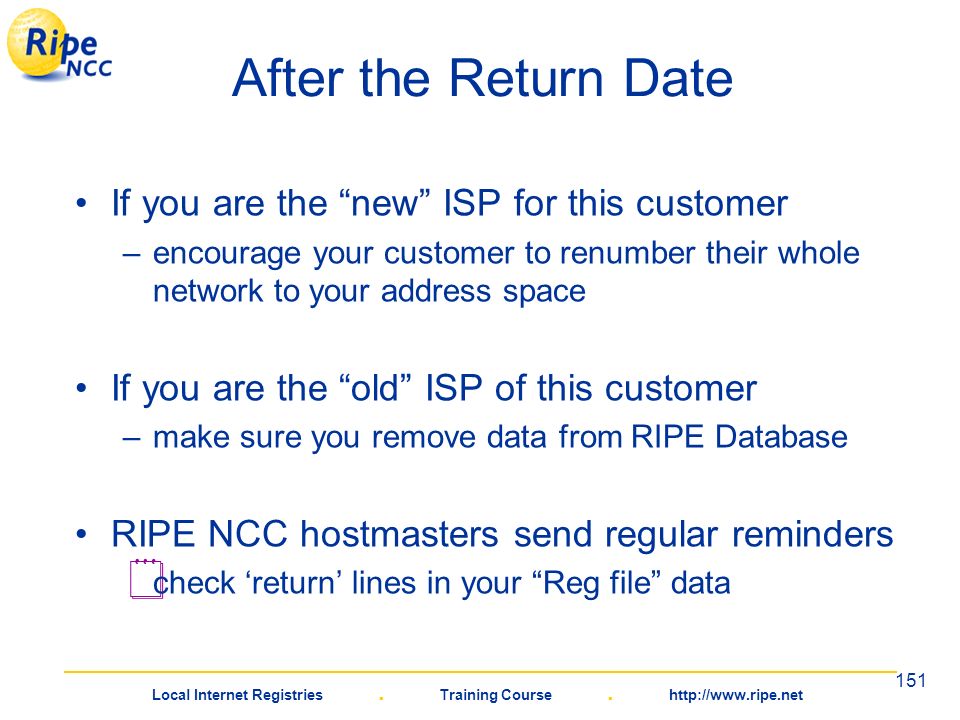

151. Local Internet Registries. Training Course. http://www.ripe.net 151 After the Return Date If you are the “new” ISP for this customer –encourage your customer to renumber their whole network to your address space If you are the “old” ISP of this customer –make sure you remove data from RIPE Database RIPE NCC hostmasters send regular reminders  check ‘return’ lines in your “Reg file” data

152. Local Internet Registries. Training Course. http://www.ripe.net 152 Questions?

153. Local Internet Registries. Training Course. http://www.ripe.net 153 New allocation

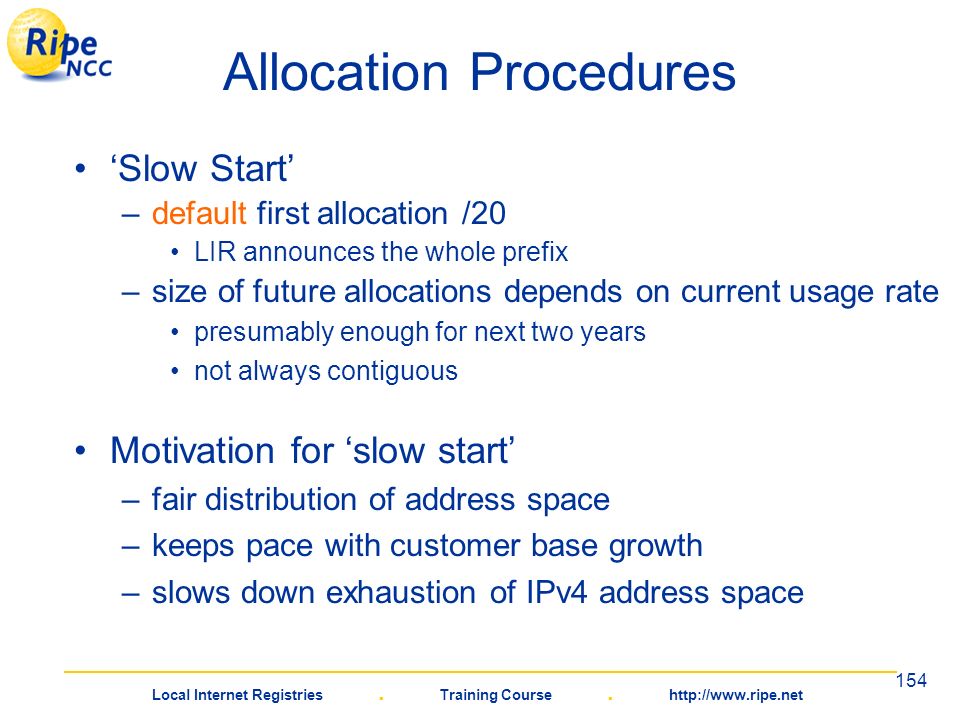

154. Local Internet Registries. Training Course. http://www.ripe.net 154 Allocation Procedures ‘Slow Start’ –default first allocation /20 LIR announces the whole prefix –size of future allocations depends on current usage rate presumably enough for next two years not always contiguous Motivation for ‘slow start’ –fair distribution of address space –keeps pace with customer base growth –slows down exhaustion of IPv4 address space

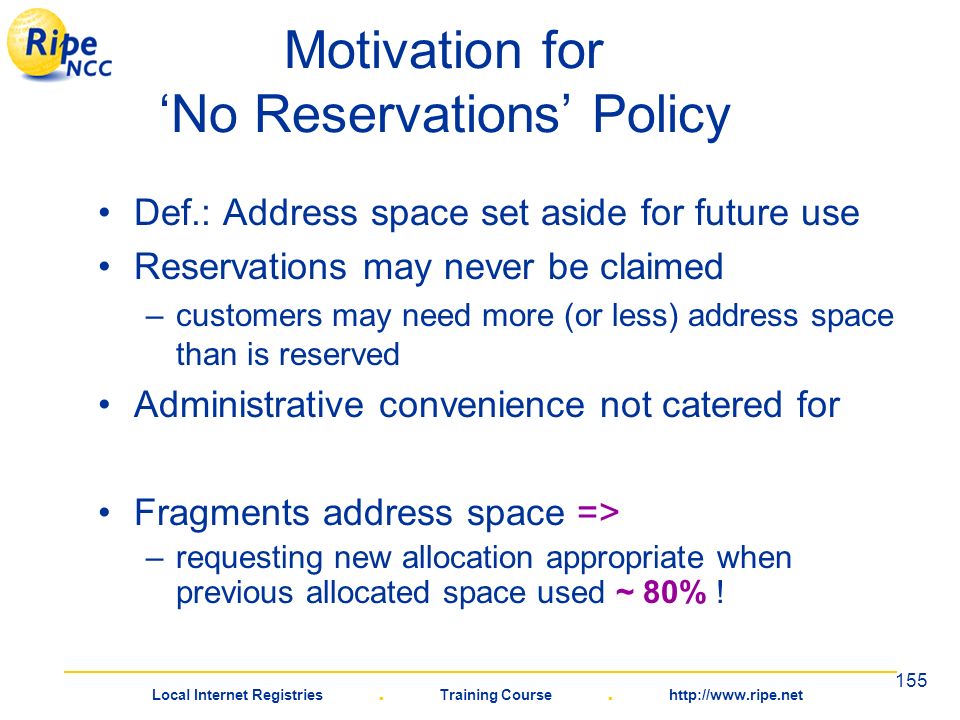

155. Local Internet Registries. Training Course. http://www.ripe.net 155 Motivation for ‘No Reservations’ Policy Def.: Address space set aside for future use Reservations may never be claimed –customers may need more (or less) address space than is reserved Administrative convenience not catered for Fragments address space => –requesting new allocation appropriate when previous allocated space used ~ 80% !

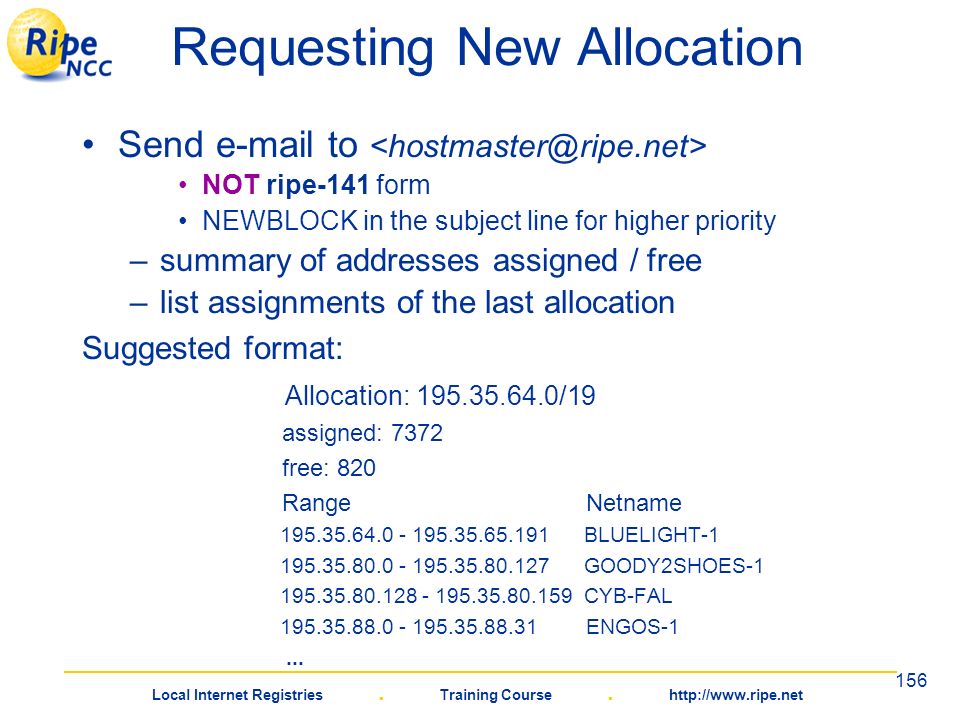

156. Local Internet Registries. Training Course. http://www.ripe.net 156 Requesting New Allocation Send e-mail to NOT ripe-141 form NEWBLOCK in the subject line for higher priority –summary of addresses assigned / free –list assignments of the last allocation Suggested format: Allocation: 195.35.64.0/19 assigned: 7372 free: 820 Range Netname 195.35.64.0 - 195.35.65.191 BLUELIGHT-1 195.35.80.0 - 195.35.80.127 GOODY2SHOES-1 195.35.80.128 - 195.35.80.159 CYB-FAL 195.35.88.0 - 195.35.88.31 ENGOS-1...

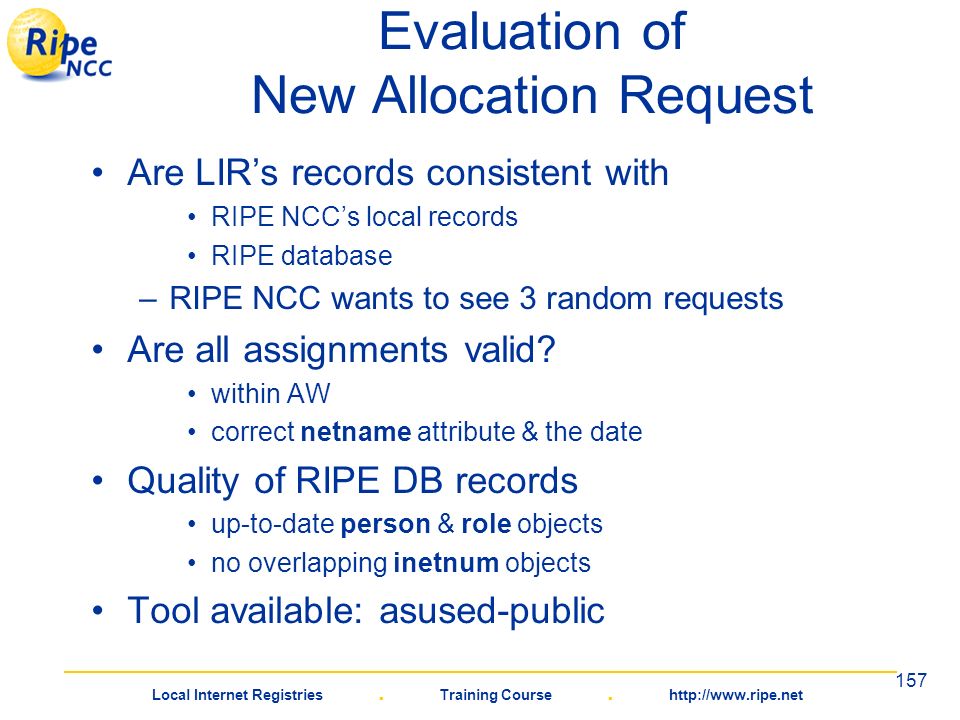

157. Local Internet Registries. Training Course. http://www.ripe.net 157 Evaluation of New Allocation Request Are LIR’s records consistent with RIPE NCC’s local records RIPE database –RIPE NCC wants to see 3 random requests Are all assignments valid? within AW correct netname attribute & the date Quality of RIPE DB records up-to-date person & role objects no overlapping inetnum objects Tool available: asused-public

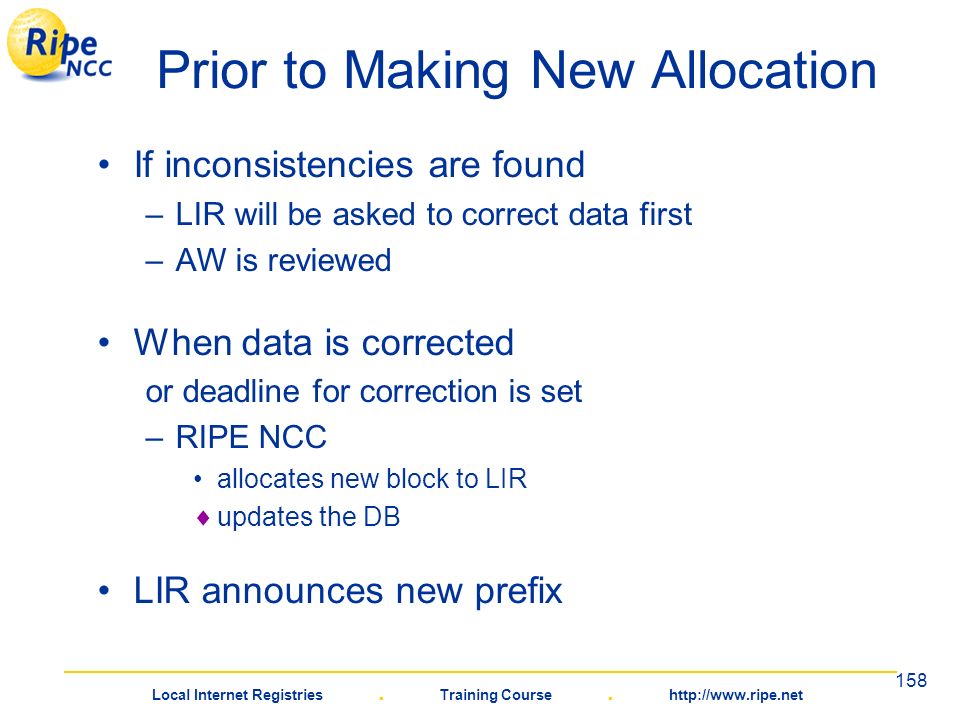

158. Local Internet Registries. Training Course. http://www.ripe.net 158 Prior to Making New Allocation If inconsistencies are found –LIR will be asked to correct data first –AW is reviewed When data is corrected or deadline for correction is set –RIPE NCC allocates new block to LIR  updates the DB LIR announces new prefix

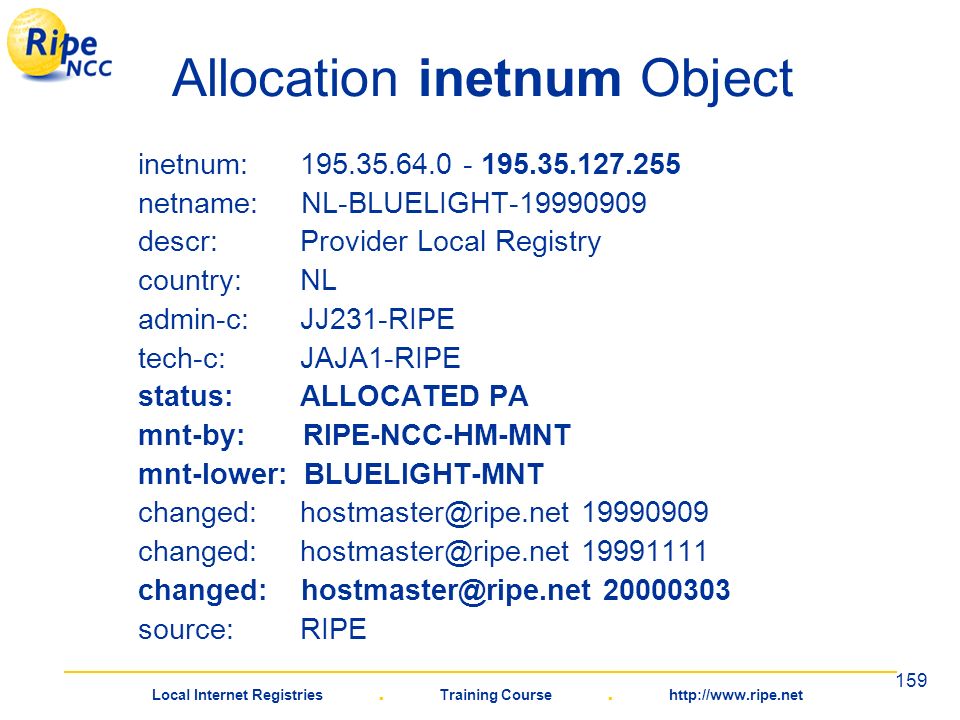

159. Local Internet Registries. Training Course. http://www.ripe.net 159 Allocation inetnum Object inetnum: 195.35.64.0 - 195.35.127.255 netname: NL-BLUELIGHT-19990909 descr: Provider Local Registry country: NL admin-c: JJ231-RIPE tech-c: JAJA1-RIPE status: ALLOCATED PA mnt-by: RIPE-NCC-HM-MNT mnt-lower: BLUELIGHT-MNT changed: hostmaster@ripe.net 19990909 changed: hostmaster@ripe.net 19991111 changed: hostmaster@ripe.net 20000303 source: RIPE

160. Local Internet Registries. Training Course. http://www.ripe.net 160 Questions?

161. Local Internet Registries. Training Course. http://www.ripe.net 161 Questions?

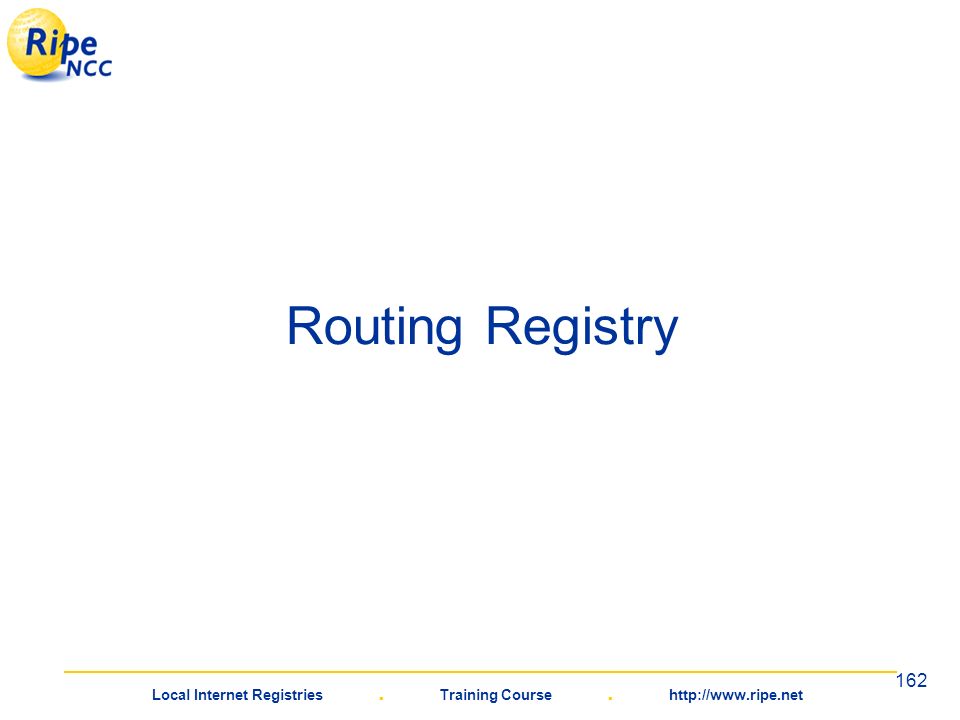

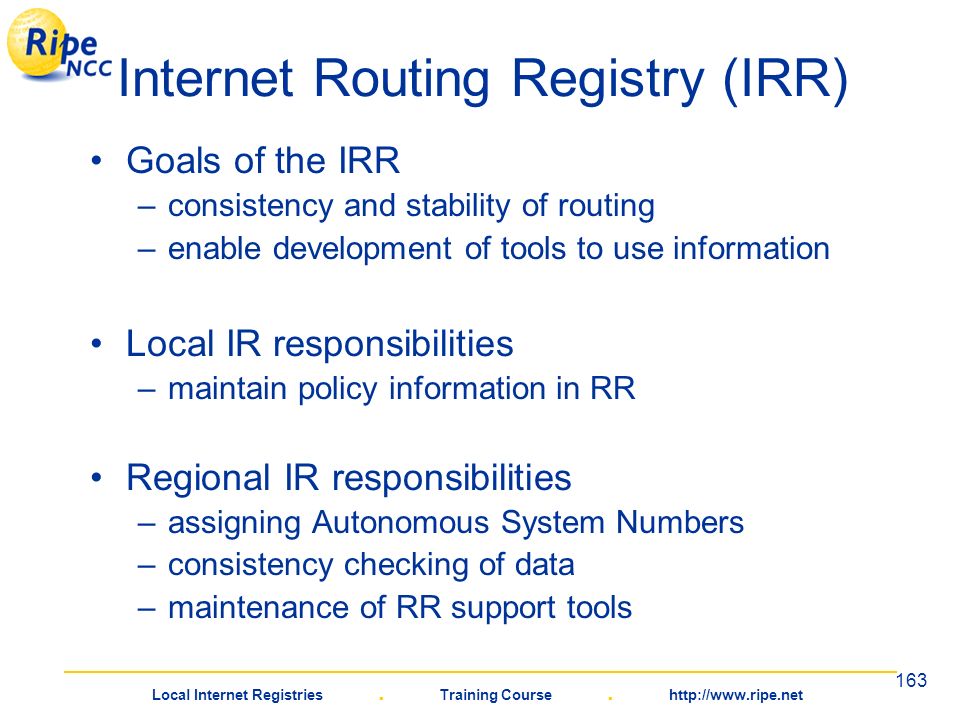

162. Local Internet Registries. Training Course. http://www.ripe.net 162 Routing Registry

163. Local Internet Registries. Training Course. http://www.ripe.net 163 Internet Routing Registry (IRR) Goals of the IRR –consistency and stability of routing –enable development of tools to use information Local IR responsibilities –maintain policy information in RR Regional IR responsibilities –assigning Autonomous System Numbers –consistency checking of data –maintenance of RR support tools

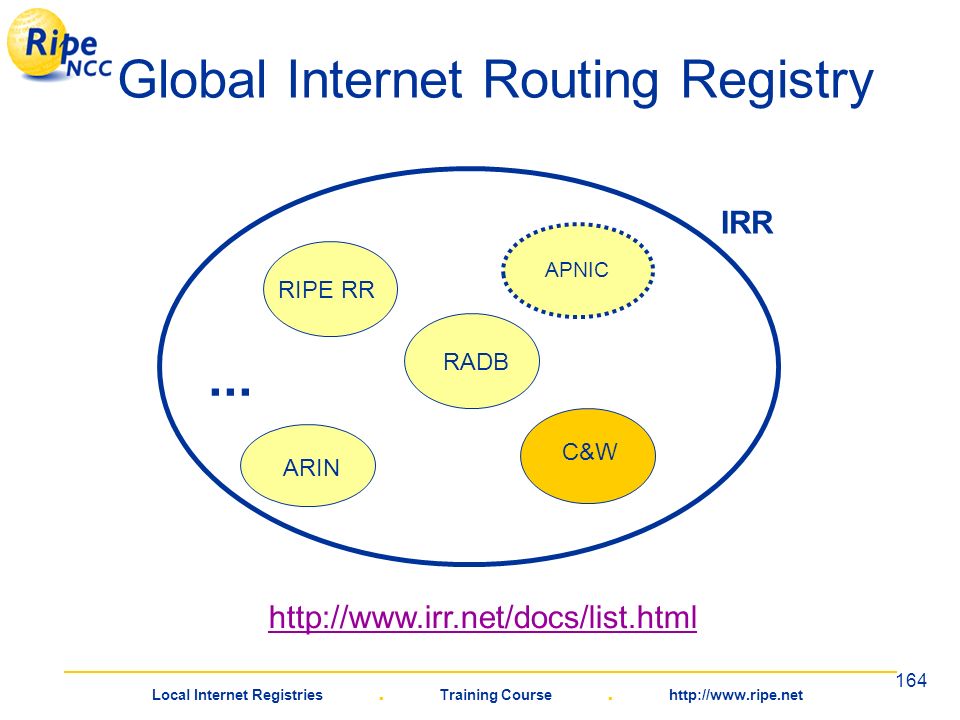

164. Local Internet Registries. Training Course. http://www.ripe.net 164 Global Internet Routing Registry RIPE RR APNIC RADB... IRR ARIN C&W http://www.irr.net/docs/list.html

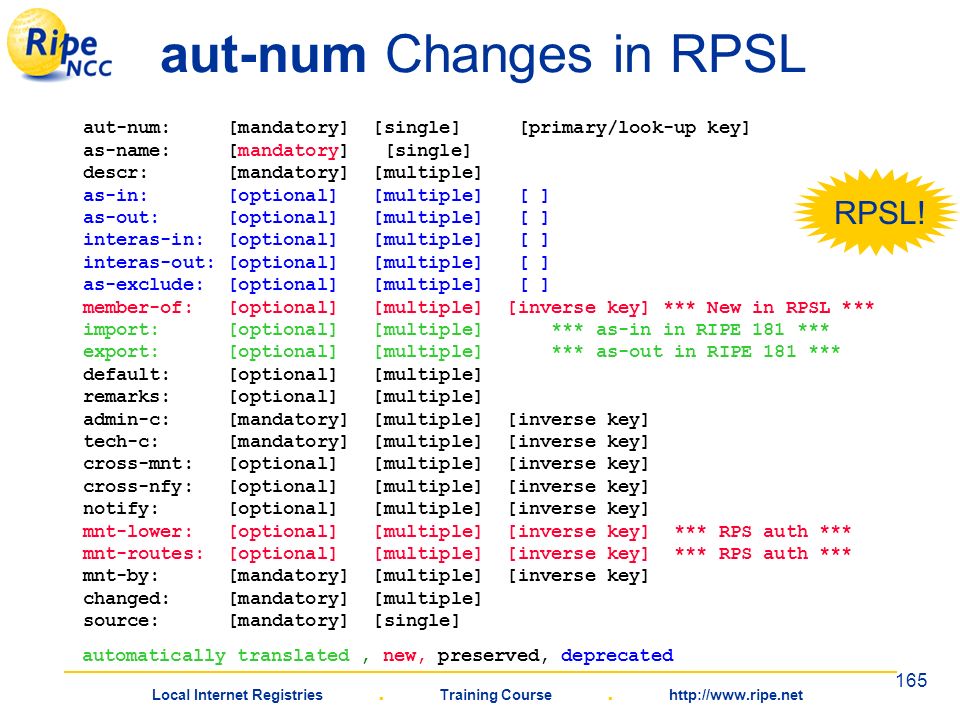

165. Local Internet Registries. Training Course. http://www.ripe.net 165 aut-num Changes in RPSL aut-num: [mandatory] [single] [primary/look-up key] as-name: [mandatory] [single] descr: [mandatory] [multiple] as-in: [optional] [multiple] [ ] as-out: [optional] [multiple] [ ] interas-in: [optional] [multiple] [ ] interas-out: [optional] [multiple] [ ] as-exclude: [optional] [multiple] [ ] member-of: [optional] [multiple] [inverse key] *** New in RPSL *** import: [optional] [multiple] *** as-in in RIPE 181 *** export: [optional] [multiple] *** as-out in RIPE 181 *** default: [optional] [multiple] remarks: [optional] [multiple] admin-c: [mandatory] [multiple] [inverse key] tech-c: [mandatory] [multiple] [inverse key] cross-mnt: [optional] [multiple] [inverse key] cross-nfy: [optional] [multiple] [inverse key] notify: [optional] [multiple] [inverse key] mnt-lower: [optional] [multiple] [inverse key] *** RPS auth *** mnt-routes: [optional] [multiple] [inverse key] *** RPS auth *** mnt-by: [mandatory] [multiple] [inverse key] changed: [mandatory] [multiple] source: [mandatory] [single] automatically translated, new, preserved, deprecated RPSL!

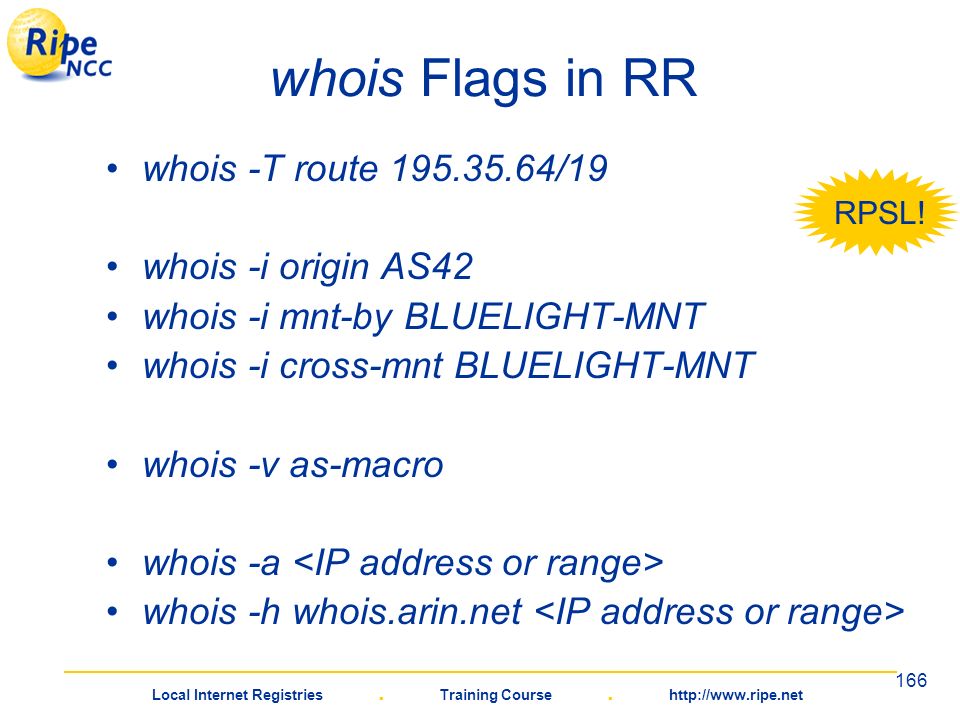

166. Local Internet Registries. Training Course. http://www.ripe.net 166 whois Flags in RR whois -T route 195.35.64/19 whois -i origin AS42 whois -i mnt-by BLUELIGHT-MNT whois -i cross-mnt BLUELIGHT-MNT whois -v as-macro whois -a whois -h whois.arin.net RPSL!

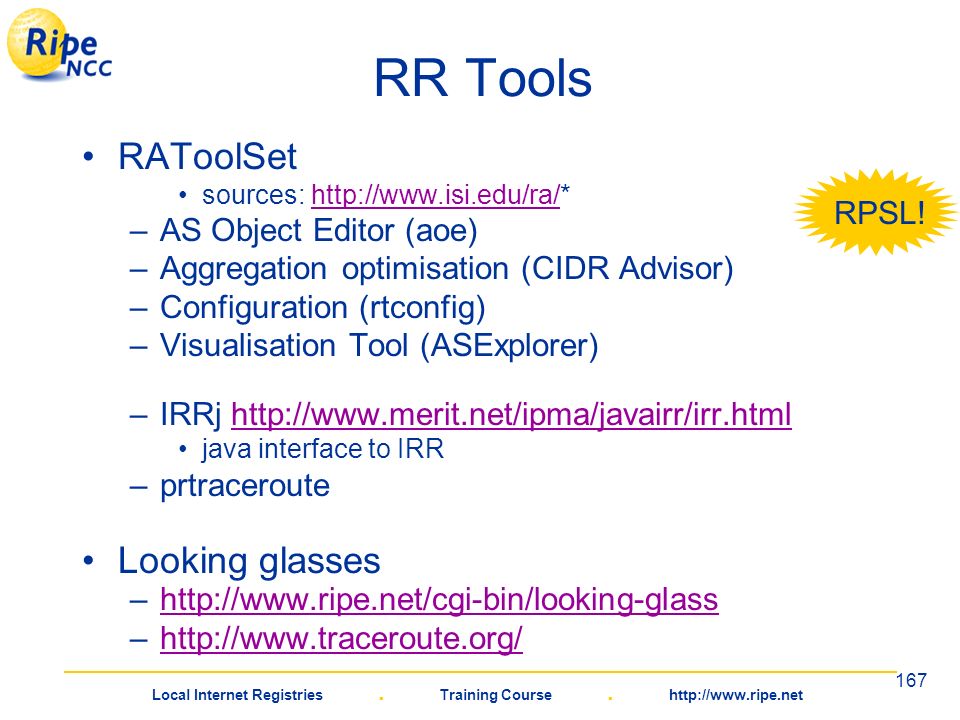

167. Local Internet Registries. Training Course. http://www.ripe.net 167 RR Tools RAToolSet sources: http://www.isi.edu/ra/*http://www.isi.edu/ra/ –AS Object Editor (aoe) –Aggregation optimisation (CIDR Advisor) –Configuration (rtconfig) –Visualisation Tool (ASExplorer) –IRRj http://www.merit.net/ipma/javairr/irr.htmlhttp://www.merit.net/ipma/javairr/irr.html java interface to IRR –prtraceroute Looking glasses –http://www.ripe.net/cgi-bin/looking-glasshttp://www.ripe.net/cgi-bin/looking-glass –http://www.traceroute.org/http://www.traceroute.org/ RPSL!

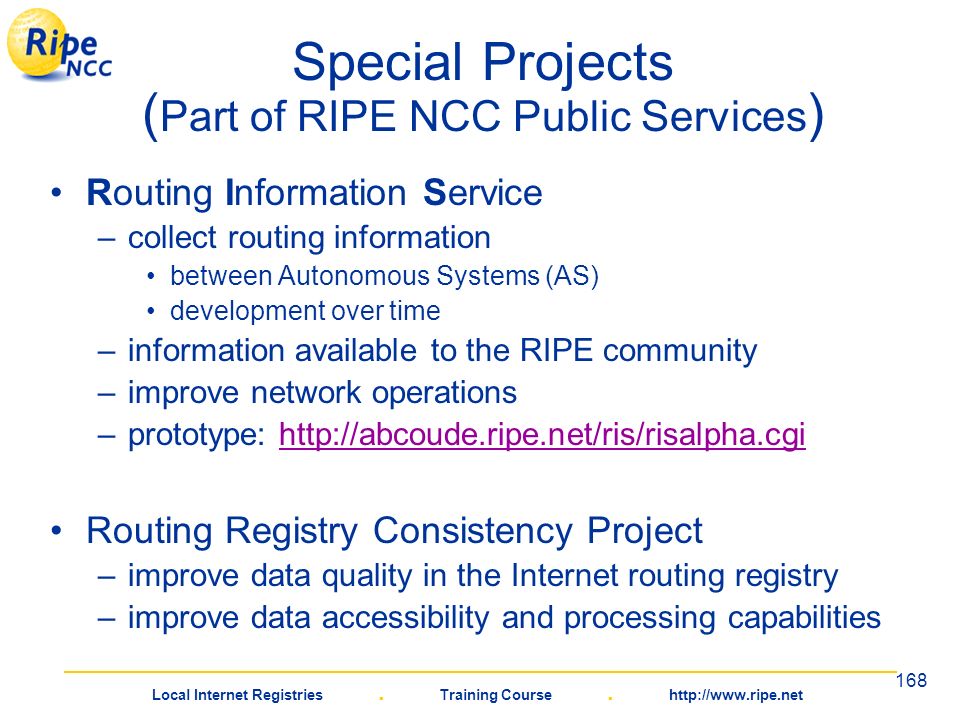

168. Local Internet Registries. Training Course. http://www.ripe.net 168 Special Projects ( Part of RIPE NCC Public Services ) Routing Information Service –collect routing information between Autonomous Systems (AS) development over time –information available to the RIPE community –improve network operations –prototype: http://abcoude.ripe.net/ris/risalpha.cgihttp://abcoude.ripe.net/ris/risalpha.cgi Routing Registry Consistency Project –improve data quality in the Internet routing registry –improve data accessibility and processing capabilities

169. Local Internet Registries. Training Course. http://www.ripe.net 169 Questions?

170. Local Internet Registries. Training Course. http://www.ripe.net 170 Questions?

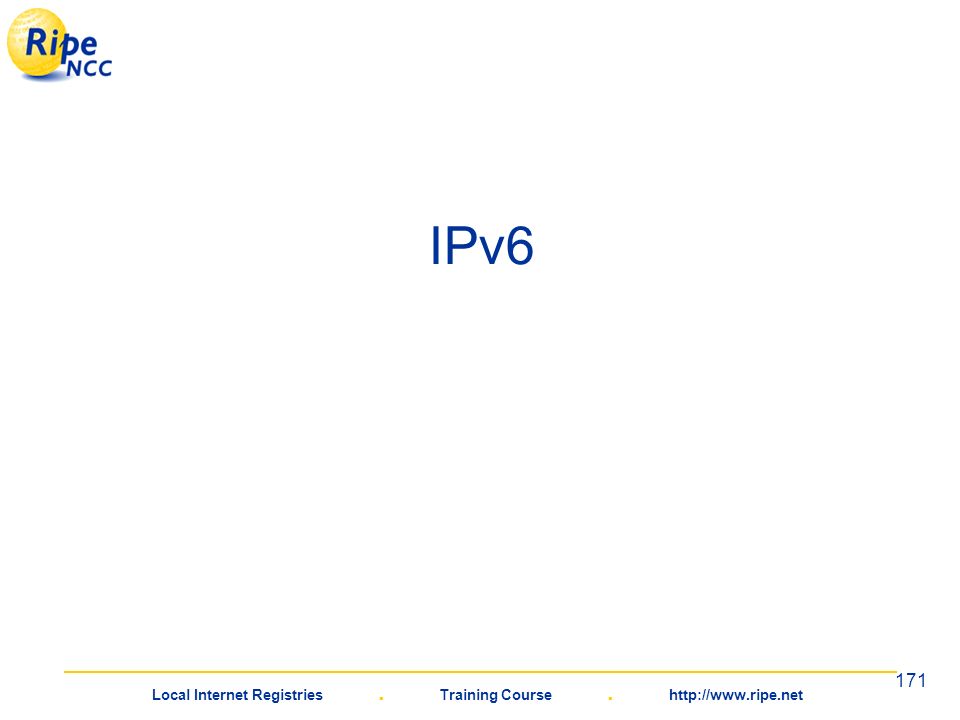

171. Local Internet Registries. Training Course. http://www.ripe.net 171 IPv6

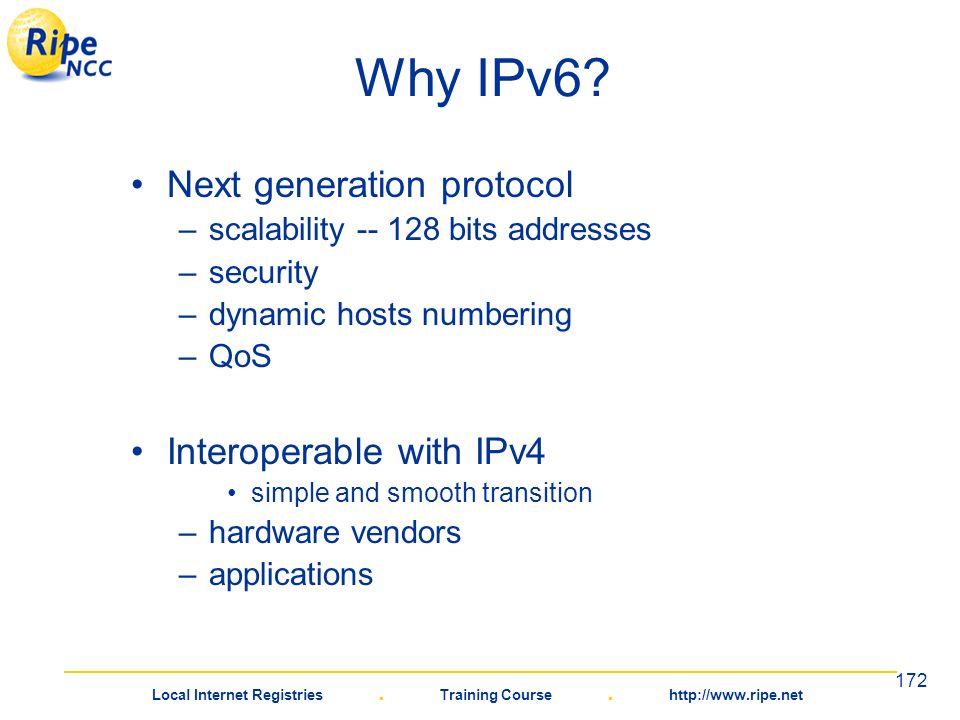

172. Local Internet Registries. Training Course. http://www.ripe.net 172 Why IPv6? Next generation protocol –scalability -- 128 bits addresses –security –dynamic hosts numbering –QoS Interoperable with IPv4 simple and smooth transition –hardware vendors –applications

173. Local Internet Registries. Training Course. http://www.ripe.net 173 IPv6 Introduction Current format boundaries |-3|--13-|--13-|-6-|--13-|--16--|------64 bits-----| +--+-----+-----+---+-----+------+------------------+ |FP|-TLA-|-sub-|Res|-NLA-|--SLA-|---Interface ID---| |--|-ID--|-TLA-|---|--ID-|--ID--|------------------| |----public topology ----|-site-|-----Interface----| +--+-----+-----+---+-----+------+------------------+ /23 /29 /35 /48 /64 Classfull; another level of hierarchy –(sub)TLA –NLA –SLA Hexadecimal representation of addresses

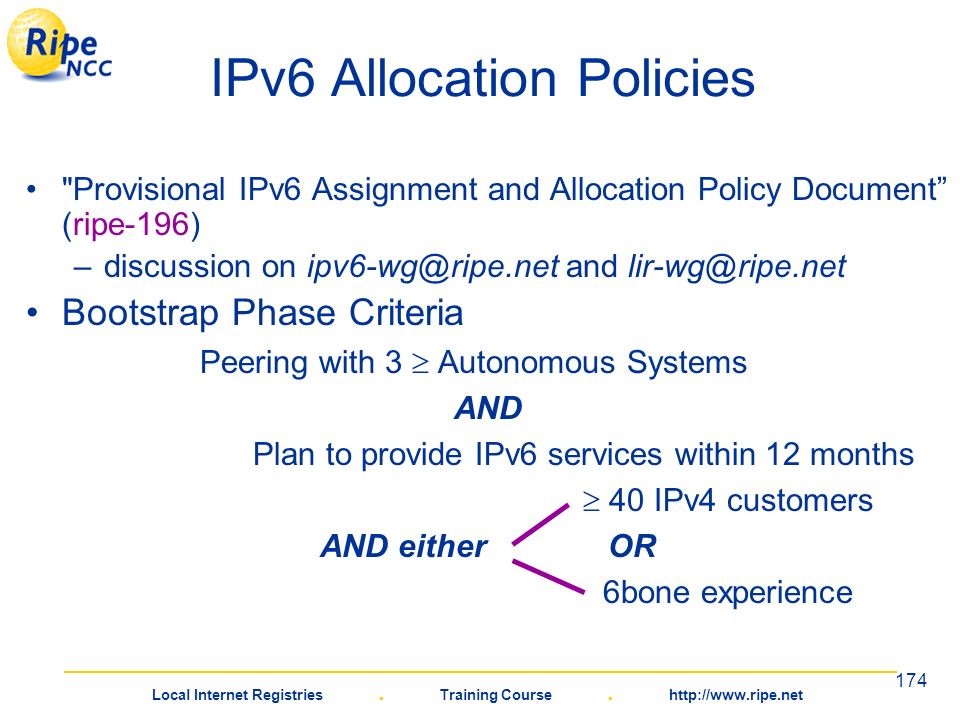

174. Local Internet Registries. Training Course. http://www.ripe.net 174 IPv6 Allocation Policies "Provisional IPv6 Assignment and Allocation Policy Document” (ripe-196) –discussion on ipv6-wg@ripe.net and lir-wg@ripe.net Bootstrap Phase Criteria Peering with 3  Autonomous Systems AND Plan to provide IPv6 services within 12 months  40 IPv4 customers AND either OR 6bone experience

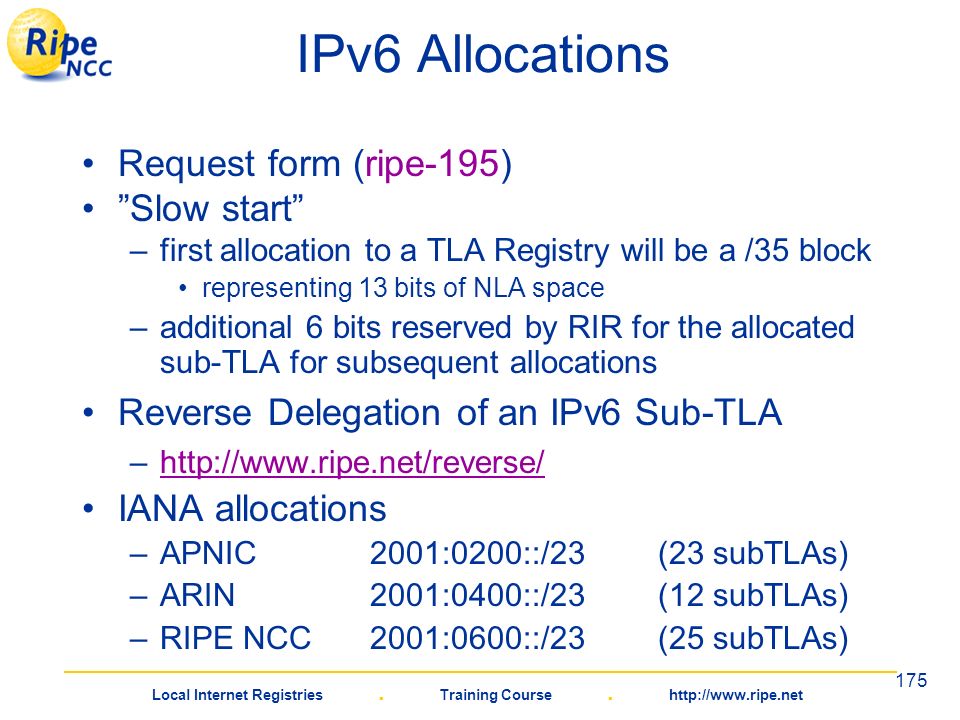

175. Local Internet Registries. Training Course. http://www.ripe.net 175 IPv6 Allocations Request form (ripe-195) ”Slow start” –first allocation to a TLA Registry will be a /35 block representing 13 bits of NLA space –additional 6 bits reserved by RIR for the allocated sub-TLA for subsequent allocations Reverse Delegation of an IPv6 Sub-TLA –http://www.ripe.net/reverse/http://www.ripe.net/reverse/ IANA allocations –APNIC 2001:0200::/23(23 subTLAs) –ARIN 2001:0400::/23(12 subTLAs) –RIPE NCC 2001:0600::/23(25 subTLAs)

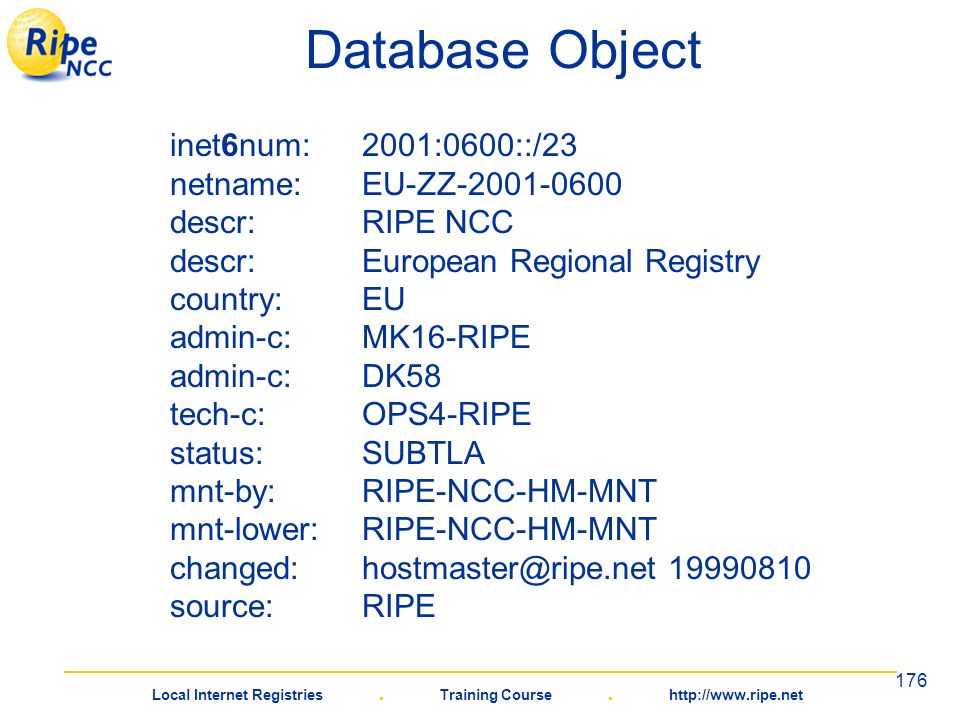

176. Local Internet Registries. Training Course. http://www.ripe.net 176 Database Object inet6num:2001:0600::/23 netname: EU-ZZ-2001-0600 descr: RIPE NCC descr: European Regional Registry country: EU admin-c: MK16-RIPE admin-c: DK58 tech-c: OPS4-RIPE status: SUBTLA mnt-by: RIPE-NCC-HM-MNT mnt-lower: RIPE-NCC-HM-MNT changed: hostmaster@ripe.net 19990810 source: RIPE

177. Local Internet Registries. Training Course. http://www.ripe.net 177 Questions?

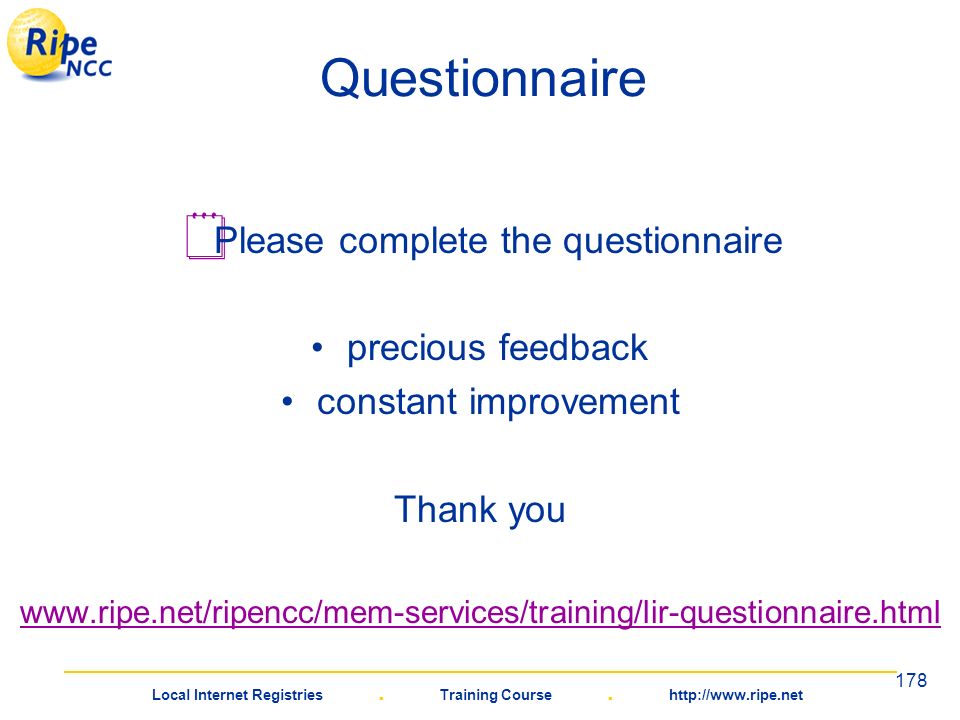

178. Local Internet Registries. Training Course. http://www.ripe.net 178 Questionnaire  Please complete the questionnaire precious feedback constant improvement Thank you www.ripe.net/ripencc/mem-services/training/lir-questionnaire.html

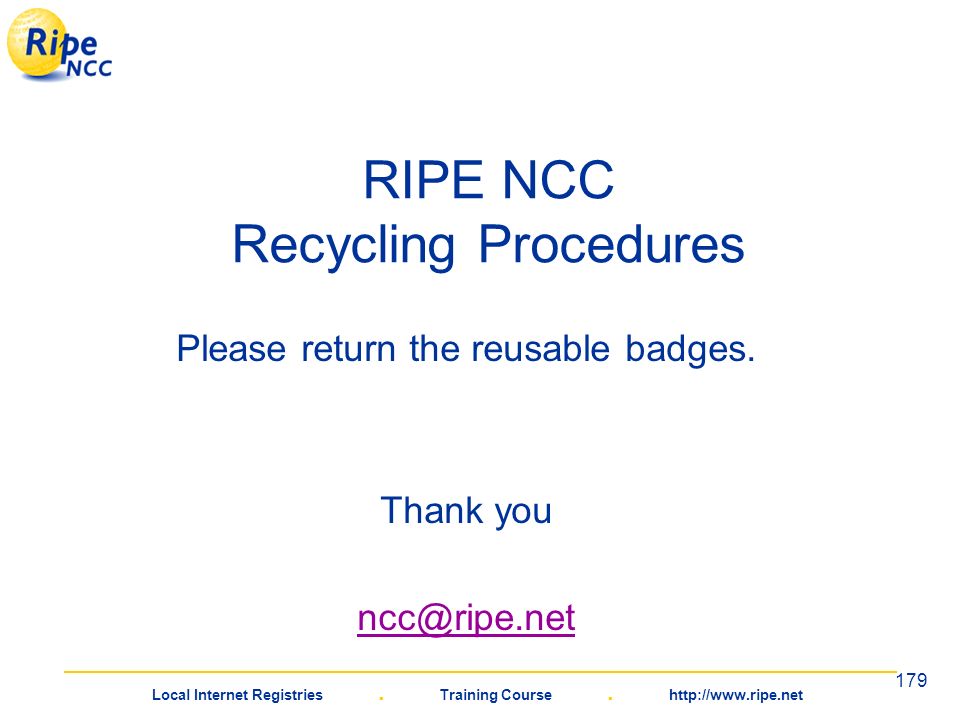

179. Local Internet Registries. Training Course. http://www.ripe.net 179 RIPE NCC Recycling Procedures Please return the reusable badges. Thank you ncc@ripe.net
