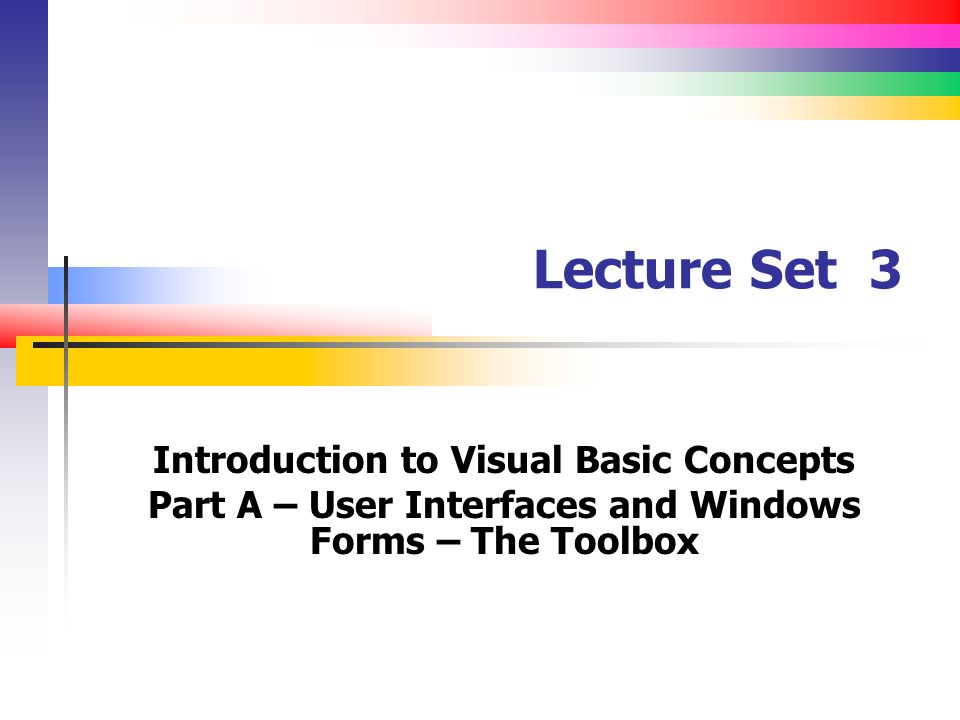

1. Lecture Set 3 Introduction to Visual Basic Concepts Part A – User Interfaces and Windows Forms – The Toolbox

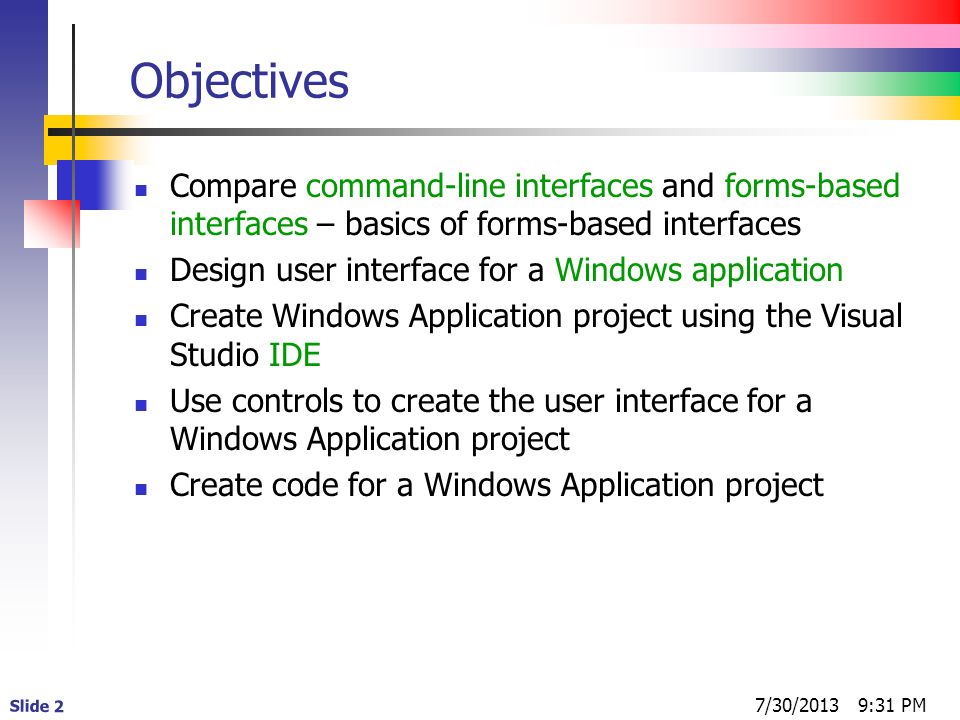

2. Slide 2 Objectives Compare command-line interfaces and forms-based interfaces – basics of forms-based interfaces Design user interface for a Windows application Create Windows Application project using the Visual Studio IDE Use controls to create the user interface for a Windows Application project Create code for a Windows Application project 7/30/2013 9:31 PM

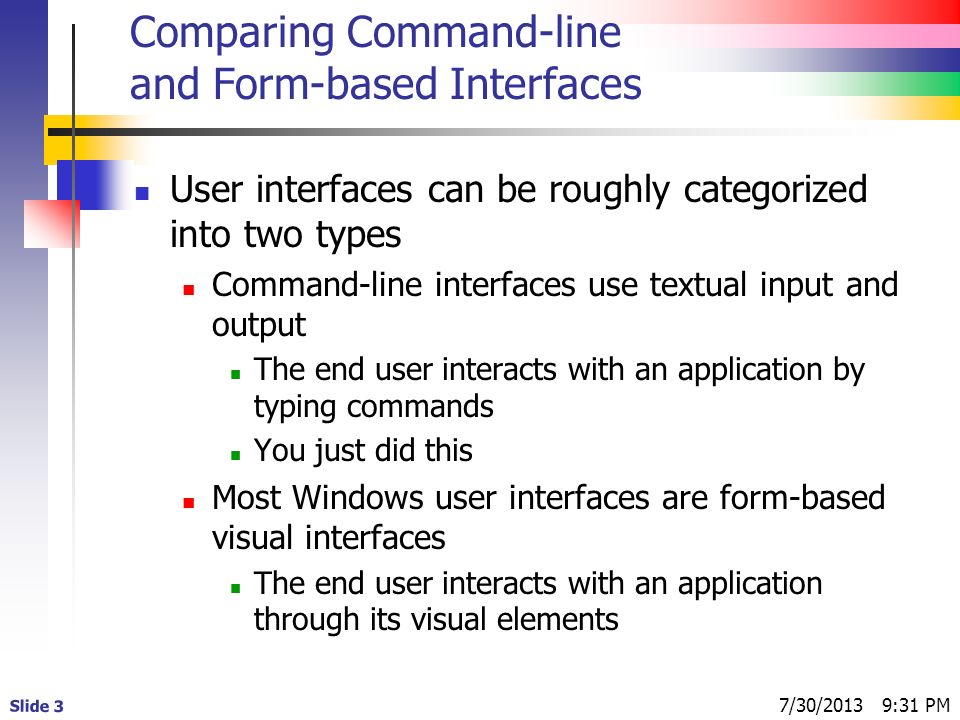

3. Slide 3 Comparing Command-line and Form-based Interfaces User interfaces can be roughly categorized into two types Command-line interfaces use textual input and output The end user interacts with an application by typing commands You just did this Most Windows user interfaces are form-based visual interfaces The end user interacts with an application through its visual elements 7/30/2013 9:31 PM

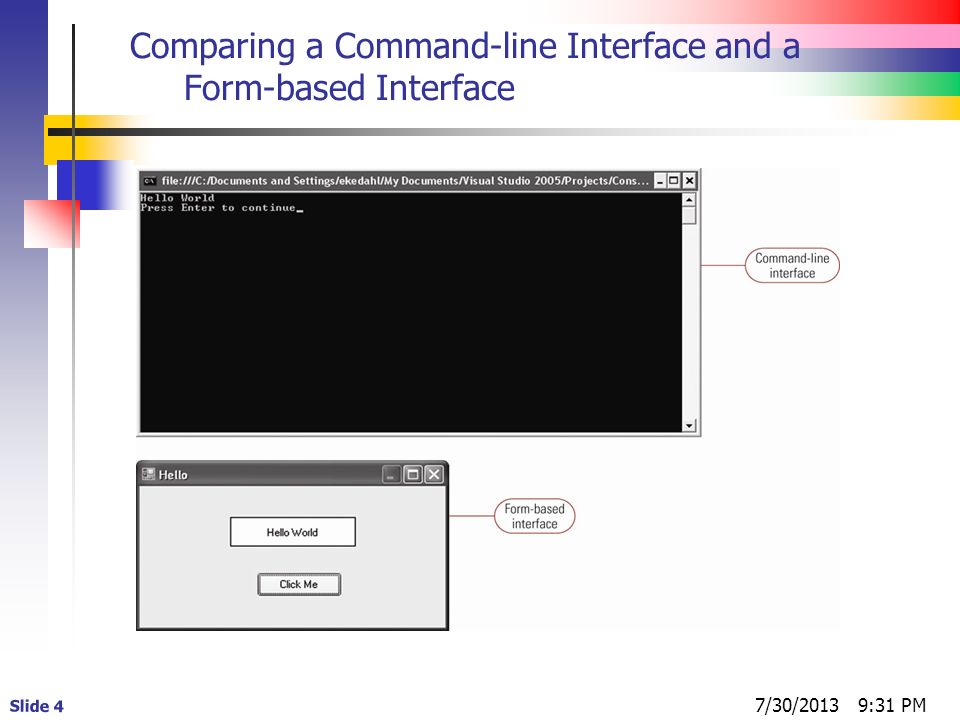

4. Slide 4 Comparing a Command-line Interface and a Form-based Interface 7/30/2013 9:31 PM

5. Slide 5 Principles of a User Interface Control – The end user should control the application User-friendliness – The interface should help the end user accomplish tasks Intuitiveness – The interface should follow a direct style that proceeds logically (left to right; up and down?) Consistency – The user interface should have consistent fonts and shapes Feedback – The interface should provide clear and immediate feedback 7/30/2013 9:31 PM

6. Slide 6 Principles of a User Interface (continued) Graphics – Avoid use of unnecessary graphics Color – Pleasant but not overdone Input – Minimize transitions between the keyboard and mouse where possible User protection – prevent bad input data Screen resolution – The user interface should adapt to different screen resolutions Users may be visually impaired, requiring larger fonts 7/30/2013 9:31 PM

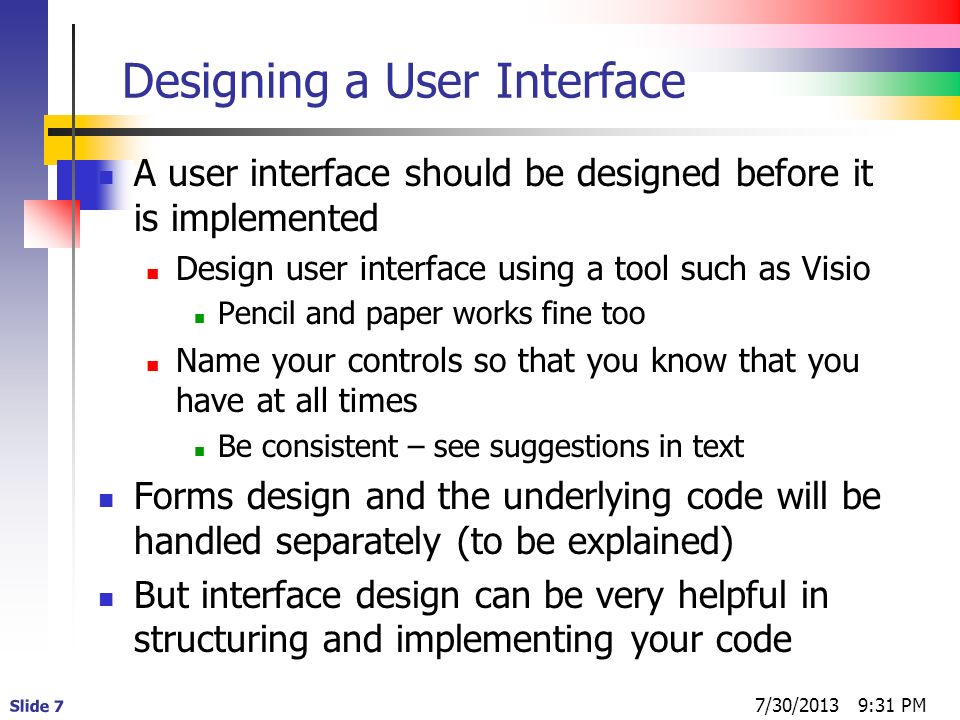

7. Slide 7 Designing a User Interface A user interface should be designed before it is implemented Design user interface using a tool such as Visio Pencil and paper works fine too Name your controls so that you know that you have at all times Be consistent – see suggestions in text Forms design and the underlying code will be handled separately (to be explained) But interface design can be very helpful in structuring and implementing your code 7/30/2013 9:31 PM

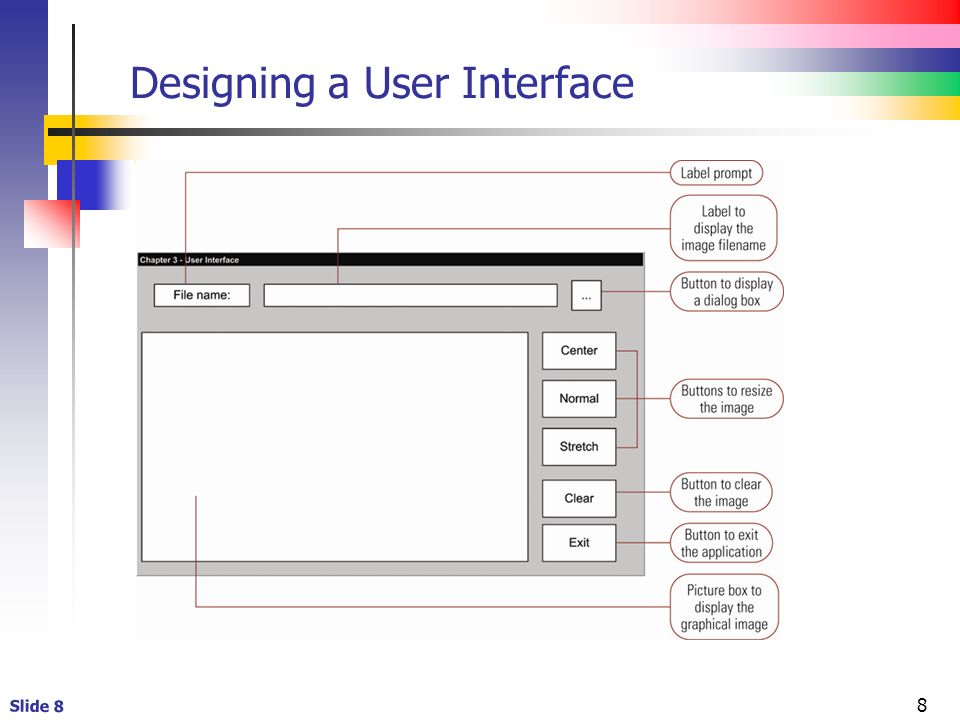

8. Slide 8 Designing a User Interface 8

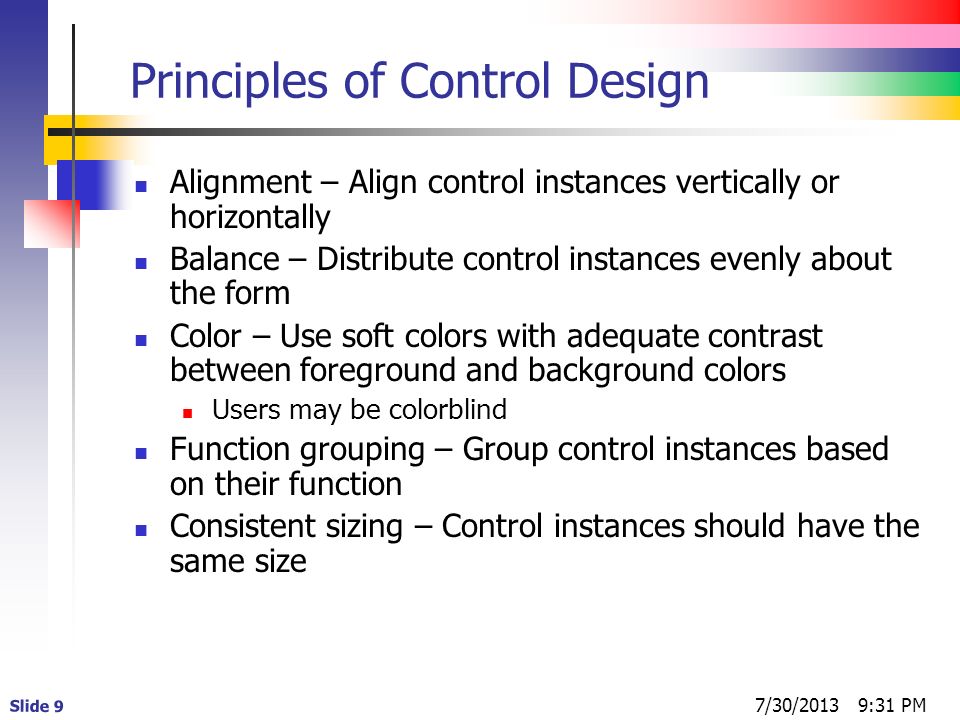

9. Slide 9 Principles of Control Design Alignment – Align control instances vertically or horizontally Balance – Distribute control instances evenly about the form Color – Use soft colors with adequate contrast between foreground and background colors Users may be colorblind Function grouping – Group control instances based on their function Consistent sizing – Control instances should have the same size 7/30/2013 9:31 PM

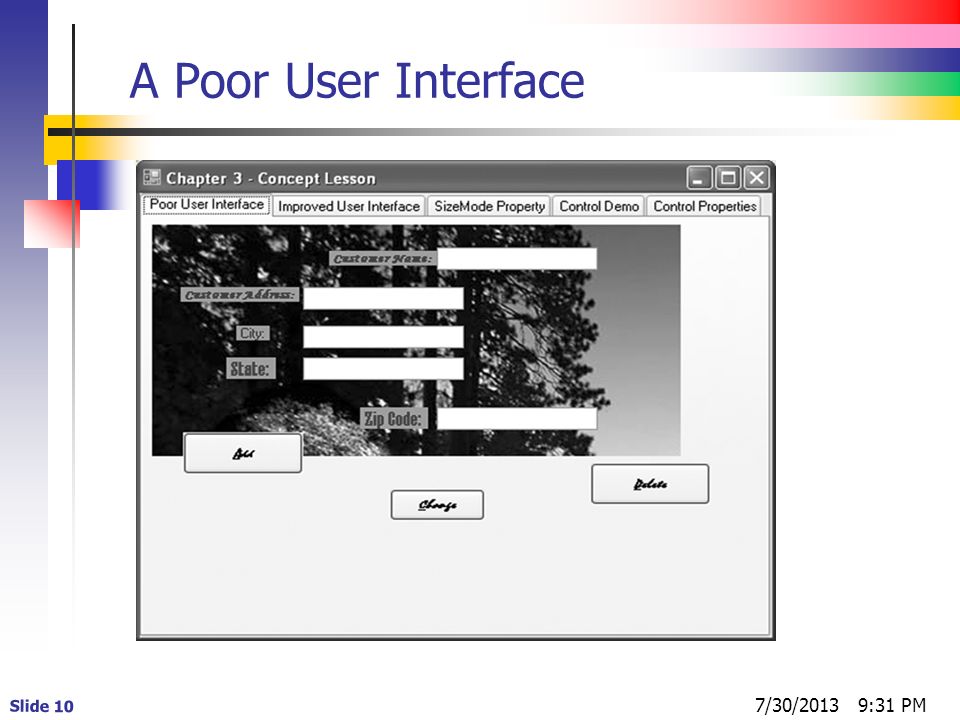

10. Slide 10 A Poor User Interface 7/30/2013 9:31 PM

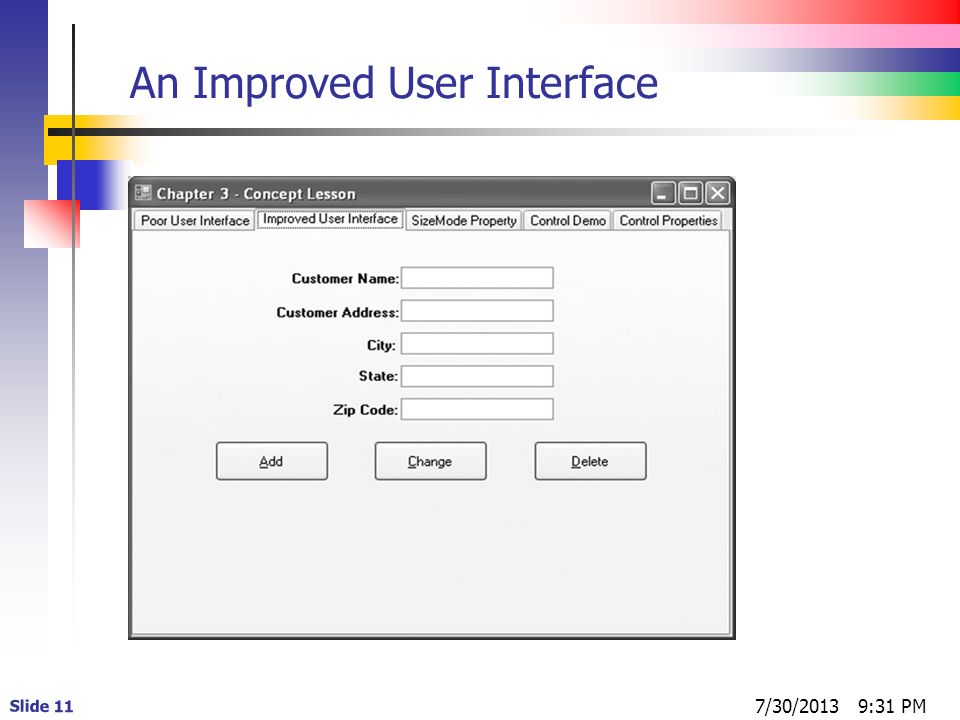

11. Slide 11 An Improved User Interface 7/30/2013 9:31 PM

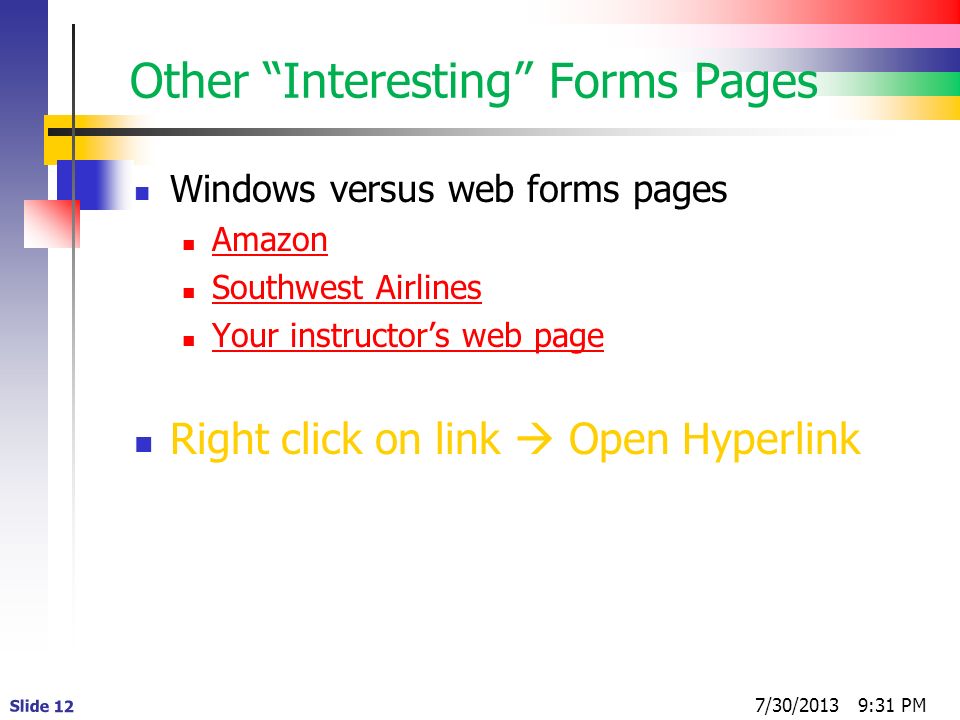

12. Slide 12 Other “Interesting” Forms Pages Windows versus web forms pages Amazon Southwest Airlines Your instructor’s web page Your instructor’s web page Right click on link  Open Hyperlink 7/30/2013 9:31 PM

13. Slide 13 Creating a Windows Application Project 1 As indicated earlier, there is a lot to learn Forms design – sort of fun Tools – such as Visio Software design Tools – UML, Data Tables, Behavior modelling How to use the Visual Studio IDE Tools – tons of on-line and text references Get the right one for your level VB.NET Tools – tons of on-line and text references Here we go … 7/30/2013 9:31 PM

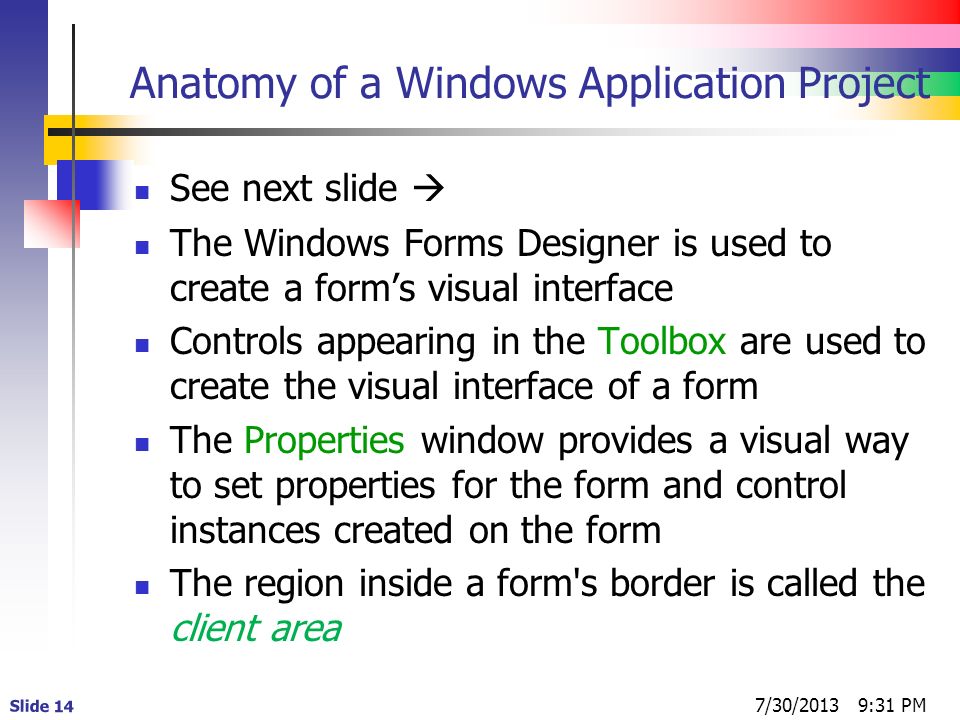

14. Slide 14 Anatomy of a Windows Application Project See next slide  The Windows Forms Designer is used to create a form’s visual interface Controls appearing in the Toolbox are used to create the visual interface of a form The Properties window provides a visual way to set properties for the form and control instances created on the form The region inside a form's border is called the client area 7/30/2013 9:31 PM

15. Slide 15 Viewing a Form 7/30/2013 10:40PM

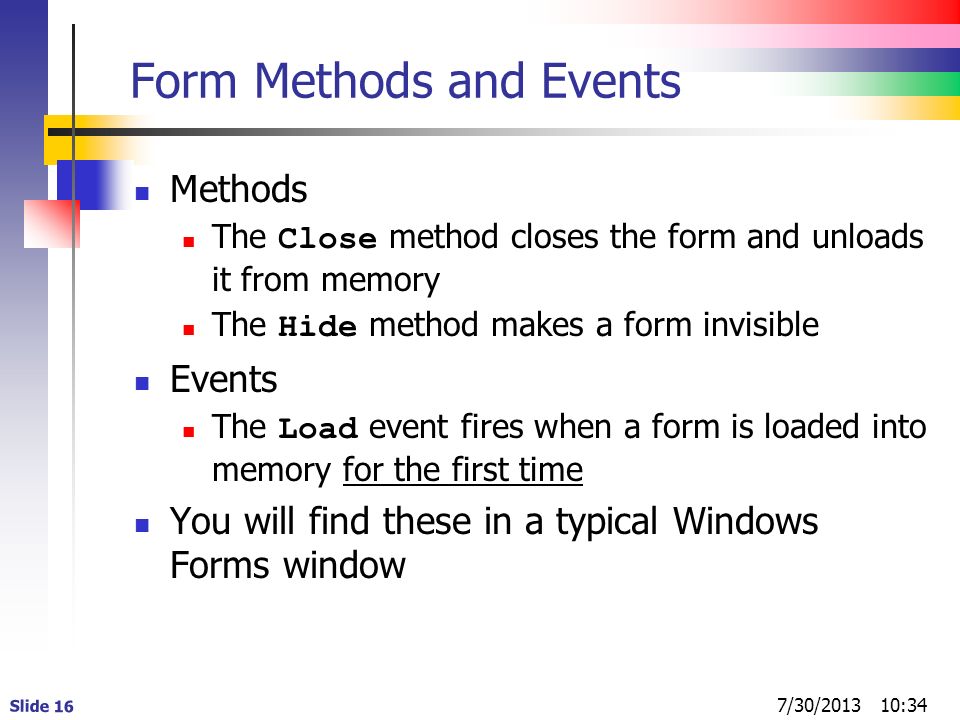

16. Slide 16 Form Methods and Events Methods The Close method closes the form and unloads it from memory The Hide method makes a form invisible Events The Load event fires when a form is loaded into memory for the first time You will find these in a typical Windows Forms window 7/30/2013 10:34

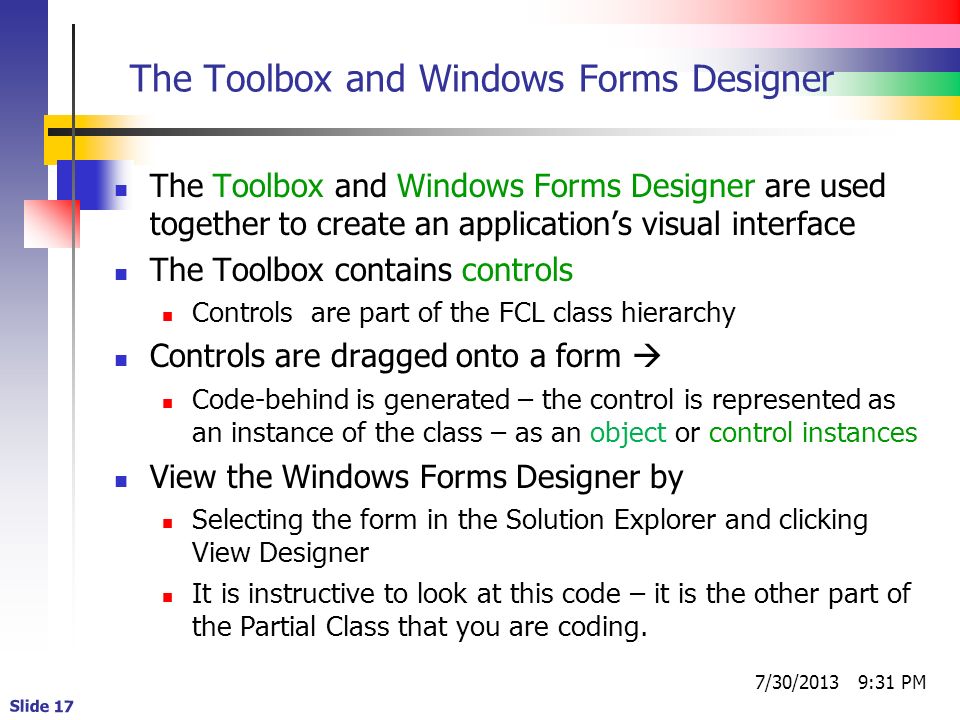

17. Slide 17 The Toolbox and Windows Forms Designer The Toolbox and Windows Forms Designer are used together to create an application’s visual interface The Toolbox contains controls Controls are part of the FCL class hierarchy Controls are dragged onto a form  Code-behind is generated – the control is represented as an instance of the class – as an object or control instances View the Windows Forms Designer by Selecting the form in the Solution Explorer and clicking View Designer It is instructive to look at this code – it is the other part of the Partial Class that you are coding. 7/30/2013 9:31 PM

18. Slide 18 Toolbox Tabs The Toolbox contains the controls that can be drawn on any form, and is divided into tabs The All Windows Forms tab lists all controls The Common Controls tab lists the most frequently used controls The Containers tab lists controls used to group other controls The Menus & Toolbars tab contains controls are used to create a menu system and toolbars You should understand what these tools are Hint – they are OBJECTS – instances of a class We will see more about this in Slide Set 3B When you design your first form, pin the Toolbox to your design window. Makes things easier. 7/30/2013 9:31 PM

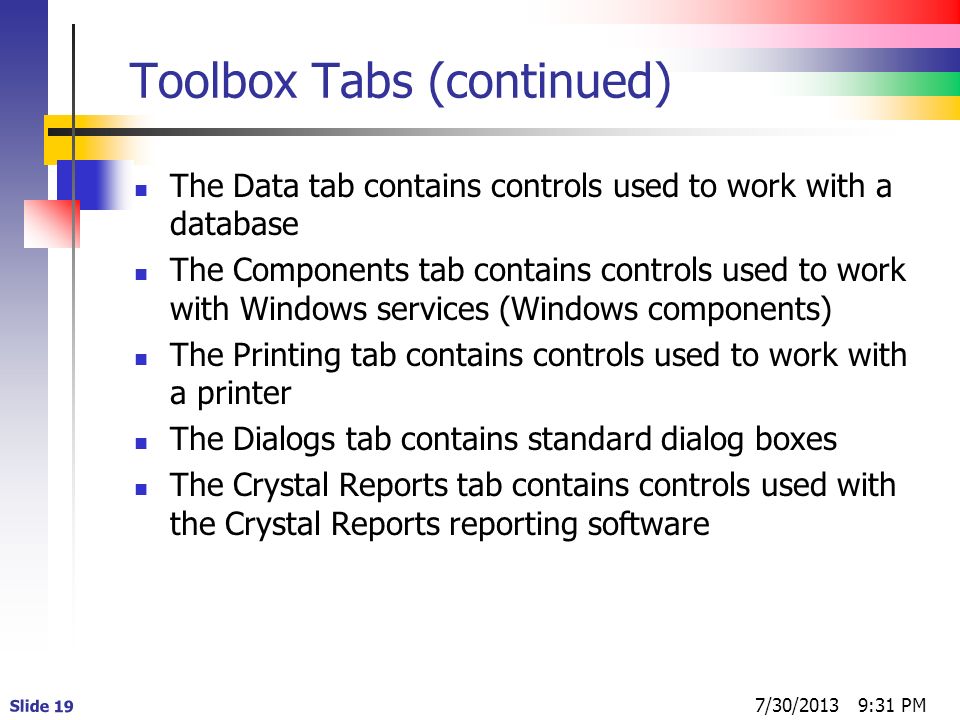

19. Slide 19 Toolbox Tabs (continued) The Data tab contains controls used to work with a database The Components tab contains controls used to work with Windows services (Windows components) The Printing tab contains controls used to work with a printer The Dialogs tab contains standard dialog boxes The Crystal Reports tab contains controls used with the Crystal Reports reporting software 7/30/2013 9:31 PM

20. Slide 20 The Organization of Controls in the Toolbox 7/30/2013 9:31 PM

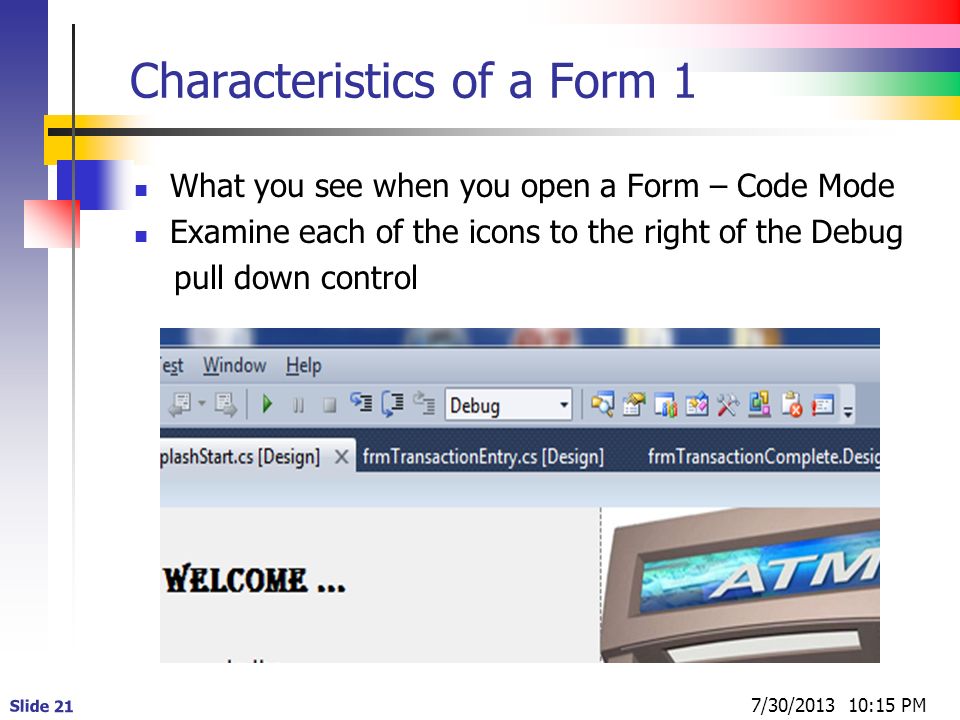

21. Slide 21 Characteristics of a Form 1 What you see when you open a Form – Code Mode Examine each of the icons to the right of the Debug pull down control 7/30/2013 10:15 PM

22. Slide 22 Characteristics of a Form 2 Specifically, explore The Properties Window The Object Browser The Error List The Toolbox The Solution Explorer Window 7/30/2013 10:45 PM
