2. Vapor Pressure

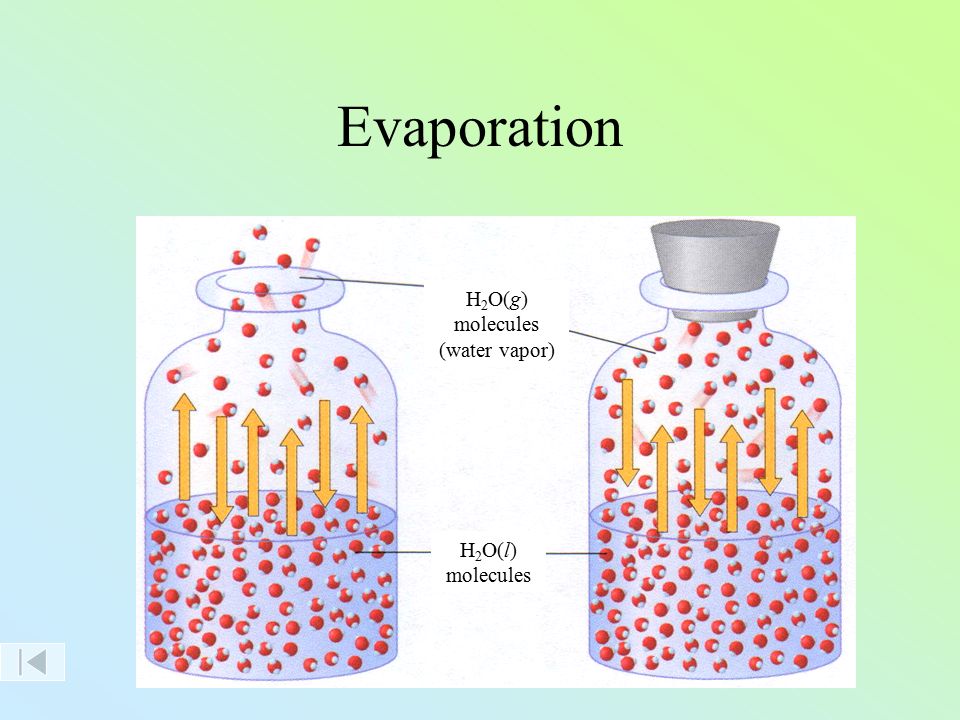

3. Evaporation H 2 O(g) molecules (water vapor) H 2 O(l) molecules

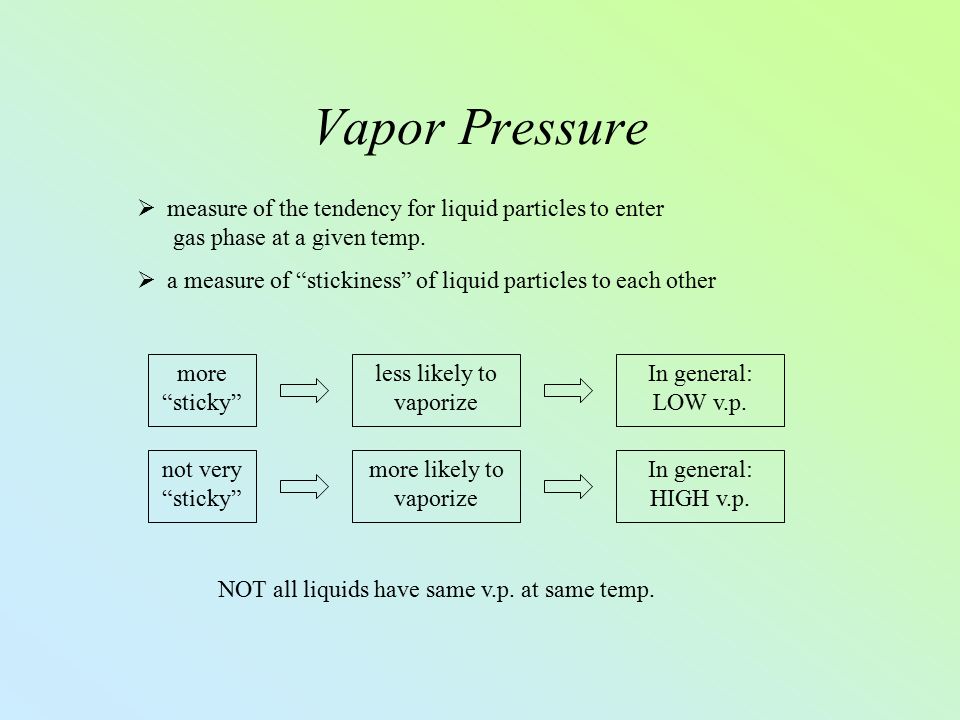

4. Vapor Pressure more “sticky” less likely to vaporize In general: LOW v.p. not very “sticky” more likely to vaporize In general: HIGH v.p.  measure of the tendency for liquid particles to enter gas phase at a given temp.  a measure of “stickiness” of liquid particles to each other NOT all liquids have same v.p. at same temp.

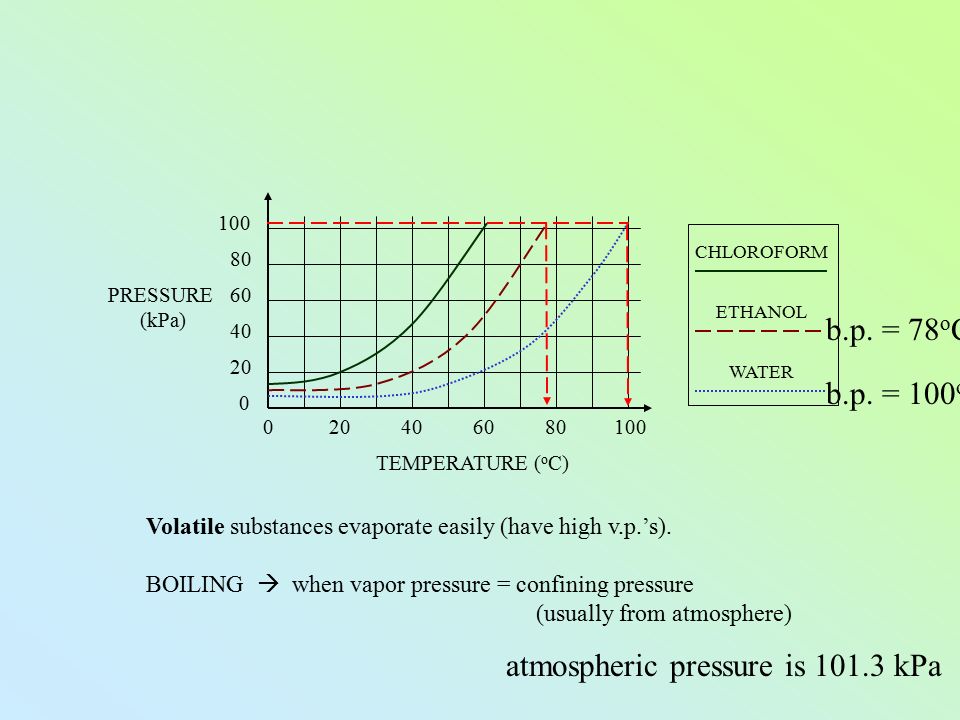

5. 020406080 100 0 20 40 60 80 100 TEMPERATURE ( o C) PRESSURE (kPa) CHLOROFORM ETHANOL WATER Volatile substances evaporate easily (have high v.p.’s). BOILING  when vapor pressure = confining pressure (usually from atmosphere) b.p. = 78 o C b.p. = 100 o C atmospheric pressure is 101.3 kPa

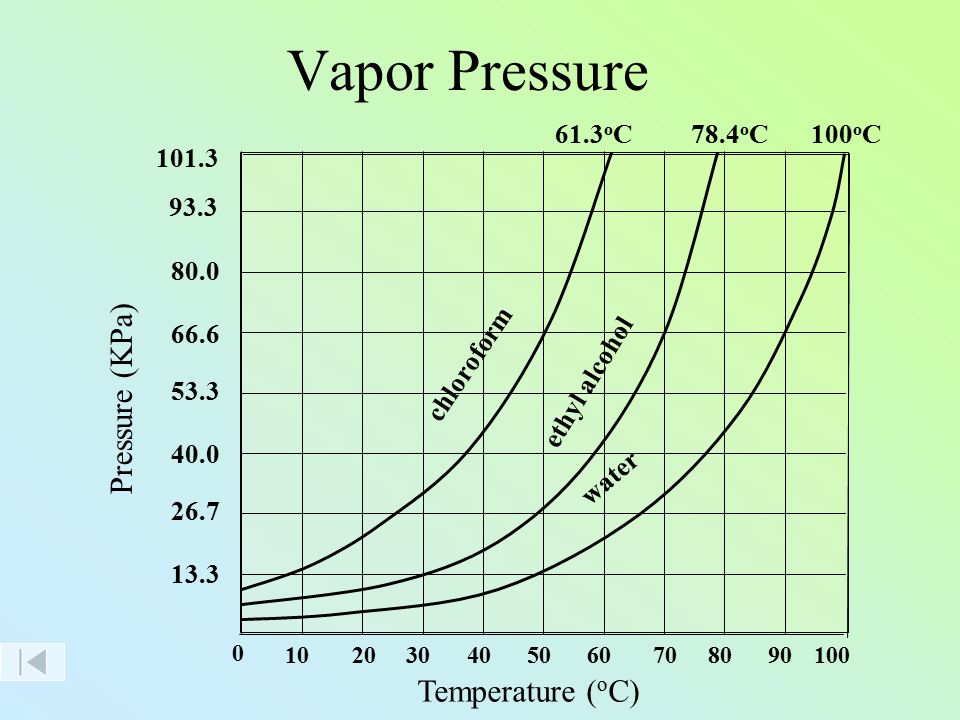

6. Vapor Pressure 93.3 80.0 66.6 53.3 40.0 26.7 13.3 0 102030405060708090100 61.3 o C78.4 o C100 o C chloroform ethyl alcohol water Pressure (KPa) Temperature ( o C) 101.3

7. Water Molecules in Liquid and Steam

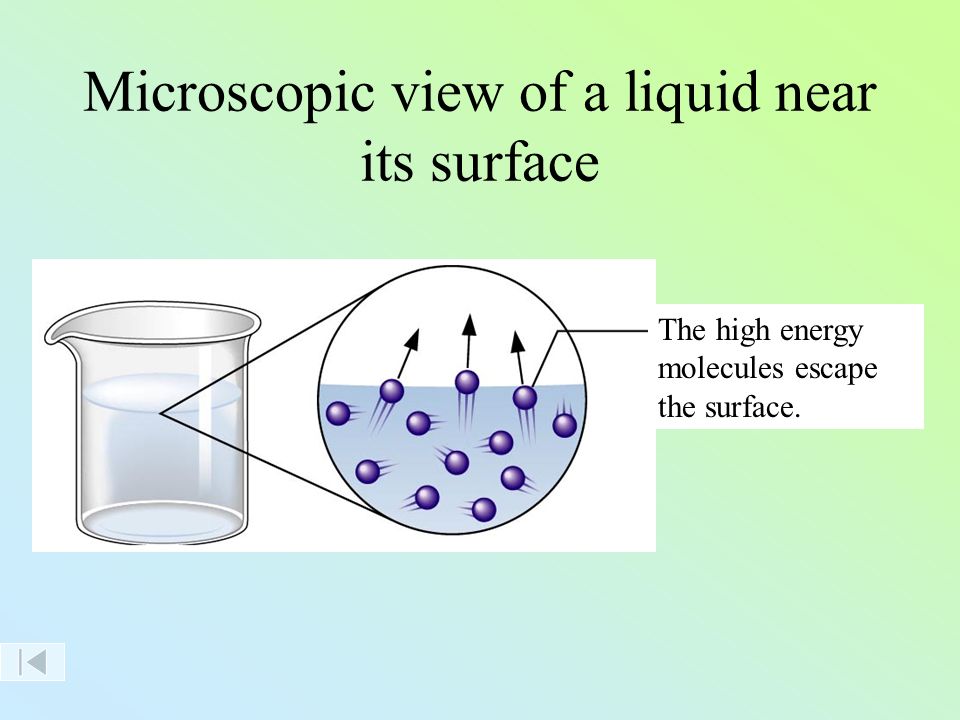

8. Microscopic view of a liquid near its surface The high energy molecules escape the surface.

9. Behavior of a liquid in a closed container

10. Water rapidly boiling on a stove

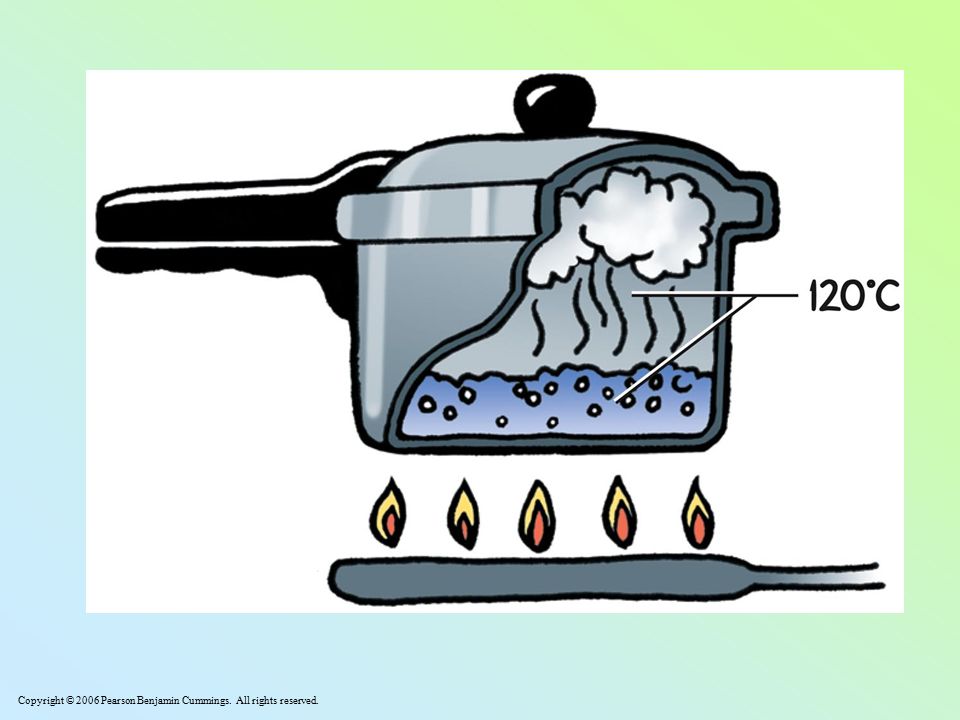

11. Copyright © 2006 Pearson Benjamin Cummings. All rights reserved.

12. Formation of a bubble is opposed by the pressure of the atmosphere Zumdahl, Zumdahl, DeCoste, World of Chemistry  2002, page 452

13. Boiling Point and Pressure

14. The Gas Laws The density of a gas decreases as its temperature increases.

15. The Earth’s Atmosphere 78% Nitrogen 20% Oxygen 1% Argon 0.03% CO 2 Trace Elements ‘The Precious Envelope’ Helium Nitrogen Oxygen Water vapor Argon Neon Carbon dioxide Air

16. Kinetic Molecular Theory

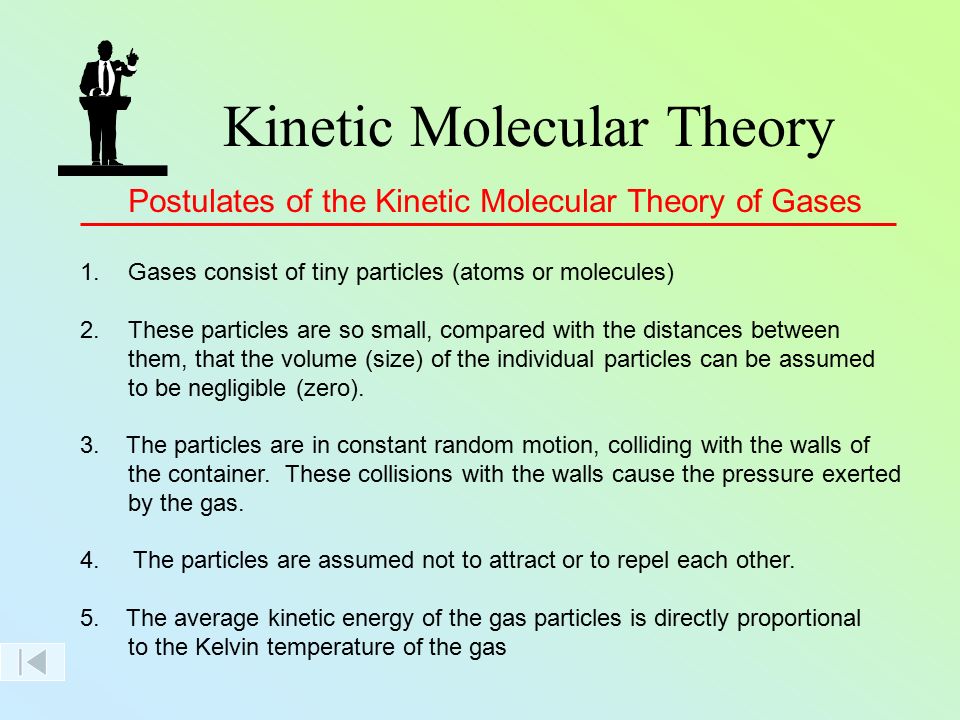

17. Postulates of the Kinetic Molecular Theory of Gases 1.Gases consist of tiny particles (atoms or molecules) 2.These particles are so small, compared with the distances between them, that the volume (size) of the individual particles can be assumed to be negligible (zero). 3. The particles are in constant random motion, colliding with the walls of the container. These collisions with the walls cause the pressure exerted by the gas. 4. The particles are assumed not to attract or to repel each other. 5. The average kinetic energy of the gas particles is directly proportional to the Kelvin temperature of the gas

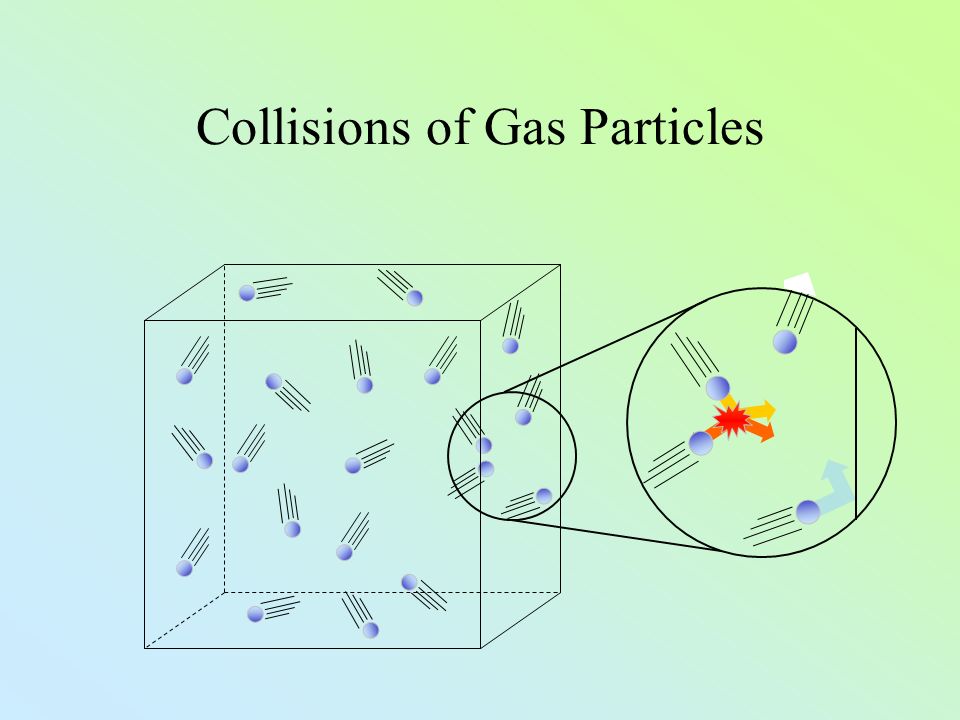

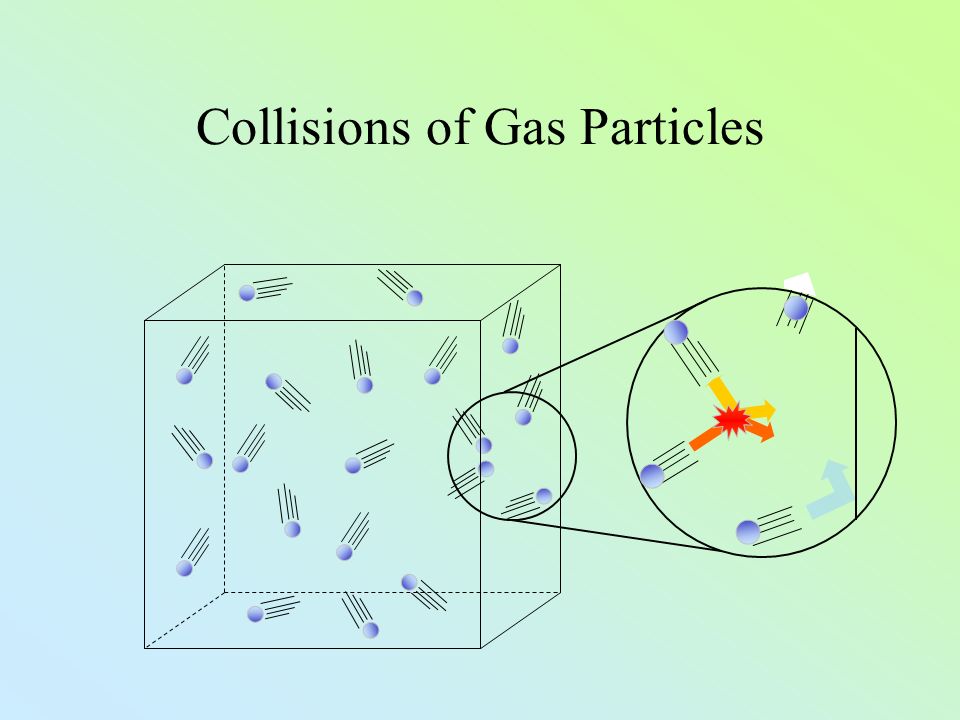

18. Collisions of Gas Particles

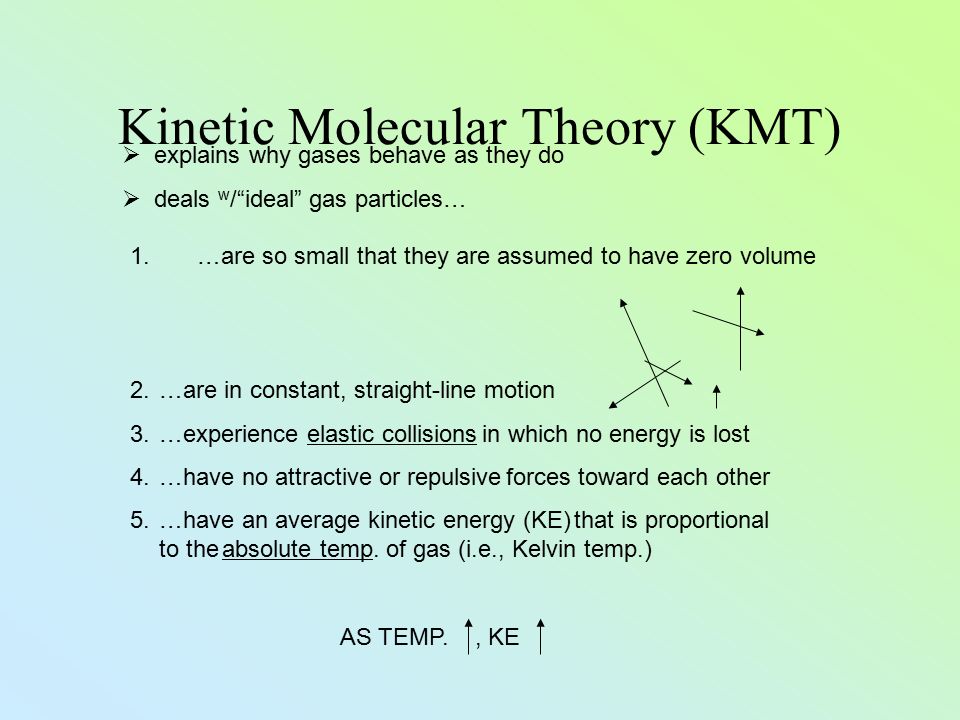

20. Kinetic Molecular Theory (KMT) 1.…are so small that they are assumed to have zero volume 2.…are in constant, straight-line motion 3.…experience elastic collisions in which no energy is lost 4.…have no attractive or repulsive forces toward each other 5.…have an average kinetic energy (KE) that is proportional to the absolute temp. of gas (i.e., Kelvin temp.) AS TEMP., KE  explains why gases behave as they do  deals w /“ideal” gas particles…

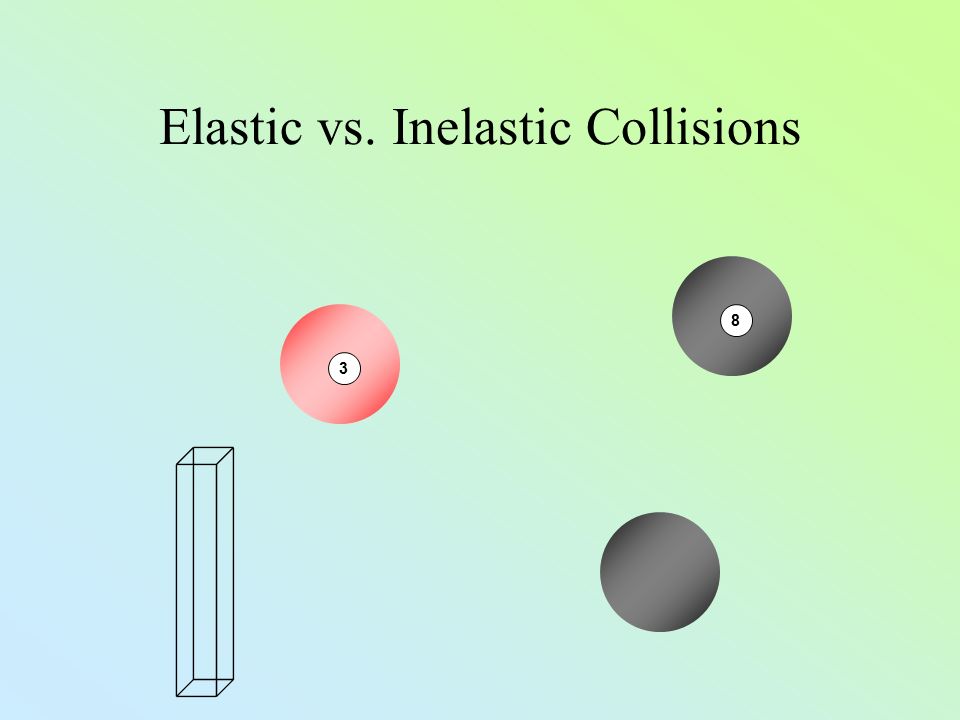

21. Elastic vs. Inelastic Collisions 8 3

22. Real Gases Particles in a REAL gas… –have their own volume –attract each other Gas behavior is most ideal… –at low pressures –at high temperatures –in nonpolar atoms/molecules Courtesy Christy Johannesson www.nisd.net/communicationsarts/pages/chem

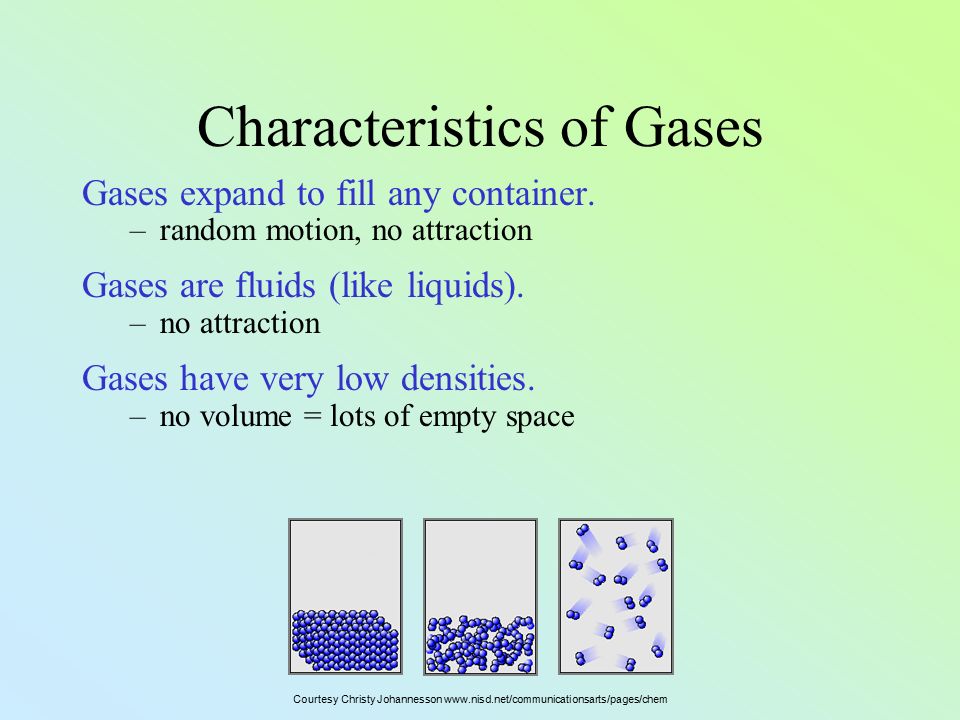

23. Characteristics of Gases Gases expand to fill any container. –random motion, no attraction Gases are fluids (like liquids). –no attraction Gases have very low densities. –no volume = lots of empty space Courtesy Christy Johannesson www.nisd.net/communicationsarts/pages/chem

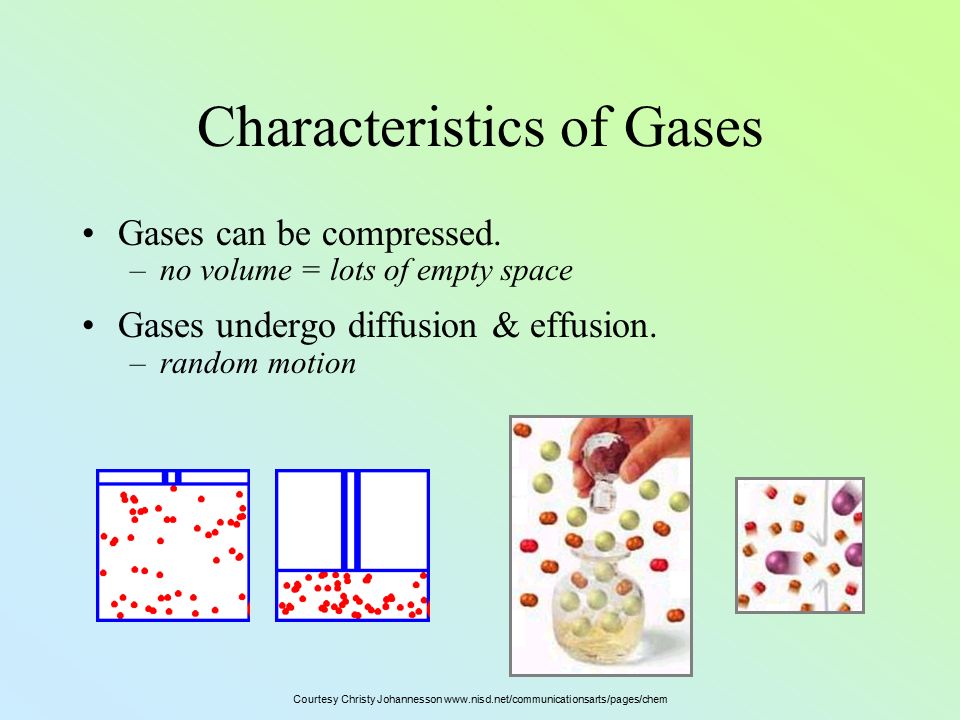

24. Characteristics of Gases Gases can be compressed. –no volume = lots of empty space Gases undergo diffusion & effusion. –random motion Courtesy Christy Johannesson www.nisd.net/communicationsarts/pages/chem

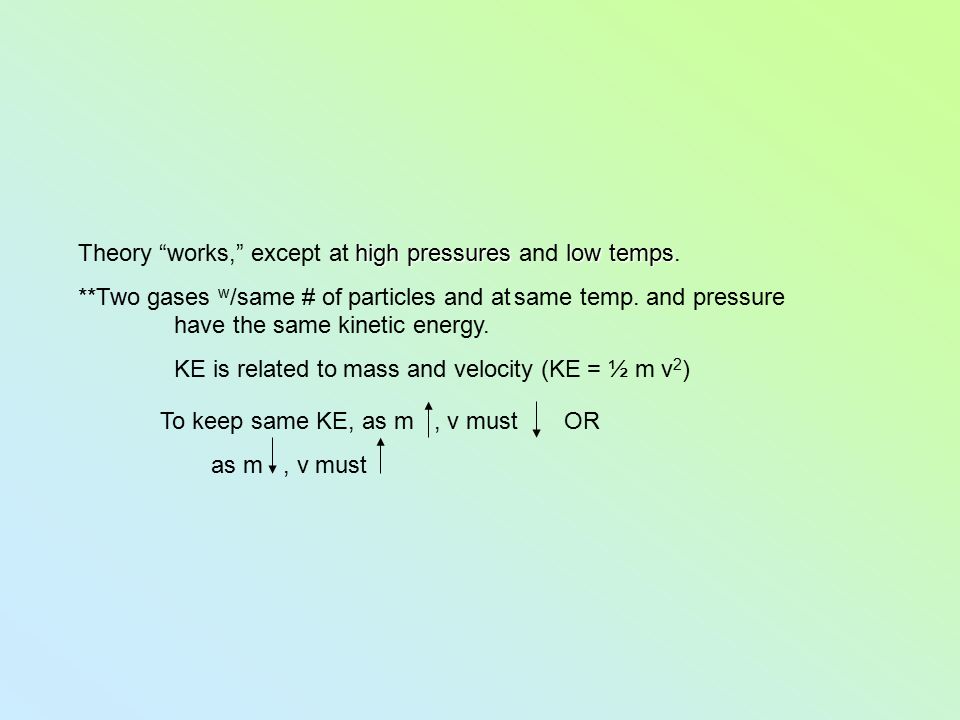

25. high pressureslow temps Theory “works,” except at high pressures and low temps. **Two gases w /same # of particles and at same temp. and pressure have the same kinetic energy. KE is related to mass and velocity (KE = ½ m v 2 ) To keep same KE, as m, v must OR as m, v must

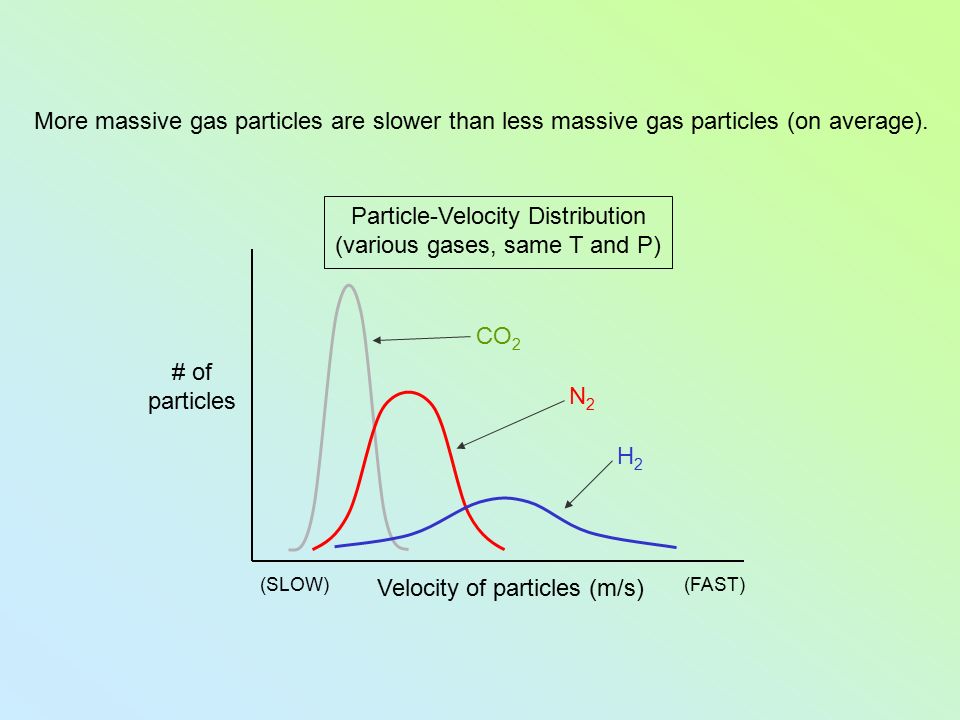

26. Particle-Velocity Distribution (various gases, same T and P) # of particles Velocity of particles (m/s) H2H2 N2N2 CO 2 (SLOW)(FAST) More massive gas particles are slower than less massive gas particles (on average).

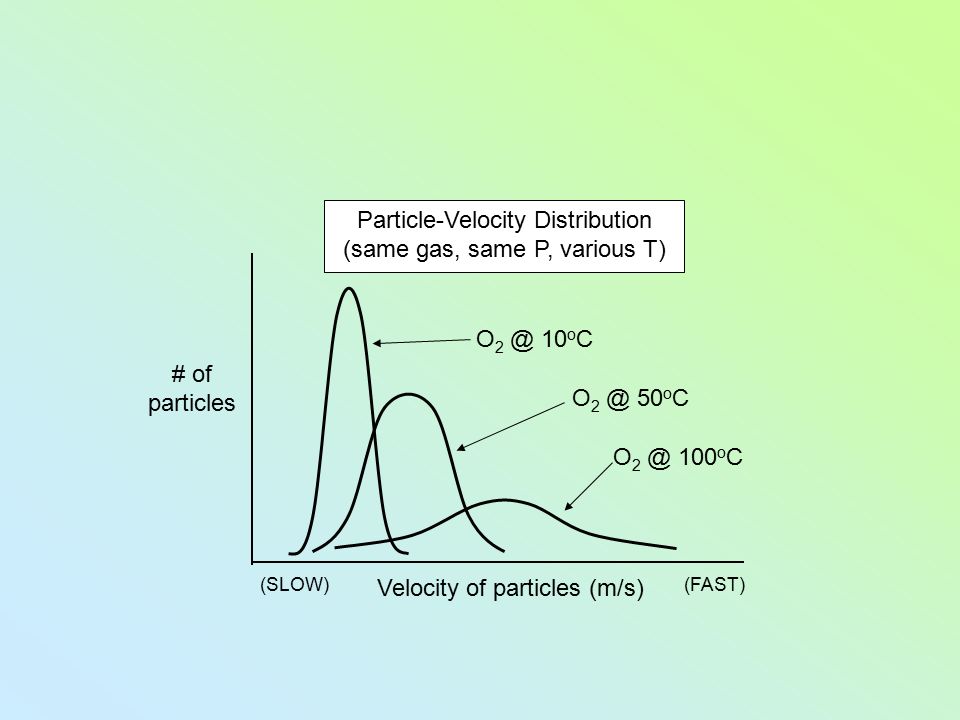

27. Particle-Velocity Distribution (same gas, same P, various T) # of particles Velocity of particles (m/s) O 2 @ 10 o C (SLOW)(FAST) O 2 @ 50 o C O 2 @ 100 o C

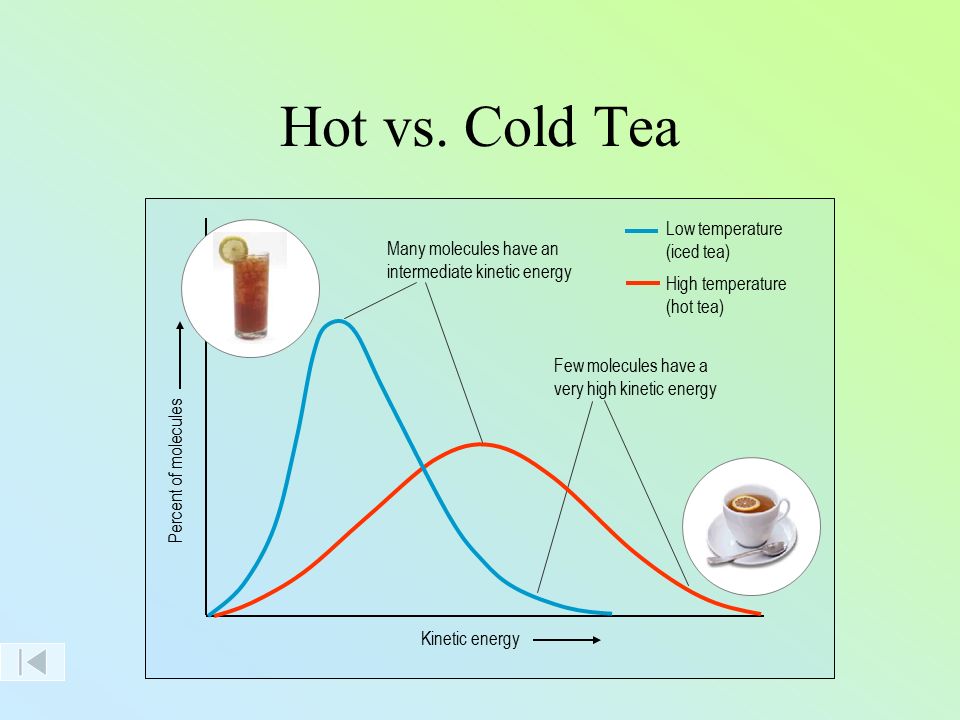

28. Hot vs. Cold Tea Kinetic energy Many molecules have an intermediate kinetic energy Few molecules have a very high kinetic energy Low temperature (iced tea) High temperature (hot tea) Percent of molecules

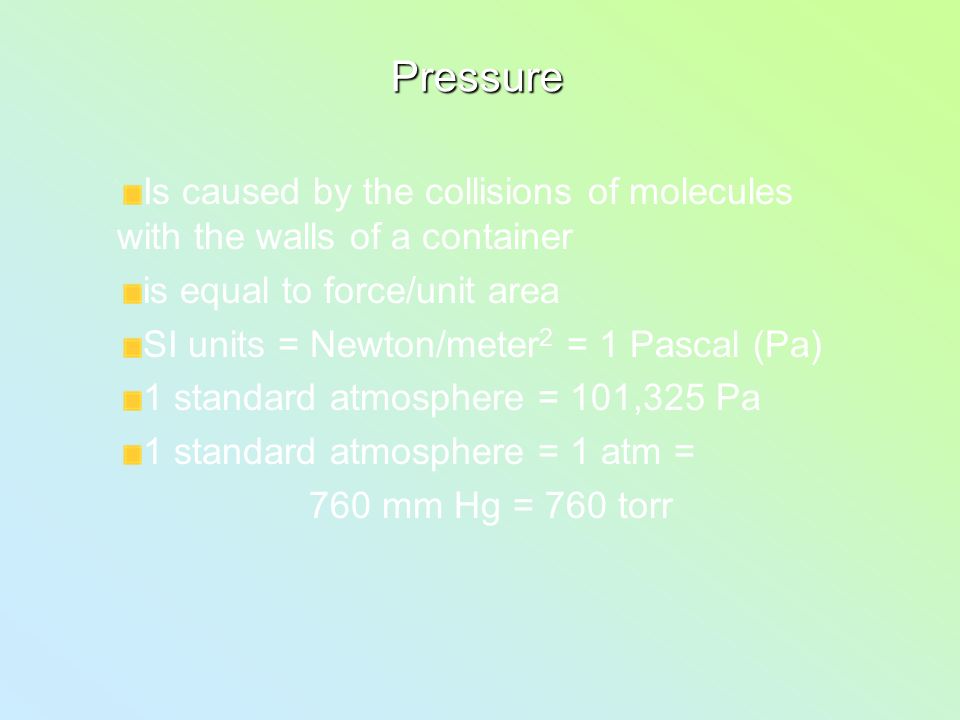

29. Pressure Is caused by the collisions of molecules with the walls of a container is equal to force/unit area SI units = Newton/meter 2 = 1 Pascal (Pa) 1 standard atmosphere = 101,325 Pa 1 standard atmosphere = 1 atm = 760 mm Hg = 760 torr

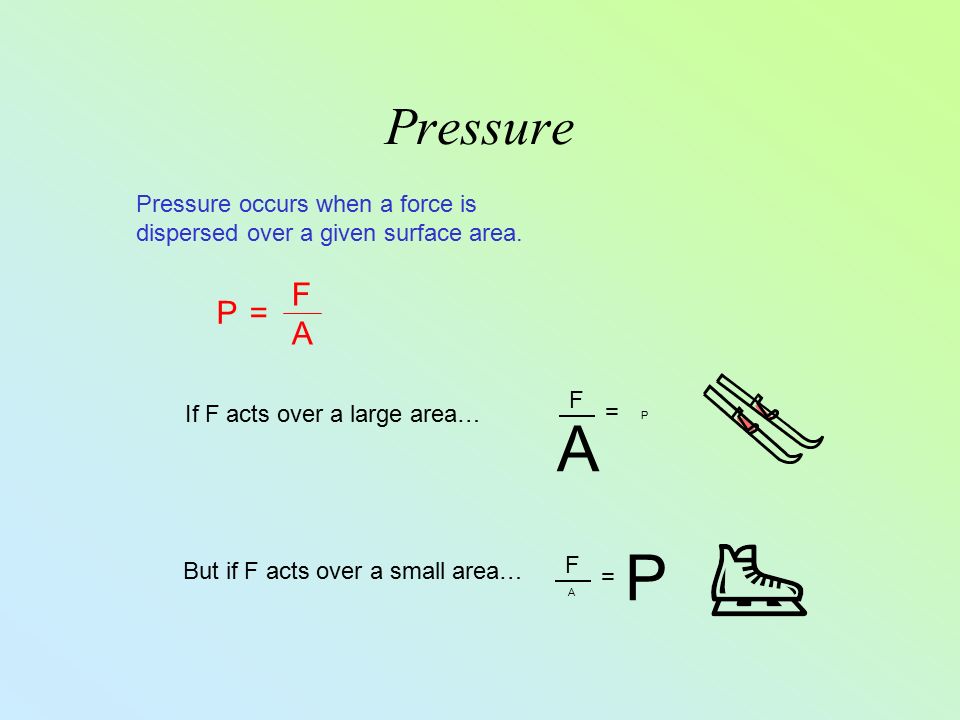

30. Pressure F A = P A P = F Pressure occurs when a force is dispersed over a given surface area. If F acts over a large area… But if F acts over a small area… P = FAFA

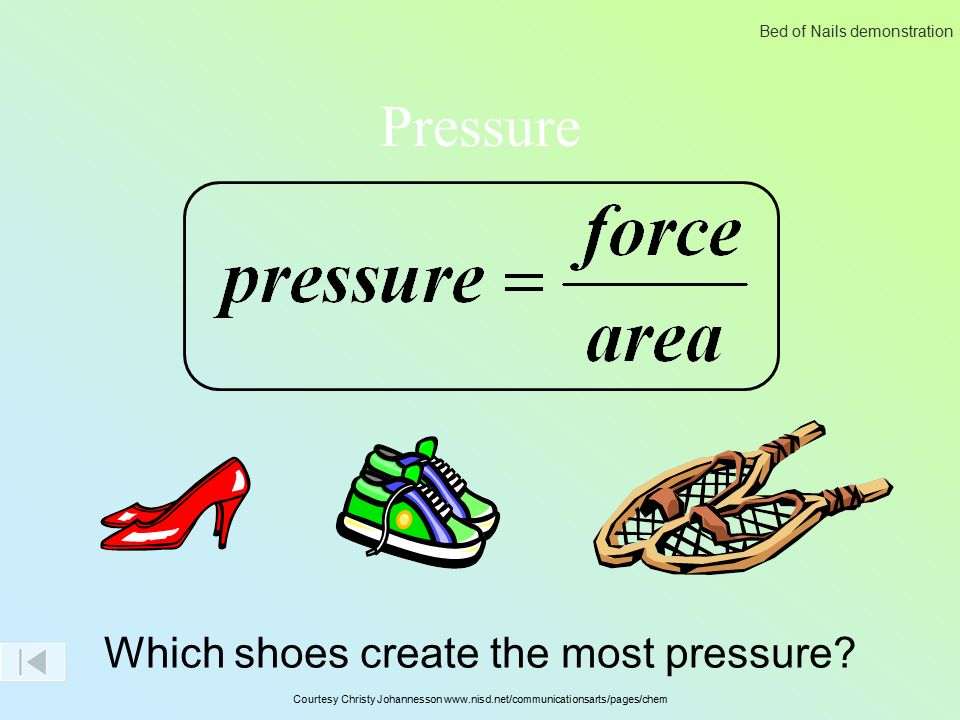

31. Pressure Which shoes create the most pressure? Courtesy Christy Johannesson www.nisd.net/communicationsarts/pages/chem Bed of Nails demonstration

32. Pressure KEY UNITS AT SEA LEVEL 101.325 kPa (kilopascal) 1 atm 760 mm Hg 760 torr 14.7 psi Courtesy Christy Johannesson www.nisd.net/communicationsarts/pages/chem Sea level

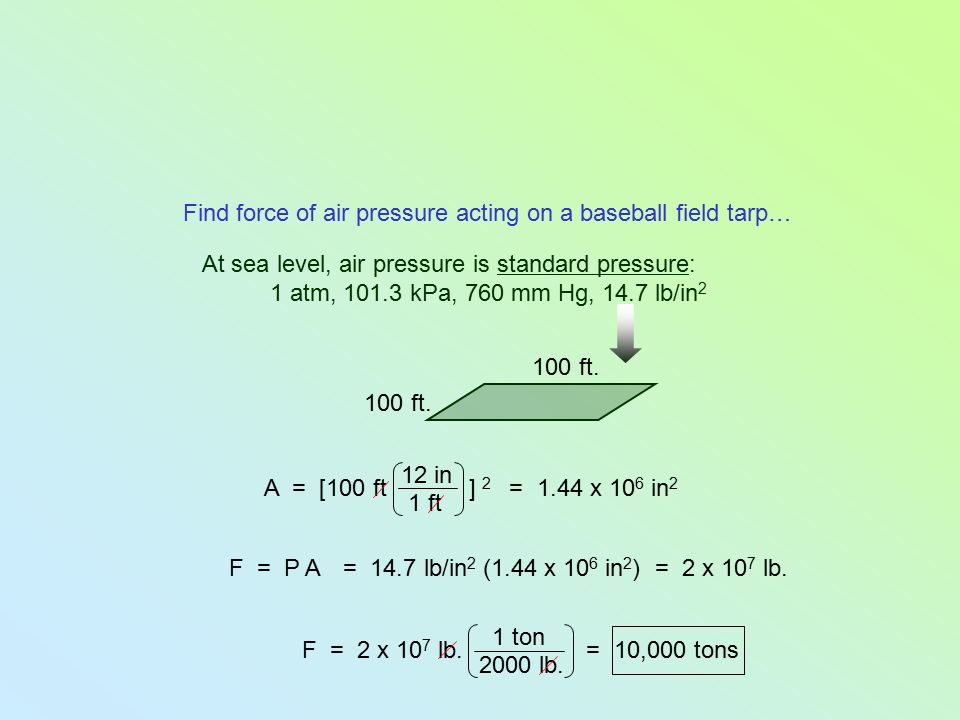

33. = 14.7 lb/in 2 (1.44 x 10 6 in 2 ) A = [100 ft ] 2 1 ft 100 ft. Find force of air pressure acting on a baseball field tarp… At sea level, air pressure is standard pressure: 1 atm, 101.3 kPa, 760 mm Hg, 14.7 lb/in 2 12 in = 1.44 x 10 6 in 2 F = 2 x 10 7 lb. 2000 lb. 1 ton = 10,000 tons F = P A= 2 x 10 7 lb.

34. Force = Pressure / Area Air pressure = 14.7 psi (pounds per square inch) Area = length x width x height Force holding down ruler = (14.7 psi) (250 in sq) Force = 10 tons (20,000 pounds) To remove the tarp at Wrigley field, workers must first shake the tarp to get air below the tarp to create lift to balance the air pressure above the tarp.

35. Key: Gases exert pressure in all directions. Atmospheric pressure changes with altitude: as altitude, pressure Demo: graduated cylinder holding column of water upside down with piece of paper

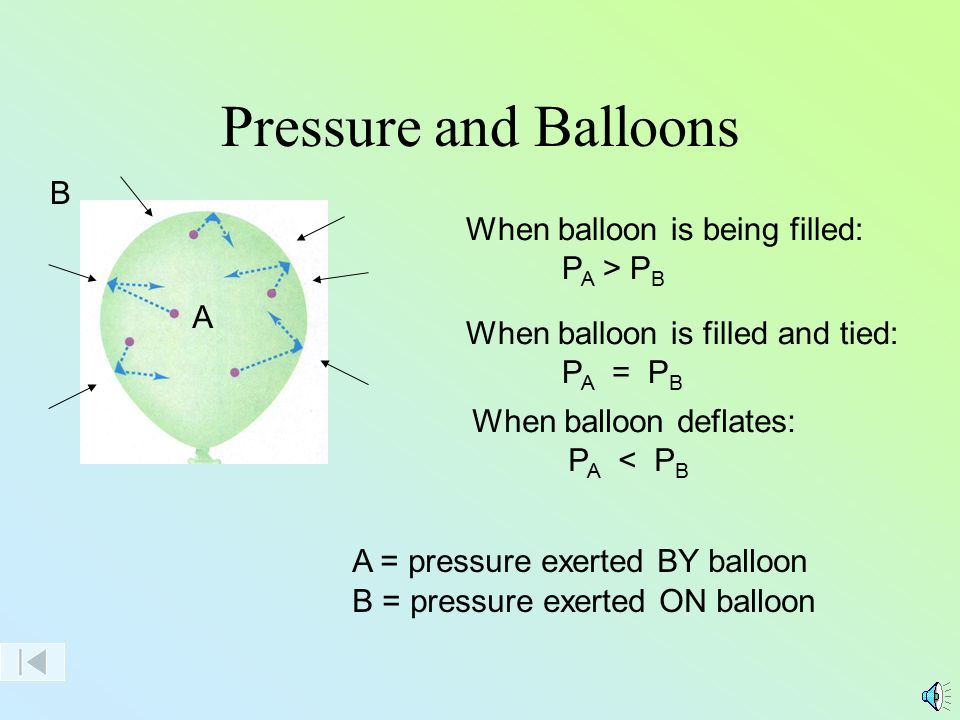

36. Pressure and Balloons A B = pressure exerted ON balloon A = pressure exerted BY balloon B When balloon is being filled: P A > P B When balloon is filled and tied: P A = P B When balloon deflates: P A < P B

37. The first device for measuring atmospheric pressure was developed by Evangelista Torricelli during the 17 th century. The device was called a “barometer” Baro = weight Meter = measure Evangelista Torricelli Measuring Pressure

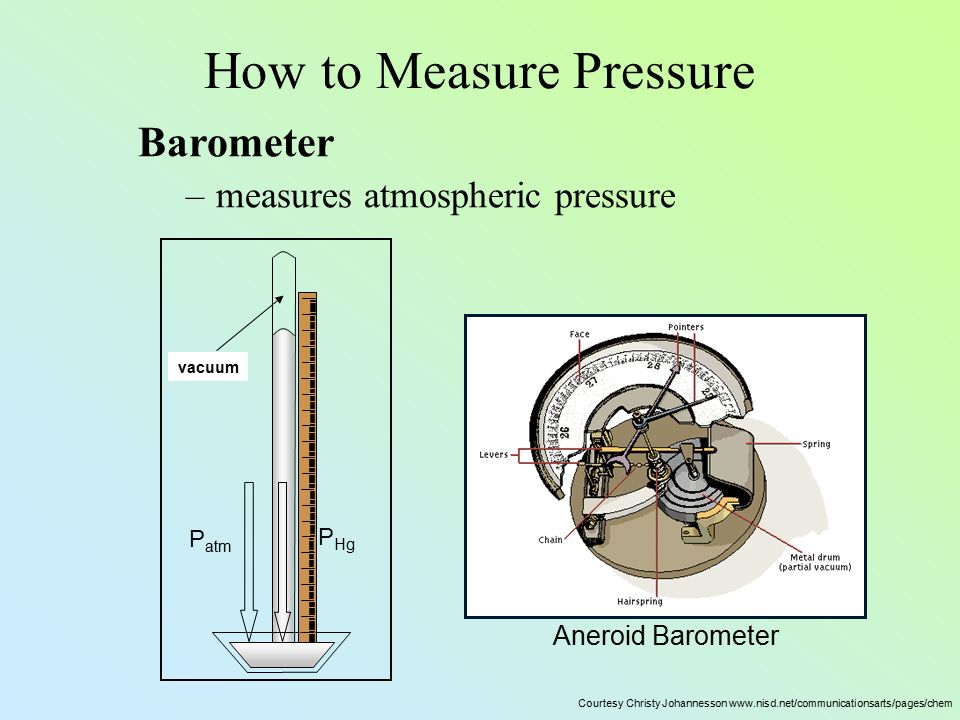

38. How to Measure Pressure Aneroid Barometer Courtesy Christy Johannesson www.nisd.net/communicationsarts/pages/chem Barometer –measures atmospheric pressure vacuum P atm P Hg

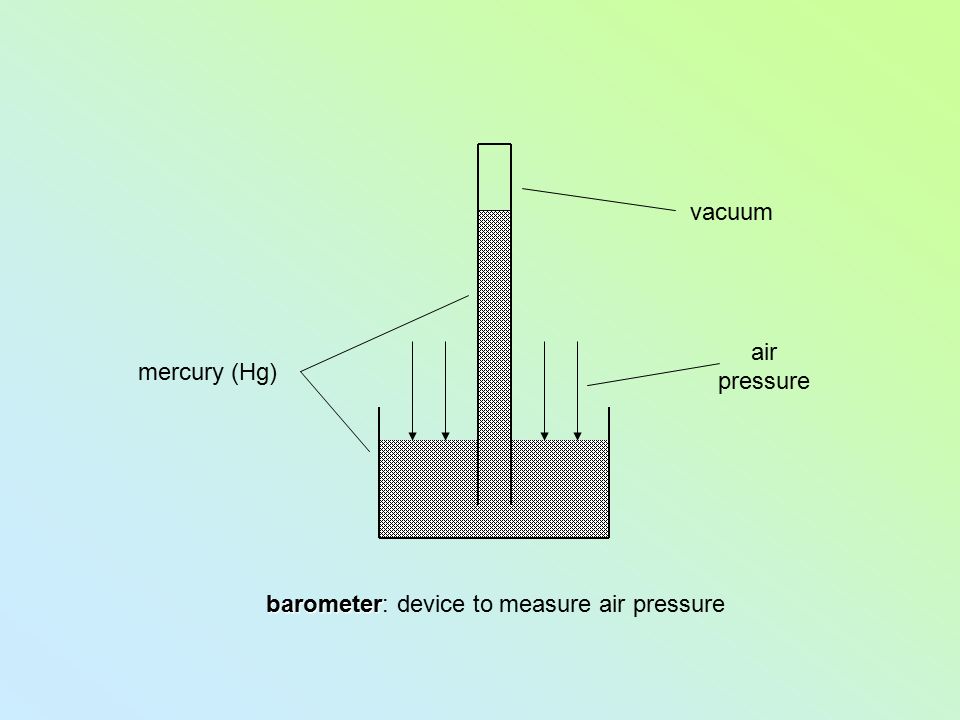

39. barometer barometer: device to measure air pressure air pressure vacuum mercury (Hg)

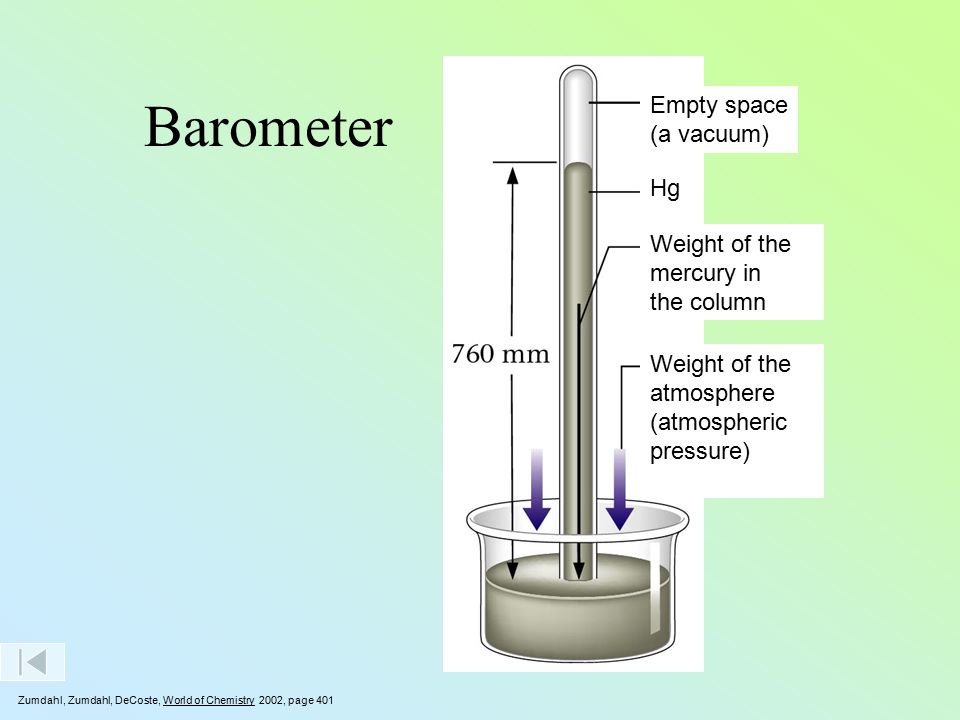

40. Barometer Zumdahl, Zumdahl, DeCoste, World of Chemistry  2002, page 401 Empty space (a vacuum) Hg Weight of the mercury in the column Weight of the atmosphere (atmospheric pressure)

41. Barometer Mercury filled 760 mm = 1 atm Water filled 10400 mm = 1 atm The barometer measures air pressure Water column (34.0 ft. high or 10.4 m) Atmospheric pressure Mercury column (30.0 in. high or 76 cm )

42. Barometers Mount Everest Sea level On top of Mount Everest Sea level

43. Barometer Zumdahl, Zumdahl, DeCoste, World of Chemistry  2002, page 451 (a) (b)(c)

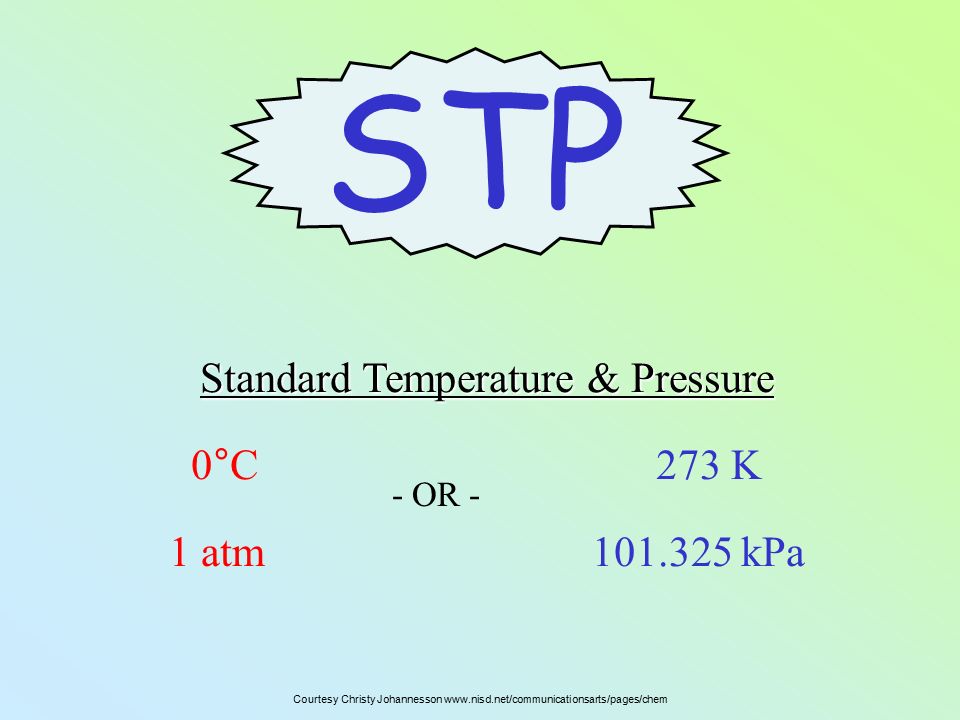

44. STP Standard Temperature & Pressure 0°C 273 K 1 atm101.325 kPa - OR - STP Courtesy Christy Johannesson www.nisd.net/communicationsarts/pages/chem

45. Temperature ºF ºC K -45932212 -2730100 0273373 K = ºC + 273 Always use absolute temperature (Kelvin) when working with gases. Courtesy Christy Johannesson www.nisd.net/communicationsarts/pages/chem

46. Convert 25 o C to Kelvin. K = o C + 273 How many mm Hg is 231.5 kPa? How many kPa is 1.37 atm? 25 o C + 273 298 K = X kPa = 1.37 atm 101.3 kPa 1 atm = 138.8 kPa X mm Hg = 231.5 kPa 760 mm Hg 101.3 kPa = 1737 mm Hg

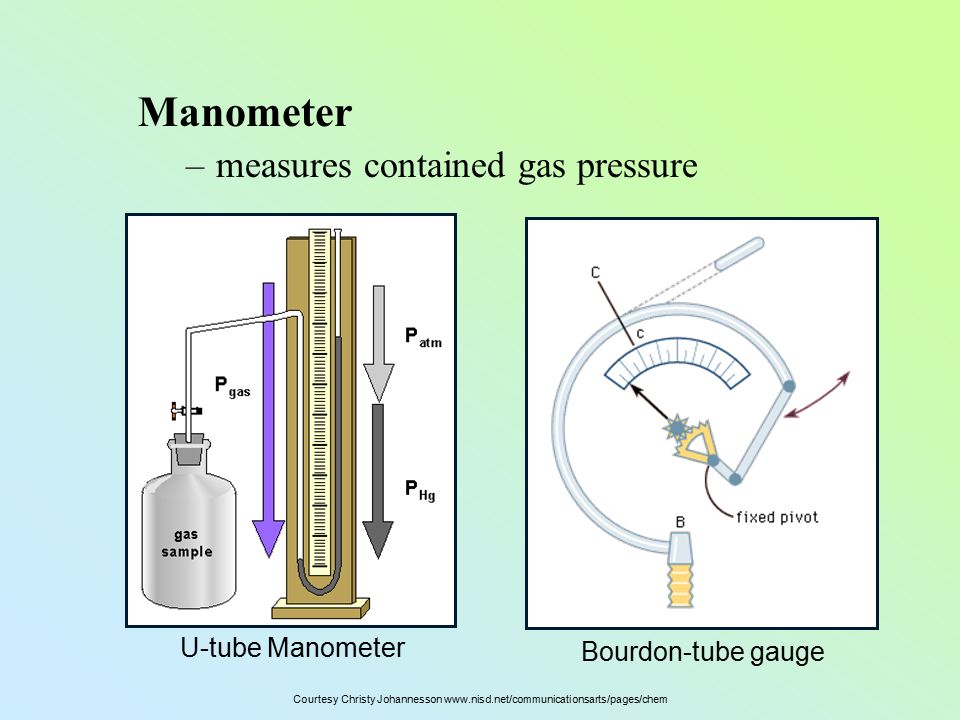

47. Manometer –measures contained gas pressure U-tube ManometerBourdon-tube gauge Courtesy Christy Johannesson www.nisd.net/communicationsarts/pages/chem

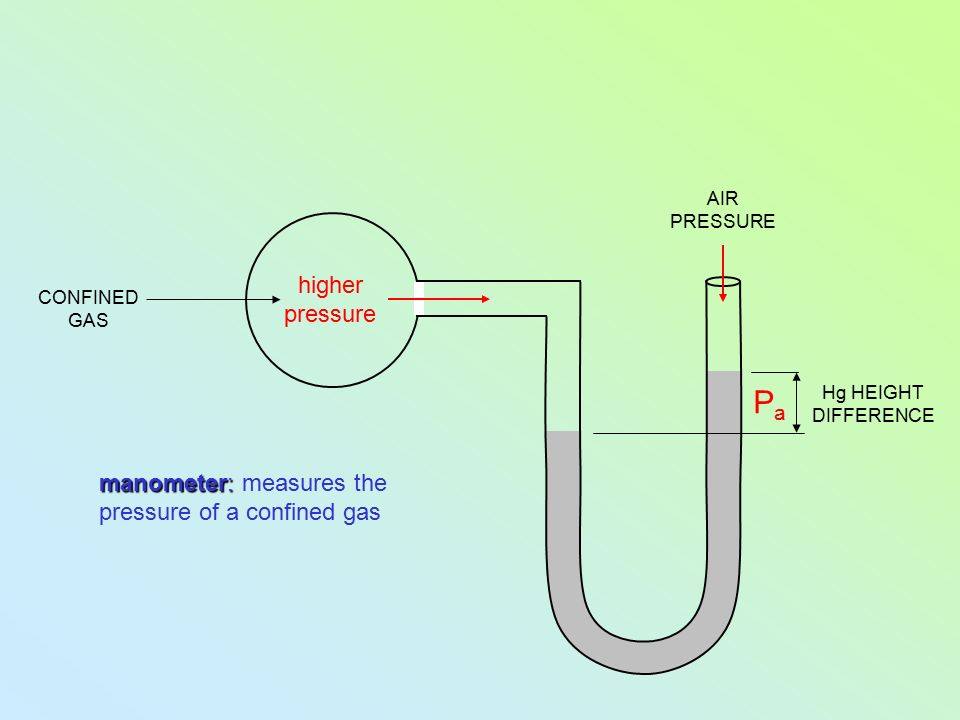

48. PaPa CONFINED GAS AIR PRESSURE Hg HEIGHT DIFFERENCE manometer: manometer: measures the pressure of a confined gas higher pressure

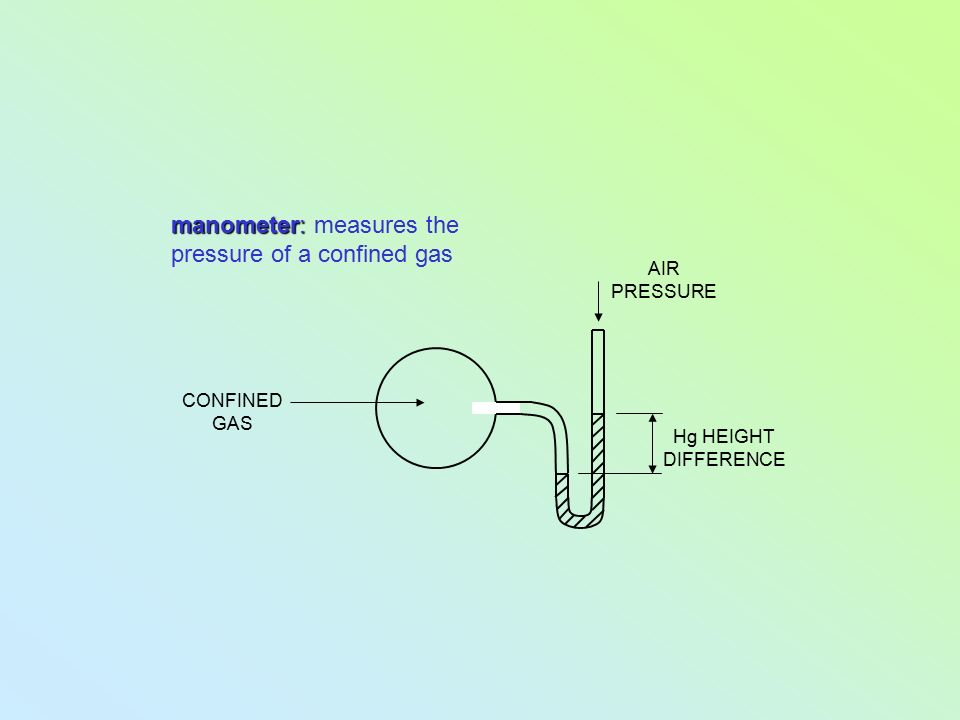

49. CONFINED GAS AIR PRESSURE Hg HEIGHT DIFFERENCE manometer: manometer: measures the pressure of a confined gas

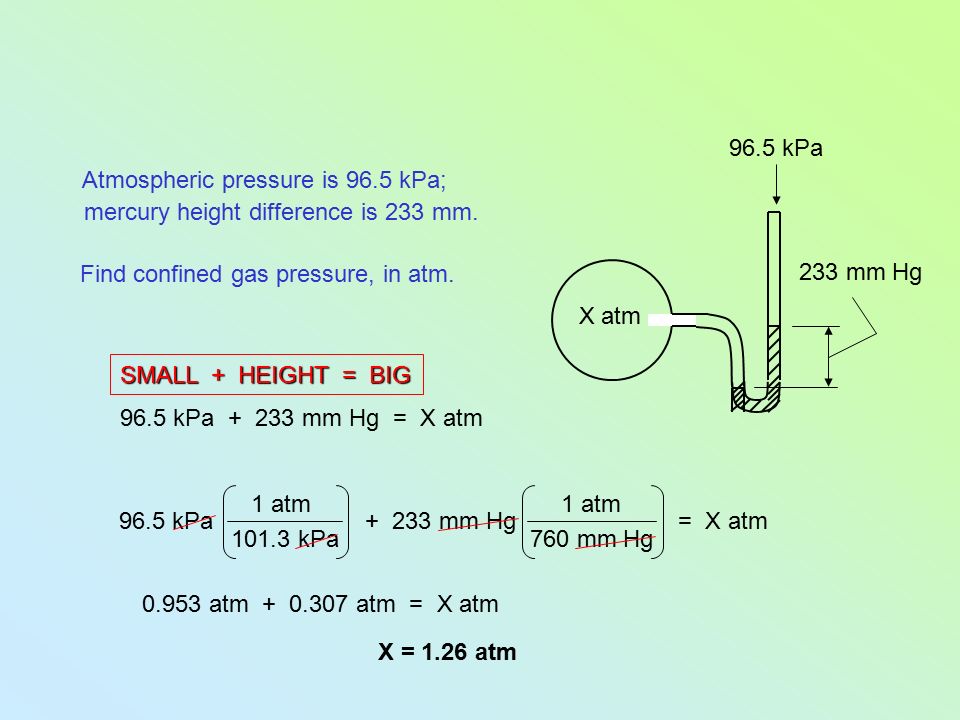

50. 101.3 kPa X atm 96.5 kPa 233 mm Hg Atmospheric pressure is 96.5 kPa; mercury height difference is 233 mm. Find confined gas pressure, in atm. SMALL + HEIGHT = BIG 0.953 atm + 0.307 atm = X atm X = 1.26 atm 96.5 kPa 1 atm + 233 mm Hg 760 mm Hg 1 atm = X atm 96.5 kPa + 233 mm Hg = X atm
