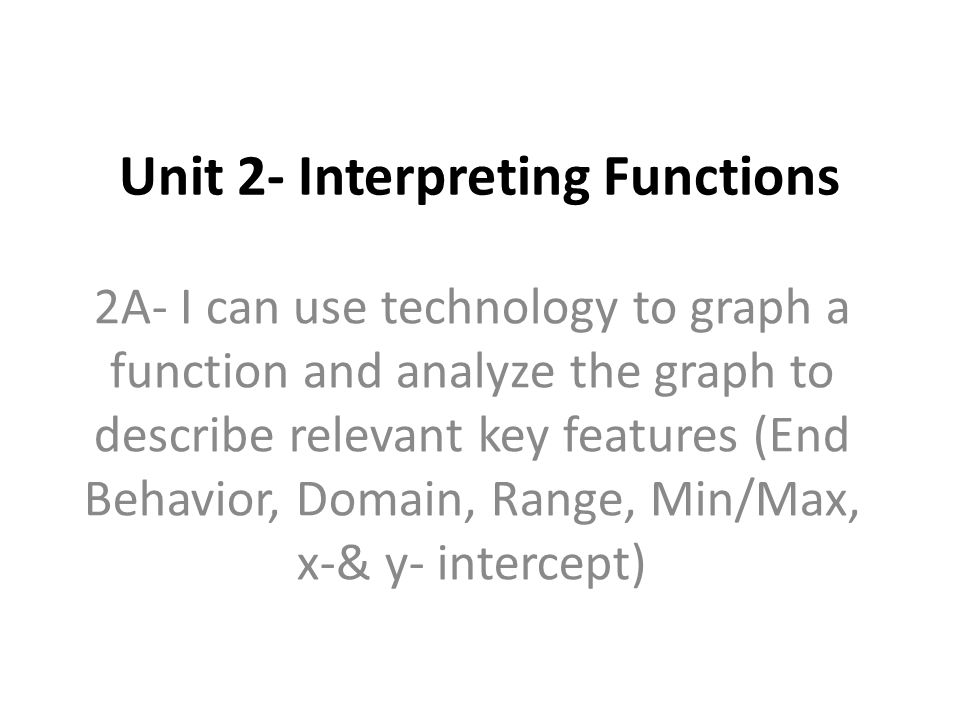

1. Unit 2- Interpreting Functions 2A- I can use technology to graph a function and analyze the graph to describe relevant key features (End Behavior, Domain, Range, Min/Max, x-& y- intercept)

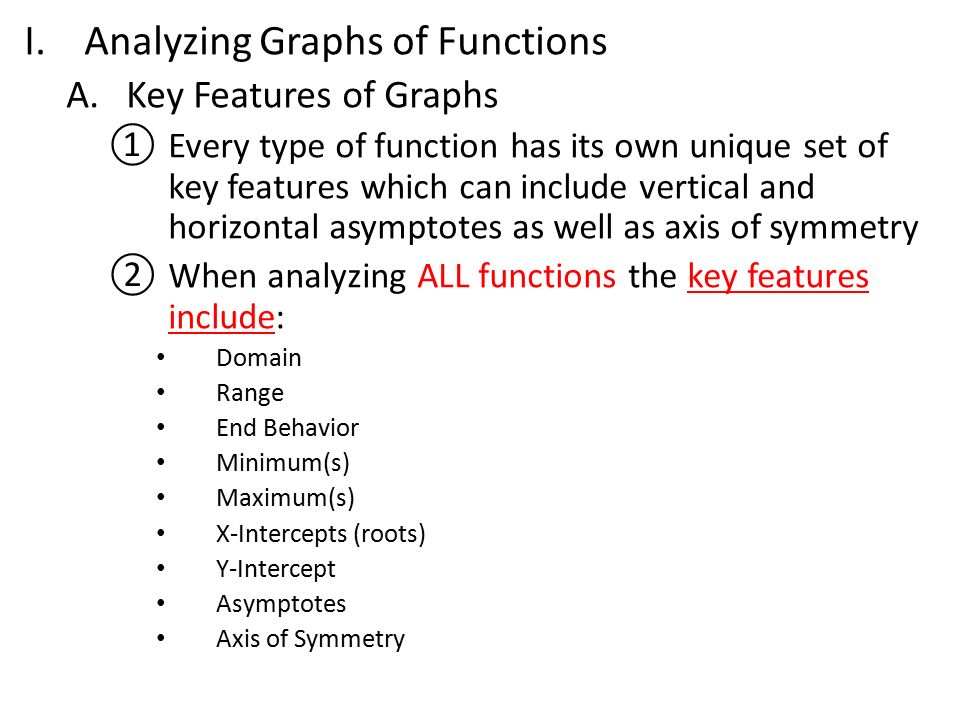

2. I.Analyzing Graphs of Functions A.Key Features of Graphs ①Every type of function has its own unique set of key features which can include vertical and horizontal asymptotes as well as axis of symmetry ②When analyzing ALL functions the key features include: Domain Range End Behavior Minimum(s) Maximum(s) X-Intercepts (roots) Y-Intercept Asymptotes Axis of Symmetry

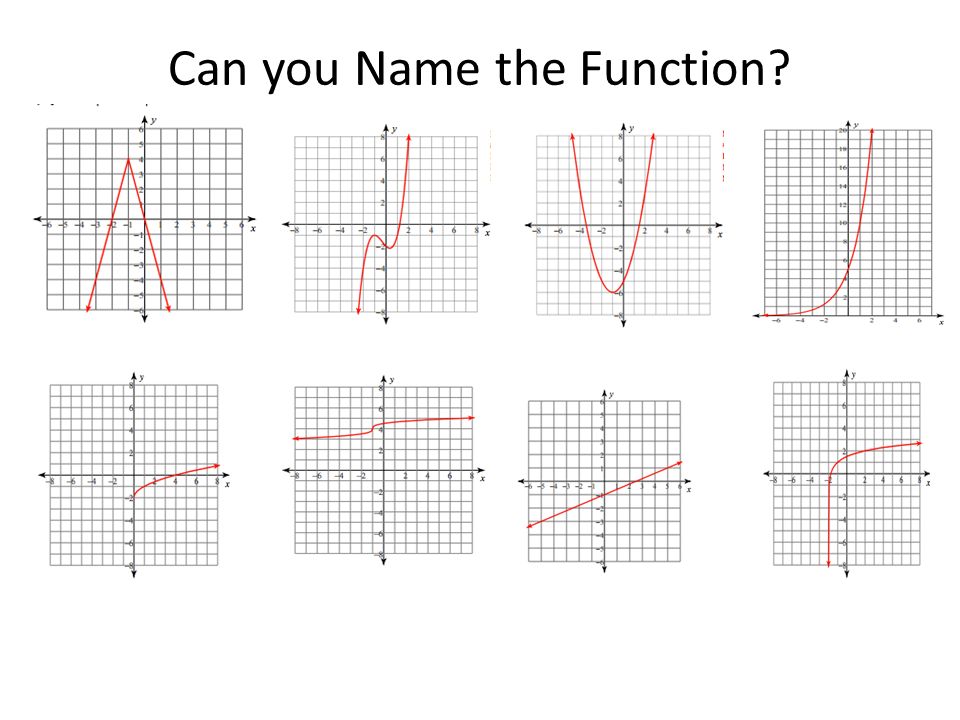

3. Can you Name the Function?

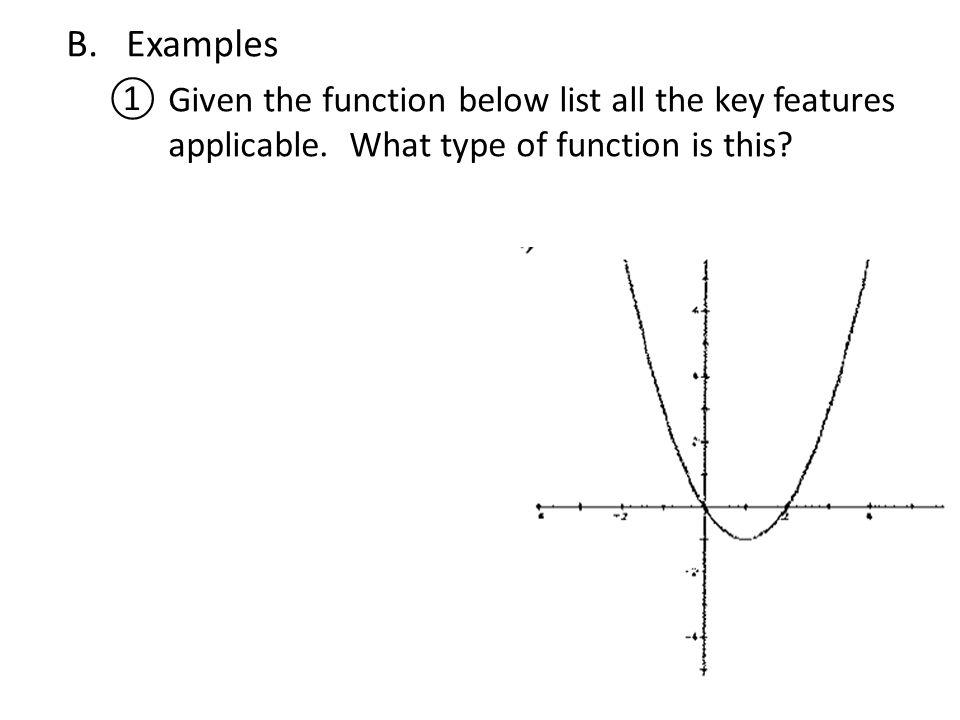

4. B.Examples ①Given the function below list all the key features applicable. What type of function is this?

5. B.Examples ②Given the function below list all the key features applicable. What type of function is this?

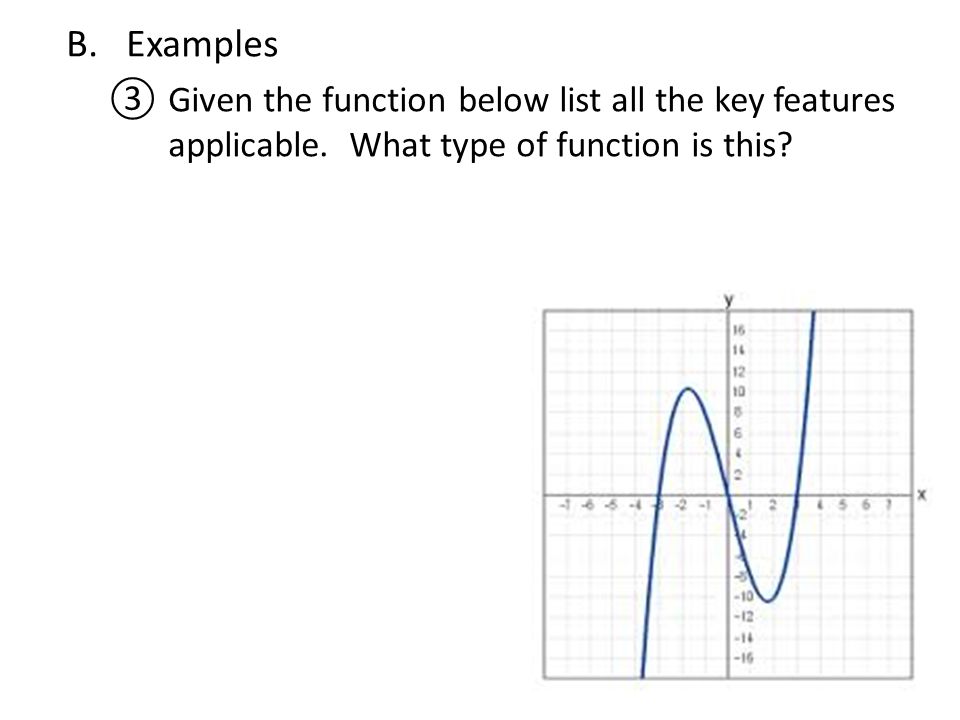

6. B.Examples ③Given the function below list all the key features applicable. What type of function is this?

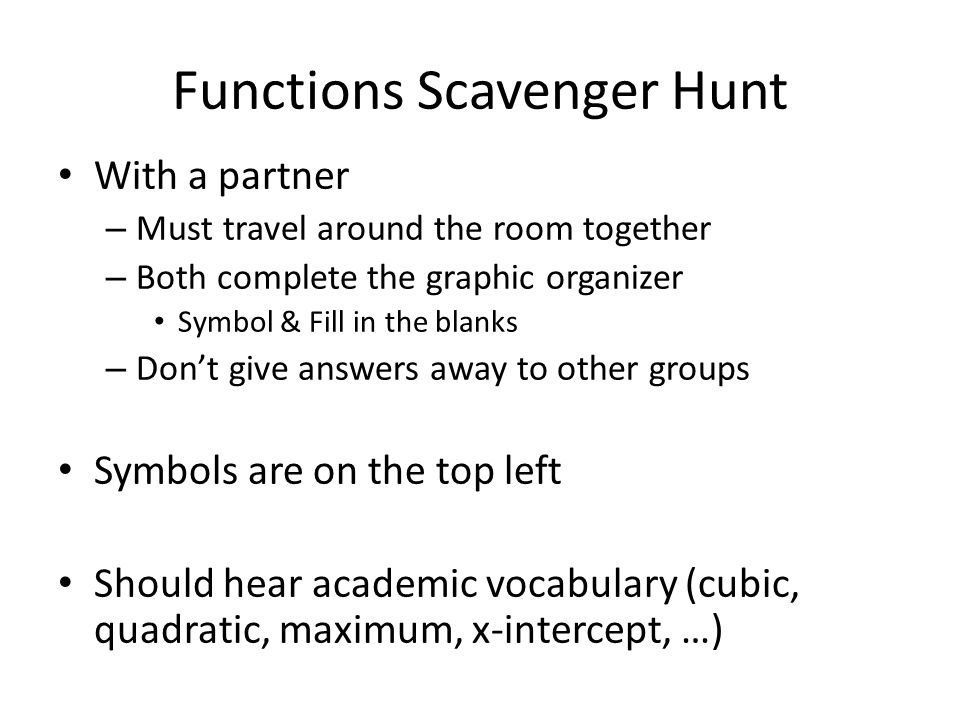

7. Functions Scavenger Hunt With a partner – Must travel around the room together – Both complete the graphic organizer Symbol & Fill in the blanks – Don’t give answers away to other groups Symbols are on the top left Should hear academic vocabulary (cubic, quadratic, maximum, x-intercept, …)

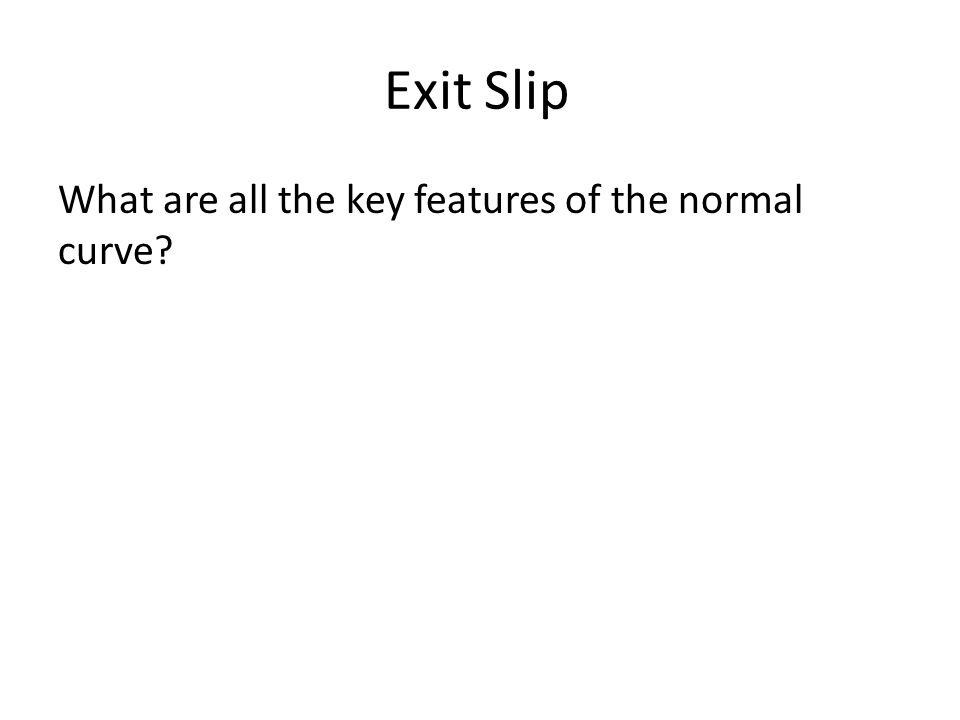

8. Exit Slip What are all the key features of the normal curve?

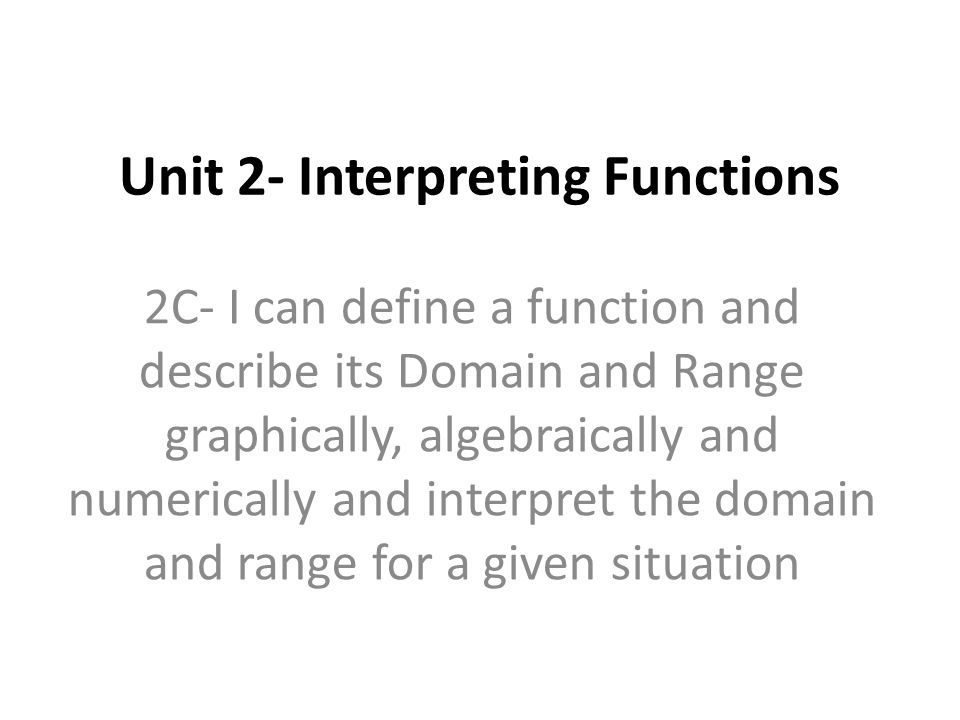

9. Unit 2- Interpreting Functions 2C- I can define a function and describe its Domain and Range graphically, algebraically and numerically and interpret the domain and range for a given situation

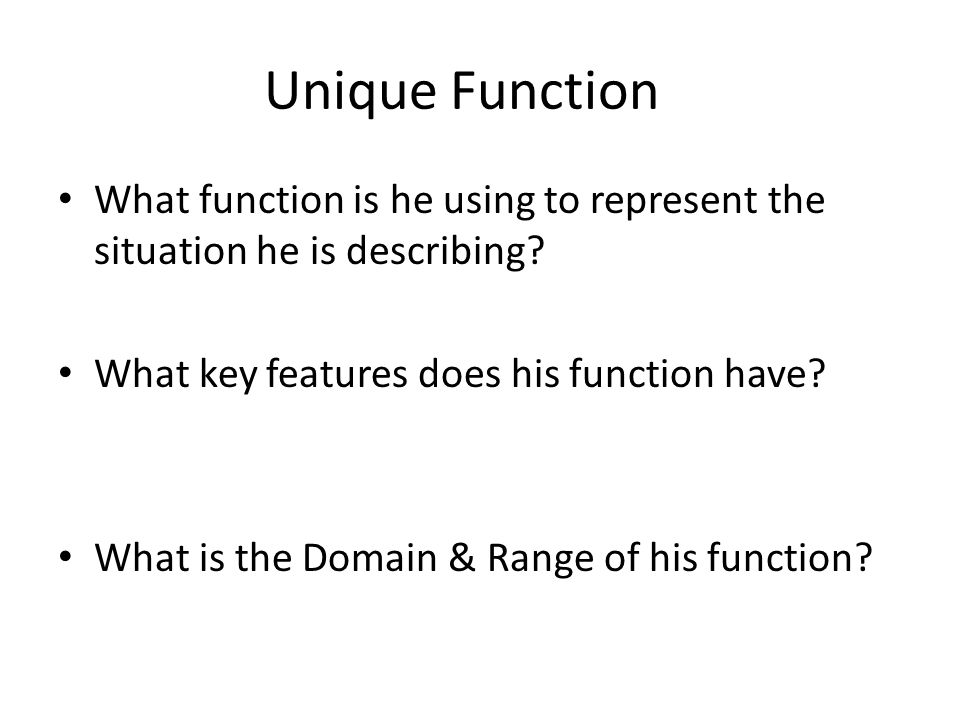

10. Unique Function What function is he using to represent the situation he is describing? What key features does his function have? What is the Domain & Range of his function?

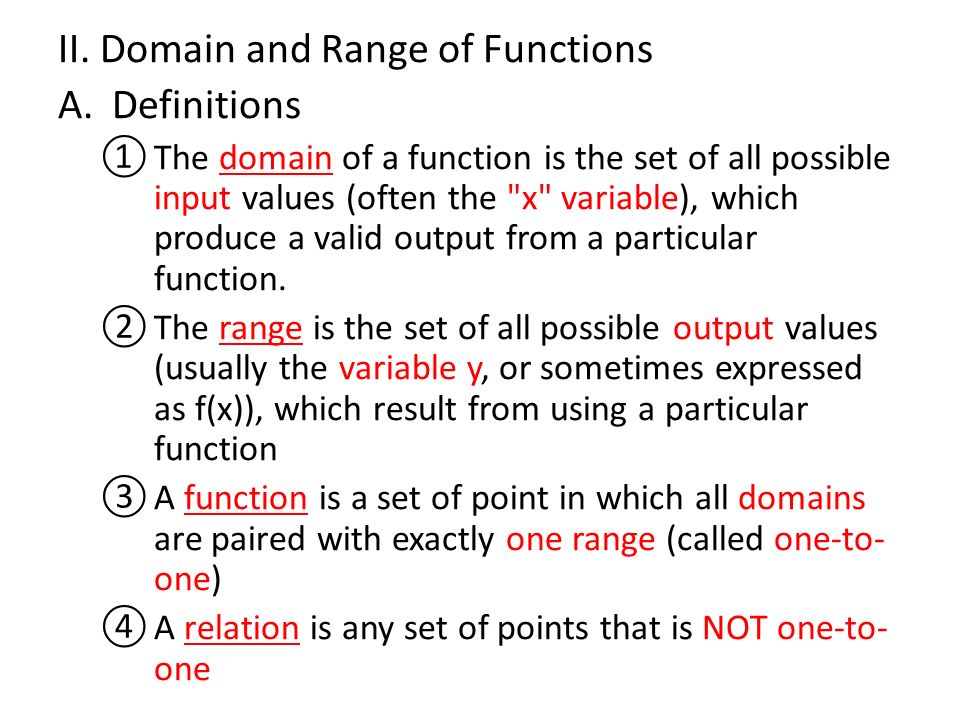

11. II. Domain and Range of Functions A.Definitions ①The domain of a function is the set of all possible input values (often the "x" variable), which produce a valid output from a particular function. ②The range is the set of all possible output values (usually the variable y, or sometimes expressed as f(x)), which result from using a particular function ③A function is a set of point in which all domains are paired with exactly one range (called one-to- one) ④A relation is any set of points that is NOT one-to- one

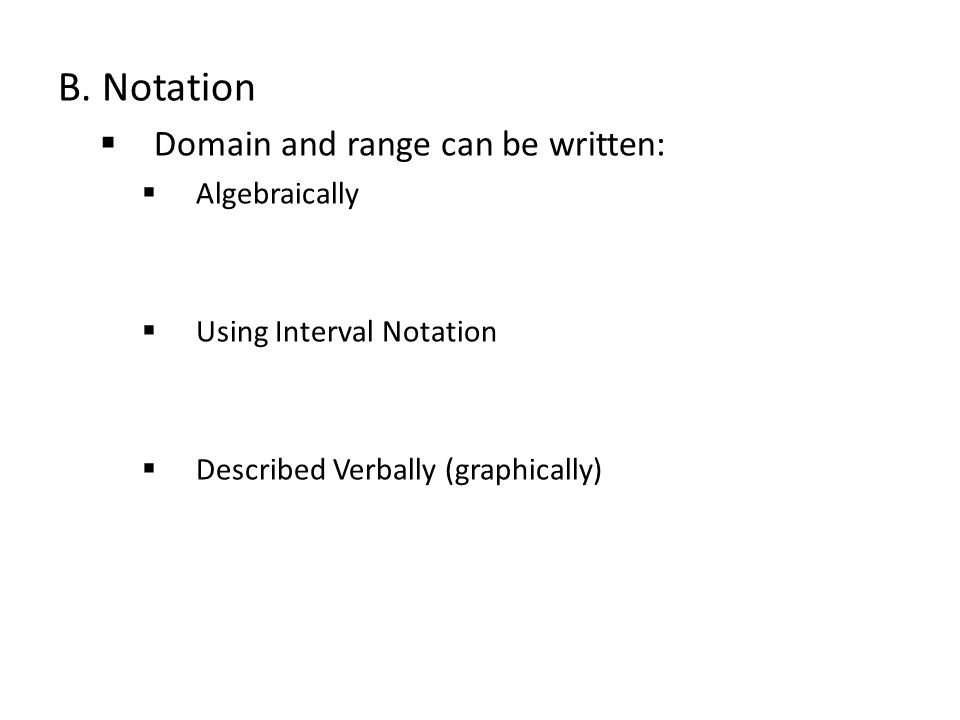

12. B. Notation  Domain and range can be written:  Algebraically  Using Interval Notation  Described Verbally (graphically)

13. C.Examples ①Algebra I-State the domain and range of the set of points below. Is the set of points a relation or a function? {(2, –3), (4, 6), (3, –1), (6, 6), (2, 3)}

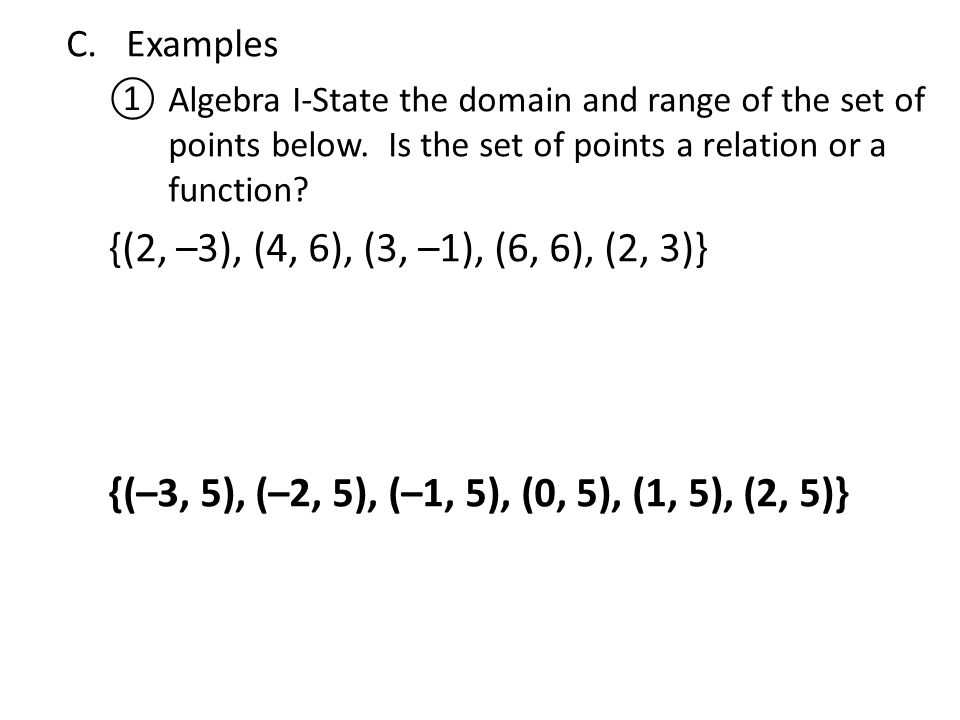

14. C.Examples ①Algebra I-State the domain and range of the set of points below. Is the set of points a relation or a function? {(2, –3), (4, 6), (3, –1), (6, 6), (2, 3)} {(–3, 5), (–2, 5), (–1, 5), (0, 5), (1, 5), (2, 5)}

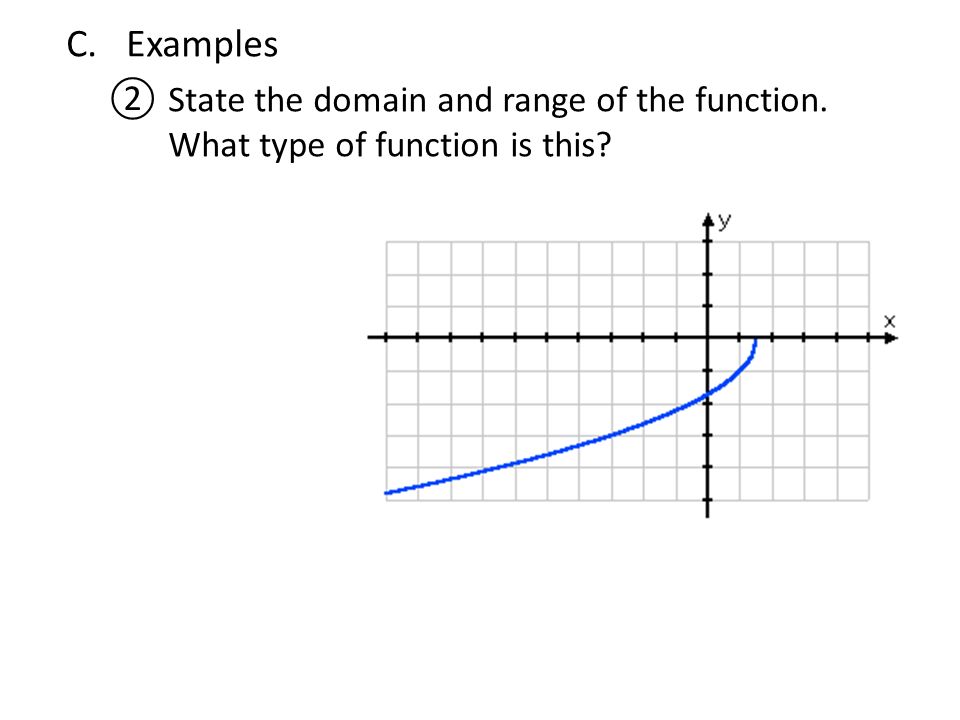

15. C.Examples ②State the domain and range of the function. What type of function is this?

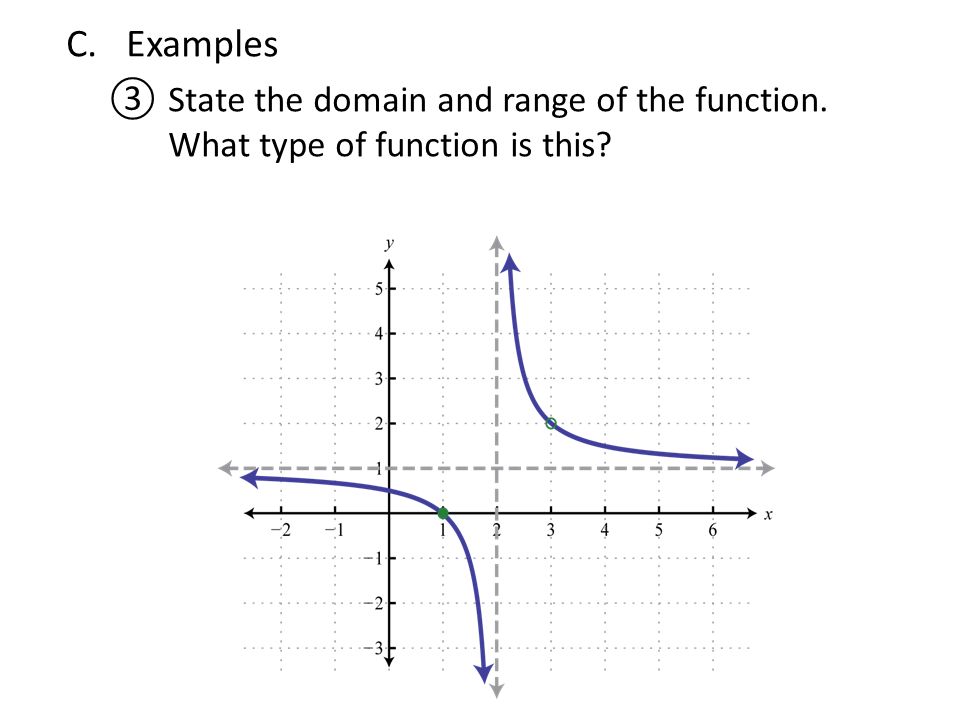

16. C.Examples ③State the domain and range of the function. What type of function is this?

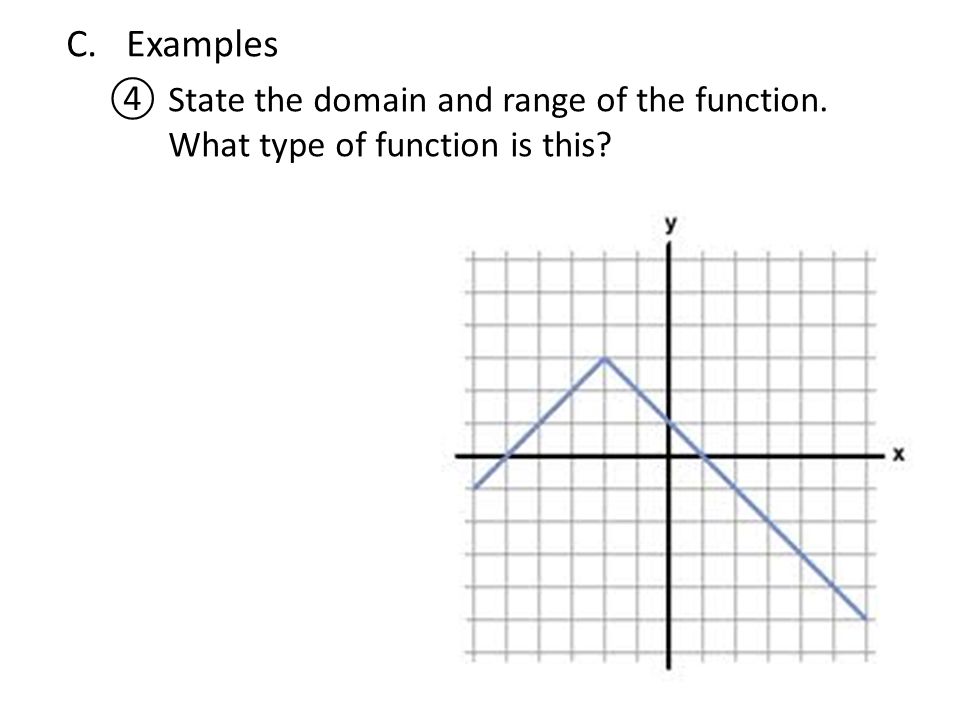

17. C.Examples ④State the domain and range of the function. What type of function is this?

18. C.Examples ⑤State the domain and range of the function. What type of function is this?

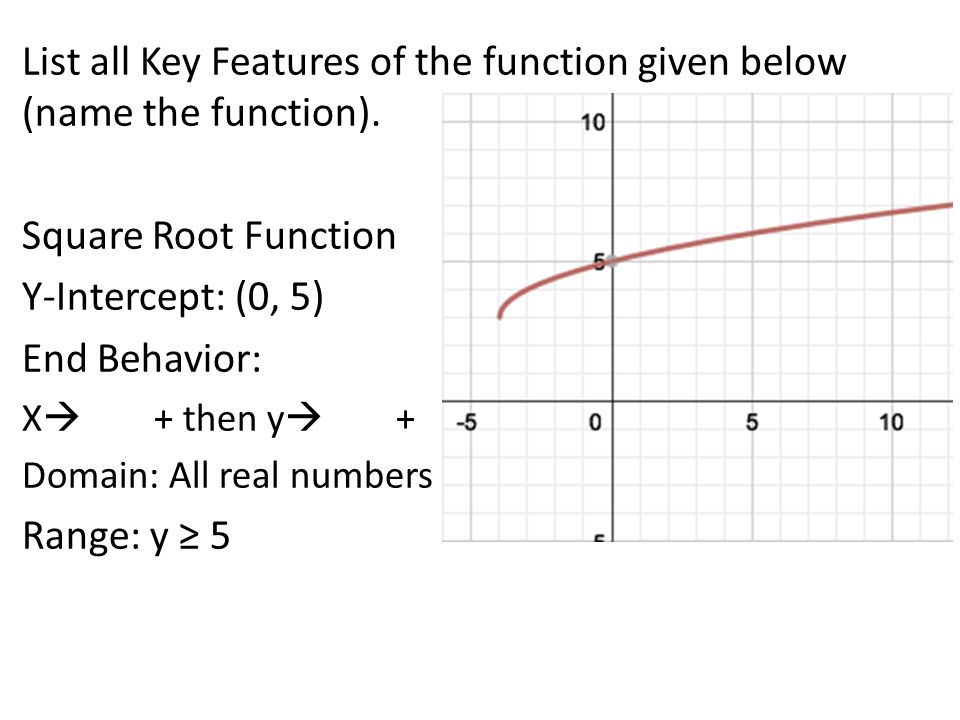

20. List all Key Features of the function given below (name the function). Square Root Function Y-Intercept: (0, 5) End Behavior: X  + then y  + Domain: All real numbers Range: y ≥ 5

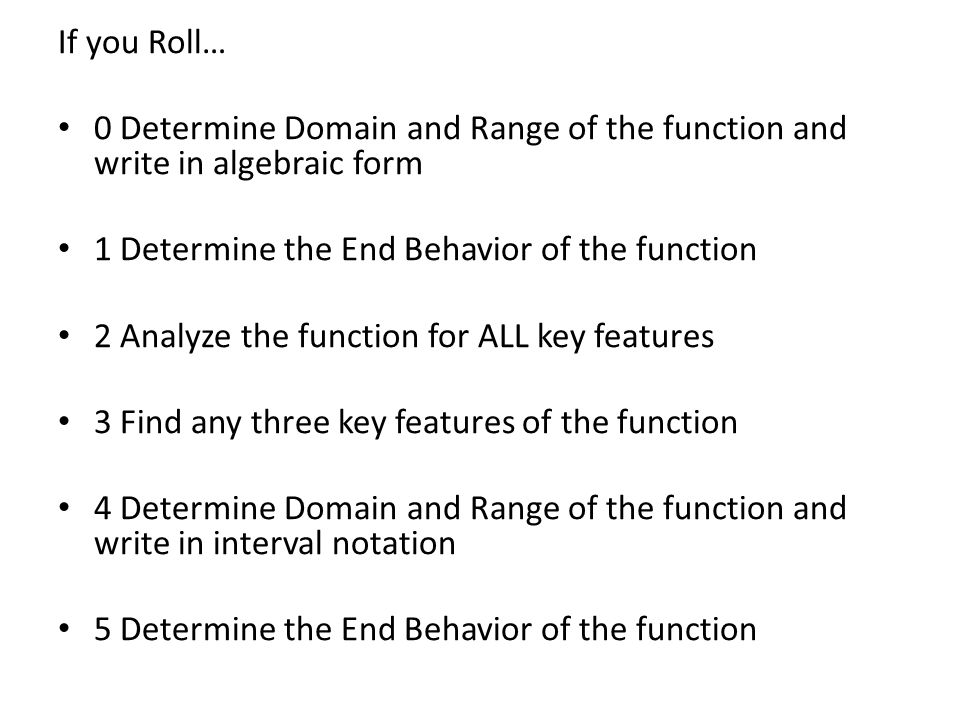

21. If you Roll… 0 Determine Domain and Range of the function and write in algebraic form 1 Determine the End Behavior of the function 2 Analyze the function for ALL key features 3 Find any three key features of the function 4 Determine Domain and Range of the function and write in interval notation 5 Determine the End Behavior of the function

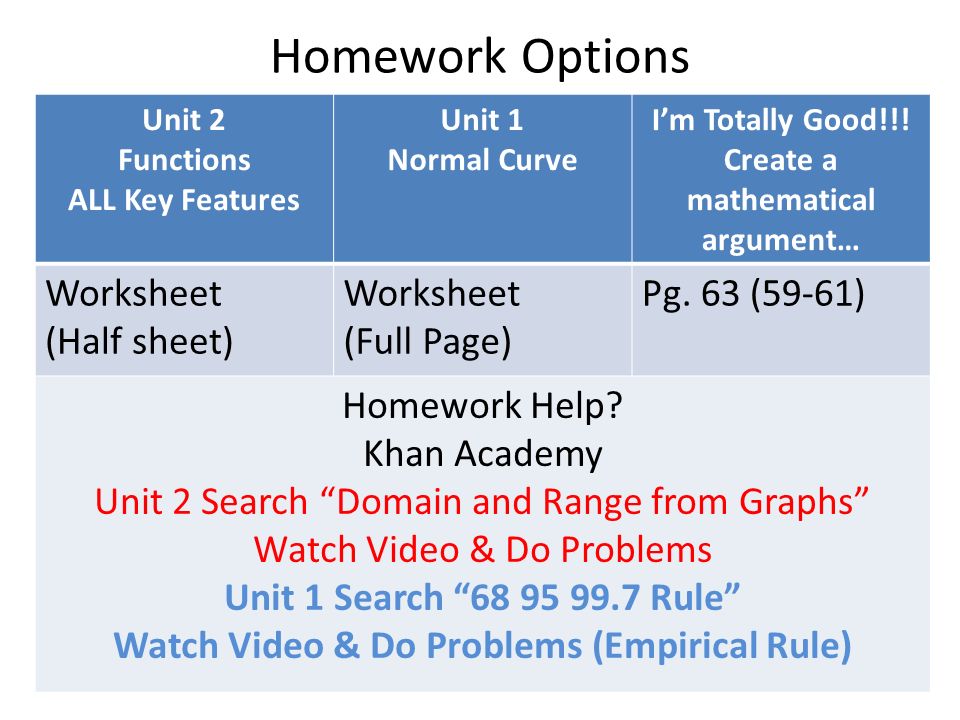

22. Homework Options Unit 2 Functions ALL Key Features Unit 1 Normal Curve I’m Totally Good!!! Create a mathematical argument… Worksheet (Half sheet) Worksheet (Full Page) Pg. 63 (59-61) Homework Help? Khan Academy Unit 2 Search “Domain and Range from Graphs” Watch Video & Do Problems Unit 1 Search “68 95 99.7 Rule” Watch Video & Do Problems (Empirical Rule)

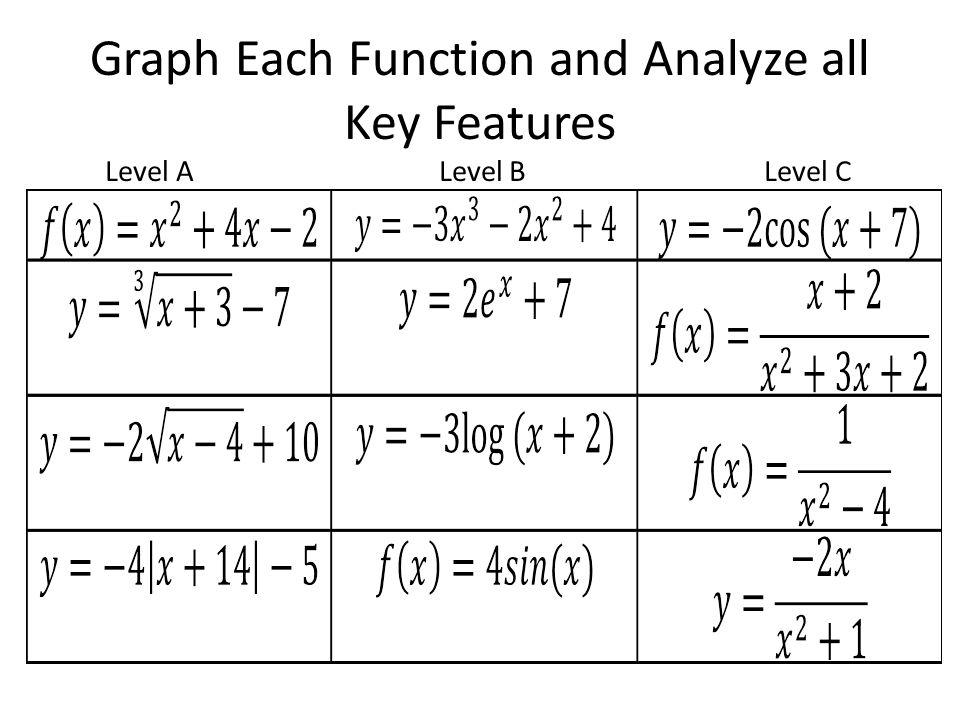

24. Graph Each Function and Analyze all Key Features Level A Level B Level C

25. Unit 2- Interpreting Functions 2D-I can describe relevant key features of piece-wise functions, explain how the constraints determine the domain, use the constraints to evaluate the function and graph linear piece-wise functions.

26. III. Piecewise Functions A.In real life, most situations cannot be represented using only one function. B.A piecewise function is a function that is defined on a sequence of intervals/domains C.Examples ①Define the domains in the piecewise function and explain what any key features represent.

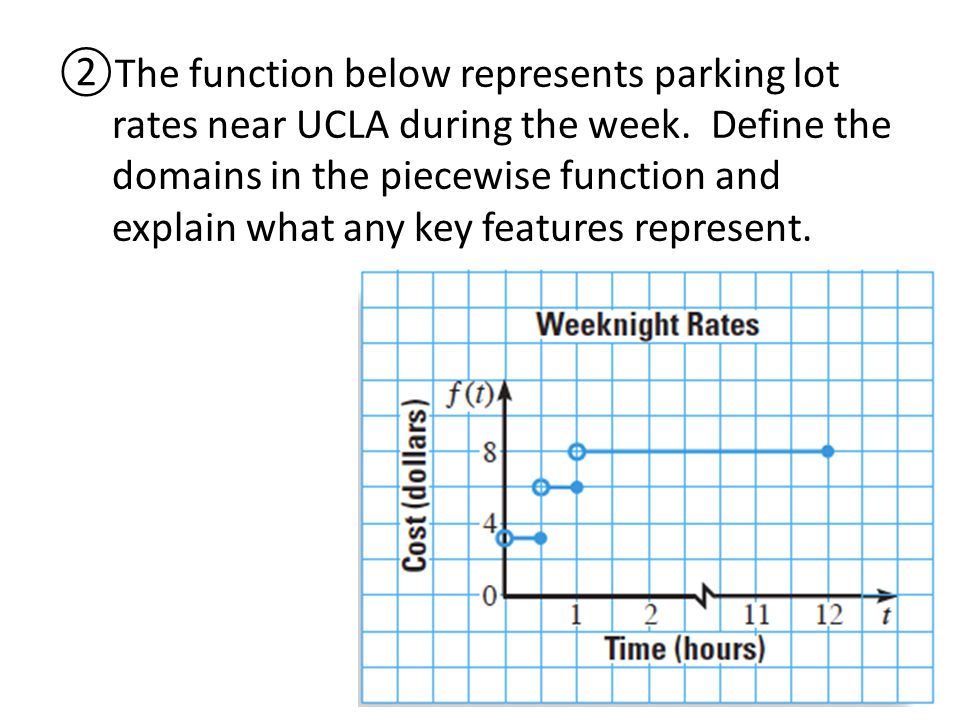

27. ②The function below represents parking lot rates near UCLA during the week. Define the domains in the piecewise function and explain what any key features represent.

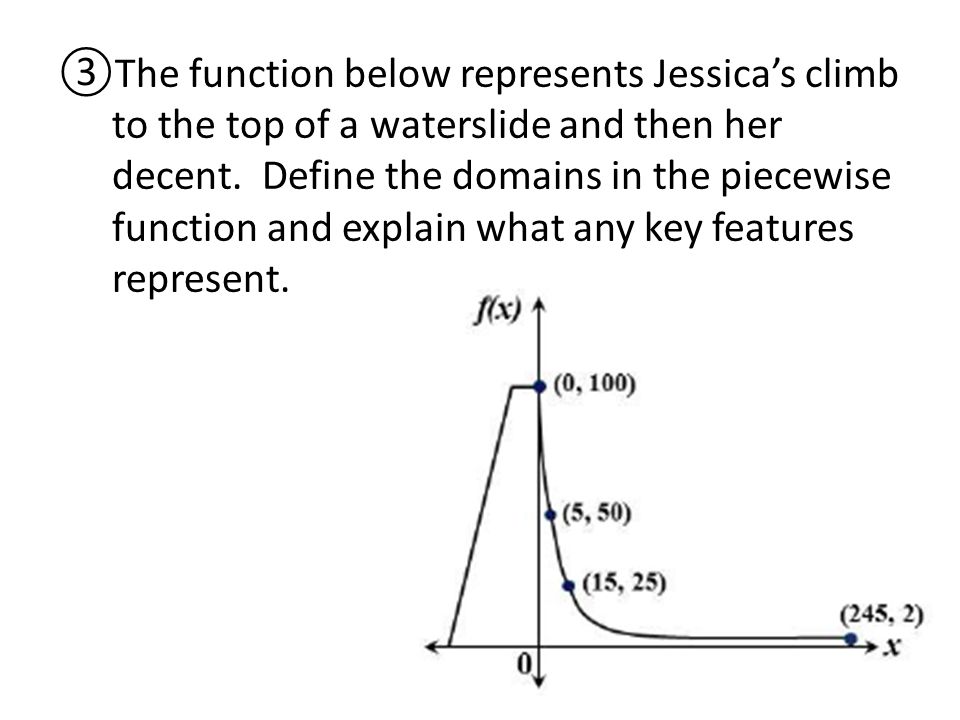

28. ③The function below represents Jessica’s climb to the top of a waterslide and then her decent. Define the domains in the piecewise function and explain what any key features represent.

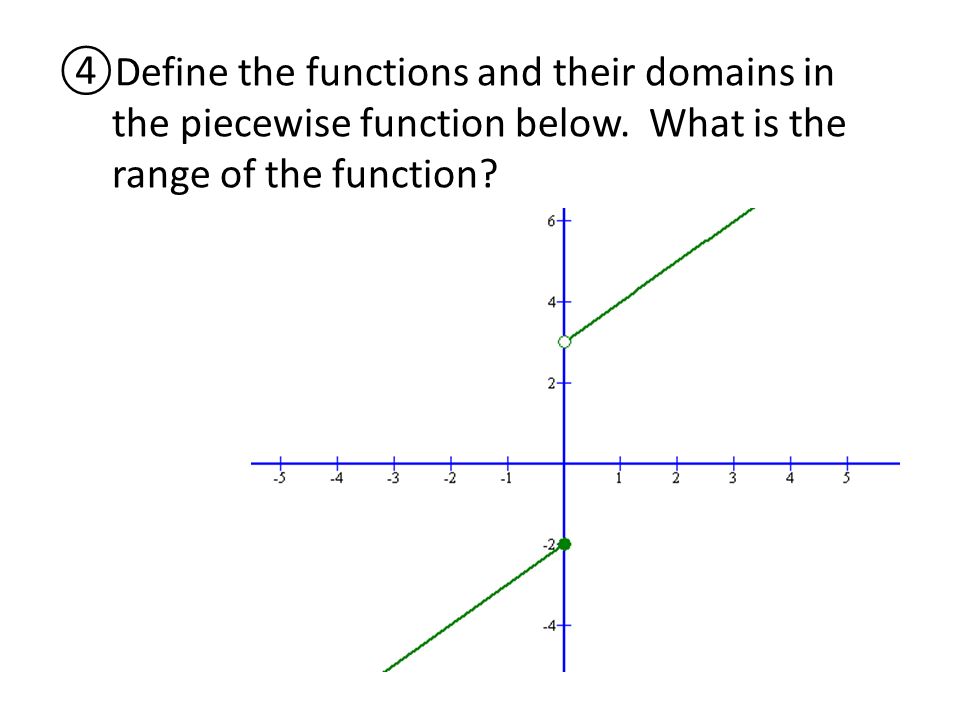

29. ④Define the functions and their domains in the piecewise function below. What is the range of the function?

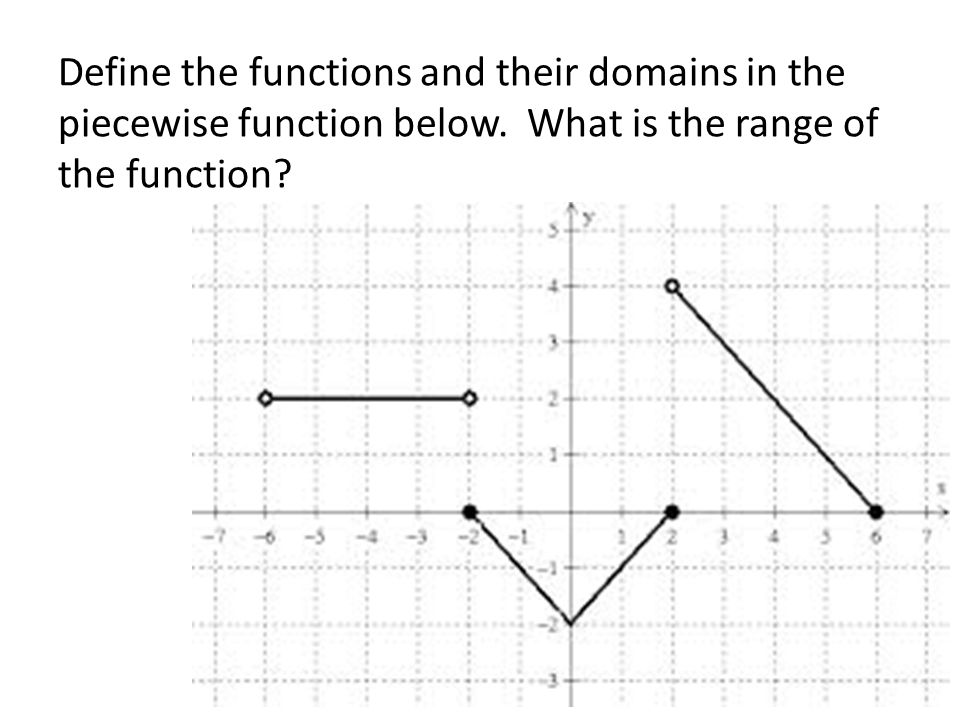

30. Define the functions and their domains in the piecewise function below. What is the range of the function?

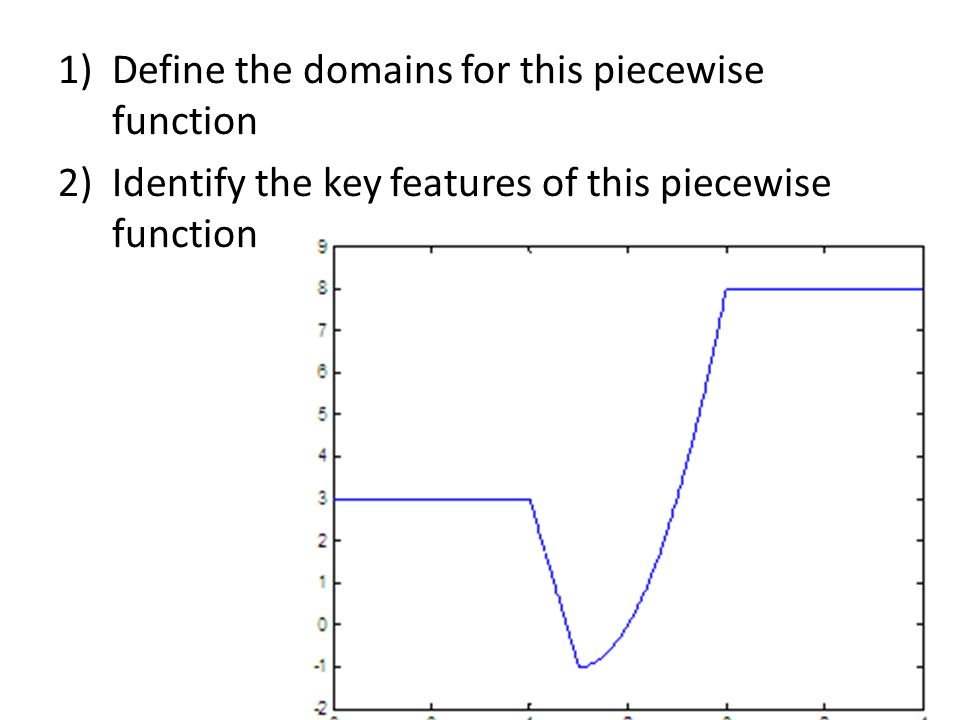

31. 1)Define the domains for this piecewise function 2)Identify the key features of this piecewise function

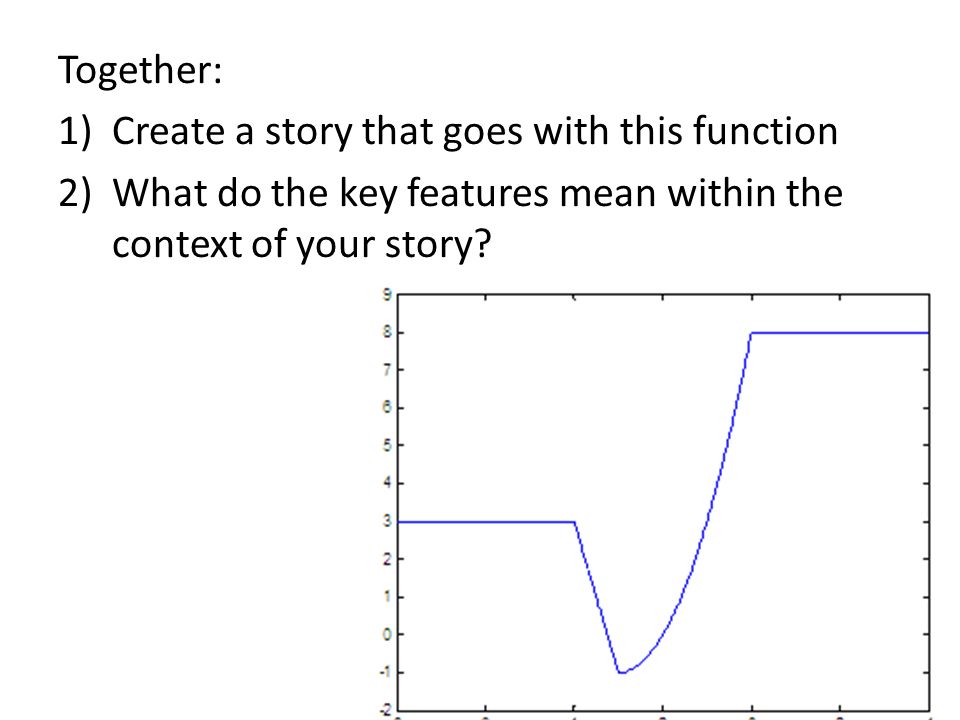

32. Together: 1)Create a story that goes with this function 2)What do the key features mean within the context of your story?

33. Galley Walk Pink papers around the room Level A-B-C Answers on back; check your work & explanations

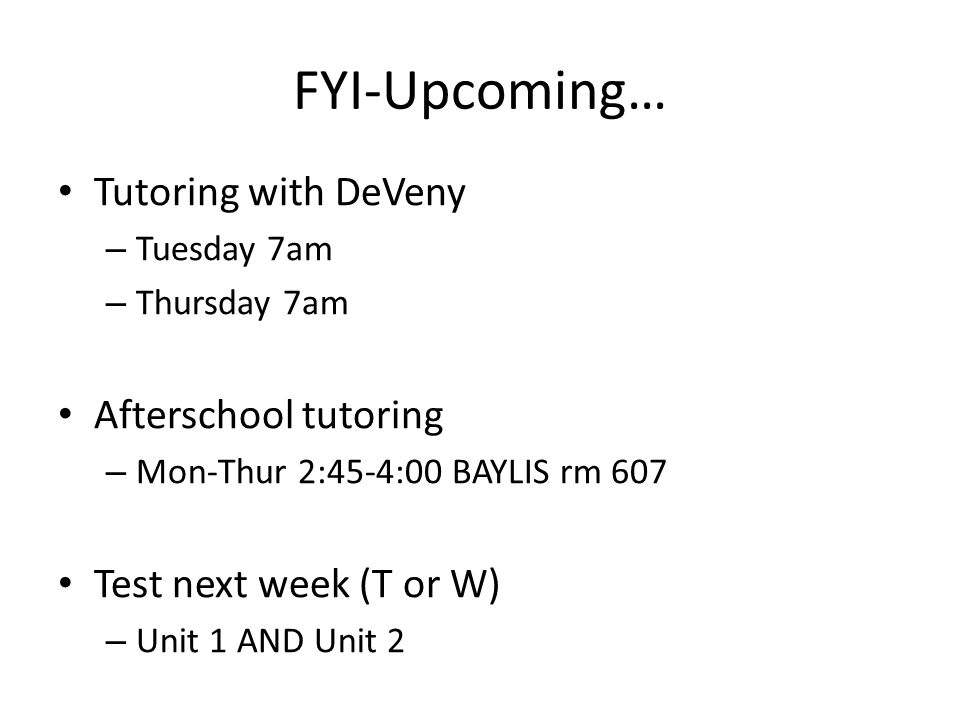

34. FYI-Upcoming… Tutoring with DeVeny – Tuesday 7am – Thursday 7am Afterschool tutoring – Mon-Thur 2:45-4:00 BAYLIS rm 607 Test next week (T or W) – Unit 1 AND Unit 2

35. IV. Evaluating Functions A.Reminder: All functions have a domain and a range. B.Vocabulary: ①Domain=x-values=input ②Range=y-values=output ③Evaluating a function is when a given input is placed into a function and the output is determined C.Examples

36. Evaluate the function for the given inputs f(x)= - x 2 +3x-1 g(x)= 8x-1 h(x)=|x-6|-9 ① g(-3)

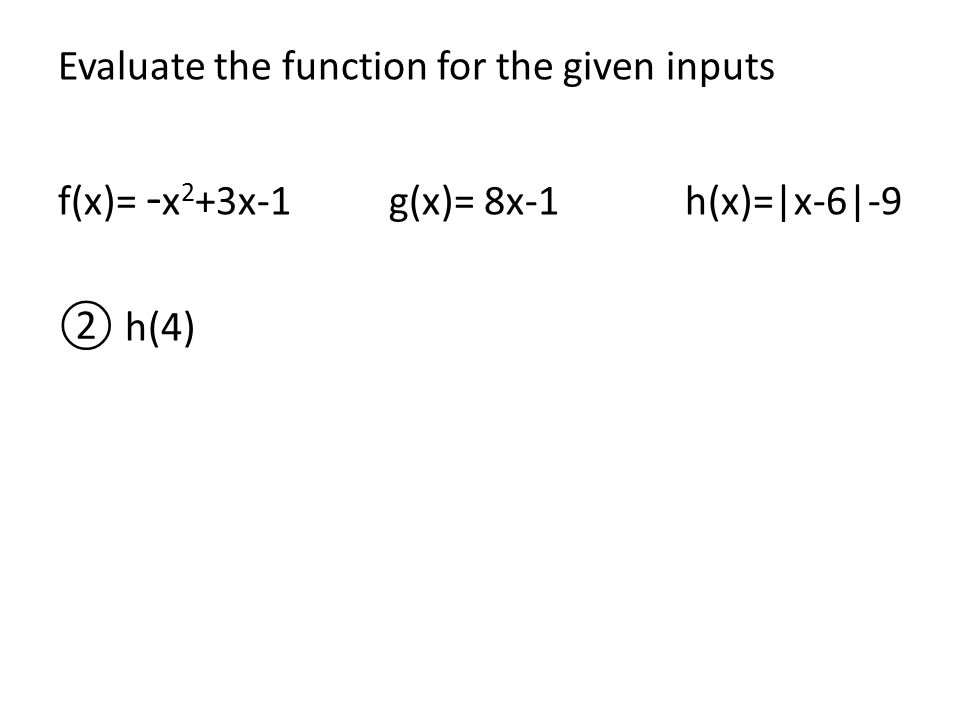

37. Evaluate the function for the given inputs f(x)= - x 2 +3x-1 g(x)= 8x-1 h(x)=|x-6|-9 ② h(4)

38. Evaluate the function for the given value of x ① f(2)

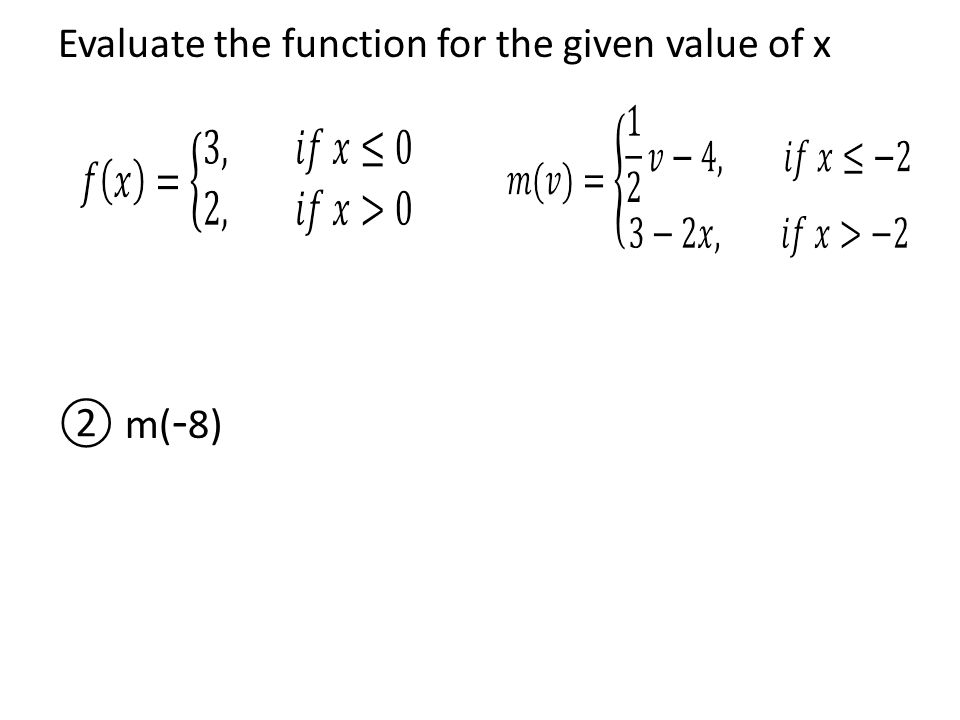

39. Evaluate the function for the given value of x ② m( - 8)

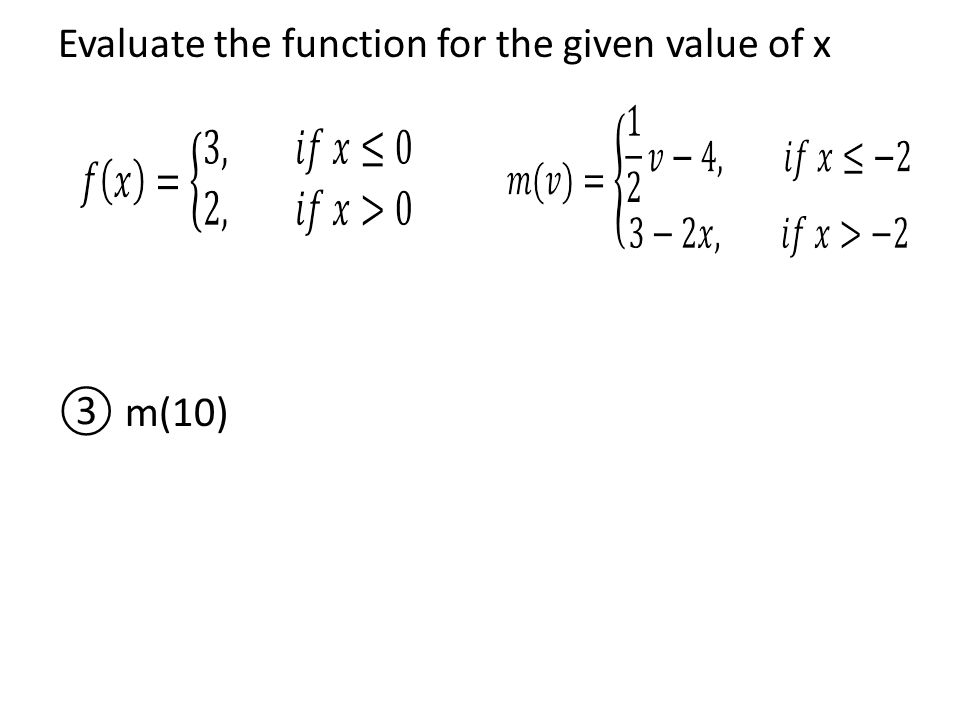

40. Evaluate the function for the given value of x ③ m(10)

41. Evaluate the function for the given value of x ④ f(0)

42. Evaluate the function for the given inputs f(x)= - x 2 +3x-1 g(x)= 8x-1 h(x)=|x-6|-9 ③ x= - 4

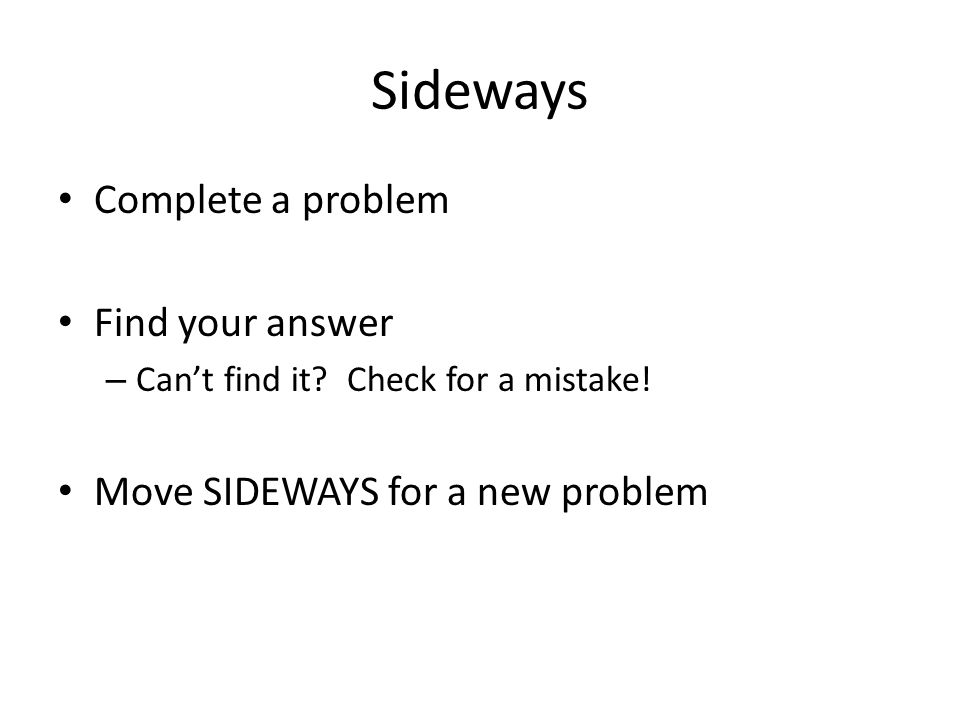

43. Sideways Complete a problem Find your answer – Can’t find it? Check for a mistake! Move SIDEWAYS for a new problem

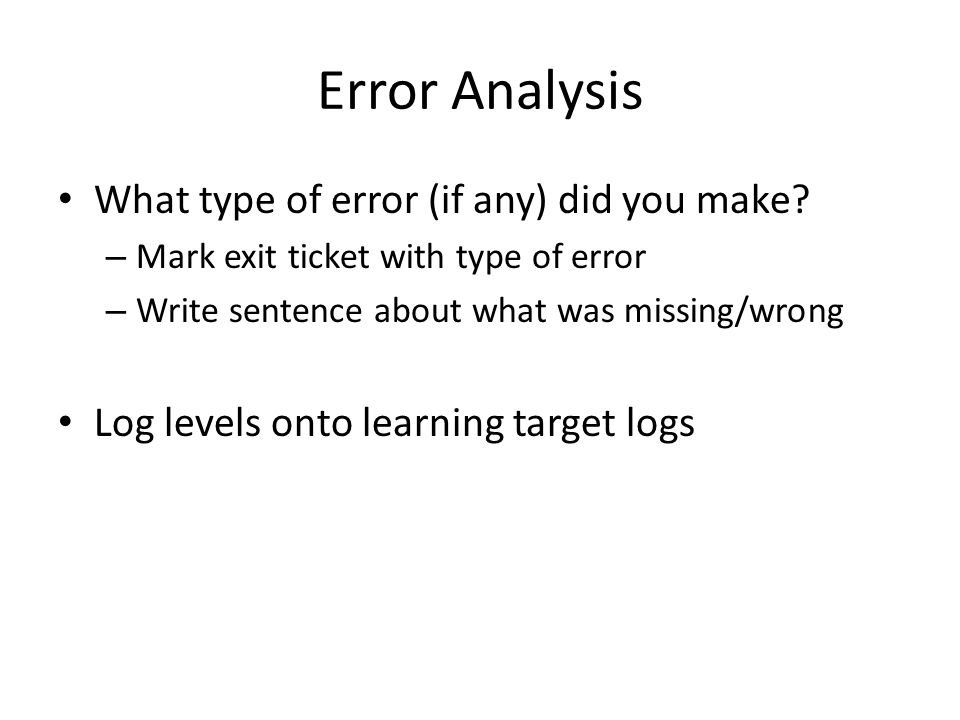

44. Error Analysis What type of error (if any) did you make? – Mark exit ticket with type of error – Write sentence about what was missing/wrong Log levels onto learning target logs

45. Quick Check The scores on the chapter 3 exam in Alex’s history class were normally distributed with a mean of 71 and a standard deviation of 5. Alex scored a 74. He knows that his parents will not be happy; thus, his plan is to use what he learned in Algebra II and explain to his parents that he scored higher than 60% of his class. Is Alex’s statement accurate? Explain why or why not.

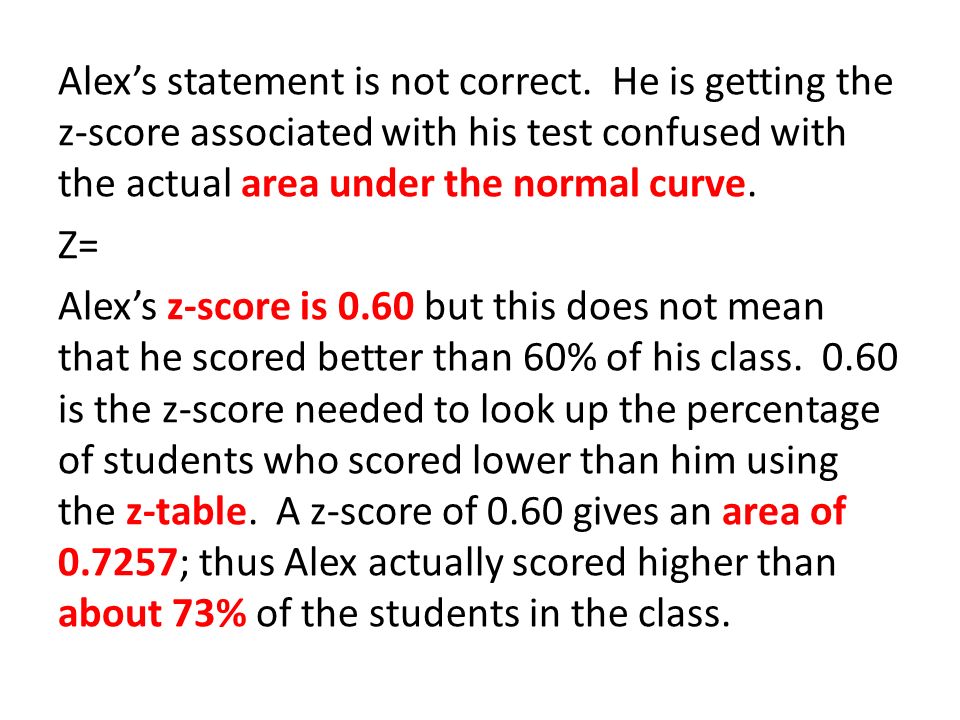

46. Alex’s statement is not correct. He is getting the z-score associated with his test confused with the actual area under the normal curve. Z= Alex’s z-score is 0.60 but this does not mean that he scored better than 60% of his class. 0.60 is the z-score needed to look up the percentage of students who scored lower than him using the z-table. A z-score of 0.60 gives an area of 0.7257; thus Alex actually scored higher than about 73% of the students in the class.

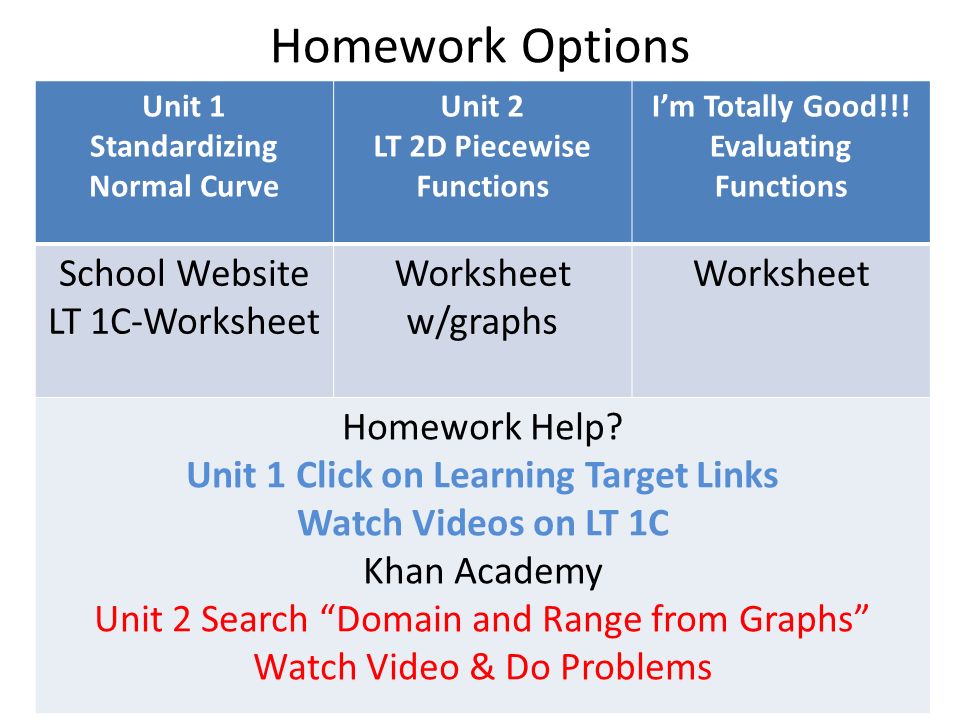

47. Homework Options Unit 1 Standardizing Normal Curve Unit 2 LT 2D Piecewise Functions I’m Totally Good!!! Evaluating Functions School Website LT 1C-Worksheet Worksheet w/graphs Worksheet Homework Help? Unit 1 Click on Learning Target Links Watch Videos on LT 1C Khan Academy Unit 2 Search “Domain and Range from Graphs” Watch Video & Do Problems

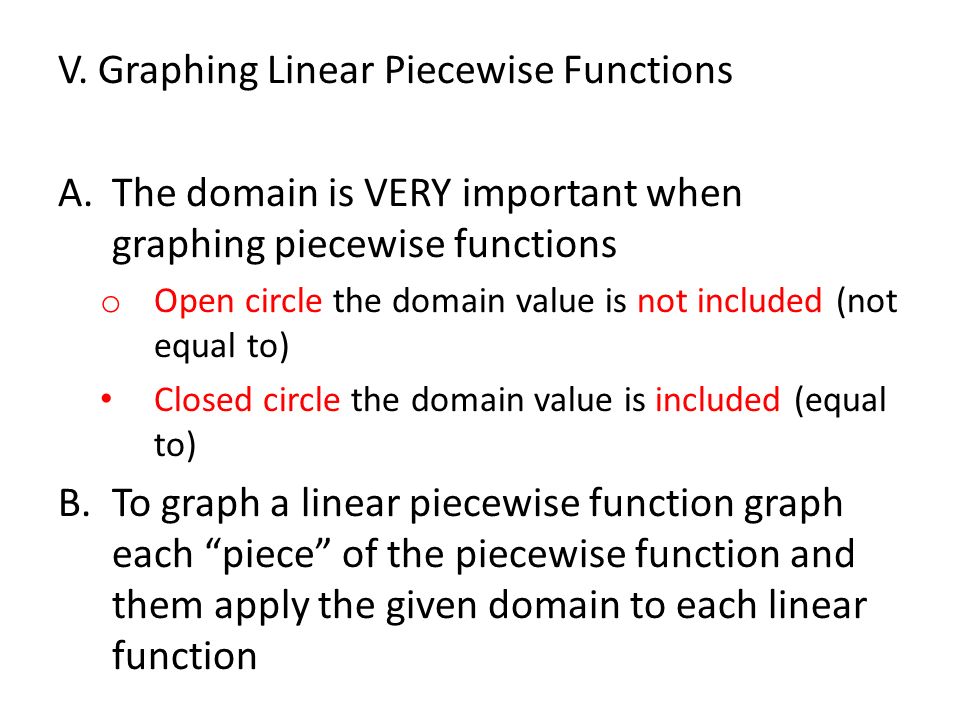

48. V. Graphing Linear Piecewise Functions A.The domain is VERY important when graphing piecewise functions o Open circle the domain value is not included (not equal to) Closed circle the domain value is included (equal to) B.To graph a linear piecewise function graph each “piece” of the piecewise function and them apply the given domain to each linear function

49. Prior Knowledge Check (Algebra I) On Your OWN Graph… ① y=8x-9 ②- 6x+4y= - 36 ③- 10y=5x+20

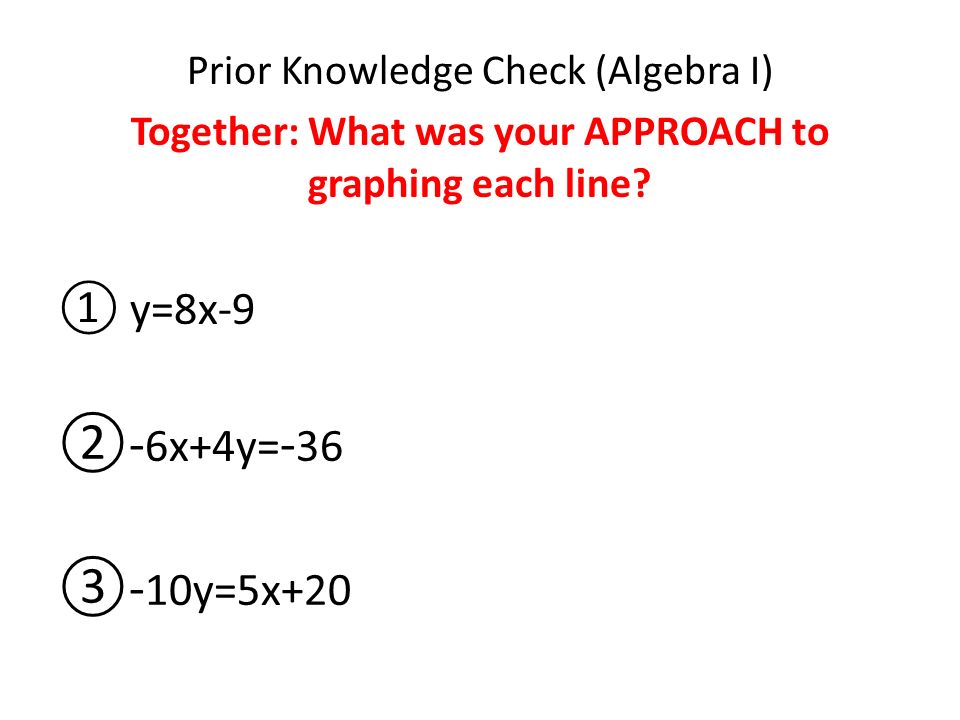

50. Prior Knowledge Check (Algebra I) Together: What was your APPROACH to graphing each line? ① y=8x-9 ②- 6x+4y= - 36 ③- 10y=5x+20

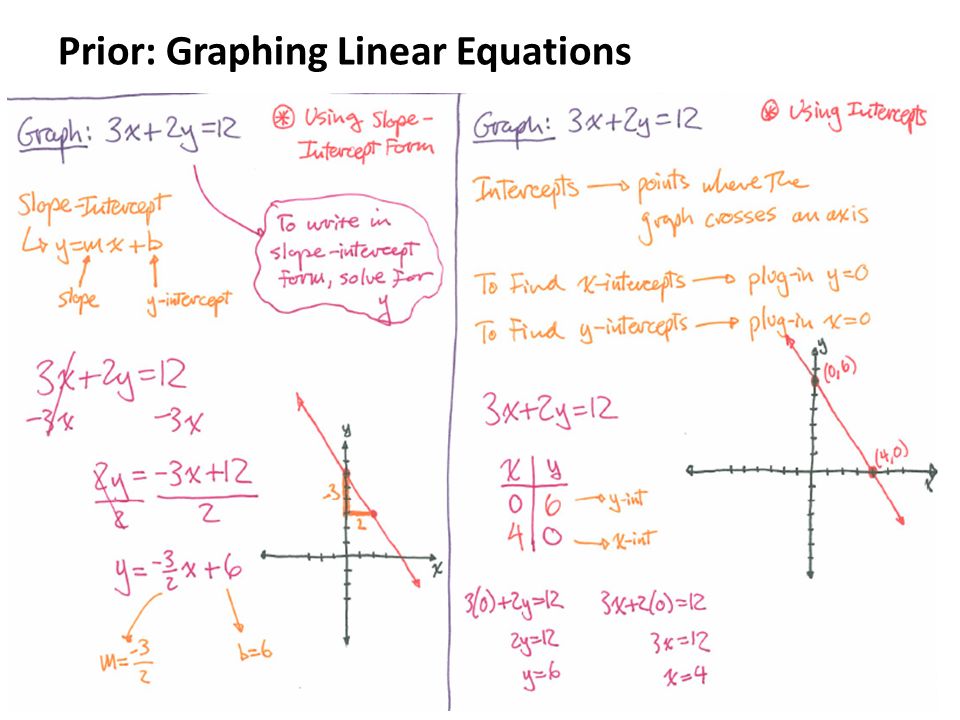

51. Prior: Graphing Linear Equations

52. C.Examples-Graph each function and state the domain and range in interval notation ①

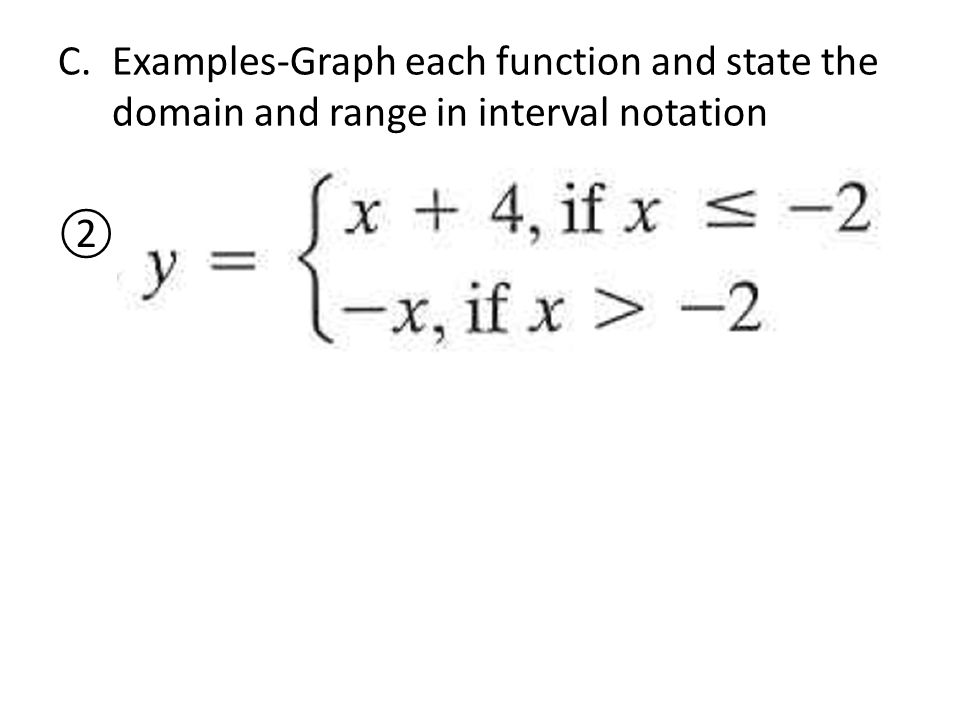

54. C.Examples-Graph each function and state the domain and range in interval notation ②

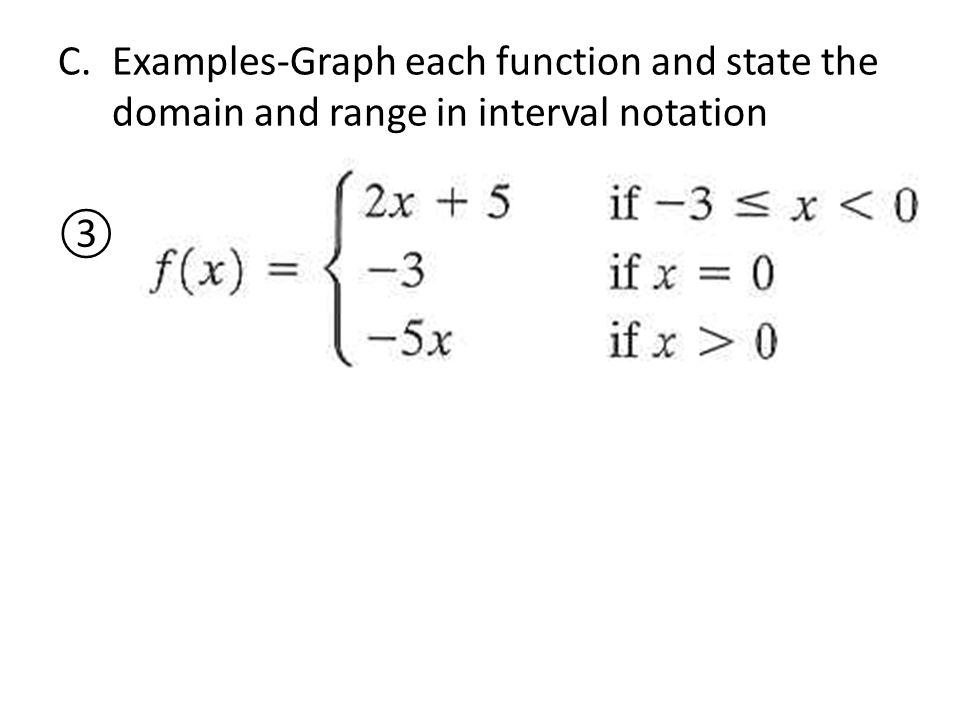

56. C.Examples-Graph each function and state the domain and range in interval notation ③

58. Whiteboards List every word you think is an “important” word from Unit 2

59. Whiteboards List every word you think is an “important” word from Unit 2 Pick the ONE word you think is THE most “important”  Write that word on a post-it and explain why it’s the most important

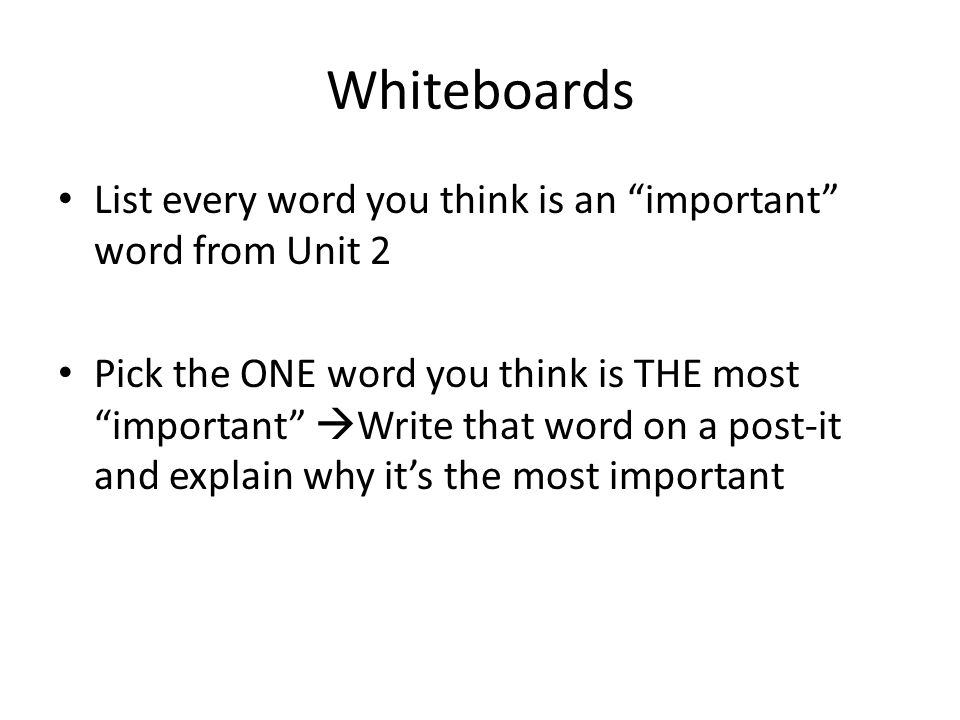

60. Whiteboards List every word you think is an “important” word from Unit 2 Pick the ONE word you think is THE most “important”  Write that word on a post-it and explain why it’s the most important

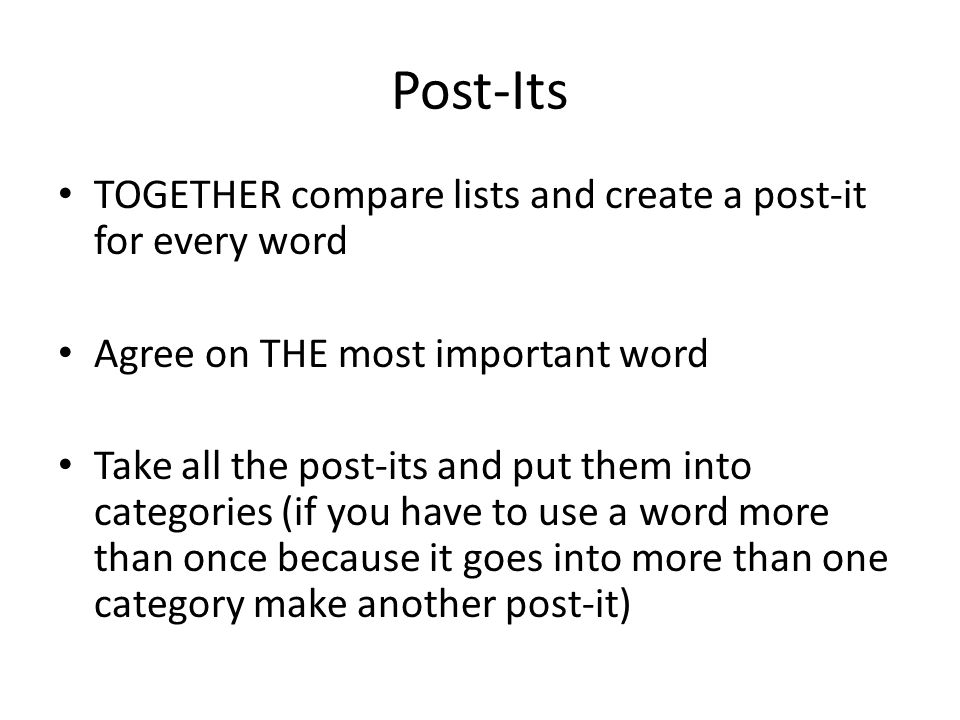

61. Post-Its TOGETHER compare lists and create a post-it for every word Agree on THE most important word Take all the post-its and put them into categories (if you have to use a word more than once because it goes into more than one category make another post-it)

62. Create a Concept Map Unit 2

63. Most Important Word Category 1 Category 2 Category 3 Word

64. Take a Picture of Your Map Homework: Create your own version of the Map – Add at least two connections onto YOUR map that you and your team didn’t come up with

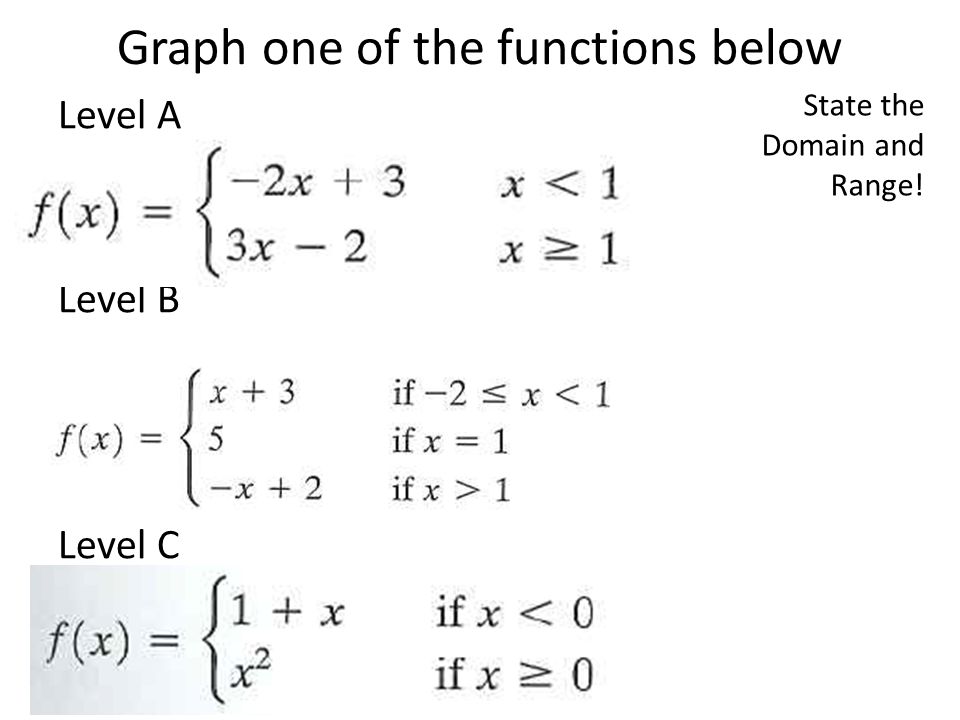

65. Graph one of the functions below Level A Level B Level C State the Domain and Range!

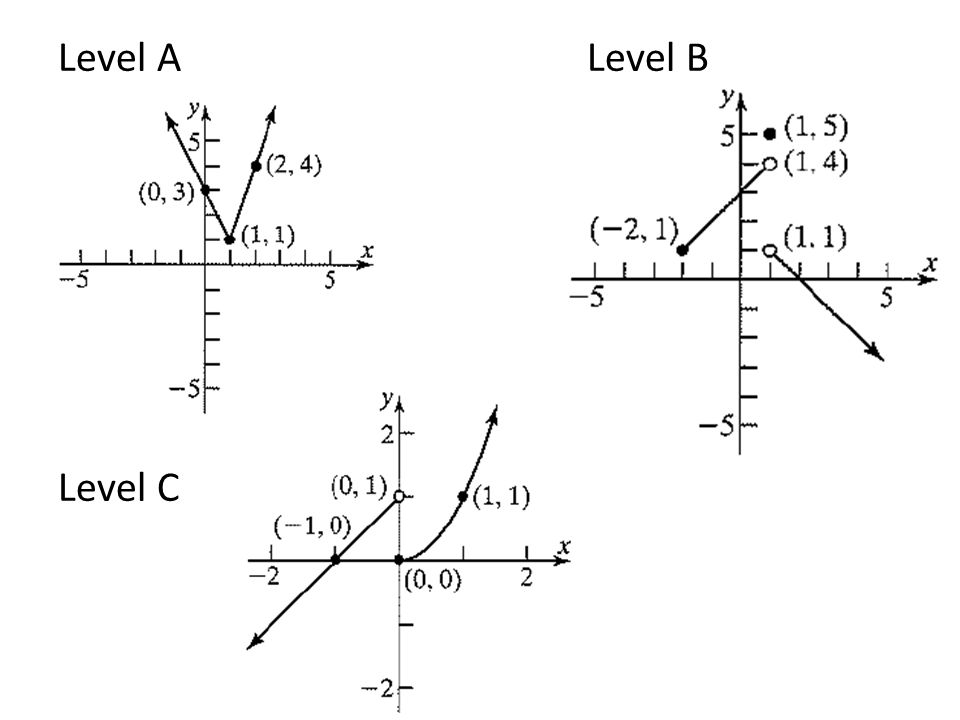

66. Level A Level B Level C
