1. Workshop 3 of 7 Welcome!

2. Today's Topics Review of Workshop 2 Loops While For Auto-indexing Shift registers Case Structure

3. True or False? 1.Arrays can contain only one data type. 2.An array must contain at least one element. 3.The Bundle function can be used to add elements to a cluster. 4.Clusters can contain both controls and indicators within the same shell; however, arrays cannot. 5.It is possible to have clusters containing arrays as well as arrays containing clusters. 3 Review Question 1

4. True or False? 1.Arrays can contain only one data type. TRUE 2.An array must contain at least one element. FALSE 3.The Bundle function can be used to add elements to a cluster. FALSE 4.Clusters can contain both controls and indicators within the same shell; however, arrays cannot. FALSE 5.It is possible to have clusters containing arrays as well as arrays containing clusters. TRUE 4 Review Question 1

5. The Error Cluster contains which of the following? a)Boolean b)Array c)String d)Numeric e)Cluster 5 Review Question 2

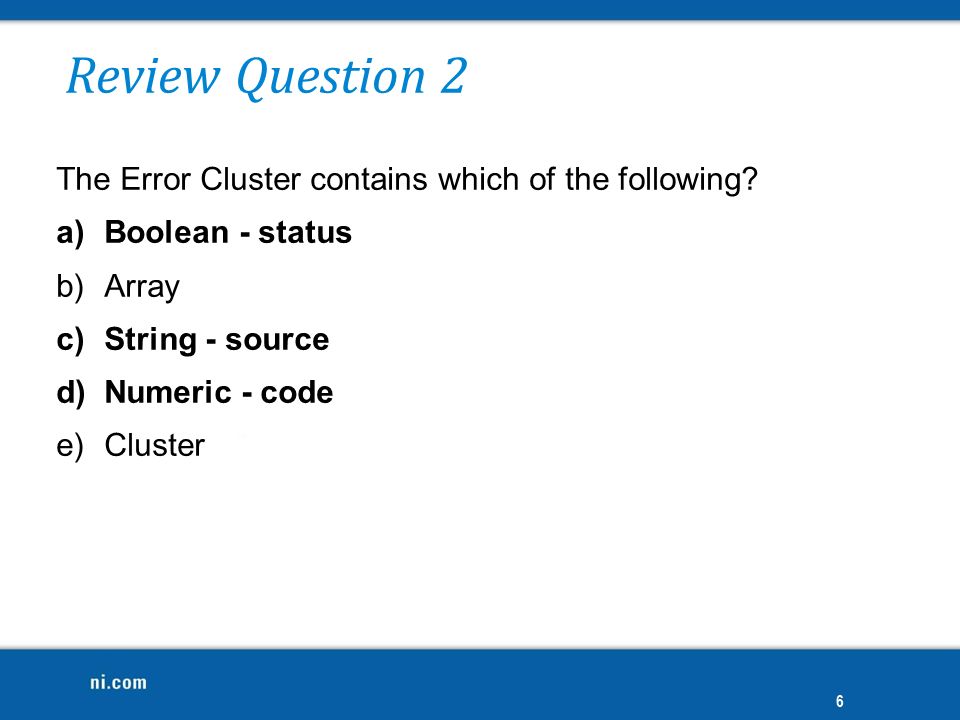

6. The Error Cluster contains which of the following? a)Boolean - status b)Array c)String - source d)Numeric - code e)Cluster 6 Review Question 2

7. An enumeration is a list of ___ and ___ pairs and acts like a ____ to the computer and ____ to the user. a)integer, string, integer, string b)Boolean, string, boolean, string c)Boolean, integer, boolean, integer d)integer, string, string, integer 7 Review Question 3

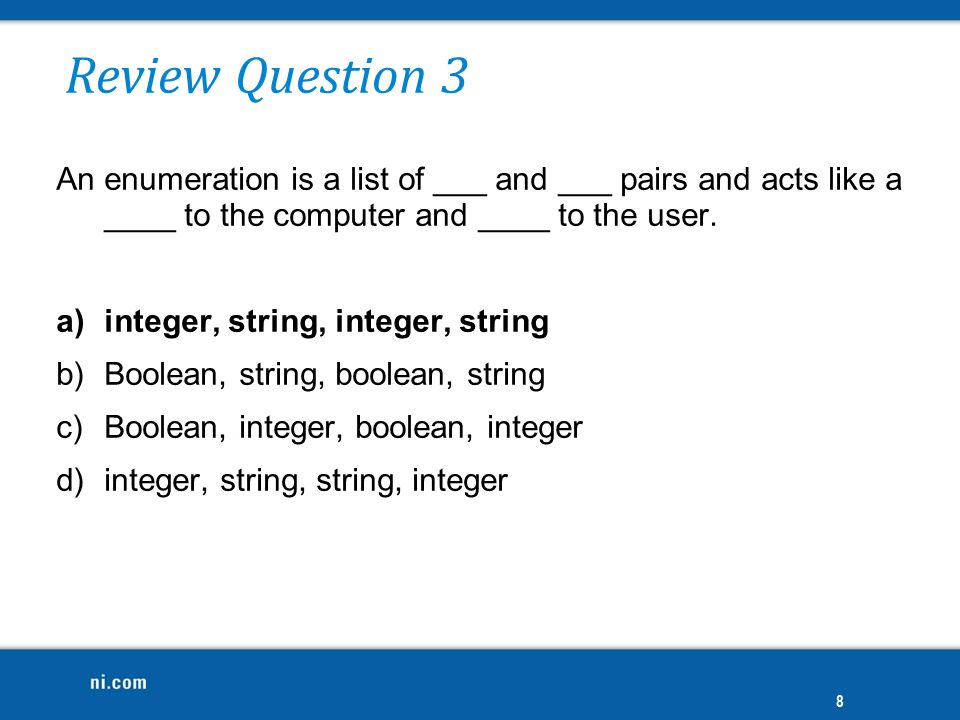

8. An enumeration is a list of ___ and ___ pairs and acts like a ____ to the computer and ____ to the user. a)integer, string, integer, string b)Boolean, string, boolean, string c)Boolean, integer, boolean, integer d)integer, string, string, integer 8 Review Question 3

9. Review Question 1 If I add a new element to an enum that is saved in a *.ctl file, how would the file need to be saved in order to update all of instances a)Custom control b)Strict Type Definition c)Type Definition

10. Review Question 1 If I add a new element to an enum that is saved in a *.ctl file, how would the file need to be saved in order to update all of instances a)Custom control b)Strict Type Definition c)Type Definition

11. Review Question 2 Which of the following always remain unique to each instance? a)Label b)Default value c)Size d)Data type e)Representation (numerics) f)Description

12. Review Question 2 Which of the following always remain unique to each instance? a)Label b)Default value c)Size d)Data type e)Representation (numerics) f)Description

13. Review Question 3 True or False? A custom control can only be used for the project within which it was created.

14. Review Question 3 True or False? A custom control can only be used for the project within which it was created. FALSE

15. Use loops when you want to repeat a section of code Types: While – repeats until a condition is met For – repeats for X number of iterations 15 Loops

16. While Loops terminal counts the number of iterations; zero indexed Always runs at least once (therefore, really a do-while loop) Runs until stop condition is met Stop if TRUE Continue if TRUE While Loop Iteration terminal Conditional terminal

17. For Loops i Terminal counts iterations Runs according to input N of count terminal For Loop i = zero indexed N = one indexed Iteration terminal Count terminal

18. Creating a Loop 1. Select the structure 2. Enclose code to be repeated 3. Drop or drag additional nodes and then wire

19. Demonstration: Creating a Loop

20.  Loops can accumulate arrays at their boundaries with auto- indexing  For loops auto-index by default  While loops output only the final value by default  Right-click tunnel and enable/disable auto-indexing Building Arrays with Loops Wire becomes thicker Wire remains the same size Auto-Indexing Disabled Auto-Indexing Enabled Only one value (last iteration) is passed out of the loop 1D Array 0 1 2 3 4 5 5

21. If an array is passed into a For Loop and auto-indexing is enabled, the number of elements in the array determines the number of iterations of the For Loop (therefore, you are not required to wire the N terminal) If the iteration count terminal is wired and arrays of different sizes are wired to auto-indexed tunnels, the actual number of iterations is the smallest of the choices. Auto-Indexing Input

22. Shift Registers - Access Previous Loop Data Come in pairs that are always aligned with each other Available at left and right borders of loop structures To create: Right-click the border and select Add Shift Register Right-click an existing tunnel, select Replace with Shift Register, and click the opposite loop border to create other half of pair Right terminal stores data on completion of current iteration Left terminal provides stored data at beginning of next iteration “Up and around the loop”

23. Shift Registers in action First Iteration Second Iteration Last Iteration Value 15 Initial Value Before Loop Begins

24. Stacked Shift Registers Registers remember values from multiple previous iterations and carry those values to the next iterations Values “bump down” with each iteration To create: Right-click » Add Element Expand the left side register (down arrows) up or down by dragging the small square when the mouse is a double arrow Initial Value Note: Still only 1 register on right side

25. Block Diagram1st run2nd run Initialized Shift Register Output = 5 Not Initialized Shift Register Output = 4Output = 8 VI finishesRun againRun once Shift Registers - Uninitialized

26. Demonstration: Operation of a Shift Register

27. Case Structure Have two or more subdiagrams or cases Execute and displays only one case at a time An input value determines which subdiagram to execute Similar to case statements or if...then...else statements in text-based programming languages Case Selector Label Selector Terminal

28. You can create multiple input tunnels Inputs are available to all cases, but do not have to be used in all cases Case Structure: Inputs

29. You can create multiple output tunnels You must define each output tunnel for each case, otherwise Wire every case (2) Right-click » Use Default If Unwired (3) Case Structure: Outputs Data TypeDefault Value Numeric0 BooleanFALSE StringEmpty (1) (2)(3)

30. Case Structure

31. If the error cluster is wired to the selector, the border of the case structure automatically turns red or green for the error and non-error cases, respectively Case Structure Holy automatic coloring, Batman!

32. Demonstration: Creating a Case Structure and Adding a Case

33. Diagram Disable Structure Use to disable a section of code on the block diagram Multiple subdiagrams possible – maximum of one enabled Disabled subdiagrams appear grayed out Great tool for troubleshooting – don’t have to re-write code

34. Conditional Disable Structure Use to define conditions that indicate which code on the block diagram executes Examples: If running as an executable, then programmatically close LabVIEW when VI finishes If running on Windows, look for file here; if running on Mac OSX then look here.

35. Events Event — An asynchronous notification that something has occurred Events originate from the user interface, external I/O, or other parts of the program Example events: 35 Button click Value change Mouse over Key press

36. Event Structure Event Structure — LabVIEW’s programmatic tool for handling events. Therefore, execution of code can be dependent on whether or not an event has occurred 36 Waits for an event to occur indefinitely, unless configured to timeout.

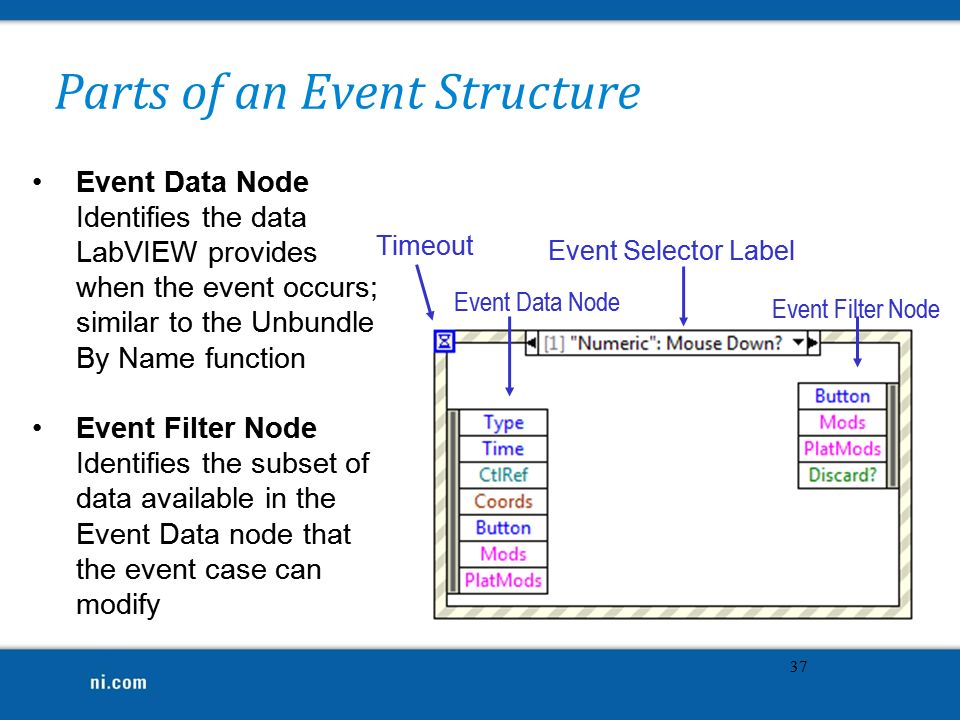

37. Parts of an Event Structure 37 Timeout Event Selector Label Event Data Node Event Filter Node Event Data Node Identifies the data LabVIEW provides when the event occurs; similar to the Unbundle By Name function Event Filter Node Identifies the subset of data available in the Event Data node that the event case can modify

38. Notify Events User action has already occurred LabVIEW has processed the event Available only in the Event Data node Filter Events User action has already occurred LabVIEW has NOT processed the event Allows you to override default behavior for event Available in the Event Filter node and Event Data node Notify and Filter Events

39. Right-click the border and select Edit Events Handled by This Case To Configure an Event Structure…

40. Events Event Sources Configured Events Configuring Event Structures

41. Notify Events (green arrow) User action has already occurred Filter Events (red arrow) User performed action but event is not processed. Allows you to customize event handling. Notify and Filter Events in Config. Window

42. Normally used in a While Loop Control/Indicator the event configured for is often placed inside that event case Event structure handles exactly one event per iteration Sleeps when no events occur Using Event Structures

43. Event Structures Tips If no timeout is configured and an event never occurs – stuck waiting indefinitely, must abort VI; therefore, wire the timeout terminal with a value other than -1 (at least while developing) “heavy” code within the Event Structure causes the front panel to lock up, often confusing the user – try to keep code in an event case to a minimum

44. Demonstration: Configuring an Event

45. Homework 3 is post at ni.com/mst Create a Game Student Zone has a lot of ideas Email to mst.labview@gmail.com Homework
