1. ADAM Single Writer User’s Manual ETA Chips Co., Kr, 2011 Rev 1.0

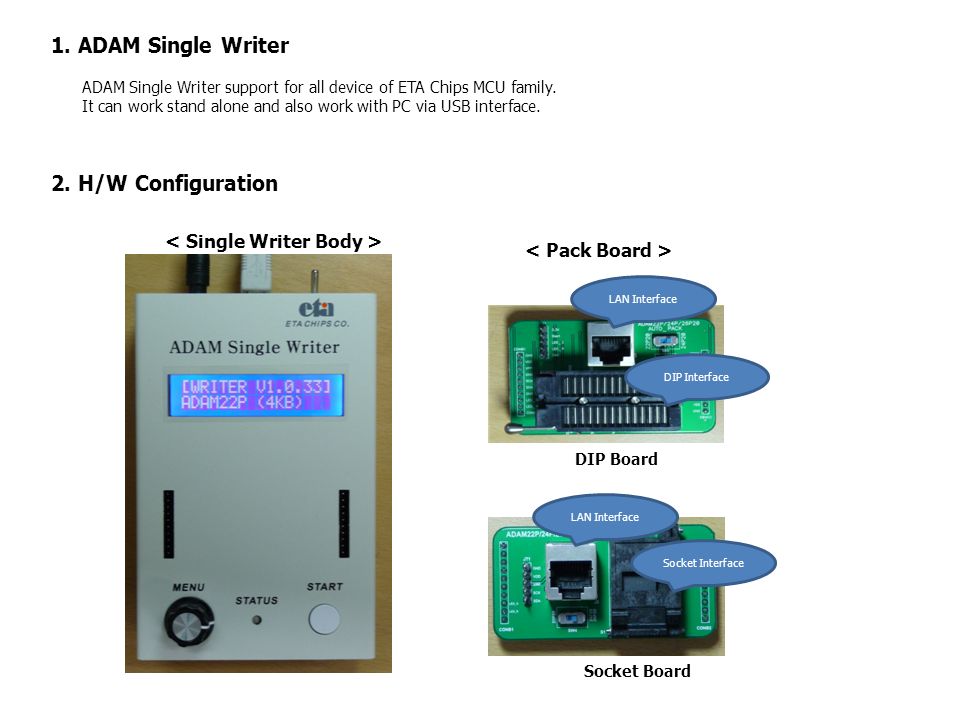

2. 1. ADAM Single Writer DIP Board Socket Board LAN Interface DIP Interface LAN Interface Socket Interface ADAM Single Writer support for all device of ETA Chips MCU family. It can work stand alone and also work with PC via USB interface. 2. H/W Configuration

3. USB Interface DC Adapter Input POWER Swich LCD Display Pack Board Menu Key - Push to enter menu mode - Scroll to navigate menu - Push to select menu Action 1) in AutoWrite mode, START Writing. 2) in Menu mode, cancel menu.

4. 3. USB Driver Install 2) Execute ‘USB_Driver_Install.EXE’ which is supplied in software package. 1) POWER OFF 3) Then follwing dialog box will be appeared. Click ‘Next’ Select this option Click ‘Next’ Click ‘Install’ 3.1. Install Sequency

5. Wait unitl progress completed. Click ‘Finish’ Click ‘Install’ 4) POWER ON. Wait until Driver Installation is finished.

6. 2.2. Trouble Shooting If software can’t communicate with H/W, then do the follwing step. 2) Excute ‘Control Panel’ of MS-Windows. 3) Select ‘Device Manager’ Double Click this item Click this button Select this menu 1) POWER ON

7. Click this button Change COM Port number to another value from COM3 ~ COM9 Then Click ‘OK’ 4) POWER OFF 5) POWER ON 6) Execute Writer Software

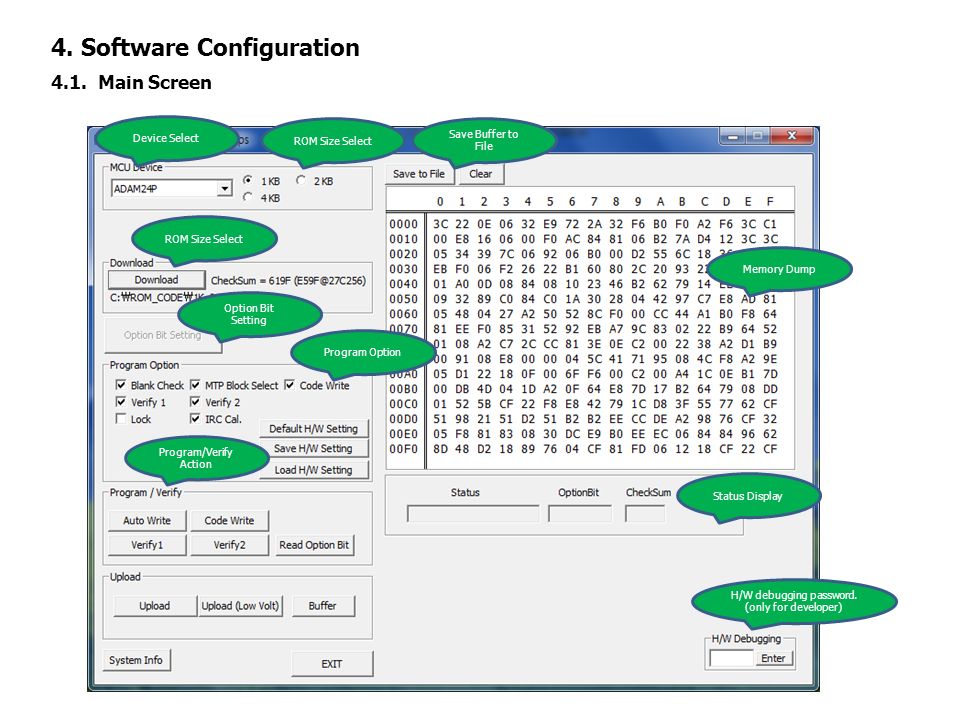

8. 4. Software Configuration 4.1. Main Screen Device Select ROM Size Select Option Bit Setting Program Option Program/Verify Action Memory Dump Save Buffer to File Status Display H/W debugging password. (only for developer)

9. 4.2. Writing Sequency (ADAM24P20, 1KB, example) 1) Select Device and ROM Size 2) Download Hex File Select HEX file in this dialog box 3) Option Bit Setting ADAM24P20 has no OptionBit, So this button is disabled. 4) Program Option Setting Recommend use Default H/W Setting

10. 5) Start Programming If push ‘START’ button of H/W, Programming also will be start Press ‘Auto Write’ Button, then Programming will be start After this point, ADAM single writer can act as Stand Alone mode.
