Bipolar Junction Transistors (BJT) 8/25/2015www.noteshit.com1.

Similar presentations


Presentation on theme: "Bipolar Junction Transistors (BJT) 8/25/2015www.noteshit.com1."— Presentation transcript:

1 Bipolar Junction Transistors (BJT) 8/25/2015www.noteshit.com1

2 The Two Types of BJT TransistorsThe Two Types of BJT Transistors npnpnp 8/25/2015www.noteshit.com2

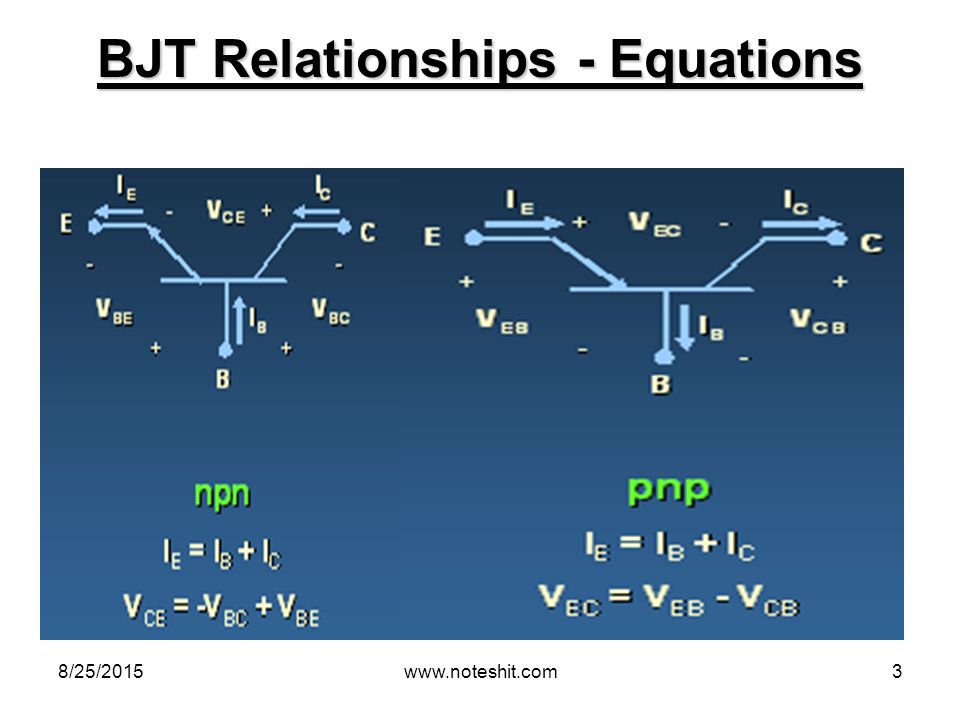

3 BJT Relationships - Equations 8/25/2015www.noteshit.com3

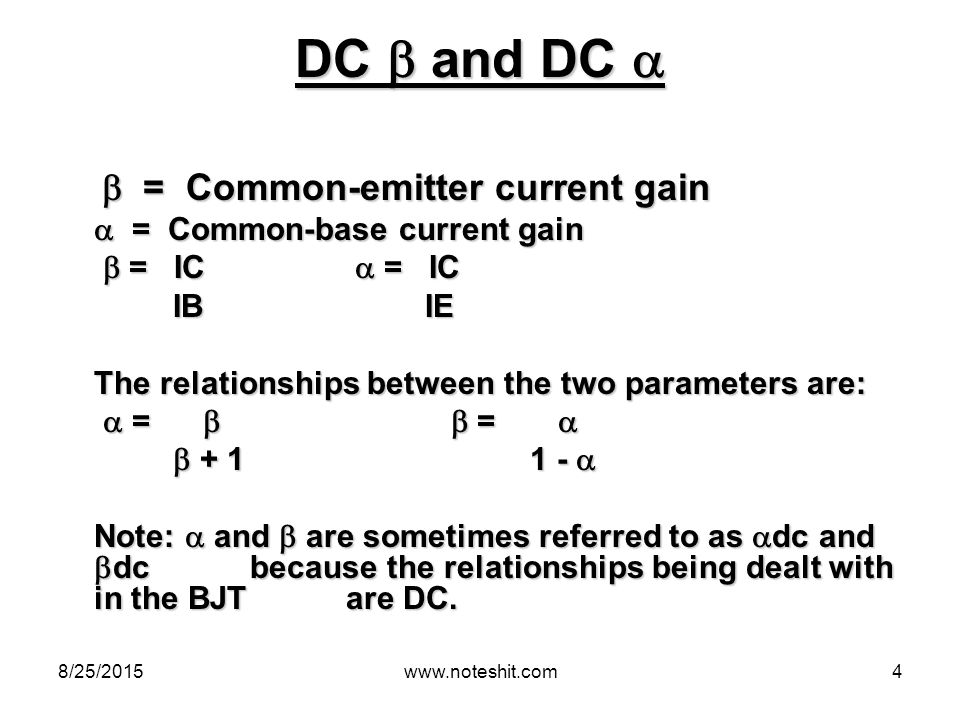

4  = Common-emitter current gain  = Common-emitter current gain  = Common-base current gain  = IC  = IC  = IC  = IC IB IE IB IE The relationships between the two parameters are:  =   =   =   =   + 1 1 -   + 1 1 -  Note:  and  are sometimes referred to as  dc and  dc because the relationships being dealt with in the BJT are DC. DC  and DC  8/25/2015www.noteshit.com4

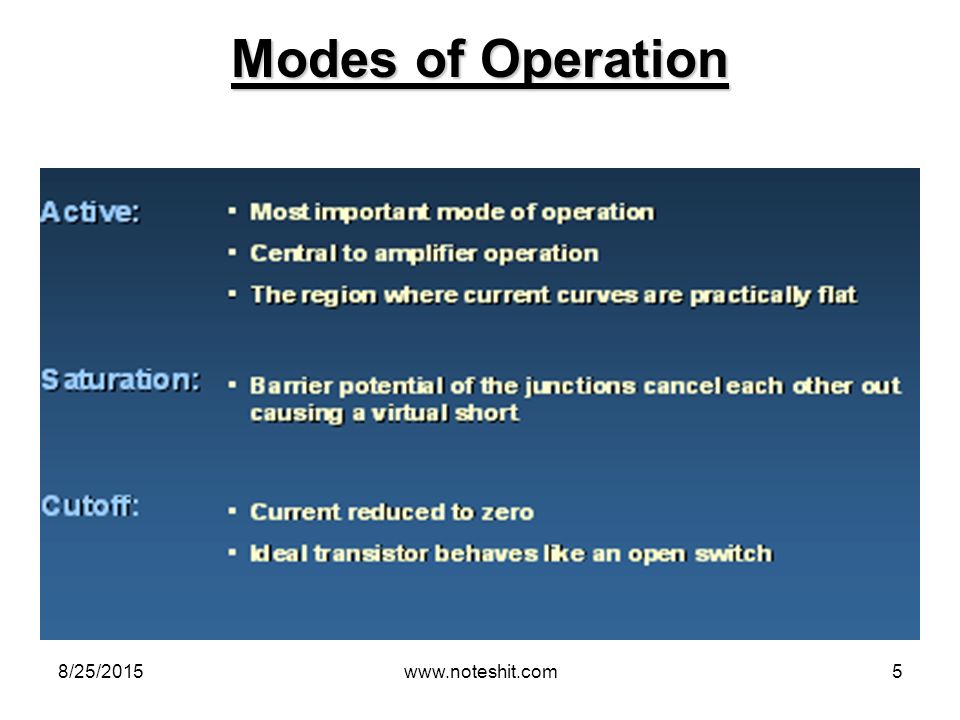

5 Modes of Operation 8/25/2015www.noteshit.com5

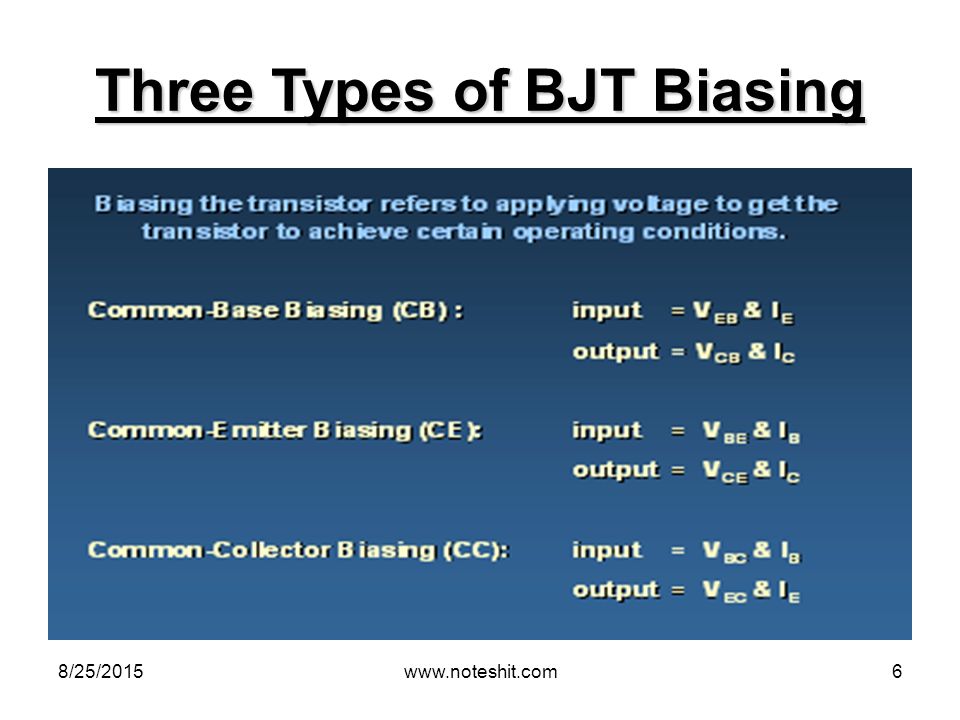

6 Three Types of BJT Biasing 8/25/2015www.noteshit.com6

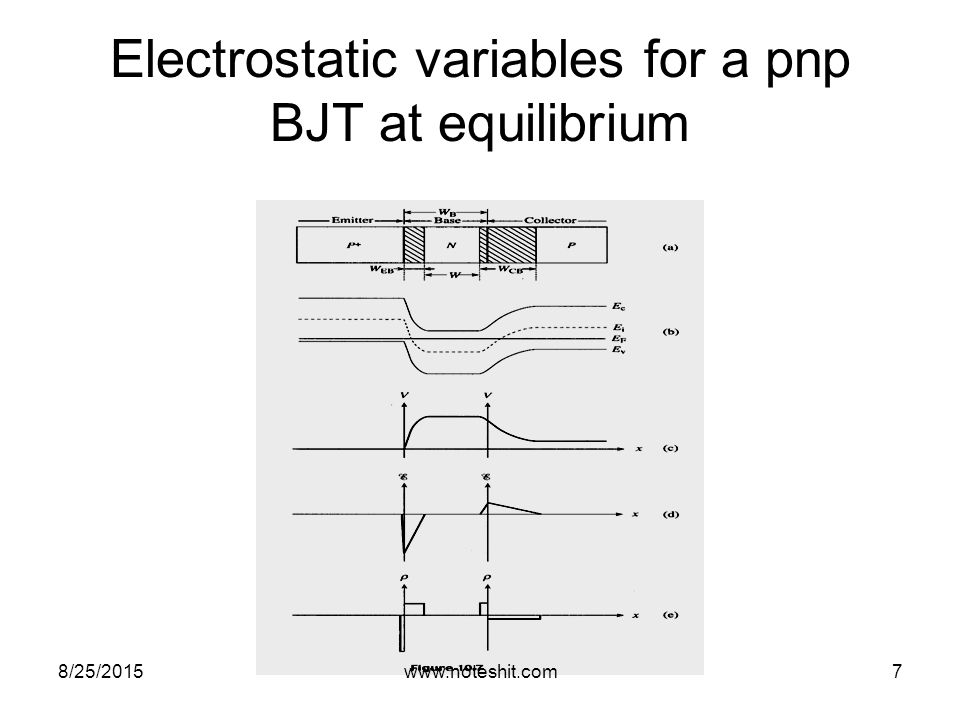

7 Electrostatic variables for a pnp BJT at equilibrium 8/25/2015www.noteshit.com7

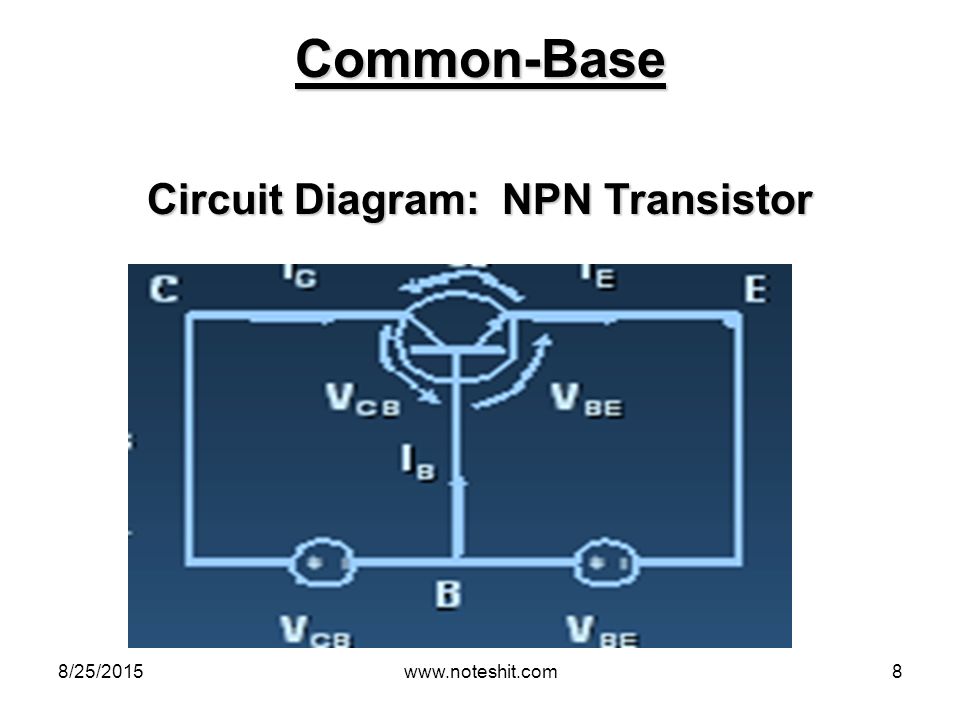

8 Common-Base Circuit Diagram: NPN Transistor The Table Below 8/25/2015www.noteshit.com8

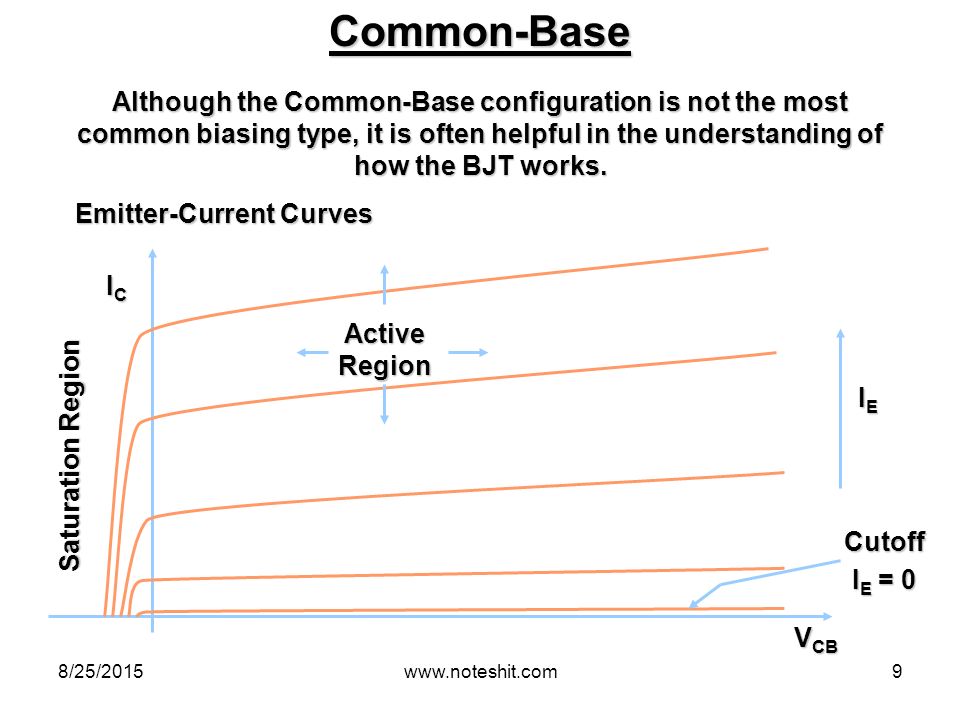

9 Common-Base Although the Common-Base configuration is not the most common biasing type, it is often helpful in the understanding of how the BJT works. Emitter-Current Curves Saturation Region IEIEIEIE ICICICIC V CB Active Region Cutoff I E = 0 8/25/2015www.noteshit.com9

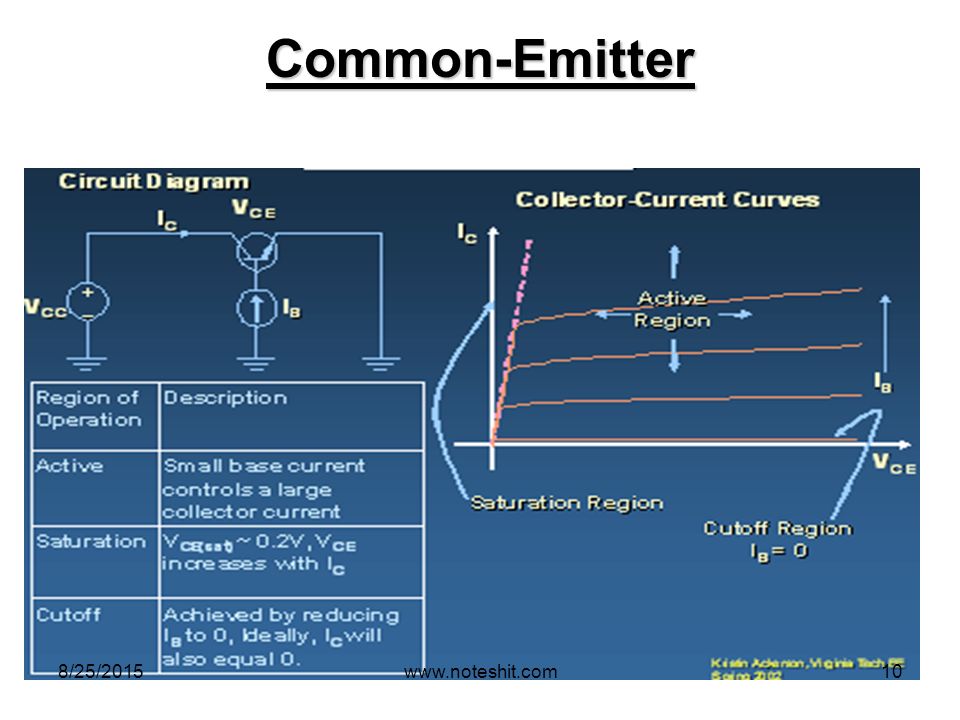

10 Common-Emitter 8/25/2015www.noteshit.com10

11 Common-Collector 8/25/2015www.noteshit.com11

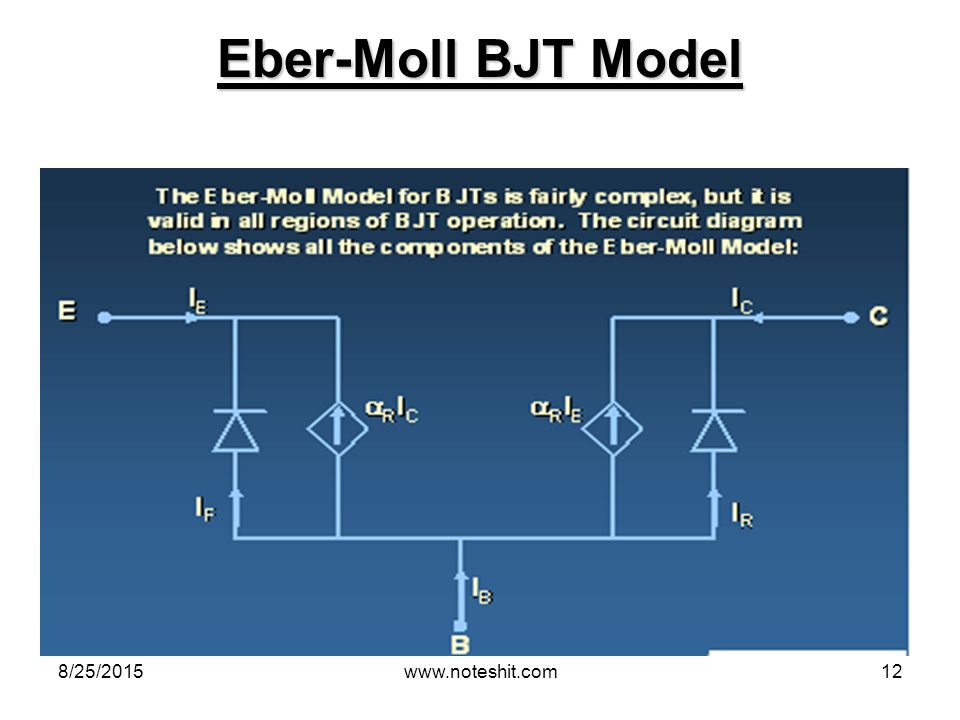

12 Eber-Moll BJT Model 8/25/2015www.noteshit.com12

13 Common-emitter transistor Common-emitter transistor ampliers are so- called because the input and output voltage points share the emitter lead of the transistor in common with each other, not considering any power supplies. ² Transistors are essentially DC devices: they cannot directly handle voltages or currents that reverse direction. In order to make them work for amplifying AC signals, the input signal must be offset with a DC voltage to keep the transistor in its active mode throughout the entire cycle of the wave. This is called biasing. 8/25/2015www.noteshit.com13

14 Common-collector transistor Common-collector transistor ampliers are so-called because the input and output voltage points share the collector lead of the transistor in common with each other, not considering any power supplies. ² The output voltage on a common-collector amplier will be in phase with the input voltage, making the common- collector a non-inverting amplier circuit. ² The current gain of a common-collector amplier is equal to Ø plus 1. The voltage gain is approximately equal to 1 (in practice, just a little bit less). 8/25/2015www.noteshit.com14

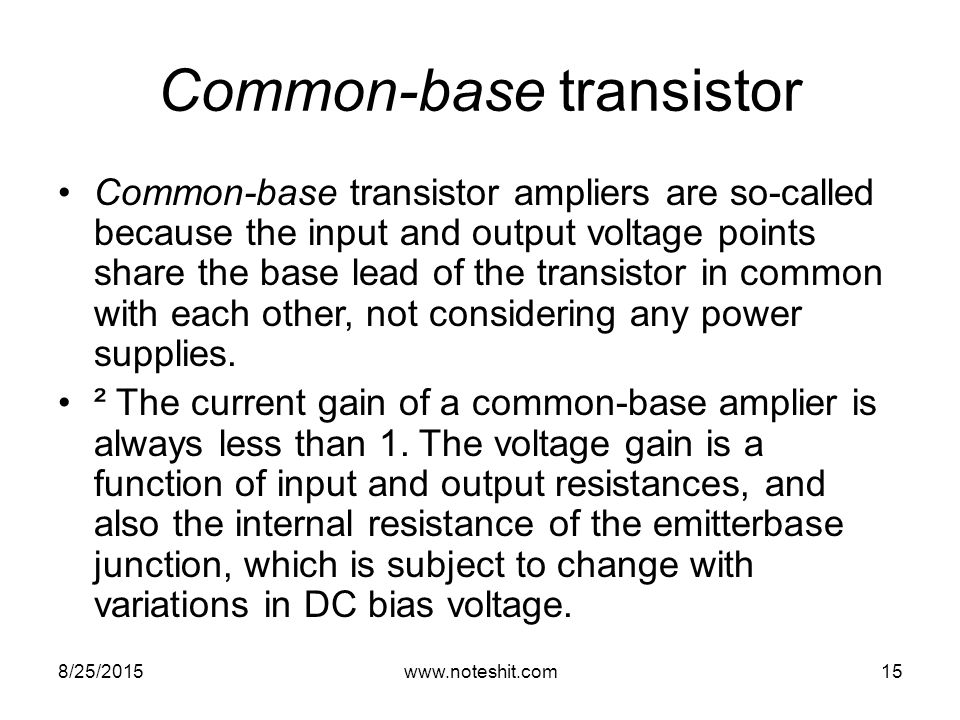

15 Common-base transistor Common-base transistor ampliers are so-called because the input and output voltage points share the base lead of the transistor in common with each other, not considering any power supplies. ² The current gain of a common-base amplier is always less than 1. The voltage gain is a function of input and output resistances, and also the internal resistance of the emitterbase junction, which is subject to change with variations in DC bias voltage. 8/25/2015www.noteshit.com15

16 TRANSISTOR MODEL Common-Base Configuration  Common-base BJT transistor  re model  re equivalent cct. 8/25/2015www.noteshit.com16

17 Therefore, the input impedance, Zi = re that less than 50Ω. For the output impedance, it will be as follows; 8/25/2015www.noteshit.com17

18 The hybrid parameters: hie, hre, hfe, hoe are developed and used to model the transistor. These parameters can be found in a specification sheet for a transistor. Hybrid Equivalent Model 8/25/2015www.noteshit.com18

19 Determination of parameter 8/25/2015www.noteshit.com19

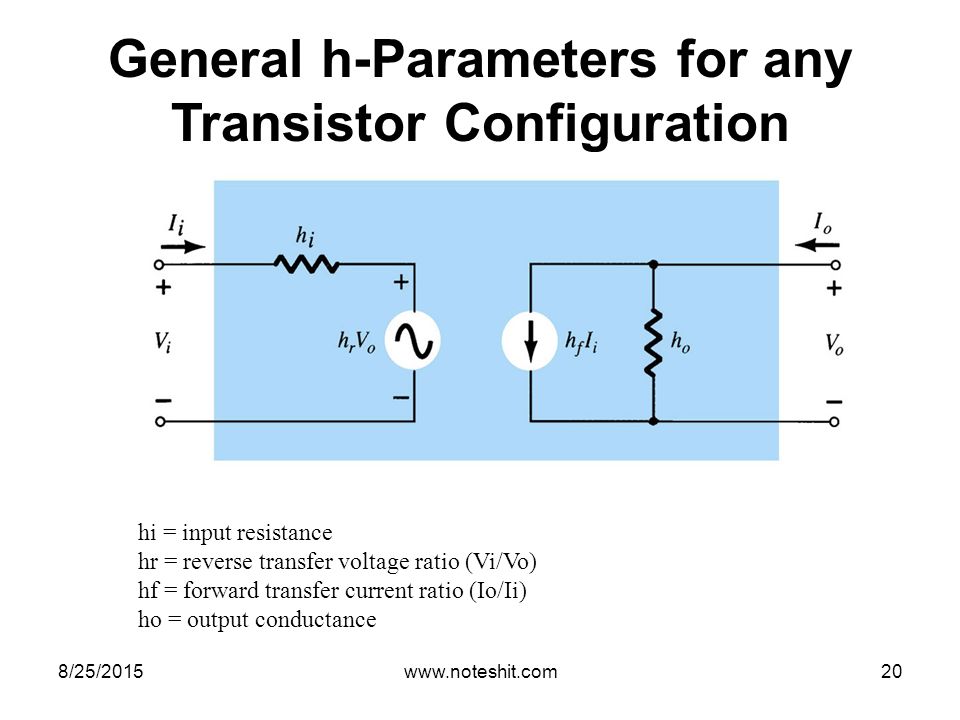

20 General h-Parameters for any Transistor Configuration hi = input resistance hr = reverse transfer voltage ratio (Vi/Vo) hf = forward transfer current ratio (Io/Ii) ho = output conductance 8/25/2015www.noteshit.com20

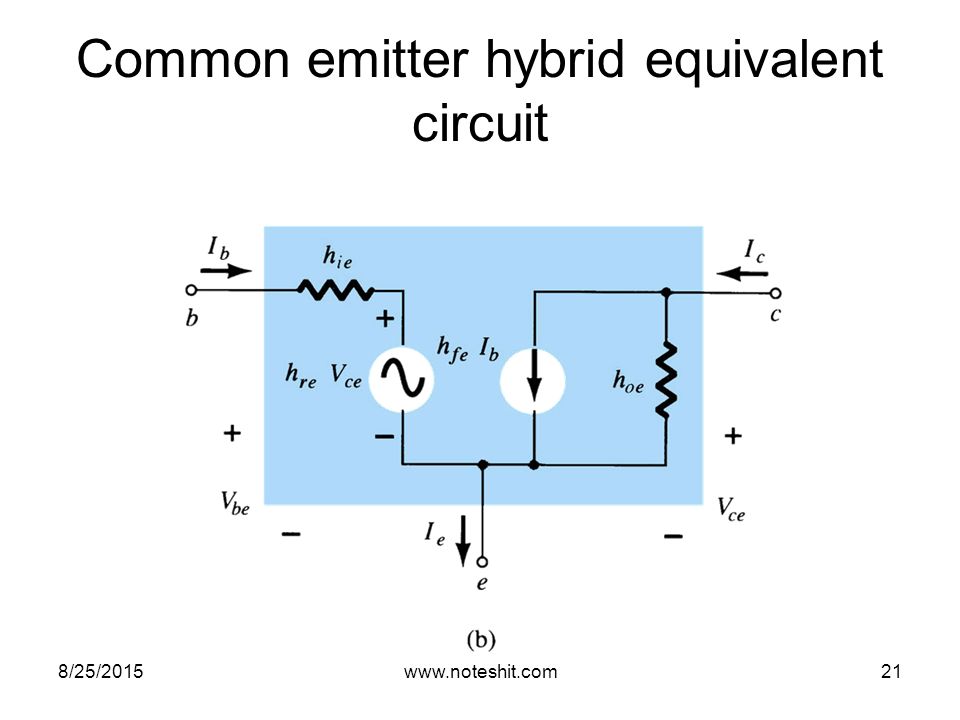

21 Common emitter hybrid equivalent circuit 8/25/2015www.noteshit.com21

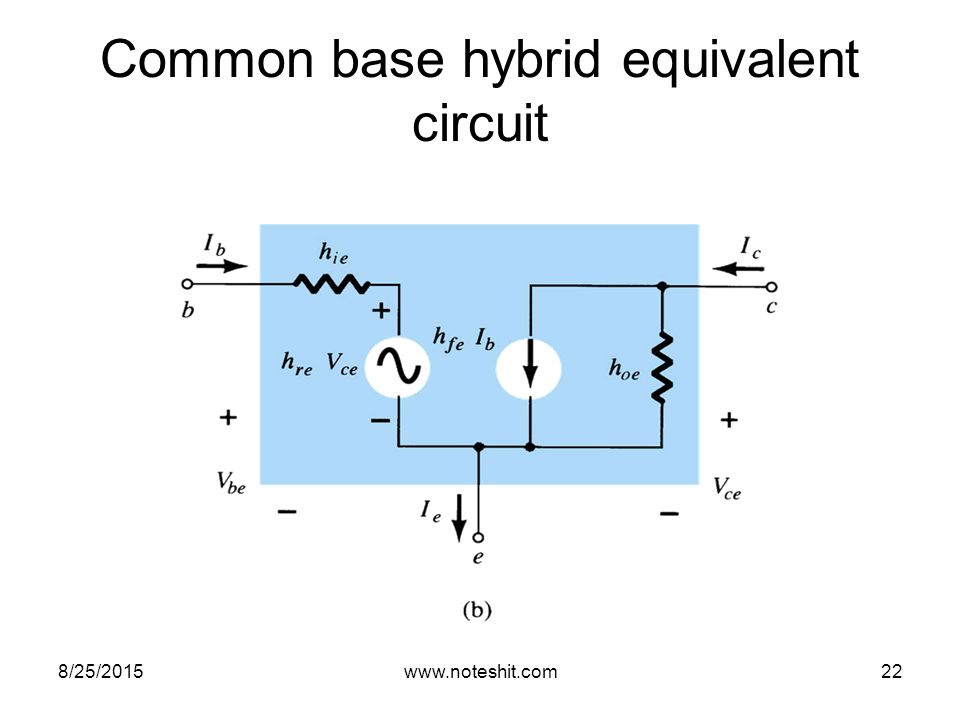

22 Common base hybrid equivalent circuit 8/25/2015www.noteshit.com22

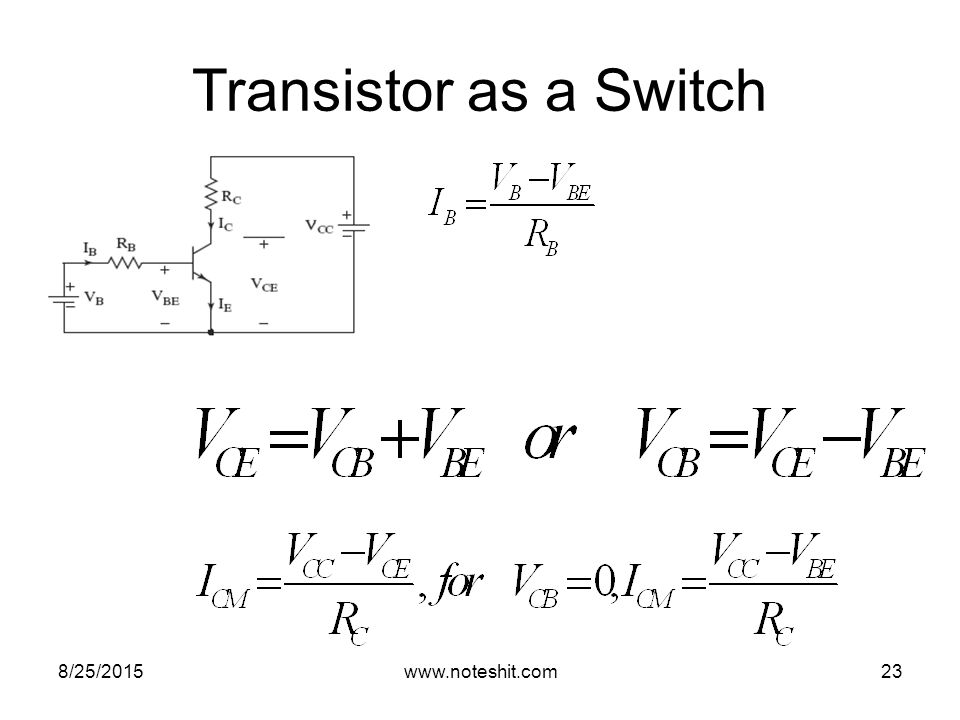

23 Transistor as a Switch 8/25/2015www.noteshit.com23

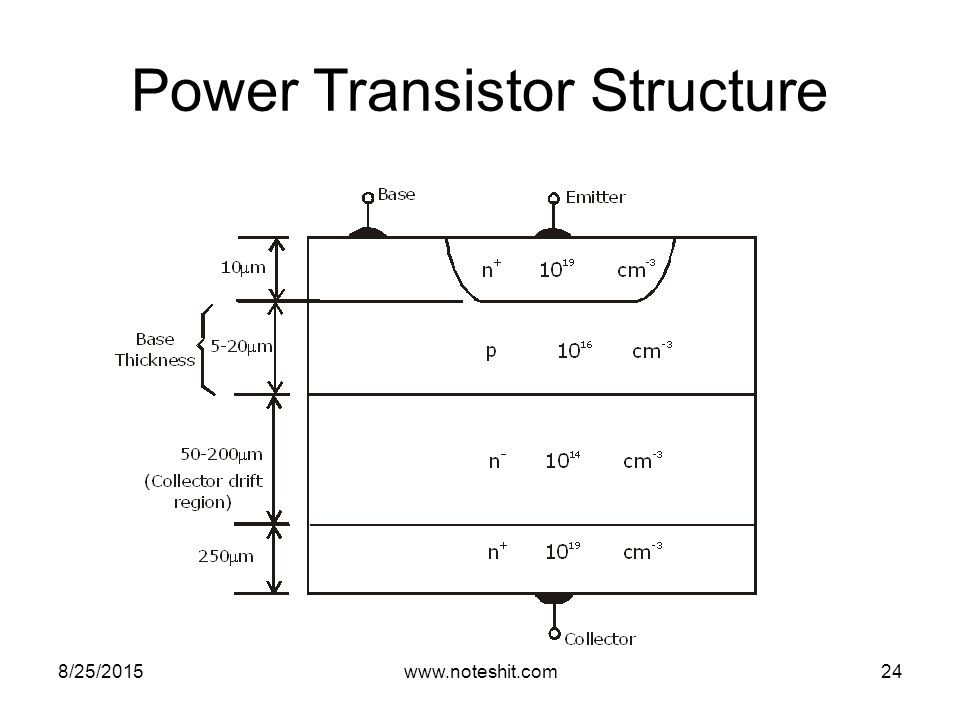

24 Power Transistor Structure 8/25/2015www.noteshit.com24

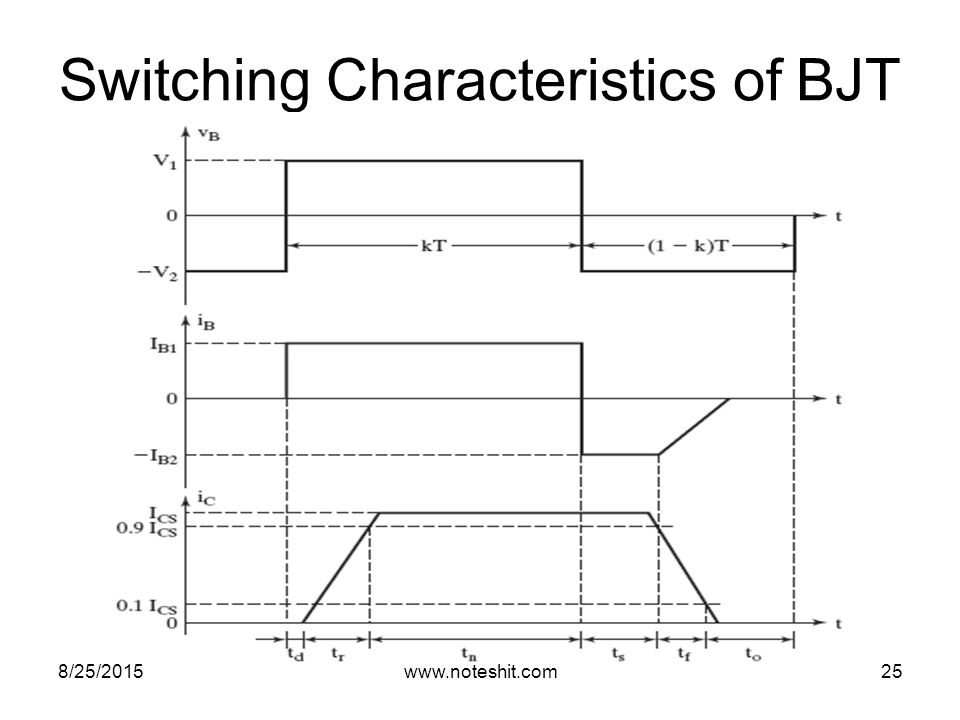

25 Switching Characteristics of BJT 8/25/2015www.noteshit.com25
