1
Brain Gestorme: Status of the LHeC Ring-Ring / Linac- Ring Basic Parameters I appologise to talk about things you already know...
2

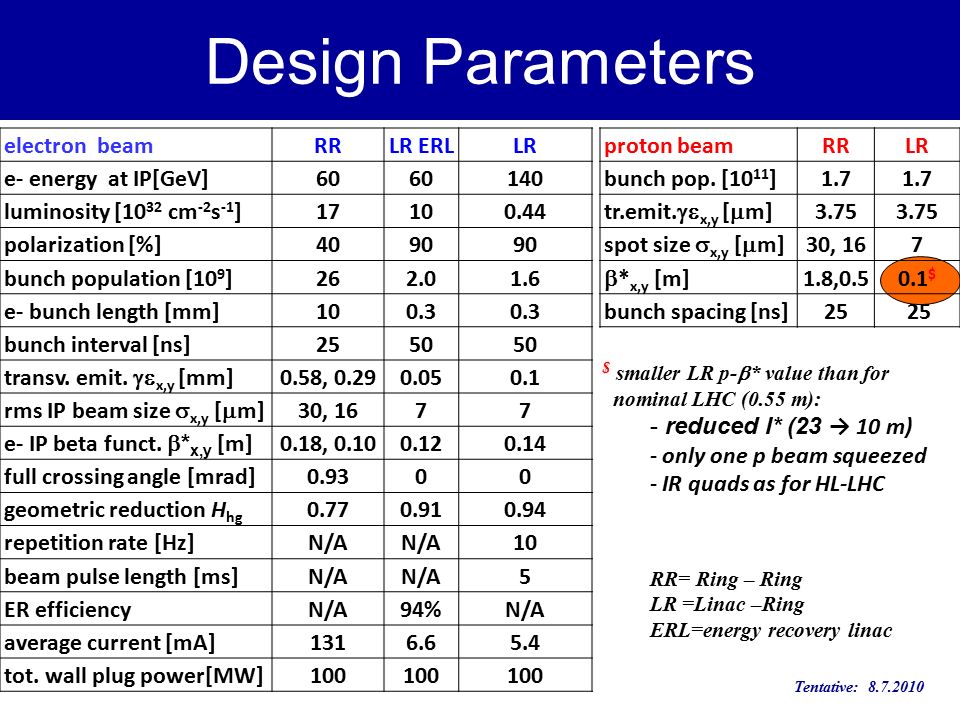

Design Parameters electron beamRRLR ERLLR e- energy at IP[GeV]60 140 luminosity [10 32 cm -2 s -1 ]17100.44 polarization [%]4090 bunch population [10 9 ]262.01.6 e- bunch length [mm]100.3 bunch interval [ns]2550 transv. emit. x,y [mm] 0.58, 0.290.050.1 rms IP beam size x,y [ m] 30, 1677 e- IP beta funct. * x,y [m] 0.18, 0.100.120.14 full crossing angle [mrad]0.9300 geometric reduction H hg 0.770.910.94 repetition rate [Hz]N/A 10 beam pulse length [ms]N/A 5 ER efficiencyN/A94%N/A average current [mA]1316.65.4 tot. wall plug power[MW]100 proton beamRRLR bunch pop. [10 11 ]1.7 tr.emit. x,y [ m] 3.75 spot size x,y [ m] 30, 167 * x,y [m] 1.8,0.50.1 $ bunch spacing [ns]25 $ smaller LR p- * value than for nominal LHC (0.55 m): - reduced l* (23 → 10 m) - only one p beam squeezed - IR quads as for HL-LHC RR= Ring – Ring LR =Linac –Ring ERL=energy recovery linac Tentative: 8.7.2010
3

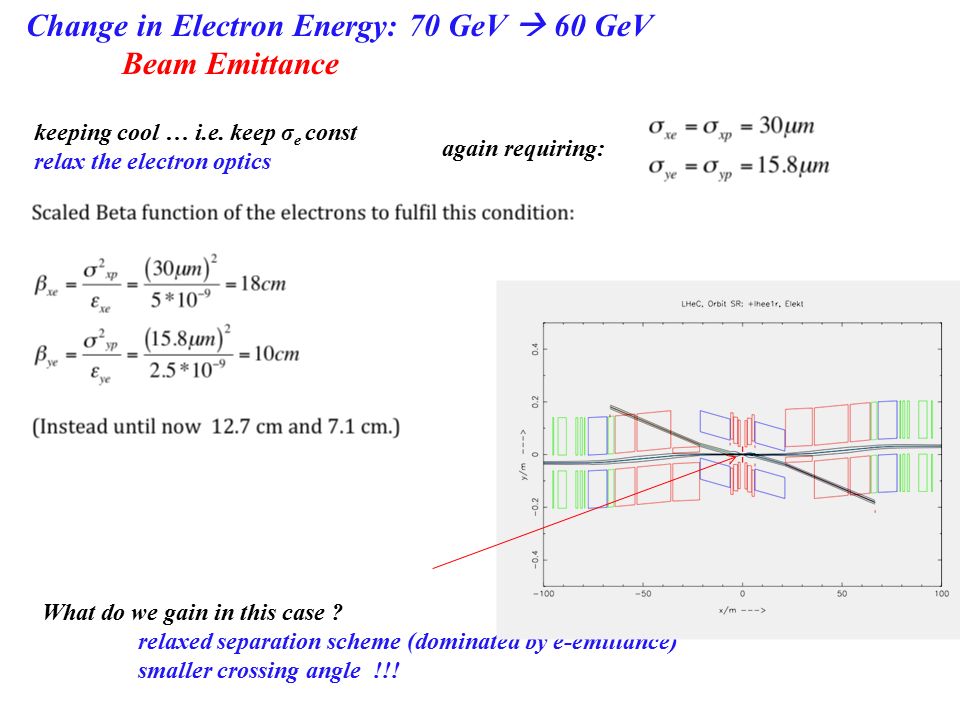

Change in Electron Energy: 70 GeV 60 GeV Beam Emittance again requiring: What do we gain in this case ? relaxed separation scheme (dominated by e-emittance) smaller crossing angle !!! keeping cool … i.e. keep σ e const relax the electron optics
4

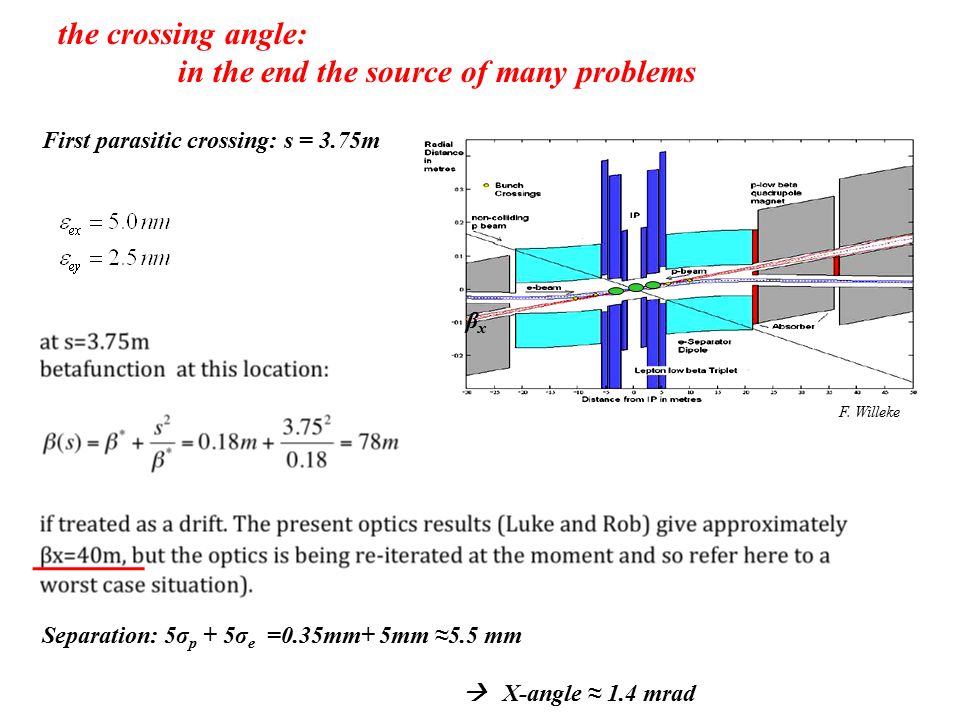

the crossing angle: in the end the source of many problems First parasitic crossing: s = 3.75m F. Willeke βxβx Separation: 5σ p + 5σ e =0.35mm+ 5mm ≈5.5 mm X-angle ≈ 1.4 mrad
5

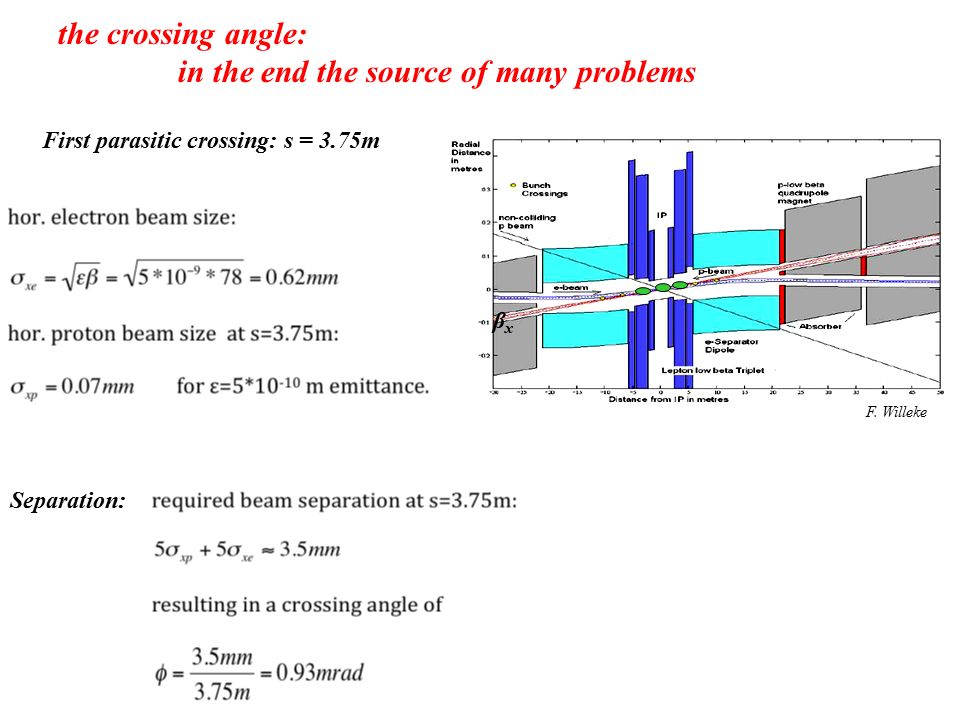

the crossing angle: in the end the source of many problems First parasitic crossing: s = 3.75m F. Willeke βxβx Separation:
6

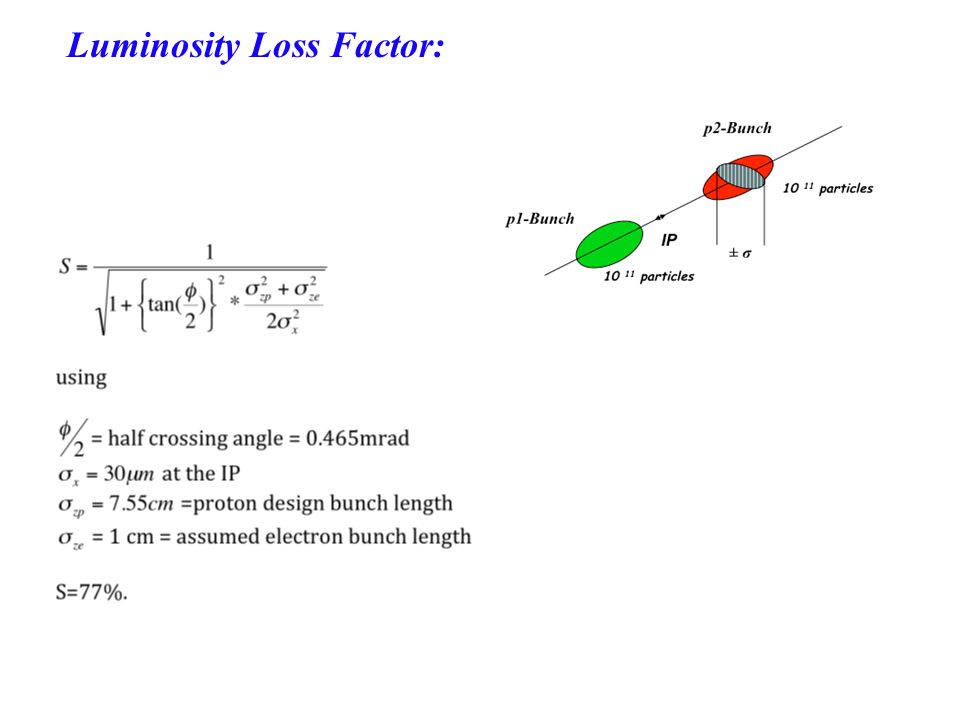

Luminosity Loss Factor:
7

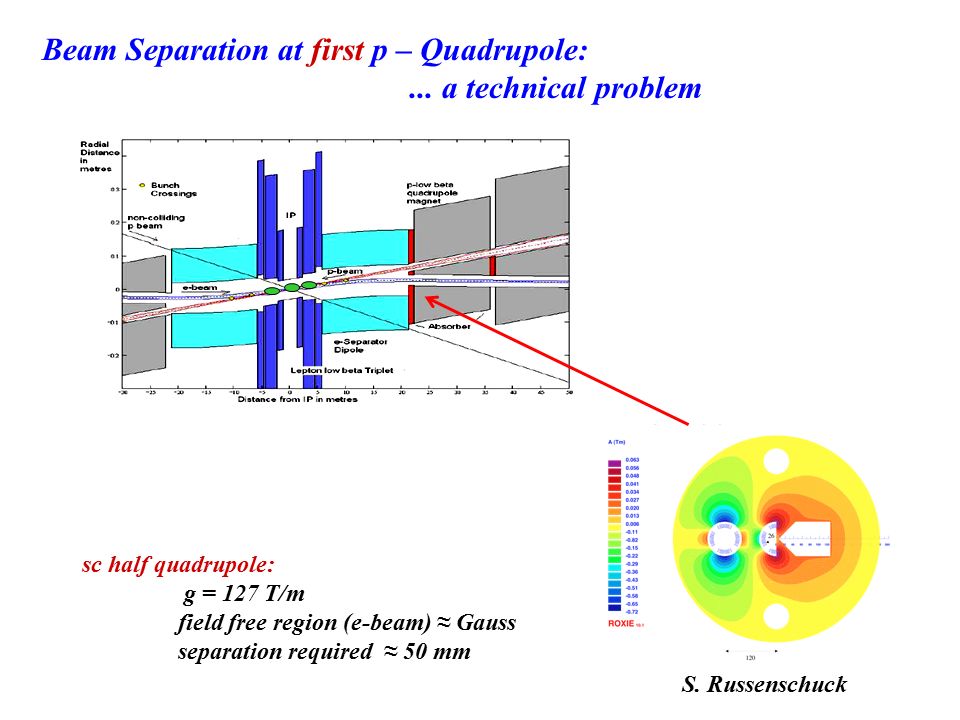

sc half quadrupole: g = 127 T/m field free region (e-beam) ≈ Gauss separation required ≈ 50 mm Beam Separation at first p – Quadrupole:... a technical problem S. Russenschuck
8

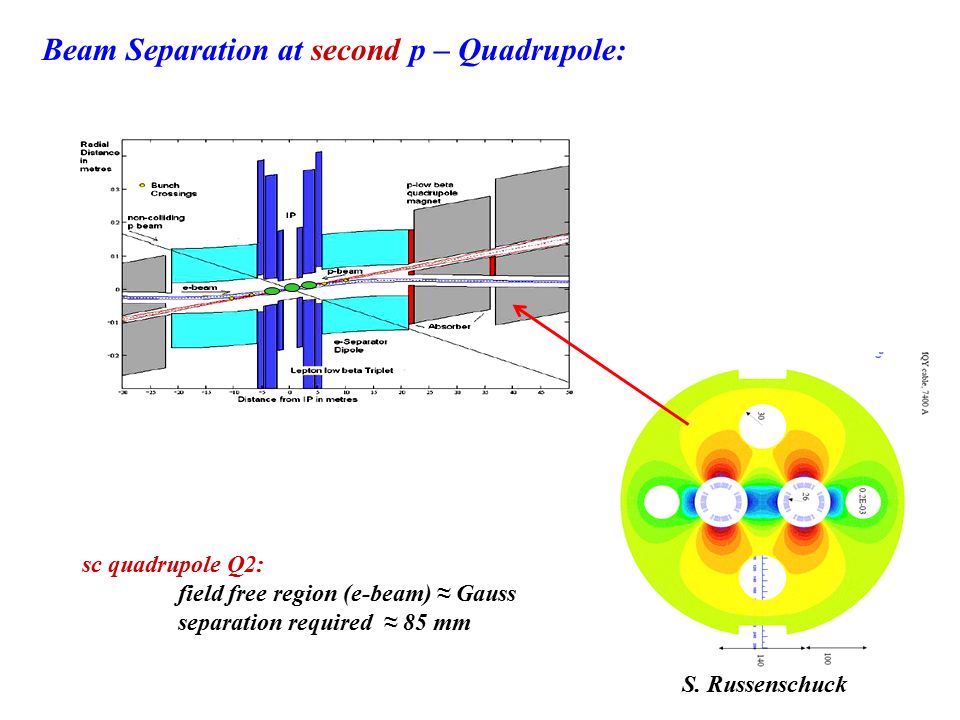

sc quadrupole Q2: field free region (e-beam) ≈ Gauss separation required ≈ 85 mm Beam Separation at second p – Quadrupole: S. Russenschuck
9

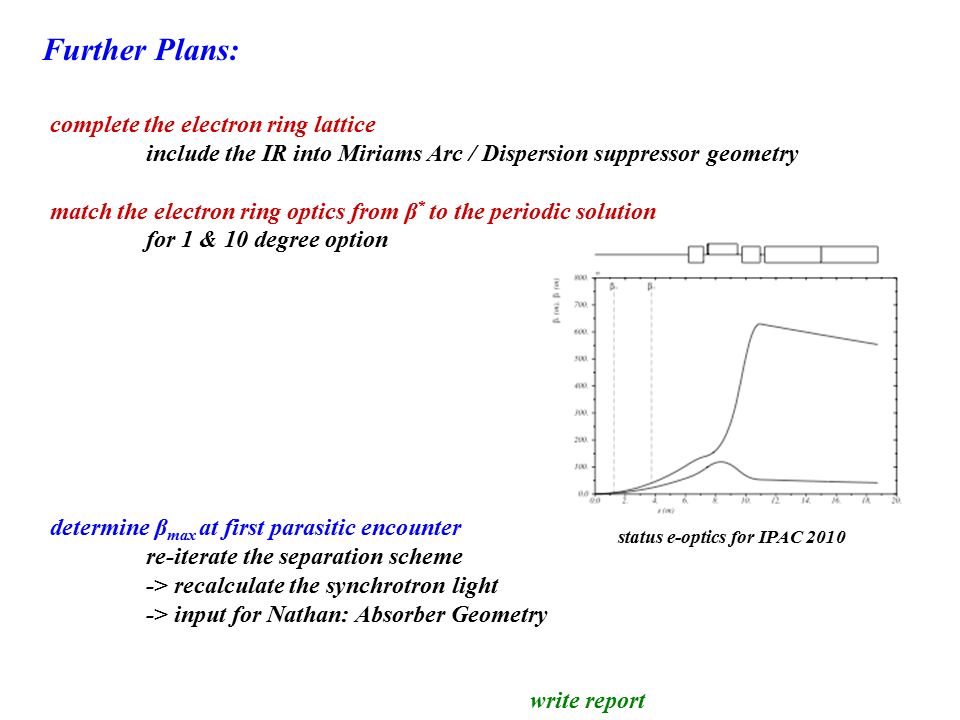

complete the electron ring lattice include the IR into Miriams Arc / Dispersion suppressor geometry match the electron ring optics from β * to the periodic solution for 1 & 10 degree option determine β max at first parasitic encounter re-iterate the separation scheme -> recalculate the synchrotron light -> input for Nathan: Absorber Geometry write report Further Plans: status e-optics for IPAC 2010
10
Design Parameters electron beamRRLR ERLLR e- energy at IP[GeV]60 140 luminosity [10 32 cm -2 s -1 ]17100.44 polarization [%]4090 bunch population [10 9 ]262.01.6 e- bunch length [mm]100.3 bunch interval [ns]2550 transv. emit. x,y [mm] 0.58, 0.290.050.1 rms IP beam size x,y [ m] 30, 1677 e- IP beta funct. * x,y [m] 0.18, 0.100.120.14 full crossing angle [mrad]0.9300 geometric reduction H hg 0.770.910.94 repetition rate [Hz]N/A 10 beam pulse length [ms]N/A 5 ER efficiencyN/A94%N/A average current [mA]1316.65.4 tot. wall plug power[MW]100 proton beamRRLR bunch pop. [10 11 ]1.7 tr.emit. x,y [ m] 3.75 spot size x,y [ m] 30, 167 * x,y [m] 1.8,0.50.1 $ bunch spacing [ns]25 $ smaller LR p- * value than for nominal LHC (0.55 m): - reduced l* (23 → 10 m) - only one p beam squeezed - IR quads as for HL-LHC RR= Ring – Ring LR =Linac –Ring ERL=energy recovery linac Tentative: 8.7.2010
11

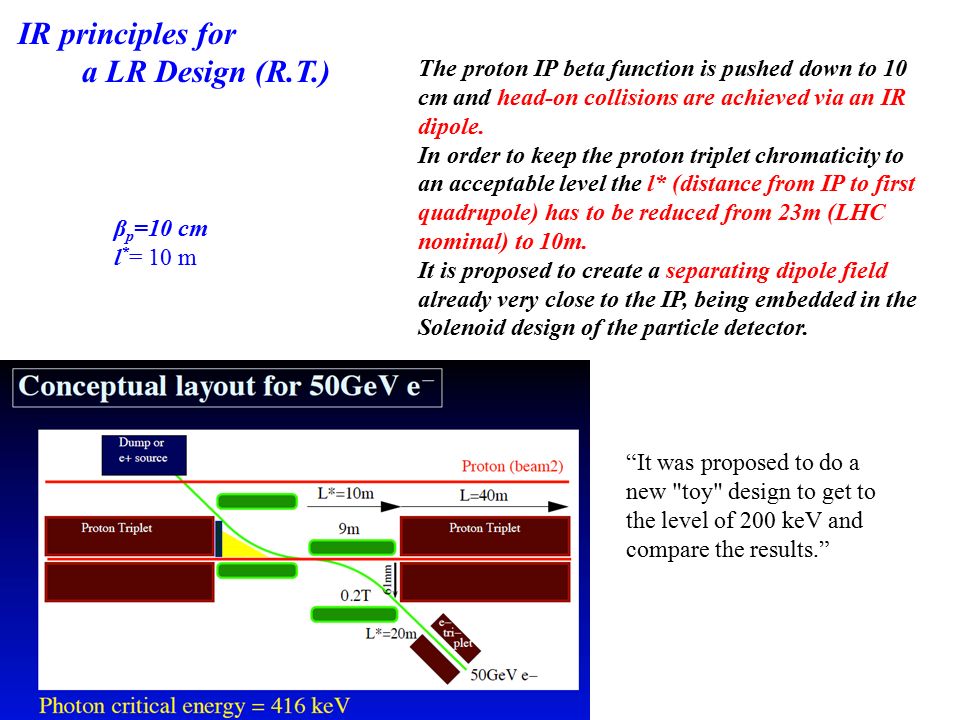

IR principles for a LR Design (R.T.) The proton IP beta function is pushed down to 10 cm and head-on collisions are achieved via an IR dipole. In order to keep the proton triplet chromaticity to an acceptable level the l* (distance from IP to first quadrupole) has to be reduced from 23m (LHC nominal) to 10m. It is proposed to create a separating dipole field already very close to the IP, being embedded in the Solenoid design of the particle detector. β p =10 cm l * = 10 m “It was proposed to do a new "toy" design to get to the level of 200 keV and compare the results.”
