1. QUALITY CONTROL QUALITY ASSURANCE INDEPENDENT ASSURANCE
CLARK COUNTY DEPARTMENT PUBLIC WORKS Construction Management QUALITY PROGRAM
QUALITY CONTROL
QUALITY ASSURANCE
INDEPENDENT ASSURANCE

2. QUALITY
--Quality Control is the responsibility of the primary installer or fabricator of the material; they are the experts in what they build.
--Quality Assurance is the oversight by the agency of the Quality Control; they want to receive what is specified.
Uses verified QC testing and inspection as acceptance (like when observing the production of a car you want to buy )
--Independent Assurance is the responsibility of the agency to ensure QA and QC are verifiable
Make sure QC and QA testing are compatible and consistent

3. Contractor Quality Control
Sections 111 thru 117 and website
111 Administration- General
Gives overview of program
Check to see Responsible Person in Charge and Quality Control Coordinator; both required or only one
See exceptions (inspector separate from foreman)
Contractor responsible for the Quality of the work.
Owner oversight and verification of Contractor is acceptance.
112 QC Administration
Organization structure based on 113
Documentation
Contractor responsible

4. Contractor Quality Control
112 QC Administration (continued)
Documentation
Be legible, identifiable, and retrievable.
Protected in a manner to prevent damage, deterioration, or loss.
Readily available for review within 4 hours.
Retain documents until transmitted to the Engineer at substantial completion
Filing
Section has list of requirements
Submittal procedure
Logging and Submission Process

5. Contractor Quality Control
112 QC Administration (continued)
Submittal procedure
Reviewing Returned Submittals
No exceptions taken
With Corrections Noted
Amend and Resubmit
Rejected
Deficiency tracking
Deficient Work
work that is not in accordance with Contract Documents
it can be readily corrected

6. 112 QC Administration (continued)
Deficiency tracking
Deficient Work
Non-Conforming Work (non-compliance)
A Deficiency which cannot be readily corrected
For example, concrete compressive strengths being below specification, or Field soils density test being below specification and no longer accessible.
Informational Tests
Determine the amount of effort necessary to provide work that complies with the Contract Documents
Need to notify ahead of time if want to use for acceptance

7. 112 QC Administration (continued)
Deficiency tracking
Deficient Work
When found and resolved same day, do not list
Deficiency Reporting
At minimum
Weekly Review
Before the Weekly Progress Meeting, review the Deficiency Tracking Log for outstanding Deficiencies.
Generate a summary of outstanding deficiencies including status of each.
Deliver the Summary at the Weekly Meeting

8. 112 QC Administration (continued)
Deficiency tracking
Deficiency Resolution
Resolution by Contractor, not Engineer
Engineer can disapprove the resolution
Resolution must be reviewed by a contractor PE
Conflict Resolution Process
24 hrs for position 5 Quality Control Inspector
48 hrs for position 3 Responsible Person-in-Charge
96 hrs for position 1 Contractor Principal Representative

9. 112 QC Administration (continued)
CONFLICT RESOLUTION PROCESS
3rd party testing
Agreed by contractor and engineer
Costs for 3rd party
CERTIFICATION, MATERIAL DELIVERY, TRACKING
Logs see section 115,116
Complete the Materials Delivery documentation. REMEMBER ON LPA PROJECTS, BUY AMERICA CLAUSE
Track materials until incorporation into the work.
Ensure that all materials are noted on the Materials Tracking Log.
Resolve certification problems.

11. 112 QC Administration (continued)
ACTIVITY CARDS AND CONTROL MEASURES (Form CCPW QC-103)
RPC to ensure in conformance with section 114
Section 1 Actual Work Performed

12. 112 QC Administration (continued)
Section 2 Deficiency Check
Section 3 Inspection Items

13. 112 QC Administration (continued)
Section 4 – Testing & Sampling
Table 1 on web
Test turn-a-round important! $100 per day deduction for late tests
Need appropriate documentation for various lifts, use stations, lift elevations.
Use the materials & sample tracking log.
Sequential test numbering for entire project
Section 5- Remarks
Section 6- Sign-Off

15. 112 QC Administration (continued)
Testing & Sampling
List potential testing for the project
Log from inspection of Asphalt Concrete

16. 112 QC Administration (continued)
Concrete Placement log

17. 112 QC Administration (continued)
Sample Tracking Log
Attach lab tests

18. 112 QC Administration (continued)
DAILY REPORTING
Activity card completed and attach:
Field Tests
Inspection reports (CCPW QC-100)
Inspection forms (see )
MONTHLY REPORTING
Summary of QC performed
Include quantity and amount of testing
Cover letter attest that the month has been reviewed
Indicate short falls in testing, quality and other pertinent items
State resolution actions in letter or being resolved
Material resolution to be reviewed and stamped by an engineer

21. 112 QC Administration (continued)
MONTHLY REPORTING
Submitted using in part or whole:
CD-Rom
Word processing documents
Spectraqest
Or combination
In format in the section
FINAL REPORTING
Same as previous, but shall not be submitted until all discrepancies and non-conformances have been resolved, including the close-out audit.
Testing shortfalls will have fees assigned

22. 112 QC Administration (continued)
QC AUDITING PROCEDURES
Project over 90 calendar days, no audit needed
Items:
Advanced Notification Cards Logs - 24-hour notice being given
Pre-Activity Meetings Logs
Activity Cards Logs - accurate, correct, and complete on a daily basis
Materials tracking log
Sampling and Testing completed with tracking information and results
Record dwg’s are being updated monthly
QC documentation and overall program is being implemented effectively
Documentation for resolution of Deficiencies/Non-Conformances Logs correct and complete
Written document with checklist
Follow-up audit for corrections within one week

24. 112 QC Administration (continued)
QC PROGRAM REVISIONS
Changes in procedures
Forms
Organization
Need approval of engineer

25. 113 CONTRACTOR ORGANIZATION
Basic chain of command
Position 1 - Contractor Principal Representative
Owner or representative
Position 2 - Professional Engineer (PE)
Position 3 - Responsible Person-in-Charge (RPC)
Superintendent level
Position 4 - Quality Control Coordinator (QCC)
Position 5 - Quality Control Inspector (QCI)
Positions 6 - Quality Control Field Technician (QCFT)
Positions 7 - Quality Control Lab Technician (QCLT)
All positions need resumes submitted

26. 113 CONTRACTOR ORGANIZATION (cont)
Responsible Person-in-Charge (RPC)
Responsible for the work
Min 8 yrs in type of construction
Stop work authority
QC Laboratory Engineer
Min 5 years experience construction experience
Nevada PE
Quality Control Coordinator (QCC)
Ensures that the documents are coordinated to all levels of the project
Min 2 yrs experience or resume

27. 113 CONTRACTOR ORGANIZATION (cont)
Inspectors or foremen (if acting inspector per section 111)
Min 3 years experience
Must submit form (Tables 1 thru 7)
One form per individual
Inspections and persons MUST also be identified during pre-activity mtg

28. 113 CONTRACTOR ORGANIZATION (cont)
Laboratories
AASHTO AMRL/CCRL accredited
Must be maintain throughout project
Subject to non-payment
ID all labs used

29. 114 INSPECTION PROCEDURES
INSPECTION PROCESS
Shall have experience
PRE-ACTIVITY MEETINGS
First start of any bid item work, or after long period of in-activity
Meet with all involved
Meet at location of work
Setup by contractor but Engineer may ask for one
RPC facilitates
Provide documentation, follow list
RPC, QC & QA Inspectors, foremen

32. 114 INSPECTION PROCEDURES (cont)
ADVANCE NOTIFICATION CARDS
Use form on website

33. 114 INSPECTION PROCEDURES (cont)
QUALITY CONTROL ACTIVITY CARD PROCESS
Section 1 – Actual Work Performed
Section 2 – Deficiency Check
If none, initial
If exists, note in row and log number

34. 114 INSPECTION PROCEDURES (cont)
Section 3 – Item/Material for Inspection
For inspections of work in Section 1
QC initial & date
Minimum one day advance notification for QA
If QA cannot inspect, note it then continue the work
Attach inspection forms to card

35. 114 INSPECTION PROCEDURES (cont)
Section 4 – Testing and Sampling Requirements
Used for documenting work in Section 1
RPC indicate actual tests
Indicate amount of material that could be tested
Amount of tests based on Table I frequency

36. 114 INSPECTION PROCEDURES (cont)
SAMPLING AND TESTING
Table I on website
Density tests to be clearly marked with paint
FINAL INSPECTION(S) AND TESTING
Ensure all deficiencies are corrected and documented

37. 114 INSPECTION PROCEDURES (cont)
HOLD POINT PROCESSES
Defined on website
Used for work stop for inspection
Contractor can add hold points
Shall not proceed with work

39. MATERIAL SOURCES Delivery onsite inspected by Contractor and Engineer
Source inspection performed as required by contract

40. 114 INSPECTION PROCEDURES (cont)
ELEVATION REFERENCES
Elevations minus from one of grades
Example: Finish Grade Aggregate Base minus 0.5 feet or FGAB-0.5'

41. 114 INSPECTION PROCEDURES (cont)
FIELD PROBLEM IDENTIFICATION AND REPORTING PROCESS
Read the procedure for each
Non-quality personnel
Testing tech
QC inspector

42. 114 INSPECTION PROCEDURES (cont)
TRACKING RESPONSIBILITY
RPC shall track discrepancy on the activity card
Compare to log
Ensure all resolved

43. 114 INSPECTION PROCEDURES (cont)
INSPECTION REPORTS
Use form CCPW QC-100 or similar approved by the Engineer
Full-time documented inspection
Oversight writing shall include
Observation of Quality Control and Quality Assurance tests
Review or spot check of procedures

44. 114 INSPECTION PROCEDURES (cont)
Evaluation of project controls
Coordination
Review all field and lab test data
Written inspection report to include:
Date including the year.
Weather conditions; cloudy, rain, etc.
Temperature – high and low (the web site wunderground.com is a good resource).

45. 114 INSPECTION PROCEDURES (cont)
Wind velocity and direction (approximate).
Total calendar days.
Contractors and Subcontractor’s working hours.
Specify work activities performed on that day/week The work in progress.
Pay Quantities for the day’s activities.
Note any unusual situations encountered, such as accidents, damages to vehicles or to the project, unusual material (bentonite, etc.), or anything that you would bring to the attention of others.

46. 114 INSPECTION PROCEDURES (cont)
Important calls,
Conversations,
Verbal discussions with Engineer relative to the work, including any. instructions or suggestions from the Engineer.
Communication with the property owners.
Official visitors and their recommendations; official visitors may include FHWA, Central. Office Personnel, Region Personnel.
Major equipment.
Sizable work forces being moved onto or away from the job.
General locations where equipment is working, not working, and/or idle for repairs.
Material rejected and reason.

47. 114 INSPECTION PROCEDURES (cont)
Substandard materials and justification.
Any phase shut down, justification and by whom.
Time spent with Engineer on disputable items of work.
Describe any delays and duration.
Progress of surveying and staking.
Deviations and corrective action taken.
Traffic Control.
Changes to Plans.
Project personnel.
Contractor Inspector signature and title

48. INDEPENDENT ASSURANCE

49. Independent Assurance Testing
Verifies visually
Care Custody and Control
Verifies QC and QA testing procedures
3-way split, IA retain one, only QA/QC testing
If test by IA are required
Use 3rd sample

50. General Responsibilities IA Testers
IA unit is responsible for auditing field testers by :
Performing visual audits,
Direct the splitting material samples
Maintaining testing consistency
Verifying that all testing personnel possess the necessary qualifications
Performing inspections on QA and QC labs

51. General Responsibilities of IA
FHWA Area Engineers may collaborate in sampling and testing
QA and/or QC testers sampling in the presence of and at the locations by IA tester
QA and QC Equipment Evaluation
Lab inspections

52. QA and QC Equipment Evaluation
IA shall evaluate the QC and QA laboratory and field equipment
Calibrated per the AASHTO AMRL-CCRL calibration frequency
Be performed during the laboratory audit, beginning of project,
Recorded on the audit form (Appendix A)

53. QA and QC Personnel Evaluation
IA is responsible for the split sample program
Split Samples 3-way splits, but 3rd for retain only
IA retain custody until given to QA or QC
Split samples and tests on the following materials:
Select Borrow , Selected Material , Granular and Drain Backfill ,

54. QA and QC Personnel Evaluation
Base Aggregates, Concrete Aggregates,
Aggregates for Plantmix Bituminous Surface, and UTACS
Concrete
Plantmix Bituminous Surface
UTACS

55. Reporting Procedures
QA QC data given to IA for tabulation onto one form

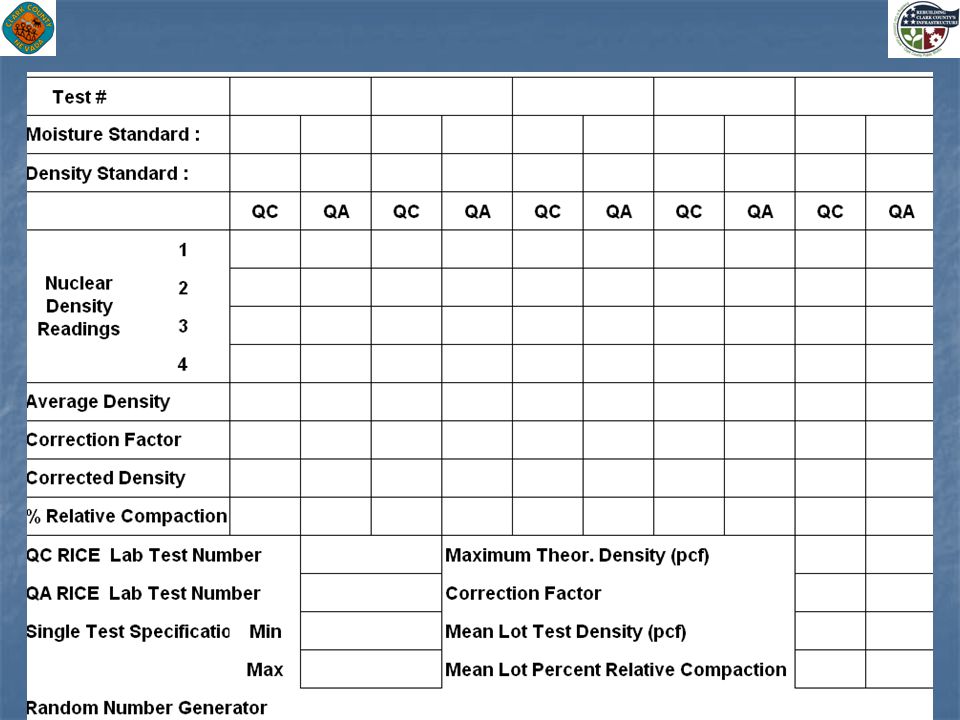

CCPW form IA-001- Compaction Curve
CCPW form IA way or 3 way split samples- Use for QA and QC sample comparisons

58. Reporting Procedures

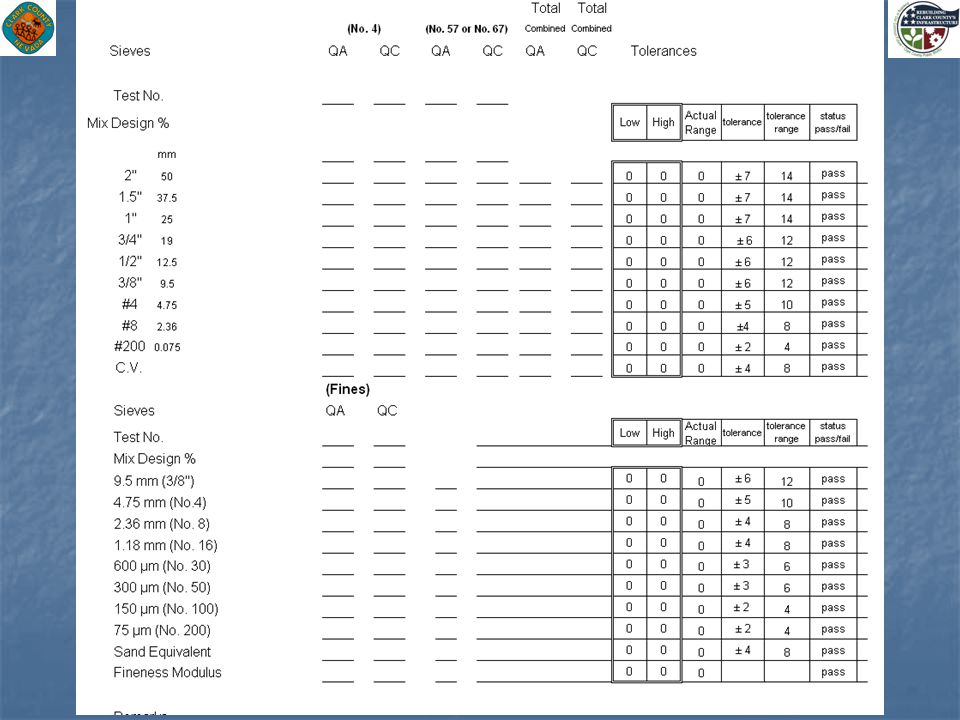

CCPW form IA-004- Audit Report Form for Concrete Aggregates

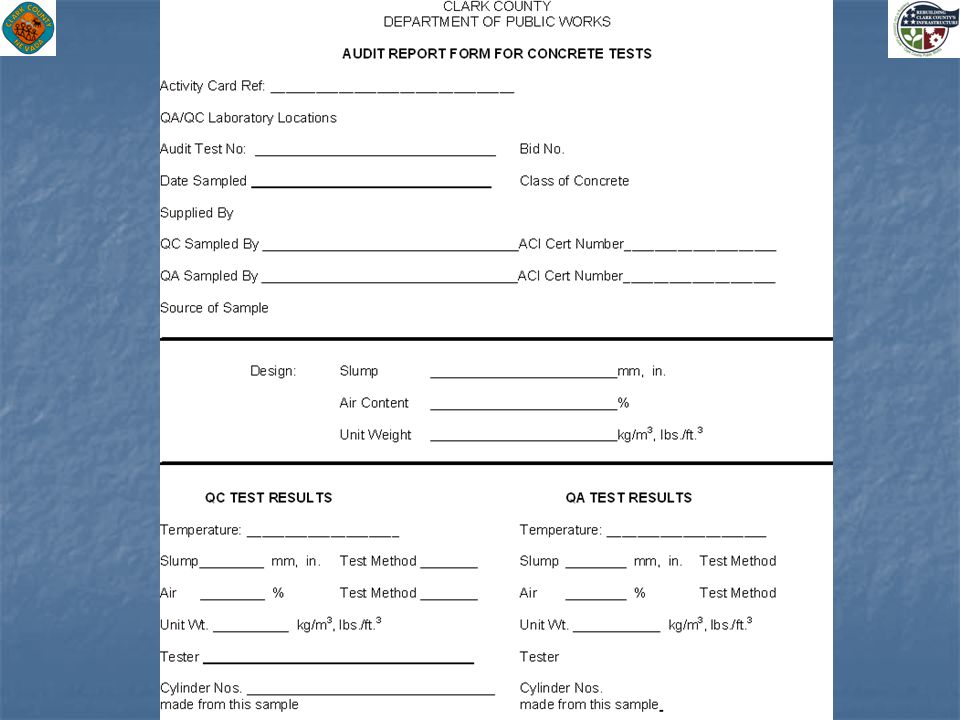

CCPW form IA 005, Audit Report Form of Concrete Tests
CCPW form IA-006- Visual Audit Form for QC and QA Laboratories
CCPW form IA-008- Lab Inspection Report
