1. Chapter 13 Additional Topics in Regression Analysis
Statistics for
Business and Economics 8th Edition
Chapter 13
Additional Topics in
Regression Analysis
Copyright © 2013 Pearson Education, Inc. Publishing as Prentice Hall

2. Copyright © 2013 Pearson Education, Inc. Publishing as Prentice Hall
Chapter Goals
After completing this chapter, you should be able to:
Explain regression model-building methodology
Apply dummy variables for categorical variables with more than two categories
Explain how dummy variables can be used in experimental design models
Incorporate lagged values of the dependent variable is regressors
Describe specification bias and multicollinearity
Examine residuals for heteroscedasticity and autocorrelation
Copyright © 2013 Pearson Education, Inc. Publishing as Prentice Hall

3. Model-Building Methodology
13.1
The Stages of Statistical Model Building
Model Specification *
Understand the problem to be studied
Select dependent and independent variables
Identify model form (linear, quadratic…)
Determine required data for the study
Coefficient Estimation
Model Verification
Interpretation and Inference
Copyright © 2013 Pearson Education, Inc. Publishing as Prentice Hall

4. The Stages of Model Building
(continued)
Model Specification
Estimate the regression coefficients using the available data
Form confidence intervals for the regression coefficients
For prediction, goal is the smallest se
If estimating individual slope coefficients, examine model for multicollinearity and specification bias
Coefficient Estimation *
Model Verification
Interpretation and Inference
Copyright © 2013 Pearson Education, Inc. Publishing as Prentice Hall

5. The Stages of Model Building
(continued)
Model Specification
Logically evaluate regression results in light of the model (i.e., are coefficient signs correct?)
Are any coefficients biased or illogical?
Evaluate regression assumptions (i.e., are residuals random and independent?)
If any problems are suspected, return to model specification and adjust the model
Coefficient Estimation
Model Verification *
Interpretation and Inference
Copyright © 2013 Pearson Education, Inc. Publishing as Prentice Hall

6. The Stages of Model Building
(continued)
Model Specification
Coefficient Estimation
Interpret the regression results in the setting and units of your study
Form confidence intervals or test hypotheses about regression coefficients
Use the model for forecasting or prediction
Model Verification
Interpretation and Inference *
Copyright © 2013 Pearson Education, Inc. Publishing as Prentice Hall

7. Multiple Regression Analysis Application Procedure
12.9
Multiple Regression Analysis Application Procedure
Errors (residuals) from the regression model:
ei = (yi – yi)
<
Assumptions:
The errors are normally distributed
Errors have a constant variance
The model errors are independent
Copyright © 2013 Pearson Education, Inc. Publishing as Prentice Hall
Ch. 12-7

8. Copyright © 2013 Pearson Education, Inc. Publishing as Prentice Hall
Analysis of Residuals
These residual plots are used in multiple regression:
Residuals vs. yi
Residuals vs. x1i
Residuals vs. x2i
Residuals vs. time (if time series data)
<
Use the residual plots to check for violations of regression assumptions
Copyright © 2013 Pearson Education, Inc. Publishing as Prentice Hall
Ch. 12-8

9. Dummy Variables and Experimental Design
13.2
Dummy variables can be used in situations in which the categorical variable of interest has more than two categories
Dummy variables can also be useful in experimental design
Experimental design is used to identify possible causes of variation in the value of the dependent variable
Y outcomes are measured at specific combinations of levels for treatment and blocking variables
The goal is to determine how the different treatments influence the Y outcome
Copyright © 2013 Pearson Education, Inc. Publishing as Prentice Hall

10. Dummy Variable Models (More than 2 Levels)
Consider a categorical variable with K levels
The number of dummy variables needed is one less than the number of levels, K – 1
Example:
y = house price ; x1 = square feet
If style of the house is also thought to matter:
Style = ranch, split level, condo
Three levels, so two dummy variables are needed
Copyright © 2013 Pearson Education, Inc. Publishing as Prentice Hall

11. Dummy Variable Models (More than 2 Levels)
(continued)
Example: Let “condo” be the default category, and let x2 and x3 be used for the other two categories:
y = house price
x1 = square feet
x2 = 1 if ranch, 0 otherwise
x3 = 1 if split level, 0 otherwise
The multiple regression equation is:
Copyright © 2013 Pearson Education, Inc. Publishing as Prentice Hall

12. Interpreting the Dummy Variable Coefficients (with 3 Levels)
Consider the regression equation:
For a condo: x2 = x3 = 0
With the same square feet, a ranch will have an estimated average price of thousand dollars more than a condo
For a ranch: x2 = 1; x3 = 0
With the same square feet, a split-level will have an estimated average price of thousand dollars more than a condo.
For a split level: x2 = 0; x3 = 1
Copyright © 2013 Pearson Education, Inc. Publishing as Prentice Hall

13. Copyright © 2013 Pearson Education, Inc. Publishing as Prentice Hall
Experimental Design
Consider an experiment in which
four treatments will be used, and
the outcome also depends on three environmental factors that cannot be controlled by the experimenter
Let variable z1 denote the treatment, where z1 = 1, 2, 3, or 4. Let z2 denote the environment factor (the “blocking variable”), where z2 = 1, 2, or 3
To model the four treatments, three dummy variables are needed
To model the three environmental factors, two dummy variables are needed
Copyright © 2013 Pearson Education, Inc. Publishing as Prentice Hall

14. Copyright © 2013 Pearson Education, Inc. Publishing as Prentice Hall
Experimental Design
(continued)
Define five dummy variables, x1, x2, x3, x4, and x5
Let treatment level 1 be the default (z1 = 1)
Define x1 = 1 if z1 = 2, x1 = 0 otherwise
Define x2 = 1 if z1 = 3, x2 = 0 otherwise
Define x3 = 1 if z1 = 4, x3 = 0 otherwise
Let environment level 1 be the default (z2 = 1)
Define x4 = 1 if z2 = 2, x4 = 0 otherwise
Define x5 = 1 if z2 = 3, x5 = 0 otherwise
Copyright © 2013 Pearson Education, Inc. Publishing as Prentice Hall

15. Experimental Design: Dummy Variable Tables
The dummy variable values can be summarized in a table: Z1 X1 X2 X3 1 2 3 4 Z2 X4 X5 1 2 3
Copyright © 2013 Pearson Education, Inc. Publishing as Prentice Hall

16. Experimental Design Model
The experimental design model can be estimated using the equation
The estimated value for β2 , for example, shows the amount by which the y value for treatment 3 exceeds the value for treatment 1
Copyright © 2013 Pearson Education, Inc. Publishing as Prentice Hall

17. demand for pizza1
three other brands B2, B3 B4

20. Exercise 13.3 predict cost per unit produced
as a function of factory type
classic tech. , computer controled mach computer controled material
country
Colombia South Africa japan

21. Solution

22. Copyright © 2013 Pearson Education, Inc. Publishing as Prentice Hall
Specification Bias
13.4
Suppose an important independent variable z is omitted from a regression model
If z is uncorrelated with all other included independent variables, the influence of z is left unexplained and is absorbed by the error term, ε
But if there is any correlation between z and any of the included independent variables, some of the influence of z is captured in the coefficients of the included variables
Copyright © 2013 Pearson Education, Inc. Publishing as Prentice Hall

23. Copyright © 2013 Pearson Education, Inc. Publishing as Prentice Hall
Specification Bias
(continued)
If some of the influence of omitted variable z is captured in the coefficients of the included independent variables, then those coefficients are biased…
…and the usual inferential statements from hypothesis test or confidence intervals can be seriously misleading
In addition the estimated model error will include the effect of the missing variable(s) and will be larger
Copyright © 2013 Pearson Education, Inc. Publishing as Prentice Hall

24. Exercise 13.21 Y: miles per gasolone İndepependent variables:
vehicle hoursepower and vehicle weight
Suppose weight variable is omited
what can be concluded about coef of hoursePower?

25. Solution

26. Solution (cont.)

27. Solution (cont.)

28. Copyright © 2013 Pearson Education, Inc. Publishing as Prentice Hall
Multicollinearity
13.5
Collinearity: High correlation exists among two or more independent variables
This means the correlated variables contribute redundant information to the multiple regression model
Copyright © 2013 Pearson Education, Inc. Publishing as Prentice Hall

29. Copyright © 2013 Pearson Education, Inc. Publishing as Prentice Hall
Multicollinearity
(continued)
Including two highly correlated explanatory variables can adversely affect the regression results
No new information provided
Can lead to unstable coefficients (large standard error and low t-values)
Coefficient signs may not match prior expectations
Copyright © 2013 Pearson Education, Inc. Publishing as Prentice Hall

30. Indicators of Multicollinearity
Coefficients differ from the values expected by theory or experience, or have incorrect signs
Coefficients of variables believed to be a strong influence have small t statistics indicating that their values do not differ from 0
All the coefficient student t statistics are small, indicating no individual effect, but the overall F statistic indicates a strong effect for the total regression model
High correlations exist between individual independent variables or one or more of the independent variables have a strong linear regression relationship to the other independent variables or a combination of both
Copyright © 2013 Pearson Education, Inc. Publishing as Prentice Hall

31. Detecting Multicollinearity
Examine the simple correlation matrix to determine if strong correlation exists between any of the model independent variables
Look for a large change in the value of a previous coefficient when a new variable is added to the model
Does a previously significant variable become insignificant when a new independent variable is added?
Does the estimate of the standard deviation of the model increase when a variable is added to the model?
Copyright © 2013 Pearson Education, Inc. Publishing as Prentice Hall

32. Corrections for Multicollinearity
Remove one or more of the highly correlated independent variables. But, as shown in Section 13.4, this might lead to a bias in coefficient estimation.
Change the model specification, including possibly a new independent variable that is a function of several correlated independent variables.
Obtain additional data that do not have the same strong correlations between the independent variables.
Copyright © 2013 Pearson Education, Inc. Publishing as Prentice Hall

33. Copyright © 2013 Pearson Education, Inc. Publishing as Prentice Hall
Heteroscedasticity
13.6
Homoscedasticity
The probability distribution of the errors has constant variance
Heteroscedasticity
The error terms do not all have the same variance
The size of the error variances may depend on the size of the dependent variable value, for example
Copyright © 2013 Pearson Education, Inc. Publishing as Prentice Hall

34. Copyright © 2013 Pearson Education, Inc. Publishing as Prentice Hall
Heteroscedasticity
(continued)
When heteroscedasticity is present:
least squares is not the most efficient procedure to estimate regression coefficients
The usual procedures for deriving confidence intervals and tests of hypotheses is not valid
Copyright © 2013 Pearson Education, Inc. Publishing as Prentice Hall

35. Residual Analysis for Homoscedasticityx x x x
residuals
residuals 
Constant variance
Non-constant variance
Copyright © 2013 Pearson Education, Inc. Publishing as Prentice Hall

36. Tests for Heteroscedasticity
To test the null hypothesis that the error terms, εi, all have the same variance against the alternative that their variances depend on the expected values
Estimate the simple regression
Let R2 be the coefficient of determination of this new regression
The null hypothesis is rejected if nR2 is greater than 21,
where 21, is the critical value of the chi-square random variable with 1 degree of freedom and probability of error 
Copyright © 2013 Pearson Education, Inc. Publishing as Prentice Hall

37. Exercise 13.26
Retail sales v.s. Disposible income per household

38. Solution

40. Exercise 13.29
Home prices vs family variables mainly income

41. Solution

42. Solution (cont.)

43. Solution (cont.)

44. Solution (cont.)

45. Variable-Selection Procedures
Stepwise Regression
At each iteration, the first consideration is to see whether the least significant variable currently in the model can be removed because its F value, FMIN, is less than the user-specified or default F value, FREMOVE.
If no variable can be removed, the procedure checks to see whether the most significant variable not in the model can be added because its F value, FMAX, is greater than the user-specified or default F value, FENTER.
If no variable can be removed and no variable can be added, the procedure stops.

46. Variable-Selection Procedures
Forward Selection
This procedure is similar to stepwise-regression, but does not permit a variable to be deleted.
This forward-selection procedure starts with no independent variables.
It adds variables one at a time as long as a significant reduction in the error sum of squares (SSE) can be achieved.

47. Variable-Selection Procedures
Backward Elimination
This procedure begins with a model that includes all the independent variables the modeler wants considered.
It then attempts to delete one variable at a time by determining whether the least significant variable currently in the model can be removed because its F value, FMIN, is less than the user-specified or default F value, FREMOVE.
Once a variable has been removed from the model it cannot reenter at a subsequent step.

48. Variable-Selection Procedures
Best-Subsets Regression
The three preceding procedures are one-variable-at-a-time methods offering no guarantee that the best model for a given number of variables will be found.
Some software packages include best-subsets regression that enables the use to find, given a specified number of independent variables, the best regression model.
Minitab output identifies the two best one-variable estimated regression equations, the two best two-variable equation, and so on.

49. Exercise 11.81 Data file: Student GPA Variables: GPA Sex SATworb
SATmath
ACTeng ACT worbel
ACTmath ACT math
ACTss ACT social
ACTcomp composite
HSPert high schol performance
EconGPA under grad in econ courses

50. Aim What determines econGPA?
Math SATmath, ACtmath or worble: SATworb, ACtworb
a) Scatter plots of depndent variable vs independent variables
b) What is the best predictor of econGPA?

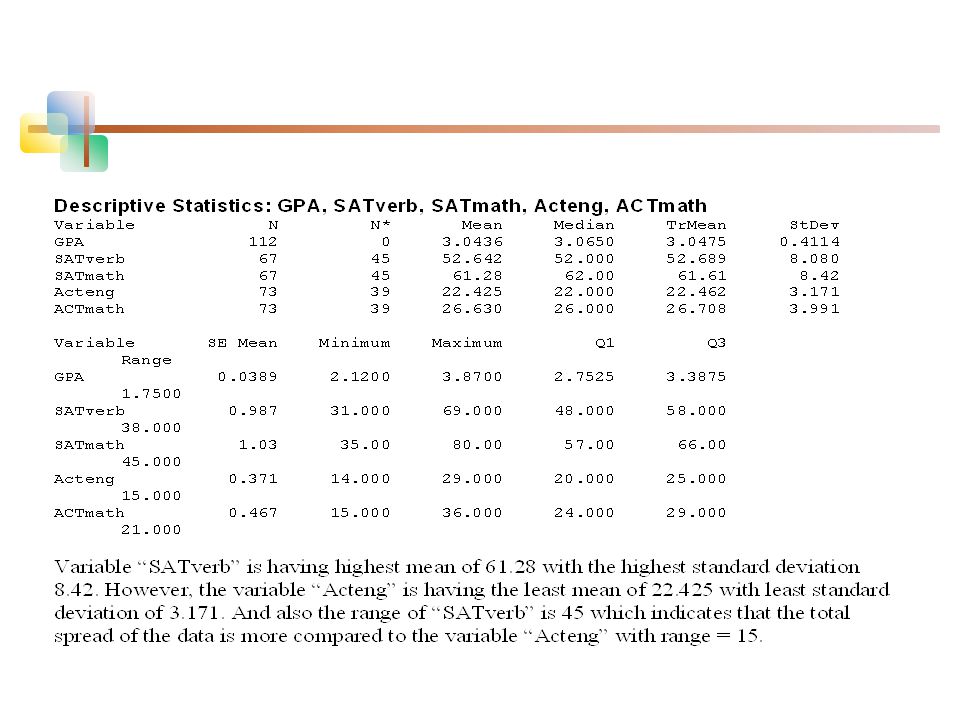

c) Descriptive statistics of variables

61. Exercise 12.99 a) Use SAT variables and class rank
b)Use ACT variables and class rank
c) Which model is better

62. 12.99

72. Exercise 12.108 ACT variables , gender and high schol prformance
a) Develop a model
b) your strategy
c) what would you advide to school directors

73. 12.108

78. Copyright © 2013 Pearson Education, Inc. Publishing as Prentice Hall
Chapter Summary
Discussed regression model building
Introduced dummy variables for more than two categories and for experimental design
Used lagged values of the dependent variable as regressors
Discussed specification bias and multicollinearity
Described heteroscedasticity
Defined autocorrelation and used the Durbin-Watson test to detect positive and negative autocorrelation
Copyright © 2013 Pearson Education, Inc. Publishing as Prentice Hall

79. Printed in the United States of America.
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of the publisher.
Printed in the United States of America.
Copyright © 2013 Pearson Education, Inc. Publishing as Prentice Hall
