1. MetaFrame XP Presented by Rick Dehlinger Senior Systems Engineer Citrix Systems, Inc.

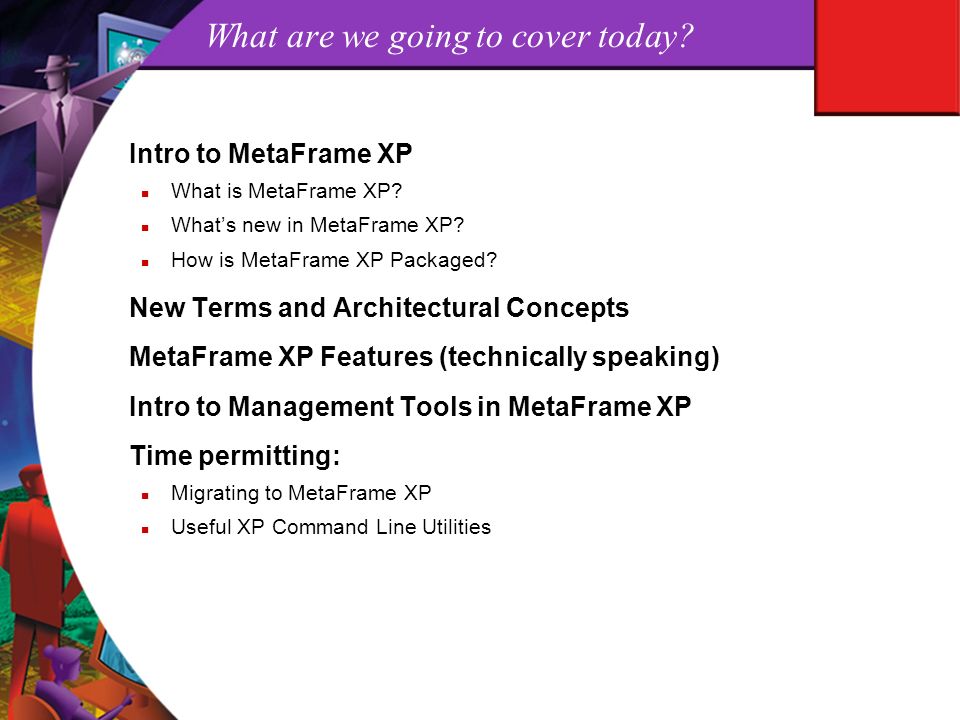

2. What are we going to cover today? Intro to MetaFrame XP n What is MetaFrame XP? n What’s new in MetaFrame XP? n How is MetaFrame XP Packaged? New Terms and Architectural Concepts MetaFrame XP Features (technically speaking) Intro to Management Tools in MetaFrame XP Time permitting: n Migrating to MetaFrame XP n Useful XP Command Line Utilities

3. How do I stay on top of stuff like this? Participate in the CitrixNW Yahoo! group n Self maintaining ‘newsletter’ style list n Used to communicate pertinent technical/training info to Citrix users/integrators in Northwest n Sign up at http://groups.yahoo.com/group/citrixnw Participate in Multi events and Web Conferences n Web Conferences every Thursday n See http://groups.yahoo.com/calendar/citrixnw for schedule and participation instructionshttp://groups.yahoo.com/calendar/citrixnw Don’t worry about writing EVERYTHING down today n Download this presentation from http://groups.yahoo.com/files/citrixnw “RD Face to Face Version x.zip”http://groups.yahoo.com/files/citrixnw

4. Intro MetaFrame XP

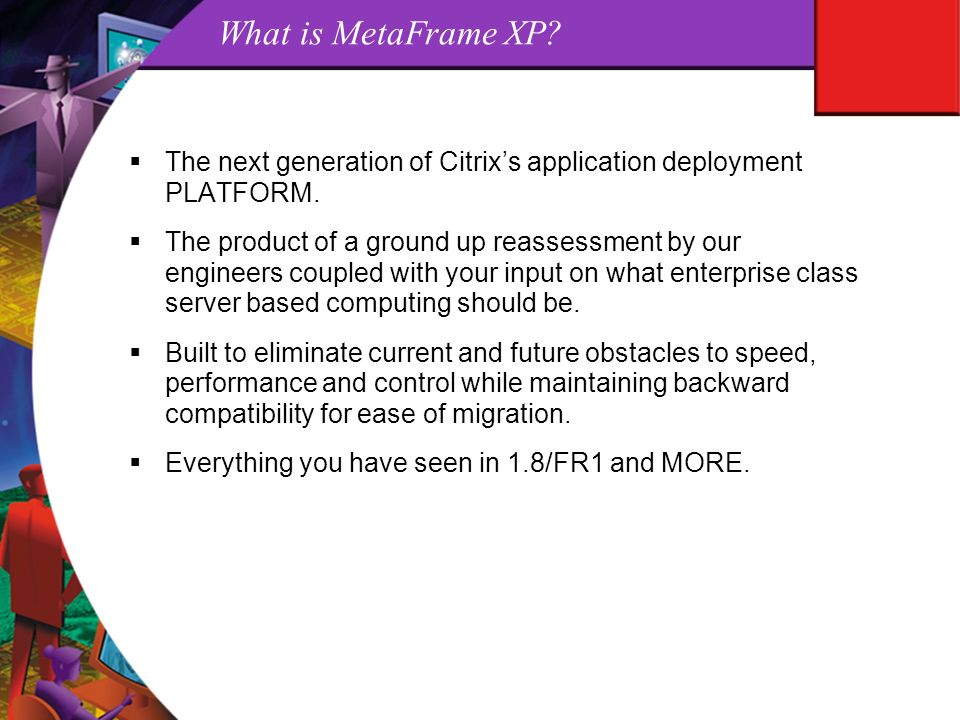

5. What is MetaFrame XP?  The next generation of Citrix’s application deployment PLATFORM.  The product of a ground up reassessment by our engineers coupled with your input on what enterprise class server based computing should be.  Built to eliminate current and future obstacles to speed, performance and control while maintaining backward compatibility for ease of migration.  Everything you have seen in 1.8/FR1 and MORE.

6. What’s new in MetaFrame XP?  Citrix Management Console  Application-based load management  ‘Load Management’ in XPa and XPe  System monitoring and analysis  ‘Resource Manager’ in XPe  Application packaging and delivery  ‘Installation Manager’ in XPe  Network management  ‘Network Manager’ in XPe  Printer management  Shadowing enhancements  Client time zone support  Enhanced scalability

7. What’s new in MetaFrame XP?  Reduced IT administration  Reduced network traffic  Centralized license management  Enterprise-wide license pooling  Enhanced license availability  Active directory support  NFuse ready (turnkey NFuse)  ICA client extensibility  MetaFrame and WinFrame interoperability  ‘Mixed’ or ‘Interoperability’ mode

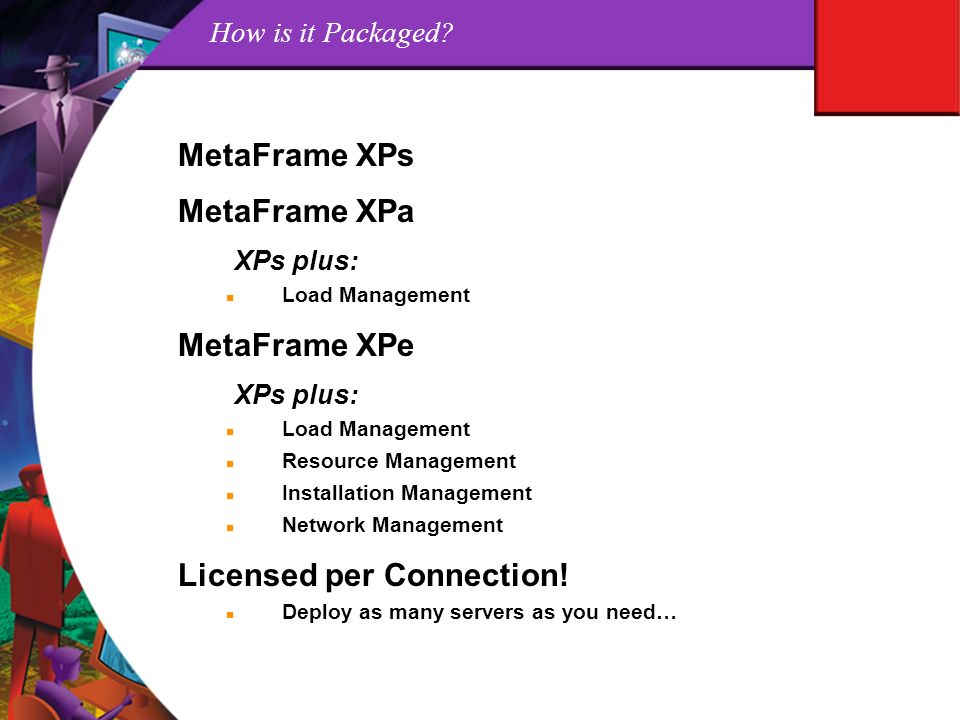

8. How is it Packaged? MetaFrame XPs MetaFrame XPa XPs plus: n Load Management MetaFrame XPe XPs plus: n Load Management n Resource Management n Installation Management n Network Management Licensed per Connection! n Deploy as many servers as you need…

9. New Terms and Architectural Concepts

10. New Terms  IMA: Independent Management Architecture  Data Store: Central configuration database  LHC: Local Host Cache. Persistent data cache that exists on each server.  Data Collector: Manages dynamic data and client enumeration/resolution (replaces ICA Master Browser).  Zone: Deliberate grouping of XP servers, each with it’s own Data Collector.  CMC: Citrix Management Console (replaces MF 1.8 administration tools).

11. What is IMA? Why is it important? IMA…  Is a TCP based, event driven messaging bus, used by MetaFrame servers and management tools communication.  Is a modular and easily extensible subsystem capable of supporting current and future MetaFrame products and tools.  Overcomes the scalability constraints of the MetaFrame 1.8 Platform, allowing us to scale environments to new levels.  Allows us to administer any farm from a central tool (CMC) that doesn’t have to run on a MetaFrame server.  Will allow Citrix to add functionality to the Platform independent of the base server.

12. MetaFrame XP NT 4.0 TSE MetaFrame XP Win2K Central Data Store SQL, Oracle, Access Load Management Services Installation Management Services Resource Management Services Independent Management Architecture (IMA) Citrix Mgt. Console DB Security Services Independent Management Architecture

13. MetaFrame Server Farms MetaFrame 1.8: Server Farms in MetaFrame 1.8 are a collection of servers on a given broadcast segment that are be managed as a single unit. Server Farms in MetaFrame 1.8 may also be defined by sharing a common ‘Application Set’. MetaFrame XP: The Server Farm in MetaFrame XP defines the scope of management as well as the ‘Application Set’. Server Farms in MetaFrame XP are designed to operate across segments, and are managed through the Citrix Management Console.

14. Server Farms with MF 1.8: ICA Browser Segment 1 10.1.1.x Farm 1 (2, 3) Segment 2 10.1.2.x Farm 4 (5, 6) MFAdmin, PAM, etc. ICA Master Browser ICA Master Browser MFAdmin, PAM, etc. MetaFrame 1.8/ICA Browser Attributes  Server Farms cannot span segments  Each segment has ONE ICA Master Browser  ICA Master stores dynamic data for the segment and handles Enumeration/Resolution for ICA clients  Persistent data stored in registry (farm membership, licenses, pub apps, etc.)  Persistent data read by ICA browser/PN Service at startup  Cross server configuration tools read/write to registry on all servers  Servers communicate via UDP broadcasts, remote REG calls, RPC’s, etc.

15. Server Farms with MF XP: IMA MetaFrame XP/IMA Attributes  Server Farms can span segments, can contain multiple Zones  Each zone has ONE Data Collector  Data Collectors store dynamic data and handle Enumeration/Resolution for ICA clients  Persistent farm data stored in shared, persistent Data Store  Persistent data read from DS at startup, cached in Local Host Cache  Management tool communicates via IMA to Data Store and member servers  Servers communicate via IMA (TCP) Zone 1 Zone 2 CMC DS LHC DC Server Farm

16. Attributes of the MetaFrame XP Data Store (DS)  The DS is a repository (database) which contains persistent, farm wide data like member servers, licenses in farm, zone configs, printers/drivers, published apps, load evaluators, trust relationships, etc.  Each MetaFrame XP farm shares one Data Store.  All information in the DS is stored in an encrypted binary format (except indexes).  A Farm can operate for 48 hours if DS is unavailable, then licenses time out and no new users can connect.  A DS can be an Access, MS SQL, or Oracle database.  A DS can be configured for either ‘Direct’ or ‘Indirect’ access. Data Store

17. Attributes of Direct Mode  Uses Microsoft SQL 7/2000 or Oracle 7.3.4/8.0.6/8.1.6 database.  Servers initialize directly from the DS via ODBC.  Servers maintain an open connection to the database for consistency checks. Data Store in ‘Direct’ Mode DS LHC

18. Attributes of Indirect Mode  Uses JET 4.x, Microsoft SQL 7/2000 or Oracle 7.3.4/8.0.6/8.1.6 database.  Member servers communicate via through ‘IMA host’ server to read/write to data store.  If using JET database, MF20.MDB lives on the ‘IMA host’ server. Data Store in ‘Indirect’ Mode DS LHC IMA Host (indirect mode) DC

19. Attributes of the Local Host Cache  A subset of the Data Store, stored on each individual server (IMALHC.MDB). Contains basic info about servers in farm, pub. apps and properties, trust relationships, server specific configs (product code, SNMP settings, load evaluators, etc.)  Used for Initialization if DS is down.  Used for ICA client application Enumeration. Local host Cache (LHC) Zone 1 Zone 2 CMC DS LHC DC Server Farm

20. Attributes of Data Collectors  A DC stores dynamic information about a Farm, such as servers up/down, logons/logoffs, disconnect/reconnect, license in use/released, server/application load, etc.  There is a DC for each Zone.  DC’s handle all ICA client Resolution activity, should handle all Enumeration activity. ANY DC can Resolve ANY app for ANY client (DC’s are peers in a multi-zone implementation).  DC’s distribute most persistent data changes to member servers for LHC update. Data Collectors Zone 1 Zone 2 CMC DS LHC DC Server Farm

21. Attributes of Zones  Logical, centrally configurable grouping of MetaFrame XP servers.  Each Zone has one Data Collector (DC).  Can span IP networks (LAN, WAN).  Aren’t necessarily tied to an IP segment (only by default).  Are useful for partitioning/controlling persistent data update traffic and for distributing ICA client Enumeration/Resolution traffic.  A Zone can contain up to 256 hosts without a registry modification.  In most cases, fewer zones are better! Zones Zone 1 Zone 2 CMC DS LHC DC Server Farm

22. Attributes of the CMC  Central management tool where 98% of farm configuration/maintenance occurs.  Extensible framework that allows different tools to ‘snap in’.  Doesn’t need to run on a MetaFrame server.  Works through the IMA service (dest. port 213) to access DS, DC, and member servers.  Should be run through a DC that has local access to the DS.  Is the most read/write intensive usage of the DS. Citrix Management Console (CMC) Zone 1 Zone 2 CMC DS LHC DC Server Farm

23. Demonstration: CMC in Action

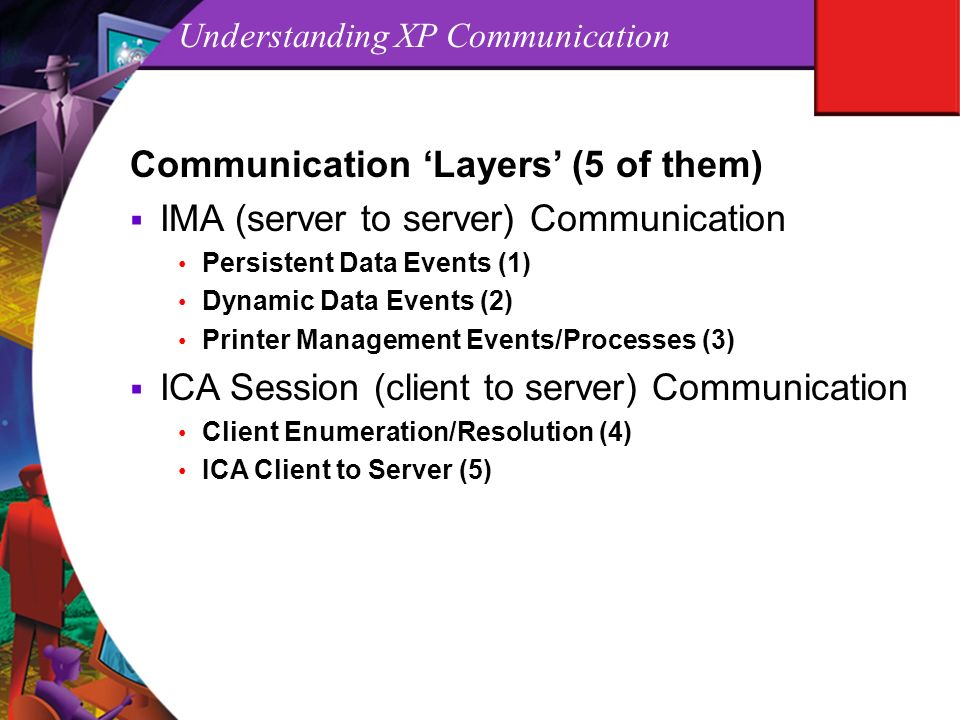

24. Communication ‘Layers’ (5 of them)  IMA (server to server) Communication Persistent Data Events (1) Dynamic Data Events (2) Printer Management Events/Processes (3)  ICA Session (client to server) Communication Client Enumeration/Resolution (4) ICA Client to Server (5) Understanding XP Communication

25. IMA Persistent Data Events (1) DS LHC Communication Events  IMA Service Initialization Read heavy initialization/validation of the LHC  Periodic Consistency Check (configurable timing) Key: HKLM\Software\Citrix\IMA\DCNChangePollingInterval Default value: 600000 milliseconds REG_DWORD: 0x927C0 IMA Host (indirect mode) DC

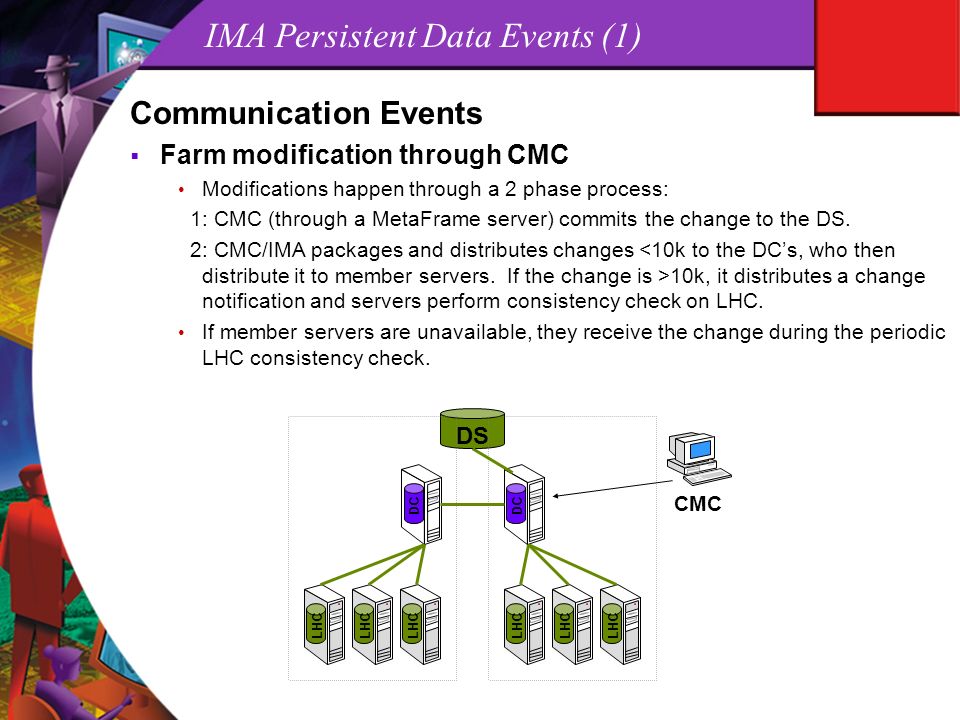

26. IMA Persistent Data Events (1) Communication Events  Farm modification through CMC Modifications happen through a 2 phase process: 1: CMC (through a MetaFrame server) commits the change to the DS. 2: CMC/IMA packages and distributes changes 10k, it distributes a change notification and servers perform consistency check on LHC. If member servers are unavailable, they receive the change during the periodic LHC consistency check. CMC DS LHC DC

27. IMA Dynamic Data Events (2) Communication Events  Any state change on server (logon/logoff, disconnect/reconnect, load change) triggers a dynamic data update. Member server notifies it’s DC of the change. The member server’s DC notifies ALL other DC’s of the change.  Note: DC’s have a peer-to-peer relationship: every DC knows what every other DC knows. LHC DC

28. IMA Dynamic Data Events (2) Communication Events  Member server to zone DC heartbeat check. Key: HKLM\Software\Citrix\IMA\Runtime\KeepAliveInterval Default value: 60000 milliseconds REG_DWORD: 0xEA60  DC to DC consistency check. Key: HKLM\Software\Citrix\IMA\Runtime\Gateway\ValidationInterval Default value: 300000 milliseconds REG_DWORD: 0x493E0 LHC DC

29. IMA Printer Management Events (3) Communication Events  Why is this slide blank?  Printer Management has a relatively substantial impact upon IMA traffic.

30. Client Enumeration/Resolution  Client to XP: Client asking, XP answering ‘what apps can I run?’ and ‘where do I go for this app?’ Enumeration (what apps…): Client to XP server, TCP80 (default with TCP+HTTP server location), or UDP1604 (with TCP/IP server location), enumerated from LHC on MetaFrame server. Resolution (where do I go…): Client to XP DC, TCP80 (default with TCP+HTTP server location), or UDP1604 (with TCP/IP server location). ICA Session Communication (4) LHC DC

31. Client Enumeration/Resolution  NFuse to XP: NFuse asking (on behalf of the client) and XP answering the above questions Client web browser talking HTTPS to NFuse server for both processes. Enumeration (what apps…): NFuse to XP server, TCP80 (default), or SSL, enumerated from LHC on MetaFrame server, presented to web browser as hyperlinks. Resolution (where do I go…): NFuse to XP DC, TCP80 (default), or SSL, builds ICA file with resulting info. ICA Session Communication (4) LHC DC NFuse

32. ICA Client to Server  Actual ICA session stream from the ‘Connector’ (ICA client) to an XP server, destination port TCP1494 (default). ICA Session Communication (5) LHC DC (launched from either UI)

33. MetaFrame XP Features Revealed

34. MetaFrame XP Management Centralized Administration Single Point Command and Control nAll administration, configuration, monitoring and control of the Citrix Server Farm is managed centrally Independent Management Architecture nIMA compliant servers and management products share a common and extensible management infrastructure Unified Management Console nThe Citrix Management Console communicates across a single Management Scope of the server farm using the IMA protocol Central Data Store nConfiguration information for the Server Farm is stored centrally in the Citrix Data Store.

35. Citrix Management Console

36. Centralized License Management Description: Licenses are installed into the Central Data Store and managed centrally from the Citrix Management Console. Benefit: Administrators can easily manage all of the licenses for the Citrix Server Farm from a single point.

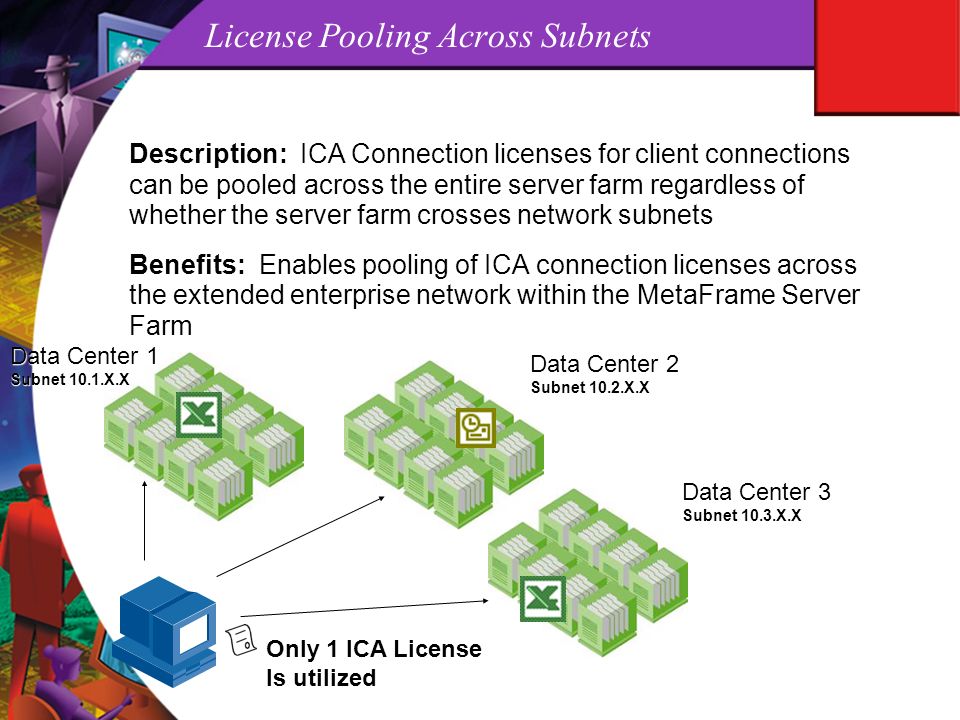

37. License Pooling Across Subnets Description: ICA Connection licenses for client connections can be pooled across the entire server farm regardless of whether the server farm crosses network subnets Benefits: Enables pooling of ICA connection licenses across the extended enterprise network within the MetaFrame Server Farm Data Center 1 Subnet 10.1.X.X Data Center 2 Subnet 10.2.X.X Data Center 3 Subnet 10.3.X.X Only 1 ICA License Is utilized

38. License Fail Over and Redundancy Description: MetaFrame XP allows licenses to be available for fail over and redundancy. In the case of a server failure the Server and Connection license are still available Benefit: Administrators have the ability to bring up “warm” backup servers in the event of a server failure without the need to re-install and re-activate their server licenses

39. MetaFrame XP License Management Centralized License Management Flexible Licensing for emerging business models n Increased flexibility to support Citrix Licensing Programs (Shrink Wrap, CLP, ELP, and iLicense) Single Point of License Installation and Activation n License installation and activation can be done centrally via the Citrix Management Console Support for Multiple Server/Product Platforms n The new licensing system supports all types of Citrix licenses: Server, Connection, and Management Connection License Sharing across Platforms n Ability to share connection licenses across other IMA compliant server platforms in the future: Solaris, HP-UX, AIX

40. MetaFrame XP Directory Integration Active Directory Integration Application Publishing n Enables application Publishing to users and Groups in Active Directory Account Authority Access n Utilizes Native Active Directory Interfaces to access the Active Directory User Principal Names n Allows users to logon to the MetaFrame Server using User Principal Names: i.e. user@domain.com NFuse and Program Neighborhood n Enables users to utilize their Active Directory accounts to access MetaFrame applications via NFuse and Program Neighborhood

41. Active Directory Integration ADS Citrix Management Console Enumerate User and Group Accounts from Active Directory Publish Application for ADS Users from the CMC Description: Applications can be published on MetaFrame XP servers and assigned to users from Active Directory. Benefit: MetaFrame XP integrates and fully supports Application Publishing in a Native Active Directory environment

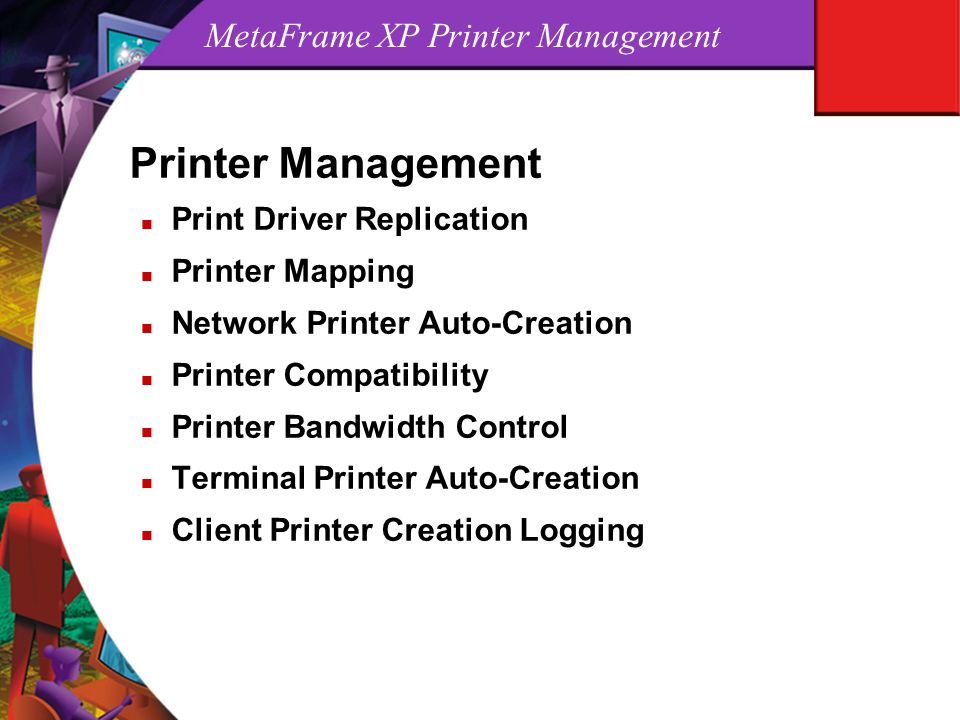

42. MetaFrame XP Printer Management Printer Management n Print Driver Replication n Printer Mapping n Network Printer Auto-Creation n Printer Compatibility n Printer Bandwidth Control n Terminal Printer Auto-Creation n Client Printer Creation Logging

43. MetaFrame XP Printer Management Printer Mapping n Ability to create mappings for Windows 9X Client Printers on the MetaFrame Server and automatically distribute to the Server Farm Printer Bandwidth Control n Allows the administrator to specify the amount of bandwidth that can be used by printing over the client connection Terminal Printer Auto-Creation n Ability for the administrator to setup auto-creation of printers for ICA DOS and WinCE Terminal Devices Client Printer Creation Logging n Logs all information about auto-creation of client printers, allowing the administrator to proactively detect printer issues and resolve them with the required information

44. Print Driver Replication CMC Install New Printer Driver on 1 Server Use CMC to Manage and Distribute New Printer Driver to entire Server Farm Description: Through the Citrix Management Console, printer drivers can be managed across the entire server farms. Benefit: Gives administrators the power and control to manage and distribute printer drivers to all of the MetaFrame servers in the server farm, providing a consistent printing environment for all users.

45. Printer Compatibility Restricted XYZ Printer ABC Printer ICA Client ICA Connection Printer is on the restricted list Printer Creation is Disabled Description: Printer compatibility allows the administrator to specify client printers that can be used in the MetaFrame environment or specify printers that can never be used. Benefit: Gives administrators the power to determine and control the types of client printers that can be utilized on the MetaFrame Servers enabling them to ensure a consistent and stable computing environment

46.  Print drivers can only be replicated to the servers of the same OS as the source server.  Install drivers on the source server and select any available port on the server.  If installing for the sole purpose of replication there is no need to share the printers or set them as default.  Can be very CPU intensive on the source server so avoid replicating drivers while the source server has a heavy load. Print Management Recommendations

47.  #QueueEntries = [#Drivers] * [#Servers] Every driver/server combination creates a queue item in the printer replication queue. Should not exceed 1500 entries in length Eg. 30 drivers to 50 servers  QPRINTER Utility Not installed by default. \support\debug\i386 QPRINTER /REPLICA  Expected Performance Handled by IMA Service at very low priority. Depends on network traffic and server load. Printer Queue Management

48. Shadowing Installation Option: Ability to select whether ICA Shadowing is available Lock down the shadowing configuration to avoid changes Allows administrators flexibility with privacy and security issues involving shadowing Shadow Indicator: Notifies users that shadowing is in progress Provides users with a “cancel” button to end the shadow Shadow Activity Logging: logs all session and user information during a shadow Enables the creation of a shadow “audit log” New! XP Shadow Management

49. ICA Client Enhancements Client Enhancements Published Application Parameter Support n Enables the MetaFrame server to accept published application parameters provided by a client, and the client to pass published application parameters to the server ICA Client Object Interface n A framework that exposes the functionality of the Citrix ICA Win32 Client to other objects or Applications. Allows any application that supports embedding of objects, to interface with and pass instructions to the ICA Client Per Connection Timezone n Ability to run applications on the MetaFrame server in the context of the users local time zone. The MetaFrame Server can support different users running applications at different time zones on the same server

50. Per Session Time Zone Support Redmond ICA Client Ft. Lauderdale London MetaFrame XP Server Salt Lake City Published Applications Run in context of User’s Local Time Zone Time Zone GMT -8 Time Zone GMT -5 Time Zone GMT GMT -7

51. Introducing ‘Turnkey’ NFuse  NFuse install option with XP install if IIS detected.  Sets up default web and startup page.  In short- you can now ACCIDENTLY deploy NFuse! NFuse Integration

52. ‘Project Columbia’ What is it? n Free, unsupported, NFuse template site n Drop in replacement for XP’s ‘turnkey’ NFuse n Easy feature configuration (config.txt) What does it do? n Tons! For starters… l Multi-farm support l Backup XML server support l Integrated password validation with change function l Detect/install ICA clients l Automatic delivery of win32t.cab ICA client

53. ‘Project Columbia’ But wait, there’s more! ;-) n Throw in these functions too. l Display farm names with app sets l Modify application display options and column count l Automatically populate USERNAME/DOMAIN fields l Disable ‘Right Click/Save As’ on ICA file l Enable connectivity for Citrix Extranet clients l Return ALTADDR for external network users l Round robin load balancing of XML servers Current limitations n Win32/Microsoft server focus n Un-supported

54. Demonstrations: ‘Turnkey’ NFuse and ‘Project Columbia’

55. ‘Project Columbia’ in Action

58. Management Tools in MetaFrame XP

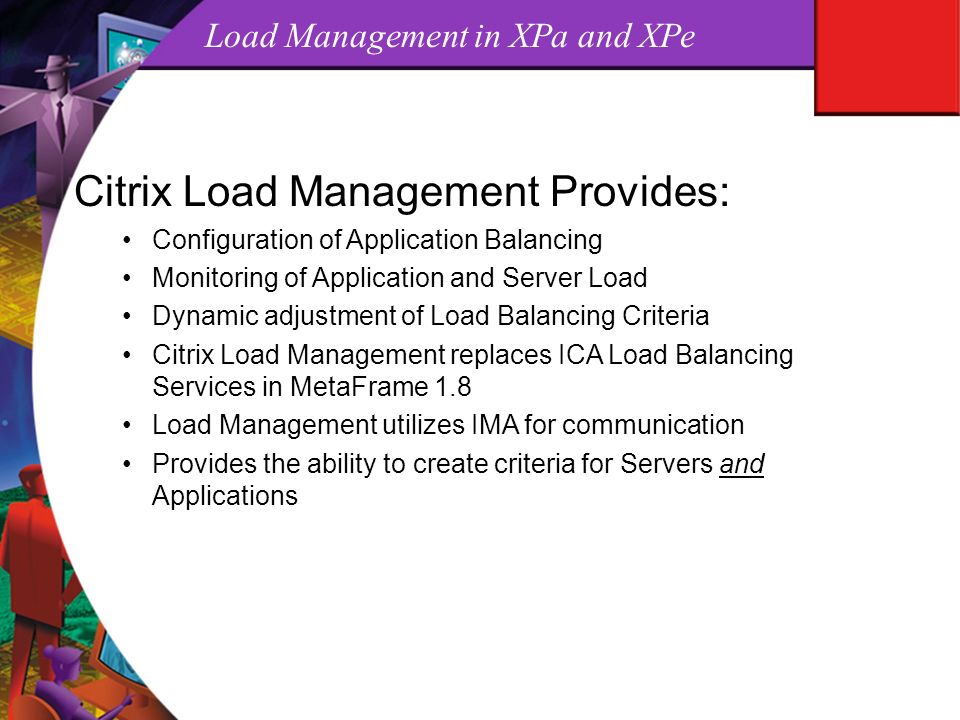

59. Citrix Load Management Provides: Configuration of Application Balancing Monitoring of Application and Server Load Dynamic adjustment of Load Balancing Criteria Citrix Load Management replaces ICA Load Balancing Services in MetaFrame 1.8 Load Management utilizes IMA for communication Provides the ability to create criteria for Servers and Applications Load Management in XPa and XPe

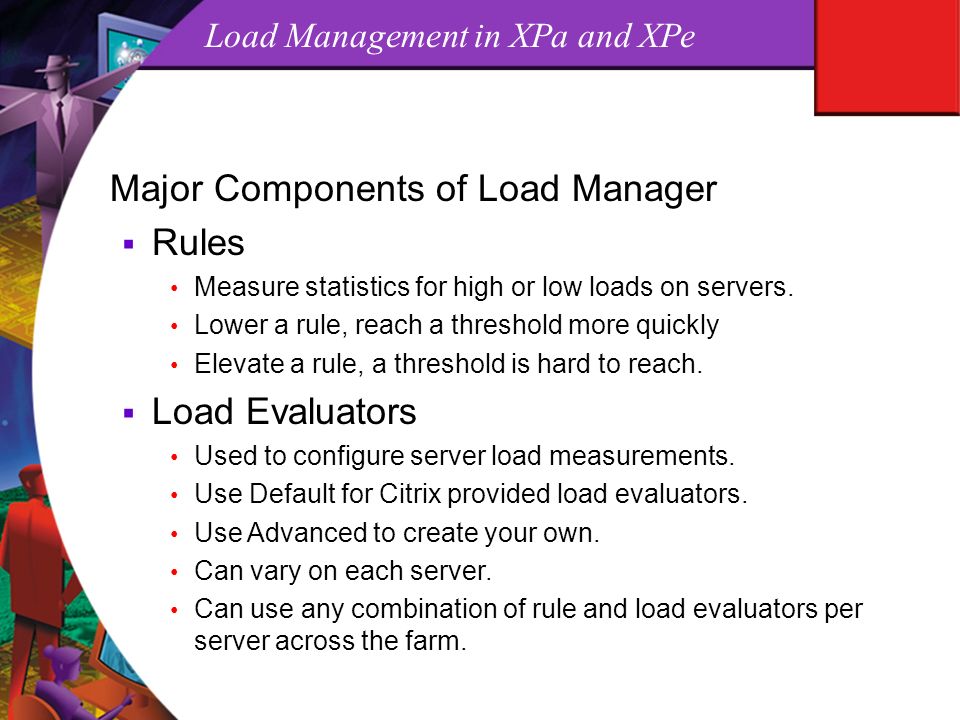

60. Major Components of Load Manager  Rules Measure statistics for high or low loads on servers. Lower a rule, reach a threshold more quickly Elevate a rule, a threshold is hard to reach.  Load Evaluators Used to configure server load measurements. Use Default for Citrix provided load evaluators. Use Advanced to create your own. Can vary on each server. Can use any combination of rule and load evaluators per server across the farm. Load Management in XPa and XPe

61. Load Management Criteria Application User LoadContext Switches CPU UtilizationDisk Data I/O Disk OperationsLicense Threshold Memory UsagePage Fault Page SwapServer User Load NewNew IP Range NewScheduling New Administrators can now control accessibility to published applications on the basis of an IP range rule to specify sets of addresses and a scheduling rule to grant access to a specific application only during specified hours Load Management in XPa and XPe

62. New Criteria in Load Management IP Range: Using the IP Range rule an administrator can specify a distinct address or set of addresses that can access the published application Scheduling: The Scheduling criteria enables administrators to control the application load across server based on time sensitive criteria Using the Scheduling criteria and administrator can create a Load Evaluator that allows access to a specific application or server only during specified times

63. Default Load Evaluators: Default: Rule represents the number of users logged onto a MetaFrame XP server Contains one rule, Server User Load, that reports a full load when 100 users log on to the attached server Advanced: The rules in this load evaluator represent server performance using Disk I/O CPU Utilization Disk Operation Memory Usage Load Management in XPa and XPe

64. Demonstration: Load Management

65. Resource Manager Ground up re-write! Resource Management integrates with the Citrix Management Console Resource Management adds tabs to the CMC Can control summary data in the CMC** Configure Alert recipients in the CMC Adds counters to each server for monitoring, can manage several servers in the CMC Monitors application usage by published applications Watcher window requires the CMC to monitor servers Resource Management in XPe

66. Installation Manager Nearly a ground up re-write! Installation Management integrates with the CMC Configure Network account to be used by the installer service to install packages Can select to reboot servers post installation Define how often to expire and remove installation management jobs Define server groups and application packages Status can be checked in Job properties Installation Management in XPe

67. Network Manager Network Management in XPe is an SNMP agent that runs on your citrix servers It can be managed with any SNMP management service or utility SNMP agent automatically installed with MetaFrame XPe Console plug-ins are available for: Tivoli NetView (v. 5.1.2 and above) HP OpenView 6.0 only Plug-ins are located on a separate “Network Management for XPe” CD in the data pack Network Management in XPe

68. Migrating to MetaFrame XP

69. Why Move to MetaFrame XP? Increased farm scalability and stability Simplified license management and activation Printer management Enhanced NFuse integration Active Directory User Principal Name support Client time zone support Less server to server network traffic 1.8 and Feature Release 1 enhancements integrated and available to more clients

70. Mixed mode is designed to facilitate migration to MetaFrame Extended Platform with little or no end user disruption Provides support for: n Published app migration n App load balancing n Subnet license pooling n Existing NFuse, PN, and Custom ICA connections Mixed Mode Is…

71. Mixed Mode Is Not… Mixed mode is NOT designed to be a permanent solution Interoperability is achieved by emulating the services and communication mechanisms used by MF1.8

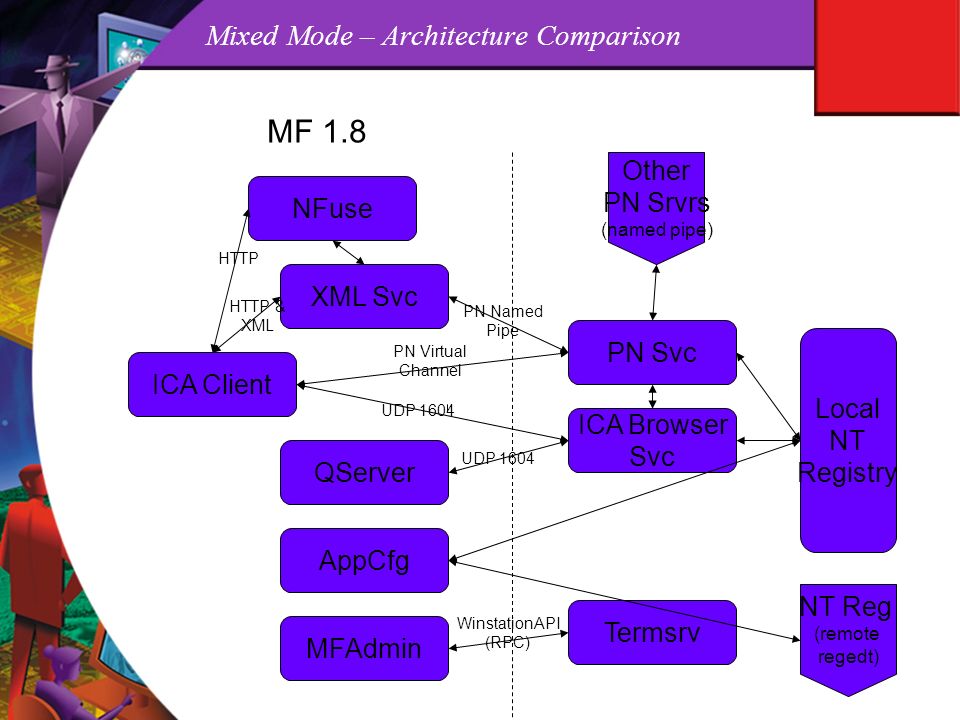

72. Termsrv Mixed Mode – Architecture Comparison MF 1.8 Local NT Registry ICA Browser Svc PN Svc Other PN Srvrs (named pipe) NFuse XML Svc ICA Client HTTP HTTP & XML PN Virtual Channel PN Named Pipe MFAdmin AppCfg QServer NT Reg (remote regedt) WinstationAPI (RPC) UDP 1604

73. Mixed Mode – Architecture Comparison MF XP (Native Mode) IMA Svc Other IMA Srvrs (TCP) NFuse XML Svc ICA Client HTTP HTTP & XML CMC TCP PN Virtual Channel

74. Termsrv Mixed Mode – Architecture Comparison MF XP (Interoperability Mode) IMA Svc Local NT Registry Other IMA Srvrs (TCP) ICA Browser Svc PN Svc Other PN Srvrs (named pipe) NFuse XML Svc ICA Client HTTP HTTP & XML PN Virtual Channel PN Named Pipe MFAdmin AppCfg QServer NT Reg (remote regedt) WinstationAPI (RPC) UDP 1604

75. Mixed Mode Until you get to native mode, you can’t take full advantage of: l Increased farm scalability and stability l Advanced printer management l UPN support l Simplified license management and activation n 1.8 license gateways are not supported n MetaFrame connection licenses are equally distributed among subnets n CMC/Farm/Properties/Interoperability can change licenses assigned to each subnet.

76. Mixed Mode (Cont.) On first XP install, if 1.8 is detected on the segment, it will offer to run in mixed mode l If yes, legacy tools are automatically installed Admins must use two sets of tools to manage a mixed farm l appcfg shipped on XP is same as 1.8 sp2. Older versions may not be able to manage apps published with newer versions. Apps may be published on 1.8, then XP. Not the reverse

77. Migration Strategies

78. All servers are upgraded to Extended Platform during scheduled network maintenance window n Consider this for highly centralized and/or cloned server environments n Citrix now supports both unattended and cloned installs for all but the first server in an XP farm. See specific documentation in Admin Guide. Note: Repeated licenses will give an error upon migration to IMA Data Store. Migration Strategies – Flash Upgrade

79. Migration Strategies – Parallel XP servers built in native mode 1.8 and XP servers do not communicate w/ each other Consider this for fast growing installs, new Win2K rollouts, or multi-site scenarios n Requires additional hardware and licenses. n Alternately, users may be manually migrated in proportion to servers. n XP apps are published manually rather than migrated n Publish 1.8 and XP apps to distinct user groups to prevent redundant icons

80. Migration Strategies – Mixed Mode Rolling upgrade of existing MetaFrame servers n Set during install of first server in the farm n XP and 1.8 farm names must match n XP server will win ICA browser election l (except 1.8 sp1 MB hardcode) n Mixed mode applies to all XP servers in the farm n Starts PN and ICA browser services on XP servers. n Existing apps are migrated to IMA data store (1 time) l Any appcfg. changes made to 1.8 apps after migration are not updated to the data store

81. Using NFuse to Bridge the Gap

82. NFuse as a Bridging Technology NFuse allows administrators to hide complexity from the end user. For migration, it can be used to present applications from an arbitrary number of farms n MetaFrame 1.8 n MetaFrame Extended Platform n MetaFrame for UNIX n Multiple sites

83. ‘Project Columbia’ in Action

86. Migration Scenarios

87. Scenario 1: Single Site Single Farm Migration High level steps (‘rolling’ upgrade): 1. Create IMA DataStore if necessary 2. Upgrade a server besides the ICA master browser  Install in interoperability mode when prompted  Apply upgrade licenses to XP farm 3. Upgrade remaining servers 4. Switch to XP native mode 5. Enable/disable UDP browsing as needed

88. Single Farm Migration Tips: n Avoid publishing new apps or changing app configuration while in XP interoperability mode. If necessary, create/modify apps in 1.8 first then XP. n Use NFuse and/or auto-client update to distribute new ICA clients. Scenario 1: Single Site Single Farm Migration

89. Scenario 2: Multi-Farm Consolidation High level steps: n Ensure IMA server to server communication (default TCP 2512) n Upgrade first farm (including switch to native mode) or build new Enterprise XP farm (in native mode) n Perform upgrades of other 1.8 servers (one farm at a time) joining them to the ‘Master’ XP farm n Some manual cleanup of duplicate app names may be necessary.

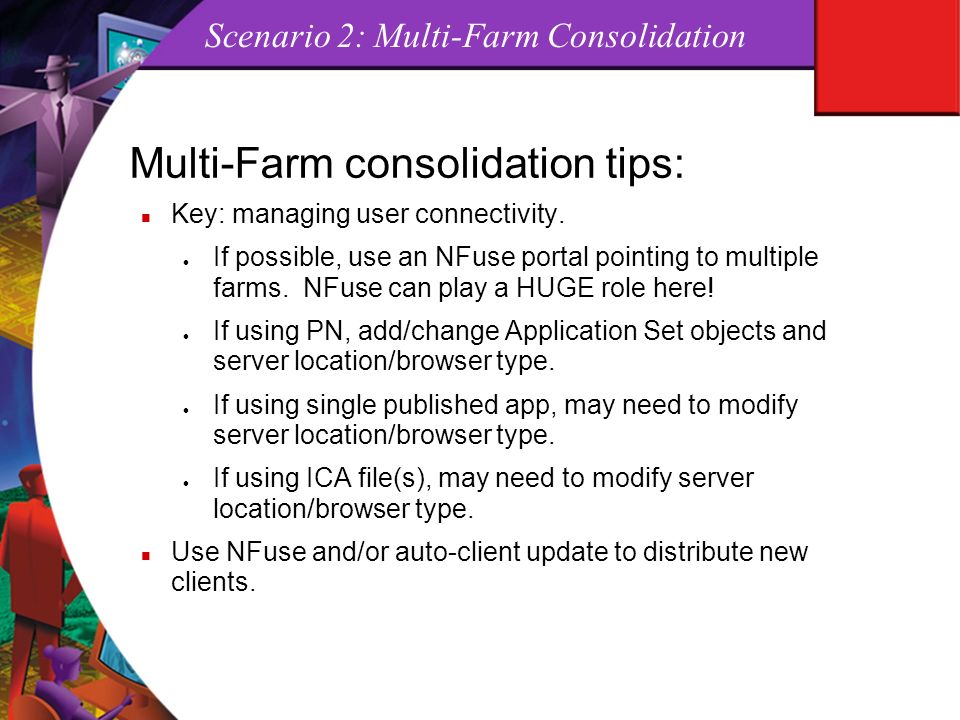

90. Scenario 2: Multi-Farm Consolidation Multi-Farm consolidation tips: n Key: managing user connectivity. l If possible, use an NFuse portal pointing to multiple farms. NFuse can play a HUGE role here! l If using PN, add/change Application Set objects and server location/browser type. l If using single published app, may need to modify server location/browser type. l If using ICA file(s), may need to modify server location/browser type. n Use NFuse and/or auto-client update to distribute new clients.

91. Useful Command Line Utilities

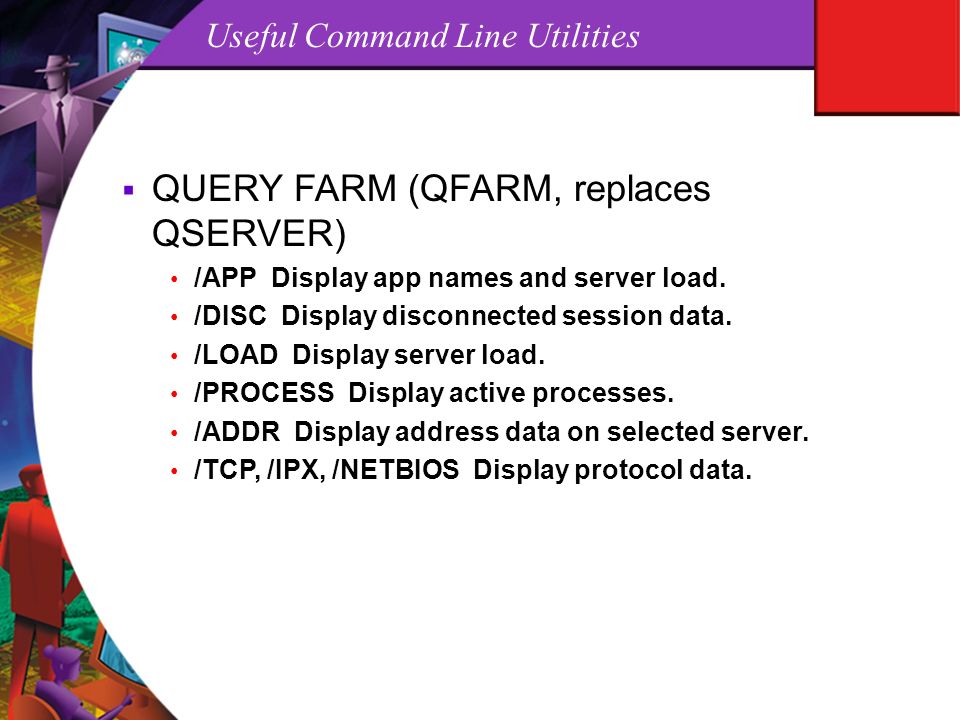

92.  QUERY FARM (QFARM, replaces QSERVER) /APP Display app names and server load. /DISC Display disconnected session data. /LOAD Display server load. /PROCESS Display active processes. /ADDR Display address data on selected server. /TCP, /IPX, /NETBIOS Display protocol data. Useful Command Line Utilities

93.  CLICENSE.EXE: Built in, useful for querying licensing information on the farm. Add_and_activiate Enumerate In_use Servers_using Useful Command Line Utilities

94.  QUERYHR.EXE: From Support directory on XP CD, useful for querying zone/DC info on the farm. -z Show all the available zones -h Show all the hosts in a specified zone -l Show the Local Host Record -n Show the specified Host Record given a host name -I Show the specified Host Record given a host ID -N Show the farm name -d Delete an IMA Host Entry Useful Command Line Utilities

95.  QUERYDS.EXE: From Support directory on XP CD, useful in determining what servers are currently alive in a server farm.  Usage: Queryds /table: [/query: ]  Table names: SubscriptionTable ServiceTable PN_Table Conn_Sessions Disc_Sessions Useful Command Line Utilities

96.  QUERYDC.EXE: From Support directory on XP CD, useful for querying DC info and forcing ‘elections’. -z Show Data Collector name -e Force Election -a Show data collectors for all zones Useful Command Line Utilities

97.  QPRINTER.EXE: From Support directory on XP CD, useful for viewing printer replication queue and importing mapping files into the DS. /REPLICA Display info about printer replication queue /IMAPRMAPPING Import mapping file into DS. Useful Command Line Utilities

98. Rick Dehlinger, SSE-NW rick.dehlinger@citrix.com
