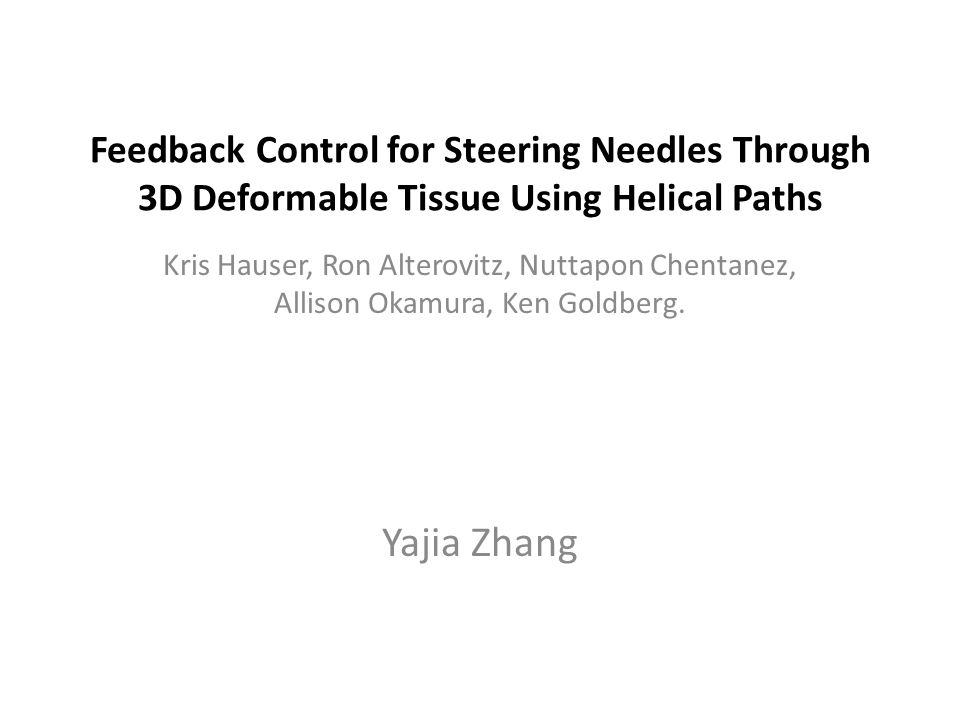

1. Feedback Control for Steering Needles Through 3D Deformable Tissue Using Helical Paths Kris Hauser, Ron Alterovitz, Nuttapon Chentanez, Allison Okamura, Ken Goldberg. Yajia Zhang

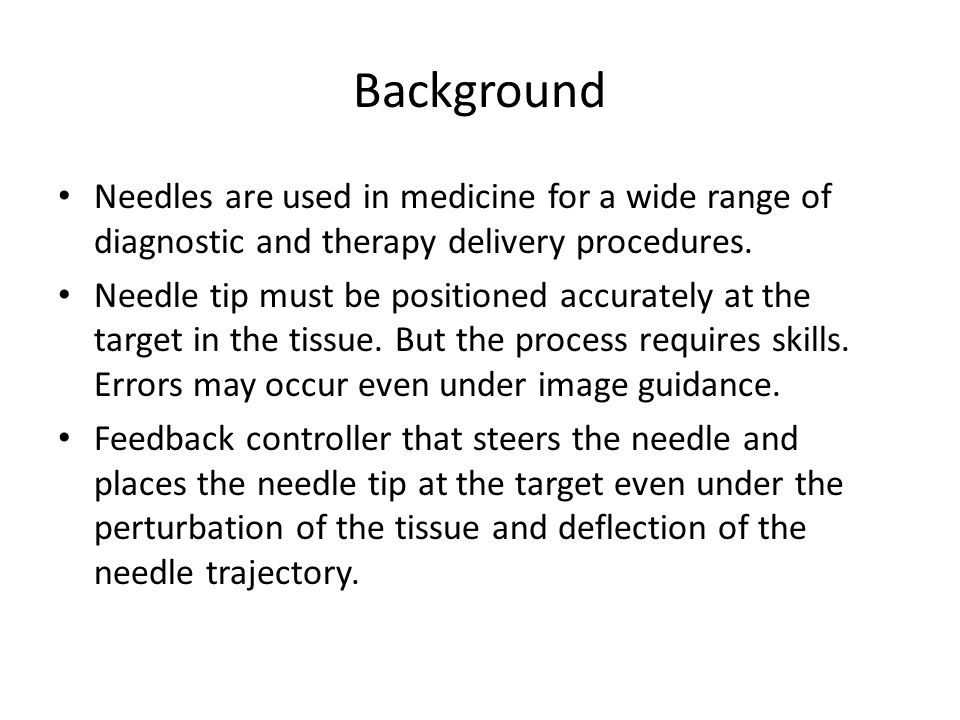

2. Background Needles are used in medicine for a wide range of diagnostic and therapy delivery procedures. Needle tip must be positioned accurately at the target in the tissue. But the process requires skills. Errors may occur even under image guidance. Feedback controller that steers the needle and places the needle tip at the target even under the perturbation of the tissue and deflection of the needle trajectory.

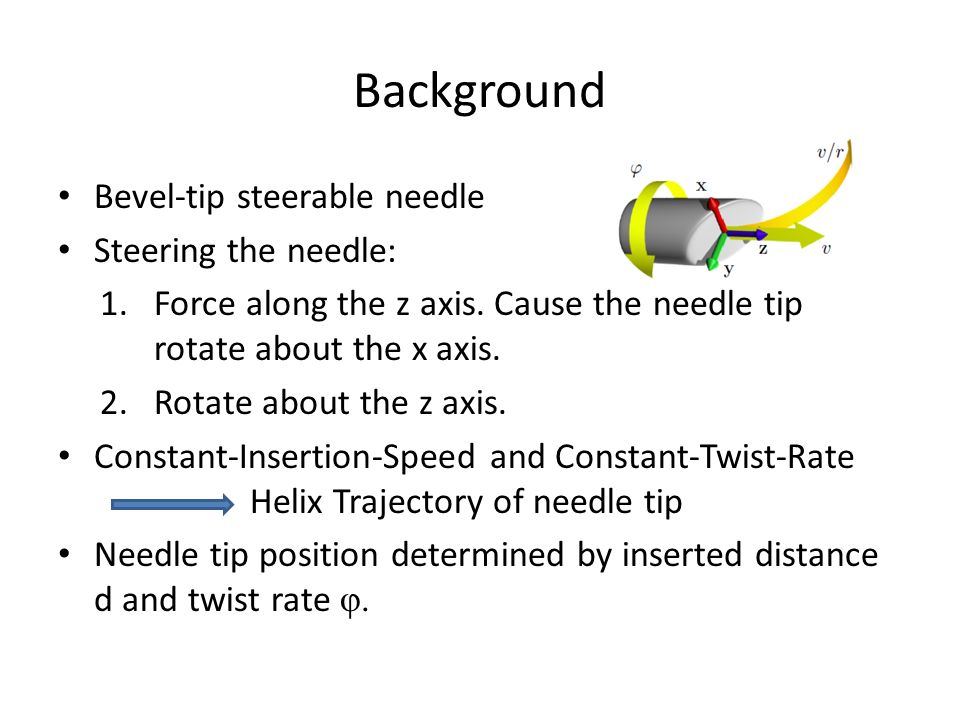

3. Background Bevel-tip steerable needle Steering the needle: 1.Force along the z axis. Cause the needle tip rotate about the x axis. 2.Rotate about the z axis. Constant-Insertion-Speed and Constant-Twist-Rate Helix Trajectory of needle tip Needle tip position determined by inserted distance d and twist rate φ.

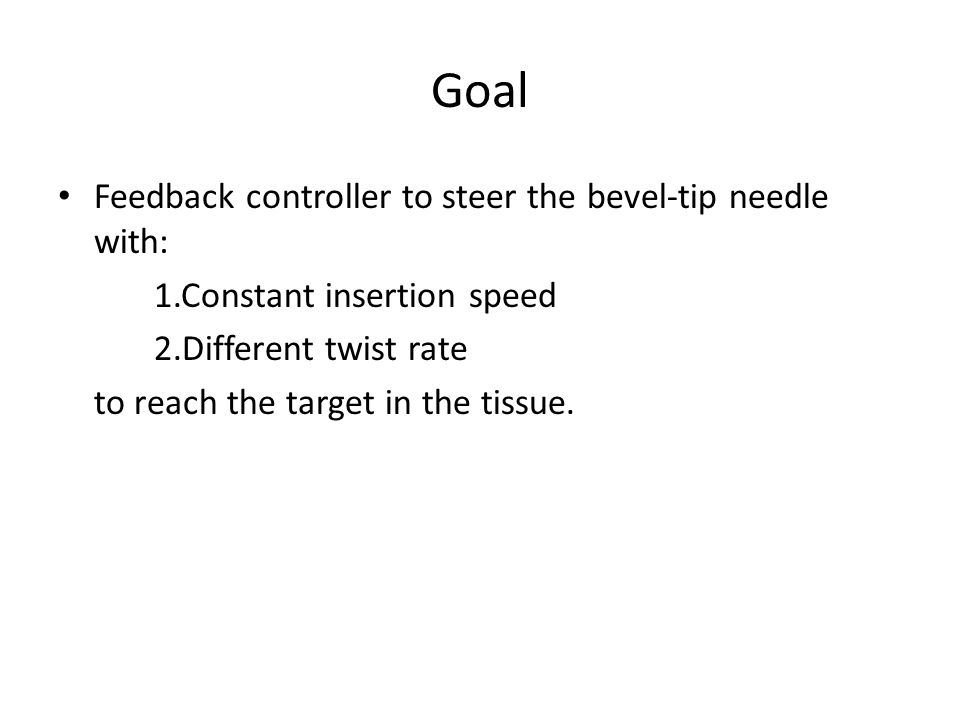

4. Goal Feedback controller to steer the bevel-tip needle with: 1.Constant insertion speed 2.Different twist rate to reach the target in the tissue.

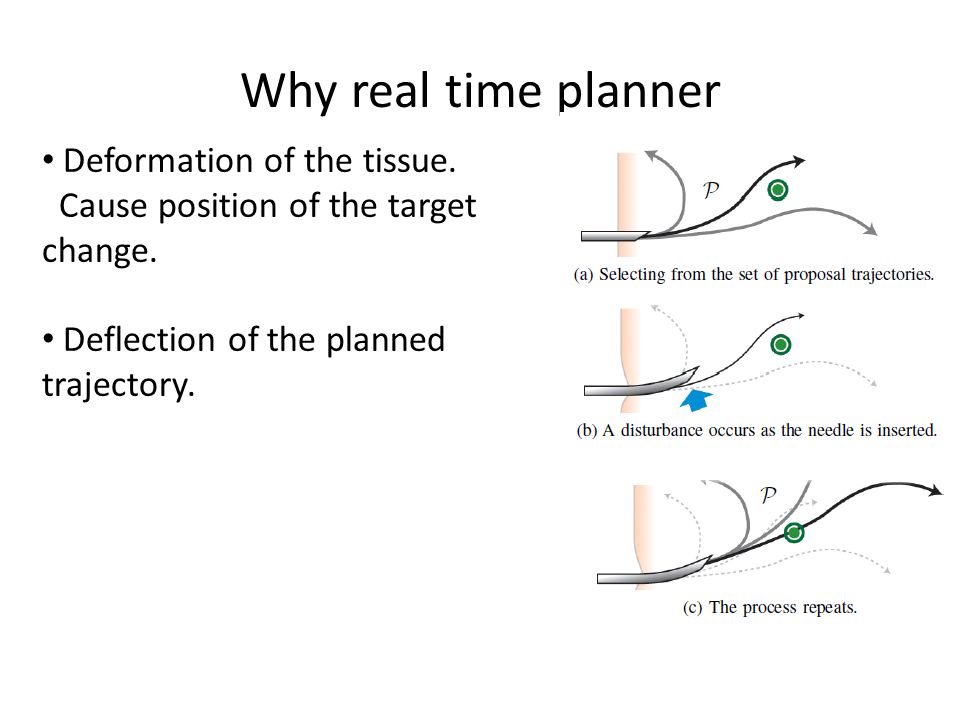

5. Why real time planner Deformation of the tissue. Cause position of the target change. Deflection of the planned trajectory.

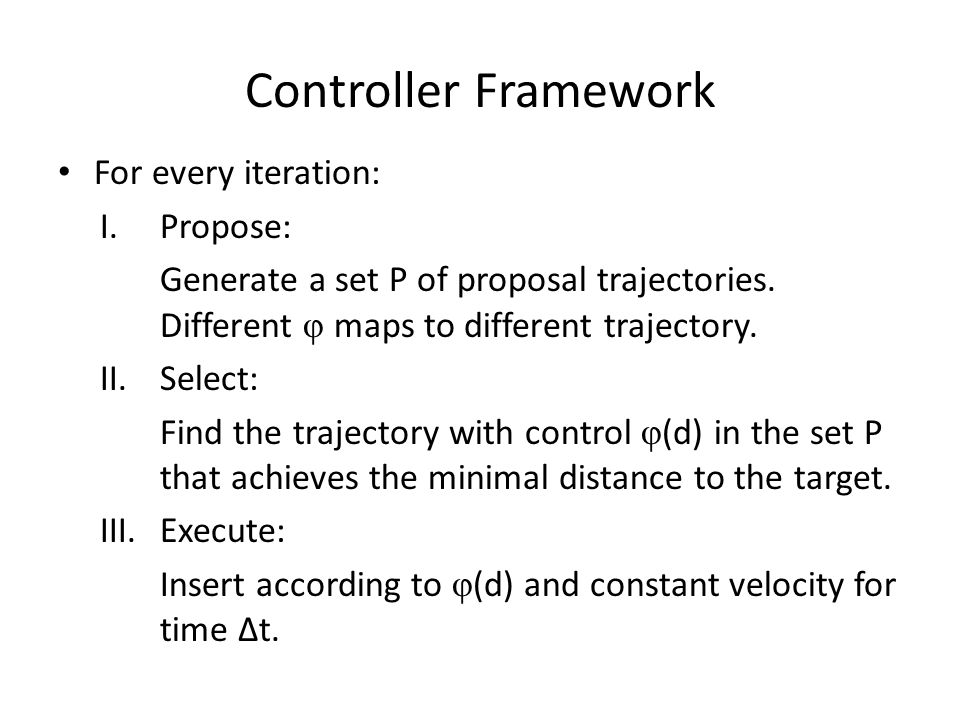

6. Controller Framework For every iteration: I.Propose: Generate a set P of proposal trajectories. Different φ maps to different trajectory. II.Select: Find the trajectory with control φ (d) in the set P that achieves the minimal distance to the target. III.Execute: Insert according to φ (d) and constant velocity for time Δt.

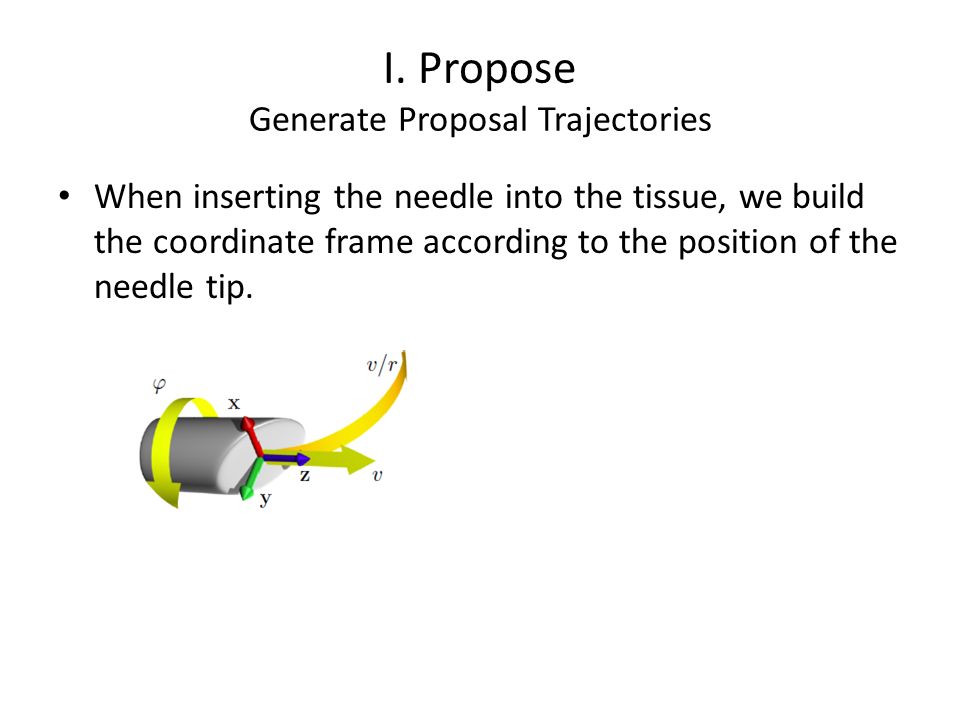

7. I. Propose Generate Proposal Trajectories When inserting the needle into the tissue, we build the coordinate frame according to the position of the needle tip.

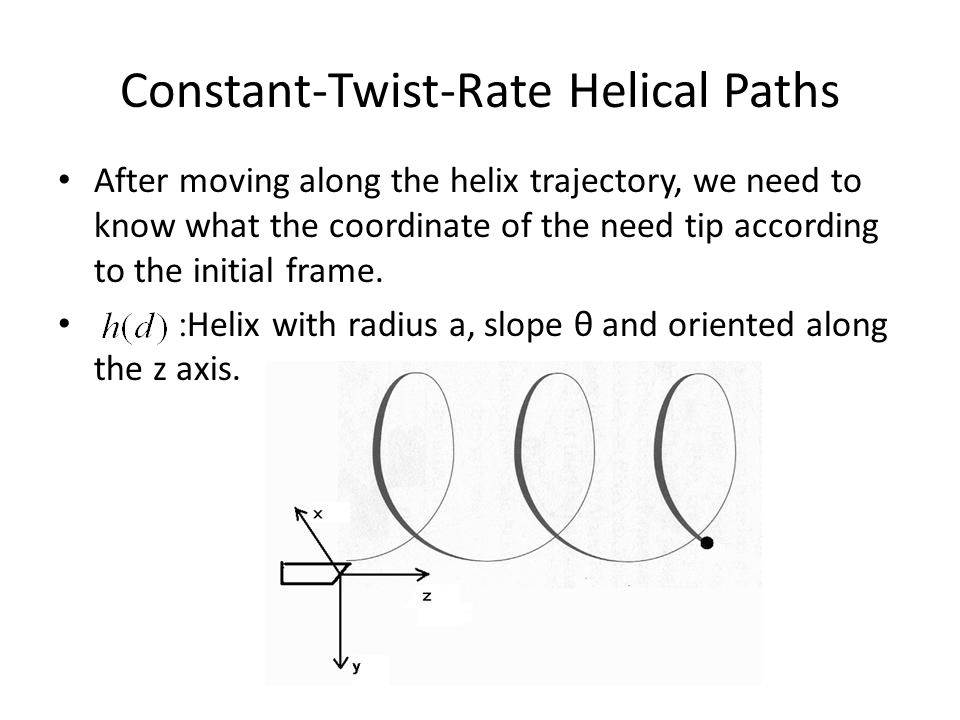

8. Constant-Twist-Rate Helical Paths After moving along the helix trajectory, we need to know what the coordinate of the need tip according to the initial frame. : Helix with radius a, slope θ and oriented along the z axis.

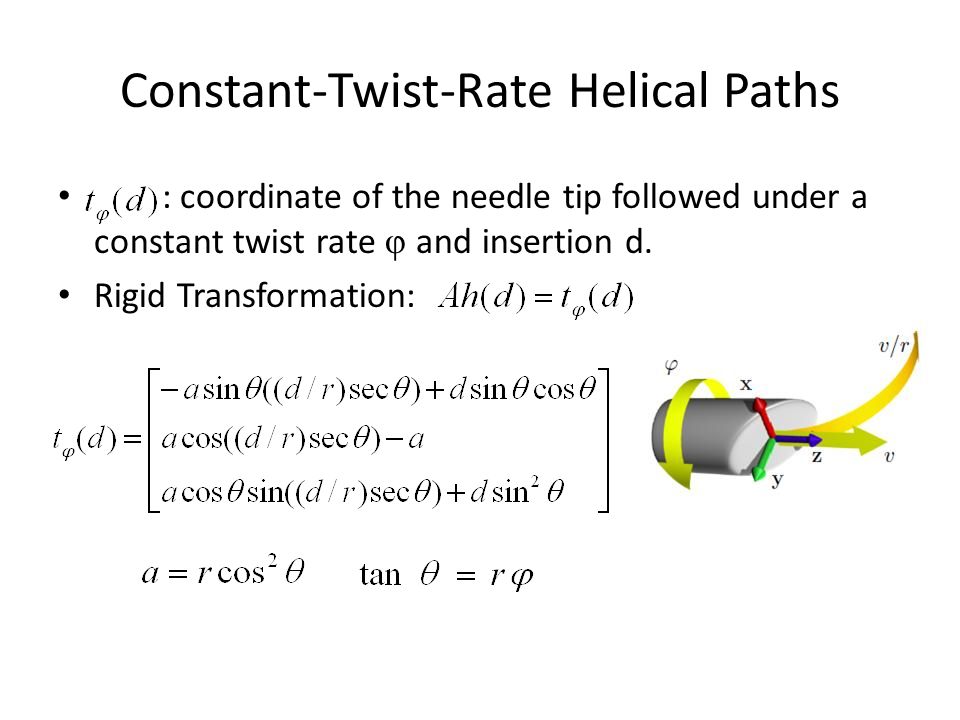

9. Constant-Twist-Rate Helical Paths : coordinate of the needle tip followed under a constant twist rate φ and insertion d. Rigid Transformation:

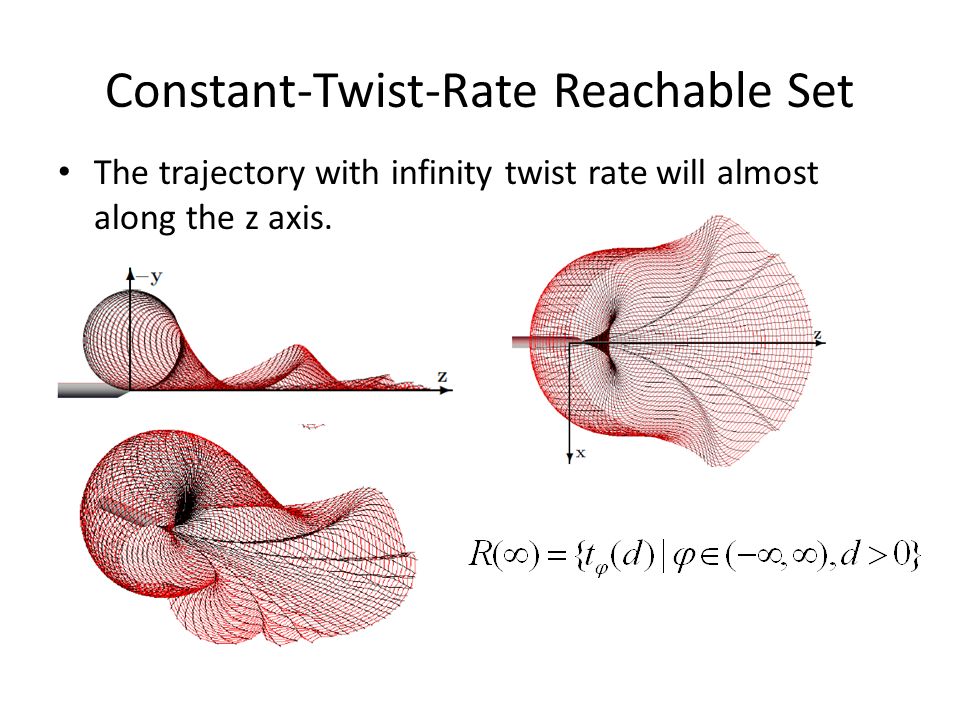

10. Constant-Twist-Rate Reachable Set The trajectory with infinity twist rate will almost along the z axis.

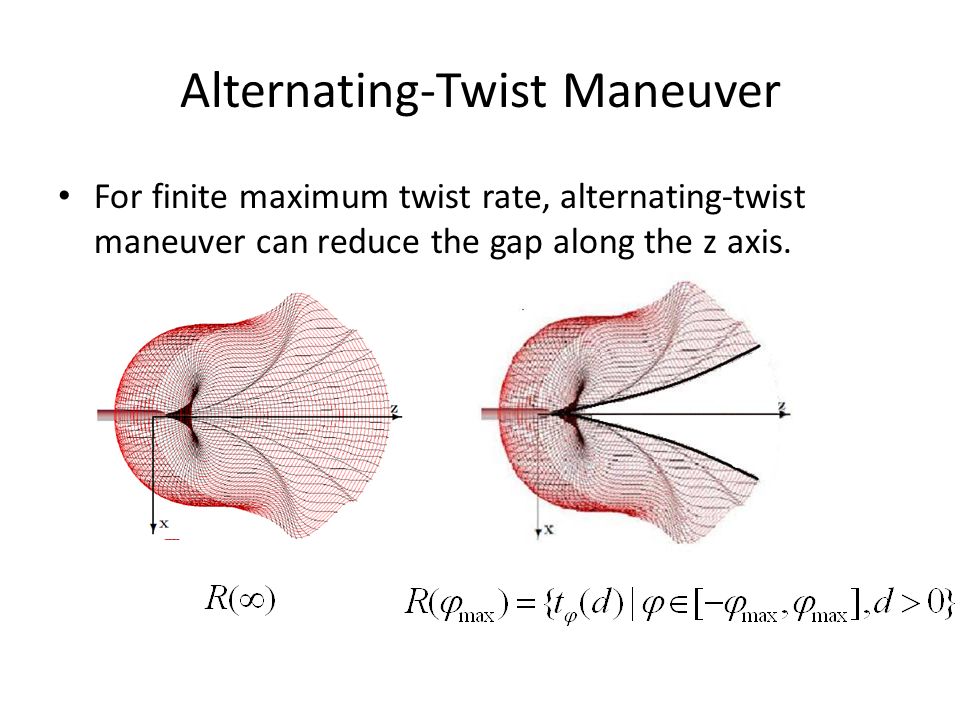

11. Alternating-Twist Maneuver For finite maximum twist rate, alternating-twist maneuver can reduce the gap along the z axis.

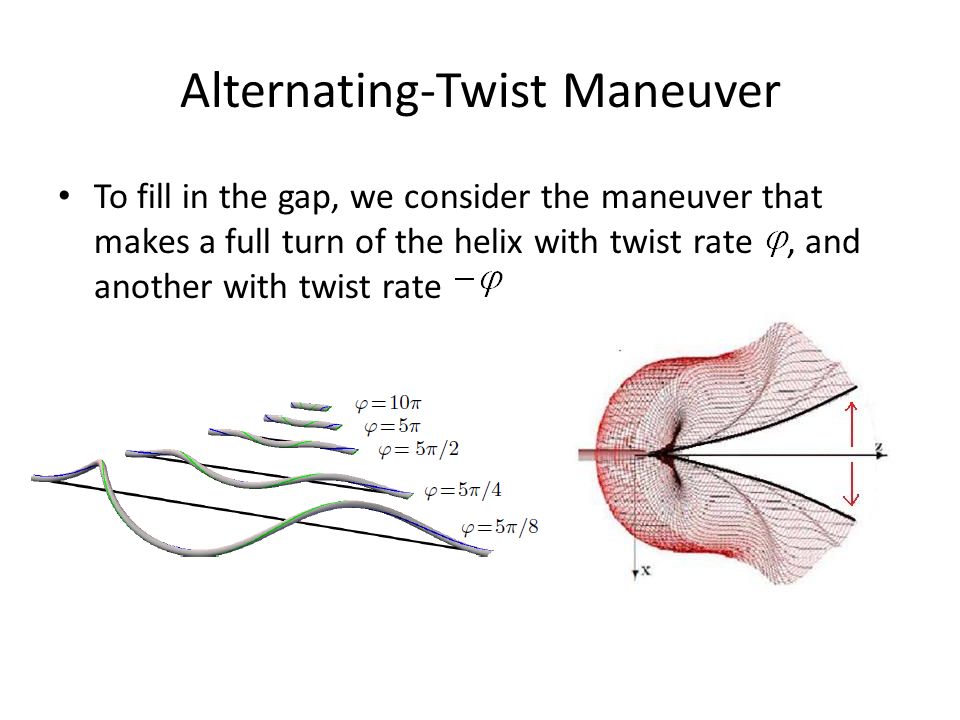

12. Alternating-Twist Maneuver To fill in the gap, we consider the maneuver that makes a full turn of the helix with twist rate, and another with twist rate

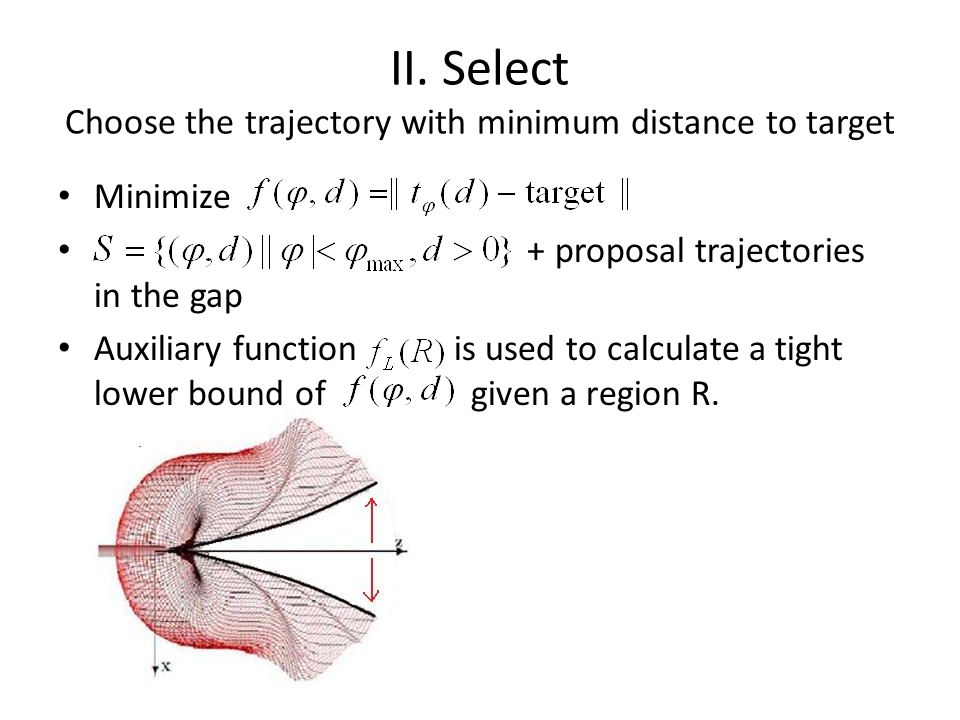

13. II. Select Choose the trajectory with minimum distance to target Minimize + proposal trajectories in the gap Auxiliary function is used to calculate a tight lower bound of given a region R.

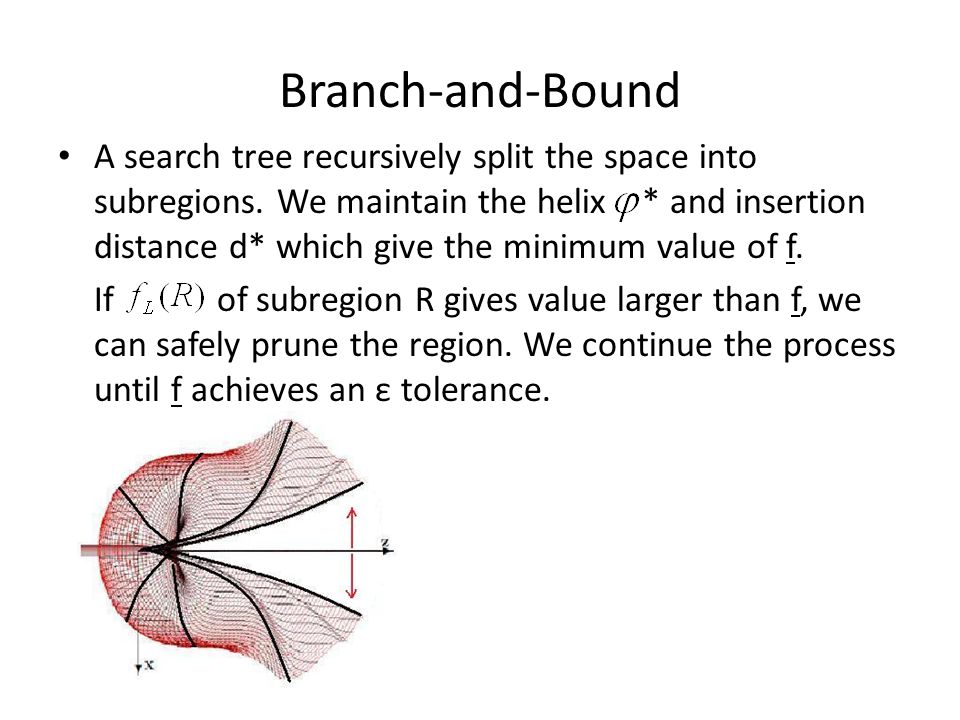

14. Branch-and-Bound A search tree recursively split the space into subregions. We maintain the helix * and insertion distance d* which give the minimum value of f. If of subregion R gives value larger than f, we can safely prune the region. We continue the process until f achieves an ε tolerance.

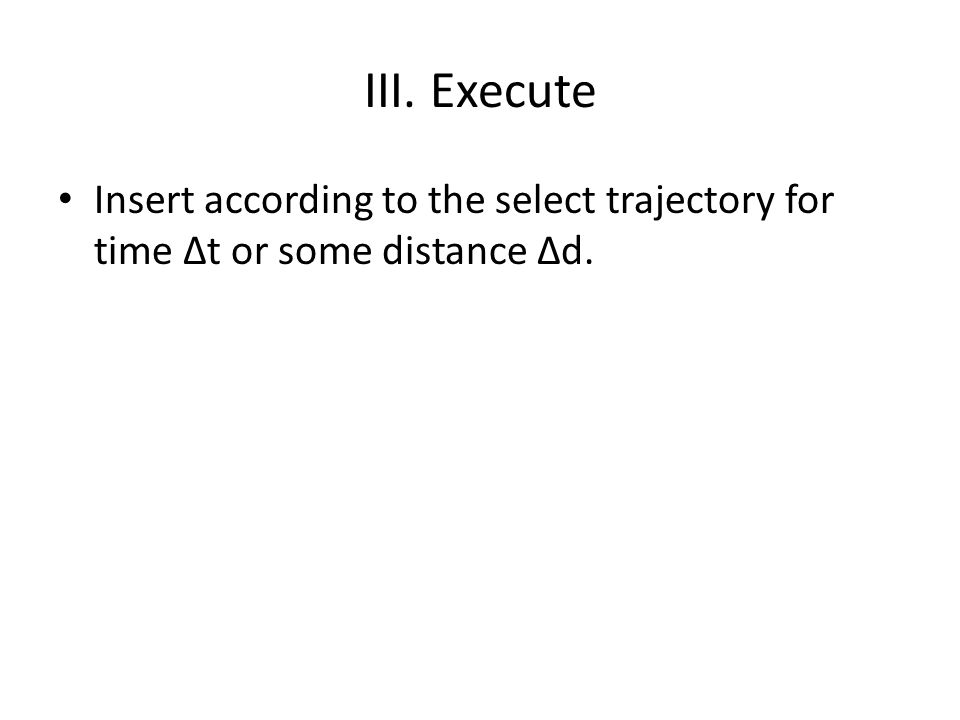

15. III. Execute Insert according to the select trajectory for time Δt or some distance Δd.

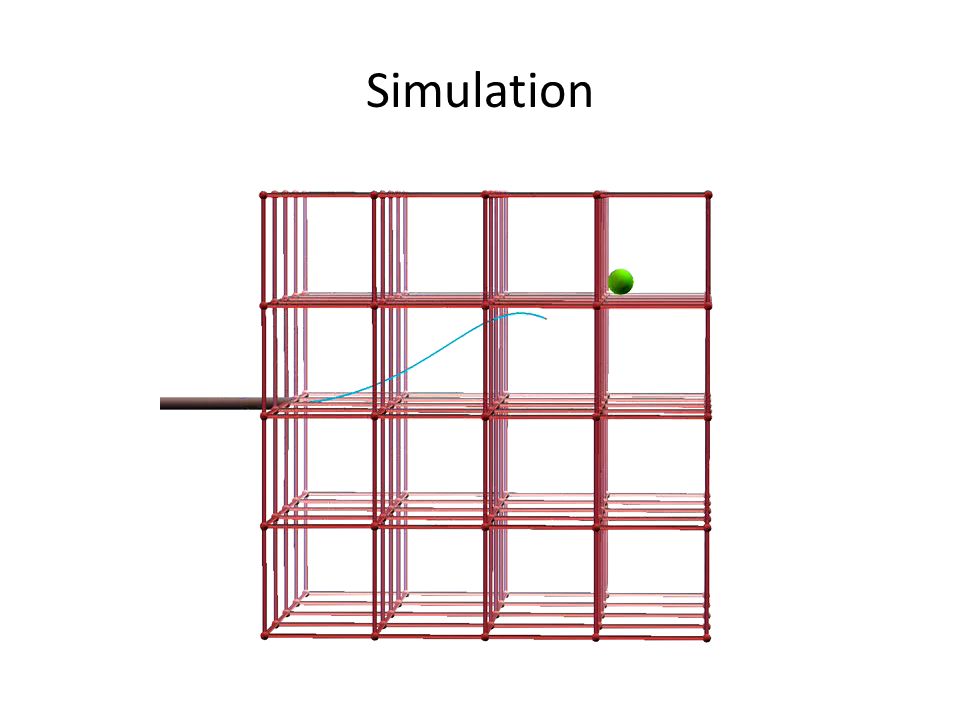

16. Simulation

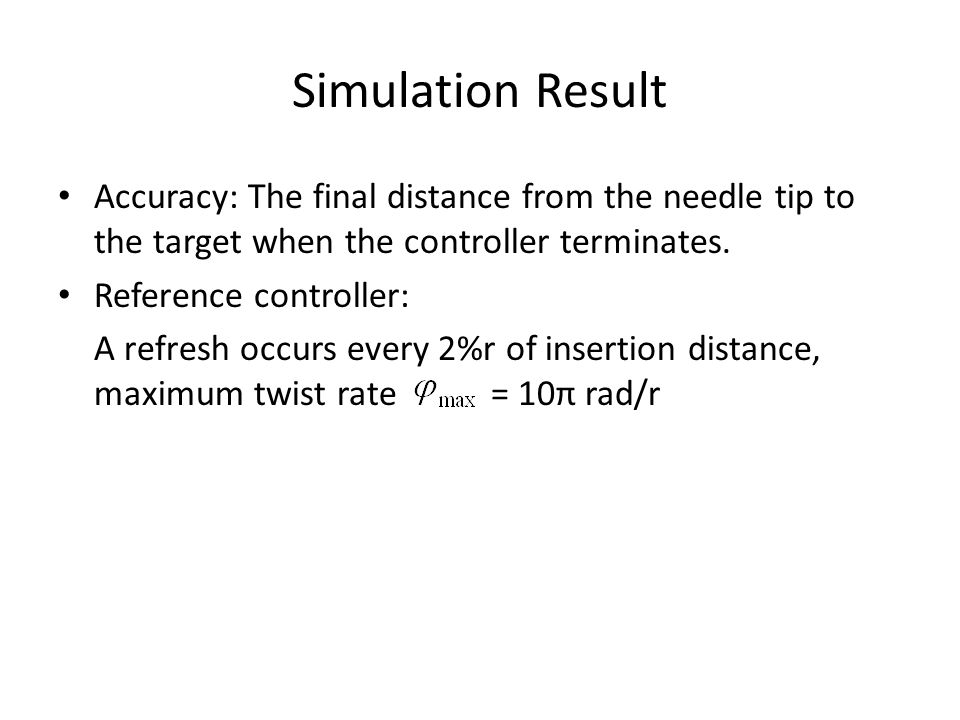

17. Simulation Result Accuracy: The final distance from the needle tip to the target when the controller terminates. Reference controller: A refresh occurs every 2%r of insertion distance, maximum twist rate = 10π rad/r

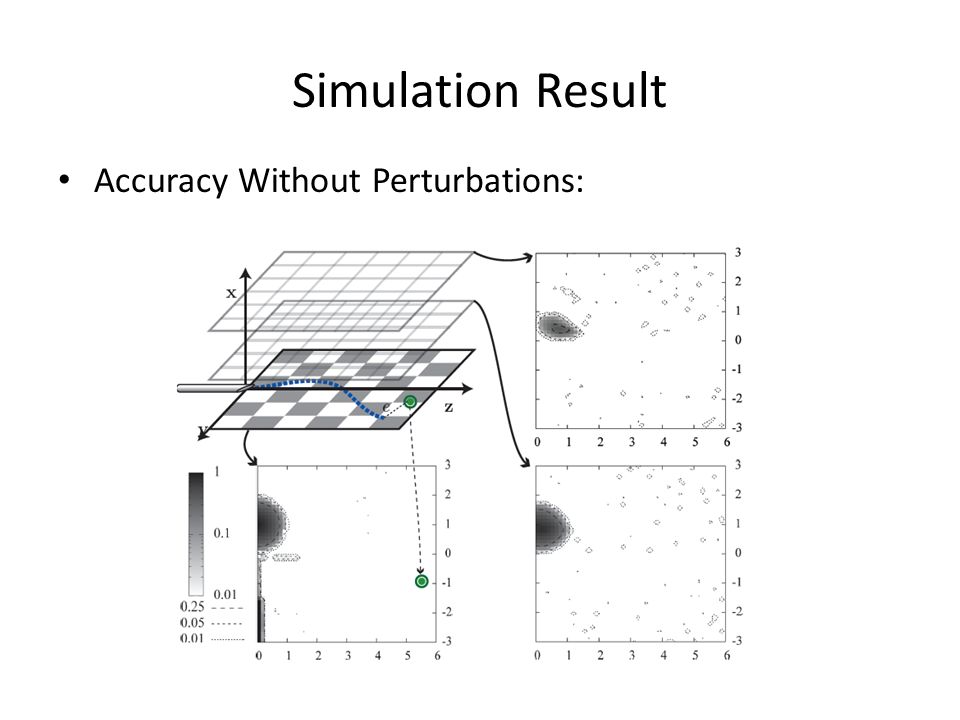

18. Simulation Result Accuracy Without Perturbations:

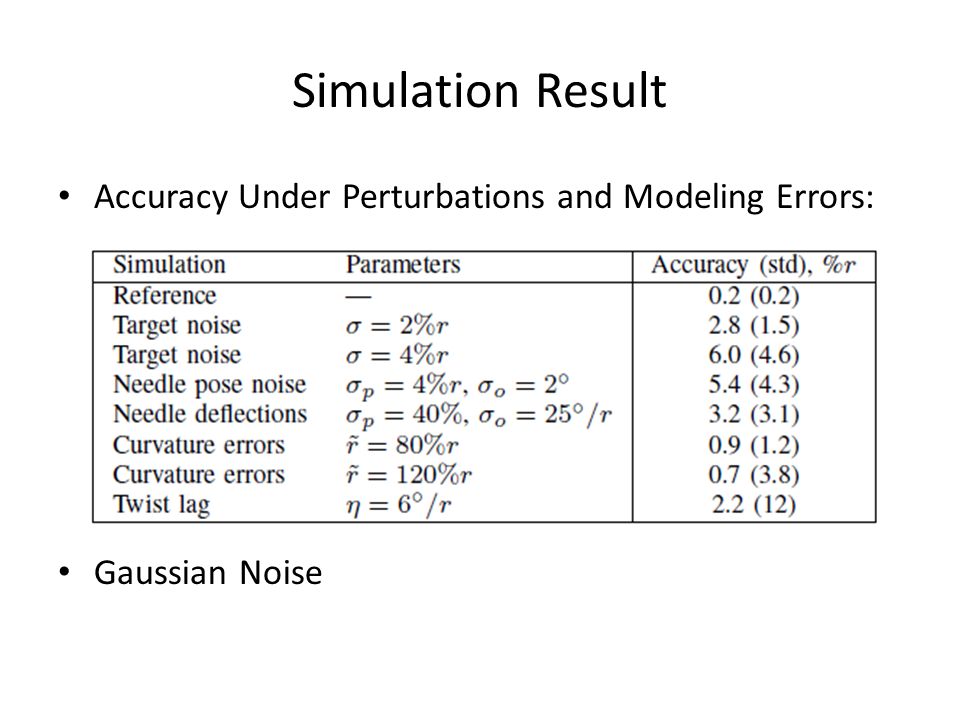

19. Simulation Result Accuracy Under Perturbations and Modeling Errors: Gaussian Noise

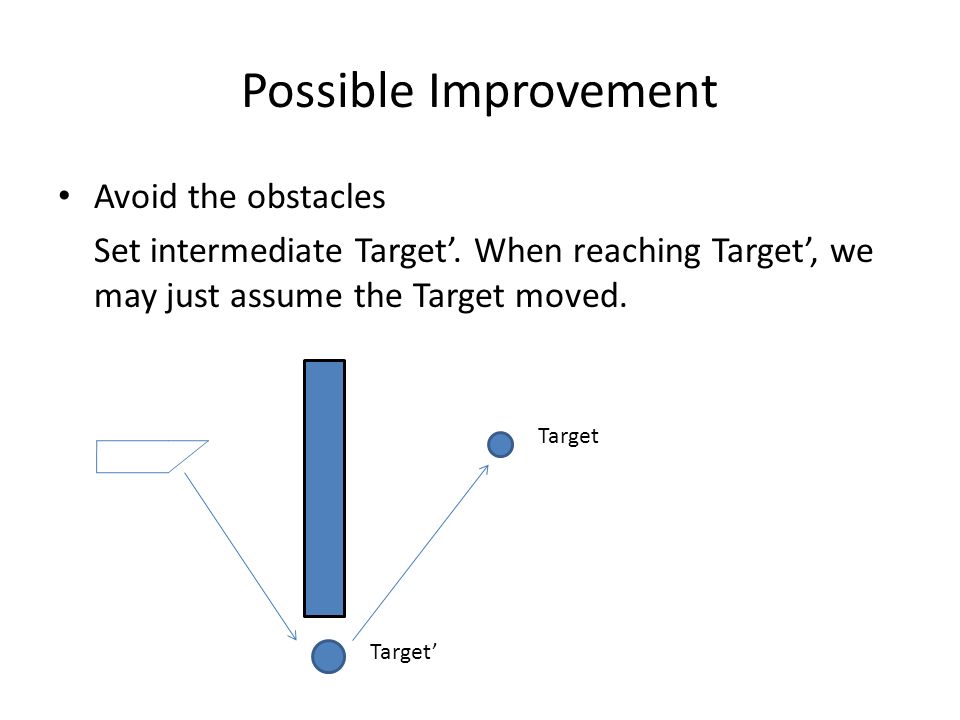

20. Possible Improvement Avoid the obstacles Set intermediate Target’. When reaching Target’, we may just assume the Target moved. Target Target’

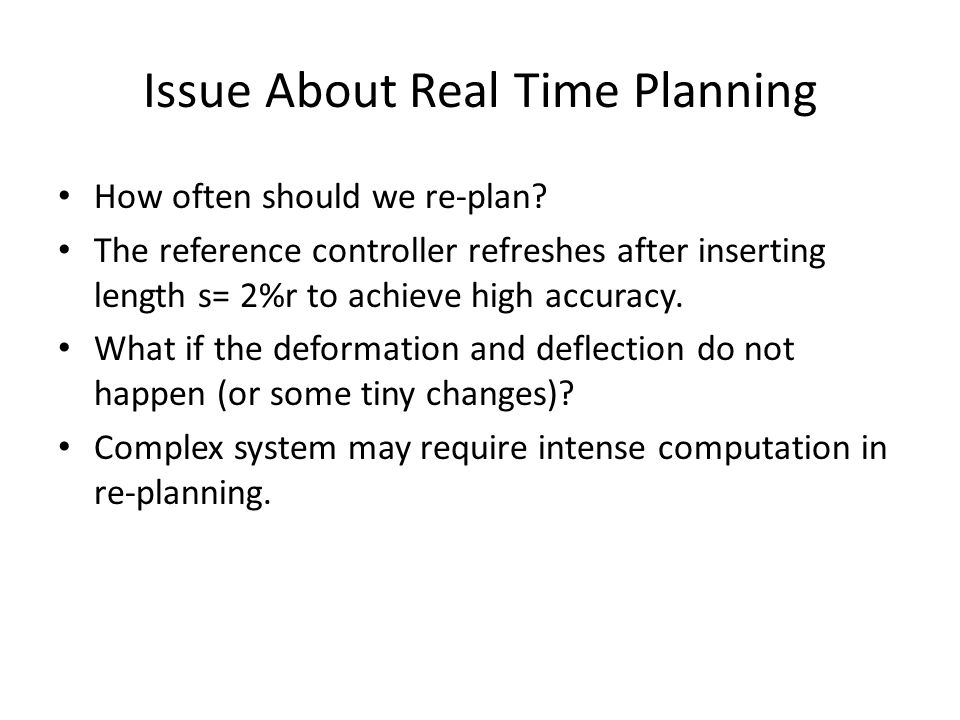

21. Issue About Real Time Planning How often should we re-plan? The reference controller refreshes after inserting length s= 2%r to achieve high accuracy. What if the deformation and deflection do not happen (or some tiny changes)? Complex system may require intense computation in re-planning.
