1. Advanced Traveling-Wave Reactors A Path to Carbon-Free, Proliferation-Resistant, Energy Security American Association for the Advancement of Science 21 February 2010 LLC

2. Renewables are Great, But They Face Interesting Challenges Low capacity factors for wind and solar Need for spinning reserve increases cost, complexity Little prospect for large increases to hydropower Large increases to biomass-fueled electricity will compete for cropland with biofuels, human food, and animal feed 2 Source: EIA 2009 Annual Outlook

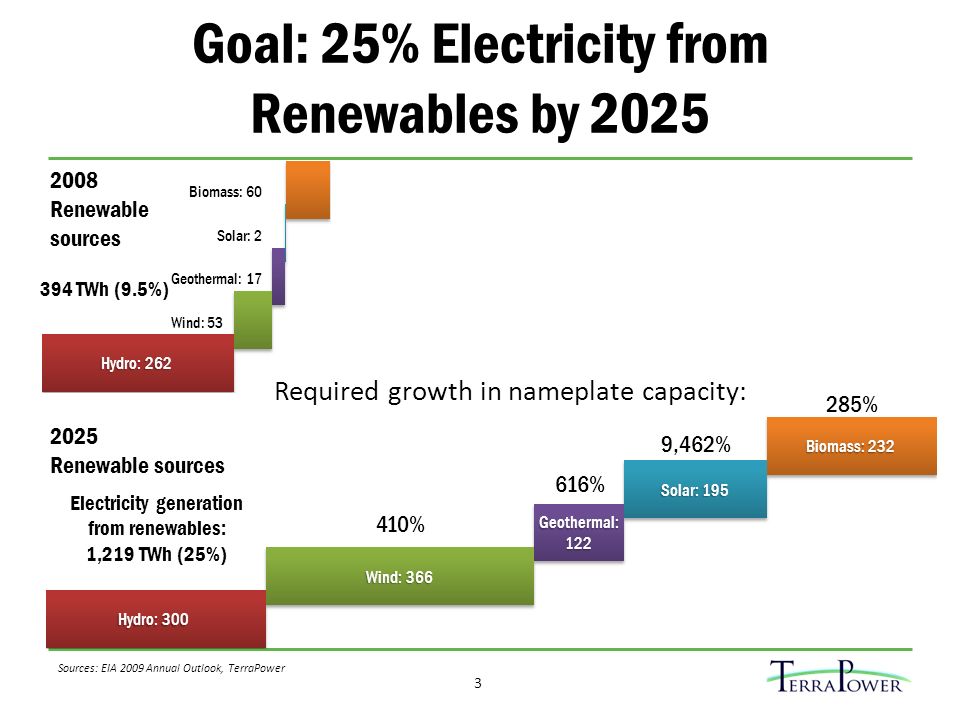

3. Goal: 25% Electricity from Renewables by 2025 3 Required growth in nameplate capacity: 410% 616% 9,462% 285% Sources: EIA 2009 Annual Outlook, TerraPower

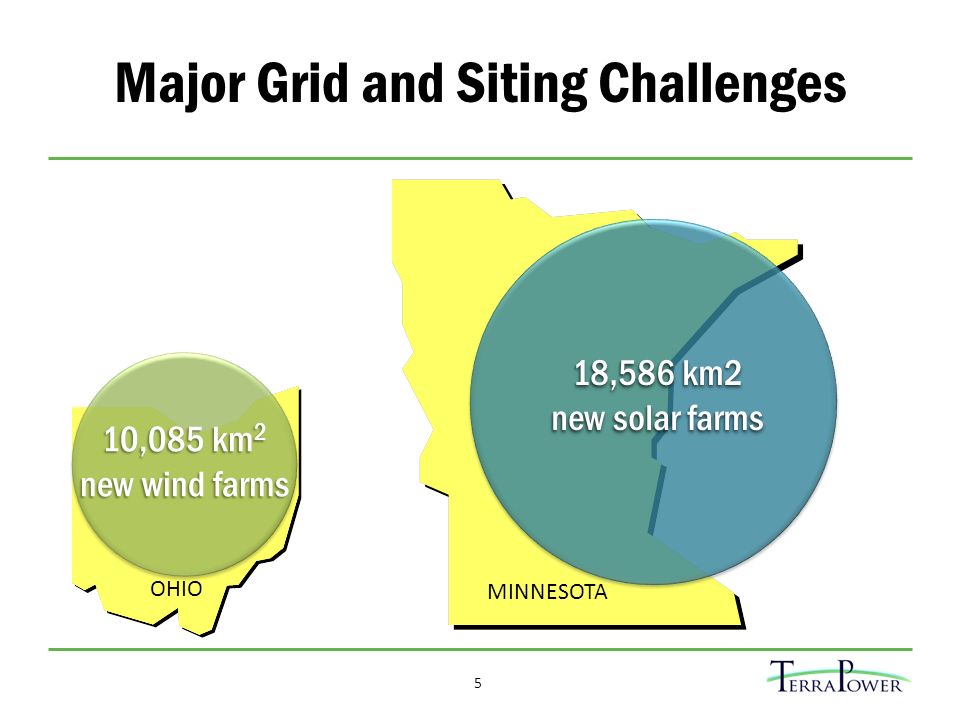

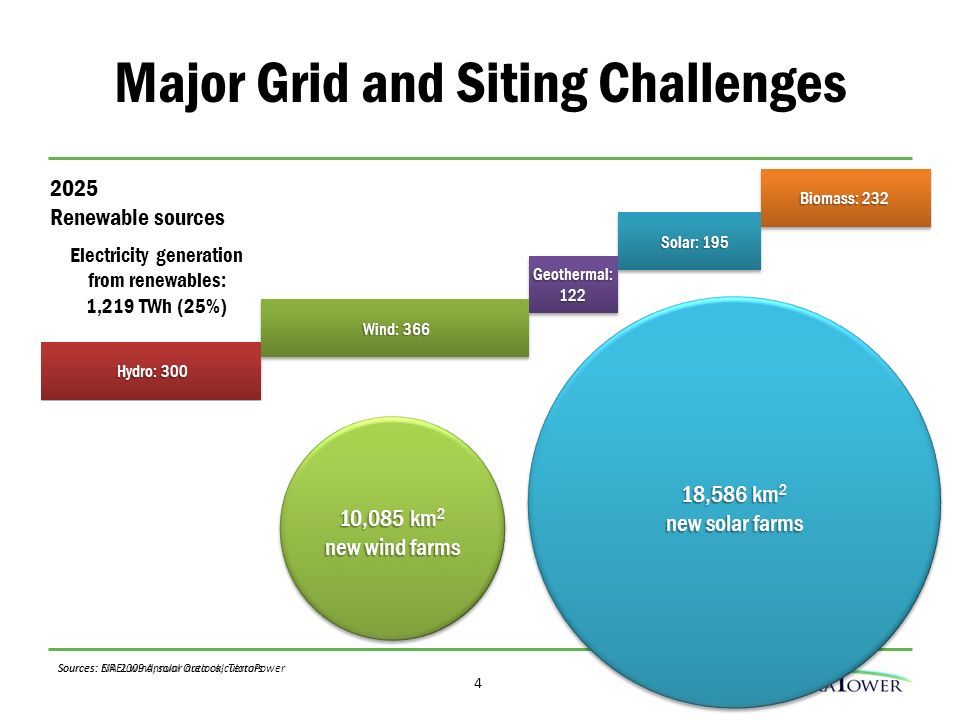

4. 4 Major Grid and Siting Challenges 10,085 km 2 new wind farms 18,586 km 2 new solar farms Sources: NREL wind, solar area calculators

5. OHIO Major Grid and Siting Challenges 5 10,085 km 2 new wind farms MINNESOTA 18,586 km2 new solar farms

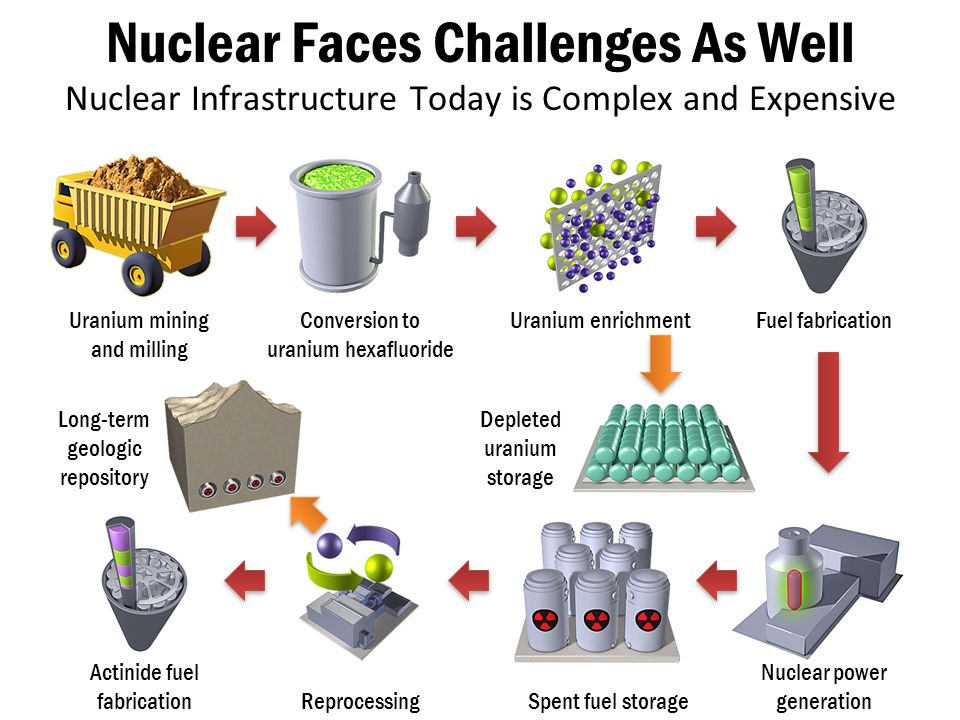

6. Nuclear Faces Challenges As Well Nuclear Infrastructure Today is Complex and Expensive Uranium mining and milling Conversion to uranium hexafluoride Uranium enrichmentFuel fabrication Nuclear power generation Depleted uranium storage ReprocessingSpent fuel storage Actinide fuel fabrication Long-term geologic repository

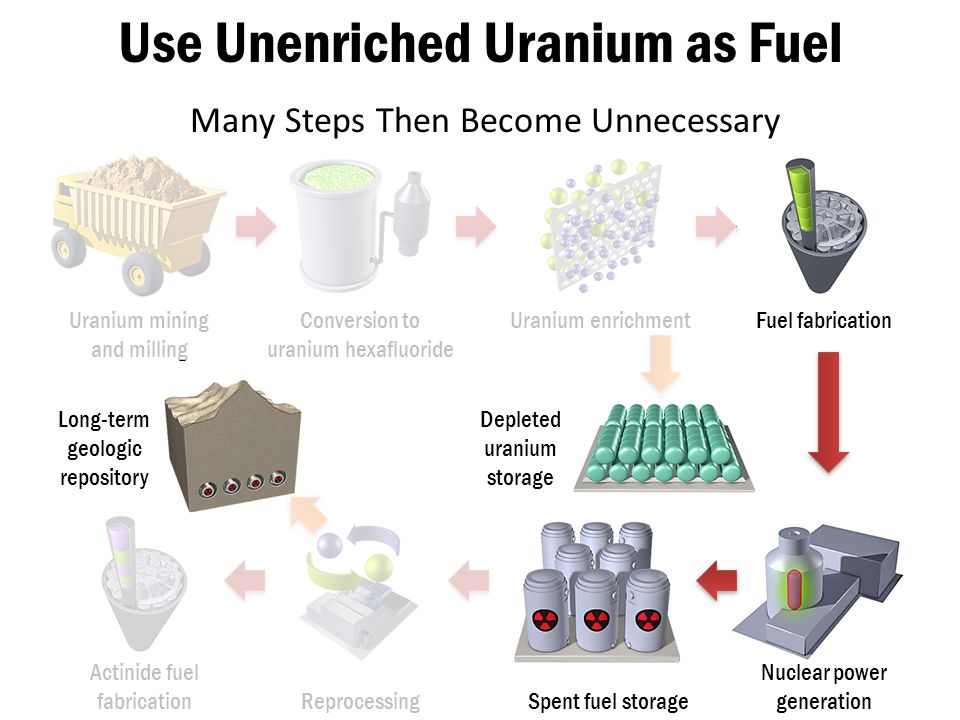

7. Use Unenriched Uranium as Fuel Many Steps Then Become Unnecessary Uranium mining and milling Conversion to uranium hexafluoride Uranium enrichmentFuel fabrication Nuclear power generation Depleted uranium storage ReprocessingSpent fuel storage Actinide fuel fabrication Long-term geologic repository

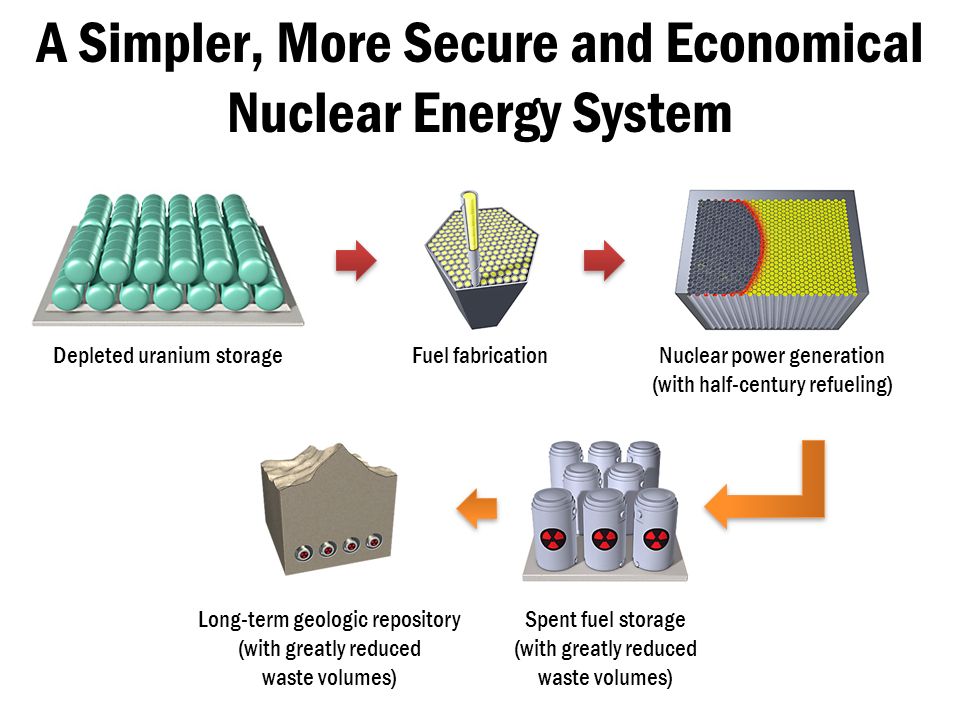

8. A Simpler, More Secure and Economical Nuclear Energy System Fuel fabricationNuclear power generation (with half-century refueling) Depleted uranium storage Spent fuel storage (with greatly reduced waste volumes) Long-term geologic repository (with greatly reduced waste volumes)

9. Each 14-ton canister of depleted uranium can generate 60 million megawatt-hours of electricity… …enough to power six million households at current U.S. rates of consumption for a year.

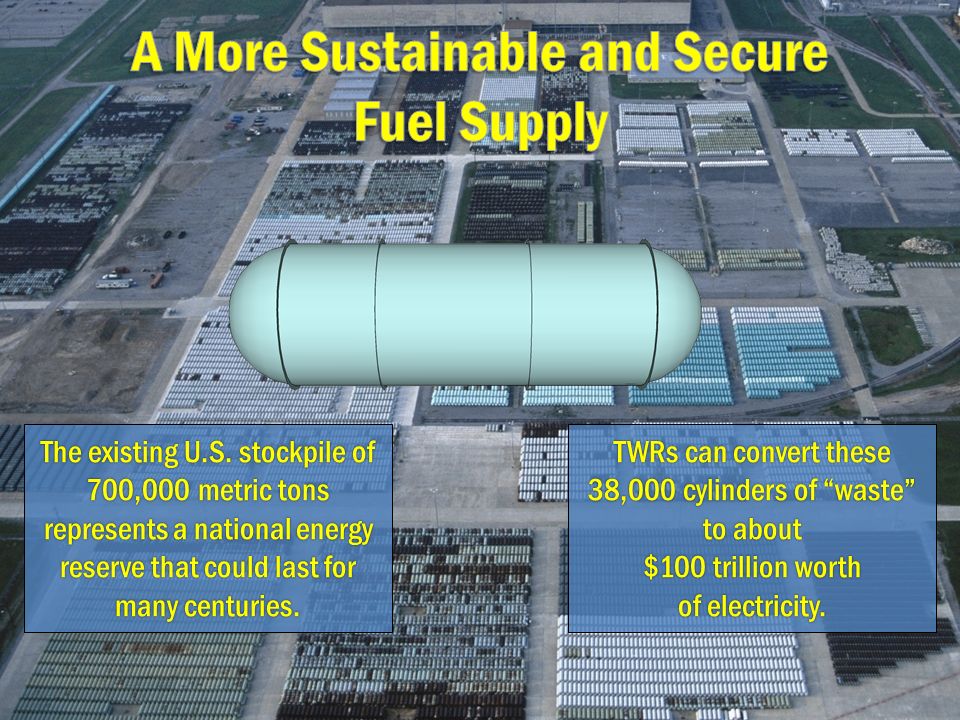

10. The existing U.S. stockpile of 700,000 metric tons represents a national energy reserve that could last for many centuries. TWRs can convert these 38,000 cylinders of “waste” to about $100 trillion worth of electricity.

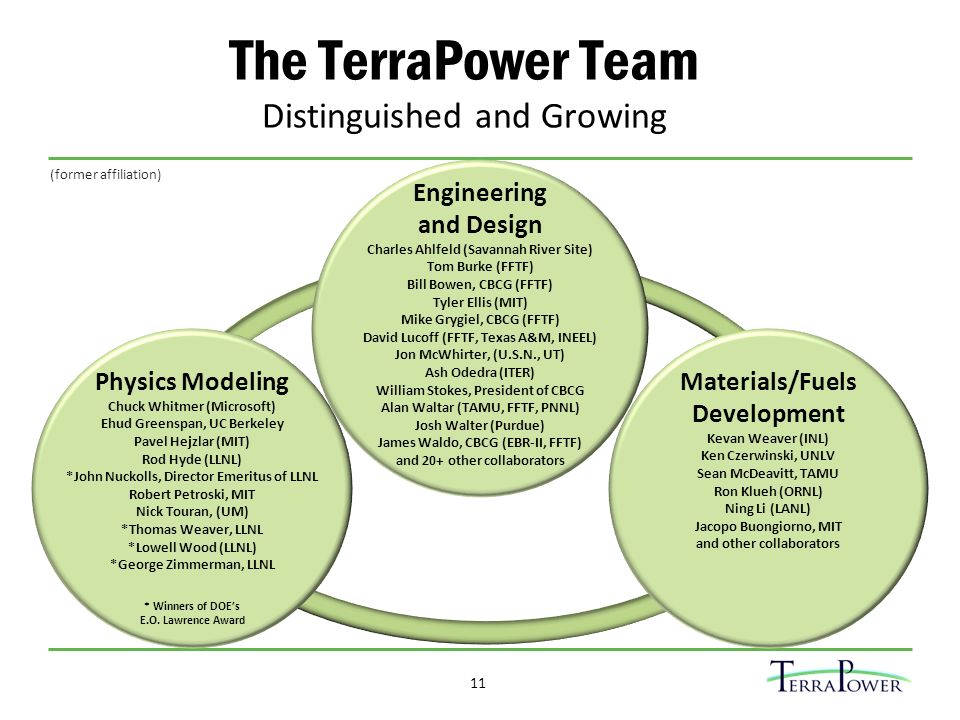

11. The TerraPower Team Distinguished and Growing 11 Physics Modeling Chuck Whitmer (Microsoft) Ehud Greenspan, UC Berkeley Pavel Hejzlar (MIT) Rod Hyde (LLNL) *John Nuckolls, Director Emeritus of LLNL Robert Petroski, MIT Nick Touran, (UM) *Thomas Weaver, LLNL *Lowell Wood (LLNL) *George Zimmerman, LLNL * Winners of DOE’s E.O. Lawrence Award Materials/Fuels Development Kevan Weaver (INL) Ken Czerwinski, UNLV Sean McDeavitt, TAMU Ron Klueh (ORNL) Ning Li (LANL) Jacopo Buongiorno, MIT and other collaborators Engineering and Design Charles Ahlfeld (Savannah River Site) Tom Burke (FFTF) Bill Bowen, CBCG (FFTF) Tyler Ellis (MIT) Mike Grygiel, CBCG (FFTF) David Lucoff (FFTF, Texas A&M, INEEL) Jon McWhirter, (U.S.N., UT) Ash Odedra (ITER) William Stokes, President of CBCG Alan Waltar (TAMU, FFTF, PNNL) Josh Walter (Purdue) James Waldo, CBCG (EBR-II, FFTF) and 20+ other collaborators (former affiliation)

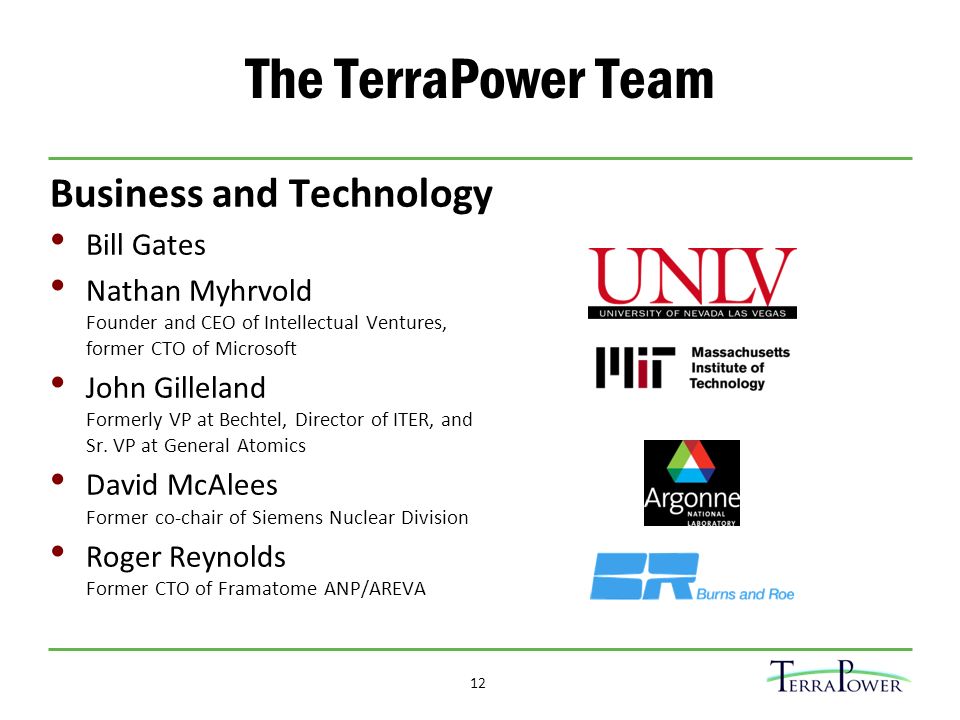

12. The TerraPower Team Business and Technology Bill Gates Nathan Myhrvold Founder and CEO of Intellectual Ventures, former CTO of Microsoft John Gilleland Formerly VP at Bechtel, Director of ITER, and Sr. VP at General Atomics David McAlees Former co-chair of Siemens Nuclear Division Roger Reynolds Former CTO of Framatome ANP/AREVA 12

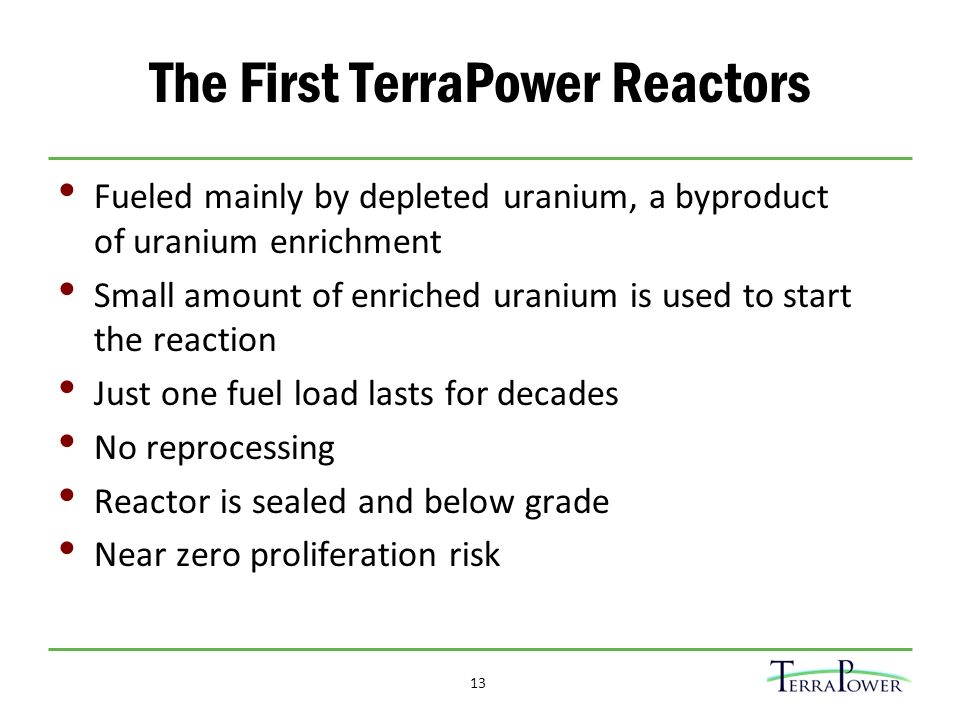

13. The First TerraPower Reactors Fueled mainly by depleted uranium, a byproduct of uranium enrichment Small amount of enriched uranium is used to start the reaction Just one fuel load lasts for decades No reprocessing Reactor is sealed and below grade Near zero proliferation risk 13

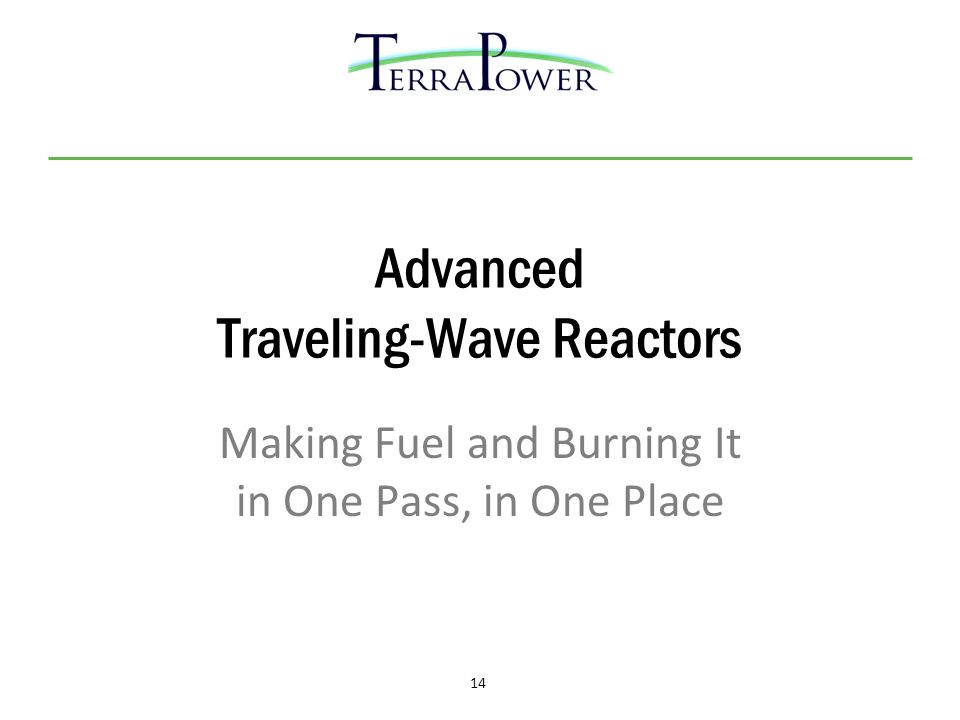

14. Advanced Traveling-Wave Reactors Making Fuel and Burning It in One Pass, in One Place 14

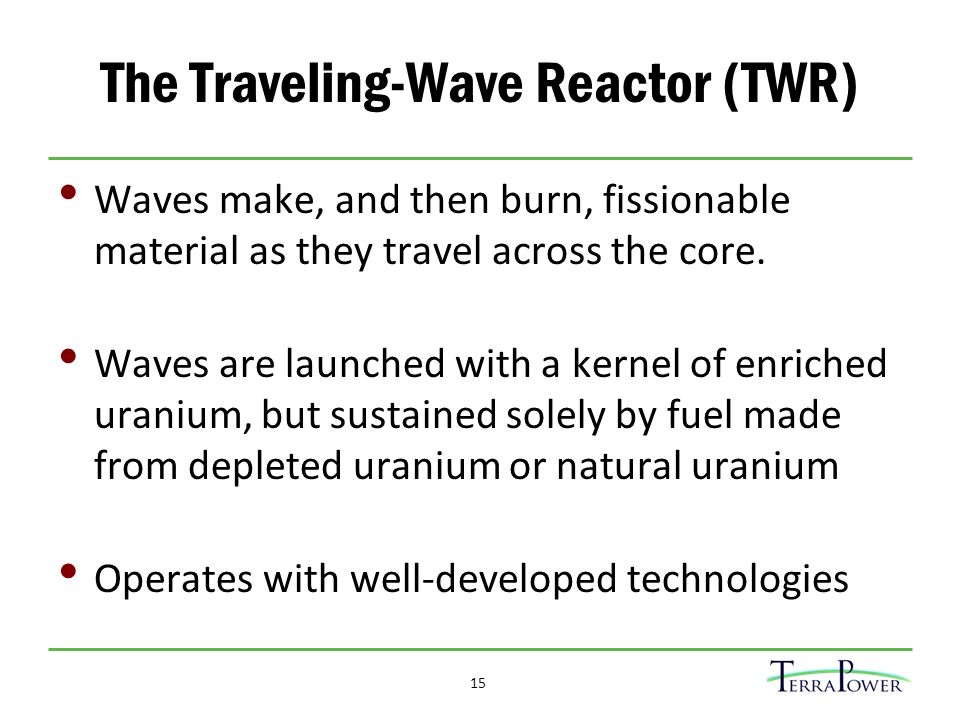

15. The Traveling-Wave Reactor (TWR) Waves make, and then burn, fissionable material as they travel across the core. Waves are launched with a kernel of enriched uranium, but sustained solely by fuel made from depleted uranium or natural uranium Operates with well-developed technologies 15

16. Familiar Breeder Reactor Physics, With a Twist 16

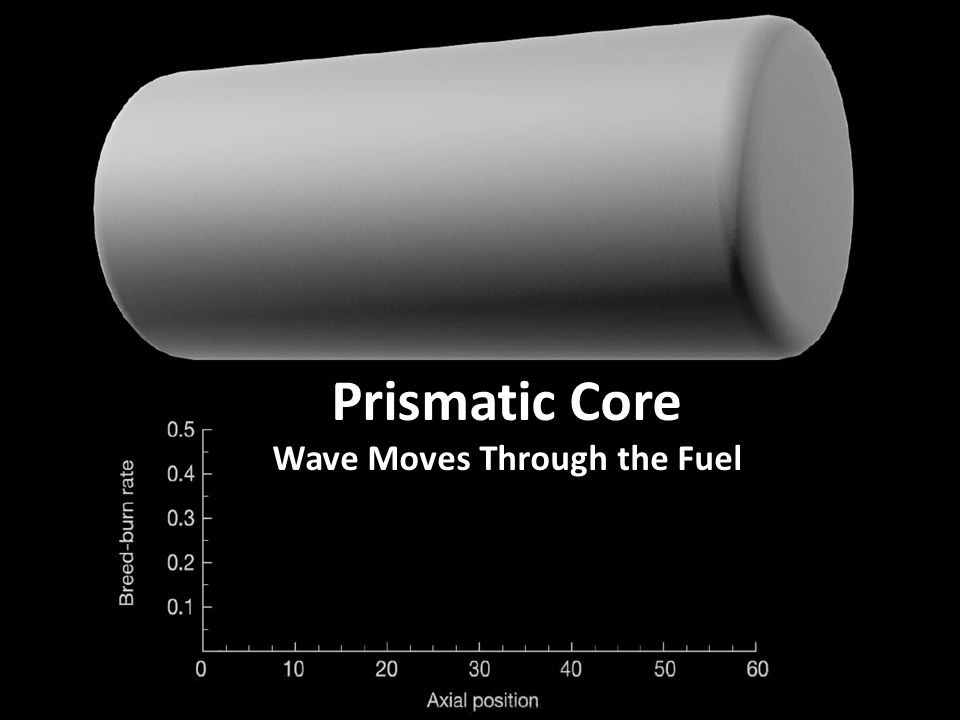

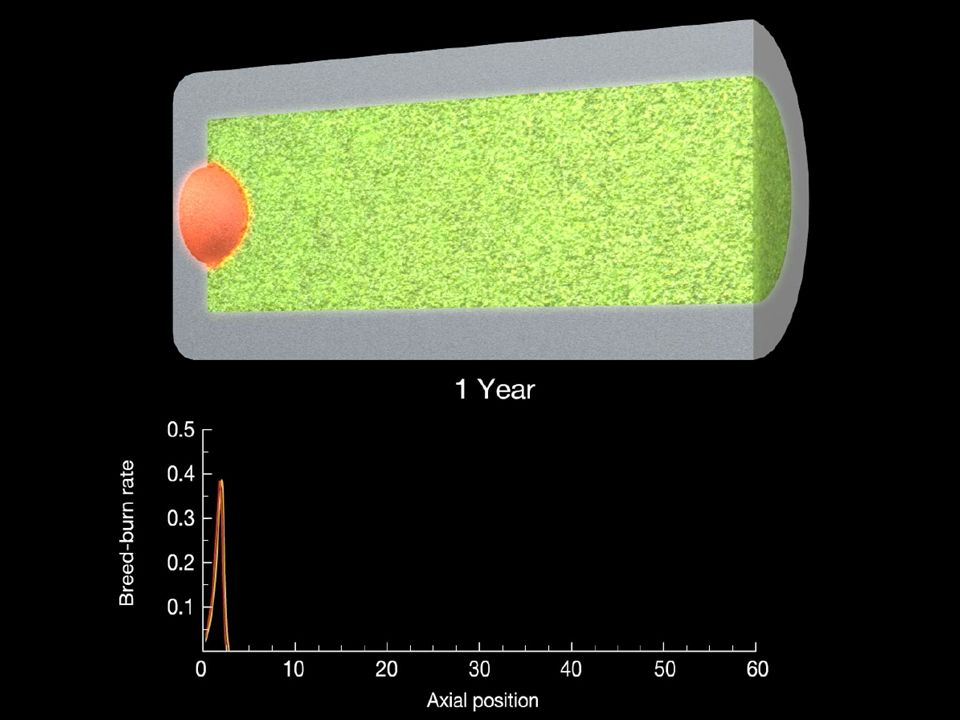

17. Prismatic Core Wave Moves Through the Fuel

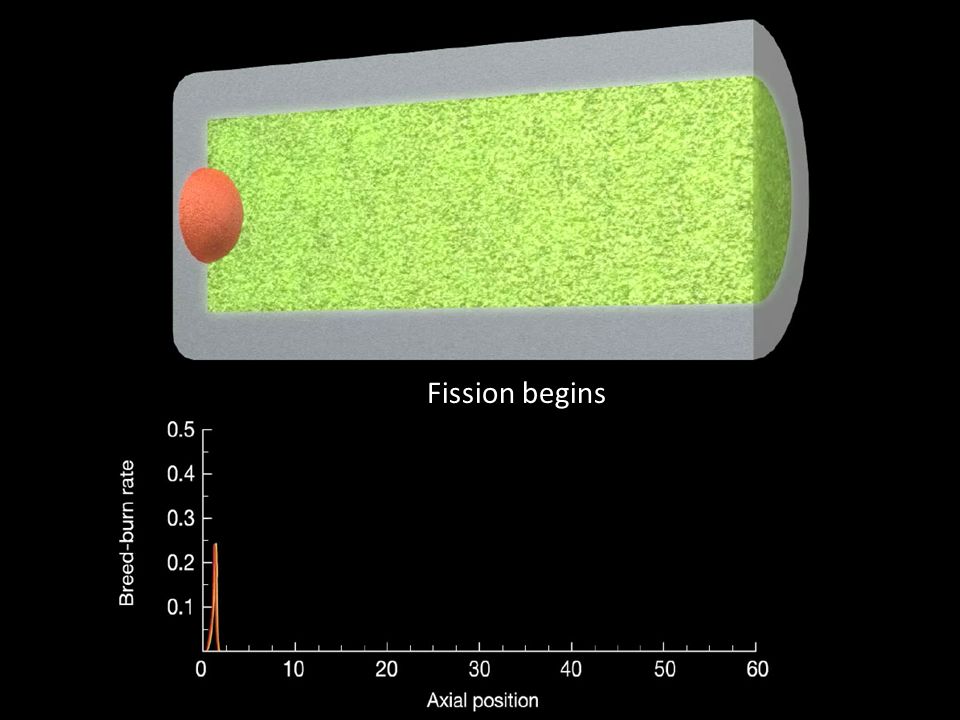

19. Fission begins

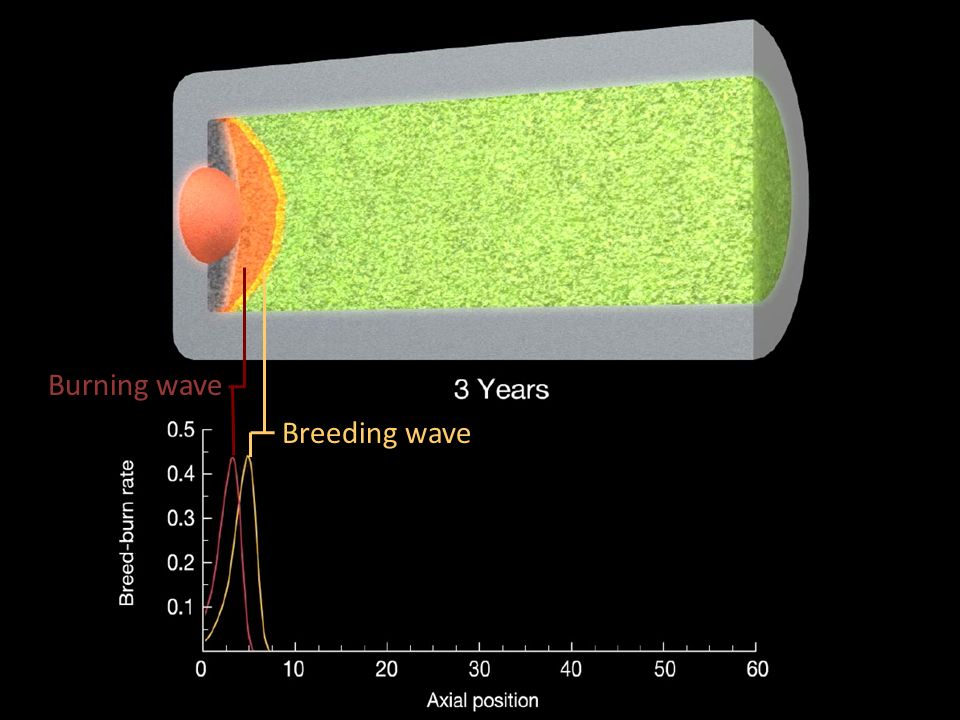

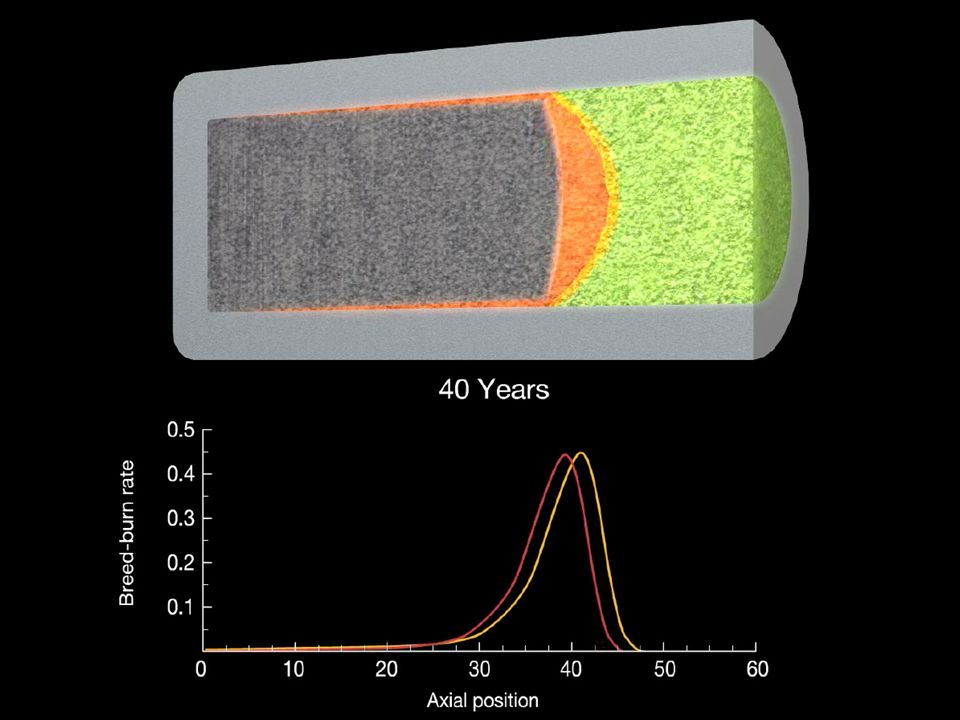

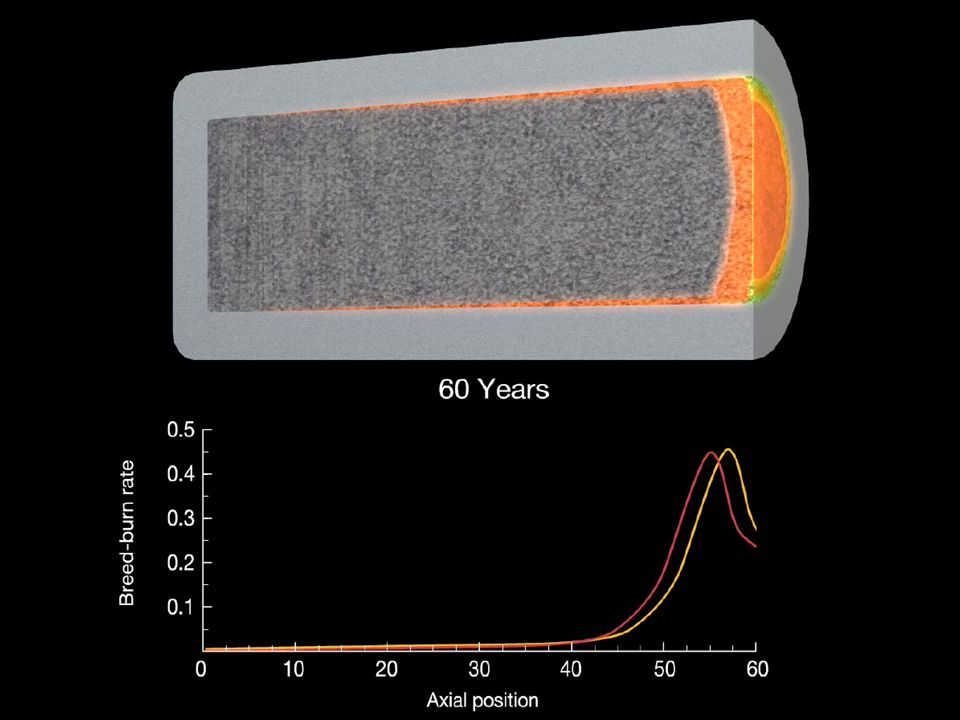

22. Breeding wave Burning wave

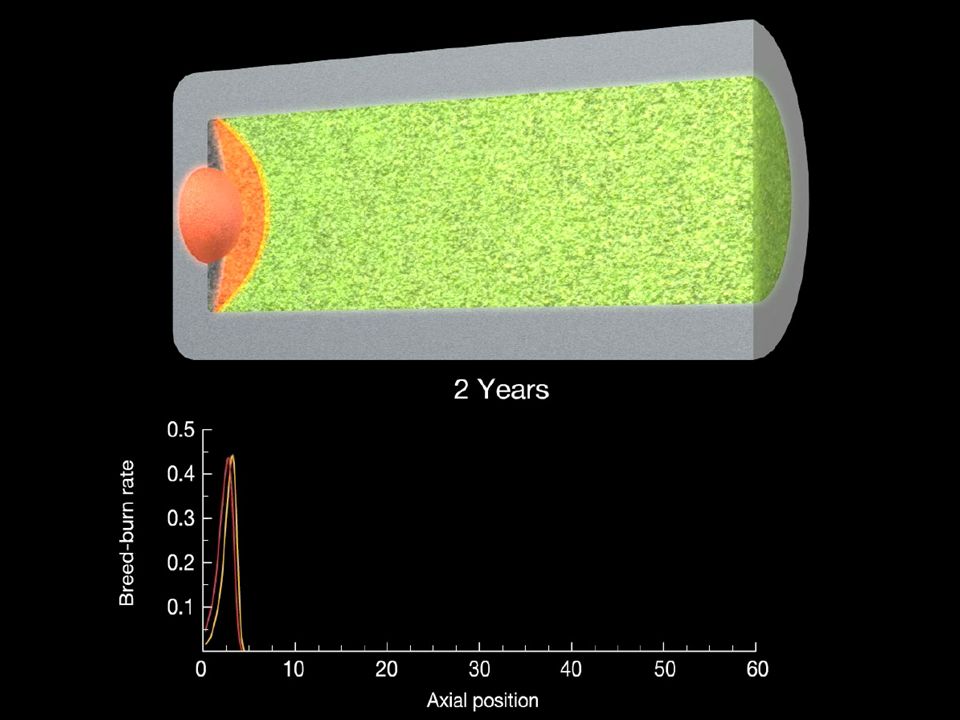

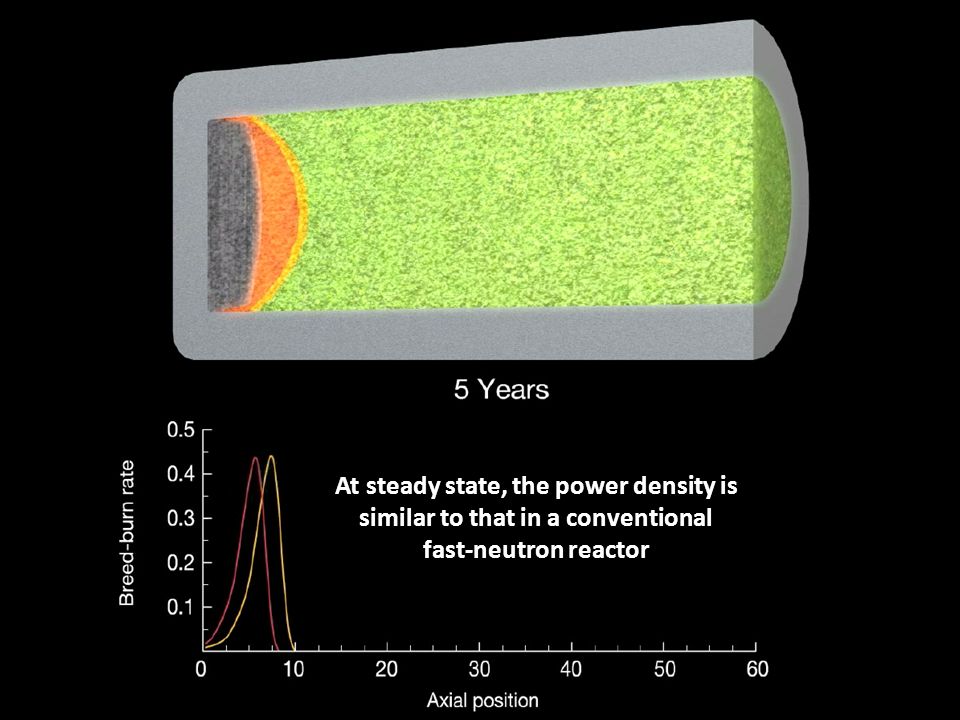

23. At steady state, the power density is similar to that in a conventional fast-neutron reactor

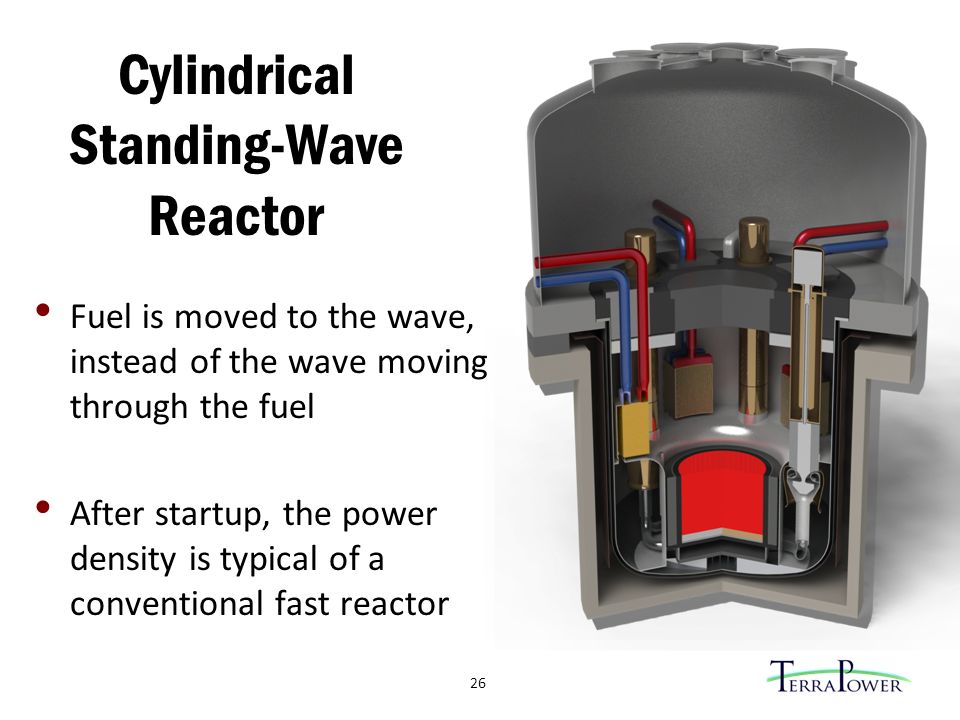

26. Cylindrical Standing-Wave Reactor Fuel is moved to the wave, instead of the wave moving through the fuel After startup, the power density is typical of a conventional fast reactor 26

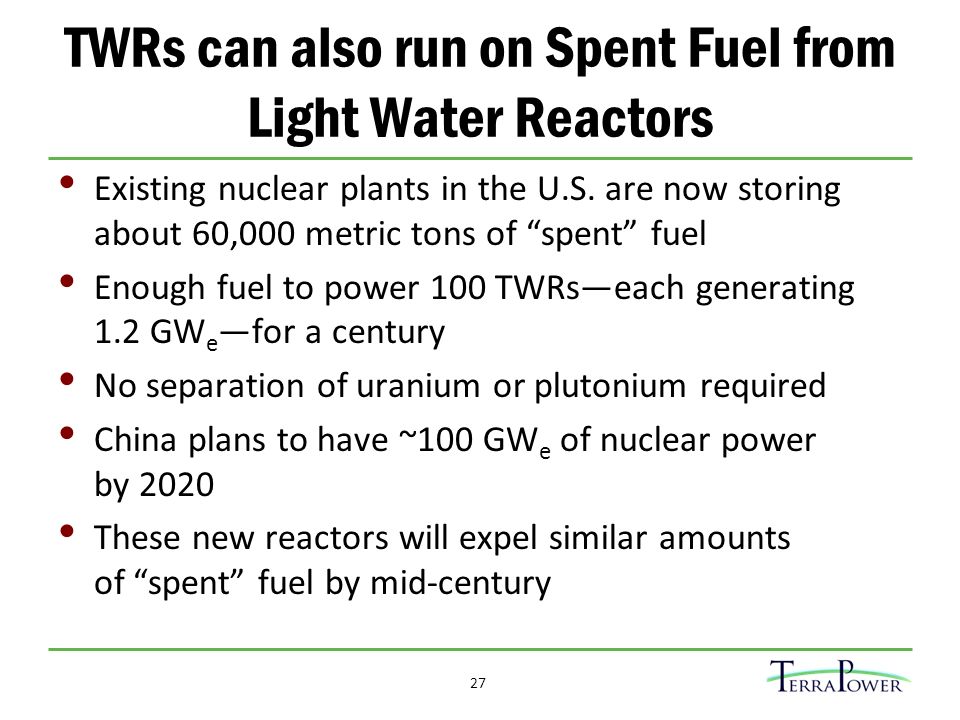

27. TWRs can also run on Spent Fuel from Light Water Reactors Existing nuclear plants in the U.S. are now storing about 60,000 metric tons of “spent” fuel Enough fuel to power 100 TWRs—each generating 1.2 GW e —for a century No separation of uranium or plutonium required China plans to have ~100 GW e of nuclear power by 2020 These new reactors will expel similar amounts of “spent” fuel by mid-century 27

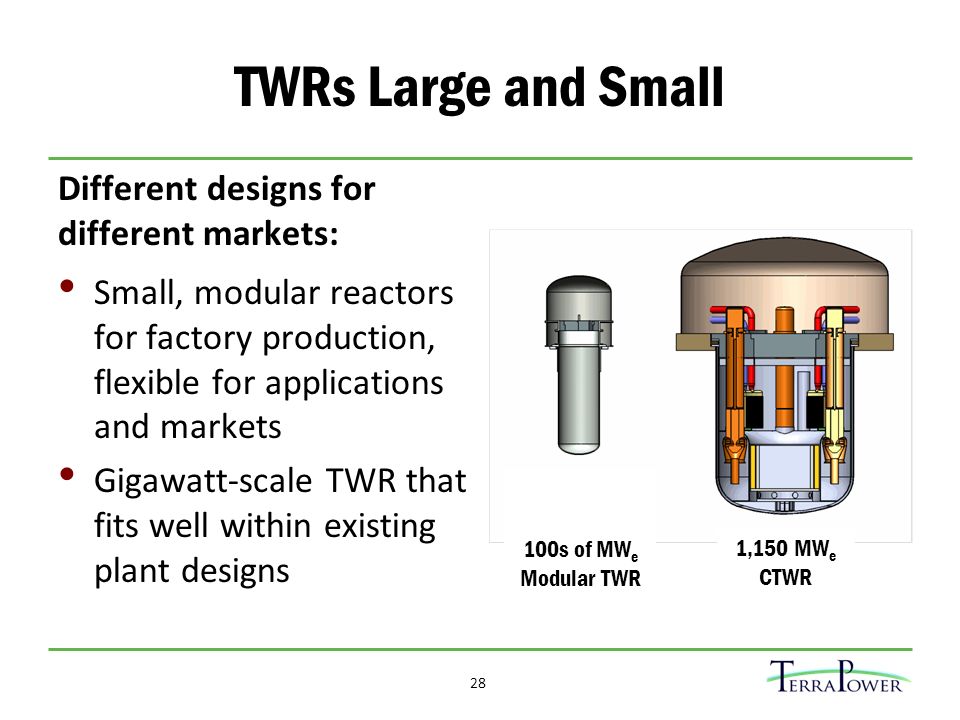

28. TWRs Large and Small Small, modular reactors for factory production, flexible for applications and markets Gigawatt-scale TWR that fits well within existing plant designs Different designs for different markets: 1,150 MW e CTWR 100s of MW e Modular TWR 28

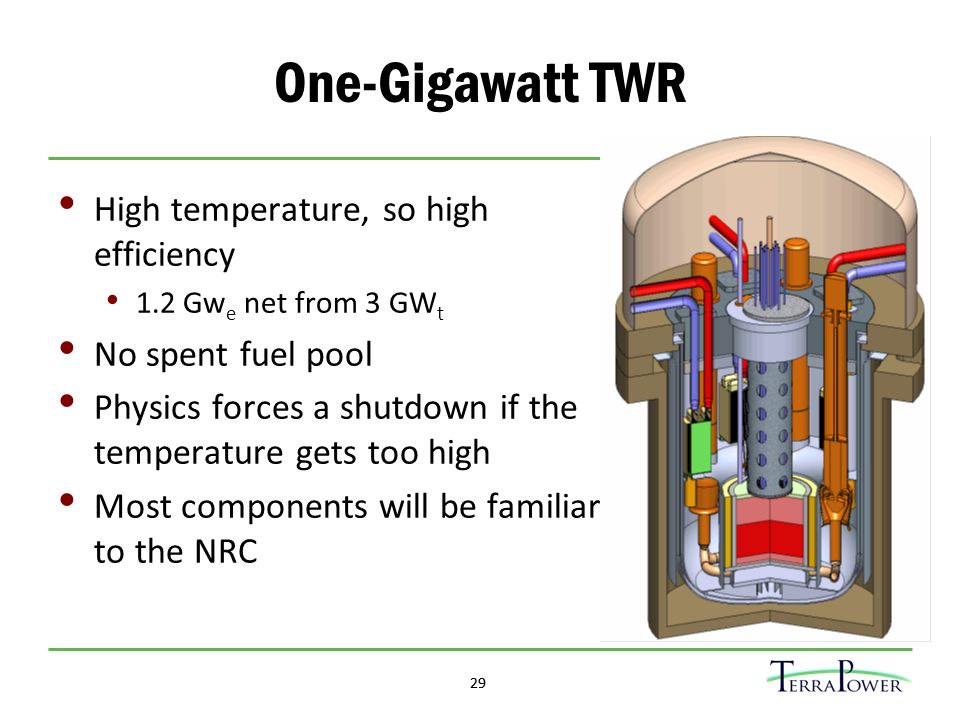

29. 29 One-Gigawatt TWR High temperature, so high efficiency 1.2 Gw e net from 3 GW t No spent fuel pool Physics forces a shutdown if the temperature gets too high Most components will be familiar to the NRC 29

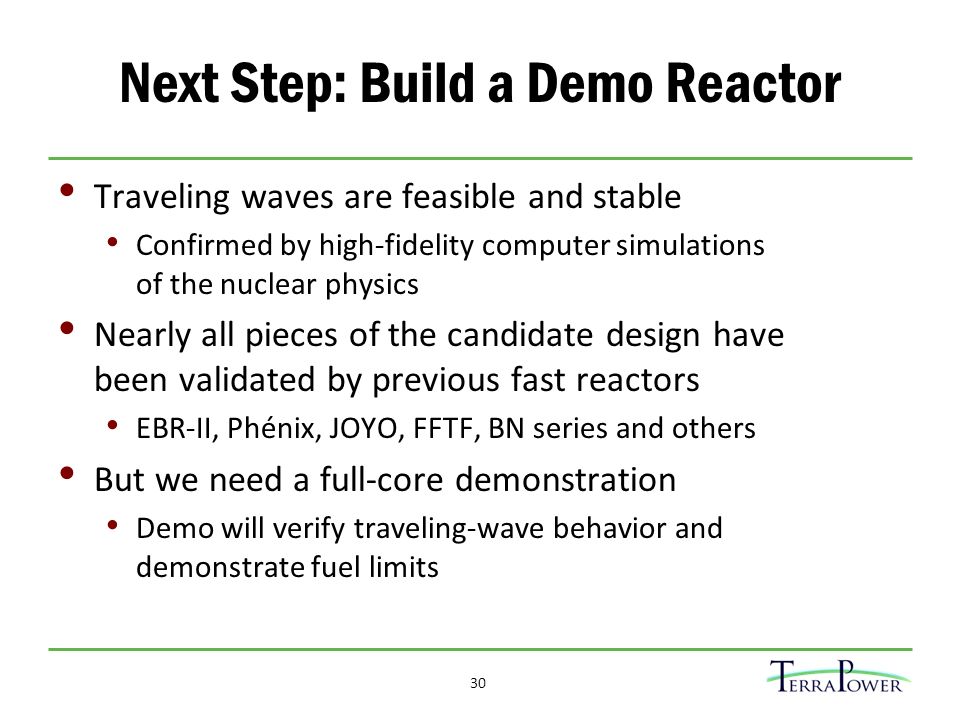

30. Next Step: Build a Demo Reactor Traveling waves are feasible and stable Confirmed by high-fidelity computer simulations of the nuclear physics Nearly all pieces of the candidate design have been validated by previous fast reactors EBR-II, Phénix, JOYO, FFTF, BN series and others But we need a full-core demonstration Demo will verify traveling-wave behavior and demonstrate fuel limits 30

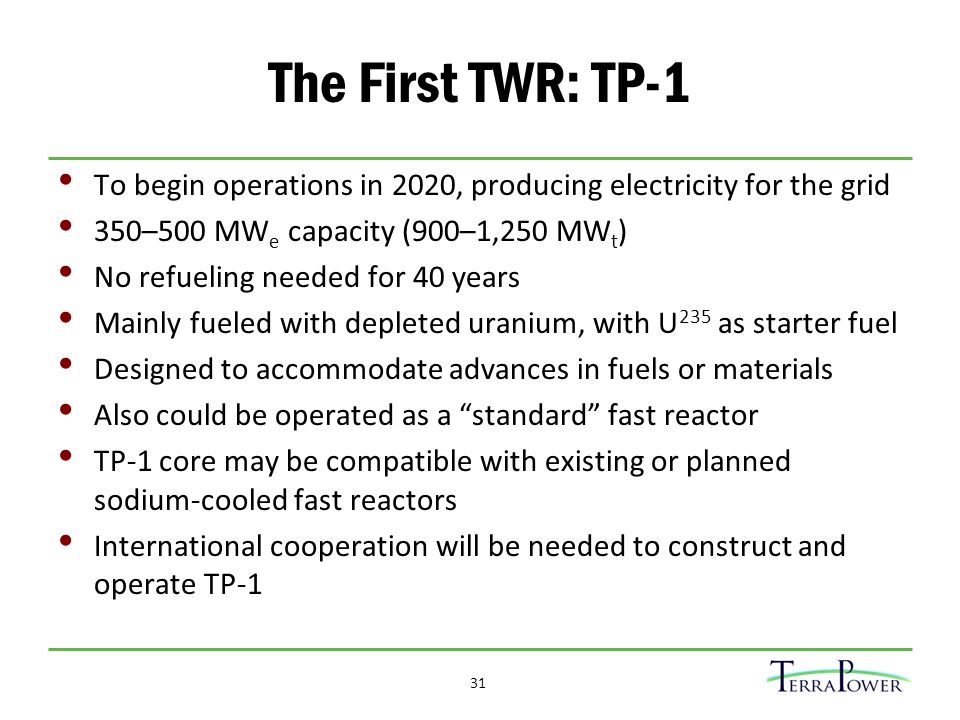

31. The First TWR: TP-1 To begin operations in 2020, producing electricity for the grid 350–500 MW e capacity (900–1,250 MW t ) No refueling needed for 40 years Mainly fueled with depleted uranium, with U 235 as starter fuel Designed to accommodate advances in fuels or materials Also could be operated as a “standard” fast reactor TP-1 core may be compatible with existing or planned sodium-cooled fast reactors International cooperation will be needed to construct and operate TP-1 31

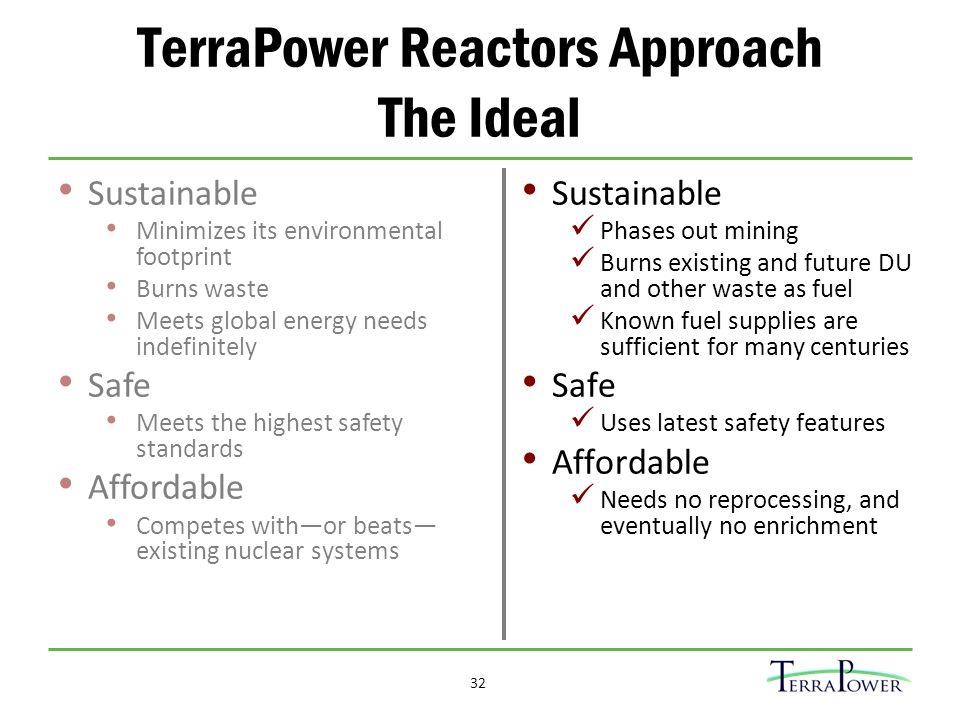

32. TerraPower Reactors Approach The Ideal 32 Sustainable Phases out mining Burns existing and future DU and other waste as fuel Known fuel supplies are sufficient for many centuries Safe Uses latest safety features Affordable Needs no reprocessing, and eventually no enrichment Sustainable Minimizes its environmental footprint Burns waste Meets global energy needs indefinitely Safe Meets the highest safety standards Affordable Competes with—or beats— existing nuclear systems

33. 33 The design provides “ the simplest possible fuel cycle,” says Charles W. Forsberg, executive director of the Nuclear Fuel Cycle Project at MIT, “the and it requires only one uranium enrichment plant per planet.” T ECHNOLOGY R EVIEW, MARCH / APRIL 2009

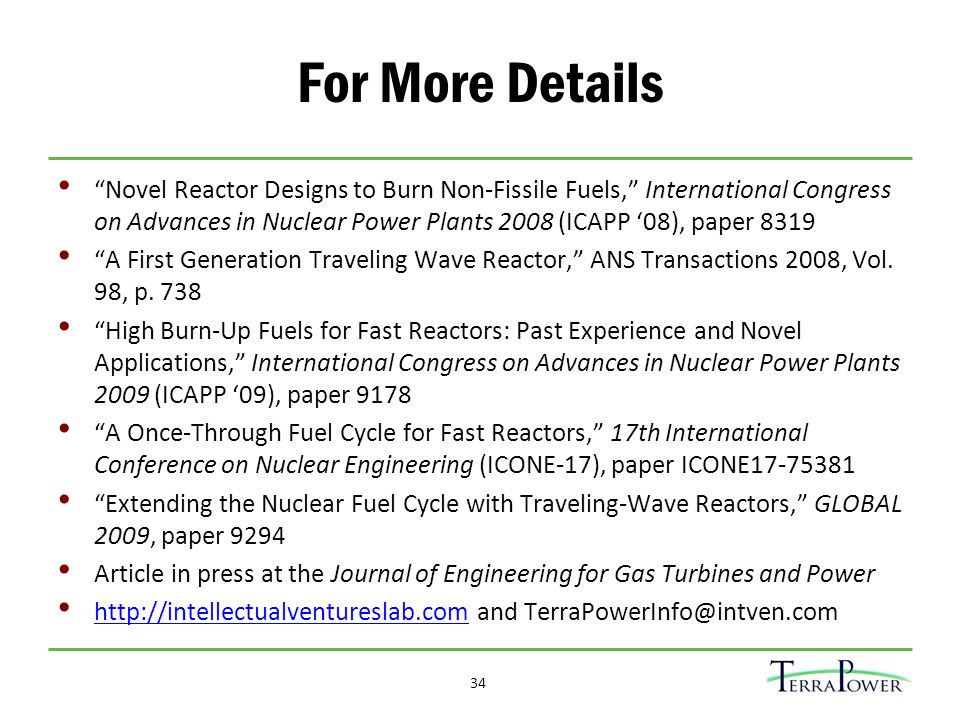

34. For More Details “Novel Reactor Designs to Burn Non-Fissile Fuels,” International Congress on Advances in Nuclear Power Plants 2008 (ICAPP ‘08), paper 8319 “A First Generation Traveling Wave Reactor,” ANS Transactions 2008, Vol. 98, p. 738 “High Burn-Up Fuels for Fast Reactors: Past Experience and Novel Applications,” International Congress on Advances in Nuclear Power Plants 2009 (ICAPP ‘09), paper 9178 “A Once-Through Fuel Cycle for Fast Reactors,” 17th International Conference on Nuclear Engineering (ICONE-17), paper ICONE17-75381 “Extending the Nuclear Fuel Cycle with Traveling-Wave Reactors,” GLOBAL 2009, paper 9294 Article in press at the Journal of Engineering for Gas Turbines and Power http://intellectualventureslab.com and TerraPowerInfo@intven.com http://intellectualventureslab.com 34
