Altitude to the Hypotenuse Theorem - Tomorrow we will use this theorem to prove the Pythagorean Theorem!

Similar presentations


Presentation on theme: "Altitude to the Hypotenuse Theorem - Tomorrow we will use this theorem to prove the Pythagorean Theorem!"— Presentation transcript:

1 Altitude to the Hypotenuse Theorem - Tomorrow we will use this theorem to prove the Pythagorean Theorem!

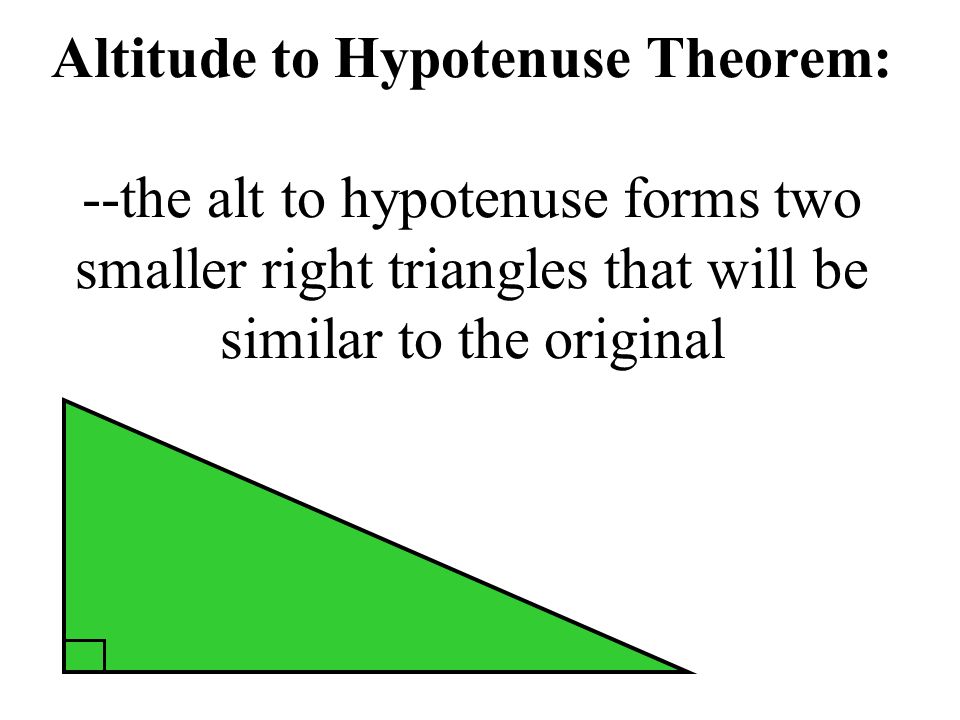

2 Altitude to Hypotenuse Theorem: --the alt to hypotenuse forms two smaller right triangles that will be similar to the original

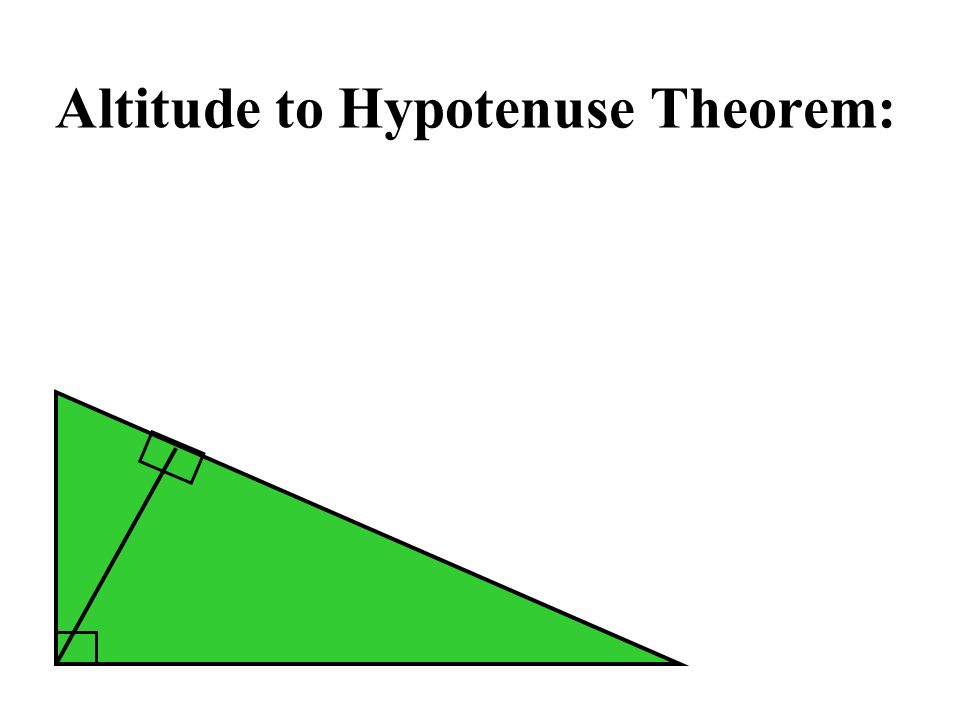

3 Altitude to Hypotenuse Theorem:

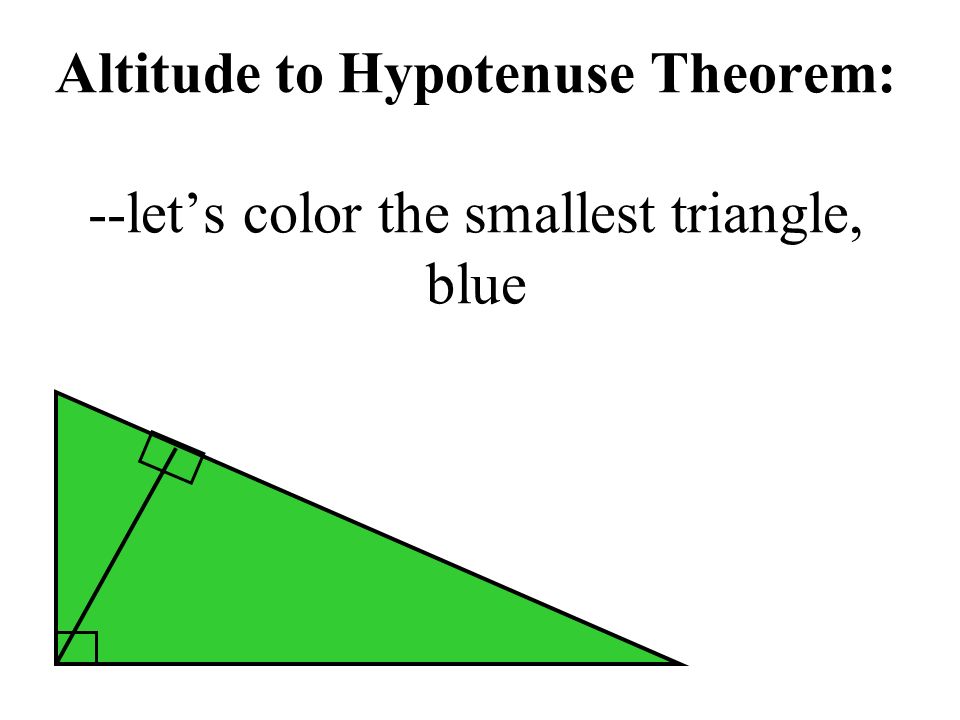

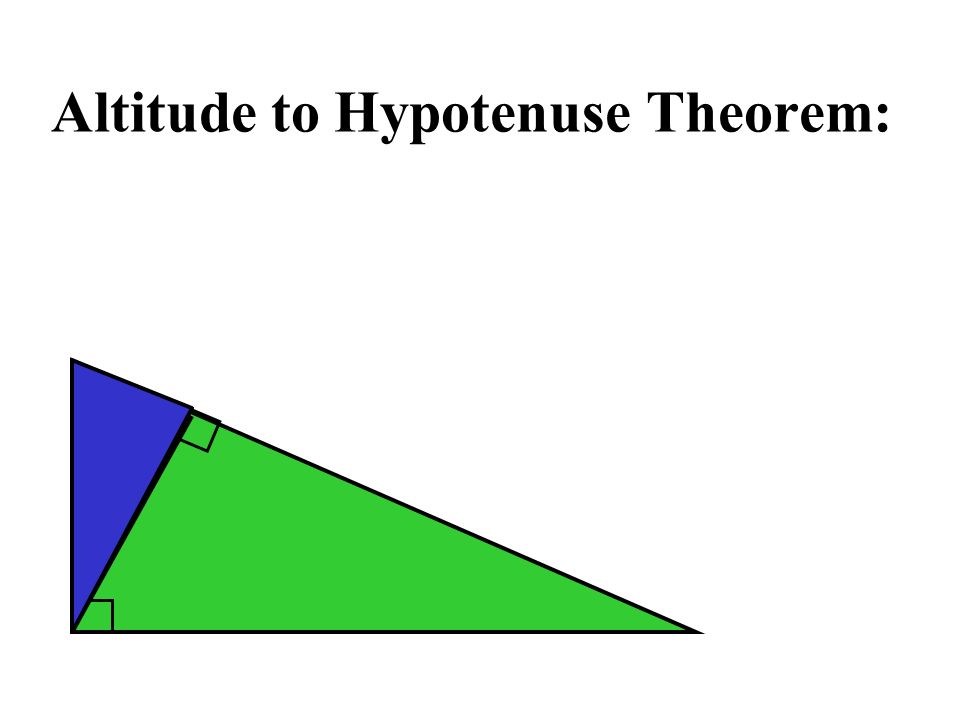

4 Altitude to Hypotenuse Theorem: --let’s color the smallest triangle, blue

5 Altitude to Hypotenuse Theorem:

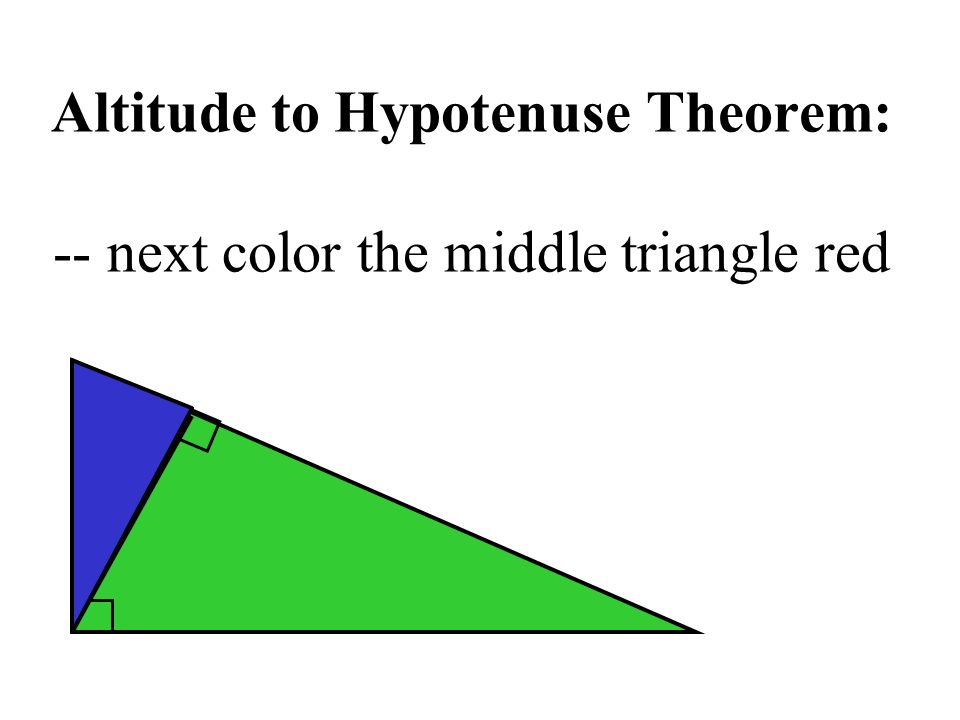

6 Altitude to Hypotenuse Theorem: -- next color the middle triangle red

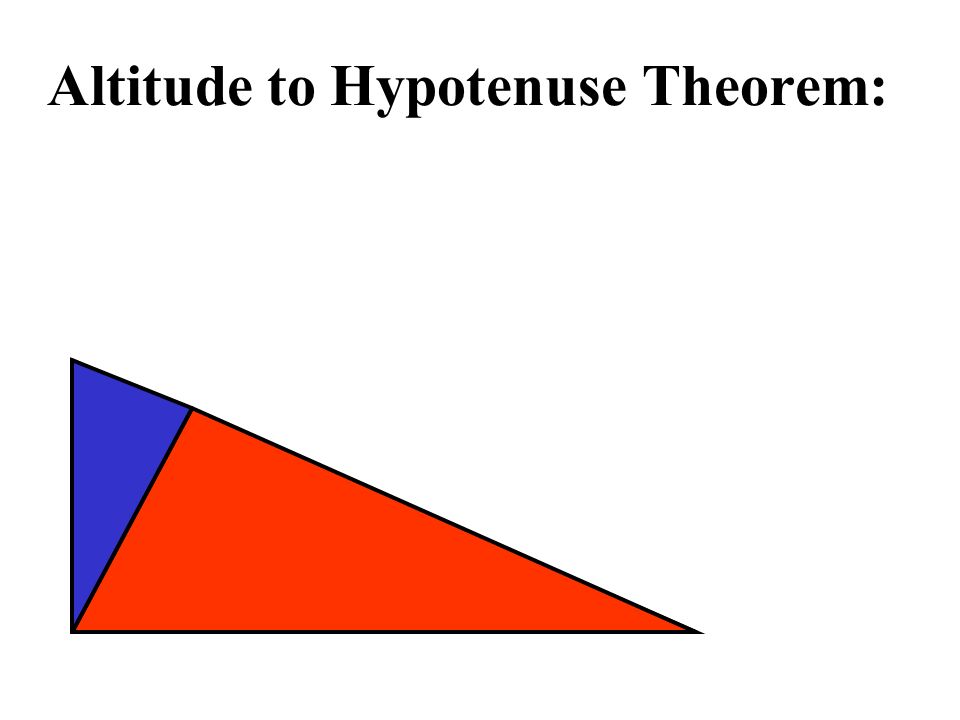

7 Altitude to Hypotenuse Theorem:

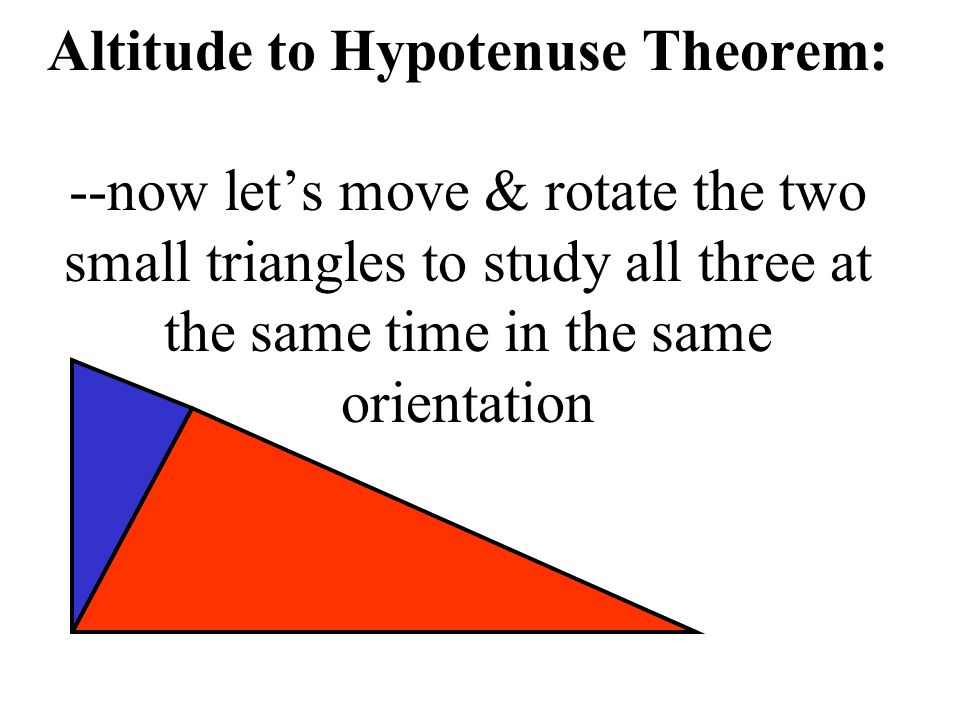

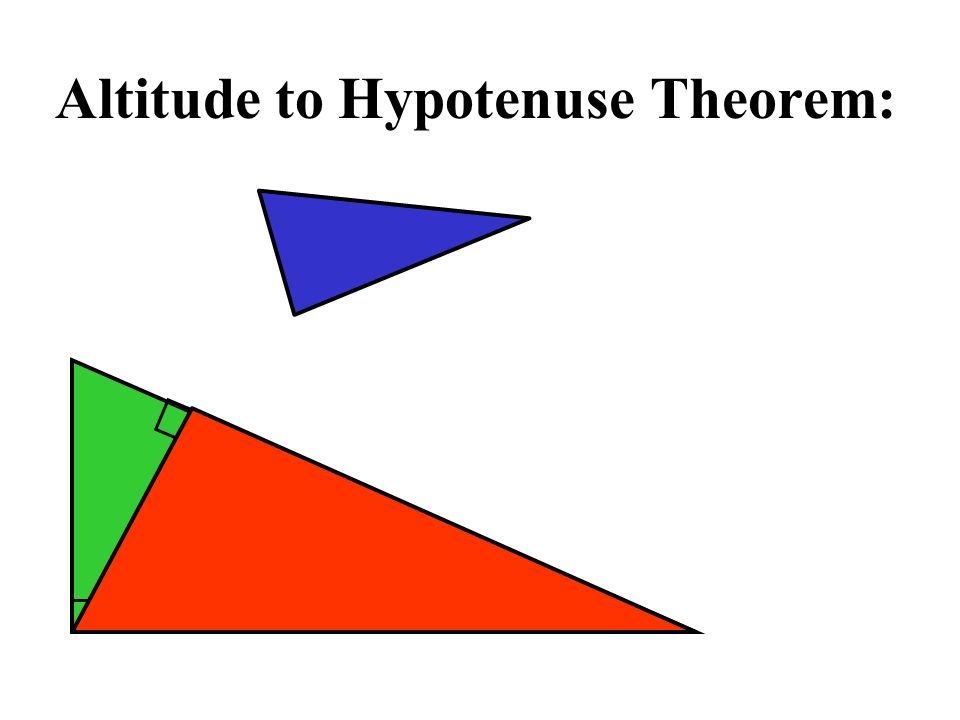

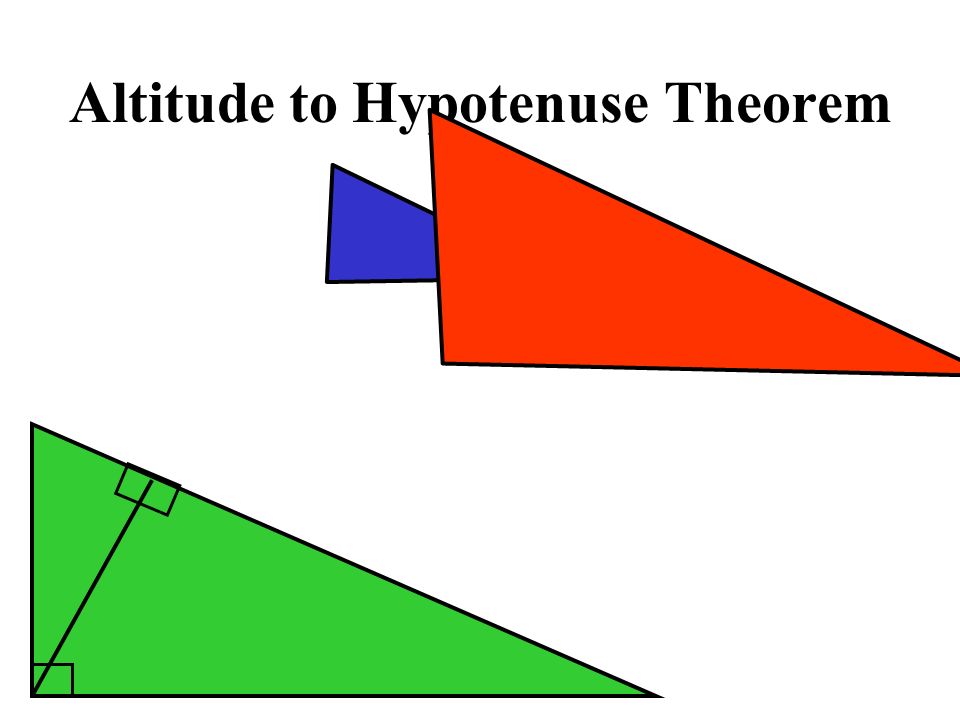

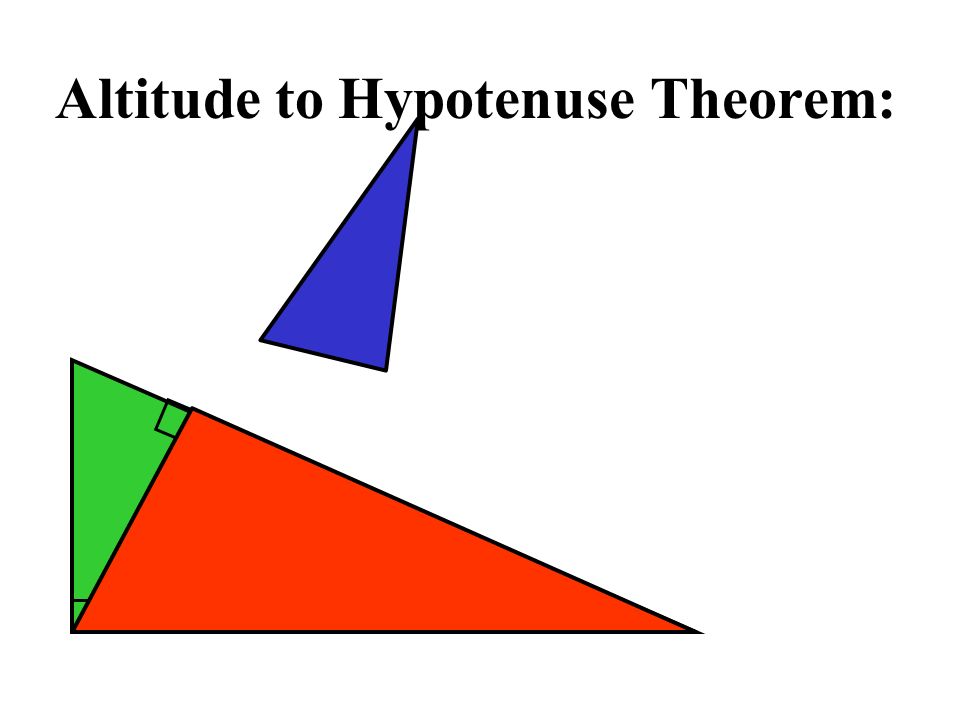

8 Altitude to Hypotenuse Theorem: --now let’s move & rotate the two small triangles to study all three at the same time in the same orientation

9 Altitude to Hypotenuse Theorem:

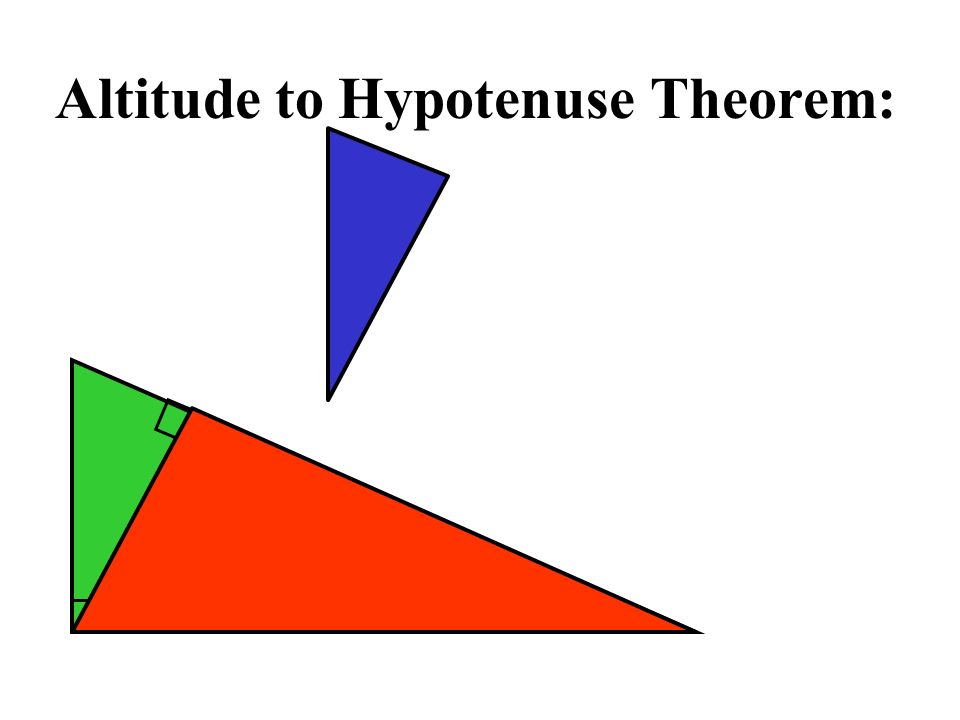

10

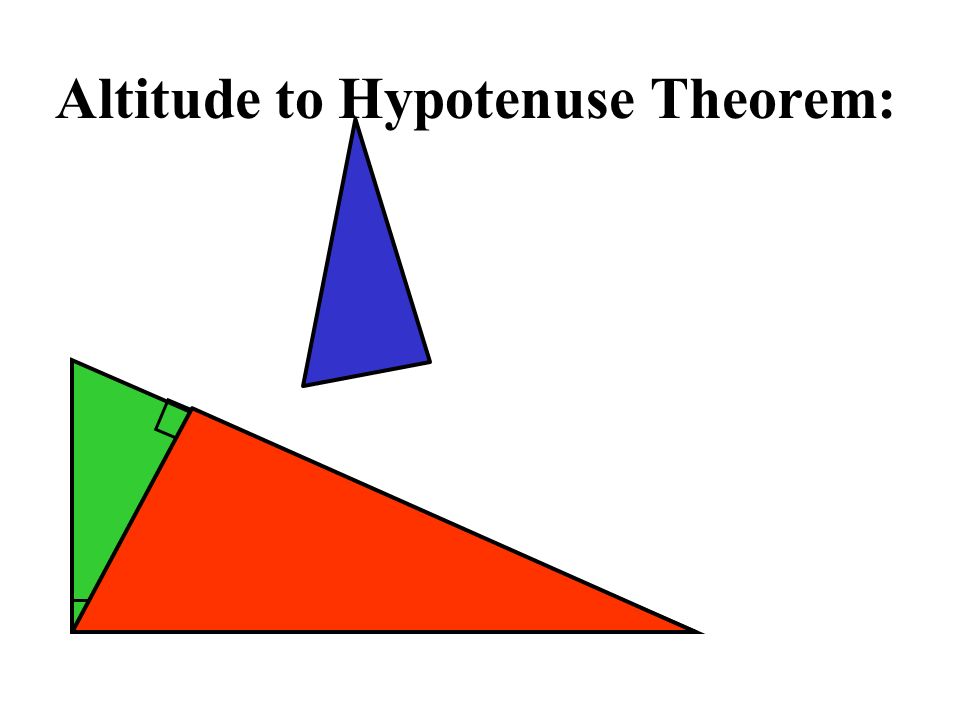

11

12

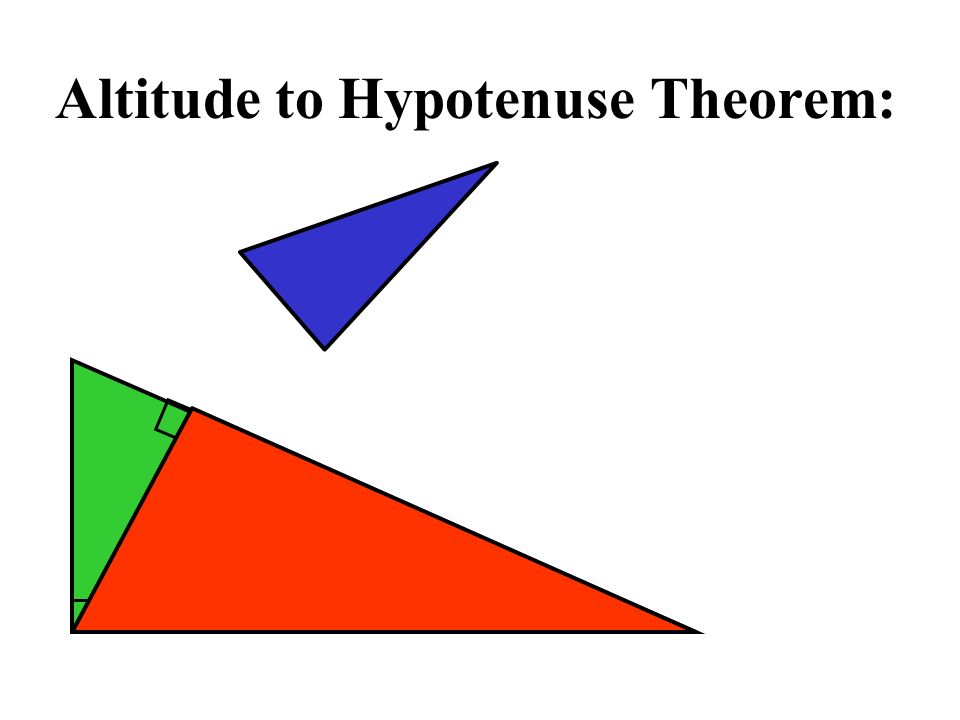

13

14

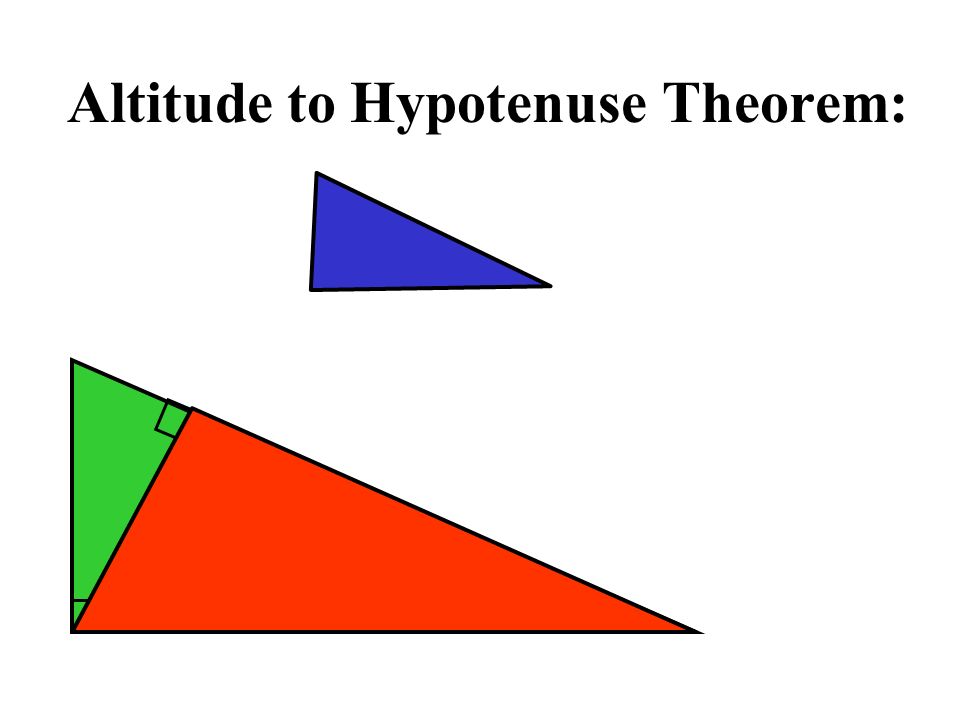

15

16

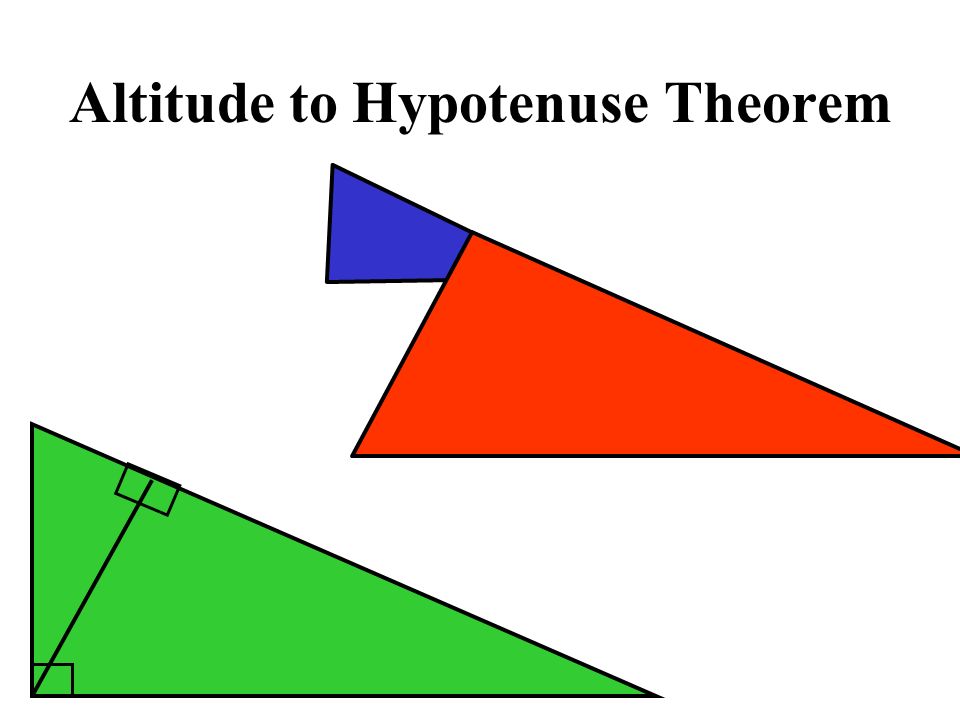

17 Altitude to Hypotenuse Theorem

18

19

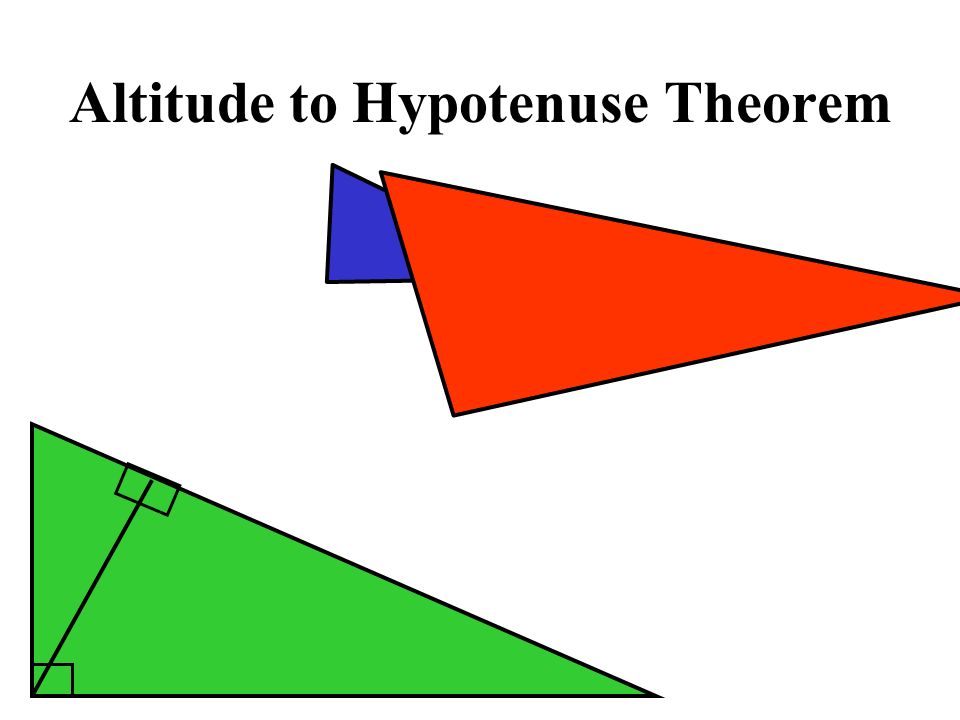

20

21

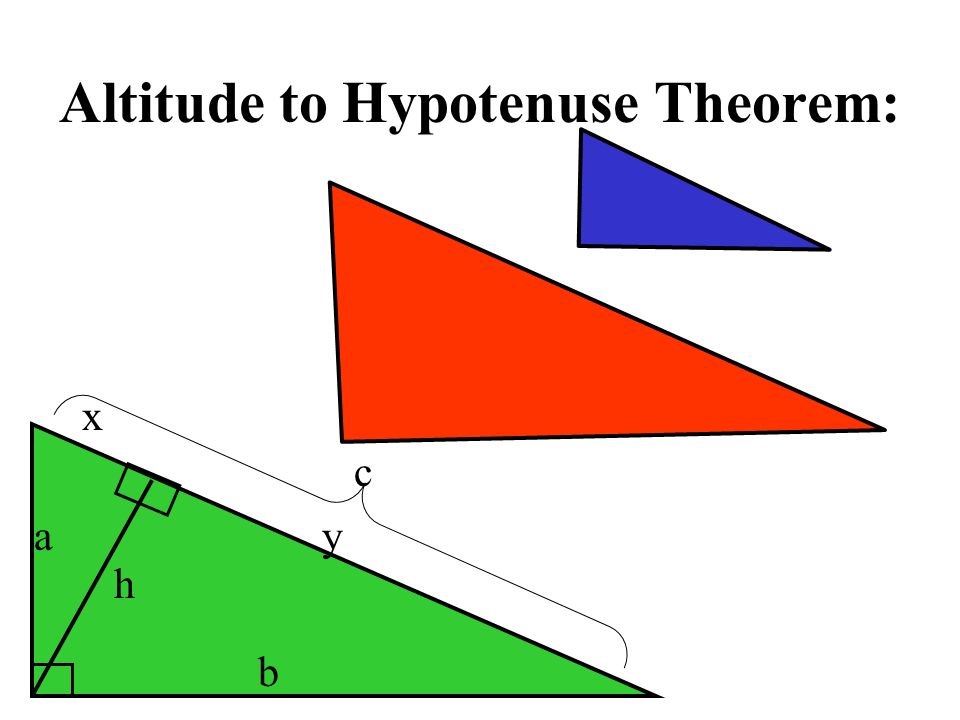

22 Altitude to Hypotenuse Theorem: x y c h b a

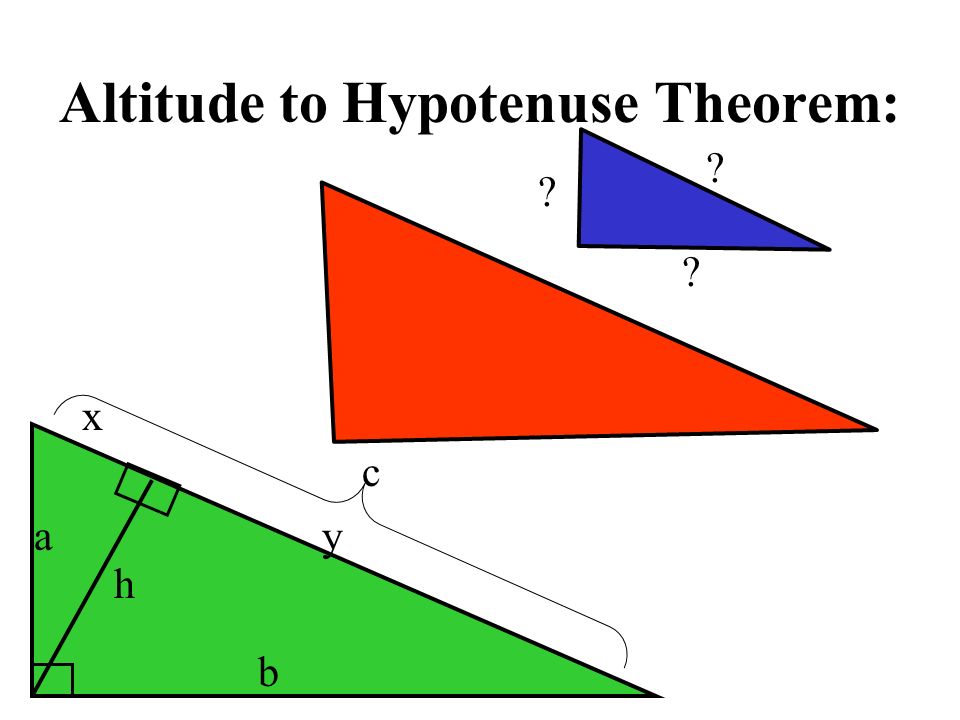

23 x y c h b a ? ? ?

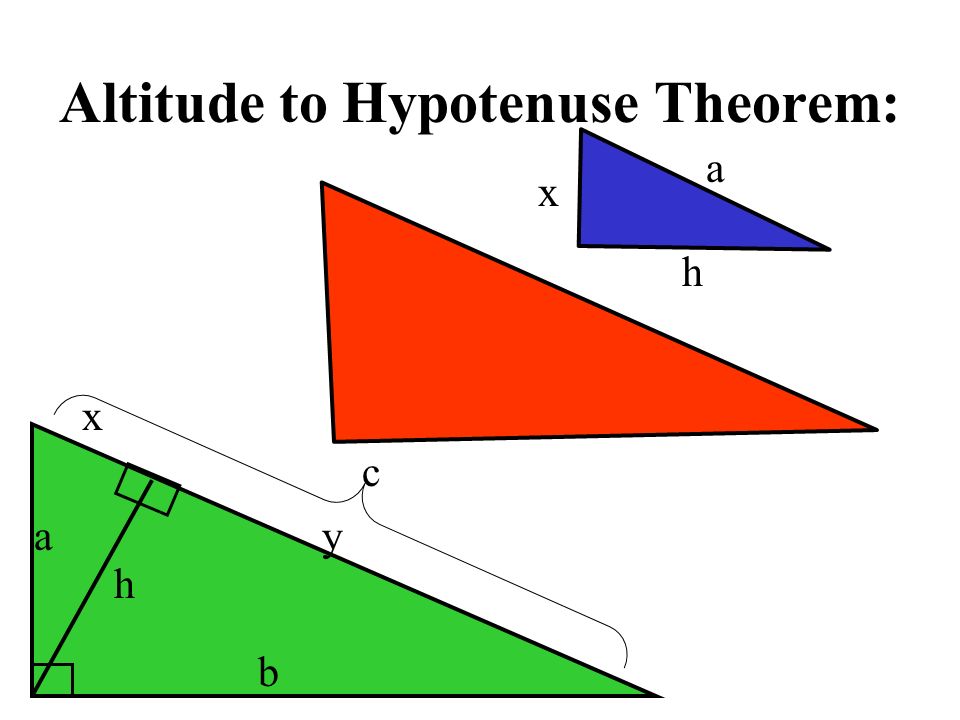

24 x y c h b a x h a

25 x y c h b a x h a ? ? ?

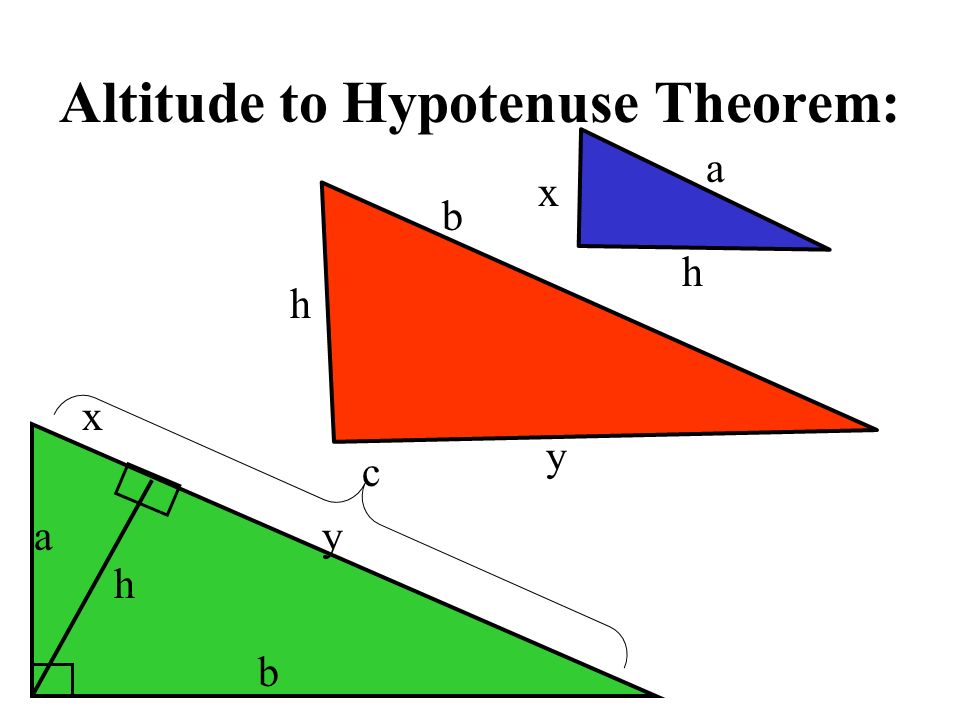

26 x y c h b a x h a y h b

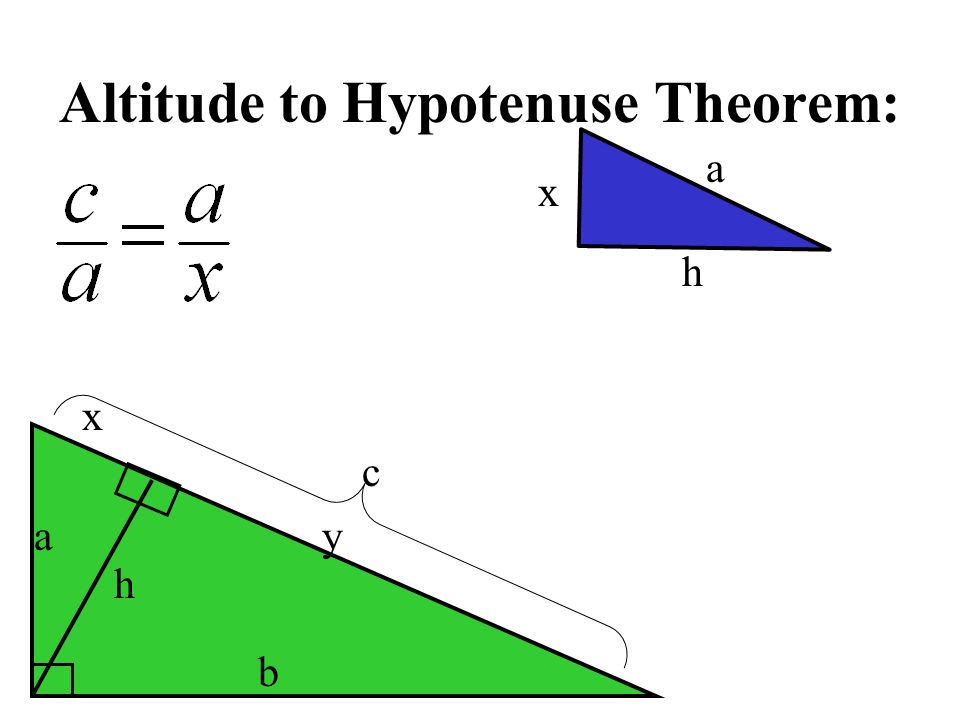

27 x y c h b a x h a

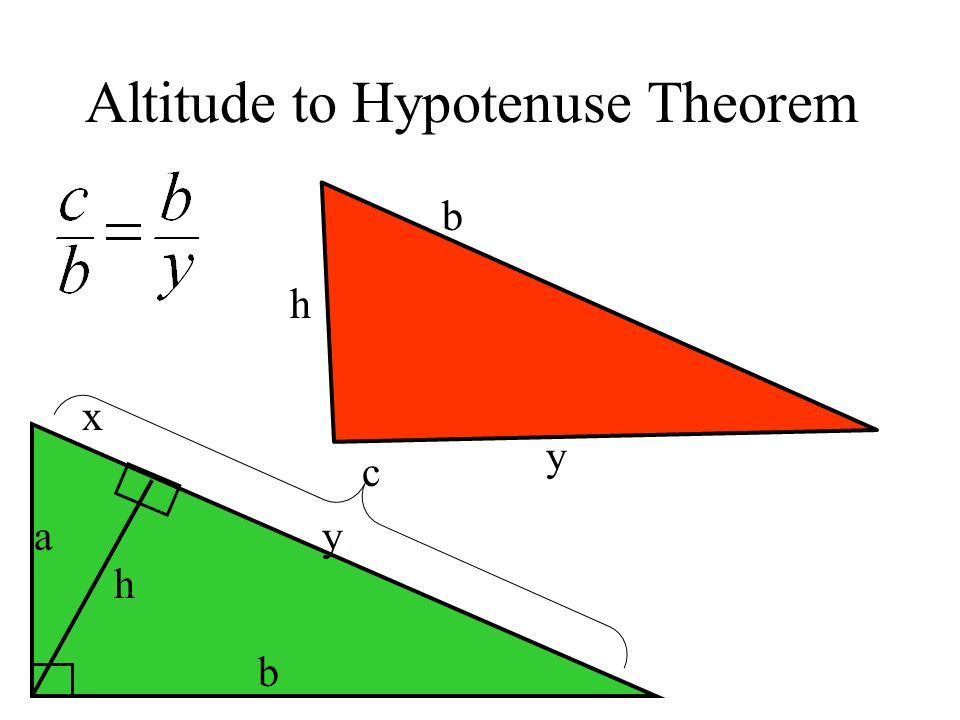

28 Altitude to Hypotenuse Theorem x y c h b a y h b

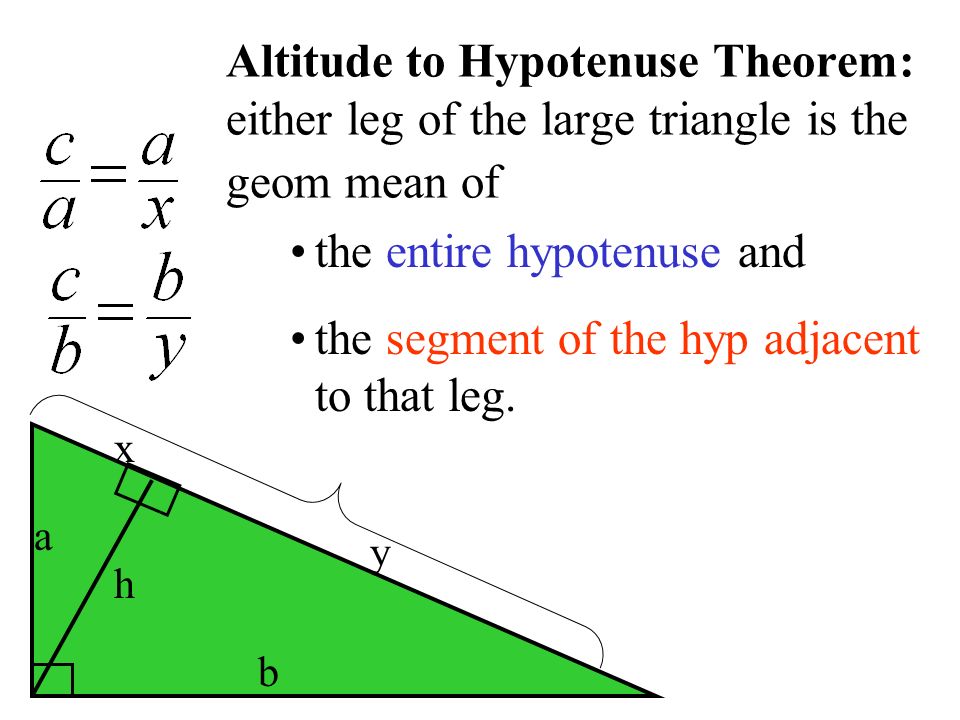

29 Altitude to Hypotenuse Theorem: either leg of the large triangle is the geom mean of x y h b a the entire hypotenuse and the segment of the hyp adjacent to that leg.

30 Altitude to Hypotenuse Theorem x h a y h b

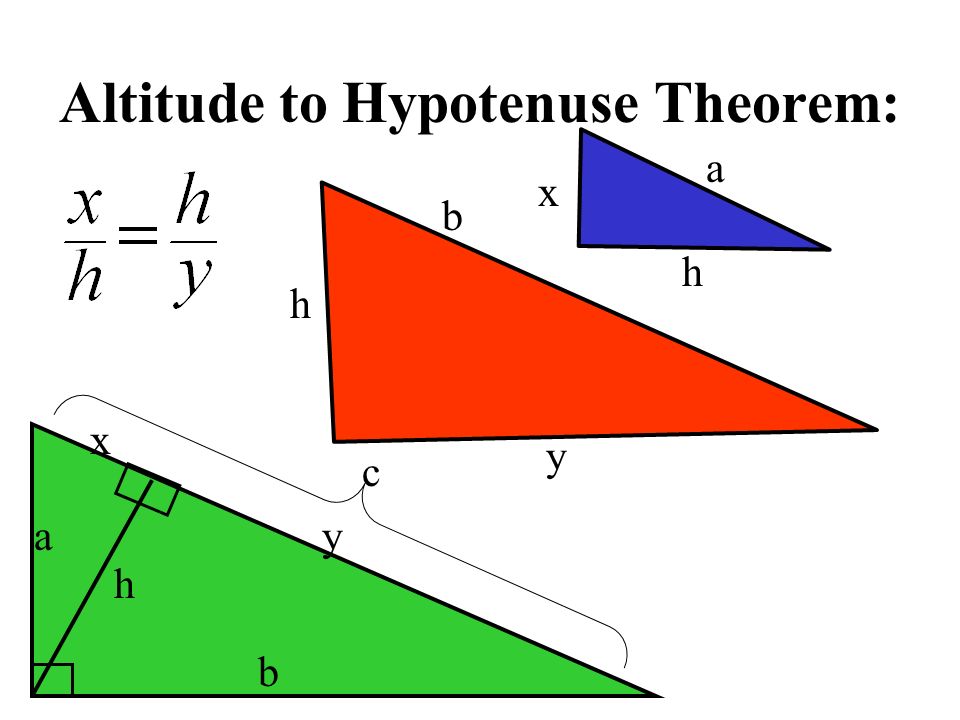

31 Altitude to Hypotenuse Theorem: x y c h b a x h a y h b

32 Altitude to Hypotenuse Theorem: --the alt to the hypotenuse is the geometric mean of the two segments of the hypotenuse. x y c h b a

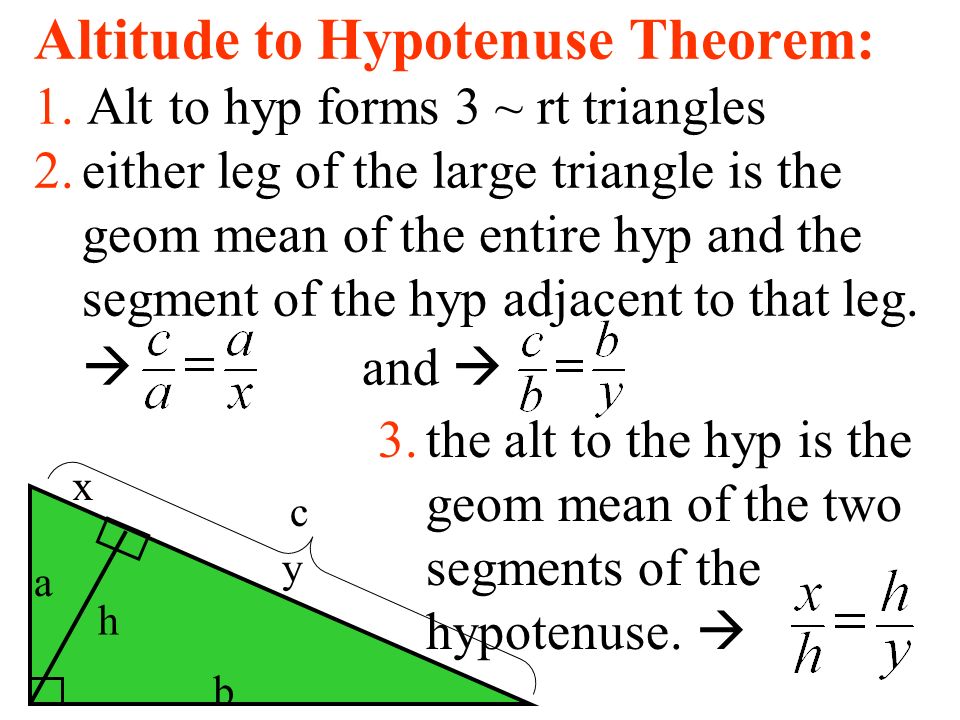

33 Altitude to Hypotenuse Theorem: 1. Alt to hyp forms 3 ~ rt triangles 2.either leg of the large triangle is the geom mean of the entire hyp and the segment of the hyp adjacent to that leg.  and  x y c h b a 3.the alt to the hyp is the geom mean of the two segments of the hypotenuse. 

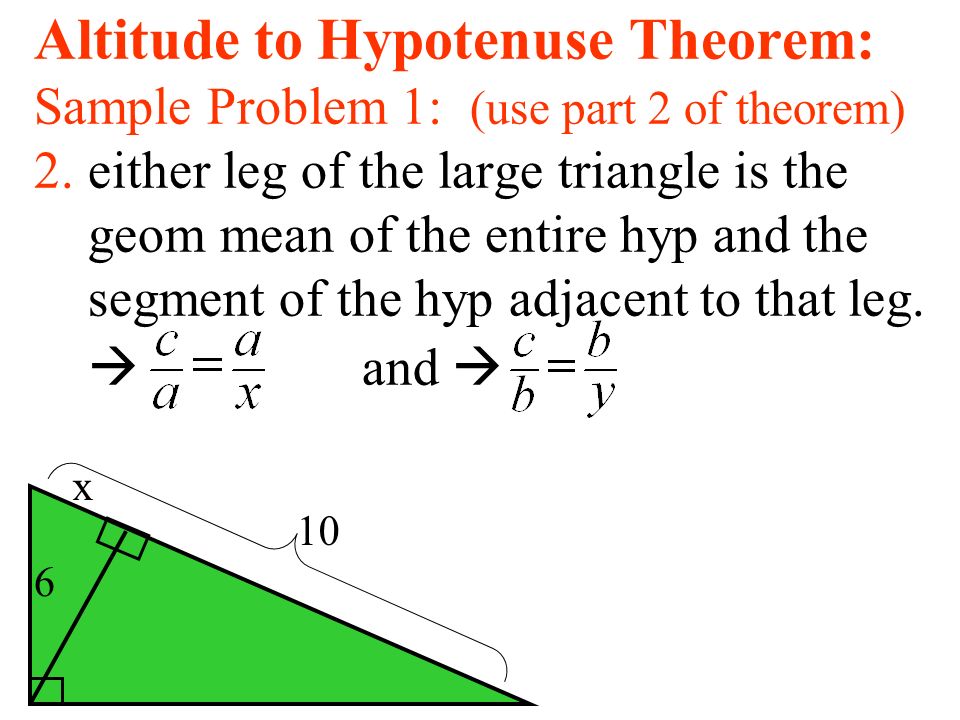

34 Altitude to Hypotenuse Theorem: Sample Problem 1: (use part 2 of theorem) 2.either leg of the large triangle is the geom mean of the entire hyp and the segment of the hyp adjacent to that leg.  and  x 10 6

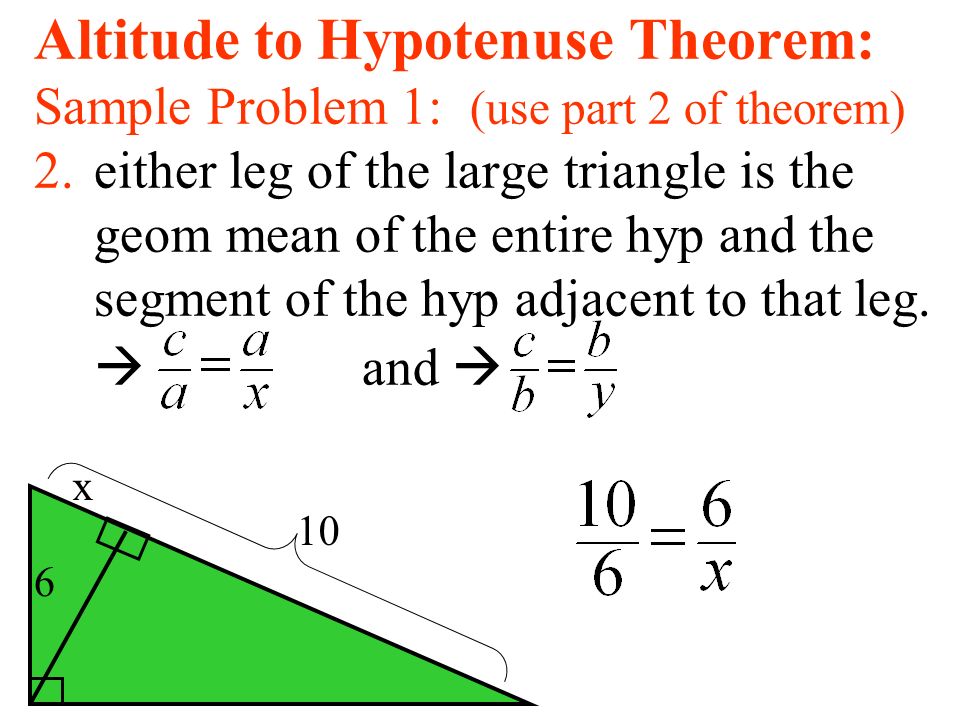

35 Altitude to Hypotenuse Theorem: Sample Problem 1: (use part 2 of theorem) 2.either leg of the large triangle is the geom mean of the entire hyp and the segment of the hyp adjacent to that leg.  and  x 10 6

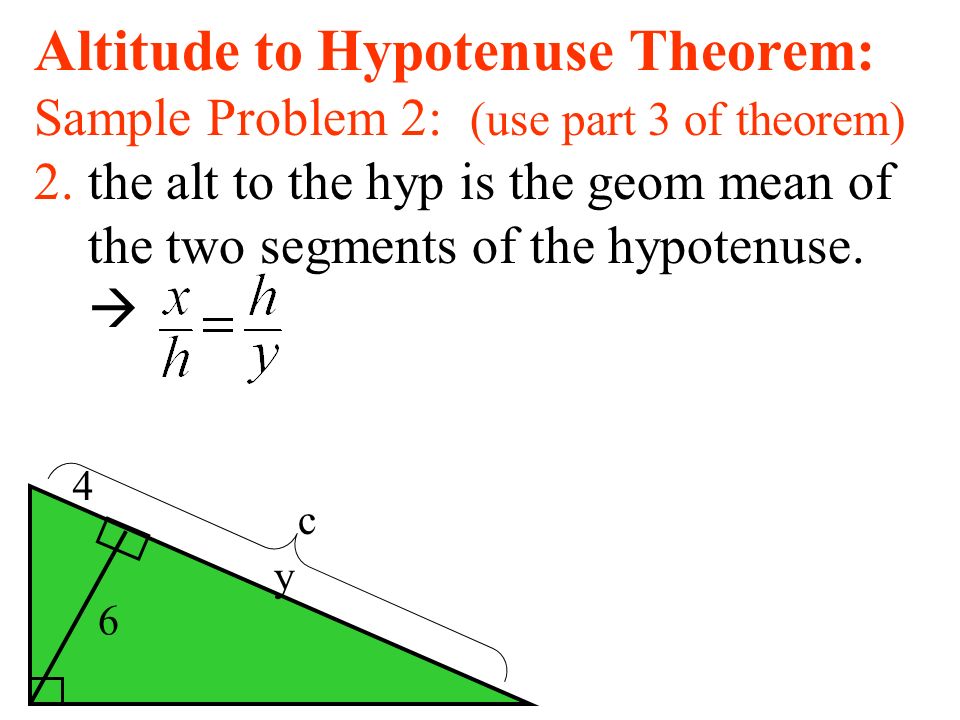

36 Altitude to Hypotenuse Theorem: Sample Problem 2: (use part 3 of theorem) 2.the alt to the hyp is the geom mean of the two segments of the hypotenuse.  4 y c 6

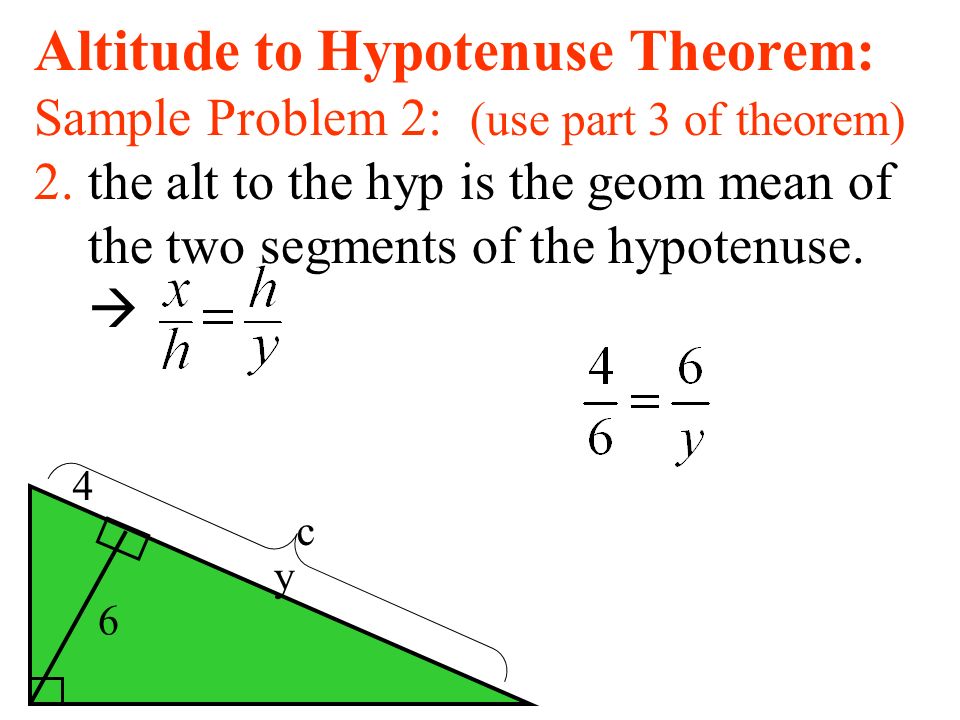

37 4 y c 6

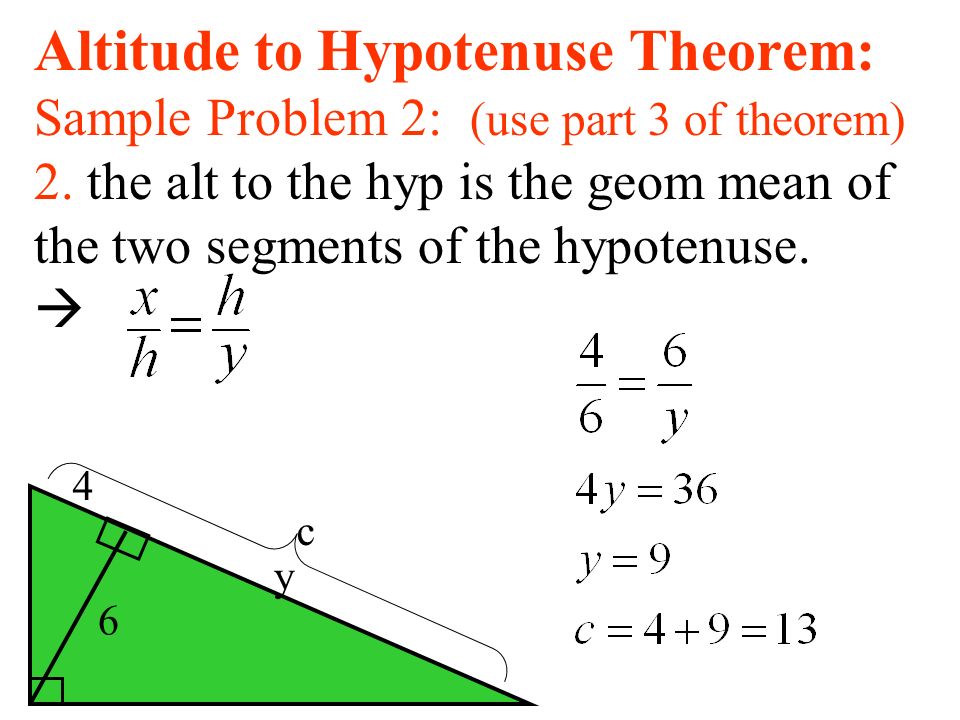

38 4 y c 6

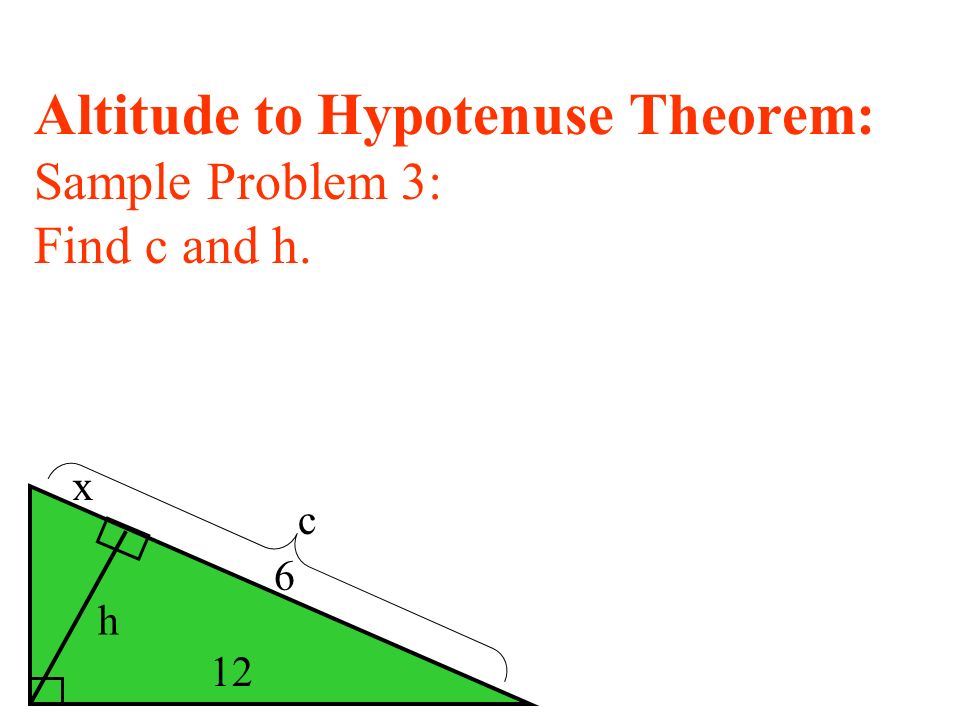

39 Altitude to Hypotenuse Theorem: Sample Problem 3: Find c and h. x 6 c h 12

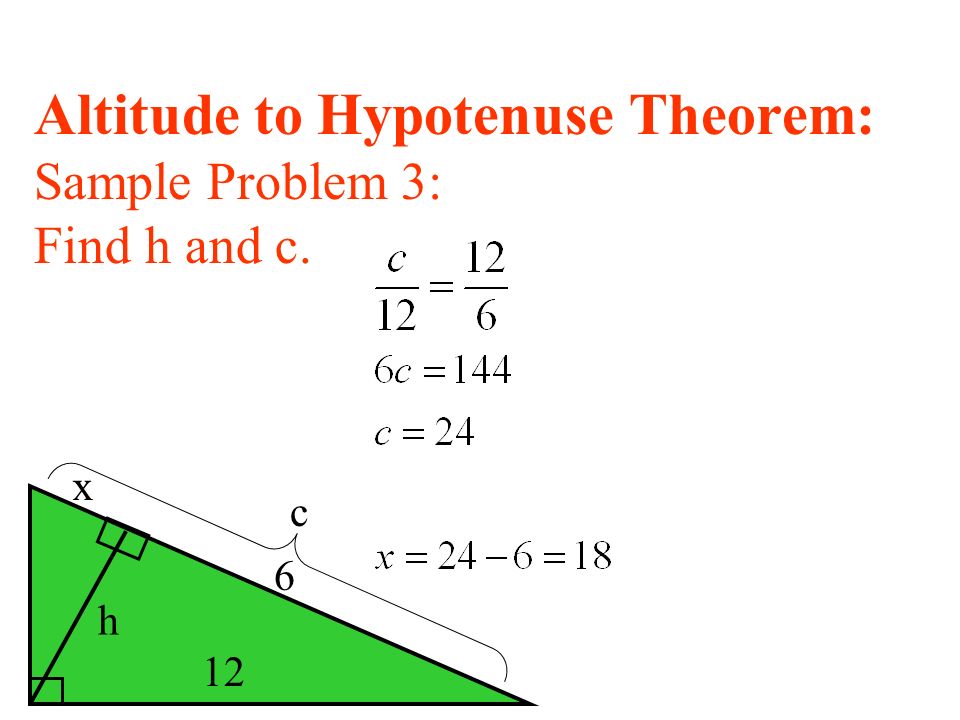

40 Altitude to Hypotenuse Theorem: Sample Problem 3: Find h and c. x 6 c h 12

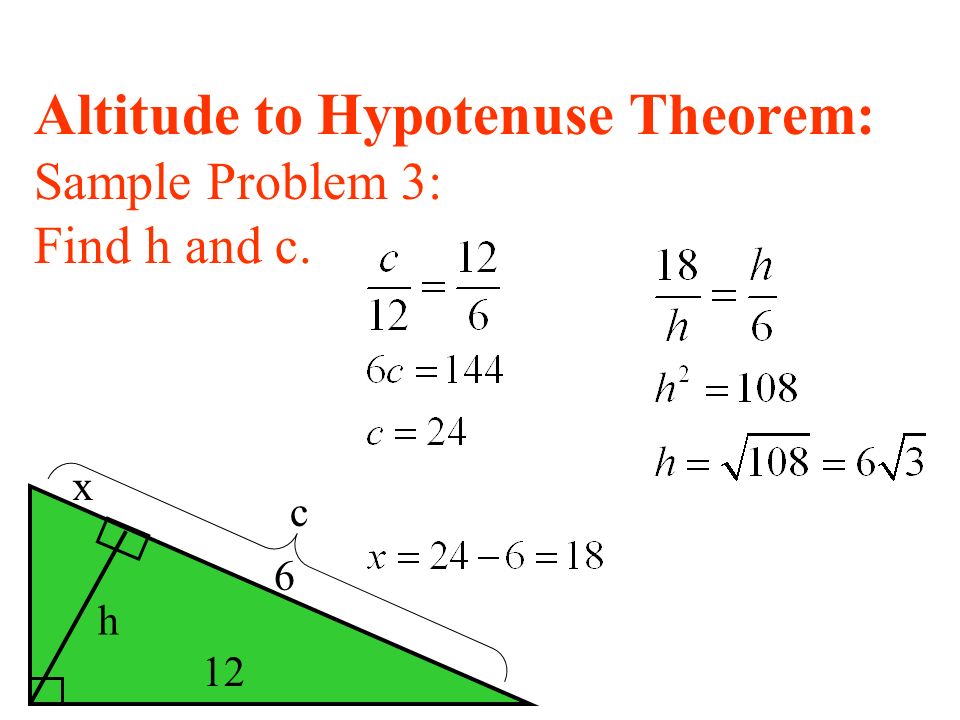

41 Altitude to Hypotenuse Theorem: Sample Problem 3: Find h and c. x 6 c h 12
