1. Scope

2. Scope of a variable
The range of statements in which the variable is visible
A variable is visible in a statement if it can be referenced in that statement
A variable is local in a program unit (block) if it is declared there
A variable is nonlocal if it is visible, but not declared in the program unit
Scope rules of a language determine how references to names are associated with variables

3. Static Scope One method of binding names to nonlocal variables
Determination of the scope of a variable can be accomplished prior to execution
Search process: search declarations, first locally, then in increasingly larger enclosing scopes, until one is found for the given name
Enclosing static scopes (to a specific scope) are called its static ancestors; the nearest static ancestor is called a static parent

4. Static Scope continued
Variables can be hidden from a unit by having a "closer" variable with the same name
C++ and Ada allow access to these "hidden" variables
In Ada: unit.name
In C++: class_name::name

5. Static Scope Example
Procedure Big is x : Integer; procedure Sub1 is begin … end; procedure Sub2 is … x …

6. Blocks
Allow new static scope to be defined in the midst of executable code
Allows for local variables with minimized scope
{ } of C-based languages
void sub () {
int count; …
while ( … ) {
int count = 0;
count++; }

7. Declaration Order
In some languages all data declarations in a function, except those in nested blocks, must appear at the beginning of the function
C++ and Java, a declaration can appear anywhere a statement can appear
Resulting scope is not strictly a compound statement or subprogram, since it begins at the declaration and ends at the end of the block in which it appears

8. Global Scope
Definitions outside functions in a file create global variables
Definitions and declarations
Declarations specify types and other attributes, but do not cause allocation of storage
Definitions specify attributes and cause allocation of storage
Languages implement global scope in a variety of ways

9. PHP example
local day is Wednesday
global day is Monday
global month is January
$day = “Monday”; $month = “February”; function calendar() { $day = “Wednesday”; global $month; print “local day is $day <br />”; $gday = $GLOBALS[‘day’]; print “global day is $gday <br />”; print “global month is $month <br />”; } calendar();

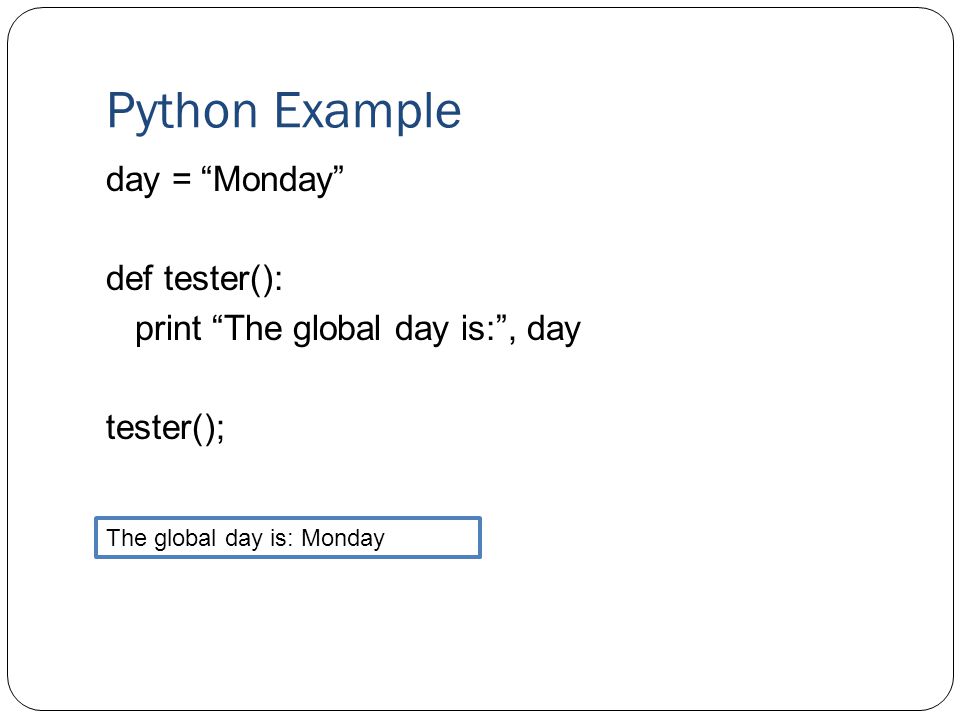

10. Python Example
day = “Monday” def tester(): print “The global day is:”, day tester();
The global day is: Monday

11. Python example (2)
day = “Monday” def tester(): print “The global day is:”, day day = “Tuesday” print = “The new value of day is:”, day tester()
UnboundLocalError

12. Python example (3)
day = “Monday” def tester(): global day print “The global day is:”, day day = “Tuesday” print “The new value of day is :”, day tester()
The global day is: Monday
The new value of day is: Tuesday

13. Problems with Static Scope
In many cases, allows more access to variables and subprograms than is necessary
Program evolution may cause issues
Restructuring changes
Encourages global variables

14. Dynamic Scope
Scope based on calling sequence, not spatial relationship
Only determined at run time
Procedure Big is
x : Integer;
procedure Sub1 is
begin …
end;
procedure Sub2 is
… x …

15. The trouble with dynamic scope
All local variables of a subprogram are visible to any other executing subprogram
Not possible to statically type check references to non-locals
Decreased readability
Efficiency concerns

16. Scope and Lifetime Can appear related … but are actually unrelated
e.g. variable defined in a Java method that calls no other methods
… but are actually unrelated
e.g. use of static in C and C++
e.g. when subprograms are involved
void printheader(){ … }
void compute() {
int sum;
printheader();

17. Referencing Environment
The collection of all names that are visible in the statement
In a static-scoped language, it is the local variables plus all of the visible variables in all of the enclosing scopes

18. Ada Example
1 procedure Example is 2 A, B : Integer; procedure Sub1 is 5 X, Y : Integer; 6 begin end; 9 procedure Sub2 is
9 procedure Sub2 is 10 X : Integer; procedure Sub3 is 13 X: Integer; 14 begin end; 17 begin end; 20 begin end;
“line” (Referencing Environment)
“7” (X, Y of Sub1, A,B of Example)
“15” (X of Sub3, A,B of Example)
“18” (X of Sub2, A,B of Example)

19. Dynamic Referencing Environment
In a dynamically-scoped language, it is the local variables plus all visible variables in all active subprograms
A subprogram is active if its execution has begun but has not yet terminated

20. Dynamic scope example void sub1(){ int a, b; ... } void sub2(){
int b, c;
sub1();
void main(){
int c, d;
sub2();
Assume that the only functions calls are the following: main calls sub2, which calls sub1.
“line” (Referencing Environment)
“3” (a, b of sub1, c of sub2, d of main)
“7” (b, c of sub2, d of main)
“12” (c, d of main)

21. Named Constant A variable that is bound to a value only once
Advantages:
Readability e.g. PI instead of
Program Reliability/Modifiability e.g. arrays and loops
Binding of constants can be either static or dynamic
e.g. Fortran95 requires that a named constant be initialized with a constant expression
aka manifest constant
e.g. Ada, C++ allow dynamic bindings of values to constants
