1. Plesiochronous Digital Hierarchy

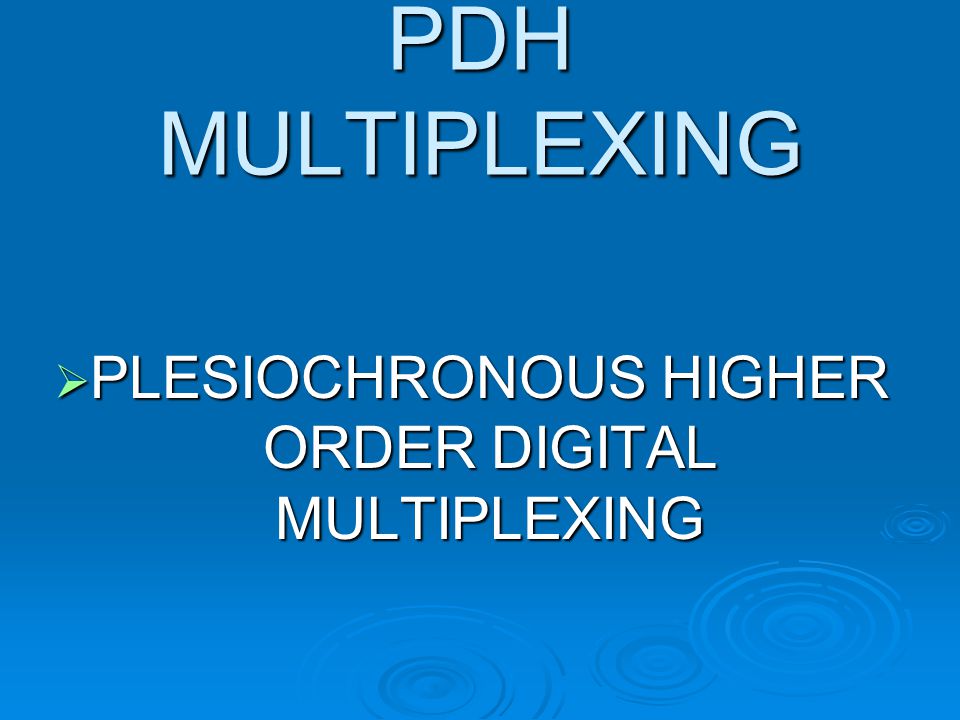

2. PDH MULTIPLEXING  PLESIOCHRONOUS HIGHER ORDER DIGITAL MULTIPLEXING

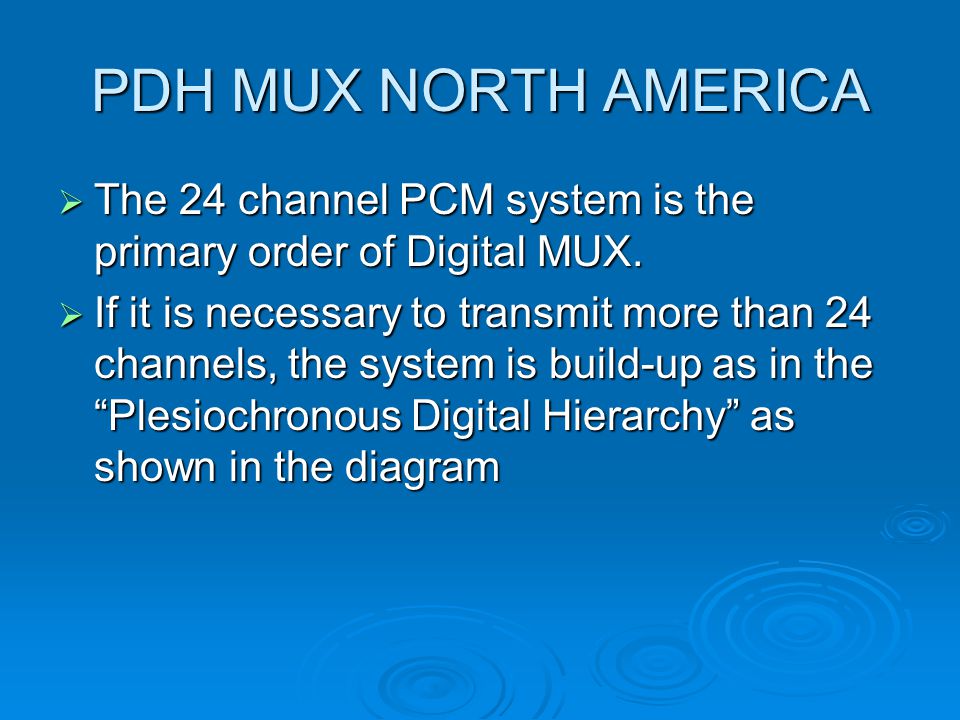

3. PDH MUX NORTH AMERICA  The 24 channel PCM system is the primary order of Digital MUX.  If it is necessary to transmit more than 24 channels, the system is build-up as in the “Plesiochronous Digital Hierarchy” as shown in the diagram

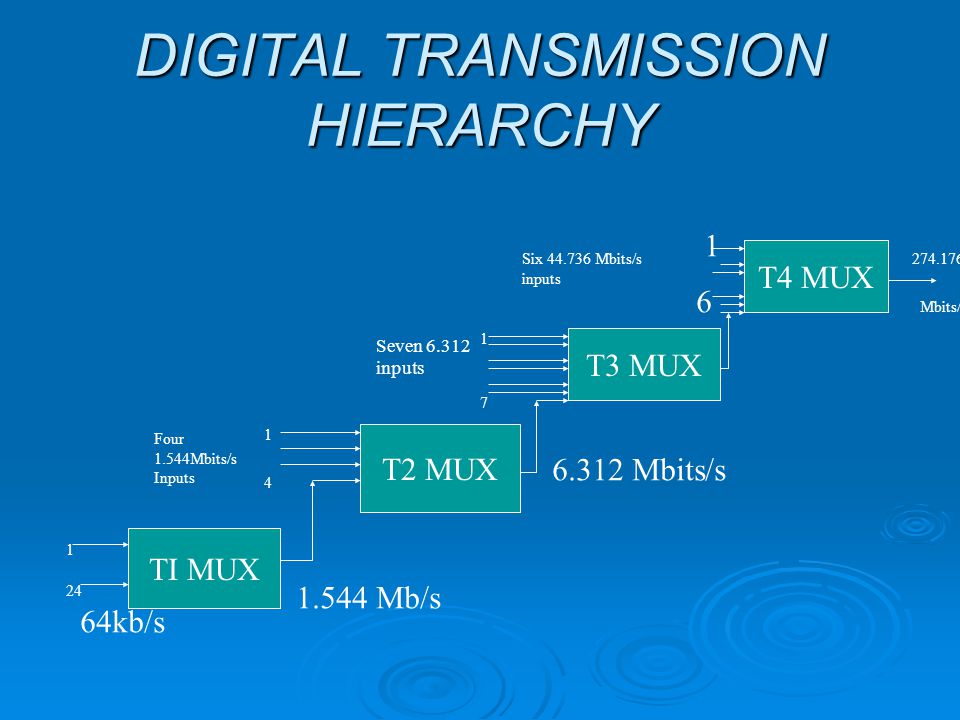

4. DIGITAL TRANSMISSION HIERARCHY TI MUX T2 MUX T3 MUX T4 MUX 64kb/s 1 24 1.544 Mb/s Four 1.544Mbits/s Inputs 1 4 6.312 Mbits/s Seven 6.312 inputs 1 7 274.176 Mbits/s Six 44.736 Mbits/s inputs 1 6

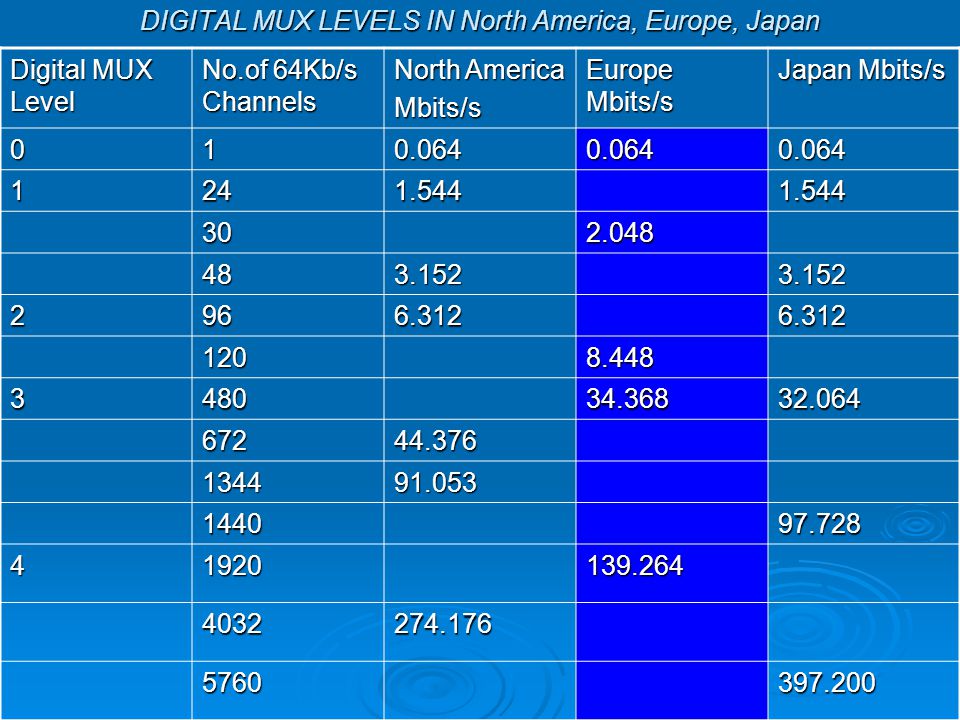

5. DIGITAL MUX LEVELS IN North America, Europe, Japan Digital MUX Level No.of 64Kb/s Channels North America Mbits/s Europe Mbits/s Japan Mbits/s 010.0640.0640.064 1241.5441.544 302.048 483.1523.152 2966.3126.312 1208.448 348034.36832.064 67244.376 134491.053 144097.728 41920139.264 4032274.176 5760397.200

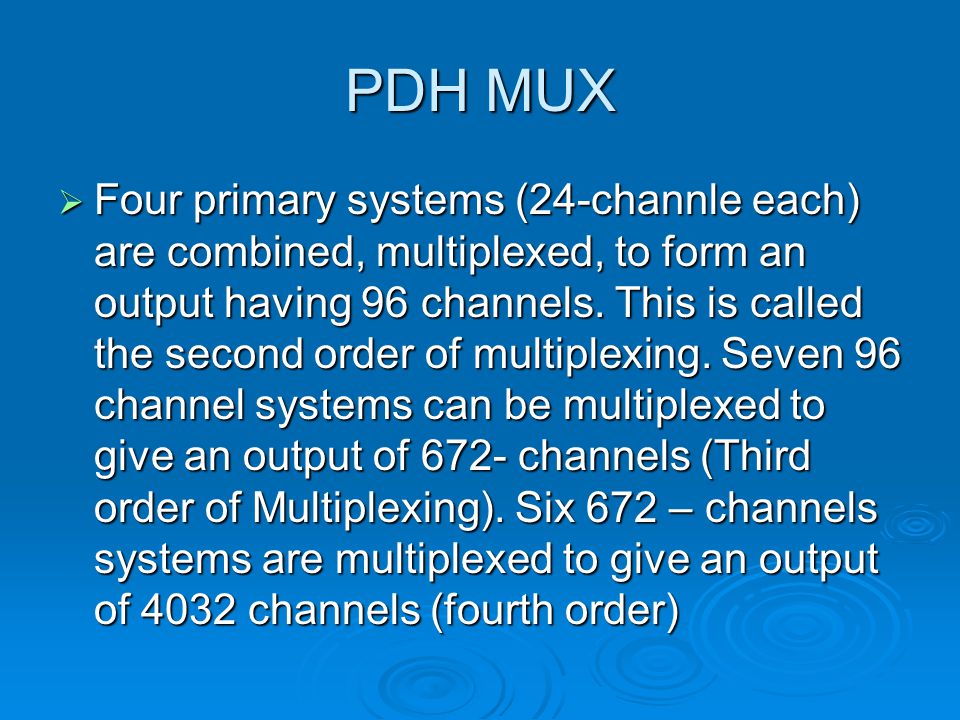

6. PDH MUX  Four primary systems (24-channle each) are combined, multiplexed, to form an output having 96 channels. This is called the second order of multiplexing. Seven 96 channel systems can be multiplexed to give an output of 672- channels (Third order of Multiplexing). Six 672 – channels systems are multiplexed to give an output of 4032 channels (fourth order)

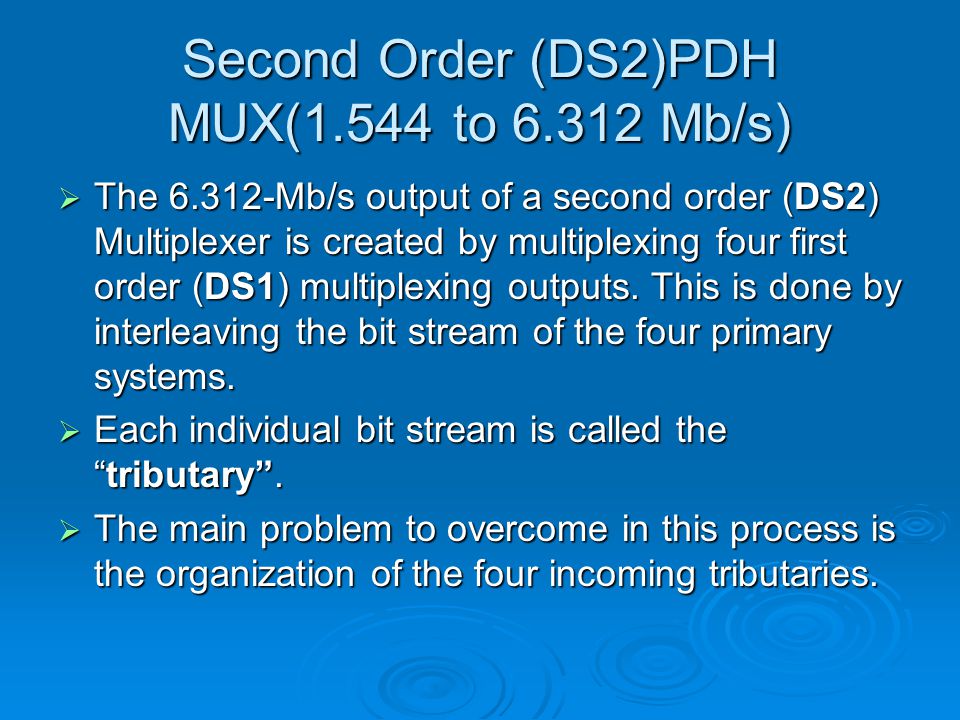

7. Second Order (DS2)PDH MUX(1.544 to 6.312 Mb/s)  The 6.312-Mb/s output of a second order (DS2) Multiplexer is created by multiplexing four first order (DS1) multiplexing outputs. This is done by interleaving the bit stream of the four primary systems.  Each individual bit stream is called the “tributary”.  The main problem to overcome in this process is the organization of the four incoming tributaries.

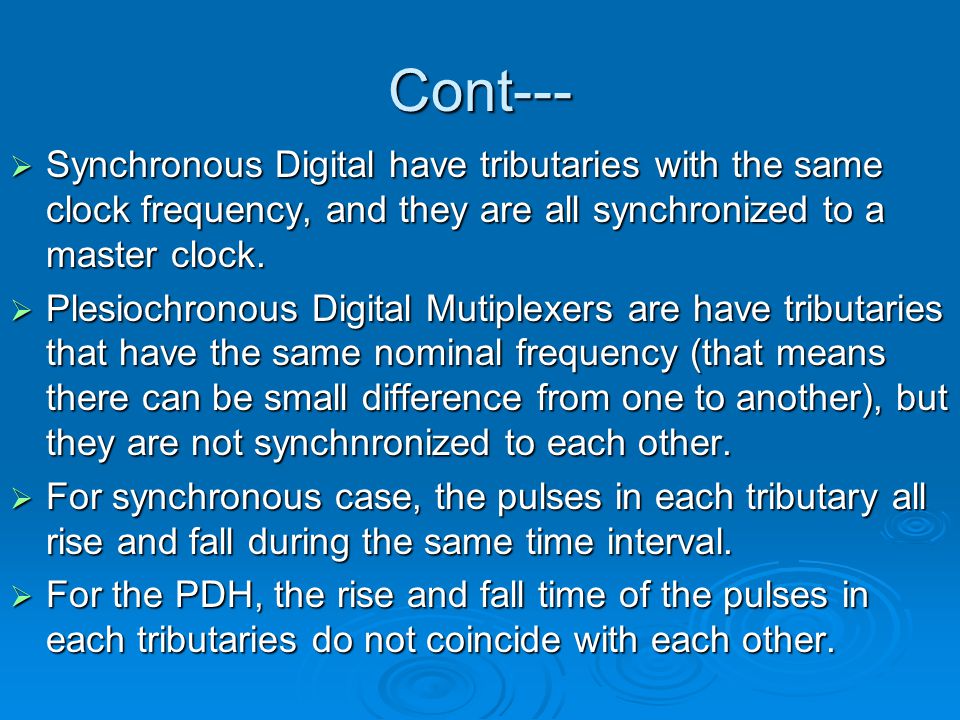

8. Cont---  Synchronous Digital have tributaries with the same clock frequency, and they are all synchronized to a master clock.  Plesiochronous Digital Mutiplexers are have tributaries that have the same nominal frequency (that means there can be small difference from one to another), but they are not synchnronized to each other.  For synchronous case, the pulses in each tributary all rise and fall during the same time interval.  For the PDH, the rise and fall time of the pulses in each tributaries do not coincide with each other.

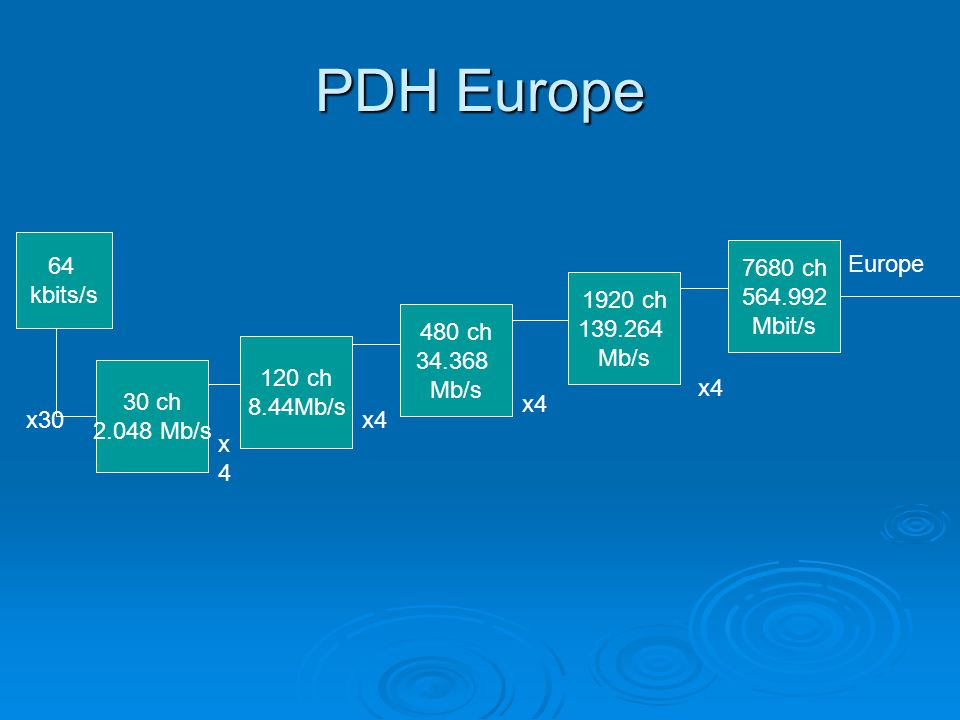

9. PDH Europe 30 ch 2.048 Mb/s 120 ch 8.44Mb/s 480 ch 34.368 Mb/s 1920 ch 139.264 Mb/s 7680 ch 564.992 Mbit/s 64 kbits/s x30 x4x4 x4 Europe

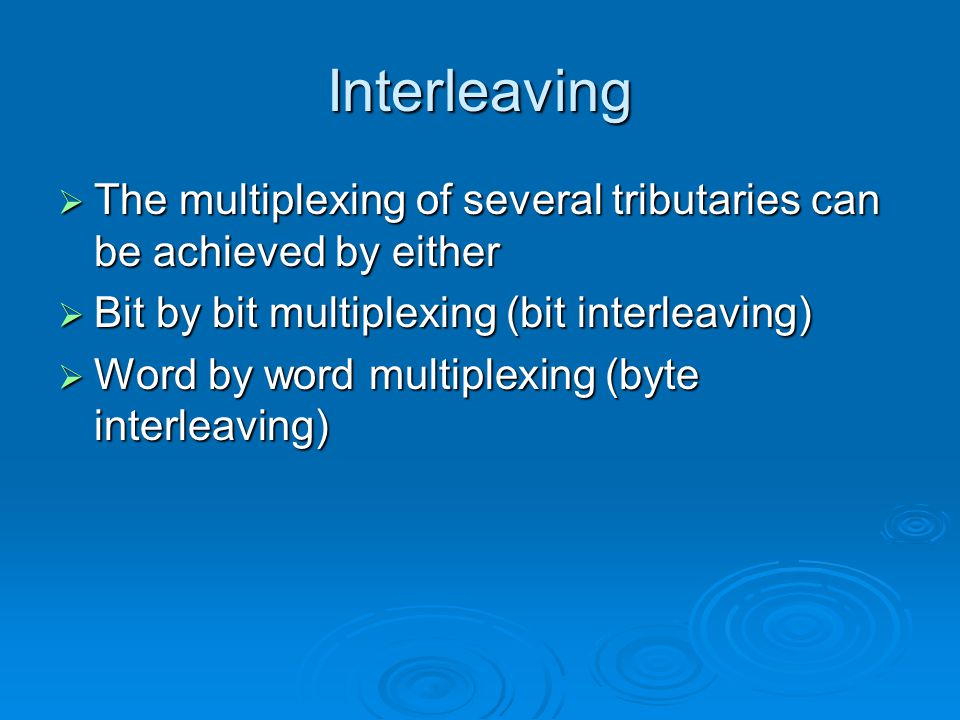

10. Interleaving  The multiplexing of several tributaries can be achieved by either  Bit by bit multiplexing (bit interleaving)  Word by word multiplexing (byte interleaving)

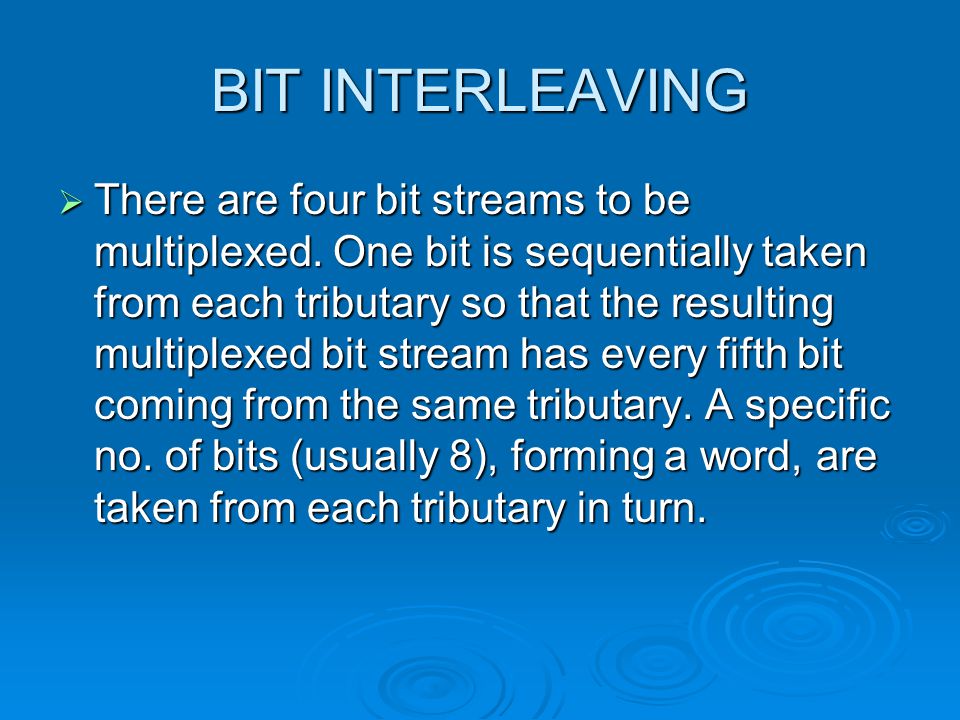

11. BIT INTERLEAVING  There are four bit streams to be multiplexed. One bit is sequentially taken from each tributary so that the resulting multiplexed bit stream has every fifth bit coming from the same tributary. A specific no. of bits (usually 8), forming a word, are taken from each tributary in turn.

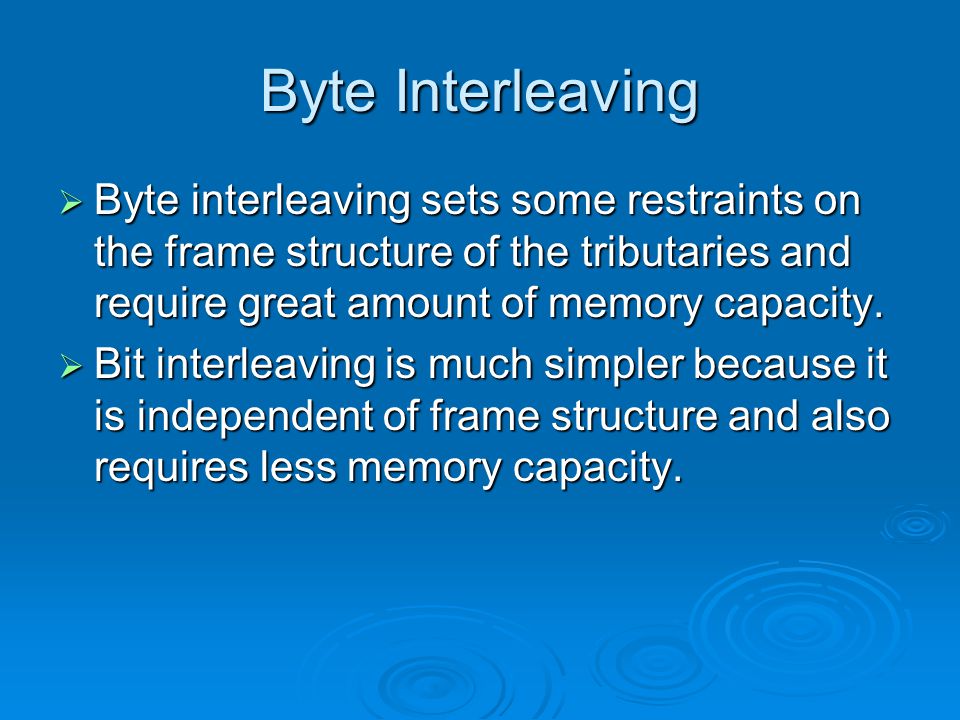

12. Byte Interleaving  Byte interleaving sets some restraints on the frame structure of the tributaries and require great amount of memory capacity.  Bit interleaving is much simpler because it is independent of frame structure and also requires less memory capacity.

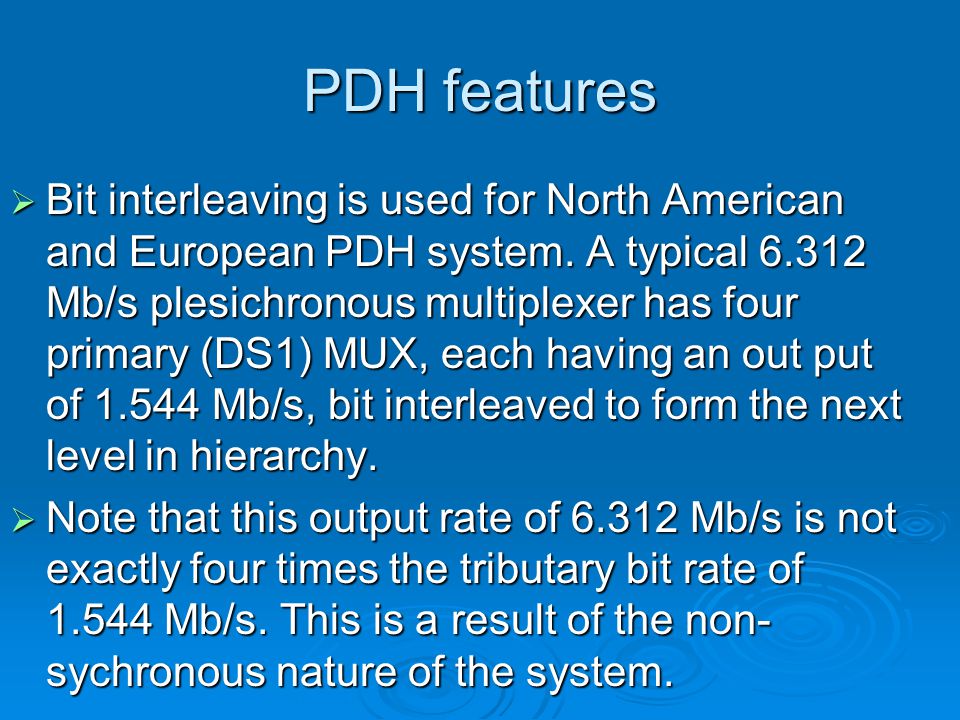

13. PDH features  Bit interleaving is used for North American and European PDH system. A typical 6.312 Mb/s plesichronous multiplexer has four primary (DS1) MUX, each having an out put of 1.544 Mb/s, bit interleaved to form the next level in hierarchy.  Note that this output rate of 6.312 Mb/s is not exactly four times the tributary bit rate of 1.544 Mb/s. This is a result of the non- sychronous nature of the system.

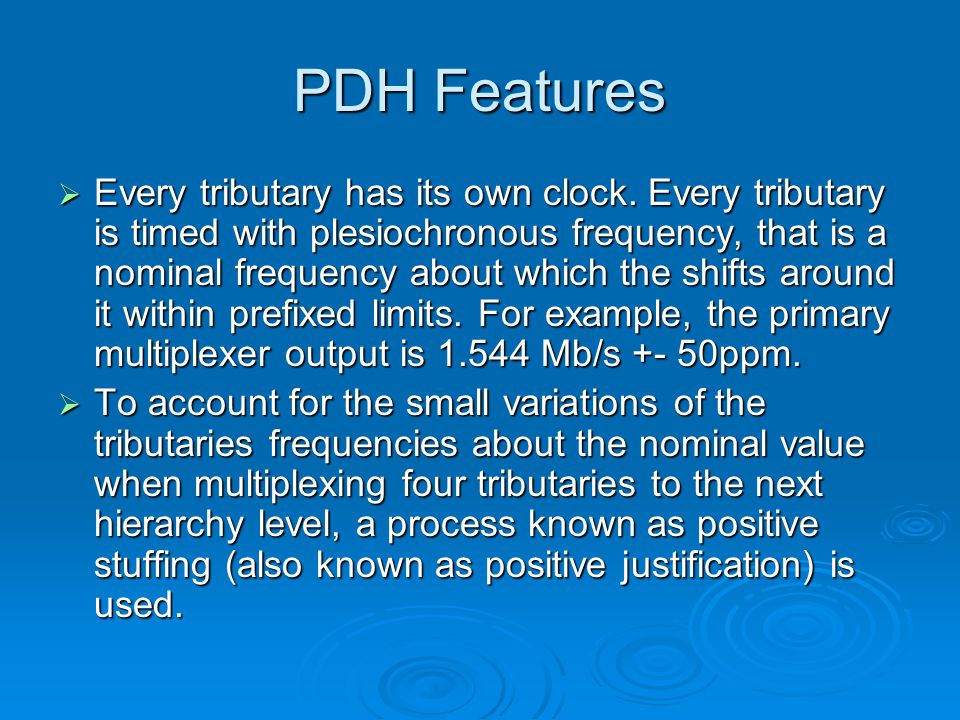

14. PDH Features  Every tributary has its own clock. Every tributary is timed with plesiochronous frequency, that is a nominal frequency about which the shifts around it within prefixed limits. For example, the primary multiplexer output is 1.544 Mb/s +- 50ppm.  To account for the small variations of the tributaries frequencies about the nominal value when multiplexing four tributaries to the next hierarchy level, a process known as positive stuffing (also known as positive justification) is used.

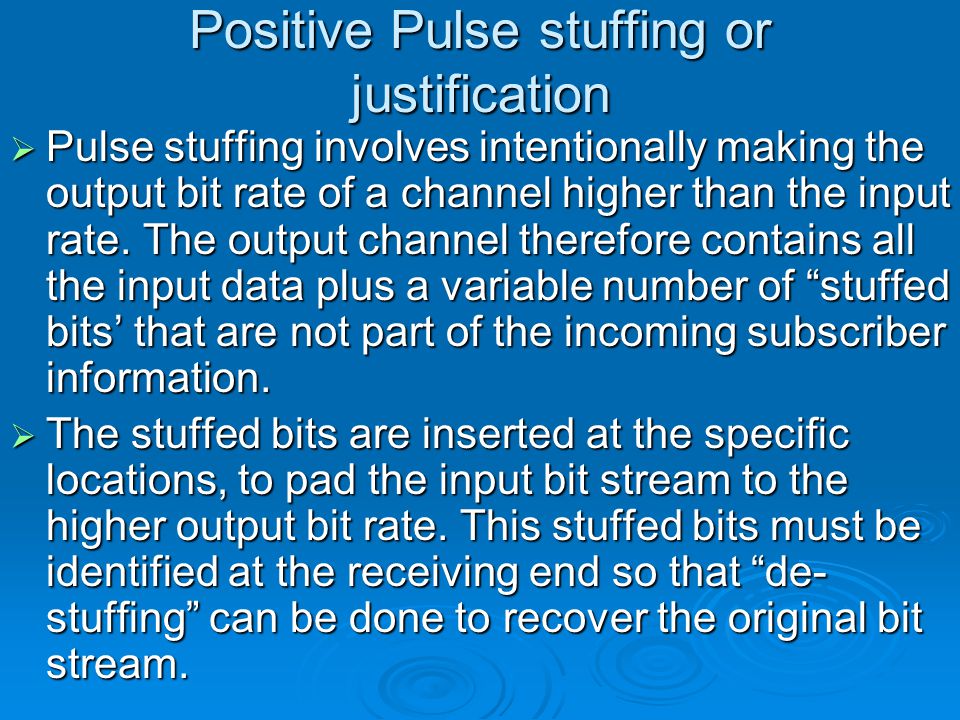

15. Positive Pulse stuffing or justification  Pulse stuffing involves intentionally making the output bit rate of a channel higher than the input rate. The output channel therefore contains all the input data plus a variable number of “stuffed bits’ that are not part of the incoming subscriber information.  The stuffed bits are inserted at the specific locations, to pad the input bit stream to the higher output bit rate. This stuffed bits must be identified at the receiving end so that “de- stuffing” can be done to recover the original bit stream.

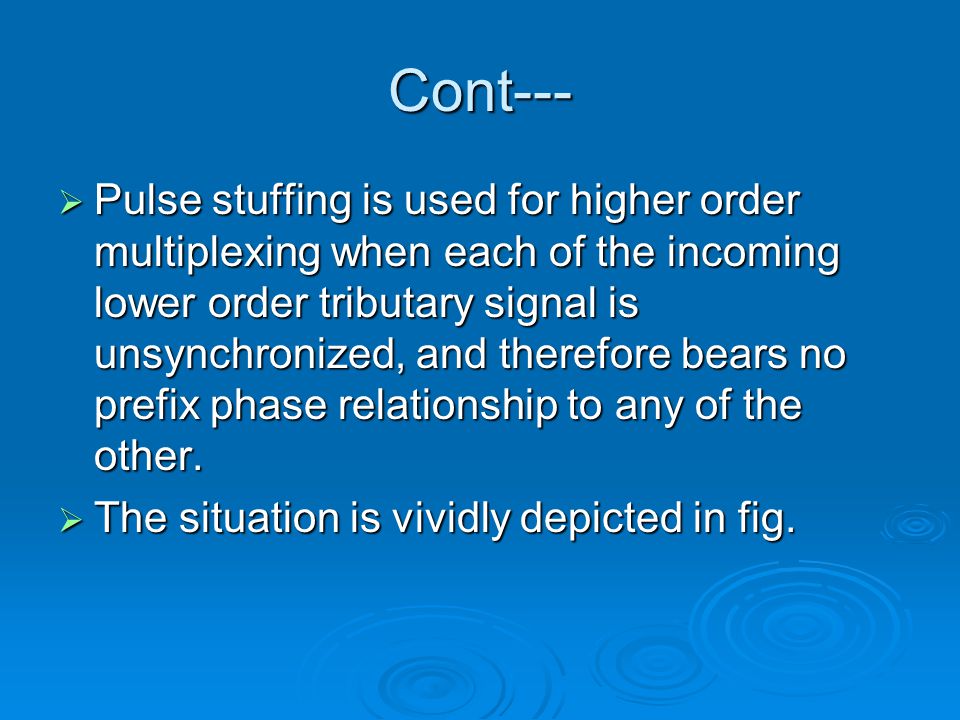

16. Cont---  Pulse stuffing is used for higher order multiplexing when each of the incoming lower order tributary signal is unsynchronized, and therefore bears no prefix phase relationship to any of the other.  The situation is vividly depicted in fig.

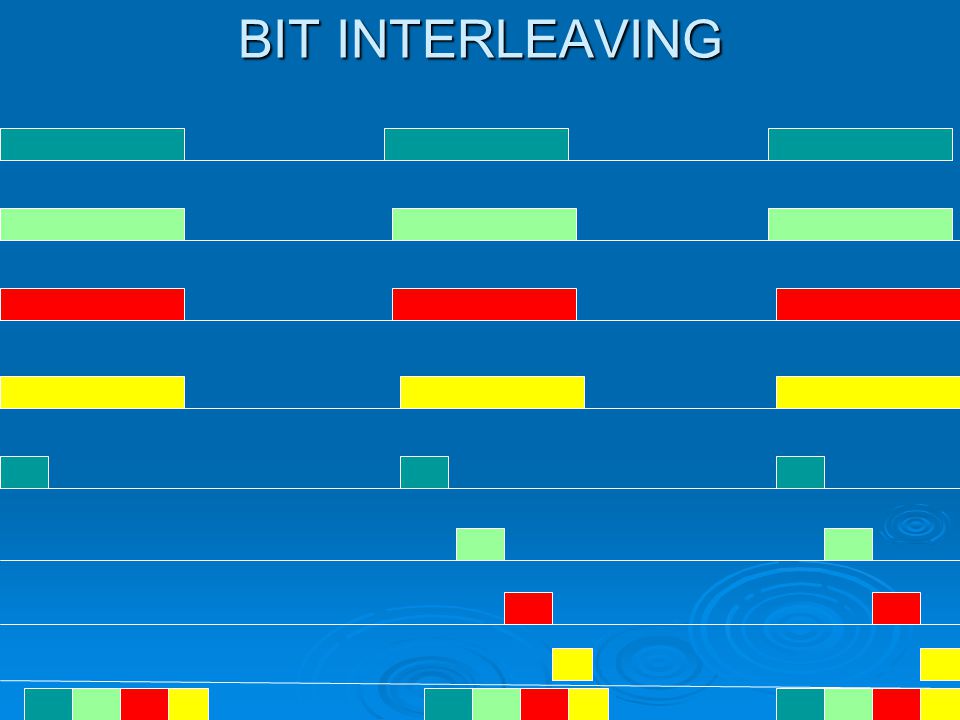

17. BIT INTERLEAVING

18. BYTE INTERLEAVING Word by Word MULTIPLEXING

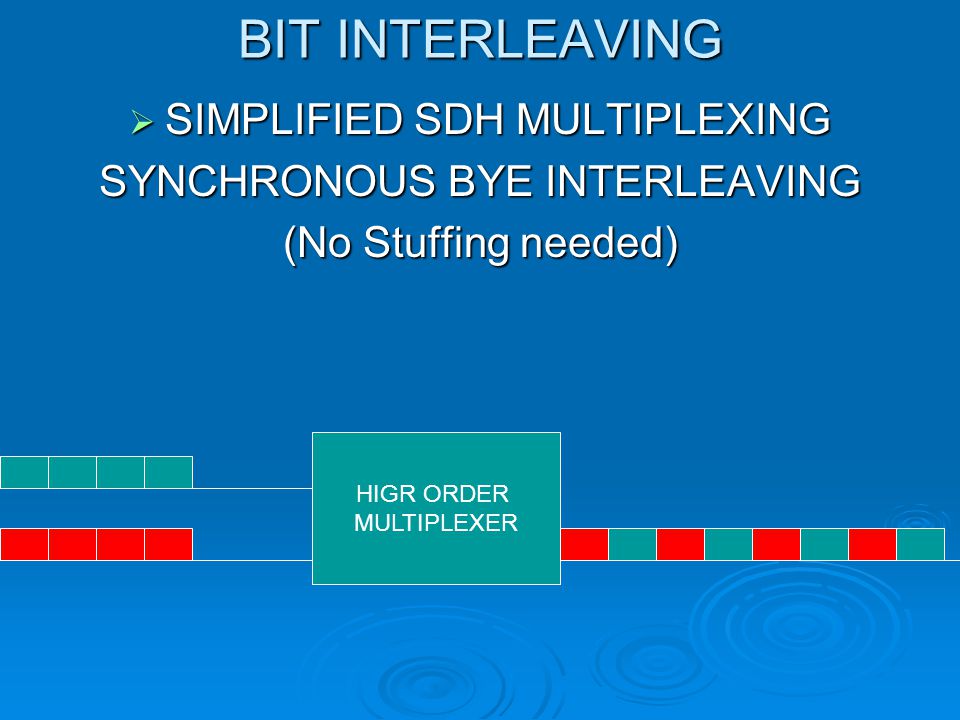

19. BIT INTERLEAVING  SIMPLIFIED SDH MULTIPLEXING SYNCHRONOUS BYE INTERLEAVING (No Stuffing needed) HIGR ORDER MULTIPLEXER

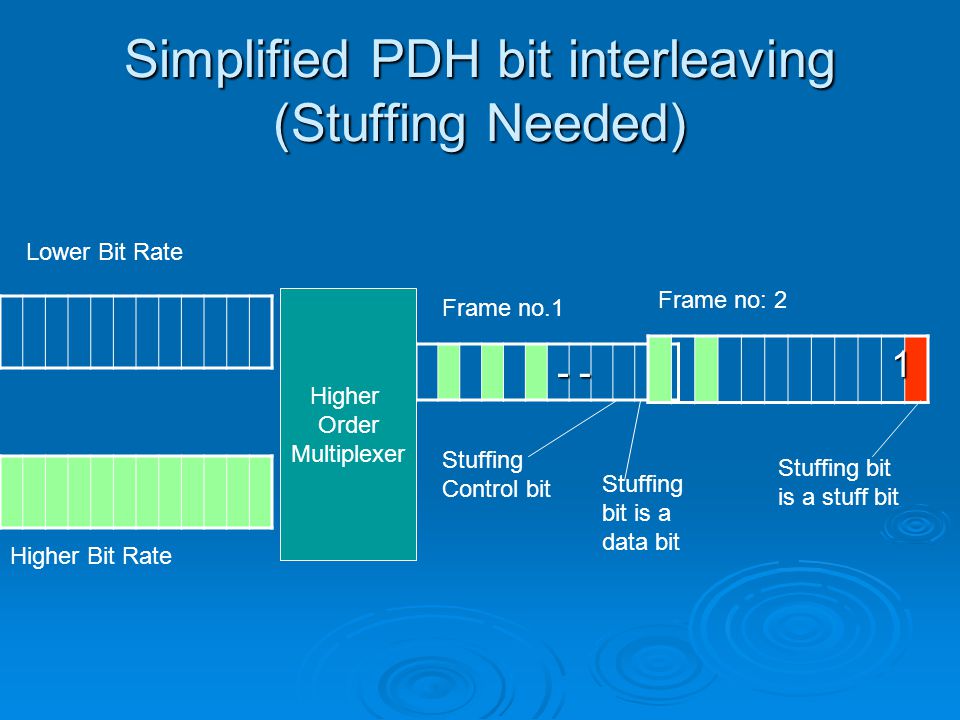

20. Simplified PDH bit interleaving (Stuffing Needed) -- Higher Order Multiplexer1 Frame no.1 Frame no: 2 Lower Bit Rate Higher Bit Rate Stuffing Control bit Stuffing bit is a data bit Stuffing bit is a stuff bit

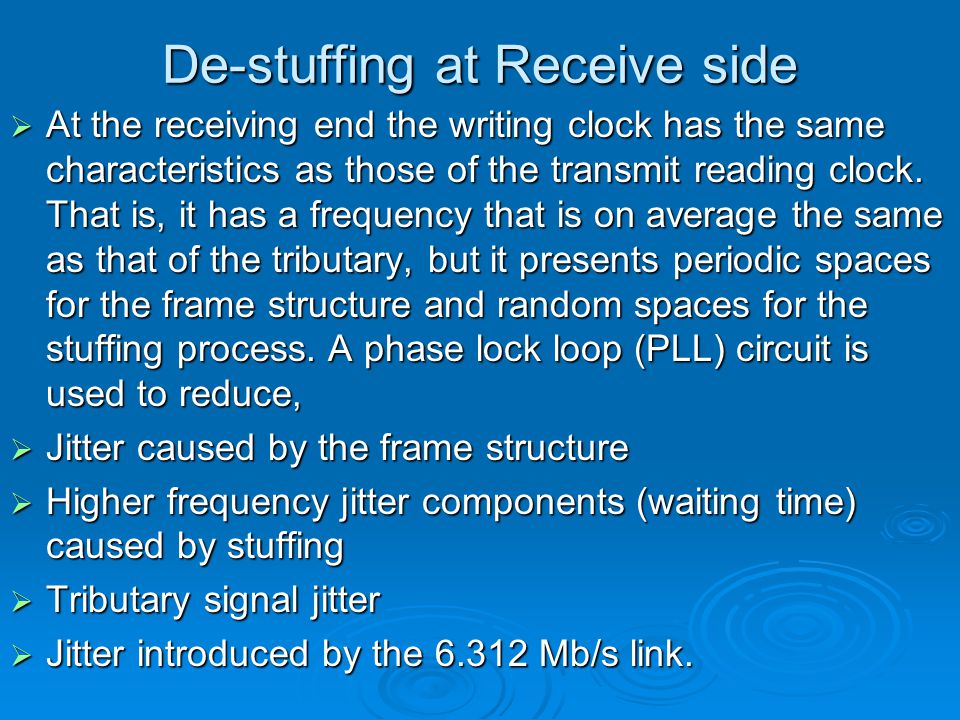

21. De-stuffing at Receive side  At the receiving end the writing clock has the same characteristics as those of the transmit reading clock. That is, it has a frequency that is on average the same as that of the tributary, but it presents periodic spaces for the frame structure and random spaces for the stuffing process. A phase lock loop (PLL) circuit is used to reduce,  Jitter caused by the frame structure  Higher frequency jitter components (waiting time) caused by stuffing  Tributary signal jitter  Jitter introduced by the 6.312 Mb/s link.

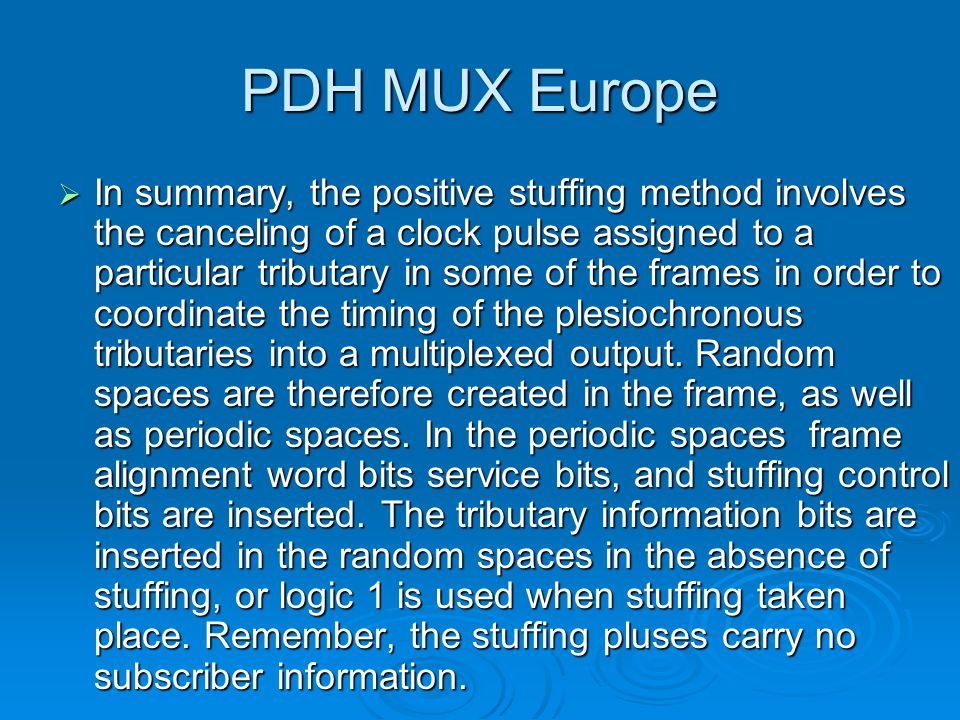

22. PDH MUX Europe  In summary, the positive stuffing method involves the canceling of a clock pulse assigned to a particular tributary in some of the frames in order to coordinate the timing of the plesiochronous tributaries into a multiplexed output. Random spaces are therefore created in the frame, as well as periodic spaces. In the periodic spaces frame alignment word bits service bits, and stuffing control bits are inserted. The tributary information bits are inserted in the random spaces in the absence of stuffing, or logic 1 is used when stuffing taken place. Remember, the stuffing pluses carry no subscriber information.

23. PDH END THANKS
