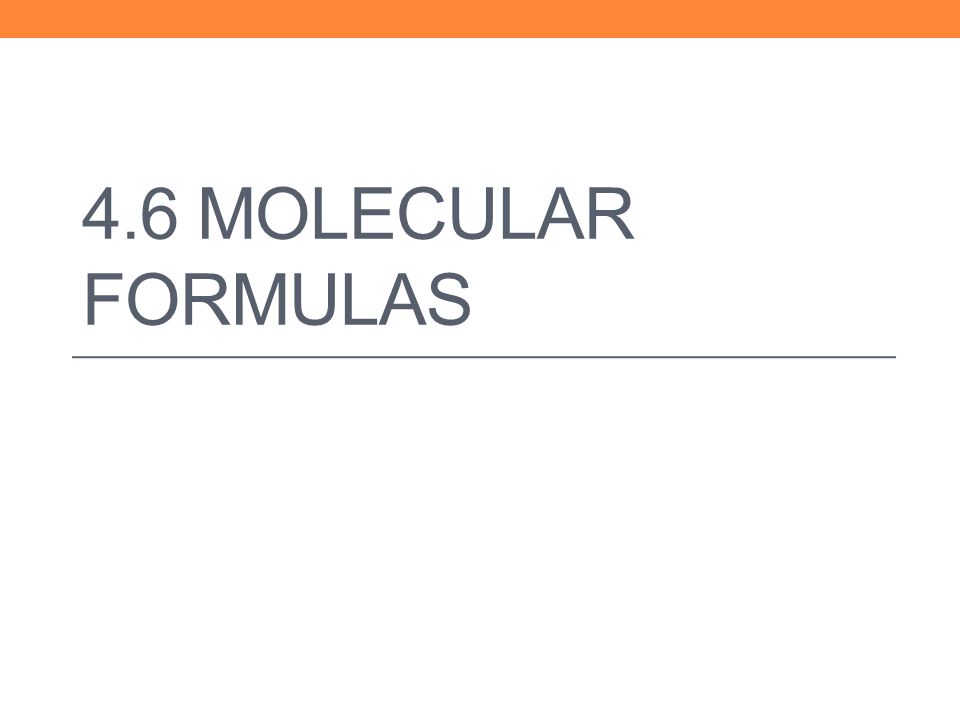

4.6 MOLECULAR FORMULAS

1. Determine the percent composition of all elements. 2. Convert this information into an empirical formula 3. Find the true number of atoms/ elements in the compound (Molecular Formula) 2 3 Steps for determining Chemical Formulas

4.6 Molecular Formula Molecular Formula of a compound tells you exact number of atoms in one molecule of a compound. This formula may be equal to the empirical formula or may be a multiple of this formula. To determine, you need: The empirical formula The molar mass of the compound Empirical Formula - shows the ratio between atoms Example: CH 2 O Molecular Formula - shows the actual number of atoms Example: C 6 H 12 O 6

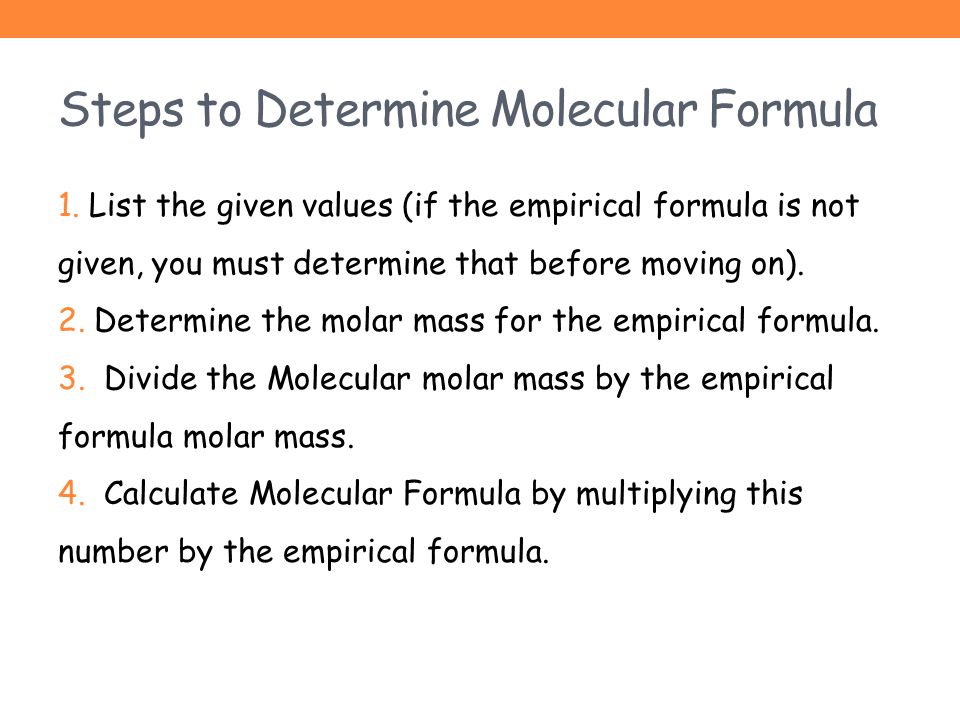

Steps to Determine Molecular Formula 1. List the given values (if the empirical formula is not given, you must determine that before moving on). 2. Determine the molar mass for the empirical formula. 3. Divide the Molecular molar mass by the empirical formula molar mass. 4. Calculate Molecular Formula by multiplying this number by the empirical formula.

Example 1: The empirical formula of a compound is CH 3 O and its molar mass is 93.12g/mol. What is the molecular formula? Step 1: List given values Empirical Formula=CH 3 O M compound = 93.12 g/mol Step 2: Determine the molar mass for the empirical formula, CH 3 O. M Empirical = 12.01g/mol + 3(1.01g/mol) + 16.00g/mol = 31.04 g/mol

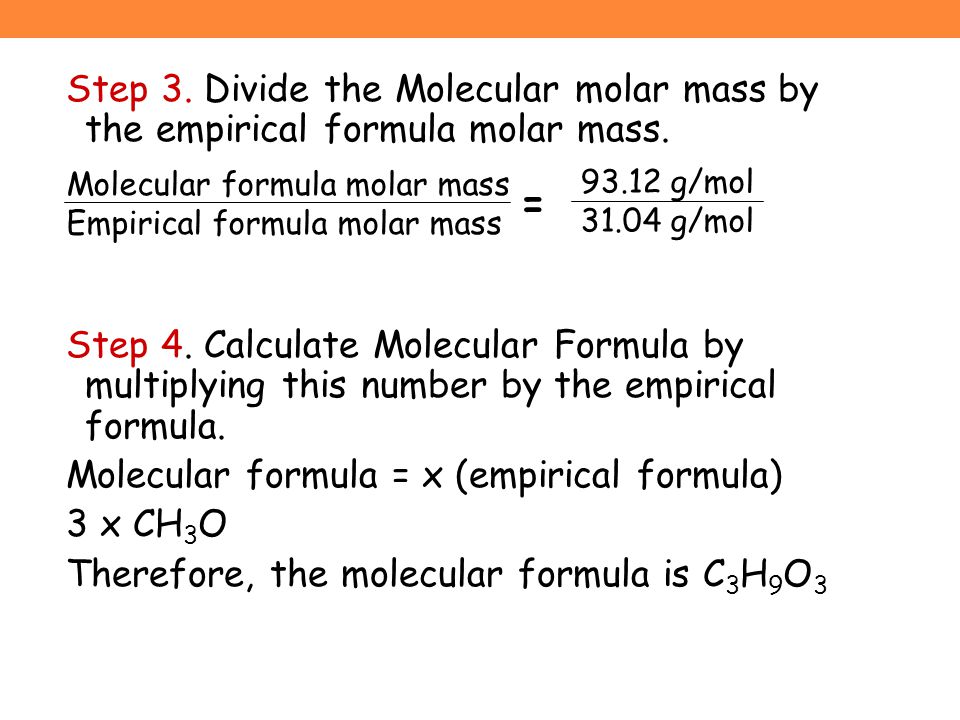

Step 3. Divide the Molecular molar mass by the empirical formula molar mass. Step 4. Calculate Molecular Formula by multiplying this number by the empirical formula. Molecular formula = x (empirical formula) 3 x CH 3 O Therefore, the molecular formula is C 3 H 9 O 3 Molecular formula molar mass Empirical formula molar mass 93.12 g/mol 31.04 g/mol =

Example 2: The percent composition of a compound is determined by a combustion and analyzer is a 40.03% carbon, 6.67% hydrogen, & 53.30% oxygen. The molar mass is 180.18g/mol. What is the molecular formula Step 1: List given values C= 40.03%, O=53.30%, H=6.67% M compound = 180.18 g/mol The empirical formula is not given so you must calculate it now. a. Calculate the mass of each element in a 100g sample m C =40.03g m O =53.30g m H =6.67g

b. Convert Mass (m) into moles (n) n C = 40.03g x 1mol/ 12.01g = 3.33 mol C n H = 6.67g x 1 mol/ 1.01g = 6.60 mol H n O = 53.30g x 1 mol/ 16.00g = 3.33 mol O c. State the Amount Ratio n C : n H : n O 3.33mol : 6.60mol : 3.33 mol d. Calculate lowest whole number ratio 3.33mol : 6.60mol : 3.33 mol 3.33mol : 3.33mol : 3.33 mol 1 : 2: 1 Empirical Formula is CH 2 O

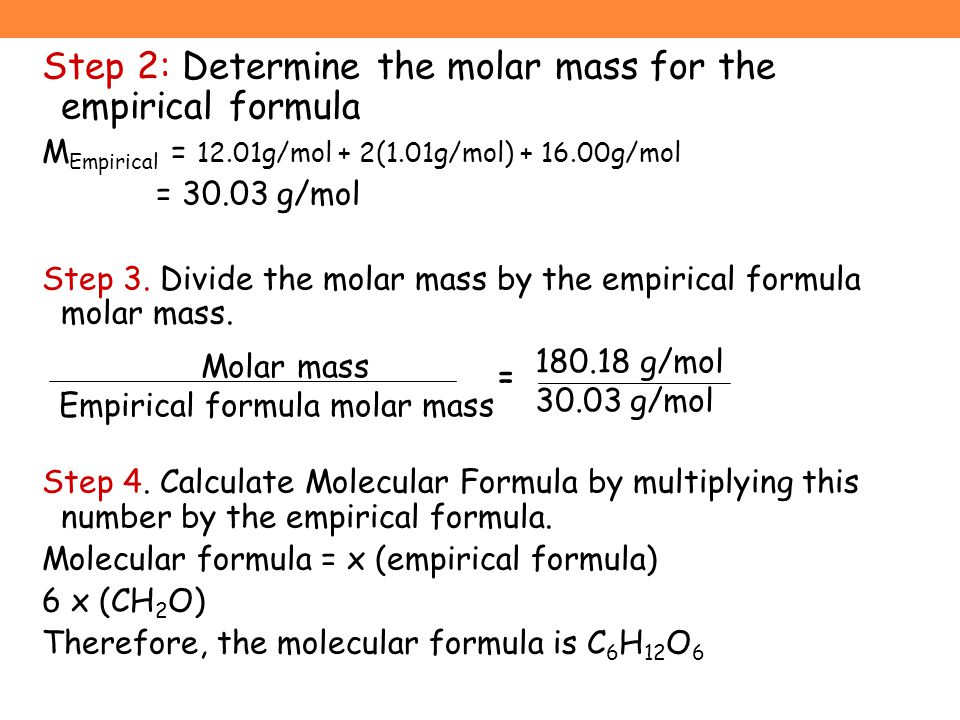

Step 2: Determine the molar mass for the empirical formula M Empirical = 12.01g/mol + 2(1.01g/mol) + 16.00g/mol = 30.03 g/mol Step 3. Divide the molar mass by the empirical formula molar mass. Step 4. Calculate Molecular Formula by multiplying this number by the empirical formula. Molecular formula = x (empirical formula) 6 x (CH 2 O) Therefore, the molecular formula is C 6 H 12 O 6 Molar mass Empirical formula molar mass 180.18 g/mol 30.03 g/mol =

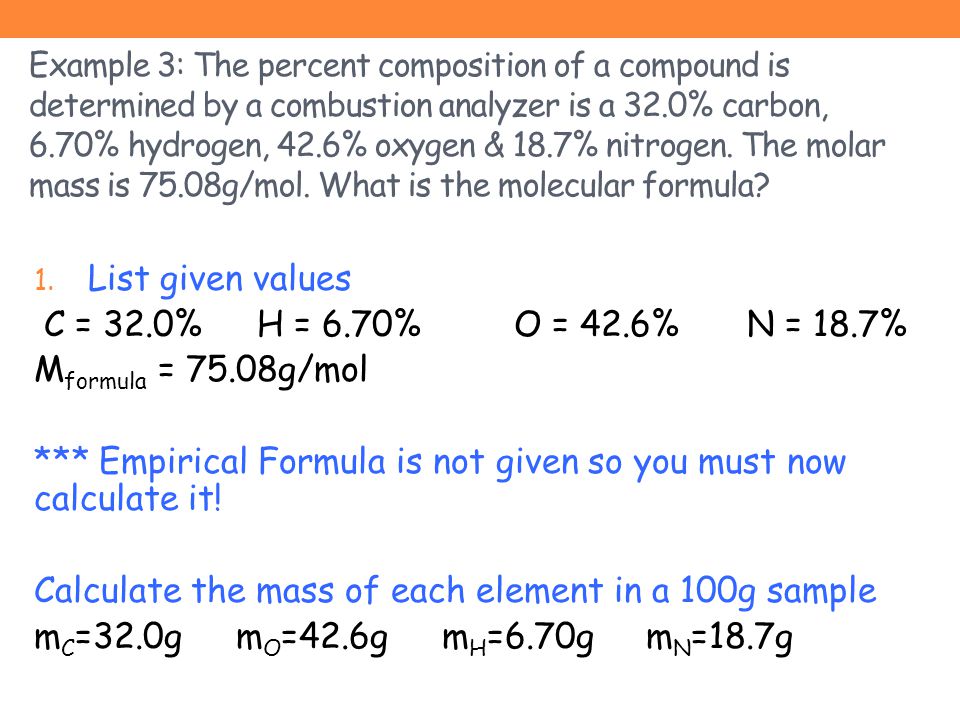

Example 3: The percent composition of a compound is determined by a combustion analyzer is a 32.0% carbon, 6.70% hydrogen, 42.6% oxygen & 18.7% nitrogen. The molar mass is 75.08g/mol. What is the molecular formula? 1. List given values C = 32.0% H = 6.70% O = 42.6% N = 18.7% M formula = 75.08g/mol *** Empirical Formula is not given so you must now calculate it! Calculate the mass of each element in a 100g sample m C =32.0g m O =42.6g m H =6.70g m N =18.7g

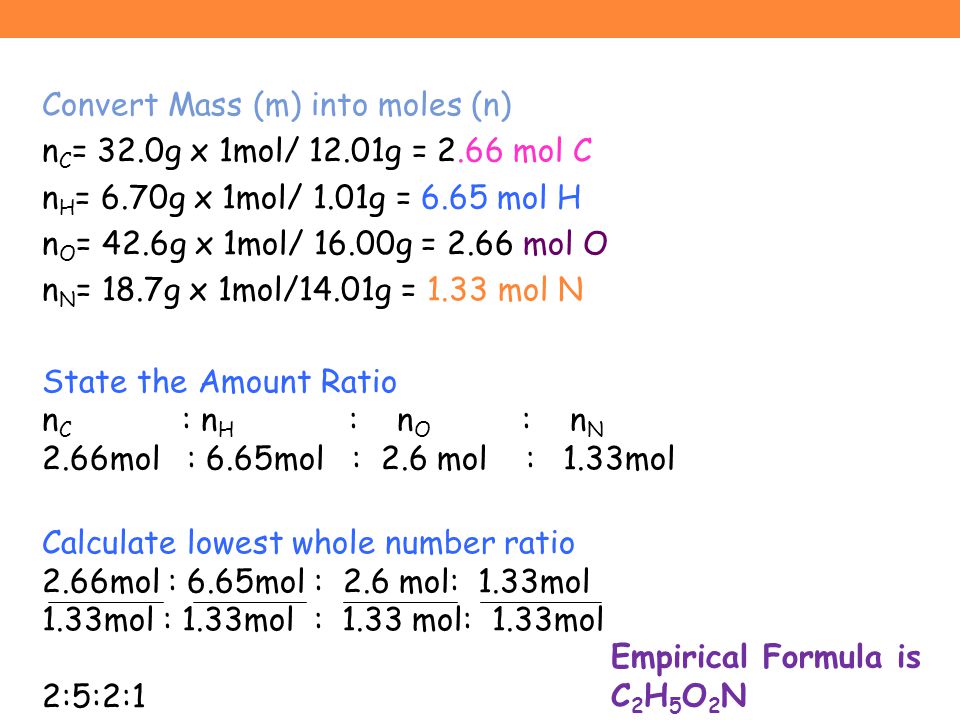

Convert Mass (m) into moles (n) n C = 32.0g x 1mol/ 12.01g = 2.66 mol C n H = 6.70g x 1mol/ 1.01g = 6.65 mol H n O = 42.6g x 1mol/ 16.00g = 2.66 mol O n N = 18.7g x 1mol/14.01g = 1.33 mol N State the Amount Ratio n C : n H : n O : n N 2.66mol : 6.65mol : 2.6 mol : 1.33mol Calculate lowest whole number ratio 2.66mol : 6.65mol : 2.6 mol: 1.33mol 1.33mol : 1.33mol : 1.33 mol: 1.33mol 2:5:2:1 Empirical Formula is C 2 H 5 O 2 N

2. Determine the molar mass for the empirical formula M Empirical = 75.08g 3. Divide the molar mass by the empirical formula molar mass. = 4. Calculate Molecular Formula by multiplying this number by the empirical formula. Molecular formula = x (empirical formula) 1 x ( C 2 H 5 O 2 N ) Therefore, the molecular formula is C 2 H 5 O 2 N Molar mass Empirical formula molar mass 75.08 g/mol

Assignment Proceed with the assignment that follows

Molecular Formula Check Point 1. The empirical formula of a compound is CH 2. Its molecular mass is 70g/mol. What is its molecular formula? 2. A compound is found to be 40.0% carbon, 6.7% hydrogen and 53.5% oxygen. Its molecular mass is 60.0g/mol. What is its molecular formula?

Molecular Formula Check Point #2 1. A class of compounds called sodium metaphosphates were used as additives to detergents to improve cleaning ability. One of them has a molecular mass of612g. Analysis shows the composition to be 22.5% Na, 30.4% P, and 47.1 % O. Determine the molecular formula of this compound
