1. Introduction to Visual Communication Television

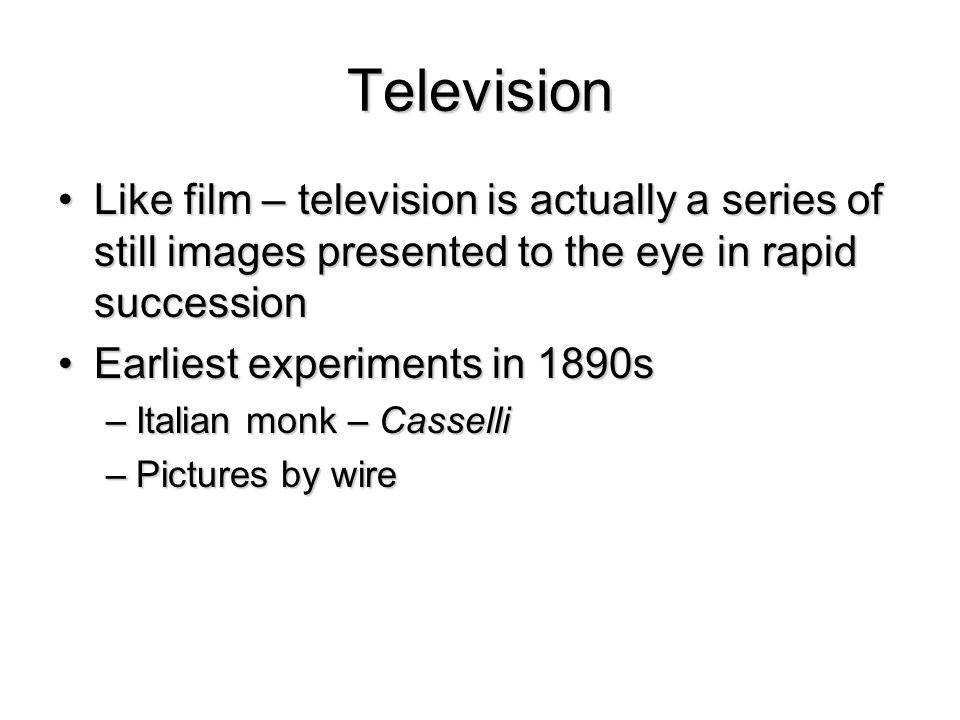

2. Television Like film – television is actually a series of still images presented to the eye in rapid successionLike film – television is actually a series of still images presented to the eye in rapid succession Earliest experiments in 1890sEarliest experiments in 1890s –Italian monk – Casselli –Pictures by wire

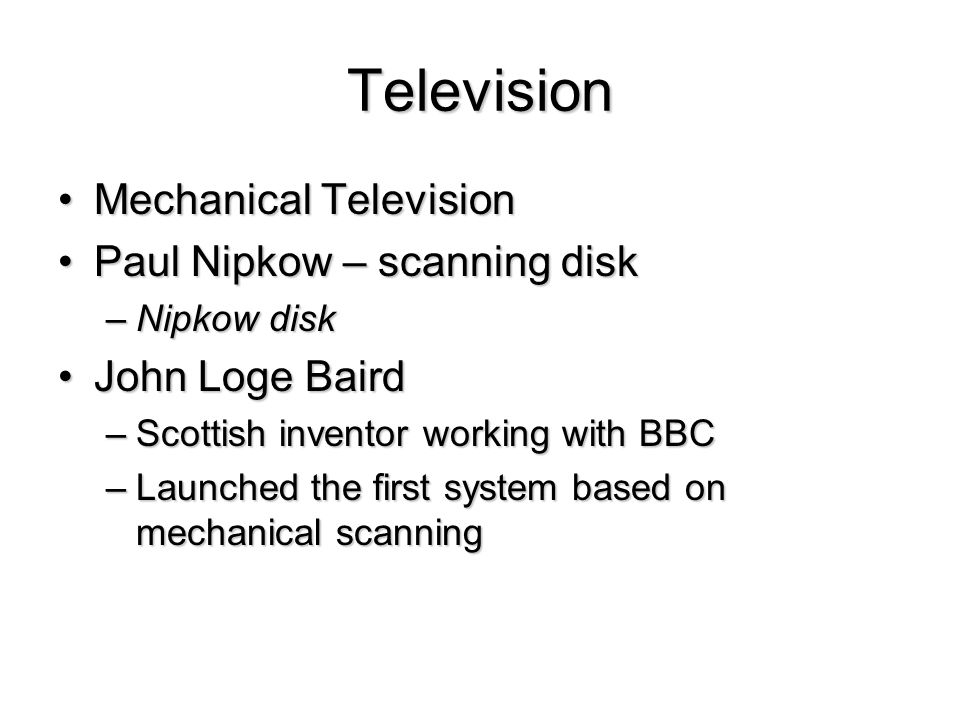

3. Television Mechanical TelevisionMechanical Television Paul Nipkow – scanning diskPaul Nipkow – scanning disk –Nipkow disk John Loge BairdJohn Loge Baird –Scottish inventor working with BBC –Launched the first system based on mechanical scanning

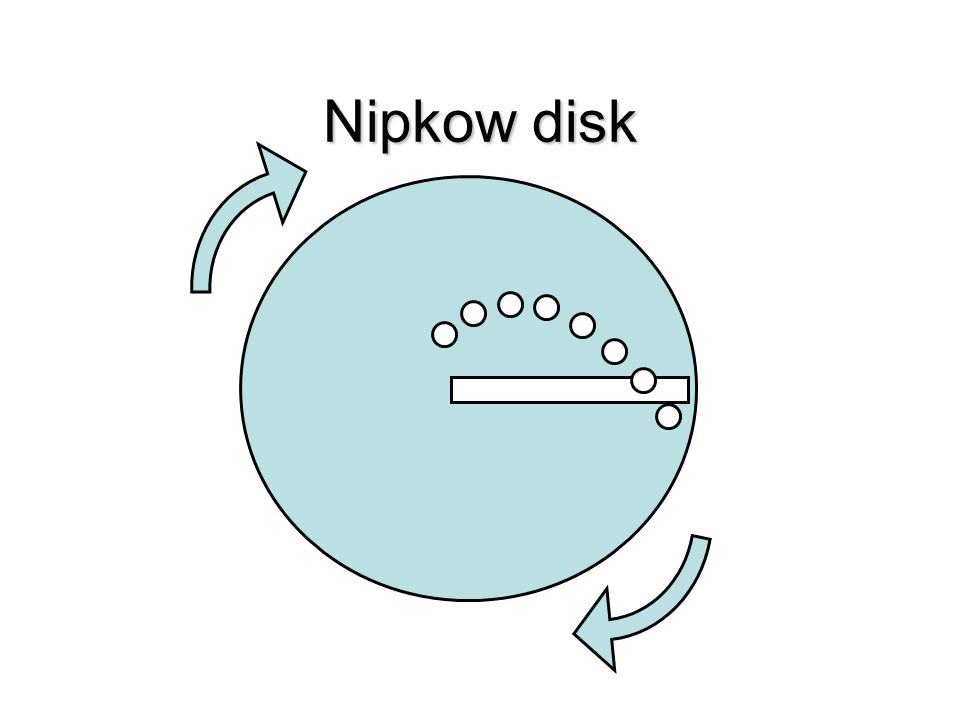

4. Nipkow disk

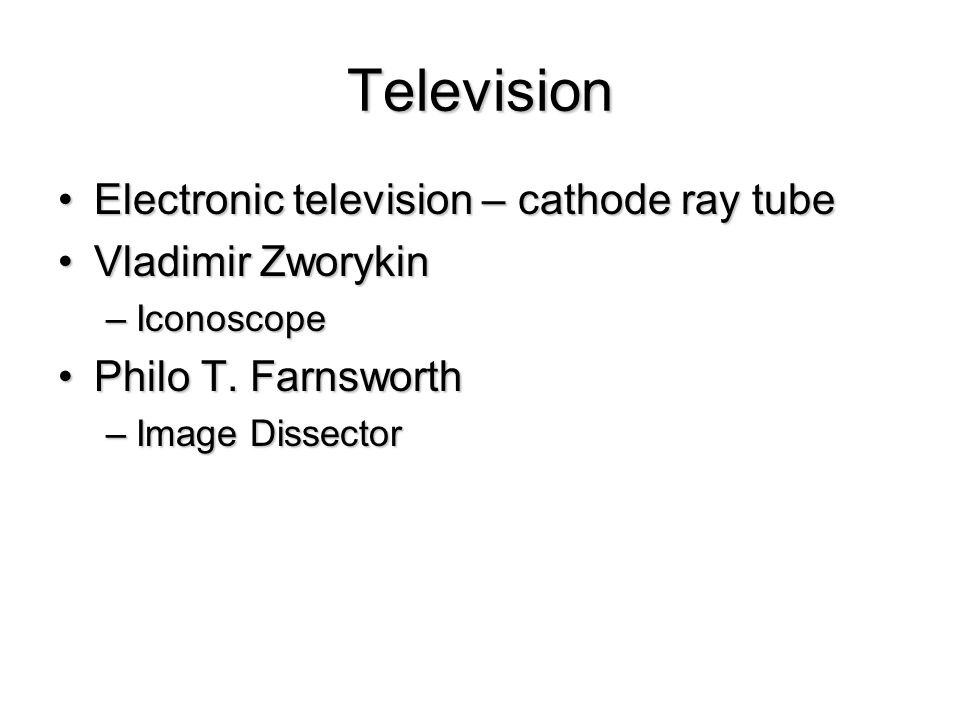

5. Television Electronic television – cathode ray tubeElectronic television – cathode ray tube Vladimir ZworykinVladimir Zworykin –Iconoscope Philo T. FarnsworthPhilo T. Farnsworth –Image Dissector

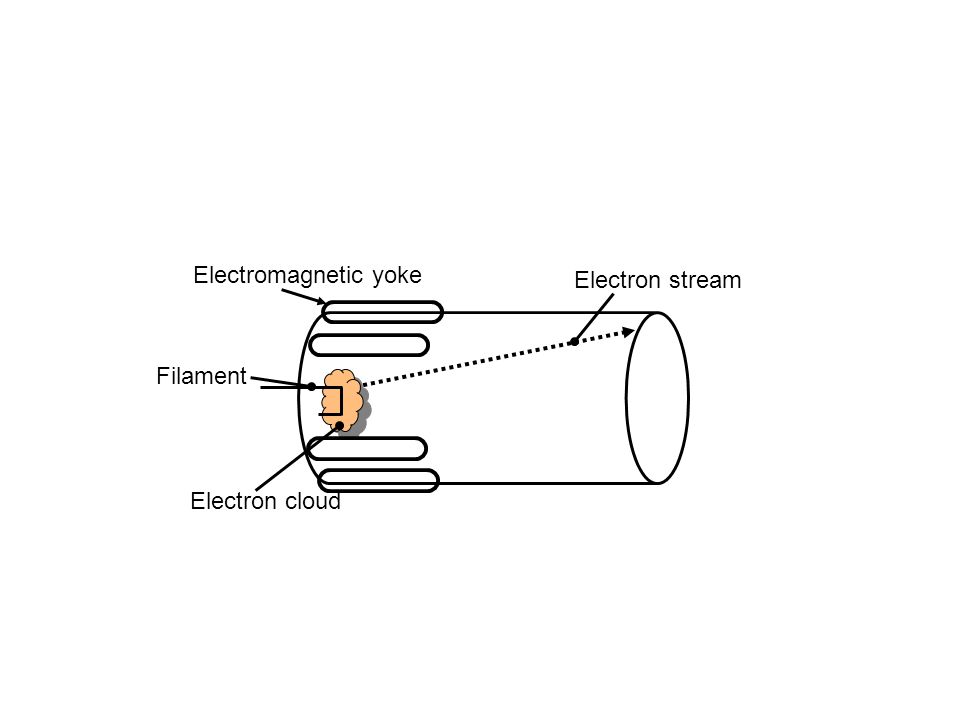

6. Electromagnetic yoke Filament Electron cloud Electron stream

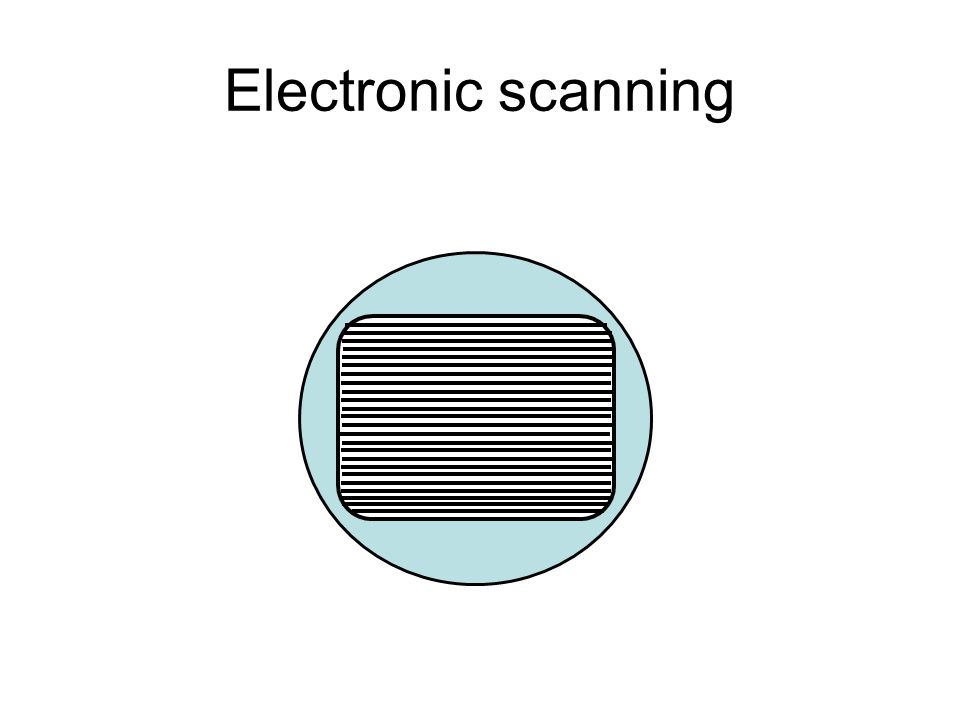

7. Electronic scanning

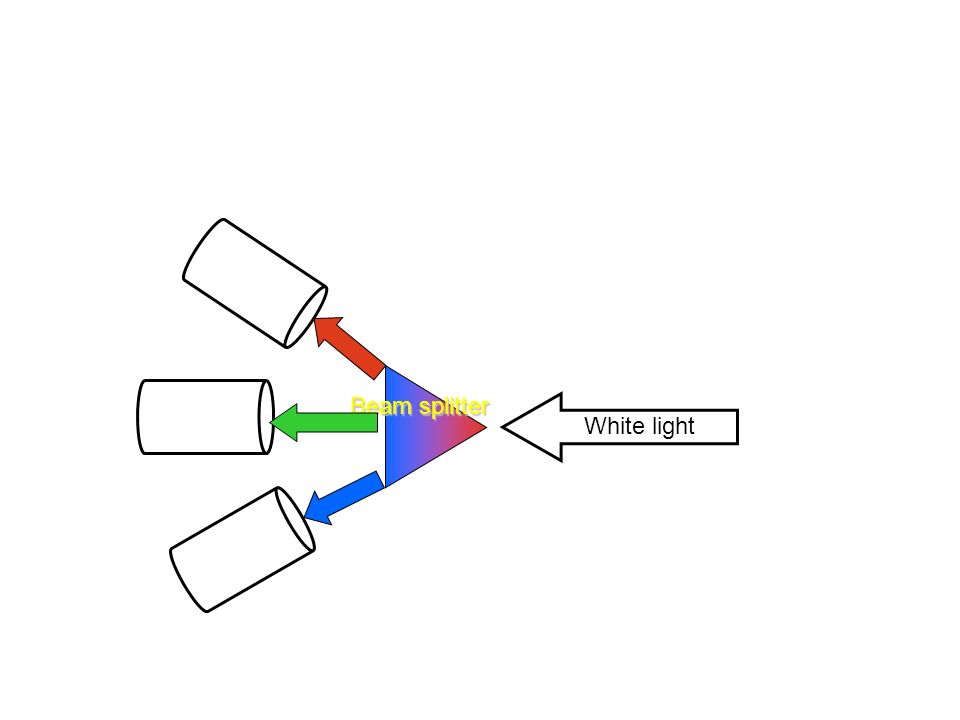

8. White light Beam splitter

9. Color TV screens

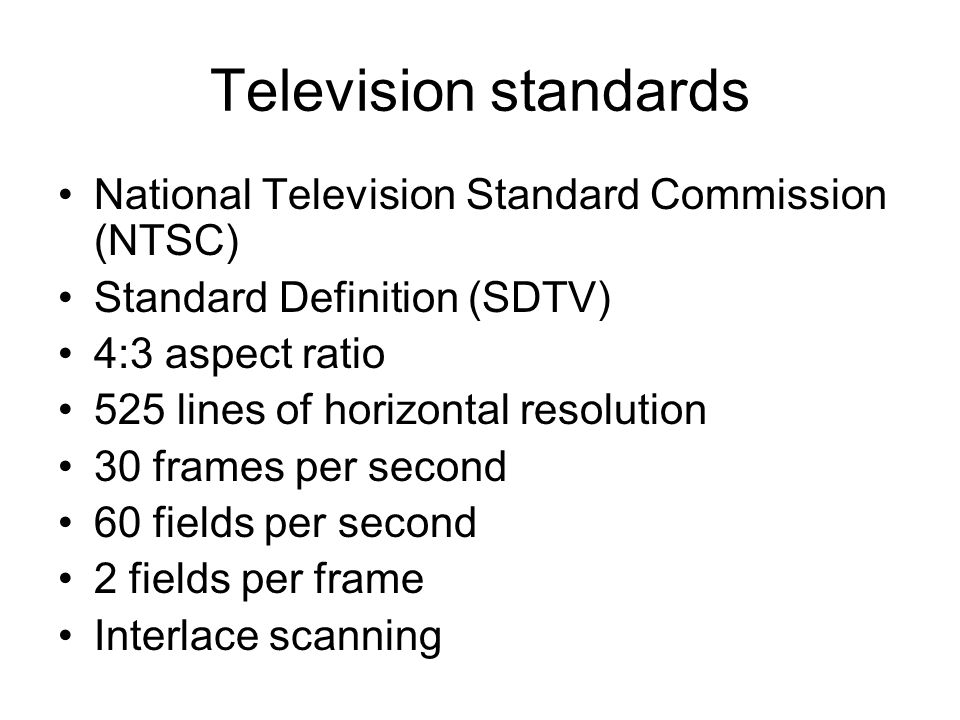

10. Television standards National Television Standard Commission (NTSC) Standard Definition (SDTV) 4:3 aspect ratio 525 lines of horizontal resolution 30 frames per second 60 fields per second 2 fields per frame Interlace scanning

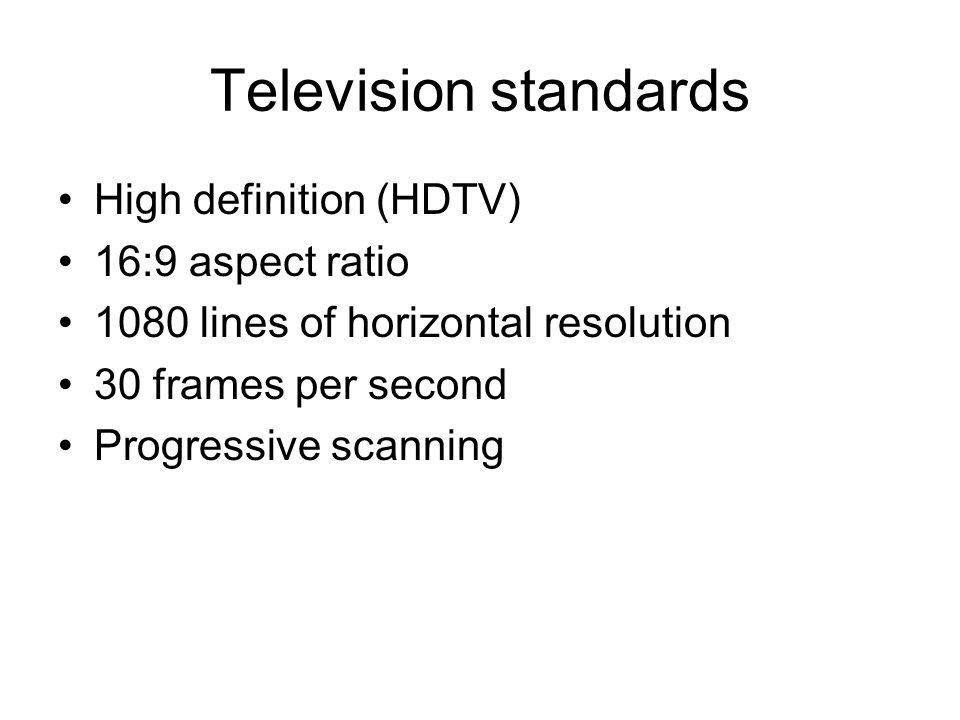

11. Television standards High definition (HDTV) 16:9 aspect ratio 1080 lines of horizontal resolution 30 frames per second Progressive scanning

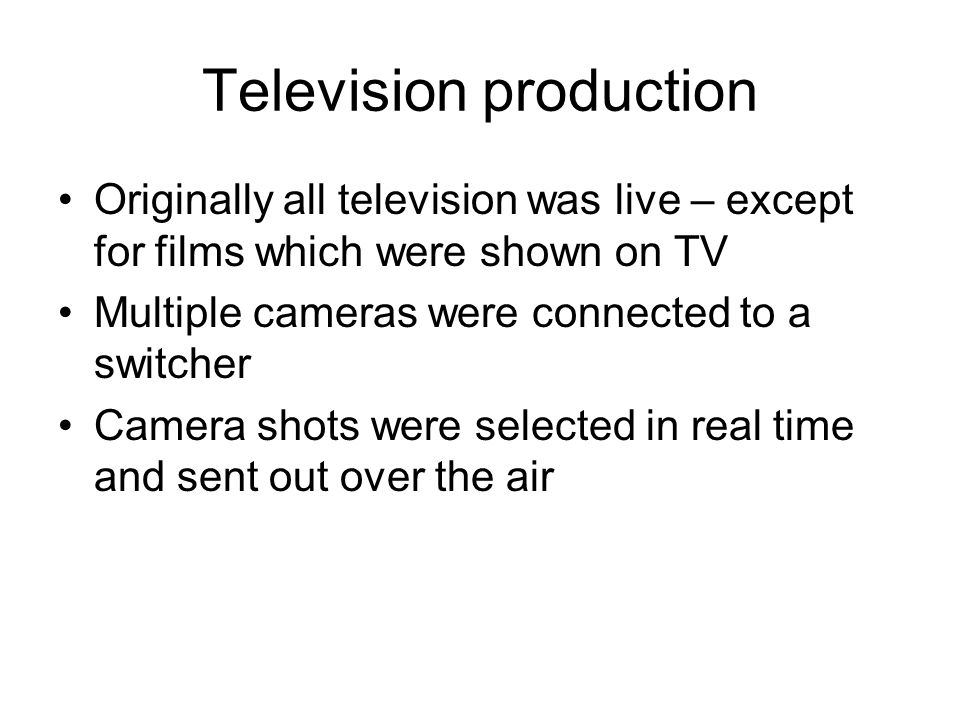

12. Television production Originally all television was live – except for films which were shown on TV Multiple cameras were connected to a switcher Camera shots were selected in real time and sent out over the air

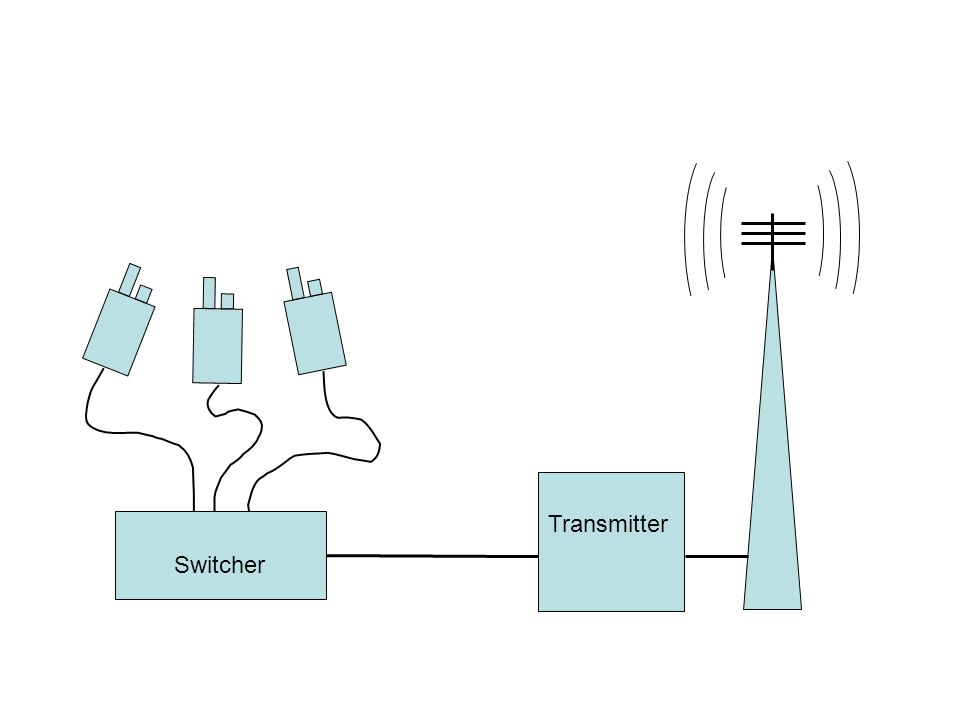

13. Switcher Transmitter

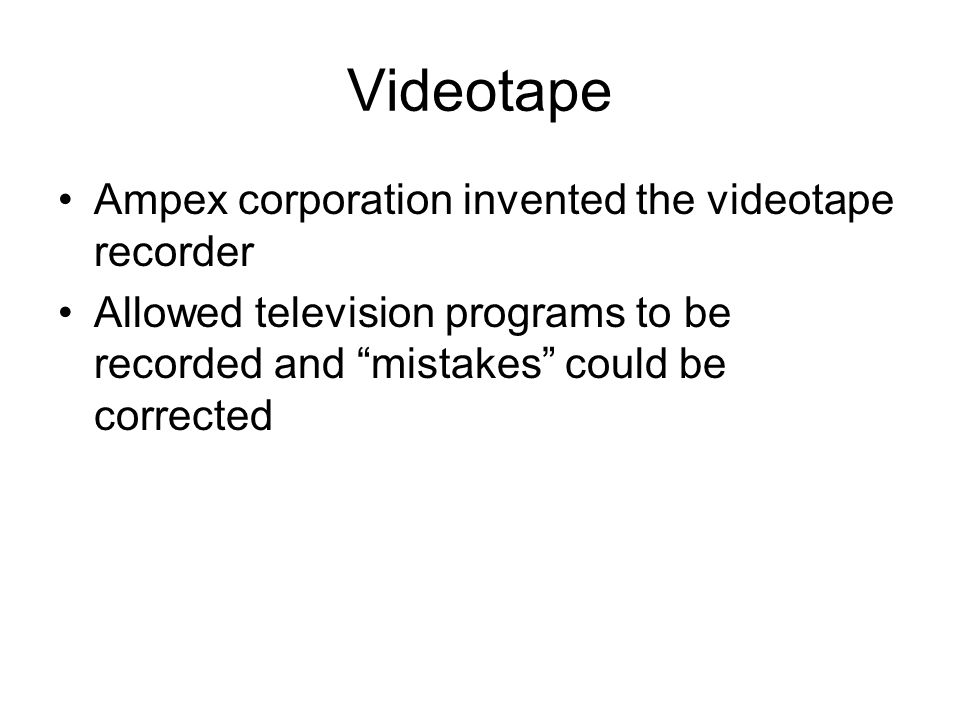

14. Videotape Ampex corporation invented the videotape recorder Allowed television programs to be recorded and “mistakes” could be corrected

15. Quadruplex Videotape

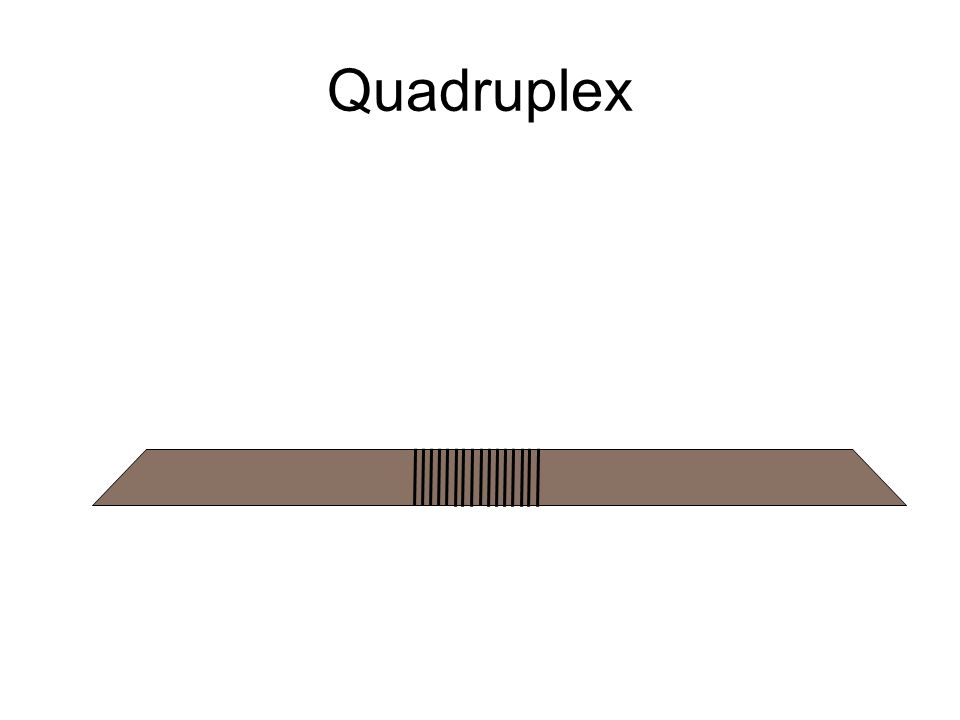

16. Quadruplex

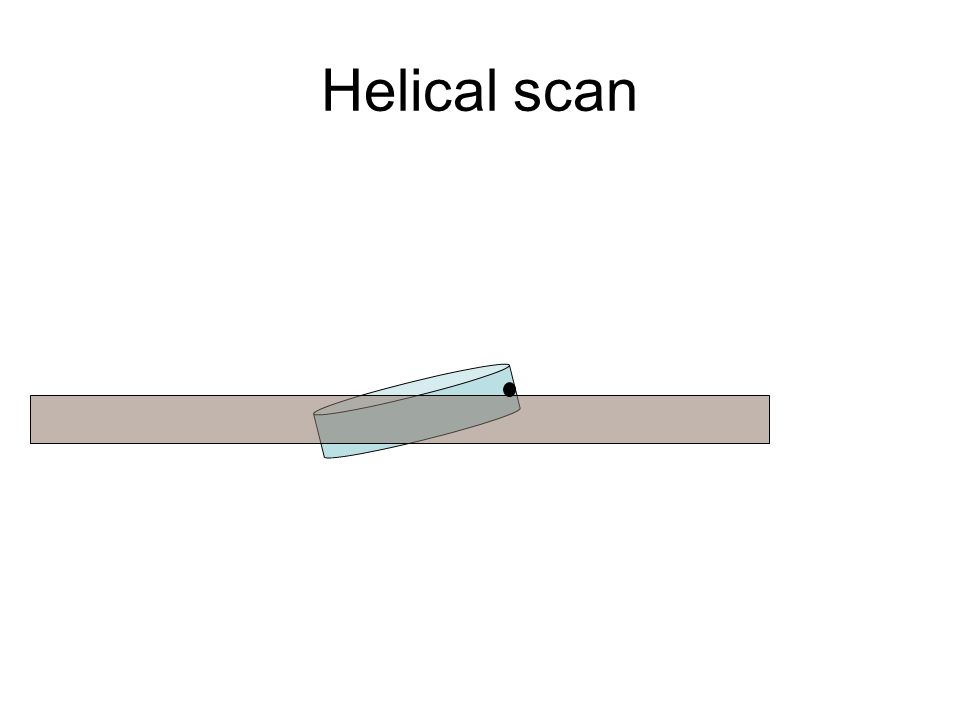

17. Helical scan

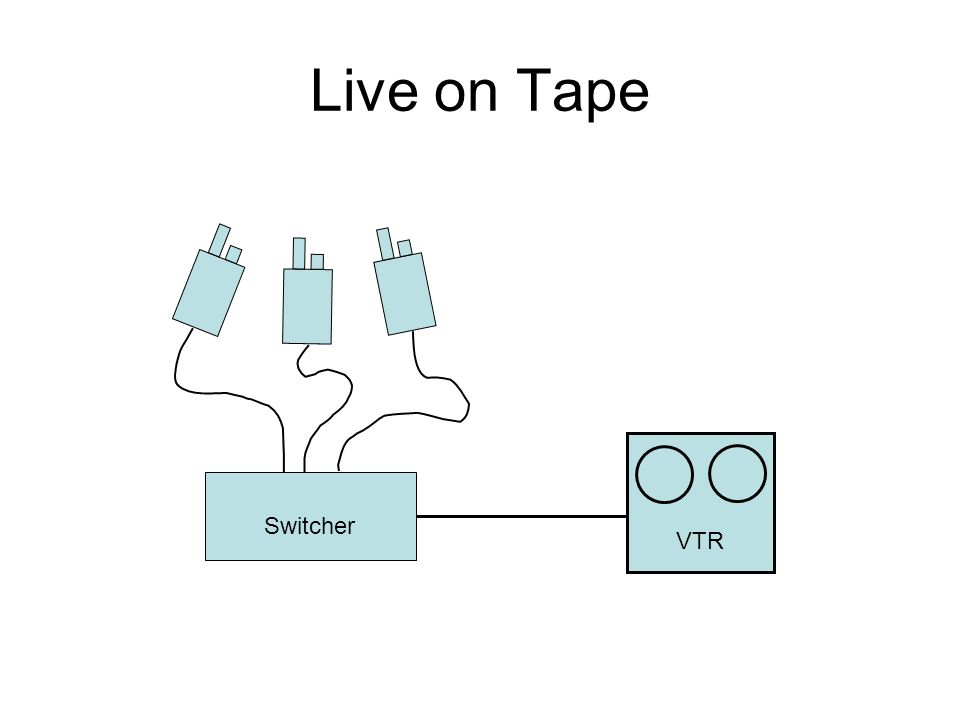

19. Switcher VTR Live on Tape

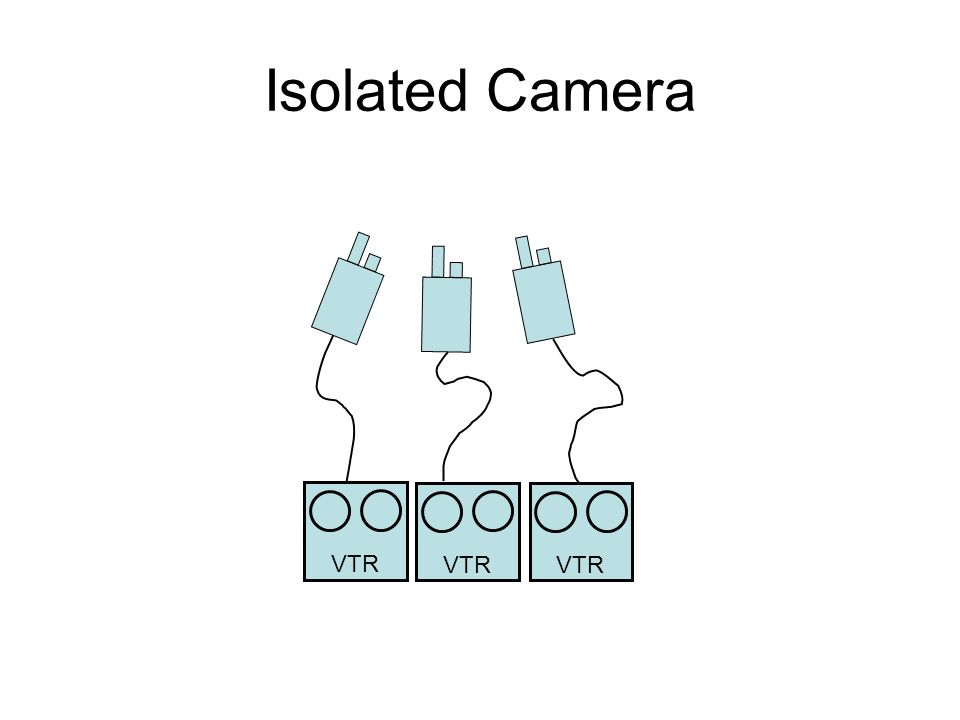

20. Isolated Camera VTR

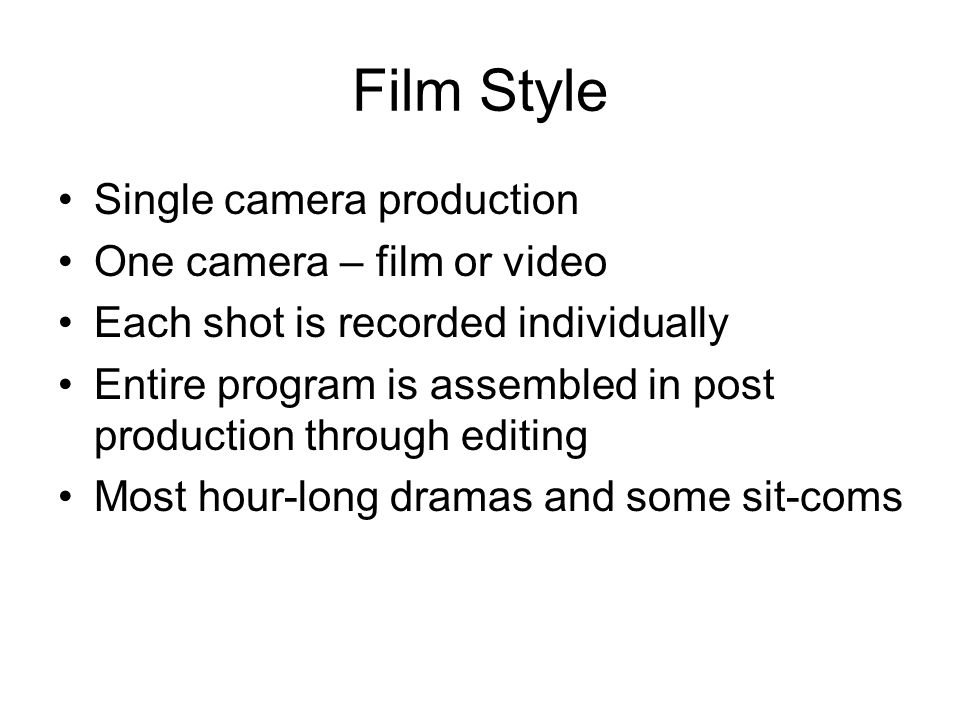

21. Film Style Single camera production One camera – film or video Each shot is recorded individually Entire program is assembled in post production through editing Most hour-long dramas and some sit-coms

22. Forcing perspective http://www.youtube.com/watch?v=TY_QV S0hE8g&feature=relatedhttp://www.youtube.com/watch?v=TY_QV S0hE8g&feature=related

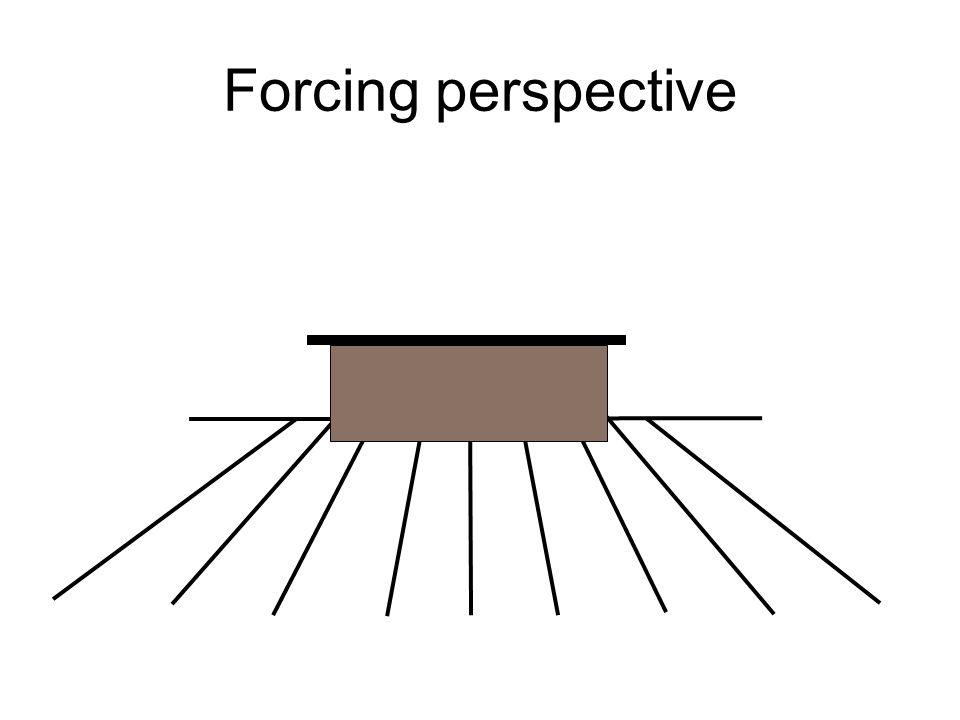

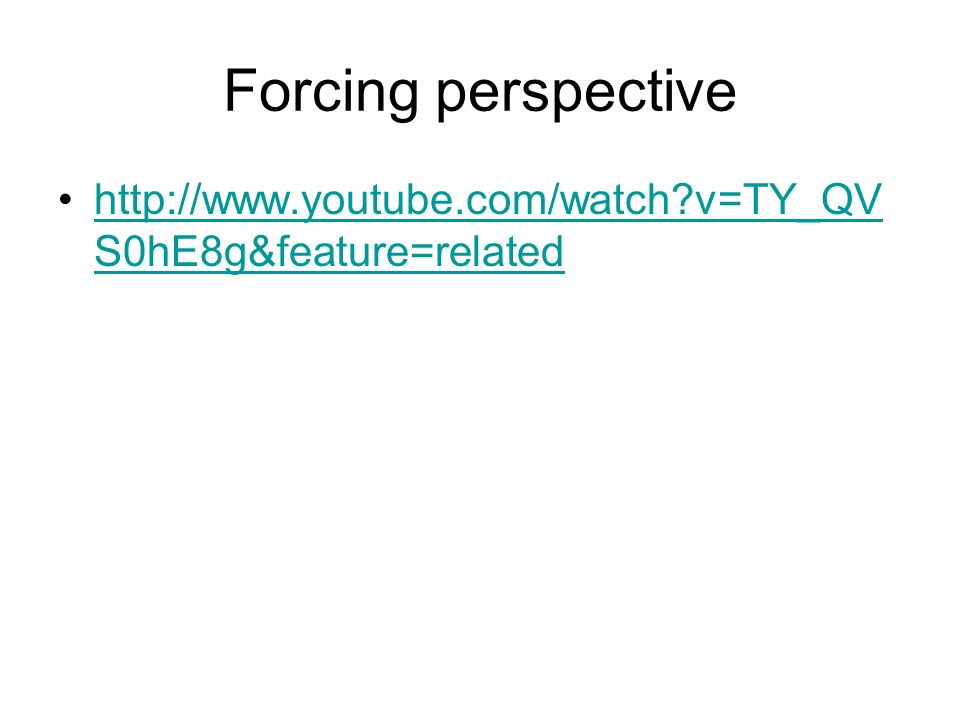

23. Forcing perspective
