1. Test stand for CO 2 accumulator electric heaters Maciej Ostręga, Piotr Dziurdzia22.04.2015

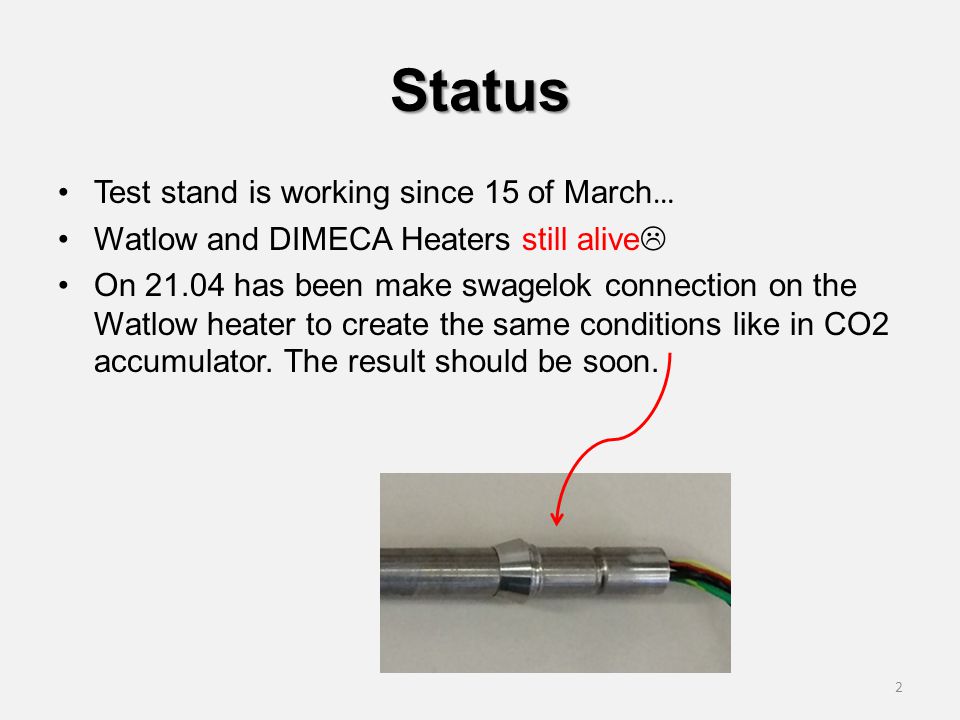

2. Test stand is working since 15 of March … Watlow and DIMECA Heaters still alive  On 21.04 has been make swagelok connection on the Watlow heater to create the same conditions like in CO2 accumulator. The result should be soon. Status 2

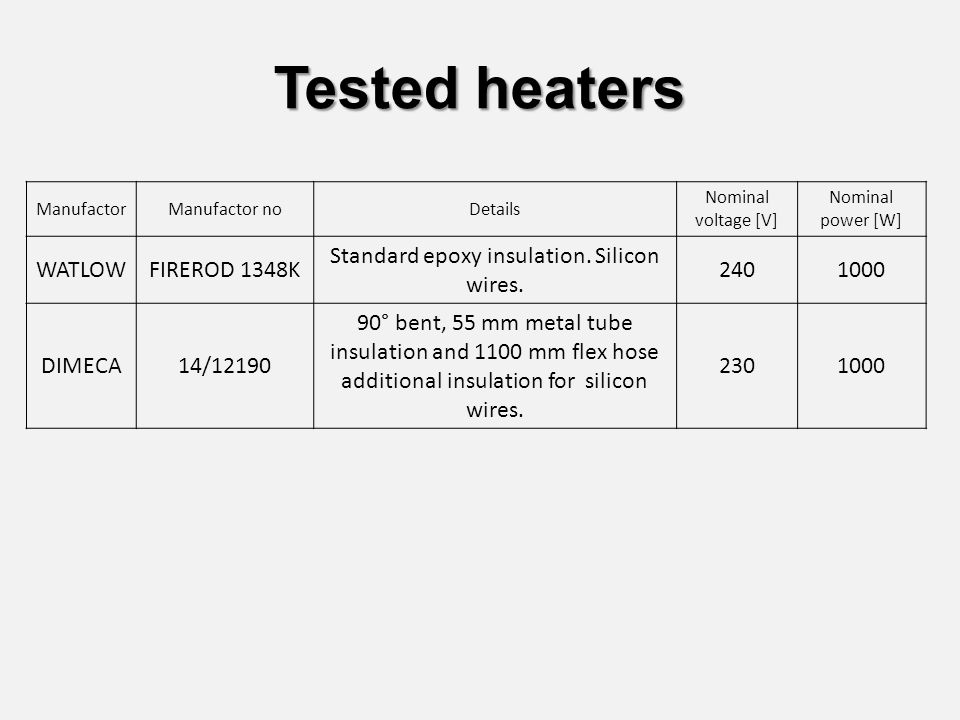

3. Tested heaters ManufactorManufactor noDetails Nominal voltage [V] Nominal power [W] WATLOWFIREROD 1348K Standard epoxy insulation. Silicon wires. 2401000 DIMECA14/12190 90° bent, 55 mm metal tube insulation and 1100 mm flex hose additional insulation for silicon wires. 2301000

4. WATLOW

5. DIMECA

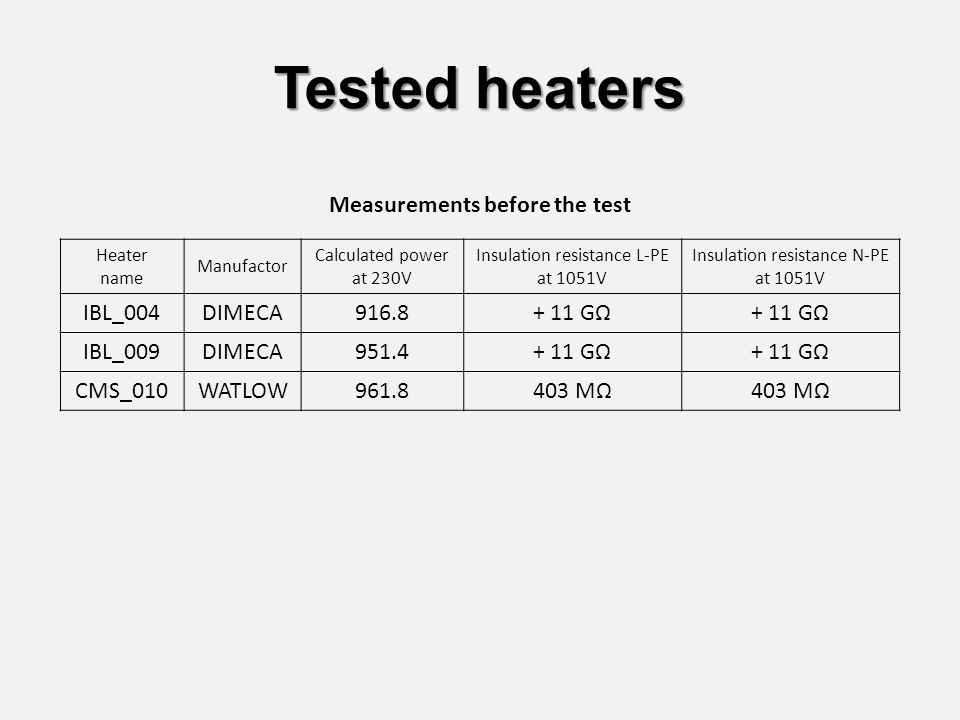

6. Tested heaters Heater name Manufactor Calculated power at 230V Insulation resistance L-PE at 1051V Insulation resistance N-PE at 1051V IBL_004DIMECA916.8+ 11 GΩ IBL_009DIMECA951.4+ 11 GΩ CMS_010WATLOW961.8403 MΩ Measurements before the test

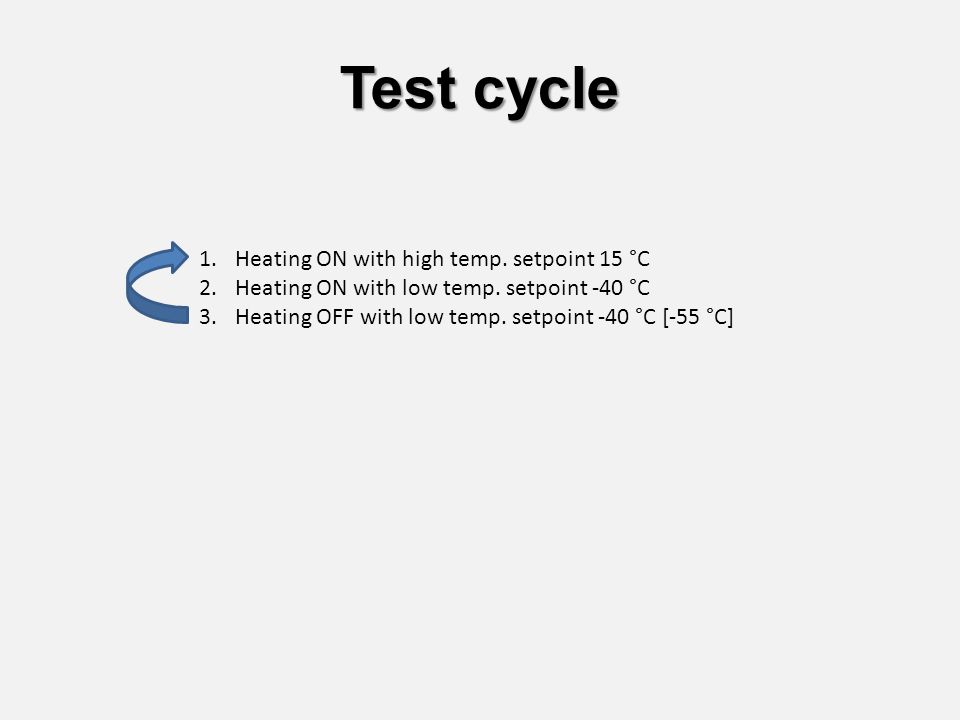

7. Test cycle 1.Heating ON with high temp. setpoint 15 °C 2.Heating ON with low temp. setpoint -40 °C 3.Heating OFF with low temp. setpoint -40 °C [-55 °C]

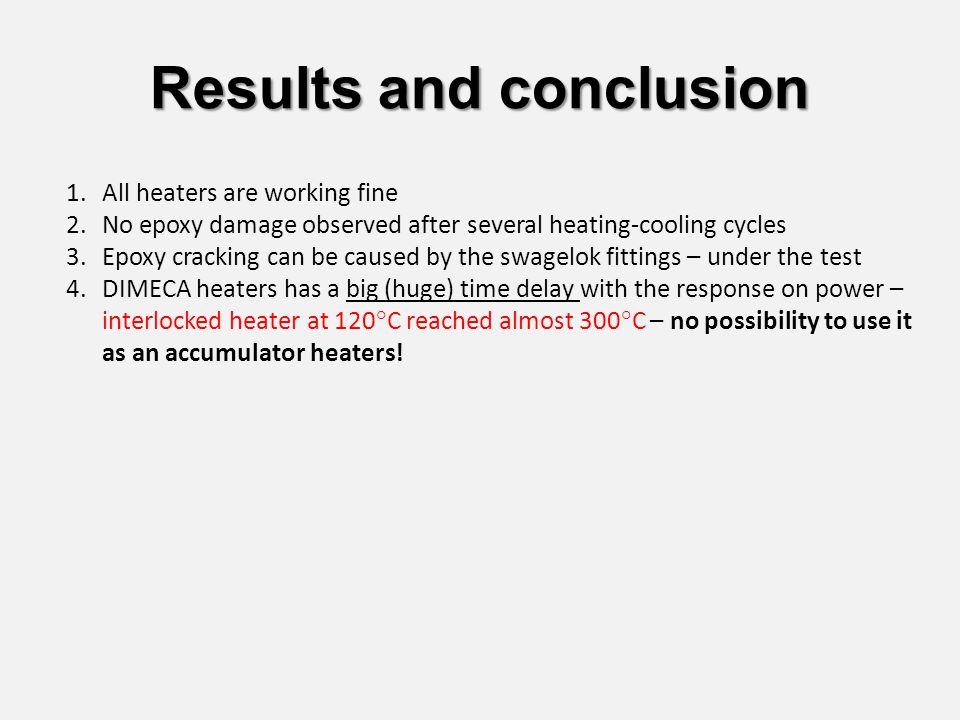

8. Results and conclusion 1.All heaters are working fine 2.No epoxy damage observed after several heating-cooling cycles 3.Epoxy cracking can be caused by the swagelok fittings – under the test 4.DIMECA heaters has a big (huge) time delay with the response on power – interlocked heater at 120 ° C reached almost 300 ° C – no possibility to use it as an accumulator heaters!

9. Results and conclusion Heater name Manufactor Calculated power at 230V Insulation resistance L-PE at 1051V Insulation resistance N-PE at 1051V IBL_004DIMECA916.8+ 11 GΩ IBL_009DIMECA951.4+ 11 GΩ CMS_010WATLOW961.8 2.8 GΩ (cold) ~200 MΩ (warm) 2.8 GΩ (cold) ~200 MΩ (warm) Measurements after the test Heater name Manufactor Calculated power at 230V Insulation resistance L-PE at 1051V Insulation resistance N-PE at 1051V IBL_004DIMECA916.8+ 11 GΩ IBL_009DIMECA951.4+ 11 GΩ CMS_010WATLOW961.8403 MΩ Measurements before the test

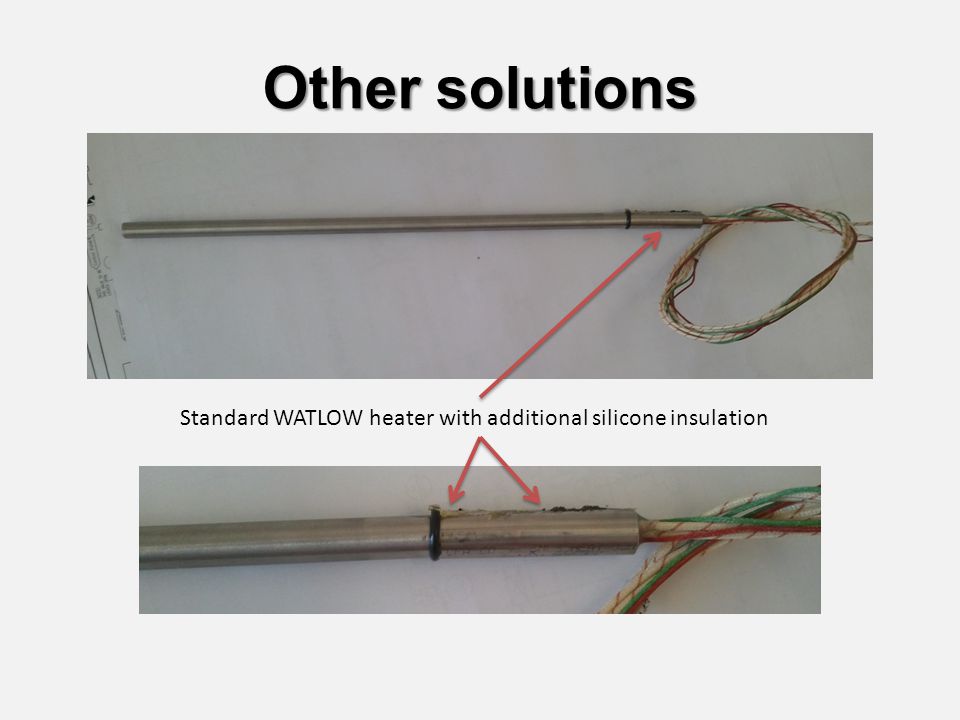

10. Other solutions Standard WATLOW heater with additional silicone insulation

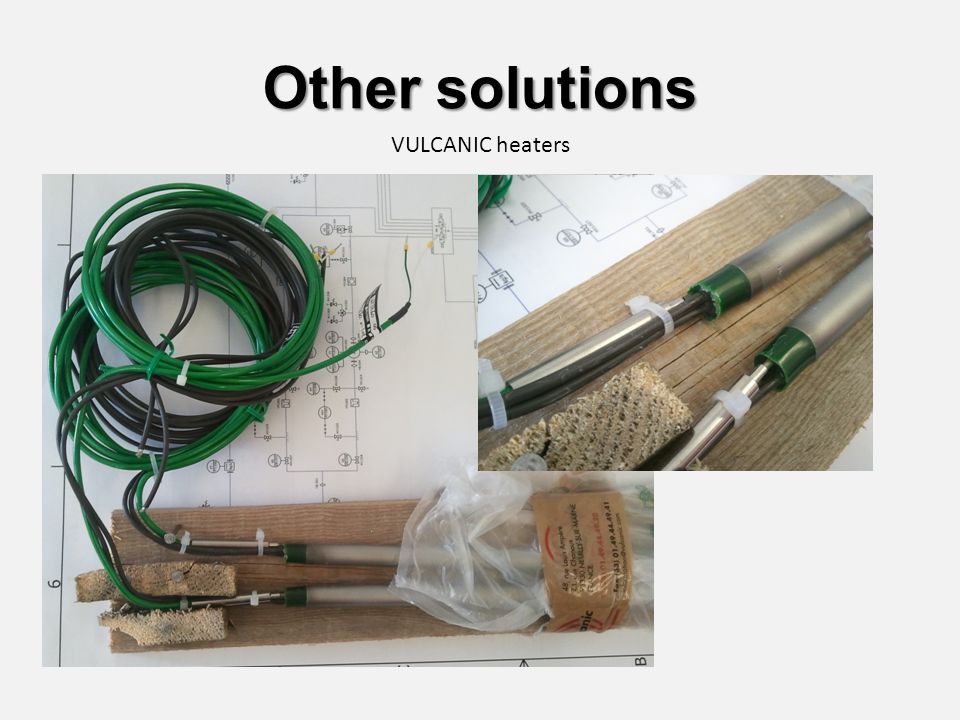

11. Other solutions VULCANIC heaters

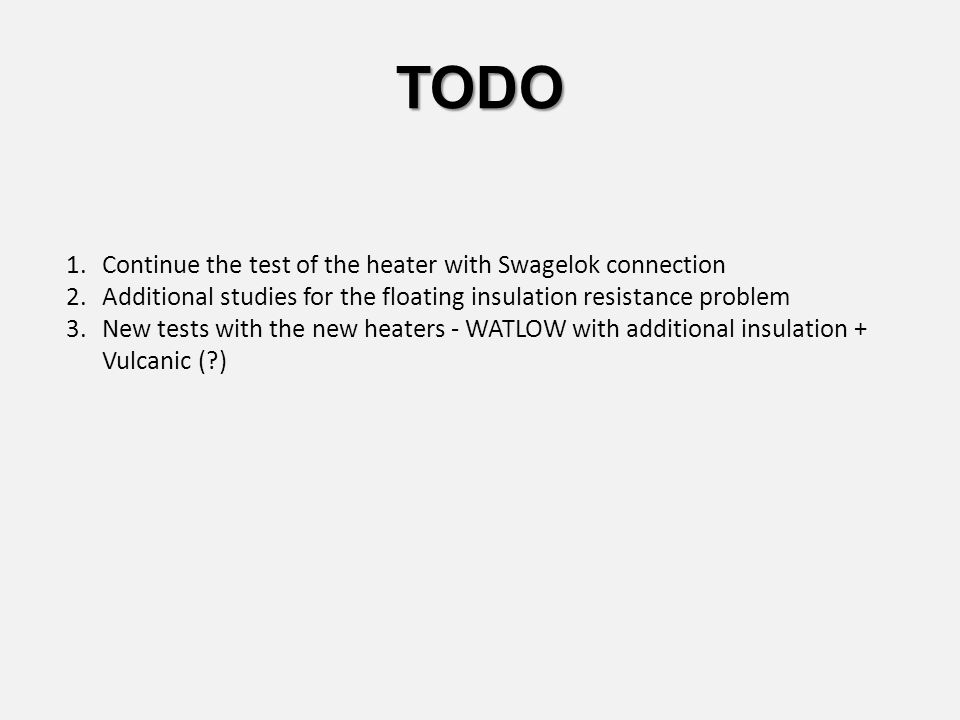

12. TODO 1.Continue the test of the heater with Swagelok connection 2.Additional studies for the floating insulation resistance problem 3.New tests with the new heaters - WATLOW with additional insulation + Vulcanic (?)

13. Backup slides

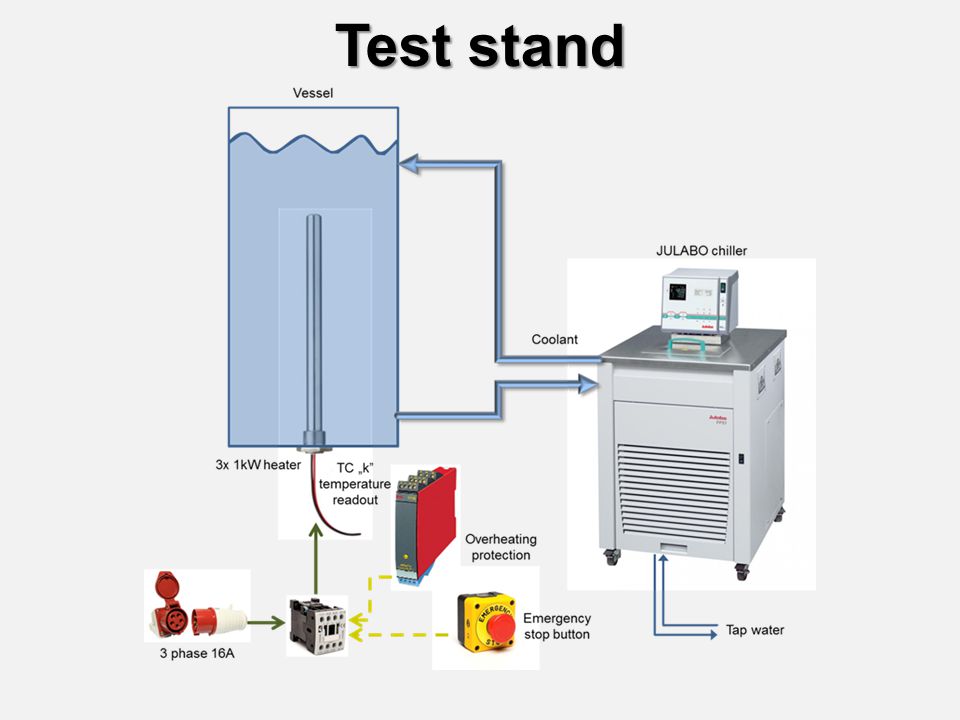

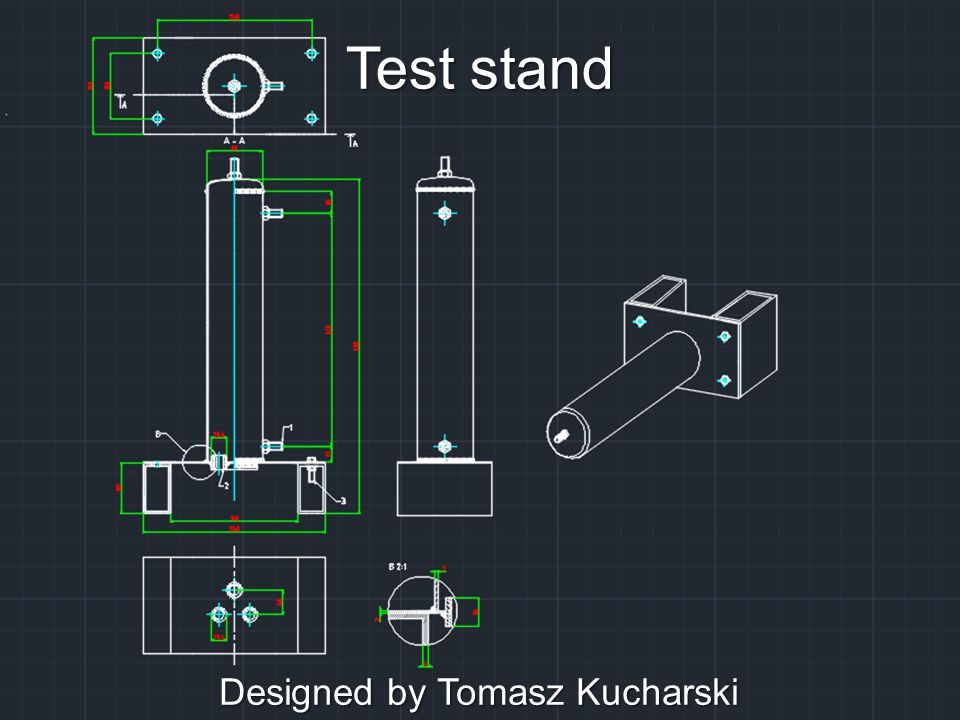

14. Test stand

15. Designed by Tomasz Kucharski

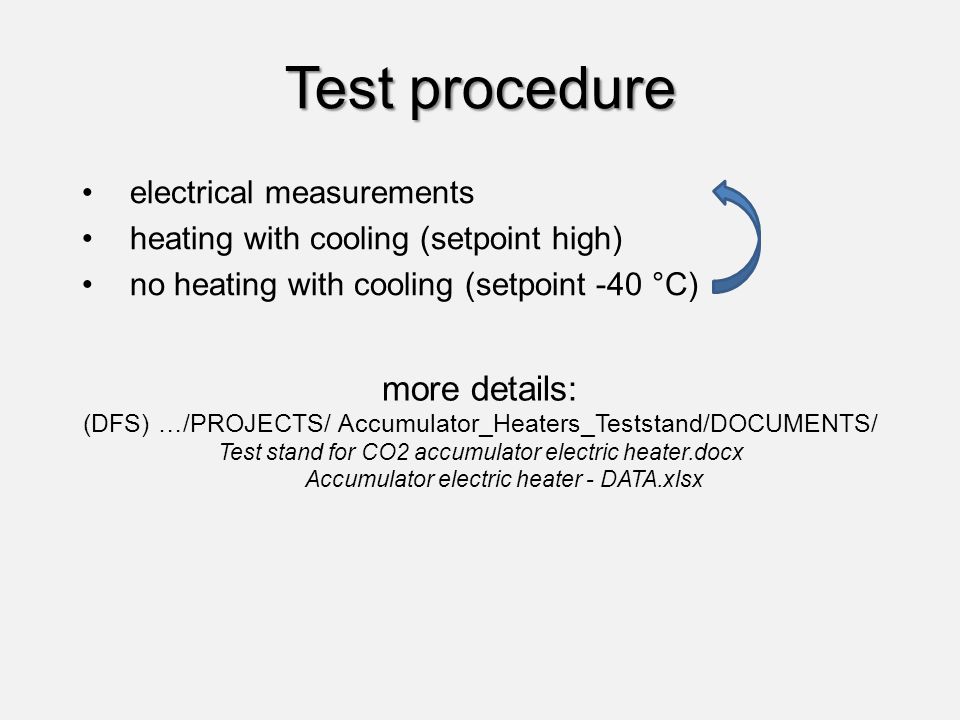

16. Test procedure electrical measurements heating with cooling (setpoint high) no heating with cooling (setpoint -40 °C) more details: (DFS) …/PROJECTS/ Accumulator_Heaters_Teststand/DOCUMENTS/ Test stand for CO2 accumulator electric heater.docx Accumulator electric heater - DATA.xlsx

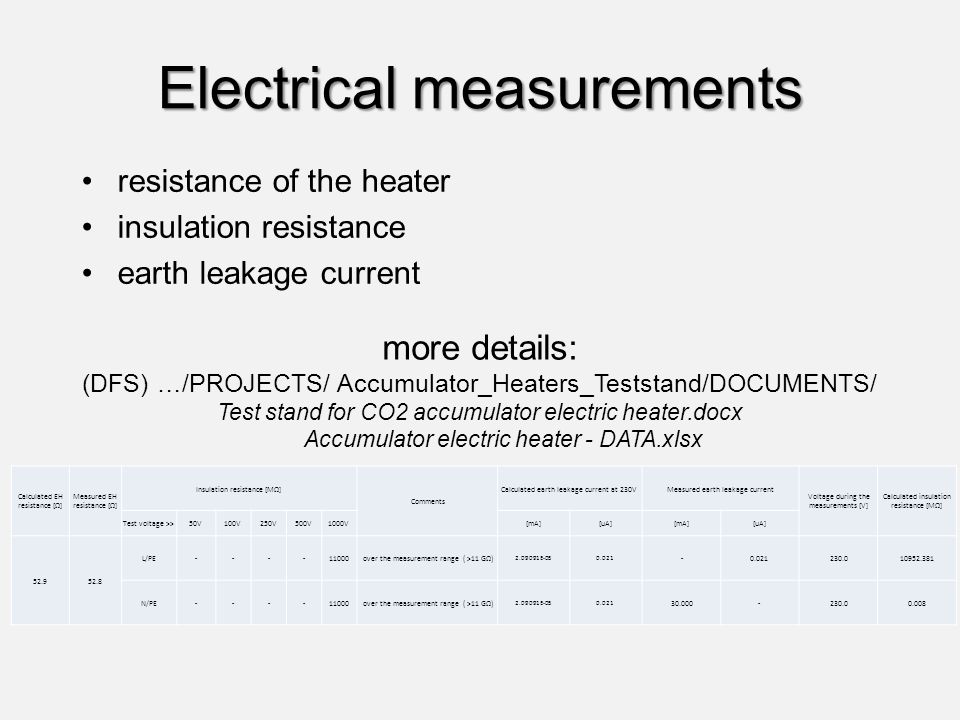

17. Electrical measurements resistance of the heater insulation resistance earth leakage current more details: (DFS) …/PROJECTS/ Accumulator_Heaters_Teststand/DOCUMENTS/ Test stand for CO2 accumulator electric heater.docx Accumulator electric heater - DATA.xlsx Calculated EH resistance [Ω] Measured EH resistance [Ω] Insulation resistance [MΩ] Comments Calculated earth leakage current at 230VMeasured earth leakage current Voltage during the measurements [V] Calculated insulation resistance [MΩ] Test voltage >>50V100V250V500V1000V[mA][uA][mA][uA] 52.952.8 L/PE----11000over the measurement range ( >11 GΩ) 2.09091E-050.021 - 230.010952.381 N/PE----11000over the measurement range ( >11 GΩ) 2.09091E-050.021 30.000-230.00.008
