1. CAD – Computer Aided Design 8 Grade Communication Tech

2. Outline 1. Vocabulary of CAD 2. Uses of CAD 3. What is the difference between Design and Drafting 3. What is the difference between Design and Drafting 4. What is rapid prototyping

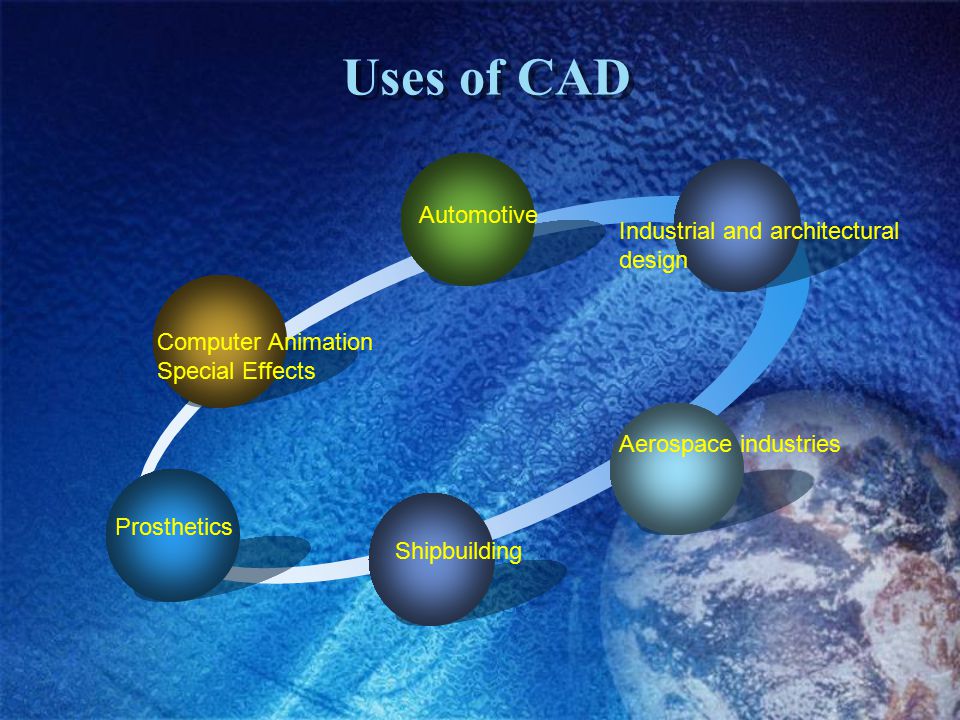

3. Uses of CAD Computer Animation Special Effects Automotive Aerospace industries Prosthetics Industrial and architectural design Shipbuilding

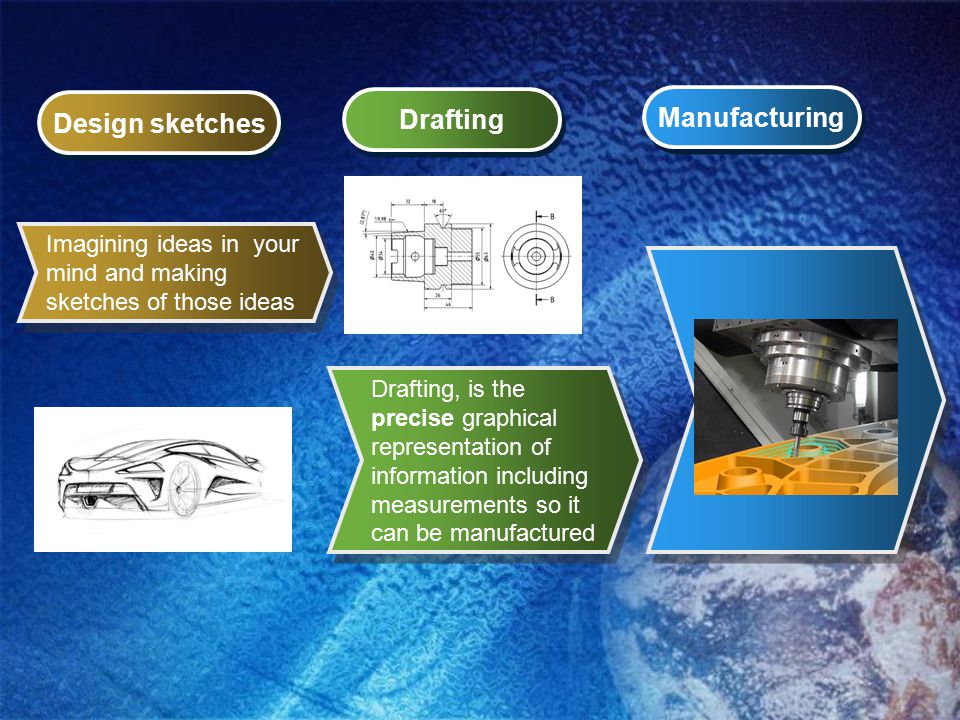

4. Drafting, is the precise graphical representation of information including measurements so it can be manufactured Imagining ideas in your mind and making sketches of those ideas Design sketches Drafting Manufacturing

5. CAM – Computer Aided Manufacturing For controlling the manufacturing processes

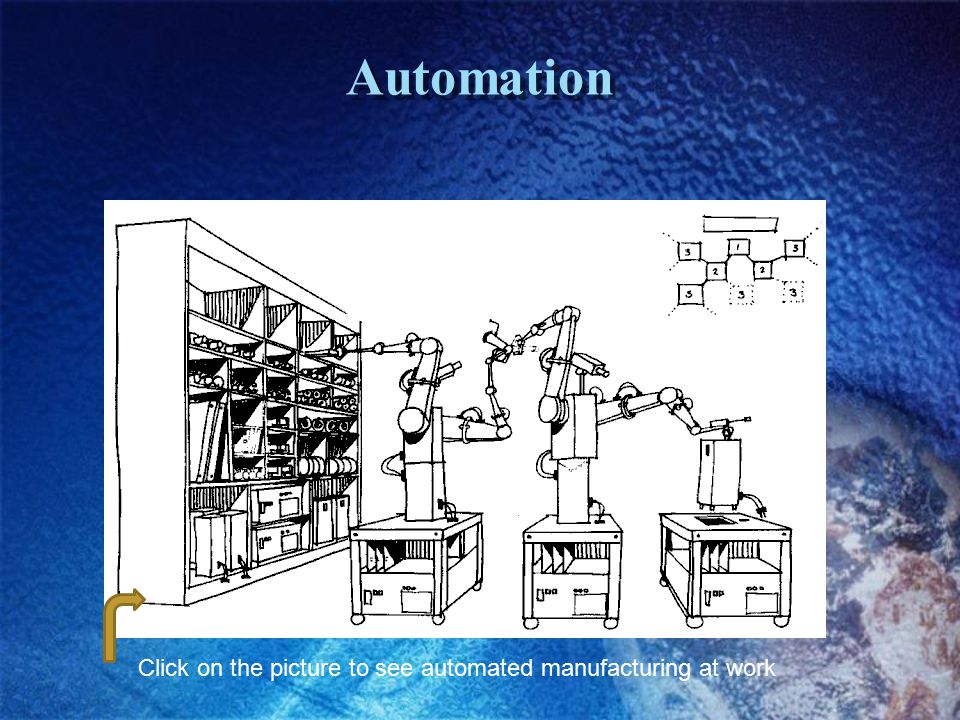

6. Automation Click on the picture to see automated manufacturing at work

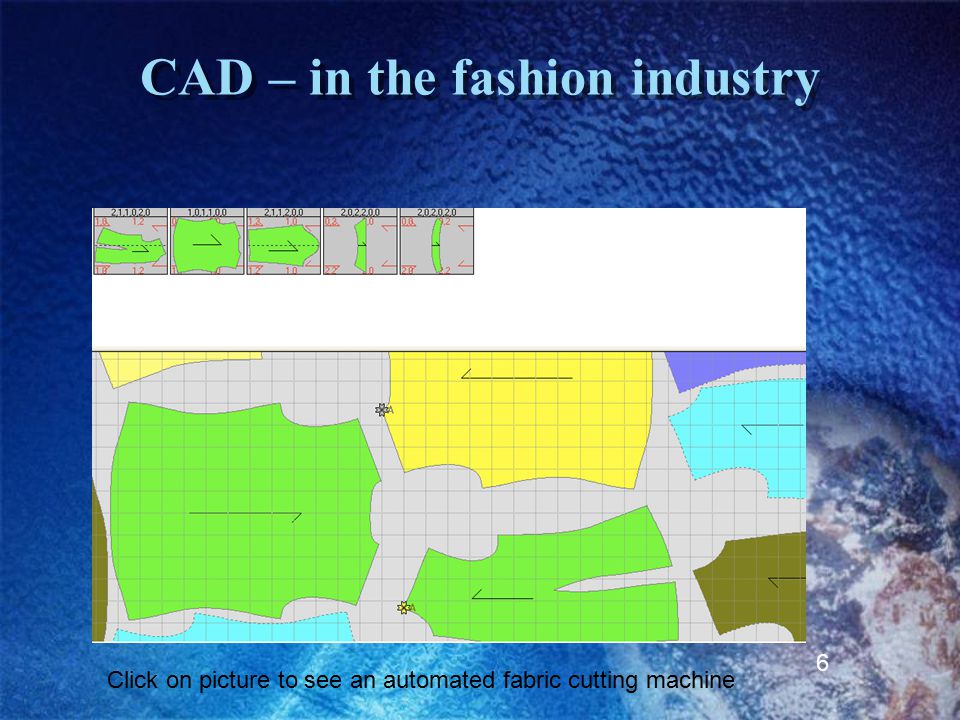

7. CAD – in the fashion industry 6 Click on picture to see an automated fabric cutting machine

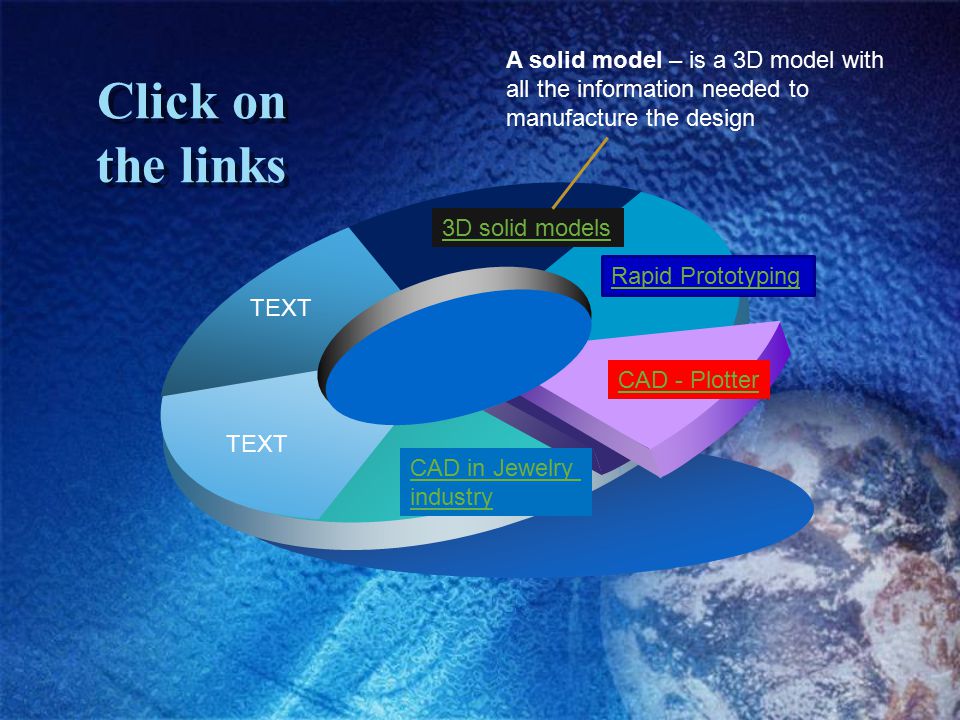

8. Rapid Prototyping 3D solid models TEXT CAD in Jewelry industry CAD - Plotter A solid model – is a 3D model with all the information needed to manufacture the design Click on the links

9. CAD Software Tomlinson uses SketchUp Auto-CAD TinkerCAD CADKEY Design CAD
