Presentation on theme: "Transitioning from FGDC CSDGM Metadata to ISO 191** Metadata National Coastal Data Development Center A division of the National Oceanographic Data Center."— Presentation transcript:

1 Transitioning from FGDC CSDGM Metadata to ISO 191** Metadata National Coastal Data Development Center A division of the National Oceanographic Data Center Please email a list of participants at each location to ncddcmetadata@noaa.gov Also Email questions for the Q&A session to ncddcmetadata@noaa.gov

2 Series Materials - ftp://ftp.ncddc.noaa.gov/pub/Metadat a/Online_ISO_Training/ NOAA EDM Wiki ( ) - https://geo- ide.noaa.gov/wiki/index.php?title=Mai n _Page Workbooks - http://www.ncddc.noaa.gov/metadata- standards/ ISO Resources

3 Writing Metadata

4 I T ’ S NOT SO BAD !! First records are the hardest Not all fields may need to be filled in Tools are available Training classes can be taken Can often be produced automatically Can (and should) be reviewed for updates Tips for Writing Metadata

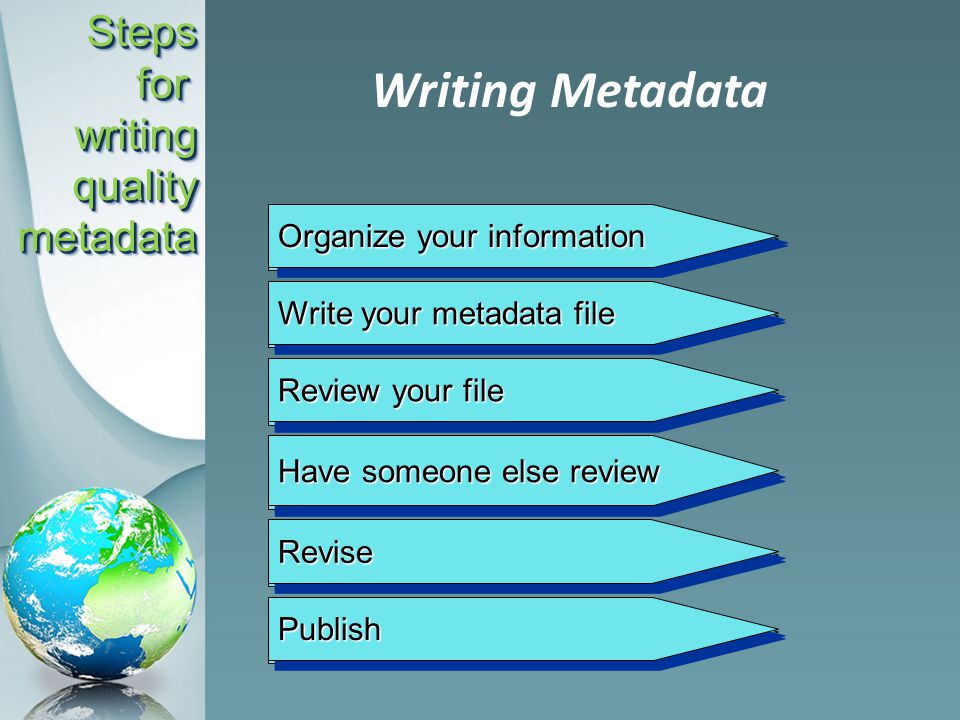

5 StepsforwritingqualitymetadataStepsforwritingqualitymetadata Writing Metadata Organize your information Write your metadata file Review your file Have someone else review ReviseRevise PublishPublish Organize your information Write your metadata file Review your file Have someone else review ReviseRevise PublishPublish

6 Before you begin writing, get organized Document your data as you go Write so others can understand Always review your document Before you begin writing, get organized Document your data as you go Write so others can understand Always review your document Writing Metadata

7 Metadata entry tool Metadata entry tool Some Helpful Items coffee chocolate standard and/or workbook ISO editor sense of humour!!!

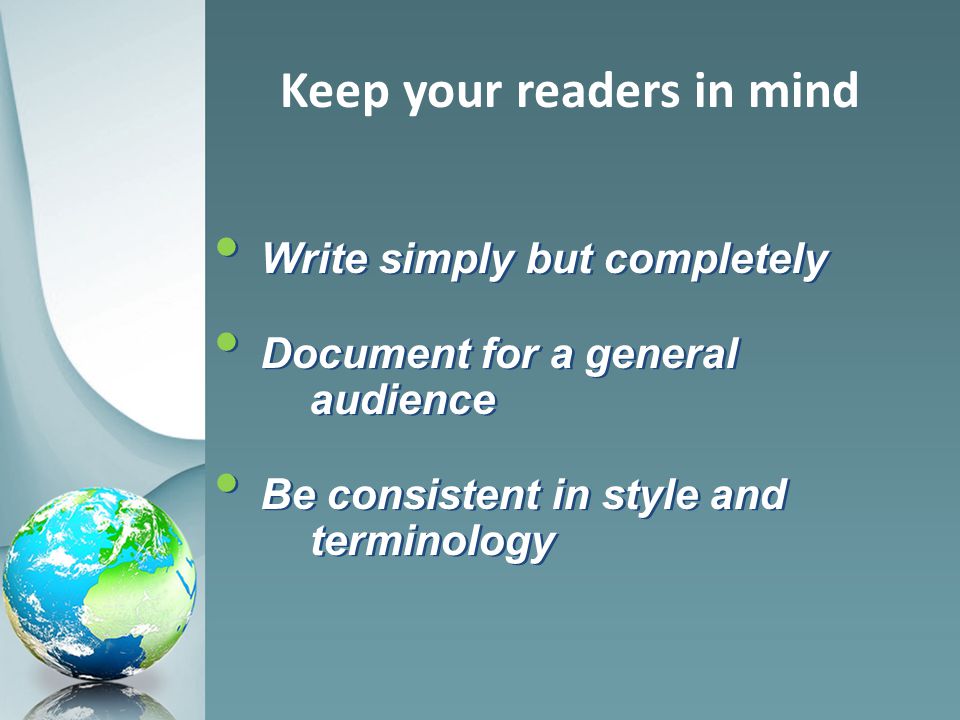

8 Write simply but completely Document for a general audience Be consistent in style and terminology Write simply but completely Document for a general audience Be consistent in style and terminology Keep your readers in mind

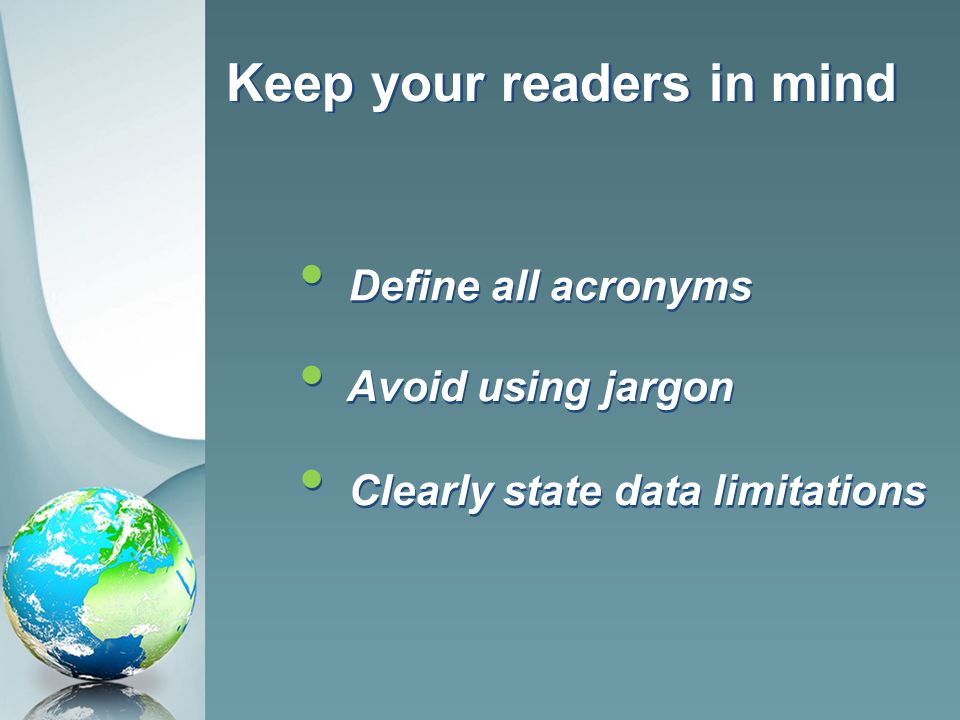

9 Define all acronyms Avoid using jargon Clearly state data limitations Keep your readers in mind

10 Write a complete title that includes… What Where When Who What Where When Who Writing Metadata

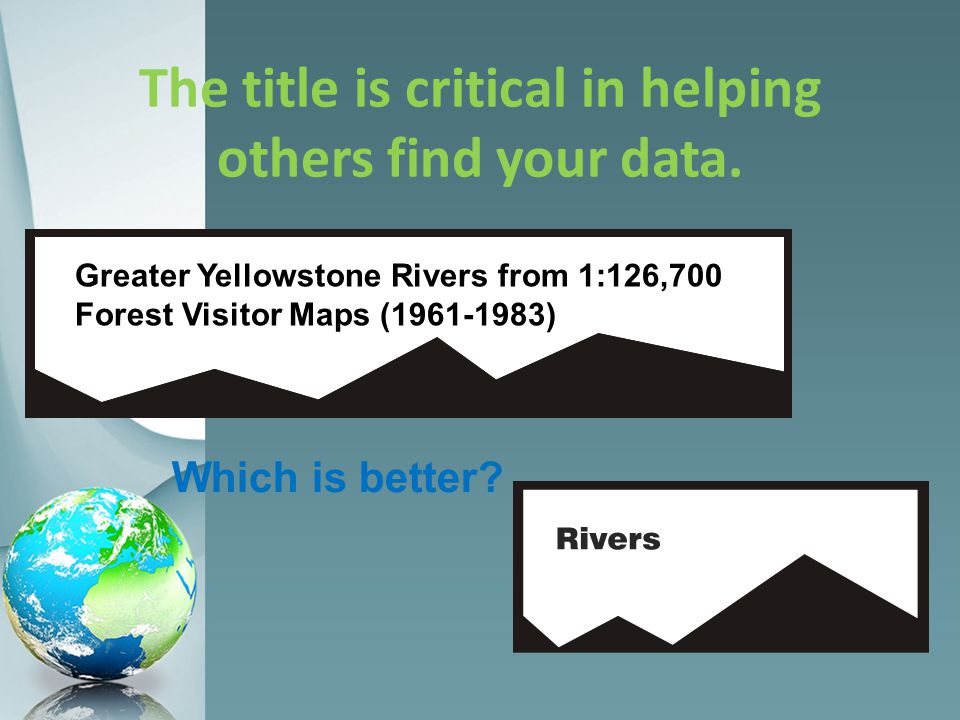

11 Which is better? Greater Yellowstone Rivers from 1:126,700 Forest Visitor Maps (1961-1983) The title is critical in helping others find your data.

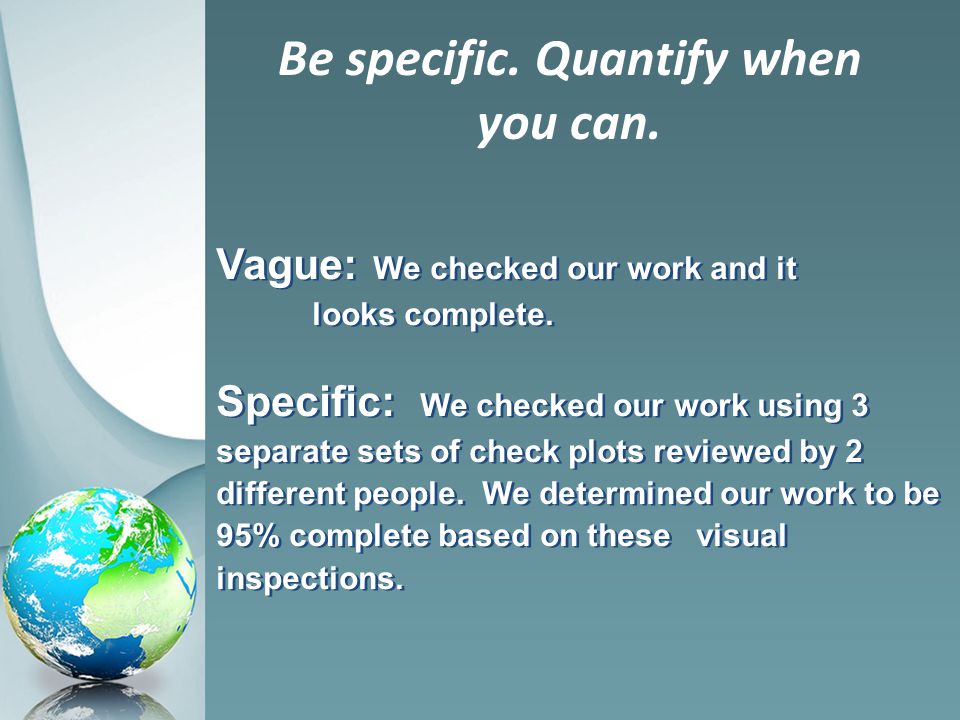

12 Vague: We checked our work and it looks complete. Specific: We checked our work using 3 separate sets of check plots reviewed by 2 different people. We determined our work to be 95% complete based on these visual inspections. Vague: We checked our work and it looks complete. Specific: We checked our work using 3 separate sets of check plots reviewed by 2 different people. We determined our work to be 95% complete based on these visual inspections. Be specific. Quantify when you can.

13 Select your key words wisely Use unambiguous words Use descriptive words Fully qualify geographic locations Use unambiguous words Use descriptive words Fully qualify geographic locations

14 Have someone else read it If you’re the only reviewer, put it away and read it again later Check for clarity and omissions Have someone else read it If you’re the only reviewer, put it away and read it again later Check for clarity and omissions Review your final product

15 Can a novice understand what you wrote? Are your data properly documented for posterity? Can a novice understand what you wrote? Are your data properly documented for posterity? When you review your work, ask:

16 Does the documentation present all the information needed to use or reuse the data? Are any pieces missing? Does the documentation present all the information needed to use or reuse the data? Are any pieces missing? When you review your work, ask:

17 Organize your information Write your metadata file Review your file Have someone else review ReviseRevise PublishPublish Six Steps for Writing Quality Metadata Six Steps for Writing Quality Metadata Writing Metadata

18 Write so that others will understand

19 ISO Metadata Creation Methods

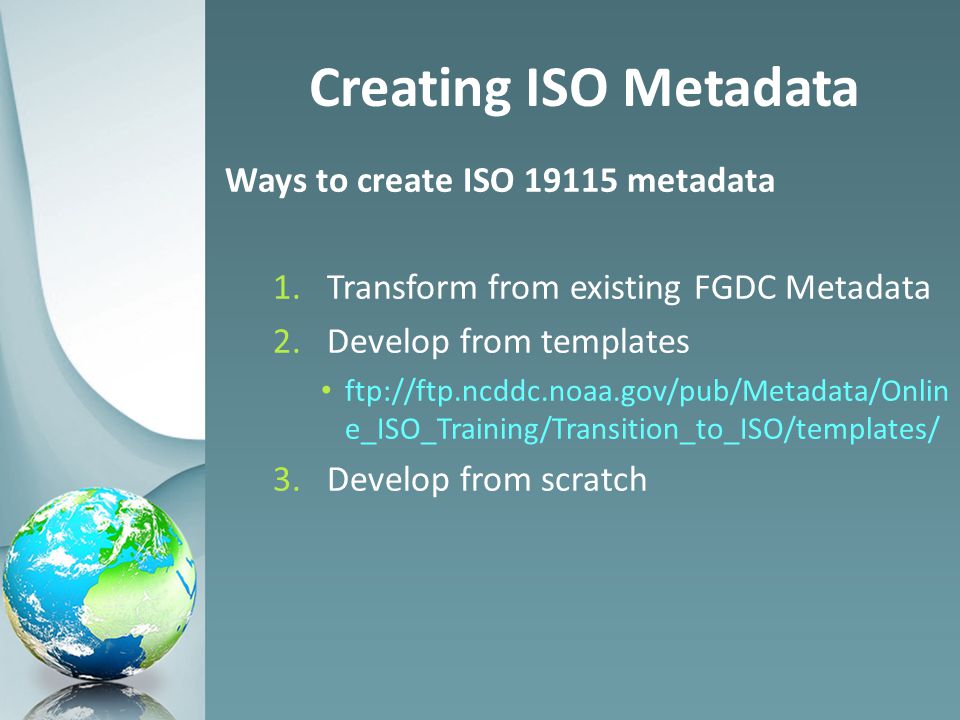

20 Creating ISO Metadata Ways to create ISO 19115 metadata 1.Transform from existing FGDC Metadata 2.Develop from templates ftp://ftp.ncddc.noaa.gov/pub/Metadata/Onlin e_ISO_Training/Transition_to_ISO/templates/ 3.Develop from scratch

21 Transform from Existing CSDGM using XSLT Extensible Stylesheet Language Transformations (XSLT) is an XML-based language used for the transformation of XML documents into other XML or "human-readable" documents via stylesheets (XSL). The original document is not changed; rather, a new document is created based on the content of an existing one. It does NOT guarantee valid XML records against a particular schema!!!! (simply displays the content in a new way.)

22 This is a part of the mapping for FGDC CSDGM to ISO 19115. Comments are Best Practices or Questions Transforming Metadata

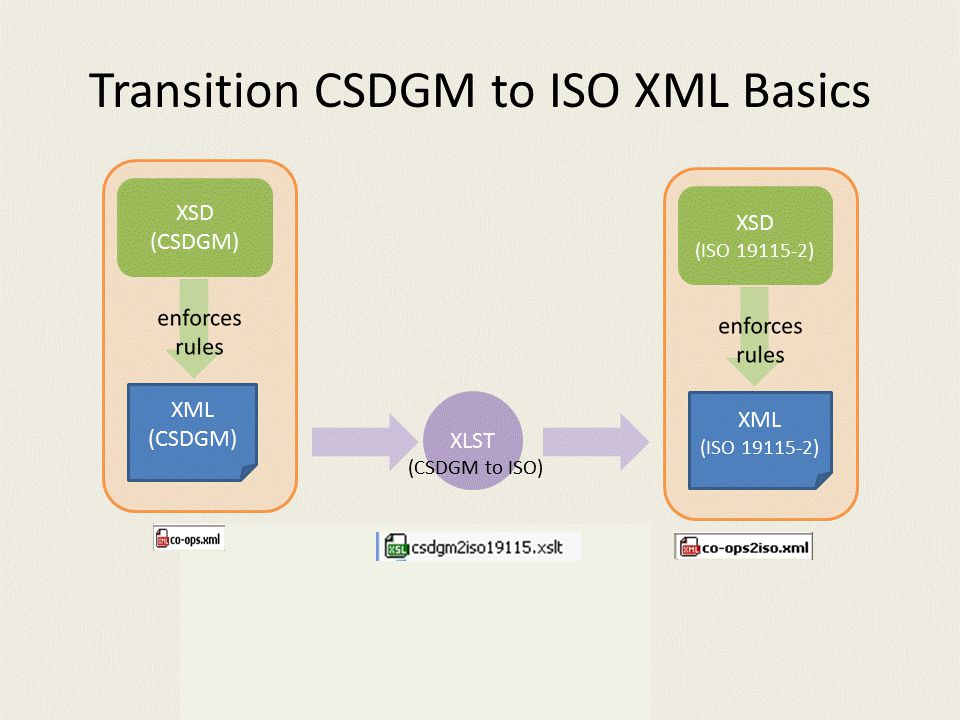

23 transform CSDGM ISO 19115 Your input here is an xml version of a CSDGM record. XSLT Transformation csdgm2iso19115.xslt Your result is an xml instance of an ISO 19115 record. Transforming Metadata

24

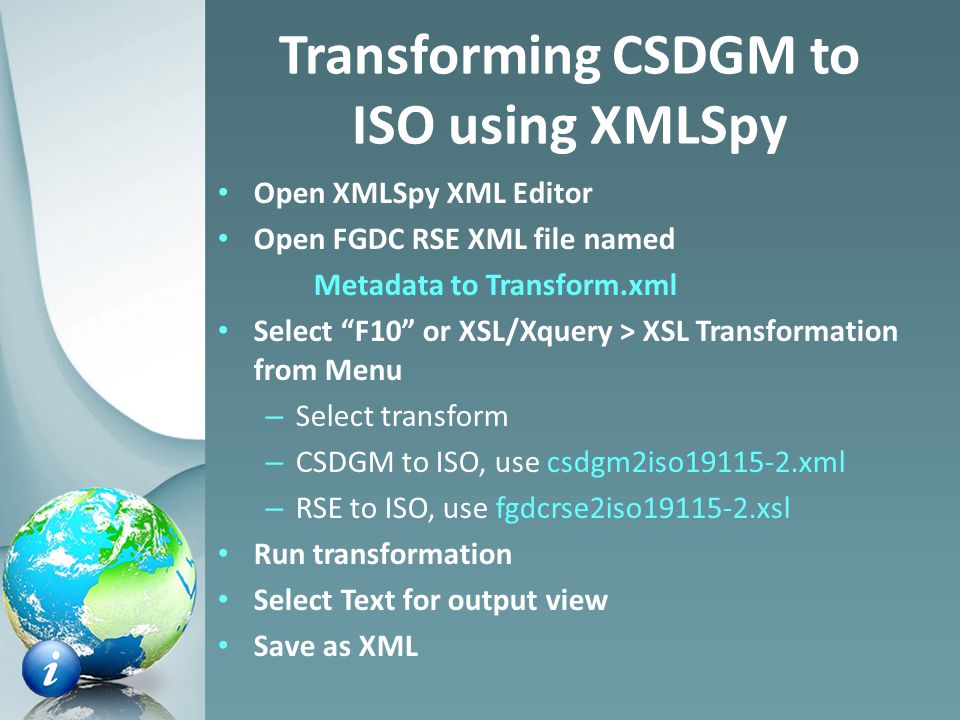

25 Transforming CSDGM to ISO using XMLSpy Open XMLSpy XML Editor Open FGDC RSE XML file named Metadata to Transform.xml Select “F10” or XSL/Xquery > XSL Transformation from Menu – Select transform – CSDGM to ISO, use csdgm2iso19115-2.xml – RSE to ISO, use fgdcrse2iso19115-2.xsl Run transformation Select Text for output view Save as XML

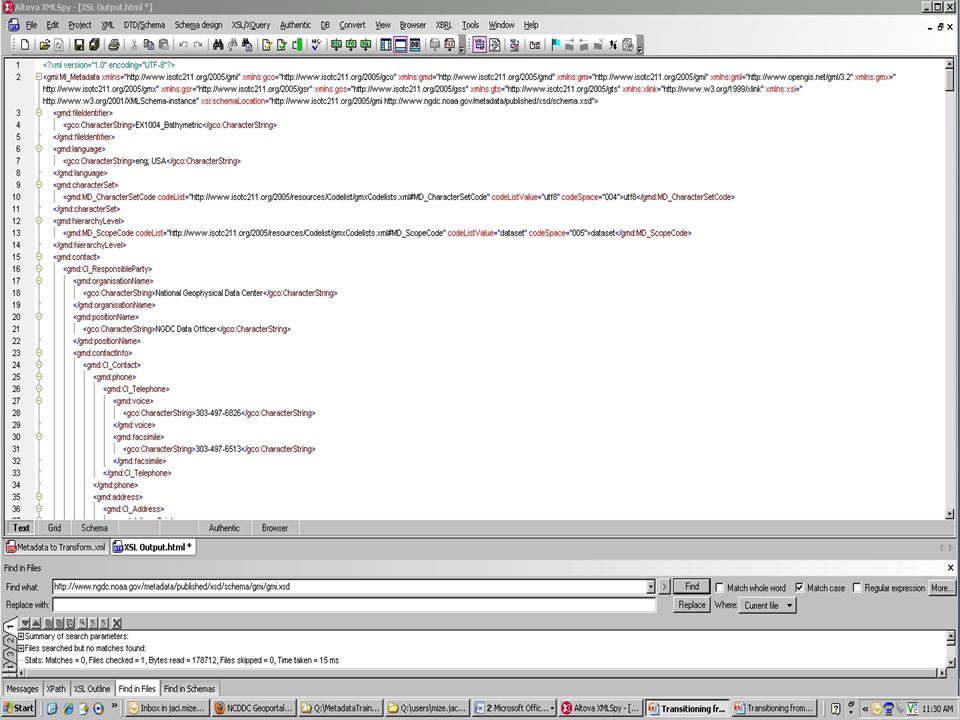

26 Clue this is FGDC RSE so must use correct transform

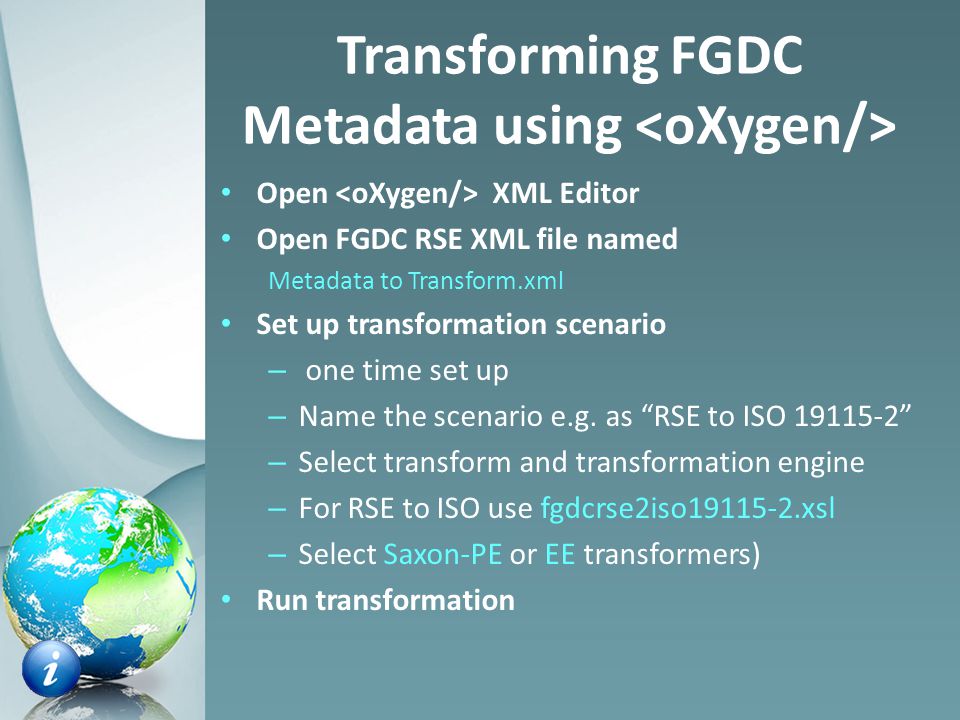

27 Transforming FGDC Metadata using Open XML Editor Open FGDC RSE XML file named Metadata to Transform.xml Set up transformation scenario – one time set up – Name the scenario e.g. as “RSE to ISO 19115-2” – Select transform and transformation engine – For RSE to ISO use fgdcrse2iso19115-2.xsl – Select Saxon-PE or EE transformers) Run transformation

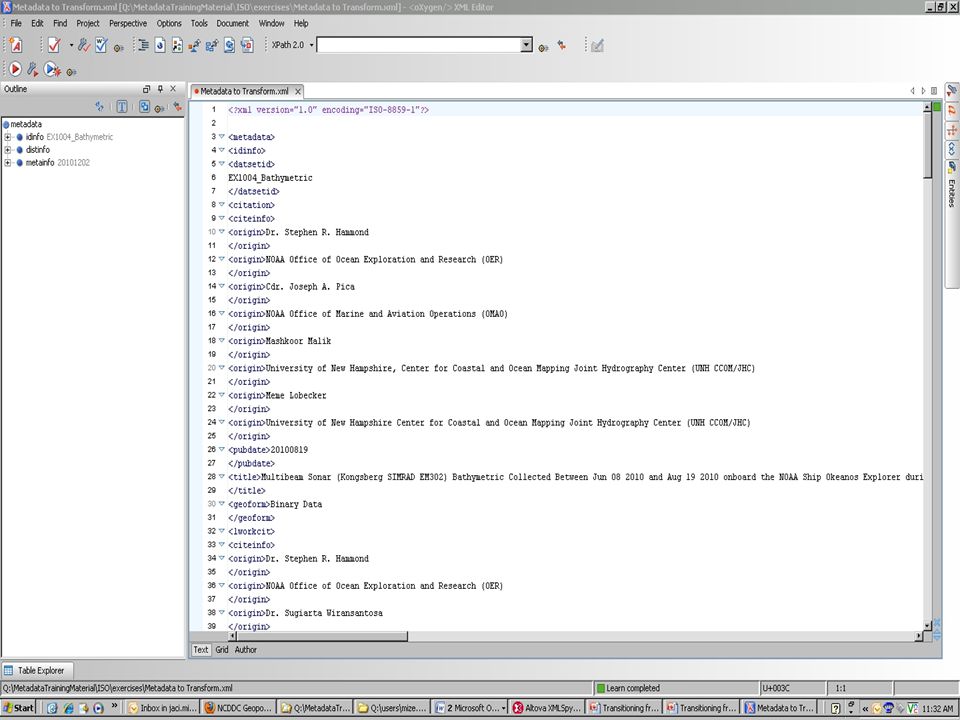

28

29

30

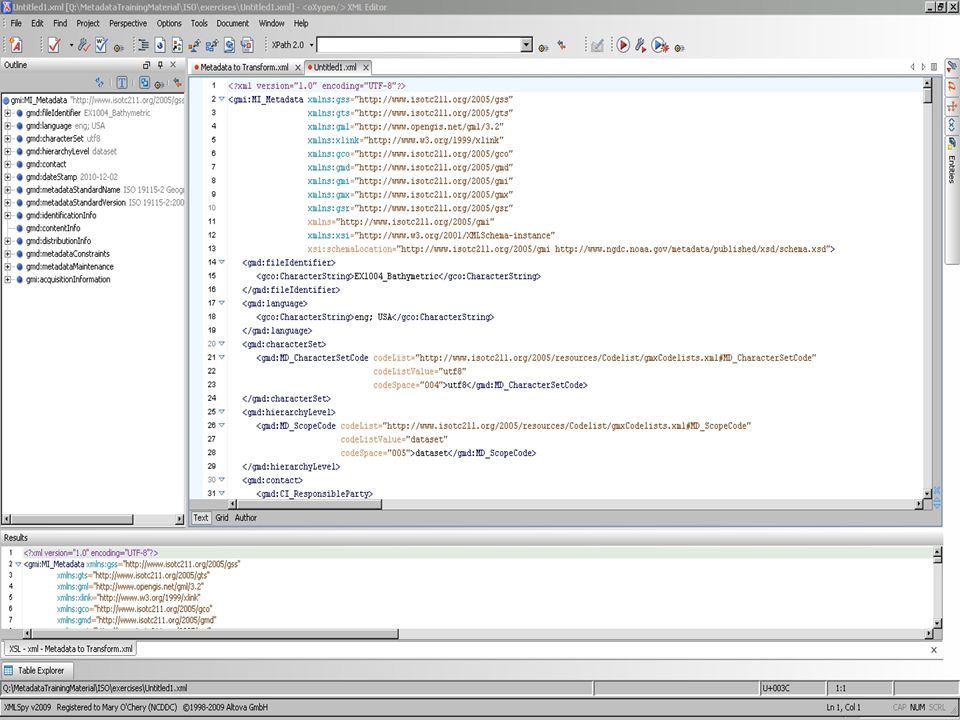

31

32 Transforming FGDC Metadata using MERMAid Navigate to record to transform in Record level interface Select “Export” tab Select ISO 19115-2, and “Produce View” button New window will open Select ISO 19110 for Section 5, Entity and Attributes.

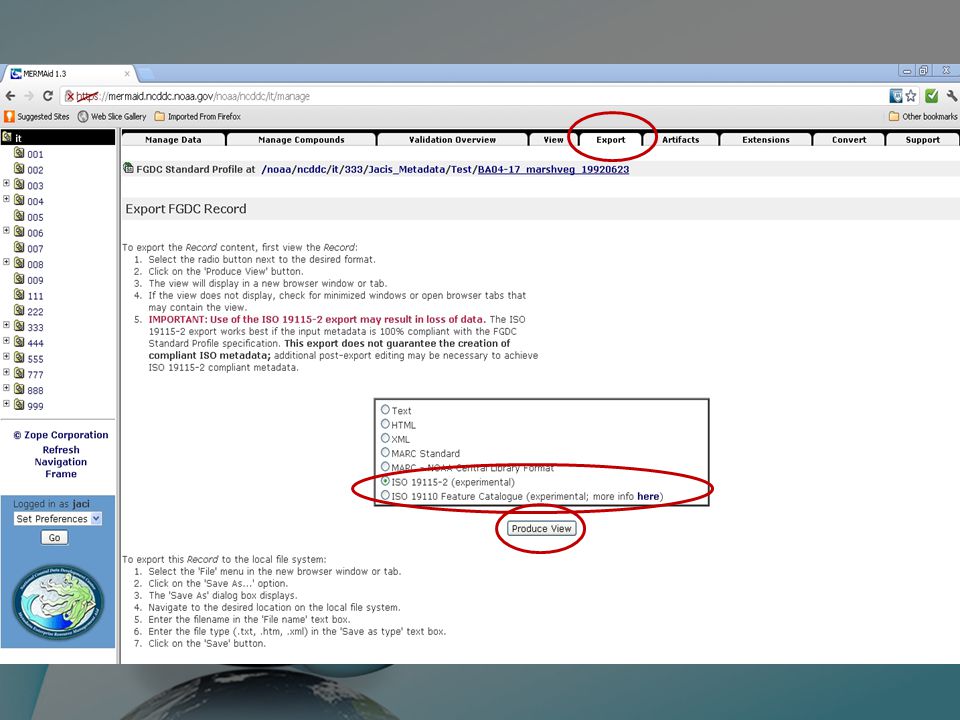

33

34

35 Other Transformations ISO to FGDC DIF to ISO FGDC THREDDS netCDF to ISO Various ISO and FGDC views Custom transforms (from databases to metadata standards)

36

37

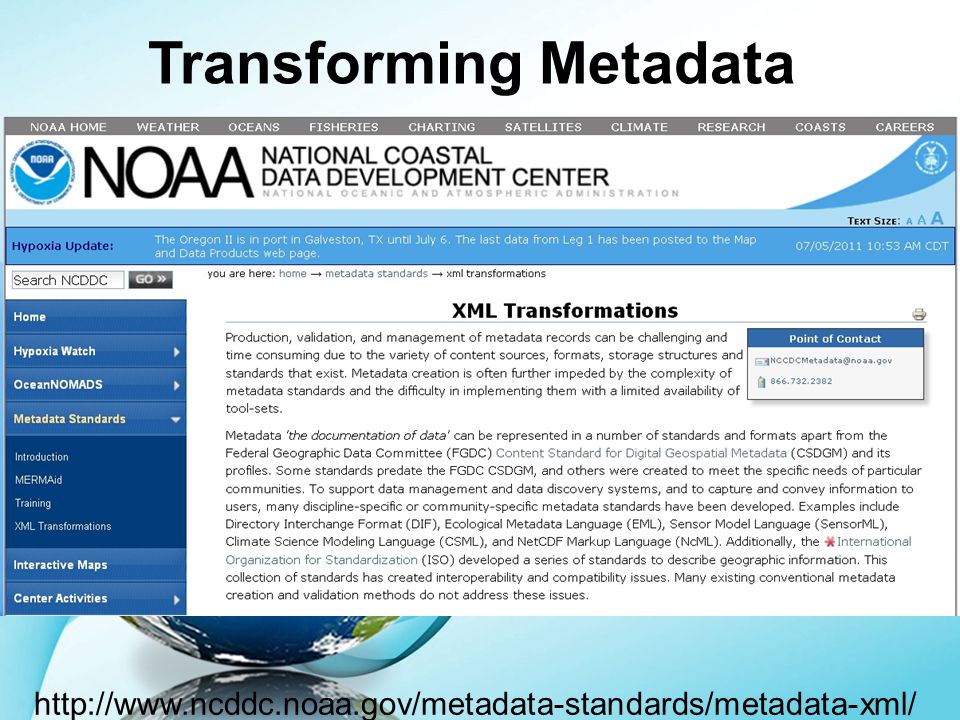

38 Transforming Metadata http://www.ncddc.noaa.gov/metadata-standards/metadata-xml/

39 Develop Metadata from Templates../pub/Metadata/Online_ISO_Training/Transiti on_to_ISO/templates MDtemplate for ISO 19115 MIBiotemplate for ISO 19115-2 with Biological Extensions MItemplate For ISO 19115-2

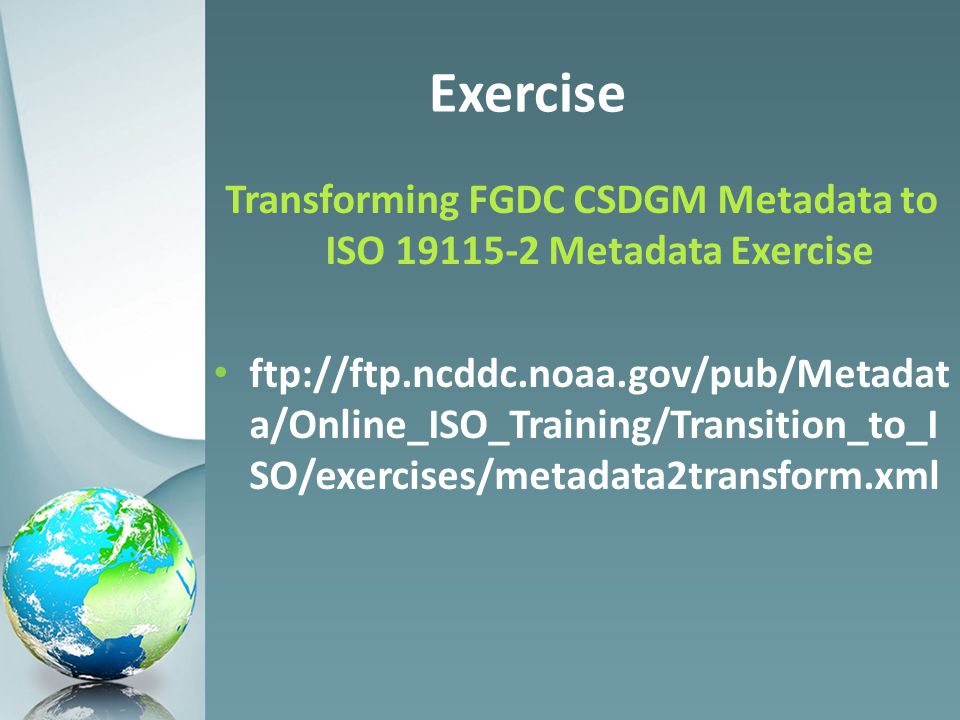

40 Exercise Transforming FGDC CSDGM Metadata to ISO 19115-2 Metadata Exercise ftp://ftp.ncddc.noaa.gov/pub/Metadat a/Online_ISO_Training/Transition_to_I SO/exercises/metadata2transform.xml

41 Transforming to ISO Metadata Email questions to ncddcmetadata@noaa.gov
