ISO/TC211 Geographic Information/Geomatics Implementing ISO Metadata David Danko Work Item 15—Project Leader

Similar presentations


Presentation on theme: "ISO/TC211 Geographic Information/Geomatics Implementing ISO Metadata David Danko Work Item 15—Project Leader"— Presentation transcript:

1 ISO/TC211 Geographic Information/Geomatics Implementing ISO Metadata David Danko Work Item 15—Project Leader ddanko@esri.com

2 ISO/DIS 19115 Metadata

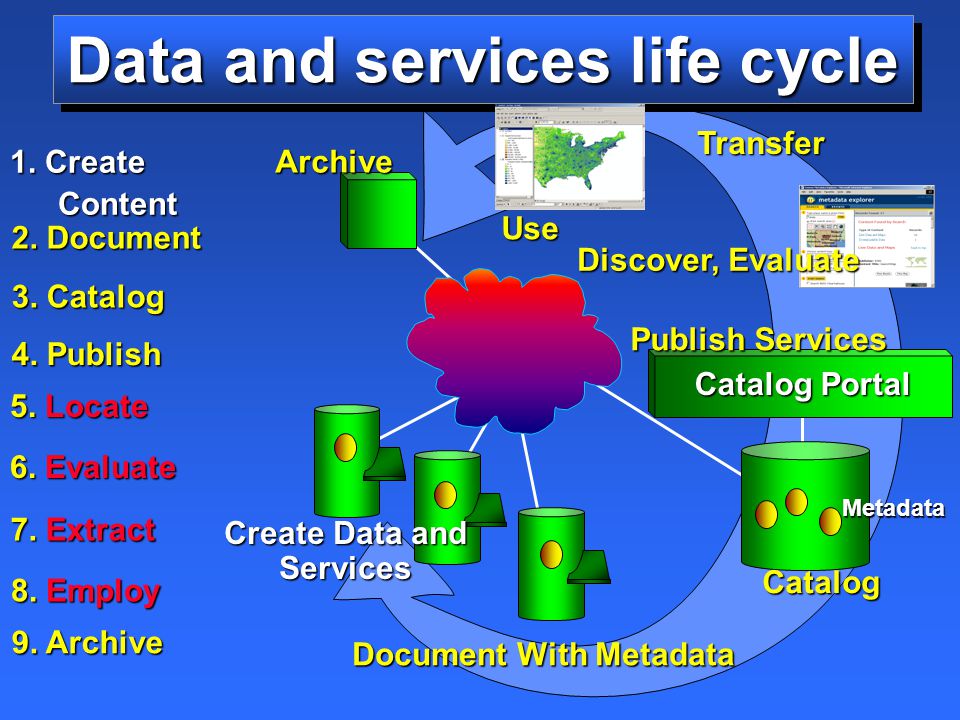

3 Metadata Catalog Portal Create Data and Services 1. Create Content Data and services life cycle Document With Metadata 2. Document Catalog 3. Catalog Publish Services 4. Publish Discover, Evaluate 5. Locate 6. Evaluate Transfer 7. Extract Use 8. Employ Archive 9. Archive

4 Metadata The Right Data for the Right Purpose  Locate Advertise Discover  Evaluate Restrictions Quality Reputation  Extract Order Download  Employ Apply Use Understanding Data

5 Metadata Packages Constraint Information Maintenance Information Distribution Information Identification Information Spatial Representation Information 19107 Metadata Extension Information Portrayal Catalogue Information 19117 Application Schema Information 19109 Content Information 19110, 21, 23, 24 Data Quality Information 19113, 14 Reference System Information 19108, 11, 12 LocateEvaluate Extract Employ

6 Metadata Issues  Problem: Focus on data/servicesFocus on data/services “not important”“not important” Too much troubleToo much trouble  Solution: Must be integral part of operations Part of data collection process Easy to do Stay with the data Life-cycle support

7 Design Goals for Metadata in ArcCatalog  Make it easy to create and use metadata Create editors that are easy to useCreate editors that are easy to use Create and update metadata automatically with a dataset’s current propertiesCreate and update metadata automatically with a dataset’s current properties

8 Design Goals for Metadata in ArcCatalog  Support ISO metadata content standard out of the box Support other standards through customizationSupport other standards through customization  Support metadata for everything Geographic data, nonspatial files, folders, databases, etc.Geographic data, nonspatial files, folders, databases, etc.

9 Design Goals for Metadata in ArcCatalog  Metadata is part of the data Travels with the data when copied, moved, renamed, or exportedTravels with the data when copied, moved, renamed, or exported Doesn’t get lostDoesn’t get lost  Use open, flexible, industry- standard technology Metadata stored in XML formatMetadata stored in XML format

10 ISO Metadata Tools in ArcCatalog  Editor for typing information  Style sheets for viewing  Synchronizer for updating automatically  Importers and exporters  Translator from one standard to another

11 ISO Metadata Editor  Wizard-based editor designed for the average person  Elements are introduced by plain language  Navigate with Next and Back buttons or go directly to a page using the TOC  Handles core elements as defined by 19115

12 ISO Synchronizer  Automates much of the work for metadata collection and maintenance  Vector and raster information, spatial reference, etc. ArcIMS Services Automatically senses and records properties Files

13 ISO Metadata Editor

14

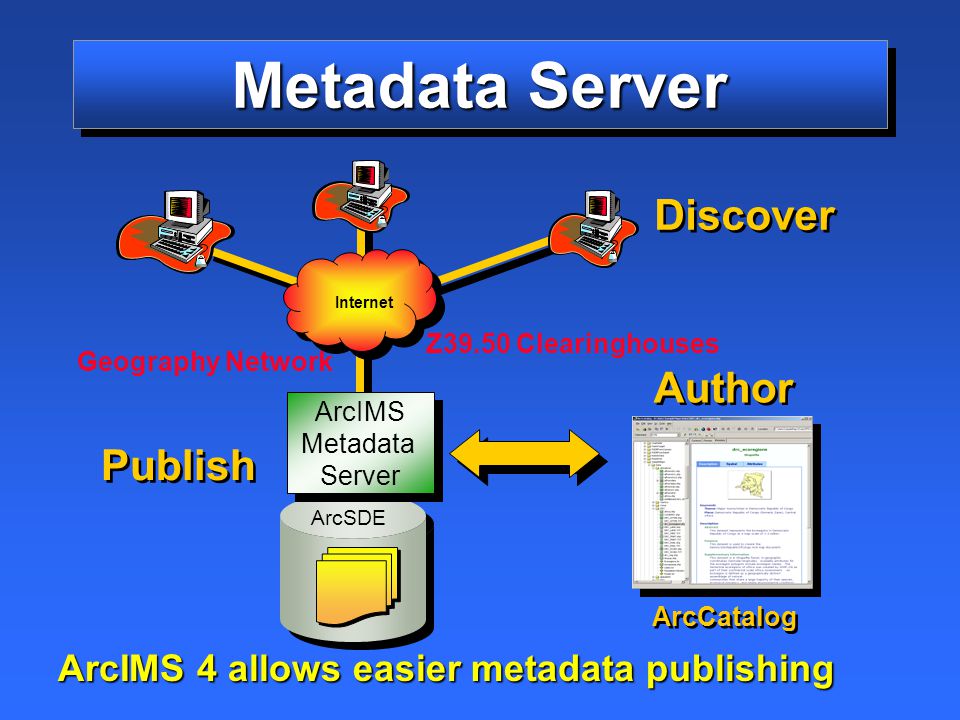

15 ArcCatalog Internet ArcIMS Metadata Server ArcSDE Author Publish Discover ArcIMS 4 allows easier metadata publishing Metadata Server Geography Network Z39.50 Clearinghouses

16 Metadata Server Goals DATA SHARING!!! Provide a central repository of metadata that can be accessed by everyone over the Internet.Provide a central repository of metadata that can be accessed by everyone over the Internet. A place for data producers to publish their data and data consumers to find the data.A place for data producers to publish their data and data consumers to find the data. Using ArcCatalog, publishers can publish to multiple metadata servers.Using ArcCatalog, publishers can publish to multiple metadata servers. Participate in SDI ClearinghousesParticipate in SDI Clearinghouses

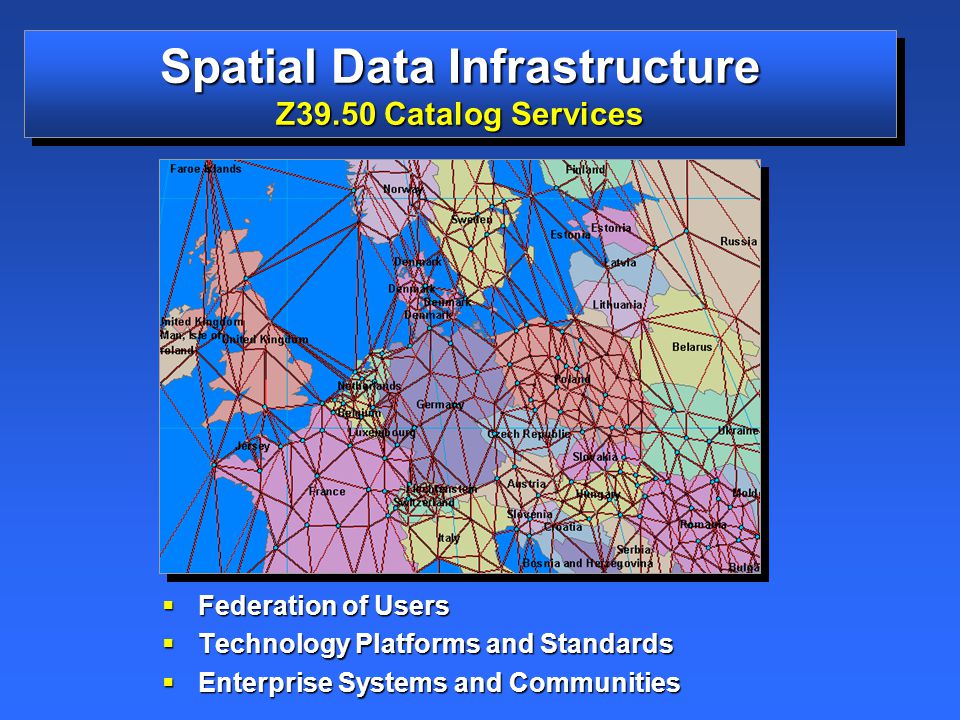

17 Spatial Data Infrastructure Z39.50 Catalog Services  Federation of Users  Technology Platforms and Standards  Enterprise Systems and Communities

18 Publishing Metadata  Publish metadata by copy/paste or drag/drop Copy/Drag the metadata onto the Metadata Server folder to publishCopy/Drag the metadata onto the Metadata Server folder to publish  Metadata is “copied” to the server A new record is created in the database for this metadata data setA new record is created in the database for this metadata data set Contents are indexed to optimize search and retrievalContents are indexed to optimize search and retrieval  Must have publishing privileges

19 Searching for Geospatial Data Metadata Catalog ArcCatalog HTML or Java Clearinghouse Z39.50 Metadata Explorer Metadata Explorer Geography Network

20 Searching Metadata  Use ArcCatalog or the Web-based Metadata Explorer as the search client.  Searching a metadata repository is possible in two ways: 1.Via selected search criteria (keyword, extent, content type, data theme). 2.By browsing through the hierarchy of documents.

21   ISO 19115 Standard Based on a harmonized object model Designed to support geographic information Designed to fill a broad range of requirements Designed to serve the global community in a multinational multi-language environment Recommended core with a full comprehensive profile   Metadata in an ISO standard Allows expanded networks Provides a common understanding Global Interoperability Summary ISO Metadata  Metadata is absolutely essential for all aspects of spatial data handling Locate Evaluate Extract Employ  ISO 19115 development Based on a solid foundation of national, regional, and information community standards Has broad global participation Has gone through formal development cycles The Foundation for a Global Spatial Data Infrastructure
