1. Altair ® 5 & 5IR Multigas Detectors IR and toxic gases added!

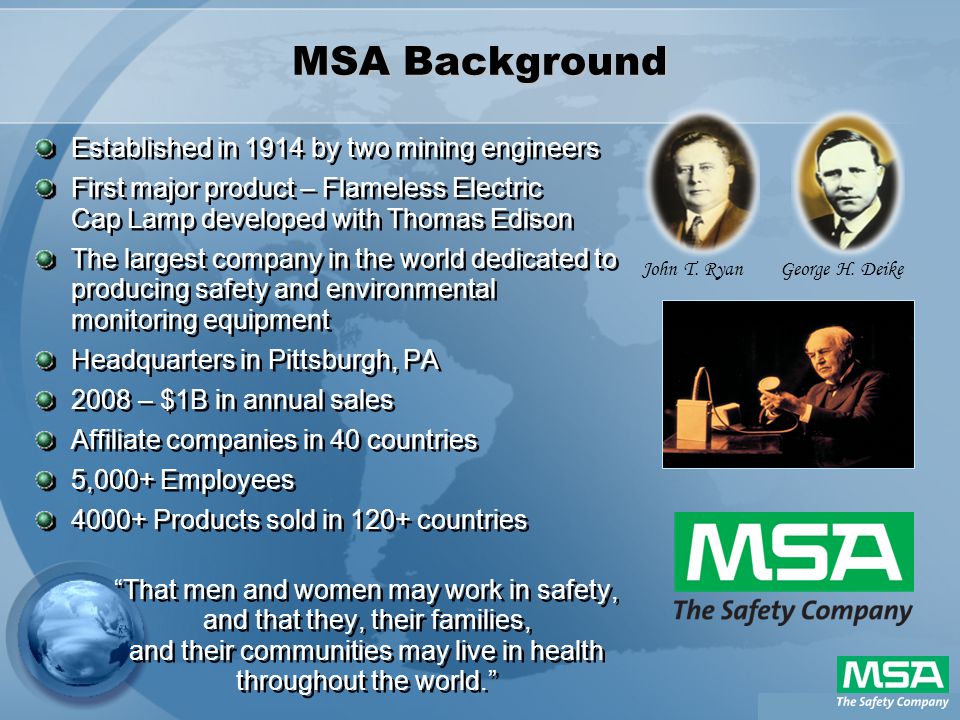

2. MSA Background Established in 1914 by two mining engineers First major product – Flameless Electric Cap Lamp developed with Thomas Edison The largest company in the world dedicated to producing safety and environmental monitoring equipment Headquarters in Pittsburgh, PA 2008 – $1B in annual sales Affiliate companies in 40 countries 5,000+ Employees 4000+ Products sold in 120+ countries “That men and women may work in safety, and that they, their families, and their communities may live in health throughout the world.” Established in 1914 by two mining engineers First major product – Flameless Electric Cap Lamp developed with Thomas Edison The largest company in the world dedicated to producing safety and environmental monitoring equipment Headquarters in Pittsburgh, PA 2008 – $1B in annual sales Affiliate companies in 40 countries 5,000+ Employees 4000+ Products sold in 120+ countries “That men and women may work in safety, and that they, their families, and their communities may live in health throughout the world.” John T. Ryan George H. Deike

3. What It Is Multigas monitor Detects up to 6 gases: combustible gases, O 2, H 2 S, CO, CO 2 & additional toxic gases Rechargeable lithium-ion battery Optional alkaline battery pack Color or monochrome display option Built-in pump or diffusion version Multilingual

4. Latest Additions IR sensors CO 2 0-10%, 0-50% Methane 0-25% Vol Propane 0-100% LEL & 0-100% Vol Butane 0-25% & 0-100% Vol Toxic sensors Cl 2 0-20ppm NO 2 0-50ppm NH 3 0-50ppm PH 3 0-5ppm HCN 0-30ppm ClO 2 0-1.00ppm

5. Latest Additions Global approvals for global customers UL CSA ATEX AnZ

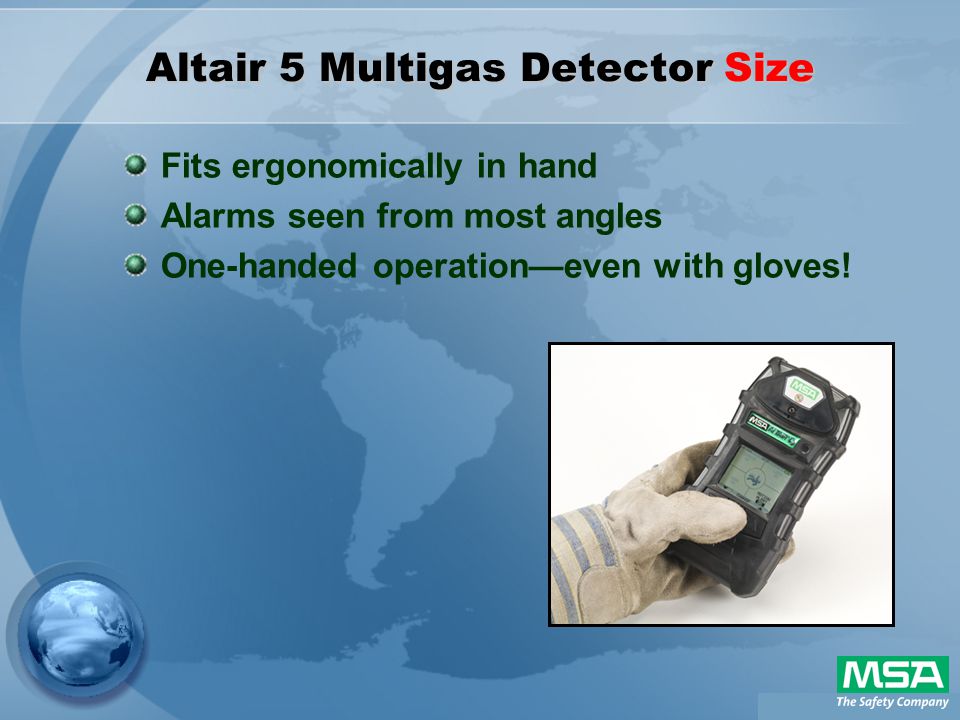

6. Altair 5 Multigas Detector Size Fits ergonomically in hand Alarms seen from most angles One-handed operation—even with gloves!

7. Altair 5 Multigas Detector Design Over-molded case design Built-in rubberized armor Protects unit from impact shock Unit easily survives 6-ft drop Ergonomic design Easier to grip and hold Buttons within easy reach Instrument sealed against water and dust ingress to IP65 For use in the toughest conditions

8. Altair 5 Multigas Detector Alarms Attention-grabbing system 95+ dB horn typical Multiple, alternating high-intensity alarm LEDs Vibrating alarm standard MotionAlert ™ feature standard If no motion is detected for 30 seconds, alarm sounds to alert others Unique feature to gas detection Ideal for confined space entry InstantAlert ™ feature standard Manually activates all alarms to alert others nearby

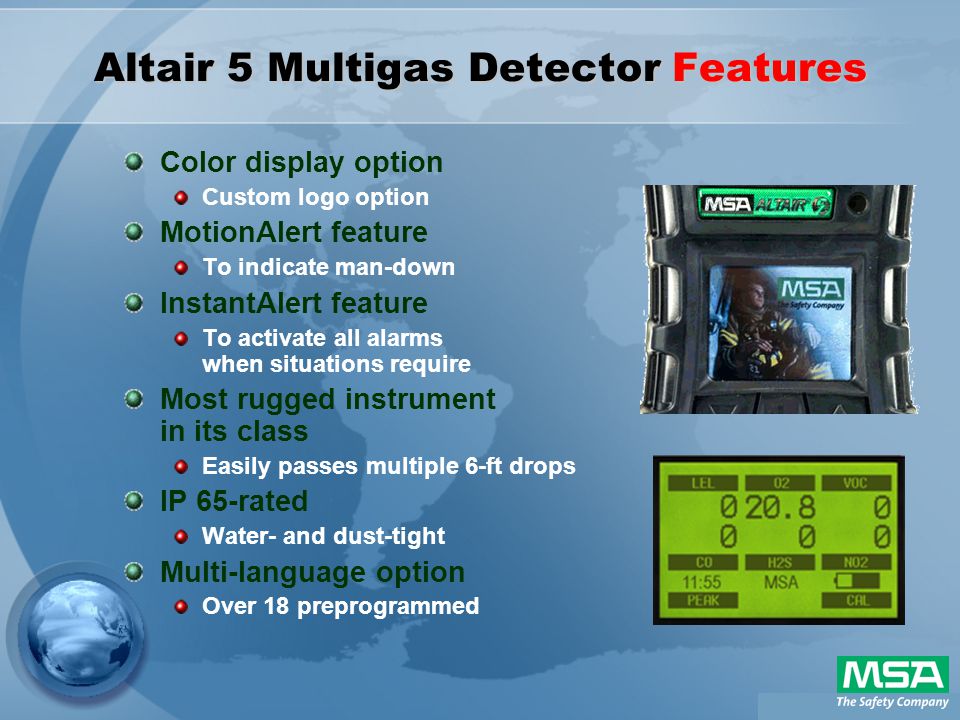

9. Altair 5 Multigas Detector Features Color display option Custom logo option MotionAlert feature To indicate man-down InstantAlert feature To activate all alarms when situations require Most rugged instrument in its class Easily passes multiple 6-ft drops IP 65-rated Water- and dust-tight Multi-language option Over 18 preprogrammed

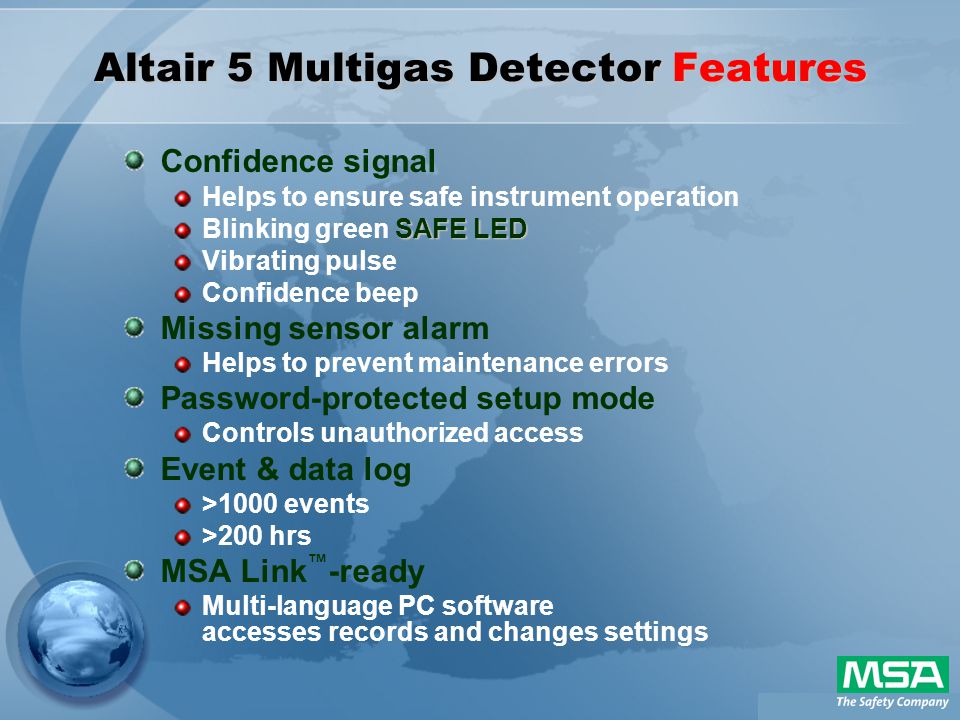

10. Altair 5 Multigas Detector Features Confidence signal Helps to ensure safe instrument operation SAFE LED Blinking green SAFE LED Vibrating pulse Confidence beep Missing sensor alarm Helps to prevent maintenance errors Password-protected setup mode Controls unauthorized access Event & data log >1000 events >200 hrs MSA Link ™ -ready Multi-language PC software accesses records and changes settings

11. Altair 5 Multigas Detector Power Lithium-based technology No memory effects More capacity Helps to hold charge when not in use Runs >15 hours fully equipped Alkaline option available Use for additional run time >12 hrs 3 AA Interchangeable!

12. Altair 5 Multigas Detector Markets Oil & gas Petrochemical Fire service Utilities Agriculture Construction Steel Wastewater Many industrial applications Oil & gas Petrochemical Fire service Utilities Agriculture Construction Steel Wastewater Many industrial applications

13. Altair 5 Multigas Detector Competition Ranges from: 4-gas diffusion 4-gas pumped To: 5-gas instruments 5- & 6-gas instruments with color display 5- & 6-gas instruments with PID & IR color display Be sure to compare apples with apples!

14. Altair 5 Multigas Detector Power On Operates similarly to Solaris ® Multigas Detector Performs self-diagnostic check Display; audible, visual & vibrating alarms; missing sensors Displays : Logo Instrument name & software version Combustible gas type & toxic units (ppm or mg/m 3 ) Alarm set points (Low, High, STEL, TWA) Calibration cylinder values Date Last calibration date FAS (fresh air setup) Menu-driven Follow display instructions Corresponding buttons

15. Altair 5 Multigas Detector Accessories Galaxy ® Automated Calibration System Bump test & calibration Record-keeping Networking Charging cradle Truck-mount Desk-mount Vehicle charger Sampling accessories Lines Probes Filters

16. Altair 5 Multigas Detector Maintenance Low-level end-user maintenance required Individual sensors Sensor replacement kit Kit filter, gasket, etc. PC board Pump replacement kit Front case with built-in filter Battery

17. Altair 5 Multigas Detector Warranty Standard 2-year comprehensive warranty Big Four Includes Big Four sensors Housing Electronics Pump & drive Charger & rechargeable battery

18. Meet the MSA Altair Gas Detection Family

19. Questions? Thanks!
