1 Electric Charges and Static Introduction to Electricity

2 Let review… All matter is made up of atoms. Atoms are made of charged subatomic particles. Electric charge is a fundamental property of matter, similar to mass. The electromagnetic force exists between protons and electrons. Like charges repel. Opposite charges attract. Unlike mass, charges can positive or negative.

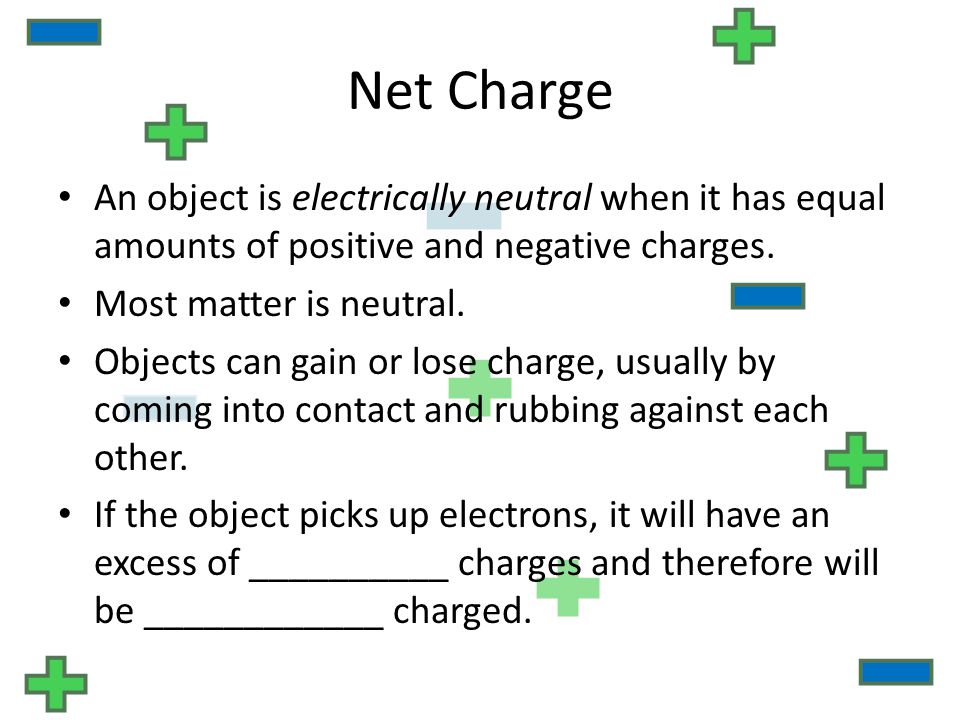

3 An object is electrically neutral when it has equal amounts of positive and negative charges. Most matter is neutral. Objects can gain or lose charge, usually by coming into contact and rubbing against each other. If the object picks up electrons, it will have an excess of __________ charges and therefore will be ____________ charged. Net Charge

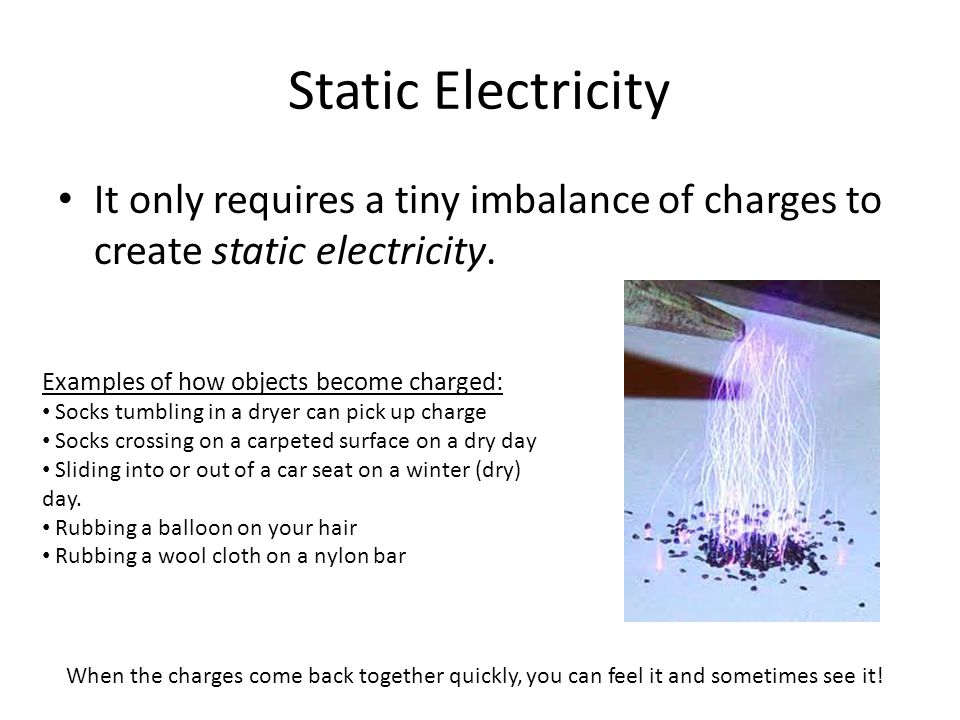

4 Static Electricity It only requires a tiny imbalance of charges to create static electricity. Examples of how objects become charged: Socks tumbling in a dryer can pick up charge Socks crossing on a carpeted surface on a dry day Sliding into or out of a car seat on a winter (dry) day. Rubbing a balloon on your hair Rubbing a wool cloth on a nylon bar When the charges come back together quickly, you can feel it and sometimes see it!

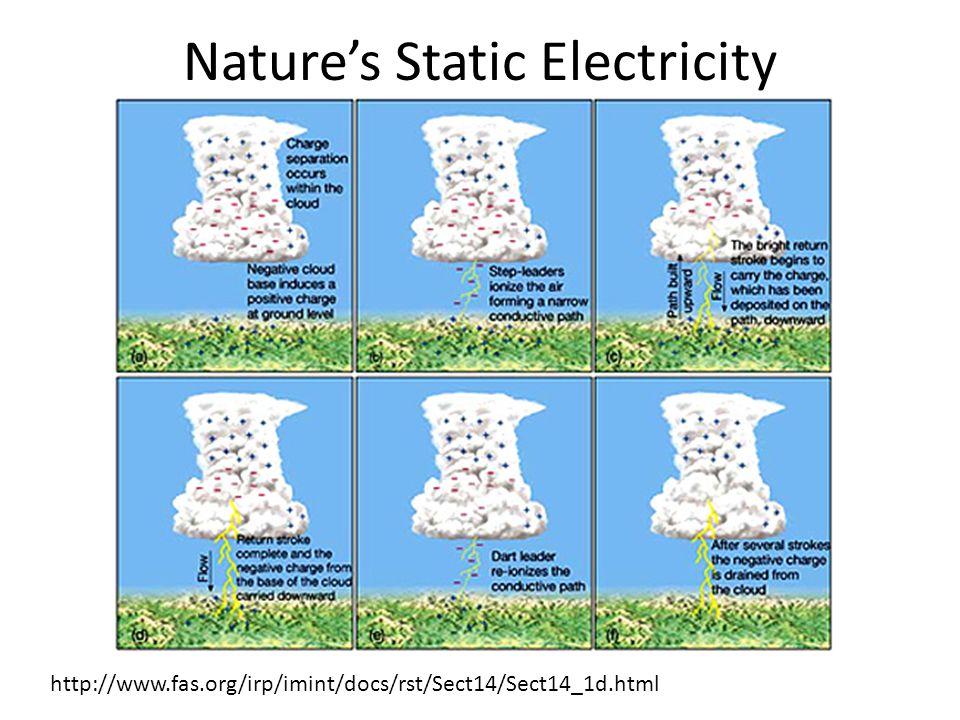

5 Nature’s Static Electricity http://www.fas.org/irp/imint/docs/rst/Sect14/Sect14_1d.html

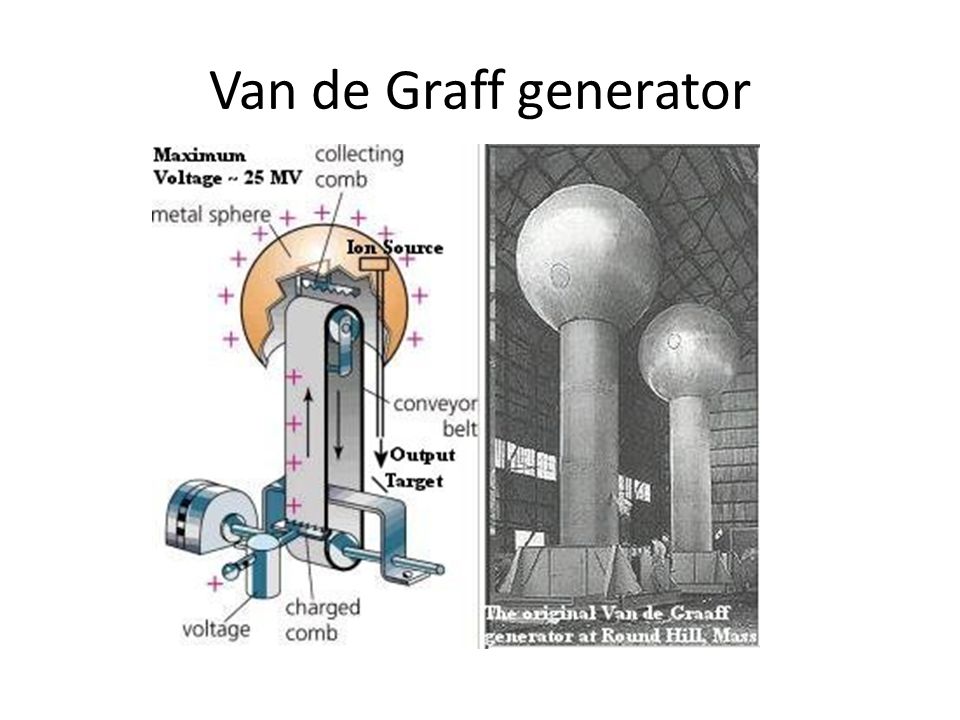

6 Van de Graff generator

7 Particle Accelerators Robert Van de Graff was using high voltage (potential charge difference) to move charges. Scientists became very interested in moving charges quickly enough to “crack into” the nucleus of atoms. Linear accelerators allowed scientists to move charges faster, and with less voltage, than Van de Graff generators. The limits of linear accelerators inspired scientists to create circular accelerators called cyclotrons. The circular method would thus allow an electric field alternating at a constant frequency to kick particles to ever higher energies. (http://www.aip.org/history/lawrence/epa.htm)http://www.aip.org/history/lawrence/epa.htm For your viewing pleasure: http://www.phdcomics.com/comics/archive.php?comicid=1489 http://www.phdcomics.com/comics/archive.php?comicid=1489

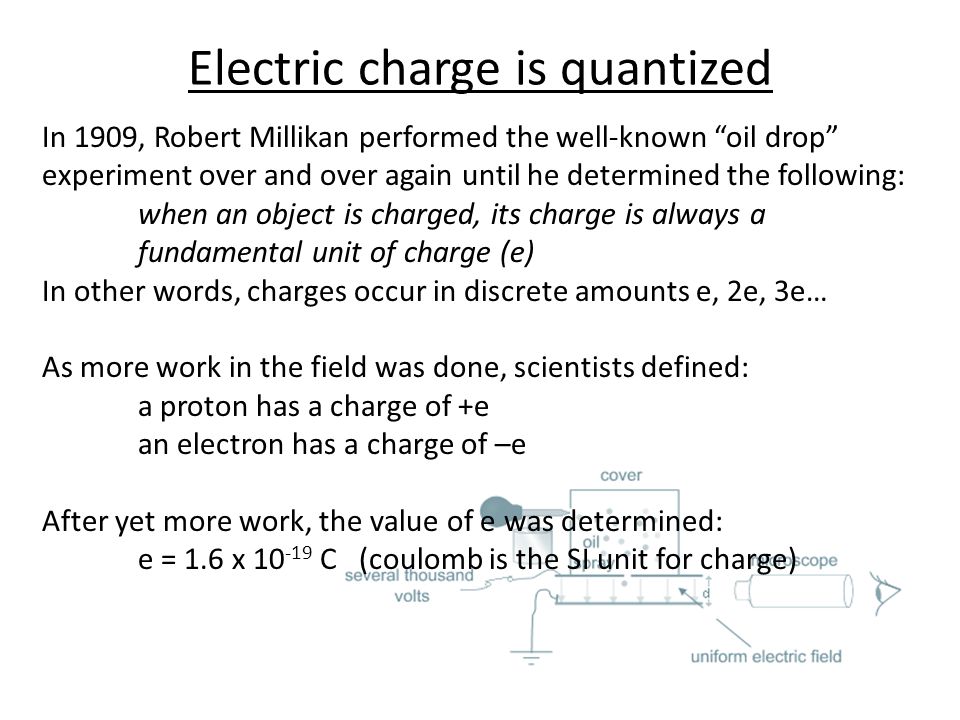

8 In 1909, Robert Millikan performed the well-known “oil drop” experiment over and over again until he determined the following: when an object is charged, its charge is always a fundamental unit of charge (e) In other words, charges occur in discrete amounts e, 2e, 3e… As more work in the field was done, scientists defined: a proton has a charge of +e an electron has a charge of –e After yet more work, the value of e was determined: e = 1.6 x 10 -19 C (coulomb is the SI unit for charge) Electric charge is quantized

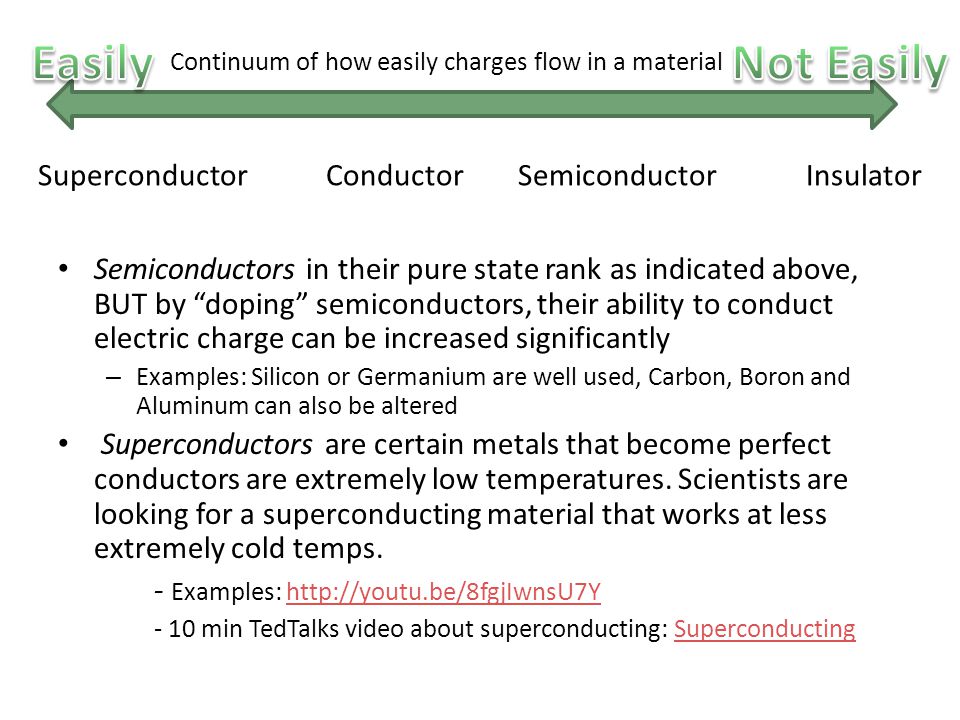

9 SuperconductorConductorSemiconductorInsulator Semiconductors in their pure state rank as indicated above, BUT by “doping” semiconductors, their ability to conduct electric charge can be increased significantly – Examples: Silicon or Germanium are well used, Carbon, Boron and Aluminum can also be altered Superconductors are certain metals that become perfect conductors are extremely low temperatures. Scientists are looking for a superconducting material that works at less extremely cold temps. - Examples: http://youtu.be/8fgjIwnsU7Yhttp://youtu.be/8fgjIwnsU7Y - 10 min TedTalks video about superconducting: SuperconductingSuperconducting Continuum of how easily charges flow in a material

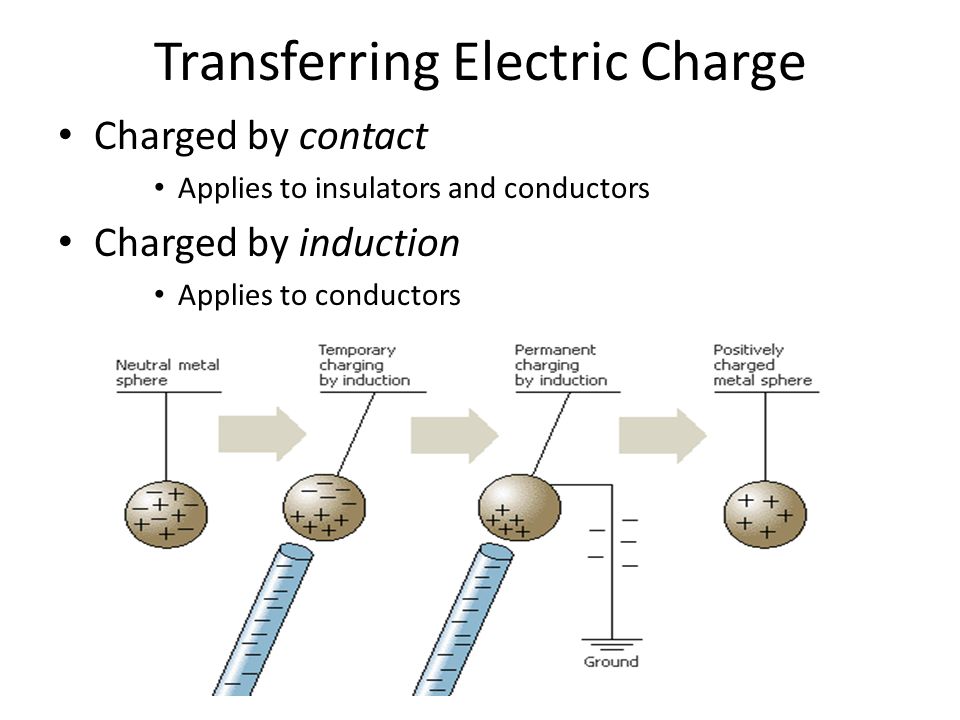

10 Transferring Electric Charge Charged by contact Applies to insulators and conductors Charged by induction Applies to conductors

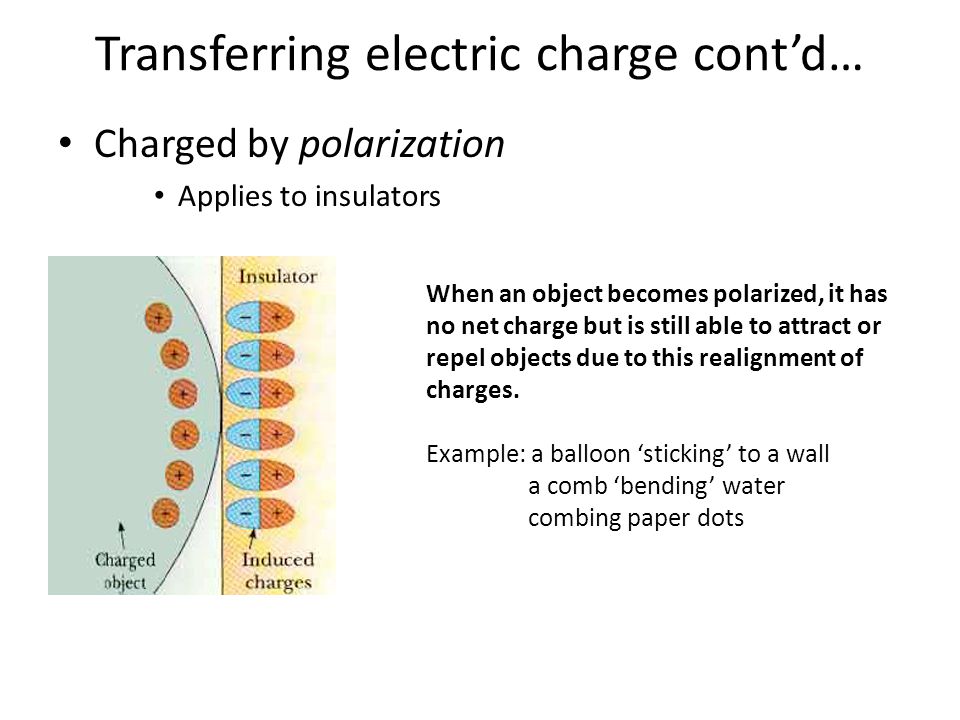

11 Transferring electric charge cont’d… Charged by polarization Applies to insulators When an object becomes polarized, it has no net charge but is still able to attract or repel objects due to this realignment of charges. Example: a balloon ‘sticking’ to a wall a comb ‘bending’ water combing paper dots

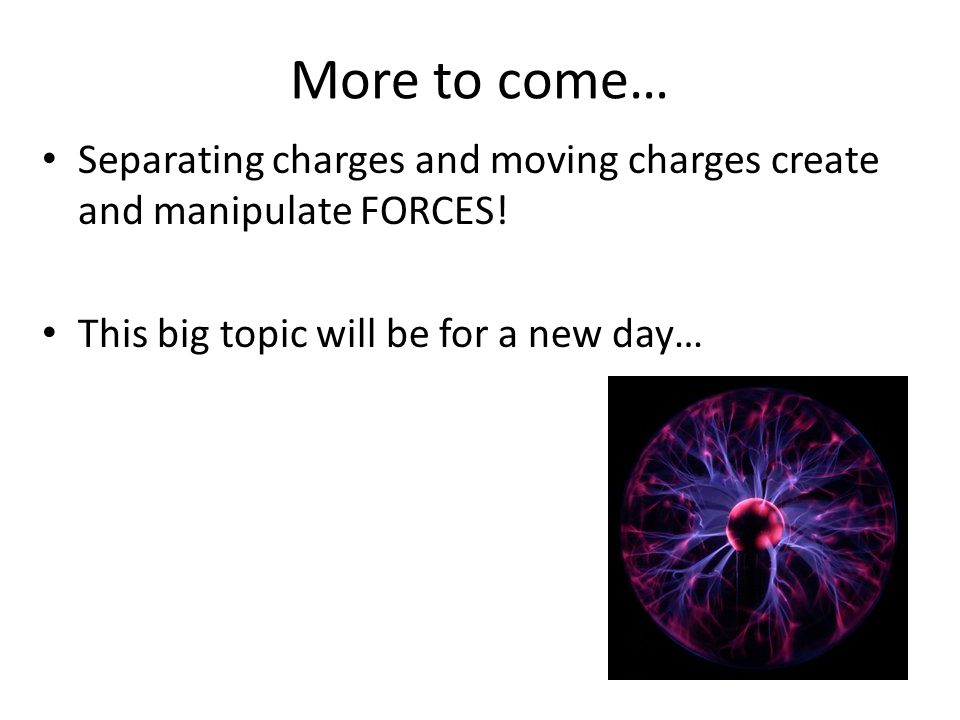

12 More to come… Separating charges and moving charges create and manipulate FORCES! This big topic will be for a new day…
