1

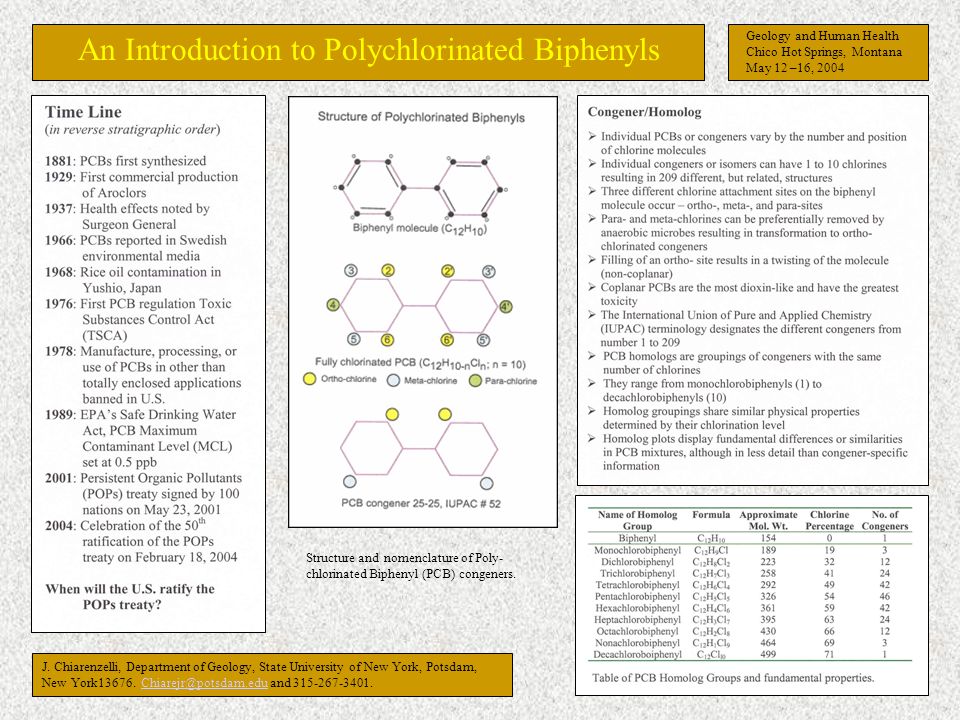

An Introduction to Polychlorinated Biphenyls Structure and nomenclature of Poly- chlorinated Biphenyl (PCB) congeners. J. Chiarenzelli, Department of Geology, State University of New York, Potsdam, New York13676. Chiarejr@potsdam.edu and 315-267-3401.Chiarejr@potsdam.edu Geology and Human Health Chico Hot Springs, Montana May 12 –16, 2004
2

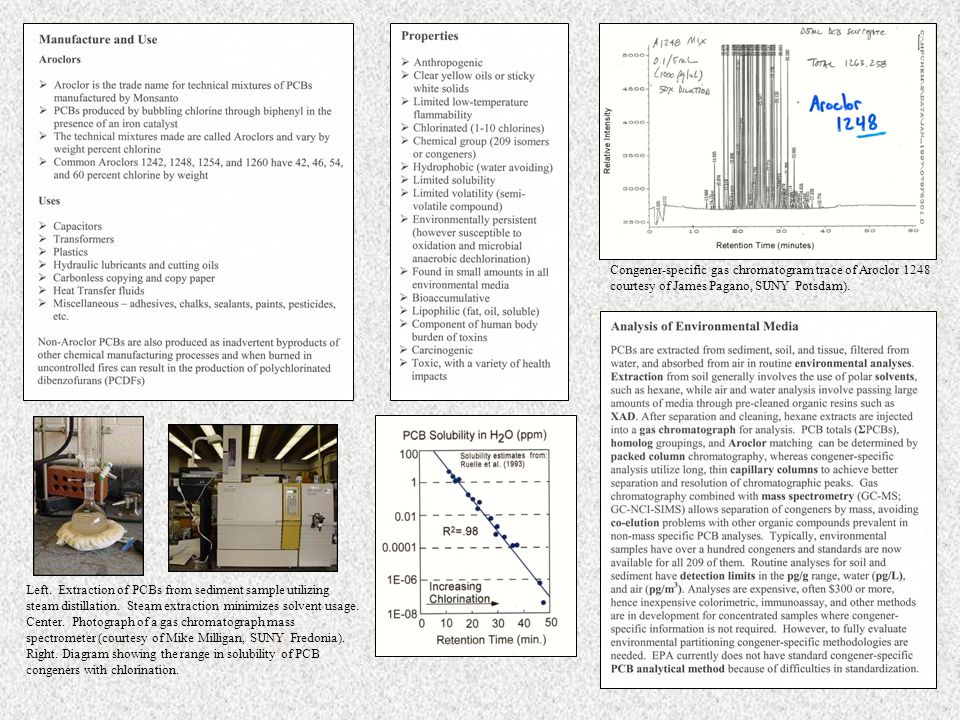

Left. Extraction of PCBs from sediment sample utilizing steam distillation. Steam extraction minimizes solvent usage. Center. Photograph of a gas chromatograph mass spectrometer (courtesy of Mike Milligan, SUNY Fredonia). Right. Diagram showing the range in solubility of PCB congeners with chlorination. Congener-specific gas chromatogram trace of Aroclor 1248 courtesy of James Pagano, SUNY Potsdam).
3
New York State Department of Health’s annual sport fish consumption advisory; pink locations based on PCBs.. Cartoon displaying poleward transport of POPs.
