Installing Active Directory on Windows Server 2008 R2 Installing Active Directory on a fresh Windows Server 2008 R2 machine in a home network. These instructions.

Similar presentations


Presentation on theme: "Installing Active Directory on Windows Server 2008 R2 Installing Active Directory on a fresh Windows Server 2008 R2 machine in a home network. These instructions."— Presentation transcript:

1 Installing Active Directory on Windows Server 2008 R2 Installing Active Directory on a fresh Windows Server 2008 R2 machine in a home network. These instructions will assume you are starting from scratch, have a static IP address on your server, and that you also do not have a compatible DNS server installed. Also in your IP settings please make sure the DNS server address is pointing to the IP address of the server on which you are installing Active Directory. This is necessary to be able to install a DNS server on the same server machine when it comes to promoting the server to a Domain Controller later on. These instructions will Install an Active Directory Domain Services role Promote the server to a domain controller - with a new Domain in a new Forest Install a new DNS server

2 Install the Active Directory Domain Services role Click on Add roles on the Initial Configuration window

3 Select the box next to Active Directory Doman Services

4 Select Add Required Features

5 Click Next

6 Click Install

7 Open the Server Manager Click on “Run the Active Directory Domain Services Installation Wizard (dcpromo.exe)” Promote the server to a Domain Controller and configure Active Directory

8 Click Next

9

10 Select Create a new domain in a new forest Basically this means we’re starting from scratch, installing our first domain in a first forest

11 Click Next Enter a domain name

12 Click Next Choose a Forest Functional Level Since we’re installing our first domain in a our home network (to put it simply), our choice here will affect what domain controllers we may want to add this this forest in future. Learn more here

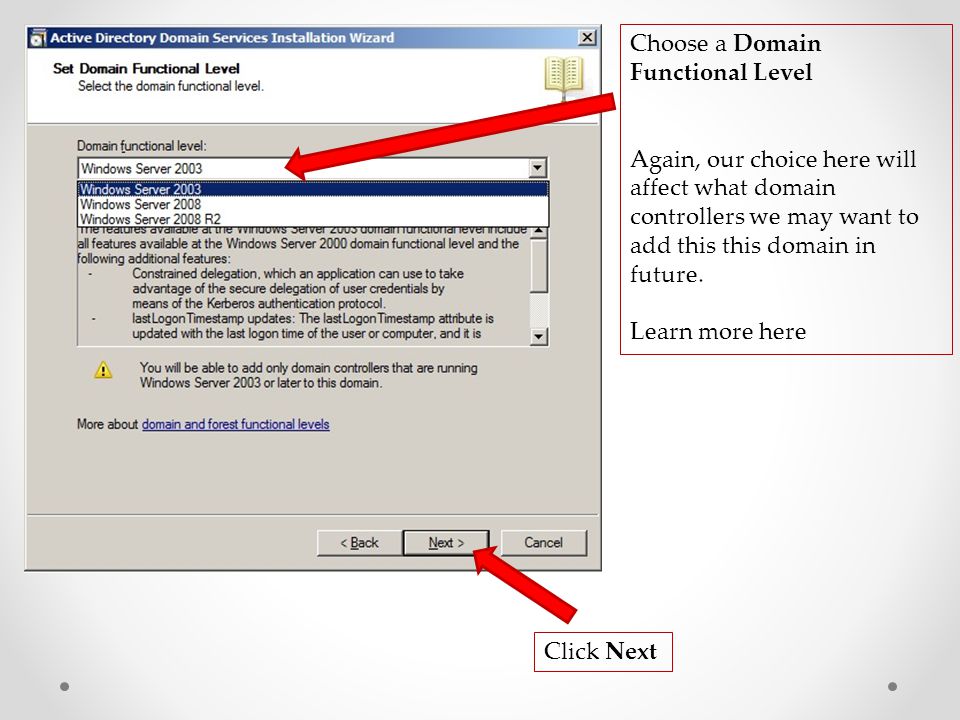

13 Click Next Choose a Domain Functional Level Again, our choice here will affect what domain controllers we may want to add this this domain in future. Learn more here

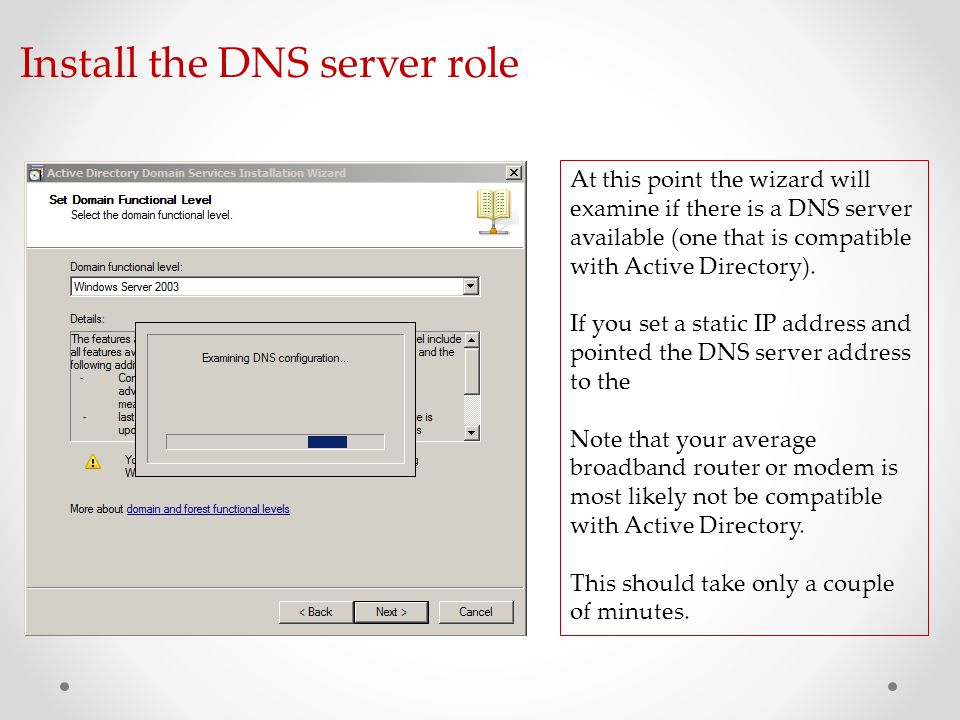

14 At this point the wizard will examine if there is a DNS server available (one that is compatible with Active Directory). If you set a static IP address and pointed the DNS server address to the Note that your average broadband router or modem is most likely not be compatible with Active Directory. This should take only a couple of minutes. Install the DNS server role

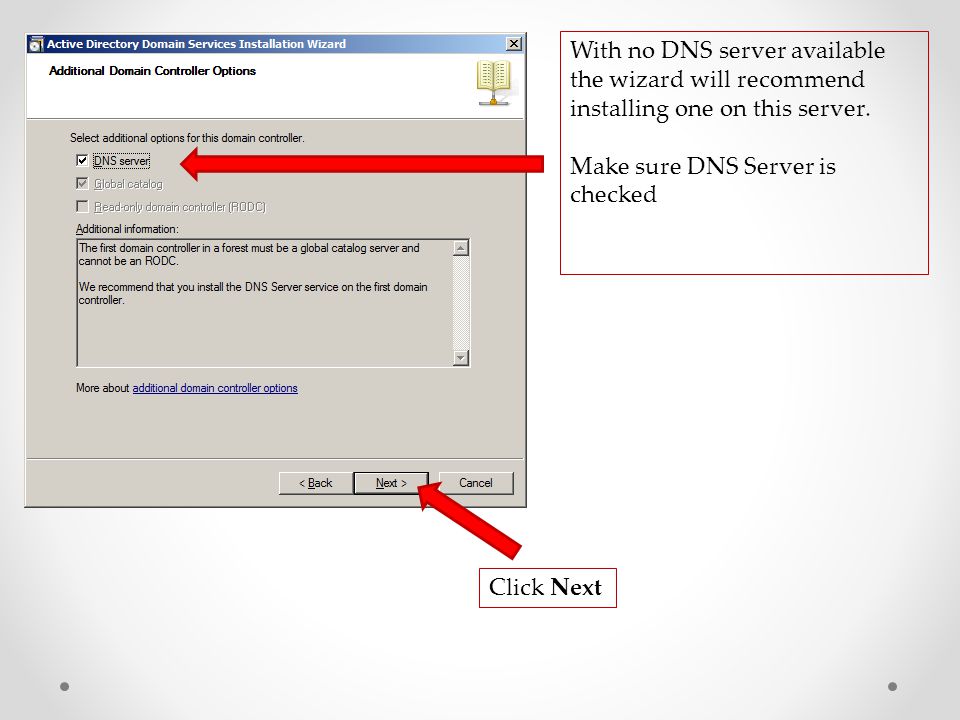

15 With no DNS server available the wizard will recommend installing one on this server. Make sure DNS Server is checked Click Next

16 Click Yes to continue Since we don’t have an existing DNS server we don’t have to concern ourselves with this message.

17 Leave everything as default Click Next

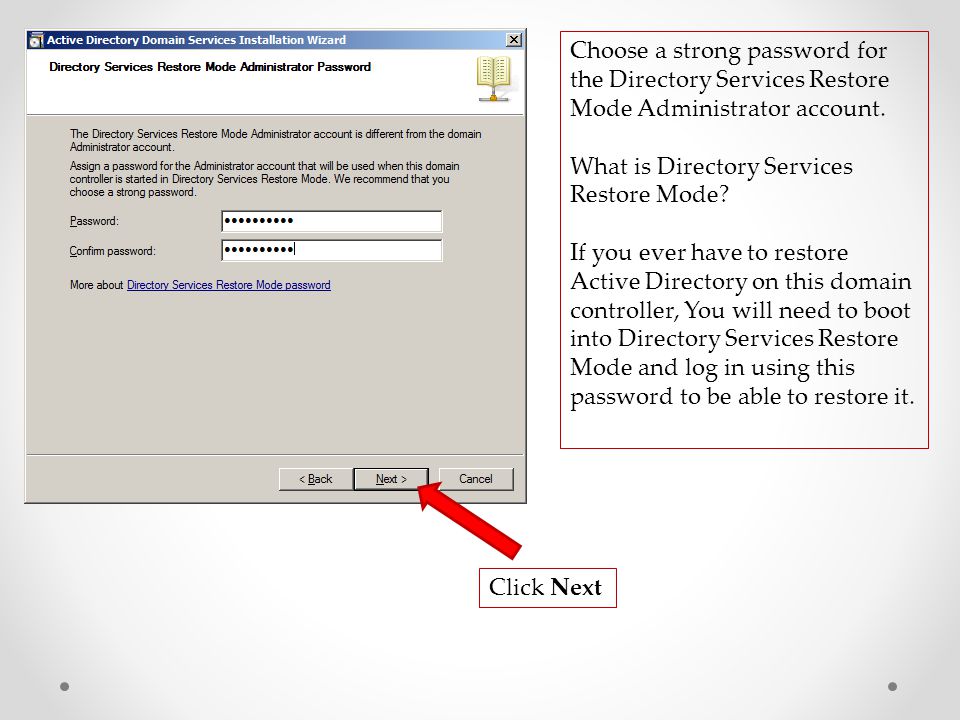

18 Choose a strong password for the Directory Services Restore Mode Administrator account. What is Directory Services Restore Mode? If you ever have to restore Active Directory on this domain controller, You will need to boot into Directory Services Restore Mode and log in using this password to be able to restore it. Click Next

19 Click Next when you have confirmed everything is correct on the summary screen and wait for the installation to finish.

20 Click Finish Restart the server when prompted

21 You will need to install a DHCP server to be able to fully use Active Directory on your network. Instructions are available on my blog emeneye.wordpress.com That’s it.
