1. Installing Windows Vista Lesson 2

2. Skills Matrix Technology SkillObjective DomainObjective # Performing a Clean Installation Set up Windows Vista as the sole operating system 1.2 Performing a Dual Boot Installation Set up Windows Vista to dual boot with Windows XP 1.2 Migrating to Windows Vista Use Windows Easy Transfer to move files between machines 1.3

3. Skills Matrix Technology SkillObjective DomainObjective # Identifying Upgrade PathsIdentify valid upgrade paths 1.3 Upgrading to Windows Vista Upgrade to Windows Vista from previous versions of Windows 1.3 Preparing to UpgradeIdentify application compatibility requirements 1.3

4. Skills Matrix Technology SkillObjective DomainObjective # Upgrading from Windows XP Perform an in-place upgrade 1.4 Upgrading Vista EditionsUpgrade from one edition of Windows Vista to another edition 1.4

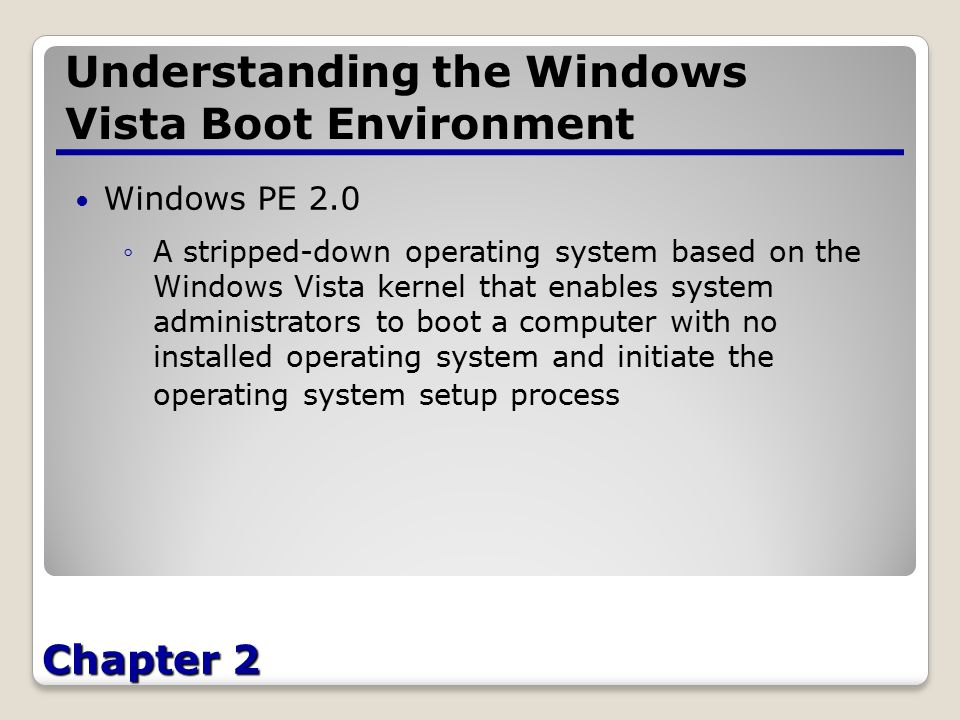

5. Chapter 2 Understanding the Windows Vista Boot Environment Windows PE 2.0 ◦A stripped-down operating system based on the Windows Vista kernel that enables system administrators to boot a computer with no installed operating system and initiate the operating system setup process

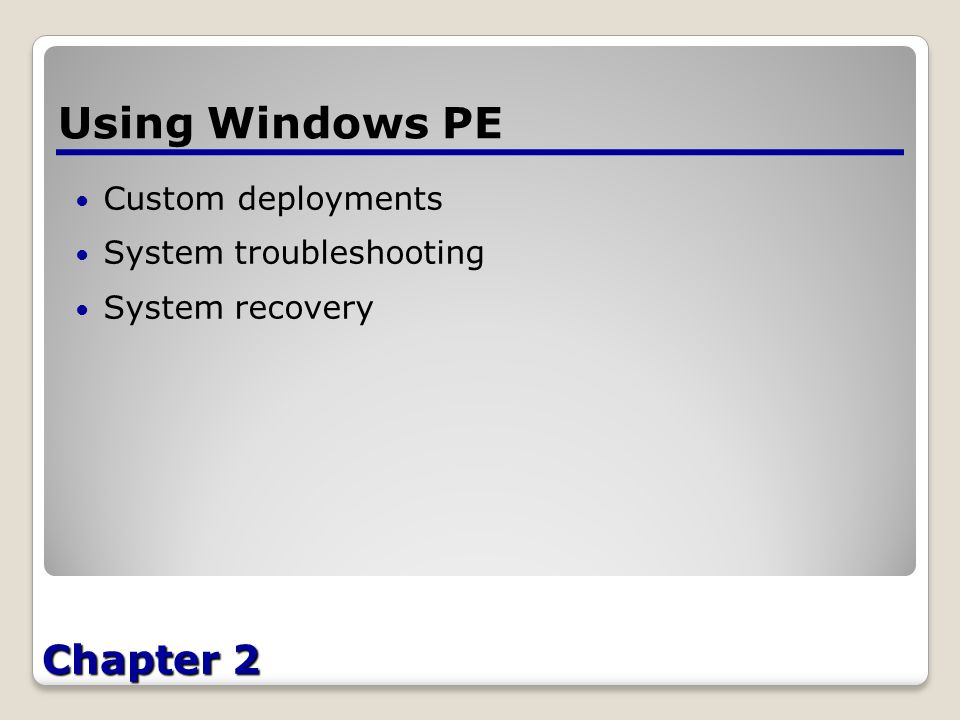

6. Chapter 2 Using Windows PE Custom deployments System troubleshooting System recovery

7. Chapter 2 Performing a Clean Installation Turn on the computer and insert the Windows Vista installation disk into the DVD drive. Press any key to boot from the DVD (if necessary). A progress indicator screen appears as Windows is loading files.

8. Chapter 2 Performing a Clean Installation (cont.) The computer switches to the Windows graphical interface and the Install Windows page appears.

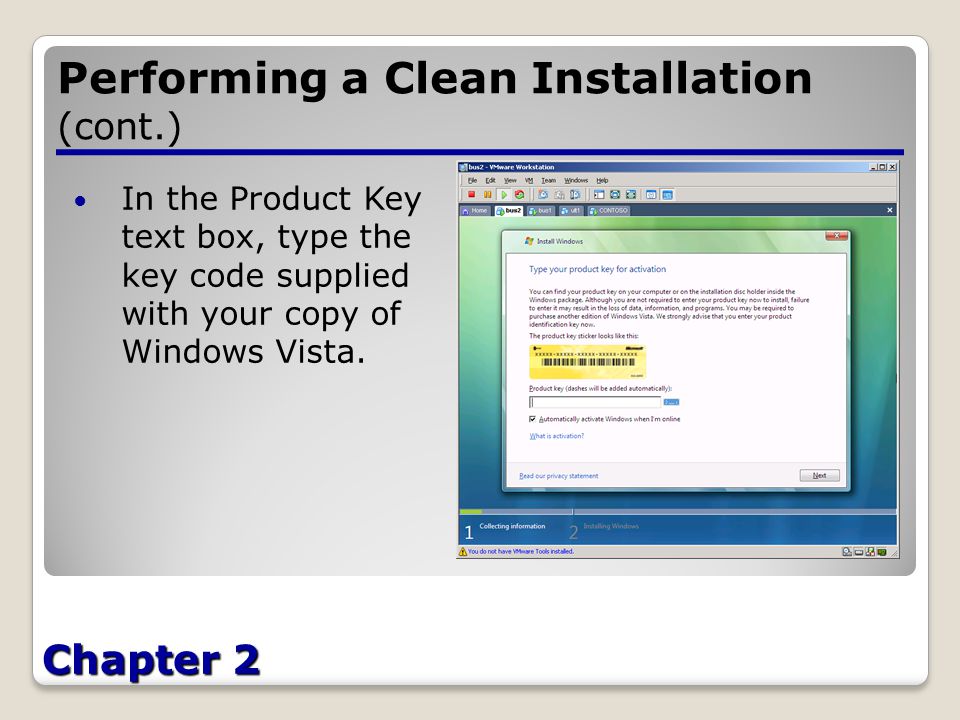

9. Chapter 2 Performing a Clean Installation (cont.) In the Product Key text box, type the key code supplied with your copy of Windows Vista.

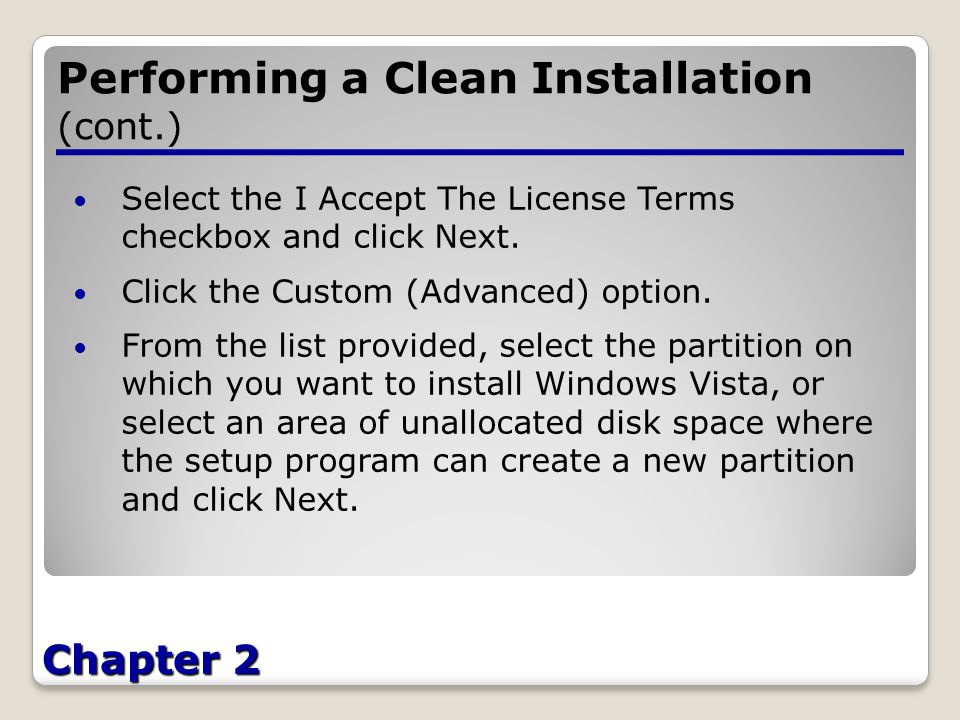

10. Chapter 2 Performing a Clean Installation (cont.) Select the I Accept The License Terms checkbox and click Next. Click the Custom (Advanced) option. From the list provided, select the partition on which you want to install Windows Vista, or select an area of unallocated disk space where the setup program can create a new partition and click Next.

11. Chapter 2 Performing a Clean Installation (cont.) After several minutes during which the setup program installs Windows Vista, the computer reboots. The Choose A User Name And Picture page appears.

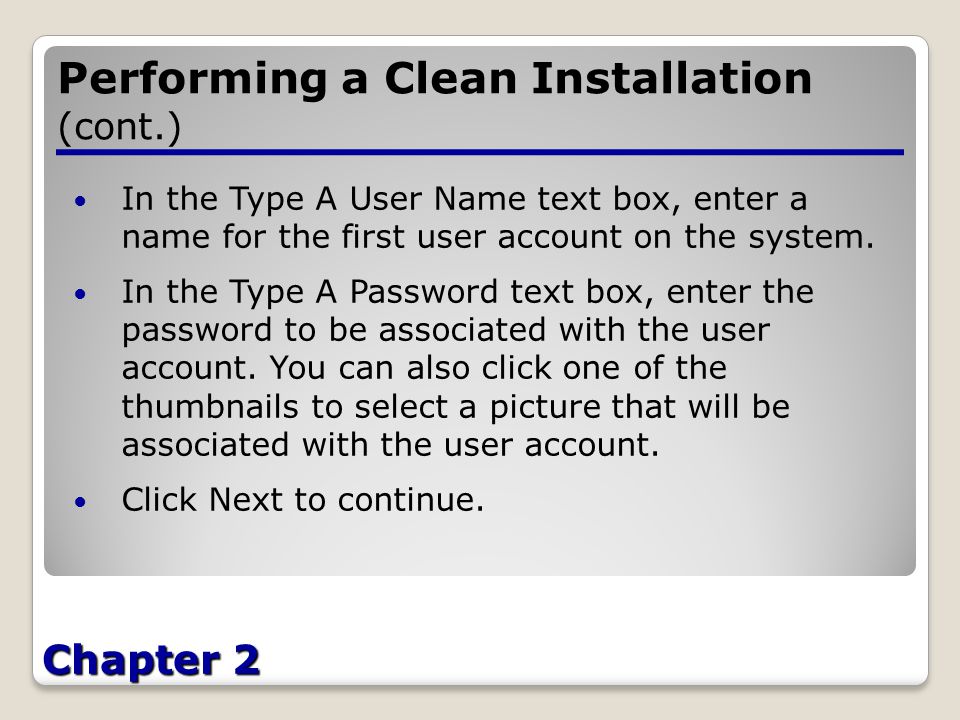

12. Chapter 2 Performing a Clean Installation (cont.) In the Type A User Name text box, enter a name for the first user account on the system. In the Type A Password text box, enter the password to be associated with the user account. You can also click one of the thumbnails to select a picture that will be associated with the user account. Click Next to continue.

13. Chapter 2 Performing a Clean Installation (cont.) In the Type A Computer Name checkbox, enter a name of no more than 15 characters long by which the computer will be known on the network. Click one of the thumbnails to select a background image for your Windows desktop and click Next to continue.

14. Chapter 2 Performing a Clean Installation (cont.) Select one of the three options specifying what security settings you want the computer to use. From the Time Zone dropdown list, select the time zone in which the computer will be running and click Next. Click the appropriate option specifying the computer’s normal location.

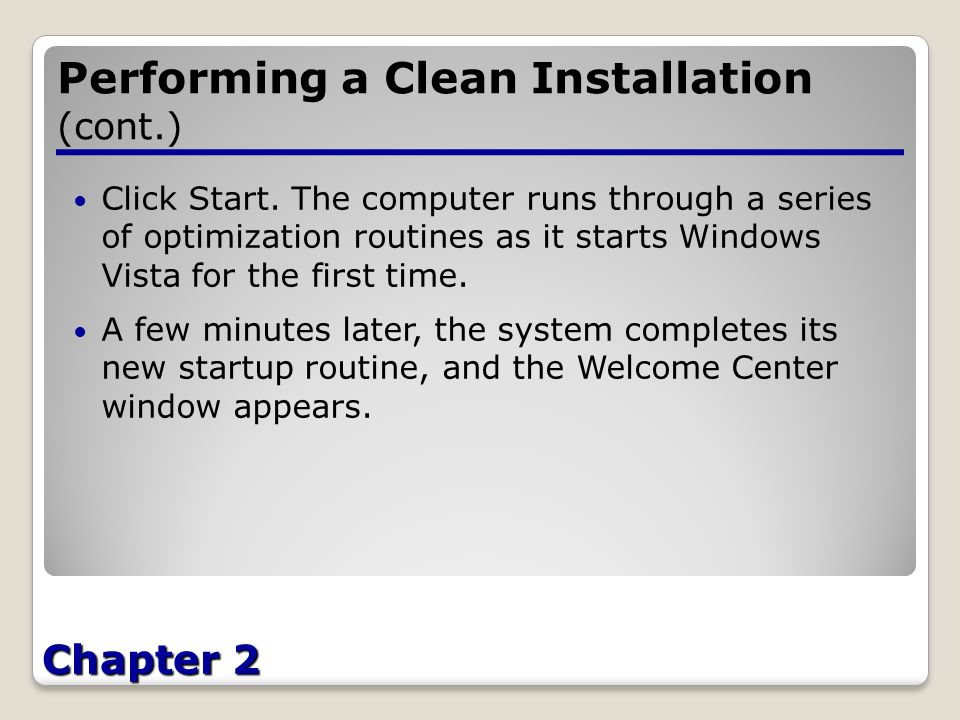

15. Chapter 2 Performing a Clean Installation (cont.) Click Start. The computer runs through a series of optimization routines as it starts Windows Vista for the first time. A few minutes later, the system completes its new startup routine, and the Welcome Center window appears.

16. Chapter 2 Installing Third-Party Drivers If, during a Windows Vista installation, no disk partitions or unallocated space appear on the Where Do You Want To Install Windows? page, you must install the appropriate driver for your disk controller using the following procedure before the installation can continue.

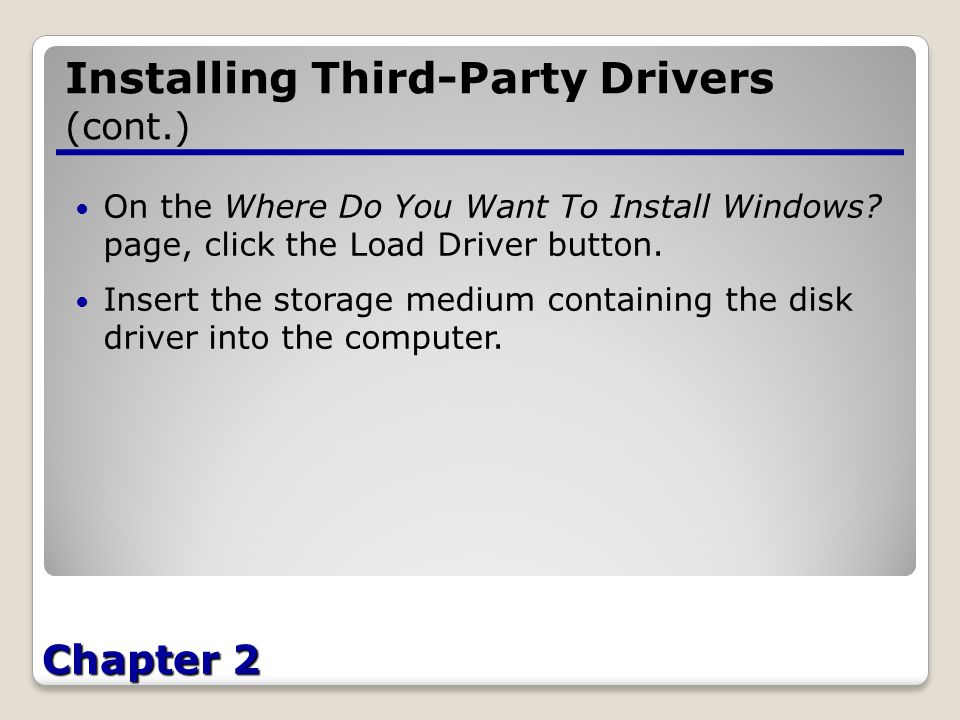

17. Chapter 2 Installing Third-Party Drivers (cont.) On the Where Do You Want To Install Windows? page, click the Load Driver button. Insert the storage medium containing the disk driver into the computer.

18. Chapter 2 Installing Third-Party Drivers (cont.) Click OK if the driver is in the root directory of the storage medium, or click Browse if it is necessary to locate the driver in the directory structure of the disk. Select the partition or area of unallocated space where you want to install Windows Vista and continue with the rest of the installation procedure.

19. Chapter 2 Migrating to Windows Vista Windows Easy Transfer User State Migration Tool 3.0

20. Chapter 2 Identifying Upgrade Paths Only computers running the following operating systems are eligible for upgrades to Windows Vista ◦Windows 2000 ◦Windows XP ◦Windows Vista (another edition)

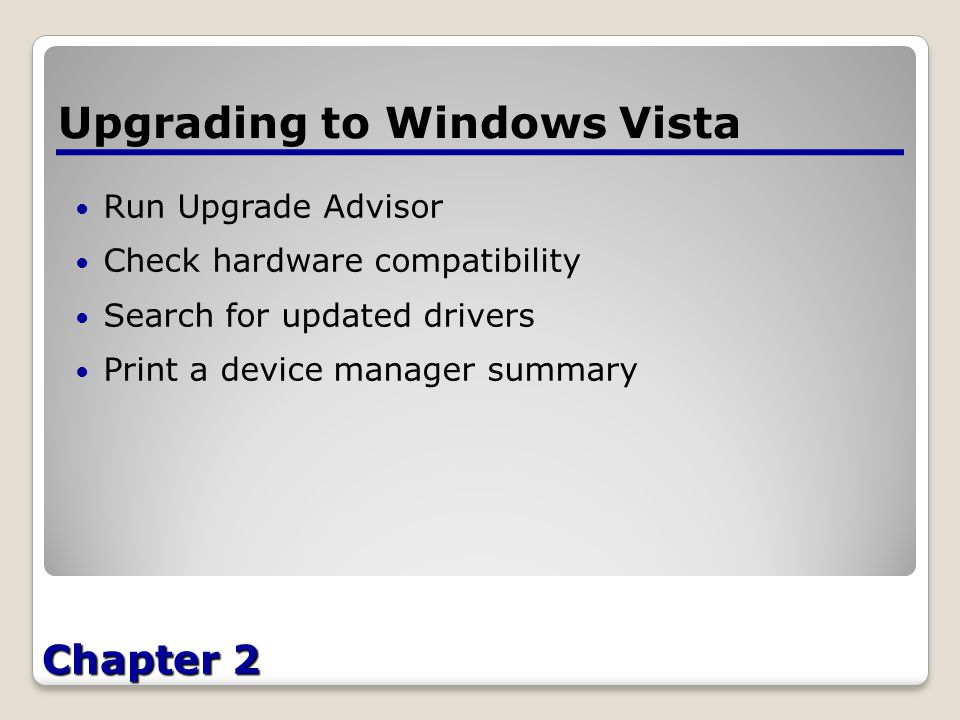

21. Chapter 2 Upgrading to Windows Vista Run Upgrade Advisor Check hardware compatibility Search for updated drivers Print a device manager summary

22. Chapter 2 Upgrading to Windows Vista (cont.) Check application compatibility Check disk space Ensure computer functionality Perform a full backup Purchase Windows Vista

23. Chapter 2 Upgrading Windows XP to Windows Vista Insert the Windows Vista installation disk into the DVD drive. Click Install Now. Click Do Not Get The Latest Updates For Installation.

24. Chapter 2 Upgrading Windows XP to Windows Vista (cont.) In the Product Key text box, enter the product key supplied with your Windows Vista upgrade package. Select the I Accept The License Terms checkbox and click Next. Click Upgrade.

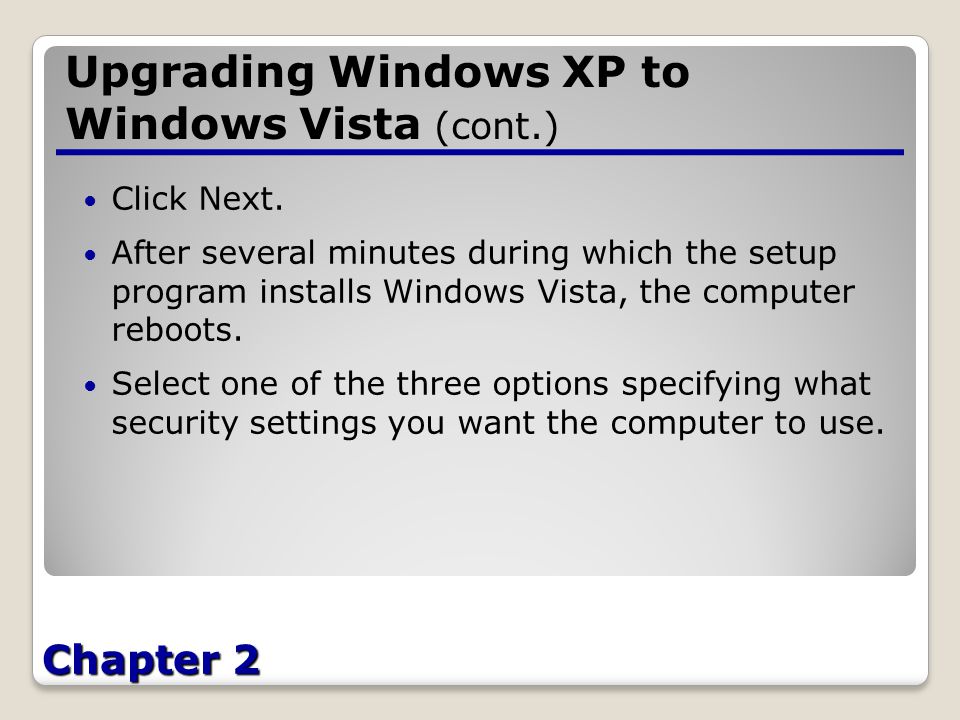

25. Chapter 2 Upgrading Windows XP to Windows Vista (cont.) Click Next. After several minutes during which the setup program installs Windows Vista, the computer reboots. Select one of the three options specifying what security settings you want the computer to use.

26. Chapter 2 Upgrading Windows XP to Windows Vista (cont.) From the Time Zone dropdown list, select the time zone in which the computer will be running and click Next. Click the appropriate option specifying the computer’s normal location.

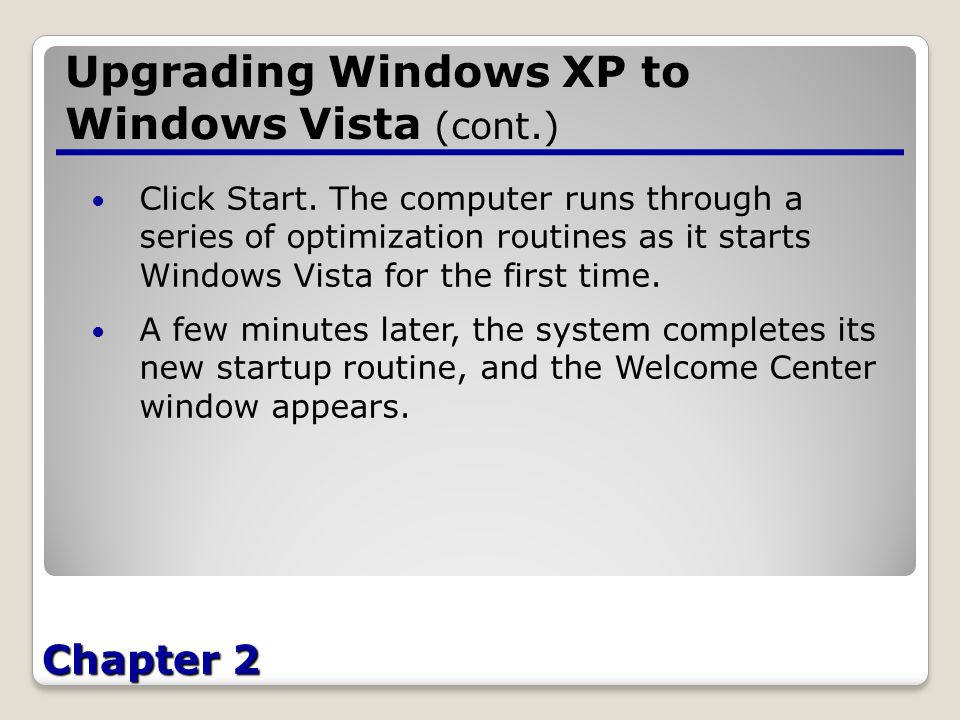

27. Chapter 2 Upgrading Windows XP to Windows Vista (cont.) Click Start. The computer runs through a series of optimization routines as it starts Windows Vista for the first time. A few minutes later, the system completes its new startup routine, and the Welcome Center window appears.

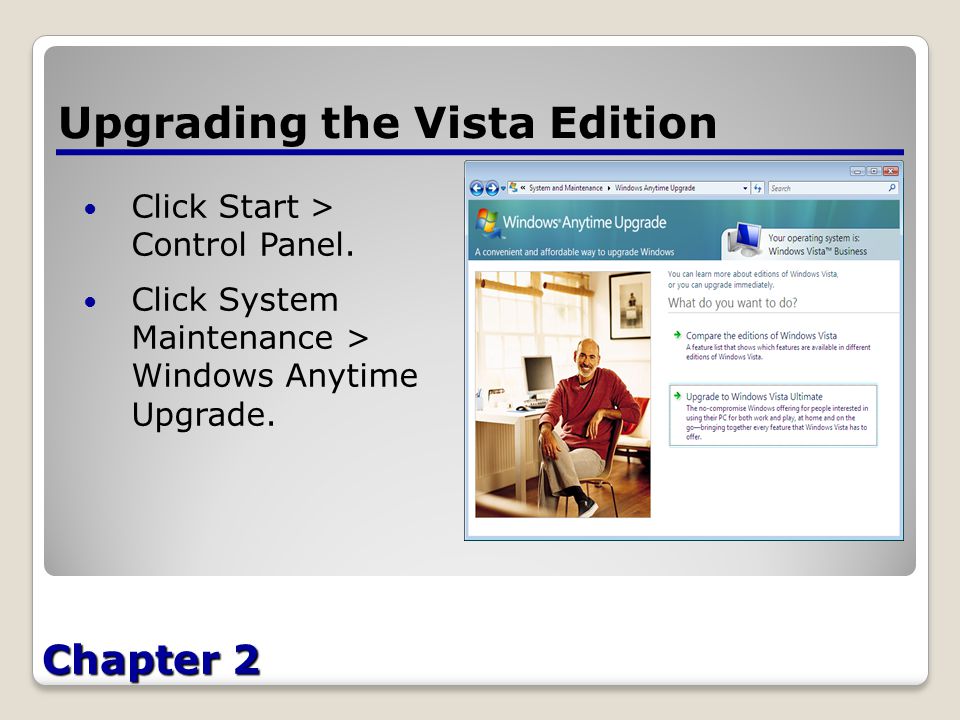

28. Chapter 2 Upgrading the Vista Edition Click Start > Control Panel. Click System Maintenance > Windows Anytime Upgrade.

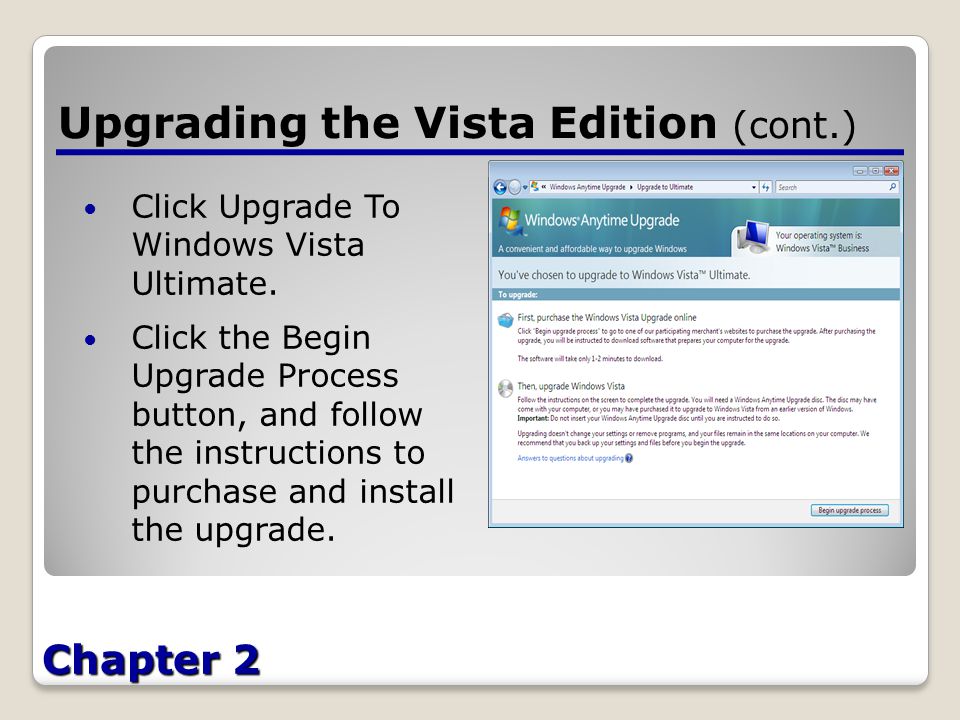

29. Chapter 2 Upgrading the Vista Edition (cont.) Click Upgrade To Windows Vista Ultimate. Click the Begin Upgrade Process button, and follow the instructions to purchase and install the upgrade.

30. Chapter 2 Performing a Dual Boot Installation To perform this installation, you must have ◦Two disk partitions ◦Two full product licenses ◦A full system backup

31. Chapter 2 Installing Windows Vista in a Dual Boot Environment Insert the Windows Vista installation disk into the DVD drive. Click Install Now. Click Do Not Get The Latest Updates For Installation.

32. Chapter 2 Installing Windows Vista in a Dual Boot Environment (cont.) In the Product Key text box, enter the product key supplied with your Windows Vista package and click Next. Select the I Accept The License Terms checkbox and click Next. Click Custom (Advanced).

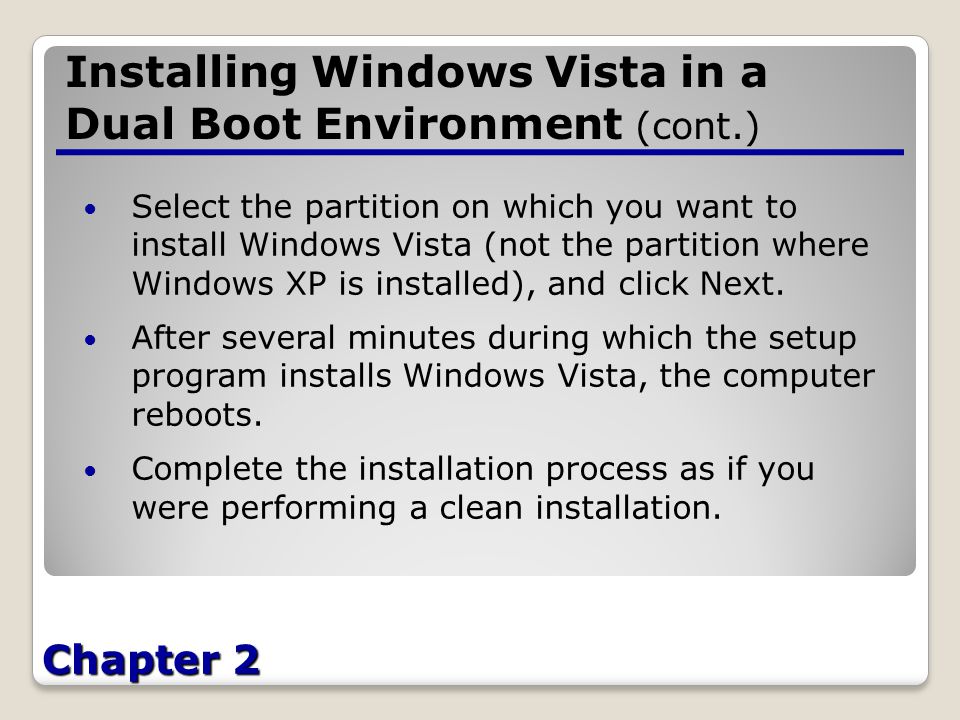

33. Chapter 2 Installing Windows Vista in a Dual Boot Environment (cont.) Select the partition on which you want to install Windows Vista (not the partition where Windows XP is installed), and click Next. After several minutes during which the setup program installs Windows Vista, the computer reboots. Complete the installation process as if you were performing a clean installation.

34. Chapter 2 You Learned Windows Vista includes a new preinstallation environment called Windows PE. In a clean installation, you boot from the Windows Vista setup disk and create or select a blank partition where Vista will reside.

35. Chapter 2 You Learned (cont.) It is possible to migrate files and settings from an existing Windows installation to a newly installed Windows Vista installation using either Windows Easy Transfer or the User State Migration Tool. Windows Vista supports in-place upgrades only from Windows XP or another Windows Vista edition.

36. Chapter 2 You Learned (cont.) To perform an in-place upgrade, you must launch the Windows Vista setup program from within Windows XP. To upgrade from one Windows Vista edition to another, you can use the Windows Anytime Upgrade tool found in the Windows Vista Control Panel.

37. Chapter 2 You Learned (cont.) A dual boot installation is one in which two operating systems are installed on separate disk partitions, providing access to both at boot time.
