1 General Introduction to CDMA Mobile Communications CDMA Business Department Shenzhen ZTE Corporation, China

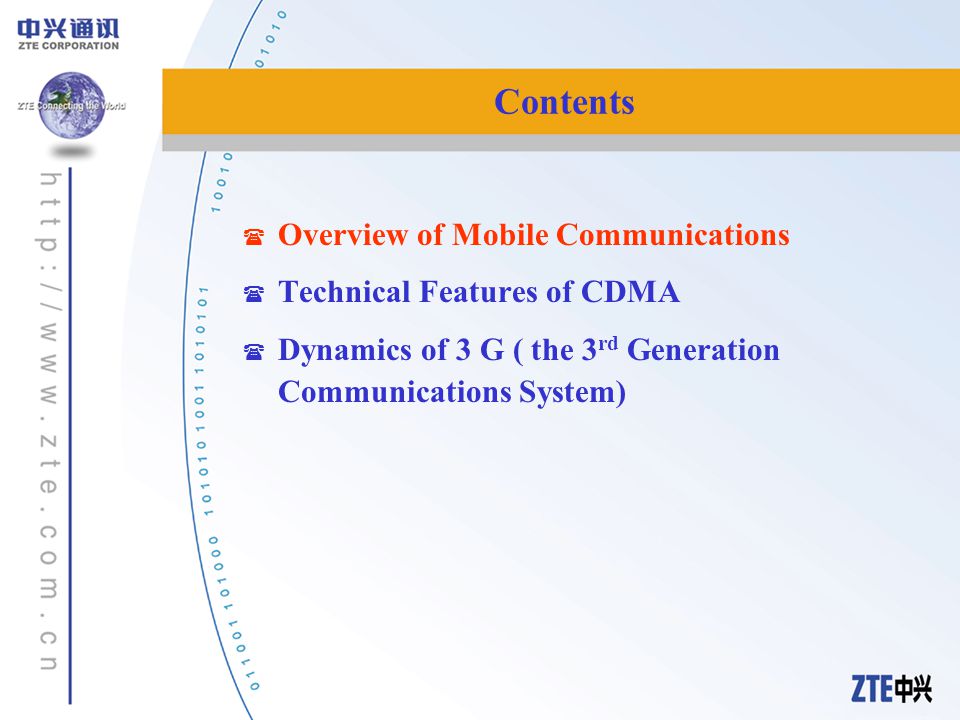

2 Contents  Overview of Mobile Communications  Technical Features of CDMA  Dynamics of 3 G ( the 3 rd Generation Communications System)

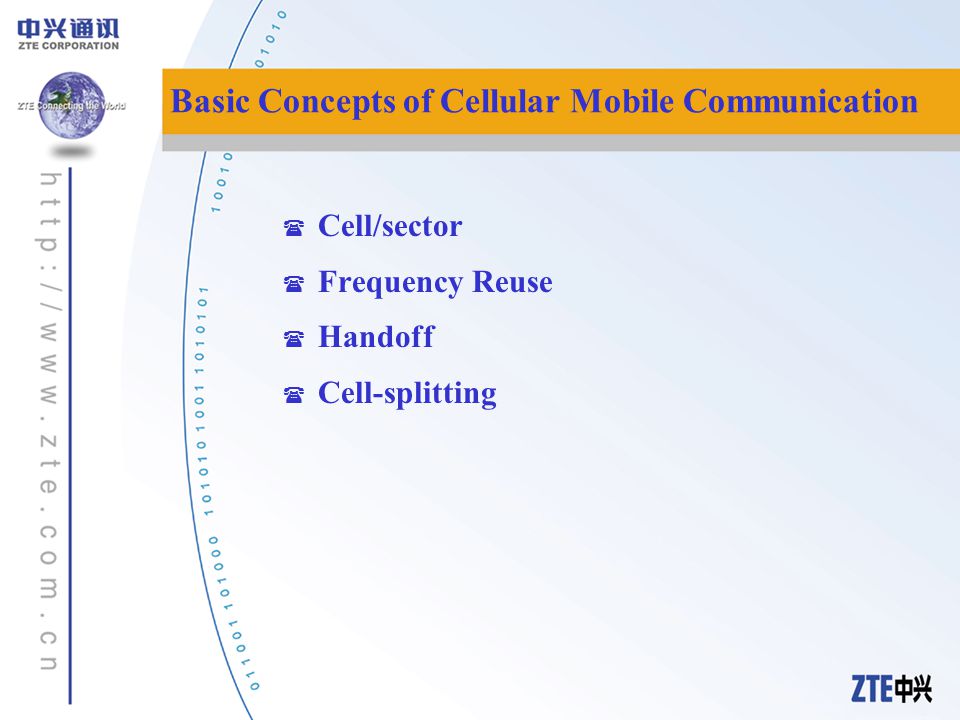

3 Basic Concepts of Cellular Mobile Communication  Cell/sector  Frequency Reuse  Handoff  Cell-splitting

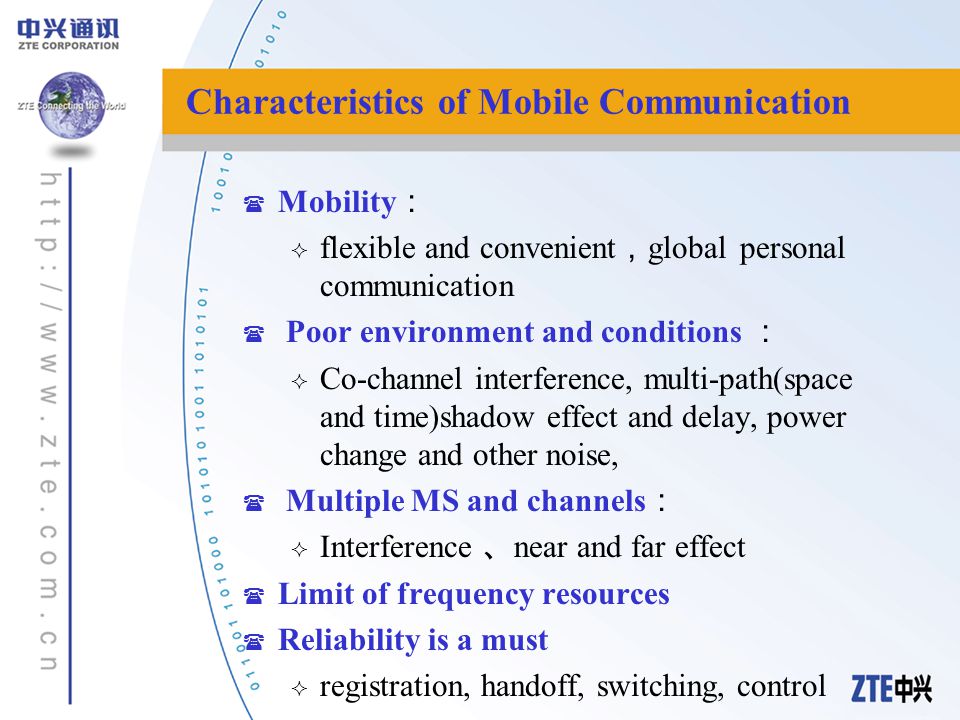

4  Mobility :  flexible and convenient , global personal communication  Poor environment and conditions :  Co-channel interference, multi-path(space and time)shadow effect and delay, power change and other noise,  Multiple MS and channels :  Interference 、 near and far effect  Limit of frequency resources  Reliability is a must  registration, handoff, switching, control Characteristics of Mobile Communication

5  1946 First mobile phone system, 120 KHZ( AT&T): FM  60’s IMTS 25-30KHZ ( Bell System): FM  1 G Analog Cellular/FDMA  AMPS (US, 800 MHZ/30KHZ/10 kbps)  TACS (British, 900 MHZ/25 KHZ/8 kbps)  2 G digital cellular/TDMA  GSM, DAMPS, JDC  IS-95 CDMA  3G IMT-2000 (International Mobile telecommunications)  UTRA/W-CDMA (Japan, Europe)  CDMA 2000 MC (US)  UTRA TDD (Europe) and TD-SCDMA(China)  UWC-136 (TDMA)  DECT (TDMA) Evolution of Mobile Communications System

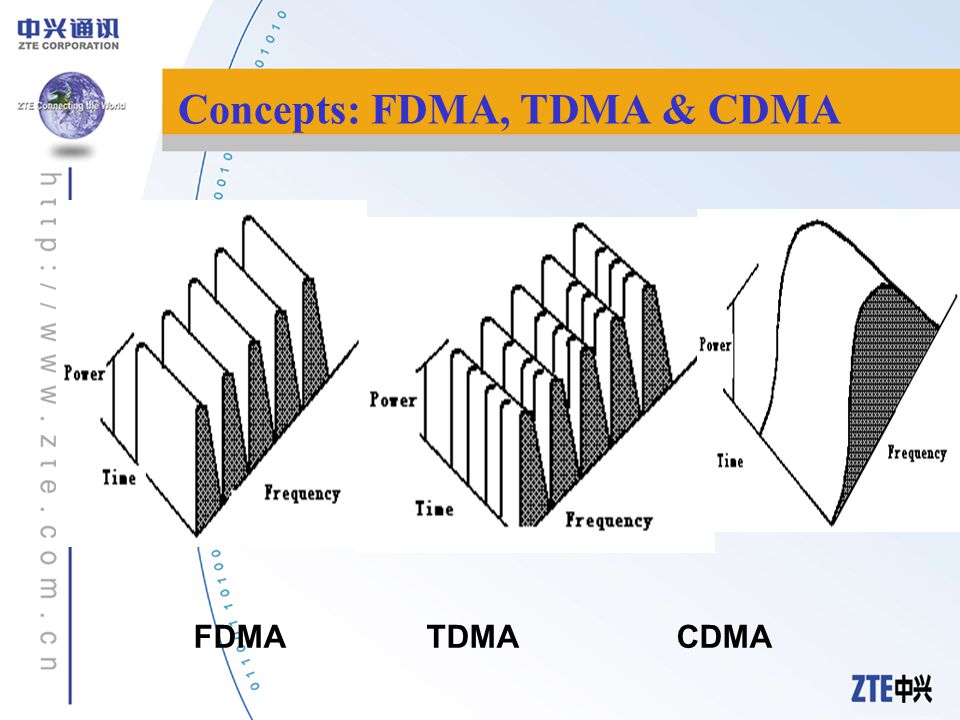

6 Concepts: FDMA, TDMA & CDMA FDMA TDMA CDMA

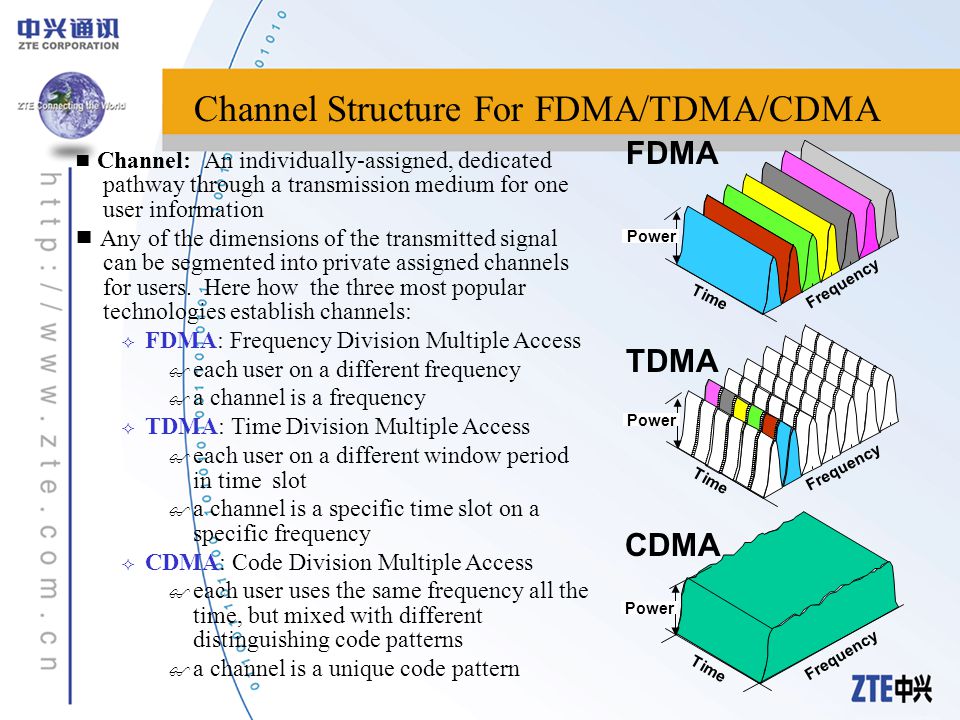

7  Channel: An individually-assigned, dedicated pathway through a transmission medium for one user information  Any of the dimensions of the transmitted signal can be segmented into private assigned channels for users. Here how the three most popular technologies establish channels:  FDMA: Frequency Division Multiple Access  each user on a different frequency  a channel is a frequency  TDMA: Time Division Multiple Access  each user on a different window period in time slot  a channel is a specific time slot on a specific frequency  CDMA: Code Division Multiple Access  each user uses the same frequency all the time, but mixed with different distinguishing code patterns  a channel is a unique code pattern Frequency Time Power Frequency Time Power Frequency Time Power FDMA TDMA CDMA Channel Structure For FDMA/TDMA/CDMA

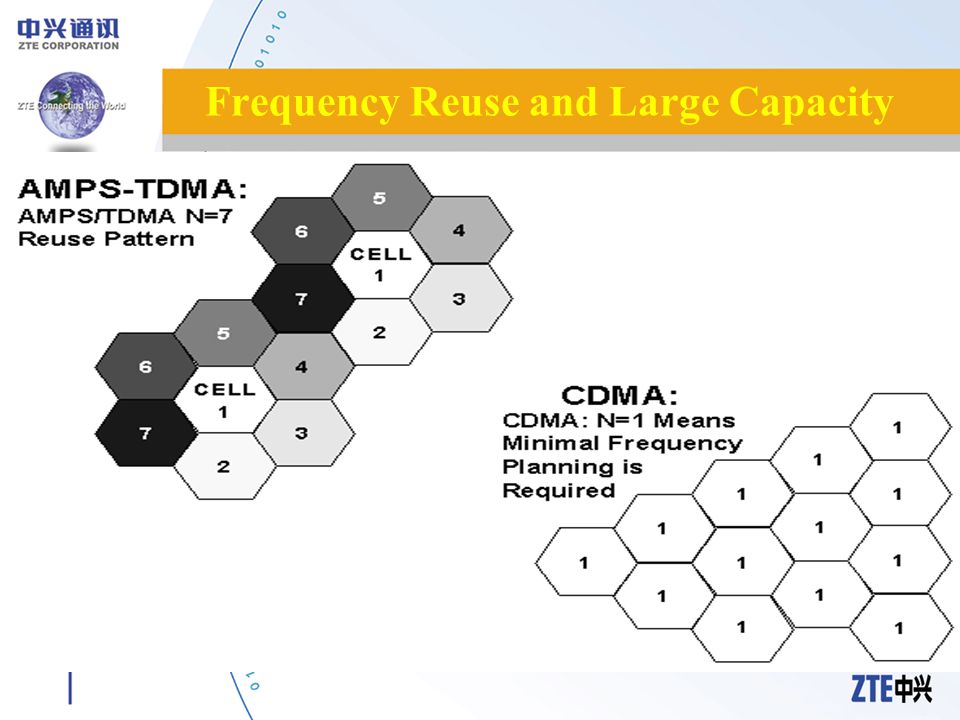

8 Frequency Reuse and Large Capacity

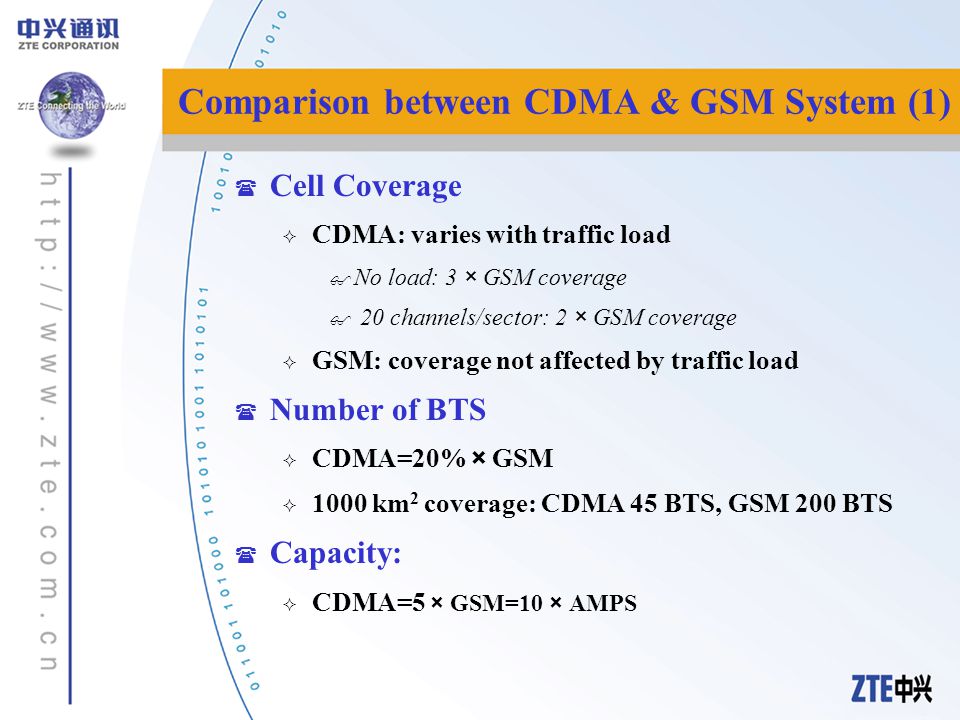

9 Comparison between CDMA & GSM System (1)  Cell Coverage  CDMA: varies with traffic load  No load: 3 × GSM coverage  20 channels/sector: 2 × GSM coverage  GSM: coverage not affected by traffic load  Number of BTS  CDMA=20% × GSM  1000 km 2 coverage: CDMA 45 BTS, GSM 200 BTS  Capacity:  CDMA=5 × GSM=10 × AMPS

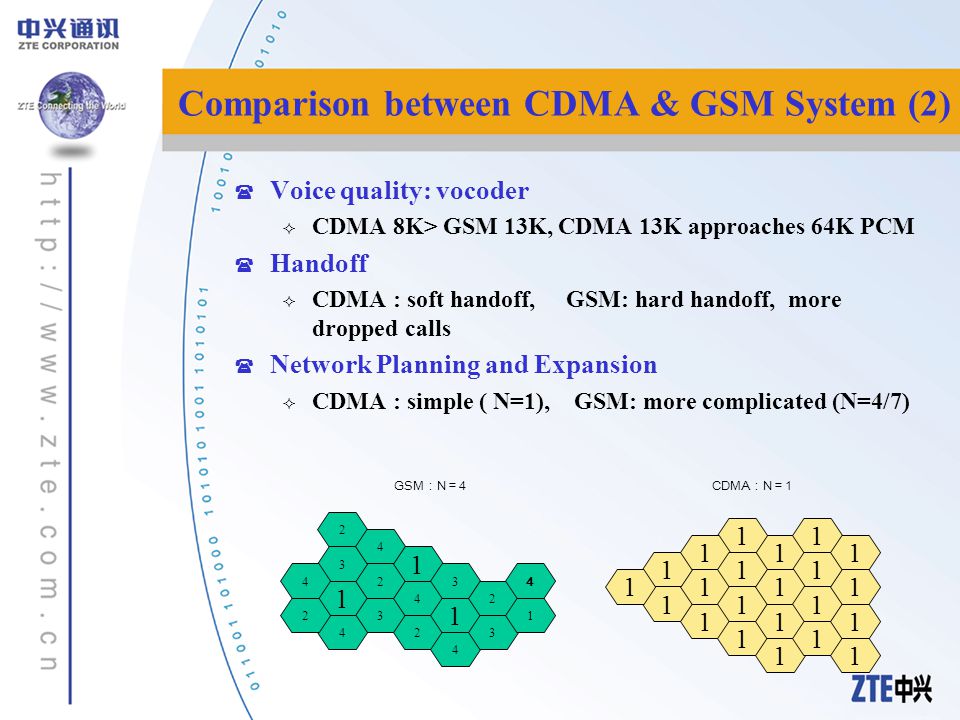

10  Voice quality: vocoder  CDMA 8K> GSM 13K, CDMA 13K approaches 64K PCM  Handoff  CDMA : soft handoff, GSM: hard handoff, more dropped calls  Network Planning and Expansion  CDMA : simple ( N=1), GSM: more complicated (N=4/7) Comparison between CDMA & GSM System (2) 1 3 2 4 3 2 4 2 4 4 1 2 3 1 4 2 3 1 4 GSM : N = 4CDMA : N = 1 1 1 1 1 11 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

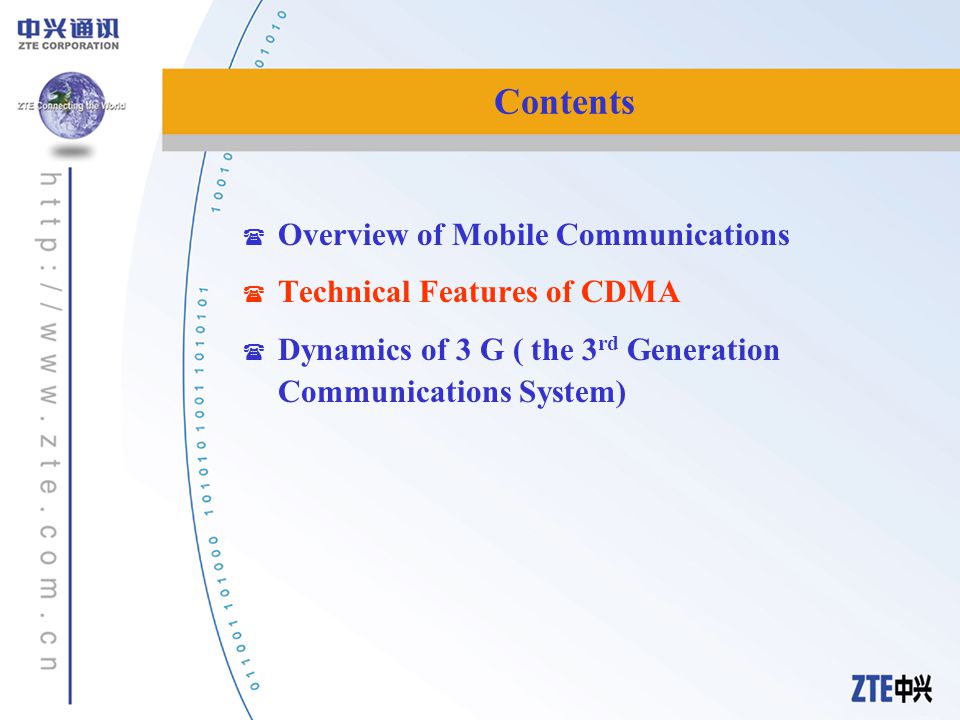

11 Contents  Overview of Mobile Communications  Technical Features of CDMA  Dynamics of 3 G ( the 3 rd Generation Communications System)

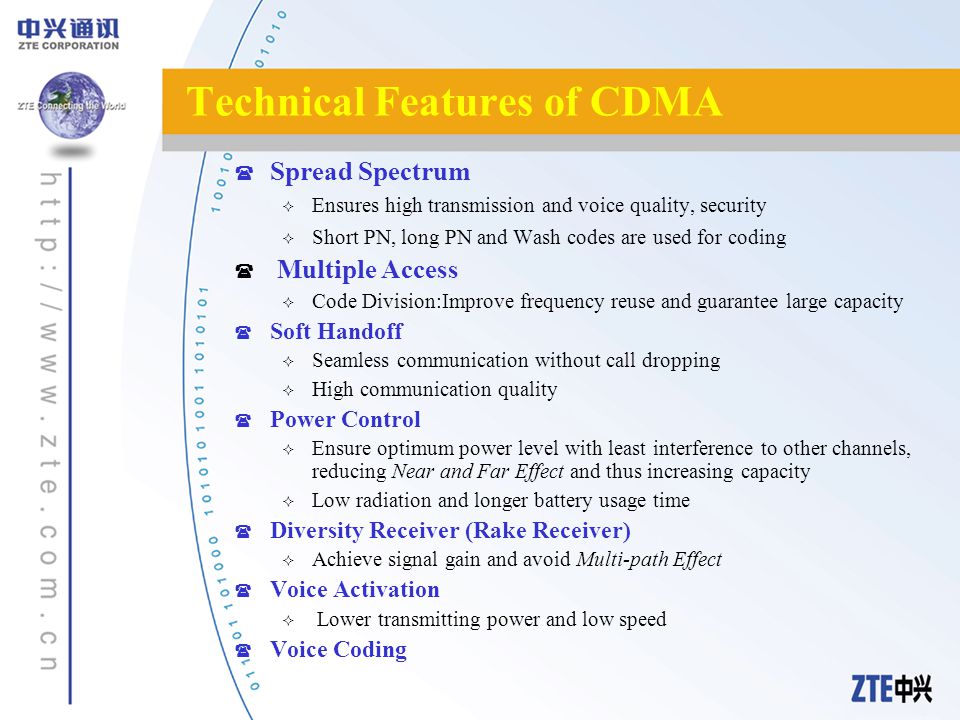

12 Technical Features of CDMA  Spread Spectrum  Ensures high transmission and voice quality, security  Short PN, long PN and Wash codes are used for coding  Multiple Access  Code Division:Improve frequency reuse and guarantee large capacity  Soft Handoff  Seamless communication without call dropping  High communication quality  Power Control  Ensure optimum power level with least interference to other channels, reducing Near and Far Effect and thus increasing capacity  Low radiation and longer battery usage time  Diversity Receiver (Rake Receiver)  Achieve signal gain and avoid Multi-path Effect  Voice Activation  Lower transmitting power and low speed  Voice Coding

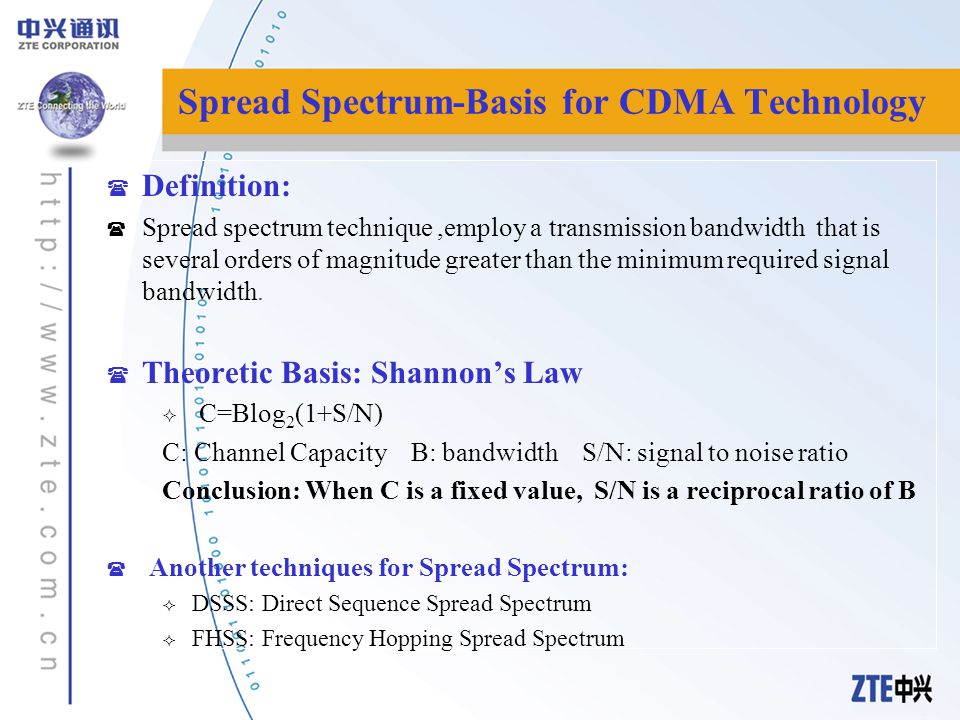

13 Spread Spectrum-Basis for CDMA Technology  Definition:  Spread spectrum technique,employ a transmission bandwidth that is several orders of magnitude greater than the minimum required signal bandwidth.  Theoretic Basis: Shannon’s Law  C=Blog 2 (1+S/N) C: Channel Capacity B: bandwidth S/N: signal to noise ratio Conclusion: When C is a fixed value, S/N is a reciprocal ratio of B  Another techniques for Spread Spectrum:  DSSS: Direct Sequence Spread Spectrum  FHSS: Frequency Hopping Spread Spectrum

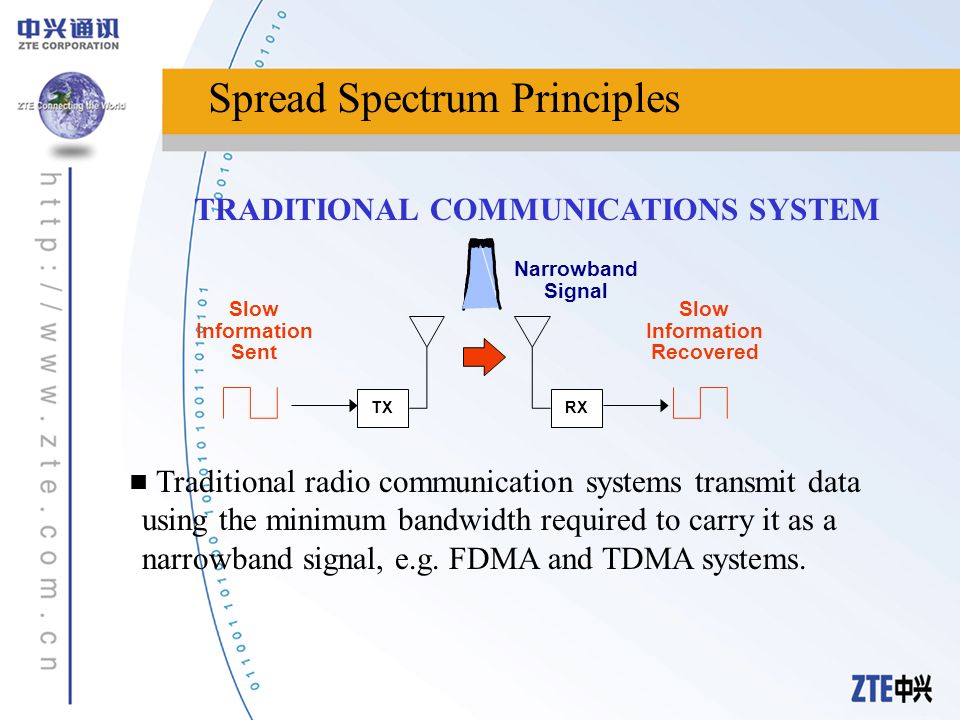

14  Traditional radio communication systems transmit data using the minimum bandwidth required to carry it as a narrowband signal, e.g. FDMA and TDMA systems. TRADITIONAL COMMUNICATIONS SYSTEM Slow Information Sent TX Slow Information Recovered RX Narrowband Signal Spread Spectrum Principles

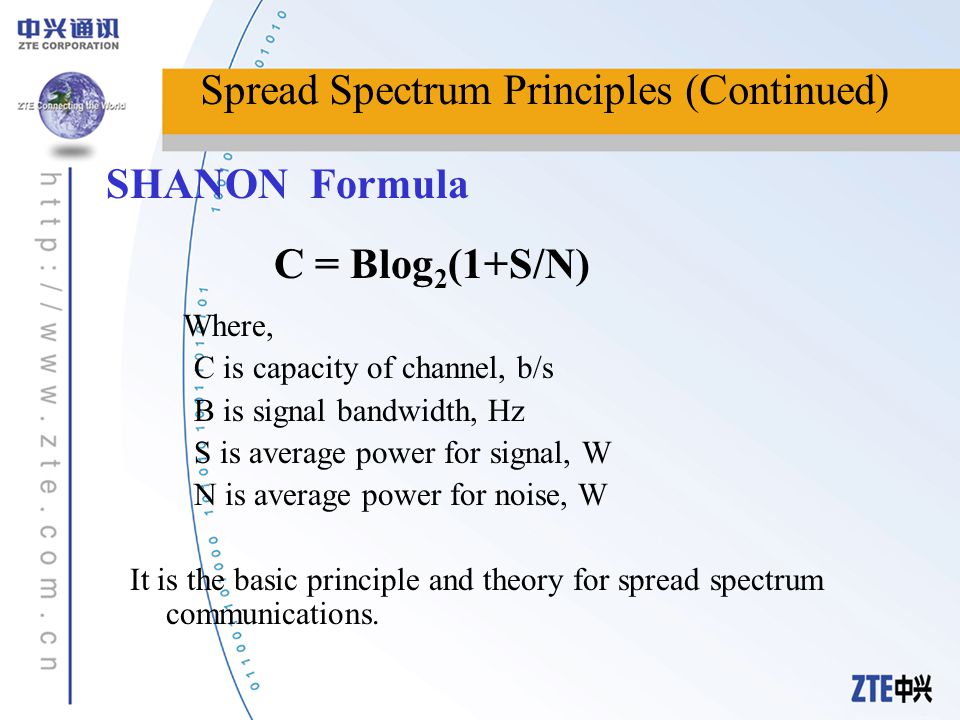

15 SHANON Formula C = Blog 2 (1+S/N) Spread Spectrum Principles (Continued) Where, C is capacity of channel, b/s B is signal bandwidth, Hz S is average power for signal, W N is average power for noise, W It is the basic principle and theory for spread spectrum communications.

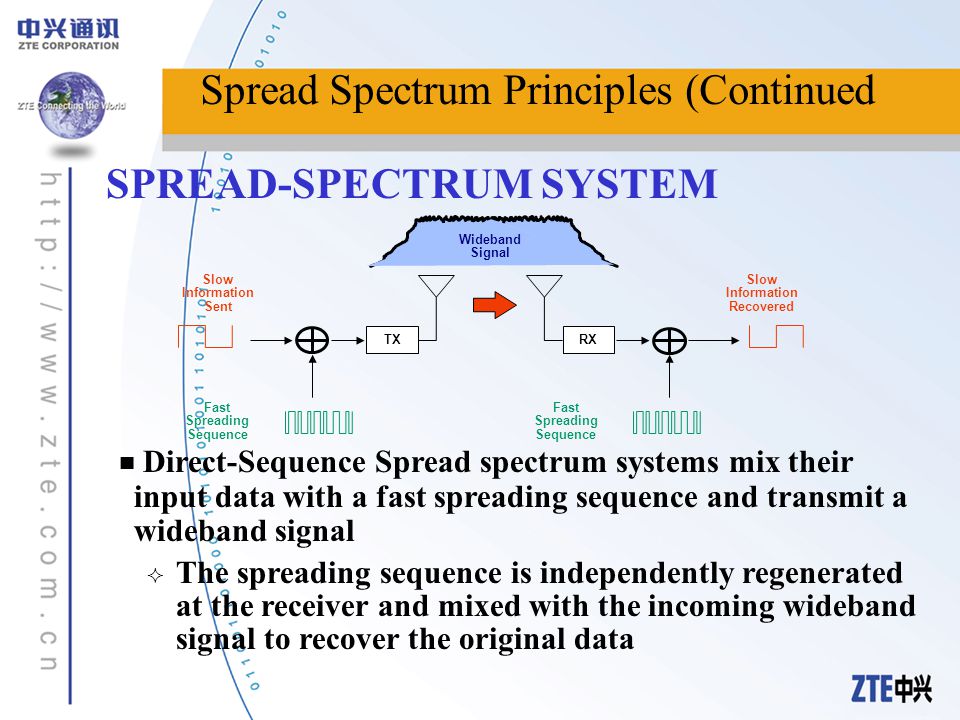

16  Direct-Sequence Spread spectrum systems mix their input data with a fast spreading sequence and transmit a wideband signal  The spreading sequence is independently regenerated at the receiver and mixed with the incoming wideband signal to recover the original data SPREAD-SPECTRUM SYSTEM Fast Spreading Sequence Slow Information Sent TX Slow Information Recovered RX Fast Spreading Sequence Wideband Signal Spread Spectrum Principles (Continued

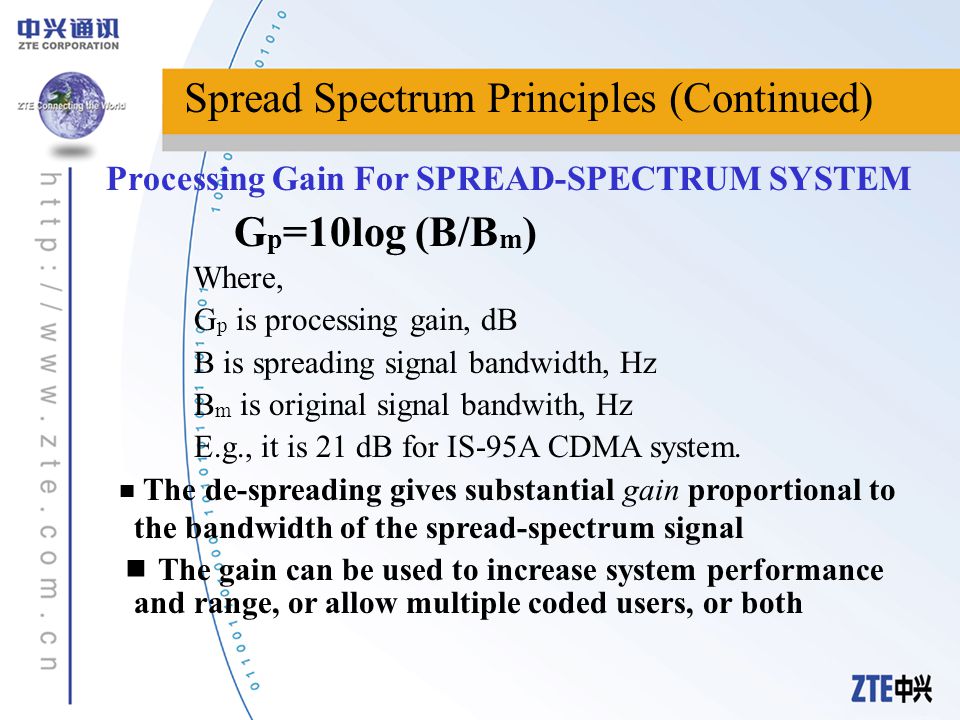

17  The de-spreading gives substantial gain proportional to the bandwidth of the spread-spectrum signal  The gain can be used to increase system performance and range, or allow multiple coded users, or both Processing Gain For SPREAD-SPECTRUM SYSTEM G p =10log (B/B m ) Where, G p is processing gain, dB B is spreading signal bandwidth, Hz B m is original signal bandwith, Hz E.g., it is 21 dB for IS-95A CDMA system. Spread Spectrum Principles (Continued)

18 Basic Spreading & DeSpreading Example User Data Spread, Sent, Recovered XOR Exclusive-OR Gate 1 1 Input A: Received Signal Input B: Spreading Code Output: User Original Data Input A: User Data Input B: Spreading Code Spread Spectrum Signal XOR Exclusive-OR Gate At Originating Site:  Input A: User’s Data @ 19,200 bits/second  Input B: Walsh Code #23 @ 1.2288 Mcps  Output: Spread spectrum signal At Destination Site:  Input A: Received spread spectrum signal  Input B: Walsh Code #23 @ 1.2288 Mcps  Output: User’s Data @ 19,200 bits/second just as originally sent via air interface

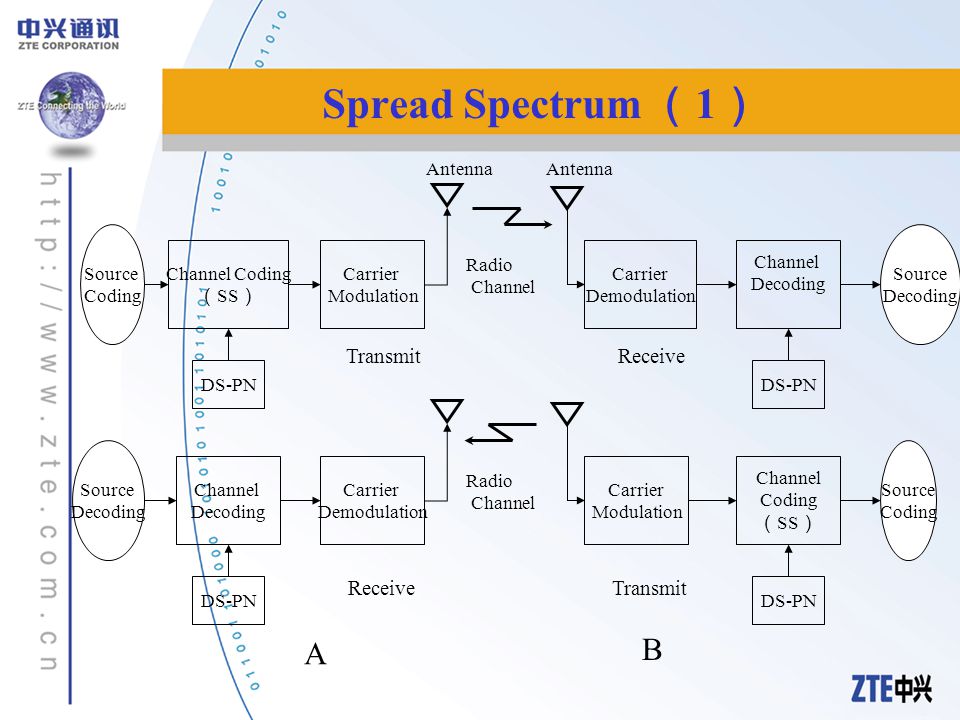

19 Channel Coding ( SS ) Carrier Modulation DS-PN Radio Channel Source Coding Channel Decoding Carrier Demodulation DS-PN Source Decoding TransmitReceive Antenna Channel Decoding Carrier Demodulation DS-PN Radio Channel Source Decoding Channel Coding ( SS ) Carrier Modulation DS-PN Source Coding TransmitReceive Antenna A B Spread Spectrum ( 1 )

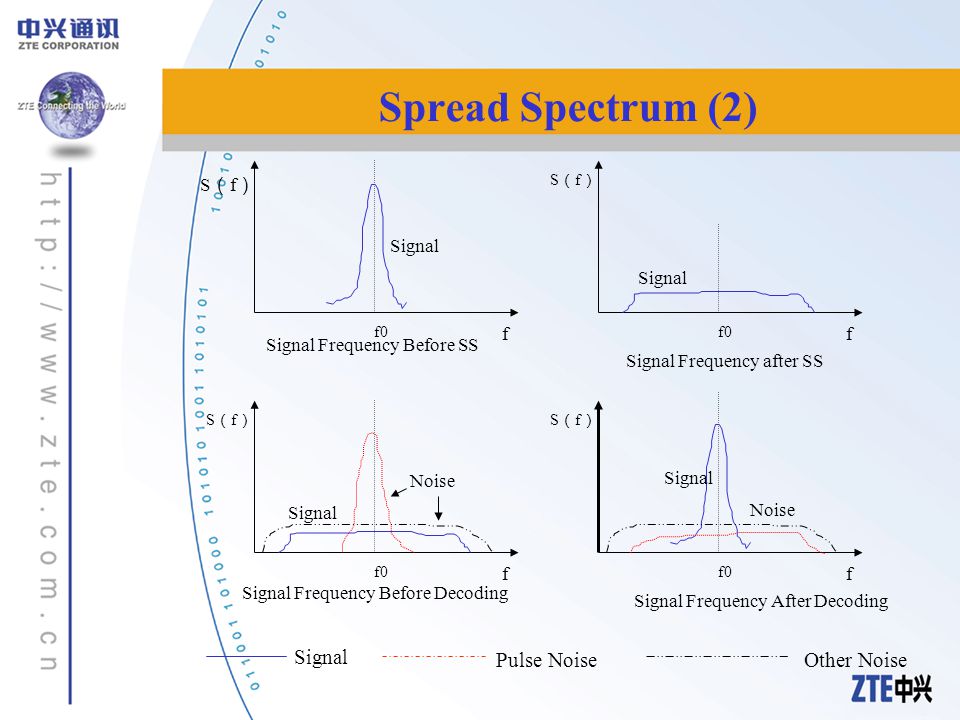

20 f S(f)S(f) f0 Signal Frequency Before Decoding f S(f)S(f) f0 Signal Frequency Before SS Signal Noise f S(f)S(f) f0 Signal Frequency after SS Signal f S(f)S(f) f0 Signal Frequency After Decoding Signal Noise Signal Pulse NoiseOther Noise Spread Spectrum (2)

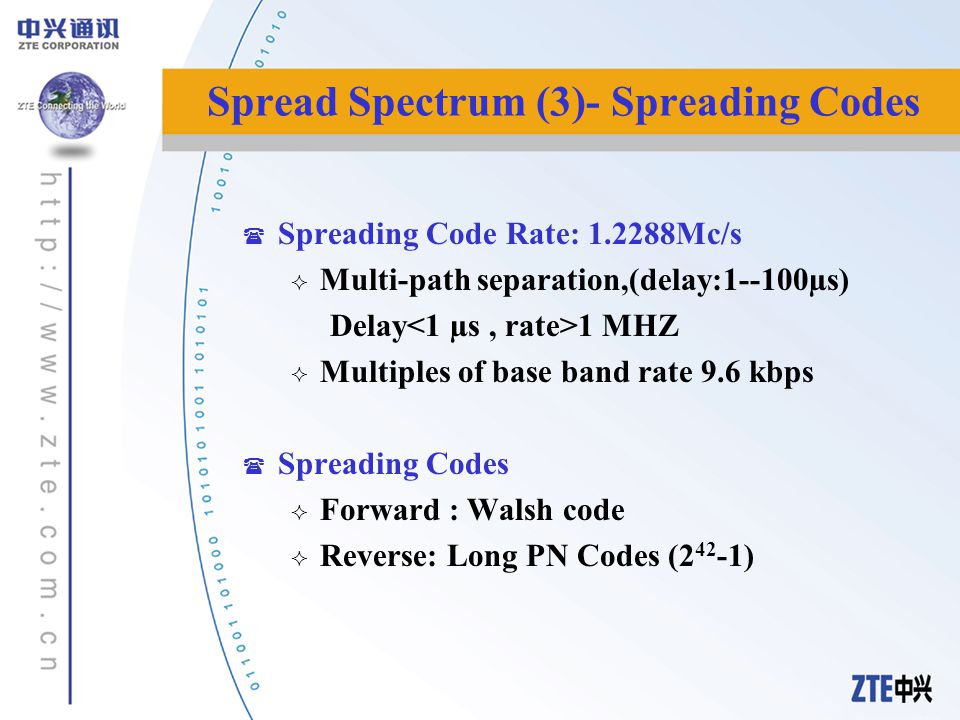

21 Spread Spectrum (3)- Spreading Codes  Spreading Code Rate: 1.2288Mc/s  Multi-path separation,(delay:1--100µs) Delay 1 MHZ  Multiples of base band rate 9.6 kbps  Spreading Codes  Forward : Walsh code  Reverse: Long PN Codes (2 42 -1)

22 Spread Spectrum (4) Advantages:  Avoid interference arising from jamming signal or multi-path effects  SS and demodulation, noise is suppressed and filtered  Security: difficult to detect  Privacy: Difficult to demodulate  Multiple Access:  Improve Frequency Reuse  Enlarge Capacity

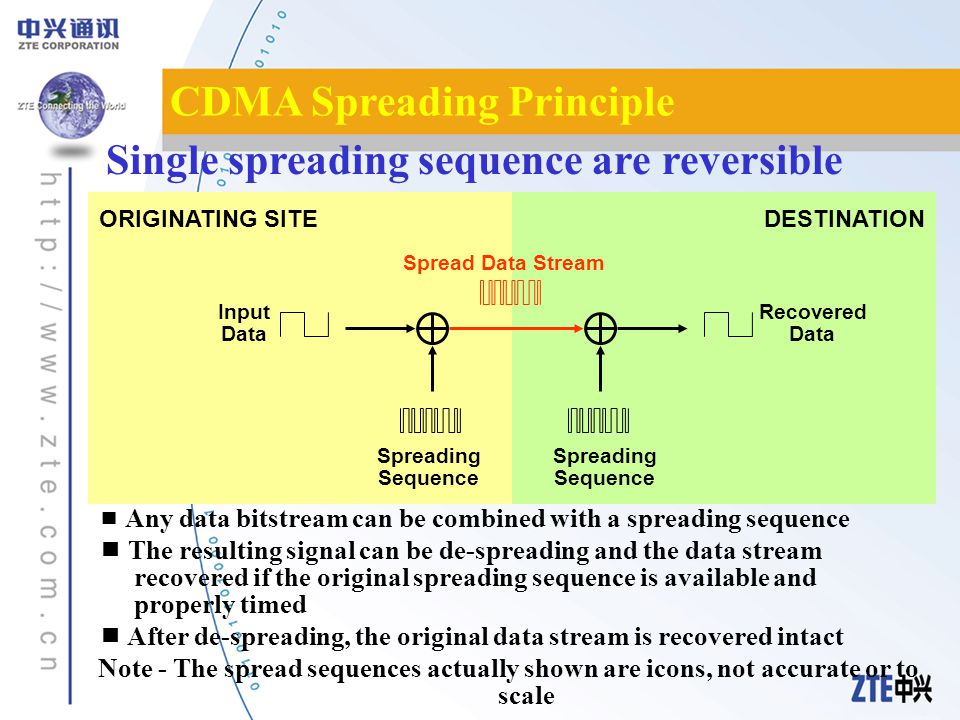

23 CDMA Spreading Principle  Any data bitstream can be combined with a spreading sequence  The resulting signal can be de-spreading and the data stream recovered if the original spreading sequence is available and properly timed  After de-spreading, the original data stream is recovered intact Note - The spread sequences actually shown are icons, not accurate or to scale ORIGINATING SITEDESTINATION Spreading Sequence Spreading Sequence Input Data Recovered Data Spread Data Stream Single spreading sequence are reversible

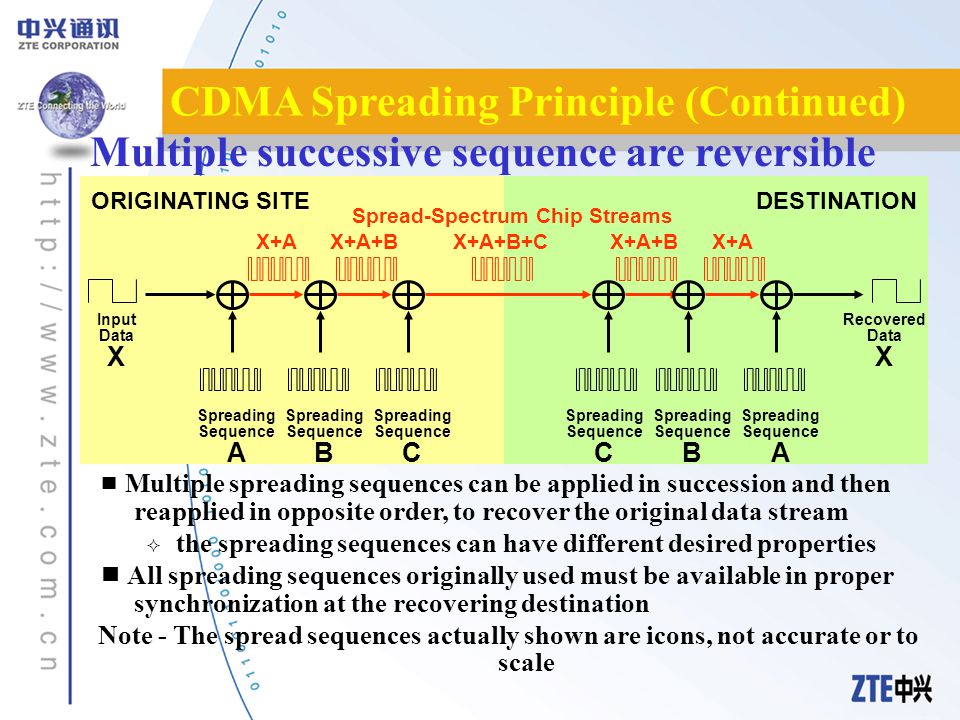

24 CDMA Spreading Principle (Continued)  Multiple spreading sequences can be applied in succession and then reapplied in opposite order, to recover the original data stream  the spreading sequences can have different desired properties  All spreading sequences originally used must be available in proper synchronization at the recovering destination Note - The spread sequences actually shown are icons, not accurate or to scale Multiple successive sequence are reversible Spreading Sequence A Spreading Sequence B Spreading Sequence C Spreading Sequence C Spreading Sequence B Spreading Sequence A Input Data X Recovered Data X X+AX+A+BX+A+B+CX+A+BX+A Spread-Spectrum Chip Streams ORIGINATING SITEDESTINATION

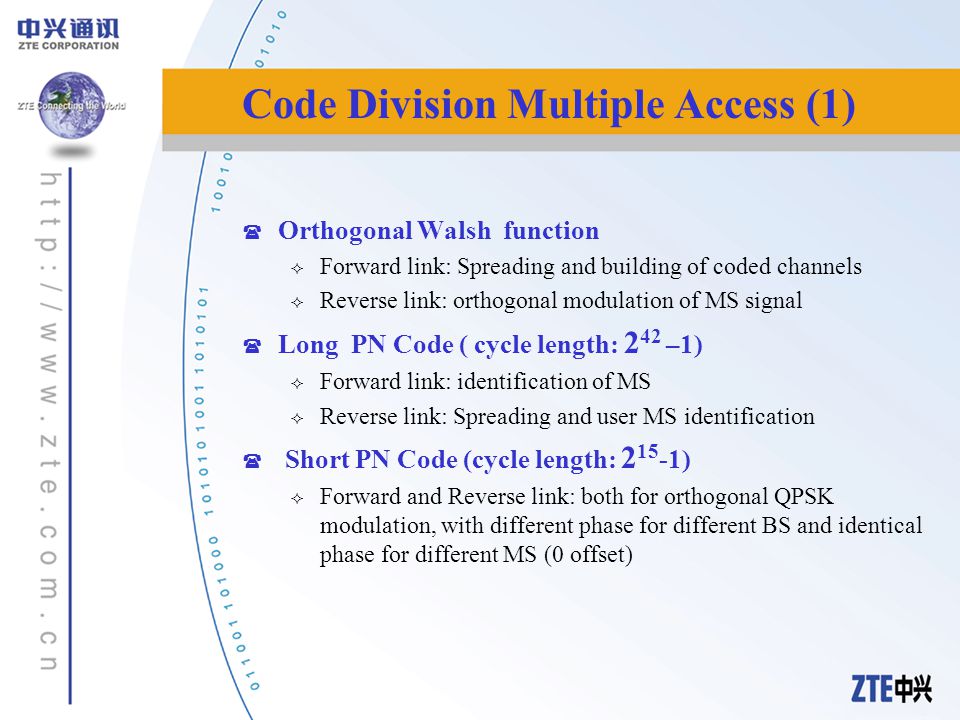

25 Code Division Multiple Access (1)  Orthogonal Walsh function  Forward link: Spreading and building of coded channels  Reverse link: orthogonal modulation of MS signal  Long PN Code ( cycle length: 2 42 –1)  Forward link: identification of MS  Reverse link: Spreading and user MS identification  Short PN Code (cycle length: 2 15 -1)  Forward and Reverse link: both for orthogonal QPSK modulation, with different phase for different BS and identical phase for different MS (0 offset)

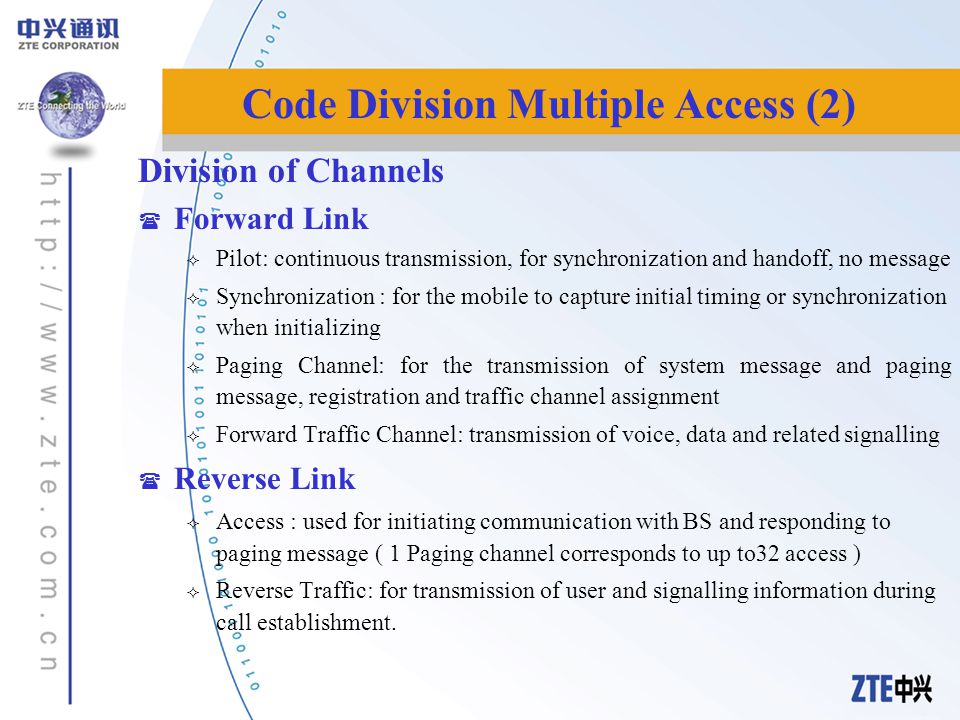

26 Division of Channels  Forward Link  Pilot: continuous transmission, for synchronization and handoff, no message  Synchronization : for the mobile to capture initial timing or synchronization when initializing  Paging Channel: for the transmission of system message and paging message, registration and traffic channel assignment  Forward Traffic Channel: transmission of voice, data and related signalling  Reverse Link  Access : used for initiating communication with BS and responding to paging message ( 1 Paging channel corresponds to up to32 access )  Reverse Traffic: for transmission of user and signalling information during call establishment. Code Division Multiple Access (2)

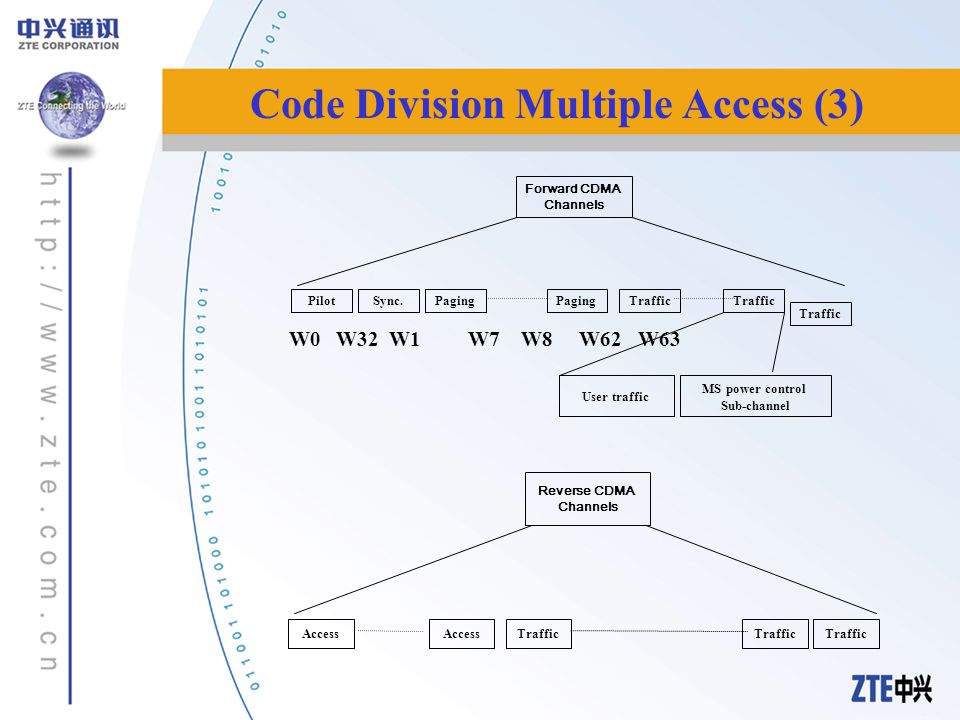

27 Code Division Multiple Access (3) Traffic User traffic MS power control Sub-channel Forward CDMA Channels PilotSync.Paging Traffic W0 W32 W1 W7 W8 W62 W63 Reverse CDMA Channels Access Traffic

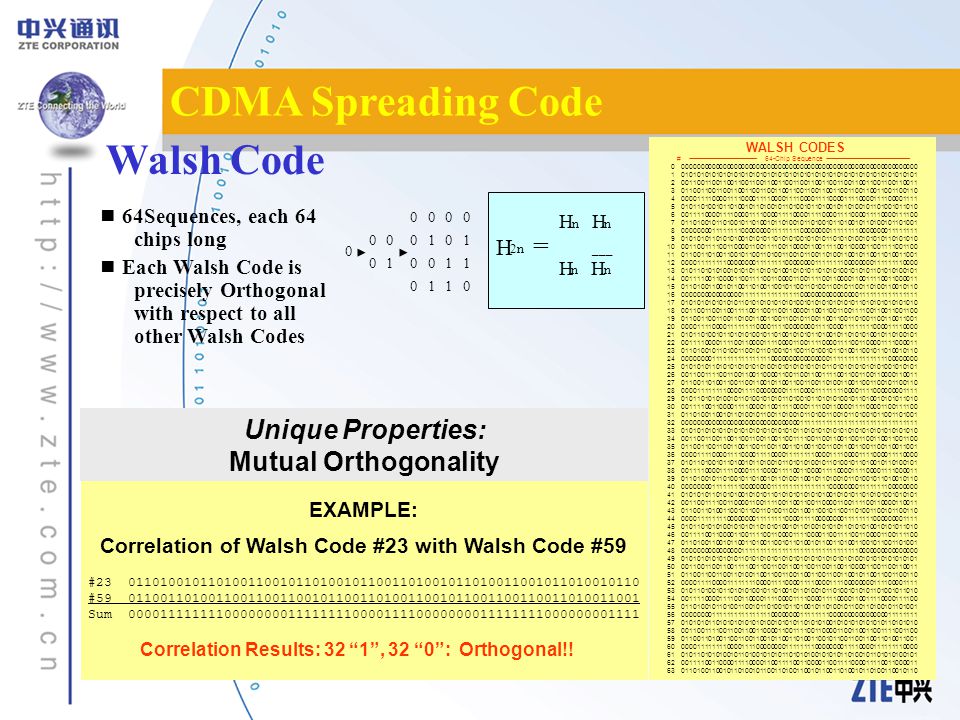

28 CDMA Spreading Code  64Sequences, each 64 chips long  Each Walsh Code is precisely Orthogonal with respect to all other Walsh Codes Walsh Code EXAMPLE: Correlation of Walsh Code #23 with Walsh Code #59 #23 0110100101101001100101101001011001101001011010011001011010010110 #59 0110011010011001100110010110011010011001011001100110011010011001 Sum 0000111111110000000011111111000011110000000011111111000000001111 Correlation Results: 32 “1”, 32 “0”: Orthogonal!! Unique Properties: Mutual Orthogonality WALSH CODES # ---------------------------------- 64-Chip Sequence ------------------------------------------ 0 0000000000000000000000000000000000000000000000000000000000000000 1 0101010101010101010101010101010101010101010101010101010101010101 2 0011001100110011001100110011001100110011001100110011001100110011 3 0110011001100110011001100110011001100110011001100110011001100110 4 0000111100001111000011110000111100001111000011110000111100001111 5 0101101001011010010110100101101001011010010110100101101001011010 6 0011110000111100001111000011110000111100001111000011110000111100 7 0110100101101001011010010110100101101001011010010110100101101001 8 0000000011111111000000001111111100000000111111110000000011111111 9 0101010110101010010101011010101001010101101010100101010110101010 10 0011001111001100001100111100110000110011110011000011001111001100 11 0110011010011001011001101001100101100110100110010110011010011001 12 0000111111110000000011111111000000001111111100000000111111110000 13 0101101010100101010110101010010101011010101001010101101010100101 14 0011110011000011001111001100001100111100110000110011110011000011 15 0110100110010110011010011001011001101001100101100110100110010110 16 0000000000000000111111111111111100000000000000001111111111111111 17 0101010101010101101010101010101001010101010101011010101010101010 18 0011001100110011110011001100110000110011001100111100110011001100 19 0110011001100110100110011001100101100110011001101001100110011001 20 0000111100001111111100001111000000001111000011111111000011110000 21 0101101001011010101001011010010101011010010110101010010110100101 22 0011110000111100110000111100001100111100001111001100001111000011 23 0110100101101001100101101001011001101001011010011001011010010110 24 0000000011111111111111110000000000000000111111111111111100000000 25 0101010110101010101010100101010101010101101010101010101001010101 26 0011001111001100110011000011001100110011110011001100110000110011 27 0110011010011001100110010110011001100110100110011001100101100110 28 0000111111110000111100000000111100001111111100001111000000001111 29 0101101010100101101001010101101001011010101001011010010101011010 30 0011110011000011110000110011110000111100110000111100001100111100 31 0110100110010110100101100110100101101001100101101001011001101001 32 0000000000000000000000000000000011111111111111111111111111111111 33 0101010101010101010101010101010110101010101010101010101010101010 34 0011001100110011001100110011001111001100110011001100110011001100 35 0110011001100110011001100110011010011001100110011001100110011001 36 0000111100001111000011110000111111110000111100001111000011110000 37 0101101001011010010110100101101010100101101001011010010110100101 38 0011110000111100001111000011110011000011110000111100001111000011 39 0110100101101001011010010110100110010110100101101001011010010110 40 0000000011111111000000001111111111111111000000001111111100000000 41 0101010110101010010101011010101010101010010101011010101001010101 42 0011001111001100001100111100110011001100001100111100110000110011 43 0110011010011001011001101001100110011001011001101001100101100110 44 0000111111110000000011111111000011110000000011111111000000001111 45 0101101010100101010110101010010110100101010110101010010101011010 46 0011110011000011001111001100001111000011001111001100001100111100 47 0110100110010110011010011001011010010110011010011001011001101001 48 0000000000000000111111111111111111111111111111110000000000000000 49 0101010101010101101010101010101010101010101010100101010101010101 50 0011001100110011110011001100110011001100110011000011001100110011 51 0110011001100110100110011001100110011001100110010110011001100110 52 0000111100001111111100001111000011110000111100000000111100001111 53 0101101001011010101001011010010110100101101001010101101001011010 54 0011110000111100110000111100001111000011110000110011110000111100 55 0110100101101001100101101001011010010110100101100110100101101001 56 0000000011111111111111110000000011111111000000000000000011111111 57 0101010110101010101010100101010110101010010101010101010110101010 58 0011001111001100110011000011001111001100001100110011001111001100 59 0110011010011001100110010110011010011001011001100110011010011001 60 0000111111110000111100000000111111110000000011110000111111110000 61 0101101010100101101001010101101010100101010110100101101010100101 62 0011110011000011110000110011110011000011001111000011110011000011 63 0110100110010110100101100110100110010110011010010110100110010110 H n H n H 2n = ___ H n H n 0110 1100 1010 0000 10 00 0

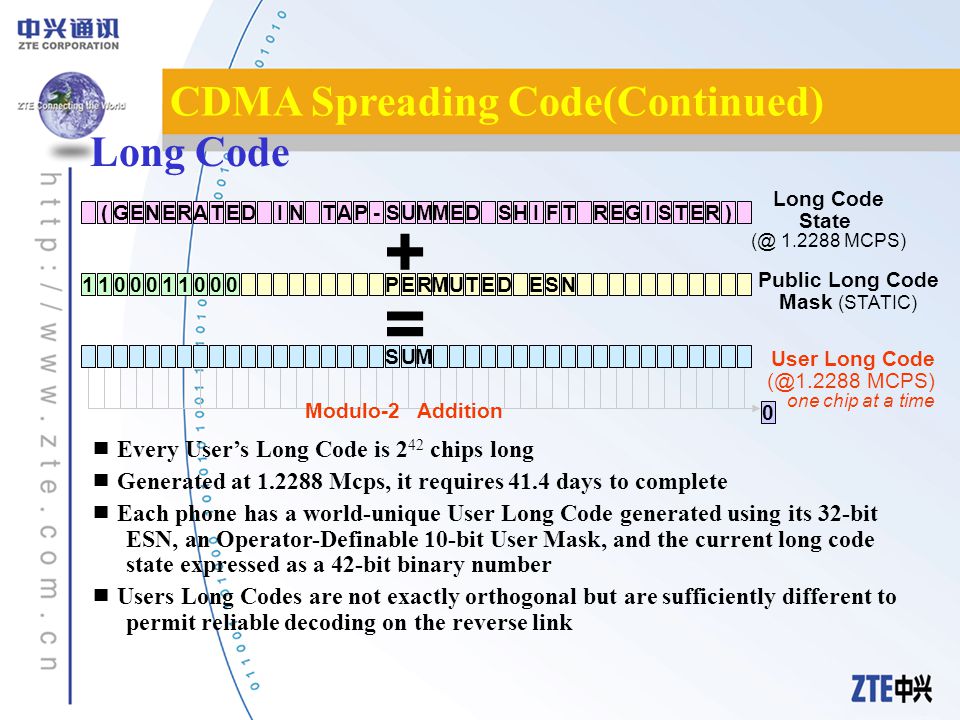

29 CDMA Spreading Code(Continued)  Every User’s Long Code is 2 42 chips long  Generated at 1.2288 Mcps, it requires 41.4 days to complete  Each phone has a world-unique User Long Code generated using its 32-bit ESN, an Operator-Definable 10-bit User Mask, and the current long code state expressed as a 42-bit binary number  Users Long Codes are not exactly orthogonal but are sufficiently different to permit reliable decoding on the reverse link Long Code (GENERATEDINTAP-SUMMED SHIFTTER)REGIS 1100011000PERMUTEDESN + = 0 Long Code State (@ 1.2288 MCPS) Public Long Code Mask (STATIC) User Long Code (@1.2288 MCPS) one chip at a time SUM Modulo-2 Addition

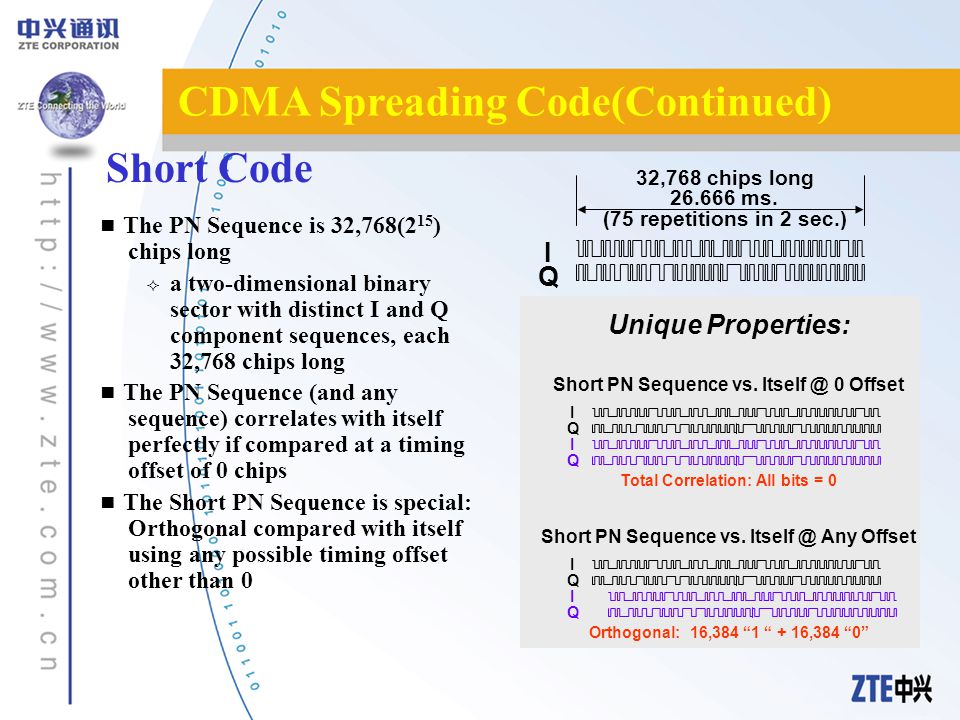

30 CDMA Spreading Code(Continued) Short Code  The PN Sequence is 32,768(2 15 ) chips long  a two-dimensional binary sector with distinct I and Q component sequences, each 32,768 chips long  The PN Sequence (and any sequence) correlates with itself perfectly if compared at a timing offset of 0 chips  The Short PN Sequence is special: Orthogonal compared with itself using any possible timing offset other than 0 I Q I Q I Q Total Correlation: All bits = 0 Short PN Sequence vs. Itself @ 0 Offset I Q I Q Orthogonal: 16,384 “1 “ + 16,384 “0” Short PN Sequence vs. Itself @ Any Offset Unique Properties: 32,768 chips long 26.666 ms. (75 repetitions in 2 sec.)

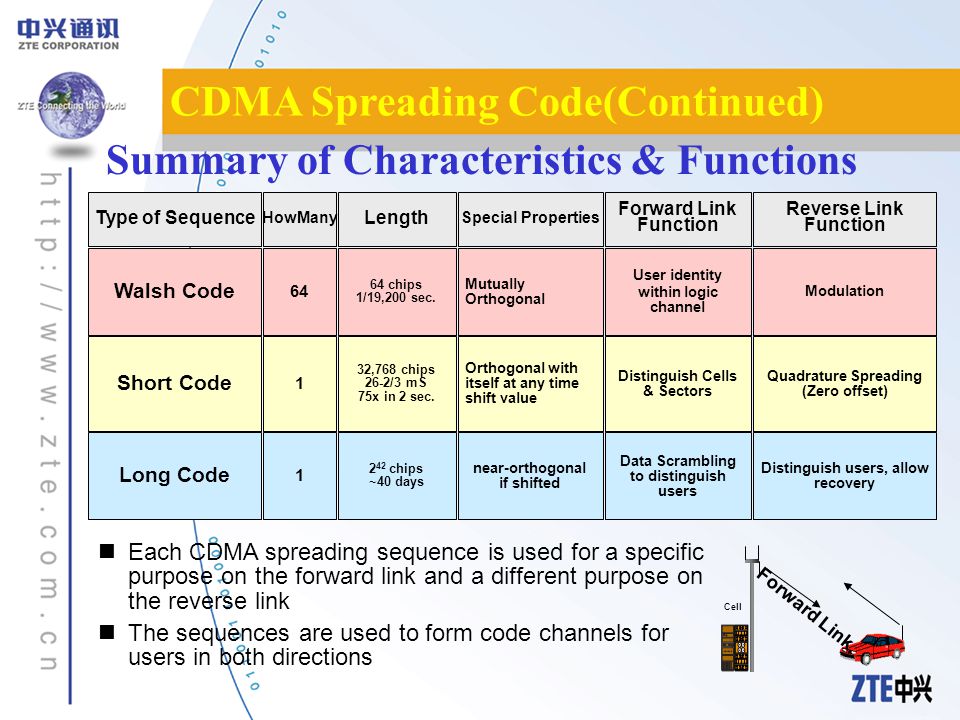

31 CDMA Spreading Code(Continued) Summary of Characteristics & Functions Walsh Code Short Code Long Code Type of Sequence Mutually Orthogonal Orthogonal with itself at any time shift value near-orthogonal if shifted Special Properties 64 1 1 HowMany 64 chips 1/19,200 sec. 32,768 chips 26-2/3 mS 75x in 2 sec. 2 42 chips ~40 days Length Modulation Quadrature Spreading (Zero offset) Distinguish users, allow recovery Reverse Link Function User identity within logic channel Distinguish Cells & Sectors Data Scrambling to distinguish users Forward Link Function nEach CDMA spreading sequence is used for a specific purpose on the forward link and a different purpose on the reverse link nThe sequences are used to form code channels for users in both directions Cell Forward Link

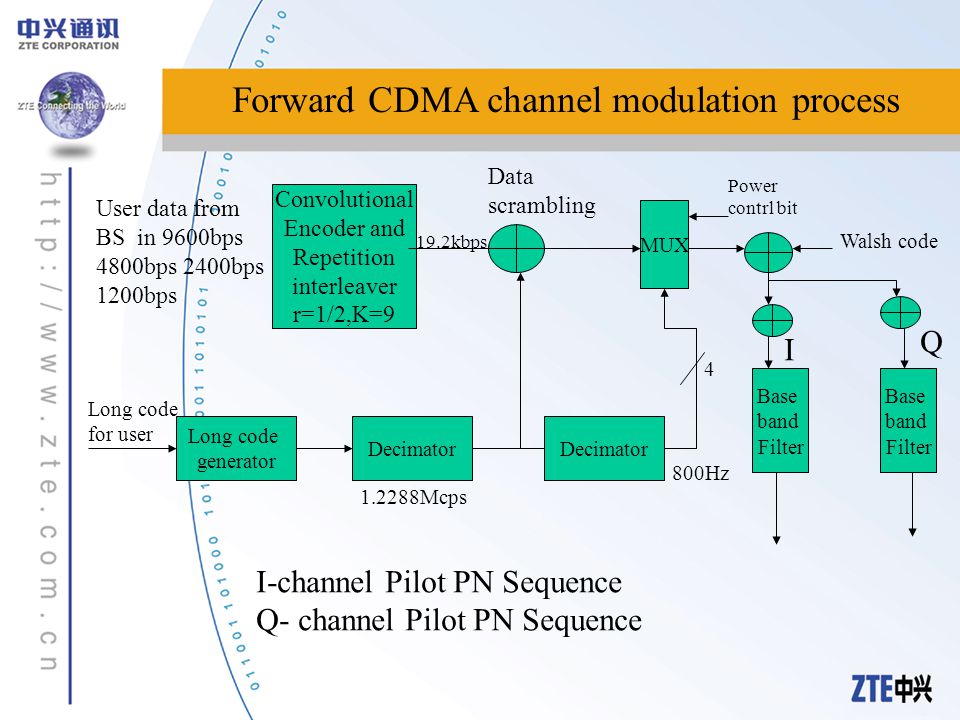

32 Forward CDMA channel modulation process User data from BS in 9600bps 4800bps 2400bps 1200bps Convolutional Encoder and Repetition interleaver r=1/2,K=9 19.2kbps Data scrambling MUX Power contrl bit Walsh code Long code generator Long code for user Decimator 1.2288Mcps Decimator 4 800Hz Base band Filter Base band Filter I Q I-channel Pilot PN Sequence Q- channel Pilot PN Sequence

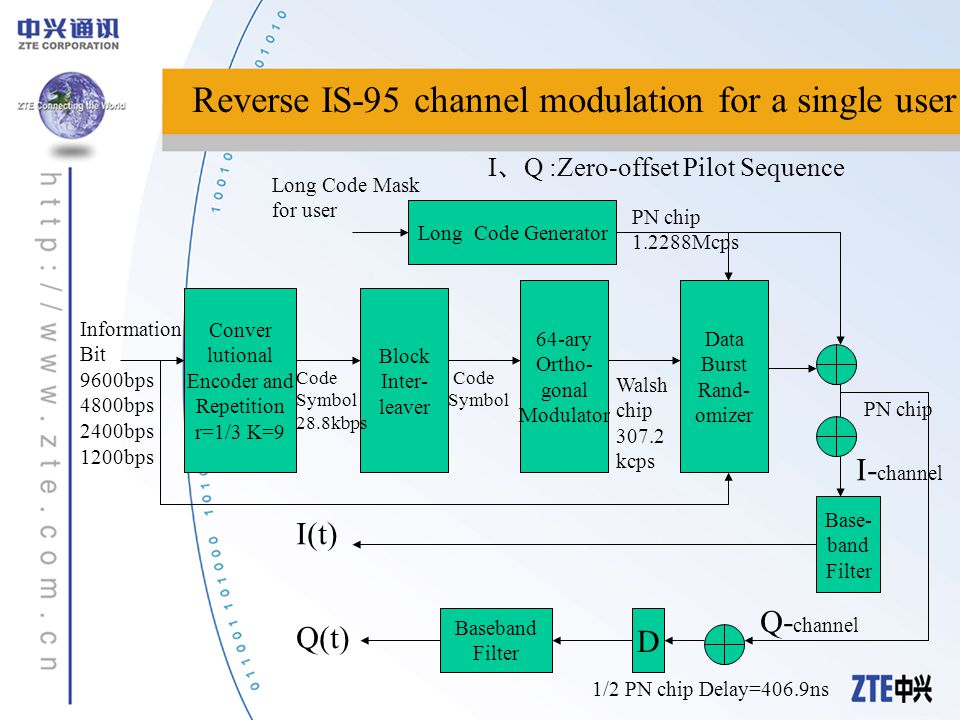

33 Reverse IS-95 channel modulation for a single user Information Bit 9600bps 4800bps 2400bps 1200bps Conver lutional Encoder and Repetition r=1/3 K=9 Block Inter- leaver Code Symbol 28.8kbps 64-ary Ortho- gonal Modulator Code Symbol Data Burst Rand- omizer Walsh chip 307.2 kcps Long Code Generator Long Code Mask for user PN chip 1.2288Mcps Base- band Filter I- channel PN chip D Baseband Filter I(t) Q(t) Q- channel 1/2 PN chip Delay=406.9ns I 、 Q :Zero-offset Pilot Sequence

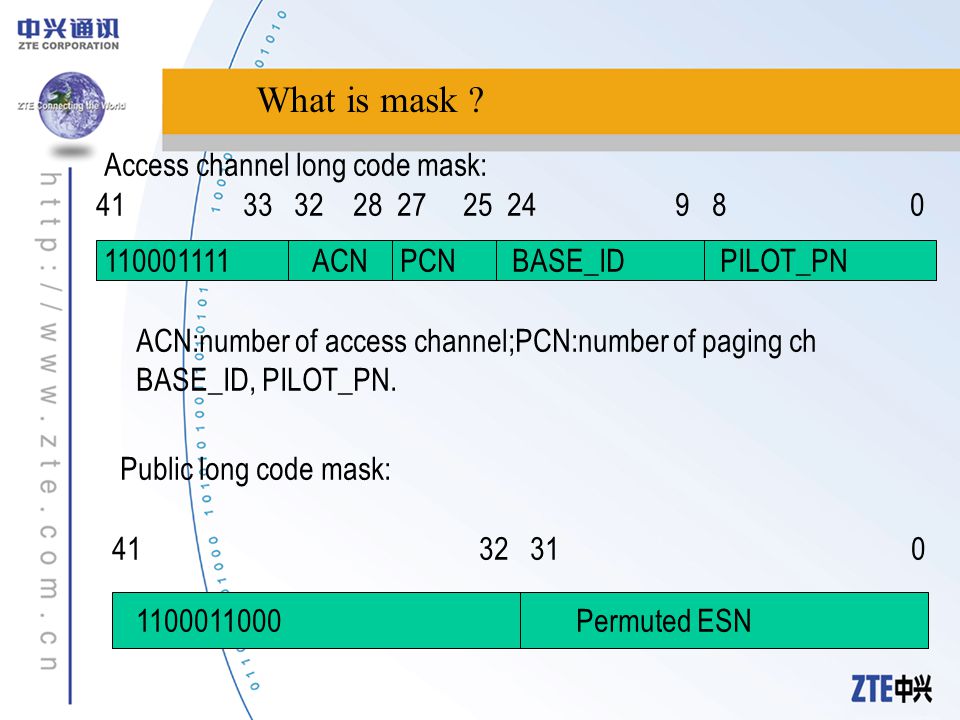

34 41 33 32 28 27 25 24 9 8 0 110001111ACNPCNBASE_IDPILOT_PN ACN:number of access channel;PCN:number of paging ch BASE_ID, PILOT_PN. Access channel long code mask: Public long code mask: 41 32 31 0 1100011000Permuted ESN What is mask ?

35 Different approaches to bandwidth problem CDMA TDMAFDMA

36 Coding Process on CDMA Forward Channels  Each user is assigned one of the 64 Walsh Codes and their traffic is mixed with the Walsh code to establish a dedicated code channel  Each Users Long code is applied incidentally for data scrambling  All user code signals are then analog-summed to produce one composite waveform  The composite waveform is the combined with the PN sequence using a specific offset to uniquely identify this cell sector BTS Pilot Walsh 0 Walsh 19 Paging Walsh 1 Walsh 6 Walsh 11 Walsh 20 Sync Walsh 32 Walsh 42 Walsh 37 Walsh 41 Walsh 55 Walsh 60 Walsh 55 PN OFFSET 372 PN OFFSET 116 BTS PN OFFSET 226 BTS PN OFFSET 511 BTS  ANALOG SUM PN 372 WALSH 19 x x x

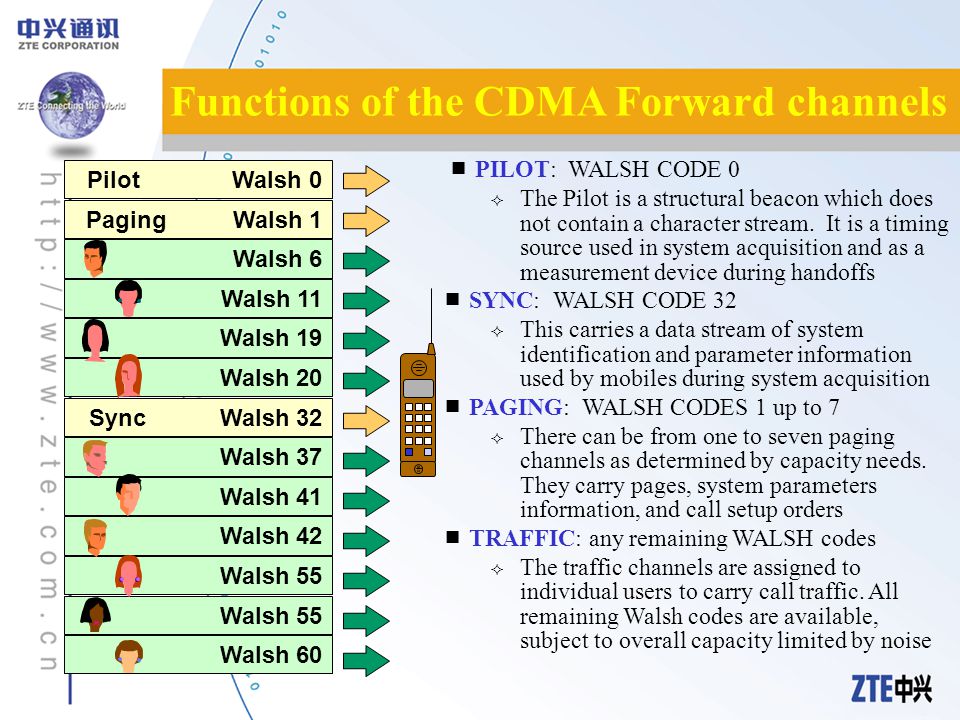

37 Functions of the CDMA Forward channels Pilot Walsh 0 Walsh 19 Paging Walsh 1 Walsh 6 Walsh 11 Walsh 20 Sync Walsh 32 Walsh 42 Walsh 37 Walsh 41 Walsh 55 Walsh 60 Walsh 55  PILOT: WALSH CODE 0  The Pilot is a structural beacon which does not contain a character stream. It is a timing source used in system acquisition and as a measurement device during handoffs  SYNC: WALSH CODE 32  This carries a data stream of system identification and parameter information used by mobiles during system acquisition  PAGING: WALSH CODES 1 up to 7  There can be from one to seven paging channels as determined by capacity needs. They carry pages, system parameters information, and call setup orders  TRAFFIC: any remaining WALSH codes  The traffic channels are assigned to individual users to carry call traffic. All remaining Walsh codes are available, subject to overall capacity limited by noise

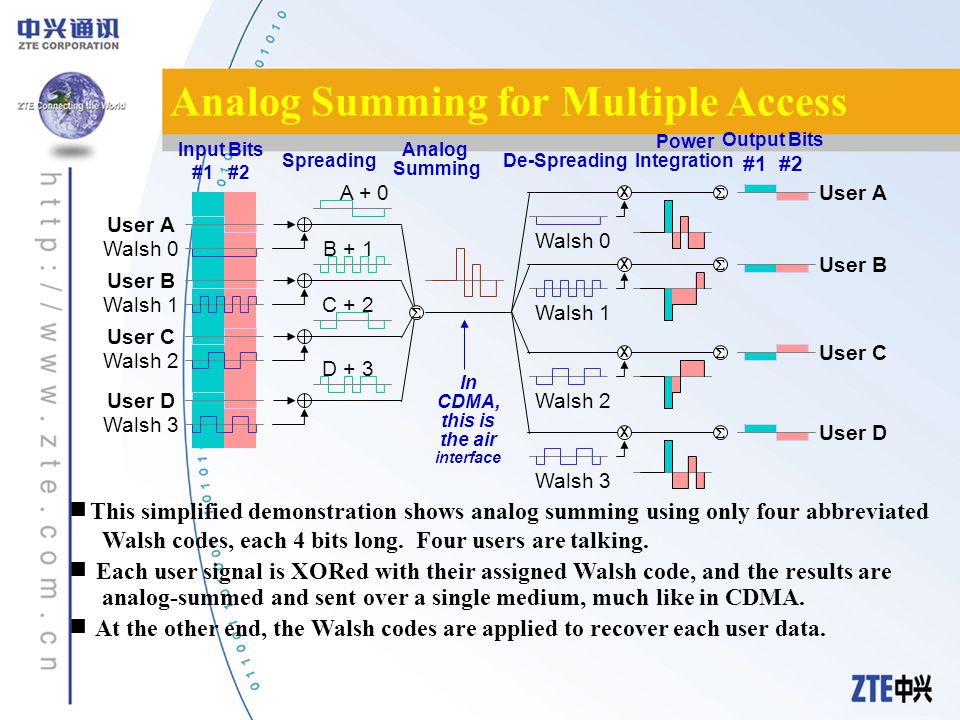

38 Analog Summing for Multiple Access  This simplified demonstration shows analog summing using only four abbreviated Walsh codes, each 4 bits long. Four users are talking.  Each user signal is XORed with their assigned Walsh code, and the results are analog-summed and sent over a single medium, much like in CDMA.  At the other end, the Walsh codes are applied to recover each user data.

39 Coding Process on CDMA Reverse Channels  Each mobile is uniquely identified by an offset of the User Long Code, which it generates internally  All mobiles transmit simultaneously on the same 1.25-MHz wide frequency band  Any nearby BTS can dedicate a channel element to the mobile and successfully extract its signal  Mobiles also use the other CDMA spreading sequences, but not for channel- identifying purposes  Short PN Sequence is used to achieve phase modulation  Walsh Codes are used as symbols to give ultra-reliable communications recovery at the BTS User Long Code BTS BSCMSC

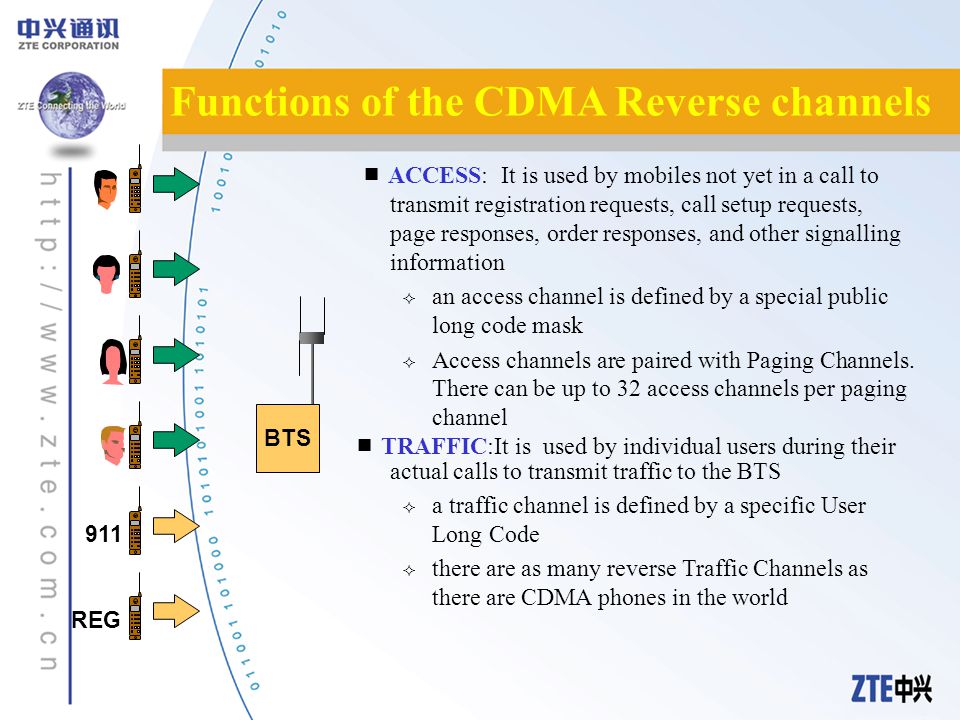

40 Functions of the CDMA Reverse channels  ACCESS: It is used by mobiles not yet in a call to transmit registration requests, call setup requests, page responses, order responses, and other signalling information  an access channel is defined by a special public long code mask  Access channels are paired with Paging Channels. There can be up to 32 access channels per paging channel  TRAFFIC:It is used by individual users during their actual calls to transmit traffic to the BTS  a traffic channel is defined by a specific User Long Code  there are as many reverse Traffic Channels as there are CDMA phones in the world 911 REG BTS

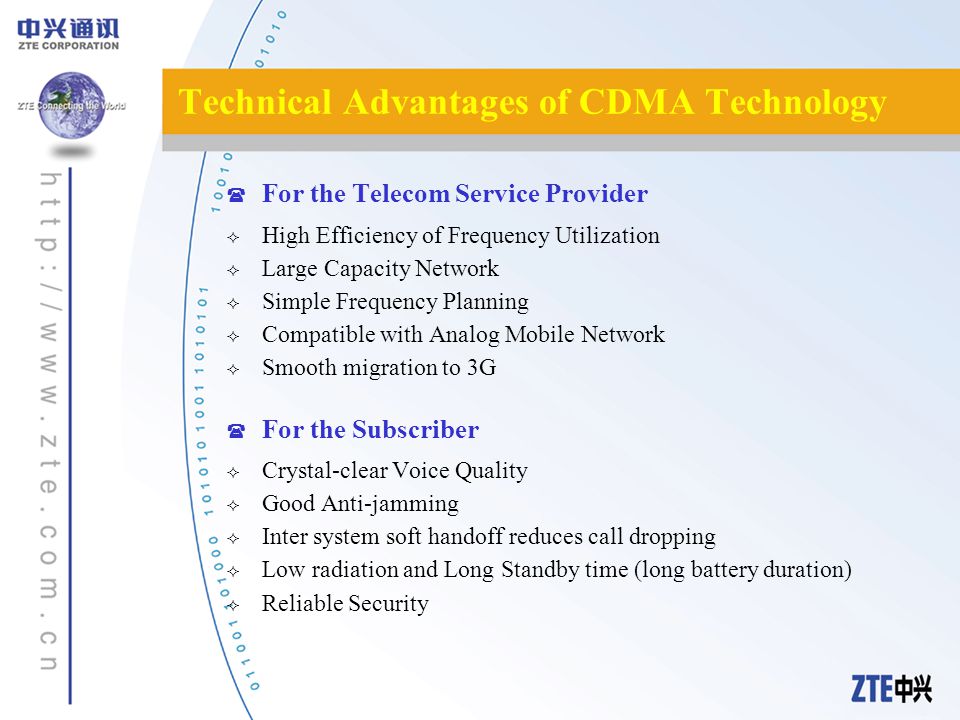

41 Technical Advantages of CDMA Technology  For the Telecom Service Provider  High Efficiency of Frequency Utilization  Large Capacity Network  Simple Frequency Planning  Compatible with Analog Mobile Network  Smooth migration to 3G  For the Subscriber  Crystal-clear Voice Quality  Good Anti-jamming  Inter system soft handoff reduces call dropping  Low radiation and Long Standby time (long battery duration)  Reliable Security

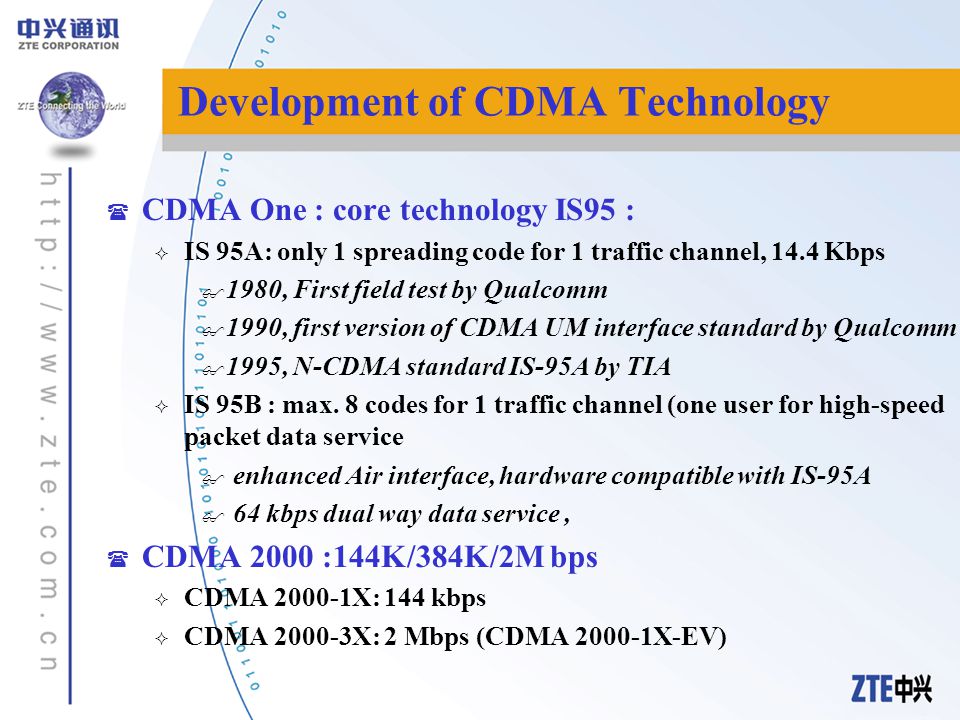

42 Development of CDMA Technology  CDMA One : core technology IS95 :  IS 95A: only 1 spreading code for 1 traffic channel, 14.4 Kbps  1980, First field test by Qualcomm  1990, first version of CDMA UM interface standard by Qualcomm  1995, N-CDMA standard IS-95A by TIA  IS 95B : max. 8 codes for 1 traffic channel (one user for high-speed packet data service  enhanced Air interface, hardware compatible with IS-95A  64 kbps dual way data service,  CDMA 2000 :144K/384K/2M bps  CDMA 2000-1X: 144 kbps  CDMA 2000-3X: 2 Mbps (CDMA 2000-1X-EV)

43 Contents  Overview of Mobile Communications  Technical Features of CDMA  Dynamics of 3 G ( the 3 rd Generation Communications System)

44 Dynamics of 3G  Background  Higher demand of QoS  Seamless internal roaming, wideband, flexible  Large capacity, frequency resource usage  IMT-2000  Naming  commercial use expected in 2002  First phase frequency band around 2 G HZ.  Requirements  QoS: voice/coverage, transmission/delay(BER<10 -3 for voice/video, BER<10 –6 for data; delay is variable with multi-media data services)  New services and capabilities: wideband service(mobile laptop, medical applications, real-time map), flexible band allocation(low rate paging message—high rate video transmission, low delay requirement for voice while absolute integrity for document)  Development and evolution: step by step evolution, investment protection  Flexibility: MS (multi-mode/frequency support international roaming), self-adaptive control (adjustment of radio channel parameters for different environment)  Mobility management: Personal communication, seamless roaming among different networks.

45 Dynamics of 3G UIMMTRANCN Other CN of IMT-2000 family UIM: user identity module MT: mobile terminal RAN: radio access network CN: core network

46  RTT: Radio Transmission Technology  Proposed standards: 10 (FDD: 8, TDD 5) Dynamics of 3G No.RTT ProposedDuplexProposer 1J: W – CDMAFDD, TDDJapan: ARIB 2ETSI – UTRA - UMTSFDD, TDDEurope: ETSI 3WIMS W - CDMAFDDUS: TIA 4WCDMA/NAFDDUS: TIPI 5Global CDMA IIFDDSK: TTA 6TD - SCDMATDDChina: CATT 7CDMA 2000FDD, TDDUS: TIA 8Global CDMA IFDDSK: TTA 9UWC - 136FDDUS: TIA 10DP – DECTTDDEurope: ETSI 1.1 – 5 : similar to WCDMA, harmonization forms 3GPP WCDMA 2.7 – 8 similar to CDMA 2000, harmonization forms 3GPP2 CDMA 2000 3.9 : UWC – 136, based on IS – 136 TDMA (D-AMPS)

47 Dynamics of 3G Wireless Access Network  Various standards:  W-CDMA FDD, W-CDMA TDD(TD-SCDMA), CDMA- 2000 Multi-carrier, UWC-136 TDMA  Widely accepted standards:  CDMA 2000  W-CDMA  UWC-136 Core Network  ANSI TIA/EIA-41 MAP  GSM MAP

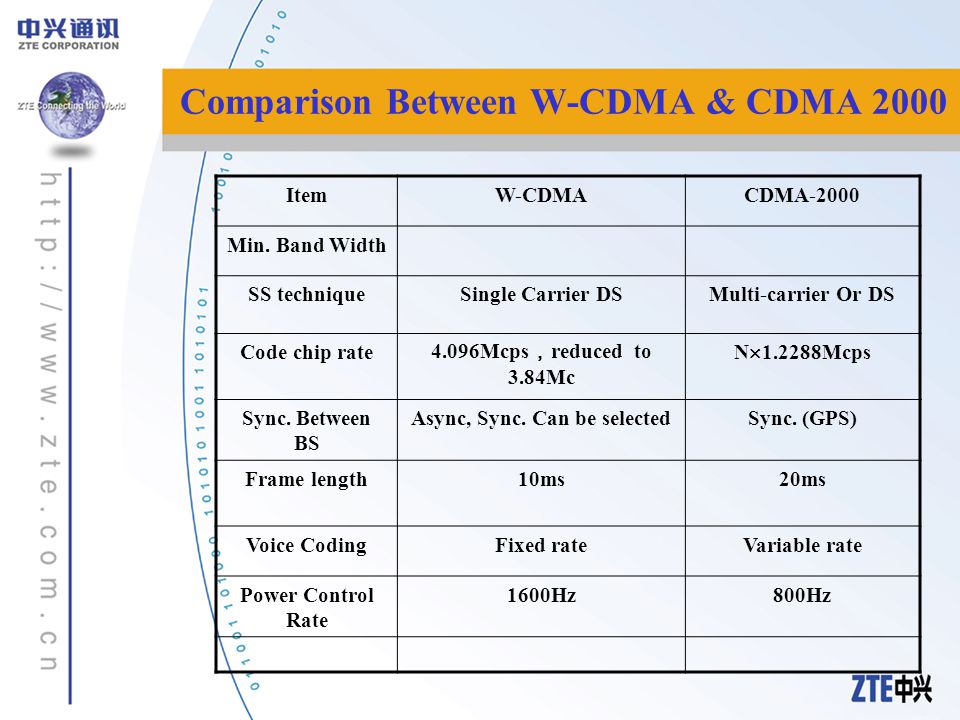

48 Comparison Between W-CDMA & CDMA 2000 ItemW-CDMACDMA-2000 Min. Band Width SS techniqueSingle Carrier DSMulti-carrier Or DS Code chip rate 4.096Mcps , reduced to 3.84Mc N  1.2288Mcps Sync. Between BS Async, Sync. Can be selectedSync. (GPS) Frame length10ms20ms Voice CodingFixed rateVariable rate Power Control Rate 1600Hz800Hz

49 Dynamics of 3 G  Wireless Access Standards Development from 2 G to 3 G  GSM GSM-----GRPS and EDGE (up to 384 kbps)---W-CDMA (5 MHZ)  CDMA IS 95A/B(14.4-64 kbps) cdma2000-1X (144 kbps) cdma2000-3X cdma2000-1X-EV  TDMA (TIA-EIA-136) IS136 IS-136+(TIA/EIA 136-A/B) TDMA/EDGE/GRPS(384kbps) IS137 2.5 G 3 G

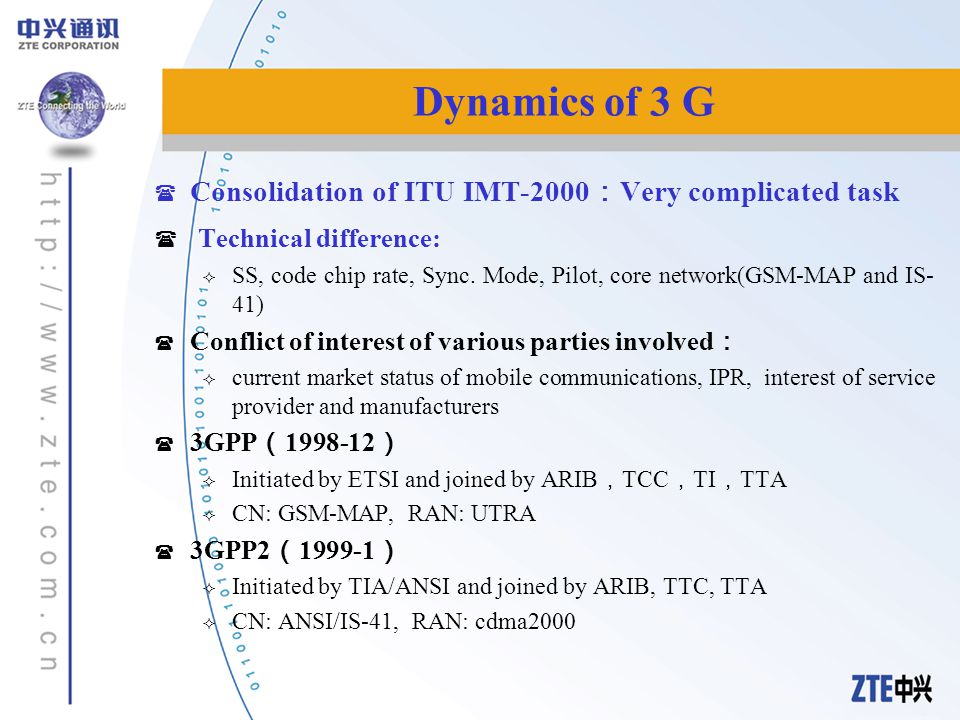

50  Consolidation of ITU IMT-2000 : Very complicated task  Technical difference:  SS, code chip rate, Sync. Mode, Pilot, core network(GSM-MAP and IS- 41)  Conflict of interest of various parties involved :  current market status of mobile communications, IPR, interest of service provider and manufacturers  3GPP ( 1998-12 )  Initiated by ETSI and joined by ARIB , TCC , TI , TTA  CN: GSM-MAP, RAN: UTRA  3GPP2 ( 1999-1 )  Initiated by TIA/ANSI and joined by ARIB, TTC, TTA  CN: ANSI/IS-41, RAN: cdma2000 Dynamics of 3 G

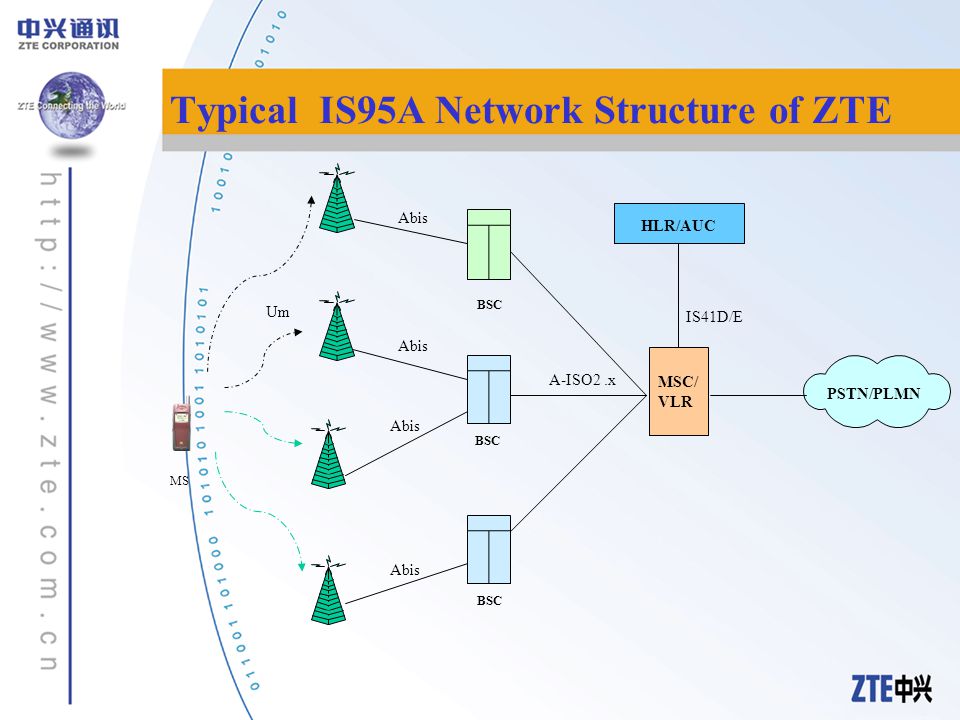

51 Typical IS95A Network Structure of ZTE MSC/ VLR HLR/AUC MS Abis PSTN/PLMN BSC Abis BSC A-ISO2.x Um IS41D/E

52 Evolution from 2G System to 3G System HDR IS-95A cdma2000-3x 1X-EV IS-95B cdma2000-1x

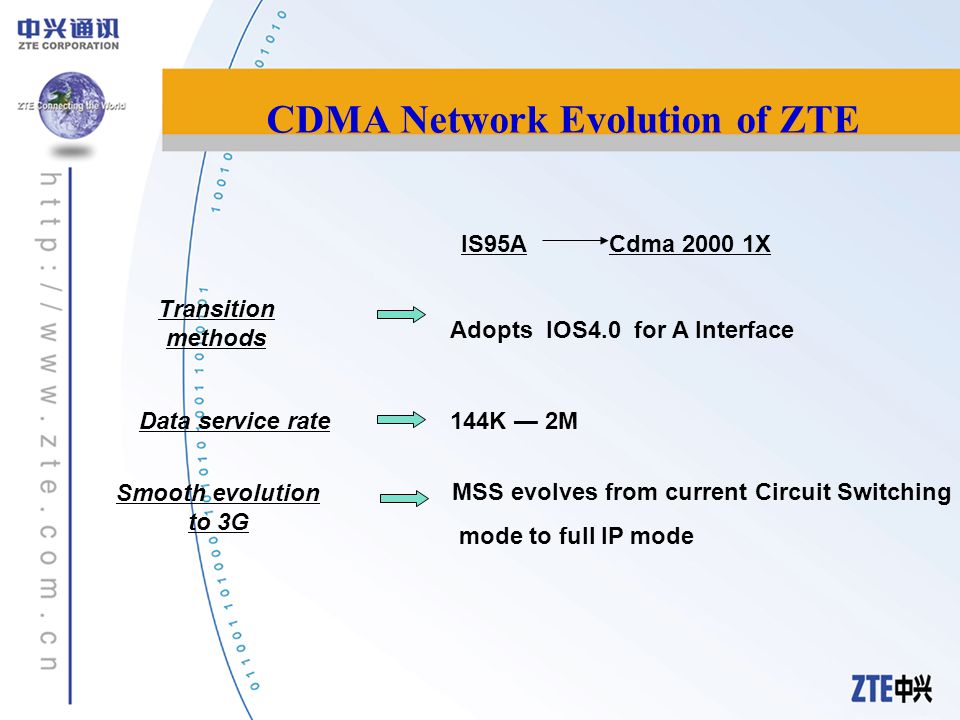

53 CDMA Network Evolution of ZTE IS95ACdma 2000 1X Transition methods Data service rate Adopts IOS4.0 for A Interface 144K — 2M Smooth evolution to 3G MSS evolves from current Circuit Switching mode to full IP mode

54 CDMA2000-1X Network Structure MSC/ VLR HLR/AUC 2G BTS 3G BTS (1X) or 2G BTS+upgrade 2G/3G MS Abis PSTN/PLMN 2G BSC+upgrade or 3G BSC/ PCF (1X) Internet PDSN HA AAA server router Ethernet ATM 2G BTS 2G BSC Abis BSM E1 Um IS95 Um IS2000 E1 STM-1 E1 STM-1 Ethernet 2G BSC+upgrade or 3G BSC/ PCF (1X) 3G BTS (1X) or 2G BTS+upgrade

55 The end !
