1. © 2009 Bentley Systems, Incorporated Richard W. Bradshaw Director of Development – Rail Design Bentley Rail Update

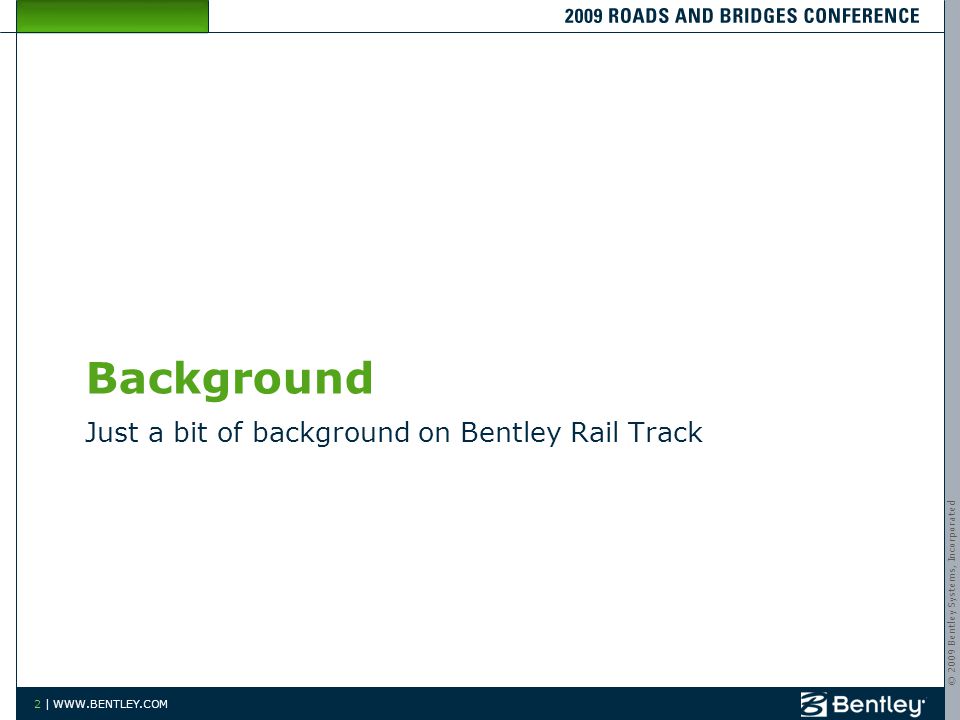

2. © 2009 Bentley Systems, Incorporated 2 | WWW.BENTLEY.COM Background Just a bit of background on Bentley Rail Track

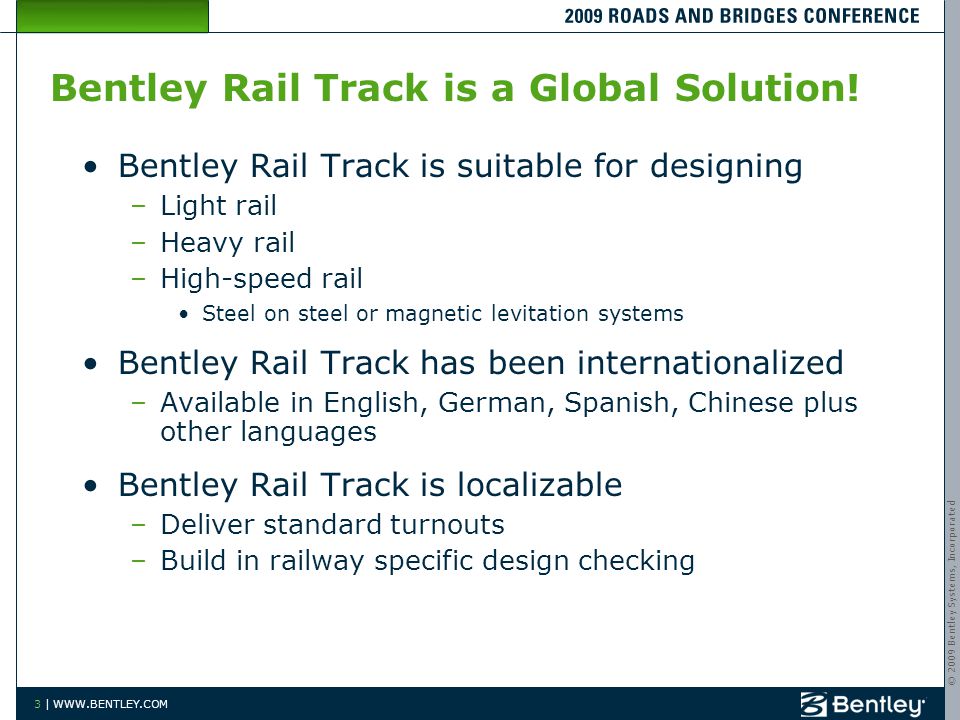

3. © 2009 Bentley Systems, Incorporated 3 | WWW.BENTLEY.COM Bentley Rail Track is a Global Solution! Bentley Rail Track is suitable for designing –Light rail –Heavy rail –High-speed rail Steel on steel or magnetic levitation systems Bentley Rail Track has been internationalized –Available in English, German, Spanish, Chinese plus other languages Bentley Rail Track is localizable –Deliver standard turnouts –Build in railway specific design checking

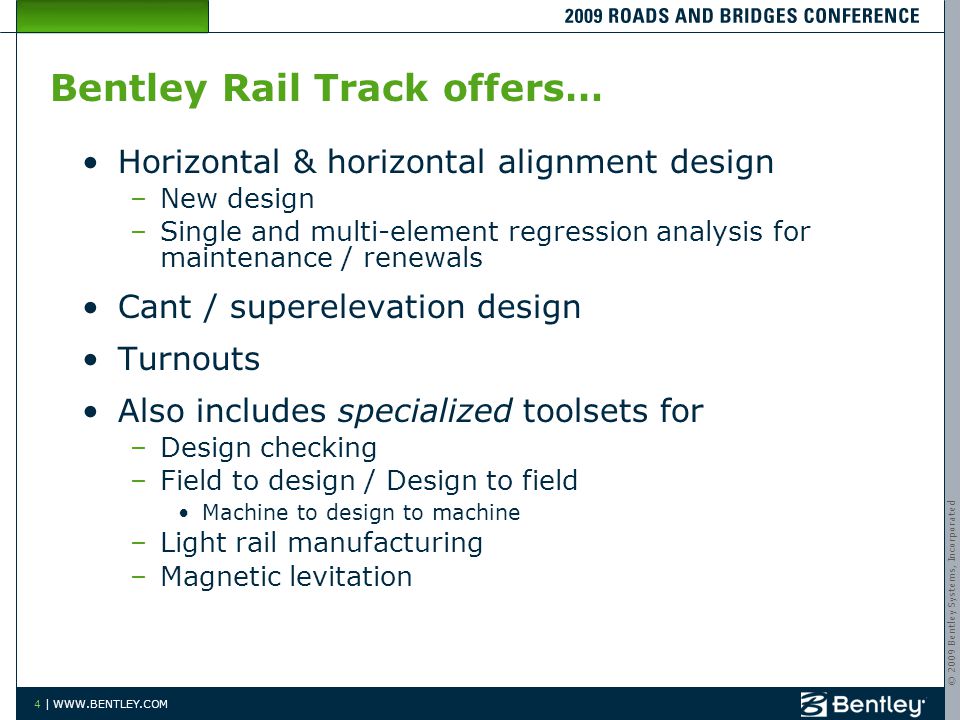

4. © 2009 Bentley Systems, Incorporated 4 | WWW.BENTLEY.COM Horizontal & horizontal alignment design –New design –Single and multi-element regression analysis for maintenance / renewals Cant / superelevation design Turnouts Also includes specialized toolsets for –Design checking –Field to design / Design to field Machine to design to machine –Light rail manufacturing –Magnetic levitation Bentley Rail Track offers…

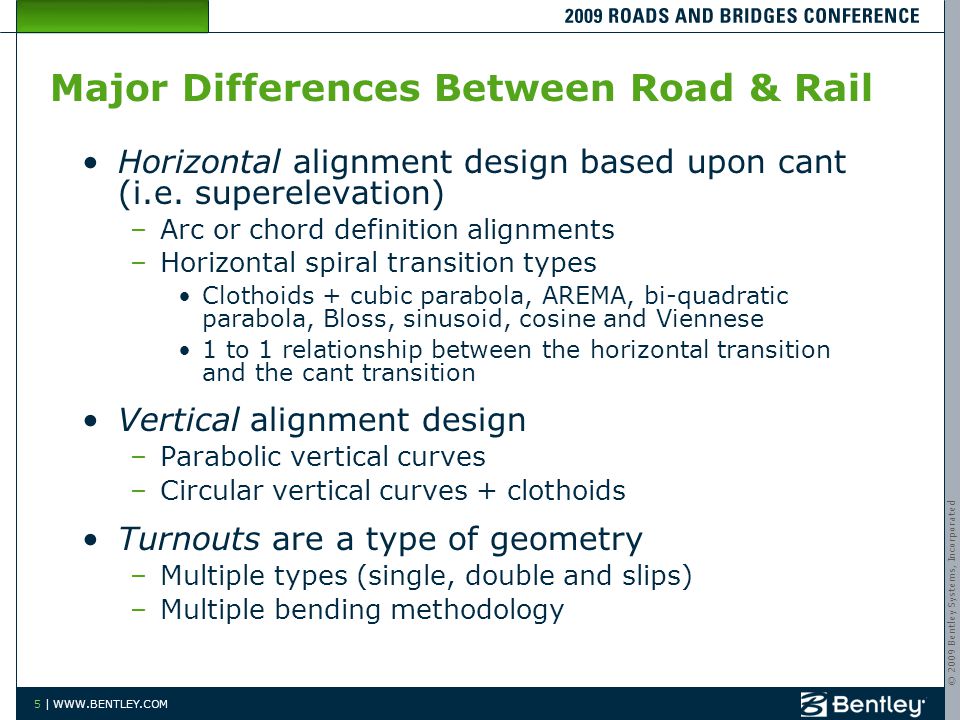

5. © 2009 Bentley Systems, Incorporated 5 | WWW.BENTLEY.COM Major Differences Between Road & Rail Horizontal alignment design based upon cant (i.e. superelevation) –Arc or chord definition alignments –Horizontal spiral transition types Clothoids + cubic parabola, AREMA, bi-quadratic parabola, Bloss, sinusoid, cosine and Viennese 1 to 1 relationship between the horizontal transition and the cant transition Vertical alignment design –Parabolic vertical curves –Circular vertical curves + clothoids Turnouts are a type of geometry –Multiple types (single, double and slips) –Multiple bending methodology

6. © 2009 Bentley Systems, Incorporated 6 | WWW.BENTLEY.COM Alignment Enhancements Horizontal and vertical alignment enhancements for rail design

7. © 2009 Bentley Systems, Incorporated 7 | WWW.BENTLEY.COM Rail Specific Additional Transition Spirals –AREMA Length along axis and chord definition US freight standard –Cubic’s Multiple definitions –Length along axis –Length along tangent

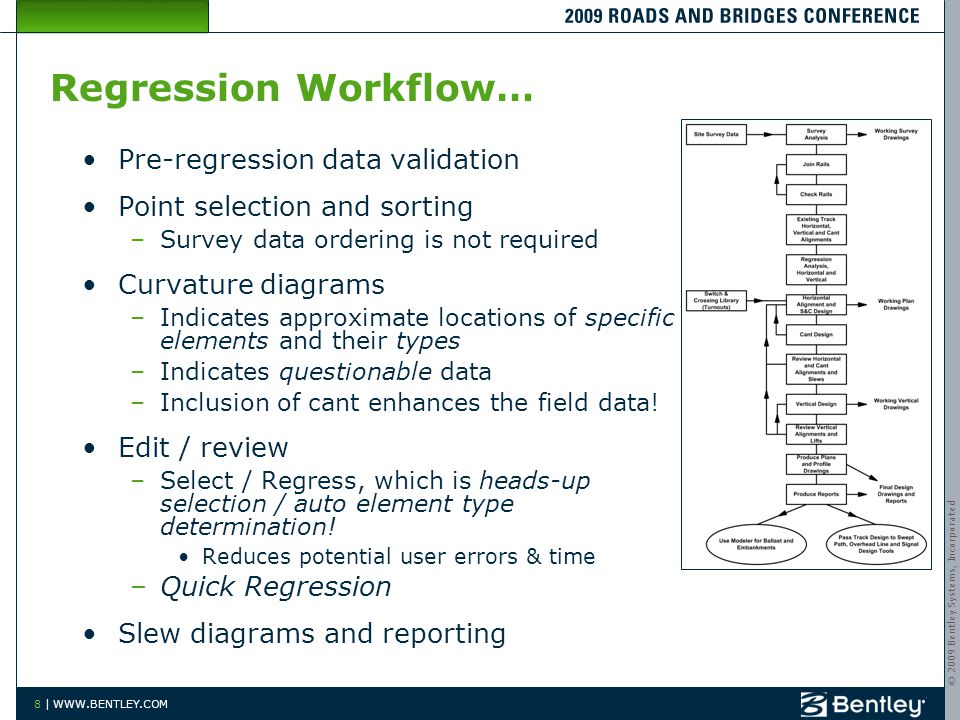

8. © 2009 Bentley Systems, Incorporated 8 | WWW.BENTLEY.COM Regression Workflow… Pre-regression data validation Point selection and sorting –Survey data ordering is not required Curvature diagrams –Indicates approximate locations of specific elements and their types –Indicates questionable data –Inclusion of cant enhances the field data! Edit / review –Select / Regress, which is heads-up selection / auto element type determination! Reduces potential user errors & time –Quick Regression Slew diagrams and reporting

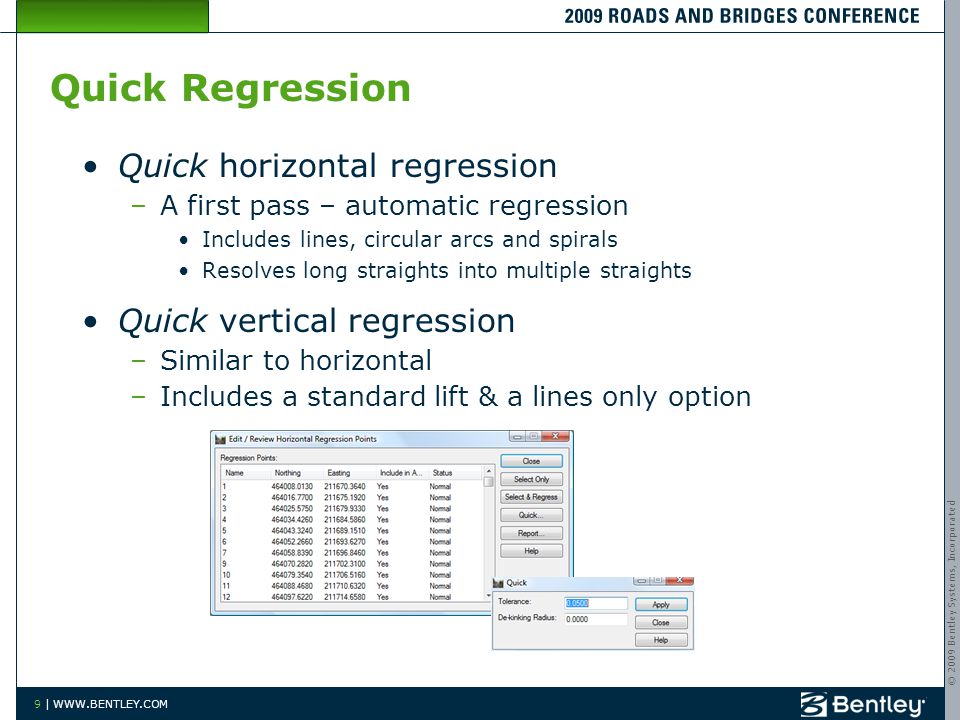

9. © 2009 Bentley Systems, Incorporated 9 | WWW.BENTLEY.COM Quick Regression Quick horizontal regression –A first pass – automatic regression Includes lines, circular arcs and spirals Resolves long straights into multiple straights Quick vertical regression –Similar to horizontal –Includes a standard lift & a lines only option

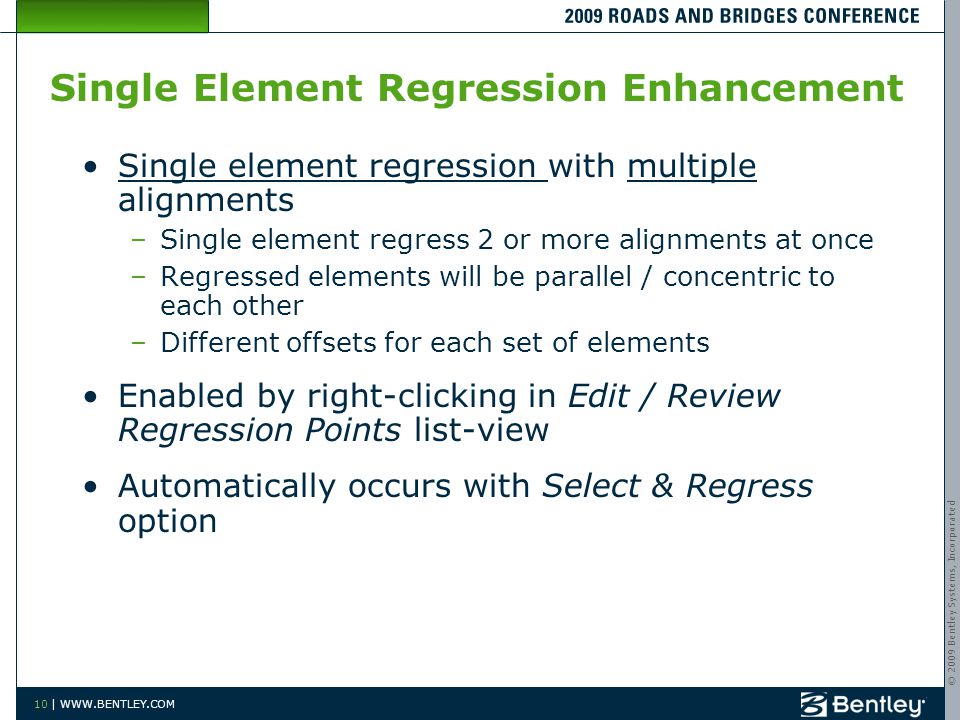

10. © 2009 Bentley Systems, Incorporated 10 | WWW.BENTLEY.COM Single Element Regression Enhancement Single element regression with multiple alignments –Single element regress 2 or more alignments at once –Regressed elements will be parallel / concentric to each other –Different offsets for each set of elements Enabled by right-clicking in Edit / Review Regression Points list-view Automatically occurs with Select & Regress option

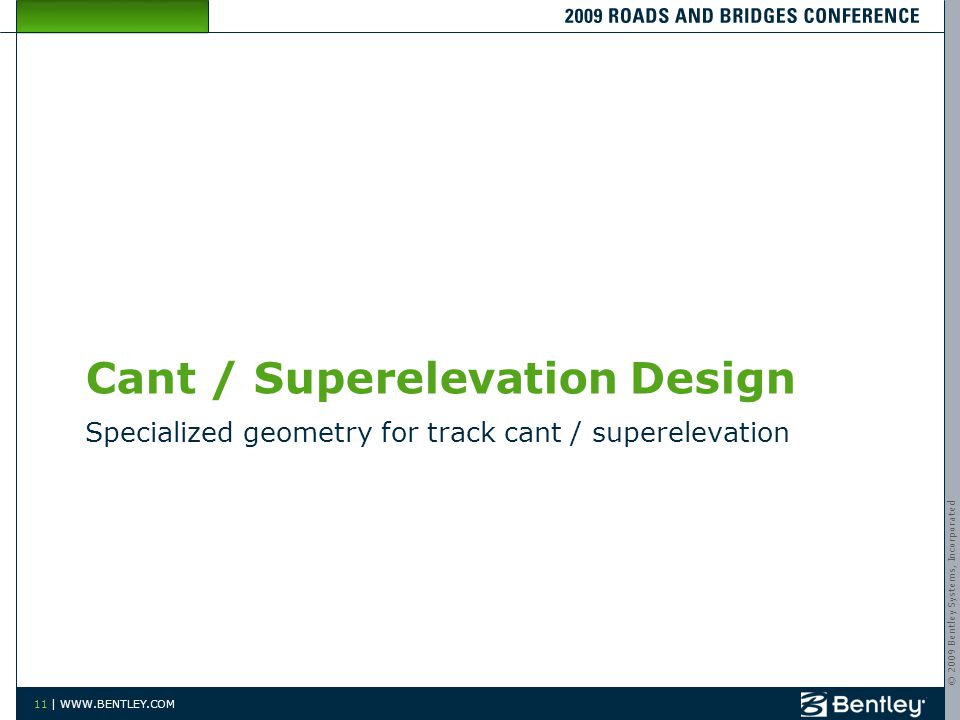

11. © 2009 Bentley Systems, Incorporated 11 | WWW.BENTLEY.COM Cant / Superelevation Design Specialized geometry for track cant / superelevation

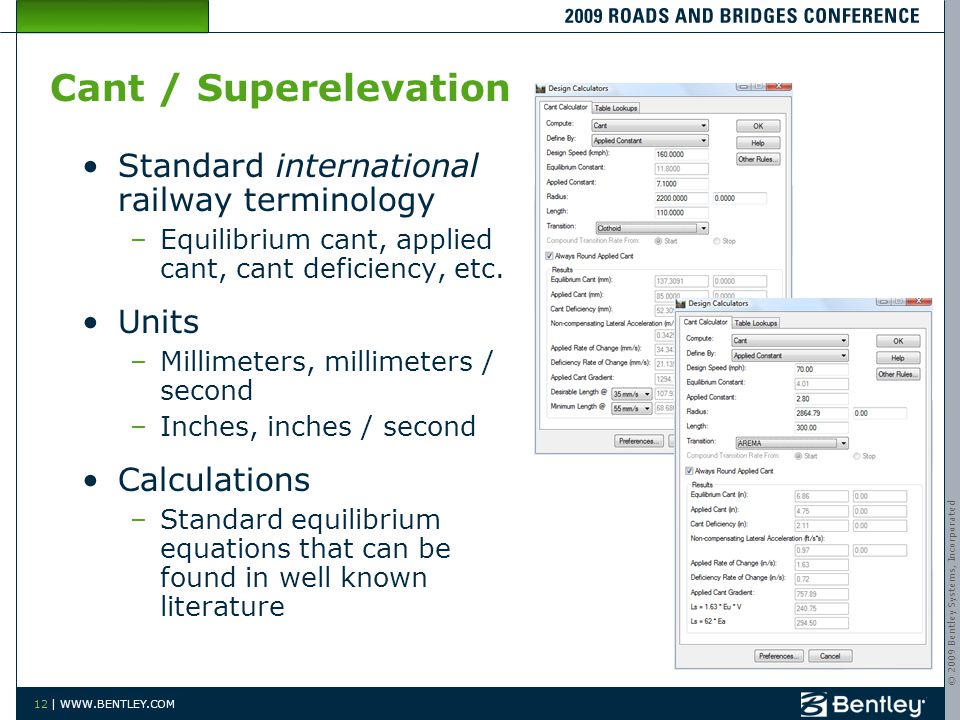

12. © 2009 Bentley Systems, Incorporated 12 | WWW.BENTLEY.COM Cant / Superelevation Standard international railway terminology –Equilibrium cant, applied cant, cant deficiency, etc. Units –Millimeters, millimeters / second –Inches, inches / second Calculations –Standard equilibrium equations that can be found in well known literature

13. © 2009 Bentley Systems, Incorporated 13 | WWW.BENTLEY.COM Integrated into Horizontal Design Radius & spiral lengths based upon cant –Cant & Speed are persisted with the horizontal elements –Suggests spiral lengths Imperial & metric are slightly different –Enables design optimization

14. © 2009 Bentley Systems, Incorporated 14 | WWW.BENTLEY.COM Cant Alignment Editor Creation based upon –Equilibrium equations –Alternate speed –User defined tables

15. © 2009 Bentley Systems, Incorporated 15 | WWW.BENTLEY.COM Turnouts Specialized geometry that conforms to well defined bending rules

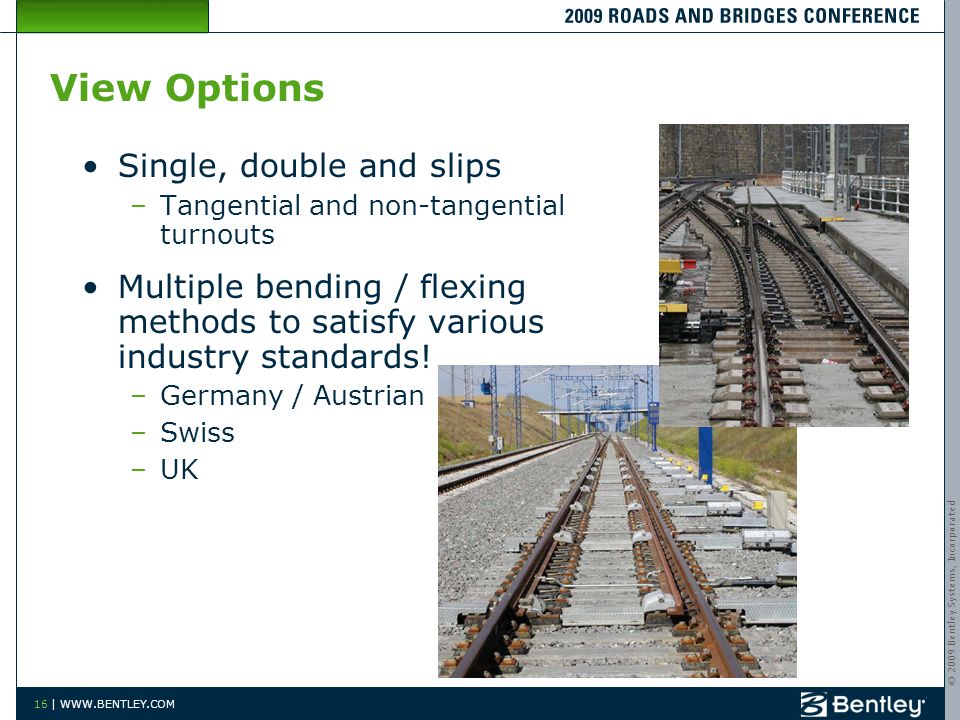

16. © 2009 Bentley Systems, Incorporated 16 | WWW.BENTLEY.COM View Options Single, double and slips –Tangential and non-tangential turnouts Multiple bending / flexing methods to satisfy various industry standards! –Germany / Austrian –Swiss –UK

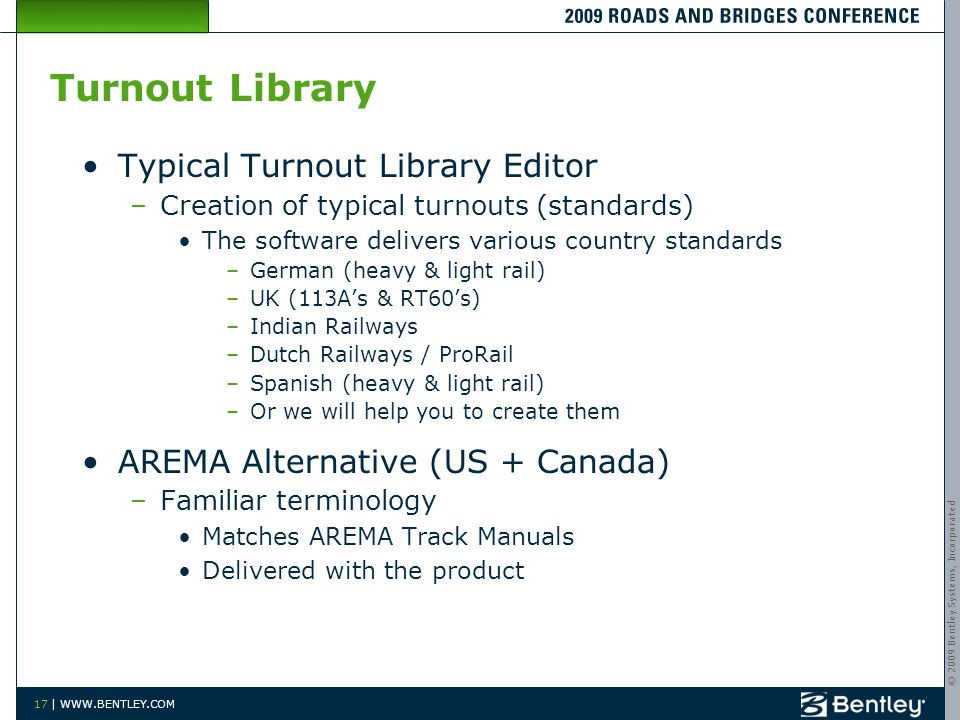

17. © 2009 Bentley Systems, Incorporated 17 | WWW.BENTLEY.COM Turnout Library Typical Turnout Library Editor –Creation of typical turnouts (standards) The software delivers various country standards –German (heavy & light rail) –UK (113A’s & RT60’s) –Indian Railways –Dutch Railways / ProRail –Spanish (heavy & light rail) –Or we will help you to create them AREMA Alternative (US + Canada) –Familiar terminology Matches AREMA Track Manuals Delivered with the product

18. © 2009 Bentley Systems, Incorporated 18 | WWW.BENTLEY.COM Create Turnout Consolidated and minimized functionality differences Interface changes based upon library Create from the interface or interactively

19. © 2009 Bentley Systems, Incorporated 19 | WWW.BENTLEY.COM Create Turnout Connection Start with a single turnout and create a connection to a new turnout –A simplification to minimize using the Turnout Connection Editor for simple crossovers –Ending turnout may match the beginning turnout –Connection is linear or circular, software makes the determination!

20. © 2009 Bentley Systems, Incorporated 20 | WWW.BENTLEY.COM Turnout Connection Editor Used for more advanced geometric constructions –Crossovers –Sidings Editing an existing construction Maintains rules and relationships!

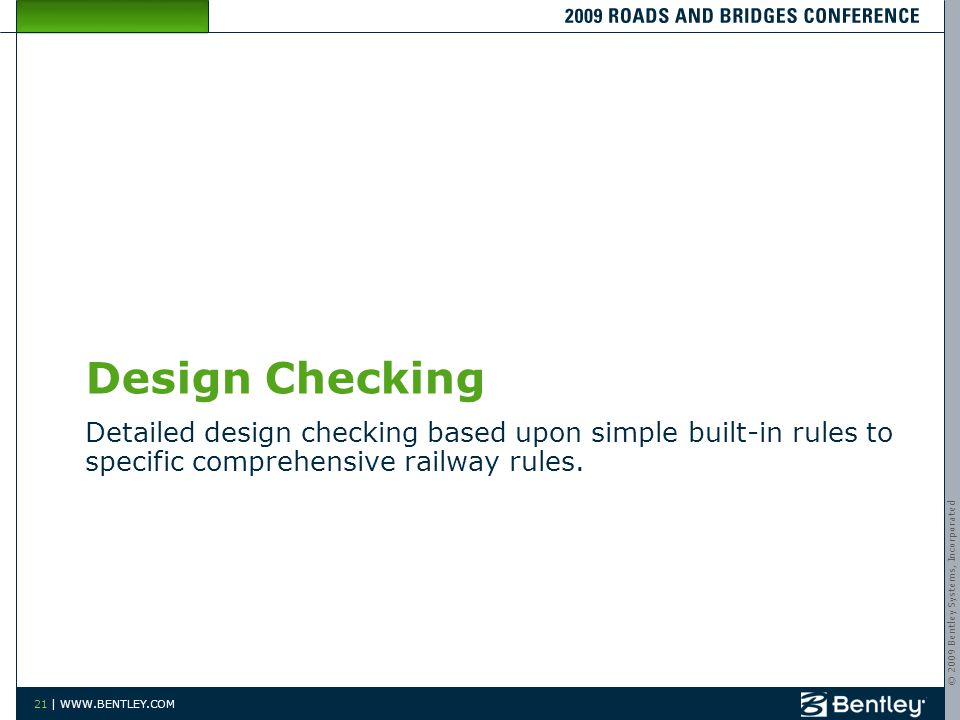

21. © 2009 Bentley Systems, Incorporated 21 | WWW.BENTLEY.COM Design Checking Detailed design checking based upon simple built-in rules to specific comprehensive railway rules.

22. © 2009 Bentley Systems, Incorporated 22 | WWW.BENTLEY.COM Built in Design Checking Cant Alignment Editor includes basic parameters for design checking

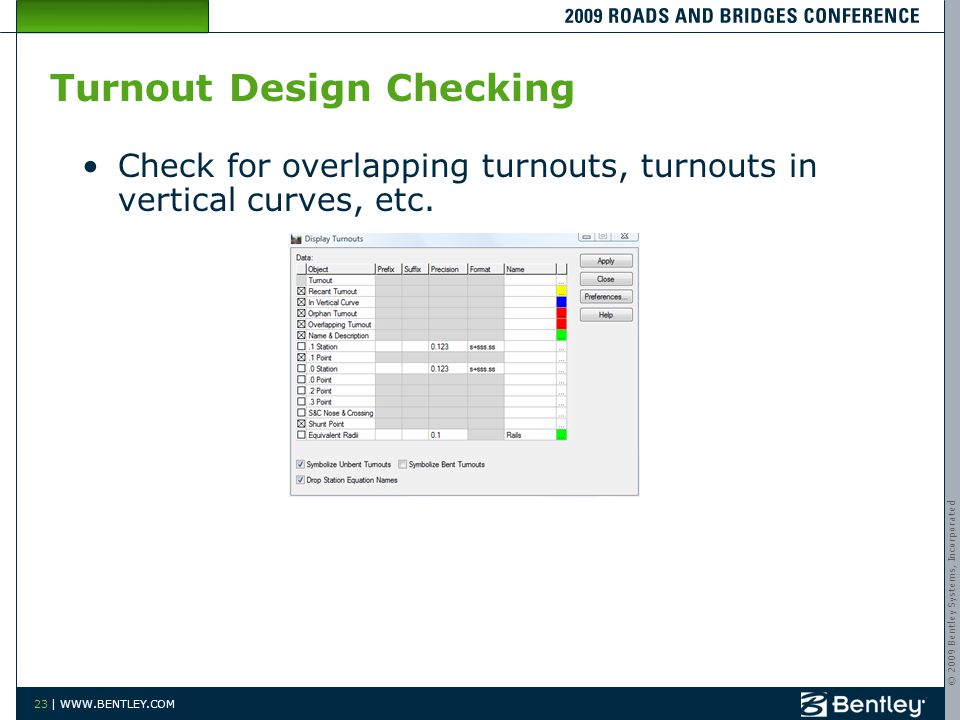

23. © 2009 Bentley Systems, Incorporated 23 | WWW.BENTLEY.COM Turnout Design Checking Check for overlapping turnouts, turnouts in vertical curves, etc.

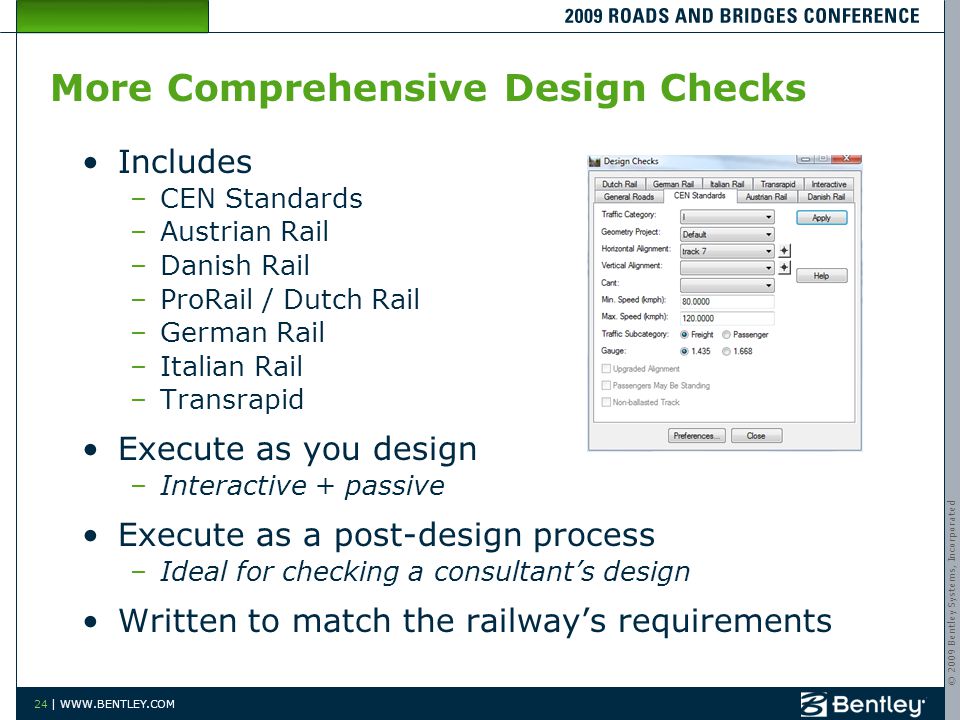

24. © 2009 Bentley Systems, Incorporated 24 | WWW.BENTLEY.COM More Comprehensive Design Checks Includes –CEN Standards –Austrian Rail –Danish Rail –ProRail / Dutch Rail –German Rail –Italian Rail –Transrapid Execute as you design –Interactive + passive Execute as a post-design process –Ideal for checking a consultant’s design Written to match the railway’s requirements

25. © 2009 Bentley Systems, Incorporated 25 | WWW.BENTLEY.COM User Interface Along with changes discussed in the Geometry Update, lets look at rail specific changes.

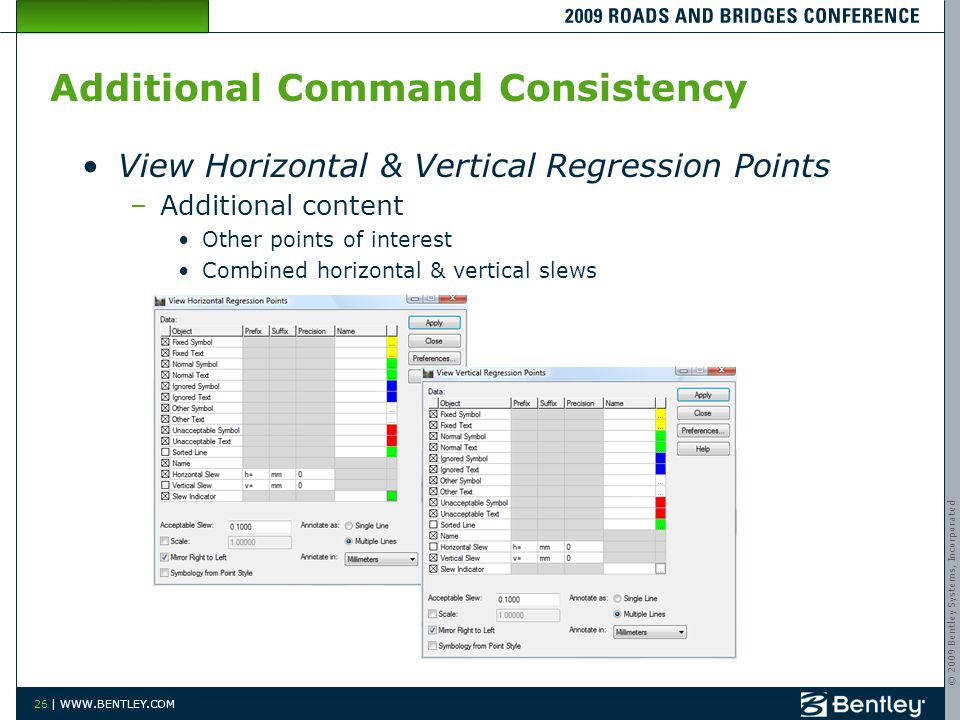

26. © 2009 Bentley Systems, Incorporated 26 | WWW.BENTLEY.COM Additional Command Consistency View Horizontal & Vertical Regression Points –Additional content Other points of interest Combined horizontal & vertical slews

27. © 2009 Bentley Systems, Incorporated 27 | WWW.BENTLEY.COM Additional Command Consistency Switch Height Plan

28. © 2009 Bentley Systems, Incorporated 28 | WWW.BENTLEY.COM Additional Command Consistency Turnouts

29. © 2009 Bentley Systems, Incorporated 29 | WWW.BENTLEY.COM Additional Interface Changes Smaller Dialogs Moved buttons to right-click popup menus And to avoid user panic, an Alert has been added!

30. © 2009 Bentley Systems, Incorporated 30 | WWW.BENTLEY.COM Configurable List View & Dialog Resizing Right click in title and select data of interest –Cant Alignment Editor –Edit / Review Regression Points –Check Integrity

31. © 2009 Bentley Systems, Incorporated 31 | WWW.BENTLEY.COM Less Clutter Eliminated tabbed dialogs Moved buttons to right click context sensitive pop-up menus

32. © 2009 Bentley Systems, Incorporated 32 | WWW.BENTLEY.COM Localizations Country specific enhancements to increase productivity

33. © 2009 Bentley Systems, Incorporated 33 | WWW.BENTLEY.COM Network Rail Localizations Display and annotation of S&C in accordance with Network Rail requirements –Unlikely scalable to others!

34. © 2009 Bentley Systems, Incorporated 34 | WWW.BENTLEY.COM ProRail Localizations Display and annotation in accordance with ProRail requirements –View Plan is specific to ProRail –View Track Centers is scalable to others!

35. © 2009 Bentley Systems, Incorporated 35 | WWW.BENTLEY.COM Italian Railway Localizations Display and annotation in accordance with Italian Railway requirements –Unlikely scalable to others, but tabling sparks future development requirements!

36. © 2009 Bentley Systems, Incorporated 36 | WWW.BENTLEY.COM Other Cant Rules Integrating other rules into the system

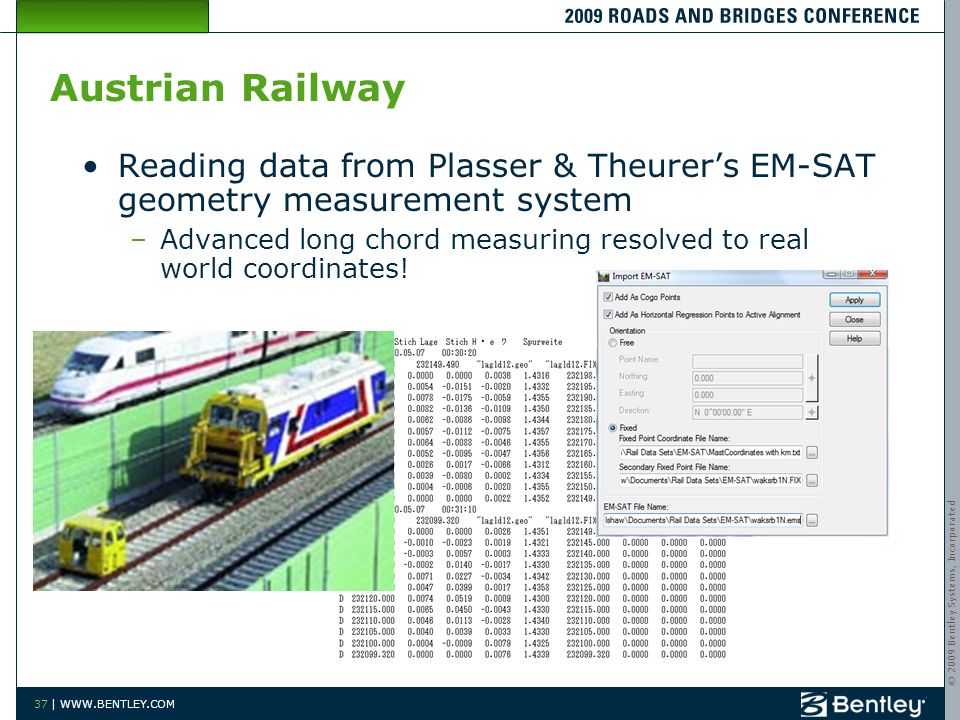

37. © 2009 Bentley Systems, Incorporated 37 | WWW.BENTLEY.COM Austrian Railway Reading data from Plasser & Theurer’s EM-SAT geometry measurement system –Advanced long chord measuring resolved to real world coordinates!

38. © 2009 Bentley Systems, Incorporated 38 | WWW.BENTLEY.COM Swept Path Analysis New functionality for the creation of vehicle swept paths

39. © 2009 Bentley Systems, Incorporated 39 | WWW.BENTLEY.COM Swept Path Analysis New functionality for the creation of swept path / vehicle envelopes –Results can be Horizontal projection only Interactive or 3D mesh –Up to 3 vehicles in tandem –Uses horizontal, vertical and cant geometries

40. © 2009 Bentley Systems, Incorporated 40 | WWW.BENTLEY.COM Vehicle Library Manages an XML based file of vehicles –..\Bentley Rail Track V8.11\data\metric\swept path vehicles.xml Original data is 3D graphics

41. © 2009 Bentley Systems, Incorporated 41 | WWW.BENTLEY.COM Vehicle Definition A selective / interactive import from.dgn –Bogie points –Optional articulation points –Front, middle & rear sections

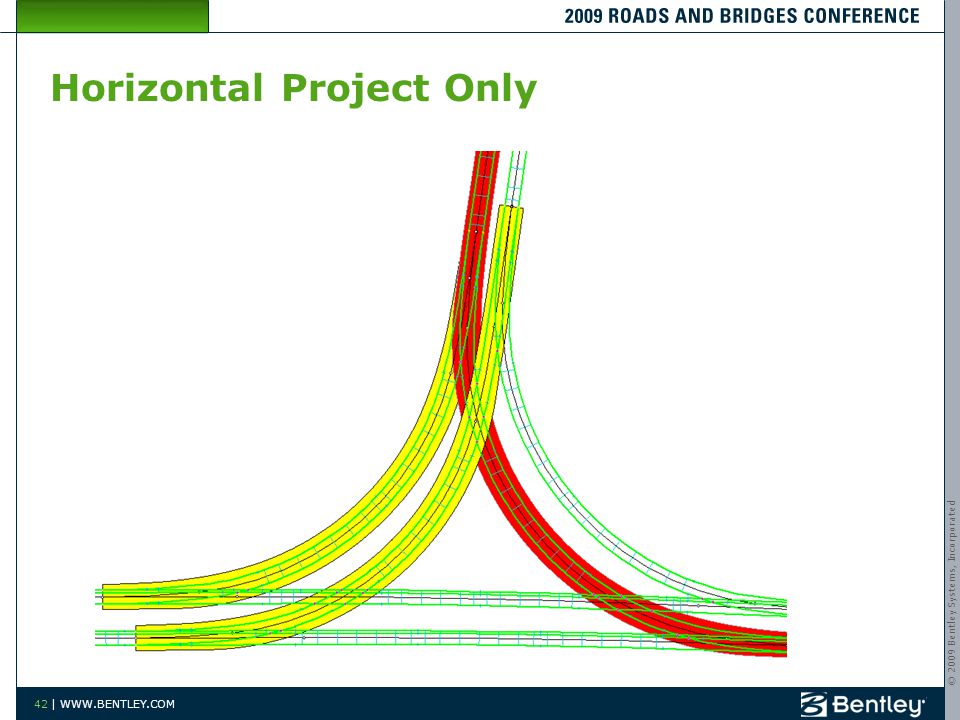

42. © 2009 Bentley Systems, Incorporated 42 | WWW.BENTLEY.COM Horizontal Project Only

43. © 2009 Bentley Systems, Incorporated 43 | WWW.BENTLEY.COM Interactive

44. © 2009 Bentley Systems, Incorporated 44 | WWW.BENTLEY.COM 3D Mesh or Surface

45. © 2009 Bentley Systems, Incorporated 45 | WWW.BENTLEY.COM Bentley Rail Overhead Line A new product for the creation of overhead line equipment for electrified railways

46. © 2009 Bentley Systems, Incorporated 46 | WWW.BENTLEY.COM Overhead Line Design Process

47. © 2009 Bentley Systems, Incorporated 47 | WWW.BENTLEY.COM Starting with Bentley Rail Track Create a network model from –Bentley Rail Track geometry –LandXML System settings –System settings & design rules Create –Reference lines –Wire runs –Foundations, Masts & cantilevers and other equipment –Perform engineering calculations based upon design rules Resulting in a Rail Information Model

48. © 2009 Bentley Systems, Incorporated 48 | WWW.BENTLEY.COM Resulting in Textual data Graphical data –Plan View –Cross Section View

49. © 2009 Bentley Systems, Incorporated 49 | WWW.BENTLEY.COM And more details Graphical data and Non-graphic data

50. © 2009 Bentley Systems, Incorporated 50 | WWW.BENTLEY.COM Questions?
