Company Confidential 1 Lowrance/Eagle 2009 New Product Review
2
Company Confidential © 2008 Navico Holding AS Page 2 Agenda/Content Lowrance – HDS High Definition System series – LWX-1 Sirius smart weather/audio ethernet module – LGC-4000 high sens NMEA2000 5 Hz external GPS antenna – LHR-80 handheld VHF with GPS/DSC Eagle – Cuda 300/300P, Cuda 350i, FishEasy 350c/350cP – FishMark/SeaFinder/FishElite 640c, FishElite/SeaCharter/Intellimap 642c – EGC-16W high sens serial external GPS antenna
3
Company Confidential © 2008 Navico Holding AS Page 3 HDS Product Overview HDS replaces the LMS, LCX and the majority of the GlobalMap products, building on the strengths of the Lowrance brand and addressing the major weaknesses: – Navico’s premier down-looking sonar technology, the Broadband Sounder, built- in on select models – All-new industrial design that will add value to boat helms, with strikingly bright, high clarity screens visible in all conditions – Flexible cartography support, with new technologies never seen in the marine space or previously only available on higher-priced systems – Attractive, easier-to-use interface that will be familiar to long-time Lowrance customers – More options to add value in an installation, adding SIRIUS® Satellite Weather and Radio to the range of supported accessories Product Strategy
4
Company Confidential © 2008 Navico Holding AS Page 4 HDS Product Overview HDS replaces all LMS, LCX, GlobalMap products, the X510c and the X515c – Broadband Sounder built-in on most models – All-new Industrial Design and LED Displays – The widest cartography support, with revolutionary new technology – Easier to install and use – More options to add value including SIRIUS® Satellite Weather and Radio All the strengths of the Lowrance line… now with the major weaknesses addressed and exclusive new technology An attractive system for fishing freshwater, fishing saltwater AND cruising WHAT IS HDS?
5
Company Confidential © 2008 Navico Holding AS Page 5 HDS Product Overview Product Family HDS-5 HDS-5m HDS-5x HDS-5 Baja HDS-7 HDS-7m HDS-8 HDS-8m HDS-10 HDS-10m
6
Company Confidential © 2008 Navico Holding AS Page 6 HDS Product Overview Naming Convention HDS is short for High Definition System – Highest definition fish-finding sonar – Choice of detailed charts – HD weather and radar options – Flexible, extensible systems The core of the range are the multifunction displays, with integrated Broadband Sounder Models are offered without integrated sounder for pure navigation applications One dedicated 5” fishfinder and one rugged 5” chartplotter for offroad use HDS-7m Series name Display size Product type none = Built-in GPS and Sonar m = Built-in GPS only x = Dedicated fishfinder Baja = Offroad chartplotter
7
Company Confidential © 2008 Navico Holding AS Page 7 HDS Product Overview Product Replacement Reference Display Size2008 Product2009 Product 5”X510c, X515c DFHDS-5x GlobalMap 5200c GlobalMap 5300ci HDS-5m (includes Nautic Insight in Americas) LMS-520c LMS-522c iGPS LMS-525c DF LMS-527c DF iGPS HDS-5 HDS-5 Lake Insight* (new) HDS-5 Nautic Insight* (new) 7”GlobalMap 7200cHDS-7m (includes Insight USA in Americas) LCX-27c LCX-28c HD HDS-7 HDS-7 Insight USA 8”GlobalMap 8200cHDS-8m (includes Insight USA in Americas) LCX-37c LCX-38c HD HDS-8 HDS-8 Insight USA 10”GlobalMap 9200cHDS-10m (includes Insight USA in Americas) LCX-112c LCX-113c HD HDS-10 HDS-10 Insight USA OffroadGlobalMap Baja 540c GlobalMap Baja 840c HDS-5 Baja Not replaced * Equivalent to LMS-522c iGPS with all FHS Pro cards or LMS-527c DF iGPS with Nauticpath card
8

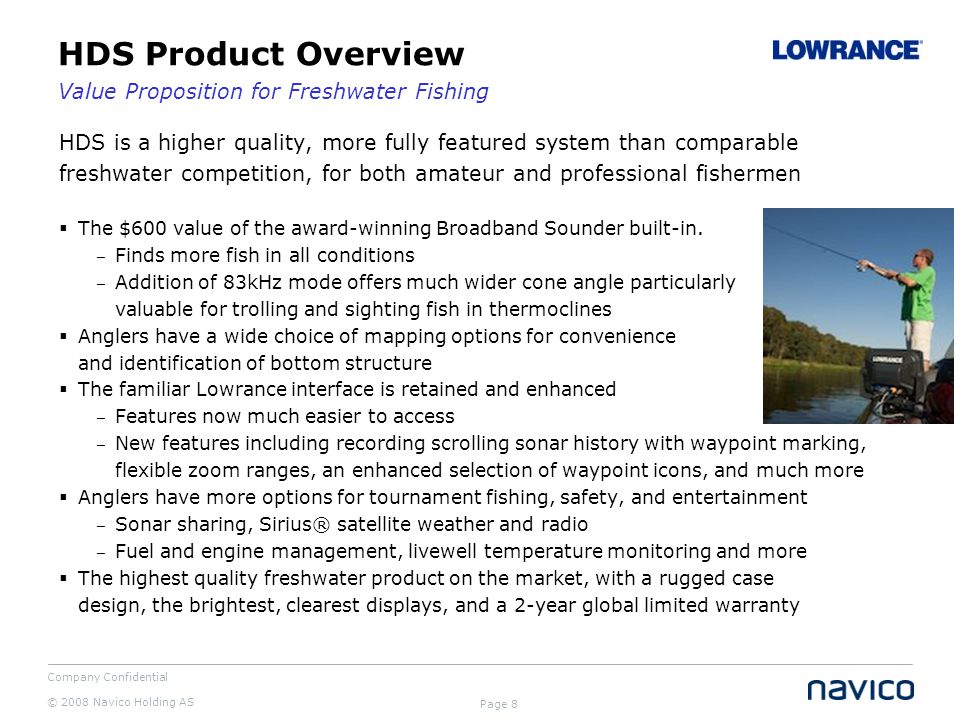

Company Confidential © 2008 Navico Holding AS Page 8 HDS Product Overview HDS is a higher quality, more fully featured system than comparable freshwater competition, for both amateur and professional fishermen The $600 value of the award-winning Broadband Sounder built-in. – Finds more fish in all conditions – Addition of 83kHz mode offers much wider cone angle particularly valuable for trolling and sighting fish in thermoclines Anglers have a wide choice of mapping options for convenience and identification of bottom structure The familiar Lowrance interface is retained and enhanced – Features now much easier to access – New features including recording scrolling sonar history with waypoint marking, flexible zoom ranges, an enhanced selection of waypoint icons, and much more Anglers have more options for tournament fishing, safety, and entertainment – Sonar sharing, Sirius® satellite weather and radio – Fuel and engine management, livewell temperature monitoring and more The highest quality freshwater product on the market, with a rugged case design, the brightest, clearest displays, and a 2-year global limited warranty Value Proposition for Freshwater Fishing
9
Company Confidential © 2008 Navico Holding AS Page 9 HDS Product Overview HDS is a high quality, fully featured system with the features anglers need at a competitive price Attractive new industrial design that suits any boat helm The $600 value of the award-winning Broadband Sounder built-in. – The most sensitive fishfinding sonar available, marking more fish whether suspended or hugging the bottom – Tracks bottom to incredible depths, up to and in excess of 5000ft Incredibly bright displays that on the 7”, 8” and 10” can dim to zero for best vision at night Anglers can select from the full range of high detail Navionics® cartography on SD card, or in the USA incredible new Insight technology built-in The user interface and professional functionality is enhanced – Features now much easier to access – New features including recording scrolling sonar history with waypoint marking, flexible zoom ranges, and much more Anglers have more options for tournament fishing, safety and entertainment – Networked sonar, Sirius® satellite weather and radio, and HD Digital Radar – Fuel and engine management, livewell temperature monitoring and more Value Proposition for Saltwater Fishing
10
Company Confidential © 2008 Navico Holding AS Page 10 HDS Product Overview HDS is a high quality, feature-packed system with an attractive design and a great price The attractive new industrial design suits any boat helm Incredibly bright displays that on the 7”, 8” and 10” can dim to zero for best vision at night The full range of high detail Navionics® cartography with exclusive new seamless 2D / 3D Turboview, or in the USA convenient, built-in, intuitive Insight technology Attractive, easy-to-use interface – Navigate and access vessel and sensor data with the minimum number of keypresses More options for control, safety and entertainment – Networked Sirius® satellite weather and radio and HD Digital Radar – Full fuel and engine management – Access to a full range ofNMEA 2000 sensors for monitoring depth, water temperature, wind speed and direction, and more – Connect to a Simrad, Northstar or 3 rd party autopilot Value Proposition for Cruising
11
Company Confidential © 2008 Navico Holding AS Page 11 HDS Product Overview 5” and 7” models, front Familiar keypad layout with keys large and easier-to-press even when frosted over, rearranged for ease of use Single SD card slot With magnetic door, openable without screwdriver Front bezel clips off revealing four bolt-holes for simple flush mounting from the front High sensitivity SirfStar III GPS antenna built into front bezel on all GPS models New gimbal mounting brackets with same screw points as existing brackets
12
Company Confidential © 2008 Navico Holding AS Page 12 HDS Product Overview 8” and 10” models, front Same keypad as 5” & 7” models Dual SD card slots with magnetic door, 1xMMC and 1xMMC+ Detachable bezel and internal GPS antenna as on 5” & 7” models Capacitive FlyWheel® dial offers rotary functions including quick adjustment of settings Six soft keys on 8” and 10” models offer one-touch access to most common menu functions
13
Company Confidential © 2008 Navico Holding AS Page 13 HDS Product Overview All models, rear Lowrance logo, backlit on 8” and 10” models Sonar – Lowrance blue connector Existing connector set for easier retrofit 10-pin Power/data Lowrance yellow ethernet Lowrance DeviceNet compatible NMEA 2000 No heat sink: units can be mounted overhead using standard gimbal
14
Company Confidential © 2008 Navico Holding AS Page 14 HDS System Overview Supported functionality FunctionRequired HardwareNetwork InterfaceNotes Charting Lowrance InsightBuilt-in on select modelsCharting is not networked in HDS Navionics TurboviewNavionics SD cardFeb 2009 Lowrance LakemasterSD card Other LowranceSD cardAll currently supported charts Broadband SounderBuilt-in on select modelsEthernet83/200kHz or 50/200kHz transducer Vessel Data Internal Data SharingEthernet connectionEthernetSharing of alarms, navigation data, internal sensors Fuel ManagementFuel sensor(s)NMEA 2000Gasoline Engine ManagementEngine interface cableNMEA 2000Yamaha, Suzuki, Evinrude, Honda supported External SensorsSensorsNMEA 0183 / 2000 Satellite Weather and RadioSIRIUS® LWX-1 (US only)EthernetSIRIUS® subscription required RadarLowrance HD Digital RadarEthernet Chart OverlayHeading sensorNMEA 2000SIMRAD FC40 / RC42 recommended AISAIS receiverSerial / NMEA 2000 DSCDSC VHFNMEA 0183 / 2000Buddy tracking with LVR 880 Feb 2009 Autopilot NavigationCompatible autopilotNMEA 0183 / 2000
15
Company Confidential © 2008 Navico Holding AS Page 15 HDS System Overview Broadband Sounder – Benefits Summary 1.Higher Sensitivity – Broadband is more sensitive than current sonar which means Wider cone angle (detect fish & objects earlier) Detects smaller and deeper fish – Best results may be found at much lower sensitivity than analog sonar – Bottom lock is held at very high speeds – This sensitivity is achieved with very low power output (250W peak-to-peak) – Pixel counts are not the measure of performance any longer! 2.Less Clutter and Better Target Discrimination – Broadband can better tell the difference between fish, structure, thermoclines, and other fish – Less noise in the water column and at the surface means a clearer picture 3.Dual Frequency in Shallow Water – Broadband enables 83kHz frequency in the standard 1” skimmer – 83kHz has a much wider cone angle (with more surface clutter) and goes deeper – Split frequency shows more fish and better arches 4.Deep Water Penetration – Tracks bottom and shows fish into deep, deep water
16
Company Confidential © 2008 Navico Holding AS Page 16 HDS System Overview Broadband Sounder – 200kHz Lake Oolagah, OK June 2008, using 1.7” Skimmer Target discrimination improved: More trees, and more fish seen Less screen clutter between the trees Bottom composition more defined – and fish seen around the hump
17
Company Confidential © 2008 Navico Holding AS Page 17 HDS System Overview Broadband Sounder – 83kHz Wider cone angle = much wider fish arches More bottom coverage clearly shows humps and hole Fish are clearly visible against the thermocline
18
Company Confidential © 2008 Navico Holding AS Page 18 HDS System Overview Broadband Sounder – 50kHz Tuna Jig Hookup
19
Company Confidential © 2008 Navico Holding AS Page 19 HDS charting support varies regionally In North America a range of cartography is supported: – New Lowrance Insight maps built-in on select models – Navionics SD cards up to Platinum+ supported from Feb 2009 – Lowrance Lakemaster and all existing Lowrance SD cards supported – Units without Insight still offer built-in cartography value, with an Enhanced US basemap expanded on the one currently available on the LMS product range, providing coastal navaids and detailed shorelines and depth contours for over 4,000 US lakes Elsewhere, Navionics is the primary chart option – Units will ship with a Navionics background map with limited soundings / navaids – Nauticpath International will still be supported The Lowrance and Navionics charts are accessed through separate software applications Products not distributed by Navico in EMEA and APAC will be geofenced, and the charting will not function in these regions without being unlocked HDS charting is not networked; SD card charts must be installed in each display, however navigation data is networkable via Ethernet HDS System Overview Charting Options
20
Company Confidential © 2008 Navico Holding AS Page 20 Supported cartography in North America: – New Lowrance Insight maps built-in on select models Lake Insight = All Fishing Hot Spots detail (value $400), and the Great Lakes including new data Nautic Insight = Nauticpath, plus new contour data Insight USA = Both Lake Insight and Nautic Insight – Navionics SD cards up to Platinum+ supported from Feb 2009 – Lowrance Lakemaster and all existing Lowrance SD cards supported – Units without Insight still offer built-in cartography value, with shoreline and detailed depth contours for over 4,000 lakes, and coastal nav-aids The Insight products are offered only built-in, not on SD card Note that HDS charting is not networked HDS System Overview Charting Options
21
Company Confidential © 2008 Navico Holding AS Page 21 HDS System Overview Lake Insight – bottom structure at a glance Lake Amistad Reservoir, TX – Enhanced Basemap vs. Lake Insight Contour shading is available down to 0.5mi range
22
Company Confidential © 2008 Navico Holding AS Page 22 HDS System Overview Nautic Insight – for both fishing and safe navigation Nantucket Sound, off Massachusetts Contour shading is available down to 0.5mi range and around 30nm offshore
23
Company Confidential © 2008 Navico Holding AS Page 23 HDS System Overview Navionics TurboView® TurboView is a Navionics application that will debut exclusive to Navico in Feb 2009* TurboView is a seamless 2D / 3D viewer, similar to Navnet 3D Supported cartography (via SD card): All HDS multifunction products will support Navionics cartography * Units shipped before Feb 2009 will require a software upgrade for TurboView
24

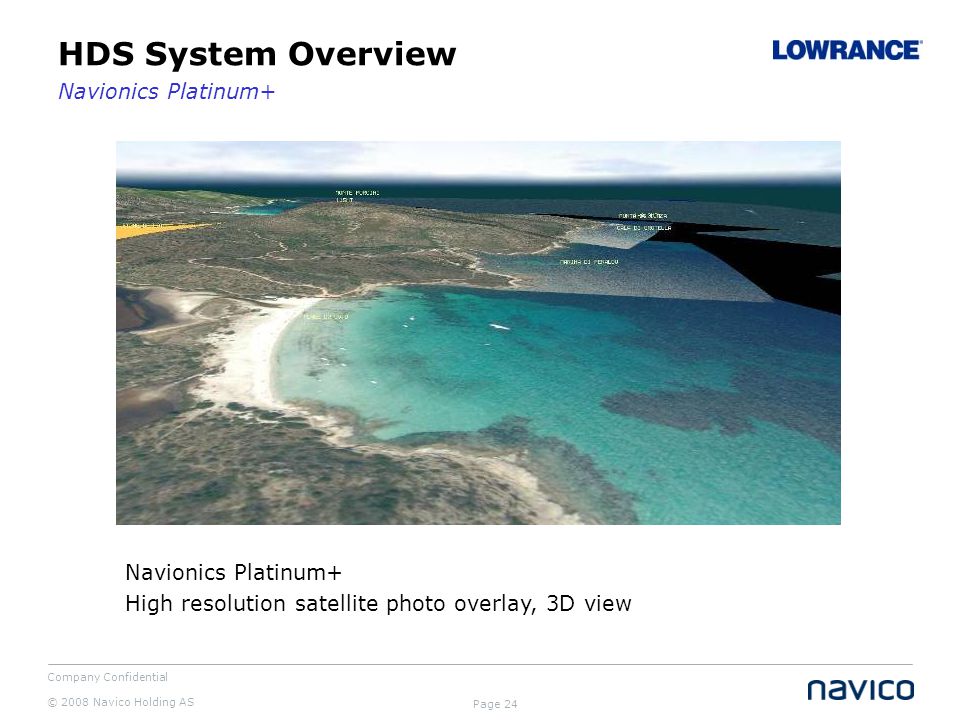

Company Confidential © 2008 Navico Holding AS Page 24 HDS System Overview Navionics Platinum+ High resolution satellite photo overlay, 3D view
25
Company Confidential © 2008 Navico Holding AS Page 25 HDS System Overview Transducer Range Reference Part NumberProductDescription 000-0106-71HS-WSBL83/200kHz transom-mount depth-only skimmer® 000-0106-72HST-WSBL83/200kHz transom-mount skimmer® with built-in temperature sensor 000-0106-73PD-WBL83/200kHz shoot-thru or trolling-motor mount depth only skimmer® 000-0106-74PDT-WBL83/200kHz trolling-motor mount skimmer with built-in temperature sensor 000-0106-89PDRT-WBL83/200kHz trolling-motor mount skimmer with remote temperature sensor 000-0106-77HST-DFSBL50/200kHz transom-mount skimmer with built-in temperature sensor 000-0136-02P31950/200kHz plastic thru-hull depth/temp transducer 000-0136-03P7950/200kHz in-hull depth only transducer 000-0136-04B60 12 degree50/200kHz bronze thru-hull 12deg tilted element depth/temp transducer 000-0136-05B744V w/FB50/200kHz bronze thru-hull DST triducer w/high performance fairing block 000-0136-06B164 12 degree50/200kHz 1kW bronze thru-hull 12deg tilted element depth/temp transducer 000-0136-00B258 w/FK50/200kHz 1kW bronze thru-hull depth/temp transducer w/high speed fairing kit 000-0106-82B260 w/FK50/200kHz 1kW bronze thru-hull depth transducer w/high speed fairing kit 000-0106-91M26050/200kHz 1kW in-hull tank depth-only transducer Note: This is not an exhaustive list of compatible transducers. Other transducers may require adapter cables.
26
Company Confidential © 2008 Navico Holding AS Page 26 HDS System Overview Data Display Data in HDS is displayed either using the Data Overlay feature or the Info panel – Data Overlay allows any item on the system to be placed anywhere on any page, displayed as either an analog gauge or digital value – The Info panel can be used for full screen fuel or engine management Data is sourced from either internal or serially connected sensors (including NMEA 0183), NMEA 2000, or Ethernet networks
27
Company Confidential © 2008 Navico Holding AS Page 27 HDS System Overview NMEA 2000 and Ethernet Networking HDS supports NMEA 2000 (LowranceNET) and Lowrance Ethernet NMEA 2000 is a lower cost, lower speed, high reliability industry standard used for lower cost sensors and interconnection between manufacturers. – High reliability for engine management applications – Requires independent power so a start-up cost is involved in setting up a network – Network layout rules must be observed – Once a customer has installed the starter kit, additional sensors can be added easily Ethernet is higher speed and higher bandwidth. Marine Ethernet networks are proprietary. – Allows high bandwidth system components to network – Simple network layout – HDS supports full sharing of sonar, radar, weather and radio, waypoints / routes / trails (not charts), and some sensors and alarms – Old-style NMEA 2000 waypoint sharing is still supported
28
Company Confidential © 2008 Navico Holding AS Page 28 HDS System Overview NMEA 2000 networking with HDS has a simplified network design. – Network power is no longer supplied by the head unit. Existing PC- 27BL power cables will work, but will not power a network – A new starter kit containing power cable, terminators and other components is required to start building a network – Connection of an additional head unit requires purchase of a T-junction and drop cable of appropriate length – Power node N2K-PWR-RD can be purchased to power a retrofit network previously powered from a head unit Ethernet networking is unchanged. – One yellow connector is available on each display – Simple connection of two head units can be accomplished with an ethernet cable – Connection of additional components or multiple displays requires Navico Expansion Port NEP-1 Changes from LMS / LCX / Globalmap
29
Company Confidential © 2008 Navico Holding AS Page 29 HDS System Overview NMEA 2000 networking with HDS is easier to sell. – There is only one supported network layout – A new starter kit containing power cable, terminators and other components is required to start building a network (unless pre- installed) – Connection of an additional head unit requires purchase of a T-junction and drop cable of appropriate length – Power node N2K-PWR-RD can be purchased to power a retrofit network previously powered from a head unit Ethernet networking is unchanged. Networking
30
Company Confidential © 2008 Navico Holding AS Page 30 HDS System Overview Available NMEA 2000 Sensor Accessories Part NumberProductNotes 000-0125-28LGC-4000 GPS antenna5Hz update rate external antenna for more accurate positioning – HDS internal antenna updates at 1Hz 000-0125-31LGC-4000 Baja GPS antennaLGC-4000 variant for use in off-road racing applications 000-0120-39EP-60R Fuel flow sensorSingle gasoline fuel flow sensor 000-0120-41EP-65R Fluid level sensorFluid level sensor for fuel or other tank level 000-0120-49EP-70R Paddlewheel speed sensorBoat-speed sensor for accurate speed when trolling or tracking speed through the water 000-0120-51EP-80R Temperature sensorTemperature sensor for transom-mount water temp. or livewell / baitwell / cabin / engine temp. monitoring 000-0120-53EP-80R TH Temperature sensorThru-hull mount variant of EP-80R 000-0120-29EP-90R Pressure sensorPressure sensor for water or other fluid pressure monitoring 000-0120-62Evinrude Engine Interface cableConnects to compatible Evinrude NMEA 2000 compliant engines for engine management 000-0120-55Suzuki Engine Interface cableConnects to compatible Suzuki NMEA 2000 compliant engines for engine management 000-0120-37Yamaha Engine Interface cableConnects to compatible Yamaha NMEA 2000 compliant engines for engine management 000-0120-73EP-85R Storage deviceTracks fuel used and enables fuel range to be calculated on NMEA 2000 compliant engines other than Suzuki Note: This is not an exhaustive list of NMEA 2000 functionality. Other functions including link to Bennett trim tabs are available
31
Company Confidential © 2008 Navico Holding AS Page 31 HDS System Overview HD Digital Radar HDS is compatible with the LRA-1800 and LRA-2400 HD Digital Radomes; it is not compatible with older LRA domes or scanners Connection is via ethernet enabling fully networked high performance digital radar New part numbers contain the correct cabling for HDS systems: Radar overlay on chart will be available Feb 2009 and will require a compatible heading sensor 000-0102-38LRA-18002kW HD Digital Radome 000-0102-39LRA-24004kW HD Digital Radome 22090187FC40SIMRAD Fluxgate Compass* 22090195RC42SIMRAD Rate Gyro Fluxgate Compass* * Requires SimNet to NMEA 2000 adapter cable
32
Company Confidential © 2008 Navico Holding AS Page 32 HDS System Overview AIS, DSC, Autopilot Integration AIS is supported via serial (NMEA 0183) or NMEA 2000 in the case of the Simrad AI50 / NAIS300 DSC output is supported via NMEA 0183 or NMEA 2000 in the case of the LVR-880 Buddy tracking will be added via software upgrade in Feb 2009 Autopilot output is supported via NMEA 0183 or NMEA 2000
33
Company Confidential © 2008 Navico Holding AS Page 33 HDS System Overview High Level System Diagram NMEA 2000 Autopilot Heading For pilot or for Chart/radar overlay VHF DSC including “Track your Buddy” Electronic Probes Environmental sensors and Fuel management Engine Management Suzuki, Yamaha, Evinrude, Honda AIS Weather And satellite radio HD Digital Radar 2-4kW Cartography Internal and 3 rd party GPS Internal or external Network Components shared for control and lower system cost, backwards compatible with current products Ethernet
34
Company Confidential © 2008 Navico Holding AS Page 34 HDS System Overview Example System Configurations - Bass Boat HDS-5 with Lake Insight on bow Connected to trolling motor mount skimmer HDS-10 with Lake Insight at helm Connected to transom mount skimmer LWX-1 on transom NEP-1 sharing sonar, weather/radio and waypoints via Ethernet NMEA 2000 network connecting HDS displays to LMF-400 gauge and livewell temperature probe Gasoline fuel sensor Temp LMF-400
35
Company Confidential © 2008 Navico Holding AS Page 35 HDS System Overview Example System Configurations – Center Console Dual HDS-8 at helm, One connected to transom mount skimmer LWX-1 and LRA-1800 on canopy NEP-1 sharing sonar, weather, radio, radar and navigation data via Ethernet NMEA 2000 network connecting HDS displays to NMEA 2000 compliant engine for engine management, and SIMRAD autopilot with rate compass
36
Company Confidential © 2008 Navico Holding AS Page 36 Agenda/Content Lowrance – HDS High Definition System series – LWX-1 Sirius smart weather/audio ethernet module – LGC-4000 high sens NMEA2000 5 Hz external GPS antenna – LHR-80 handheld VHF with GPS/DSC Eagle – Cuda 300/300P, Cuda 350i, FishEasy 350c/350cP – FishMark/SeaFinder/FishElite 640c, FishElite/SeaCharter/Intellimap 642c – EGC-16W high sens serial external GPS antenna
37

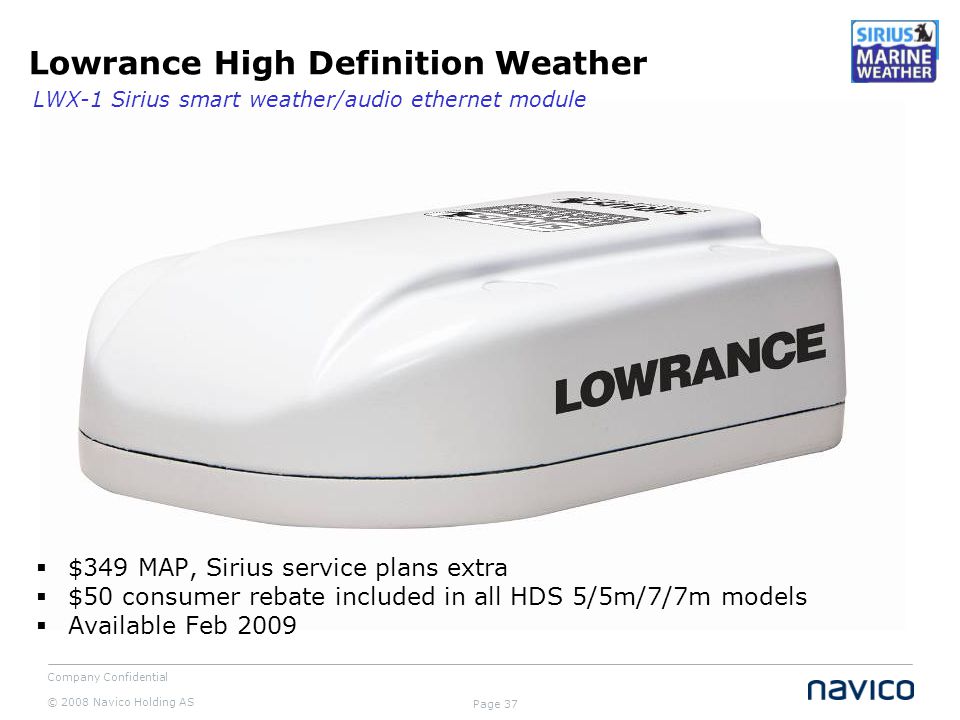

Company Confidential © 2008 Navico Holding AS Page 37 Lowrance High Definition Weather LWX-1 Sirius smart weather/audio ethernet module $349 MAP, Sirius service plans extra $50 consumer rebate included in all HDS 5/5m/7/7m models Available Feb 2009
38
Company Confidential © 2008 Navico Holding AS Page 38 Value proposition: – See the best current and future weather in real-time and in high- resolution on the HDS display. Hear sports and music in high quality digital stereo. All in a complete, surprisingly and affordable smart antenna module package. USPs: 1. LWX-1 module provides high resolution graphical weather information including 2km resolution weather radar and sea- surface temperature, and control of over 120+ high quality stereo radio channels including exclusive NASCAR, NFL, college football 2. Sirius service tailored to your needs, with turnkey coastal weather and exclusive inland weather packages, a 120+ channel radio package, and optional 6/12 month subscription periods (Sirius subscription required, instructions included with product) 3. Attractive, compact and weatherproof antenna design for easy flush mounting to boat deck, with pedestal- or pole-mounting versatility, with internal memory that saves last data up to 30 minutes during power interruption or power off during refueling 4. Plug-and-play ethernet connection outputs weather to one or more HDS displays, with 3.5 mm high quality stereo audio jack interface to onboard sound system Lowrance High Definition Weather LWX-1 Sirius smart weather/audio ethernet module
39
Company Confidential © 2008 Navico Holding AS Page 39 Inland service package details, $12.99/mo (+ audio $6.99/mo) – Nowrad weather radar and lightning with full 2km resolution (no 7km compromise) 80nm radial weather shown from current position, except 12nm limit from coast – Lightning with same 80nm limit as above – Weather Watchbox – Tabular Weather feed (600 locations - 5 day forecast) Lowrance High Definition Weather Sirius Inland service package details
40
Company Confidential © 2008 Navico Holding AS Page 40 Lowrance High Definition Weather Offshore service package details, $29.99/mo (+ audio $6.99/mo) – US NOWrad and Canadian weather radar, lightning, tropical storm and storm cell tracks – Sea surface temperature – Weather watchbox and tabular weather feed – Marine zone forecasts, warnings, observations, and buoy reports – Current to 4 day forecast data of surface pressure, wave height, wind, wave period and direction
41
Company Confidential © 2008 Navico Holding AS Page 41 Agenda/Content Lowrance – HDS High Definition System series – LWX-1 Sirius smart weather/audio ethernet module – LGC-4000 high sens NMEA2000 5 Hz external GPS antenna – LHR-80 handheld VHF with GPS/DSC Eagle – Cuda 300/300P, Cuda 350i, FishEasy 350c/350cP – FishMark/SeaFinder/FishElite 640c, FishElite/SeaCharter/Intellimap 642c – EGC-16W high sens serial external GPS antenna
42

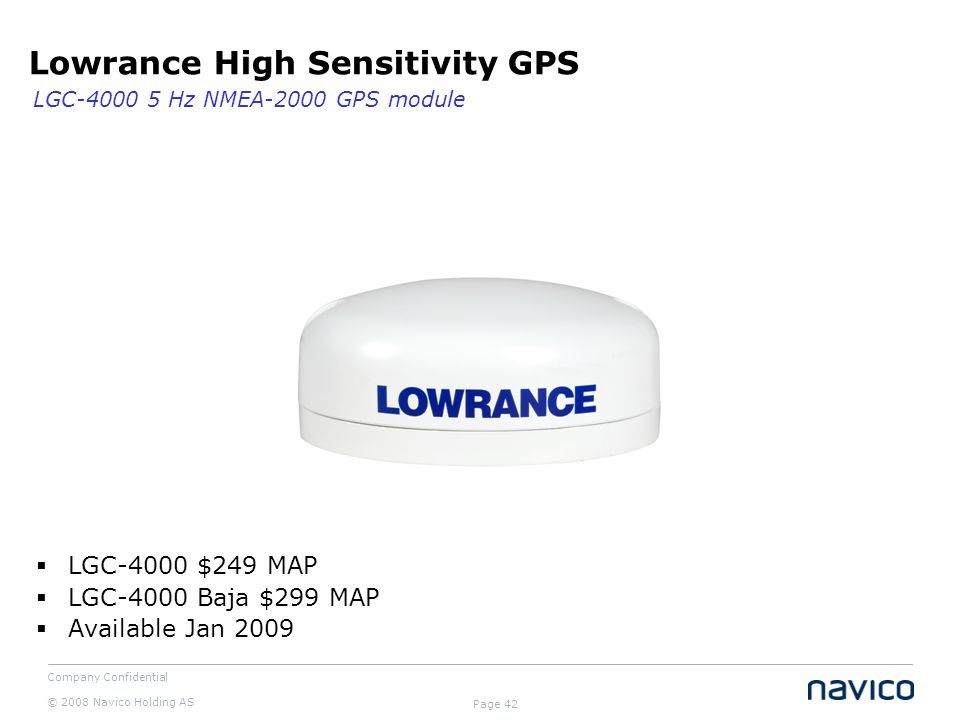

Company Confidential © 2008 Navico Holding AS Page 42 Lowrance High Sensitivity GPS LGC-4000 5 Hz NMEA-2000 GPS module LGC-4000 $249 MAP LGC-4000 Baja $299 MAP Available Jan 2009
43
Company Confidential © 2008 Navico Holding AS Page 43 Lowrance High Sensitivity GPS LGC-4000 5 Hz NMEA-2000 GPS module Value proposition: – Waterproof WAAS enabled 16 channel GPS antenna with integrated 2’ NMEA2000 cable connector features high sensitivity receiver and 5Hz update rate for unprecedented combination of installation flexibility, precision and reliability. USPs: 1. High sensitivity receiver design provides quick time to first fix, strong signal lock and resistance to interference, quick re-acquisition time 2. True 5Hz (5 times per second) update rate provides more accurate acceleration/deceleration speed over ground and rate of turn measurement Industry standard 1 Hz; some competitors advertise 5-10Hz update; but they achieve this through repeating or averaging 1 Hz updates 3. The most compact design, it can be top mount installed eliminating the quick mount bracket
44
Company Confidential © 2008 Navico Holding AS Page 44 Agenda/Content Lowrance – HDS High Definition System series – LWX-1 Sirius smart weather/audio ethernet module – LGC-4000 high sens NMEA2000 5 Hz external GPS antenna – LHR-80 handheld VHF with GPS/DSC Eagle – Cuda 300/300P, Cuda 350i, FishEasy 350c/350cP – FishMark/SeaFinder/FishElite 640c, FishElite/SeaCharter/Intellimap 642c – EGC-16W high sens serial external GPS antenna
45
Company Confidential © 2008 Navico Holding AS Page 45 Lowrance Handheld VHF/GPS LHR-80 $199 MAP Available Jan 2009
46
Company Confidential © 2008 Navico Holding AS Page 46 Value proposition: – Feature packed floating waterproof 5/1W handheld VHF with GPS at a fantastic price – a ‘get-home-safe’ package or ‘poverty-pack’ USPs: 1. Best in class battery life (>8hrs) with 7.4v DC 1400mAh Lithium- polymer battery and rapid AC charger with onscreen charge gauge 2. Built in 12 channel GPS receiver provides MOB, trackplotter, great circle navigation, and 500 waypoints/200 trackpoints, and NMEA0183 LL output from charger base 3. DSC-SC101 functionality also enables unique Track Your Buddy™ and Get Buddy™ for up to 3 vessels Lowrance Handheld VHF/GPS LHR-80
47
Company Confidential © 2008 Navico Holding AS Page 47 Agenda/Content Lowrance – HDS High Definition System series – LWX-1 Sirius smart weather/audio ethernet module – LGC-4000 high sens NMEA2000 5 Hz external GPS antenna – LHR-80 handheld VHF with GPS/DSC Eagle – Cuda 300/300P, Cuda 350i, FishEasy 350c/350cP – FishMark/SeaFinder/FishElite 640c, FishElite/SeaCharter/Intellimap 642c – EGC-16W high sens serial external GPS antenna
48
Company Confidential © 2008 Navico Holding AS Page 48 New Cuda & FishEasy $79.00 RRP $199.00 RRP $199.00 RRP Portable $99.00 Portable $249.00 Available Jan-Feb 2009 Cuda 300 Cuda 350 FishEasy 350c
49
Company Confidential © 2008 Navico Holding AS Page 49 The new Eagle entry-level range is simple to use and provides better options at better pricing than the competition Cuda 300: High resolution 240x160 screen Upsell option 1: FishEasy 245 DS. (RRP $99) – Not being refreshed for 2009, but adds 83kHz frequency especially useful for covering more water Upsell option 2: Cuda 350 S/MAP. – Mark fishing spots, use built-in shoreline maps to explore unfamiliar lakes, and record your trail to get back even in rain or fog Upsell option 3: FishEasy 350c. – Find fish in color. Unbeatable color price, for a fantastic transflective screen. New Cuda & FishEasy
50
Company Confidential © 2008 Navico Holding AS Page 50 Agenda/Content Lowrance – HDS High Definition System series – LWX-1 Sirius smart weather/audio ethernet module – LGC-4000 high sens NMEA2000 5 Hz external GPS antenna – LHR-80 handheld VHF with GPS/DSC Eagle – Cuda 300/300P, Cuda 350i, FishEasy 350c/350cP – FishMark/SeaFinder/FishElite 640c, FishElite/SeaCharter/Intellimap 642c – EGC-16W high sens serial external GPS antenna
51
Company Confidential © 2008 Navico Holding AS Page 51 Repositioned 5” VGA $370 RRP $500 RRP$550 MAP $450 MAP$500 RRP$450 MAP Obsolete 500c/502c model prices in 2008: $350 RRP$450 RRP$500 MAP $400 MAP$450 RRP400 MAP FishMark 640cFishElite 640cSeaCharter 642c SeaFinder 640c FishElite 642cIntelliMap 642c
52
Company Confidential © 2008 Navico Holding AS Page 52 As with the entry-level range the Eagle 5” range is now simplified and offers better-than-basic products at unbeatable prices Less lines for customers to stock and train store assistants on For fishing, the VGA screen means 640 vertical pixels with Lowrance quality sonar – FishElite 642c (VGA) with Fishing Hot Spots ?? For cruising, the VGA screens are clearer, and Nauticpath cards offer the best value, with Navionics Gold still supported – Compare the price on a 5” VGA Intellimap 642c or SeaCharter 642c with Nauticpath to a 4” QVGA Garmin. These products mean customers suffering the effects of a tough economy and looking to go fishing or cruising on a tight budget can save money with Navico products and still get a fully featured machine Repositioned 5” VGA
53
Company Confidential © 2008 Navico Holding AS Page 53 Agenda/Content Lowrance – HDS High Definition System series – LWX-1 Sirius smart weather/audio ethernet module – LGC-4000 high sens NMEA2000 5 Hz external GPS antenna – LHR-80 handheld VHF with GPS/DSC Eagle – Cuda 300/300P, Cuda 350i, FishEasy 350c/350cP – FishMark/SeaFinder/FishElite 640c, FishElite/SeaCharter/Intellimap 642c – EGC-16W high sens serial external GPS antenna
54
Company Confidential © 2008 Navico Holding AS Page 54 High sensitivity 16 channel antenna enhancement for Eagle GPS products: FishElite 480/640c/642c SeaCharter 642c Intellimap 642c Eagle High Sensitivity GPS EGC-16W GPS module EGC-16W accessory $179 RRP, available Jan 2009 Included with displays Feb 2009
