1
**Chapter 5 Projectile motion**

2
**Chapter 4: straight line motion that was ONLY vertical or ONLY horizontal motion**

3
**Chapter 5: considers motion that follows a diagonal path or a curved path**

4
**When you throw a baseball, the trajectory is a curved path.**

5
**We are going to separate the motion of a projectile into independent x and y motions**

6
**The vertical motion is not affected by the horizontal motion**

The vertical motion is not affected by the horizontal motion. And the horizontal motion is not affected by the vertical motion.

7
Observe: a large ball bearing is dropped at the same time as a second ball bearing is fired horizontally.

8
What happened?

9
**Remember adding 2 perpendicular vectors horizontal and vertical vectors.**

10
**When we add perpendicular vectors we use Pythagorean theorem to find the resultant.**

11
**Consider a vector B that is pointed at an angle q wrt horizontal direction.**

12
**We are going to break vector B into 2 perpendicular vectors: Bx and By**

15
**if you ADD vectors Bx + By you get vector B.**

17
**Graphically, we can say:**

18
**Draw a rectangle with vector B as the diagonal**

Draw a rectangle with vector B as the diagonal. the component vectors Bx and By are the sides of the rectangle

21
Application:

22
A Boat in a river

23
**How can we describe the motion of a boat in a river?**

24
**The motion is affected by the motor of the boat and by the current of the river**

25
**Imagine a river 120 meters wide with a current of 8 m/sec.**

26
**Imagine a river 120 meters wide with a current of 8 m/sec.**

27
**If a boat is placed in the river [motor is off] , how fast will the boat drift downstream?**

28
**If the boat is drifting, the total speed of the boat just equals the speed of the current.**

29
**for a boat drifting with the current: Vtotal = Vboat + Vcurrent Vtotal = -0 + Vcurrent = 8 m/sec**

30
**Now suppose this boat can travel at a constant 15 m/sec when the motor is on .**

31
**What is the total speed of the boat downstream when the motor is on?**

32
**The boat is traveling in the same direction as the current.**

33
**V total downstream = Vtotal = Vboat + Vcurrent Vtotal = 15↓ + 8↓ = 23 m/sec ↓**

34
**What is the total speed of the boat traveling upstream [against the current] ?**

35
**The boat and current now move in opposite directions**

36
**Vtotal = Vboat +Vcurrent Vtotal = 15 ↓+ ( 8 ↑) Vtotal = 7↓ m/sec**

37
**Summary: traveling downstream: Vboat + Vcurrent Traveling upstream: Vboat + [-Vcurrent]**

38
Crossing the river.

39
**If there was no current, how many seconds needed for this boat to travel 120 meters from A to B?**

41
**Velocity = distance time so time = distance velocity**

42
**time = distance velocity time = 120 m 15 m/sec time = 8 seconds**

43
**But there if IS a current**

But there if IS a current. what happens when you try to go straight across the river from A to B?

44
**The boat will travel from A to C.**

45
Every second the boat travels ACROSS 15 meters and AT THE SAME TIME every second the boat will be pushed DOWNSTREAm 8 meters by the current .

46
**Vboat = 15 and Vcurrent = 8↓ These velocities are perpendicular**

47
**The RESULTANT velocity of the boat is**

48
Vresultant2 = Vboat2 + Vcurrent2 Vresultant2 = Vresultant2 = =289 Vresultant = 17 m/sec

49
**The boat still crosses the river in 8 seconds , but it lands downstream at point C not at point B.**

51
**How far downstream is point C?**

52
**Since the boat travels for 8 seconds the current pushes the boat for 8 seconds Vcurrent = 8 m/sec**

53
Velocity = distance/time so Distance = Velocity• time Distance = 8 m/sec • 8 sec distance downstream = 64 meters

54
**What is the total distance the boat travels? D2 = Dx2 + Dy2**

55
D2 = D2 = D2 = D = 136 meters

58
**The triangles are similar:**

59
REMEMBER Every second the boat travels 15 meter across in the x direction IT ALSO TRAVELS 8 meter in the y direction

60
**What if you want to travel from point A to point B? Can you do that?**

61
**You can cross from A to B if you point the boat in the correct direction.**

63
Remember: Two perpendicular vectors can be added to produce a single resultant vector that is pointed in a specific direction.

65
SIMILARLY ANY vector at angle q can be broken into the sum of two perpendicular vectors: one vector only in x direction and one vector only in y direction.

66
**The magnitude of the component vectors is given by Vx = Vocosq Vy = Vosinq**

67
If you want to travel from A to B, you must direct the boat so that the “y component” of the boat’s velocity cancels the velocity of the current.

70
**Point the boat so that the component of the boat’s velocity “cancels” the river**

71
**Choose VboatY so that it is equal and opposite to the Vcurrent**

72
**VboatX = Vboatcosq VboatY = Vboatsinq**

73
**How do we find angle q, the direction to point the boat?**

74
Use arcsin or arctan

75
**arcsin = sin-1 Arcsine means “ the angle whose sine is” : Sin-1 [VboatY/Vboat] = q**

76
**Arctan = Tan-1 Arctan means “ the angle whose tangent is”**

77
**Arctan = Tan-1 Arctan means “ the angle whose tangent is” tan-1[Vboaty/Vboatx] = q**

78
Remember

80
PROJECTILE MOTION

81
Projectile motion: A projectile that has horizontal motion has a parabolic trajectory We can separate the trajectory into x motion and y motion.

82
**In the x direction: constant velocity Vx = constant distance in x direction X = Vx • t**

83
**In y direction: free fall = constant acceleration**

In y direction: free fall = constant acceleration. Velocity in y direction : V = Vo – g t Distance in y direction Y = Yo + Vot – ½ g t2

84
**The range of a projectile is the maximum horizontal distance.**

85
**Range and maximum height depend on the initial elevation angle.**

86
**If you throw a projectile straight up, the range = 0 height is maximum**

If you throw a projectile straight up, the range = 0 height is maximum. 0 degrees : the minimum range but the maximum height.

87
**The maximum range occurs at elevation 45o**

88
**And for complementary angles 40 and 50 degrees 30 and 60 degrees 15 and 75 degrees 10 and 80 degrees**

89
The range is identical for complementary angles BUT the larger elevation angle gives a greater maximum height.

91
Remember:

92
For a horizontal launch: Vo = initial horizontal velocity 0 = initial vertical velocity in x direction: velocity is constant in y direction: acceleration is constant

93
If one object is fired horizontally at the same time as a second object is dropped from the same height, which one hits the ground first?

94
Horizontal launch: in x [horizontal] direction velocity is constant Vx = Vo acceleration = 0 range = Vo • t [t = total time ]

95
**Horizontal launch: In y direction: projectile is free falling**

Horizontal launch: In y direction: projectile is free falling. Voy = 0 Acceleration = g = 10 m/sec2↓ V = gt ↓ d = ½ gt2

96
**Projectile motion lab: part 1**

98
**Part 1: determine the velocity Vo of the projectile.**

100

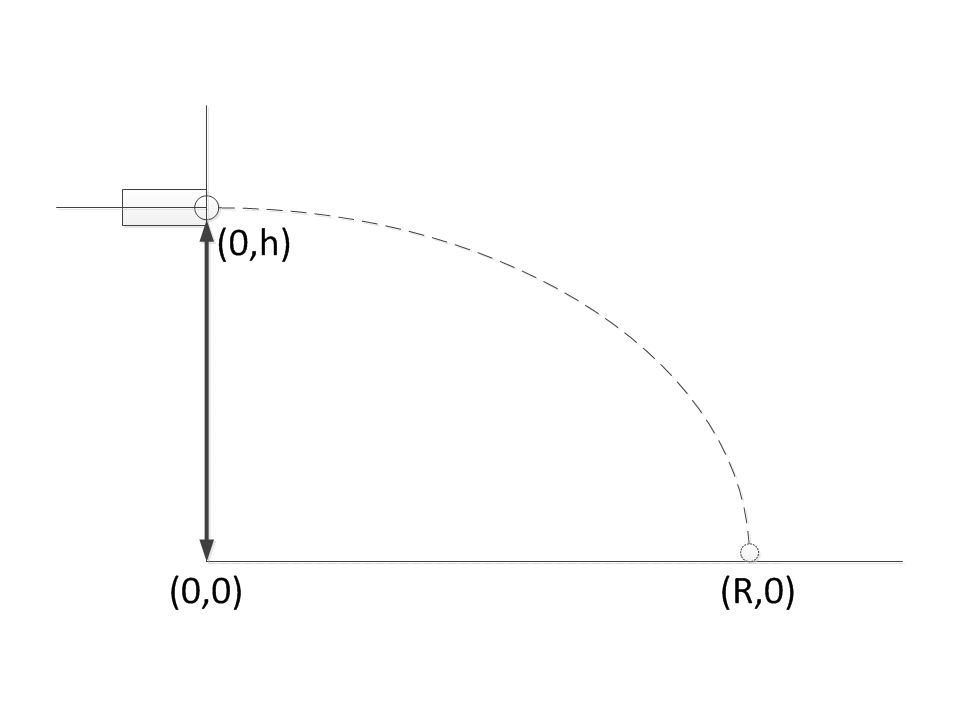

**Projectile: - fired horizontally from height h**

Projectile: - fired horizontally from height h. - follows parabolic path - Range R is where projectile hits the floor.

102
**Equations: in y direction Voy = 0 g = constant acceleration distance h = ½ gt2**

103
**Equations in x-direction acceleration = 0 [constant velocity] V= Vo Range R = Vo ▪ t**

104
**Part 1: fire projectile horizontally. Measure all distances in METERS**

Part 1: fire projectile horizontally. Measure all distances in METERS. Measure starting height , h. Measure range R.

105
Part I Calculations:

106
**distance h = ½ gt2 measure h [ in METERS] use g = 10 m/sec2**

107
**solve equation to find t [ in seconds ] distance h = ½ gt2 h= 5 t 2**

108
**Measure value for R, the range in x direction in METERS**

109
**Use equation: R = Vo ∙ t use measured value of R and calculated value for T**

110
**Example: A projectile is fired horizontally from a table that is 2**

Example: A projectile is fired horizontally from a table that is 2.0 meters tall. The projectile strikes the ground 3.6 meters from the edge of the table.

112
**Given: H = 2.0 meters R = 3.6 meters**

113
h = ½ g t2 R = Vo t

114
h = ½ g t = ½ [10] t2

115
2.0 = ½ [10] t2 2.0 = 5 t2 2/5 = 0.40 = t2

116
t = 0.63 sec

117
**For equation: R = Vo t use R = 3.6 m and t = 0.63 sec**

118
**R = 3.6 m = Vo [.63 sec] Vo = 3.6 m 0.63 sec Vo = 5.7 m/sec**

119
**The height of a projectile at any time along the path can be calculated.**

120

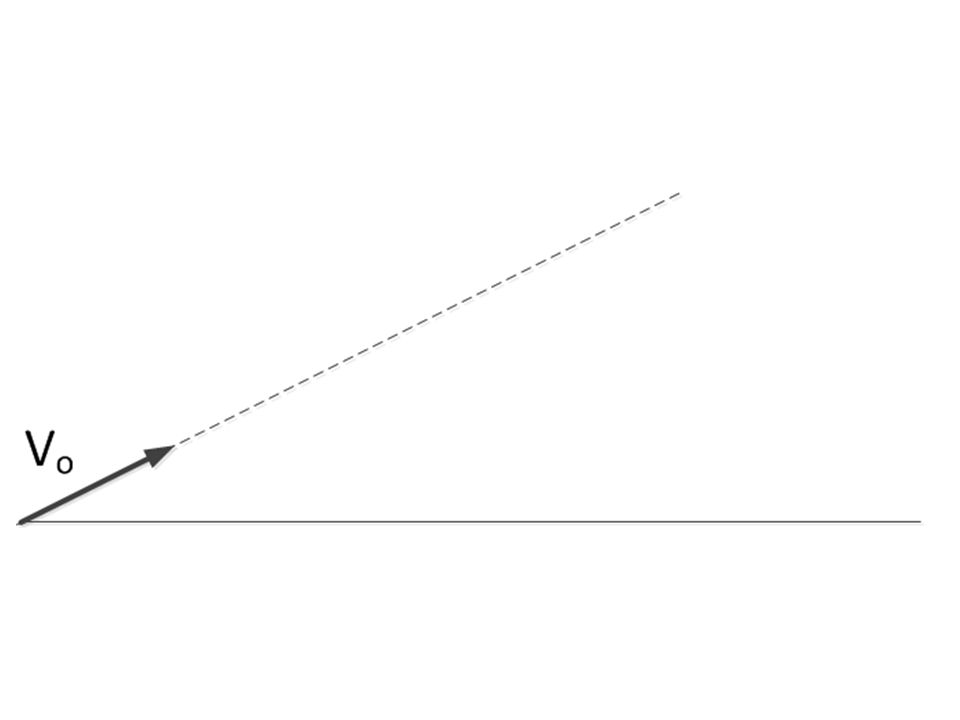

**First calculate the height if there was no gravity**

First calculate the height if there was no gravity. If that case, a projectile would follow a straight line path

122

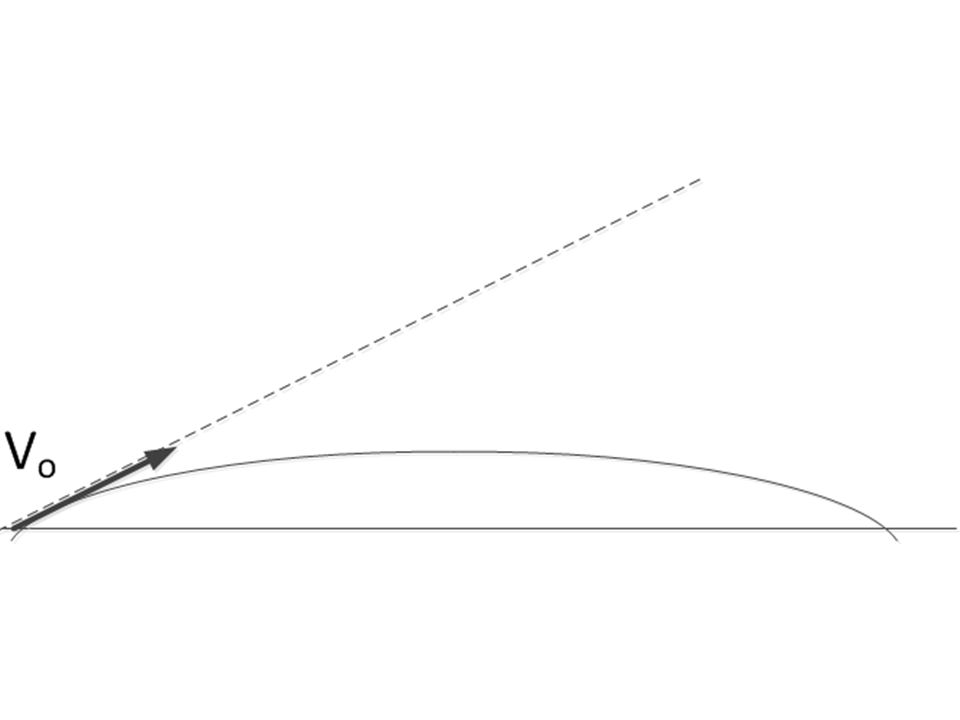

**the projectile is always a distance 5t2 below this line.**

124
Y = voy t – ½ gt2 Y = voy t – 5t2 i

125
summary

126
**Vectors have magnitude and direction Scalars have only magnitude**

127
The resultant of 2 perpendicular vectors is the diagonal of a rectangle that has the 2 vectors as the sides.

128
**The perpendicular components of a vector are independent of each other.**

129
The motion of a boat in a stream is the sum of a constant velocity of a boat [x dir] and the constant velocity of the stream [y dir]

130
**The path of a boat crossing a stream is diagonal**

131
The horizontal component of a projectile is constant, like a ball rolling on a surface with zero friction. Objects in motion remain in motion at constant speed.

132
**The vertical component of a projectile is same as for an object in free fall.**

133
**The vertical motion of a horizontally fired projectile is the same as free fall.**

134
For a projectile fired at an angle, the projectile will be 5t2 below where it would be if there was no gravity.
