2. Announcements CAPA Set #5 due Friday at 10 pm This week in Section  Assignment #3: Forces, Newton’s Laws, Free-Body Diagrams Print out and bring the assignment to your section… Complete reading all of Chapter 4

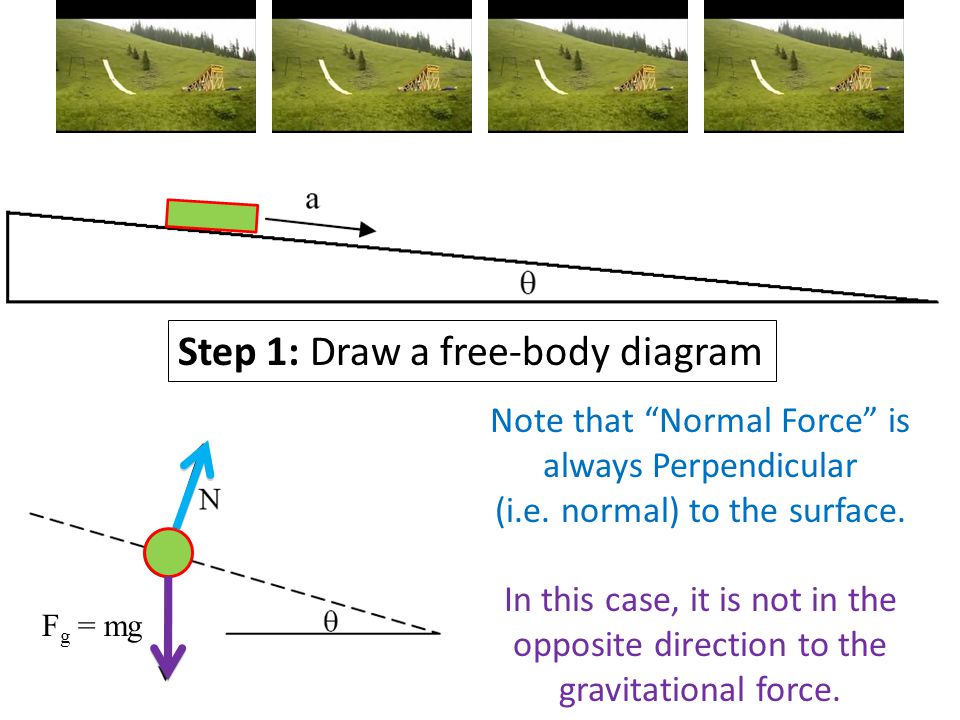

3. Step 1: Draw a free-body diagram F g = mg Note that “Normal Force” is always Perpendicular (i.e. normal) to the surface. In this case, it is not in the opposite direction to the gravitational force.

4. F g = mg x y We could choose our “usual” axes. However, we know that we will have motion in both the x and y directions. Step 2: Choose a coordinate system x y If we pick these rotated axes, we know that the acceleration along y must be zero.

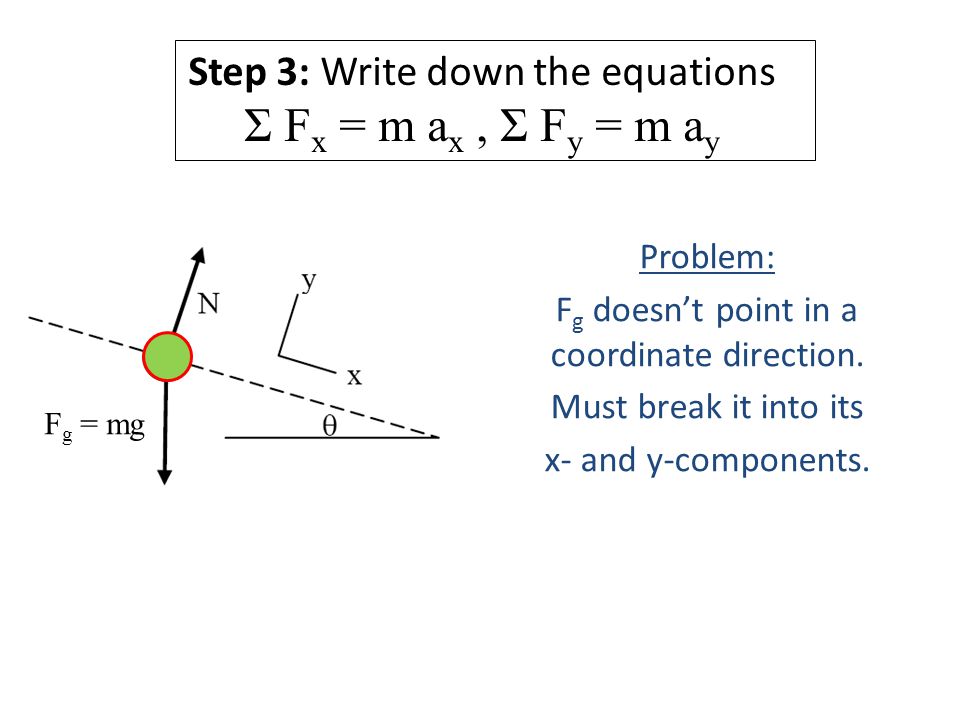

5. Step 3: Write down the equations Σ F x = m a x, Σ F y = m a y Problem: F g doesn’t point in a coordinate direction. Must break it into its x- and y-components. F g = mg

6. |F(gravity)| = mg F(gravity) y F(gravity) x Clicker Question Room Frequency BA What is the angle  labeled above?  = 90 degreesB)  =  C)  = 90 –  D) Cannot be determined  90 –  90

7. F g = mg Step 3: Write down the equations Σ F x = m a x, Σ F y = m a y N F x = mg sin(  ) F y = N – mg cos(  ) We also know that a y = 0, there is no motion in that direction. F y =ma y =0= N – mg cos(  )

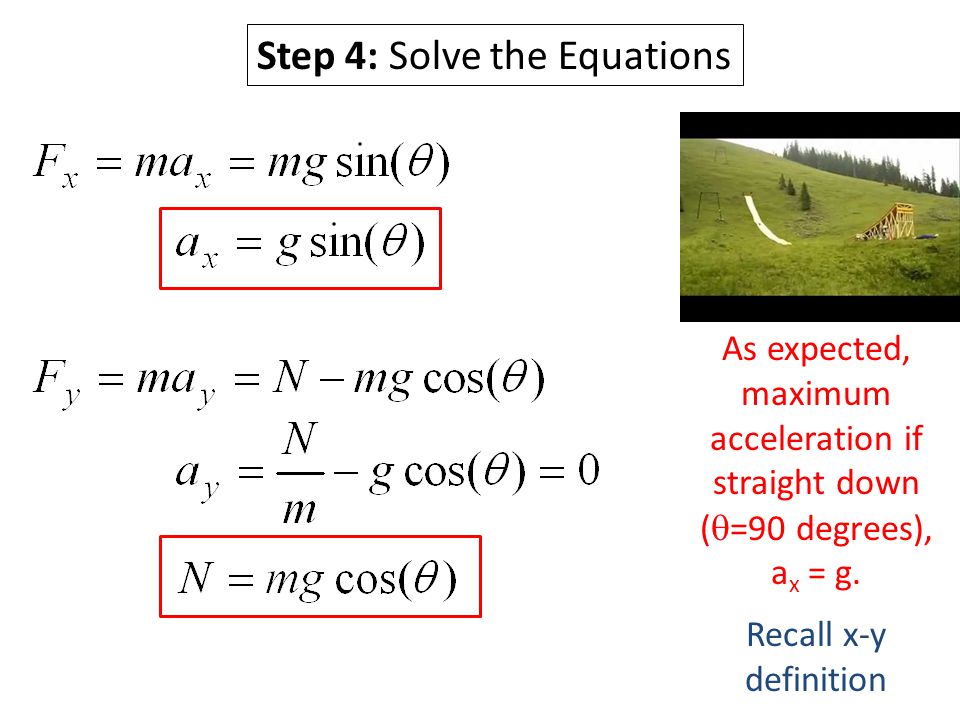

8. Step 4: Solve the Equations As expected, maximum acceleration if straight down (  =90 degrees), a x = g. Recall x-y definition

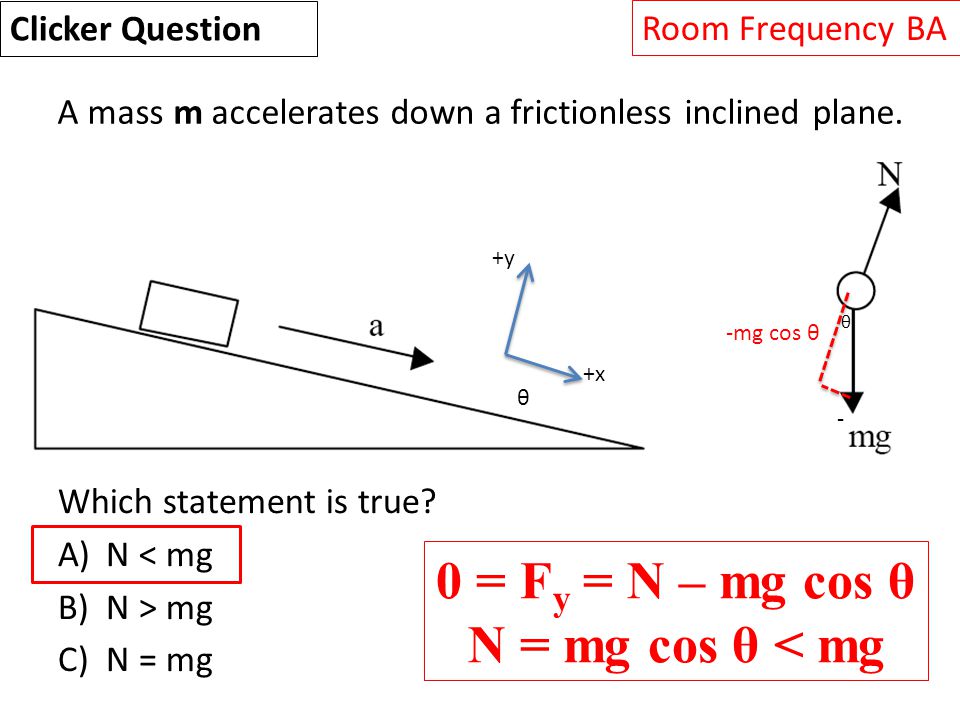

9. A mass m accelerates down a frictionless inclined plane. Which statement is true? A)N < mg B)N > mg C)N = mg +x +y θ θ -mg cos θ - 0 = F y = N – mg cos θ N = mg cos θ < mg Clicker Question Room Frequency BA

10. The driver of a car parked on a hill releases the brake and puts the car in neutral Let = normal force = force of gravity = acceleration of the car. Which of the following is true? Clicker Question Room Frequency BA

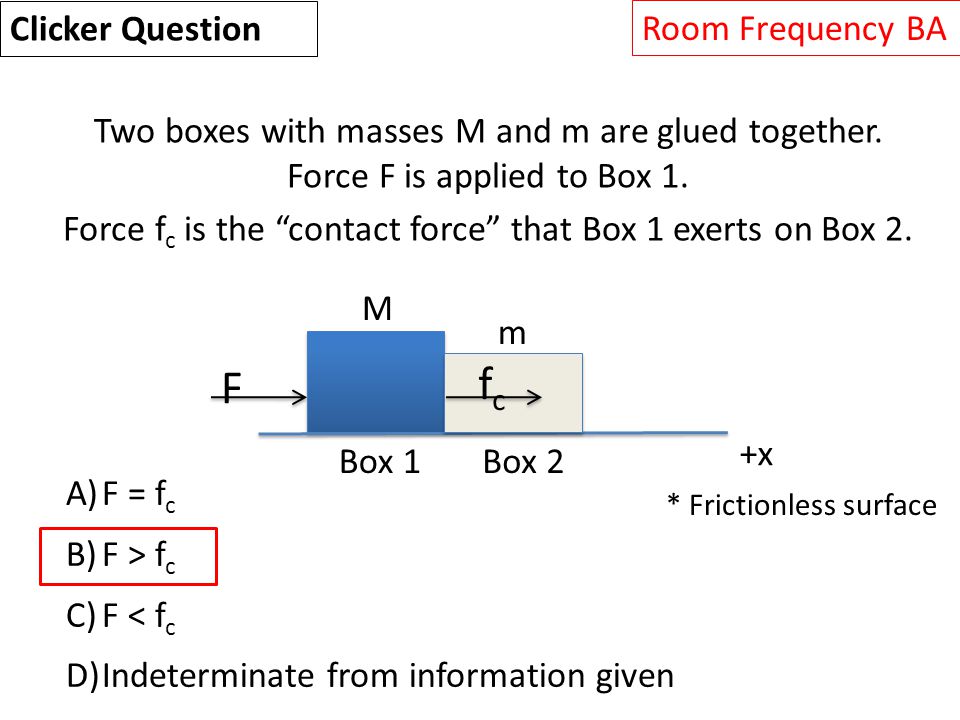

11. +x F fcfc m Two boxes with masses M and m are glued together. Force F is applied to Box 1. Force f c is the “contact force” that Box 1 exerts on Box 2. Box 1Box 2 A)F = f c B)F > f c C)F < f c D)Indeterminate from information given Clicker Question Room Frequency BA M * Frictionless surface

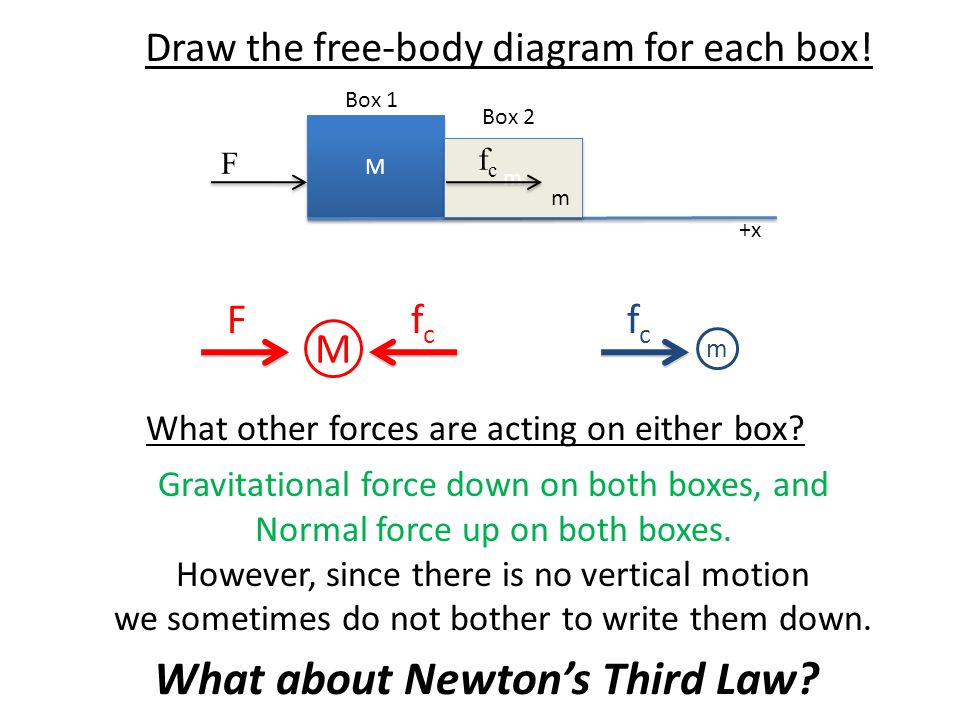

12. M M m m +x F fcfc m Box 1 Box 2 Draw the free-body diagram for each box! M m Ffcfc What other forces are acting on either box? Gravitational force down on both boxes, and Normal force up on both boxes. However, since there is no vertical motion we sometimes do not bother to write them down. What about Newton’s Third Law? fcfc

13. Apply Σ F x = ma. (ignore vertical forces, no vertical motion) M m Ffcfc fcfc F-f c = Ma M f c = ma m Since the boxes are fixed (glued) together  a M = a m a M =(F-f c )/Ma m =f c /m =

14. Assume Box 1 has a mass of 2 kg and Box 2 has a mass of 1 kg. If a force of 1 N is applied to Box 1, what is the contact force between the boxes? A)1 N B)½ N C)1/3 N D) 2 N E)3 N M M +x F fcfc m Box 1 Box 2 Clicker Question Room Frequency BA

15. Assume a force F is applied to Box 1 at an angle θ from the horizontal. What will be the equation for the contact force f c ? M M m m +x fcfc m Box 1 Box 2 θ Previous equation: The horizontal component of produces horizontal motion. F cosθ F sinθ Clicker Question Room Frequency BA
