1 Comparison of image compression algorithms ECE-533 Paula Aguilera

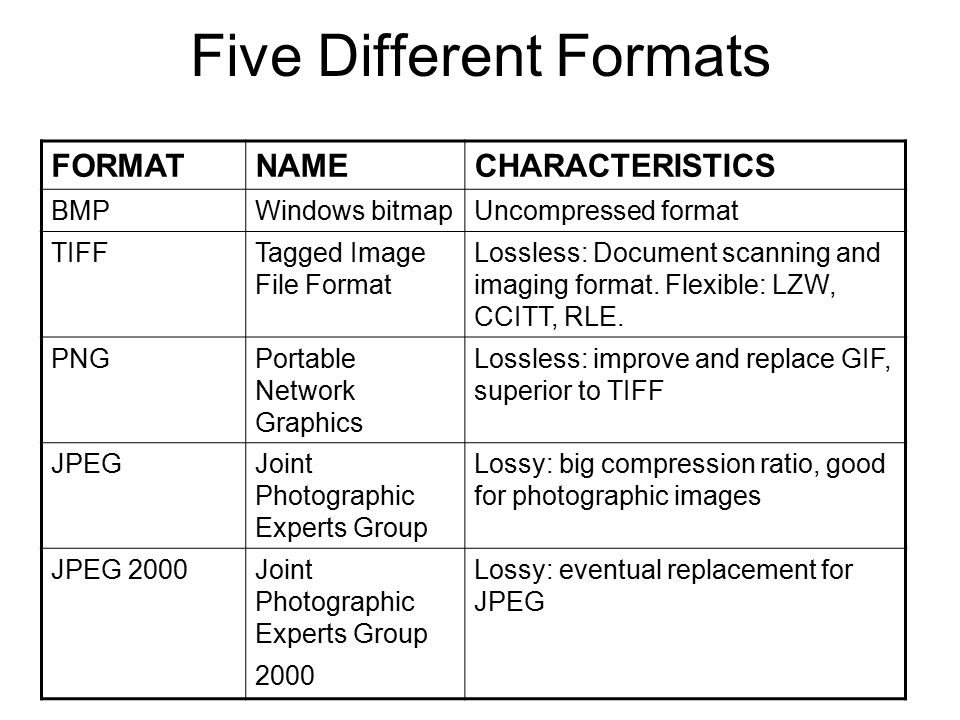

2 Five Different Formats FORMATNAMECHARACTERISTICS BMPWindows bitmapUncompressed format TIFFTagged Image File Format Lossless: Document scanning and imaging format. Flexible: LZW, CCITT, RLE. PNGPortable Network Graphics Lossless: improve and replace GIF, superior to TIFF JPEGJoint Photographic Experts Group Lossy: big compression ratio, good for photographic images JPEG 2000Joint Photographic Experts Group 2000 Lossy: eventual replacement for JPEG

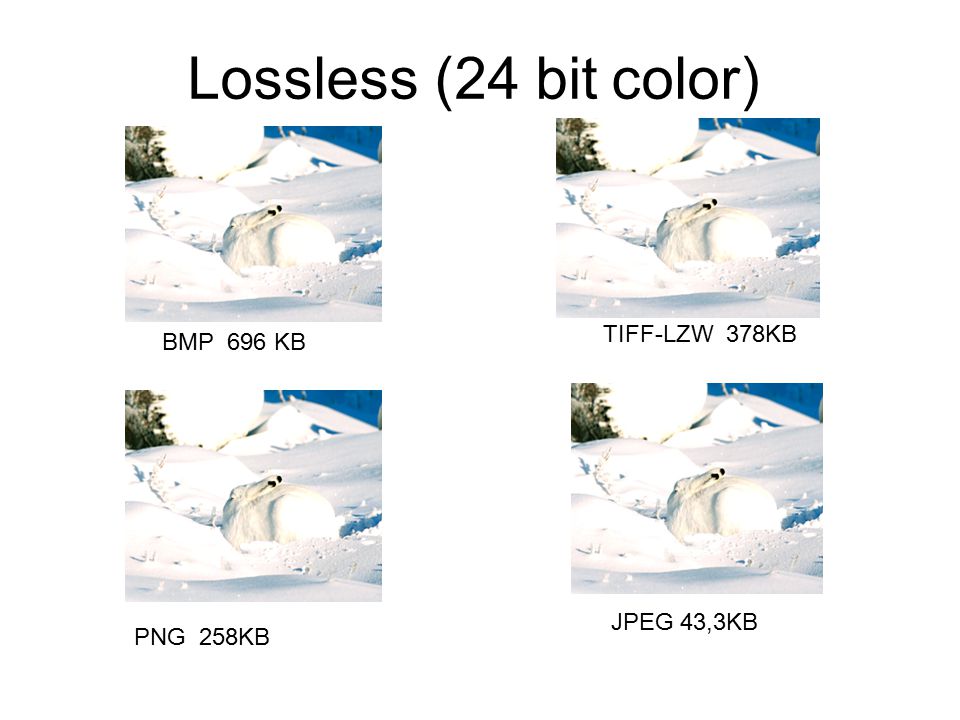

3 Lossless (24 bit color) BMP 696 KB TIFF-LZW 378KB PNG 258KB JPEG 43,3KB

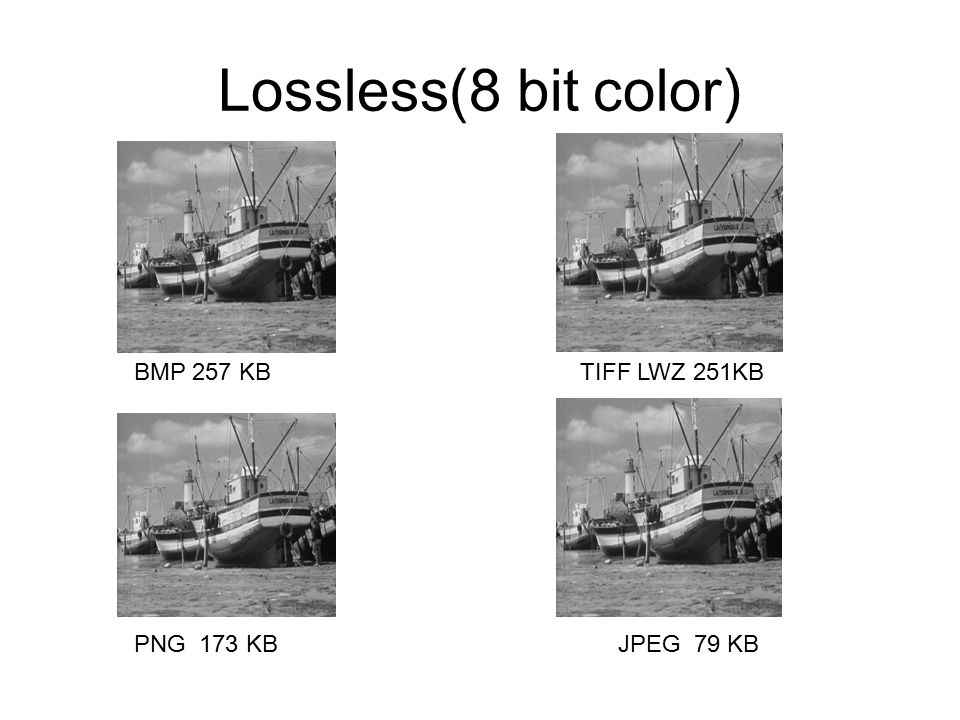

4 Lossless(8 bit color) BMP 257 KBTIFF LWZ 251KB PNG 173 KBJPEG 79 KB

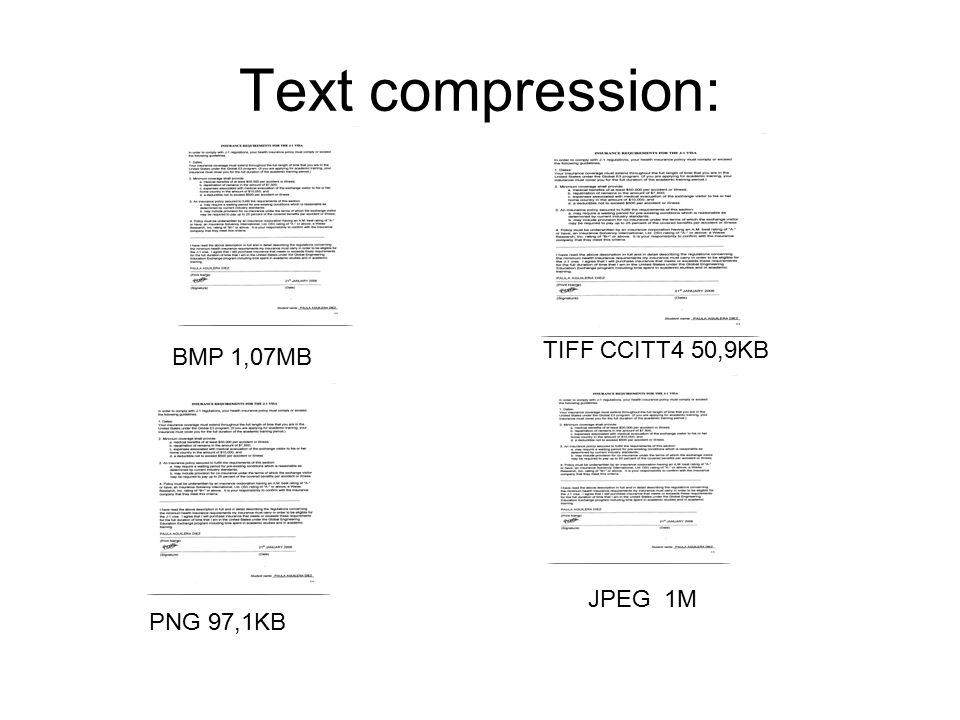

5 Text compression: BMP 1,07MB TIFF CCITT4 50,9KB PNG 97,1KB JPEG 1M

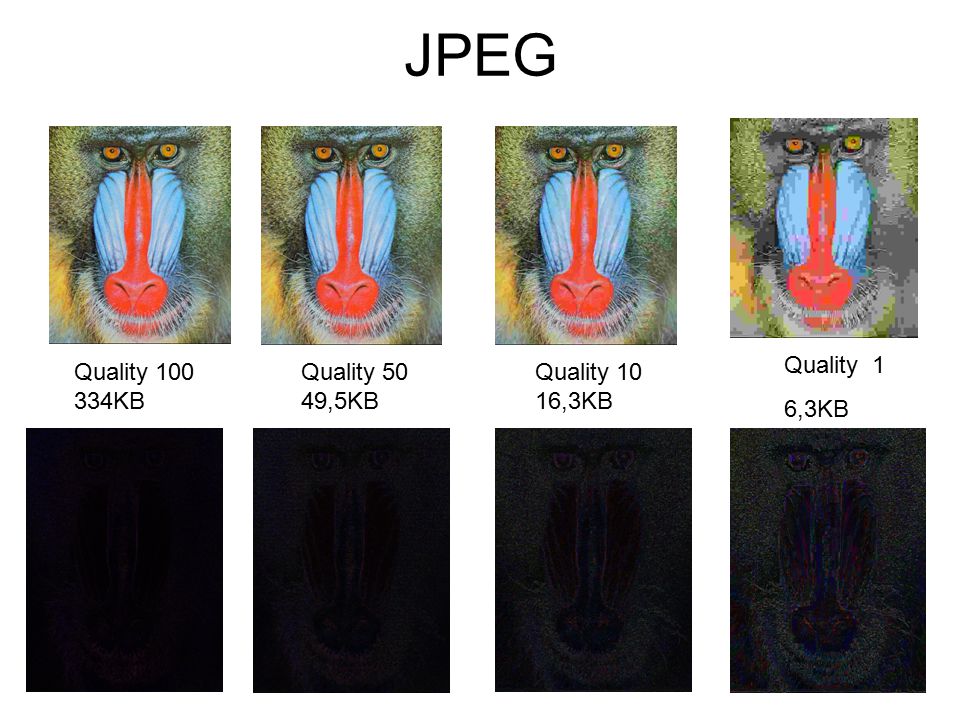

6 JPEG Quality 100 334KB Quality 50 49,5KB Quality 10 16,3KB Quality 1 6,3KB

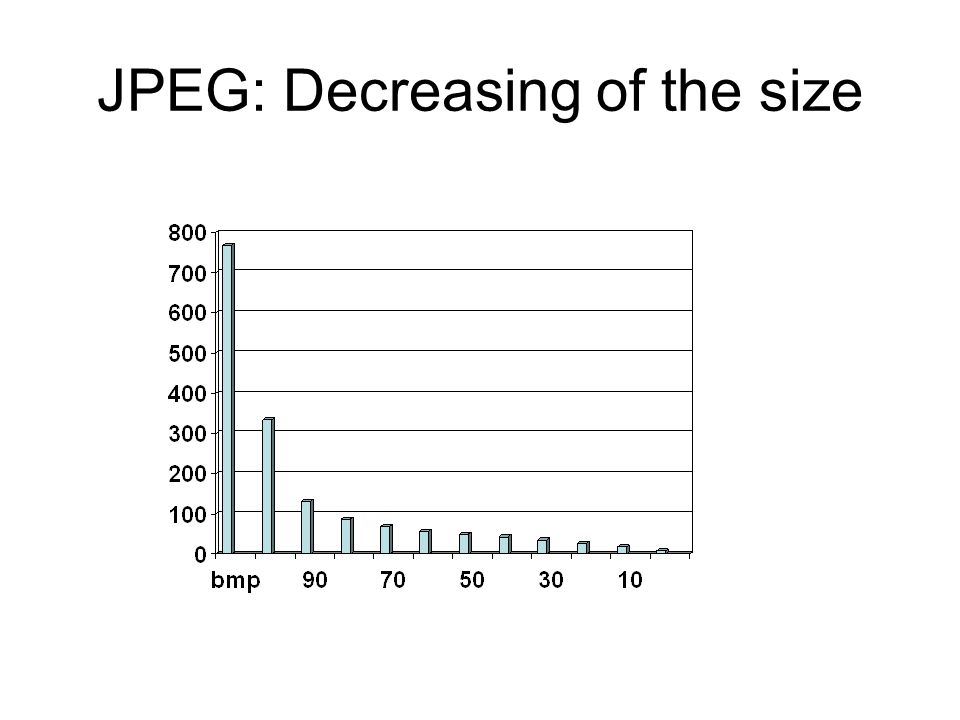

7 JPEG: Decreasing of the size

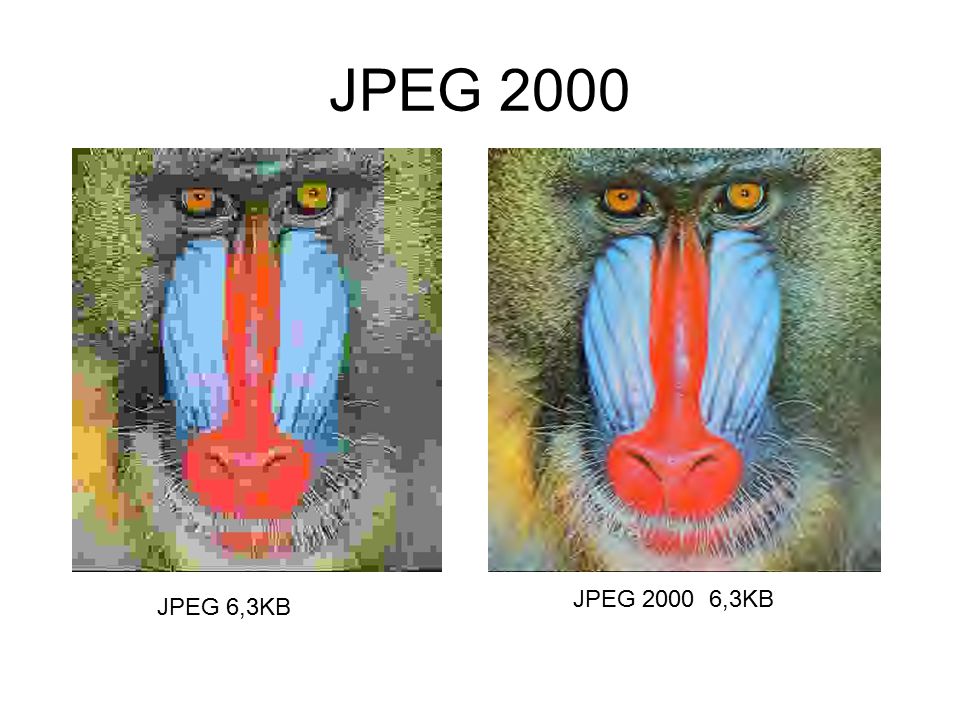

8 JPEG 2000 JPEG 2000 6,3KB JPEG 6,3KB

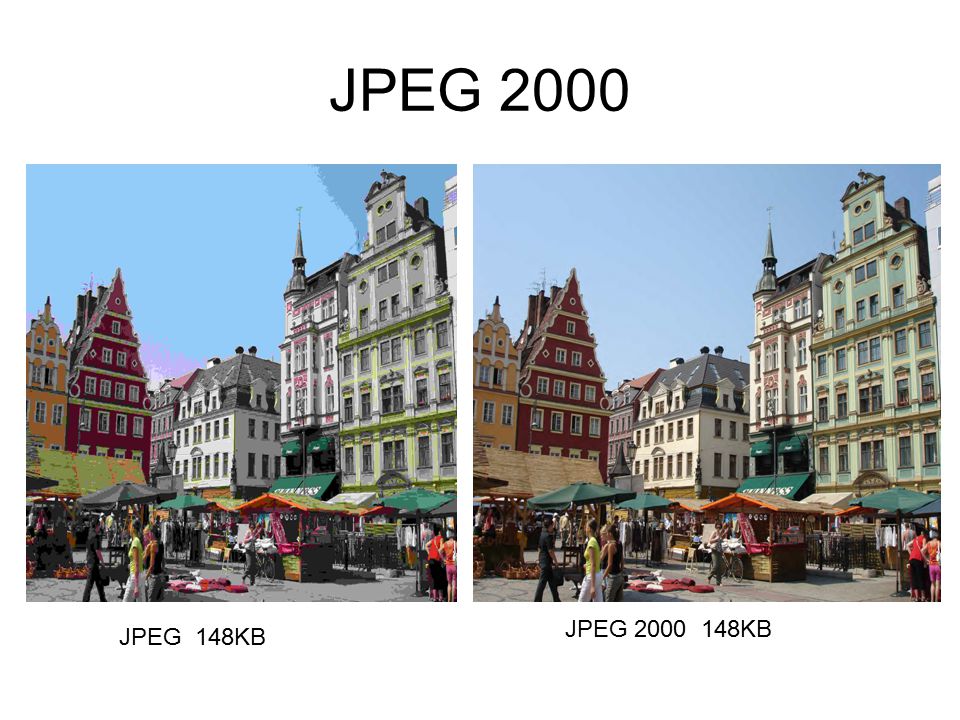

9 JPEG 2000 JPEG 148KB JPEG 2000 148KB
